USER MANUAL SS-10105 Sogo

Black-and-white photo of a hot pot dish with cooked seafood and shrimp, no visible text or symbols

Multicazuela Eléctrica con Tapa Cristal Electric Multi-Use Pan with Glass Lid Casserole électrique avec couvercle en verre Caçarola elétrica com tampa de cristal Multifunktion Electrische Pizza/Braten/Paella Pfanne Padella elettrica Pizza/Frittura/Paella Multifunzioni

Caution: please read and preserve these important instructions

Warning sign depicting steam rising inside a triangle, indicating hazardous or hazardous material.

Hand holding a cooking pot with a lid and handle, labeled (A), showing a hand pressing down with a black arrow indicating motion (no text or symbols on the diagram itself)

Illustration of a hand holding a plug to install three socket plates (no text or symbols present)

Line drawing of a cylindrical cooking pot with lid and side handles (no text or symbols)

escudo térmico

- Please read these instructions carefully before using the appliance.

- Check that your mains voltage corresponds to that stated on the appliance.

· Never leave the appliance unsupervised when in use. Keep out of reach of children or incapable persons.

· This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- From time to time check the appliance, cord and plug for damages. Never use the appliance if the appliance, cord or plug show any signs of damage.

- Avoid danger of tripping; do not allow the cord to hang down.

- Only use the appliance for domestic purposes and in the way indicated in these instructions.

· Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.

· Never touch the cord or plug with wet hands.

- Only use the unit on a heat-resistant surface. Never use the appliance near hot surfaces.

- Should the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.. Should you detect any errors

regarding the unit operation or the temperature regulator, please return the appliance to the electrician.

- Before cleaning, always unplug the appliance from the power supply. Ensure the appliance is fully dry before using again.

- All repairs should be made by a competent qualified electrician.

· 'Never use the appliance outside and always place it in a dry environment.

· Never use accessories that are not recommended by the manufacturer. They could constitute a danger to the user and risk to damage the appliance.

· Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.

- Do not overcharge the socket used with this unit with other electric appliances.

· Always use the temperature regulation unit supplied. Never use another one.

- Please take all safety measures to avoid the regulator from falling.

- Before plugging the unit to the power supply, ensure the regulator is in "0" position.

- Stand the appliance on a table or flat surface.

· Make sure the appliance has cooled down before cleaning and storing it.

- Only cook consumable food. Never place the following materials on the hot plate: paper, cardboard or plastic...

- It is absolutely necessary to keep this appliance clean at all times as it comes into contact with food.

• Make sure the cord never comes into contact with the hot parts of the appliance. Never touch the hot parts of the appliance in order not to get burnt.
  · During use, the hot plate can reach very high a temperature. Never touch these hot parts of the appliance. Always use gauntlets when handling the appliance and take it by the handles.
• Make sure the hot parts of the appliance never come into contact with inflammable materials, such as curtains, cloth, etc., when it is in use, as a fire might occur. Also, make sure not to cover the appliance and do not put anything on top of it.
• It is advised to place a heat resistant coating between your table and the appliance in order to avoid any burns.
• Be extremely cautious as oil and fat preparations might catch fire if overheated.
• Be careful not to scratch the special coating of the cooking plate, as you might get little pieces of this coating into the food and damage the surface. Use a classical wooden spatula or a heat resistant plastic one.
• This appliance cannot be used for grilling or roasting.
• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of

children aged less than 8 years.

- Do not use this appliance with a programmer, counter or another device which can automatically turn it on because if the appliance is covered or incorrectly positioned there is a danger of fire.

ATTENTION: DO NOT PLACE THE TEMPERATURE REGULATOR ON OR IN THE ELECTRIC PAN.

Warning symbol depicting steam rising inside a triangle, indicating hazard or thermal hazard.

When this symbol is used, it means "Caution: Hot surfaces"

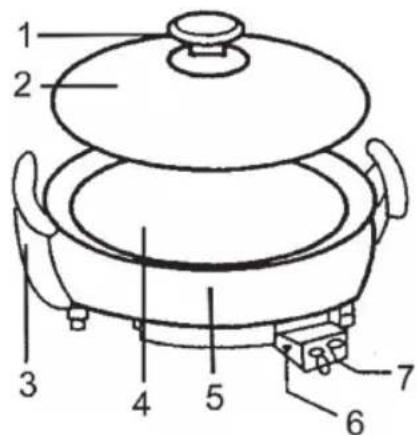

UNIT DESCRIPTION

1 2 3 4 5 6 7

1. Handle of lid
2. Glass lid
3. Hot Plate Handle (with heat shield)
4. Hot Plate
5. Pan exterior
6. Socket
7. Power socket

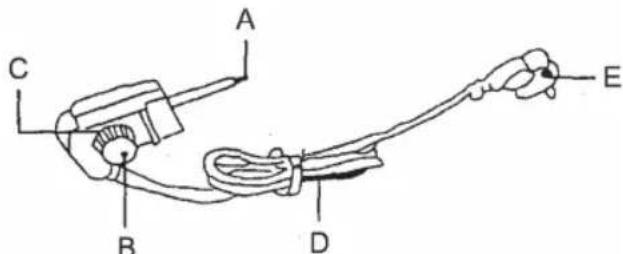

Diagram of a handheld device with labeled parts A, B, C, D, and E pointing to a terminal or connector.

A. Temperature sensor
B. Temperature regulator knob
C. Pilot light
D. Power cord
E. Plug

OPERATING INSTRUCTIONS

• Before using the appliance for the first time, clean the parts thoroughly (see cleaning section).

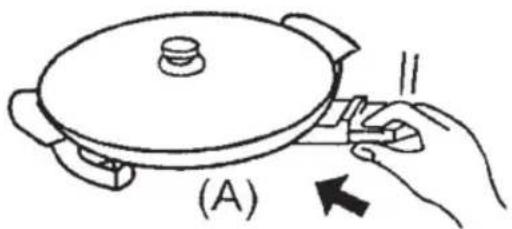

• Put the thermostat control in off position and insert the temperature regulation unit in the socket of the appliance.

Hand holding a cooking pot with a lid and a switch, labeled (A), with an arrow indicating rotation (no text or symbols on the diagram itself)

• Plug the unit into the power supply socket. Please ensure the voltage in your home corresponds to the unit voltage.
• It is normal if some smoke or smell emanates from the appliance when using it for the first time.

Illustration of a hand using a power plug to install three socket outlets into a wall (no text or symbols present)

· Turn the thermostat to the desired position according to what you want to bake (see table below). The pilot light will come on, indicating that the appliance is heating. (its pilot light will go on and off, according to the operation of the thermostat)

SELF CONTROL Thermostat

• Wait for about 5 to 10 minutes for the appliance to preheat. After that, you can start cooking.
• If necessary, use the lid of the appliance. It is advisable to use it if you bake pizza, beefsteak, hamburgers etc.

If the pilot light goes on and off, it is not a malfunction. It indicates that the thermostat is working properly.

If you hear some noise during cooking, it does not indicate malfunction, it simply comes from the fact that the hot plate is heating.

Do not touch the exterior of the unit; do not put any easily inflammable material on the pan.

· After use, put the thermostat in 0 position.
- First remove the plug from the power outlet. Then remove the temperature regulation unit from the socket of the appliance. Caution: because the temperature leader of the temperature regulator is very hot after use, let the hot plate cool down completely before removing the temperature regulation unit.

Information related to the Heat Shield provided with the Heating Pan:

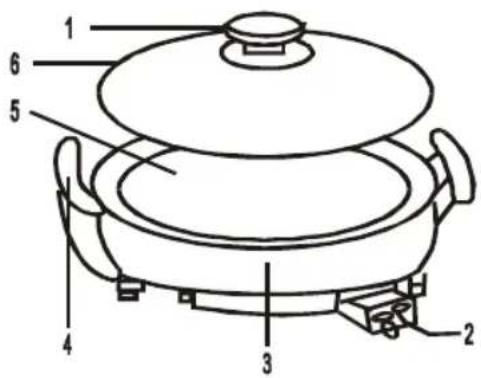

Unit overview:

1. Glass cover handle
2. Power connection base
3. Basic unit
4. Handles (including heat shield)
5. Cooking surface
6. Glass cover

1 6 5 4 3 2

Preparing the unit:

IMPORTANT (BEFORE FIRST USE)

Please assemble the HEAT SHIELD which is in the packaging at first before using the unit for the first time.

The heat shield is made of Polypropylene (PP) plastic material and is provided to be fitted next to the handles to protect the hand and fingers of the user from high heat on the sides and edges of the pan, while placing it on the cooking hob or while taking it away after cooking.

Keep the heat shield continuously fitted to your heating pan at all times.

In case you do not find this part in your product box or if it is broken or damaged and cannot be used any more please contact the retailer from whom you bought or contact the nearest authorized service centre.

Line drawing of a heat shield with lid and handles (no text or symbols on the diagram itself)

TABLE OF COOKING TIME AND TEMPERATURE

FOOD	COOKING TIME (Approx.)	SELECTOR	TEMPERATURE (Approx.)
TURNOVER, CROISSANT	1 min. each side	1,2	80°C
FRIED EGGS	2 min.	1,2,3	150°C
PANCAKES	1-2 min. each side	1,2,3,4	160°C
OMELETTE	2 min. each side	1,2,3,4	160°C
COTTAGE CHEESE	1 min. each side	1,2,3	150°C
TOASTS	1 min. each side	1,2,3	150°C
SANDWICHES	2 min. each side	1,2,3,4	170°C
EGGPLANTS, TOMATOES, PEPPERS, ONIONS	2 min. each side	1,2,3	150°C
POTATOES, PUMPKIN	3 min. each side	1,2,3	150°C
SAUSAGES	2-3 min. each side	1,2,3	150°C
PRIME RIBS OF VEAL	2-3 min. each side	1,2,3,4	180°C
VEAL FILET	3 min. each side	1,2,3,4	180°C
PORK CHOPS	3 min. each side	1,2,3,4	170°C
LAMB CHOPS	3 min. each side	1,2,3,4	170°C
RABBIT (IN PIECES)	3-4 min. each side	1,2,3,4	160°C
MEAT SKEWER	2-3 min. each side	1,2,3	150°C
CHICKEN BREASTS	4-5 min. each side	1,2,3	150°C
FISH SKEWERS	2 min. each side	1,2,3	160°C
TUNA, SALMON, MACKEREL	2-3 min. each side	1,2,3,4	160°C
SHELLFISH	2-3 min. each side	1,2,3,4	180°C
CUTTLEFISH, SQUID	2-3 min. each side	1,2,3,4	160°C
PIZZA	7-10 min.	1,2,3,4	240°C
FRIED RICE	15-20 min.	1,2,3,4	160°C - 240°C
PAELLA	35-45 min.	1,2,3,4	160°C - 240°C

CLEANING

• Make sure the appliance is unplugged and allow it to cool down before starting to clean it.
  · Always make sure the temperature regulation unit is disconnected from the appliance before cleaning.
• Clean the plate with a soft damp cloth. If necessary, use some mild detergent.
• Do not use sharp utensils or scouring pads on the hotplate as this might damage the surface.

• Never use abrasive products as these might damage the surface.

• Never immerse the appliance in water or any other liquid.

• Clean the cover with a soft sponge and some mild detergent.
• To clean the temperature regulation unit, use a soft dry cloth.

Cleaning and conserving non-stick coated pans after general use:

This product has got a high quality non-stick coating. Special care must be taken to conserve the non-stick coating while

cooking, while taking out food for serving and while cleaning it.

Only then your appliance with non-stick coating can be in service for a long time.

Pls follow the cleaning instructions in the previous section strictly and carefully. In addition, pls follow the below mentioned procedures:

1. Remove any loose food. When has cooled down and is safe to touch, use a paper towel, wooden, or plastic spatula to remove off any loose food from the pan. Be sure to use a pot holder to hold the pan handle if the pan is still a bit warm.
2. Be sure to use a non-metal utensil on your non-stick coated surface. Wooden or silicone spatulas are recommended. Metal utensils can scratch and remove the non-stick coated layer on your pots and pans.
3. If you are saving the rest of the food in the pan, use your non-metal utensil to sweep the food into a container that you can store later.
4. When using the plastic or wooden utensils always be soft during moving or scraping the food in the pan.
5. Avoid keeping food in the pan after cooking for a long time to avoid food getting hard

inside it and making it difficult to clean it up.

Do NOT ‘store’ food in the pan for longer periods of time. Proper cleaning of the non-stick pan after each use is crucial for maximum longevity. Lack of proper cleaning of the pan after each use ultimately resulting in oil and food residue build-up and loss of non-stick effect will NOT be covered under the warranty.
2. Cleaning the pan. Use a soft nylon scrubber, sponge, or paper towel sprinkled with a few drops of dishwashing soap to wipe the non-stick coated surface clean. Be sure to wipe all areas on the inside of the pan, but also wipe down the outside bottom of the pan and the pan handle. Wipe off all soapy residue from the pan.

- Do not use abrasive cleaning pads on non-stick coated pan. The abrasive material can damage and remove the non-stick coating of the pan.

- At any point in the above process, DO NOT dip the Electric Pan directly in water or bring it under running water in the water sink.

MODELS	VOLTAGE FREQUENCY	POWER DEPTH	DIAMETER
SS-10105	220-240V~ 50/60Hz	1500W 9 CM 42	CM

If the supply cord is damaged, it must be replaced by manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

PRÉCAUTIONS DE SÉCURITÉ

Warning symbol depicting steam rising inside a triangle, indicating heat hazard

Hand holding a cooking pot with a lid and a tool, labeled (A) with an arrow indicating rotation (no text or symbols on the diagram itself)

Illustration of a hand using a power plug to install three socket plates (no text or symbols present)

Line drawing of a cooking pot with lid and side handles (no text or symbols)

Bouclier thermique

TABLE: TEMPS DE CUISSON ET TEMPÉRATURE

Warning symbol depicting steam rising inside a triangle, indicating heat hazard

Diagram of a handheld cable or wire device with labeled components A, B, C, D, and E

Hand holding a cooking pot with a lid and a handle, labeled (A) with an arrow indicating rotation (no text or symbols on the diagram itself)

Illustration of a hand holding a tool next to a wall-mounted socket (no text or symbols present)

Line drawing of a cooking pot with lid and side handles (no text or symbols)

Escudo térmico

Warning symbol depicting steam inside a triangle, indicating high thermal hazard

Hand holding a cooking pot with a lid and a handle, labeled (A), with an arrow indicating rotation (no text or symbols on the diagram itself)

Hand holding a plug inserted into a wall socket (no text or symbols visible)

Line drawing of a cooking pot with lid and side handles, labeled 'Hitzeschild' (no other text or symbols)

Warning symbol depicting steam rising inside a triangle, indicating high risk or hazard.

Hand holding a cooking pot with a lid and a switch, labeled (A), with no visible text or symbols on the pot itself.

Illustration of a hand holding a plug to two electrical socket covers (no text or symbols)

Line drawing of a cylindrical cooking pot with lid and handles (no text or symbols)

Scudo termico

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DÉCLARATION DE CONFORMITÉ

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE)

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain

Product made in P.R.C. – Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail] / 0034 902 222 161
