SS-5385 - Toaster Sogo - Free user manual and instructions

Product type	Toaster
Brand	Sogo
Model	SS-5385
Power supply	220-240 V, 850 W, 50/60 Hz
Number of slots	2 slots
Functions	Toasting, reheating, defrosting, cancel
Browning adjustment	Levels 1 to 7
Automatic shut-off	Yes, at end of cycle
Removable crumb tray	Yes, for easy cleaning
Approximate dimensions	25 x 15 x 20 cm
Approximate weight	1 kg
Housing material	Plastic and metal
Color	Not specified (typically silver or black)
Power cord length	Approximately 70 cm
Heating surface	Internal heating wires
Safety	Automatic shut-off, hot surface indicator, overheat protection
Maintenance	Clean with a damp cloth, empty crumb tray regularly
Spare parts / repairability	Removable crumb tray, repair by authorized service
Intended use	Domestic, indoor
Regulatory information	Compliant with European Directives (Low Voltage, EMC, RoHS, ErP)
Origin	Manufactured in China, imported by Sanysan Appliances (Spain)
After-sales service	www.sogosat.com – [e-mail] – [phone]

Frequently Asked Questions - SS-5385 Sogo

How to clean the SS-5385 toaster?

Unplug the appliance and let it cool. Remove the crumb tray and empty it. Clean the exterior with a damp cloth. Never use abrasive detergents or chemicals. Never immerse the toaster in water.

How to use the defrost function?

Insert the frozen bread, set the browning level, then press the Defrost button. The indicator lights up and the toasting time is automatically extended to defrost and toast the bread.

What to do if the toaster smokes during first use?

This is normal. Run the toaster twice empty (without bread) at the highest browning level to burn off manufacturing residues. Ensure the room is ventilated.

The lever does not stay down, what to do?

Check that the appliance is plugged in and the socket works. If the lever does not latch, the toaster may be defective. Contact after-sales service.

Can I toast bread with butter or jam?

No, only toast dry bread. Greasy or sugary foods can cause a fire and damage the appliance.

How to stop toasting before the end?

Press the Cancel button at any time. The toaster turns off and the toast is ejected.

Does the toaster get hot on the outside?

Yes, the outer metal surfaces become hot during use. Use the handle or gloves to touch the appliance. Keep out of reach of children.

How to prevent crumb accumulation?

Empty the crumb tray located at the bottom of the toaster regularly. Pull it out, empty it, and replace it. You can also gently turn the appliance over to remove trapped crumbs.

Can I use an extension cord with the toaster?

It is preferable to use the supplied short cord. If an extension cord is necessary, ensure it has the same electrical ratings (min. 10 A) and is placed so that it is not pulled or tripped over.

Where can I find spare parts or get my toaster repaired?

Contact after-sales service via www.sogosat.com, by email at [e-mail], or by phone at [phone]. Only an authorized agent can repair the appliance.

USER MANUAL SS-5385 Sogo

EN Instructions for use

FR Mode d'emploi

Download your manual

Download your manual

Declaration of conformity, Responsibility of Electronic products disposal, Importers Details and After-sales service on the last pages.

• Always read the instruction book carefully before using. - This manual can be downloaded from our web page www.sogo.es - Keep these instructions for future reference.

2. Safety instructions for the user

GENERAL PRECAUTIONS

General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors. • Always place the appliance on a flat and even surface.
• This product is intended for indoor, non-industrial, non-commercial and only for household use. Do not use the item outdoors or for any other purpose. Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance. • Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary when any appliance is being used by or near children.
• Before cleaning or storing your appliance, always unplug it from the power supply and let it cool down.
• The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, unplug it from the mains.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.
• This appliance is intended to be used in household and similar applications such as:
• Staff kitchen areas in shops, offices and other working environments;
• Farm houses and by clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments;
• Catering and similar non-retail applications.

Restrictions on use to avoid personal injury:

• Do not let the appliance operate unattended.
• Do not place or operate this appliance near water sources.
• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.
• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.
• To avoid electric shock, make sure your hands are dry before plugging or unplugging.
• Do not use the device with wet hands, on damp floors, or when the atmosphere is humid; there is a risk of electric shock.
• Never immerse the appliance or the plug in water or any other liquid. If the appliance falls into water, disconnect it from the mains immediately and take it to an authorized service agent for repair before reusing.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage, or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. If the cord is damaged, it must be replaced only by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
• In case of appliance malfunction or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair, or adjustment.
• To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.
• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:
• The marked electrical rating of the cord must be at least as great as that of the product.
• Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.

Restrictions on use when used with children and elders

- The appliance is not to be used by persons (including children) with reduced physical, sensory, or mental capabilities, or lack

of experience and knowledge, unless they have been given supervision or instruction.

• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Children shall not play with the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.

Instructions to follow when using the appliance

• Do not touch the surface of the appliance; use the handle or mitts.
• Do not use sharp utensils to remove toast. When removing toast, be careful not to damage the heating wires.
• Do not touch any metal parts on the exterior of the device. These can become very hot during operation.
• Do not place bread slices that are too thick or wrapped in aluminium foil, to avoid risk of electric shock or fire.
• Do not cover the appliance with anything.
• Do not toast bread for too long as it may burn and cause a fire.
• Do not position the device beneath a curtain, wall cabinets or combustible materials.
• When this symbol is used, it means “Caution: Hot surfaces”. The toaster grill may reach a high temperature when the appliance is operating. The temperature of the metal panels on the main body can also get hot.

CLEANING AND MAINTENANCE: Kindly refer to the cleaning and maintenance section for details on how to clean surfaces which come in contact with food.

3. TECHNICAL SPECIFICATIONS

Voltage Power Frequency
AC220-240V 850W	50-60Hz

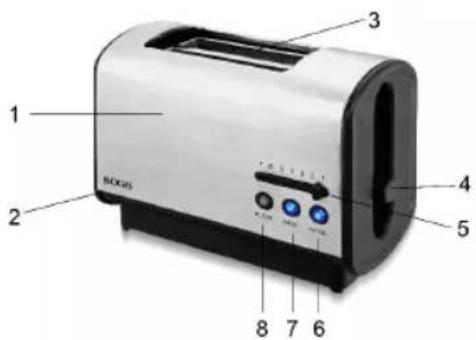

4. PARTS DESCRIPTION

1. Body
2. Crumb Tray
3. Bread Slot
4. Sliding Lever
5. Temperature control knob
6. Cancel Button
7. Defrost Button
8. Reheat Button

5. INSTRUCTIONS FOR USE

Before the first use

• Before using the appliance for the first time, clean the parts thoroughly (see Maintenance section).
• Set the toaster to the highest setting, and operate twice without any bread inside. Ventilate the room during this period.
• It is normal if some smoke or smell emanates from the appliance when using it for the first time.

Toasting

• Plug the unit into the power supply socket.
• Insert the slices of bread into the slot.
• Adjust the timer to the desired level: • 1 = minimum • 7 = maximum
• Press the sliding lever down until it locks. The pilot light will come on, indicating that the appliance is heating.
• When toasting is finished, the bread slices will be ejected, and the toaster will shut off automatically.

Reheating

• Use the Reheat function to warm up cold toasts without over browning. • After following the Toasting instructions, press the Reheat button to reduce heat intensity. The Reheat pilot light will come on.

Defrost

• Frozen bread requires more time to warm up. • After following the Toasting instructions, press the Defrost button to prolong toasting time. The Defrost pilot light will come on.

Cancel

- You can cancel toasting at any time, by pressing the Cancel button. The Cancel pilot light will come on.

Crumb Tray

• The crumb tray collects any crumbs that fall into the toaster. • Regularly empty out the crumb tray.
• Pull out to remove the crumb tray. Slide back in once finished.

6. CLEANING AND MAINTENANCE

MAINTENANCE

• Make sure the appliance is unplugged and allow it to cool down before starting to clean it.
• Never use abrasive detergents, organic solvents or aggressive chemicals.
• Remove any bread crumbs stuck in the slot by gently turning the device upside down.

STORAGE

• Make sure the appliance is unplugged and allow it to cool down before storing it.
• Clean the device before storing it (see Maintenance section).
• Carefully reel the cable.

1. IMPORTANT:

5. INSTRUCTIONS FOR USE

DECLARATION OF CONFORMITY

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product cannot be disposed of as normal rubbish or household waste. All electrical and electronic equipment and battery-operated units must be recycled in a proper manner and according to local municipal laws. You can recycle them by taking them to government-authorized disposal centers or specialized bins, which you can find in any nearby big supermarkets, electronics or electro-domestic products stores, or malls that have these types of facilities available.

Designed by: SOGO based on European quality standards. Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain. Product manufactured in CHINA. After-sales service: www.sogosat.com, [e-mail] / 0034 902 222 161
