SS-5395 - Toaster Sogo - Free user manual and instructions

USER MANUAL SS-5395 Sogo

Exterior view of a modern SOGO toaster with black handle and control buttons (no text or symbols on body)

TOSTADORA CON DOS RANURAS LARGAS Y ANCHAS TWO LONG AND WIDE SLOT TOASTER GRILLE-PAIN AVEC DEUX ENTAILLE LONGUE TORRADEIRA DE PÃO COM DOIS RANHURAS LONGO TOASTER MIT ZWEI LANGEN SCHLITZEN TOSTAPANE DOPPIO LUNGHE FESSURE

Instructions for use

CAUTION

Please read these instructions fully before use and preserve them for future reference.

IMPORTANT SAFEGUARDS

This instruction manual can also be downloaded from our web page www.sogo.es

• This appliance is for domestic use only. Use as described in this instruction booklet. Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• Do not use or store the appliance outdoors.
  • Always remove the plug from the power socket when the appliance is not in use.
• Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.
• Do not use this device in the bathroom or near water sources.
• Never immerse the appliance or the plug in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorised service agent for repair before reusing.
• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g. stove plates) or open flames.

Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.

- Do not use the appliance if the cable or plug is damaged. Should the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Should the appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.

- In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians.

- Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.

- When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.

- Make sure your hands are dry before plug or unplugging.

- This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

• Never use accessories that are not recommended by the manufacturer.
• Do not use sharp utensils to remove toast. When removing toast, be careful not to damage the heating wires.
• Do not touch any metal parts on the exterior of the device. These can become very hot during operation.
• Do not insert bread slices that are too thick or wrapped in aluminium foil, to avoid risk of electric shock or fire.
• Do not cover the appliance with anything.
• The appliance is not intended to be operated by means of an external timer or a separate remote-control system
• Do not toast bread for too long as it may burn and cause a fire. Do not position the device beneath a curtain, wall cabinets or combustible materials.
• The kitchen surface can get hot while operating the device.
• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
• Keep the appliance and its cord out of reach of children aged less than 8 years.

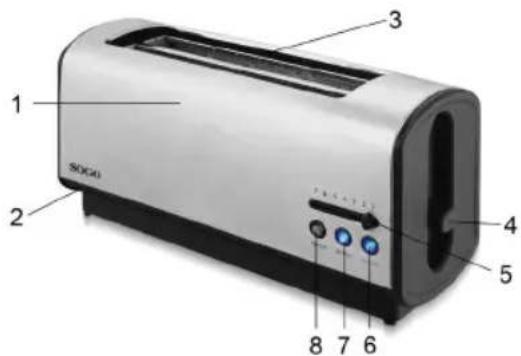

DESCRIPTION

1. Body
2. Crumb Tray
3. Bread Slot
4. Sliding Lever
5. Browning control knob
6. Cancel Button
7. Defrost Button
8. Reheat Button

INSTRUCTIONS FOR USE

Before the first use

• A- Before using the appliance for the first time, clean the parts thoroughly (see Maintenance section).
- Set the toaster to the highest setting, and operate twice without any bread inside. Ventilate the room during this period.
- It is normal if some smoke or smell emanates from the appliance when using it for the first time.

Toasting

• Plug the unit into the power supply socket.
• Insert the slices of bread into the slot.
• Adjust the timer to the desired level:
• 1 = minimum
• 7 = maximum
• Press the sliding lever down until it locks. The pilot light will come on, indicating that the appliance is heating.
• When toasting is finished, the bread slices will be ejected, and the toaster will shut off automatically.

Reheating

• Use the Reheat function to warm up cold toasts without over browning.
  • After following the Toasting instructions, press the Reheat button (8) to reduce heat intensity. The Reheat pilot light will come on.

Defrost

• Frozen bread requires more time to warm up.
  • After following the Toasting instructions, press the Defrost button (7) to prolong toasting time. The Defrost pilot light will come on.

Cancel

- You can cancel toasting at any time, by pressing the Cancel button (6). The Cancel pilot light will come on.

SOGA 1 2 3 4 5 6 7 8

Crumb Tray

• The crumb tray collects any crumbs that fall into the toaster.
• Regularly empty out the crumb tray.
- Pull out to remove the crumb tray. Slide back in once finished.

MAINTENANCE

• Make sure the appliance is unplugged and allow it to cool down before starting to clean it.
• Never use abrasive detergents, organic solvents or aggressive chemicals.
• Remove any bread crumbs stuck in the slot by gently turning the device upside down.

STORAGE

• Make sure the appliance is unplugged and allow it to cool down before storing it.
- Clean the device before storing it (see Maintenance section).
- Carefully reel the cable.
- Store the appliance in a cool and dry place.

ELECTRICAL SPECIFICATIONS

Voltage / Frequency: 220-240V\~50-60Hz Power Consumption: 1200 W

Mode d'emploi

ATTENTION:

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DÉCLARATION DE CONFORMITÉ

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2 46002 Valencia, Spain Product made in P.R.C. – Designed by SOGO based on the European Quality Standards Customer Service: www.sogosat.com / [e-mail] / 0034 902 222 161
