Instruction Manual For Induction Hob ENGLISH

Thank you for purchasing the CANDY induction hob. Please read this instruction manual carefully before using the hob and keep it in a safe place for future reference. LSXWfk KW_[`V[`Y S`V GS[`fW`S`UW= A dedicated power protection air switch must be used. For indoor use only Never wash the induction cooker with water. Never have the ceramic cooker hob to work without food inside, otherwise its operational performance may be affected and danger may happen. Always open sealed containers, such as cans, before heating them, otherwise they may explode. When a cooking zone has been on a long time the surface remains hot for some time afterwards – so do not touch the ceramic surface. From time to time check that nothing (eg glass, paper, etc) is obstructing the air intake beneath the induction hob. Do not leave metallic objects such as knives, forks,spoons and lids on the hob as they may get hot. Never use the induction hob near another appliance which generates a high temperature, such as a gas cooker or a paraffin heater. Do not store detergents or flammable meterials beneath the hob. If the surface of the hob is cracked, swith off the appliance to avoid the possibility of electric shocks. Do not place rough or uneven appliances, which may damage the ceramic surface. Clean the induction hob regularly to stop foreign objects from

WARNING: The appliance and its accessible parts become

hot during use. Care should be taken to avoid touching heating elements. Children under 8 Year of age must be kept away from the appliance unless they are continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision

WARNING: Unattended cooking on a hob with fat or oil can

be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

WARNING: Danger of fire: do not store items on the cooking

surfaces. Do not use a steam cleaner for cleaning operations After use, switch off the hob element by its control. Do not rely on the pan detector.

ENGLISH getting into the fan and preventing the appliance from working properly. This appliance is not intended to be operated by means of an external timer or separate remote-control system. The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. The instructions state the type of cord to be used, taking into account the temperature of the rear surface of the appliance. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

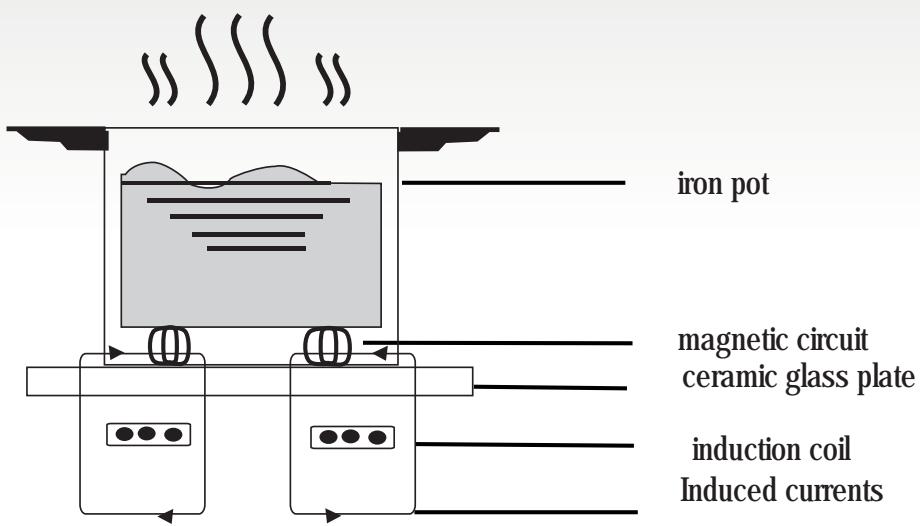

Please read this instruction manual carefully before using the hob and keep it in a safe place for future reference. Product Introduction R^[ _dZkYj_ed ^eX YWj[hi \eh Wbb a_dZ e\ Yeea_d]1m_j^ _ji [b[YjhecW]d[j_Y Yeea_d]ped[i1 WdZ _ji c_Yhe2Yecfkj[h_i[Z Yedjhebi WdZ ckbj_2\kdYj_edi1 cWa_d] _j j^[ _Z[Wb Y^e_Y[ \eh jeZWo-i \Wc_bo3 Manufactured with specially imported materials, the induction hob is extremely user-friendly, durable and safe. Working Principle The induction hob comprises a coil, a hotplate made of ferromagnetic material and a control system. Electrical current generates a powerful magnetic field through the coil. This produces a large number of vortices which in turn generate heat which is then transmitted through the cookingzone to the cooking vessel. iron pot magnetic circuit ceramic glass plate induction coil Induced currents

ENGLISH Dear Customer: Thank you for purchasing the CANDY induction hob. We hope it will give many years of good service. Installation Safety This hob was specially designed for domestic use. In its constant search to improve its products, CANDY reserves the right to modify any technical, programme or aesthetic aspects of the appliance at any time.

1. Cut a hole in the worktop of the dimension

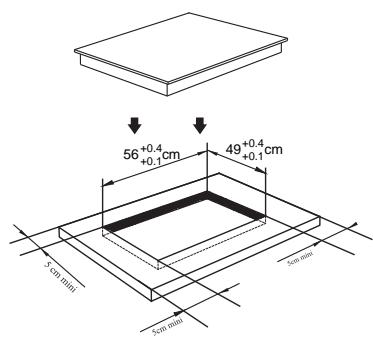

shown in the diagram below. A minimum of 50 mm space should be left around the hole. The worktop should be at least 30 mm thick and made of heat-resistant material. As shown in Figure (1) Protection from over-heating A sensor monitors the temperature in the cooking zones. When the temperature exceeds a safe level, the cooking zone is automatically switched off. +0.4 56 +0.1cm Detection of small or non-magnetic items When a pan with a diameter of less than 80mm,or some other small item(e.g.knife,fork,key) or a nonmagnetic pan( e.g. aluminium) has been left on the hob, a buzzer sounds for approximately one minute,after which the hob goes automatically on to standby. F_]kh[ .6/ Residual heat warning When the hob has been operating for some time, there will be some residual heat. The letter “H” appears to warn you to keep away from it.

2. It is essential that the induction hob is well

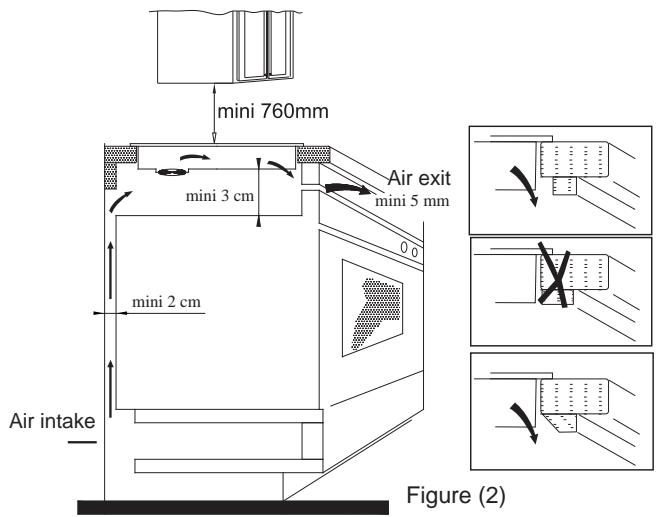

ventilated and that the air intake and exit are not blocked. Make sure the hob is correctly installed as shown in Figure 2. Figure (2) Auto shutdown Another safety feature of the induction hob is auto shutdown. This occurs whenever you forget to switch off a cooking zone. The default shutdown times are shown in the table below: Power level The heating zone shut down automatically after 1~3 8 hours 4~6 4 hours 7~9 2 hours +0.4 49 +0.1cm Air exit mini 3 cm mini 5 mm mini 2 cm When the pan is removed from the cooking zone, it stops heating immediately and switches itself off after the buzzer has sounded for one minute. Air intake Figure (2) NB: For safety, the gap between the hob and any cupboard above it should be at least 760 mm.

Warning: Anyone who has been fitted with a

heart pacemaker should consult a doctor before using the induction hotplate.

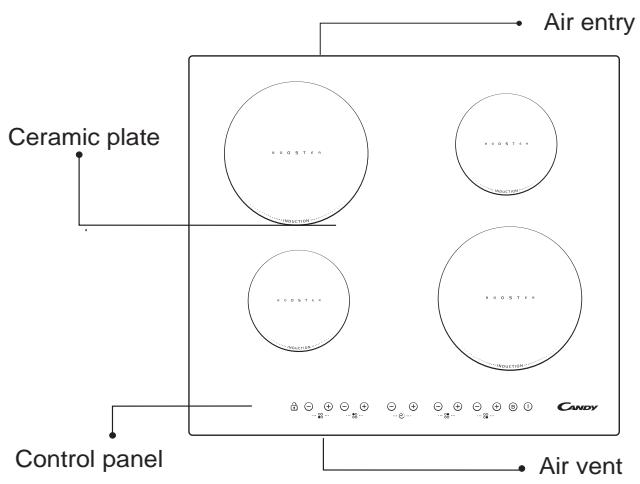

Warnings: (1) The induction hob must be installed by a properly qualified person. We have our own qualified installers. Never try to install the appliance yourself. (2) The induction hob must not be installed above refrigerators, freezers, dishwashers or tumble dryers. (3) The induction hob should be installed so that optimum radiation of heat is possible. (4) The wall and the area above the hob should be able to withstand heat. (5) To avoid any damage, the sandwich layer and adhesive should be heat-resistant. Diagram of induction hob: Air entry Ceramic plate

4. Connection to power supply

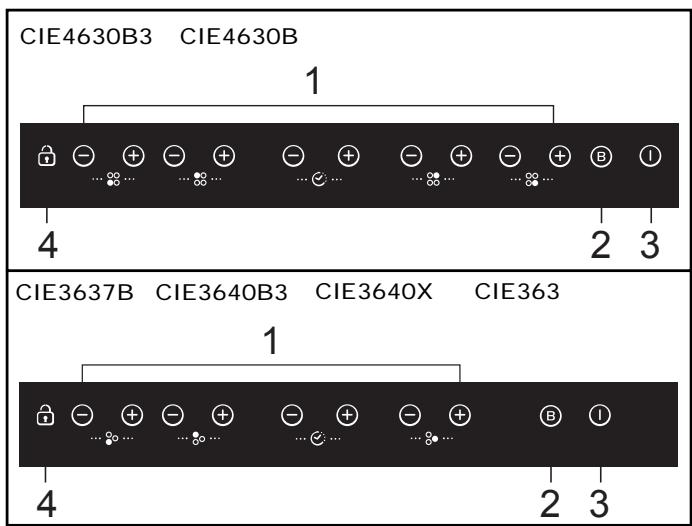

The socket should be connected in compliance with the relevant standard, to a single-pole circuit breaker. The method of connection is shown in Figure 3. Control panel Air vent Schematic diagram of the control panel CIE4630B3 CIE4630B

ENGLISH If the cable is damaged or needs replacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents. If the appliance is being connected directly to the mains supply, an omnipolar circuit breaker must be installed with a minimum gap of 3 mm between the contacts. The installer must ensure that the correct electrical connection has been made and that it complies with safety regulations. The cable must not be bent or compressed. The cable must be checked regularly and only replaced by a properly qualified person.

3. Fix the hob to the worktop using the four

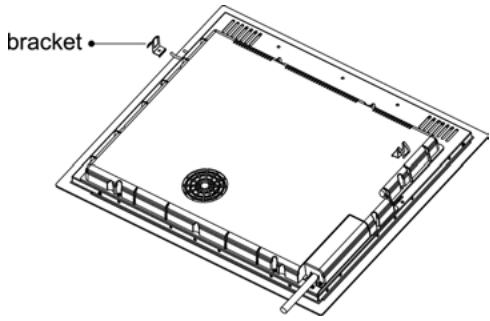

brackets on the base of the hob. The position of the brackets can be adjusted according to the thickness of the top. Instructions for Use

Aj k_\ Yffjk ]leZk`fe f] k_\ 6 Zffb`e^ qfe\ `j XZk`mXk\[1 k_\ 7 Zffb`e^ qfe\ `j c`d`k\[ le[\i c\m\c 7 XlkfdXk`ZXccp1 m`Z\ m\ijX3 Aj k_\ Yffjk ]leZk`fe f] k_\ 8 Zffb`e^ qfe\ `j XZk`mXk\[1 k_\ 9 Zffb`e^ qfe\ `j c`d`k\[ le[\i c\m\c 7 XlkfdXk`ZXccp1 m`Z\ m\ijX3 Preparation before using: When the power is switched on, the buzzer will sound once and all the indicators will come on for one second and then go out. The hob is now in standby mode. Place the pan in the centre of the cooking zone. Operating instructions When the ON/OFF key is pressed, all the indicators show "-". Select the power level by pressing the "+" or "-" key for the relevant hotplate. To begin with the indicator shows "5". Adjust up or down by pressing the "+" or "-" key. If you press the "+" and "-" keys simultaneously, the power setting returns to "0" ,and the cooking zone switches off. See the table on Page 6 for the power specific to each cooking zone. NB: When the ON/OFF key is pressed, the induction hob returns to standby mode if no other operation is carried out within one minute. Cancelling the "BOOST" mode When in the " Boost " mode, Select the corresponding cooking zone and press the "Boost" key or the "-" to cancel the Boost mode, then the cooking zone will revert to its original setting. Timing function Press the "+" or "-" key of that zone, the corresponding indicator will be flashing. To activate timer function by press the "+" or "-" of timer key,the set time is between 1 and 99 minutes. Pressing the "+" of the timer key once the time will increase by one minute. Keeping on the "+" of timer key,the time will increase by 10 minutes,If the setting time exceeds 99 minutes,it will automatically return to "0" minutes. Same logic for "-". Boost mode To heat up more quickly, press "BOOST" after selecting the cooking zone, with the power level indicator showing "P". NB:

1. The boost function only operates for 5 minutes,

after which the cooking zone returns to its orginal setting.

2. The boost function works on the all cooking

zones. Timing confirmation 1.Pressing the "+" or "-" of the timer key,the time can be set now. 2.When the timing indicator has been flashing for 5 seconds, the set time will be automatically confirmed.

Unlocking Hold down the "Interlock" key for 3 seconds and the hob will return to normal working. The maximum power of cooking zones is as follows: Heating zone Normal Boost

The above may vary according to the size of the pan and the material it is made from Selection of cooking vessels Iron oil frying pan Stainless steel pot Iron pan Enamel stainless steel kettle Enamel cooking utensil Iron plate Iron kettle You may have a number of different cooking vessels This induction hob can identify a variety of cooking vessels, which you can test by one of the following methods: Place the vessel on the cooking zone. If the corresponding cooking zone displays a power level, then the vessel is suitable. If " " flashes, then the vessel is not suitable for use with the induction hob. 2 Hold a magnet to the vessel. If the magnet is attracted to the vessel, it is suitable for use with the induction hob. NB: The base of the vessel must contain magnetic material. It must have a flat bottom with a diameter of more than 14 cm.

Use pans whose diameter is as large as the graphic of the zone selected. Using a pot a slightly wider energy will be used at its maximum efficiency.If you use smaller pot efficiency could be less than expected.Pot less than 140 mm could be undetected by the hob.

ENGLISH Timer cancellation If pressing the "-" and "+" keys simultaneously, the indicator will display "0".and the the timer will be cancel. Safety mode To ensure the safety of children, the induction hob is fitted with an interlock device. To lock: hold down the "Interlock" ; the hob then goes into "Interlock" mode, the timer shows "Lo " and the rest of the keys are disabled except the "ON/OFF"key. Cleanness and Maintenance The surface of the induction hob may be easily cleaned in the following way: Type of contamination Method of cleaning Light Cleaning materials Immerse in hot water and wipe dry Cleaning sponge Rings and lime scale Apply white vinegar to the area, wipe with a soft cloth or use a commercially available product Special adhesive for ceramic glass Sweetmeat, melted aluminium or plastics Use a special scraper for ceramic glass to remove residue (a silicon product is best) Special adhesive for ceramic glass NB: Disconnect the power supply before cleaning. Failure Display and Inspection If any abnormality occurs, the induction hob will automatically go into protective mode and display one of the following codes: Fault Possible cause F0/F1/F2 Fan failure F3-F8 Temperature sensor failure E1/E2 E3/E4 E5/E6 Abnormal voltage in power supply Abnormal temperature Poor heat radiation in cooking zone Solutions Contact the supplier Contact the supplier Check if power supply is normal. Power on after power supply returns to normal. Check the pan Restart when cooking zone cools down The above table shows how to assess and check common faults. Do not dismantle the appliance yourself, otherwise you may damage the induction hob. Customer Care Service If a fault should occur, before calling After Sales Service, please do the following: -Check that the appliance is correctly plugged in -Read the failure and display table above If you are still unable to resolve the problem, switch off the appliance, do not try to dismantle it, and call After Sales Service.

ENGLISH Special DecIaration The contents of this manual have been carefully checked. However, the company cannot be held responsible for any misprints or omissions. Also, any technical modifications may be included in a revised version of the manual without notice. The appearance and colour of the appliance in this manual may differ from the actual one. This appliance is labelled in compliance with European directive 2002/96/EC for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way. The symbol on the product indicates that it may not be treated as normal household waste. It should be taken to a collection point for the recycling of electrical and electronic goods. This appliance requires specialist waste disposal. For further information regarding the treatment, recovery and recycling of this product please contact your local council, your household waste disposal service, or the shop where you purchased it. DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
