USER MANUAL BC12TF Be Cool

White desktop fan with three blades and a 'BE COOL' logo on the front (no additional text or symbols visible)

HERZLICHEN GLÜCKWUNSCH!

QR code image containing encoded data, no visible human-readable text

Simple line drawing of a curved mechanical component or device (no text or symbols)

White desktop fan with three blades and a 'BE COOL' logo on the front panel (no additional text or symbols visible)

FÉLICITATIONS !

MERCI D'AVOIR CHOISI UN PRODUIT BE COOL.

QR code image containing encoded data, no visible human-readable text

VEUILLEZ LIRE ATTENTIVEMENT CE MODE D'EMPLOI AVANT DE COMMENCER L'INSTALLATION, L'UTILISATION OU L'ENTRETIEN. PROTÉGEZ-VOUS ET PROTÉGEZ LES AUTRES EN RESPECTANT LES CONSIGNES DE SÉCURITÉ. LE NON-RESPECT DES INSTRUCTIONS POURRAIT ENTRAÎNER DES DOMMAGES CORPORELS ET/OU MATÉRIELS ET/OU LA PERTE DU DROIT À LA GARANTIE !

INFORMATIONS IMPORTANTES SUR LA SÉCURITÉ, L'EMPLACEMENT ET LE RACCORDEMENT ÉLECTRIQUE.

BE COOL

Utilisation prévue

White desktop fan with three blades and a 'BE COOL' logo on the front panel (no additional text or symbols visible)

CONGRATULAZIONI!

GRAZIE PER AVER SCELTO UN PRODOTTO BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

LEGGERE ATTENTAMENTE QUESTE ISTRUZIONI PRIMA DI INIZIARE L'INSTALLAZIONE, IL FUNZIONAMENTO O LA MANUTENZIONE. PROTEGGERE SE STESSI E GLI ALTRI SEGUENDO LE ISTRUZIONI DI SICUREZZA. LA MANCATA OSSERVANZA DELLE ISTRUZIONI PUÒ CAUSARE LESIONI PERSONALI E/O DANNI MATERIALI E/O LA PERDITA DELLA COPERTURA DELLA GARANZIA!

IMPORTANTI INFORMAZIONI SULLA SICUREZZA, L'UBICAZIONE E IL COLLEGAMENTO ELETTRICO.

Uso previsto

BE COOL

Exterior view of a beige BE COOL desktop fan with visible blades and base (no text or symbols beyond branding)

GEFELICITEERD!

BEDANKT VOOR HET KIEZEN VAN EEN PRODUCT VAN BE COOL.

QR code image containing encoded data, no visible human-readable text

LEES DEZE INSTRUCTIES ZORGVULDIG DOOR VOORDAT U BEGINT MET DE INSTALLATIE, HET GEBRUIK OF HET ONDERHOUD. BESCHERM UZELF EN ANDEREN DOOR DE VEILIGHEIDSINSTRUCTIES OP TE VOLGEN. HET NIET OPVOLGEN VAN DE INSTRUCTIES KAN LEIDEN TOT PERSOONLIJK LETSEL EN/OF MATERIËLE SCHADE EN/OF VERLIES VAN DE GARANTIEDEKKING!

BELANGRIJKE INFORMATIE OVER VEILIGHEID, LOCATIE EN ELEKTRISCHE AANSLUITING.

Beoogd gebruik

BE COOL

Exterior view of a beige BE COOL desktop fan with visible blades and base (no text or symbols beyond branding)

¡ENHORABUENA!

GRACIAS POR ELEGIR UN PRODUCTO DE BE COOL.

ES

QR code image containing encoded data, no visible human-readable text

Exterior view of a beige BE COOL desktop fan with visible blades and base (no text or symbols on the fan body)

GRATULUJEME!

DĚKUJEME, ŽE JSTE SI VYBRALI PRODUKT OD SPOLEČNOSTI BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

PŘED ZAHÁJENÍM INSTALACE, PROVOZU NEBO ÚDRŽBY SI POZORNĚ PŘEČTĚTE TENTO NÁVOD. DODRŽOVÁNÍM BEZPEČNOSTNÍCH POKYNŮ CHRÁNÍTE SEBE I OSTATNÍ. NEDODRŽENÍ POKYNŮ MŮŽE MÍT ZA NÁSLEDEK ZRANĚNÍ OSOB A/NEBO POŠKOZENÍ MAJETKU A/NEBO ZTRÁTU ZÁRUČNÍHO KRYTÍ!

DŮLEŽITÉ INFORMACE O BEZPEČNOSTI, UMÍSTĚNÍ A ELEKTRICKÉM PŘIPOJENÍ.

Zamýšlené použití

BE COOL

Exterior view of a beige BE COOL desktop fan with visible blades and base (no text or symbols beyond branding)

GRATULUJEME!

ĐAKUJEME, ŽE STE SI VYBRALI PRODUKT OD SPOLOČNOSTI BE COOL.

QR code image containing encoded data, no visible human-readable text

PRED ZAČATÍM INŠTALÁCIE, PREVÁDZKY ALEBO ÚDRŽBY SI POZORNE PREČÍTAJTE TIETO POKYNY. DODRŽIAVANÍM BEZPEČNOSTNÝCH POKYNOV CHRÁŇTE SEBA AJ OSTATNÝCH. NEDODRŽANIE POKYNOV MÔŽE MAŤ ZA NÁSLEDOK ZRANENIE OSÔB A/ALEBO POŠKODENIE MAJETKU A/ALEBO STRATU ZÁRUČNÉHO KRYTIA!

DÔLEŽITÉ INFORMÁCIE O BEZPEČNOSTI, UMIESTNENÍ A ELEKTRICKOM PRIPOJENÍ.

Zamýšl'ané použitie

BE COOL

Exterior view of a beige BE COOL desktop fan with visible blades and base (no text or symbols on the fan body)

FELICITĂRI!

VVĂ MULȚUMIM CĂ AȚI ALES UN PRODUS DE LA BE COOL.

RO

QR code image containing encoded data, no visible human-readable text

VĂ RUGĂM SĂ CITIȚI CU ATENȚIE ACESTE INSTRUCTIUNI ÎNAINTE DE A ÎNCEPE INSTALAREA, FUNCTIONAREA SAU ÎNTREȚINEREA. PROTEJAȚI-VĂ PE DUMNEAVOASTRĂ ȘI PE CEILALȚI RESPECTÂND INSTRUCTIUNILE DE SIGURANȚĂ. NERESPECTAREA INSTRUCTIUNILOR AR PUTEA DUCE LA VĂTĂMĂRI CORPORALE ȘI/SAU DAUNE MATERIALE ȘI/SAU PIERDEREA ACOPERIRII GARANȚIEI!

INFORMATII IMPORTANTE PRIVIND SIGURANTA, AMPLASAREA ŞI CONECTAREA ELECTRICĂ.

Technical diagram of a desktop fan with numbered parts labeled 1, 2, 3, and 4

Simple line drawing of a curved mechanical component or valve (no text or symbols)

White desktop fan with three blades and a 'BE COOL' logo on the front panel (no additional text or symbols visible)

GRATULACJE!

DZIEKUJEMY ZA WYBRANIE PRODUKTU OD BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

PRZED ROZPOCZĘCIEM INSTALACJI, OBSŁUGI LUB KONSERWACJI NALEŻY UWAŻNIE PRZECZYTAĆ NINIEJSZĄ INSTRUKCJĘ. NALEŻY CHRONIĆ SIEBIE I INNYCH POPRZEZ PRZESTRZEGANIE INSTRUKCJI BEZPIECZEŃSTWA. NIEPRZESTRZEGANIE INSTRUKCJI MOŻE SKUTKOWAĆ OBRAŻENIAMI CIAŁA I/LUB USZKODZENIEM MIENIA I/LUB UTRATĄ GWARANCJI!

WAŻNE INFORMACJE DOTYCZĄCE BEZPIECZEŃSTWA, LOKALIZACJI I PODŁĄCZENIA ELEKTRYCZNEGO.

Przeznaczenie

BE COOL

Exterior view of a beige BE COOL desktop fan with visible blades and base (no text or symbols on the fan body)

ČESTITAMO!

HHVALA, KER STE IZBRALI IZDELEK BE COOL.

Aktualna navodila za uporabo in drugi jeziki

QR code image containing encoded data, no visible human-readable text

PRED ZAČETKOM NAMESTITVE, DELOVANJA ALI VZDRŽEVANJA NATANČNO PREBERITE TA NAVODILA. Z UPOŠTEVANJEM VARNOSTNIH NAVODIL ZAŠČITITE SEBE IN DRUGE. NEUPOŠTEVANJE NAVODIL LAHKO POVZROČI TELESNE POŠKODBE IN/ALI MATERIALNO ŠKODO IN/ALI IZGUBO GARANCIJSKEGA KRITJA!

POMEMBNE INFORMACIJE O VARNOSTI, LOKACIJI IN ELEKTRIČNEM PRIKLJUČKU.

Predvidena uporaba

BE COOL

Exterior view of a beige BE COOL desktop fan with visible blades and base (no text or symbols on the fan body)

ČESTITAMO!

HVALA VAM ŠTO STE ODABRALI PROIZVOD BE COOL.

BE COOL

Aktualne upute za uporabu i drugi jezici

Preuzmite najnovije upute za uporabu na raznim jezicima putem poveznice www.becool.at/downloads ili skenirajte prikazani QR kod. Slijedite upute na web stranici.

QR code image containing encoded data, no visible human-readable text

MOLIMO VAS PROČITAJTE OVE UPUTE PAŽLJIVO PRIJE UGRADNJE, RADA ILI ODRŽAVANJA. ZAŠTITITE SEBE I DRUGE PRIDRŽAVANJEM SIGURNOSNIH UPUTA. NEPRIDRŽAVANJE UPUTA MOŽE REZULTIRATI OSOBNIM I/ILI ŠTETAMA NA IMOVINI I/ILI PONIŠTENJEM JAMSTVA!

VAŽNE INFORMACIJE O SIGURNOSTI, LOKACIJI I ELEKTRIČNOM POVEZIVANJU.

Warning symbols including a hand holding a prohibition sign, an exclamation mark, and a lightning bolt symbol

Namjena

Ventilator je namijenjen isključivo za ventilaciju suhih prostorija.

BE COOL

Namijenjen je isključivo za privatnu uporabu i nije prikladan za komercijalnu uporabu.

Exterior view of a beige BE COOL desktop fan with visible blades and base (no text or symbols on the fan body)

CONGRATULATIONS!

THANK YOU FOR CHOOSING A PRODUCT FROM BE COOL.

BE COOL

Current operating instructions and other languages

Download the latest operating instructions in various languages via the link www.becool.at/downloads or scan the QR code shown. Follow the instructions on the website.

QR code image containing encoded data, no visible human-readable text

PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION, OPERATION OR MAINTENANCE. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. FAILURE TO FOLLOW INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND/OR LOSS OF WARRANTY COVERAGE!

IMPORTANT SAFETY, LOCATION AND ELECTRICAL CONNECTION INFORMATION.

Intended use

BE COOL

The fan is designed exclusively for the ventilation of dry rooms.

It is intended for private use only and is not suitable for commercial use.

Only use the fan as described in these operating instructions.

1. Only use this appliance in accordance with the guidelines in the operating instructions. Any other use not recommended by the manufacturer could result in fire, electric shock or personal injury.
2. Remove the packaging and make sure that the unit is not damaged. If in doubt, do not use the unit and contact the service centre or your dealer.
3. Keep children away from packaging materials. There is a danger of choking if swallowed!
4. If the power supply cable is damaged, it must be replaced by the manufacturer or an authorised service centre in order to avoid all possible risks.
5. Before connecting the appliance to the mains, check that the type of current and mains voltage correspond to the specifications on the appliance type plate.
6. The electrical socket in which you connect the unit must not be defective or loose and must be suitable for the required current load and, above all, reliably earthed.
7. Avoid using an extension cord as it could overheat and cause a fire.

BE COOL

1. It is forbidden to adapt or modify the characteristics of this appliance in any way and use only spare parts and accessories recommended by the manufacturer (failure to do so will invalidate the guarantee and warranty).
2. If the unit has a defect, switch it off and contact your dealer or the customer hotline.
3. Always and only contact customer service centres authorised by the manufacturer for any repairs to the appliance, mains plug or cable. You can find the service centres online at www.becool.at.
4. Children under the age of 8 and persons with reduced physical, mental, sensory or spiritual capabilities or lack of experience and knowledge should not use this appliance unless they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
5. Do not operate the unit unattended. If you leave the room, always switch off the unit.
6. Children must not play with the appliance.
7. Do not twist or bend the mains cable.
8. Do not use the appliance with wet hands.
9. Do not use the unit outdoors.
10. Never operate the unit in rooms where gas, oil or sulphur are present.
11. Do not use the unit near water or high humidity, e.g. in damp basements, next to swimming pools, bathtubs or showers. Make sure that no water enters the unit.
12. Do not place any objects on the unit.

BE COOL

1. Place the unit on a stable and level surface.
2. Never cover the unit.
3. Never insert fingers, pens or other objects into the unit and make sure that the air inlet and outlet are never blocked.
4. Always switch off the appliance before unplugging it from the mains.
5. Do not pull on the mains cable to disconnect the appliance from the mains power. Always pull on the plug to unplug the mains cable.
6. Do not handle the plug with wet hands to avoid electric shock.
7. Unplug the appliance when you are not using it, before cleaning it, when it needs maintenance or when it is moved from one place to another.
8. Keep the unit in good condition by maintaining and cleaning the unit. If you have any questions about maintenance, you can contact the customer hotline/service centre authorised by the manufacturer.
9. Keep and store the appliance in a safe, dry place out of reach of children when not in use.

BE COOL

Recycling, disposal, declaration of conformity

	RECYCLINGThe packaging materials can be recycled. Therefore, it is recommended to dispose of them in sorted waste.
	DISPOSALThe symbol "crossed-out dustbin" requires the separate disposal of waste electrical and electronic equipment (WEEE). Electrical and electronic equipment may contain hazardous and environmentally dangerous substances. Therefore, do not dispose of this in unsorted residual waste, but at a designated collection point for waste electrical and electronic equipment. By doing so, you will help to protect resources and the environment. For more information, please contact your dealer or the local authorities. Directive 2012/19/EU
	DECLARATION OF CONFORMITYWe hereby confirm that this article complies with the basic requirements, regulations and directives of the EU. You can view the detailed declaration of conformity at any time under the following link:https://www.schuss-home.at/downloads

Errors and technical modifications excepted.

BE COOL

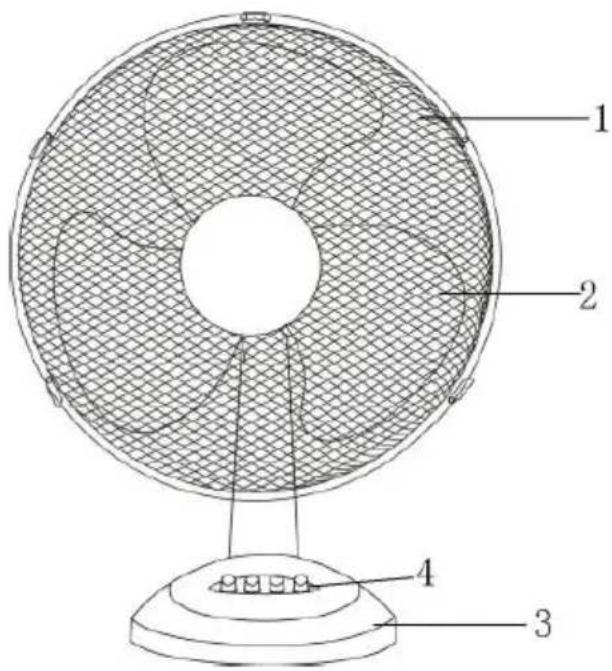

DESIGNATION OF THE INDIVIDUAL PARTS

1 2 3 4

1. protective grille	3. pillar
2. rotor blade	4. control buttons

ASSEMBLY INSTRUCTIONS

1. Unscrew the grille retaining ring from the motor shaft.
2. Place the rear ventilation grille on the motor shaft and screw it together with the grille retaining ring.
3. Attach the fan blade to the motor shaft.
4. Attach the front ventilation grille and close the clips with the corresponding screw to securely fasten the grille.

BE COOL

COMMISSIONING

1. Place the fan on a dry and level surface.
2. Insert the plug into a standard 220-240V socket.

Speed

Select the desired speed by pressing the respective button on the control panel (4):

0 → From
1 → Low power
2 → Average power
3 → Strong performance

To switch off the unit, press "0".

Swivel function

Oscillation button

For the swivel function, press the oscillation button on the motor housing downwards. If you want to switch off the function, pull the button upwards.

BE COOL

Inclination adjustment

To change the angle of the airflow, you can adjust the fan's tilt angle by moving the head forward or backward.

MAINTENANCE

1. Attention! Before cleaning, allow the appliance to come to a complete standstill and disconnect it from the power socket.
2. Use a soft cloth for cleaning. If dirt or stains are not easily removed, use warm soapy water.
3. Do not use solvents or scouring agents (thinners), metal cutlery or hard brushes for cleaning, as these may damage the plastic housing.
4. Do not immerse the fan in water or other liquids. Do not allow water to drip onto or into the motor housing of the fan.
5. Dry all components thoroughly before storing them.
6. Store the unit in a cool, dry and clean environment.
7. Keep the appliance out of the reach of children and animals.

BE COOL

Technical information
Rated voltage	220-240V~
Frequency	50 Hz
Nominal power	35 Watt
Sound level	47.6 dB(A)
Dimensions	340×465×240 mm
Weight	1,55 kg
Information requirements under Regulation (EU) No. 206/2012
Article number	BC12TF
Nominal	220 – 240 V
Protection Class	II
Power consumption when switched off (POFF)	0 W
Seasonal power consumption (Q)	10.34 kWh/a
Designation	Symbol	Value	Unit
Maximum volume flow	F	28,2	m3/min
Fan power consumption	P	32,3	W
Service ratio	Sv	0,87	(m3/min)/W
Power consumption in standby mode	PSB	0	W
Fan sound power level	LWA	53	dB(A)
Maximum air velocity	c	5,5	m/s
Measurement standard for determining the service ratio	IEC 60879:2019
Contact addresses for further information and service line:	Schuss Home Electronic GmbH Scheringgasse 3, A-1140 Vienna Tel: [phone] - 0 www.becool.at Company register no.: 236974 t Commercial Register Court: Vienna

BE COOL

GUARANTEE

With this quality product from BE COOL, you have made a decision for innovation, durability and reliability.

For this BECOOL appliance we grant a warranty period of 2 years from the date of purchase valid in Austria!

If, contrary to expectations, service work should nevertheless be necessary on your device during this period, we hereby guarantee to repair the device free of charge (spare parts and labour) or (at the discretion of Schuss) to exchange the product. Should neither repair nor exchange be possible for economic reasons, we reserve the right to issue a credit note for the current value.

In the case of air conditioners, please contact the customer hotline as a first step (see sticker on the unit or cover page of the operating instructions), in the case of fans, please contact your specialist dealer or us directly. We would like to point out that repair work that has not been carried out by the authorised contract workshop in Austria will immediately terminate the validity of this warranty.

This warranty does not cover:

• We do not accept any liability for consequential damage in the event of improper use.
• Repair or replacement of parts due to normal wear and tear
• Damage due to non-observance of the operating instructions
• Devices that are used - even only partially - for commercial purposes
• equipment mechanically damaged by external influence (fall, impact, breakage, improper use, etc.) as well as wear and tear of an aesthetic nature.
• Equipment that has been improperly handled
• Units that have not been opened by our authorised service workshop.
- Damage caused as a result of improperly closed condensation drain valves of air conditioners or improperly inserted water tank.
• Consumer expectations not met.
• Damage caused by force majeure, water, lightning, overvoltage.
- Units where the type designation and/or serial number on the unit has been changed, deleted, made illegible or removed.
• services outside our authorised workshops, the transport costs to an authorised workshop or to us and back, and the associated risks.

We expressly point out that within the warranty period, a lump sum of € 60,- (indexed basis CPI 2010, June 2015) will be charged in case of operating errors or if no error was detected.

The provision of warranty service (repair or replacement of the appliance) does not extend the absolute warranty period of 2 years from the date of purchase.

The 2-year warranty is only valid on presentation of the purchase receipt (must contain the name and address of the dealer as well as the complete designation of the unit) and the corresponding warranty certificate, on which the type of unit as well as the serial number (visible on the box and on the back or bottom of the unit) must be noted! Without the warranty certificate, only the legal warranty applies!

We expressly point out that the statutory warranty rights are not affected by this guarantee and continue undiminished.

Schuss Home Electronic GmbH and its vicarious agents shall only be liable for damages in the event of gross negligence or intent. Liability for loss of profit, expected but not realised savings, consequential damage and damage from third party claims is excluded in any case. Damages to or for recorded data are always excluded from the liability for damages.

Congratulations on your choice. We hope you enjoy your BE COOL appliance!

ADDRESS Distribution BE COOL:

Schuss Home Electronic GmbH

A-1140 Vienna, Scheringgasse 3

Tel.: [phone]

Type designation:

Serial number: ....

In the event of a warranty claim, this warranty certificate must be handed over to the authorised service centre together with the unit.
