Urban Arrow Suncover Installation and User Instruction

EN Installation and User Instruction 3
NL Installatie- en gebruikersinstrumente 21
DE Installations- und Benutzieranleitung 26
FR Installation et instructions d'utilisation 31

①

Urban Arrow Suncover4

User Manual 5

Urban Arrow Suncover6

⑦

10

11

Urban Arrow Suncover10

13

Urban Arrow Suncover12

User Manual 13

Urban Arrow Suncover14

(20)

Urban Arrow Suncover16

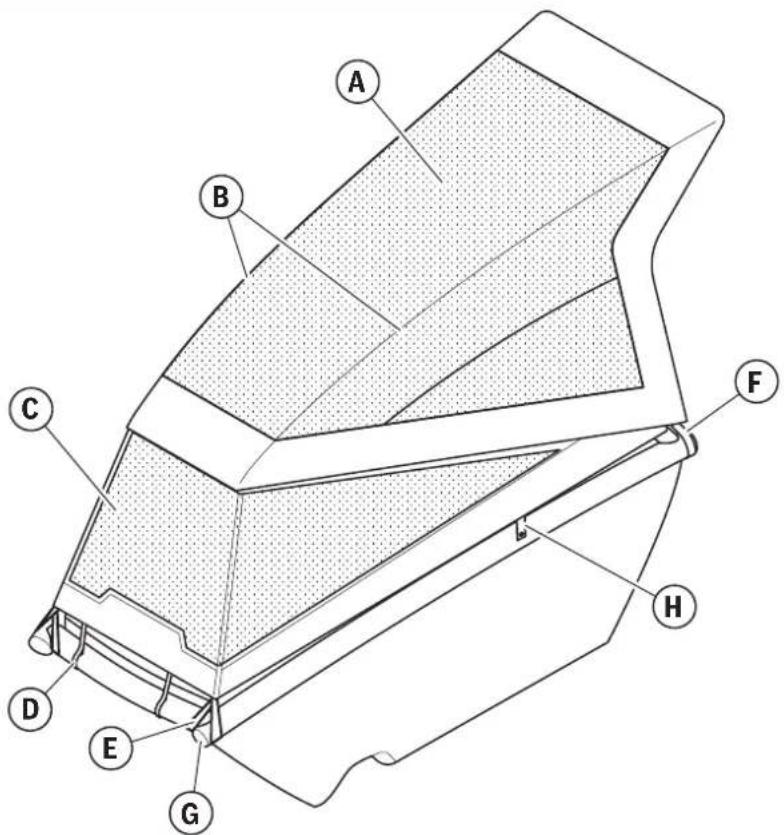

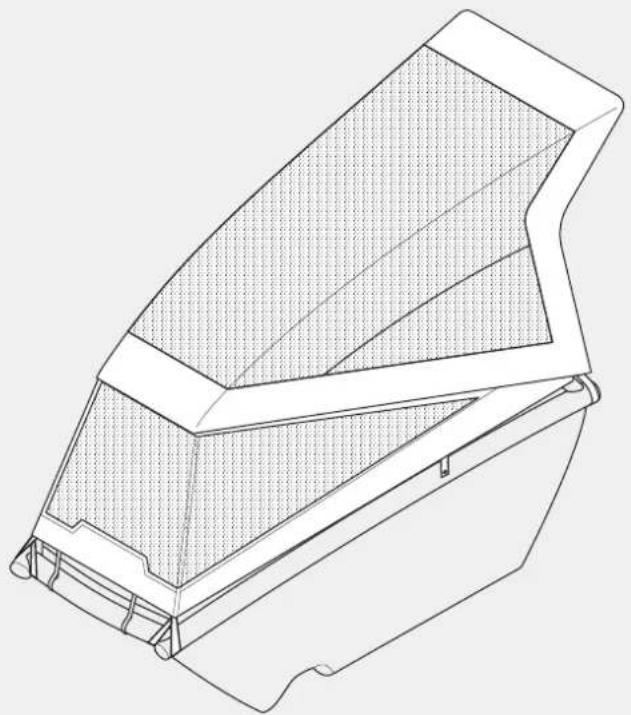

1. Product Parts ①

2. Safety Instructions

Part Letter
Top cover A
Poles B
Front cover C
Straps with eyelets D
Front cover loops E
Red loops F
Reflectors G
Side straps H
Bag I

Please read these instructions carefully before installing and using the Urban Arrow Suncover.

• This product is only suitable for use on the "Urban Arrow Family" bikes of Urban Arrow. The connections of the Suncover shall be checked every time the bike is used.
• Never leave children unattended under the Suncover. Make sure that they are always supervised by a person responsible for their safety.
  Strong crosswinds can have an effect on the riding behavior of the bike. Adjust your speed if necessary.
  If the Suncover or any of its important parts are bent or broken, replace all the parts.
  Make sure that the Suncover is free during storage and is not placed under heavy equipment.
  In the event of a defect, such as a crack or hole in the hood, we recommend that you contact your dealer. Do not continue driving if the hood is defective.
• Modifications to the Suncover or its components are not permitted. This will void the warranty.
• Keep the bike and Suncover away from fire.

3. Installation

1. Check if the packaging contains the following components:

poles [2]
top cover [1]
- front cover [1]
bag [1]
manual [1]

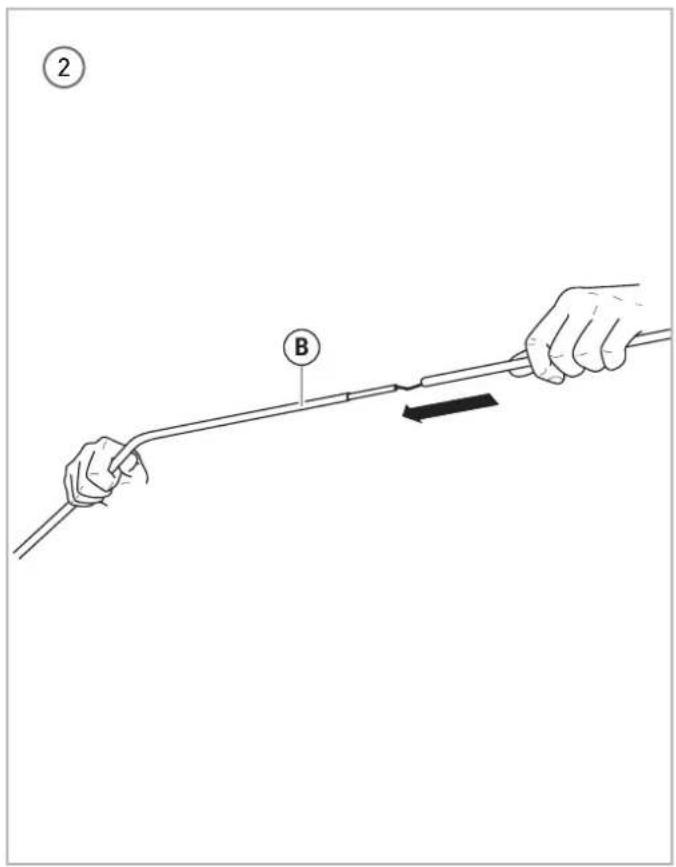

1. Connect the two poles together. ②
2. Put the top cover ④ on a horizontal and clean surface. NOTICE Please make sure that the inside of the top cover is facing upwards.

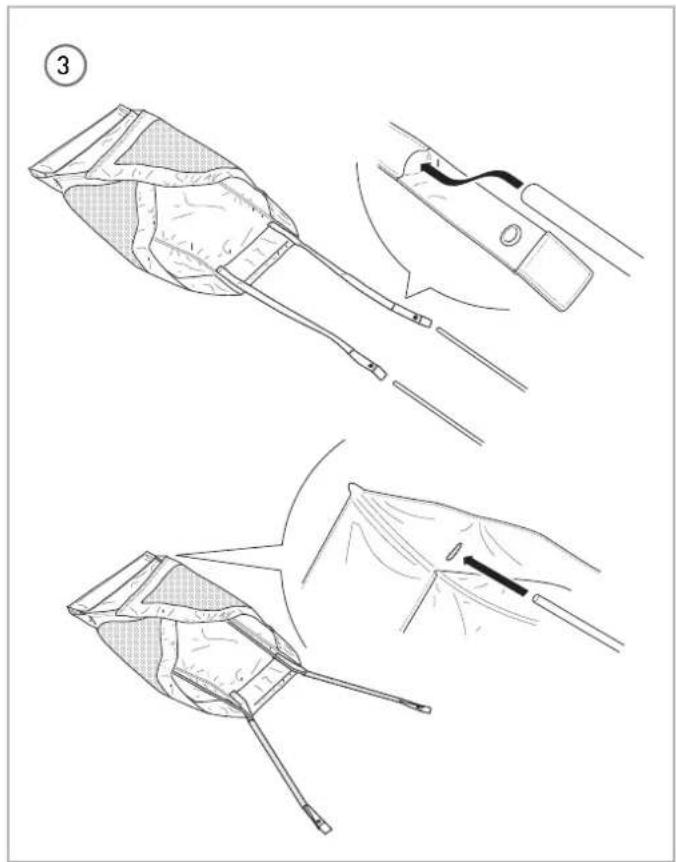

3. Put each of the two poles through the pockets at the end of the straps with eyelets ④. NOTICE Please make sure that the poles are fully positioned inside the outer corner sockets. ③

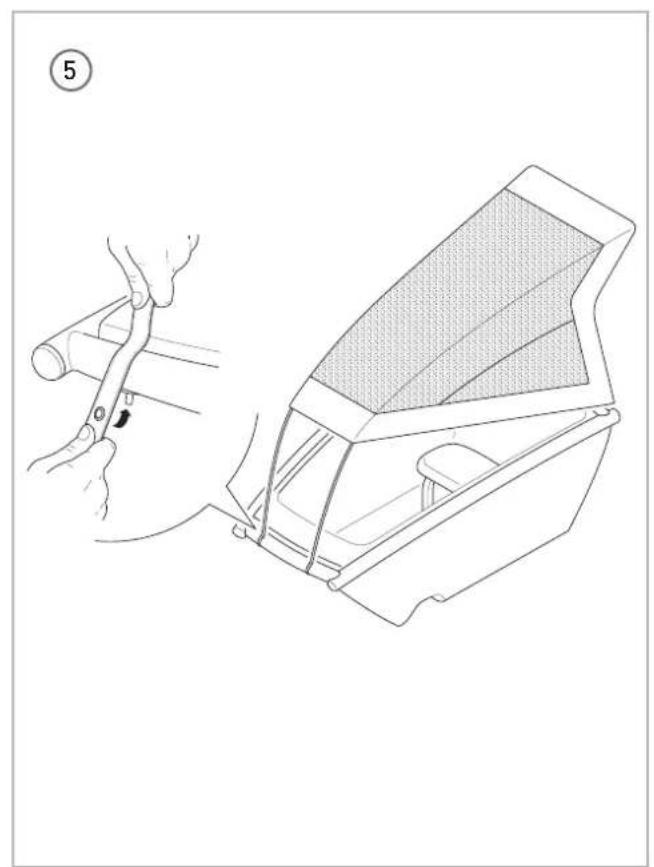

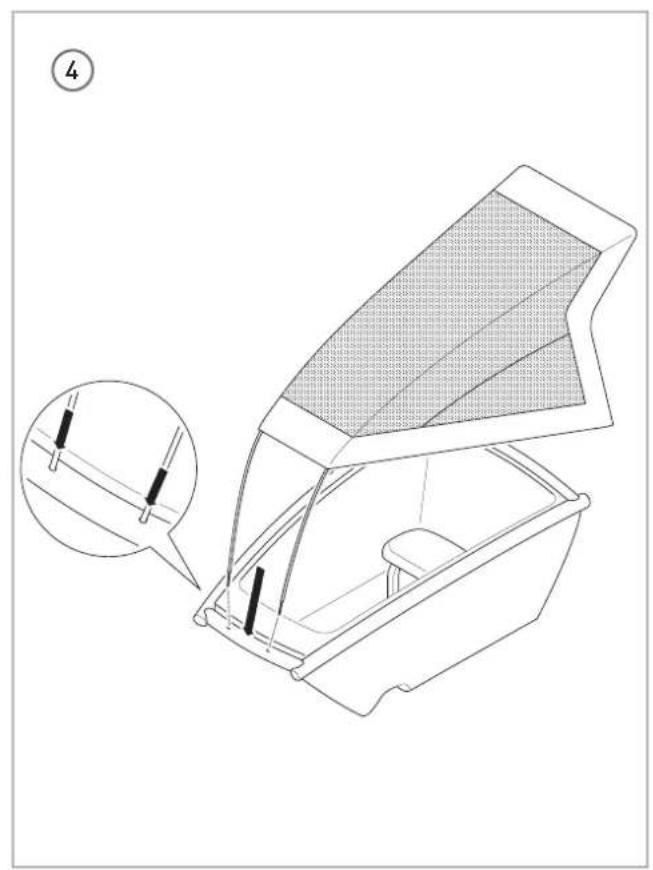

4. Position the Suncover above the bike. Put the poles through the holes on the front of the bike frame. 4
5. Secure the top cover ⑧ to the bike frame by putting the straps with eyelets ⑨ onto the poles. ⑥

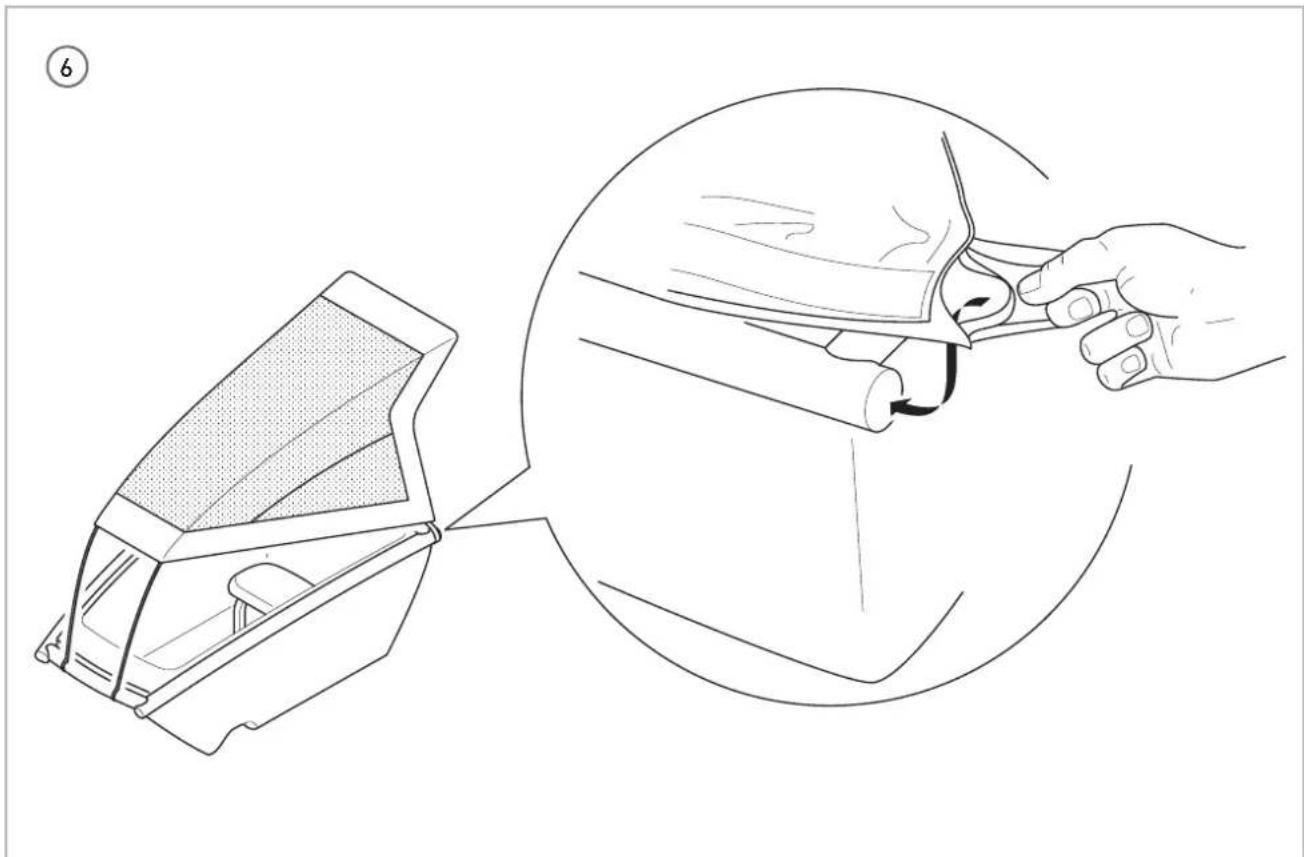

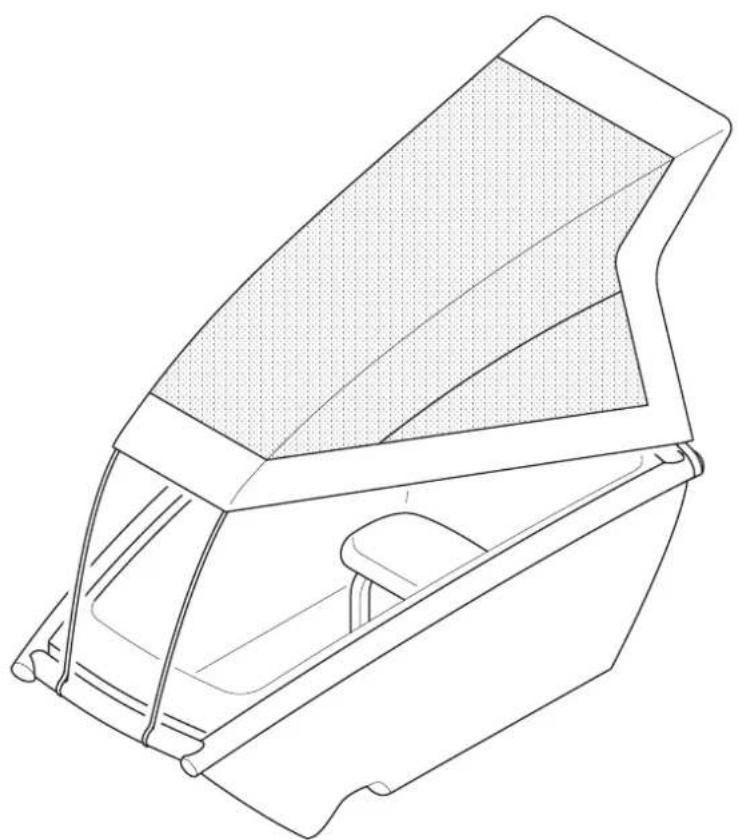

6. Pull the red loops of the top cover around the bike frame. ⑥

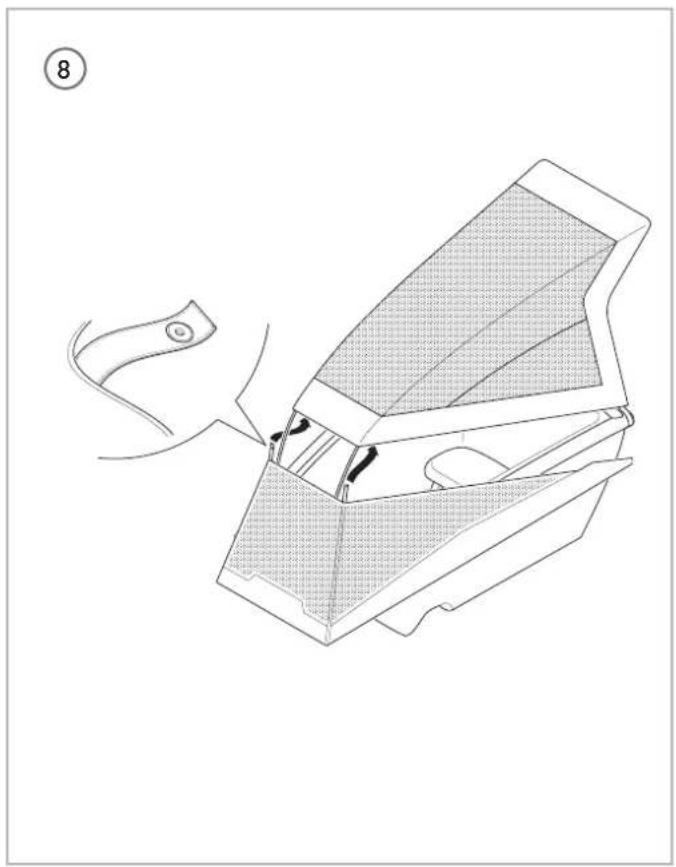

7. Attach the front side of the front cover to the top cover by using the two front snap fasteners on the inside of the top cover A. 8

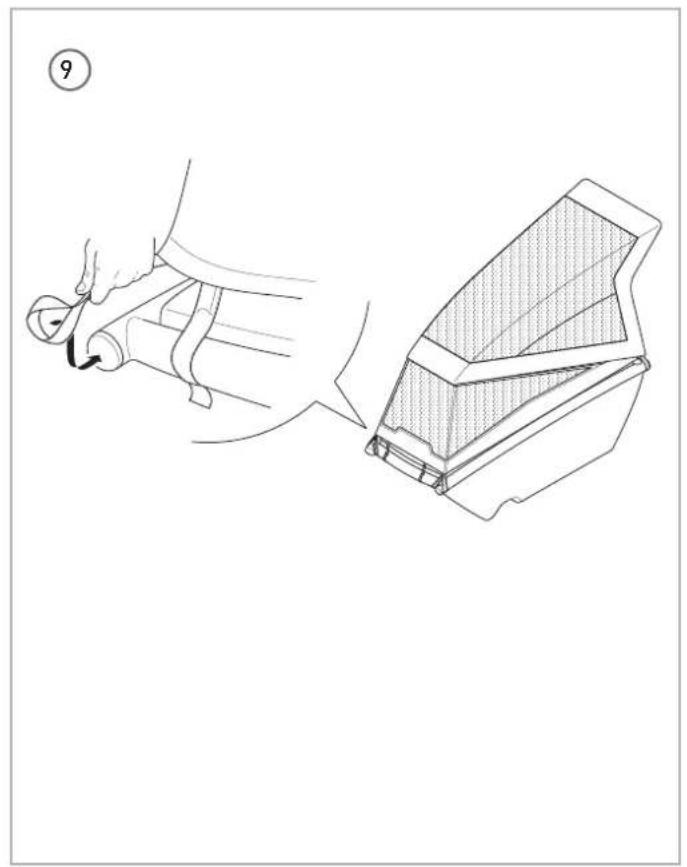

8. Put the front cover loops ⑥ over the reflectors ⑤ on the bike frame. ⑨

Urban Arrow Suncover18

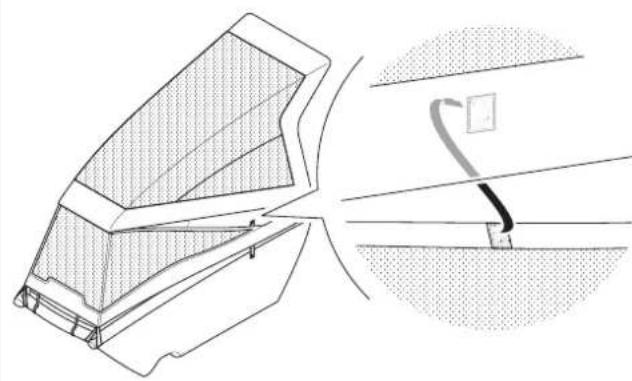

1. Attach the right side of the front cover to the top cover with the velco on the inside of the top cover.

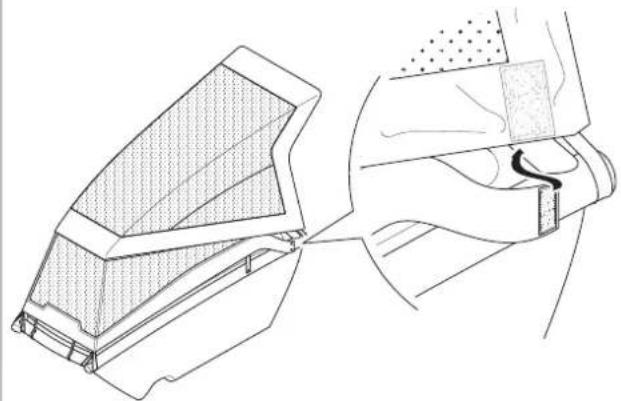

2. Attach the right back side of the front cover to the top cover with the velcro on the inside of the top cover.

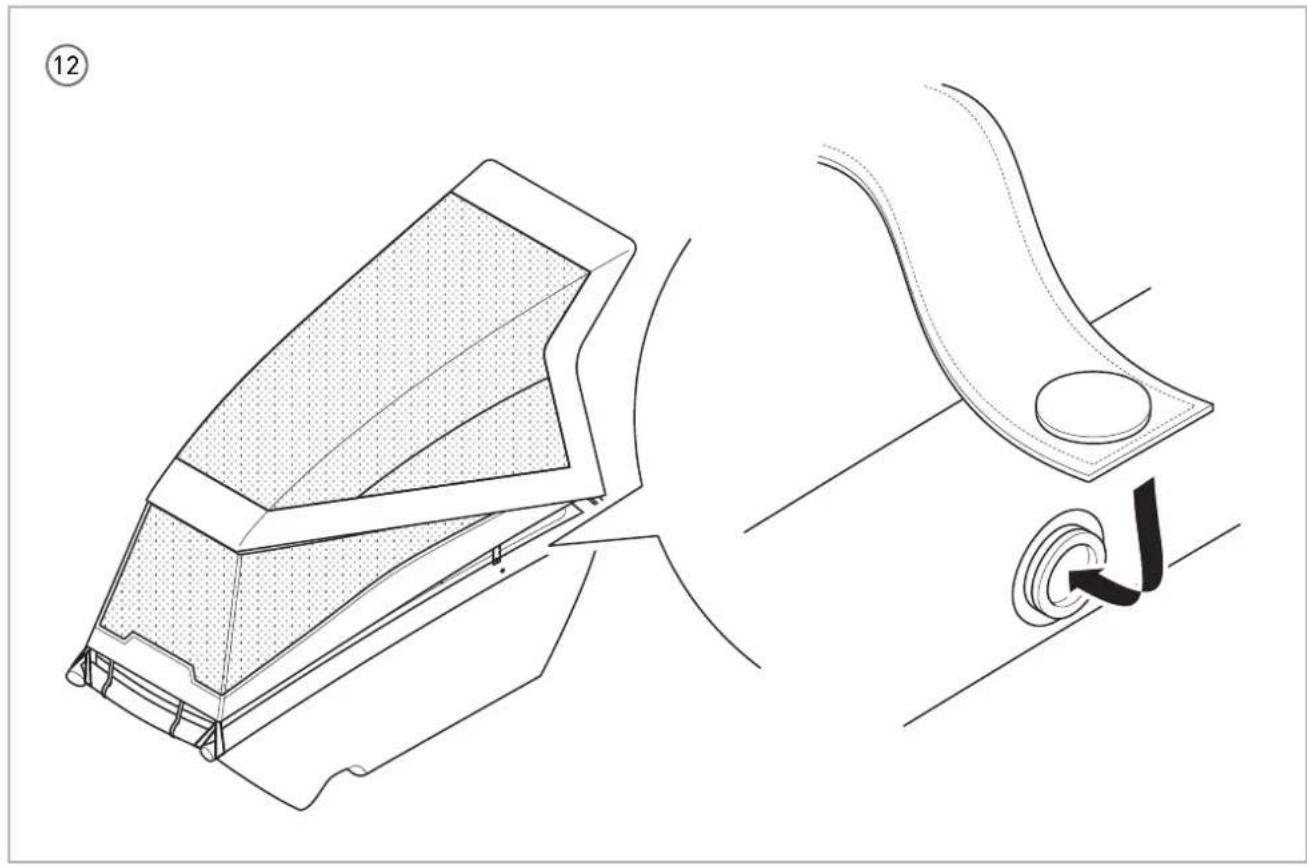

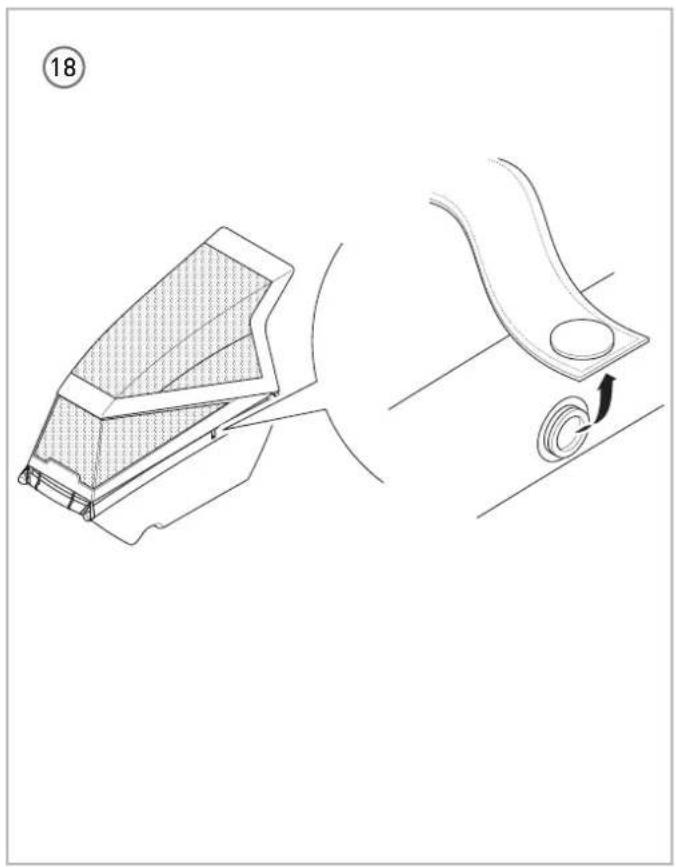

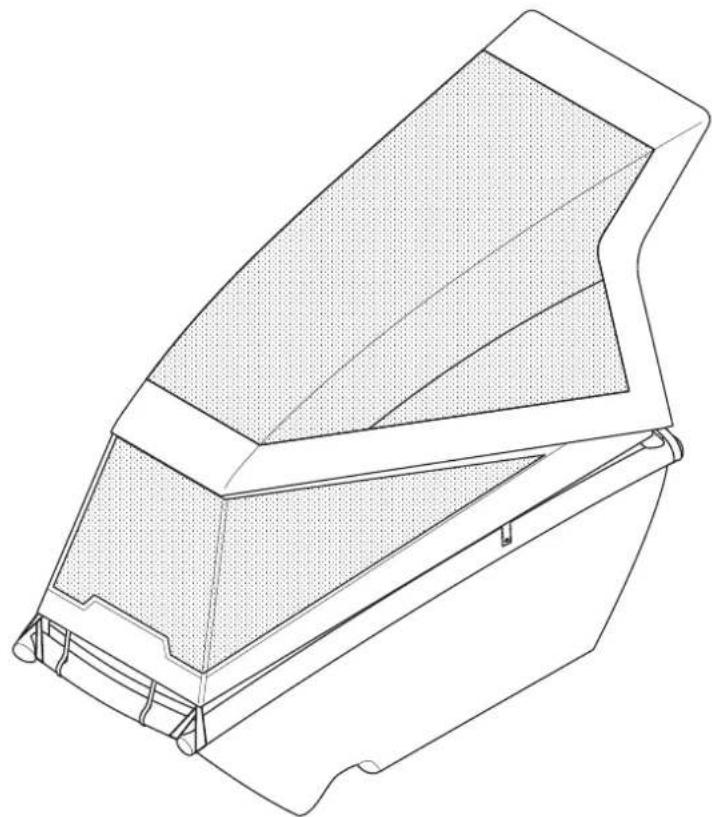

3. Secure the right side of the front cover to the bike frame with the snap fastener on the side strap ⑩. ⑫
4. Repeat steps 10-12 on the left side of the Suncover.

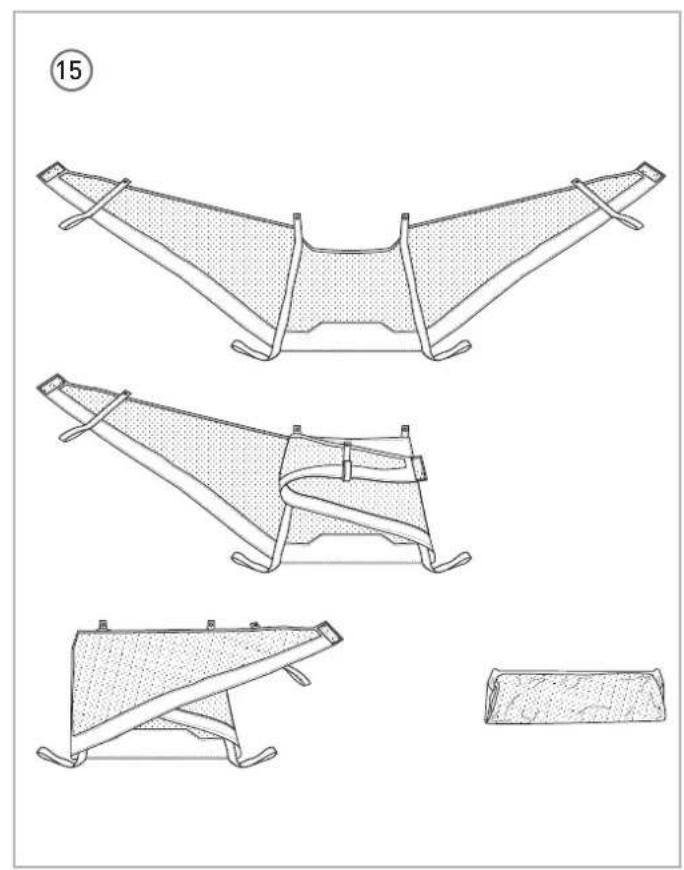

4. Uninstalling 5. Temporary Detachment

• Follow steps 2-13, and their instructions, in reversed order.

• Store the Suncover correctly:

• Put the top cover ④ and front cover on a horizontal and clean surface. NOTICE Please make sure that the inside of the covers is facing upwards.

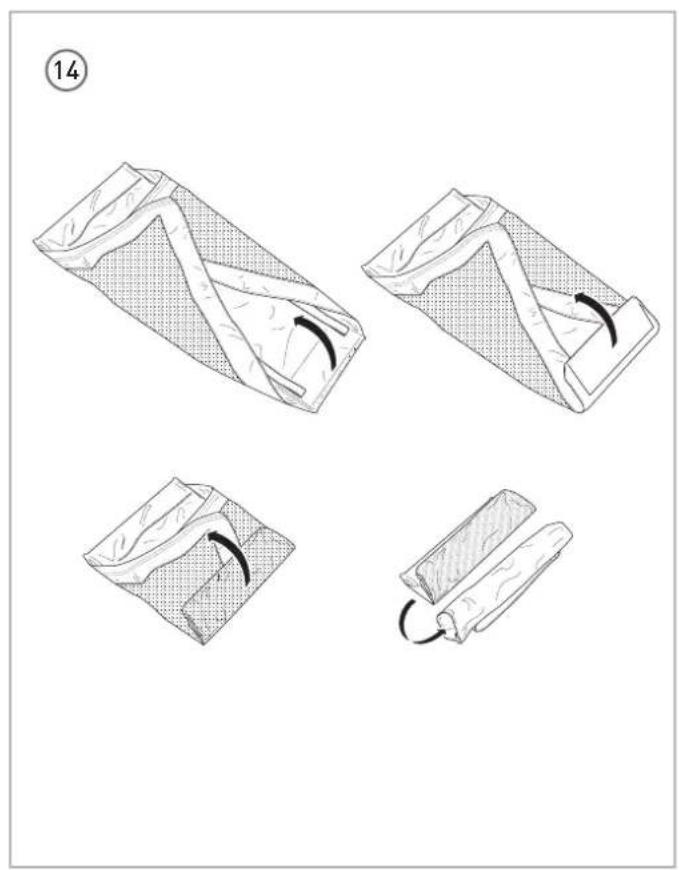

• Fold up the top cover 圆 . NOTICE Smooth out all creases and fold up the cover carefully.
• Fold up the front cover ©. NOTICE Smooth out all creases and fold up the cover carefully.
• Put the front cover on top of the top cover A.

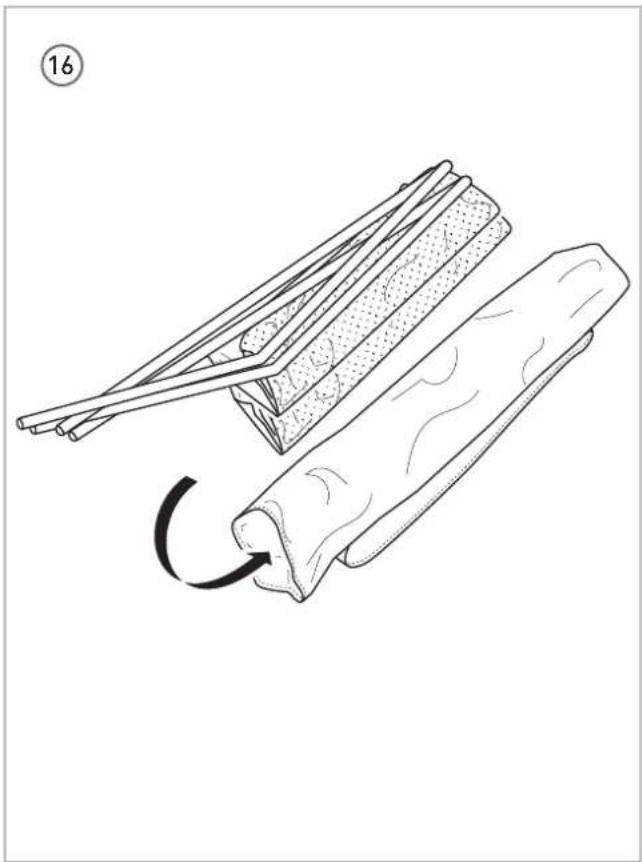

• Put the poles ⑧ on top of the folded covers. Put the folded covers and the poles ⑧ in the bag ① . NOTICE Make sure that the ends of the poles remain on the outside of the upfolded covers.

• Pull the red loops off each side.

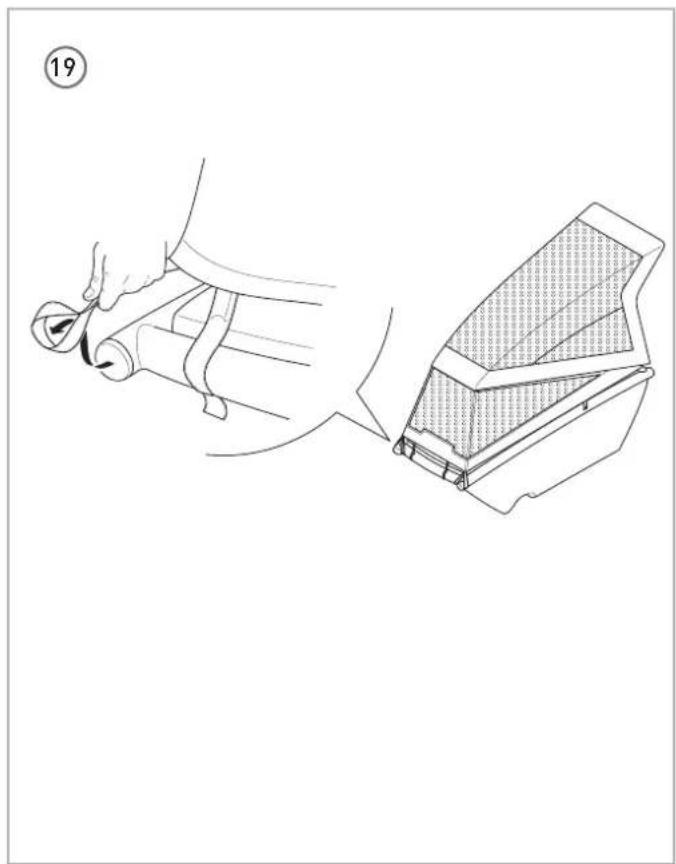

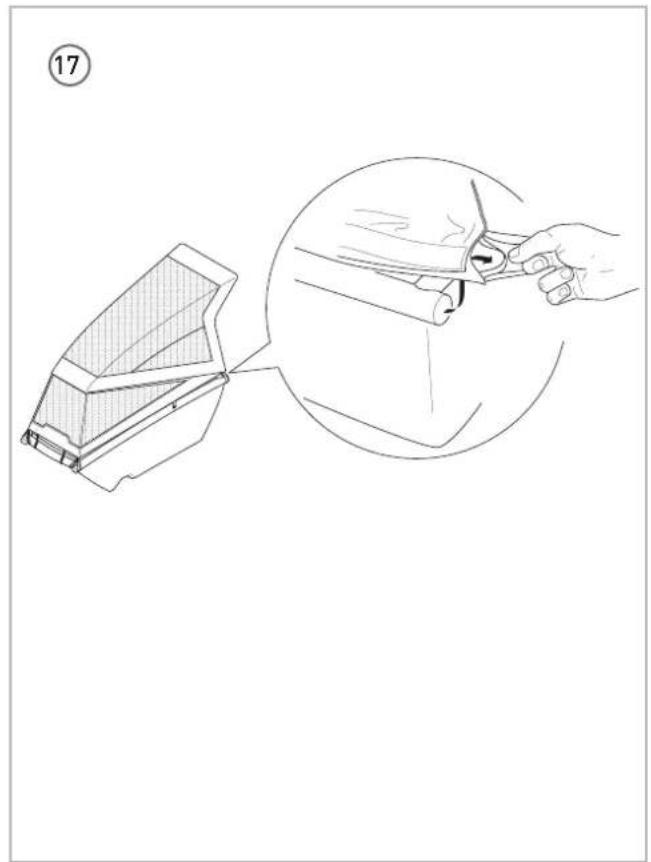

• Detach the right and left side of the front cover from the bike frame by untying the side straps 日
• Remove the front cover loops from the bike frame.
• Pull the straps with eyelets ⑥ from the poles ⑧.

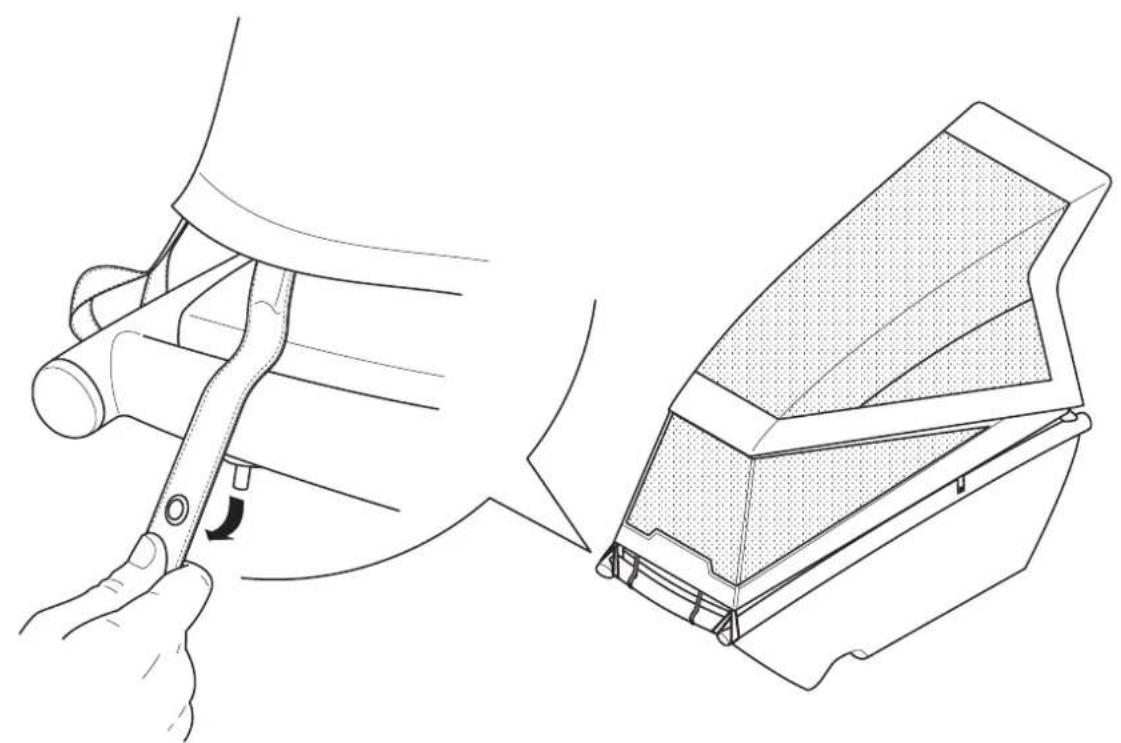

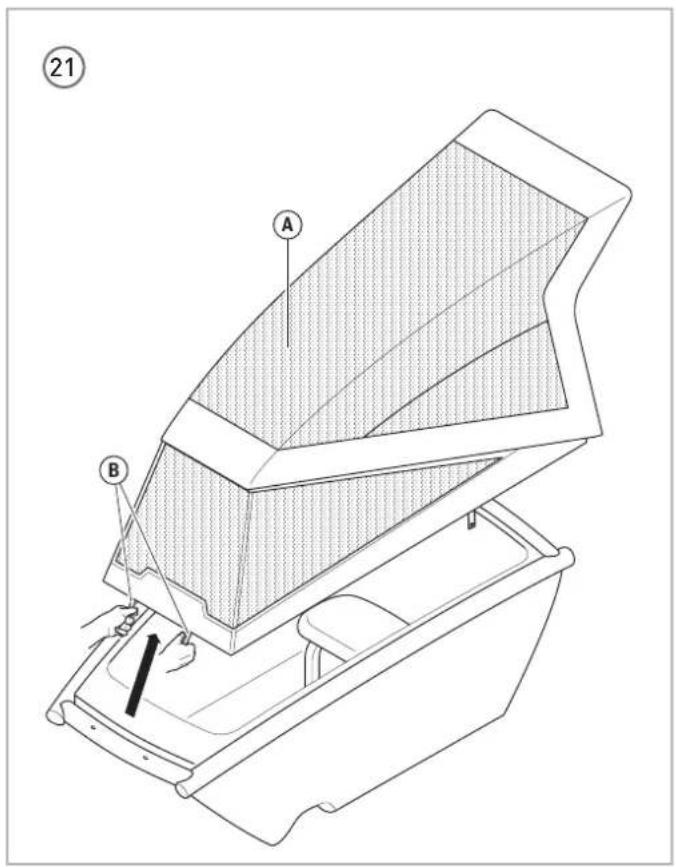

• Grab the poles to remove the Suncover from the bike. ⑦

6. Securing

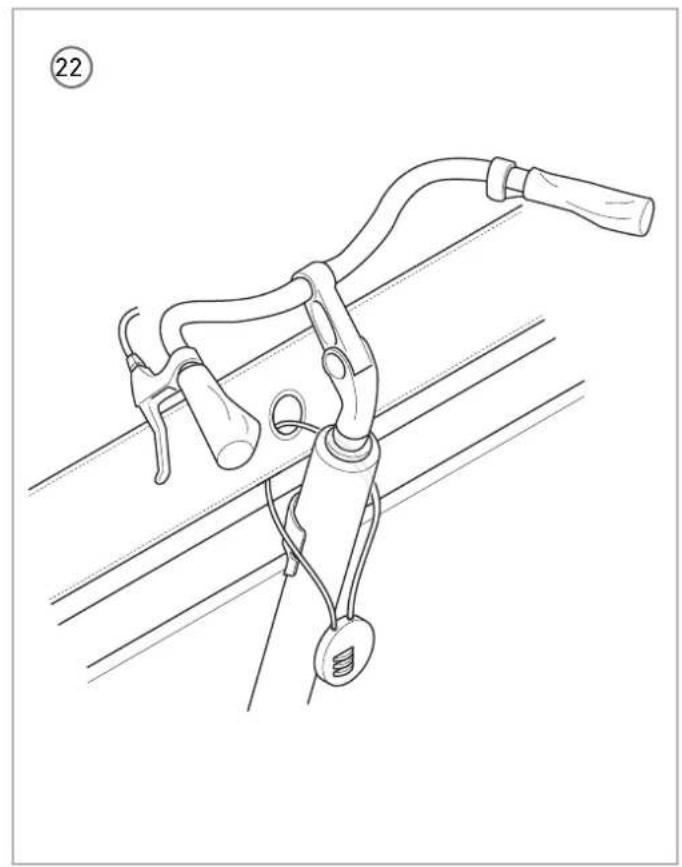

Use the eyelet to secure the Suncover with an optional lock. 2

8. Warranty7. Cleaning

Clean the Suncover when necessary. If your Suncover is not used for an extended period of time, clean the cover as described in these instructions and store it in a cool, dry place away from direct sunlight.

1. Rinse the Suncover with lukewarm water. NOTICE Do not use detergents or other solvents to clean the appliance.
2. Put the Suncover at a place where it can dry.
3. Use a damp cloth to wipe the entire surface of the Suncover. Make sure the Suncover is completely dry before storage.

Contact your Urban Arrow partner before returning the product. The warranty covers 24 months from the date of purchase. The defective product must be sent to the manufacturer within 2 weeks. The warranty will be void in the following cases:

External force
- Improper maintenance
- Failure to comply with operating instructions
- Discoloration caused by UV-radiation
- Wrinkles, scratches and indentations in the window material even caused by normal usage

Modifications to the Suncover or its components are not permitted. This will void the warranty.

Urban Arrow Suncover
