Product type	Rear luggage carrier for electric bike
Brand	Urban Arrow
Model	Luggage Carrier Trekking
Category	Electric bike accessory
Dimensions (L × W × H)	372 mm × 192 mm × 165 mm
Frame tube diameter	14 mm
Material	Powder-coated aluminum
Maximum load capacity per side	10 kg
Maximum total load capacity	20 kg (10 kg per side)
Compatibility	Urban Arrow UA4.X bikes (specific rear frame)
Package contents	Luggage carrier, 2 M5×25 bolts, 2 M5 washers, 2 M6×30 bolts, 2 M6 washers, installation manual
Recommended mounting tools	8 mm wrench, 10 mm wrench, cable ties
Intended use	Transport of panniers (max 10 kg per side), not suitable for child seats or towing
Warranty	24 months from date of purchase
Maintenance	Check connections before each use; clean with a soft cloth; store unloaded
Safety instructions	Do not exceed max load, do not modify product, keep children away, check reflectors

Frequently Asked Questions - Luggage Carrier Trekking Urban Arrow

Which types of Urban Arrow bikes are compatible with the Trekking Luggage Carrier?

The Trekking luggage carrier is compatible with all Urban Arrow bikes of the UA4.X series, identifiable by the distinct design of their rear frame.

What is the maximum load capacity of the luggage carrier?

The maximum capacity is 10 kg per side, a total of 20 kg. Never exceed this limit.

Can I attach a child seat to this luggage carrier?

No, the Urban Arrow Trekking Luggage Carrier is not designed for attaching a child seat.

How to install the Trekking luggage carrier?

Installation requires an 8 mm wrench and a 10 mm wrench. Attach the upper arm to the upper holes of the rear frame with M5 bolts, then the lower arm with M6 bolts. Follow the detailed steps in the manual.

Can the luggage carrier be used to tow a trailer?

No, the luggage carrier is not designed to tow a trailer.

How to maintain the luggage carrier?

Check connections before each use. Clean with a soft cloth. In case of cracks or deformation, contact your dealer. Store the luggage carrier unloaded.

What is the warranty period for the Trekking Luggage Carrier?

The warranty is 24 months from the date of purchase. It is voided in case of unauthorized modification or failure to follow instructions.

Can I use Ortlieb panniers with this luggage carrier?

Yes, but you must install the appropriate E236 locking buttons before use.

What to do if the luggage carrier is bent or broken?

Replace all affected parts. Do not continue riding with a defective luggage carrier. Contact your Urban Arrow dealer.

Can the luggage carrier obstruct lights or reflectors?

Ensure that the attached luggage does not hide the reflectors or bike lights. Check before each trip.

USER MANUAL Luggage Carrier Trekking Urban Arrow

Urban Arrow Luggage Carrier Trekking Installation and User Instructions

EN Installation and User Instruction 6
NL Installatie- en gebruikersinstructies 9
DE Installations- und Benutzeranleitung 12
FR Instructions d'installation et d'utilisation 15

1

Urban Arrow Luggage Carrier Trekking4

4

User Manual 5

EN

1. Product Parts 2. Safety Instructions

Part Letter

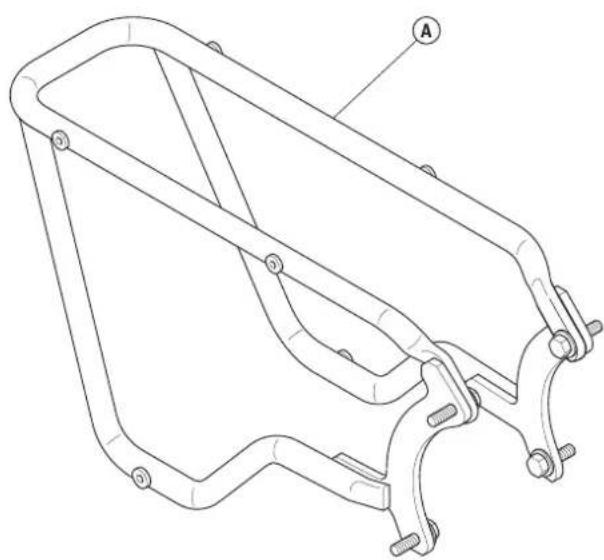

Carrier A
Mudguard stays* B
Frame* C
Upper rear frame holes* D
Lower rear frame holes* E
Brake cable* F
P-clip* G

*Bicycle parts

Technical data

Subject	Data
Dimensions (L*W*H)	372mm*192mm*165mm
Frame tube diameter	14mm
Materials	Aluminium, powder-coated
Maximum load capacity	10 kg per side

Urban Arrow Luggage Carrier Trekking6

Please read these instructions carefully before installing and using the Urban Arrow Trekking Luggage Carrier.

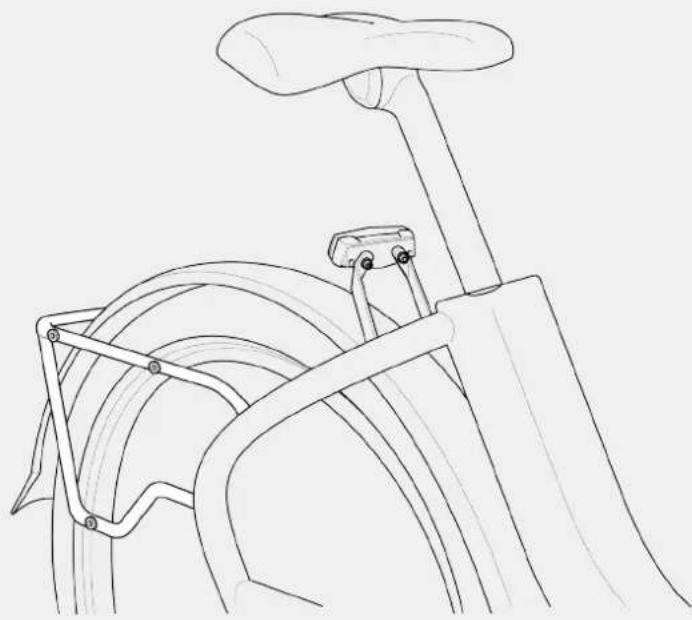

• The Trekking Luggage Carrier is suitable for all UA4.X bicycles, which can be recognised by their distinct rear frame design. ①
• Ensure that any bag fitted to the luggage carrier is securely fitted in accordance with the manufacturer's instructions and that there are no loose straps that can get caught in the wheel.
• Make sure that reflectors and lamps are not obscured by any luggage.
• The Urban Arrow Trekking Luggage carrier is not designed for the attachment of a child seat.
• The connections of the Trekking Luggage Carrier shall be checked before every use.
• In the event of a defect, such as a crack or inflexion, we recommend that you contact your dealer. Do not continue driving if the carrier is defective.
• If the Trekking Luggage Carrier or any of its important parts are bent or broken, replace all the parts.
• Do not let children climb onto the Trekking Luggage Carrier. Make sure that they are always supervised by a person responsible for their safety.
• Make sure that the Trekking Luggage Carrier is unloaded during storage.

3. Installation

EN

• Unauthorised modifications to the Trekking Luggage Carrier or its components are not permitted. This will void the warranty.
• Never exceed the maximum load capacity of the Trekking Luggage Carrier.
  • The carrier is not designed to pull a trailer.

Recommended tools:

• 8mm spanner
• 10mm spanner
• Tie wraps

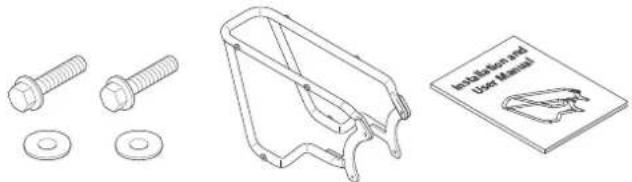

Check if the packaging contains the following components:

• Carrier
  • M5x25 flange bolt, hexagonal (2)
  • M5 Washer (2)
  • M6x30 flange bolt, hexagonal (2)
  • M6 Washer (2)
  • Installation and User Manual

To install the Trekking Luggage Carrier:

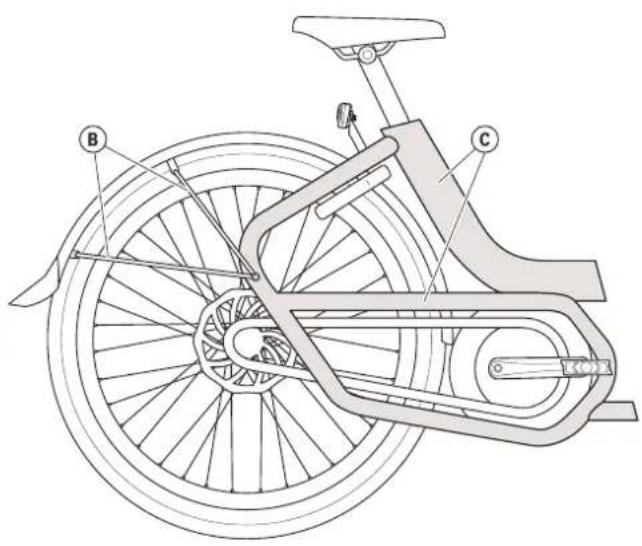

1. Disconnect the mudguard stays Ⓑ from the frame Ⓒ.

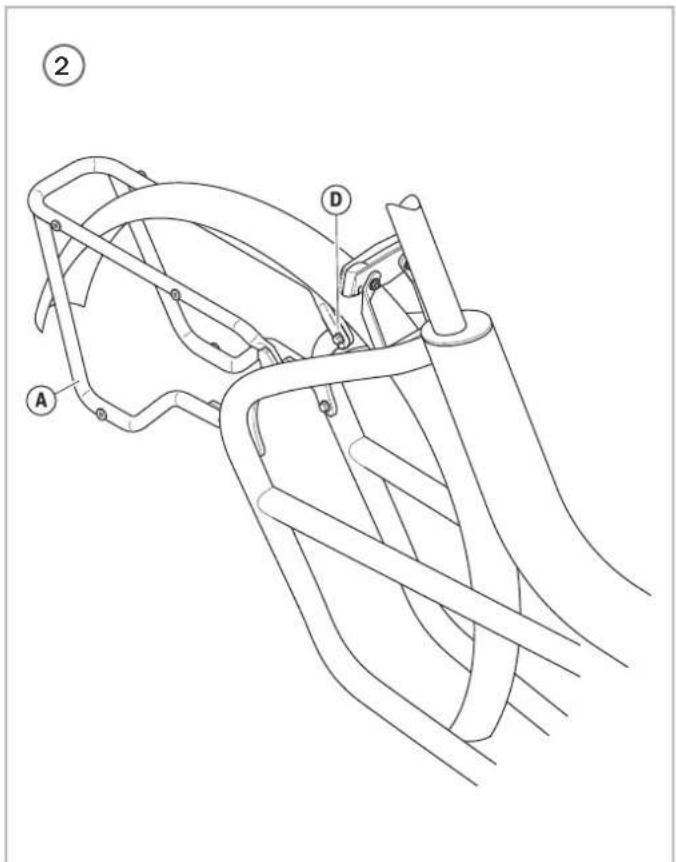

2. Horizontally position the carrier Ⓐ in the direction of the upper rear frame holes Ⓓ. Make sure the carrier does not interfere with the mudguard stays Ⓔ. ②

4. Warranty

1. Attach the upper arm of the carrier to the upper rear frame holes with the M5x25 flange bolts and M5 washers. 2

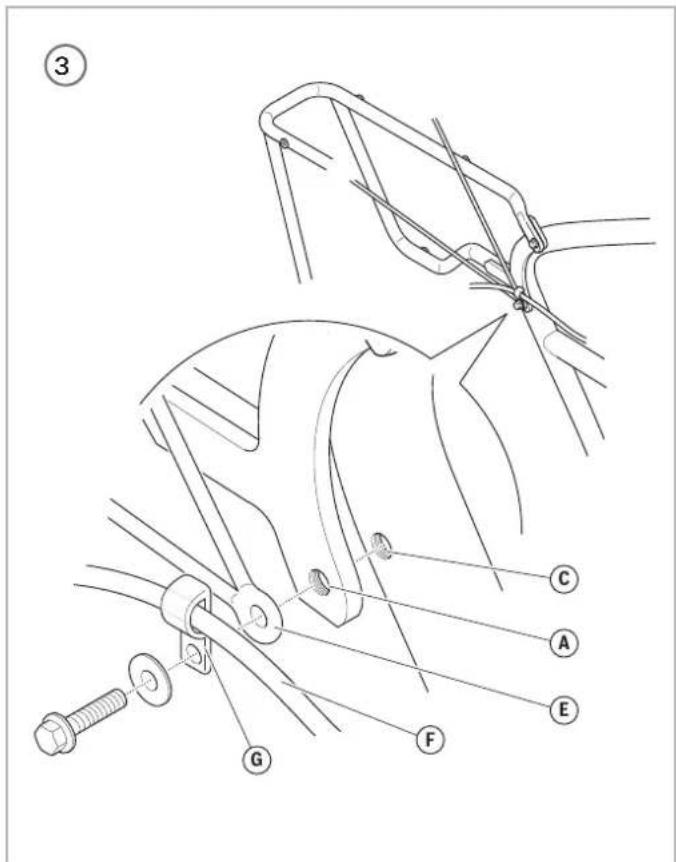

2. Put the M6x25 flange bolts through the M6 washers, the slots on the p-clips ⑥ and the slots on the mudguard stays ⑧. ③ NOTICE Make sure the brake cable ⑨ is positioned away from the braking mechanism.
3. Attach the lower arm of the carrier Ⓐ to the lower rear frame holes Ⓔ by fastening the M6x25 flange bolts. Ⓤ

6. Tightenallflange bolts.

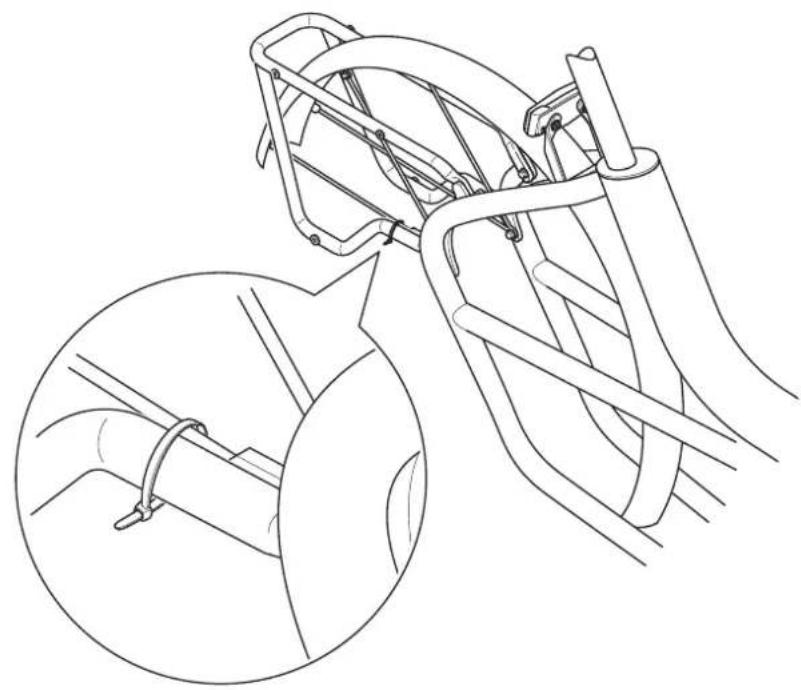

NOTICE If the carrier is mounted on a frame with metallic mudguard stays, the mudguard may become loose and rattle more easily. To prevent this, use tie wraps to attach the lower mudguard stays to the lower arm of the carrier. ④

NOTICE When using the carrier in combination with an Ortlieb bike bag, make sure to install the correct E236 locking buttons before use.

NOTICE To uninstall the carrier, follow steps 1-5, and its instructions, in reversed order.

Please handle this product with appropriate care. Contact your Urban Arrow partner before returning the product. The warranty covers 24 months from the date of purchase. The defective product must be sent to the manufacturer within 2 weeks. The warranty will be void in the following cases:

• External force;
• Lack of care;
• Failure to comply with safety instructions;
  • Discoloration caused by UV radiation;
• Scratches, indentations and loosening of the painting caused by normal usage.

Modifications to the Urban Arrow Trekking Luggage Carrier or its components are not permitted. This will void the warranty.

• Drager
  • M5x25-flensbout, zeshoekig (2)
  • M5-afdichtring (2)
  • M6x30-flensbout, zeshoekig (2)
  • M6-afdichtring (2)
  • Installatie en gebruikershandleiding

Om de Trekking Luggage Carrier te installeren:
