Rain Cover Essential - Electric bike Urban Arrow - Free user manual and instructions

Product Type	Rain cover for cargo bike
Brand	Urban Arrow
Model	Rain Cover Essential
Category	E-bike accessory
Use	Rain protection for children and cargo in the front box of the Urban Arrow Family bike
Material	Waterproof fabric
Hoops	Two crossbars made of composite material
Reflectors	Integrated (part E)
Storage bag	Included (part F)
Number of parts	6 (cover, 2 crossbars, door, red loops, reflectors, bag)
Safety standards	EN 71-2 and EN 71-3 (toxicity and flammability)
Compatibility	Urban Arrow Family bike only
Installation	Assembly by inserting crossbars into the frame and fastening with loops and snap buttons
Ventilation	Ventilation window to close in normal use
Cleaning	Rinse with lukewarm water (no detergents), air dry
Storage	Fold carefully, store in provided bag, away from sunlight
Warranty	24 months from the date of purchase
Maintenance	Check connections before each use
Safety	Never leave children unattended
Warning	Strong side winds may affect ride
Repairability	Contact dealer in case of defect, do not modify

Frequently Asked Questions - Rain Cover Essential Urban Arrow

How to install the Rain Cover Essential?

Assemble the two crossbars, place the cover upside down on a clean surface, insert the crossbars into the pockets, then position the cover on the bike. Insert the crossbars into the frame, pull the cover over, attach the red loops around the frame and press the snap buttons. Finally, put the crossbar in place. See the manual for detailed steps.

Can I use this cover on another bike?

No, the Rain Cover Essential is only compatible with Urban Arrow Family bikes. Its specific frame is necessary for attaching the crossbars.

How to clean the cover?

Rinse it with lukewarm water only, without detergents or solvents. Let it dry completely in the open air. Wipe with a dry non-abrasive cloth if necessary. Do not fold it when wet.

What is the warranty of the Rain Cover Essential?

The warranty is 24 months from the date of purchase. It covers manufacturing defects, but not damage caused by external force, improper maintenance, modification of the product, or normal wear (UV discoloration, folds, scratches).

Is the cover safe for children?

Yes, the materials are tested according to EN 71-2 and EN 71-3 standards for toxicity and flammability. However, never leave children unattended under the cover and monitor them at all times.

Can I use the cover in strong wind?

Strong side winds may affect the stability of the bike. It is recommended to adjust your speed and be cautious. If the wind is too strong, consider not using the cover.

What to do if the cover is torn or damaged?

Do not use the cover if it is defective. Contact your Urban Arrow dealer for repair or replacement. Do not attempt to modify it yourself, as this would void the warranty.

How to store the cover when not in use?

After cleaning and complete drying, fold the cover carefully by flattening the folds, then place it in the provided storage bag. Store it in a cool, dry place away from direct sunlight.

Is the cover delivered with a storage bag?

Yes, a storage bag (part F) is included in the package to facilitate transport and storage of the cover.

Can I add an Urban Arrow poncho to the cover?

Yes, if you have the optional Urban Arrow poncho, you can attach it to the Velcro provided inside the cover for better rain protection.

USER MANUAL Rain Cover Essential Urban Arrow

Urban Arrow Rain Cover Essential Installation and User Instruction

Technical line drawing of a mechanical component or housing (no text or symbols)

EN Installation and User Instruction 3
NL Installatie- en gebruikersinstructie 21
DE Installations- und Benutzeranleitung 26
FR Installation et instructions d'utilisation 31

1

Technical diagram of a car interior with labeled parts A through F, including a cylindrical component and a separate view.

EN

② B

③ B B

Urban Arrow Rain Cover Essential4

4

Technical diagram of a mechanical device with labeled parts and an inset showing a close-up view of a component with two labeled parts marked 'B'.

User Manual 5

5

Technical line drawing of a mechanical component with a close-up inset showing a detail view (no text or symbols)

Urban Arrow Rain Cover Essential6

Technical diagram showing a mechanical component being adjusted to a hand using a tool, with labeled parts and a numbered callout.

User Manual 7

Technical line drawing of a mechanical component and a curved pipe with circular features (no text or symbols)

Urban Arrow Rain Cover Essential8

8

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

User Manual 9

Technical line drawing of a mechanical component with a circular component and curved guide (no text or symbols)

Urban Arrow Rain Cover Essential10

Technical diagram showing a mechanical component being adjusted to a hand using a tool, with labeled parts and directional arrows.

User Manual 11

11

Technical line drawing of a mechanical component with a close-up inset showing a detail view (no text or symbols)

12

Technical diagram of a mechanical device with labeled parts A and B, showing internal structure and component alignment.

Urban Arrow Rain Cover Essential14

14

A F

Line drawing of a person riding a tricycle with numbered labels indicating parts of the body and side.

Urban Arrow Rain Cover Essential16

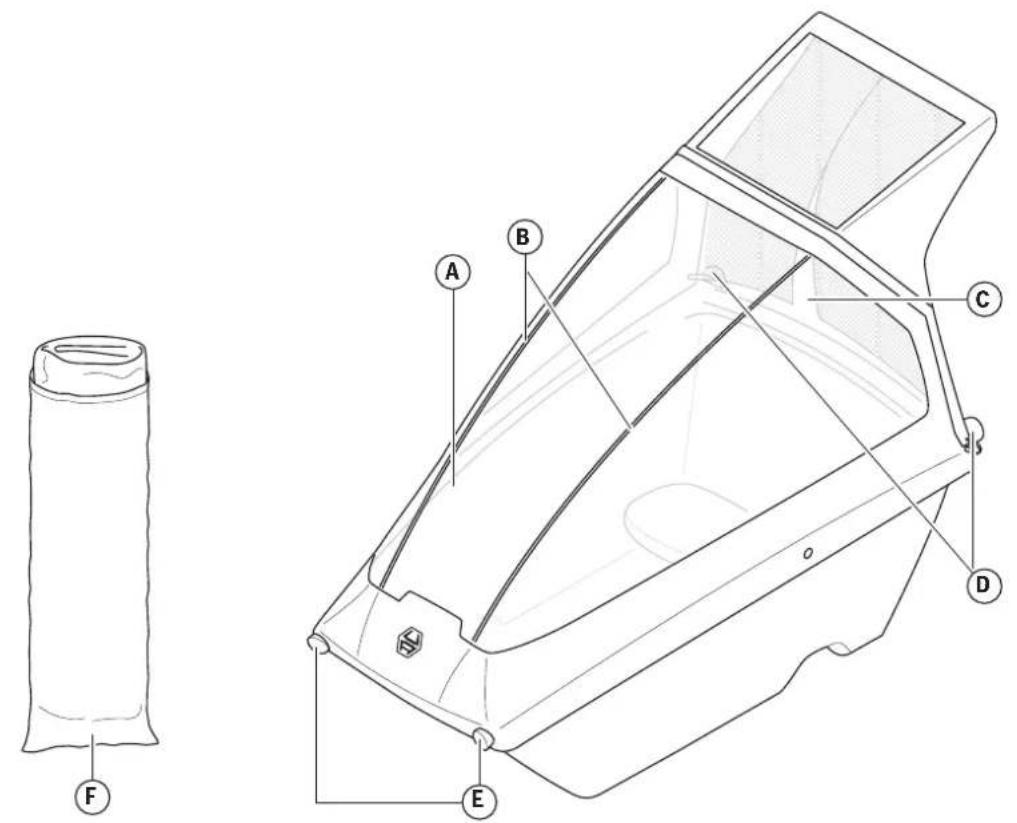

1. Product Parts ①

Safety instructions

EN

Part Letter
Cover A
Poles B
Door C
Red loop D
Reflectors E
Bag F

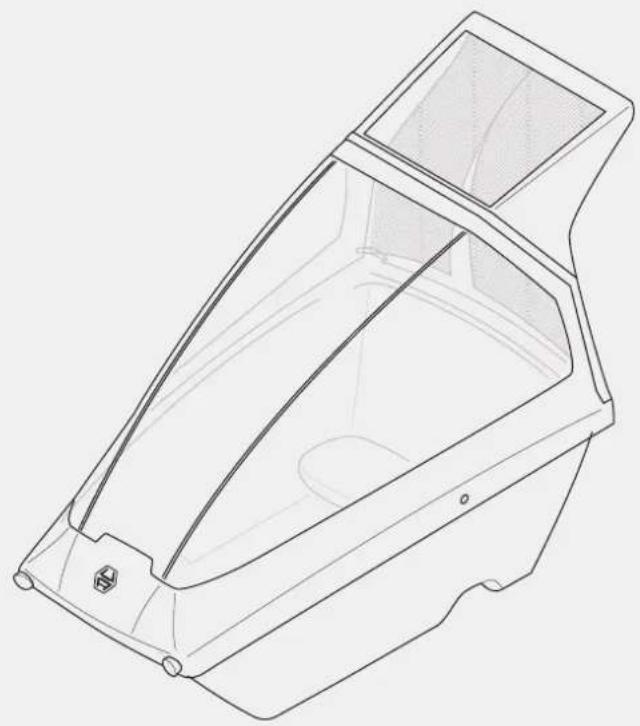

Please read these instructions carefully before installing and using the Urban Arrow Rain Cover Essential.

• This product is only suitable for use on the "Urban Arrow Family" bikes of Urban Arrow. The connections of the Rain Cover Essential shall be checked every time the bike is used.
• Never leave children unattended under the Rain Cover Essential. Make sure that they are always supervised by a person responsible for their safety.
  • Strong crosswinds can have an effect on the riding behavior of the bike. Adjust your speed if necessary.
• If the Rain Cover Essential or any of its important parts are bent or broken, replace all the parts.
  • Make sure that the Rain Cover Essential is neatly folded and rolled up during storage and is not placed under heavy equipment.
• In the event of a defect, such as a crack or hole in the fabric, we recommend that you contact your dealer. Do not continue driving if the Rain Cover Essential is defective.
• Modifications to the Rain Cover Essential or its components are not permitted. This will void the warranty.
• The materials of the Rain Cover Essential are tested according to the EN 71-2 and 71-3 standards (toxicity and flammability standards) and are safe to use near children.

Installation Uninstalling

1. Check if the packaging contains the following components:

2. 2x poles

3. 1x cover
4. 1x bag

5. 1x manual

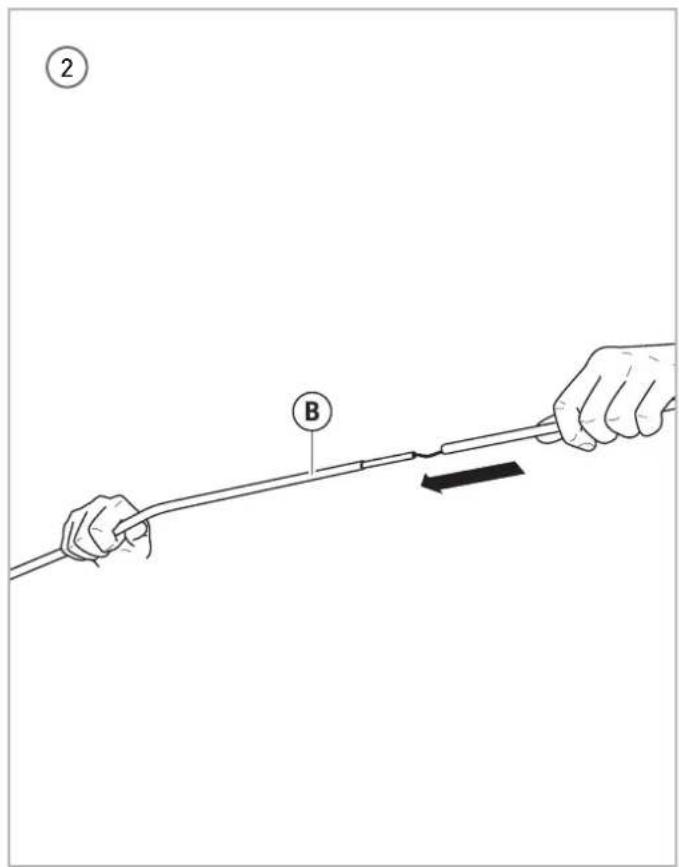

6. Connect the two poles Ⓑ together. ②

7. Put the cover Ⓐ on a horizontal and clean surface. NOTICE Please make sure that the inside of the cover is facing upwards.

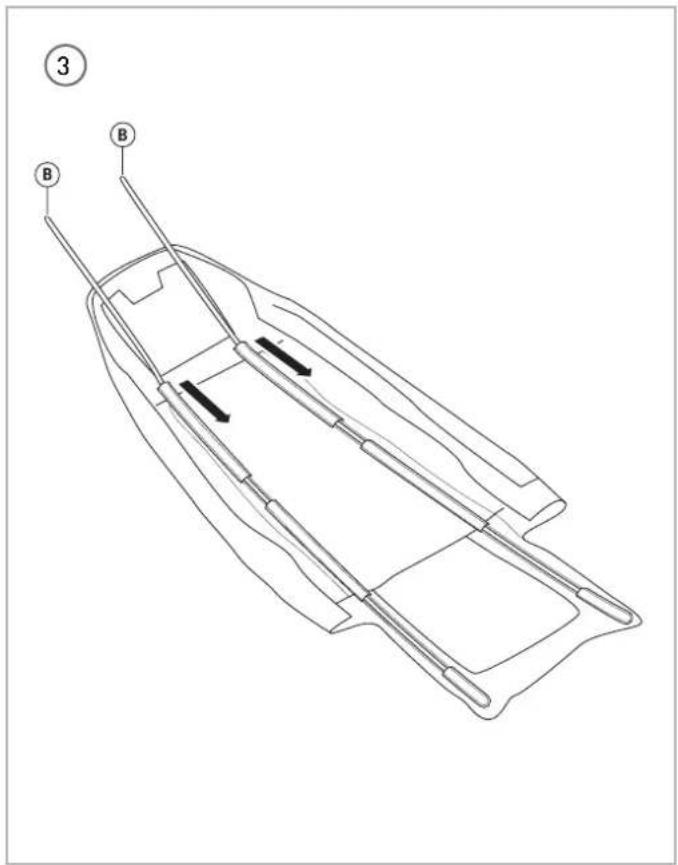

8. Put each of the two poles ⑧ through the pole pockets. NOTICE Please make sure that the poles are fully positioned inside the outer corner sockets. ③

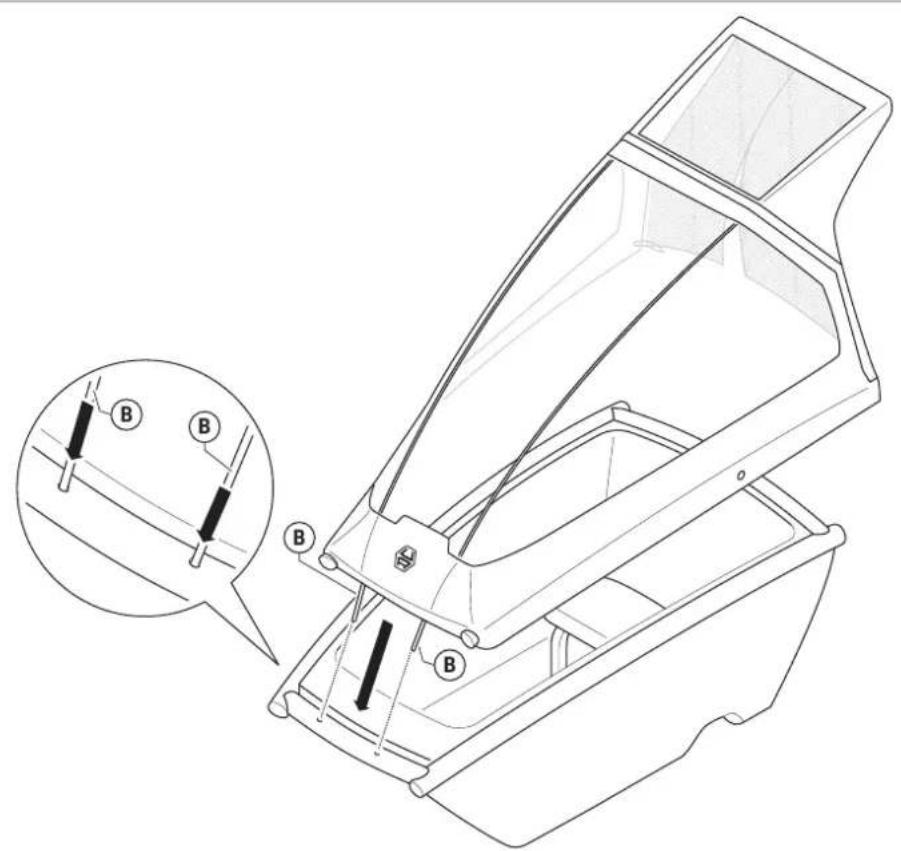

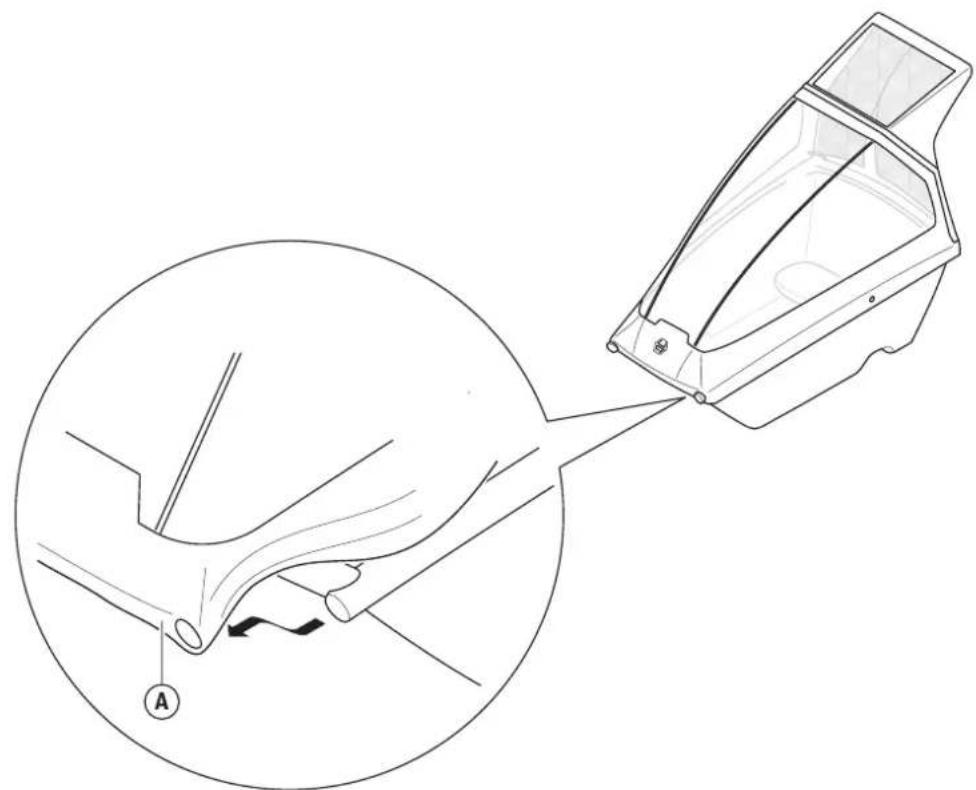

9. Position the Rain Cover Essential above the bike. Put the poles ⑧ through the rain cover holes in the bike frame. ④
10. Pull the cover Ⓐ over the bike frame. NOTICE Please make sure the bike frame protrudes from both holes in the front of the Rain Cover Essential. ⑤

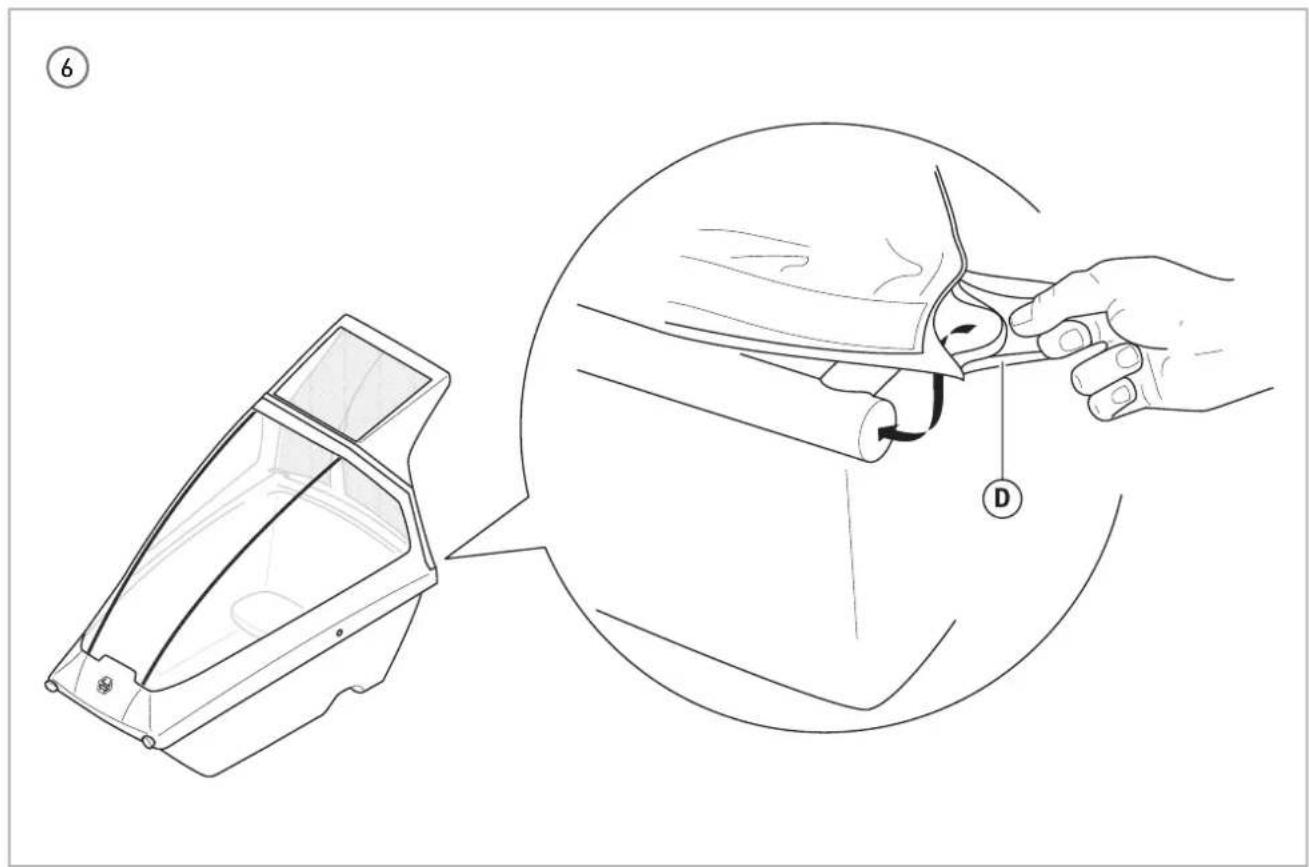

11. Pull the red loops ⑭ of the cover ⑨ around the bike frame. ⑥
12. Push the snap buttons. ⑦
13. Put the cross bar into place. ⑧

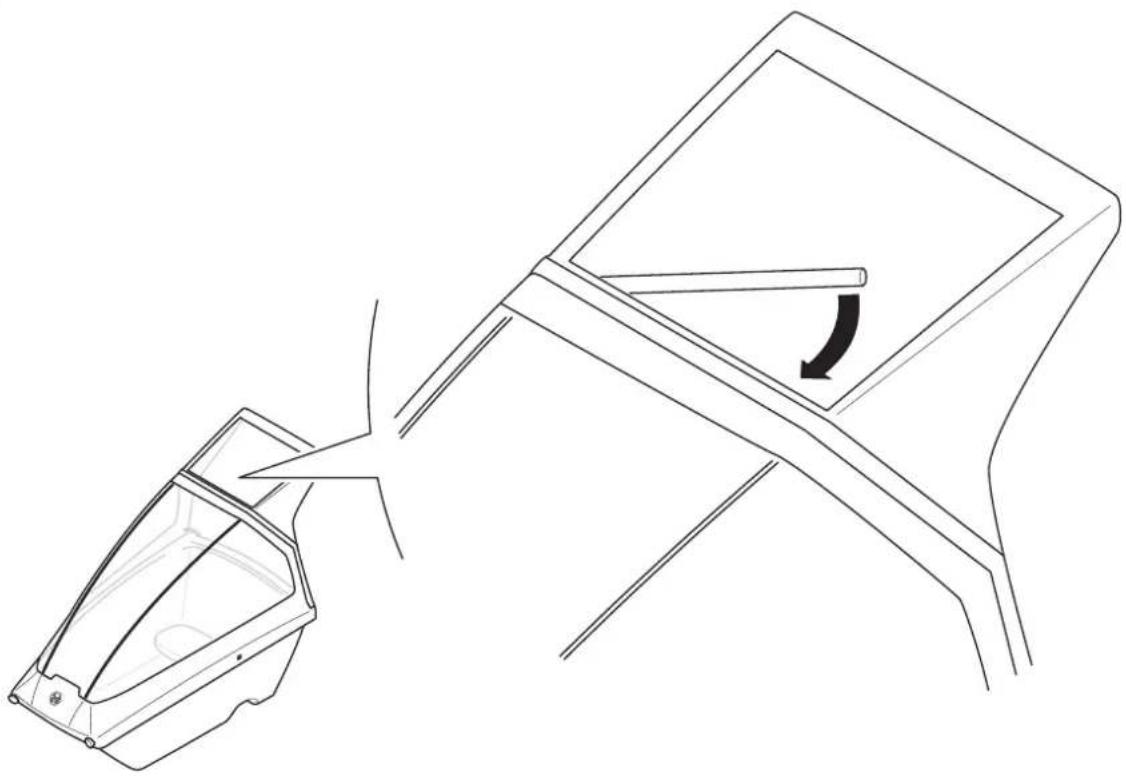

NOTICE Make sure the ventilation window is closed.

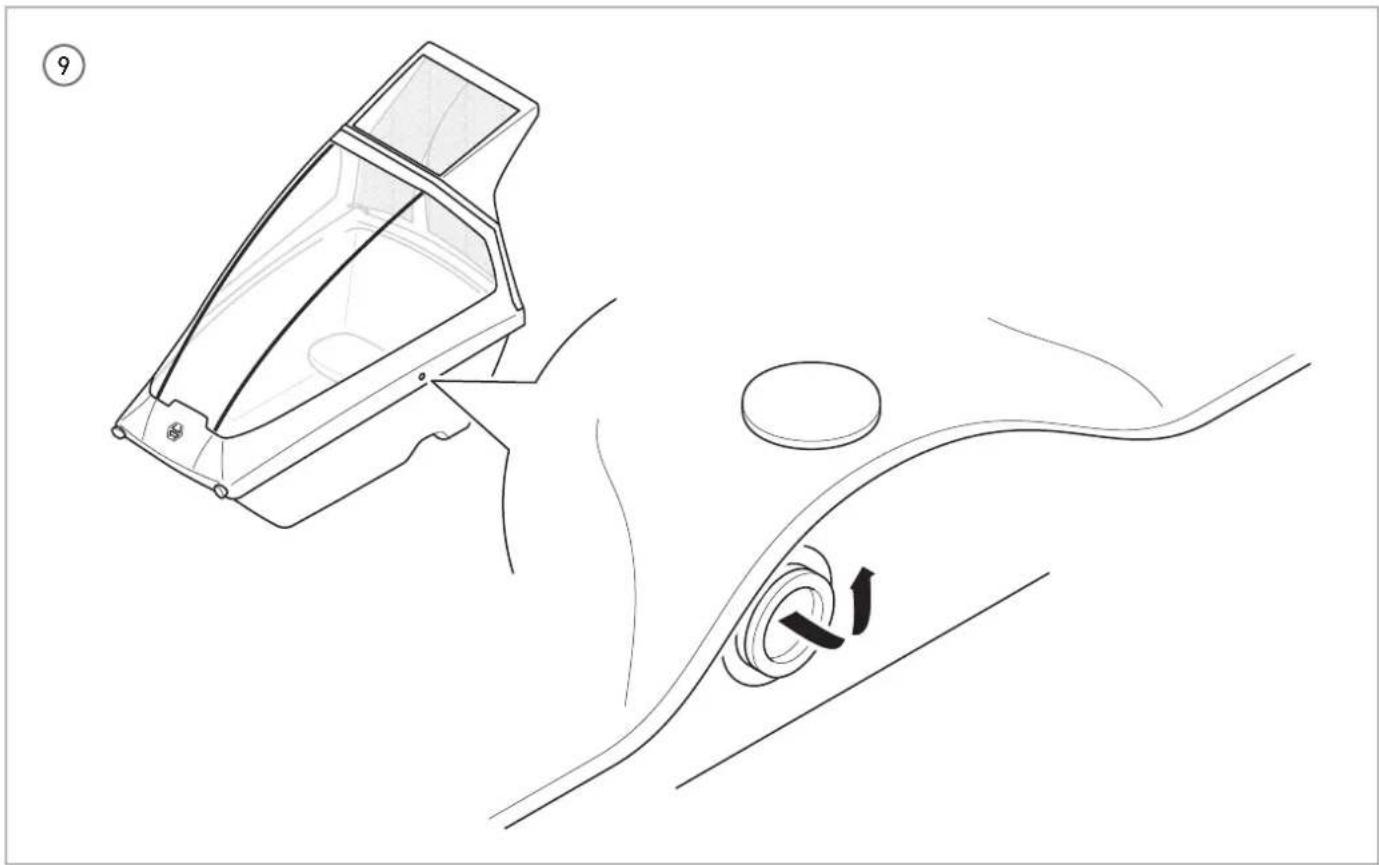

1. Loosen the snap buttons on each side. ⑨

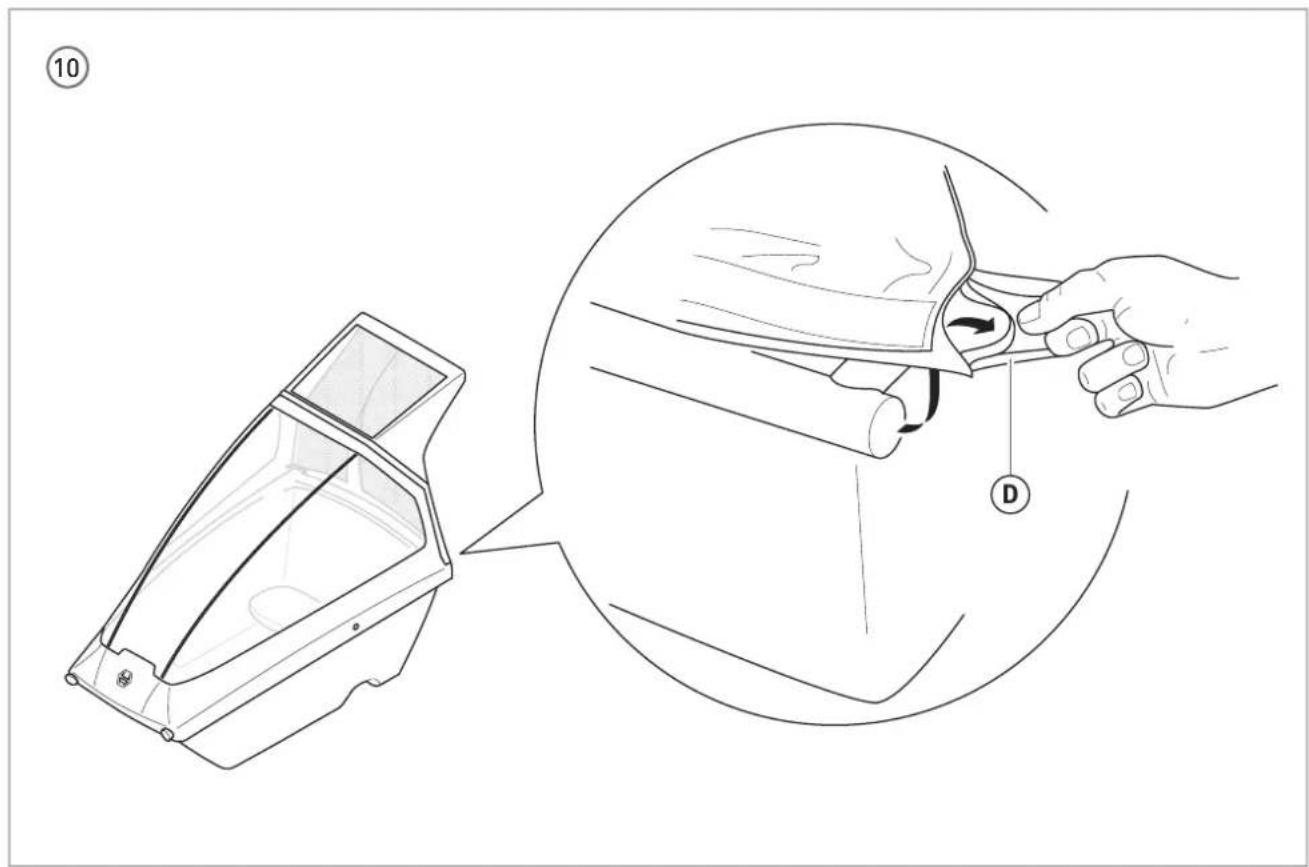

2. Pull the red loops ⑭ off each side. ⑩
3. Pull the corners of the cover Ⓐ off the bike frame. ⑪

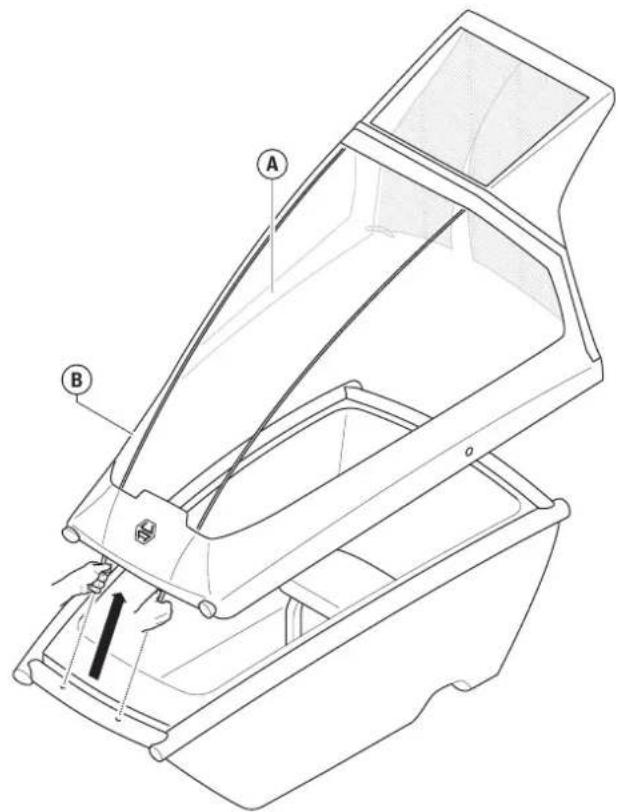

4. Grab the poles Ⓑ to remove the cover Ⓐ off the bike. ⑫
5. Put the cover Ⓐ on a clean, horizontal surface (table or compartment of bike). NOTICE Please make sure that the inside of the cover is facing upwards.
6. Disconnect the poles while the poles are still in their pockets.

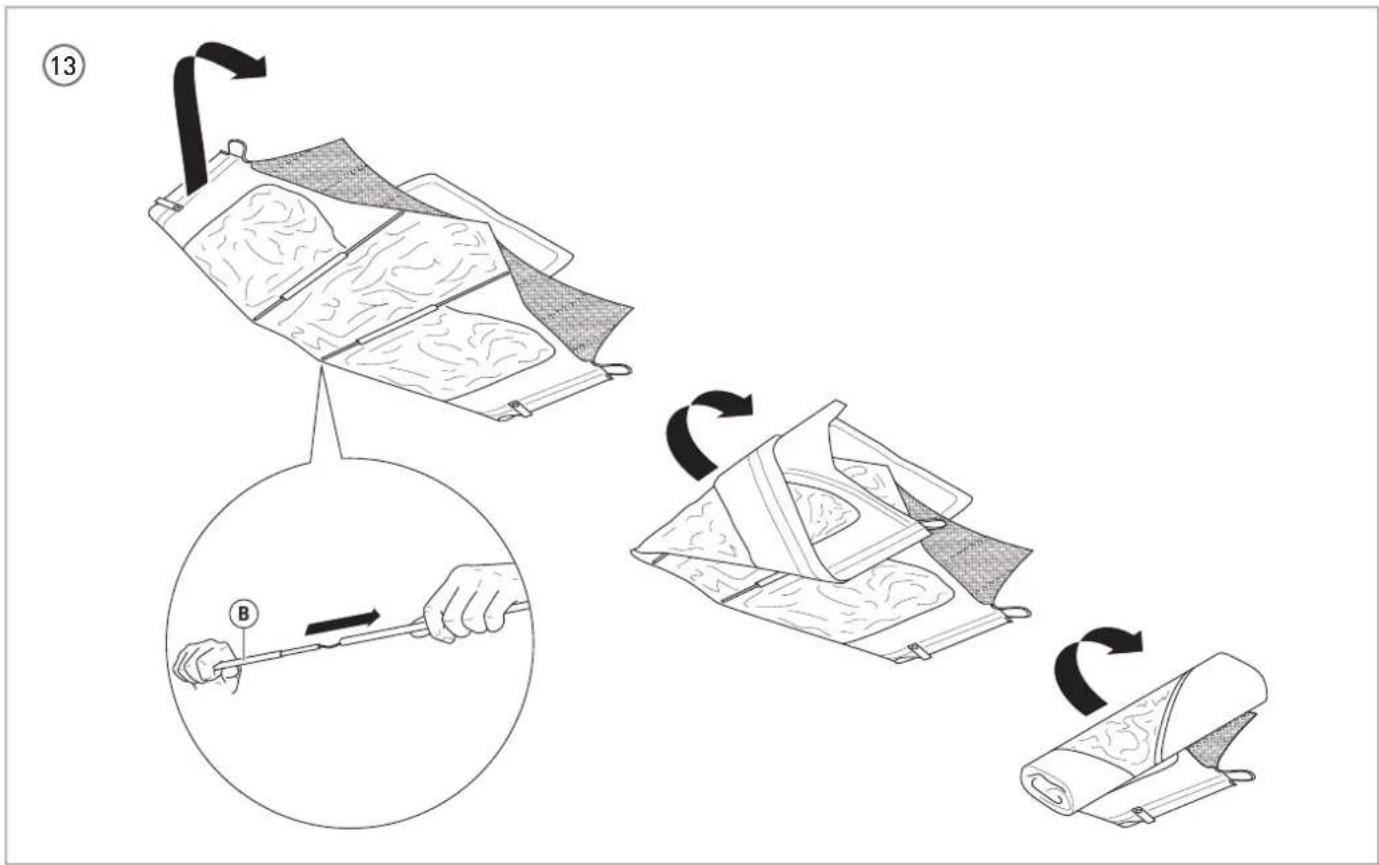

7. Fold up the cover with the poles. NOTICE Fold up the cover carefully. Make sure to smooth out all creases. ⑬

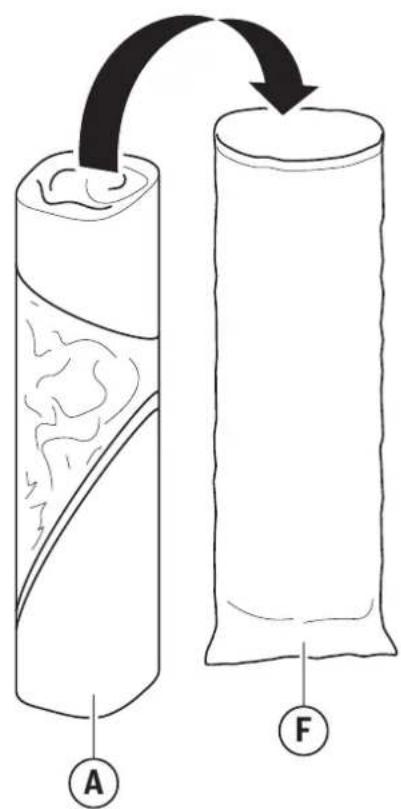

8. Put the the cover Ⓐ in the bag Ⓕ. ⑭

Use

Open

• Loosen the snap buttons on each side. ⑨
  • Pull the red loops ⑭ off each side. ⑩

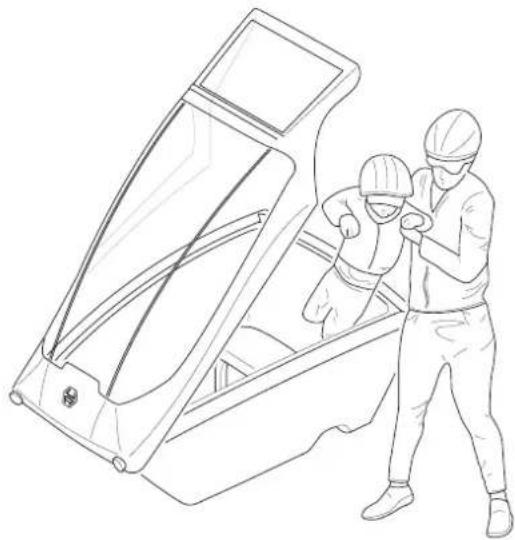

With the cover in the more vertical position you get access to the box

Line drawing of two workers in hard hats assembling a car frame (no text or symbols)

Poncho

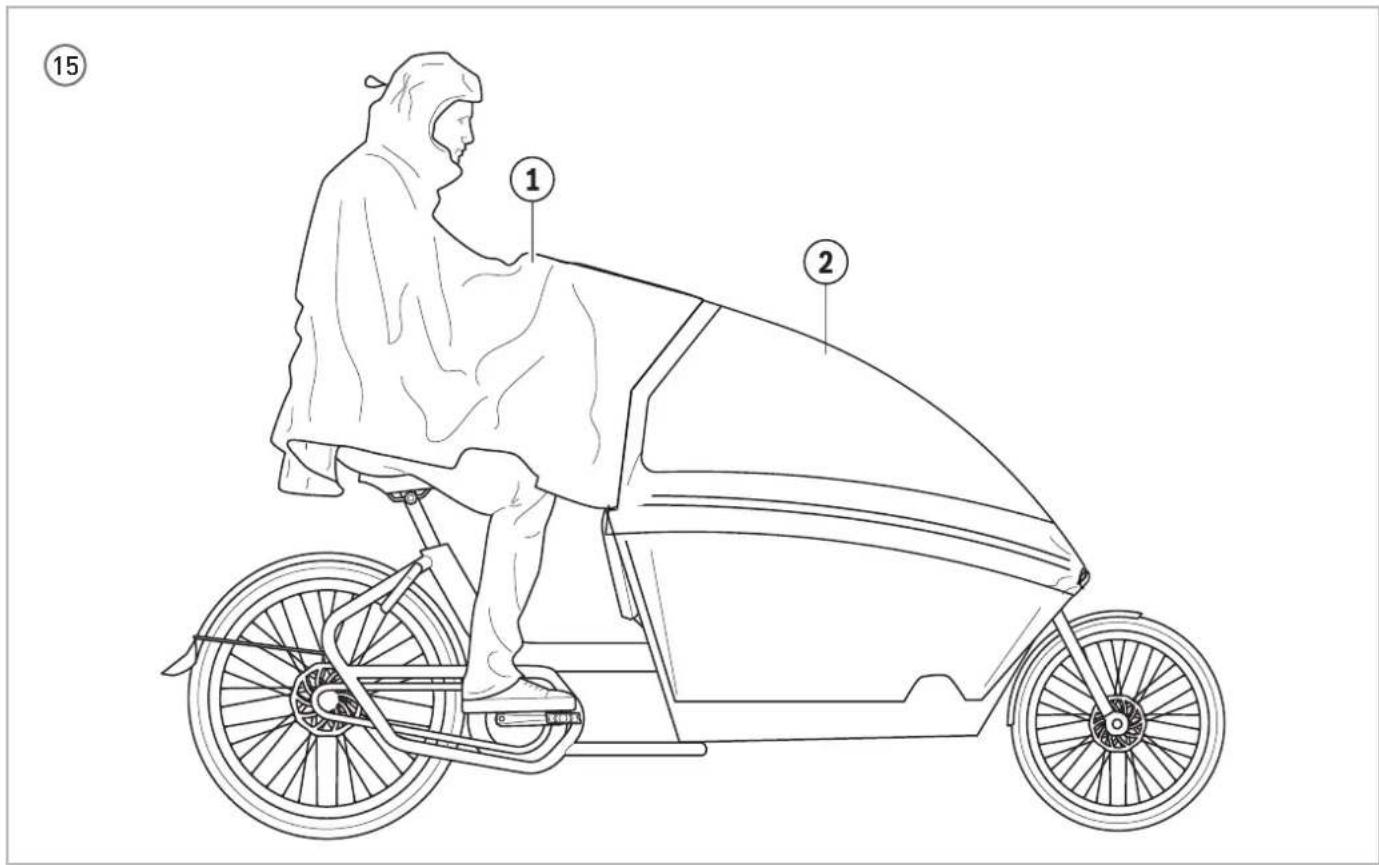

- If you have the optional Urban Arrow Poncho, attach it to the velcro on the Rain Cover Essential for better protection against the rain. ⑮

Cleaning Warranty

Clean the Rain Cover Essential when necessary. If your Rain Cover Essential is not used for an extended period of time, clean the cover as described in these instructions and store it in a cool, dry place away from direct sunlight.

1. Rinse the Rain Cover Essential with lukewarm water. NOTICE Do not use detergents or other solvents to clean the appliance.
2. Put the Rain Cover Essential at a place where it can dry.
3. Use a dry (non-scratch) cloth to wipe the entire surface of the Rain Cover Essential. Make sure the Rain Cover Essential is completely dry.

Contact your Urban Arrow partner before returning the product. The warranty covers 24 months from the date of purchase. The defective product must be sent to the manufacturer within 2 weeks. The warranty will be void in the following cases:

• External force
• Improper maintenance
• Failure to comply with operating instructions
  • Discoloration caused by UV-radiation
• Wrinkles, scratches and indentations in the window material even caused by normal usage

Modifications to the Rain Cover Essential or its components are not permitted. This will void the warranty.

Line drawing of two workers in hard hats assisting a person inside a vehicle (no text or symbols)

Urban Arrow Rain Cover Essential24

Poncho

Urban Arrow Rain Cover Essential

Urban Arrow Rain Cover Essential28

Line drawing of two workers in hard hats assembling a car body frame (no text or symbols)

Poncho

Line drawing of two workers in hard hats assisting a person inside a vehicle (no text or symbols)

Urban Arrow Rain Cover Essential34

Poncho
