Brand	Ultimea
Model	Nova S70 (U3920)
Product type	Soundbar with built-in subwoofer
Soundbar dimensions	800 x 38 x 90 mm (31.5 x 1.5 x 3.5 inches)
Subwoofer dimensions	270 x 115 x 270 mm (10.6 x 4.5 x 10.6 inches)
Net weight	4.15 kg (9.15 lb)
Gross weight	5.1 kg (11.24 lb)
Power supply	AC 100-240 V, ~50/60 Hz
Standby power consumption	< 0.5 W
Frequency response	45 Hz - 18 kHz
Soundbar speakers	3 drivers of 3.1 x 1.2 inches + 2 upward-firing drivers of 1.8 inches + 1 subwoofer of 5.25 inches
Bluetooth	Version 5.3
Connectivity	HDMI eARC/ARC, HDMI IN, optical, AUX (3.5 mm to RCA), USB, Bluetooth
Supported audio formats	Dolby Atmos, DTS (via HDMI eARC)
Sound modes	Movie, Dialogue, Music
Additional features	Remote control, Atmos level adjustment, bass adjustment (BASSMAX), mute function, controls on the bar
Operating temperature	0°C to 45°C
Maintenance and cleaning	Wipe with a soft dry cloth. Do not use abrasive products or solvents.
Safety	Do not expose to water or moisture. Do not open the device. Use the provided adapter.
Spare parts and repairability	Contact Ultimea support ([e-mail]) for any assistance or parts.
Included accessories	Power adapter, HDMI cable, HDMI adapter, optical cable, 3.5 mm to RCA audio cable, 6-pin cable, remote control, wall mount kit, manual

Frequently Asked Questions - Nova S70 ULTIMEA

How to connect the Nova S70 soundbar to my TV via HDMI eARC?

Connect a HDMI cable between the HDMI OUT (eARC) port of the soundbar and the eARC/ARC port of your TV. Press the 'eARC' button on the remote to select the HDMI OUT (eARC) input. Make sure the TV's HDMI port supports eARC to transmit Dolby Atmos.

How to use Bluetooth mode?

Press the 'BT' button on the soundbar or remote to enter pairing mode. On your device (phone, PC), search for 'Nova S70' in Bluetooth settings and select it. If already connected, press and hold the BT button for 3 seconds to disconnect and pair a new device.

What cables are included in the box?

The package contains: a power adapter, an HDMI cable, an HDMI adapter, an optical digital cable, a 3.5mm to RCA stereo audio cable, a 6-pin cable to connect the two parts of the soundbar, a remote control, a wall mount kit, and the user manual.

How to adjust Dolby Atmos and bass levels?

Use the remote: press 'Dolby Atmos' to adjust the vertical level (AT 1, AT 0, AT-1). Press 'BASSMAX' to adjust the bass level from -2 to +2 (e.g., 15-2 to 15+2).

What to do if sound does not work in optical mode?

Make sure the optical cable is properly inserted (pin not broken, correct orientation). In the TV settings, set digital audio output to PCM. Ensure the TV volume is not muted and the soundbar is on the correct channel (OPT).

Can I control the soundbar with my TV remote?

Yes, if using HDMI eARC/ARC connection and CEC function is enabled on the TV, the TV remote can turn the soundbar on/off and adjust volume.

How to clean the Nova S70 soundbar?

Use a soft dry cloth to wipe the surface. Do not use chemicals, abrasives or solvents. Avoid water entering openings.

What audio formats are supported?

The soundbar supports Dolby Atmos and DTS via HDMI eARC connection. Make sure the TV audio output is set to 'Pass Through' for Atmos and 'PCM' for DTS.

How to use USB mode?

Plug a USB drive into the soundbar's USB port. Press INPUT to select USB mode. Use Previous/Next buttons to change track, and Play/Pause to control playback. Press and hold Play/Pause for 3 seconds to toggle between single repeat and playlist.

What to do if the soundbar does not turn on?

Check that the power adapter is properly connected to the soundbar and to a working wall outlet. Press the power button () on the soundbar or remote. If the problem persists, contact Ultimea support at [e-mail].

USER MANUAL Nova S70 ULTIMEA

Exterior view of a black audio streaming device with a speaker tower and rectangular sound block (no text or symbols visible)

User Manual

Nova S70

EN: User Manual

01 User Manual English

Connection and Installation 02

Exterior view of a modern black audio streaming device with a speaker and sound block (no text or symbols visible)

Model No.: U3920

WE ARE READY TO HELP

[e-mail]

Prefer video tutorial?

Setup guidance video, or USER MANUAL on ULTIMEA website.

@ultimea_official

support.ultimea.com

Simple diagram with two rectangular blocks, no text or symbols present

Soundbar

Power Adaptor

HDMI Cable

HDMI Adaptor

Digital Optical Cable

Stereo 3.5mm to RCA Audio Cable

6-pin Cable for Soundbar Connection (140mm)

Remote Control

Wall Mounted Kit Wall Bracket

User Manual

2 SOUNDBAR CONTROLS

Control Panel

① “💡”: Power Button

Press to power on / Hold for 3 seconds to power off.

② “图”: Input Mode

Press to switch channels: eARC-HD IN (HDMI IN)-OPT (OPTICAL)-BT-AUX-USB.

3 “*”: BT

Press to switch to Bluetooth channel and enter pairing mode. Hold for 3 seconds to disconnect the current device and connect to a new device manually on your mobile phone / PC / TV (BT ID: Nova S70).

4 “=”: Volume Down

⑤ “+”: Volume Up

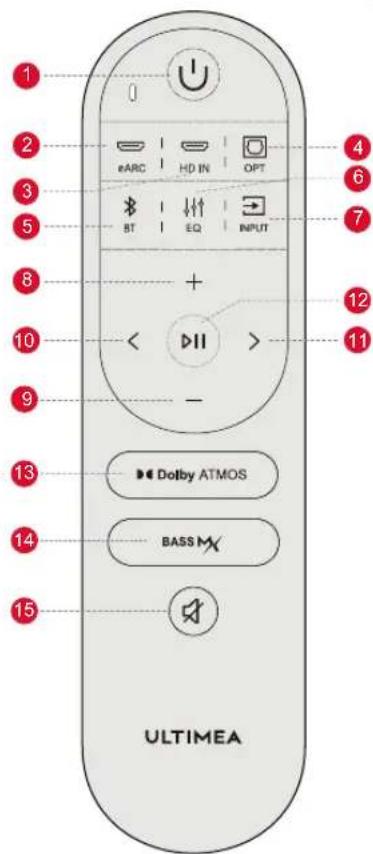

Remote Control

1 “∪”: Power Button Press to power on / Hold for 3 seconds to power off.
2 "☐": eARC Press to switch to HDMI eARC channel.
3 “☐”: HD IN Press to switch to HDMI IN channel.
4 “☐”: OPT Press to switch to OPTICAL channel.
5 “ ”: BT Press to switch to Bluetooth channel and enter pairing mode. Hold for 3 seconds to disconnect current device and connect to a new device manually on your mobile phone / PC / TV (BT ID: Nova S70).
6 “H”: EQ Press to switch among Movie, Dialogue, Music mode, the display will show: “MOF”, “BLOG”, “MUSC”.
7 "→": INPUT Press to switch channels: eARC-HD IN (HDMI IN)-OPT (OPTICAL)-BT-AUX-USB.
8 “+”: Volume Up
9 “—”: Volume Down
10 “<”: Previous For BT and USB mode only: Skip to previous track.
11 “>”: Next For BT and USB mode only: Skip to next track.
12 "D": Play / Pause For BT and USB mode only. USB mode: Hold for 3 seconds to switch between single loop playback and list loop playback.
13 “▶ Dolby ATMOS”: Dolby Atmos Press to adjust upward-firing sound level, the display will show: “AT 1”, “AT 0”, “AT-1”.
14 “BASSMX”: BASSMAX Press to adjust bass level, the display will show: “75-2”, “75-1”, “75 0”, “75 1”, “75 2”.
15 “☐”: Mute / Recover the volume.

EN

3 SOUNDBAR INSTALLATION

Assembly Steps

Step 1

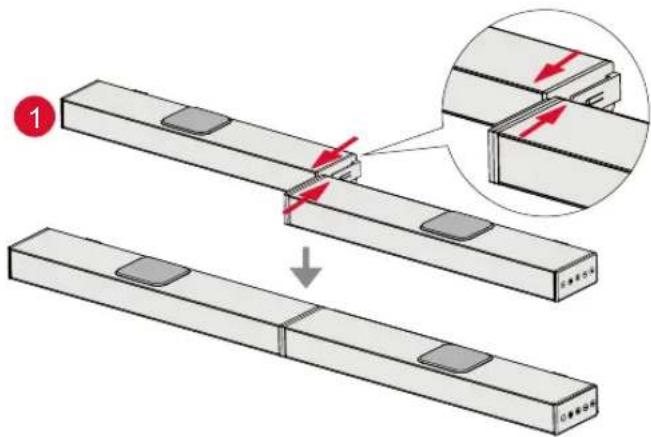

Set the two parts of the Soundbar on the same level and align the connection joints. Connect the two parts by pushing parallelly to combine as one piece.

Step 2

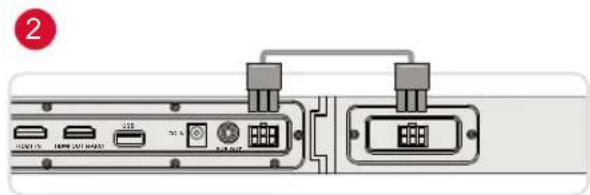

Plug in 6pin Cable.

Diagram of a computer interface showing two connected ports with connectors and ports (no text or symbols visible)

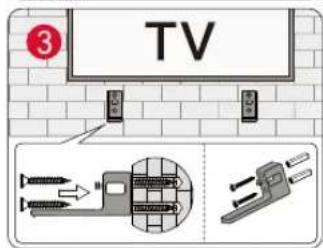

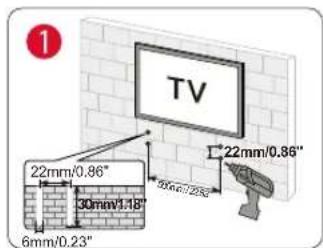

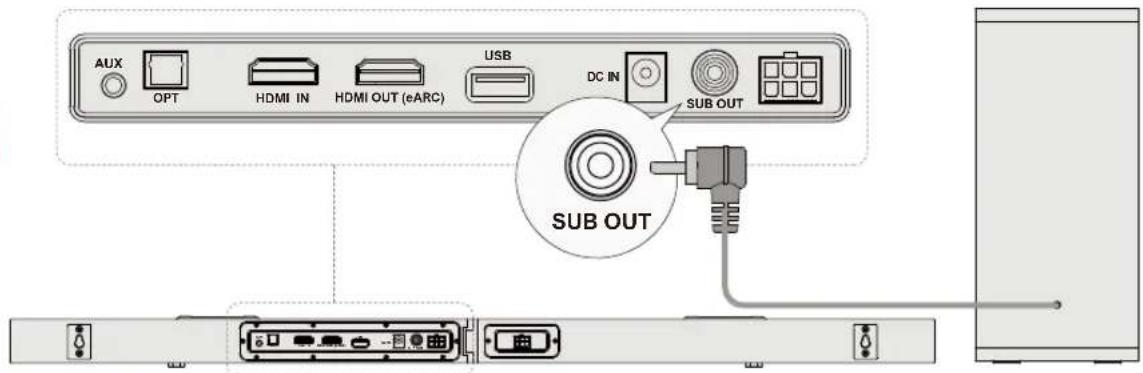

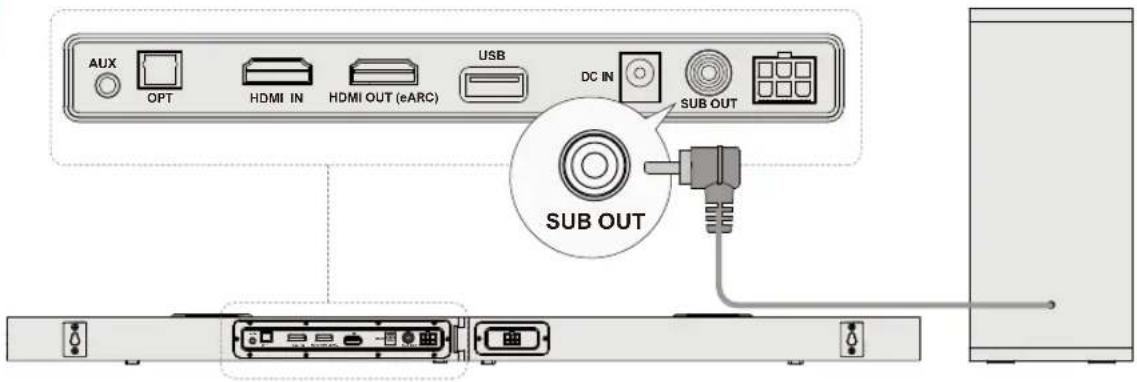

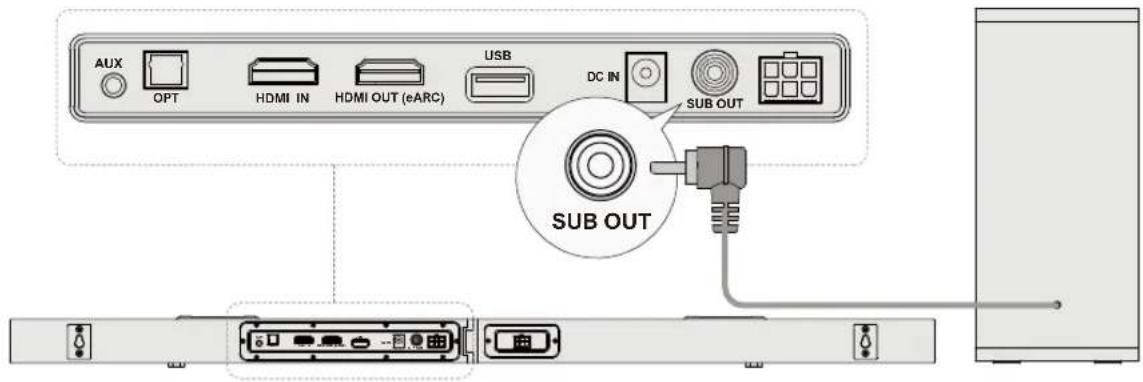

4 CONNECT TO SUBWOOFER

EN

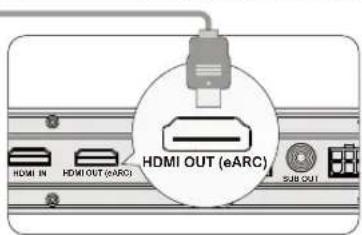

5 CONNECT TO TV VIA HDMI OUT eARC / ARC

Step 1:
Connect one end of the HDMI cable to the eARC / ARC port on the back of your TV.

Step 2:
Then connect the other end into the HDMI OUT (eARC) port of the soundbar.

Step 3:
Press "eARC" button on the remote control to select "HDMI OUT (eARC)" input.

Note:

Make sure your TV HDMI supports eARC, otherwise the Dolby Atmos audio signal cannot be transmitted.

Atmos: If you are watching a movie in the Dolby Atmos format, please set the audio output on your TV to Pass Through:

TV Settings > Home > Settings > Sound > Digital Audio Output > Pass Through

DTS: If you are watching a movie in the DTS format, please set the audio output on your TV to PCM;

TV Settings > Home > Settings > Sound > Digital Audio Output > PCM

What's the difference between: HDMI IN, HDMI ARC, HDMI eARC?

HDMI IN is a standard HDMI input that allows you to connect devices to your TV or audio system. It supports audio and video signals, but it does not support audio return channel (ARC) or enhanced audio return channel (eARC) functionality.

HDMI ARC is a special HDMI port that supports two-way communication between your TV and audio system. This means that audio can be sent from your TV to your audio system, and audio system can send audio back to your TV.

HDMI eARC (Enhanced Audio Return Channel) is an updated version of HDMI ARC that supports higher quality audio formats such as Dolby Atmos and DTS:X.

Note: Please turn on the "CEC" function on your TV.

When eARC / ARC is connected, your TV remote control can control the soundbar and TV simultaneously:

1 Turn on / off

2 Adjust the volume

6 CONNECT TO OTHER DEVICE VIA HDMI IN

Step 1: Connect the HDMI Cable to the HDMI OUT (eARC) port on the Soundbar and the other end to the eARC / ARC port on the TV.

Step 2: Connect the HDMI cable to the HDMI OUT port on the other device (Such as DVD or game consol) and the other end to HDMI IN port on the Soundbar.

Step 3: Press " [icon] " button on Soundbar or Remote Control to switch to HDMI IN channel.

Note: Your TV HDMI needs to support eARC to transmit the Dolby Atmos audio format to your Soundbar.


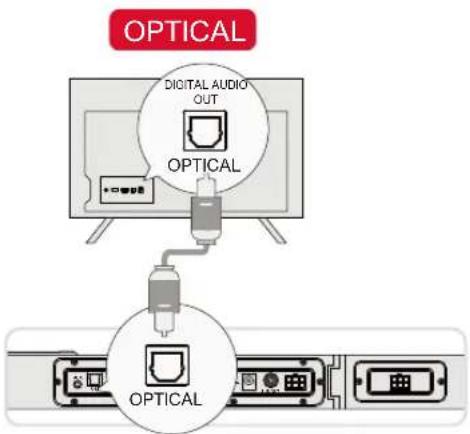

OPTION 1: OPTICAL

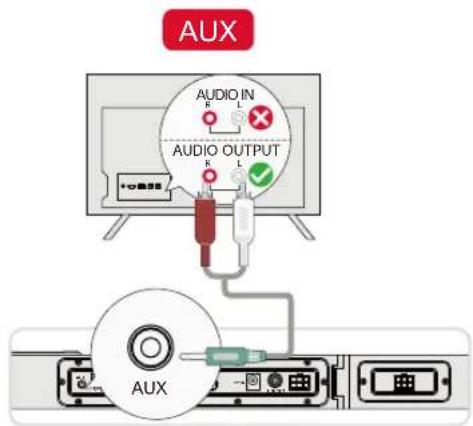

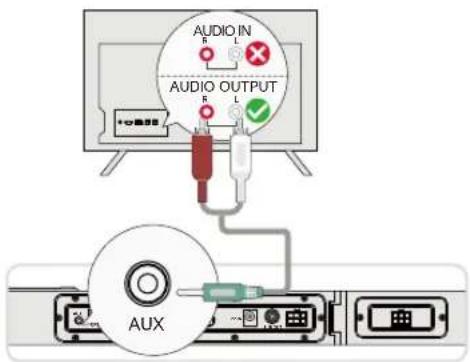

OPTION 2: AUX

Make sure the cable is connected to OPTICAL OUT port on your TV, and the other end to OPTICAL port on the Soundbar.

② Make sure the optical plug is inserted correctly as it shows in the picture. Do not insert the plug upside down and break the optical.

Note: If audio is coming from the internal TV speakers, mute or minimize the TV volume.

Connect the 3.5mm to RCA audio cable to connect to your TV's RCA AUDIO OUT port.

② Make sure the color of the cables ends matches the color of the TV ports.

Note: Please remember to unplug the AUX cable from TV and Soundbar when you want to switch other mode.

In Optical Mode: If there is no sound, try setting the TV audio output to PCM: TV Settings > Home > Settings > Sound > Digital Audio Output > PCM

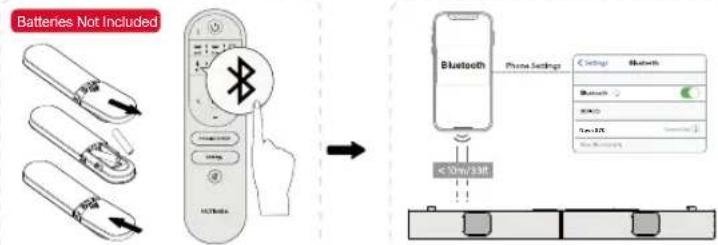

8 CONNECT TO BLUETOOTH®

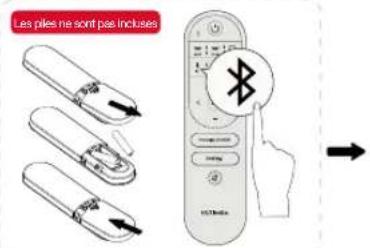

1 Press the "×" button on the soundbar or remote control to enter Bluetooth pairing mode.
② Open your phone's Bluetooth settings, find and select "Nova S70" to connect the soundbar.

Note: If it's already in the Bluetooth mode and connected, press and hold " ✉" button for 3 seconds to disconnect current device and connect to new device manually on your mobile phone / PC / TV.

Illustration of a device control panel with buttons and a pointer (no text or symbols)

or

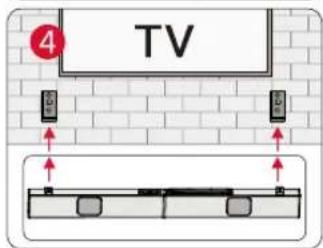

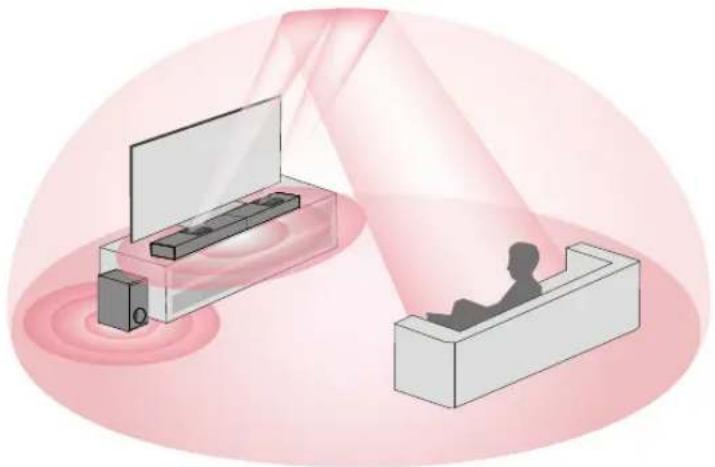

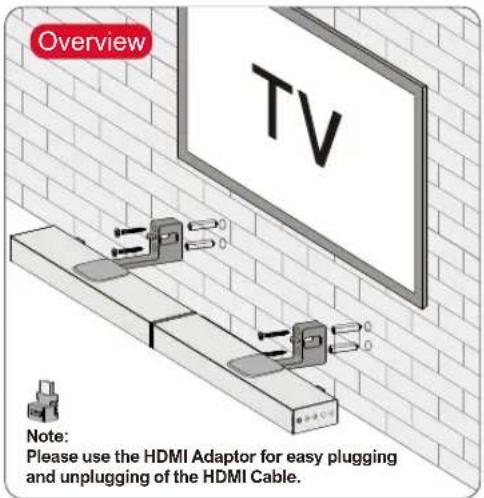

9 PLACEMENT OPTIONS

Illustration of a person using a device in front of a desk with a monitor and speaker, emitting light beams (no text or symbols)

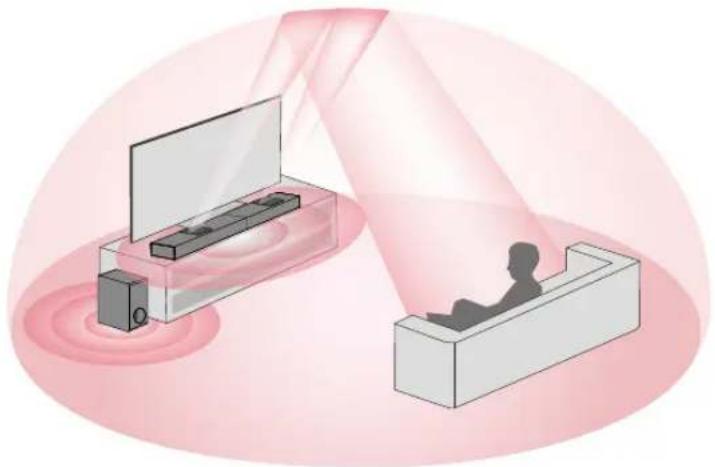

Note: The soundbar should be placed at or near ear level.

EN

11 SPECIFICATIONS

Model Number	U3920
Power Supply	AC 100-240V, ~50 / 60Hz
Soundbar Drivers	(3.1" x 1.2") x 3 (Soundbar) + 1.8" x 2 (upward-firing Driver) + 2.25" (Subwoofer)
Frequency Response	45Hz - 18kHz
Standby Power	<0.5W
Operating Temperature 0°C - 45°C / 32°F - 113°F
Bluetooth Version	5.3

Dimensions and Weight
Soundbar	800(W) x 38(H) x 90(D)mm	31.5" x 1.5" x 3.5"
Subwoofer	270(W) x 115(H) x 270(D)mm	10.6" x 4.5" x 10.6"
Packaging	332(W) x 432(H) x190(D)mm	13.1" x 17" x 7.5"
Net Weight	4.15kg / 9.15lbs
Gross Weight	5.1kg / 11.24lbs

Benutzerhandbuch

Black audio streaming device with a speaker tower and rectangular sound block (no text or symbols visible)

Modell Nr.: U3920

WIR SIND BEREIT ZU HELFEN

[e-mail]

DE

Simple line drawing of a rectangular frame with two vertical panels, no text or symbols present.

Soundbar

Netzadapter HDMI-Kabel

HDMI-Adapter

Schritt 2

Diagram of a USB drive showing ports and connectors (no text or labels visible)

4 ANSCHLUSS AN SUBWOOFER

DE

5 ANSCHLUSS AN DEN TV VIA HDMI OUT eARC / ARC

OPTION 1: OPTISCH

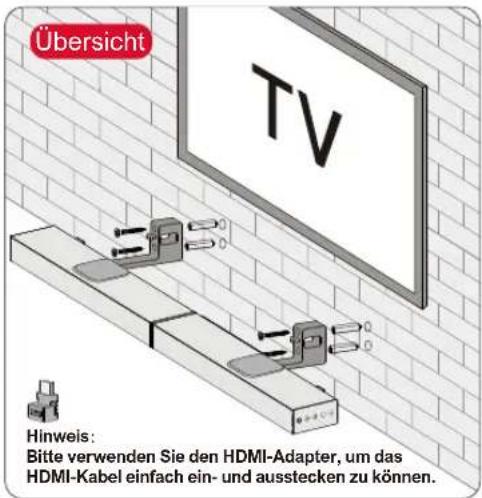

OPTION 2: AUX

Illustration of a person using a laser beam to observe a screen setup, with no visible text or symbols.

Black audio streaming device with a rectangular bar and a speaker block (no text or symbols visible)

モデルNo: U3920

お手伝いい たします

[e-mail]

ビデオチュートリアル をご希望ですか？

Simple diagram of two adjacent rectangular blocks with no text or symbols

サブウーファー

電源アダプター HDMIケーブル

HDMIアダプター

デジタル光ケーブル

コントロールパネル

ステップ2

Diagram of a USB drive system showing ports and connectors (no text or labels visible)

4 サブウーファーに接続する

JP

AUX

JP

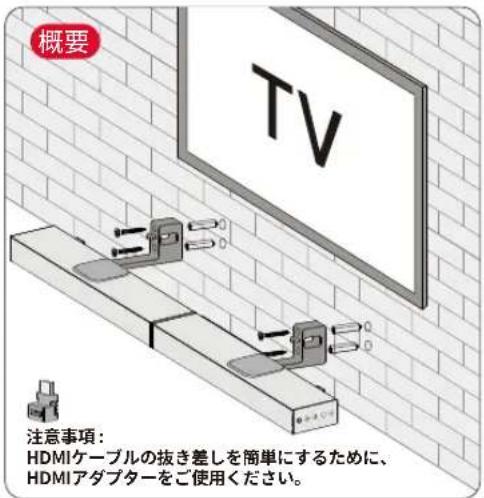

オプション1: 光学式

または

Illustration of a smart TV setup with a monitor and speaker, no text or symbols present

Black audio equipment including a speaker and a rectangular sound block (no text or symbols visible)

Simple diagram of two adjacent rectangular blocks with no text or symbols

Caisson de basse

Panneau de contrôle

Étape 2

Diagram of a USB drive showing ports and connectors (no text or labels visible)

4 CONNECTER AU CAISSON DE BASSE

FR

5 CONNECTER AU TELEVISEUR VIA HDMI OUT eARC / ARC

OPTION 1 : OPTIQUE

OPTION 2: AUX

ou


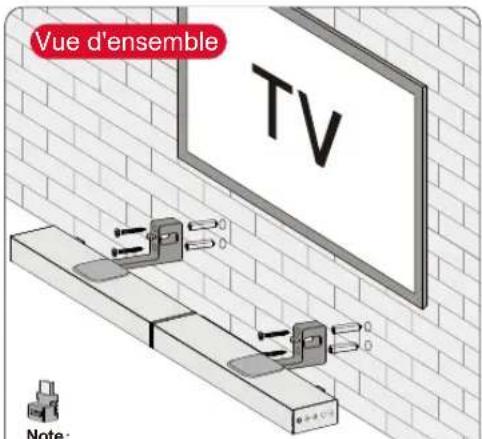

9 OPTIONS DE PLACEMENT

Illustration of a person using a device in front of a reception desk with a monitor and lamp, rendered in pink tones (no text or symbols)

Exterior view of a black audio streaming device with a speaker block and a long rectangular bar (no text or symbols visible)

Modello N.: U3920

SIAMO PRONTI AD AIUTARTI

[e-mail]

Simple diagram of two adjacent rectangular blocks with no text or symbols

Soundbar

Passaggio 2

Collega i cavi audio stereo da 6 pin.

Diagram of a USB drive showing two connected ports with connectors (no text or symbols)

5 COLLEGAMENTO ALLA TV TRAMITE HDMI OUT eARC / ARC

OPZIONE 1: OTTICO

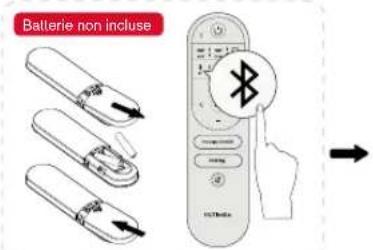

0

Illustration of a smart lighting setup with a monitor, screen, and person silhouette (no text or symbols)

Black audio equipment including a speaker and sound block (no text or symbols visible)

N° de modelo: U3920

Simple diagram of two adjacent rectangular blocks with no text or symbols

Barra de sonido

Paso 2

Diagram of a USB drive showing two ports with connectors and ports labeled (no text or symbols beyond labels)

4 CONECTAR AL SUBWOOFER

ES

5 CONECTE AL TELEVISOR A TRAVÉS DE LA SALIDA HDMI eARC / ARC

Paso 1:

Paso 3:

OPCIÓN 1: ÓPTICA

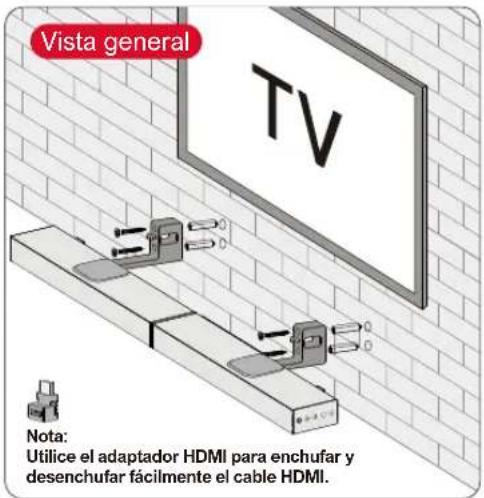

OPCIÓN 2: AUX

Illustration of a person using a device in front of a reception desk with a monitor and lamp, rendered in pink tones (no text or symbols)

Please read this user manual carefully and save it for future reference.

Do not make unauthorized alterations to the product, doing so may compromise safety, regulatory compliance, system performance, and may void the warranty.

• Avoid dropping.
• Do not disassemble.
• Do not submerge in water.
• Avoid extreme temperatures.
• Do not use the device outdoors during thunderstorms.
• Use original or certified cables.
• Do not place dangerous items on top of this device (e.gliquid filled objects, lit candles).
• Clean with a dry, soft lint-free cloth. Do not use any corrosive cleaner or oil.
  • To avoid hearing damage, do not listen for extended periods at high volume.
• Do not expose the batteries to extreme heat sources such as direct sunlight or open flames.
  • The ideal operating temperature for this product and its accessories is between 41°F/5°C and 95°F/35°C.
• The adapter should be installed near the device and should be easily accessible.
• Do not use this product in environments of extreme heat or cold. Never expose this device to strong sunshine or wet environments.

PROPER DISPOSAL INSTRUCTIONS

This mark shown on the product or its packaging, indicates that this product should not be disposed of with other household waste at the end of its working life.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Waste Electrical & Electronic Equipment

Household user should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their suppliers and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

FCC REGULATORY COMPLIANCE

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interfer. ence by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and the receiver.

- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio / TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including interference that may cause undesired operation.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

ISED WARNINGS

This device contains licence-exempt transmitter (s) / receiver (s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS (s). Operation is subject to the following two conditions:

(1) This device may not cause interference.

(2) This device must accept any interference, including interference that may cause undesired operation of the device.

This equipment complies with IC exposure limits set forth for an uncontrolled environment. This equipment shall be installed and operated with a minimum distance of 20cm between the radiator & body.

Declaration of Conformity

We (Manufacturer is responsible for this declaration) Dynamic (Shenzhen) Technology Limited (Company name)

20th Floor, Building 4, Tianan Cloud Park, Bantian St., Longgang District Shenzhen, China 518000 (Company address)

Declare under our sole responsibility that the product Trade Mark: ULTIMEA

Product Name: Nova S70 3.1.2 Channel Dolby Atmos Soundbar Model No.: U3920

To which this declaration relates is in conformity with the essential

requirement set out in the Council Directive on the Approximation of the laws of the Member States relating to RED Directive (2014/53/EU) & RoHS (2011/

65/ EU) product is responsible to affix CE marking, the following standards were applied:

EN 55032:2015/A11:2020

EN 55035:2017/A11:2020

ENIEC 61000-3-2:2021

EN 61000-3-3:2013/A1:2021

ETSIEN 301 489-1 V2.2.3(2019-11)

ETSIEN 301 489-17 V3.2.4(2020-09)

EN 300 328 V2.2.2(2019-07)

EN 50663:2017

ENIEC 62368-1:2020+A11:2020

IEC62321-3-1:2013

IEC 62321-4:2013+A1:2017

IEC 62321-5:2013

IEC 62321-6:2015

IEC 62321-7-1:2015

IEC 62321-7-2:2017

IEC 62321-8:2017

Full Name: Yoyo.Yu

Position: Approbation Manager

Signature:

Place/Date: Shenzhen, China/Dec. 25-2022

Trade Marks:

Dolby Atmos

Dolby, Dolby Vision, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright© 1992-2021 Dolby Laboratories. All rights reserved.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Soundlab Technology Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

HDMI ^TM HIGH-DEFINITION MULTIMEDIA INTERFACE

The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other.

ULTIMEA

Nova S70 3.1.2 Channel Dolby Atmos Soundbar Model No.: U3920

Dynamic GmbH

Buchenring 57, 22359 Hamburg, Germany

UK Crossborder limited

7 Bell Yard London WC2A 2JR, UK United Kingdom

Made in China

Manufacturer: Dynamic (Shenzhen) Technology Limited

Address: 20th Floor, Building 4, Tianan Cloud Park, Bantian St.,

Longgang District, Shenzhen, China 518000

RoHS

If you need our support, kindly reach out to our service team. We are always glad to help.
