Product type	Cooker hood
Brand	Franke
Model	FTC 612 XS LED1
Material	Stainless steel
Power supply	220-240 V ~ 50/60 Hz
Lighting power	4 W (LED lamp, socket E14)
Number of speeds	3 speeds (minimum, average, maximum)
Controls	Mechanical buttons (L for lighting, M for motor, V for speed)
Installation type	External extraction (duct Ø 120 mm) or recirculation (with charcoal filter)
Minimum distance above the hob	650 mm (or more depending on gas hob)
Grease filter	Washable (dishwasher safe), clean every 2 months
Charcoal filter	Non-washable, replace every 4 months
Electrical class	Class I (earthing mandatory)
Fire safety	Do not flambé under the hood, follow filter cleaning instructions
Intended use	Household use to capture grease and odors
Exterior maintenance	Damp cloth and neutral detergent, avoid alcohol and silicone
Stainless steel care	Non-abrasive product, follow satin lines
Maximum lighting	Fixed maximum intensity (no dimmer)
Country of manufacture	Not specified
Warranty	Refer to manufacturer's conditions

Frequently Asked Questions - FTC 612 XS LED1 FRANKE

What is the recommended installation height for the Franke FTC 612 XS LED1 hood?

The minimum safety distance between the hob and the hood is 650 mm. If your gas hob specifies a greater distance, follow that.

How to clean the grease filters of the hood?

The grease filters must be cleaned every 2 months (more often with heavy use). They can be washed in the dishwasher.

When should the charcoal filter be replaced?

The activated charcoal filter is neither washable nor regenerable. It should be replaced approximately every 4 months, or more often if the hood is heavily used.

Can I use the hood in recirculation mode?

Yes, the hood can operate in recirculation mode provided a suitable charcoal filter is installed. In extraction mode, connect the hood to a duct with a minimum diameter of 120 mm.

What types of lamps are used and how to replace them?

The hood uses a 4 W LED lamp with E14 socket. To replace, unplug the appliance and insert a lamp with the same specifications.

What to do if the hood does not turn on?

First check that the hood is plugged in and the circuit breaker has not tripped. If the lighting does not work, the lamp may be burned out and needs replacing.

Is it possible to clean the outside of the hood with abrasive products?

No, for exterior and interior cleaning, use a damp cloth and a neutral liquid detergent. Avoid alcohol-based or silicone products. For stainless steel, use specific non-abrasive products.

Can the hood be left running unattended?

It is not recommended to leave an open flame under the hood. Always monitor cooking, especially deep fryers, as overheated oil can catch fire.

Is the Franke FTC 612 XS LED1 hood compatible with an induction hob?

Yes, the hood can be installed above any type of hob (gas, electric, induction) observing the minimum distance of 650 mm.

How to adjust the extraction speed?

Use the V button: press to switch from speed 1 (silent, low steam) to 2 (medium) then 3 (maximum for heavy emissions). The M button turns the motor on/off.

USER MANUAL FTC 612 XS LED1 FRANKE

Technical line drawing of a rectangular electronic device with mounting base and internal components (no text or symbols)

EN 3

FR 7

DE 12

IT 16

ES 20

PT 24

GR 29

RU 34

NL 39

DA 43

PL 47

RO 52

TR 56

CZ 60

FI 64

UK 68

HR 73

HU 77

SR 81

LV 85

LT 89

ET 93

SI 97

NO 101

SV 105

BG 109

AR 114

EN

1. SAFETY INFORMATION

For your own safety and to ensure proper operation of the appliance, please read this manual carefully before installation and operation. Keep these instructions together with the appliance, even if it is sold or transferred to third parties. It is important that users know all the appliance's operating and safety characteristics.

The cables must be connected by a trained technician.

• The manufacturer shall not be considered responsible for any injury or damage caused by improper installation or use.
• The minimum safety distance between the hob and the suction hood is 650 mm (some models may be fitted at a lower height; please see the paragraph relating to working dimensions and installation).
• If the instructions for installation of the gas hob specify a distance greater than the one indicated, this must be taken into account.
• Check that the mains power supply corresponds to the one indicated on the data plate affixed inside the hood.

• The cut-out devices must be installed in the fixed system according to wiring system regulations.

• For Class I appliances, check that the domestic power supply is adequately earthed.

• Connect the hood to the flue using a pipe with a minimum diameter of 120 mm. The fumes must travel the shortest distance possible.
• All the air venting regulations must be complied with.
• Do not connect the ducting hood to flues that also carry combustion fumes (e.g. boilers, chimneys, etc.).
• If the hood is used in combination with non electric appliances (e.g. gas appliances), a sufficient level of ventilation must be guaranteed in the room to prevent any exhaust backflow. If the kitchen hood is used in combination with appliances that are not electrically powered, the negative pressure in the room must not exceed 0.04 mbar to avoid any risk of the fumes being sucked back into the room by the hood.
• The air must not be extracted through a flue that is also used as an exhaust flue for fumes from gas or other fuel powered combustion devices.
• If it is damaged, the power cable must be replaced by the manufacturer or by a service technician.
• Connect the plug to a socket that complies with current regulations and is in an accessible position.

- As regards the technical and safety measures to be taken for exhausting of fumes, it is important that the regulations set by local authorities be complied with scrupulously.

CAUTION: remove the protective films before installing the hood.

- Only use screws and hardware of a sort suitable for the hood.

CAUTION: failure to install the screws or fixing devices as described in these instructions may mean there is a risk of electric shocks.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambé food under the hood: you might cause a fire.

- This appliance may be used by children over the age of 8 years and by persons with limited psycho-physical and sensory abilities or with insufficient experience and knowledge, provided they are carefully supervised and instructed on how to use the appliance safely and on the dangers that it involves. Make sure that children are not allowed to play with the appliance. Cleaning and maintenance to be performed by the user must not be carried out by children, unless they are under supervision.

- Supervise children, to make sure they do not play with the appliance.

- The appliance must not be used by persons (including children) with limited psycho-physical or sensory capacities or with insufficient experience and knowledge, unless they are carefully supervised and instructed.

Accessible parts may become extremely hot during the use of cooking appliances

- Clean and/or replace the fil- ters after the period of time in- dicated (danger of fire). See the paragraph on Mainten- ance and cleaning.

- The room must be adequately ventilated when the hood is used simultaneously with appliances that use gas or other fuels (not applicable to appliances that only discharge air into the room).

- The symbol 📁 on the product or on its packaging indicates that the product must not be disposed of with the normal domestic waste. The product must be disposed of at a specialist re-cycling centre for electrical and electronic components. By making sure that this product is disposed of properly, you will help prevent possible negative consequences for the environment and for health that might result from its improper disposal. For more detailed in-

formation on how to re-cycle this product, please contact your local municipal offices, local waste disposal service or the shop in which the product was purchased.

- In case of replacement with halogen lamp use only self-shielded tungsten halogen lamps or self-shielded metal halide lamps."

2. USE

• The suction hood has been designed exclusively for domestic use, to eliminate kitchen odours.
• Never use the hood for purposes other than those for which it was designed.
• Never leave high flames under the hood when it is in operation.
• Adjust the intensity of the flame so that it is directed onto the bottom of the cooking pan, making sure it does not wrap around the sides.
• Deep-fryers must be kept under constant supervision when in use: the oil may catch fire if it gets too hot.

3. CLEANING AND MAINTENANCE

- The activated carbon filter is neither washable nor regenerable and must be replaced approximately every 4 months of operation or more frequently in case of very intense use (W).

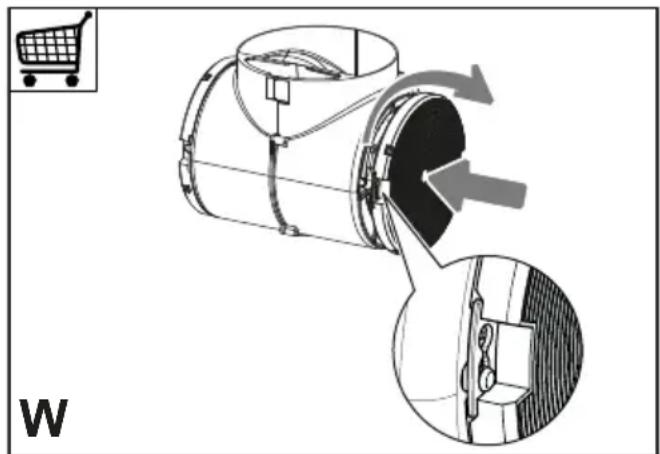

Technical diagram of a mechanical device with internal components and directional arrows, no readable text or symbols present.

- The grease filters must be cleaned every 2 months of operation or more frequently in case of very intense use and can be washed in a dishwasher (Z).

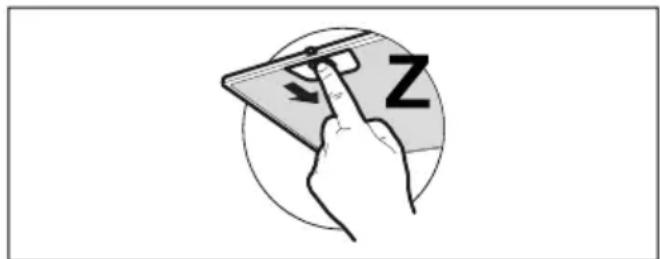

Illustration of a hand holding a smartphone with a finger pointing at it, no text or symbols present.

• Clean the hood using a damp cloth and a neutral liquid detergent.
• For external and internal cleaning of the hood avoid alcoholic or silicone products.
  If the product or one of its parts is made of stainless steel, use specific non-ab-rasive products for cleaning and follow the lines of the satin finish during cleaning.

4. CONTROLS

Key Function
LLights	Switches the lighting system on and off to maximum brightness.
MMotor	Turns the Suction motor on and off.
VSpeed	Determines the speed of operation:1. Minimum speed, suitable for a particularly silent continuous air exchange, in the presence of a low level of cooking vapours.2. Average speed, suitable for most conditions of use, given the excellent ratio between the air flow treated and the sound level.3. Maximum speed, suitable to process maximum cooking steam emissions, also for prolonged periods.

Key Function
LLights	Switches the lighting system on and off to maximum brightness.
MMotor	Turns the Suction motor on and off.
VSpeed	Determines the speed of operation:1. Minimum speed, suitable for a particularly silent continuous air exchange, in the presence of a low level of cooking vapours.2. Average speed, suitable for most conditions of use, given the excellent ratio between the air flow treated and the sound level.

5. LIGHTING

Lamp Power (W) Socket Voltage (V) Dimension (mm) ILCO$ Code
	4 E14 220-2	40 107x37 DR	RBB/F-4-220-24	0-E14-35/100

FR

1. INFORMATIONS RELATIVES À LA SÉCURITÉ

Technical diagram of a mechanical device with internal components and directional arrows, no readable text or symbols present.

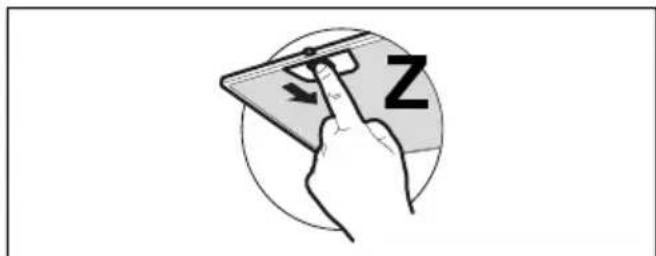

Illustration of a hand interacting with a smartphone displaying a 'Z' symbol (no text or symbols on the device itself)
