USER MANUAL SÖDERBODA 106.027.22 IKEA

Safety information....3

Safety instructions 4

Product description....6

Control panel....7

Programmes....8

Functions....9

Settings 10

Before first use....11

Daily use....12

Hints and tips ....14

Care and cleaning....17

Troubleshooting....19

Technical information (EN60436)......22

Environmental concerns 23

Ikea guarantee....23

Subject to change without notice.

⚠ Safety information

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

- Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away unless continuously supervised.

• Children of less than 3 years of age should be kept away unless continuously supervised.

- Do not let children play with the appliance.

- Keep detergents away from children.

- Keep children and pets away from the appliance when the door is open.

• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

- Keep all packaging away from children and dispose of it appropriately.

General Safety

- This appliance is intended to be used in household and similar applications such as:

- Farm houses; staff kitchen areas in shops, offices and other working environments;

- By clients in hotels, motels, bed and breakfast and other residential type environments.

- Do not change the specification of this appliance.

- The operating water pressure (minimum and maximum) must be between 0.4 (0.04)/10 (1.0) bar (MPa).

- Obey the maximum number of 16 place settings.

- When positioning the appliance, ensure the supply cord is not trapped or damaged.

- If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.

- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- Put the cutlery in the cutlery basket with the sharp ends pointing down or put them in the cutlery rack in a horizontal position with the sharp edges down.

• Do not leave the appliance with the open door unattended to avoid stepping accidentally onto it.
• Before any maintenance operation, deactivate the appliance and disconnect the mains plug from the socket.

• Do not use high pressure water sprays and/or steam to clean the appliance.

• If the appliance has ventilation openings in the base, they must not be covered e.g. by a carpet.

• The appliance is to be connected to the water mains using the new supplied hose-sets. Old hose sets must not be reused.

Safety instructions

Installation

⚠ WARNING! Only a qualified person can install this appliance.

• Remove all the packaging and the transit bolts.
• Do not install or use a damaged appliance.
• Do not install or use the appliance where the temperature is less than 0 °C.
• Follow the installation instruction supplied with the appliance.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Make sure that the appliance is installed below and adjacent to safe structures.

Electrical connection

⚠ WARNING! Risk of fire and electrical shock.

⚠ WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

⚠ WARNING! Do not use multi-plug adapters and extension cables.

⚠ WARNING! Do not, under any circumstances, cut, remove, or bypass the grounding prong

• The appliance must be earthed.
- Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.

• Always use a correctly installed shockproof socket.
- Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable). Contact the Authorised Service Centre to change the electrical components.
- Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
- Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
- This appliance complies with the E.E.C. Directives.
- UK and Ireland only: This appliance is fitted with a 13 A mains plug. If it is necessary to change the mains plug fuse, use only a 13 A ASTA (BS 1362) fuse.

Water connection

• Do not cause damage to the water hoses.
• Before connection to new pipes, pipes not used for a long time, where repair work has been carried out or new devices fitted (water meters, etc.), let the water flow until it is clean and clear.
• Ensure that there are no visible water leaks during and after the first use of the appliance.
• The water inlet hose has a safety valve and a sheath with an inner mains cable.

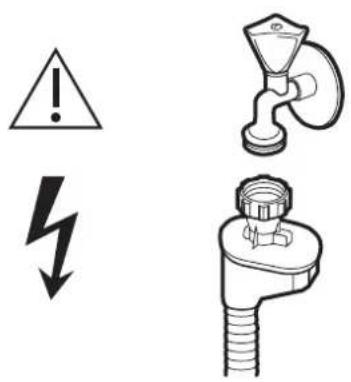

Safety warning symbols and corresponding diagram showing warning, lightning bolt, and plug hazard

⚠ WARNING! Dangerous voltage.

- If the water inlet hose is damaged, immediately close the water tap and disconnect the mains plug from the mains socket. Contact the Authorised Service Centre to replace the water inlet hose.

Use

⚠ WARNING! Risk of injury, burns, electrical shock or fire.

⚠ WARNING! Do not use the appliance before installing it in the built-in structure. The appliance must be disconnected from the power supply before any installation work is done – risk of electric shock.

- Do not sit or stand on the open door. - Dishwasher detergents are dangerous. Obey the safety instructions on the detergent packaging.

- Use only detergent and rinse aid recommended for use in an automatic dishwasher.

- Never use soap, laundry detergent, or hand washing detergent in your dishwasher.

- Do not drink and play with the water in the appliance.

- Dishwasher detergent is corrosive! Keep dishwasher detergent out of the reach of children.

- Do not remove the dishes from the appliance until the programme is complete. Some detergent may remain on the dishes.

- The appliance can release hot steam if you open the door while a programme operates. - Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

Service

• To repair the appliance contact an Authorised Service Centre.

• Use original spare parts only.

Disposal

⚠ WARNING! Risk of injury or suffocation.

- Disconnect the appliance from the mains supply.

- Cut off the mains cable and discard it.

- Remove the door to prevent children and pets to be closed inside of the appliance.

Note:

When connecting to drinking water make sure that you connect the appliance using a safety device against drinking water contamination through backflow (according to DIN EN 1717) and meet water pollution requirements (according to KTW-BWGL). Product shall be constructed to prevent backsiphonage of non-potable water into the water mains according to IEC/EN 61770. We recommend that installation, including water supply and electrical connections, and repairs are carried out by a qualified technician.

Product description

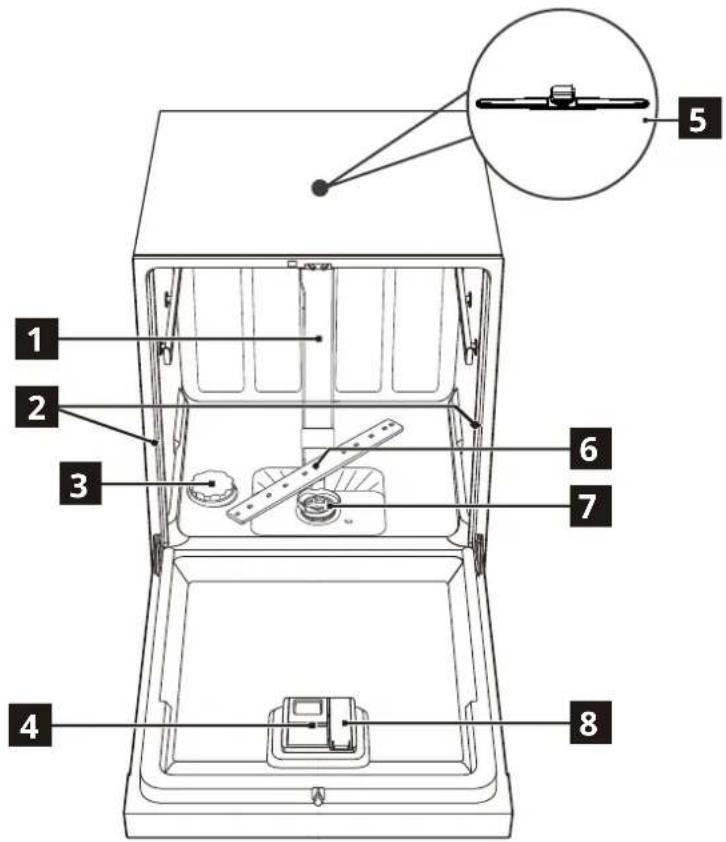

Technical diagram of a refrigerator interior with numbered parts and an inset magnified view of the lid.

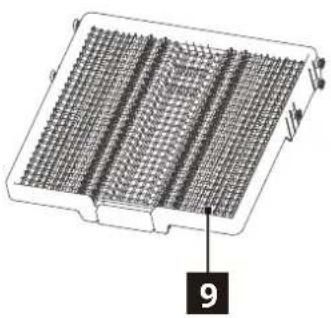

3D diagram of a grid-patterned rectangular device with labeled component '9' (no text or symbols beyond label)

10 12

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

(Make sure to replace the rubber cap with the plastic cap x2)

1 Inner pipe Rinse aid dispenser
2 Rubber cap Cutlery rack
3 Salt container
4 Detergent dispenser
5 Top spray arm Cup rack
6 Lower spray arm Lower basket
7 Filter assembly

10 Upper basket

11 Upper spray arm

Control panel

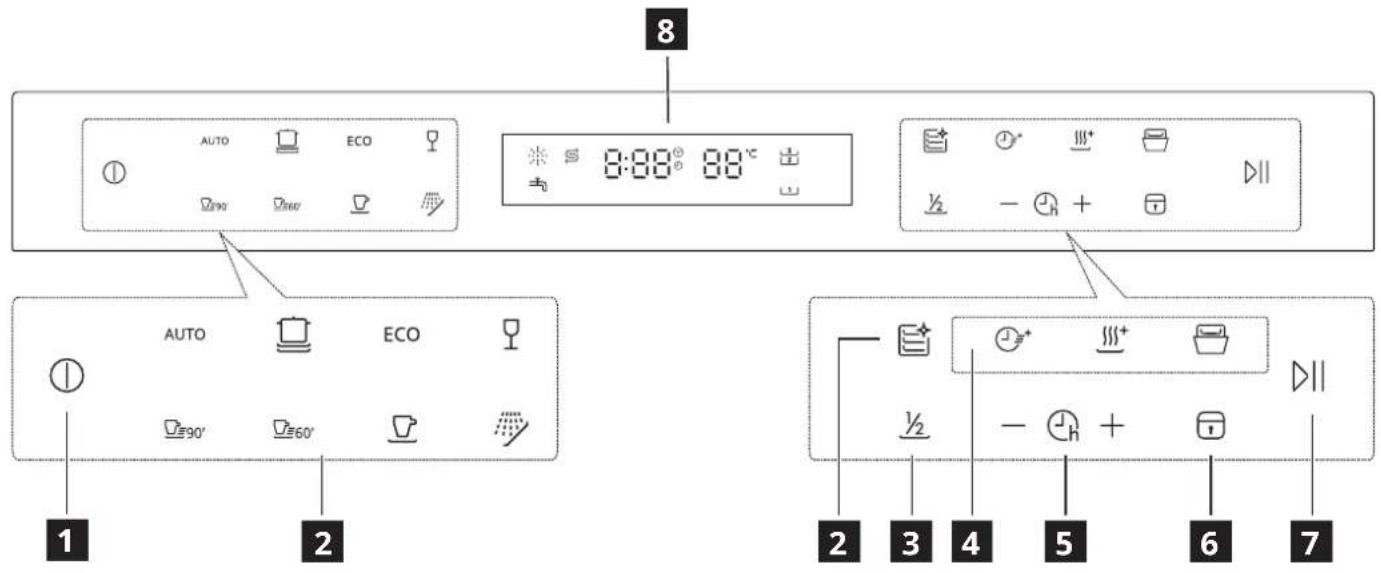

Indicators Description
	Rinse aid indicator. It is always on when the rinse aid dispenser needs refilling.
	Salt indicator. It is always on when the salt container needs refilling.
	Child lock indicator. It is on when the Child lock function is activated.
	Upper rack indicator. When selected, only the dishes in the upper rack will be washed. The lower rack spray system will not operate.
	Water faucet indicator. When lit, the water faucet is not turned on.
	Lower rack indicator. When selected, only the dishes in the lower rack will be washed. The upper rack spray system will not operate.

Programmes

Programme Degree of soil /Type of load		Programme phases Options
	The programme adjusts to all the degrees of soil.Crockery, cutlery, pots and pans	Prewash (45 °C)Autowash (55-65 °C)RinseRinseRinse (55-65 °CDrying	Auto door openDelay start
	Heavy soilCrockery, cutlery, pots and pans	Pre-washWash (72°C)RinseRinse (65-72°C)Drying	Turbo speed+Extra DryingAuto door openDelay start
	Normal soilCrockery and cutlery and pans	Wash(45°C)RinseRinse(42°C)Drying	Turbo speed+Extra DryingAuto door openDelay start
(Delicate)	Light soilGlass	PrewashWash(45°C)RinseRinse(55-60°C)Drying	Turbo speed+Extra DryingAuto door openDelay start
	Normal soil	Wash(55°C)RinseRinse(60-65°C)Drying	Auto door openDelay startTurbo speed+Extra Drying
	Normal soil	Wash(60°C)RinseRinse(55°C)Drying	Turbo speed+Extra DryingAuto door openDelay start
(Rapid)	Light soilCrockery and cutlery	Wash(45°C)RinseRinse(45°C)	Delay start
( )	All degree of soilCrockery and cutlery	Prewash · Delay start
(Machine care)	No load	PrewashWash(60°C)RinseRinse(70-72°C)Drying	Delay start

1) With this programme you have the most efficient use of water and energy consumption for crockery and cutlery with normal soil. (This is the standard programme for test institutes).

Consumption values

Programme	Drying phase	Available functions	Duration of programme (min)	Water consumption (litres/cycle)	Energy consumption (kWh/cycle)
AUTO	√		89-174 10.3-16	.9 0.930-1.470
[6CST]	√		1.650-1.720
ECO	√		220 9.5 0.664
[sopt]	√		0.850-0.925
	√		0.955-1.030
	√		0.905
	-30 10.3	0.560
[XHXT]	-15 3.9		0.115
[sopt]	√	[XTX0]	130	15.1	1.480-1.515

1. The pressure and the temperature of the water, the variations of the mains supply, the options and the quantity of dishes can change the values.
2. ECO programme is suitable to clean normally soiled tableware, and it is the most efficient programme in terms of its combined energy and water consumption. This programme is also used to assess compliance with the EU eco-design legislation.
3. Washing tableware in a household dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the household dishwasher is used according to the manufacturer's instructions.
4. The values given for programmes other than the eco programme are indicative only.

Information for test institutes

To receive the necessary information for conducting performance tests (e.g. according to EN60436), send an email to:

[e-mail]

In your request, please include the product number code (PNC) found on the rating plate.

Functions

It is not possible to activate or deactivate options while a programme is running.
If a function is not applicable to a programme, the related indicator is off or it flashes quickly for a few seconds and then goes out.
- Activating functions can affect the water and energy consumption as well as the programme duration.

Child lock

This option allows you to lock the buttons on the control panel, except for the On/Off button, so children cannot accidentally start the dishwasher by pressing the buttons on the panel.

To lock or unlock the buttons on the control panel, press the Child lock button ☐ for 3 seconds.

The function improves the drying performance with less energy consumption. Door will open automatically during the drying phase (except / / /).

How to deactivate auto door open function

1. Press the On/Off button to switch the appliance on.
2. Press The auto door open indicator is Off. The display shows the updated programme duration.

Settings

The water softener

The water softener removes minerals from the water supply, which would have a detrimental effect on the washing results and on the appliance.

The higher the content of these minerals, the harder your water is. Water hardness is measured in equivalent scales.

The water softener should be adjusted according to the hardness of the water in your area. Your local water authority can advise you on the hardness of the water in your area. It is important to set the right level of the water softener to assure good washing results.

Water hardness

German degrees (°dH)	French degrees (°fH)	mmol/l	Clarke degrees	Water softener level	Salt consumption (gram/cycle)	Regeneration frequency (Every X cycles)
35 - 55 61 -	98 6.1 - 9.8 43	- 69 H6 60 1
23 - 34 41 -	60 4.1 - 6.0 29	- 42 H5 30 2
18 - 22 31 -	40 3.1 - 4.0 22	- 28 H4 20 3
12 - 17 21 -	30 2.1 - 3.0 15	- 21 H3		1)	12	5
6 - 11 10 -	20 1.0 - 2.0 7 - 14	H2 9 10
0 - 5	0 - 9	0 - 0.94	0 - 6	H1^2)	0	NO

1) Factory setting.
2) Do not use salt at this level.

Whether you use a standard detergent or multi-tabs (with or without salt), set the proper water hardness level to keep the salt refill notification active.

Multi-tablets containing salt are not effective enough to soften hard water.

During every regeneration, an additional 2.0 liters of water is required, energy consumption increases by 0.02kWh and the programme is extended by 4 minutes.

How to set the water softener level

1. Close the dishwasher door and press the On/Off button to switch the appliance on.
2. Within 60 seconds after switching on, press the button for more than 5 seconds to enter the water softener setting mode.
3. Press the 📋 button to select the correct setting according to your local water hardness, the setting will change in the following order: H3->H4->H5->H6->H1->H2.
4. Wait 5 seconds or press the On/Off button to confirm the setting and exit.

The rinse aid empty notification

The rinse aid helps to dry the dishes without streaks and stains. For best drying performance, always use rinse aid.

The rinse aid is automatically released during the hot rinse phase.

When rinse aid dispenser is empty, the rinse aid indicator (※) lights up reminding you to refill rinse aid.

The rinse aid level

It is possible to set the released quantity of rinse aid between "d1" level (minimum quantity) and "d5" level (maximum quantity).

The factory setting is d3.

How to set the rinse aid level

1. Close the door and switch on the appliance.
2. Within 60 seconds after switching on, press the button for more than 5 seconds, and then press the Delay+ button to enter rinse aid level setting, the rinse aid indicator will flash.

3. Press the 📋 button to select the proper setting according to your usage habits, the setting will change in the following order: d3->d4->d5->d1->d2->d3.
   The higher the number, the more rinse aid the dishwasher uses.

4. Wait 5 seconds or press the On/Off button to confirm the setting and exit.

Activating/deactivating the key sound

Press and hold the AUTO and ☐ buttons for 3 seconds to activate or deactivate the key sound.

Before first use

1. Make sure that the current level of the water softener agrees with the hardness of the water supply. If not, adjust the level of the water softener.

2. Fill the salt container.

3. Fill the rinse aid dispenser.
4. Open the water tap.
5. Start a programme to remove any processing residuals that can still be inside the appliance. Do not use detergent and do not load the baskets.

After starting a programme, it may take up to 5 minutes for the appliance to recharge the resin in the water softener. It seems that the appliance is not working.

The washing phase starts only after this procedure is completed. The procedure is repeated periodically.

The salt container

⚠️ CAUTION! Use rough salt designed for dishwashers only. Fine salt increases the risk of corrosion.

The salt is used to recharge the resin in the water softener and to assure good washing results in daily use.

Filling the salt container

i Fill the salt only when the salt indicator (S) turns on.

1

Line drawing of a mechanical device with a circular inset showing a component (no text or symbols)

Find the salt container at the bottom.

2

Illustration of a hand pressing down on a circular object with an arrow indicating rotation (no text or symbols)

Remove the cap of the salt container.

3

SALT

4

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Place the funnel (if supplied) over the mouth of the salt container, then put 1.5 kg of dishwasher salt in the container.

Fill the salt container to the maximum level with water.

5

Tightly close the cap of the salt container.

CAUTION! Water and salt may come out of the salt container when you fill it. After you fill the salt container, immediately start a programme to prevent corrosion.

Filling the rinse aid dispenser

1

Line drawing of a mechanical device with a circular component inserted into a housing (no text or symbols)

Find the rinse aid dispenser on the inside of the door.

2

Simple line drawing of a device with a screen, door, and starburst symbol (no text or labels)

Remove the rinse aid reservoir cap by lifting the handle.

3

Line drawing of a hand inserting a plug into a device with a handle (no text or symbols)

Fill the rinse aid container with rinse aid. Be careful not to overfill.

4

Illustration of a hand pressing down on a device with a slide and scroll (no text or symbols)

Close the rinse aid reservoir cap by pressing down.

Daily use

1. Open the water tap.
2. Press the On/Off button to activate the appliance.
3. If the salt indicator is on, fill the salt container.
4. If the rinse aid indicator is on, fill the rinse aid dispenser.
5. Rotate the spray arm to see if it rotates freely.
6. Load the basket and add the detergent.
7. Set and start the correct programme for the type of load and the degree of soil.

Using the detergent

1

Line drawing of a mechanical device with an open lid and base plate (no text or symbols)

Find the detergent dispenser on the inside the door.

2

Release latch

Simple line drawing of a device with a screen and indicator light, no text or symbols present

Open the lid in one of the following ways, depending on the product:

A. Open the lid by sliding the release latch to the right.
B. Open the lid by pressing the release latch.
C. Open the lid by pushing the release latch inwards.

3

Diagram showing a cleaning or dust removal device with labeled components and a tool above it.

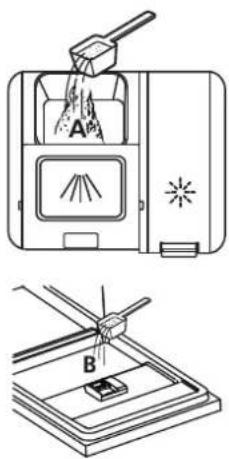

Add detergent into the larger cavity (A) for main wash. For more heavily soiled loads, also pour a small amount of detergent onto the door for release during pre-wash.

Diagram of a mechanical setup with a lever and labeled component B, no readable text or symbols present

4

Diagram of a device with a screen and indicator lights, no text or symbols present

Close the lid by sliding it to the front and then pressing it down.

The auto off function

This function decreases energy consumption by automatically deactivating the appliance when it is not operating.

The function comes into operation:

• 15 minutes after the completion of the programme.
• After 15 minutes if the programme has not started.

Starting a programme

CAUTION! Do not remove the baskets from the dishwasher before a wash cycle is completed.

1. Draw out the lower and upper baskets, load the dishes and push them back in. It is recommended to load the lower basket first, then the upper one.
2. Pour in the detergent.
3. Insert the plug into the socket. For the power supply, refer to the rating plate on the inside of the appliance door. Make sure that the water supply is turned on to full pressure.
4. Close the door, then press the On/Off button.
5. Choose a programme, the corresponding light will turn on. Then press the Start/Pause button, the dishwasher will start its cycle.

Starting a programme with delay start

1. Close the appliance door, then set a programme.
2. Press the Delay- or Delay+ button until the desired delay time (1-24 hours) shows in the LED display. The delay indicator turns on.
3. Press the Start/Pause button to start the countdown.

While a countdown is running it is possible to increase the delay time but also change the selection of the programme and options.

When the countdown is completed, the programme starts.

Opening the door while the appliance operates

Opening the door while a programme is running stops the appliance. It may affect the energy consumption and the programme duration.

After closing the door, the appliance continues from the point of interruption.

Cancelling the delay start while the countdown operates

When you cancel the delay start you have to set the programme and options again.

Press the On/Off button to deactivate the appliance. The delay start will be cancelled.

Cancelling the programme

Press the On/Off button to deactivate the appliance. Or open the door to stop running the programme, and wait a few seconds until the appliance completely stops, then press the On/Off button. The programme will be cancelled. Make sure that there is detergent in the detergent dispenser before you start a new programme.

End of the programme

1. Press the On/Off button or wait for the auto off function to automatically deactivate the appliance. If you open the door before the activation of auto off, the appliance is automatically deactivated.

2. Close the water tap.

When the programme is completed the display shows 0:00.

All buttons are inactive except for the On/Off button.

Changing the programme mid-cycle

A programme can only be changed if it has been running only for a short period of time, otherwise the detergent may have been released or the water with detergent is already drained. In this case, the dishwasher needs to be reset and the detergent dispenser must be refilled. To reset the dishwasher, follow the instructions below:

1. Press the Start/Pause button to stop the machine, then press the selected programme button for more than 3 seconds, the selected programme will be cancelled.
2. After the selected programme has been cancelled, you can press the desired programme button.
3. Press the Start/Pause button, the dishwasher will start.

Forget to add a dish?

A forgotten dish can be added at any time before the detergent dispenser opens. In that case, follow these steps:

1. Press the Start/Pause button to pause the cycle.
2. When the spray arms have stopped working, you can open the door completely.
3. Add the forgotten dishes.
4. Close the door.
5. Press the Start/Pause button, the dishwasher will start in 10 seconds.

Positioning the upper basket

The upper basket can be re-positioned at different heights to permit storage of dishes of various sizes.

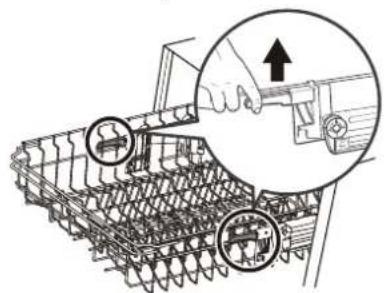

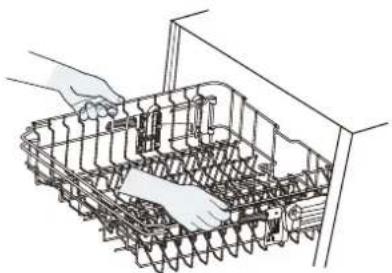

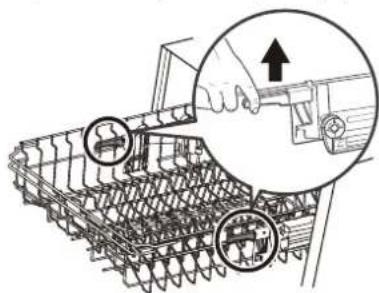

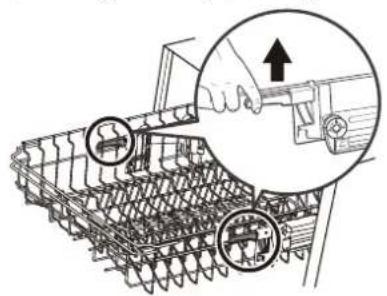

1. To raise the upper basket, just lift the upper basket at the center of each side until the basket locks into place in the upper position. It is not necessary to lift the adjusting handle.

Line drawing of a mechanical assembly with hands operating a component (no text or symbols)

1. To lower the upper basket, lift the adjusting handles on each side to release the basket and lower it to the lower position.

Illustration of a tracked vehicle with mechanical components and a magnified inset showing a hand adjusting a component (no text or symbols present)

Adjustable cup shelf

The cup shelf in the upper basket can be folded to make room for taller dishes.

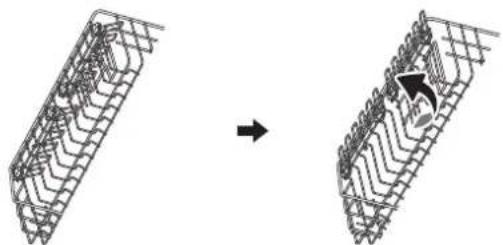

Pull the cup shelf up to fold it.

Diagram showing two wire mesh structures transforming into a curved, arrowed structure (no text or symbols)

Note: When the upper basket locks in the upper position, the cup shelves cannot be folded back.

Adjustable lower basket

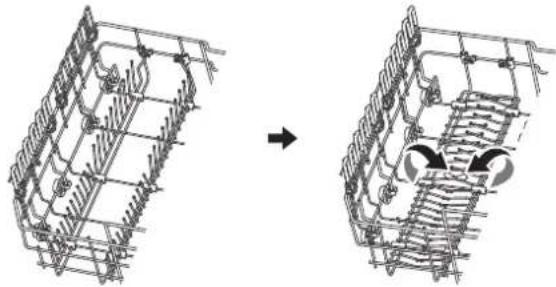

The spikes of the lower basket can be folded to make room for large dishes.

Push the spikes of the lower basket down to fold the spikes.

Diagram showing two wire mesh structures before and after transformation, with no visible text or symbols

Hints and tips

General

The following hints will ensure optimal cleaning and drying results in daily use and also help to protect the environment.

• Remove larger residues of food from the dishes into the waste bin.
• Do not pre-rinse dishes by hand. When needed, use the prewash programme (if available) or select a programme with a prewash phase.
• When loading the appliance, make sure that the dishes can be completely reached and washed by the water released from the spray arm nozzles. Make sure that items do not touch or cover each other.
• You can use dishwasher detergent, rinse aid and salt separately or you can use the multi-tablets (e.g. "3 in 1", "4 in 1", "All in 1"). Follow the instructions written on the packaging.
• Select the programme according to the type of load and degree of soil. With the ECO programme you have the most efficient use of water and energy consumption for crockery and cutlery with normal soil.

Using salt, rinse aid and detergent

- Only use salt, rinse aid and detergent for dishwasher. Other products can cause damage to the appliance.

• In areas with hard and very hard water we recommend to use plain dishwasher detergent (powder, gel, tablets containing no additional agents), rinse aid and salt separately for optimal cleaning and drying results.
• At least once a month run the appliance with the use of appliance cleaner which is particularly suitable for this purpose.
• Detergent tablets do not fully dissolve with short programmes. To prevent detergent residues on the tableware, we recommend that you use the tablets with long programmes.
• Do not use more than the correct quantity of detergent. Refer to the instructions on the detergent packaging.

What to do if you want to stop using multi-tablets

Before you start to use separately detergent, salt and rinse aid do the following procedure.

1. Set the highest level of the water softener.
2. Make sure that the salt and rinse aid containers are full.
3. Start the shortest programme with a rinsing phase. Do not add detergent and do not load the baskets.

4. When the programme is completed, adjust the water softener according to the water hardness in your area.

5. Adjust the released quantity of rinse aid.

6. Activate the rinse aid empty notification.

Loading the baskets

i Refer to examples of the load of the baskets on page 16.

• Only use the appliance to wash items that are dishwasher-safe.
• Do not put in the appliance items made of wood, aluminium, pewter and copper.
• Do not put in the appliance items that can absorb water (sponges, household cloths).
• Remove remaining food from the items.
• Soak items with remaining burned food in water.
• Put hollow items (cups, glasses and pans) with the opening down.
• Make sure that cutlery and dishes do not bond together. Mix spoons with other cutlery.
  • Make sure that glasses do not touch each other.
• Put small items in the cutlery basket.
• Put light items in the upper basket. Make sure that the items do not move.

Before starting a programme

Make sure that:

• The filters are clean and correctly installed.
• The cap of the salt container is tight.
  • The spray arms are not clogged.
• There is dishwasher salt and rinse aid (unless you use multi-tablets).
• The position of the items in the baskets is correct.
• The programme is applicable for the type of load and for the degree of soil.
• The correct quantity of detergent is used.

Unloading the baskets

For better drying results keep the appliance door ajar for some minutes before you remove the dishes.

1. Let the dishes cool down before you remove them from the appliance. Hot dishes are easily damaged.
2. First remove items from the lower basket then the upper basket.

At the end of the programme water can still remain on the sides and on the door of the appliance.

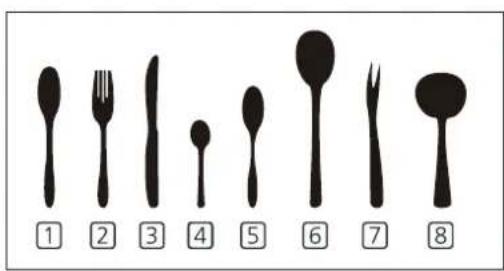

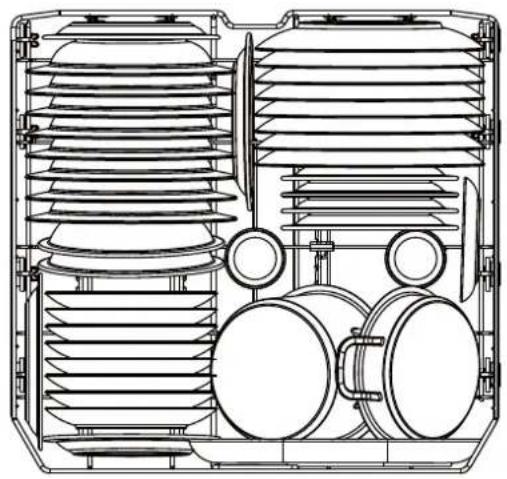

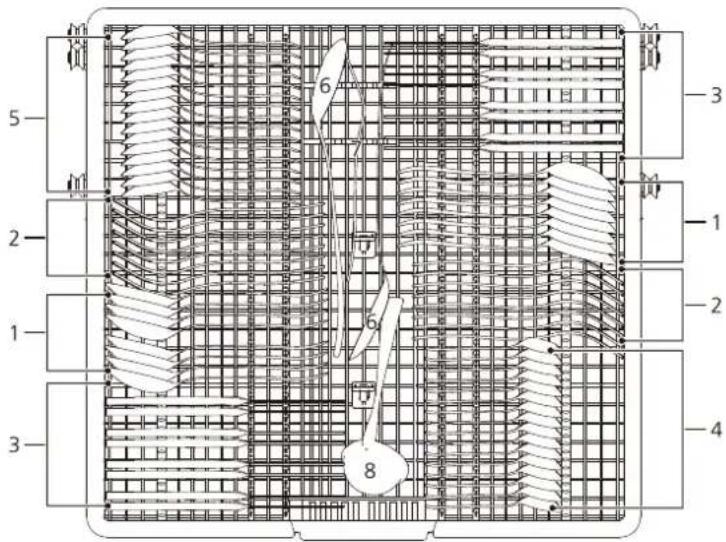

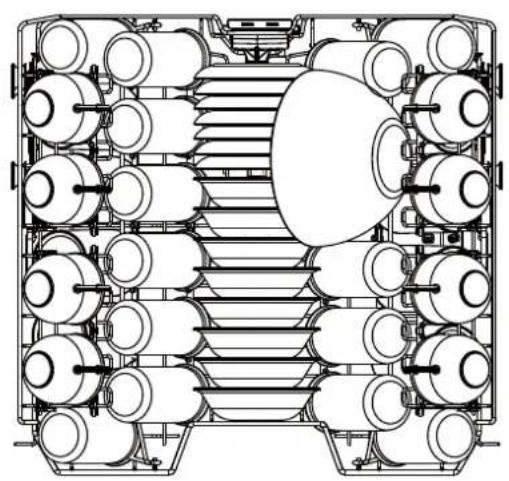

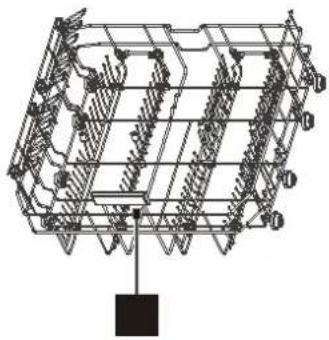

Examples of basket loads

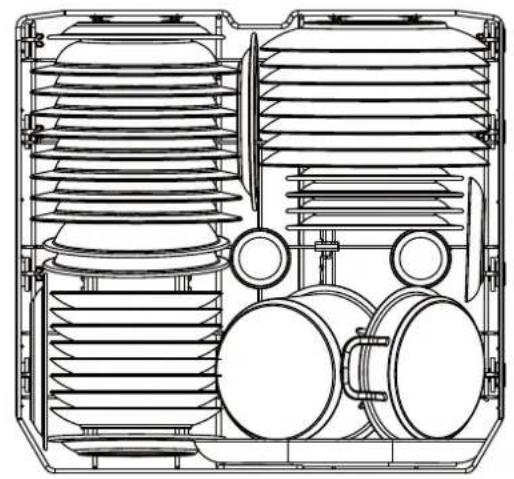

Technical line drawing of a multi-layered industrial or mechanical assembly with cylindrical components and a central oval component (no text or symbols)

Technical line drawing of an industrial air duct system with cooling fans and cylindrical components (no text or labels)

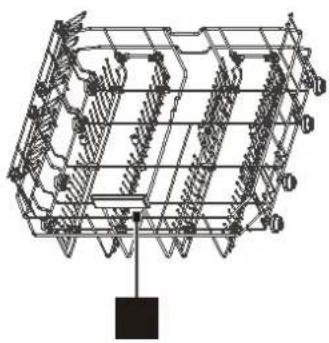

5 2 1 3 6 7 8 -3 -1 -2 -4

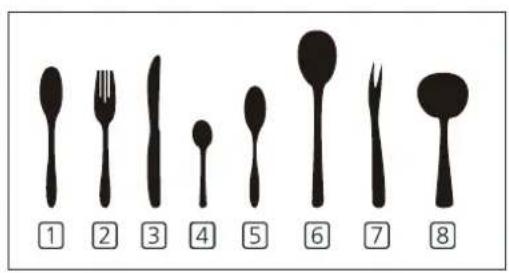

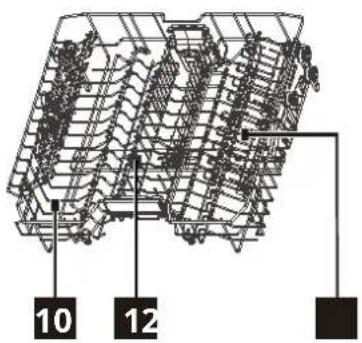

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Care and cleaning

⚠ WARNING! Before maintenance, deactivate the appliance and disconnect the mains plug from the main socket.

Dirty filters and clogged spray arms decrease the washing results. Make a check regularly and, if necessary, clean them.

Cleaning the filters

1. Turn the filter counterclockwise to unlock it, then lift it out of the appliance.

Simple line drawing of a mechanical component with a central circular feature and horizontal bars (no text or symbols)

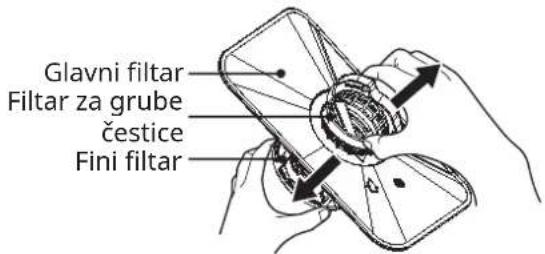

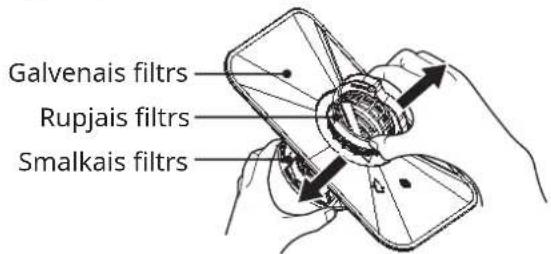

1. First pull out the fine filter from the bottom of the filter assembly. Then separate the coarse filter from the main filter by gently squeezing the tabs at the top and pulling it away.

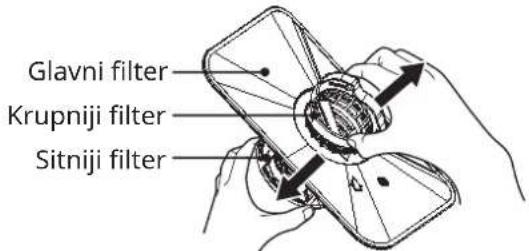

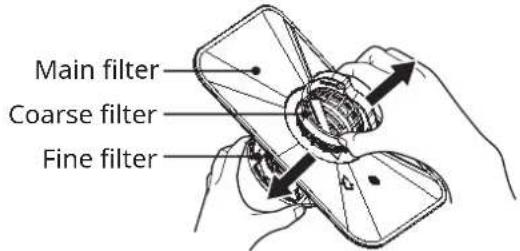

Main filter Coarse filter Fine filter

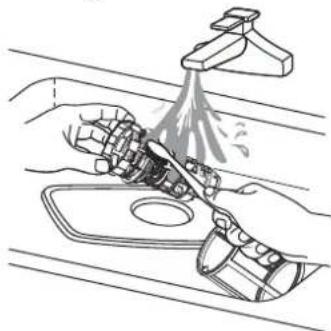

1. Rinse the filter under running water to remove larger food remnants. For more thorough cleaning, use a soft cleaning brush.

Line drawing of hands cleaning a kitchen sink with a faucet and spray (no text or symbols)

1. Reassemble the filters in the reverse order of disassembly, replace the filter insert, and turn clockwise to the close arrow.

Simple line drawing of a mechanical component inside a container (no text or symbols)

Cleaning the spray arms

We recommend to clean the upper and lower spray arms regularly to prevent clogging. Clogged holes can cause unsatisfactory washing results.

1. Pull out the upper and lower baskets.

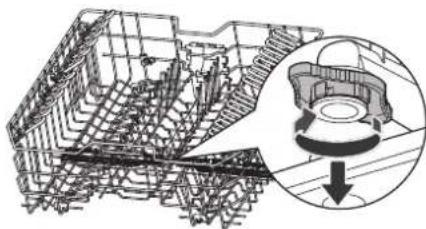

2. To disengage the upper spray arm from the upper basket, hold the nut in the center position of the upper spray arm and turn the spray arm clockwise to remove.

Technical line drawing of a mechanical assembly with an inset showing a circular component (no text or symbols)

1. To detach the lower spray arm from the bottom of the appliance, just pull it up to remove.

Diagram of a mechanical press or stamping device with a central component and an upward arrow (no text or symbols)

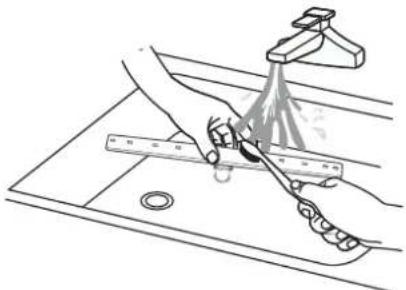

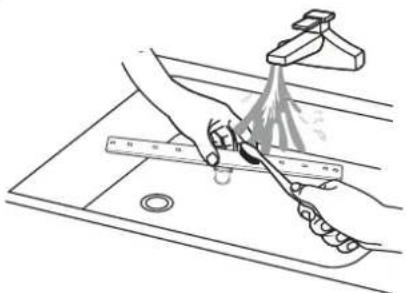

1. Rinse the upper and lower spray arms under running water. Use a thin pointed tool (e.g. a toothpick) to remove particles of soil from the holes of the spray arms.

Illustration of a hand using a tool to cut a metal part, with no visible text or symbols

1. After cleaning, replace the spray arms. To attach the upper spray arm to the upper basket, align the center position of the upper spray arm with the nut then turn it counterclockwise to tighten. To attach the lower spray arm to the bottom of the appliance, insert the lower spray arm into position.

External cleaning

- Clean the appliance with a moist soft cloth.

- Only use neutral detergents.

- Do not use abrasive products, abrasive cleaning pads or solvents.

Internal cleaning

- Carefully clean the appliance, including the rubber gasket of the door, with a soft damp cloth.

• To maintain the performance of your appliance, use a cleaning product designed specifically for dishwashers at least once a month. Carefully follow the instructions on the packaging of the product.
• Do not use abrasive products, abrasive cleaning pads, sharp tools, strong chemicals, scourer or solvents.
• Using short-duration programmes regularly can cause grease and limescale buildup inside the appliance.
• Run long-duration programmes at least twice a month to prevent the buildup.

Frost precaution

Please take frost protection measures on the dishwasher in winter. After each washing cycle, please operate as follows:

1. Cut off the electrical power to the dishwasher at the supply source.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to collect the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up the water in the sump.

Moving the appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

When not in use for a long time

It is recommended that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odors from forming within the appliance.

Troubleshooting

If the appliance does not start or it stops during operation, first check if you can solve the problem by yourself with the help of the information in the table or contact an Authorised Service Centre.

WARNING! Repairs not properly done may result in serious risk to the safety of the user. Any repairs must be performed by qualified personnel.

Problem Possible cause and solution
You cannot activate the appliance.	Make sure that the mains plug is connected to the mains socket.Make sure that there is no damaged fuse in the fuse box.
The programme does not start.	Make sure that the appliance door is closed.If the delay start is set, cancel the setting or wait for the end of the countdown.The appliance has started the procedure to recharge the resin inside the water softener. The duration of the procedure is approximately 5 minutes.
The appliance does not fill with water.	Make sure that the water tap is open.Make sure that the pressure of the water supply is not too low. For this information, contact your local water authority.Make sure that the water tap is not clogged.Make sure that the filter in the inlet hose is not clogged.Make sure that the inlet hose has no kinks or bends.
The appliance does not reach the required temperature.	Heating element malfunctions. Contact an Authorised Service Centre.
The appliance does not drain the water.	Make sure that the sink spigot is not clogged.Make sure that the filter in the outlet hose is not clogged.Make sure that the interior filter system is not clogged.Make sure that the drain hose has no kinks or bends.
The appliance stops and starts more times during operation.	It is normal. It provides optimal cleaning results and energy savings.
The programme lasts too long.	If the delayed start option is set, cancel the delay setting or wait for the end of the countdown.
The remaining time in the display increases and skips nearly to the end of programme time.	This is not a defect. The appliance is working correctly.
Small leak from the appliance door.	The appliance is not levelled. Loosen or tighten the adjustable feet (if applicable).The appliance door is not centred on the tub. Adjust the rear foot (if applicable).
The appliance door is difficult to close.	The appliance is not levelled. Loosen or tighten the adjustable feet (if applicable).Parts of the tableware are protruding from the baskets.
Rattling/knocking sounds from inside the appliance.	The tableware is not properly arranged in the baskets. Refer to basket loading section.Make sure that the spray arms can rotate freely.
The appliance trips the circuit-breaker.	The amperage is insufficient to supply simultaneously all the appliances in use. Check the socket amperage and the capacity of the meter or turn off one of the appliances in use.Internal electrical fault of the appliance. Contact an Authorised Service Centre.

Refer to "Before first use", "Daily use", or "Hints and tips" for other possible causes.

Once problem occurs on the appliance, deactivate and activate the appliance. If the problem occurs again, contact an Authorised Service Centre.

The washing and drying results are not satisfactory

Problem Possible cause and solution
Poor washing results.	Refer to “Daily use”, “Hints and tips” and basket loading section.Use more intensive washing programmes.Clean spray arm jets and filter. Refer to “Care and Cleaning”.
Poor drying results.	Tableware has been left for too long inside a closed appliance.There is no rinse aid or the dosage of rinse aid is not enough. Set the rinse aid dispenser to a higher level.Plastic items may need to be towel dried.For the best drying performance activate the dry plus option.We recommend to always use rinse aid, even in combination with multi-tablets.
There are whitish streaks or bluish layers on glasses and dishes.	The release quantity of rinse aid is too much. Adjust the rinse aid level to a lower level.The quantity of detergent is too much.
There are stains and dry water drops on glasses and dishes.	The released quantity of rinse aid is not sufficient. Adjust the rinse aid level to a higher level.The quality of the rinse aid can be the cause.
The dishes are wet.	For the best drying performance activate the auto door open.The programme does not have a drying phase or has a drying phase with low temperature.The rinse aid dispenser is empty.The quality of the rinse aid can be the cause.The quality of the multi-tablets can be the cause. Try a different brand or activate the rinse aid dispenser and use rinse aid and multi-tablets together.
The interior of the appliance is wet.	This is not a defect of the appliance. it is caused by the humidity in the air that condenses on the walls.
Unusual foam during washing.	Use the detergent for dishwashers only.There is a leak in the rinse aid dispenser. Contact an Authorised Service Centre.
Traces of rust on cutlery.	There is too much salt in the water used for washing. Refer to “The water softener”.Silver and stainless steel cutlery were placed together. Avoid to put silver and stainless steel items close together.
There are residues of detergent in the dispenser at the end of the programme.	The detergent tablet got stuck in the dispenser and therefore was not completely washed away by water.Water cannot wash away the detergent from the dispenser. Make sure that the spray arm is not blocked or clogged.Make sure that items in the baskets do not impede the lid of the detergent dispenser from opening.
Odours inside the appliance.	Refer to “Internal cleaning”.
Limescale deposits on the tableware, on the tub and on the inside of the door.	The level of salt is low, check the refill indicator.The cap of the salt container is loose.Your tap water is hard. Refer to “The water softener”.Even using multi-functional tabs use salt and set regeneration of the water softener. Refer to “The water softener”.If limescale deposits still remain, clean the appliance with appliance cleaners which are particularly suitable for this purpose.Try different detergent.Contact the detergent manufacturer.
Dull, discoloured or chipped tableware.	Make sure that only dishwasher-safe items are washed in the appliance.Load and unload the basket carefully. Refer to load of basket at the end of this user manual.Place delicate items in the upper basket.

Refer to "Before first use", "Daily use" or "Hints and tips" for other possible causes.

Error codes

If there is a malfunction the dishwasher will display an error code. The following table shows possible error codes and their causes.

Error code Meaning Possible cause
E1 Longer water inlet time Faucet is not opened, or water intake is restricted, or water pressure is too low.
E3 Not reaching required temperature Malfunction of heating element.
E4 Overflow Some element of the dishwasher leaks.
Ec Washing control system failure PCB or motor failure.
Ed Failure of communication between the main circuit board and display circuit board		Open circuit or broken wiring for the communication.
L4 Motor failure Motor failure

WARNING!

• If overflow occurs, turn off the main water supply before calling a service.
• If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.
• If there is an error that cannot be solved, please request professional assistance.

Technical information (EN60436)

Supplier name IKEA of Sweden AB
Supplier address IKEA of Sweden AB, Tulpanvägen	8, 343 81 Älmhult, Sweden
Product type Dishwasher
Installation type Built under
Dimensions (W x H x D) 60 x 82 x 58 cm
Rated capacity a) (ps) 16	b)
Energy efficiency class a)	B
EEI a)	37,9
Cleaning performance index a)	1,125
Drying performance index a)	1,065
Energy consumption per cycle c)	0,664 kWh
Water consumption per cycle d)	9,5 litres
Program duration a)	3:40 (h:min)
Airborne acoustical noise emission a)	42 dB(A)
Airborne acoustical noise emission class a)	B
Off-mode N/A
Standby mode 0,49 W
Delay start 1,00 W

a) For the eco program.
b) The maximum number of place settings to be washed is 16. Refer to examples of the load of the baskets at the begin of this quick guide. Correct loading will contribute to energy and water savings. The Dishes may not clean with incorrect loading.
c) Energy consumption in kWh per cycle, based on the eco programme using cold water fill. Actual energy consumption will depend on how the appliance is used.
d) Water consumption in litres per cycle, based on the eco program. Actual water consumption will depend on how the appliance is used and on the hardness of the water.

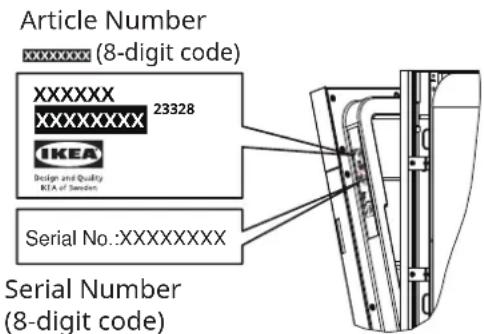

The article number and serial number are shown on the rating plate on the internal right side of the appliance door.

Article Number XXXXXXXXX (8-digit code) XXXXXXXXX 23328 IKEA Design and Quality RTA of Sweden Serial No.:XXXXXXXXX Serial Number (8-digit code)

Picture for reference only

Link to EU EPREL Database

The QR code on the energy label supplied with the appliance provides a web link to the registration of this appliance in the EU EPREL database. Keep the energy label for reference together with the user manual and all other documents provided with this appliance.

It is possible to find information related to the performance of the product in the EU EPREL database using the link https://eprel.ec.europa.eu and the model name and product number that you can find on the rating plate of the appliance. Refer to the chapter "Product description".

For more detailed information about the energy label, visit www.theenergylabel.eu.

Environmental concerns

Recycle materials with the symbol. But the

packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances.

Do not dispose of appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

Ikea guarantee

How long is the IKEA guarantee valid?

This guarantee is valid for 5 years from purchase date unless otherwise specified in national legislation. Please go to IKEA.com to find out what applies in your country. The original sales receipt is required as proof of purchase. If service work is carried out under guarantee, this will not extend the guarantee period for the appliance.

Who will execute the service?

IKEA service provider will provide the service through its own service operations or authorized service partner network.

What does this guarantee cover?

The guarantee covers faults of the appliance, which have been caused by faulty construction or material faults from the date of purchase from IKEA. This guarantee applies to domestic use only. The exceptions are specified under the headline "What is not covered under this guarantee?" Within the guarantee period, the costs to remedy the fault e.g. repairs, parts, labour and travel will be covered, provided that the appliance is accessible for repair without special expenditure. On these conditions the EU guidelines (DIRECTIVE (EU) 2019/771) and the respective local regulations are applicable. Replaced parts become the property of IKEA.

What will IKEA do to correct the problem?

IKEA appointed service provider will examine the product and decide, at its sole discretion, if it is covered under this guarantee. If considered covered, IKEA service provider or its authorized service partner through its own service operations, will then, at its sole discretion, either repair the defective product or replace it with the same or a comparable product.

What is not covered under this guarantee?

• Normal wear and tear.
- Deliberate or negligent damage, damage caused by failure to observe operating instructions, incorrect installation or by connection to the wrong voltage, damage caused by chemical or electro-chemical reaction, rust, corrosion or water damage including but not limited to damage caused by excessive lime in the water supply, damage caused by abnormal environmental conditions.
- Consumable parts including batteries and lamps.
- Non-functional and decorative parts which do not affect normal use of the appliance, including any scratches and possible colour differences.
- Accidental damage caused by foreign objects or substances and cleaning or unblocking of filters, drainage systems or soap drawers.
- Damage to the following parts: ceramic glass, accessories, crockery and cutlery baskets, feed and drainage pipes, seals, lamps and lamp covers, screens, knobs, casings and parts of casings. Unless such damages can be proved to have been caused by production faults.
- Cases where no fault could be found during a technician's visit.
- Repairs not carried out by our appointed service providers and/or an authorized service contractual partner or where non-original parts have been used.
- Repairs caused by installation which is faulty or not according to specification.
- The use of the appliance in a non-domestic environment i.e. professional use.
- Transportation damages. If a customer transports the product to their home or other address, IKEA is not liable for any damage that may occur during transport. However, if IKEA delivers the product to

the customer's delivery address, then damage to the product that occurs during this delivery will be covered by this guarantee.

- Cost for carrying out the initial installation of the IKEA appliance. However, if an IKEA service provider or its authorized service partner repairs or replaces the appliance under the terms of this guarantee, the service provider or its authorized service partner will reinstall the repaired appliance or install the replacement, if necessary.

This restriction do not apply to fault-free work carried out by a qualified specialist using our original parts in order to adapt the appliance to the technical safety specifications of another EU country.

How country law applies

The IKEA guarantee gives You specific legal rights, which covers or exceed local demands. However these conditions do not limit in any way consumer rights described in the local legislation.

Area of validity

For appliances which are purchased in one EU country and taken to another EU country, the services will be provided in the framework of the guarantee conditions normal in the new country. An obligation to carry out services in the framework of the guarantee exists only if the appliance complies and is installed in accordance with:

• the technical specifications of the country in which the guarantee claim is made;
• the Assembly Instructions and User Manual Safety Information.

The dedicated After Sales Service for IKEA appliances:

Please do not hesitate to contact IKEA After Sales Service to:

make a service request under this guarantee; ask for clarification on installation of the IKEA appliance in the dedicated IKEA kitchen furniture. The service won't provide clarifications related to:

the overall IKEA kitchen installation; connections to electricity (if machine comes without plug and cable), to water and to gas since they have to be executed by an authorized service engineer.

Ask for clarification on user manual contents and specifications of the IKEA appliance.

To ensure that we provide you with the best assistance, please read carefully the Assembly Instructions and/or the User Manual section of this booklet before contacting us.

Availability of the spare parts

The following parts will be available for 7 years after this model has been discontinued: motor; circulation and drain pump; heaters and heating elements, including heat pumps (separately or bundled); piping and related equipment including all hoses, valves, filters and aquastops; structural and interior parts related to door assemblies (separately or bundled); printed circuit boards; electronic displays; pressure switches; thermostats and sensors; software and firmware including reset software.

The following parts will be available for 10 years after this model has been discontinued: door hinge and seals, other seals, spray arms, drain filters, interior racks and plastic peripherals such as baskets and lids.

For ordering the spare parts, please contact IKEA After Sales Service.

How to reach us if You need our service

Please refer to the last page of this manual for the full list of IKEA appointed contacts and relative national phone numbers.

In order to provide You with a quicker service, we recommend that You use the specific phone numbers listed at the end of this manual. Always refer to the numbers listed in the booklet of the specific appliance You need an assistance for. Before calling us, assure that You have to hand the IKEA article number (8 digit code) and the Serial Number (8 digit code that can be found on the rating plate) for the appliance of which you need our assistance.

i SAVE THE SALES RECEIPT! It is Your proof of purchase and required for the guarantee to apply. Note that the receipt reports also the IKEA article name and number (8 digit code) for each of the appliances you have purchased.

Do you need extra help?

For any additional questions not related to After Sales of your appliances, please contact our nearest IKEA store call centre. We recommend you read the appliance documentation carefully before contacting us.

Inhalt

Safety warning symbols including warning triangle, lightning bolt, and pipe fittings with corresponding illustrations

Technical diagram of a refrigerator interior with numbered parts and an inset magnified view of the lid.

3D diagram of a grid-patterned rectangular device with labeled component '9' (no text or symbols beyond label)

10 12

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Line drawing of a device with a circular inset showing a magnified view of a component (no text or symbols)

Illustration of a hand pressing down on a gear and then pressing into a bowl with an arrow indicating motion (no text or symbols)

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Line drawing of a refrigerator with an open lid and base (no text or symbols)

Simple line drawing of a device with a screen, door, and starburst symbol (no text or labels)

Line drawing of a hand inserting a plug into a device with a handle (no text or symbols)

Hand pressing a button on a device with a screen and scroll (no text or symbols visible)

Line drawing of a refrigerator with an open lid and base (no text or symbols)

Diagram showing a device with a light source and a screen, labeled with Chinese characters and an arrow pointing to the screen.

Diagram showing a kitchen appliance with a hammer and a lamp, labeled with Chinese characters and symbols.

Diagram of a mechanical setup with a central component labeled B, no text or symbols present

4

Diagram of a device with a screen and indicator lights, no text or symbols present

Technical line drawing of a mechanical assembly with spring-loaded components (no text or symbols)

Technical diagram showing a hand operating a mechanical component with labeled parts and an arrow indicating direction.

Diagram showing two wire mesh structures transforming into a final structure with an arrow indicating rotation (no text or symbols)

Diagram showing structural deformation before and after, with arrows indicating direction (no text or symbols)

Hinweise und Tipps

Allgemeines

Technical line drawing of a multi-layered industrial or mechanical assembly with cylindrical components and a central oval component (no text or symbols)

Technical line drawing of an industrial air duct system with cooling fans and cylindrical components (no text or labels)

5 2 1 3 6 7 8 -3 -1 -2 -4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Simple line drawing of a mechanical component with a central bowl and a handle, no text or symbols present.

Line drawing of hands cleaning a kitchen sink with a tool, no text or symbols present

Simple line drawing of a kitchen sink with a bowl and tray, no text or symbols present

Technical diagram of a mechanical assembly with a magnified inset showing internal components (no text or labels)

Diagram of a mechanical device with a central component and an upward arrow, no text or symbols present

Illustration of hands using a tool to cut a surface with a ruler and cap (no text or symbols)

Safety warning symbols including warning triangle, lightning bolt, and pipe fitting with corresponding illustrations

⚠ AVERTISSEMENT ! Tension dangereuse.

Technical diagram of a refrigerator interior with numbered parts and an inset magnified view of the lid.

3D diagram of a grid-patterned rectangular device with labeled component '9' (no text or symbols beyond label)

10 12

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Line drawing of a mechanical device with a circular inset showing a component (no text or symbols)

Illustration of a hand pressing down on a circular component with an arrow indicating press direction (no text or symbols)

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Line drawing of a mechanical device with a circular component inserted into a housing (no text or symbols)

Simple line drawing of a device with a screen, door, and starburst symbol (no text or labels)

Line drawing of a hand inserting a plug into a device with a handle (no text or symbols)

Illustration of a hand pressing down on a device with a screen and scroll (no text or symbols)

Line drawing of a refrigerator with an open lid and base (no text or symbols)

Technical diagram showing a device with labeled components A and B, including a tool pouring liquid into a chamber.

Diagram of a device with a slide and fan, showing airflow direction (no text or symbols)

Diagram showing a device with a screen and indicator light, including a dashed circle and star symbol.

Line drawing of a mechanical assembly with hands operating a component (no text or symbols)

Technical diagram showing a tank with two circular insets highlighting a hand operating a tool, one labeled with a bolt and the other with a valve.

Diagram showing a wire mesh structure transforming into a folded panel with an arrow indicating rotation (no text or symbols present)

Diagram showing structural deformation before and after, with arrows indicating direction of movement (no text or symbols)

Conseils et astuces

Généralités

Technical line drawing of a multi-layered industrial or mechanical assembly with cylindrical components and a central oval component (no text or symbols)

Technical line drawing of a mechanical or electrical enclosure with internal components and ventilation grilles (no text or symbols)

5 2 1 3 6 7 8 -3 -1 -2 -4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Simple line drawing of a mechanical component with a central hub and base plate (no text or symbols)

Line drawing of hands using a tool to clean or spray liquid on a kitchen sink (no text or symbols)

Simple line drawing of a mechanical component with no text or symbols

Technical line drawing of a mechanical assembly with an inset showing a circular component (no text or symbols)

Diagram of a mechanical device with a central component and an upward arrow, no text or symbols present

Illustration of a hand using a tool to clean or wash a surface, with no text or symbols present.

Safety warning symbols and corresponding diagram showing warning, lightning bolt, and pipe fittings

AVVERTENZA! Tensione pericolosa.

Technical diagram of a refrigerator interior with numbered parts and an inset magnified view of the lid.

3D diagram of a grid-patterned rectangular device with labeled component '9' (no text or symbols beyond label)

10 12

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Line drawing of a device with a circular inset showing a magnified view of a component (no text or symbols)

2

Illustration of a hand pressing down on a circular component with an arrow indicating rotation (no text or symbols)

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Line drawing of a mechanical device with a circular component inserted into a housing (no text or symbols)

Simple line drawing of a device with a screen, door, and starburst symbol (no text or labels)

Line drawing of a hand inserting a plug into a device with a handle (no text or symbols)

Hand pressing a button on a device with a screen and scroll (no text or symbols visible)

Line drawing of a refrigerator with an open lid and base (no text or symbols)

Simple line drawing of a device with a screen and indicator light, no text or symbols present

Diagram illustrating a mechanical device with labeled components A and B, showing flow and assembly steps.

Diagram of a device with a tray, fan, and indicator light (no text or symbols)

Line drawing of a hand placing components into a rack (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of a hand operating a tool.

Diagram showing two wire mesh structures transforming into a curved structure with an arrow indicating rotation (no text or symbols)

Diagram showing structural deformation before and after, with arrows indicating direction of movement (no text or symbols present)

Technical line drawing of a multi-layered industrial or mechanical assembly with cylindrical components and a central oval component (no text or symbols)

Technical line drawing of a mechanical or electrical enclosure with heat exchangers and circular components (no text or symbols)

5 2 1 3 6 7 8 -3 -1 -2 -4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Simple line drawing of a mechanical component with a central hub and base plate (no text or symbols)

Line drawing of hands using a tool to clean or spray liquid on a kitchen sink (no text or symbols)

Simple line drawing of a mechanical component with no text or symbols

Technical diagram of a mechanical assembly with internal components and a magnified inset showing a circular component (no text or symbols)

Diagram of a mechanical press or stamping device with an upward arrow indicating motion (no text or symbols present)

Illustration of a hand using a tool to clean or wash a surface, with no text or symbols present.

Safety warning symbols and three labeled diagrams: triangular warning triangle, falling lightning bolt, and two hand tools with different symbols.

⚠ ADVARSEL! Farlig spænding.

Technical diagram of a refrigerator interior with numbered parts and an inset magnified view of the lid.

3D diagram of a grid-patterned rectangular device with labeled component '9' (no text or symbols beyond label)

10 12

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Line drawing of a device with a circular inset showing internal components (no text or symbols)

Find beholderen til salt i bunden.

2

Illustration of a hand pressing down on a gear and then pressing into a cup (no text or symbols)

Fjern låget til beholderen til salt.

3

SALT

Illustration of a hand pouring liquid from a container into a stack of plates (no text or symbols)

Line drawing of a mechanical device with a circular component inserted into a housing (no text or symbols)

Simple line drawing of a device with a screen, door, and starburst symbol (no text or labels)

Line drawing of a hand inserting a plug into a device with a handle (no text or symbols)

Illustration of a hand pressing down on a device with a slide and scroll (no text or symbols)

Line drawing of a mechanical device with a circular component on its base (no text or symbols)

Diagram of a device with a screen and indicator light, no text or symbols present

Diagram showing a cleaning or dust removal device with labeled components and directional arrows

Diagram of a mechanical setup with a lever and labeled component B, no readable text or symbols present

4

Simple line drawing of a device with a screen and indicator lights, no text or symbols present.

Line drawing of a mechanical assembly with hands operating a component (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of a hand holding a tool.

Diagram showing two wire mesh structures transforming into a curved, arrowed structure (no text or symbols)

Diagram showing structural deformation before and after, with no visible text or symbols

Råd og tip

Generelt

Technical line drawing of a multi-layered industrial or mechanical assembly with cylindrical components and a central oval component (no text or symbols)

Technical line drawing of a mechanical or electrical enclosure with heat exchangers and circular components (no text or symbols)

5 2 1 3 6 7 8 -3 -1 -2 -4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Simple line drawing of a mechanical component with a central circular feature and horizontal bars (no text or symbols)

Line drawing of hands using a tool to clean or wash a surface, no text or symbols present

Simple line drawing of a kitchen sink with a bowl and lid (no text or symbols)

Technical diagram of a structural framework with an inset showing a circular component (no text or symbols)

Diagram of a mechanical device with a central component and an upward arrow, no text or symbols present

Illustration of hands using a tool to clean or adjust a surface, with no visible text or symbols

Safety warning symbols including warning triangle, lightning bolt, and pipe fitting with corresponding illustrations

⚠ ADVARSEL! Farlig spenning.

Technical diagram of a refrigerator interior with numbered parts and an inset magnified view of the lid.

3D diagram of a grid-patterned rectangular device with labeled component '9' (no text or symbols beyond label)

10 12

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

Finn saltbeholderen nederst.

2

Illustration of a hand pressing down on a mechanical component (no text or symbols)

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Line drawing of a mechanical device with a circular component inserted into a rectangular housing (no text or symbols)

Finn skyllemiddeldispenseren på innsiden av døren.

2

Simple line drawing of a device with a screen, lamp, and starburst symbol (no text or labels)

Line drawing of a hand inserting a plug into a device with a handle (no text or symbols)

Fyll skyllemiddelbeholderen med skyllemiddel. Ikke overfyll.

4

Illustration of a hand pressing down on a device with a slide and scroll (no text or symbols)

Line drawing of a mechanical device with a circular component on its base (no text or symbols)

Diagram showing a fire extinguisher pouring liquid into a fire pit, with labeled components and warning symbols.

Diagram of a mechanical setup with a lever and base component labeled B (no text or symbols present)

4

Diagram of a device with a slide and fan, showing an upward arrow and starburst symbol (no text or labels)

Line drawing of a mechanical assembly with gears and a handle (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of a tool interacting with a component.

Justerbart koppstativ

Diagram showing a structural transformation from a grid-like structure to an elongated frame with an arrow indicating motion (no text or symbols)

Diagram showing two wire mesh structures before and after transformation, with arrows indicating movement (no text or symbols)

Hint og tips

Generelt

Technical line drawing of a multi-layered industrial or mechanical assembly with cylindrical components and a central oval component (no text or symbols)

Technical line drawing of a mechanical or electrical enclosure with internal components and ventilation grilles (no text or symbols)

5 2 1 3 6 7 8 -3 -1 -2 -4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Simple line drawing of a mechanical component with a central circular feature and horizontal bars (no text or symbols)

Line drawing of hands using a tool to clean or wash a surface, no text or symbols present

Simple line drawing of a mechanical component inside a container (no text or symbols)

Technical diagram of a structural framework with an inset showing a circular component (no text or symbols)

Diagram of a mechanical device with a central component and an upward arrow, no text or symbols present

Illustration of a hand using a tool to cut a metal part, with no visible text or symbols

XXXXXX 23328 XXXXXXX IKEA Design and Quality RTA of Sweden Serial No.:XXXXXXXXX Serienummer (8-sifret kode)

Bildet er kun for referanse

Lenke til EUs EPREL-database

Safety warning symbols and corresponding diagram showing warning, lightning bolt, and valve components

⚠️ VAROITUS! Vaarallinen jännite.

Technical diagram of a refrigerator interior with numbered parts and an inset magnified view of the lid.

3D diagram of a grid-patterned rectangular device with labeled component '9' (no text or symbols beyond label)

10 12

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Hand pouring liquid from a container into a bowl (no text or symbols visible)

Line drawing of a mechanical device with a circular component inserted into a rectangular housing (no text or symbols)

Simple line drawing of a device with a screen, door, and starburst symbol (no text or labels)

Line drawing of a hand inserting a plug into a device with a handle (no text or symbols)

Illustration of a hand pressing down on a device with a slide and scroll (no text or symbols)

Line drawing of a mechanical device with a circular component on its base (no text or symbols)

Simple line drawing of a device with a screen and indicator light, no text or symbols present

Diagram illustrating a mechanical device with labeled components A and B, showing flow or operation steps.

Diagram of a device with a screen and indicator lights, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of a hand operating a tool.

Diagram showing a structural transformation from a grid-like structure to a curved panel with an arrow indicating direction (no text or symbols)

Diagram showing structural rebar assembly before and after rotation, with no visible text or symbols

Vinkkejä

Yleistä

Technical line drawing of a multi-layered industrial or mechanical assembly with cylindrical components and a central oval component (no text or symbols)

Technical line drawing of a mechanical or electrical enclosure with internal components and ventilation grilles (no text or symbols)

5 2 1 3 6 8 -3 -1 -2 -4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Hoito ja puhdistus

Simple line drawing of a mechanical component with a central circular feature and horizontal bars (no text or symbols)

Line drawing of hands cleaning a kitchen sink with a tool, no text or symbols present

Simple line drawing of a mechanical component with a circular base and ring, no text or symbols present.

Diagram showing a 3D wireframe structure with an inset circular view of a mechanical component (no text or symbols)

Diagram of a mechanical press or stamping device with a central component and an upward arrow, no text or symbols present.

Illustration of a hand using a tool to clean or wash a surface, with no text or symbols present.

Safety warning symbols and diagram showing warning triangle, lightning bolt, and pipe fittings with corresponding illustrations.

⚠ WARNING! Farlig spänning.

Technical diagram of a refrigerator interior with numbered parts and an inset magnified view of the lid.

3D diagram of a grid-patterned rectangular device with labeled component '9' (no text or symbols beyond label)

10 12

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Line drawing of a device with an open lid and a circular inset showing internal components (no text or symbols)

Illustration of a hand pressing down on a circular component with an arrow indicating press direction (no text or symbols)

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Line drawing of a mechanical device with a circular component inserted into a housing (no text or symbols)

Simple line drawing of a device with a screen, door, and starburst symbol (no text or labels)

Line drawing of a hand inserting a plug into a device with a handle (no text or symbols)

Illustration of a hand pressing down on a device with a slide and scroll (no text or symbols)

Line drawing of a mechanical device with a circular component on its base (no text or symbols)

Simple line drawing of a device with a screen and indicator light, no text or symbols present

Diagram illustrating a mechanical device with labeled components A and B, showing flow or operation steps.

Diagram of a device with a screen and indicator lights, no text or symbols present

Line drawing of a mechanical assembly with hands operating a housing (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of a hand operating a tool.

Diagram showing two wire mesh structures transforming into a curved structure with an arrow indicating rotation (no text or symbols)

Diagram showing structural deformation before and after, with no visible text or symbols

Råd och tips

Allmänt

Technical line drawing of a multi-layered cylindrical mechanical assembly (no text or symbols)

Technical line drawing of a mechanical or electrical enclosure with internal components and ventilation grilles (no text or symbols)

5 2 1 3 6 8 -3 -1 -2 -4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Simple line drawing of a mechanical component with a central circular feature and two horizontal bars (no text or symbols)

Line drawing of hands using a tool to clean or spray liquid from a sink (no text or symbols)

Simple line drawing of a kitchen sink with a bowl and tray, no text or symbols present

Technical diagram of a structural framework with an inset showing a circular component (no text or symbols)

Diagram of a mechanical device with a central component and an upward arrow, no text or symbols present

Illustration of a hand using a tool to clean or wash a surface, with no text or symbols present.

Safety warning symbols including warning triangle, lightning bolt, and plug device with corresponding icons

Technical diagram of a refrigerator interior with numbered parts and an inset magnified view of the lid.

3D diagram of a grid-patterned rectangular device with labeled component '9' (no text or symbols beyond label)

10 12

Technical line drawing of a mechanical or structural assembly with no visible text, numbers, or symbols.

Line drawing of a device with a circular inset showing internal components (no text or symbols)

Identifique o recipiente de sal na parte inferior.
Remova a tampa do recipiente de sal.

2

3

SAL

4

Illustration of a hand pouring liquid from a container into a stack of plates (no text or symbols)

Line drawing of a mechanical device with a circular component inserted into a housing (no text or symbols)

Identifique o dispensador de abrilhantador no interior da porta.

2

Simple line drawing of a device with a screen, lamp, and starburst symbol (no text or labels)

Line drawing of a hand inserting a plug into a device with a handle (no text or symbols)

Hand holding a device with a screen and scroll, no visible text or symbols

Line drawing of a refrigerator with an open lid and base (no text or symbols)

Identifique o dispensador de detergente no interior da porta.

2

Lingueta de abertura

Simple line drawing of a device with a screen and indicator light, no text or symbols present

Diagram illustrating a cleaning or dust removal process with labeled components A and B, showing material handling and inspection steps.

Diagram of a device with a screen and directional arrow, no text or symbols present

Line drawing of a mechanical assembly with hands operating a spring-loaded housing (no text or symbols)

Technical diagram showing mechanical assembly with labeled parts and an inset magnified view of a hand operating a component.

Diagram showing two wire mesh structures with an arrow indicating a transformation or change (no text or symbols present)

Diagram showing structural rebar assembly before and after transformation (no text or symbols)

Dicas e sugestões

Informações gerais

Technical line drawing of a multi-layered industrial or mechanical assembly with cylindrical components and a central oval component (no text or symbols)

Technical line drawing of an industrial air duct system with cooling fans and cylindrical components (no text or labels)

5 2 1 3 6 8 -3 -1 -2 -4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

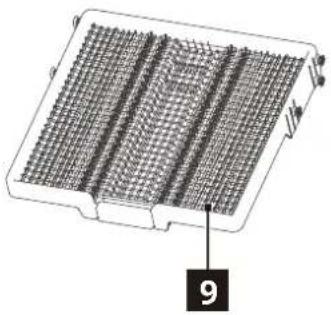

Cuidados e limpeza

Simple line drawing of a mechanical component with a central bowl and a handle, no text or symbols present.

Line drawing of hands using a tool to clean or spray liquid on a kitchen sink (no text or symbols)

Simple line drawing of a mechanical component inside a container (no text or symbols)

Technical diagram of a mechanical assembly with a magnified inset showing a circular component (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion, no text or symbols present

Illustration of a hand using a tool to cut a surface with a ruler and cap (no text or symbols)

Safety warning symbols and component illustrations: triangular warning triangle with exclamation mark, lightning bolt symbol, and two pipe fittings with different installation forms.

Technical diagram of a refrigerator interior with numbered parts and an inset magnified view of the lid.

3D diagram of a grid-patterned rectangular device with labeled component '9' (no text or symbols beyond label)

10 12

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Line drawing of a device with a circular inset showing internal components (no text or symbols)

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Line drawing of a mechanical device with a circular component on its side (no text or symbols)

Simple line drawing of a device with a screen, door, and starburst symbol (no text or labels)

Line drawing of a hand inserting a small component into a device (no text or symbols)

Illustration of a hand pressing down on a device with a slide and scroll (no text or symbols)

Line drawing of a refrigerator with an open lid and base (no text or symbols)

Diagram showing a device with a screen and indicator light, including a dashed circle and star symbol.

Diagram showing a kitchen appliance with a ladle pouring liquid into a tray labeled A, and a close-up of the tray with a lamp and starburst symbol.

Diagram of a mechanical setup with a lever and base component labeled B (no text or symbols present)

4

Diagram of a device with a screen and indicator lights, no text or symbols present

Line drawing of a mechanical device with hands operating it, no text or symbols present

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of a hand operating a tool.

Diagram showing two wire mesh structures transforming into a curved channel, with an arrow indicating direction (no text or symbols)

Diagram showing structural deformation before and after, with arrows indicating direction of movement (no text or symbols present)

Technical line drawing of a multi-layered industrial or mechanical assembly with cylindrical components and a central oval component (no text or symbols)

Technical line drawing of an industrial air duct system with cooling fans and cylindrical components (no text or labels)

5 2 1 3 6 8 -3 -1 -2 -4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Cuidado y limpieza

Simple line drawing of a mechanical component with a central hub and base plate (no text or symbols)

Line drawing of hands using a tool to clean or spray liquid on a kitchen sink (no text or symbols)

Simple line drawing of a mechanical component inside a container (no text or symbols)

Technical diagram of a mechanical assembly with internal components and a magnified inset showing a circular detail (no text or symbols)

Diagram of a mechanical press or stamping device with an upward arrow indicating motion (no text or symbols present)

Illustration of a hand using a tool to clean or wash a surface, with no text or symbols present.

Technical diagram of a refrigerator interior with numbered parts and an inset magnified view of the lid.

3D diagram of a grid-patterned rectangular device with labeled component '9' (no text or symbols beyond label)

10 12

Technical line drawing of a mechanical or structural assembly with no visible text, numbers, or symbols.

Line drawing of a mechanical device with a circular inset showing a component (no text or symbols)

Illustration of a hand pressing down on a circular component with an arrow indicating press direction (no text or symbols)

Illustration of a hand pouring liquid from a container into a pot (no text or symbols)

Line drawing of a box with an open lid and a circular object on the base (no text or symbols)

Simple line drawing of a door with a screen and indicator lights, no text or symbols present

Line drawing of a hand inserting a device into a vertical panel (no text or symbols)

Line drawing of a hand pressing a button on a device with a screen and scroll (no text or symbols)

Line drawing of an open refrigerator with a circular inset showing a small object inside (no text or symbols)

Simple line drawing of a device with a screen and indicator light (no text or symbols)

Diagram of a mechanical setup with a tool and labeled component B, no readable text or symbols present

4

Line drawing of a mechanical assembly with hands operating a component (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of a hand holding a tool.

Diagram showing a wire mesh structure transforming into a curved, layered structure with an arrow indicating rotation (no text or symbols present)

Diagram showing structural deformation before and after, with no visible text or symbols

Technical line drawing of a multi-layered industrial or mechanical assembly with cylindrical components and a central oval component (no text or symbols)

Technical line drawing of an industrial air duct system with cooling fans and cylindrical components (no text or labels)

5 2 1 3 6 8 -3 -1 -2 -4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Simple line drawing of a mechanical component with a central knob and surrounding brackets (no text or symbols)

Line drawing of hands cleaning a kitchen sink with a spray bottle (no text or symbols)

Simple line drawing of a container with a lid and a tray, no text or symbols present

Technical diagram of a mechanical assembly with internal components and a magnified inset showing a circular component (no text or symbols)

Diagram of a mechanical device with a central component and an upward arrow, no text or symbols present

Line drawing of hands using a tool to clean or spray liquid on a kitchen sink (no text or symbols)

Safety warning symbols including warning triangle, lightning bolt, and pipe fitting with corresponding illustrations

⚠ WAARSCHUWING! Risico op letsel of verstikking.

Technical diagram of a refrigerator interior with numbered parts and an inset magnified view of the lid.

3D diagram of a grid-patterned rectangular device with labeled component '9' (no text or symbols beyond label)

10 12

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Line drawing of a device with a magnified inset showing internal components (no text or symbols)

Illustration of a hand pressing down on a circular component with an arrow indicating press or rotation (no text or symbols)

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Line drawing of a mechanical device with a circular component inserted into a housing (no text or symbols)

Simple line drawing of a device with a screen, door, and starburst symbol (no text or labels)

Line drawing of a hand inserting a small component into a device (no text or symbols)

Illustration of a hand pressing down on a device with a screen and scroll (no text or symbols)

Line drawing of a laboratory apparatus with a circular component inserted into a tray (no text or symbols)

Diagram illustrating a mechanical device with labeled components A and B, showing flow and assembly steps.

Diagram of a device with a screen and indicator lights, no text or symbols present

Technical line drawing of a mechanical assembly with hands operating it (no text or symbols present)

Diagram showing a hand operating a mechanical device with two circular insets highlighting the components of the device.

Diagram showing two wire mesh structures transforming into a final structure with an arrow indicating rotation (no text or symbols)

Diagram showing structural rebar assembly before and after transformation (no text or symbols)

Wenken en tips

Algemeen

Technical line drawing of a multi-layered industrial or mechanical assembly with cylindrical components and a central oval component (no text or symbols)

Technical line drawing of an industrial air duct system with cooling fans and cylindrical components (no text or labels)

5 2 1 3 6 8 -3 -1 -2 -4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Simple line drawing of a mechanical component with a central circular feature and horizontal bars (no text or symbols)

Line drawing of hands cleaning a kitchen sink with a tool, no text or symbols present

Simple line drawing of a kitchen sink with a bowl and a tray (no text or symbols)

Technical diagram of a mechanical assembly with a magnified inset showing a circular component (no text or symbols)

Diagram of a mechanical device with a central component and an upward arrow, no text or symbols present

Illustration of hands using a tool to clean or store floor tiles, no text or symbols present

⚠ WAARSCHUWING! Onjuist

Safety warning symbols and corresponding icons: triangular warning triangle with exclamation mark, lightning bolt symbol, funnel device, and spray nozzle.

Technical diagram of a refrigerator interior with numbered parts and an inset magnified view of the lid.

3D diagram of a grid-patterned rectangular device with labeled component '9' (no text or symbols beyond label)

10 12

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Line drawing of a device with a circular inset showing internal components (no text or symbols)

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Line drawing of a mechanical device with a circular component inserted into a housing (no text or symbols)

Simple line drawing of a device with a screen, door, and starburst symbol (no text or labels)

Line drawing of a hand inserting a small component into a device (no text or symbols)

Illustration of a hand pressing down on a device with a slide and scroll (no text or symbols)

Line drawing of a mechanical device with an open lid and base plate (no text or symbols)

Diagram showing a device with a screen and light source, including a dashed circle highlighting the screen area.

Diagram showing a fire extinguisher pouring liquid into a fire pit, with labeled components and warning symbols.

Diagram of a mechanical setup with a lever and labeled component B, no readable text or symbols present

4

Diagram of a device with a lid, screen, and warning symbol (no text or labels)

Line drawing of a mechanical assembly with hands operating a housing (no text or symbols)

Technical illustration of a mechanical assembly with a hand operating a tool, showing internal components and a magnified inset (no text or symbols)

Diagram showing two views of a grid structure before and after transformation, with an arrow indicating the process (no text or symbols present)

Diagram showing structural deformation before and after, with arrows indicating rotational movement (no text or symbols)

Rady a tipy

Obecné

Technical line drawing of a multi-layered industrial or mechanical assembly with cylindrical components and a central oval component (no text or symbols)

Technical line drawing of an industrial air duct system with cooling fans and cylindrical components (no text or labels)

5 2 1 3 6 8 -3 -1 -2 -4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Údržba a čištění

Simple line drawing of a mechanical component with a central circular base and flange (no text or symbols)

Line drawing of hands using a tool to clean or repair a surface, no text or symbols present

Simple line drawing of a person standing in a bowl with a bowl inside, no text or symbols present.

Technical diagram of a mechanical assembly with a magnified inset showing a circular component (no text or symbols)

Diagram of a mechanical device with a lever and base, showing no text or symbols

Illustration of a hand using a tool to clean or wash a surface, with no visible text or symbols

Safety warning symbols including warning triangle, lightning bolt, and pipe fitting with corresponding illustrations

Technical diagram of a refrigerator interior with numbered parts and an inset magnified view of the lid.

3D diagram of a grid-patterned rectangular device with labeled component '9' (no text or symbols beyond label)

10 12

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Line drawing of a device with a magnified inset showing internal components (no text or symbols)

Illustration of a hand pressing down on a circular component with an arrow indicating motion (no text or symbols)

3

10SOL

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Line drawing of a mechanical device with a circular component inserted into a rectangular housing (no text or symbols)

Simple line drawing of a device with a screen, door, and starburst symbol (no text or labels)

Line drawing of a hand inserting a plug into a device with a handle (no text or symbols)

Illustration of a hand pressing down on a device with a slide and scroll (no text or symbols)

Line drawing of a refrigerator with an open lid and base (no text or symbols)

Diagram showing a device with a screen and a light source, labeled with Chinese characters and an arrow pointing to the screen.

Diagram illustrating a mechanical device with labeled components A and B, showing flow and assembly steps.

Diagram of a device with a slide and fan, showing an upward arrow and starburst symbol (no text or labels)

Technical line drawing of a mechanical device with internal components and a handle (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of the component being inserted.

Diagram showing two wire mesh structures transforming into a curved structure with an arrow indicating rotation (no text or symbols)

Diagram showing structural deformation of a reinforced concrete framework, with no text or symbols present

Wskazówki i porady

Informacje ogólne

Technical line drawing of a multi-layered industrial or mechanical assembly with cylindrical components and a central oval component (no text or symbols)

Technical line drawing of a mechanical or electrical enclosure with internal components (no text or symbols)

5 2 1 3 6 8 -3 -1 -2 -4

1 2 3 4 5 6 7 8

Simple line drawing of a mechanical component with a central hub and base plate (no text or symbols)

Line drawing of hands using a tool to clean or spray liquid in a kitchen (no text or symbols)

Simple line drawing of a kitchen sink with a bowl and a tray, no text or symbols present.

Technical diagram of a mechanical assembly with internal components and a magnified inset showing a rotating component (no text or labels)

Diagram of a mechanical assembly with a rotating component and an upward arrow (no text or symbols)

Illustration of hands using a tool to clean or spray liquid on a surface, with no visible text or symbols

Safety warning symbols and three labeled diagrams: triangular warning triangle, lightning bolt, and pipe clamp with valve and plug.

Technical diagram of a refrigerator interior with numbered parts and an inset magnified view of the lid.

3D diagram of a grid-patterned rectangular device with labeled component '9' (no text or symbols beyond label)

10 12

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

8 AUTO ECO 8:88° 88°C * A B C D E F G H I J K L M N O P Q R S T U V W X Y Z A B C D E F G H I J K L M N O P Q R S T U V W X Y Z A B C D E F G H I J K L M N O P Q R S T U V W X

Line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

Illustration of a hand pressing down on a circular object with an arrow indicating press or rotation (no text or symbols)

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Line drawing of a rectangular box with an open lid and a circular object inside (no text or symbols)

Simple line drawing of a door with a lamp and starburst symbol, no text or labels present

Line drawing of a hand inserting a device into a vertical panel (no text or symbols)

Hand pressing a button on a device with a screen and scroll (no text or symbols visible)

Line drawing of a closed refrigerator with an open lid and base (no text or symbols)

Diagram showing a hand pouring liquid into a device with a warning symbol and label 'A'

Diagram of a mechanical setup with a lever and labeled component B, no readable text or symbols present

4

Diagram of a device with a lid, screen, and indicator lights (no text or symbols)

Line drawing of a mechanical assembly with gears and housing (no text or symbols)

Technical diagram showing a hand operating a mechanical component with two circular insets highlighting the components.

Diagram showing two wire mesh structures transforming into a final structure with an arrow indicating rotation (no text or symbols)

Diagram showing structural deformation of a reinforced concrete framework, with no visible text or symbols

Technical line drawing of a multi-layered industrial or mechanical assembly with cylindrical components and a central oval component (no text or symbols)

Technical line drawing of an industrial air duct system with cooling fans and cylindrical components (no text or labels)

5 2 1 3 6 7 8 -3 -1 -2 -4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Simple line drawing of a mechanical component with a central hub and base plate (no text or symbols)

Illustration of hands cleaning a kitchen sink with a spray bottle (no text or symbols)

Simple line drawing of a kitchen sink with a bowl and a lid, no text or symbols present.

Technical diagram of a mechanical assembly with internal components and a magnified inset showing a rotating component (no text or labels)

Diagram of a mechanical assembly with a central component and an upward arrow, no text or symbols present.

Illustration of hands using a tool to clean or spray liquid on a surface, with no visible text or symbols

Safety warning symbols including warning triangle, lightning bolt, and pipe fittings with corresponding illustrations

Technical diagram of a refrigerator interior with numbered parts and an inset magnified view of the lid.

3D diagram of a grid-patterned rectangular device with labeled component '9' (no text or symbols beyond label)

10 12

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

Illustration of a hand pressing down on a circular object with an arrow indicating press or lifting (no text or symbols)

Odstráňte uzáver nádoby na sol.

3

70% SO2

Na hrdlo nádoby na sol' umiestnite lievik (ak je dodaný) a potom nasypte do nádoby 1,5 kg soli do umývačky.

4

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Line drawing of a mechanical device with a circular component inserted into a rectangular housing (no text or symbols)

Simple line drawing of a device with a screen, door, and starburst symbol (no text or labels)

Line drawing of a hand inserting a small component into a device (no text or symbols)

Illustration of a hand pressing down on a device with a slide and scroll (no text or symbols)

Line drawing of a rectangular box with an open lid and a circular button on the base (no text or symbols)

Diagram showing a device with a screen and a light source, including a dashed circle highlighting a component.

Diagram showing a fire extinguisher pouring liquid into a fire pit, with labeled components and warning symbols.

Diagram of a mechanical setup with a lever and labeled component B, no readable text or symbols present

4

Diagram of a device with a screen and directional arrow, no text or symbols present

Line drawing of a mechanical assembly with hands operating a component (no text or symbols)

Technical diagram showing mechanical assembly with labeled parts and an inset magnified view of a hand operating a component.

Diagram showing two views of a grid structure before and after transformation, with an arrow indicating the process (no text or symbols present)

Diagram showing structural deformation before and after, with no visible text or symbols

Rady a tipy

Všeobecné

Technical line drawing of a multi-layered industrial or mechanical assembly with cylindrical components and a central oval component (no text or symbols)

Technical line drawing of a mechanical or electrical enclosure with heat exchangers and circular components (no text or symbols)

5 2 1 3 6 8 -3 -1 -2 -4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Starostlivost' a čistenie

Simple line drawing of a mechanical component with a central rotating element (no text or symbols)

Illustration of hands using a tool to clean or repair a mechanical component (no text or symbols visible)

Simple line drawing of a kitchen sink with a bowl and tray (no text or symbols)

Technical diagram of a mechanical assembly with internal components and a magnified inset showing a circular detail (no text or labels)

1. Ak chcete odpojit dolné ostrekovacie rameno od dolnej časti spotrebiča, jednoducho ho potiahnite nahor.

Diagram of a mechanical device with a central component and an upward arrow, no text or symbols present

Illustration of hands using a tool to cut a surface with a ruler and cap (no text or symbols)

Safety warning symbols including warning triangle, lightning bolt, and plug device with corresponding icons

Technical diagram of a refrigerator interior with numbered parts and an inset magnified view of the lid.

3D diagram of a grid-patterned device with labeled component '9' (no text or symbols beyond label)

10 12

Technical line drawing of a mechanical or structural assembly with no visible text, numbers, or symbols.

(Būtinai pakeiskite gumini dangtelj 2 plastikiniais dangteliais

Line drawing of a device with a circular inset showing internal components (no text or symbols)

2

Illustration of a hand pressing down on a circular component with an arrow indicating press direction (no text or symbols)

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Line drawing of a mechanical device with a circular component inserted into a rectangular housing (no text or symbols)

Simple line drawing of a device with a screen, door, and starburst symbol (no text or labels)

Line drawing of a hand inserting a plug into a device with a handle (no text or symbols)

Illustration of a hand pressing down on a device with a slide and scroll (no text or symbols)

Uždarykite skalavimo skysčio bakelio dangtelj paspausdami žemyn.

Line drawing of a refrigerator with an open lid and base (no text or symbols)

Diagram illustrating a cleaning or dust removal process with labeled components A and B, showing material handling and inspection steps.

Diagram of a device with a screen and indicator lights, no text or symbols present

Diagram showing a device with a light source and a dashed circle indicating direction, possibly illustrating an optical or measurement setup.

Line drawing of a mechanical assembly with hands operating a component (no text or symbols)

Technical diagram showing a hand operating a mechanical device with two circular annotations highlighting specific parts of the component.

Diagram showing a structural transformation from a grid-like structure to an arrow indicating rotation (no text or symbols present)

Diagram showing structural deformation before and after, with arrows indicating direction of movement (no text or symbols)

Technical line drawing of a multi-layered industrial or mechanical assembly with cylindrical components and a central oval component (no text or symbols)

Technical line drawing of an industrial air duct system with cooling fans and cylindrical components (no text or labels)

5 2 1 3 6 8 -3 -1 -2 -4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Simple line drawing of a mechanical component with a central circular feature and horizontal bars (no text or symbols)

Line drawing of hands cleaning a kitchen sink with a faucet and spray (no text or symbols)

Simple line drawing of a mechanical component with a circular base and ring, no text or symbols present.

Technical diagram of a mechanical assembly with a magnified inset showing a circular component (no text or symbols)

Diagram of a mechanical press or stamping device with an upward arrow indicating force or direction (no text or symbols present)

Illustration of a hand using a tool to clean or wash a surface, with no text or symbols present.

Safety warning symbols including warning triangle, lightning bolt, and pipe fitting with corresponding illustrations

⚠ BRĪDINĀJUMS! Bīstams spriegums.

Technical diagram of a refrigerator interior with numbered parts and an inset magnified view of the lid.

3D diagram of a grid-patterned rectangular device with labeled component '9' (no text or symbols beyond label)

10 12

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Line drawing of a device with a circular inset showing internal components (no text or symbols)

2

Illustration of a hand pressing down on a circular object with an arrow indicating rotation (no text or symbols)

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Line drawing of a laboratory apparatus with a circular component inside a rectangular chamber (no text or symbols)

Simple line drawing of a device with a screen, door, and starburst symbol (no text or labels)

Line drawing of a hand inserting a plug into a device with a handle (no text or symbols)

Hand holding a device with a screen and scroll, no visible text or symbols

Line drawing of a mechanical device with a circular component on its base (no text or symbols)

Diagram showing a device with a light source and a screen, labeled with an arrow pointing to the screen.

Diagram showing a cleaning or dust removal device with labeled components and a tool above it.

Technical diagram showing a mechanical assembly with labeled component B and directional arrows

4

Diagram of a door with a window and indicator lights, no text or symbols present

Line drawing of a mechanical assembly with a hand operating a component (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of a hand holding a tool.

Diagram showing a wire mesh structure before and after transformation, with an arrow indicating the process (no text or symbols present)

Diagram showing structural deformation before and after, with arrows indicating direction of movement (no text or symbols)

leteikumi un padomi

Vispārīgi

Technical line drawing of a multi-layered industrial or mechanical assembly with cylindrical components and a central oval component (no text or symbols)

Technical line drawing of a mechanical or electrical enclosure with internal components (no text or symbols)

5 2 1 3 6 8 -3 -1 -2 -4

1 2 3 4 5 6 7 8

Kopšana un tīrīšana

Simple line drawing of a mechanical component with a central circular feature and horizontal bars (no text or symbols)

1. Vispirms izvelciet smalko filtru no filtra komplekta apakšas. Pēc tam atdaliet rupjo filtru no galvenā filtra, viegli saspiežot malas augšpusē un velkot to prom.

Galvenais filtrs Rupjais filtrs Smalkais filtrs

Illustration of hands using a tool to clean or repair a mechanical component on a kitchen sink (no text or symbols)

Simple line drawing of a kitchen sink with a bowl and handle (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a circular component (no text or symbols)

Diagram of a mechanical press or stamping device with an upward arrow indicating motion (no text or symbols present)

Illustration of hands using a tool to cut a surface with a ruler and cap (no text or symbols)

XXXXXX 23328 XXXXXXXXX IKEA Design and Quality KEA of Sweden Serial No.:XXXXXXXXX Sérijas numurs (8 ciparu kods)

Safety warning symbols including warning triangle, lightning bolt, and pipe fittings with corresponding illustrations

Technical diagram of a refrigerator interior with numbered parts and an inset magnified view of the lid.

3D diagram of a grid-patterned rectangular device with labeled component '9' (no text or symbols beyond label)

10 12

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Line drawing of a mechanical device with a circular component inserted into its side (no text or symbols)

Illustration of a hand pressing down on a gear and then pressing into a cup (no text or symbols)

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Line drawing of a box with an open lid and a circular object inside (no text or symbols)

Simple line drawing of a device with a screen, door, and starburst symbol (no text or labels)

Line drawing of a hand inserting a plug into a device with a handle (no text or symbols)

Line drawing of a hand pressing down on a device with a screen and scroll (no text or symbols)

Line drawing of a refrigerator with an open lid and base (no text or symbols)

Simple line drawing of a device with a screen and indicator light, no text or symbols present

Diagram showing a kitchen appliance with a ladle pouring liquid into a container, labeled with 'A' and a starburst symbol.

Pure mechanical diagram showing a lever and base plate without any text, numbers, or symbols

4

Simple line drawing of a door with a window and fan, showing no text or symbols

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

Technical diagram showing a hand operating a mechanical device with labeled parts and an arrow indicating direction

Diagram showing two wire mesh structures transforming into a curved structure with an arrow indicating rotation (no text or symbols)

Diagram showing structural deformation before and after, with arrows indicating direction (no text or symbols)

Підказки та поради

Загальні поради

Technical line drawing of a multi-layered industrial or mechanical assembly with cylindrical components and a central oval component (no text or symbols)

Technical line drawing of a mechanical or electrical enclosure with heat exchangers and circular components (no text or symbols)

5 2 1 3 6 8 -3 -1 -2 -4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Догляд і чищення

Simple line drawing of a mechanical component with a central hub and base plate (no text or symbols)

Line drawing of hands cleaning a kitchen sink with a spray bottle (no text or symbols)

Simple line drawing of a kitchen sink with a bowl and lid (no text or symbols)

Diagram of a 3D structural model with an inset showing a mechanical component (no text or symbols present)

Diagram of a mechanical press or tool pressing a component on a base, with an upward arrow indicating motion (no text or symbols present)

Illustration of a hand using a tool to clean or wash a surface, with no text or symbols present.

Safety warning symbols and diagram showing warning triangle, lightning bolt, and pipe fittings with labels

⚠ HOIATUS! Ohtlik pinge.

Technical diagram of a refrigerator interior with numbered parts and an inset magnified view of the lid.

3D diagram of a grid-patterned rectangular device with labeled component '9' (no text or symbols beyond label)

10 12

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

(Asendage kummikork kindlasti plastkorgiga x2)

Line drawing of a device with a circular inset showing internal components (no text or symbols)

Illustration of a hand pressing down on a circular component with an arrow indicating press direction (no text or symbols)

Eemaldage soolakonteineri kork.

3

SOOL

Simple line drawing of a hand pouring liquid from a container into a bowl (no text or symbols)

Line drawing of a mechanical device with a circular component on its side (no text or symbols)

Simple line drawing of a device with a screen, door, and starburst symbol (no text or labels)

Line drawing of a hand inserting a plug into a device with a handle (no text or symbols)

Illustration of a hand pressing down on a device with a slide and scroll (no text or symbols)

Line drawing of a mechanical device with a circular component on its base (no text or symbols)

Diagram showing a device with a screen and indicator light, labeled with Chinese characters and an arrow pointing to it.

Diagram showing a fire extinguisher with labeled components and warning symbols

Diagram of a mechanical setup with a lever and base component labeled B (no text or symbols present)

4

Diagram of a device with a slide and fan, showing an upward arrow and starburst symbol (no text or labels)

Line drawing of a mechanical assembly with hands operating it (no text or symbols)

Technical diagram showing a hand operating a mechanical device with two circular annotations highlighting specific parts of the component.

Reguleeritav tassiriiul

Diagram showing two wire mesh structures transforming into a curved structure with an arrow indicating rotation (no text or symbols)

Diagram showing structural deformation before and after, with arrows indicating direction (no text or symbols)

Technical line drawing of a multi-layered industrial or mechanical assembly with cylindrical components and a central oval component (no text or symbols)

Technical line drawing of a mechanical or electrical enclosure with heat exchangers and circular components (no text or symbols)

5 2 1 3 6 8 -3 -1 -2 -4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Simple line drawing of a mechanical component with a central circular feature and horizontal bars (no text or symbols)

Line drawing of hands cleaning a kitchen sink with a tool, no text or symbols present

Simple line drawing of a kitchen sink with a bowl and tray (no text or symbols)

Diagram of a 3D structural model with an inset showing a mechanical component (no text or symbols present)

Diagram of a mechanical device with a central component and an upward arrow, no text or symbols present

Illustration of a hand using a tool to clean or wash a surface, with no text or symbols present.

Safety warning symbols and corresponding diagram showing warning, lightning bolt, and pipe fitting

⚠ UPOZORENJE! Opasan napon.

- Ako je oštećeno crijevo za dovod vode, odmah zatvorite slavinu za vodu i odvojite utikač iz utičnice. Za zamjenu crijeva za dovod vode obratite se ovlaštenom servisnom centru.

Uporaba

⚠ UPOZORENJE! Rizik od ozljeda, opeklina, električnog udara ili požara.

Technical diagram of a refrigerator interior with numbered parts and an inset magnified view of the lid.

3D diagram of a grid-patterned rectangular device with labeled component '9' (no text or symbols beyond label)

10 12

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Line drawing of a device with an open lid and a circular inset showing internal components (no text or symbols)

Pronadite spremnik za sol na dnu.

2

Illustration of a hand pressing down on a circular object with an arrow indicating rotation (no text or symbols)

Uklonite poklopac spremnika za sol.

3

10S

4

Illustration of a hand pouring liquid from a container into a stack of layers (no text or symbols)

Postavite lijevak (ako je isporučen) preko otvora spremnika za sol, zatim stavite 1,5 kg soli za perilicu posuđa u spremnik.

Napunite spremnik za sol vodom do maksimalne razine.

5

Čvrsto zatvorite čep spremnika za sol.

Line drawing of a mechanical device with a circular component inserted into a rectangular housing (no text or symbols)

Pronadite dozator sredstva za ispiranje na unutarnjoj strani vrata.

2

Simple line drawing of a device with a screen, door, and starburst symbol (no text or labels)

Uklonite poklopac spremnika sredstva za ispiranje podizanjem ručke.

3

Line drawing of a hand inserting a small component into a device (no text or symbols)

Napunite spremnik za sredstvo za ispiranje sredstvom za ispiranje. Pazite da ne prekoračite maksimalnu razinu.

4

Illustration of a hand pressing down on a device with a slide and scroll (no text or symbols)

Line drawing of a closed refrigerator with an open lid and base (no text or symbols)

Pronadite dozator deterdženta na unutrašnjoj strani vrata.

2

Otpustite zasun

Simple line drawing of a device with a screen and indicator light, no text or symbols present

Otvorite poklopac na jedan od sljedećih načina, ovisno o proizvodu:

A. Otvorite poklopac klizanjem zasuna za otpuštanje udesno. B. Otvorite poklopac pritiskom na zasun za otpuštanje. C. Otvorite poklopac gurajući zasun za otpuštanje prema unutra.

3

Diagram illustrating a cleaning or dust removal process with labeled components A and B, showing material handling and inspection steps.

Simple line drawing of a device with a screen and indicator lights, no text or symbols present.

Line drawing of a mechanical assembly with hands operating a housing (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of a hand operating a tool.

Podesiva polica za šalice

Diagram showing two views of a wire mesh structure before and after transformation, with arrows indicating the process (no text or symbols present)

Napomena: Kada se gornja košara zaključa u gornjem položaju, police za šalice se ne mogu preklopiti.

Podesiva donja košara

Diagram showing structural deformation before and after, with arrows indicating direction of movement (no text or symbols)

Naputci i savjeti

Općenito

Technical line drawing of a multi-layered industrial or mechanical assembly with cylindrical components and a central oval component (no text or symbols)

Technical line drawing of a mechanical or electrical enclosure with heat exchangers and circular components (no text or symbols)

5 2 1 3 6 8 -3 -1 -2 -4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Simple line drawing of a mechanical component with a central circular feature and horizontal bars (no text or symbols)

1. Najprije izvucite fini filtar s dna sklopa filtra. Zatim odvojite grubi filtar od glavnog filtra tako da nježno stisnete jezičke na vrhu i povučete ga.

Glavni filtrar Filtrar za grube čestice Fini filtrar

Line drawing of hands cleaning a kitchen sink with a tool, no text or symbols present

Simple line drawing of a kitchen sink with a bowl and tray, no text or symbols present

Čišćenje ručica za prskanje

Technical diagram of a structural framework with an inset showing a circular component (no text or symbols)

Diagram of a mechanical device with a central component and an upward arrow, no text or symbols present

1. Isperite gornju i donju ručicu za prskanje pod tekućom vodom. Upotrijebite tanki šiljati alat (npr. čačkalicu) za uklanjanje čestica prljavštine iz rupa ručica za prskanje.

Illustration of hands using a tool to clean or store floor tiles, no text or symbols present

Safety warning symbols and three labeled diagrams: triangular warning triangle, falling lightning bolt, and two pipe fittings with different installation forms.

⚠ UPOZORENJE! Opasan napon.

- Ako se crevo za dovod vode ošteti, odmah zavrnite slavinu i odvojte utikač iz napajanja. Obratite se ovlašćenom servisnom centru radi popravke creva za dovod vode.

Upotreba

⚠ UPOZORENJE! Opasnost od povrede, opekotina, strujnog udara ili požara.

⚠ UPOZORENJE! Ne koristite uređaj pre nego što ga ugradite na predviđeno mesto ugradnje. Uređaj se mora isključiti iz napajanja pre bilo kakvog rada na postavljanju jer postoji rizik od strujnog udara.

Technical diagram of a refrigerator interior with numbered parts and an inset magnified view of the top panel.

3D diagram of a grid-patterned rectangular device with labeled component '9' (no text or symbols beyond label)

10 12

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

(Obavezno zamenite gumeni poklopac plastičnim poklopcem x2)

1 Unutrašnja cev Dozator sredstva za ispiranje
2 Gumeni poklopac Polica za pribor
3 Komora za so
4 Dozator deterdženta Gornji krak za raspršivanje
5 Gornji krak za raspršivanje Polica za čaše
6 Donji krak za raspršivanje Donja korpa
7 Sklop filtera

10 Gornja korpa

Komandna tabla

8 AUTO ECO 8:88° 88°C * 5 0 - + - ½ + DII AUTO ECO ½ - + + DII 1 2 3 4 5 6 7

1 Dugme za uključivanje/isključivanje Dugme za odlaganje +/-
2 Dugme za program Dugme za zaštitu za decu
3 Polupuna mašina Dugme Start/Pauza
4 Funkcionalna dugmad (Turbo brzina+ / Dodatno sušenje / Automatsko otvaranje vrata) 8 LED ekran

Line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

Illustration of a hand pressing down on a mechanical component with an arrow indicating motion (no text or symbols)

Skinite poklopac komore za so.

3

Diagram of a mechanical component with a shaft and base, no text or symbols present

Stavite levak (ako je isporučen) na otvor posude za so i u nju uspite 1,5 kg soli za mašinu za pranje sudova.

4

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Napunite komoru za so vodom do maksimalnog nivoa.

5

Dobro pričvrstite poklopac komore za so.

Line drawing of a mechanical device with a circular component inserted into a rectangular housing (no text or symbols)

Pronadite dozator sredstva za ispiranje na unutrašnjoj strani vrata.

2

Simple line drawing of a device with a screen, door, and starburst symbol (no text or labels)

Line drawing of a hand inserting a small component into a device (no text or symbols)

Illustration of a hand pressing down on a device with a screen and scroll (no text or symbols)

Zatvorite poklopac rezervoara sredstva za ispiranje pritiskom nadole.

Svakodnevna upotreba

1. Otvorite slavinu.

2. Pritisnite dugme za uključivanje/isključivanje da biste uključili uređaj.

3. Ako indikator soli svetli, napunite komoru za so.

4. Ako je uključen indikator sredstva za ispiranje, napunite dozator.
5. Okrenite krak za raspršivanje da vidite da li se slobodno okreće.
6. Napunite korpu i dodajte deterdžent.
7. Podesite i pokrenite odgovarajući program za tip napunjenosti i zaprljanost.

Line drawing of a closed refrigerator with an open lid and base (no text or symbols)

Pronadite dozator deterdženta na unutrašnjoj strani vrata.

2

Reza za otpuštanje

Simple line drawing of a device with a screen and indicator light, no text or symbols present

Otvorite poklopac na jedan od sledećih načina, u zavisnosti od proizvoda:

A. Otvorite poklopac pomeranjem reze za otpuštanje udesno.
B. Otvorite poklopac pritiskom na rezu za otpuštanje.
C. Otvorite poklopac guranjem reze za otpuštanje ka unutra.

3

Diagram showing a cleaning or dust removal process with labeled components and directional arrows

Diagram showing a mechanical or electrical component with labeled component B and a small square component on a base plate.

4

Diagram of a device with a screen and indicator lights, no text or symbols present

Zatvorite poklopac tako što ćete ga pomeriti ka napred i pritisnuti.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Da biste spustili podignutu korpu, podignite ručice za podešavanje sa svake strane da biste oslobodili korpu i spustite je u donji položaj.

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of a hand holding a tool.

Diagram showing two views of a wire mesh structure before and after transformation, with an arrow indicating the process (no text or symbols present)

Napomena: Kada se gornja korpa zaključa u gornjem položaju, police za čaše se ne mogu preklopiti.

Podesiva donja korpa

Šiljci u donjoj korpi mogu da se rasklope i sklope, da bi se omogućilo smeštanje velikih sudova.

Gurnite šiljke donje korpe nadole da biste ih sklopili.

Diagram showing structural rebar assembly before and after rotation, with no visible text or symbols

Saveti

Opšte

Technical line drawing of a multi-layered industrial or mechanical assembly with cylindrical components and a central oval component (no text or symbols)

Technical line drawing of an industrial air duct system with cooling fans and cylindrical components (no text or labels)

5 2 1 3 6 8 -3 -1 -2 -4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Simple line drawing of a mechanical component with a central circular feature and horizontal bars (no text or symbols)

1. Prvo izvucite sitniji filter sa dna sklopa filtera. Zatim odvojte krupniji filter od glavnog filtera tako što ćete nežno stisnuti jezičke na vrhu i povući ga.

Glavni filter Krupniji filter Sitniji filter

1. Isperite filter pod tekućom vodom da biste uklonili veće ostatke hrane. Za temeljnije čišćenje koristite meku četku za čišćenje.

Line drawing of hands cleaning a kitchen sink with a tool (no text or symbols)

1. Ponovo sastavite filtere redosledom obrnutim od rastavljanja, vratite umetak filtera i okrenite ga u smeru kazaljke sata do strelice za zatvaranje.

Simple line drawing of a kitchen sink with a bowl and tray (no text or symbols)

Technical diagram of a mechanical assembly with a magnified inset showing a circular component (no text or symbols)

1. Da biste odvojili donji krak za raspršivanje sa uređaja, samo ga povucite nagore.

Diagram of a mechanical assembly with a central component and an upward arrow, no text or symbols present.

Illustration of a hand using a tool to clean or wash a surface, with no text or symbols present.

1. Vratite krakove za raspršivanje na njihovo mesto posle čišćenja.

Da biste pričvrstili gornji krak za raspršivanje za gornju korpu, poravnajte njegov centralni deo sa navrtkom i okrenite ga suprotno od smera kazaljki sata da biste pričvrstili.

Da biste pričvrstili donji krak za raspršivanje za dno uređaja, umetnite ga na njegovo mesto.

Čišćenje spoljašnosti

- Uređaj čistite vlažnom mekom krpom.

- Koristite isključivo neutralni deterdžent.

- Ne koristite abrazivne proizvode, abrazivne jastučiće za čišćenje ili rastvarače.

Čišćenje unutrašnjosti

- Pažljivo očistite uređaj, uključujući gumenu zaptivku na vratima, vlažnom mekom krpom.

• Da bi se radne karakteristike uređaja očuvale, koristite namenski proizvod za čišćenje mašina za sudove barem jednom mesečno. Pažljivo sledite uputstva na pakovanju proizvoda.
• Ne koristite abrazivne proizvode, abrazivne jastučiće za čišćenje, jake hemikalije, sredstva za ribanje ili rastvarače.
• Redovno korišćenje kratkih programa može da dovede do taloženja masti i kamenca u uređaju.
• Da bi se sprečilo stvaranje naslaga, koristite duge programe barem dvaput mesečno.

Mere zaštite od zamrzavanja

Preduzmite mere zaštite od zamrzavanja na mašini za pranje sudova zimi. Nakon svakog ciklusa pranja, uradite sledeće:

1. Isključite električnu energiju mašine za pranje sudova iz izvora napajanja.
2. Isključite dovod vode i odvojte cev za dovod vode od ventila za vodu.
3. Ispustite vodu iz ulazne cevi i ventila za vodu. (Koristite posudu za sakupljanje vode)
4. Ponovo povežite cev za dovod vode sa ventilom za vodu.
5. Uklonite filter na dnu kade i upotrebite sunder da pokupite vodu u jami.

Pomeranje uređaja

Ako uređaj mora da se pomeri, pokušajte da ga držite u vertikalnom položaju. Ako je apsolutno neophodno, može se postaviti na leđa.

Kada se ne koristi duže vreme

XXXXXX 23328 XXXXXXXXX IKEA Design and Quality RTA of Sweden Serial No.:XXXXXXXXX Serijski broj (8-cifreni kôd)

Safety warning symbols and corresponding icons: triangular warning triangle, lightning bolt, and plug device with warning labels.

⚠ OPOZORILO! Nevarna napetost.

Technical diagram of a refrigerator interior with numbered parts and an inset magnified view of the lid.

3D diagram of a grid-patterned rectangular device with labeled component '9' (no text or symbols beyond label)

10 12

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Line drawing of a mechanical device with a circular inset showing a component (no text or symbols)

Illustration of a hand pressing down on a gear and then pressing into a cup (no text or symbols)

Illustration of a hand pouring liquid from a container into a stack of layers (no text or symbols)

Line drawing of a mechanical device with a circular component inserted into a rectangular housing (no text or symbols)

Simple line drawing of a device with a screen, lamp, and starburst symbol (no text or labels)

Line drawing of a hand inserting a plug into a device with a handle (no text or symbols)

Hand holding a device with a screen and scroll, no visible text or symbols

Line drawing of a refrigerator with an open lid and base, no text or symbols present

Diagram showing a device with a screen and a light source, including a dashed circle highlighting a component.

Diagram showing a fire extinguisher pouring liquid into a fire extinguisher with labeled components and warning symbols

Diagram of a mechanical setup with a lever and labeled component B, no readable text or symbols present

4

Diagram of a device with a tray, fan, and warning symbol (no text or labels)

Potisnite pokrov naprej in ga nato pritisnite navzdol, da ga zaprete.

Line drawing of a mechanical assembly with gears and a handle (no text or symbols)

1. Če želite spustiti zgornjo košaro, dvignite nastavitvena ročaja na vsaki strani, da se košara ponovno sprosti in spusti v spodnji položaj.

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of a tool interacting with a component.

Nastavljiva polica za skodelice

Diagram showing a structural transformation from a grid-like structure to an elongated frame with an arrow indicating direction (no text or symbols)

Diagram showing structural rebar assembly before and after rotation, with no visible text or symbols

Napotki in namigi

Splošno

Technical line drawing of a multi-layered industrial or mechanical assembly with cylindrical components and a central oval component (no text or symbols)

Technical line drawing of a mechanical or electrical enclosure with heat exchangers and circular components (no text or symbols)

5 2 1 3 6 8 -3 -1 -2 -4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Nega in čiščenje

Simple line drawing of a mechanical component with a central hub and base plate (no text or symbols)

Glavni filter Grobi filter Fini filter

Line drawing of hands using a tool to clean or wash a surface, no text or symbols present

Simple line drawing of a kitchen sink with a bowl and tray (no text or symbols)

Technical diagram of a mechanical assembly with a magnified inset showing a circular component (no text or symbols)

Diagram of a mechanical device with a lever and base, showing no text or symbols

1. Splaknite zgornjo in spodnjo razpršilno šobo pod tekočo vodo.

Illustration of a hand using a tool to clean or wash a surface, with no text or symbols present.

Safety warning symbols and corresponding diagram showing warning, lightning bolt, and pipe clamp icons

Technical diagram of a refrigerator interior with numbered parts and an inset magnified view of the lid.

3D diagram of a grid-patterned rectangular device with labeled component '9' (no text or symbols beyond label)

10 12

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Line drawing of a refrigerator with an open lid and a circular inset showing a magnified view (no text or symbols)

Illustration of a hand pressing down on a circular component with an arrow indicating press direction (no text or symbols)

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Line drawing of a mechanical device with a circular component inserted into a rectangular housing (no text or symbols)

Simple line drawing of a device with a screen, lamp, and starburst symbol (no text or labels)

Line drawing of a hand inserting a plug into a device with a handle (no text or symbols)

Illustration of a hand pressing down on a device with a slide and scroll (no text or symbols)

Line drawing of a refrigerator with an open lid and base tray (no text or symbols)

Açma mandali

Diagram showing a fire extinguisher pouring liquid into a fire pit, with labeled components and warning symbols.

Diagram showing a mechanical or electrical component with labeled component B, likely for measurement or assembly.

4

Diagram of a device with a fan blade and explosion effect, no text or symbols present

Line drawing of a mechanical assembly with hands operating a component (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of a hand holding a tool.

Diagram showing a structural transformation from a grid-like structure to a curved panel with an arrow indicating rotation (no text or symbols present)

Diagram showing structural rebar assembly before and after rotation, with no visible text or symbols

ipucu ve öneriler

Genel

Technical line drawing of a multi-layered industrial or mechanical assembly with cylindrical components and a central oval component (no text or symbols)

Technical line drawing of an industrial air duct system with cooling fans and cylindrical components (no text or labels)

5 2 1 3 6 7 8 -3 -1 -2 -4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Bakım ve temizlik

Simple line drawing of a mechanical component with a central circular feature and horizontal bars (no text or symbols)

Line drawing of hands cleaning a kitchen sink with a tool, no text or symbols present

Simple line drawing of a kitchen sink with a bowl and tray (no text or symbols)

Technical diagram of a structural framework with an inset showing a circular component (no text or symbols present)

Diagram of a mechanical assembly with a central component and an upward arrow, no text or symbols present.

Illustration of a hand using a tool to clean or wash a surface, with no text or symbols present.

Ürün Numarası XXXXXXXXX (8-haneli kod) XXXXXXXXX 23328 IKEA Design and Quality RTA of Sweden Serial No.:XXXXXXXXX Seri Numarası (8 haneli kod)

Technical diagram of a refrigerator interior with numbered parts and an inset magnified view of the lid.

3D diagram of a grid-patterned rectangular device with labeled component '9' (no text or symbols beyond label)

10 12

Technical line drawing of a mechanical or structural assembly with no visible text, numbers, or symbols.

Line drawing of a refrigerator with an open lid and a circular inset showing a small object (no text or symbols)

Illustration of a hand pressing down on a gear and then pressing into a bowl with an arrow indicating motion (no text or symbols)

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Line drawing of a refrigerator with an open lid and base (no text or symbols)

Simple line drawing of a door with a lamp and starburst symbol, no text or labels present

Line drawing of a door handle opening a mounted device with a small screen and circular components (no text or symbols)

Line drawing of a hand pressing a button on a device with a screen and scroll (no text or symbols)

Line drawing of a refrigerator with an open lid and base tray (no text or symbols)

Simple line drawing of a device with a screen and indicator light, no text or symbols present

Diagram showing a cleaning or dust removal process with labeled components and directional arrows

Diagram of a mechanical setup with a lever and labeled component B, no readable text or symbols present

4

Diagram of a device with a tray, fan, and warning symbol (no text or labels)

Line drawing of a mechanical assembly with hands operating a component (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and an inset magnified view of a hand operating a tool.

Diagram showing two wire mesh structures with an arrow indicating a transformation or change (no text or symbols present)

Diagram showing structural deformation before and after, with arrows indicating direction of movement (no text or symbols)

Препоръки и съвети

Общи съвети

Technical line drawing of a multi-layered industrial or mechanical assembly with cylindrical components and a central oval component (no text or symbols)

Technical line drawing of a mechanical or electrical enclosure with heat exchangers and circular components (no text or symbols)

5 2 1 3 6 7 8 -3 -1 -2 -4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Грижи и почистване

⚠️ ПРЕДУПРЕЖДЕНИЕ! Преди

Simple line drawing of a mechanical component with a central circular feature and flanges (no text or symbols)

Line drawing of hands cleaning a kitchen sink with a spray bottle (no text or symbols)

Simple line drawing of a mechanical component with a circular base and ring, no text or symbols present.

Technical diagram of a mechanical assembly with internal components and a magnified inset showing a circular detail (no text or labels)

Diagram of a mechanical press or stamping device with a central component and an upward arrow, no text or symbols present.

Illustration of hands using a tool to cut a surface with a ruler and magnifying glass (no text or symbols)

Technical diagram of a refrigerator interior with numbered parts and an inset magnified view of the lid.

3D diagram of a grid-patterned rectangular device with labeled component '9' (no text or symbols beyond label)

10 12

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Line drawing of a device with a magnified inset showing internal components (no text or symbols)

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Line drawing of a mechanical device with a circular component inserted into a rectangular housing (no text or symbols)

Simple line drawing of a device with a screen, door, and starburst symbol (no text or labels)

Line drawing of a hand inserting a plug into a device with a handle (no text or symbols)

Illustration of a hand pressing down on a device with a slide and scroll (no text or symbols)

Line drawing of a refrigerator with an open lid and base (no text or symbols)

Diagram of a device with a light source and control panel, no text or symbols present

Technical diagram showing a device with labeled components A and B, including a tool pouring liquid into a chamber.

Diagram of a device with a screen and indicator lights, no text or symbols present

Line drawing of a mechanical assembly with a hand operating a component (no text or symbols)

Technical diagram showing a hand operating a mechanical component with two circular insets highlighting the components and directional arrow.

Diagram showing two views of a wire mesh structure before and after transformation, with arrows indicating the process (no text or symbols present)

Diagram showing structural deformation before and after, with arrows indicating direction of movement (no text or symbols)

Technical line drawing of a multi-layered industrial or mechanical assembly with cylindrical components and a central oval component (no text or symbols)

Technical line drawing of a mechanical or electrical enclosure with internal components (no text or symbols)

5 2 1 3 6 8 -3 -1 -2 -4

1 2 3 4 5 6 7 8

Simple line drawing of a mechanical component with a central hub and base plate (no text or symbols)

Line drawing of hands using a tool to clean or wash a surface, no text or symbols present

Simple line drawing of a mechanical component inside a container, no text or symbols present

Technical diagram of a mechanical assembly with a magnified inset showing a circular component (no text or symbols)

Diagram of a mechanical press or stamping device with a central component and an upward arrow, no text or symbols present.

Illustration of hands using a tool to clean or store floor tiles, no text or symbols present

XXXXXX 23328 XXXXXXXXX IKEA Design and Quality KTA of Sweden Serial No.:XXXXXXXXX Număr de serie (cod de 8 cifre)

Safety warning symbols and corresponding diagram showing warning, lightning bolt, and valve components

Technical diagram of a refrigerator interior with numbered parts and an inset magnified view of the lid.

3D diagram of a grid-patterned rectangular device with labeled component '9' (no text or symbols beyond label)

10 12

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Line drawing of a refrigerator with an open lid and a circular inset showing a tray (no text or symbols)

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Line drawing of a mechanical device with a circular component inserted into a housing (no text or symbols)

Simple line drawing of a device with a screen, door, and starburst symbol (no text or labels)

Line drawing of a hand inserting a plug into a device with a handle (no text or symbols)

Hand holding a device with a screen and scroll, no visible text or symbols

Line drawing of a refrigerator with an open lid and base (no text or symbols)

Diagram of a device with a screen and indicator light, no text or symbols present

Diagram showing a fire extinguisher pouring liquid into a fire extinguisher with labeled components and warning symbols

Diagram of a mechanical setup with a lever and labeled component B, no readable text or symbols present

4

Diagram of a device with a screen and indicator lights, no text or symbols present

Line drawing of a mechanical assembly with hands operating a component (no text or symbols)

Technical diagram showing a hand operating a mechanical component with two circular insets highlighting specific parts of the component.

Állítható pohárpolc

Diagram showing two wire mesh structures transforming into a final structure with an arrow indicating rotation (no text or symbols)

Diagram showing structural rebar assembly before and after transformation (no text or symbols)

Tippek és tanácsok

Általános

Technical line drawing of a multi-layered industrial or mechanical assembly with cylindrical components and a central oval component (no text or symbols)

Technical line drawing of a mechanical or electrical enclosure with heat exchangers and circular components (no text or symbols)

5 2 1 3 6 8 -3 -1 -2 -4

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Ápolás és tisztítás

Simple line drawing of a mechanical component with a central knob and surrounding brackets (no text or symbols)

Line drawing of hands cleaning a kitchen sink with a tool, no text or symbols present

Simple line drawing of a kitchen sink with a bowl and handle (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a circular component (no text or symbols)

Diagram of a mechanical assembly with a central component and an upward arrow, no text or symbols present.

Illustration of a hand using a tool to cut a metal part, with no visible text or symbols
