NT 27/1 Me Adv - Vacuum Cleaner Kärcher - Free user manual and instructions

Product type	Wet and dry vacuum cleaner
Brand	Kärcher
Model	NT 27/1 Me Adv
Use	Industrial (construction sites, workshops, rental agencies)
Dimensions (L x W x H)	420 x 420 x 540 mm
Weight	8.2 kg
Supply voltage	220-240 V / 50-60 Hz
Nominal power	1200 W (max 1380 W)
Tank capacity	27 l (liquid 14 l)
Max airflow	67 l/s
Max vacuum	20.8 kPa (208 mbar)
Protection rating	IPX4
Protection class	II
Power cord length	7.5 m
Suction hose connection	C-DN/C-ID 35 mm
Sound pressure level	77 dB(A)
Filtration system	Filter cartridge, additional filter possible
Wet suction function	Yes (with rubber lips)
Dry suction function	Yes (with optional paper filter bag)
Safety system	Automatic shut-off float at max liquid level
Included accessories	Floor nozzle, suction hose, suction tubes
Maintenance	Regular emptying, filter cleaning, cartridge replacement
Spare parts	Available from Kärcher (accessories and filters)

Frequently Asked Questions - NT 27/1 Me Adv Kärcher

Can I use this vacuum to suck up harmful dust?

No, this appliance is not designed for vacuuming harmful dust. It is intended for dry and wet cleaning of floors and walls in an industrial environment.

How to install the paper filter bag?

Unlock and remove the suction head, then insert the paper filter bag into the container. Replace the suction head and lock it.

How to vacuum liquids with this appliance?

To vacuum liquids, first remove the paper filter bag. Install the rubber lips instead of the brush strips. The float automatically stops suction when the tank is full.

What to do if suction power decreases?

Check if the nozzle, tube, hose or filter cartridge is blocked. Replace the paper filter bag or cartridge if necessary.

How to replace the filter cartridge?

Unplug the appliance, remove the suction head, rotate it 180°, unscrew the fixing nut, remove the old cartridge and install the new one. Retighten the nut and replace the head.

What to do if the motor does not start?

Check the electrical outlet and fuse. Inspect the power cord and plug. Make sure the main switch is on.

What is the tank capacity?

The tank has a capacity of 27 liters for solid waste and 14 liters for liquids.

Is the appliance protected against water splashes?

Yes, the protection rating is IPX4, which means it is protected against water splashes from all directions.

How to store the appliance?

Store the appliance in a dry place indoors. Wind the cable around the hooks, attach the tubes and hose as shown in the manual.

Where to find spare parts?

Use only authorized accessories and spare parts from Kärcher. You will find a selection at the end of the manual and more information at www.kaercher.com.

USER MANUAL NT 27/1 Me Adv Kärcher

Line drawing of a vacuum cleaner with coiled hose and handle (no text or symbols)

Deutsch 6

English 11

Français 16

Italiano 21

Nederlands 26

Español 31

Português 36

Dansk 41

Norsk 46

Svenska 51

Suomi 56

Ελληνικά 61

Türkçe 67

Русский 72

Magyar 78

Čeština 83

Slovenščina 88

Polski 93

Românește 98

Slovenčina 103

Hrvatski 108

Srpski 113

Български 118

Eesti 123

Latviešu 128

Lietuviškai 133

Українська 138

Geometric diagram showing a 3D corner with an extended right triangle (no text or symbols)

Line drawing of a bucket pump with two rods, accompanied by a small 3D cube icon (no text or symbols)

1 2 1 1

Diagram illustrating components of a vacuum cleaner with labeled parts and directional arrows indicating flow or movement.

Diagram of a mechanical component with four circular components and downward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical device with attached cable and clamps, no text or symbols present

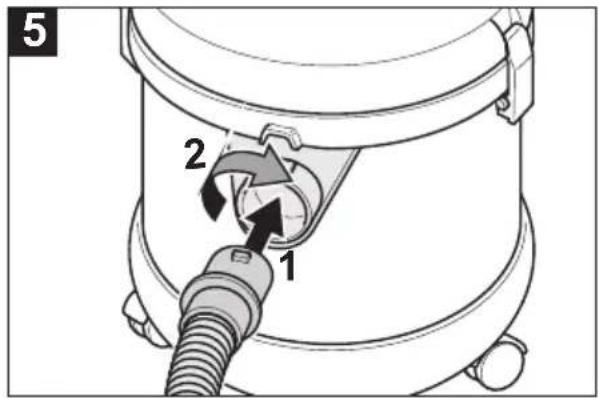

5 1 2

Diagram of a medical or laboratory device with a curved tube and attached rod, showing a directional arrow (no text or symbols)

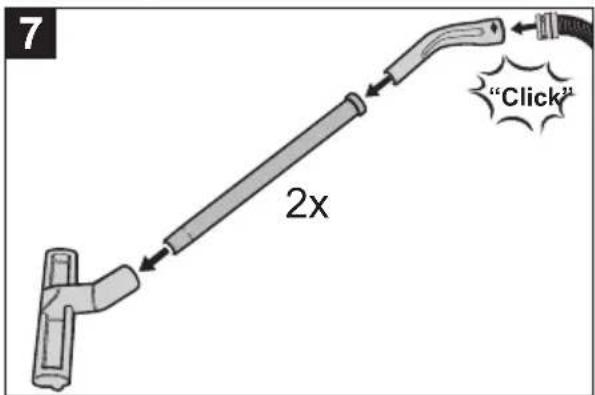

7 2x "Click"

Line drawing of a vacuum cleaner with attached hose and control panel (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, showing internal components and motion arrows (no text or symbols)

Diagram of a magnifying glass inspecting internal tissue, showing mesh and structural details (no text or symbols)

C 1. 2.

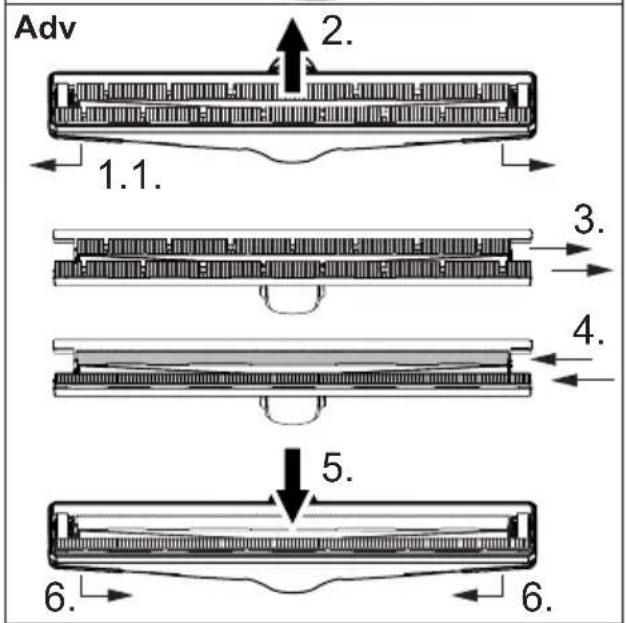

Adv 1.1. 2. 3. 4. 5. 6. 6.

Mechanical assembly diagram showing a lid being inserted into a fan or pump, with no visible text or symbols.

E

Line drawing of a portable vacuum cleaner with coiled hose and lever (no text or symbols)

Line drawing of a hand operating a vacuum cleaner with hoses and tubing (no text or symbols)

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2015/10/01

Technische Daten

Please read and comply with these original instructions prior

to the initial operation of your appliance and store them for later use or subsequent owners.

- Before first start-up it is definitely necessary to read the safety indications Nr. 5.956-249!

- The non-compliance of the operating and safety instructions may lead to damages of the appliance and to dangers for the operator and other persons.

– In case of transport damage inform vendor immediately.

Contents

Environmental protection .... EN 1

Danger or hazard levels ..... EN 1

Proper use ...... EN 1

Device elements ..... EN 2

Start up ...... EN 2

Operation ...... EN 2

Transport..... EN 3

Storage ..... EN 3

Care and maintenance ..... EN 3

Troubleshooting ..... EN 3

Warranty ...... EN 4

Accessories and Spare Parts. EN 4

EC Declaration of Conformity. EN 4

Technical specifications ..... EN 5

Environmental protection

The packaging material can be recycled. Please do not throw the packaging material into household waste; please send it for recycling.

Old appliances contain valuable materials that can be recycled; these should be sent for recycling. Batteries, oil, and similar substances must not enter the environment. Please dispose of your old appliances using appropriate collection systems.

Notes about the ingredients (REACH)

You will find current information about the ingredients at:

www.kaercher.com/REACH

Danger or hazard levels

⚠️DANGER

Pointer to immediate danger, which leads to severe injuries or death.

⚠ WARNING

Pointer to a possibly dangerous situation, which can lead to severe injuries or death.

△CAUTION

Pointer to a possibly dangerous situation, which can lead to minor injuries.

ATTENTION

Pointer to a possibly dangerous situation, which can lead to property damage.

Proper use

⚠ WARNING

The appliance is not suitable for vacuuming dust which endangers health.

- The machine is meant for dry and wet cleaning of floors and walls.

- This appliance is suited for the commercial use, e.g. at construction sites, in industrial systems, in workshops and rental companies.

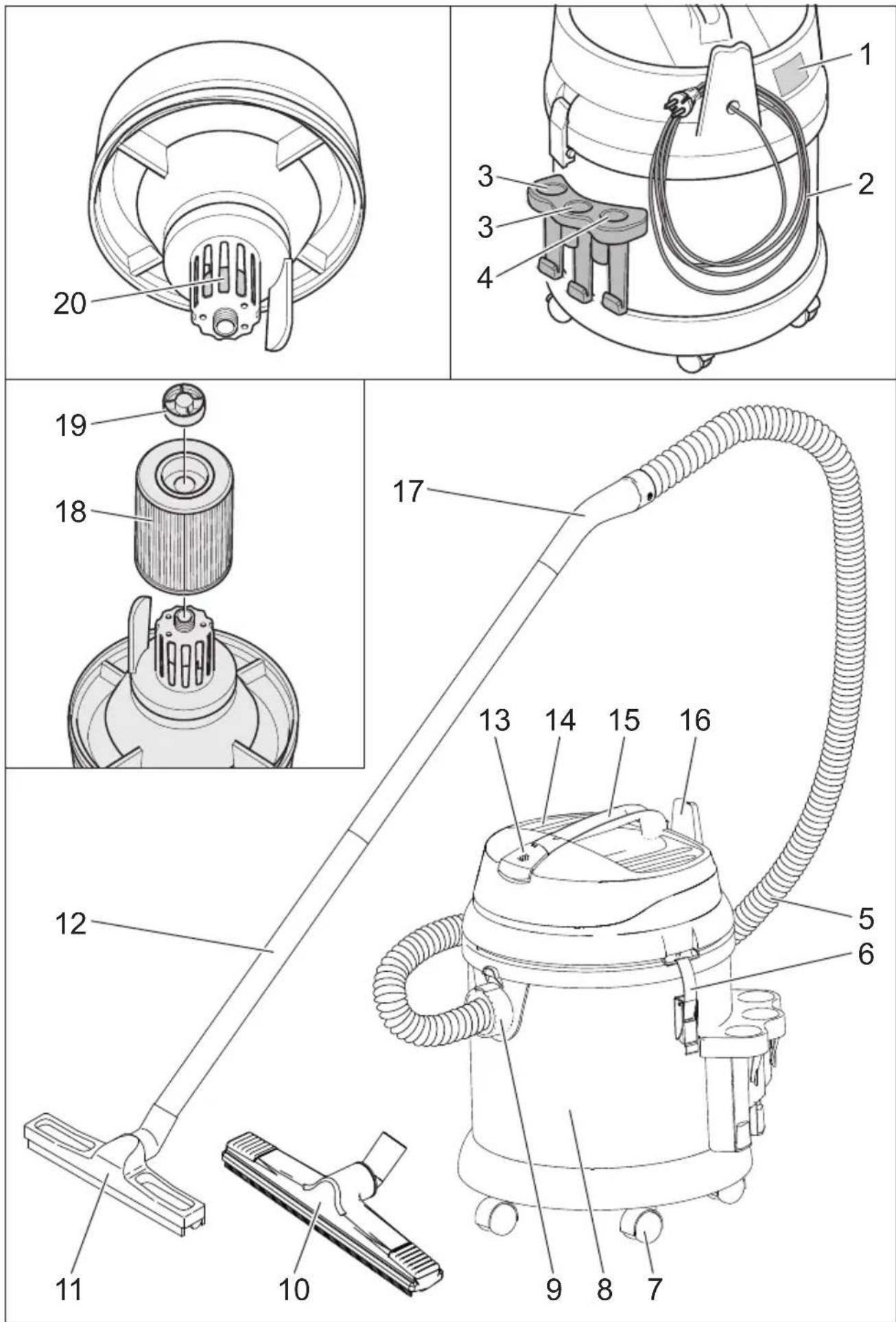

Device elements

1 Nameplate
2 Power cord
3 Holder for suction pipes
4 Holder for crevice nozzle
5 Suction hose
6 Suction head lock
7 Steering roller
8 Dirt receptacle
9 Suction support
10 Floor nozzle (Adv only)
11 Floor nozzle (not Adv)
12 Suction tube
13 Main switch
14 Suction head
15 Carrying handle
16 Cable hook
17 Bender
18 Cartridge filter
19 Fastening nut
20 Float

Start up

Dry vacuum cleaning

ATTENTION

Risk of damage! For dry vacuuming, the cartridge filter must always be installed.

- To vacuum fine dust, you can also use an additional paper filter bag.

Inserting the paper filter bag

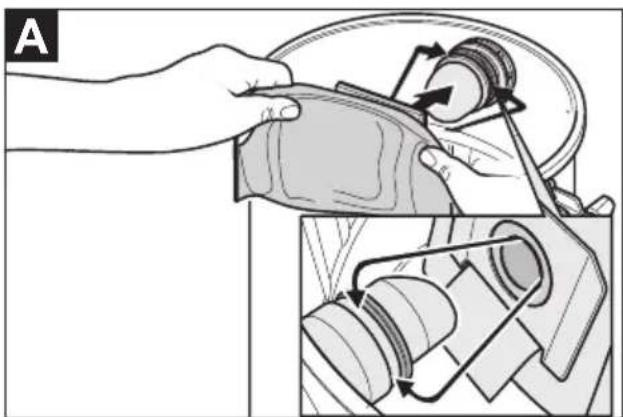

Illustration A

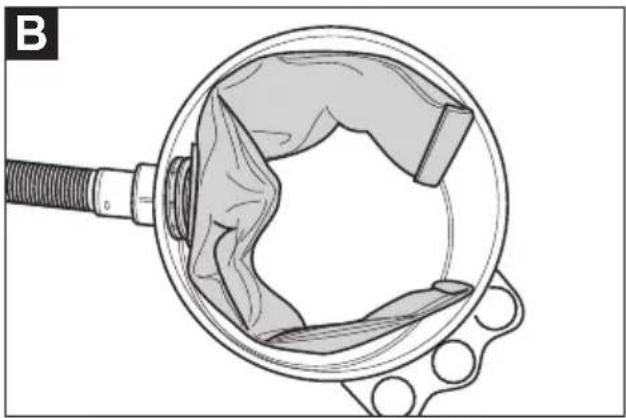

Illustration B

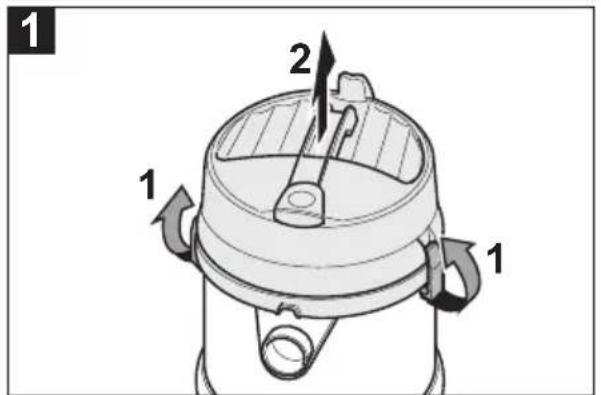

→ Release and remove the suction head.
→ Insert the paper filter bag.
→ Insert and lock the suction head.

Wet vacuum cleaning

Inserting the rubber lips

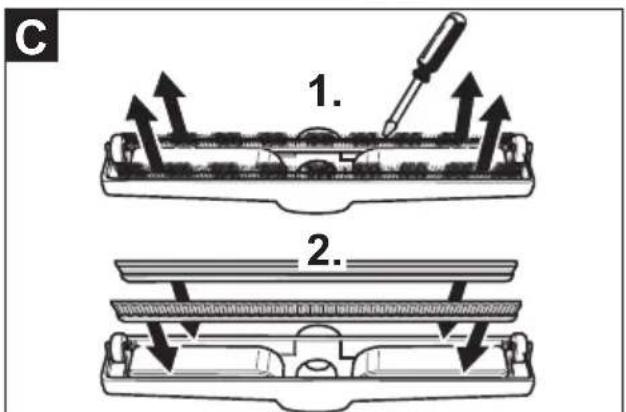

Illustration C

→ Remove the brush strips.
→ Install the rubber lips.

Note: The structured side of the rubber lips must point outwards.

Remove the paper filter bag

- To suck wet dirt, first remove the paper filter bag.

Installing an additional filter

→ Release and remove the suction head.
→ Turn the suction basket by 180^ and keep it aside.
→ Loosen the mounting nuts
→ Remove the cartridge filter.

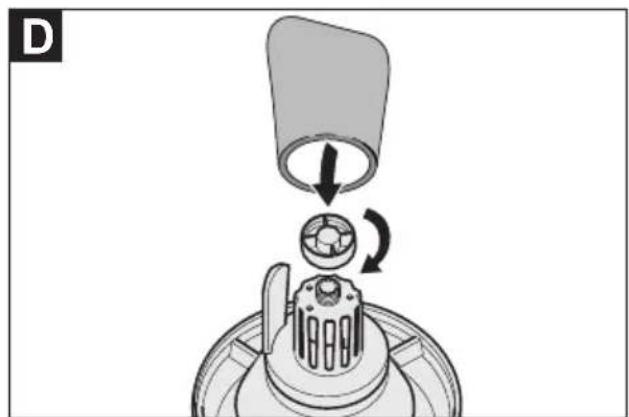

Illustration D

→ Insert the fastening nut and tighten it.
→ Install the additional filter.
→ Insert and lock the suction head.

Clip connection

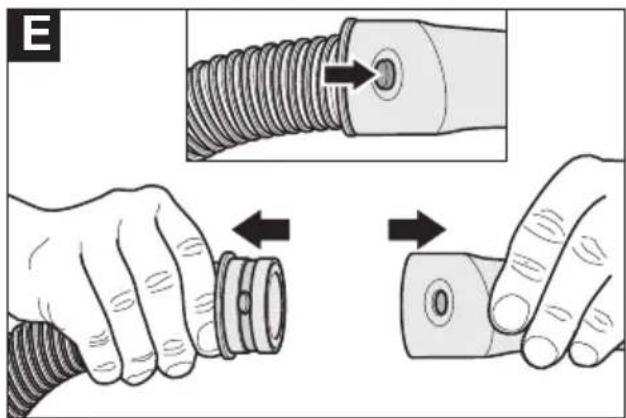

Illustration E

The suction hose is equipped with a clip system. All C-35/C-DN-35 accessories can be connected.

Operation

Turning on the Appliance

→ Plug in the mains plug.
→ Switch on the appliance at the main switch.

Emptying the dirt container

• The vacuum channel is equipped with a float.
• When the dirt water reaches the highest permissible level in the container, the suction power is interrupted.
  → Switch off the appliance at the main switch.
  → Empty the dirt container.

Turn off the appliance

→ Switch off the appliance at the main switch.
→ Pull out the mains plug.

After each operation

→ Empty the dirt container.
→ Vacuum and wipe the appliance inside and outside with a damp cloth.

Storing the Appliance

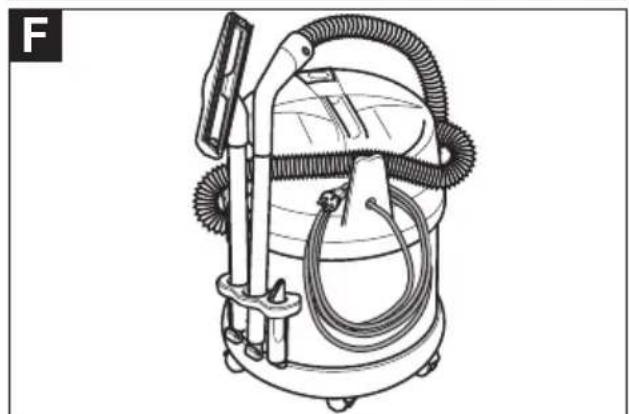

Illustration F

→ Store the suction pipes, the suction hose and the mains cable as shown in the illustration.
→ Place the appliance in a dry room and secure it from unauthorized use.

Transport

△CAUTION

Risk of injury and damage! Observe the weight of the appliance when you transport it.

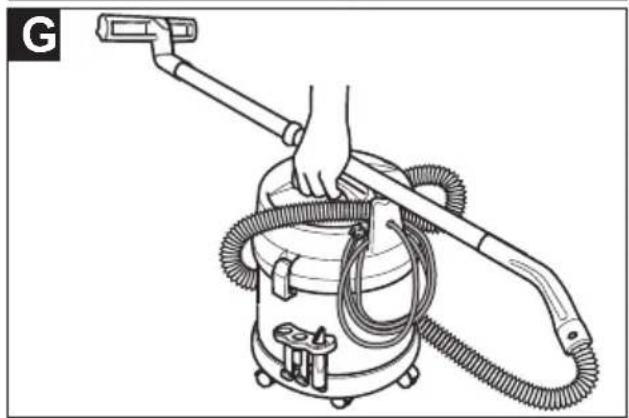

Illustration G

→ Transport the appliance as shown in the illustration.
→ When transporting in vehicles, secure the appliance according to the guidelines from slipping and tipping over.

Storage

△CAUTION

Risk of injury and damage! Note the weight of the appliance in case of storage. This appliance must only be stored in interior rooms.

Care and maintenance

⚠️DANGER

First pull out the plug from the mains before carrying out any tasks on the machine.

Change cartridge filter

→ Release and remove the suction head.
→ Turn the suction basket by 180^ and keep it aside.
→ Loosen the mounting nuts
→ Remove the cartridge filter.
→ Insert the new cartridge filter.
→ Insert the fastening nut and tighten it.
→ Insert and lock the suction head.

Troubleshooting

⚠️DANGER

First pull out the plug from the mains before carrying out any tasks on the machine.

Suction turbine does not run

→ Check the receptacle and the fuse of the power supply.
→ Check the power cable and the power plug of the device.
→ Turn on the appliance.

Vacuum turbine is running but the machine is not sucking in dust/dirt

- Float is blocking the suction canal.

→ Empty the dirt container.

Suction capacity decreases

→ Remove choking of suction nozzle, suction tube, suction hose, or cartridge filter.
→ Exchange the paper filter bag.
→ Change cartridge filter.

Dust comes out while vacuuming

→ Check the proper installation of the cartridge filter.
→ Change cartridge filter.

Customer Service

If malfunction can not be fixed, the device must be checked by customer service.

Warranty

The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre. Please submit the proof of purchase.

Accessories and Spare Parts

• Only use accessories and spare parts which have been approved by the manufacturer. The exclusive use of original accessories and original spare parts ensures that the appliance can be operated safely and trouble free.

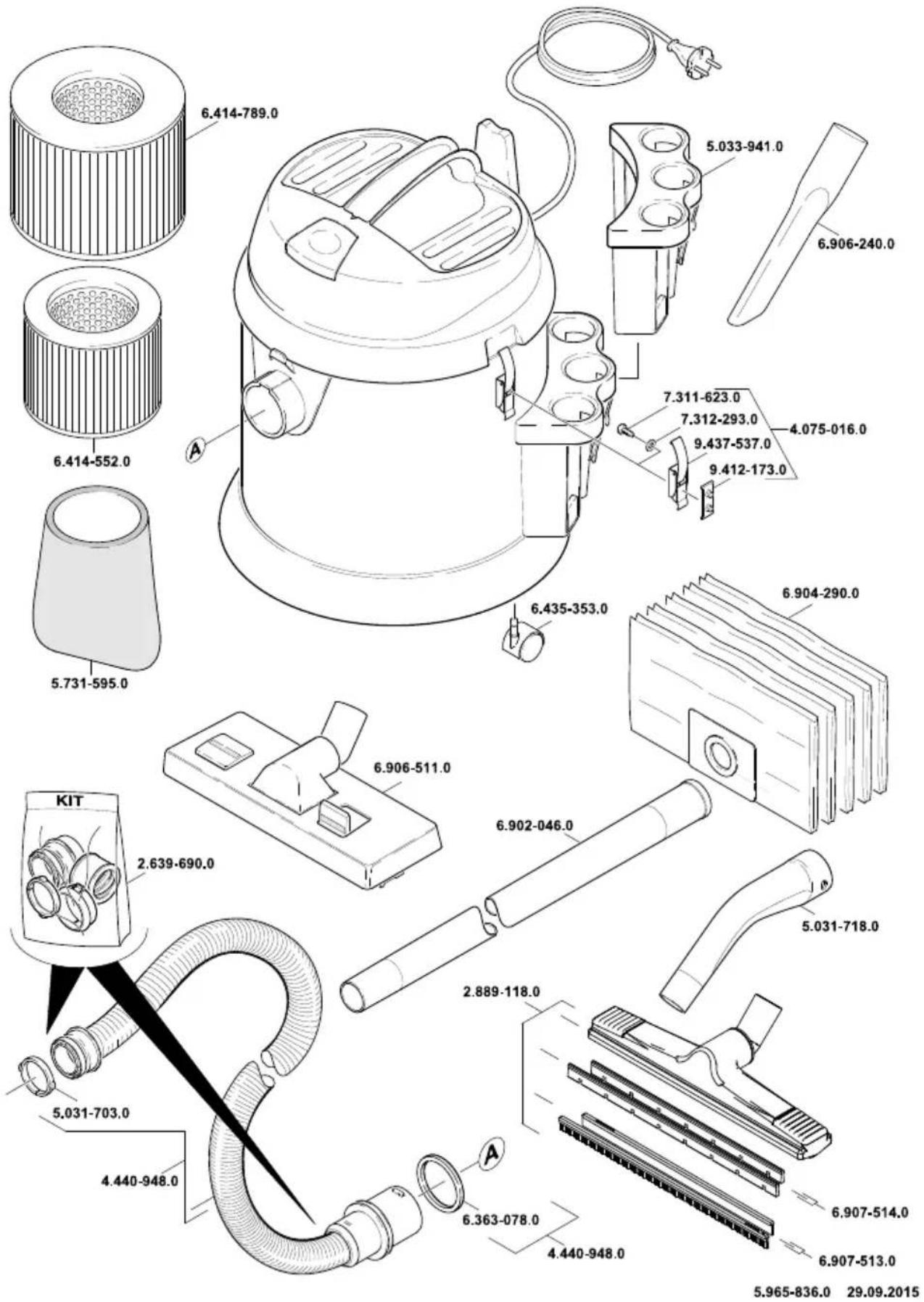

• At the end of the operating instructions you will find a selected list of spare parts that are often required.
• For additional information about spare parts, please go to the Service section at www.kaercher.com.

EC Declaration of Conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval.

Product: Wet and dry vacuum cleaner

Type: 1.428-xxx

Relevant EU Directives

2006/42/EC (+2009/127/EC)

2004/108/EC

2011/65/EU

Applied harmonized standards

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 60335-1

EN 60335-2-69

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN 62233: 2008

EN 50581

Applied national standards

5.957-710

The undersigned act on behalf and under the power of attorney of the company management.

Authorised Documentation Representative S. Reiser

71364 Winnenden (Germany)

Phone: [phone]

Fax: [phone]

Winnenden, 2015/10/01

Technical specifications

		NT 27/1NT 27/1 Adv	NT 27/1 MeNT 27/1 Me Adv
Mains voltage V 220-240 220-240
	V AU: 240 AU: 240
	V AR: 220 AR: 220
Frequency Hz 1~50-60 1~50-60
Max. performance W 1380 1380
Rated power W 1200 1200
Container capacity I 27 27
Filling quantity (liquid) I 14 14
Air volume (max.) I/s 67 67
Negative pressure (max.)	kPa (mbar)	20,8 (208)	20,8 (208)
Type of protection	-- IPX4	IPX4
Protective class		II	II
Suction hose connection (C-DN/C-ID)	mm	35 35
Length x width x height	mm	420 x 420 x 525	420 x 420 x 540
Typical operating weight	kg	7,5	8,2
Max. ambient temperature	°C	+40	+40
Values determined to EN 60335-2-69
Sound pressure level L_pA	dB(A)	77 77
Uncertainty K_pA	dB(A)	1	1
Hand-arm vibration value	m/ s^2	<2,5	<2,5
Uncertainty K	m/ s^2	0,2	0,2

Power cord	H05VV-F 2x1,0 mm ^2
	Part no.:	Cable length
EU	6.647-263.0	7,5 m
GB	6.647-264.0	7,5 m
CH	6.647-265.0	7,5 m
AU	6.647-266.0	7,5 m
AR	6.648-233.0	7,5 m

www.kaercher.com/REACH

Niveaux de danger

⚠️DANGER

2006/42/CE (+2009/127/CE)

2004/108/CE

2011/65/UE

S. Reiser
Head of Approbation

Responsable de la documentation:

S. Reiser

71364 Winnenden (Germany)

Winnenden, 2015/10/01

www.kaercher.com/REACH

Livelli di pericolo

⚠PERICOLO

2006/42/CE (+2009/127/CE)

2004/108/CE

2011/65/UE

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2015/10/01

Dati tecnici

www.kaercher.com/REACH

Gevarenniveaus

⚠ GEVAAR

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2015/10/01

Technische gegevens

www.kaercher.com/REACH

Niveles de peligro

⚠️ PELIGRO

2006/42/CE (+2009/127/CE)

2004/108/CE

2011/65/UE

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tele.: [phone]

Fax: [phone]

Winnenden, 2015/10/01

Datos técnicos

www.kaercher.com/REACH

Níveis de perigo

⚠PERIGO

2006/42/CE (+2009/127/CE)

2004/108/CE

2011/65/UE

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2015/10/01

Dados técnicos

www.kaercher.com/REACH

Faregrader

⚠️FARE

2006/42/EF (+2009/127/EF)

2004/108/EF

2011/65/EU

71364 Winnenden (Germany)

Tlf.: [phone]

Fax: [phone]

Winnenden, 2015/10/01

Tekniske data

www.kaercher.com/REACH

Risikotrinn

⚠️FARE

Anvisning om en umiddelbar truende fare som kan føre til store personskader eller til død.

ADVARSEL

2006/42/EF (+2009/127/EF)

2004/108/EF

2011/65/EU

71364 Winnenden (Germany)

Tlf: [phone]

Winnenden, 2015/10/01

Tekniske data

		NT 27/1NT 27/1 Adv	NT 27/1 MeNT 27/1 Me Adv
Nettspenning V 220-240 220-240
	V AU: 240 AU: 240
	V AR: 220 AR: 220
Frekvens Hz 1~50-60 1~50-60
Maks. effekt W 1380 1380
Nominell effekt W 1200 1200
Beholderinnhold I 27 27
Fyllingsmengde væske I 14 14
Luftmengde (maks.) I/sek. 67 67
Undertrykk (maks.)	kPa (mbar)	20,8 (208)	20,8 (208)
Beskyttelsestype	-- IPX4	IPX4
Beskyttelsesklasse		II	II
Sugeslangekobling (C-DN/C-ID)	mm	35 35
Lengde x bredde x høyde	mm	420 x 420 x 525	420 x 420 x 540
Typisk driftsvekt	kg	7,5	8,2
Omgivelsestemperatur maks.	°C	+40	+40
Registrerte verdier etter EN 60335-2-69
Støytrykksnivå L_pA	dB(A)	77 77
Usikkerhet K_pA	dB(A)	1	1
Hånd-arm vibrasjonsverdi	m/ s^2	<2,5	<2,5
Usikkerhet K	m/ s^2	0,2	0,2

Nettledning	H05VV-F 2x1,0 mm ^2
	Best.nr.	Kabellengde
EU	6.647-263.0	7,5 m
GB	6.647-264.0	7,5 m
CH	6.647-265.0	7,5 m
AU	6.647-266.0	7,5 m
AR	6.648-233.0	7,5 m

www.kaercher.com/REACH

Risknivåer

⚠️FARA

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2015/10/01

Tekniska data

www.kaercher.com/REACH

Vaarallisuusasteet

⚠ VAARA

71364 Winnenden (Germany)

Puh.: [phone]

Winnenden, 2015/10/01

Tekniset tiedot

www.kaercher.com/REACH

Διαβάθμιση κινδύνων

⚠️KINDYNOΣ

71364 Winnenden (Germany)

Tηλ.: [phone]

Φαξ: [phone]

Winnenden, 2015/10/01

www.kaercher.com/REACH

Tehlike kademeleri

TEHLIKE

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2015/10/01

Teknik Bilgiler

www.kaercher.com/REACH

Степень опасности

⚠️ ОПАСНОСТЬ

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Winnenden, 2015/10/01

Технические данные

www.kaercher.com/REACH

Veszély fokozatok

⚠ VESZÉLY

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2015/10/01

Műszaki adatok

www.kaercher.com/REACH

Stupně nebezpečí

⚠NEBEZPEČÍ

2006/42/ES (+2009/127/ES)

2004/108/ES

2011/65/EU

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2015/10/01

Technické údaje

www.kaercher.com/REACH

Stopnje nevarnosti

⚠️NEVARNOST

2006/42/ES (+2009/127/ES)

2004/108/ES

2011/65/EU

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2015/10/01

Tehnični podatki

		NT 27/1NT 27/1 Adv	NT 27/1 MeNT 27/1 Me Adv
Omrežna napetost V 220-240 220-240
	V AU: 240 AU: 240
	V AR: 220 AR: 220
Frekvenca Hz 1~50-60 1~50-60
Max. moč W 1380 1380
Nazivna moč W 1200 1200
Vsebina zbiralnika I 27 27
Količina polnjenja tekočine I 14 14
Količina zraka (max.) I/s 67 67
Podtlak (max.)	kPa (mbar)	20,8 (208)	20,8 (208)
Vrsta zaščite	-- IPX4	IPX4
Razred zaščite		II	II
Priključek gibke sesalne cevi (C-DN/C-ID)	mm	35 35
Dolžina x širina x višina	mm	420 x 420 x 525	420 x 420 x 540
Tipična delovna teža	kg	7,5	8,2
Okoljska temperatura (max.)	°C	+40	+40
Ugotovljene vrednosti v skladu z EN 60335-2-69
Nivo hrupa L_pA	dB(A)	77 77
Negotovost K_pA	dB(A)	1	1
Vrednost vibracij dlan-roka	m/s^2	<2,5	<2,5
Negotovost K	m/s^2	0,2	0,2

Omrežni ka-bel	H05VV-F 2x1,0 mm ^2
	Št. delov	Dolžina kabla
EU	6.647-263.0	7,5 m
GB	6.647-264.0	7,5 m
CH	6.647-265.0	7,5 m
AU	6.647-266.0	7,5 m
AR	6.648-233.0	7,5 m

www.kaercher.com/REACH

Stopnie zagrożenia

⚠ NIEBEZPIECZEŃSTWO

2006/42/WE (+2009/127/WE)

2004/108/WE

2011/65/UE

71364 Winnenden (Germany)

tel.: [phone]

faks: [phone]

Winnenden, 2015/10/01

Dane techniczne

www.kaercher.com/REACH

Trepte de pericol

⚠PERICOL

Directive EG respectate:

2006/42/CE (+2009/127/CE)

2004/108/CE

2011/65/UE

Norme armonizate utilize:

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 60335-1

EN 60335-2-69

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN 62233: 2008

EN 50581

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2015/10/01

Date tehnice

www.kaercher.com/REACH

Stupne nebezpečenstva

⚠ NEBEZPEČENSTVO

2006/42/ES (+2009/127/ES)

2004/108/ES

2011/65/EÚ

Uplatňované harmonizované normy:

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 60335-1

EN 60335-2-69

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN 62233: 2008

EN 50581

71364 Winnenden (Germany)

Tel: [phone]

Fax: [phone]

Winnenden, 2015/10/01

Technické údaje

www.kaercher.com/REACH

Stupnjevi opasnosti

⚠ OPASNOST

2006/42/EZ (+2009/127/EZ)

2004/108/EZ

2011/65/EU

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2015/10/01

Tehnički podaci

		NT 27/1NT 27/1 Adv	NT 27/1 MeNT 27/1 Me Adv
Napon el. mreže V 220-240 220-240
	V AU: 240 AU: 240
	V AR: 220 AR: 220
Frekvencija Hz 1~50-60 1~50-60
Maks. snaga W 1380 1380
Nazivna snaga W 1200 1200
Zapremnina spremnika I 27 27
Količina punjenja tekućine I 14 14
Maks. protok zraka l/s 67 67
Maks. podtlak kPa (mbar) 20,8 (208)	20,8 (208)
Zaštita	-- IPX4	IPX4
Klasa zaštite		II	II
Priključak usisnog crijeva (C-DN/C-ID)	mm	35	35
Duljina x širina x visina	mm	420 x 420 x 525	420 x 420 x 540
Tipična radna težina	kg	7,5	8,2
Maks. okolna temperatura °C	+40	+40
Utvrdene vrijednosti prema EN 60335-2-69
Razina zvučnog tlaka L_pA	dB(A)	77 77
Nepouzdanost K_pA	dB(A)	1	1
Vrijednost vibracije na ruci	m/s^2	<2,5	<2,5
Nepouzdanost K	m/s^2	0,2	0,2

Strujni kabel	H05VV-F 2x1,0 mm ^2
	Br. dijela	Duljina kabe-la
EU	6.647-263.0	7,5 m
GB	6.647-264.0	7,5 m
CH	6.647-265.0	7,5 m
AU	6.647-266.0	7,5 m
AR	6.648-233.0	7,5 m

Pre prve upotrebe Vašeg uređaja pročitajte ove originalno

www.kaercher.com/REACH

Stepeni opasnosti

⚠ OPASNOST

Napomena koja ukazuje na neposredno preteću opasnost koja dovodi do teških telesnih povreda ili smrti.

⚠UPOZORENJE

Napomena koja ukazuje na eventualno opasnu situaciju koja može dovesti do teških telesnih povreda ili smrti.

△OPREZ

Napomena koja ukazuje na eventualno opasnu situaciju, koja može izazvati lakše telesne povrede.

PAŽNJA

Napomena koja ukazuje na eventualno opasnu situaciju koja može izazvati materijalne štete.

Namensko korišćenje

⚠UPOZORENJE

2006/42/EZ (+2009/127/EZ)

2004/108/EZ

2011/65/EU

Primenjene uskladene norme:

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 60335-1

EN 60335-2-69

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN 62233: 2008

EN 50581

S. Reiser
Head of Approbation

Opunomoćeni za izradu dokumentacije: S. Reiser

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2015/10/01

Tehnički podaci

		NT 27/1NT 27/1 Adv	NT 27/1 MeNT 27/1 Me Adv
Napon el. mreže V 220-240 220-240
	V AU: 240 AU: 240
	V AR: 220 AR: 220
Frekvencija Hz 1~50-60 1~50-60
Maks. snaga W 1380 1380
Nominalna snaga W 1200 1200
Zapremina posude I 27 27
Količina punjenja tečnosti I 14 14
Maks. protok vazduha I/s 67 67
Maks. podpritisak kPa (mbar) 20,8 (208) 20,8 (208)
Stepen zaštite	-- IPX4	IPX4
Klasa zaštite		II	II
Priključak usisnog creva (C-DN/C-ID)	mm	35	35
Dužina x širina x visina	mm	420 x 420 x 525	420 x 420 x 540
Tipična radna težina	kg	7,5	8,2
Maks. temperatura okoline	°C	+40	+40
Izračunate vrednosti prema EN 60335-2-69
Nivo zvučnog pritiska L_pA	dB(A)	77 77
Nepouzdanost K_pA	dB(A)	1	1
Vrednost vibracije na ruci	m/s^2	<2,5	<2,5
Nepouzdanost K	m/s^2	0,2	0,2

Strujni kabl	H05VV-F 2x1,0 mm ^2
	Br. dela	Dužina kabla
EU	6.647-263.0	7,5 m
GB	6.647-264.0	7,5 m
CH	6.647-265.0	7,5 m
AU	6.647-266.0	7,5 m
AR	6.648-233.0	7,5 m

www.kaercher.com/REACH

Степени на опасност

⚠️ ОПАСНОСТ

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Winnenden, 2015/10/01

Технически данни

www.kaercher.com/REACH

Ohuastmed

⚠️OHT

71364 Winnenden (Germany)

Tel: [phone]

Winnenden, 2015/10/01

Tehnilised andmed

www.kaercher.com/REACH

Riska pakāpes

⚠️BĪSTAMI

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tālr.: [phone]

Fakss: [phone]

Winnenden, 2015/10/01

Tehniskie dati

www.kaercher.com/REACH

Rizikos lygiai

⚠PAVOJUS

71364 Winnenden (Germany)

Tel.: [phone]

Faksas: [phone]

Winnenden, 2015/10/01

Techniniai duomenys

www.kaercher.com/REACH

Ступінь небезпеки

⚠️НЕБЕЗПЕКА

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Winnenden, 2015/10/01

Technical diagram of a vacuum cleaner with detailed parts and specifications, including labeled parts and numerical codes.

NT 27/1 Me Adv

Technical diagram of a vacuum cleaner with detailed parts and specifications labeled in millimeters

Icon showing a gear and wrench inside a square frame (no text or symbols)

http://www.kaercher.com/dealersearch

QR code image with a central logo, likely linking to a digital resource or website.
