USER MANUAL RCBM-6W-2000 Royal Catering

Abstract line drawing of stylized mythical creatures or mythical creatures (no text or symbols)

Deutsch 3

English 7

Polski 11

Italiano 15

Español 19

Français 23

Česky 27

PRODUKTNAME BAIN MARIEPRODUCT NAME BAIN MARIENAZWA PRODUKTU BAIN MARIENÁZEV VÝROBKU BAIN MARIENOM DU PRODUIT BAIN MARIENOME DEL PRODOTTO BAGNOMARIANOMBRE DEL PRODUCTO BAÑO MARÍA
MODELLPRODUCT MODELMODEL PRODUKTUMODEL VÝROBKUMODÈLEMODELLOMODELO	RCBM-6WS-2000RCBM-6W-2000RCBM-6D-2000
HERSTELLERMANUFACTURERPRODUCENTVÝROBCEFABRICANTPRODUTTOREFABRICANTE	EXPONDO POLSKA SP. Z O.O. SP. K.
ANSCHRIFT DES HERSTELLERSMANUFACTURER ADDRESSADRES PRODUCENTAADRESA VÝROBCEADRESSE DU FABRICANTINDIRIZZO DEL PRODUTTOREDIRECCIÓN DEL FABRICANTE	UL. NOWY KISIELIN-INNOWACYJNA 7, 66-002 ZIELONA GÓRA | POLAND, EU

SYMBOLE

Front view of a stainless steel kitchen appliance with four labeled parts (1-4), no visible text or symbols on the body.

Operation manual must be reviewed.

Never dispose of electrical equipment together with household waste.

This machine conforms to the CE declarations.

Attention! Hot surface may cause burns.

PLEASE NOTE!

Drawings in this manual are for illustration purposes only and in some details it may differ from the actual machine.

The original operation manual is in German. Other language versions are translations from German.

USER MANUAL

SAFETY INSTRUCTIONS

General safety information for the use of electrical devices:

To avoid injury from fire or electric shock, please ensure the compliance with the safety instructions when using this device. Please read the instructions carefully and make sure that you have understood them well. Keep the manual near the equipment in order to be able to read it at any time. Always use current sources connected to the ground which also provide the necessary voltage (indicated on the label on the device). If you have any doubt, let an electrician check that your outlet is properly grounded. Never use a damaged power cable. Do not open the unit in damp or wet environment, or if your hands or body are damp or wet. Protect the unit from solar radiation. Use the device in a protected place to avoid damaging the equipment or endangering others. Make sure the device is able to cool and avoid placing it too close to other devices that produce heat. Before cleaning the device, disconnect it from the power source. Use a soft damp cloth for cleaning. Avoid using detergents and make sure that no liquid enters the unit. No internal element of this device needs to be maintained by the user. Opening the device without our approval leads to a loss of warranty.

SAFETY GUIDELINES

I. Please read and understand these instructions carefully before operating the device! Please observe the safety guidelines carefully in order to prevent damages through improper use!
2. Please keep this manual available for future reference. If this device is passed on to third parties, the manual must be passed on with it.
3. Only use this device indoors and for its intended use.
4. We do not offer any warranty for damages resulting from improper use or incorrect operation.
5. Before the first use, please check whether main voltage type and current comply with the indicated data on the type plate.
6. This device is not intended to be used by persons (including children) with limited physical, sensory or mental aptitude or lack of experience and/or knowledge, unless they are supervised by a person responsible for their safety or have received instruction from this person as to how the device is used.
7. ELECTRIC SHOCK HAZARD! Do not attempt to repair the unit yourself. In case of device failures, repairs must be done by qualified experts.
8. Please check the main plug and power cable regularly. If the power cable for this device is damaged, it has to be replaced by the manufacturer or its customer service or another qualified person in order to prevent hazards.
9. Prevent damages to the power cable by avoiding squeezing or bending it or rubbing it on sharp edges. Also keep the power cable away from hot surfaces and open flames.
9. ATTENTION! DANGER TO LIFE! Never immerse the device in water or other liquids while cleaning it.
10. Under no circumstances should the housing be opened.

TECHNICAL DATA

Product name Bain Marie Bain Marie	Bain Marie
Model RCBM-6WS-2000 RCBM-6W-2000 RCBM-6D-2000
Rated voltage [V] / Frequency [Hz]	230~V±10% / 50Hz
Rated power [W] 2000 2000 2000
Temperature range 30°C – 85°C 30°C – 110°C
Containers 6 x 1/3GN x 150mm
Dimensions(L x W x H) [mm]	690*650*890 690*650*230 690*650*230

SCOPE OF APPLICATION

Bain Marie is designed to keep ready meals warm.

The Bain Marie must not be used for preparing meals from scratch, for heating other food products; heating or boiling water; soups, sauces or defrosting deep frozen products, heating liquids that contain sugar: sweetener, acids, alkali or alcohol; heating or warming flammable substances, harmful to health, oxidising substances or similar liquids/materials.

The user is liable for any damage resulting from non-intended use of the device!

BEFORE THE FIRST USE

Upon receipt of the goods, check the packaging for integrity and open it. If the packaging is damaged, please contact your transport company and distributor within 3 days, and document the damages as detailed as possible. Do not turn the package upside down! When transporting the package, please ensure that it is kept horizontal and stable.

DISPOSAL OF THE PACKAGING

Please keep all packaging materials (cardboard, plastic tapes and Styrofoam), so that in case of a problem, the device can be sent back to the service centre in accurate condition.

INSTALLING THE APPLIANCE

Appliance location

The temperature of the environment must not be higher than 45 °C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is to be used. The distance from any wall of the device should be not less than 10 cm. Operate the device on flat, stable, clean, refractory and dry surfaces out of the reach of children and people with mental disabilities. Install the device in such a way that the main plug is always accessible. The power cord connected to the appliance must be properly grounded and correspond to the technical details. Before first use, remove all elements and clean them along with the entire device.

DEVICE OPERATION – BASIC PRINCIPLES

Exterior view of a stainless steel kitchen appliance with four labeled parts (1-4), no visible text or symbols on the body.

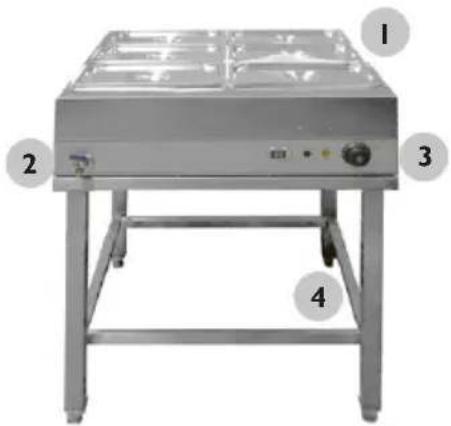

Machine description:

I. Wells with covers
2 Water discharge tap (applies to RCBM-6WS-2000 and RCBM-6W-2000)
3. Control panel
4. Metal frame (applies only to RCBM-6WS-2000)

ROYAL catering 1 POWER HEAT 2 3 4

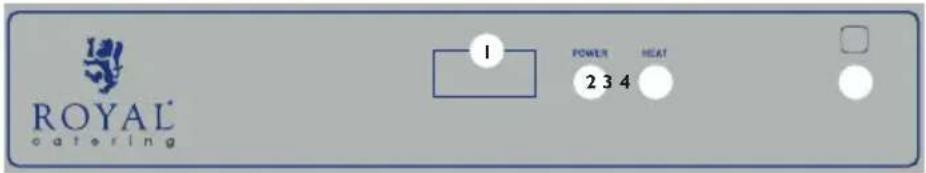

Control panel description

I. Current temperature display
2. Power on indicator light
3. Heating indicator light
4. Temperature adjustment knob

Before first use:

Assemble the device in accordance with the illustration in the instructions.

Usage:

WARNING! This manual includes instructions for two different bain-maries. RCBM-6D-2000 is not suitable for filling with water. RCBM-6WS-2000 and RCBM-6W-2000 models should be filled with water. Before using the device, make sure you know which device you have.

Before you switch the device on, make sure the thermostat is set to “0”. Before using the device, fill the food container wells with water. Remember not to exceed the maximum level, marked inside the wells (applicable to the RCBM-6WS-2000 and RCBM-6W-2000 models). Then insert the containers into the wells. The containers may be filled with warm food or not. In the latter case the food will be added to the containers which are already in wells. Use the thermostat to select the desired temperature. Once the required temperature is set the device will switch on automatically. The current temperature will be shown on the display of the housing. The orange heating on indicator light will come on and once the pre-set temperature has been reached the indicator light switches off. When the temperature drops, the device will automatically activate the heating process until the pre-set temperature is reached once again. When not in use set the thermostat to „0“ and remove the power cable from the socket. Wait until the device cools down, remove, wash and dry the containers, empty and dry the wells (this applies to RCBM-6WS-2000 and RCBM-6W-2000).

TRANSPORTATION AND STORAGE

Shaking, crashing and turning upside down of the device should be prevented when transporting it. Store it in a properly ventilated location with dry air and without any corrosive gas.

CLEANING AND MAINTENANCE

• Always unplug the device before cleaning it.
- Use cleaner without corrosive substances to clean surface.
- Dry all parts well after cleaning before the device is used again.
- Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.

CHECK REGULARLY THE DEVICE

Check regularly whether the device is damaged. If it should be damaged, please stop using it immediately and contact your customer service to solve the problem.

What to do in case of a problem?

Please contact your customer service and prepare the following information:

• Invoice number and serial number (the latter is to be found on the technical plate on the device).
• If relevant, take a picture of the damaged, broken or defective part.
• It will be easier for your customer service clerk to determine the source of the problem if you give a detailed and precise description of the matter. Avoid ambiguous formulations like “the device does not heat”, which may mean either that it does not heat enough or that it does not heat at all. The more detailed your information, the better the customer service will be able to solve your problem rapidly and efficiently!

CAUTION: Never open the device without the authorization of your customer service. This can lead to a loss of warranty!

SYMBOLE

Exterior view of a stainless steel kitchen appliance with four labeled parts (1-4), no visible text or symbols on the body.

Opis urządzenia:

Exterior view of a stainless steel kitchen appliance with four labeled parts (1-4), no visible text or symbols on the body.

Popis zařízení:

Front view of a stainless steel laboratory heating station with labeled components (no text or symbols on the equipment body)

Front view of a stainless steel kitchen appliance with four labeled parts (1-4), no visible text or symbols on the body.

Exterior view of a stainless steel kitchen appliance with four labeled parts (1-4), no visible text or symbols on the body.

NAMEPLATE TRANSLATIONS

Manufacturer:expondo Polska sp. z o.o. sp. k.ul. Nowy Kisielin-Innowacyjna 7, 66-002 Zielona Góra | Poland, EU		expondo.com
Product name: Bain Marie
Model:		catering
Power (W):
Voltage (V): ~230		[TDBY]
Frequency (Hz): 50
Weight (kg):		[BY2K]
Production year:
Serial No.:
Producent:expondo Polska sp. z o.o. sp. k.ul. Nowy Kisielin-Innowacyjna 7, 66-002 Zielona Góra | Poland, EU		expondo.com
Nazwa produktu: Bain Marie
Model produktu:		catering
Moc: (W):
Napięcie (V): ~230
Częstotliwość (Hz): 50		[7HQ4]
Waga (kg):
Numer serii:
Rok produkcji:
Produttore:expondo Polska sp. z o.o. sp. k.ul. Nowy Kisielin-Innowacyjna 7, 66-002 Zielona Góra | Poland, EU		expondo.com
Nome del prodotto: Bagnomaria
Modello:		catering
Potenza (W):
Tensione (V): ~230
Frequenza (Hz): 50
Peso (kg):
Numero di serie:		[40DX]
Anno di produzione:
Fabricante:expondo Polska sp. z o.o. sp. k.ul. Nowy Kisielin-Innowacyjna 7, 66-002 Zielona Góra | Poland, EU		expondo.com
Nombre del producto: Banco Maria
Modelo:		catering
Potencia (W):		[60KZ]
Voltaje (V): ~230
Frecuencia (Hz): 50
Peso (kg):
Número de serie:
Año de producción:

NAMEPLATE TRANSLATIONS

Hersteller:expondo Polska sp. z o.o. sp. k.ul. Nowy Kisielin-Innowacyjna 7, 66-002 Zielona Góra | Poland, EU		expondo.com
Produktname Bain Marie
Modell
Nennleistung
Nennspannung ~230
Frequenz 50
Gewicht
Ordnungsnummer
Produktionsjahr
Fabricant:expondo Polska sp. z o.o. sp. k.ul. Nowy Kisielin-Innowacyjna 7, 66-002 Zielona Góra | Poland, EU		expondo.com
Nom du produit Bain Marie
Modèle
Power
Voltage ~230
Fréquence 50
Poids
Numéro de série
Année de production
Výrobce:expondo Polska sp. z o.o. sp. k.ul. Nowy Kisielin-Innowacyjna 7, 66-002 Zielona Góra | Poland, EU		expondo.com
Název výrobku Bain Marie
Model
Jmenovitý výkon
Jmenovité napětí napájení ~230
Frekvence 50
Hmotnost
Sériové číslo
Rok výroby

NOTES/NOTIZEN

NOTES/NOTIZEN

NOTES/NOTIZEN

For the disposal of the device please consider and act according to the national and local rules and regulations.
