AquaWash ^® Slim Bidet Seat

Installation and User Manual

Thank you for purchasing the BIDET. Please read through the manual carefully for appropriate use of the product.

After you read through the manual, keep it at a proper place for further reference.

Line drawing of a standard toilet seat with open lid and base (no text or symbols)

8033A65G.020

① Names of Parts 1-2

② Installation 3-5

Pre-installation

Installation Procedures

Connecting water hose

③ Operation 6

④ Care and Cleaning 7

⑤ Product maintenance 8
⑥ Self Diagnosis and Specifications ---- 9

Self Diagnosis and Trouble Shooting Specifications

Warranty

Black and white barcode image with vertical lines and a small number 'n' in the bottom right corner.

760416-100R1

① Names of parts

Product

Technical diagram showing two circular views of a mechanical component with connectors and shafts, connected by a horizontal line (no text or symbols)

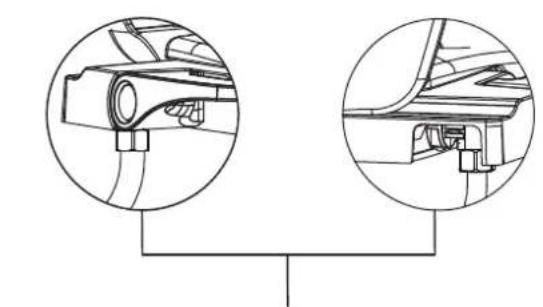

Bidet Water Supply Connection

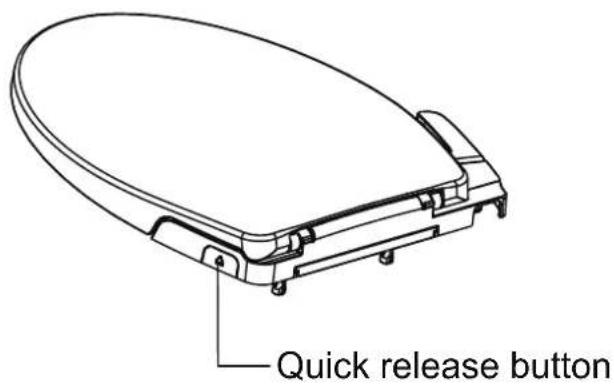

Quick release button

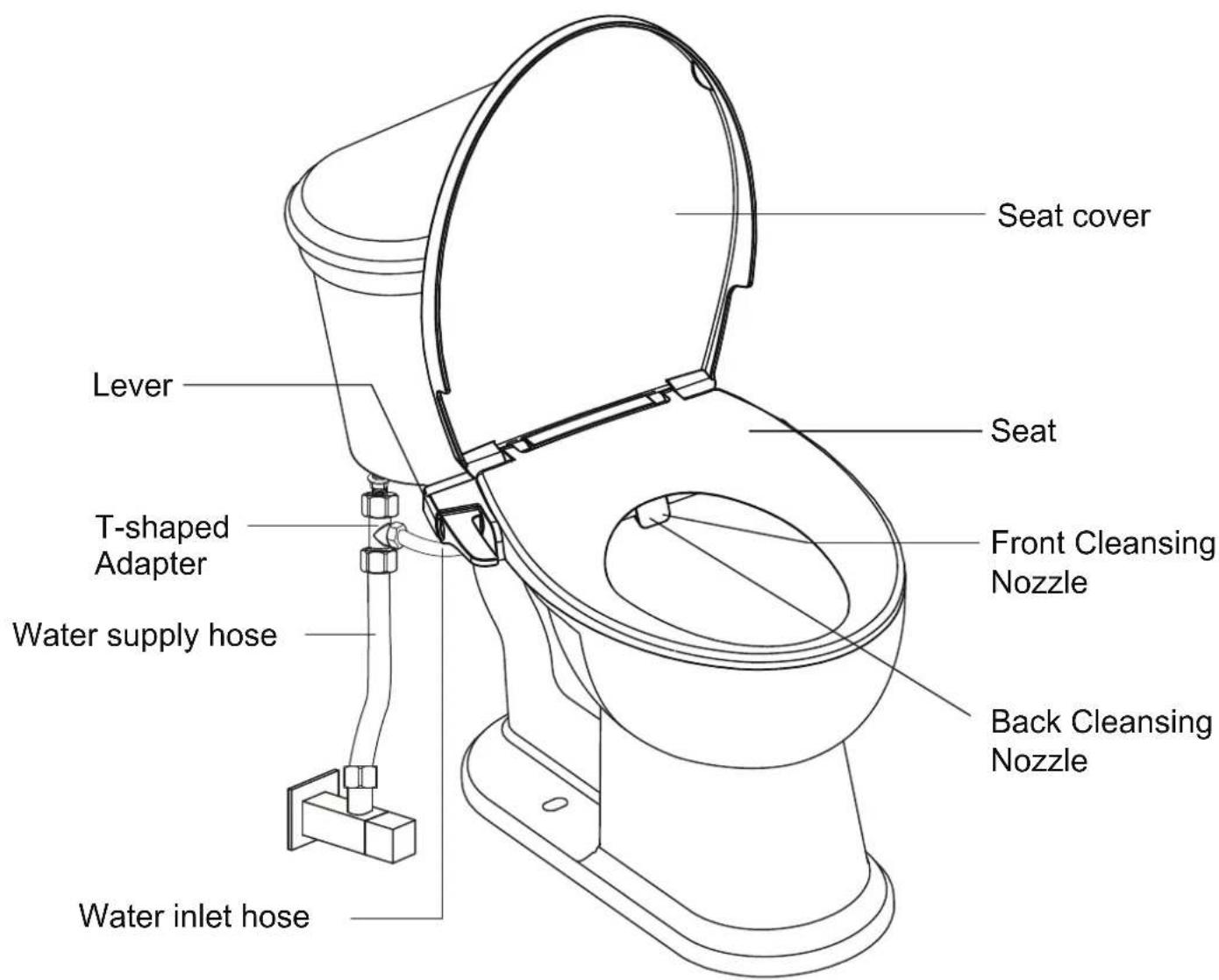

Seat cover Lever T-shaped Adapter Water supply hose Water inlet hose Seat Front Cleansing Nozzle Back Cleansing Nozzle

Components

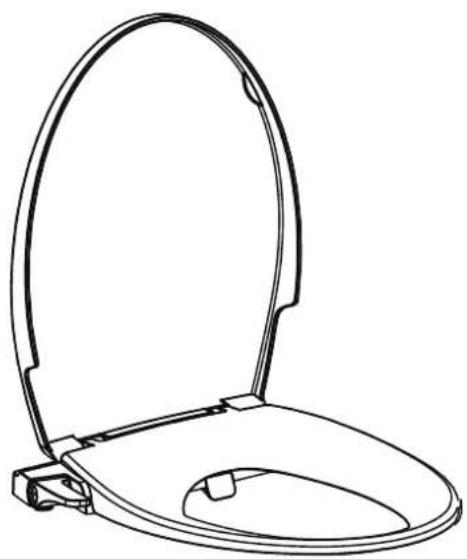

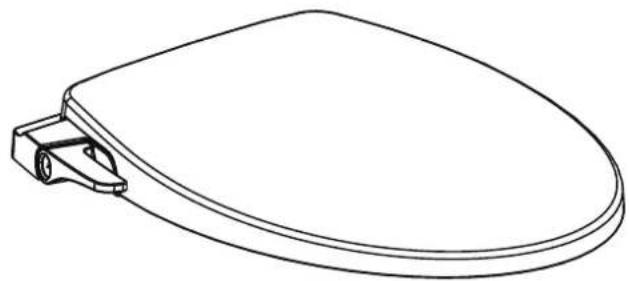

1. Bidet Seat


Line drawing of a standard oval toilet with handle and seat (no text or symbols)

1. Mounting Kit


Bolts(2)

Sliding plates(2)

nuts(2)

Seat Mounting Plate

1. T-shaped adapter 4. Water inlet hose 5. Installation and User Manual


Technical line drawing of a T-shaped pipe fitting with threaded ends (no text or symbols)

Simple line drawing of a U-shaped pipe with two side connectors (no text or symbols)

② Installation

Please make sure you read the instructions carefully and install it properly.

Cautions

1. The water pressure limit is from 0.07 to 0.6 MPa(10-87PSI). Please use as instructed.
2. The water shut-off valve should be near to where the product can be installed and dismantled.

Product Installation Procedures

■ Pre-installation

1. Insert the bolts in sliding plates

Two identical vertical bars with black tops and downward arrows, each above a rounded rectangular base (no text or symbols)

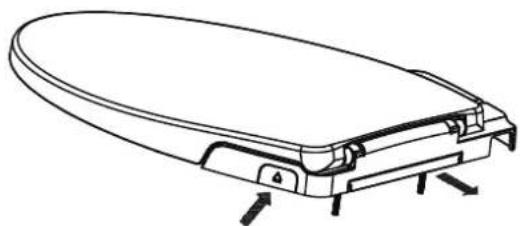

1. Press the release button and remove the seat mounting plate.

Technical line drawing of a curved mechanical component with mounting brackets and directional arrows (no text or symbols)

1. Insert bolts with sliding plates into the Seat Mounting Plate.

Technical line drawing of a mechanical housing or enclosure with mounting feet and internal components (no text or symbols)

Installation Procedure

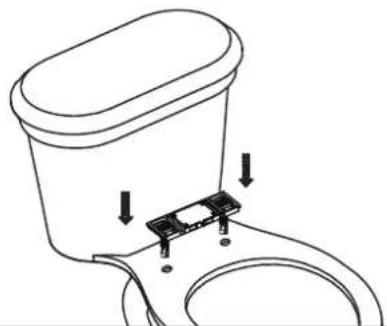

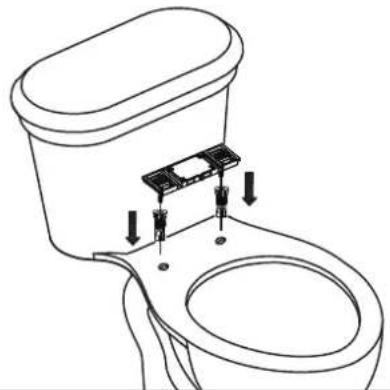

1. Install the nuts into the holes in the toilet bowl.

Line drawing of a toilet with a small electronic device inserted into the cup (no text or symbols)

1. Place the Mounting plate with bolts and sliding plates onto the toilet bowl. Align the bolts and sliding plate with the seat post hole.

Line drawing of a toilet with a small electronic device mounted on the cup, showing no text or symbols.

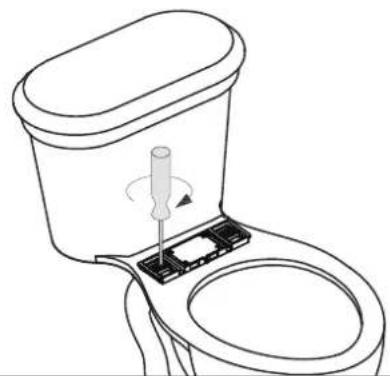

1. Screw the bolts into the nuts. Do not fully tighten.

Line drawing of a toilet with a screwdriver inserted into the cup (no text or symbols)

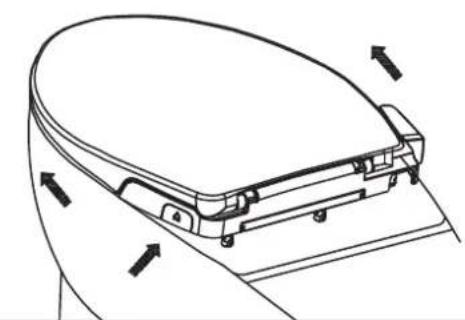

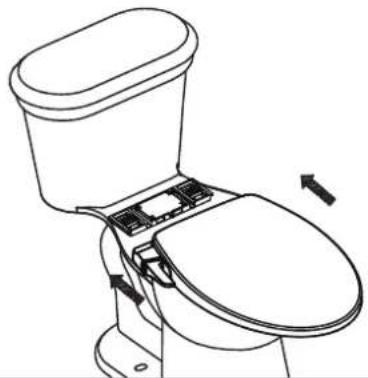

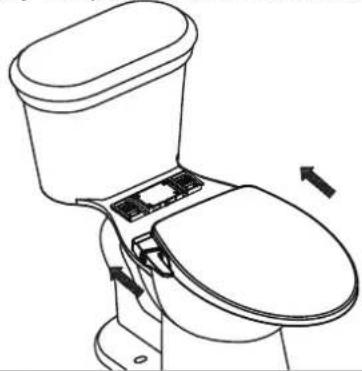

1. After mounting the mounting plate, slide the bidet seat fully into position until it clicks into place.

Line drawing of a toilet with internal components and directional arrows indicating movement (no text or symbols)

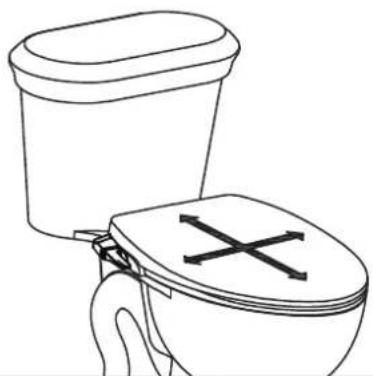

1. Adjust the bidet seat evenly over the toilet bowl. 6. Press the quick release button to release

Line drawing of a toilet with a double-headed arrow indicating airflow or direction (no text or symbols)

Technical line drawing of a toilet seat assembly with directional arrows indicating movement (no text or symbols)

■ Installation Procedure

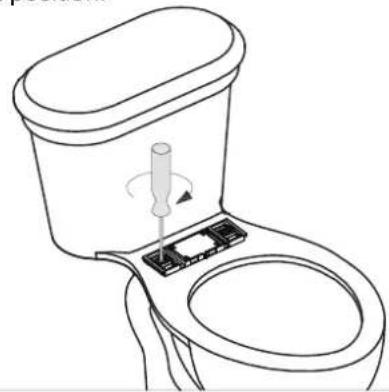

1. Fully tighten the bolts once the bidet seat is in correct position.

Line drawing of a toilet with a screwdriver inserted into the cup, showing internal components (no text or symbols)

1. Reinstall the bidet seat until it fully clicks into position.

Line drawing of a toilet with internal components and directional arrows indicating movement (no text or symbols)

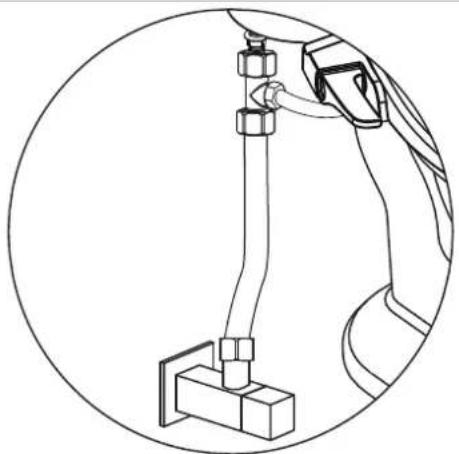

■ Connecting water hose

1. Close the water supply shut off valve to shut off water into the tank. Remove as much water from the tank as is possible so it doesn't spill out when removing the supply line hose and remove the hose to the tank. Connect the T-Shaped adapter to the inlet valve of the tank.

T-Shaped Adaptor

Water supply hose from Shut Off valve to toilets tank.

Water Shut Off Valve

1. Reconnect water supply hose to T-Adapter and fully tighten.

Technical line drawing of a robotic arm holding a vertical pipe with bolts, enclosed in a circle (no text or symbols)

Prohibited

1. Do not lift the product with seat cover and seat open.
2. Cannot use with hot water where temperature is higher than 104^ F. This may cause operational issues.

Operation

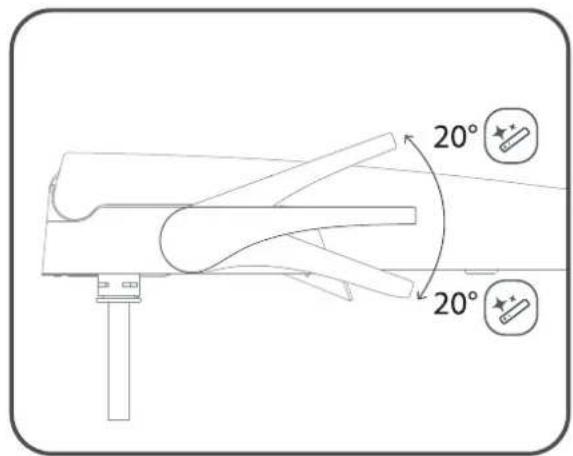

45° 20° OFF 20° 45°

20° 20°

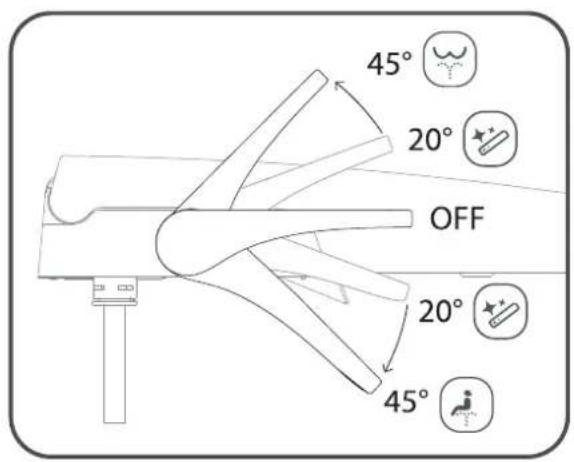

4 separate positions 20^ upwards or 20^ downwards:
for nozzle self-cleaning.

45° 45°

OFF

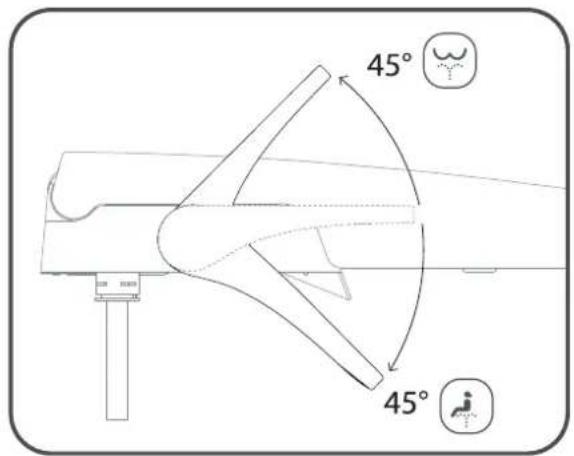

45° downwards - Front Cleansing

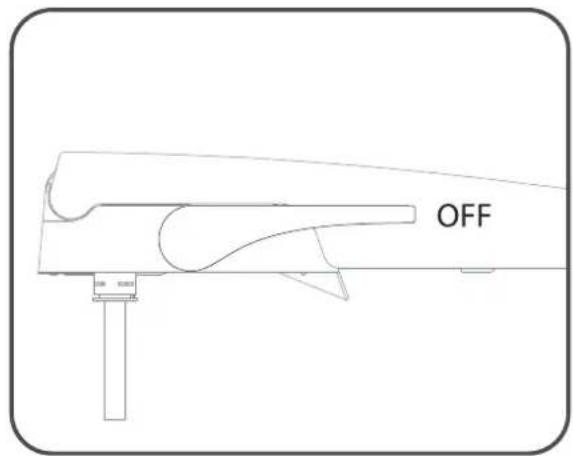

0° - OFF45° upwards - Back Cleansing

④ Care and Cleaning

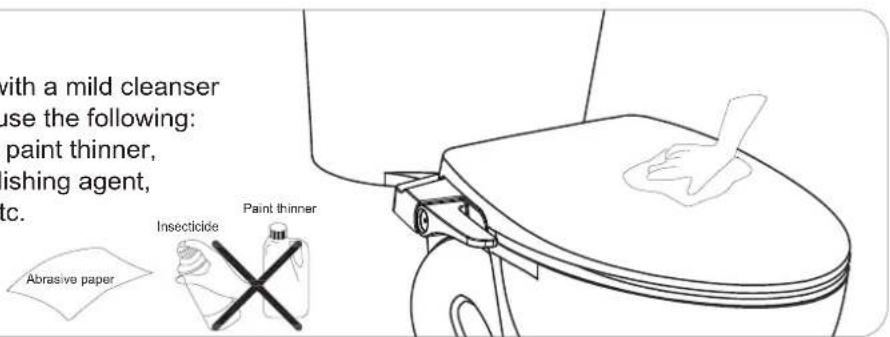

1. Cleaning Seat and Lid.

Use a smooth sponge/cloth with a mild cleanser to clean the product. Do not use the following: hydrogen chloride detergent, paint thinner, benzene, abrasive paper, polishing agent, fragrances and insecticide, etc.

with a mild cleanser use the following: paint thinner, fishing agent, etc. Abrasive paper Insecticide Paint thinner

2. Clean the nozzle.

Pull out the nozzle softly and use smooth cloth/sponge or toothbrush with a mild cleanser to clean the nozzle.

Line drawing of hands holding a tool or device with a ruler, no text or symbols present

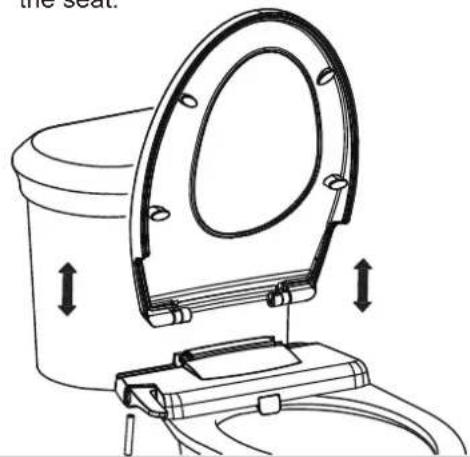

the seat & cover upwards to release. After cleaning, insert the seat & cover into the holes perpendicularly to install the seat.

Technical line drawing of a mechanical device with mounting bracket and side-mounted base (no text or symbols)

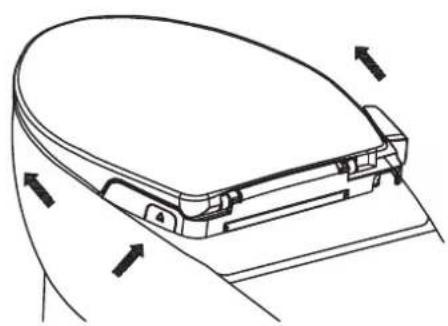

1. To release the whole Bidet Seat.3. Seat & Co Press the button, pull the seat forward.Open the seat:

Technical line drawing of a car seat assembly with directional arrows indicating movement (no text or symbols)

5) Product maintenance

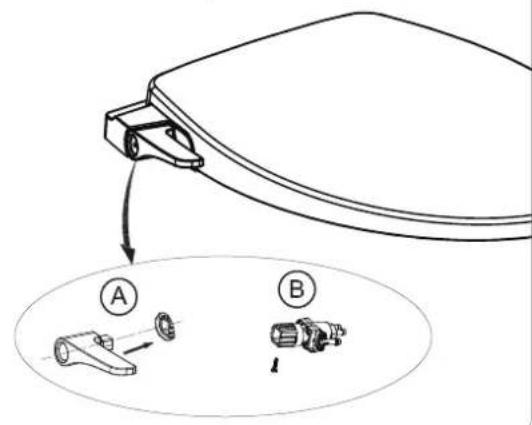

As per figure A, remove the old lever along the axis direction.

Aa per figure B, insert the new lever rib into the corresponding control valve slot. The installation is completed with a "click" sound.

Diagram showing mechanical assembly with labeled parts A and B, including a component being inserted into a housing.

1. Nozzle tip replacement1. Lever replacement.

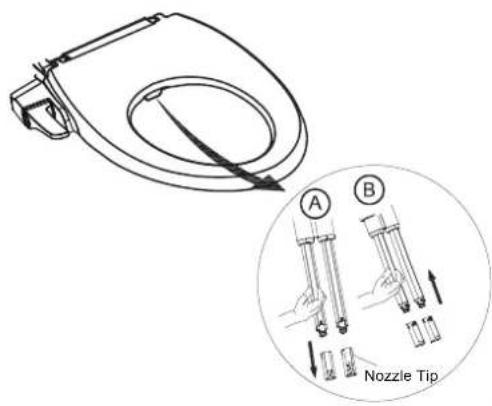

As per figure A, pull out the nozzle and remove the nozzle tip along the axis direction as per figure B, insert the new nozzle tip into the nozzle along the corresponding slot.

A B Nozzle Tip

1. Water hose leakage

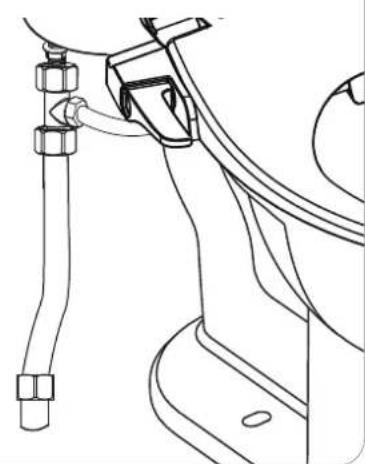

If water leakage is detected from the water hose, re-tighten the hose connection.

Technical line drawing of a mechanical assembly with hoses and connectors (no text or symbols)

Self Diagnosis and Specifications

■ Self Diagnosis and Trouble shooting

		SolutionCauseStatus
Water flow to pressure is too low during Cleansing/Bidet	1.Low water pressure of the unit	1. Adjust the water pressure volume by the lever.2. Assure the nozzle tips are clean.
	2.Low water pressure of water supply	1.Check if the water pressure is above 10 psi.2. Fully open the shut-off valve3. Check if there are any kinks on the water supply hose.
No water comes out during Cleansing/Bidet	1. Water shut-off valve is turned off	Turn on the water shut-off valve
	2. Filter net of T-shaped connector is stuck	Clean the filter net of T-shaped connector
	3. Nozzle tip is stuck	Take off and clean the nozzle tip
	4. External water pressure is low	Increase external water pressure.
Water dripping into the bowl when using the unit	External water pressure is too high	The maximum water pressure of the unit is 0.8MPa.

Caution

Do not disassemble, repair or modify the unit.

Specifications

Classification	Description
	8033A65G.020Model No.
Back Cleansing water flow volume	0.4 - 1.8 L/min
Front Cleansing water flow volume	0.4 - 1.8 L/min
Backflow Prevention	Backflow Prevention
Water Supply	Direct from water pipes
Water Pressure Range	Static pressure: 0.14-0.86MPa, Dynamic pressure:above 0.07Mpa
Dimensions	490X405X63mm
Weight	2.1 KG

■ To request service:

1. Please recheck the user's manual.
2. If failure or damage occurs after referring the manual, stop using the product and contact the retailer or local service center.

LIMITED WARRANTY

This SpaLet ^® comes with a three year warranty on all parts of the SpaLet. If inspection of this American Standard plumbing product, inclusive of the chinaware and all mechanical parts, confirms that it is defective in materials or workmanship, American Standard will repair or, at its option, exchange the product for the same or a similar model.

This limited warranty applies only to the original non-commercial purchaser and installation of the products. In the event of a limited warranty claim, proof of purchase will be required-save sales receipts.

For this warranty to become effective, the warranty registration process must be completed via the internet or telephone per the warranty registration instructions.

This limited warranty does not apply to commercial installations. The warranty for commercial installations is two years on the SpaLet.

This warranty does not apply to local building code compliance. Since local building codes vary considerably, the urchaser of the product should check with a local building or plumbing contractor to ensure local code compliance before installation.

This warranty will be void if the product has been moved from its initial place of installation; if it has been subjected to faulty maintenance, abuse, misuse, accident or other damage; if it was not installed in accordance with American Standard's instructions; or if it has been modified in a manner inconsistent with the product as shipped by American Standard. The warranty will be void if the product has failed as a result of worn-out of consumable parts such as packing, fuses, batteries.

WARNING: This warranty DOES NOT COVER any damages caused by the use of harsh cleaners. These products can seriously corrode the product components. This damage can cause leakage and property damage. American Standard will not be responsible or liable for any damage caused by the use of in-tank cleaners.

American Standard's option to repair or exchange the product under this warranty does not cover any labor or other costs of removal or installation including any costs of any surrounding material such as tile or marble. American Standard is not responsible for any other incidental or consequential damages attributed to a product defect. (Some states or provinces do not allow the exclusion or limitation of implied warranties, so this exclusion may not apply to you.)

This warranty gives you specific rights. You may have other statutory rights that may vary from state to state or province to province, in which case this warranty does not affect such statutory rights.

How to register the warranty:

PLEASE COMPLETE AMERICAN STANDARD WARRANTY REGISTRATION AND SAVE THIS WARRANTY INFORMATION.

IMPORTANT: Registration of the SpaLet must be completed for this warranty to become effective.

Your registration will make it easier to service your product.

INSTRUCTIONS: Register your SpaLet at www.americanstandard.com. Please save your point of purchase (sale receipt).

IF YOU HAVE ANY QUESTIONS, OR PARTS ARE DAMAGE OR MISSING, DO NOT CONTACT, OR RETURN, THIS PRODUCT TO THE STORE. CONTACT CUSTOMER SERVICE.

In the United States:

American Standard Brands

30 Knightsbridge Rd

Piscataway, NJ 08854

Attention: Director of Customer Care

For residents of the United States, warranty

information may also be obtained by calling

the following toll free number: [phone]

www.americanstandard.com

In Canada:

AS Canada, ULC

5900 Avebury Rd.

Mississauga, Ontario

Canada L5R 3M3

Toll Free: [phone]

www.americanstandard.ca

In Mexico:

American Standard B&K Mexico

S. de R.L. de C.V.

Via Morelos #330

Col. Santa Clara

Ecatepec 55540 Edo. Mexico

Toll Free: 800-839-1200

www.americanstandard.com.mx
