USER MANUAL KG5028 IFM
Capacitive proximity switch KG/P
Function and features
This proximity switch detects metals, almost all plastics, glass, ceramics, wood, paper, oils, greases, water and all hydrous materials without contact and indicates their presence by providing a switched signal.
- Nominal sensing range (Sn) 8 mm (measured on an earthed metal plate and water; a shorter sensing range for other materials).
- Automatic adjustment to the medium to be detected.
Installation
Mount the unit by means of a mounting device. Secure it by means of the nuts provided so that it cannot work loose. Non-flush installation.

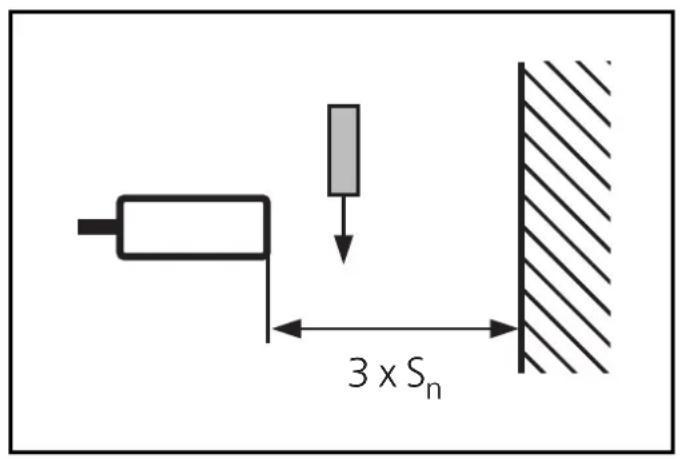

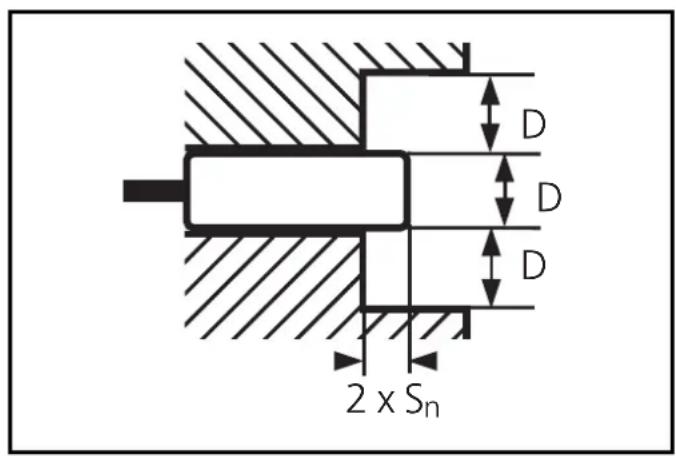

Open space around the sensing face:

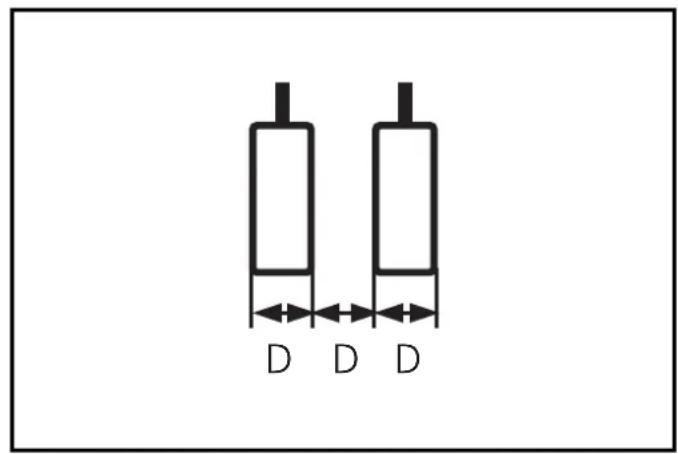

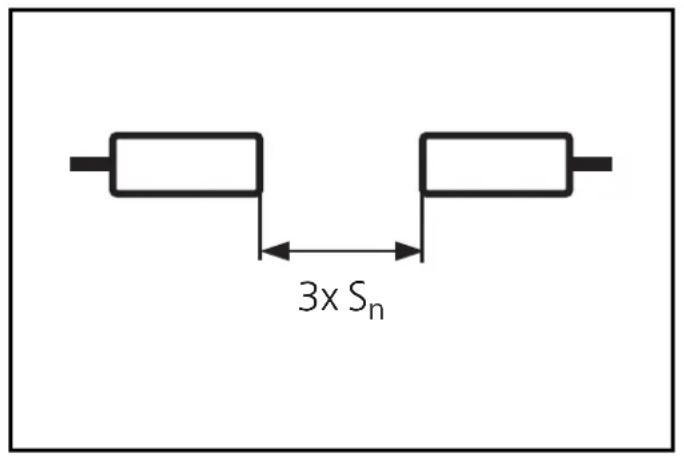

Minimum distance when several switches of the same type are mounted:


Electrical connection

Disconnect power before connecting the proximity switch. Connection strictly to the indications on the type label.
Core colours: BN = brown, BU = blue, BK = black.
Adjustment
The unit detects the "damped" state (= medium present) and the "undamped" state (= no medium present) and sets the optimum switch point.
| 1 | Press for 5s. | Yellow and green LEDs flash alternately (= unit is in the programming mode). |
| 2 | Place the medium into the detection area of the sensor and press the button briefly. | The yellow and green LED's go out for a short time, then quickly flash alternately; the red LED is on. |
| 3 | Remove the medium and increase the distance between the medium and the unit until the red LED goes out. | The yellow and green LED's continue to flash alternately. The red LED goes out. | |
| If the red LED does not go out, the interval between the "damped" and the "undamped" signals is too short. Press the setting button twice. The unit passes into the operating mode with the switch point being unchanged.. |
| 4 | Press briefly. | The yellow and green LED's go out for a short time, then the green LED is on (= unit is in the operating mode). |
Steps 2 and 3 can also be taken in reverse order: first align the unit without the medium being present and then place the medium into the detection area until the red LED goes out.

If the setting of the switch point is not possible (the signals for damped/undamped follow too close), the red LED flashes after step 4 (= adjustment error). Press the setting button once. The unit then passes into the operating mode with the switching point being unchanged.
Locking / Unlocking
The unit can be electronically locked to prevent unwanted adjustment of the set parameters:
| Press for 10s. | The yellow and green LED's flash alternately; after 10s the LEDs go out, the unit is locked. |
| Press for 10s. | After 10s the LED's go out, locking is annulled. |
Operation
Check the safe functioning of the switch.
The operation of the proximity switch is maintenance-free. For perfect functioning make sure that:
- the sensing face and the open space are kept free of deposits and foreign bodies, particularly for installation with the sensing face facing upwards.
LED display:
| LED green lights unit is ready for operation. | |
| LED yellow lights output is switched. | |
| LED red lights uncertain working range. | |
| LED red flashes internal malfunction, adjustment error. | |
| LED's yellow + red | simultaneous flashing: output is short-circuited. |
