USER MANUAL SWD-2000 ALPINE

Class-D Amplified Subwoofer

- OWNER'S MANUAL

Please read before using this equipment.

Class D Amplifier Active Subwoofer

EN

Please follow these instructions for your safety

- Introduction:

Please read this owners manual thoroughly to familiarise yourself with each control and function. We at Alpine hope that your new SWD-2000 will give you many years of listening enjoyment.

In case of problems when installing your SWD-2000, please contact your authorised Alpine dealer.

CAUTION

This symbol means important instructions.

Failure to heed them can result in serious injury or death.

DO NOT DISASSEMBLE OR ALTER. Doing so may result in an accident, fire or electric shock.

KEEP SMALL OBJECTS SUCH AS BOLTS OR SCREWS OUT OF THE REACH OF CHILDREN. Swallowing them may result in serious injury. If swallowed, consult a doctor immediately.

USE THE CORRECT AMPERE RATING WHEN REPLACING FUSES. Failure to do to may result in fire or electric shock.

USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND. (Check with your dealer if you are not sure.) Failure to do so may result in fire, etc.

BEFORE WIRING, DISCONNECT THE CABLE FROM THE NEGATIVE BATTERY TERMINAL. Failure to do so may result in electric shock or injury due to electrical shorts.

DO NOT SPLICE INTO ELECTRICAL CABLES. Never cut away cable insulation to supply power to other equipment. Doing so will exceed the current carrying capacity of the wire and result in fire or electric shock.

DO NOT ALLOW CABLES TO BECOME ENTANGLED IN SURROUNDING OBJECTS. Arrange the wiring and cables in compliance with the manual to prevent obstructions when driving. Cables or wiring that obstruct or hang up on places such as the steering wheel, gear lever, brake pedals, etc. can be extremely hazardous.

DO NOT DAMAGE PIPES OR WIRING WHEN DRILLING HOLES. When drilling holes in the chassis for installation, take precautions so as not to contact, damage or obstruct pipes, fuel lines, tanks or electrical wiring. Failure to take such precautions may result in fire.

DO NOT USE BOLTS OR NUTS IN THE BRAKE OR STEERING SYSTEMS TO MAKE

GROUND CONNECTIONS. Bolts or nuts used for the brake, steering systems (or any other safety related system), or any storage tanks should NEVER be used for installations or ground connections. Using such parts could disable control of the vehicle and/or cause fire, etc.

HALT USE IMMEDIATLEY IF A PROBLEM APPEARS. Failure to do so may cause personal injury or damage to the product. Return it to your Authorised Alpine Dealer or the nearest Alpine Service Centre for repairing.

EN

DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR ATTENTION AWAY FROM SAFELY

DRIVING YOUR VEHICLE. Any function that requires your prolonged attention should only be performed after coming to a complete stop. Always stop the vehicle in a safe location before performing these functions, Failure to do so may result in an accident.

CAUTION

This symbol means important instructions.

Failure to heed them can result in injury or property damage

MAKE THE CORRECT CONNECTIONS. Failure to make the proper connections may result in fire or product damage.

ROUTE THE WIRING TO ENSURE IT IS NOT CRIMPED OR PINCHED BY A SHARP METAL

EDGE. Route the cables and wiring away from moving parts (like the seat rails) or sharp or pointed edges. This will prevent crimping and damage to the wiring. If wiring passes through a hole in metal, use a rubber grommet to prevent the wires insulation from being cut by the metal edge of the hole.

DO NOT BLOCK VENTS OR RADIATOR PANELS. Doing so may cause heat to build up inside and may result in fire.

USE SPECIFIED ACCESSORY PARTS AND INSTALL THEM SECURLEY. Be sure to use only the specified accessory parts. Use of other than designated parts may damage this unit internally or may not securely install the unit in place. This may cause parts to become loose resulting in hazards or product failure.

DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE OR DUST. Avoid installing the unit in locations with high incidence of moisture or dust. Moisture or dust that penetrates into this unit may result in product failure.

HAVE THE WIRING AND INSTALLATION DONE BY AN EXPERT. The wiring and installation of this unit requires special technical skill and experience. To ensure safety, always contact the dealer where you purchased this product to have the work done.

KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL HEAR OUTSIDE NOISE WHILE DRIVING. Failure to do so may result in an accident.

USE THIS PRODUCT FOR MOBILE 12V APPLICATIONS. Use for other than its designed application may result in fire, electric shock or injury.

CAUTION IN USE

DO NOT USE A MOBILE PHONE NEAR THIS PRODUCT. Use of a mobile phone may cause interference and noise.

DO NOT EXCEED THE INPUT LEVEL SPECIFIED FOR THIS PRODUCT. If there is distortion or a popping noise from the subwoofer, the input level is too high. If the subwoofer has prolonged use in this condition, this may result in deterioration of performance or may cause damage to the subwoofer.

DAMGE CAUSED BY EXCESSIVE INPUT LEVEL WILL NOT BE COVERED UNDER WARRANTY.

TROUBLESHOOTING

If you have a problem with the product then please check the following before taking for repair.

SYMPTOMS REASON SOLUTION
Unit does not operate. (For example if the fuse is blown)	The head unit is not powered up.	Power up the head unit.
	Earth lead is not connected properly.	Check the earth lead connection
	The power lead to the battery is not connected properly.	Check the battery lead connection
There is power but no sound.	The fuse is blown.	Replace with a fuse of the correct rating.
	Remote turn on lead is not connected properly.	Check the remote turn on lead connection
	RCA leads are not connected.	Connect RCA leads correctly.
	Speaker level input cables are not connected properly	Check the speaker level input cable connections.
	The gain is not at the correct level for the system.	Adjust the gain setting to an appropriate level for the system.

SPECIFICATIONS

■ MAX POWER OUTPUT.... 350W
■ CROSSOVER.... 50\~200Hz

■ INPUT IMPEDANCE.... 18k Ω(Line Input)

36k Ω(Speaker Input)

■ OPERATIONAL VOLTAGE.... DC 14.4V (Operational between: 11\~16V)

Negative EarthEARTH TYPE....

96dB/10W.mSENSITIVITY....

350mm x 300mm x 198mmDIMENSIONS.....

8.5kgWEIGHT....

EN

PACKING LIST

PRODUCT NAME		PRODUCT NAME	QTYQTY
3-Pin connector 1		Speaker to RCA connector (1M) 2
Power lead extension cable (5.5M) 1		Mounting brackets	4
Remote turn on extension cable (5.5M)	1	Self tapping screw	8
Scotch lock connector	4	Machine screw 4

INTRODUCTION

• Please ensure that there is sufficient length of the various cables for your desired subwoofer location.
• Certain products are incompatible with this subwoofer. Please read the instructions of the product that will be used with the SWD-2000, alongside this manual during installation.

1. INSTALLATION

1 Park the car at a safe place, on a level surface. Apply the handbrake and remove the key. Work out where to install the subwoofer, and check that there is sufficient cable length.

2 Carry out the Installation.

WARNING - DO NOT DAMAGE PIPE OR WIRING WHEN DRILLING HOLES. When drilling holes in the chassis for installation, take precautions so as not to contact, damage or obstruct pipes, fuel lines, tanks or electrical wiring. Failure to take such precautions may result in fire.

WARNING - DO NOT USE BOLTS OR NUTS IN THE BRAKE OR STEERING SYSTEMS

TO MAKE GROUND CONNECTIONS. Bolts or nuts used for the brake or steering systems (or any other safety related system), or tanks should NEVER be used for installations or ground connections. Using such parts could disable control of the vehicle and cause fire, etc.

1 Carefully consider all installation possibilities and locations.
2 Decide where to install the subwoofer.

Attach the brackets with the supplied machine screws.

- The brackets can be attached for horizontal or vertical mounting.

Please attach the brackets accordingly.

• Always thread the cable through the cable securing clips.

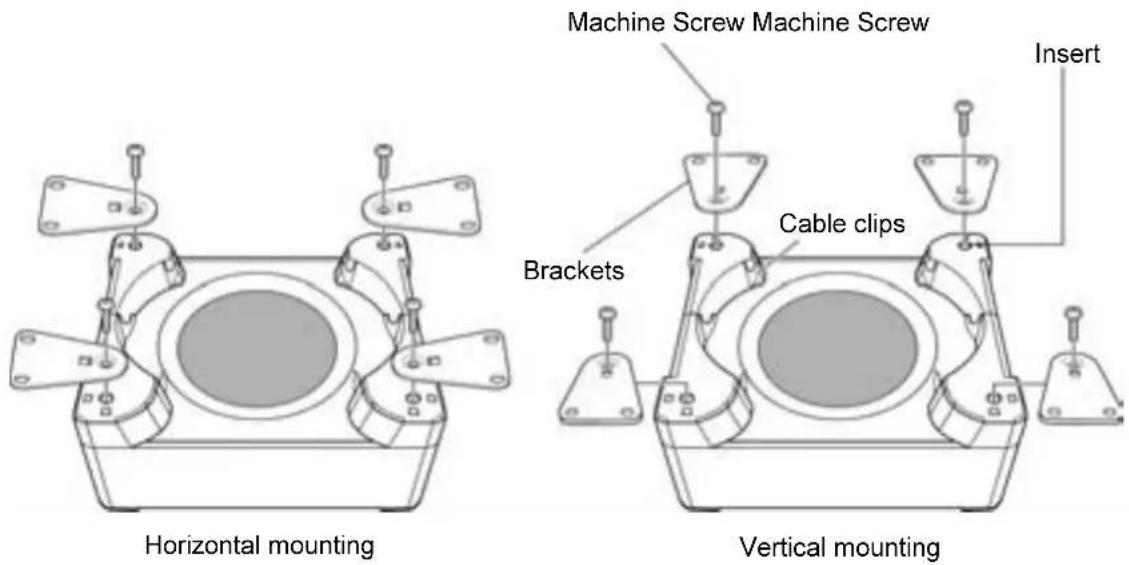

Machine Screw Machine Screw Insert Brackets Cable clips Horizontal mounting Vertical mounting

3 Mark the self tapping screw locations in your car.
4 Drill a hole 3mm or less in diameter.
5 Secure the subwoofer to the car with the self tapping screws.
6 Connect the ground lead securely and safely to a bare metal spot (remove the coating if necessary) of the car chassis.

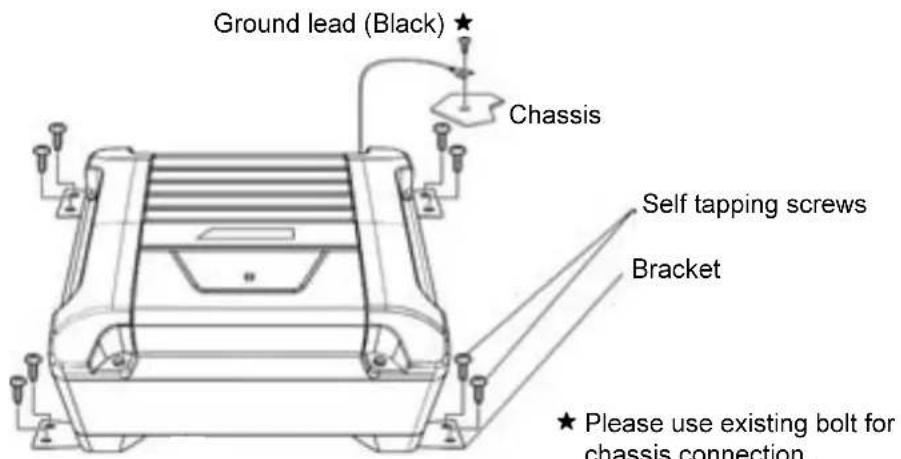

Ground lead (Black) Chassis Self tapping screws Bracket Please use existing bolt for chassis connection.

2. CONNECTION

1

FIRST

• Make all connections securely.
- Any unused connections should be insulated with electrical insulation tape.

2

Disconnect the cable from the negative terminal of the car battery.

- On cars fitted with computers and other such devices (e.g. head units with security code), you may lose the memory when disconnecting the negative lead.

3

Connect

CAUTION – PLEASE FOLLOW THE INSTRUCTIONS CAREFULLY. Failure to do so may result in fire, accident or electrical shock.

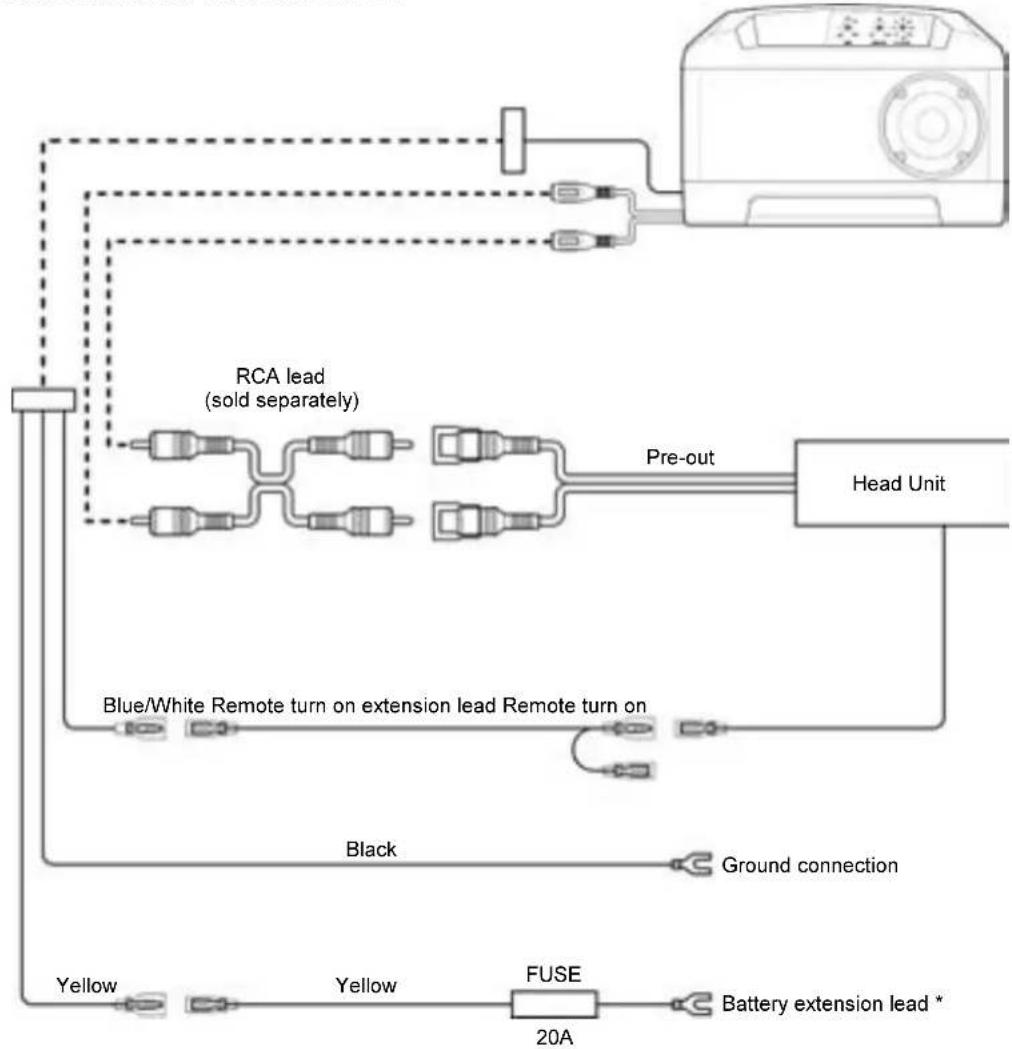

• CONNECTIONS FOR RCA INPUT


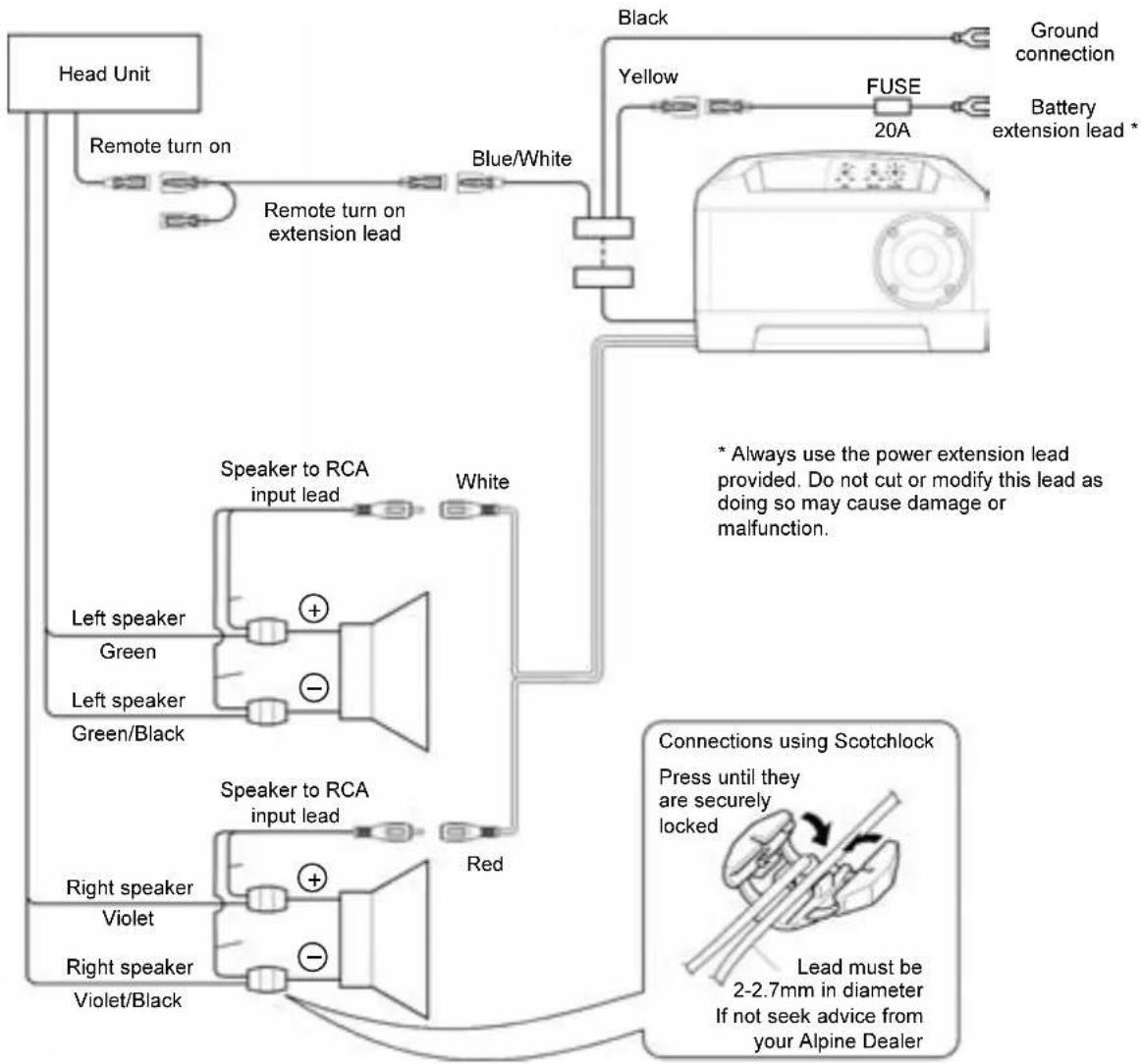

• CONNECTIONS FOR SPEAKER LEVEL INPUT

Type of Lead Additional Information

Remote turn on lead	Connect to the remote turn on lead of the head unit. • If your head unit does not have this lead, then please connect to the the ACC lead of the vehicle. The lead that supplies power when the key is at the ACC position.
Ground lead	Attach securely and safely to a bare metal spot of the car's chassis.
Battery power lead	Connect directly to the positive terminal of the car's battery.

• This product cannot be used with cars fitted with a common negative speaker system.

• Speaker impedance must be 3.2 \~ 8 ohms.
  • To prevent external noise from entering the audio system:

• Locate the unit and route the leads at least 10 cm away from the car harness.

• Keep the battery power leads as far away from other leads as possible.
• Connect the ground lead securely and safely to a bare metal spot (remove the coating if necessary) of the car chassis.
• If you add an optional noise suppressor, connect it as far away from the unit as possible. Your Alpine Dealer carries various Alpine noise suppressors, contact them for further information.
• Your Alpine Dealer knows best about noise prevention measures so consult your dealer for further information.

3. CHECK

1

Secure all loose cables.

CAUTION - ARRANGE THE WIRING SO IT IS NOT CRIMPED OR PINCHED BY A SHARP METAL EDGE. Route the cables and wiring away from moving parts (like the seat rails) or sharp or pointed edges. This will prevent crimping and damage to the wiring. If wiring passes through a hole in metal, use a rubber grommet to prevent the wires insulation from being cut by the metal edge of the hole.

2

Reconnect the negative lead to the battery terminal

3

By switching on the head unit, verify that the subwoofer is working.

4

Check that all electrical functions of the car are operational. (lights, indicators, horn etc.)

4. ADJUSTMENT

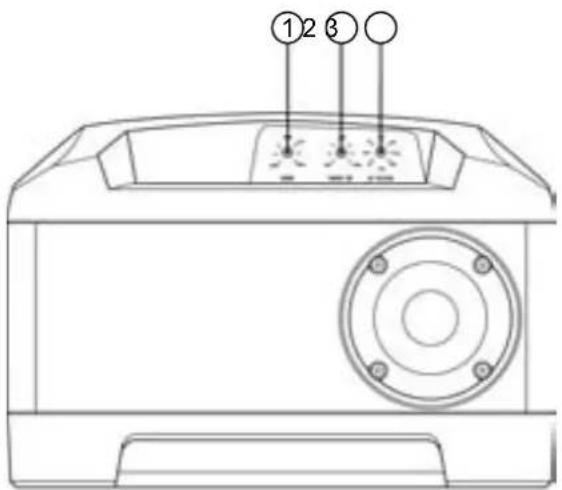

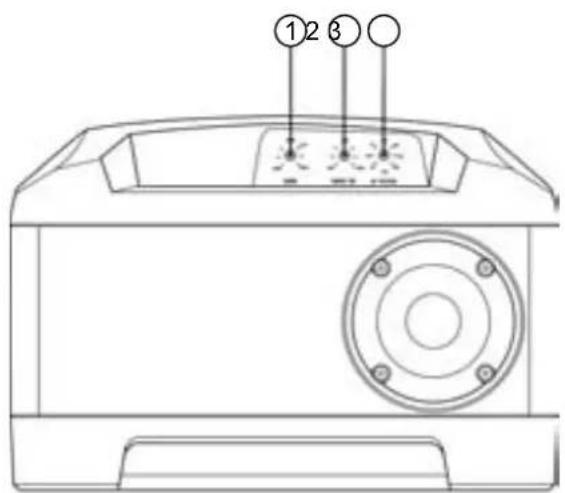

① GAIN ADJUSTMENT
② BASS EQ ADJUSTMENT
③ LOW PASS FILTER ADJUSTMENT

①②③

CAUTION

DO NOT EXCEED THE INPUT LEVEL SPECIFIED FOR THIS PRODUCT.

If there is distortion or a popping noise from the subwoofer the input level is too high. If the subwoofer has prolonged use in this condition, this may result in deterioration of performance or may cause damage to the subwoofer.

4. ADJUSTMENT

1. Set the gain to MIN, Bass EQ to 0dB, LPF to 75Hz before switching on the system.
2. Set the Bass/Treble adjustment to zero on the head unit. Set the volume to your average listening level. It may help to use a music source that is familiar.
3. Next, gradually increase the gain level. Increase the level to the point where the sound of your system, as a whole, is balanced. If the gain level is set too high, the subwoofer may begin to distort. Distortion may also occur if the volume is set too high on the head unit. Check that the other speakers have not begun to distort, before proceeding with the adjustment. If the entire speaker system in the car is distorting, reduce the volume of the head unit.
4. Once the gain has been set, adjust the L.P.F (Low Pass Filter) at a frequency which compliments your speaker system. (We recommend using 75Hz as a starting point.)
5. Adjusting the L.P.F will change the output volume of the subwoofer. Repeat procedures 3 and 4 until the ideal setting is found.
6. Adjust the Bass EQ. It is possible to boost the low frequency output of the amplifier from 0dB (flat) to +12dB. Adjust the Bass EQ (centred at 50 Hz) to suit your personal taste.

ALPINE ELECTRONICS MARKETING, INC.

1-1-8 Nishi Gotanda,

Shinagawa-ku,

Tokyo 141-0031, Japan

Phone [phone]

ALPINE ELECTRONICS OF AMERICA, INC.

19145 Gramercy Place, Torrance,

California 90501, U.S.A.

Phone 1-800-ALPINE-1 (1-800-257-4631)

ALPINE ELECTRONICS OF CANADA, INC.

7300 Warden Ave., Suite 203, Markham,

Ontario L3R 9Z6, Canada

Phone 1-800-ALPINE-1 (1-800-257-4631)

ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.

6-8 Fifeways Boulevarde Keysborough,

Victoria 3173, Australia

Phone [phone]

ALPINE ELECTRONICS GmbH

Kreuzerkamp 7,

40878 Ratingen, Germany

Phone [phone]

ALPINE ELECTRONICS OF U.K. LTD.

Alpine House

Fletchamstead Highway, Coventry CV4 9TW, U.K.

Phone [phone]

ALPINE ELECTRONICS FRANCE S.A.R.L.

(RCS PONTOISE B 338 101 280)

98, Rue de la Belle Etoile, Z.I. Paris Nord II,

B.P. 50016, 95945 Roissy Charles de Gaulle

Cedex, France

Phone [phone]

Naviglio (MI), Italy

Phone [phone]

ALPINE ELECTRONICS DE ESPAÑA, S.A.

Portal de Gamarra 36, Pabellón, 32

01013 Vitoria (Alava)-APDO 133, Spain

Phone [phone]

Benutzerhandbuch

ALPINE®

SWD-2000

Class-D Aktiv-Subwoofer

7300 Warden Ave., Suite 203, Markham,

Ontario L3R 9Z6, Kanada

Tel. 1-800-ALPINE-1 (1-800-257-4631)

ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.

6-8 Fifeways Boulevarde Keysborough,

Victoria 3173, Australien

Tel. [phone]

ALPINE ELECTRONICS GmbH

Kreuzerkamp 7

Fletchamstead Highway, Coventry CV4 9TW,

Großbritannien

Tel. [phone]

ALPINE ELECTRONICS FRANCE S.A.R.L.

(RCS PONTOISE B 338 101 280)

98, Rue de la Belle Etoile, Z.I. Paris Nord II,

B.P. 50016, 95945 Roissy Charles de Gaulle

Cedex, Frankreich

Tel. [phone]

7300 Warden Ave., Suite 203, Markham,

Ontario L3R 9Z6, Canada

Téléphone 1-800-ALPINE-1 (1-800-257-4631)

ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.

6-8 Fiveways Boulevard Keysborough,

Victoria 3173, Australie

Téléphone 03-9769-0000

ALPINE ELECTRONICS GmbH

Kreuzerkamp 7

Fletchamstead Highway, Coventry CV4 9TW, R.-U.

Technical diagram of a device front panel with labeled ports and indicator lights

PRECAUCIÓN

NO SUPERE EL NIVEL DE ENTRADA ESPECIFICADO PARA ESTE PRODUCTO.

7300 Warden Ave., Suite 203, Markham,

Ontario L3R 9Z6, Canadá

6-8 Fiveways Boulevarde Keysborough,

Victoria 3173, Australia

Fletchamstead Highway, Coventry CV4 9TW,

Gran Bretaña

7300 Warden Ave., Suite 203, Markham,

Ontario L3R 9Z6, Canada

Tel. 1-800-ALPINE-1 (1-800-257-4631)

ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.

6-8 Fiveways Boulevard Keysborough,

Victoria 3173, Australia

Tel. [phone]

ALPINE ELECTRONICS GmbH

Kreuzerkamp 7

40878 Ratingen, Germania

Tel. [phone]

ALPINE ELECTRONICS OF U.K. LTD.

Alpine House

Fletchamstead Highway, Coventry CV4 9TW, GB

Tel. [phone]

ALPINE ELECTRONICS FRANCE S.A.R.L.

(RCS PONTOISE B 338 101 280)

98, Rue de la Belle Etoile, Z.I. Paris Nord II,

B.P. 50016, 95945 Roissy Charles de Gaulle

Cedex, Francia

Tel. [phone]

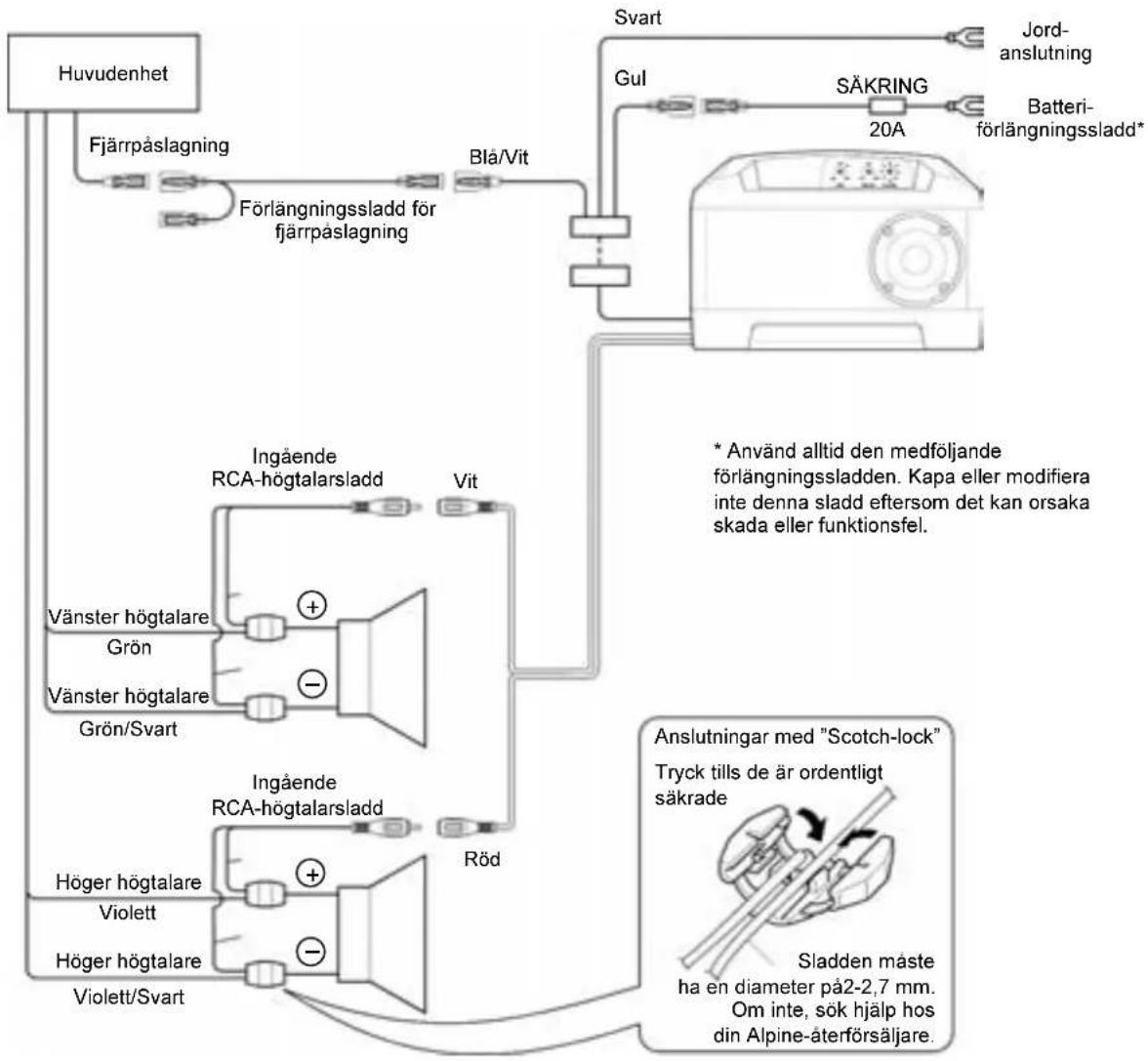

• ANSLUTNING FÖR HÖGTALARNIVÄINMATNING

① FÖRSTÄRKNINGSJUSTERING
② JUSTERING AV BASS EQ
③ JUSTERING AV LÅGPASSFILTER, (LPF)

①②③

FÖRSIKTIGHET

ÖVERSKRID INTE DEN ANGIVNA INGÅNGSNIVÅN FÖR DEN HÄR PRODUKTEN.

7300 Warden Ave., Suite 203, Markham,

Ontario L3R 9Z6, Kanada

Telefon: 1-800-ALPINE-1 (1-800-257-4631)

ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.

6-8 Fifeways Boulevarde Keysborough,

Victoria 3173, Australien

Telefon: [phone]

ALPINE ELECTRONICS GmbH

Kreuzerkamp 7

40878 Ratingen, Tyskland

Telefon: [phone]

ALPINE ELECTRONICS OF U.K. LTD.

Alpine House

Fletchamstead Highway, Coventry CV4 9TW, U.K.

Telefon: [phone]

ALPINE ELECTRONICS FRANCE S.A.R.L.

(RCS PONTOISE B 338 101 280)

98, Rue de la Belle Etoile, Z.I. Paris Nord II,

B.P. 50016, 95945 Roissy Charles de Gaulle

Cedex, Frankrike

Telefon: [phone]
