USER MANUAL CML5518EVWL CANDY

Warning sign depicting a flame symbol in a yellow triangle with black border

WARNING: Risk of fire/flammable material

EN

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by ingiting flammable material.

20 Care and cleaning

22 Troubleshooting

26 Installation

32 Technical data

34 Customer service

Before first use 6

Installation 6

Daily use 7

Refrigerant gas information 9

Lock/Unlock key and its icon 14

Standby function 14

Wi-Fi function 14

Adjust the temperature for larder 15

Super Cool function 16

ECO function 16

Holiday function 16

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.

Accessories

Check the accessories and literature in accordance with this list:

Egg tray

x2

Energy lable

Warranty card

User manual

x4

X∠

x2

中

x4

Screw Cover
Sponge block Slide guide Slide asm.

Fixed plate Hinge cover

Technical line drawing of a mechanical component with no visible text or symbols

Bottom fixed plate

Top fixed plate

Simple line drawing of a diagonal pipe or rod with no text or symbols

Bottom cover

Bottom side cover

Simple line drawing of a diagonal line with a small notch at the end (no text or symbols)

Seal strip

Seal sponge

Bottom hinge cover

WARNING – Important Safety information

NOTICE-General information and tips

Environmental information

Disposal

Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

RNING!

Risk of injury or suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets to get closed in the appliance.

Before switching on the appliance for the first time read the following safety hints!:

WARNING!

Before first use

▶ Make sure there is no transport damage.
- Wait at least two hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient.
▶ Handle the appliance always with at least two persons because it is heavy.
Remove all packaging materials, keep them out of children's reach and dispose them in an environmentally friendly manner.
▶Clean the inside and outside of the appliance with water and a mild detergent before putting any food in it.
▶After the appliance has been levelled and cleaned, wait for at least 2-5 hours before connecting it to the power supply. See Section INSTALLATION.
▶Precool the compartments at high settings before loading with food. The function Super - Cool helps to cool down the compartments quickly.
The larder temperature is automatically set to 5^ C respectively. These is the recommended settings. If desired, you can change the temperature manually. Please see ADJUST THE TEMPERATURE.
This refrigerating appliance is not suitable for freezing foodstuffs.

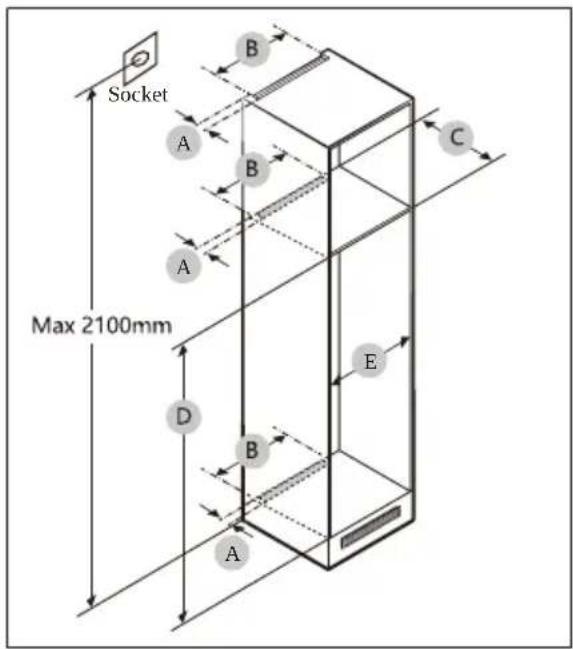

Installation

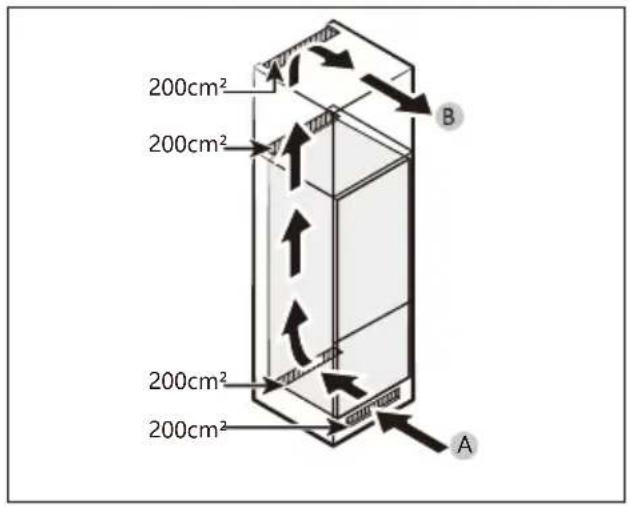

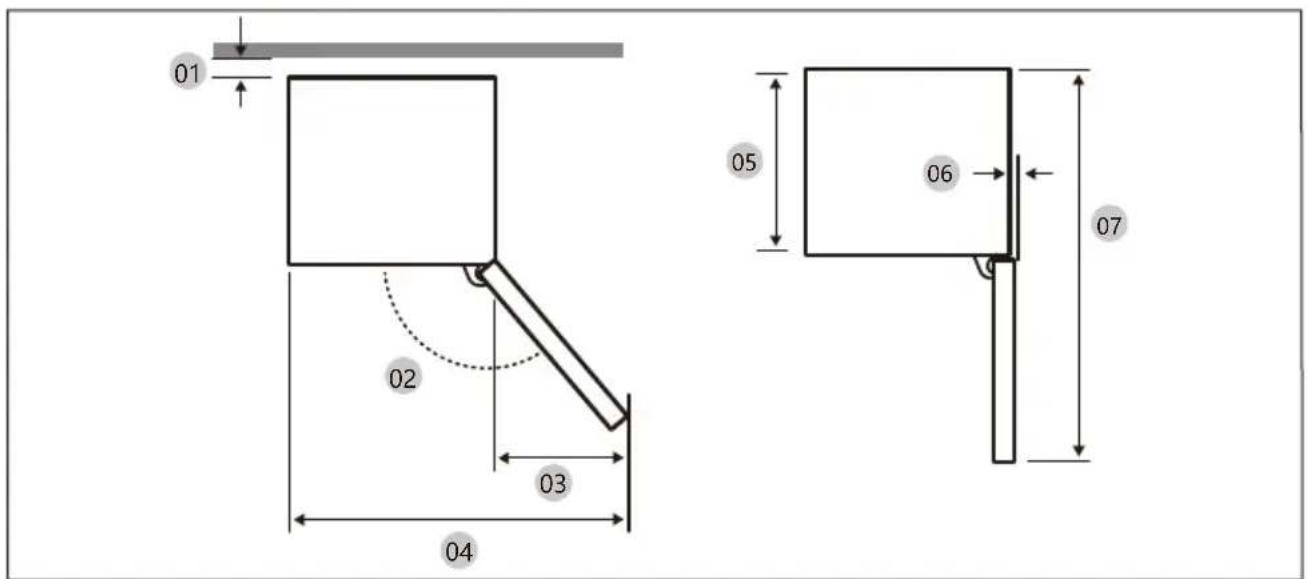

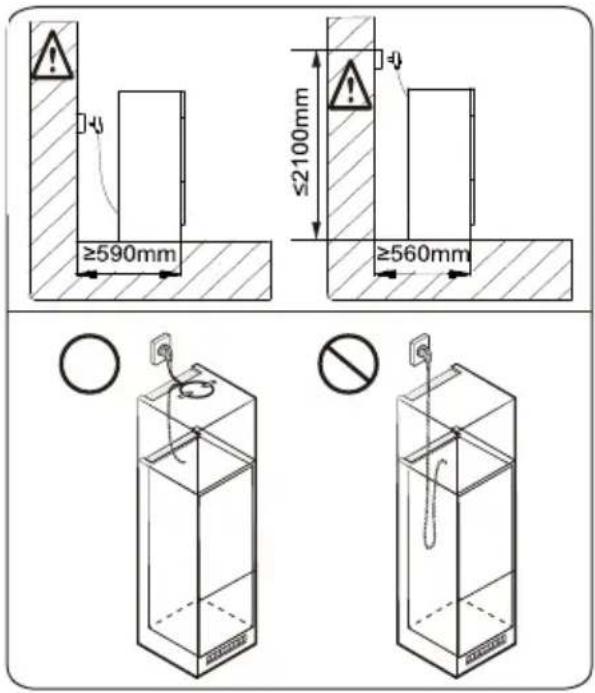

The appliance should be placed in a well-ventilated place. Ensure a space of at least 10 cm above and around the appliance.
▶Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth.
▶Do not install the appliance in direct sunlight or in the near of heat sources(e.g. stoves, heaters).
▶Install and level the appliance in an area suitable for its size and use.
▶Keep ventilation openings in the appliance or in the in-built structure clear of obstruction.
▶Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.
The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.
▶ Do not use multi-plug adapters and extension cables.
▶Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

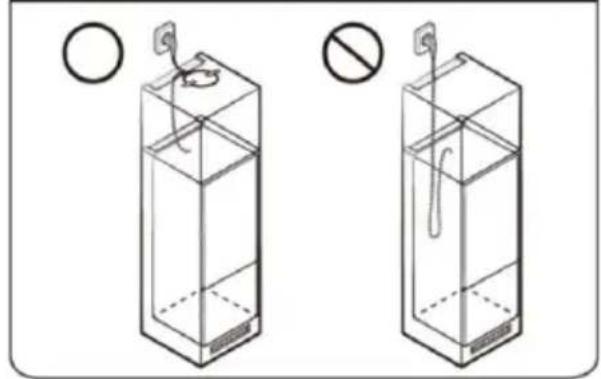

▶Ensure that the power cable is not trapped by the refrigerator. Do not step on the power cable.

WARNING!

▶Use a separate earthed socket for the power supply which is easy accessible. The appliance must be earthed. Only for UK: The appliance's power cable is fitted with 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.
▶Do not damage the refrigerant circuit.

Daily use

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
▶Children aged from 3 to 8 years are allowed to load and unload, but not allowed to clean or install the refrigerating appliances.
- Keep away children under 3 years of age from the appliance unless they are constantly supervised.
▶Children shall not play with the appliance.
▶If cool gas or other inflammable gas is leaking in the vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug a plug in the power cable of the refrigerator or any other appliance.
▶Notice that the appliance is set for operation at a specific ambient range between 10 and 43°C. The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range.
▶Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to ovoid personal injury caused by falling or electric shock caused by contact with water.
▶Do not pull on the door shelves. The door may be pulled slant, the bottle rack, may be pulled away, or the appliance may topple.
▶Open and close the doors only with the handles. The gap between the doors and between the doors and the cabinet is very narrow. Do not extend your hands in these areas to avoid pinching your fingers. Open or close the refrigerator doors only when there are no children standing within the range of door movement.

• When positioning the appliance, ensure the supply cord is not trapped or damaged.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
  ▶ To avoid contamination of food:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
  – Clean regularly surfaces that can come in contact with food and accessible drainage systems.

• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• If product is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

WARNING!

▶Do not store or use inflammable, explosive or corrosive materials in the appliance or in the vicinity.
▶Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures.
Do not set unnecessarily low temperature in the refrigerator compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst.
▶ Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.
- Do not use electrical devices inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Maintenance / cleaning
▶ Make sure children are supervised if they carry out cleaning and maintenance.
▶- Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage the compressor.

WARNING!

▶Hold the plug, not the cable, when unplugging the appliance.
▶Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.
▶Do not scrape off the frost with sharp objects. Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts.
▶ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
▶If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
▶Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service.
Eliminate the dust on the back of the unit at least once in the year to avoid hazard by fire, as well as increased energy consumption.
▶ Do not spray or flush the appliance during cleaning.
▶ Do not use water spray or steam to clean the appliance.
▶Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.

Refrigerant gas information

WARNING!

The appliance contains the flammable refrigerant ISOBUTANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open fire sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service.

In case of eyes get into contact with the refrigerant, rinse immediately it under running water and call immediately the eye specialist.

Intended use

This appliance is intended for cooling food. It has been designed exclusively for use in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments as wellas in bed-and-breakfast and catering business. It is not intended for commercial or industrial use.

Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.

Standards and directives CE

This product meets the requirements of all applicable EC directives with the corresponding harmonised standards, which provide for CE marking.

4

1

2

3

CML5518EVWL

1 Ordinary shelves
2 Bottle holder
3 Ordinary larder drawer
4 Fan and LED interior light

NOTICE

Due to technical changes and different models, some of the illustrations in this manul may differ from your model.

4 5 6 1 2 3

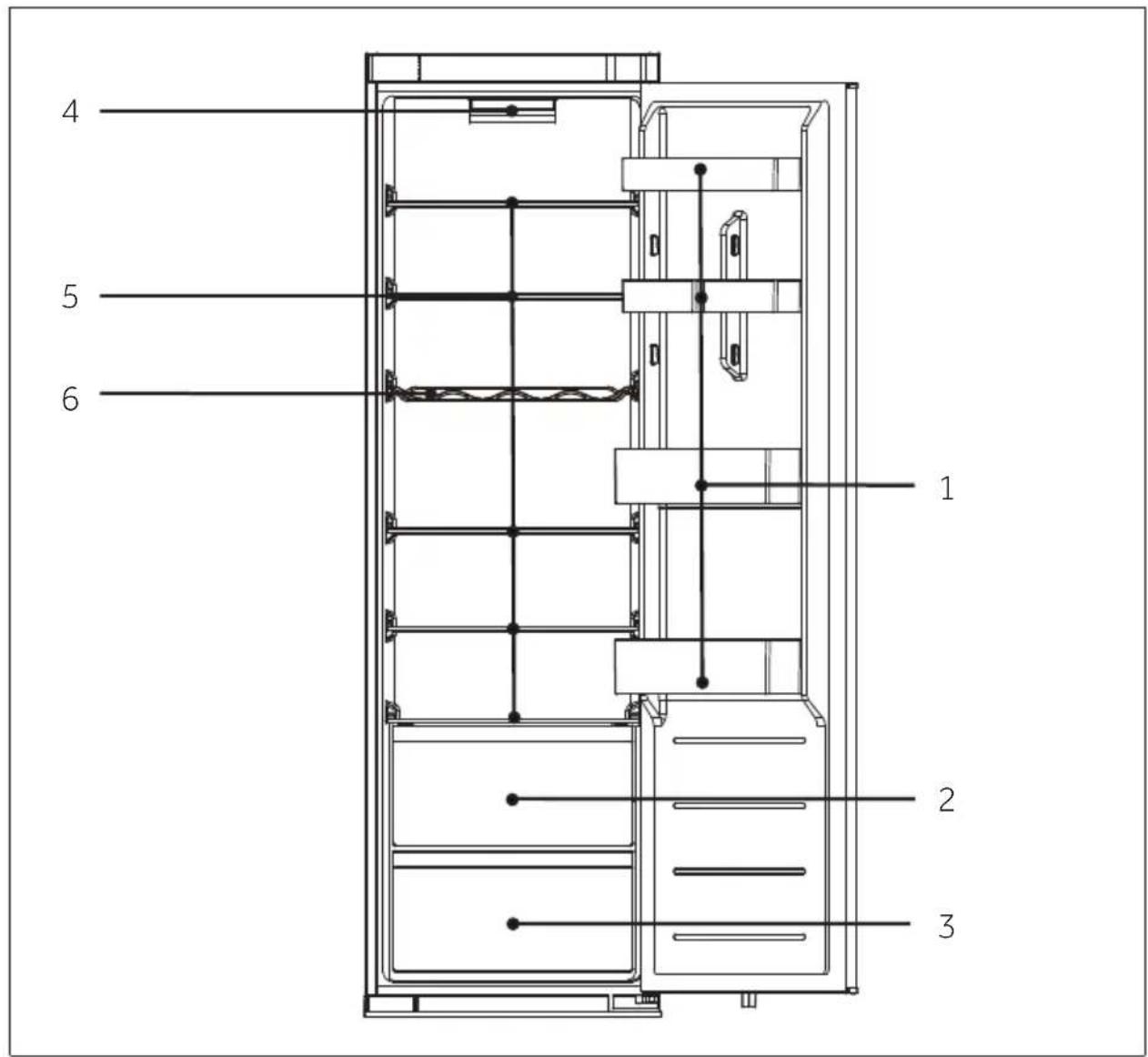

RML5518EVWL

1 Bottle holder
2 Adaptive Humidity drawer
3 Ordinary shelves
4 Fan and LED interior light
5 Ordinary larder drawer
6 Wine rack

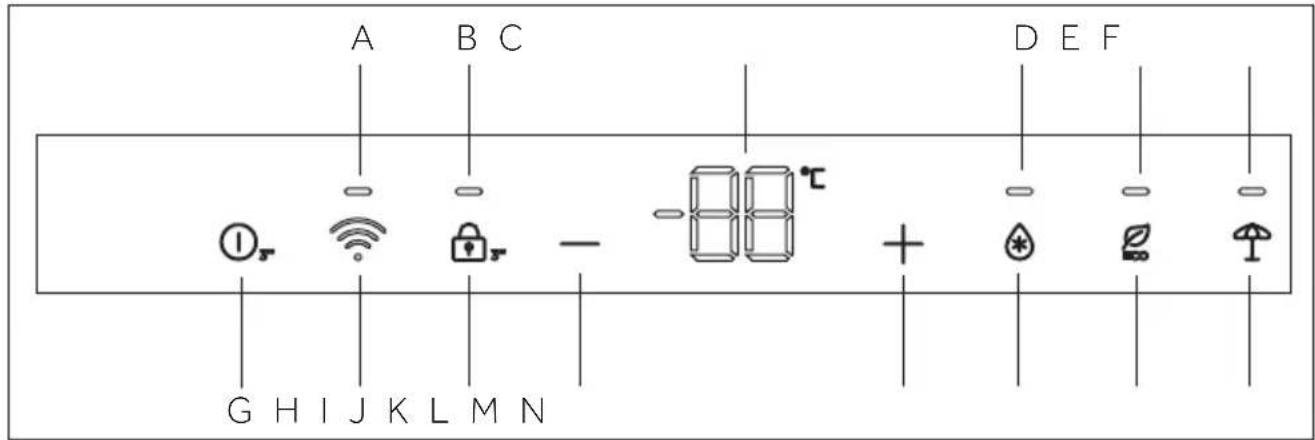

Control panel

A B C ① ② ③ ④ D E F G H I J K L M N

Indicators:

A Wi-Fi function icon
B Lock/Unlock icon
C Temperature display icon
D Super Cool function icon
E ECO function icon
F Holiday function icon

Buttons:

G ON/OFF key
H Wi-Fi matching key
I Lock/Unlock key J Lower temperature key
K Raise temperature key
L Super Cool function key
M ECO function key
N Holiday function key

Sensor keys

The buttons on the control panel are sensor keys, which already respond when lightly touched with the finger.

Please open the refrigerator door first before controlling the display screen.

Lock/Unlock function

This key and its icon are used to lock or unlock the control screen and indicate its current status.

Open the refrigerator door while the refrigerator is working, the control screen will light up and the Lock/Unlock icon is on, at this time, the control screen is under locked state and can not be operated.

Manually unlocking or locking the screen: When the Lock/Unlock icon is lit up, please keep touching the Lock/Unlock key for 3 seconds. The icon will go out and be accompanied by a beep prompt. At this time, function selection or temperature adjustment can be performed.

When the Lock/Unlock icon is turned off, please keep touching the Lock/Unlock key for 3 seconds. Then the Lock/Unlock icon will light up and be accompanied by a beep prompt. At this time, function selection or temperature adjustment cannot be performed.

Automatic screen lock: When the refrigerator door is closed, the control screen will turn off and be locked.

When the refrigerator door is opened, the control screen will automatically lock if there was no operation within 30 seconds.

ON/OFF function

ON/OFF key is used to switch between OFF(pause working status) and ON(normal working modes).

Enter OFF mode: Under the refrigerator working mode, first unlock the display, then keep touching ON/OFF function key for 3 seconds to turn off the control screen, refrigeration lighting, cooling and other functions with a prompt sound followed.

NOTICE

OFF mode is not power down, and the refrigerator is still powered on at this time.

Exit OFF mode: Under the OFF mode, keep touching the ON/OFF key for 3 seconds to restart the control screen, refrigeration lighting, cooling and other functions, accompanied by a prompt sound. The refrigerator will return the set temperature and function before and enter normal working mode.

Wi-Fi function

Wi-Fi matching : When the refrigerator is powered on at the first time, it will automatically enter network configuration mode, and the Wi-Fi function icon will flash quickly, and if there was no network matching operation, it would automatically exit after 30 minutes.

Manually enter Wi-Fi matching mode: After unlock the control screen, while the Wi-Fi function icon is on, keep pressing the Wi-Fi matching key for 3 seconds to enter the mode. During this time, the Wi-Fi function icon will flash quickly showing that it is under Wi-Fi matching mode. If there is no network matching operation, it will automatically exit after 30 minutes.

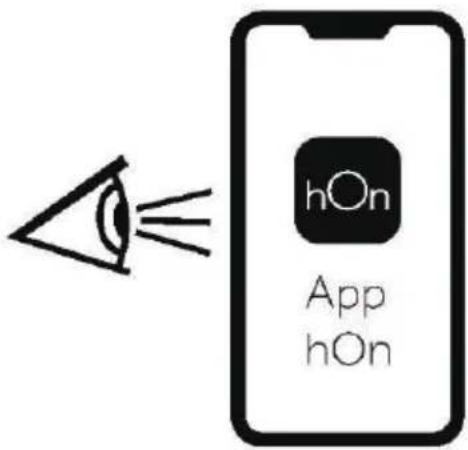

IN APP PAIRING PROCEDURE

Step 1

- Download the hOn app on the stores.

GET IT ON Google Play

EXPLORE IT ON AppGallery

Step 2 Step 3 Create an account on the hOn app or log in if you already have an account.

Welcome! Signs to order to your latest Add to Delete Post, welcome Candy! Click above to deliver our products Add to

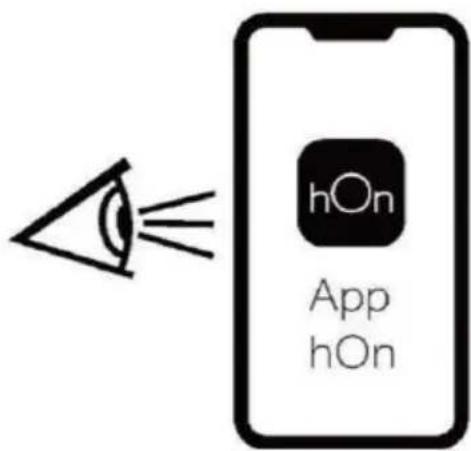

Follow pairing instructions in the hOn-App.

hOn App hOn

NOTICE

Under Wi-Fi matching mode, you should follow the app's instructions to complete network configuration. If you need to change the Wi-Fi environment, you need to enter the mode again. If the WiFi function icon stays on, it indicates that the network has been connected successfully.

Adjust the temperature for larder

After opened the refrigerator door and unlocked the control screen, the Lower temperature key is used to lower the set temperature of the refrigerator. Every time the key is lightly touched, the temperature will reduce 1°C, and the allowed minimum temperature is 1°C.

After opened the refrigerator door and unlocked the control screen, the Raise temperature key is used to raise the set temperature of the refrigerator. Every time the key is lightly touched, the temperature will increase 1 ^ C, and the allowed maximum temperature is 9 ^ C.

During the operation, the Temperature display icon will display the set temperature and flash. The control screen will automatically confirm the set temperature after 5 seconds and then display the current actual temperature. After completing the setting, the refrigerator gradually changes from the actual temperature to the set temperature. So there may be a deviation between the actual temperature and the set temperature for a period of time.

Super Cool function

This key and its icon are used to switch the Super Cool function of the refrigerator and display the current status.

After opened the refrigerator door and unlocked the control screen, lightly touch the Super Cool function key, and the Super Cool function icon will light up, the refrigerator is under the mode already; If you need to exit the mode, you could use the same operation lightly touching the Super Cool function key.

Under the function, the temperature will probably approach 0°C, and the refrigerator will automatically exit this function after 6 hours to avoid that the temperature is too low to damage the food.

ECO function

After opened the refrigerator door and unlocked the control screen, lightly touch the ECO function key, and the ECO function icon will light up, the refrigerator is under the mode already; If you need to exit the mode, you could use the same operation lightly touching the ECO function key.

Under ECO mode, the refrigerator will automatically operates at an average temperature of 5^ C.

Holiday function

After opened the refrigerator door and unlocked the control screen, lightly touch the Holiday function key, and the Holiday function icon will light up, the refrigerator is under the mode already; If you need to exit the mode, you could use the same operation lightly touching the Holiday function key.

Under Holiday function mode, the refrigerator will automatically operates at an average temperature of 17^ C.

NOTICE

Due to the different operating logic of special functions such as Super Cool function, ECO function, and Holidays function, these special modes cannot be activated at the same time. Only one function can be activated, and when switching between the modes, other special modes will be automatically exit. In addition, the set temperature can be changed unless these modes are exited.

5 °C is the ideal mode for fresh foods such as fruit and vegetables, dairy products, meats and drinks.

Equipment

Humidity Zone drawer

In this compartment the humidity level is higher than fridge compartment. It is controlled automatinally by the system and is suitable to storefriuits, vegetable, salsads, etc.

zone.

It maintains the humidity.

to be stored in this drawer.

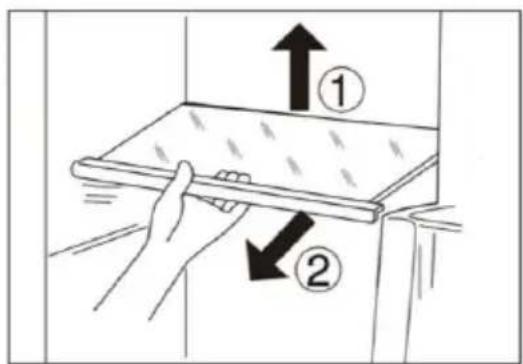

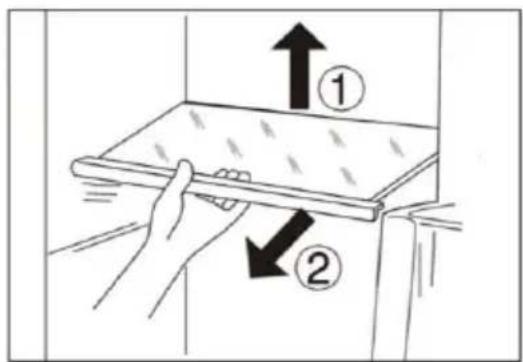

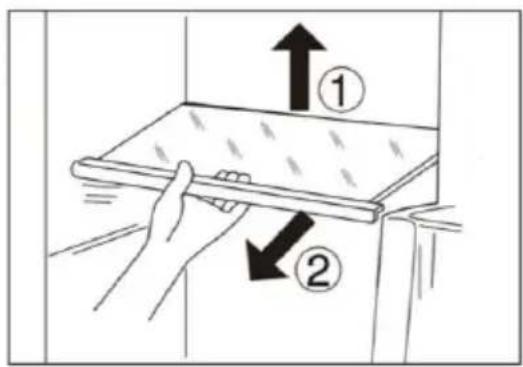

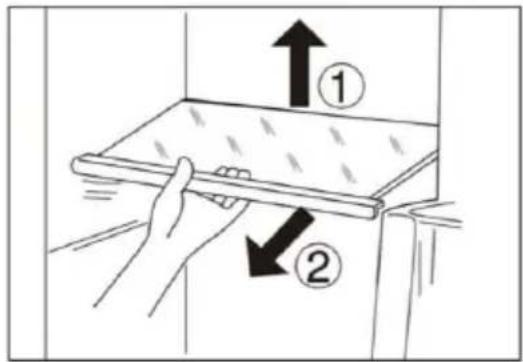

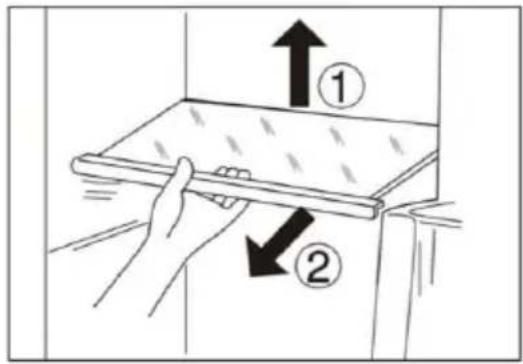

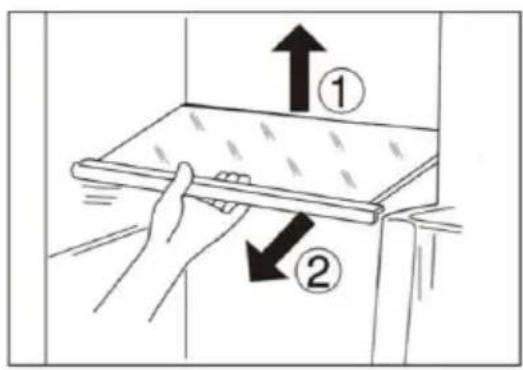

Adjustable shelves

1. The height of the shelves can be adjusted to fit your storage needs.
2. To relocate a shelf, remove it first by uplifting its hind edge ① and pulling it out ②.
3. To reinstall it, put it on the lugs on both sides and push it to the most rearward position until the rear of the shelf is fixed inside the slots in the sides.

Ensure that all ends of a shelf are level.

1. The door racks can be removed for cleaning:
2. Place hands on each side of the rack, lift it upwards ① and pull it out ②.
3. In order to insert the door rack, the above steps are carried out in reverse order.

1 1

2

NOTICE

When the appliance is switched on, it may take up to 12 hours for the correct temperatures to be reached.

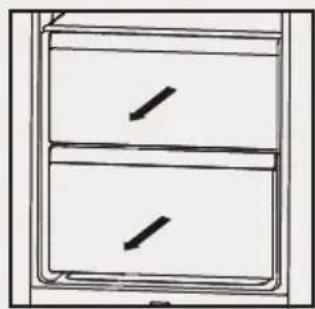

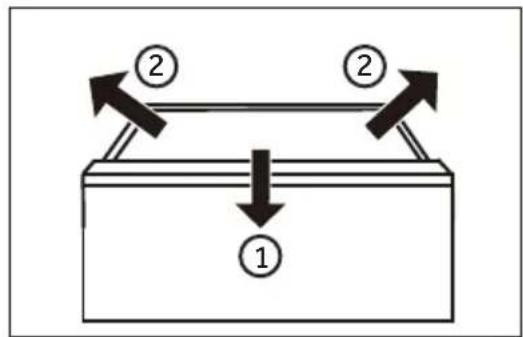

Removable drawer

To remove the drawer out, pull out to the maximum extent ①, lift and remove ②.

In order to insert the drawer, the above steps are carried out in reverse order.


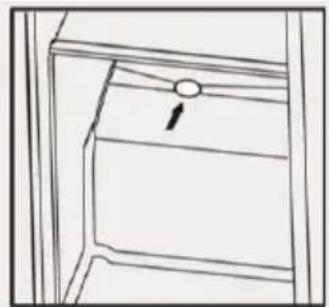

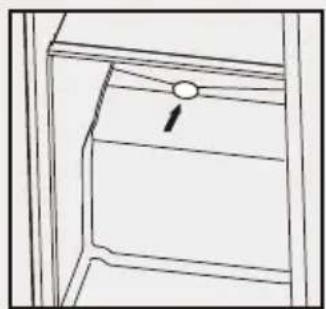

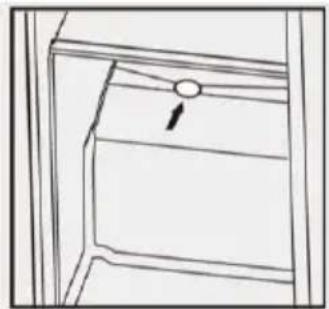

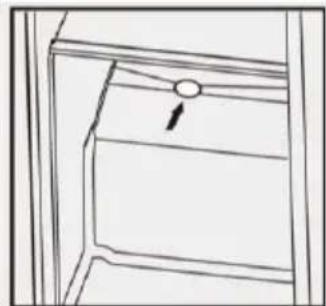

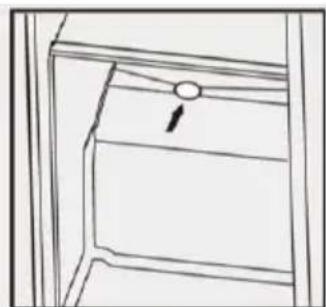

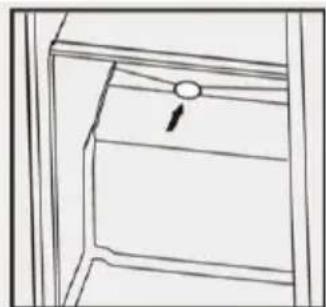

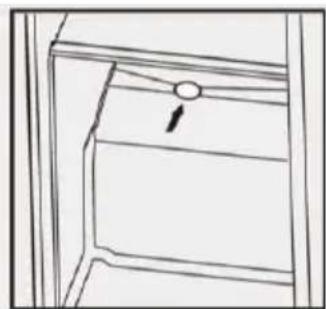

The Light

The LED interior light comes on when the door is opened. The performance of the lights is not affected by any of the appliances other settings.

Energy saving tips

▶ Make sure the appliance is properly ventilated (see INSTALLATION).
▶ Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters).
- Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature in the appliance is set.
▶ Functions like super Cool consume more energy.
▶ Allow warm food to cool down before placing it in the appliance.
▶ Open the appliance door as little and as briefly as possible.
▶ Do not the fill appliance to avoid obstructing the air flow.
▶ Avoid air within the food packaging.
- \$seals clean so that the door always closes correctly.

The most energy-saving configuration requires the appliance keep drawers, food box and shelves on factory-fresh condition, and food should be places as far as possible without blocking the air outlet of the duct.

WARNING!

Disconnect the appliance from the power supply before cleaning.

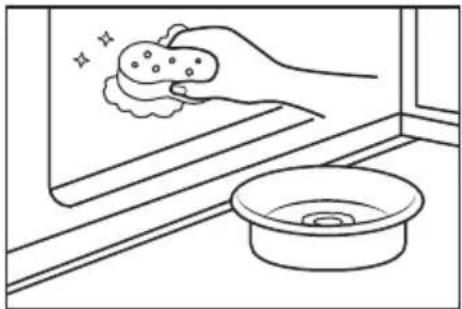

Cleaning

Clean the appliance when only little or no food is stored.

The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odors.

WARNING!

▶ Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.
▶ Do not spray or flush the appliance during cleaning.
▶ Do not use water spray or steam to clean the appliance.
▶ Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.

Simple line drawing of a hand cleaning a cloud near a sink bowl (no text or symbols)

▶ Always keep the door gasket clean.
▶ Clean the inside and housing of the appliance with a sponge dampened in warm water and neutral detergent.
▶ 1. Please scrub the interior and exterior of the refrigerator, including door sealing, door rack, glass shelves, boxes and so on, with a soft towel or sponge dipped in warm water (you may add neutral detergent into the warm water).

▶ 2. If there is liquid spilled, remove all the contaminated parts, directly rinse with the flow water, dry and place it back into the fridge.
▶ 3. If there is spilled cream (such as the cream, melting ice cream), please remove all the contaminated parts, put into the warm water with about 40 °C for some time, then rinse with the flow water, dry and place it back into the fridge.
▶ 4. In case some small part or component gets stuck inside of the fridge (between shelves or drawers), use small soft brush to release it. If you could not reach the part, please contact Haier service
▶ Rinse and dry with soft cloth.
▶ Do not clean any of the parts of the appliance in a dishwasher.
▶ Allow at least 5 minutes before restarting the appliance as frequent starting may damage the compressor.

NOTICE

The drainage outlet cannot be blocked by foreign objects, otherwise there may be a problem of water overflow. If the drainage outlet is blocked, you can take out the drawer and clean it with a cloth.

Simple line drawing of a two-tier cabinet with two drawers and an arrow indicating direction (no text or symbols)

Line drawing of a cabinet or drawer with an arrow pointing to the interior panel (no text or symbols)

Defrosting

When too many items are placed or the door is opened and closed too frequently, frost is likely to appear at the back of the larder, requiring manual defrosting.

Replacing the LED-lamps

Do not replace the LED lamp yourself, it must only be replaced by either the manufacturer or the authorised service agent.

The lamps adopts LED as its light source, featuring low energy consumption and long service life. If there is any abnormality, please contact the customer service. See CUSTOMER SERVICE.

Parameters of the lamps:

Refrigerator compartment: 12 V max 1.5W

This product contains a light source of energy efficiency class .

Non-use for a longer period

If the appliance is not used for an extended period of time, and you will not use the Holiday-function for the refrigerator:

Take out the food

Unplug the power cord.

Clean the appliance as described above.

Keep the doors open to prevent the creation of bad odours inside.

NOTICE

Turn the appliance off only if strictly necessary.

Moving the appliance

1. Remove all food and unplug the appliance.
2. Secure shelves and other moveable parts in the larder with adhesive tape.
3. Do not tilt the refrigerator more than 45^ to avoid damaging the refrigerating system.

▶ Do not lift the appliance by its handles.
▶ Never place the appliance horizontally on the ground.

Many occurring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE.

WARNING!

▶Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages.

▶ A damaged supply should only be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Problem Possible Cause Possible Solution
The compressor does not work.	Mains plug is not connected in the mains socket.The appliance is in the defrosting cycle.	Connect the mains plug.This is normal for an automatic defrosting
The appliance runs frequently or runs for a too long period of time.	The indoor or outdoor temperature is too high.The appliance has been off power for a period of time.A door of the appliance is not tightly closed.The door has been opened too frequently or for too long.The temperature setting for the larder compartment is too low.The door gasket is dirty, worn, cracked or mismatched.The required air circulation is not guaranteed.	In this case, it is normal for the appliance to run longer.Normally, it takes 8 to 12 hours for the appliance to cool down completely.Close the door/drawer and ensure the appliance is located on a level ground and there is no food or container jarring the door.Do not open the door/drawer too frequently.Set the temperature higher until a satisfactory refrigerator temperature is obtained. It takes 24 hours for the refrigerator temperature to become stable.Clean the door/drawer gasket or replace them by the customer service.Ensure adeduate ventilation.
The inside of the refrigerator is dirty and/or smells.	The inside of the refrigerator needs cleaning.Food of strong odour is stored in the refrigerator.	Clean the inside of the refrigerator.Wrap the food thoroughly.
Problem Possible Cause Possible Solution
It is not cold enough inside the appliance.	The temperature is set too high.Too warm goods has been stored.Too much food has been stored at one time.The goods are too close to each other.A door/drawer of the appli-ance is not tightly closed.The door/drawer has been opened too frequently or for too long.	Reset the temperature.Always cool down goods be-fore storing them.Always store small quantities of food.Leave a gap between several foods allowing air flowing.Close the door/drawer.Do not open the door/drawer too frequently.
It is too cold inside the appli-ance.	The temperature is set too low.The Super Cool function is activated or is running too long.	Reset the temperature.Switch off the Super Cool function.
Moisture forma-tion on the inside of the refrigerator compartment.	The climate is too warm and too damp.A door/drawer of the appli-ance is not tightly closed.The door/drawer has been opened too frequently or for too long.Food containers or liquids are left open.	Increase the temperature.Close the door/drawer.Do not open the door/drawer too frequently.Let hot foods cool to room temperature and cover foods and liquids.
Moisture accumulates on the refrigerators outside surface or between the doors/door and drawer.	The climate is too warm and too damp.The door is not closed tightly. The cold air in the appliance and the warm air outside it condensates.	This is normal in damp climate and will change when the hu -midity decreases.Ensure that he door/drawer is tightly shut.
Display light work, but do not feel cool.	It is in the demo mode.	Please note what condition it is in,if it is in Demo mode, exit it.Exit: Hold the "ECO" button, and click the "Super freeze" key 5 times in 5s.
The sides of the cabinet and door strip get warm.		.lamron si sihT •- •
The appliance makes abnormal sounds.	• The appliance is not located on level ground.• The appliance touches some object around it.	• Adjust the feet to level the appliance.• Remove objects around the appliance.
A slight sound is to be heard similar to that of flowing water.		.lamron si sihT •- •
You will hear an alarm beep.	• The fridge storage compartment door is open.	• Close the door.
You will hear a faint hum.	• The anti-condensation system is working.	• This prevents condensation and is normal.
The interior lighting or cooling system does not work	• Mains plug is not connected in the mains socket.• The power supply is not intact.• The LED-lamp is out of order.	• Connect the mains plug.• Check the electrical supply to the room. Call the local electricity company!• Please call the service for changing the lamp.

To contact the technical assistance, visit our website: https://corporate.haier-europe.com/en/

Under the section "website", choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance.

Power interruption

In the event of a power cut, food should remain safely cold for about 5 hours. Follow these tips during a prolonged power interruption, especially in summer:

▶ Open the door/drawer as few times as possible.
▶ Do not put additional food into the appliance during a power interruption.
▶ If prior notice of a power interruption is given and the interruption duration is longer than 5 hours, make some ice and put it in a container in the top of the refrigerator compartment.
▶ An inspection of the goods is required immediately after the interruption.
▶ As temperature in the refrigerator will rise during a power interruption or other failure, the storage period and edible quality of food will be reduced.

Memory function during power interruption

After restoration of power the appliance continues with the settings that were set before the power failure.

Unpacking

RNING!

The appliance is heavy. Always handle with at least two persons.
- Keep all packaging materials out of children's reach and dispose them in an environmentally friendly manner
▶ Take the appliance out of the packaging.
▶ Remove all packaging materials.

Environmental conditions

The room temperature should always be between 10^ C and 43^ C, since it can influence the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators)

Space suggestion

Suggested space when door is opened (Without cabinet door panel)

01 02 03 04 05 06 07

Model	CML5518EVWLRML5518EVWL
01*	10 (Min.) / 30 (Recommended)
02	95°(Recommended)
03	43
04 583
05 515
06	-3
07 1060

(unit : mm)

* 01Frcabinetroroductear fp

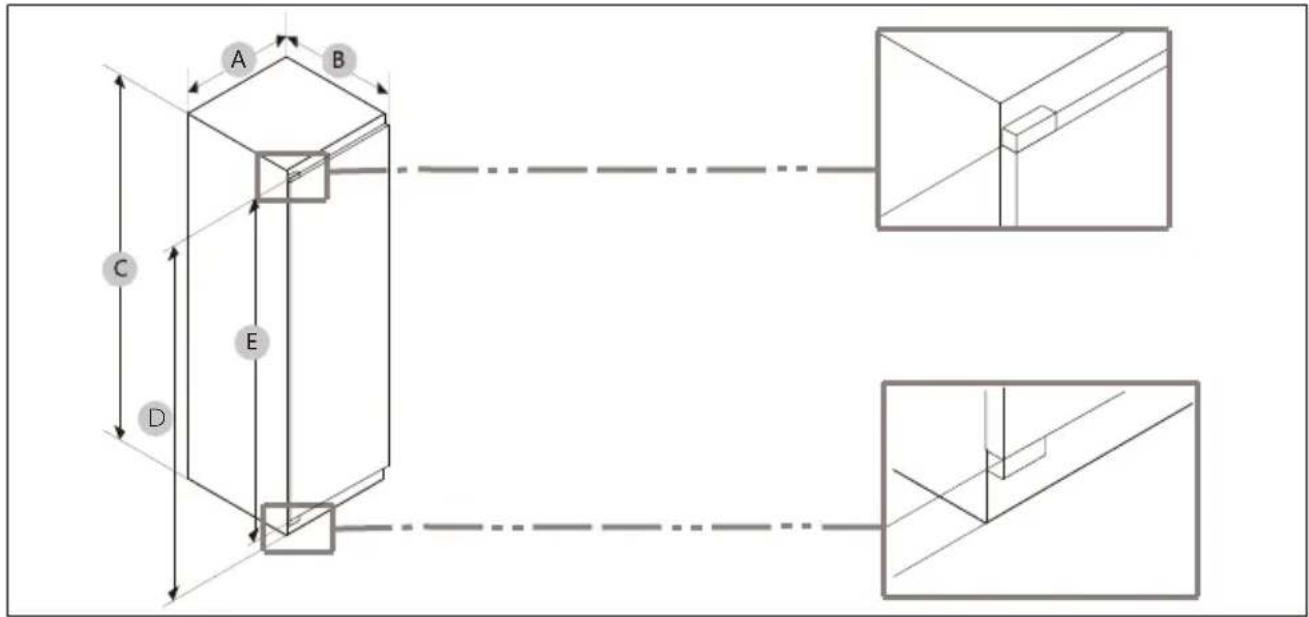

Product dimention

A B C D E

Model	A(mm) B(mm)		C(mm) D(mm)		E(mm)
CML5518EVWL RML5518EVWL	540±2550±21772±2				16711715

NOTICE

• The specified energy consumption is based on the condition of a 10 mm gap from cabinet to rear of product. The product will work properly even with a gap which is less than 10 mm, however, consumes slightly more energy.
  • We recommend using a cabinet that is 19mm thick with hinges less than 17mm thick.
  • The measurements in the above table may differ depending on the method.
• For built-in installation the Installation Guide.

Ventilaton cross-section

To achieve sufficient ventilation of the appliance for safety reasons, the information of the required ventilation cross sections must be observed.

200cm² 200cm² 200cm² 200cm² 200cm² A B

A : Ventilation≥2000cm² B : Ventilation≥2000cm² B1 B2 A1 A2

Cabinet dimension

Socket Max 2100mm A B C D E B A

CAUTION!

Any product failure due to the following is not covered by the Warranty.

1. Improper site conditions or incorrect cabinet sizes.
2. Defective cabinet.
3. Mistakes by the installer or the user.

Clearance

See the pictures and tables below for space requirements for installation.

Model		A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	Remark
CML5518EVWLRML5518EVWL	Min.	50 400		560 177	8	560	Hinge : 17mm
	Recommend			580	1780	562
	Max.			-	1782	568

NOTICE

• If the width of a cabinet is larger than 568 feet (between the refrigerator and the cabinet) can become loose.
• If the cabinet is higher than by you demonstrate extension (1782 mm), her finishing materials to fill the gap.

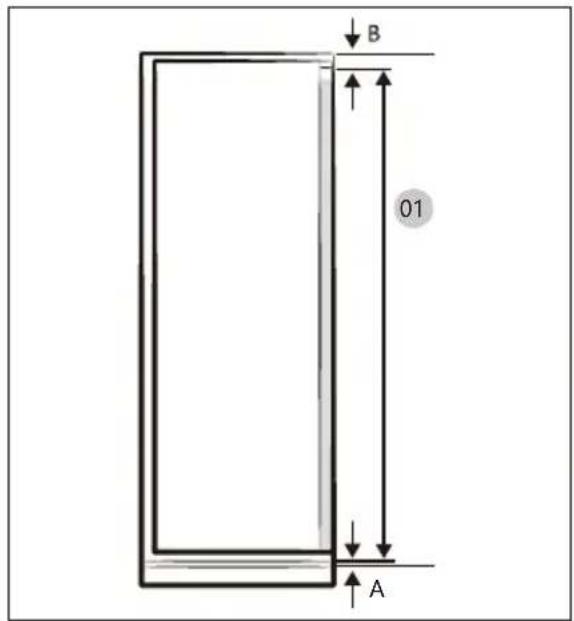

B 01 A

A.Lowgorenta above the f p nel e the air ventilation
B.Frooverpanel h

Model	CMT5518EVWFRMT5518EVWF
01	Min. 1694+A+BMax. 1850+A+B

(unit) : mm

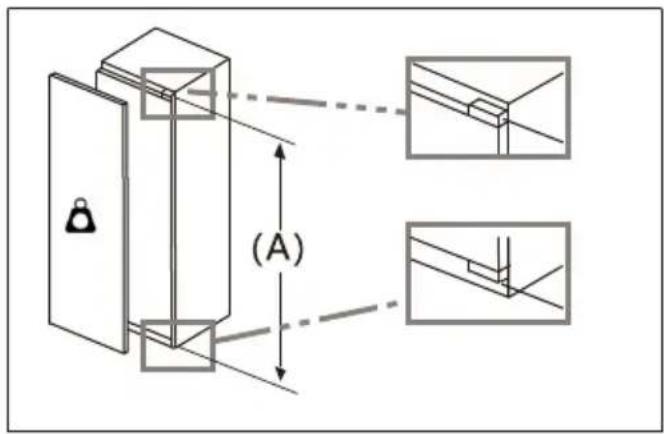

Maximal permissible weight of the unit fronts

(A)

Fitted unit fronts that exceed the permissible weight may cause damage and result in functional impairment of the hinges.

Weight (kg)

1500-1750 mm	22
720-1400 mm	19

Consideration for socket outlet location and required space

≥590mm ≤2100mm ≥560mm

NOTICE

If you install the refrigerator in a cabinet with a 560 mm depth, make sure the power cord is arranged on a side of the refrigerator before plugging into a power socket. If the power cord is in the rear of the refrigerator, it could decrease the energy efficiency.

Waiting time

2 h

To the maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during slanting transport. Before connecting the appliance to the power supply you have to wait at least 2 hours so that the oil runs back into the capsule.

Electrical connection

Before each connection check if:

▶power supply, socket and fusing are appropriate to the rating plate.
▶the power socket is earthed and no multi-plug or extension.
▶the power plug and socket are strictly according.

Connect the plug to a properly installed household socket.

WARNING!

To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).

Product fiche according to regulation EU No. 2019/2016

Brand	CANDY	Rosieres
Model name/identifier	CML5518EVWL	RML5518EVWL
Category of the model	Larder	Larder
Energy efficiency class	E	E
Annual energy consumption(kWh/year)(1)	115	115
Total volume(L)	315	315
Volume larder(L)	315	315
Volume freezer(L)	/	/
Volume chiller section(L)	/	/
Volume auto ice maker(L)	/	/
Star rating	/	/
Temperature of other compartments>14°C	Non applicable	Non applicable
Frost-free system	NO	NO
Freezing capacity(kg/24h)	/	/
Climate rating(2)	SN/N/ST/T SN/N/ST/T
Noise emission class and airborne acoustical noise emissions(db(A)re1pW)	C38	C38
Temperature rise time(h)	/	/
Ice making capacity	/	/
Type of appliance	Built-in	Built-in

Model name	Energy efficiency class
CML5518EVWL	E
RML5518EVWL	E

Explanations:

- Yes, featured

(1) Based on the results of the standards conformance test over 24 hours. The actual consumption depends on the use and the location of the appliance.
(2) Climate rating SN: This appliance is intended for use in an ambient temperature of between +10°C and +32°C
Climate rating N: This appliance is intended for use in an ambient temperature of between +16°C and +32°C
Climate rating ST: This appliance is intended for use in an ambient temperature of between +16°C and +38°C
Climate rating T: This appliance is intended for use in an ambient temperature of between +16°C and +43°C

Additional technical data

Voltage / Frequency	220-240V ~/ 50Hz
Input current (A)	1.0
Main fuse (A)	16
Coolant	R600a
Dimensions (H/W/D in mm)	1772/540/550

RF information

The max e.i.r.p.: Bluetooth(BR/EDR): 10dBm

Bluetooth LE: 5dBm

2.4GHz Wi-Fi: 16dBm

Frequency band of operation:2400-2483.5MHz

We recommend our Haier Customer Service and the use of original spare parts. If you have a problem with your appliance, please first check section TROUBLE-SHOOTING.

If you cannot find a solution there, please contact

▶ your local dealer or
▶ our European Call Service-Center (see listed phone numbers below) or
▶ the Service & Support area at www.haier.com where you can activate the service
▶ claim and also find FAQs.

To contact our Service, ensure that you have the following data available. The information can be found on the rating plate.

Model

Serial No. ____

Also check the Warranty Card supplied with the product in case of warranty.

European Call Service-Center
Country*	Phone number Costs
Haier Italy (IT)	199 100 912
Haier Spain (ES)	902 509 123
Haier Germany (DE)	0180 539 3999	• 14 Ct/Min Landline• max 42 Ct/Min Mobile
Haier Austria (AT)	0820 001 205	• 14,53 Ct/Min Landline• max 20 Ct/Min all others
Haier United Kingdom (UK)	0333 003 8122
Haier France (FR)	0980 406 409

* For other countries please refer to www.haier.com

Haier Europe Trading S.r.l

Branch UK

Westgate House, Westgate, Ealing

London, W5 1YY

*Duration of the guarantee of the refrigerating appliance:

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

*The period of spare parts for the repair of the appliance:

Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market.

Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.

*For further information about the product, please consult https://eprel.ec.europe.eu/ or scan the QR on the energy label supplied with the appliance.

A B C D E F G H I J + K L M N

Indikátory:

POSTUP PÁROVÁNÍ S APLIKACÍ

EXPLORE IT ON AppGallery

Welcome! Sign On the order or upgrade home GET-4 SAVE? Print, service / Cavity/ CASH certificate / Insurance / product NEXTEND

hOn App hOn

UPOZORNĚNÍ

Pure architectural or structural diagram showing a vertical frame with a horizontal beam and an upward arrow, no text or symbols present.

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Nastavitelné police

Diagram showing two labeled arrows (① and ②) pointing upward and downward on a rectangular object, likely illustrating a mechanical or fluid system.

UPOZORNĚNÍ

Line drawing of a hand cleaning a window with a soap bubble and a basin (no text or symbols)

Simple line drawing of a two-down drawer with two arrows pointing downward (no text or symbols)

Line drawing of a cabinet or drawer with an arrow pointing to the interior panel (no text or symbols)

Odmrazování

≥590mm ≤2100mm ≥560mm

UPOZORNĚNÍ

Max. EIRP: Bluetooth (BR/EDR): 10 dBm

Bluetooth LE: 5 dBm

2,4GHz Wi-Fi: 16 dBm

A B C D E F G H I J - + K L M N

Anzeigen:

EXPLORE IT ON AppGallery

hOn App hOn

HINWEIS

Pure architectural or mechanical diagram showing a rectangular frame with a horizontal double bar and an upward arrow, no text or symbols present.

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Diagram showing two labeled components with upward and downward arrows indicating movement or force directions.

HINWEIS

Line drawing of a hand washing a soap bubble above a sink, with no text or symbols present.

Simple line drawing of a two-compartment drawer with two downward arrows (no text or symbols)

Line drawing of a cabinet or drawer with a handle and arrow pointing to the interior (no text or symbols)

Abtauen

≥590mm ≤2100mm ≥560mm

HINWEIS

Max. EIRP: Bluetooth (BR/EDR): 10dBm

Bluetooth LE: 5dBm

2,4 GHz WLAN: 16dBm

A B C D E F G H I J K L M N

Ενδείξεις:

EXPLORE IT ON AppGallery

Welcome! Sign On to listen or order flower GET-PR BEGINUP Prout service C and? Check waiting before your visit ©footer

hOn App hOn

ΕΙΔΟΠΟΙΗΣΗ

Pure architectural or mechanical diagram showing a rectangular frame with an upward arrow, no text or symbols present.

Ρυθμιζόμενα ράφια

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Diagram showing two labeled arrows (① and ②) pointing upward and downward on a rectangular object, likely illustrating a mechanical or fluid system.

Εξοπλισμός

ΕΙΔΟΠΟΙΗΣΗ

Line drawing of a hand washing a soap bubble over a sink, with no text or symbols present.

Simple line drawing of a two-tier cabinet with two drawers and an arrow indicating direction (no text or symbols)

Line drawing of a cabinet or drawer with an arrow pointing to the interior panel (no text or symbols)

Απόψυξη

B1 B2 A1 A2

Εγκατάσταση

Διαστάσεις επίπλου

Πρίζα

Méy. 2100mm

ΠΡΟΣΟΧΗ!

≥590mm ≤2100mm ≥560mm

ΕΙΔΟΠΟΙΗΣΗ

A B C D E F G H I J + K L M N

Indicadores:

EXPLORE IT ON AppGallery

Welcome! Sign to be ordered for your home? Add Delete Print: Service Card; Add allowed to choose your product. OK OK

hOn App hOn

AVISO

Pure architectural or mechanical diagram showing a rectangular frame with a horizontal double bar and an upward arrow, no text or symbols present.

Estantes ajustables

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Diagram showing two labeled components with upward and downward arrows indicating movement or force directions.

AVISO

Line drawing of a hand cleaning a window with a soap bubble and a basin (no text or symbols)

B1 B2 A1 A2

≥590mm ≤2100mm ≥560mm

Two identical 3D rectangular containers with internal components, one open and one closed, both without any text or symbols.

AVISO

A B C D E F G H I J + K L M N

Voyants :

EXPLORE IT ON AppGallery

Welcome! Sign to order for user home GETUP SUPPORT Post session: CAdd? CHK down to discount to pre-sale SET CARD

hOn App hOn

INFORMATION

Simple line drawing of a hand washing a soap bubble above a sink, with no text or symbols present.

Simple line drawing of a two-tier cabinet with two drawers and an arrow indicating direction (no text or symbols)

Line drawing of a cabinet or drawer with an arrow pointing to the interior panel (no text or symbols)

Dégivrage

Pure technical diagram showing a structural component with arrows indicating direction, no text or symbols present.

Simple line drawing of a corner joint with directional arrows and hatched shading (no text or symbols)

Technical line drawing of a structural support frame with no text or symbols

Technical line drawing of a structural support frame with no visible text or symbols

≥590mm ≤2100mm ≥560mm

Two identical wireframe diagrams of a cylindrical container with a handle, one open and one closed, both without any text or symbols.

INFORMATION

A B C D E F G H I J + K L M N

Jelzőfények:

EXPLORE IT ON AppGallery

Welcome! Sign to the order of your store LOGO SUPPORT Print name: Cndar Copy name: D##our our product NOT Location

hOn App hOn

MEGJEGYZÉS

Pure architectural or mechanical diagram showing a rectangular frame with a horizontal double-headed arrow indicating upward motion (no text or symbols)

Állítható polcok

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating movement or force direction.

Diagram showing two directional arrows labeled ① and ② between a rectangular object with circular indicators, likely illustrating a mechanical or fluid system.

MEGJEGYZÉS

Line drawing of a hand washing a soap bubble near a sink with a basin (no text or symbols)

≥590mm ≤2100mm ≥560mm

MEGJEGYZÉS

A B C D E F G H I J + K L M N

Indicatori:

EXPLORE IT ON AppGallery

Welcome! Sign to be ordered for your homepage Add to Make up Print, save or copy? Cash displayed to discount or add prices © 2013-04-06

hOn App hOn

i AVVISO

Pure architectural or mechanical diagram showing a rectangular frame with a horizontal double bar and an upward arrow, no text or symbols present.

Ripiani regolabili

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Diagram showing two labeled components with upward and downward arrows indicating movement or force directions.

AVVISO

Line drawing of a hand cleaning a cloud near a sink (no text or symbols)

Simple line drawing of a two-compartment drawer with two downward arrows (no text or symbols)

Line drawing of a cabinet or drawer with an arrow pointing to the interior panel (no text or symbols)

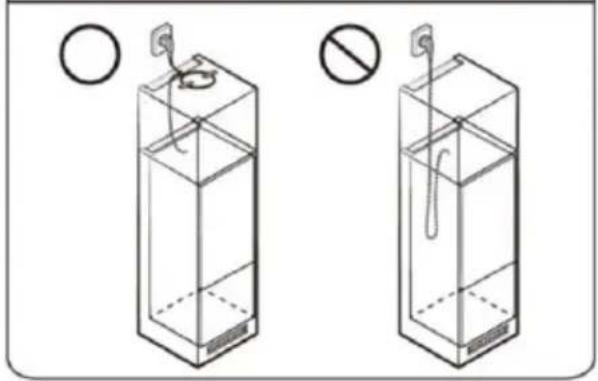

Sbrinamento

≥590mm ≤2100mm ≥560mm

Two technical line drawings of a battery casing with a circular component and a prohibition sign, no text or symbols present.

AVVISO

A B C D E F G H I J + K L M N

Indicatoren:

EXPLORE IT ON AppGallery

Welcome! Sign On the order or upgrade GET-4 CHANGE Print service Card#: C# Click to access your products © INFO!

hOn App hOn

LET OP

Pure architectural or mechanical diagram showing a rectangular frame with a horizontal double bar and an upward arrow, no text or symbols present.

Verstelbare planken

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating movement or force direction.

Diagram showing two labeled components with upward and downward arrows indicating movement or force directions.

LET OP

Line drawing of a hand washing a soap bubble above a sink, with no text or symbols present.

Simple line drawing of a two-tier cabinet with two drawers and an arrow indicating direction (no text or symbols)

Line drawing of a cabinet or drawer with an arrow pointing to the interior panel (no text or symbols)

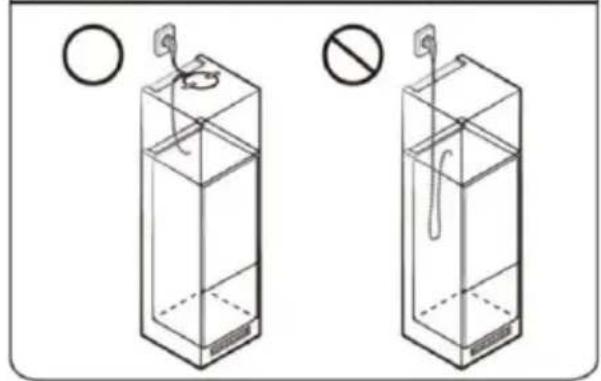

Ontdooien

≥590mm ≤2100mm ≥560mm

Two identical wireframe containers with a circular symbol above and a prohibition sign below (no text or labels)

LET OP

A B C D E F G H I J + K L M N

Wskaźniki:

EXPLORE IT ON HUAWEI AppGallery

Welcome! Sign to be edited or your friend. App NEWUP Print, send to a copy? Click to continue to access your product. NETCOME

hOn App hOn

UWAGA

Pure architectural or mechanical diagram showing a rectangular frame with a horizontal double-headed arrow indicating upward motion (no text or symbols)

Regulowane półki

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating movement or force direction.

Diagram showing two labeled arrows (① and ②) pointing upward and downward on a rectangular object, likely illustrating a mechanical or fluid system.

UWAGA

Line drawing of a hand washing a soap bubble near a sink with a basin (no text or symbols)

Simple line drawing of a two-tier cabinet with two drawers and an arrow indicating direction (no text or symbols)

Simple line drawing of a cabinet or drawer with an arrow pointing to the interior panel (no text or symbols)

Rozmrażanie

≥590mm ≤2100mm ≥560mm

Two identical 3D rectangular containers with internal components, one open and one closed, both marked with a prohibition sign (no text or symbols on the containers themselves)

UWAGA

A B C D E F G H I J + K L M N

Indicadores:

EXPLORE IT ON Huawei AppGallery

Welcome! Sign in the order to your friend. LOGI MESSAGE Print, save in Cardlog/ CASH comes to deliver your product. MESSAGE

hOn App hOn

AVISO

Pure architectural or mechanical diagram showing a rectangular frame with a central horizontal bar and an upward arrow, no text or symbols present.

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Diagram showing two labeled components with directional arrows and numbered circles, likely illustrating a mechanical or fluid system.

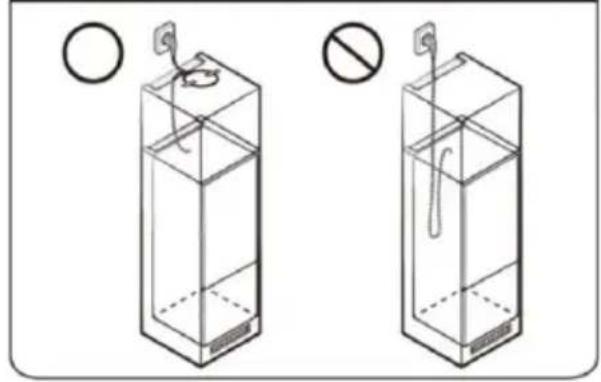

AVISO

Line drawing of a hand cleaning a window with a soap bubble and a basin (no text or symbols)

Simple line drawing of a two-tier cabinet with two downward arrows (no text or symbols)

Line drawing of a cabinet or drawer with an arrow pointing to the interior panel (no text or symbols)

Substituir as lâmpadas LED

AVISO!

B1 B2 A1 A2

Instalação

≥590mm ≤2100mm ≥560mm

AVISO

A B C D E F G H I J - + K L M N

Indicatoare:

I Tasta Blocare/Deblocare

HUAWEI EXPLORE IT ON AppGallery

Welcome! Sign to the client or your friend. GETABLE MESSAGE Print, send out a copy? Click to access your product. NOT LAYOUT

hOn App hOn

OBSERVATIE

Pure architectural or mechanical diagram showing a rectangular frame with a horizontal double bar and an upward arrow, no text or symbols present.

Rafturi ajustabile

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Diagram showing two labeled components with upward and downward arrows indicating movement or force directions.

OBSERVATIE

Line drawing of a hand cleaning a small bowl near a window (no text or symbols)

Simple line drawing of a two-tier cabinet with two downward arrows (no text or symbols)

Line drawing of a cabinet or drawer with an arrow pointing to the interior panel (no text or symbols)

Decongelarea

Pure technical diagram showing a structural component with arrows indicating direction, no text or symbols present.

Simple line drawing of a corner joint with directional arrows indicating movement (no text or symbols)

Technical line drawing of a structural support frame with no text or symbols

Technical line drawing of a structural support frame with no text or symbols

≥590mm ≤2100mm ≥560mm

OBSERVATIE

A B C D E F G H I J - + K L M N

Indikátory:

EXPLORE IT ON AppGallery

Welcome! Sign On the order to your home 2014 NEXTUP Post service: Candy/ CASH certificate: 80000000000000000000000000000000000000000000000000000000000000000000000000000000000000 NEXTUP

Krok 3 Postupujte podla pokynov na párovanie v aplikácii hOn.

hOn App hOn

OZNÁMENIE

Pure architectural or structural diagram showing a vertical frame with a horizontal beam and an upward arrow, no text or symbols present.

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating movement or force direction.

Diagram showing two labeled arrows (① and ②) pointing upward and downward on a rectangular object, likely illustrating a mechanical or fluid system.

OZNÁMENIE

Line drawing of a hand cleaning a window with a soap bubble and a basin (no text or symbols)

Simple line drawing of two stacked compartments with arrows indicating direction (no text or symbols)

Line drawing of a cabinet or drawer with an arrow pointing to the interior panel (no text or symbols)

Odmrazovanie

≥590mm ≤2100mm ≥560mm

OZNÁMENIE

Standardi in directive CE

A B C D E F G H I J - + K L M N

Kazalniki:

A Ikona funkcije Wi-Fi
B Ikona za zaklepanje/odklepanje
C Ikona za prikaz temperature
D Ikona funkcije Super Cool
E Ikona funkcije ECO
F Ikona funkcije Holiday

Gumbi:

EXPLORE IT ON AppGallery

Welcome! Sign On the order or support GET-5 SAVE? Print service Card? Call access to account out products © INFO!

hOn App hOn

OBVESTILO

Predal Humidity Zone

V tem predalu je raven vlažnosti višja kot v hladilniku. Sistem ga samodejno nadzoruje in je primeren za shranjevanje sadja, zelenjave, solate itd.

OBVESTILO

Pure architectural or mechanical diagram showing a rectangular frame with a central arrow and vertical supports (no text or symbols)

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating movement or force direction.

Nastavljive police

1. Višino polic lahko prilagodite tako, da ustrezajo vašim potrebam po shranjevanju.
2. Za premik police jo najprej odstranite tako, da dvignete njen zadnji rob ① in jo izvlečete ②.
3. Če jo želite ponovno namestiti, jo postavite na vodila na obeh straneh in potisnite do konca nazaj, dokler zadnji del police ni pritrjen v reže na strani.

OBVESTILO

Prepričajte se, da so vsi konci police poravnani.

Odstranljive police za vrata/nosilec za steklenice

Diagram showing two labeled arrows (① and ②) pointing upward and downward on a rectangular object, likely illustrating a mechanical or electrical system.

OBVESTILO

Line drawing of a hand cleaning a window with a soap bubble and a basin (no text or symbols)

Simple line drawing of a two-tier cabinet with two drawers and an arrow indicating direction (no text or symbols)

Simple line drawing of a cabinet or drawer with an arrow pointing to the interior panel (no text or symbols)

Odmrzovanje

≥590mm ≤2100mm ≥560mm

NOTICE

Abstract geometric composition with four gray triangular shapes arranged in a cross pattern (no text or symbols)

Haier

2024 Version A
