USER MANUAL EFT5100W BEKO

Line drawing of a beko air conditioner fan with visible blades and mounting base (no text or symbols on fan body)

EFT5100W

EN

Please read this user manual first!

Dear Customer,

Thank you for preferring a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in the various section of this manual:

Important information or useful hints about usage.

Warning for hazardous situations with regard to life and property.

Warning to actions that must never perform.

Warning for electric shock.

Warning for danger of fire.

Warning for hot surfaces.

This product has been produced in environmentally friendly, modern facilities Complies with the WEEE Regulation.

CONTENTS

1 Safety instructions 4
2 Installation instructions 6

2.1 Name of components....6

3 Instructions for use 8

4 Other 9

4.1 Maintenance instructions....9
4.2 Cleaning....9
4.3 Technical data 9
5 Disposal 10

1 Safety instructions

Warning

Read rules for safe operation and instructions carefully.

If the supply cord is damaged, it must be replaced by manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
Indoor use only.
To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Young children should be supervised to ensure that they do not play with the appliance.
When the appliance is not in use and before cleaning, unplug the appliance from the outlet.
When the fan was assembled, the rotor blade guard shall not be taken off anymore.
Correct disposal of this product.

This marking indicates that this product should not beosed with other household wastes throughout the EU. To vent possible harm to the environment or human health from controlled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

1 Safety instructions

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Rules for safe operation

Never insert fingers, pencils, or any other object through the grille when fan is running.
●Disconnect fan when moving from one location to another.
Be sure fan is on a stable surface when operating to avoid overturning.
- Do not use fan in window, rain may create electrical hazard.
Household use only.

2 Installation instructions

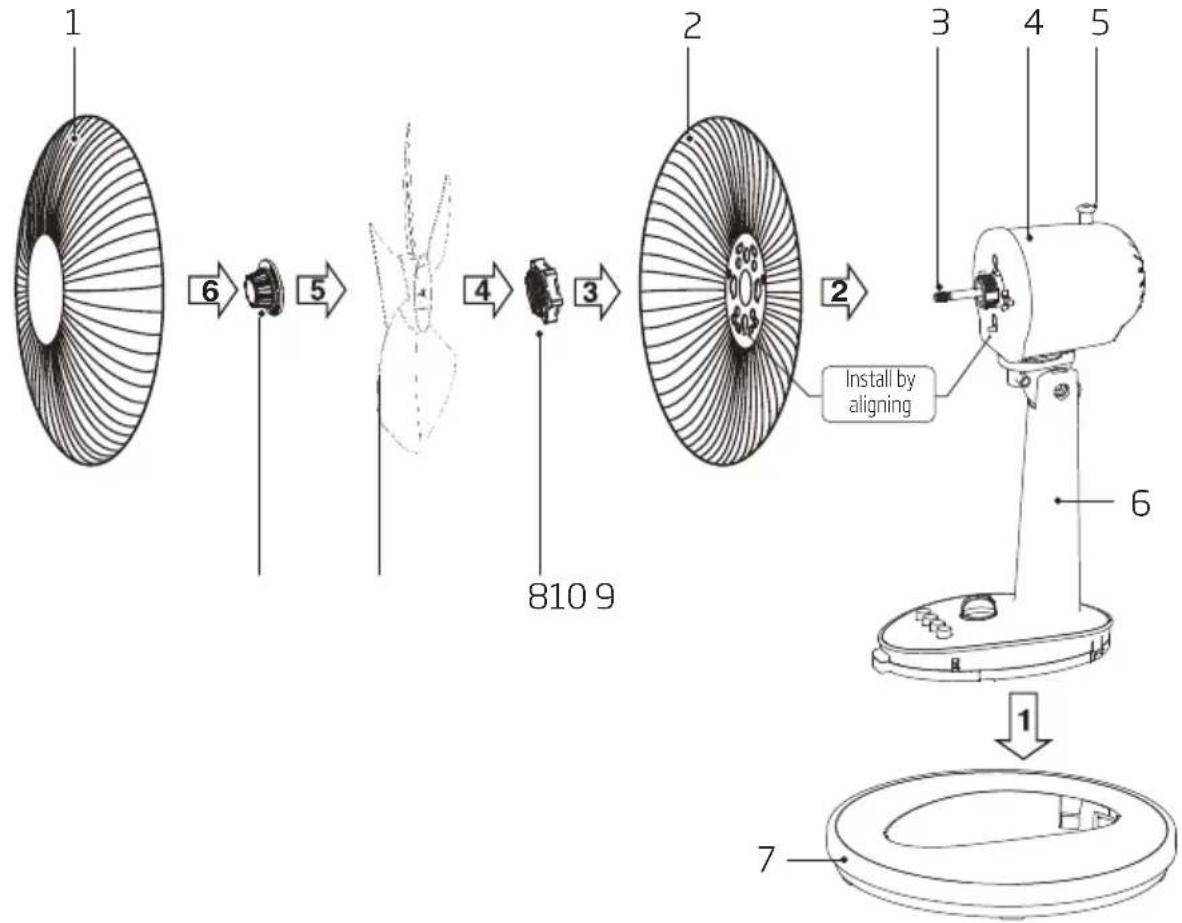

2.1 Name of components

1. Front grill
2. Rear grill
3. Motor shaft
4. Motor
5. Oscillating clutch knob
6. Pedestal
7. Chassis
8. Lock nut of grill

- Screw the lock nut of grill clockwise, and in the meantime, fix the rear grill.

1. Blade

- Pull the blade to rotate after installing, so as to ensure that the blade can be normally rotated.

1. Lock nut of blade

- Lock nut of blade anticlockwise, and then install the front fan cover.

2 Installation instructions

Press the grill by hands in order.

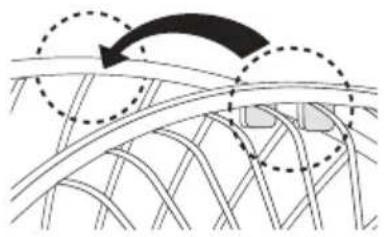

Graphic position that the clip of the front grill is aligned at the rear grill.

Diagram showing curved road networks with an arrow indicating direction (no text or symbols)

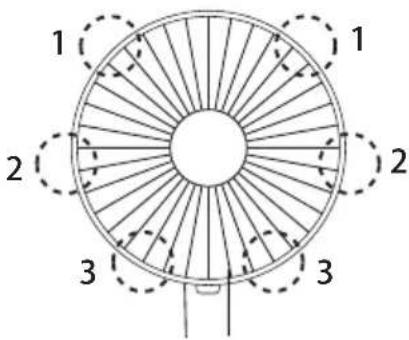

Press the grill by hands in order.

1 1 2 2 3 3

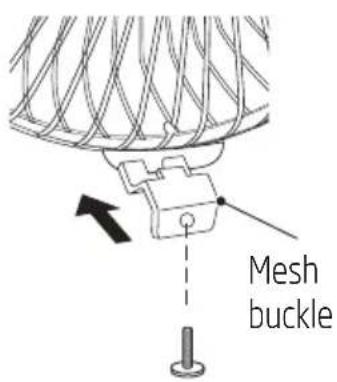

Self-buckled installation.

Mesh buckle

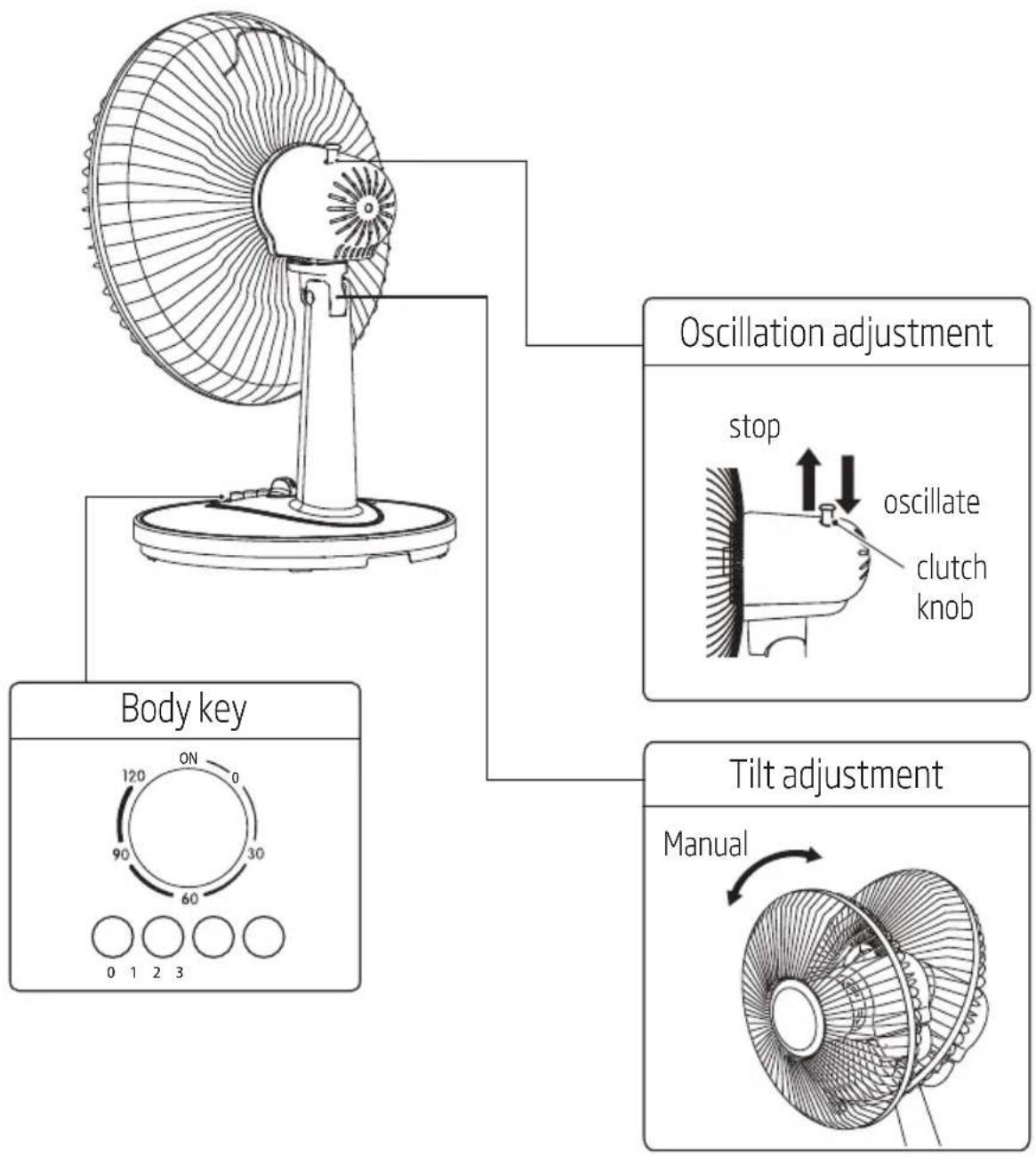

3 Instructions for use

Warm tips

Do not rotate the timer counter-clockwise to "ON" from "120".

4 Other

4.1 Maintenance instructions

The fan requires little maintenance. Do not try to fix it by yourself. Refer it to qualified service personnel if service is needed.

1. Before cleaning and assembling, fan must be unplugged.
2. To ensure adequate air circulation to the motor, keep vents at the rear of the motor free of dust. Do not disassemble the fan to remove dust.
3. Please wipe the exterior parts with a soft cloth soaking a mild detergent.
4. Do not use any abrasive detergent or solvents to avoid scratching the surface. Do not use any of the following as a cleaner: gasoline, thinner.
5. Do not allow water or any other liquid into the motor housing or interior parts.

4.2 Cleaning

1. Be sure to unplug from the electrical supply source before cleaning.
2. Plastic parts should be cleaned with a soft cloth moisten with mild soap. Thoroughly remove soap film with dry cloth.

4.3 Technical data

Power supply: 220V-240V, 50Hz

Technical and design modifications reserved.

5 Disposal

Note: Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Information
Description	Symbol Value		Unit
Maximum fan flow rate	F 43 m		^3/min
Fan power input	P 50 W
Service value	SV 0.86 (m)		^3/min)/W
Standby power consumption	P_SB	0	W
Fan sound power level L	WA	62 dB(A)
Maximum air velocity	C 2.60 meters/sec
Measurement standard for service value	IEC 60879: 1986+ (corr. 1992)
Contact details for obtaining more information	Arcelik: Arcelik A.S. Sutluce, Karaagac Cd. 2, 34445 Beyoglu Istanbul Turkey
