Product type	Steam iron
Brand	Ulsonix
Model	USX-ST3
Supply voltage	230 V ~
Frequency	50 Hz
Nominal power	1450 W
Number of steam levels	1
Preheat time	< 60 s
Maximum steam	36 g/min
Continuous working time	90 min
Maximum evaporation pressure	4 kPa
Water tank capacity	3.5 L
Protection class	I
Dimensions (L x W x H)	340 x 185 x 460 mm
Weight	5.2 kg
Water tank	Removable, capacity 3.5 L
Control type	On/off switch (I/O)
Main functions	Vertical and horizontal steam ironing
Included accessories	Steam head, holder, telescopic rod, steam hose, brush
Maintenance	Clean after use, use distilled or demineralized water
Housing material	Heat-resistant plastic

Frequently Asked Questions - USX-ST3 Ulsonix

How to assemble the steam cleaner?

First assemble the telescopic rod by connecting the tubes by screwing clockwise. Screw the rod onto the appliance. Slide the steam head holder onto the rod. Attach the steam hose to the machine. Optionally, screw the brush onto the steam head. For more details, refer to the Assembly of the appliance section of the manual.

What water to use in the tank?

Use clean cold water, preferably distilled or demineralized to prevent limescale buildup. Never use hot water, as it could deform the tank. Do not add any detergent or perfume.

How to fill the water tank?

Turn off and unplug the appliance. Remove the water tank, unscrew the cap, fill with cold water, screw the cap back on, and replace the tank. Never fill when the appliance is on or hot.

How to turn on and use the appliance?

Plug in the appliance, set the I/O switch to "I" (on). Wait about 60 seconds for preheating. Place the garment on a hanger, point the steam head at the fabric and press to release steam. Perform vertical or horizontal movements depending on the garment.

Can I add products like perfume to the water?

No, it is forbidden to add detergents, perfumes, or other products to the water. This could damage the appliance and void the warranty. Use only clear water.

How to clean the appliance after use?

Unplug the appliance and let it cool completely. Empty the water tank. Clean the exterior surface with a soft cloth and a non-corrosive agent. Do not use a water jet and do not immerse the appliance. Dry all parts thoroughly before storing.

How to store the appliance?

Store the appliance in a cool, dry place away from direct sunlight. Make sure the tank is empty to prevent limescale. Keep out of reach of children.

What to do in case of limescale buildup?

To prevent limescale, preferably use distilled or demineralized water. If limescale has formed, you can clean the tank with a mixture of white vinegar and water (without operating the appliance). Rinse thoroughly with clean water. Refer to the manual for more details.

Can the appliance be used on all fabrics?

Always test on a small hidden area of the fabric before ironing. Avoid fabrics with stones, sequins, or heat-sensitive elements, as hot steam may damage them. Thick fabrics require longer steaming time.

What are the essential safety precautions?

Never direct steam at people or animals. Do not touch hot surfaces. Always unplug the appliance before filling the tank or cleaning. Do not use the appliance with an empty tank. Keep out of reach of children. Follow all instructions in the safety section of the manual.

USER MANUAL USX-ST3 Ulsonix

Parameter value	Parameter value
Name of the product	Steam iron
Model	USX-ST3
Supply voltage [V~] / Frequency [Hz]	230/50
Rated power [W]	1450
Number of steam output levels	1
Warming-up time [s]	<60
Maximum steam output [g/min]	36
Continuous operating time [min]	90
Maximum steam pressure [kPa]	4
Water tank capacity [L]	3.5
Protection class	1
Dimensions [Width x Depth x Height; mm]	340x185x460(1620)
Weight [kg]	5.2

1. General description

These instructions are intended to assist you in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

READ THE INSTRUCTIONS CAREFULLY AND UNDERSTAND THEM BEFORE USE.

To ensure long and reliable operation of the device, care should be taken to operate and maintain the device correctly in accordance with the instructions. The technical data and specifications contained in these instructions are up-to-date. The manufacturer reserves the right to make changes for the purpose of quality improvement. Taking technological progress and the possibility to reduce noise into account, the device is designed and built so that risks resulting from noise emissions are reduced to the lowest possible level.

Explanation of symbols

CE	The product meets the requirements of relevant safety standards.
	Read the instructions before use.
	Recyclable product.
	CAUTION! or WARNING! or REMEMBER! describing a given situation (general warning sign).
	CAUTION! Risk of electric shock!
	Caution! Touching hot surfaces may lead to burns!
	For indoor use only.

CAUTION! The illustrations in this manual are for illustrative purposes only and may differ in some details from the actual product appearance.

The original version of the instructions is the German version. Other language versions are translations from German.

2. Safe use

CAUTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or death.

The term "device" or "product" in the warnings and instructions refers to the .

2.1. Electrical safety

a) The device plug must fit into the socket. Do not modify the plug in any way. Original plugs and matching sockets reduce the risk of electric shock. b) Avoid touching earthed items such as tubes, radiators, heaters and refrigerators. There is an increased risk of electric shock if your body is earthed and touches the device exposed to direct rain, wet floor and humid environment. If water penetrates into the device, there is an increased risk of damage to the device and electric shock. c) Do not touch the device with wet or damp hands. d) Do not use the cable in a wrong way. Never use it to carry the device or to pull the plug out of the socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock. e) If you cannot avoid using the device in a wet environment, use a residual current device (RCD). Using an RCD reduces the risk of electric shock. f) Do not use the device if the power cable is damaged or shows clear signs of wear. A damaged power cable should be replaced by a qualified electrician or the manufacturer's service. g) To avoid electric shock, do not immerse the cable, plug or device itself in water or other liquid. Do not use the device on wet surfaces. h) CAUTION - DANGER TO LIFE! When cleaning or using the device, never immerse it in water or other liquids. i) The device must not get wet. Risk of electric shock!

2.2. Safety in the work area

a) Keep the work area tidy and well lit. Disorder or poor lighting can lead to accidents. Be careful, watch what you are doing and use common sense when working with the device. b) Do not use the device in an area with a risk of explosion, for example in the presence of flammable liquids, gases or dust. c) In the event of damage or malfunction of the device, it must be switched off immediately and the incident must be reported to an authorised person. d) If in doubt as to whether the device is working properly, contact the manufacturer's service.

e) Repairs to the device may only be carried out by the manufacturer's service. Do not carry out repairs yourself! f) In the event of fire, use only powder or snow (CO2) extinguishers to extinguish fire in the device where there is voltage. g) No children or unauthorised persons are allowed in the work area. (Lack of attention may result in loss of control over the device). h) Use the device in a well-ventilated room. i) Check the condition of the safety stickers regularly. Replace them if they are illegible. j) Keep these instructions for future reference. If the device is to be passed on to third parties, the instructions for use must be handed over together with the device. k) Keep packaging parts and small assembly parts out of the reach of children. l) Keep the device away from children and animals.

Remember! Keep children and other bystanders safe while operating the device.

2.3. Personal safety

a) Do not operate the device if you are tired, ill or under the influence of alcohol, drugs or medication which might impair your ability to operate the device. b) The device is not intended to be used by persons (including children) with reduced mental, sensory or intellectual functions or lack of experience and/or knowledge, unless they are supervised by a person responsible for their safety or have been given instructions by them on how to operate the device. c) The device may only be operated by persons who are physically fit, capable of handling the device and who have been adequately trained, who have read these instructions and have received training in health and safety. d) Be careful and use common sense when operating the device. A short moment of distraction during operation may lead to serious personal injury. e) To prevent accidental start-up, make sure the switch is in the OFF position before connecting the device to the power source. f) Do not overestimate your capabilities. Maintain body balance at all times during operation. This allows for better control of the device in unexpected situations. g) The device is not a toy. Children should be supervised to ensure that they do not play with the device.

2.4. Safe use of the device

a) Do not use the device if the ON/OFF switch does not function properly (does not switch on and off). Devices that cannot be controlled by the switch are dangerous, must not be operated and must be repaired. b) The device must be disconnected from the power supply before adjustment, cleaning and maintenance. This preventive measure reduces the risk of accidental activation. c) Keep unused devices out of the reach of children and anyone not familiar with the device or these instructions. Devices are dangerous in the hands of inexperienced users. d) Keep the device in good working order. Before each use, check for general damage or damage to moving parts (cracks in parts and components or any other condition that may affect the safe operation of the device). If damaged, have the device repaired before use. e) Keep the device out of the reach of children. f) Repair and maintenance of the device should be carried out by qualified persons using only original spare parts. This will ensure a safe use of the device. g) To ensure the designed operational integrity of the device, do not remove factory-installed covers or loosen any screws. h) Do not leave the switched on device unattended. i) Clean the device regularly to prevent the permanent accumulation of dirt. j) Before each use, ensure that the nozzle is correctly fitted in the device and that the hose is properly secured and undamaged. k) The device is not a toy. Cleaning and maintenance must not be performed by children without adult supervision. l) It is forbidden to tamper with the device in order to change its parameters or construction. m) Keep the device away from sources of fire and heat. n) Never aim a steam jet at your body, other people or animals. Hot steam causes skin burns! o) Never use the device with an empty water tank. p) It is forbidden to fill the water tank. q) Do not use the device in a horizontal position, always hold the nozzle upwards - if condensed steam cannot flow back into the tank, water drips from the nozzle, etc. r) It is forbidden to hold clothes with your hands during ironing - risk of skin burns. s) Always disconnect the device from the power supply when emptying the water tank or refilling it. t) Take special care when emptying or refilling the water tank. There is a risk of skin burns. u) It is forbidden to iron clothes on the body.

v) Caution: the steam supply hose and nozzle become hot during use. Take care to avoid skin burns.

CAUTION! Although the device has been designed to be safe and has been equipped with adequate safeguards, and despite the use of additional safety measures, there is still a small risk of accident or injury when operating the device. Caution and common sense are advised when using the device.

3. Rules of use

The device is designed for ironing clothes with steam.

The user is responsible for any damage caused by improper use.

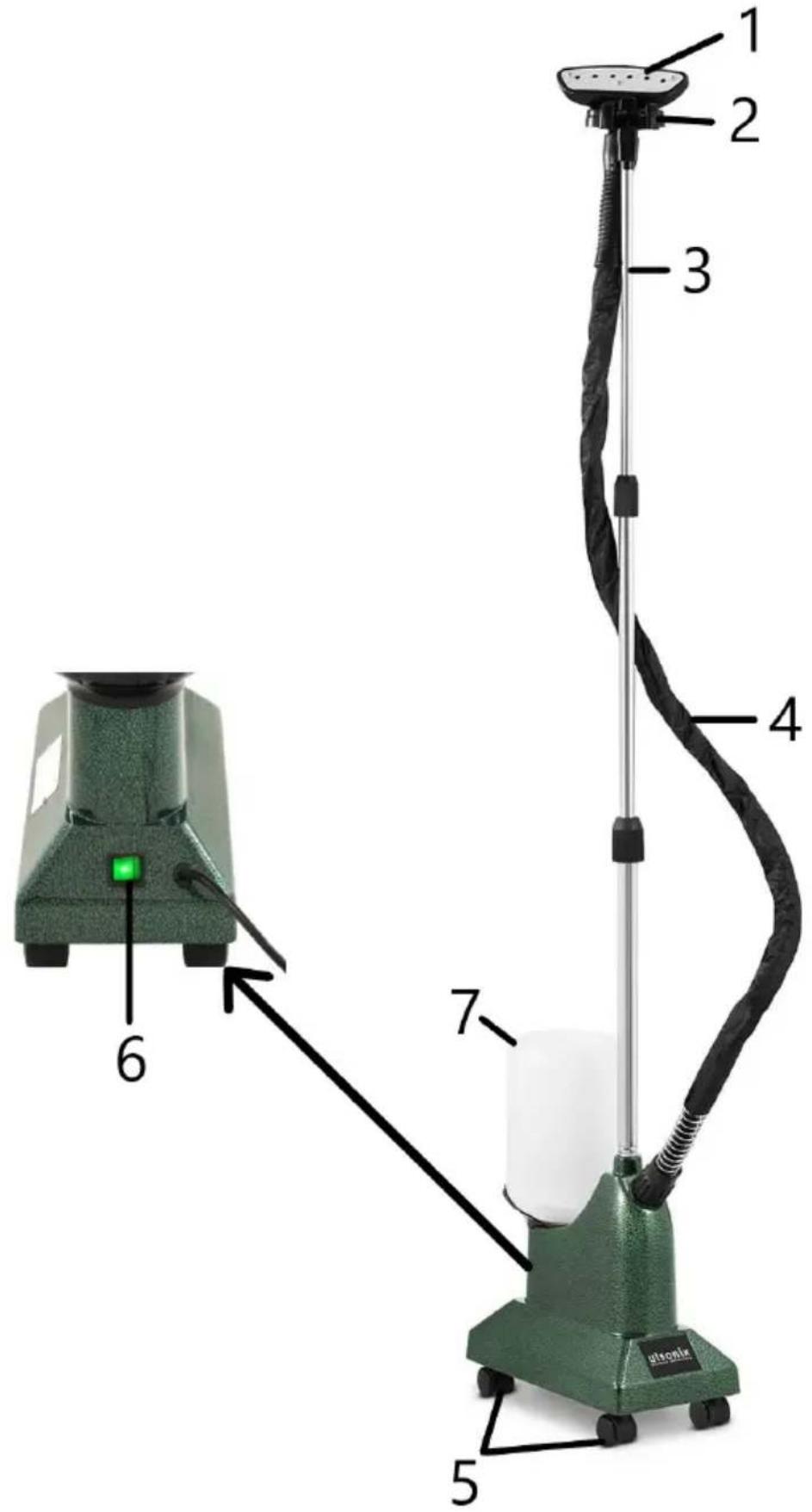

3.1. Description of the device

1. Steam head
2. Head bracket
3. Telescopic tube
4. Steam hose
5. Castors
6. ON/OFF switch
7. Water tank

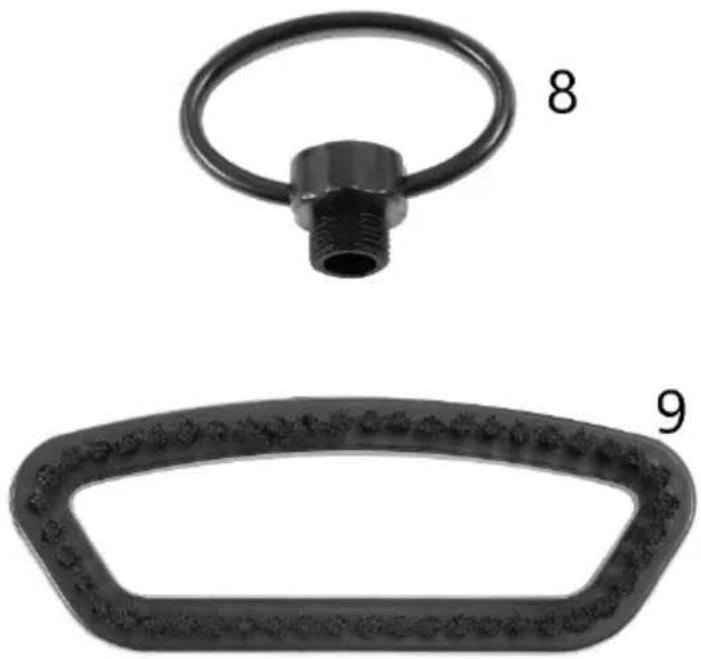

8. Screw-on transport handle
9. Brush - attachment for the steam head

3.2. Preparation for work

LOCATION OF THE DEVICE

The ambient temperature should not exceed 40°C and the relative humidity should not exceed 85%. Position the device in a way that allows for good air circulation. Maintain a minimum distance of 10 cm from any wall. Keep the device away from any hot surfaces. Always operate the device on a level, stable, clean, fireproof and dry surface and out of the reach of children and persons with reduced mental, sensory and intellectual abilities. Position the device in such a way that the power supply plug can be reached at any time. Make sure that the device's power supply corresponds to the data on the rating plate!

ASSEMBLY OF THE DEVICE

Caution: It is forbidden to assemble the device when it is connected to the power supply or is still hot after previous use.

1. Assemble the telescopic tube. Connect the tubes by turning them clockwise.

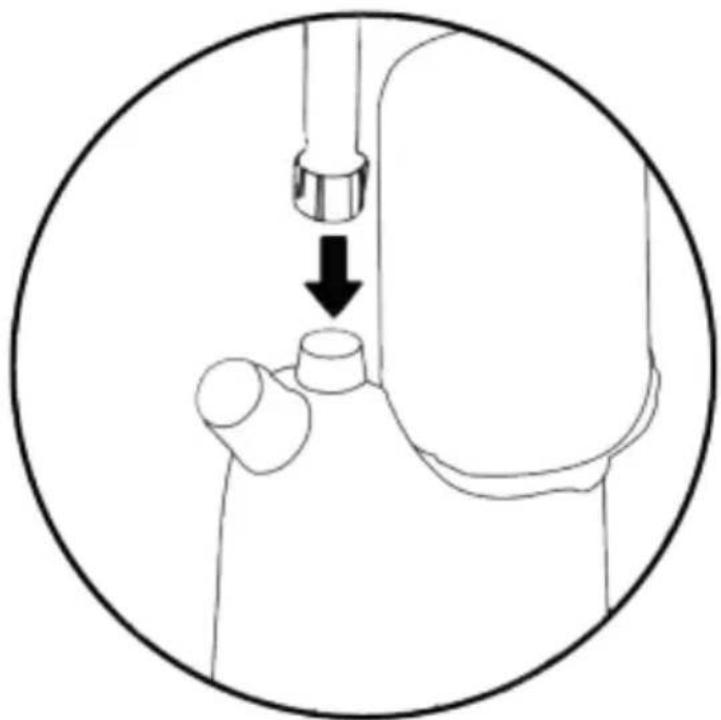

1. Screw the telescopic tube to the device turning it clockwise. Optionally, the transport handle can be screwed onto the tube at the installation site.

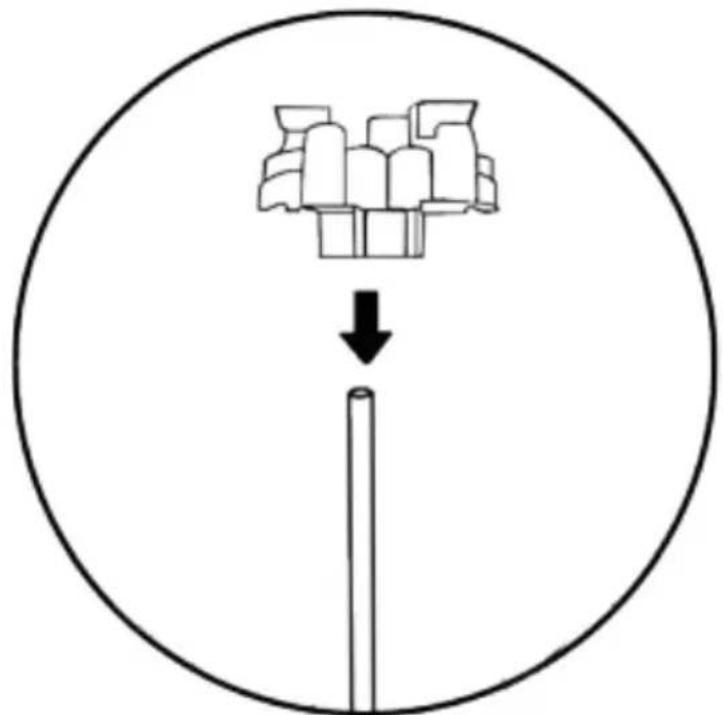

1. Slide the steam head bracket onto the top of the telescopic tube.

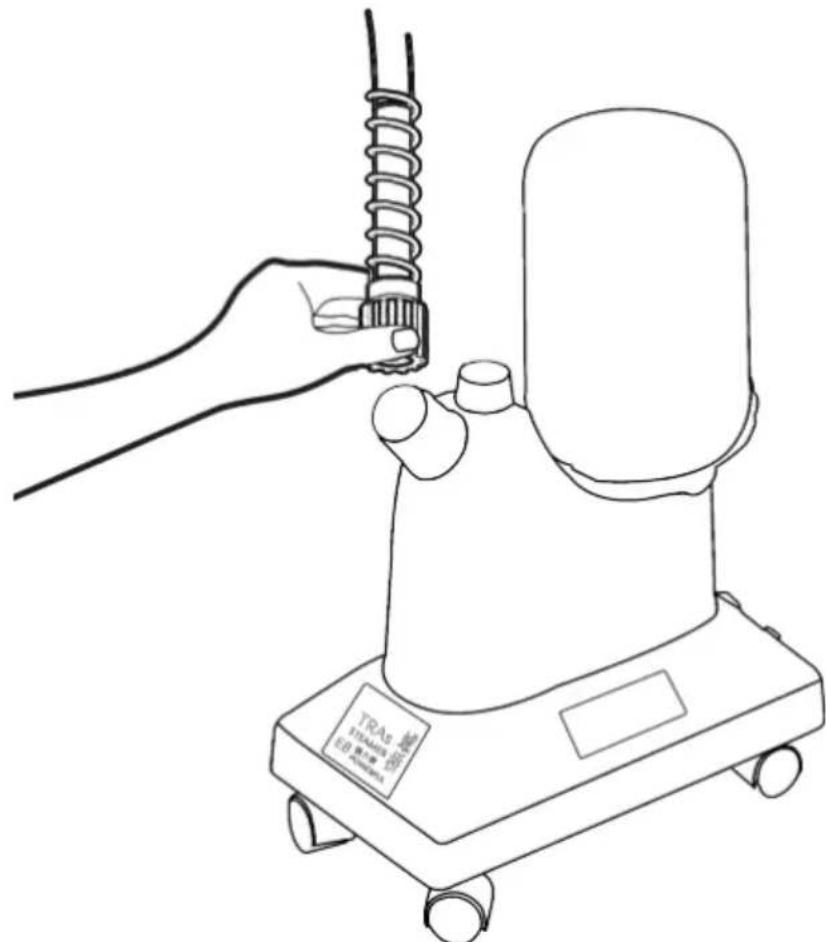

1. Install the steam hose to the device.

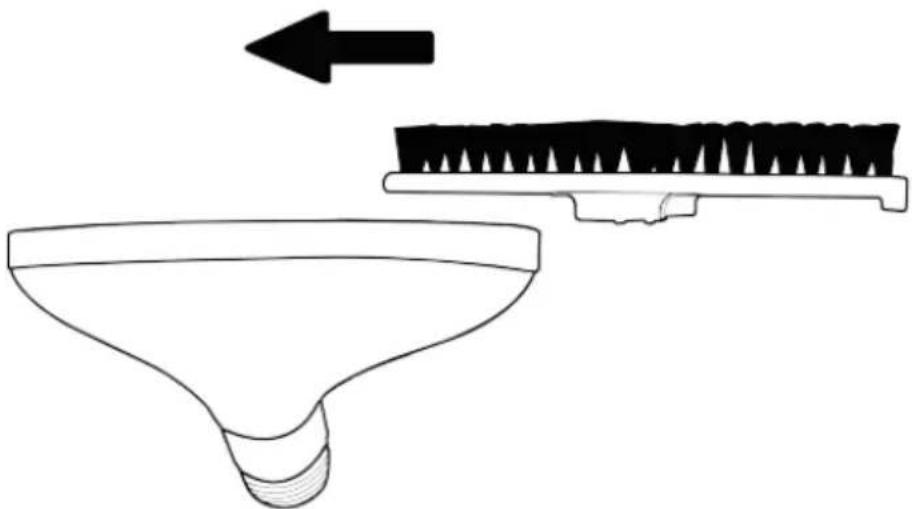

1. Optionally, a brush can be fitted to the steam head.

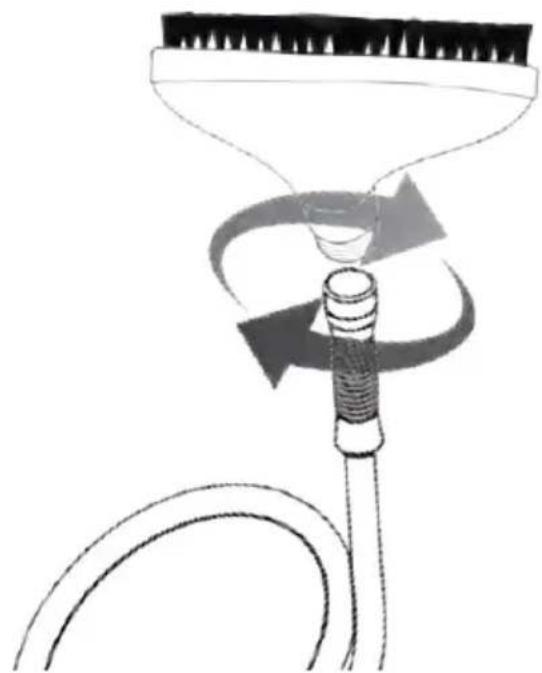

1. Screw the steam head clockwise to the attachment of the steam hose.

3.3. Working with the device

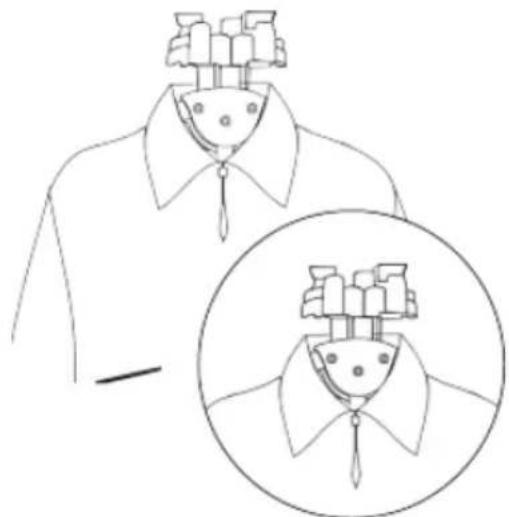

1. Place the garment to be ironed on the hanger (not included).

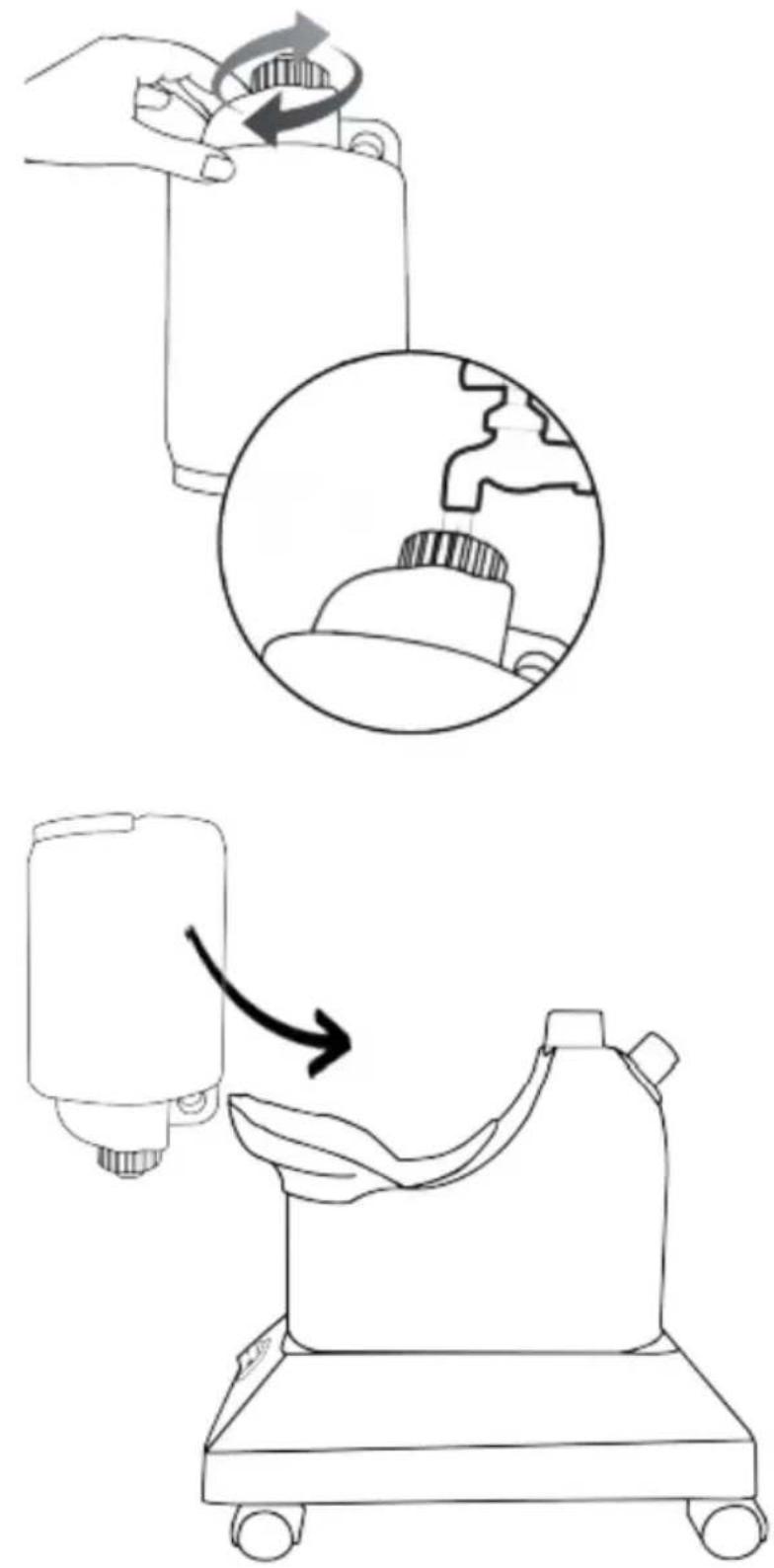

1. Remove the water tank from the device, unscrew the cap and fill the tank with clean, cold water. It is forbidden to pour hot water into the tank. Close the cap and place the tank back in the device.

1. Connect the device to the power supply. Switch it on by setting the switch I/O in position "I".
2. The device will begin to heat up and will be ready for use in approx. 60 seconds.
3. It is not forbidden to fill the water tank when the device is switched on. To refill the tank, switch off the device and let it cool down to avoid skin contact with hot steam and heated parts.
4. To switch off the device, set the I/O switch to the "O" position and disconnect from the power supply.
5. When you have finished working with the device and allowed it to cool down, always empty the residual water from the tank to avoid limescale deposits.

INSTRUCTIONS FOR USE

• Start ironing with steam by testing on a small area of the fabric in the least visible place.
• It is forbidden to add detergents, fragrances etc. to the water tank. It may damage the device.
• Avoid kinking the steam hose.

- Always try to straighten the garment on the hanger as much as possible by hand before ironing.

- Depending on the garment to be ironed perform vertical or horizontal movements. Follow the clothing manufacturer's recommendations.

• Garments of considerable thickness require longer steam ironing.

- Be especially careful when ironing garments decorated with stones, sequins etc., as the hot steam may damage them.

- It is forbidden to refill the tank with hot water! Filling with hot water may deform the tank.

- Always switch off the device when not in use, before moving to another location and when refilling/emptying the water tank.

- Check the water level in the water tank. Do not switch on the device with an empty water tank.

- It is recommended to wear a protective glove when it is necessary to hold clothes during ironing.

- It is recommended to use distilled or demineralised water. Using tap water may cause limescale build-up in the device, which results in reduced performance.

3.4. Cleaning and maintenance

a) Before cleaning, adjustment or replacement of accessories, and when the device is not in use, pull the power supply plug and let the device cool down completely. b) Use only non-corrosive agents for cleaning the surface. c) After each cleaning, all components should be well dried before the device is used again. d) Store the device in a dry and cool place protected from moisture and direct sunlight. e) Do not spray the device with a stream of water and do not immerse it in water. f) Ensure that no water enters through the ventilation openings in the housing. g) Clean the ventilation openings with a brush and compressed air. h) Regularly inspect the device for technical failure and damage. i) Always empty the water tank after using the device to prevent limescale build-up.

Technical specifications

1. Attach the steam heads to the end of the steam hose by turning clockwise.

For the disposal of the device please consider and act according to the national and local rules and regulations.
