Product Type	Professional LED Lamp (LED bar)
Brand	Chauvet
Model	COLORado Solo Bar 6
Category	Lamp
Power Supply	100-240 VAC, 50/60 Hz
Maximum Power Consumption	5.61 A (at 100 V)
IP Rating	IP65
Light Source	LED (non-user-replaceable)
Control	DMX512, standalone modes
Operating Temperature	-20 °C to 45 °C
Minimum Start-up Temperature	-20 °C
Minimum Distance from Surfaces	50 cm
Mounting	Omega brackets included, safety cable required
Maintenance	Clean with a soft cloth, disconnect before cleaning
Safety	Do not open, do not look at the light source, use a safety cable
Box Contents	LED bar, power cord, 2 omega brackets, anti-glare screen, filters, quick reference guide
DMX Connector Type	5-pin XLR (input/output)
Number of DMX Channels	Not specified in the manual (consult DMX manual)
Weight	Not specified (estimated: approx. 5 kg)

Frequently Asked Questions - COLORado Solo Bar 6 Chauvet

How to install the COLORado Solo Bar 6 LED bar?

Install the bar using the provided omega brackets with at least two mounting points. Attach a safety cable to prevent falls. Make sure the mounting surface can support the weight. Maintain a distance of at least 50 cm from adjacent surfaces for ventilation.

What type of DMX cable to use?

Use DMX cables with 5-pin XLR connectors. The product accepts DMX input and output. For outdoor use, use IP65 rated cables.

Can this lamp be used outdoors?

Yes, the COLORado Solo Bar 6 is rated IP65, protecting it against dust and water jets. However, do not immerse the product and protect unused connectors with IP caps.

How to clean the LED bar?

First disconnect the power. Clean the housing and lenses with a soft, non-abrasive cloth. Do not use solvents or harsh chemicals.

What to do if the lamp does not turn on?

Check the power connection, fuse (if accessible), and ensure the circuit breaker has not tripped. If the problem persists, contact a qualified technician.

Can the product be used with a dimmer?

No, never use this lamp with a dimmer or rheostat. This could damage the electronics.

What is the operating temperature?

The maximum ambient temperature is 45 °C. The minimum start-up temperature is -20 °C. Avoid extreme temperatures.

How to replace the fuse?

Fuse replacement must be done by a qualified technician. Consult the manual for location and fuse type.

How many DMX channels does the COLORado Solo Bar 6 use?

The number of DMX channels is not specified in this manual. Consult the full datasheet or DMX manual for more information.

Are there any health warnings?

Yes, flashing lights may trigger epileptic seizures. Do not look directly at the light source. Maintain safety distances.

USER MANUAL COLORado Solo Bar 6 Chauvet

QR code image containing encoded data, no visible human-readable text

Scan the QR code to access the product page, warranty terms, and the complete User Manual

COLORADO SOLO BAR

6

Quick Reference Guide

English EN

Español ES

Français FR

Deutsch DE

Nederlands NL

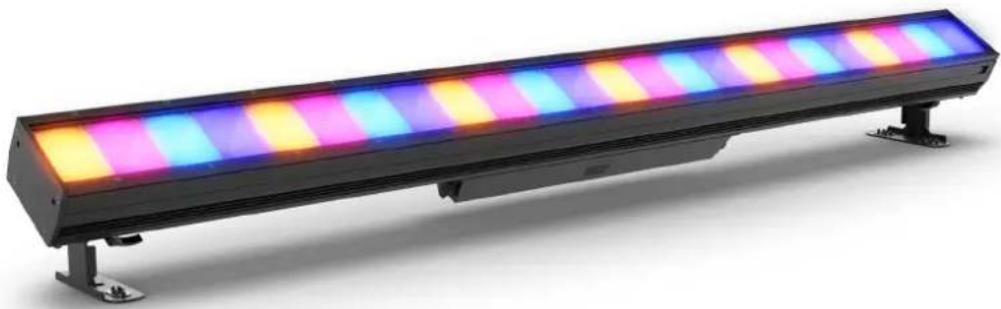

Bar chart displaying a multi-colored LED array with alternating pink, yellow, and blue segments (no text or symbols visible)

Safety Notes

These Safety Notes include important information about installation, use, and maintenance of the COLORado Solo Bar 6.

- The luminaire is intended for professional use only.

• The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 7.5 ft (2.3 m) is not expected.
• If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or its service agent.
• The light source contained in this luminaire shall only be replaced by the manufacturer or its service agent or a similar qualified person.

- CAUTION:

• This product's housing may be hot when operating. Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• When transferring the product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow the product to fully acclimate to the surrounding environment before connecting it to power.
• Flashing light is known to trigger epileptic seizures. User must comply with local laws regarding notification of strobe use.

• ALWAYS:

• Disconnect from power before cleaning the product or replacing the fuse.
• When using an IP65-rated product in an outdoor environment, use IP65- (or higher) rated power and data cable.
• Replace and secure IP-rated protective covers to all power, data, USB, or other ports when not in use.
• Use a safety cable when mounting this product overhead.
• Connect this product to a grounded and protected circuit.

• D O N O T :

• Open this product. It contains no user-serviceable parts.
• Look at the light source when the product is on.
• Leave any flammable material within 50 cm of this product while operating or connected to power.
• Connect this product to a dimmer or rheostat.
• Operate this product if the housing, lenses, or cables appear damaged.
• Operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it (adhere to standards for the published IP rating).
  • Submerge this product (adhere to standards for the published IP rating). Regular outdoor operation is fine.

• Permanently install outdoors in locations with extreme environmental conditions. This includes, but is not limited to:

• Exposure to a marine/saline environment (within 3 miles of a saltwater body of water).

• Locations where normal temperatures exceed the temperature ranges in this manual.
• Locations that are prone to flooding or being buried in snow.
  • Other areas where the product will be subject to extreme radiation or caustic substances.

- Use for space-heating purposes.

• ONLY use the hanging/mounting bracket to carry this product.
  • The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
• The minimum startup temperature is -4^ (-20°C). Do not start the product at lower temperatures.
  • The minimum ambient temperature is -22^ ( -30^ ). Do not operate the product at lower temperatures.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• In the event of a serious operating problem, stop using immediately.

FCC Statement of Compliance

This device complies with Part 15 Part B of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

RF Exposure Warning for North America and Australia

Warning! This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and the user. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Connection of the control signal: DMX line

• The product has XLR sockets for DMX input and output.
• Notice: This control circuit is isolated and belongs to the Class 2 data port.
• The control circuit has a cumulative leakage current of less than 3.5 mA.

What is Included

• COLORado Solo Bar 6
- Seetronic Powerkon IP65 power cable
• 2 omega brackets with mounting hardware
- Glare shield

• 50/50 filter, Cyc filter, stealth filter, and clear protective film (installed)
• Short mount accessory feet
• Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White	Blue	Silver
AC Ground	Green/Yellow	Green/Yellow	Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Power Linking

It is possible to power link COLORado Solo Bar 6 products. See the table below for the current draw at each voltage and frequency:

	100 V, 60 Hz	120 V, 60 Hz	208 V, 60 Hz	230 V, 50 Hz	240 V, 50 Hz
Current Draw	5.61 A	4.62 A	2.62 A	2.37 A	2.28 A

Never exceed 12 A on a single circuit. Power-linking cables can be purchased separately.

Control Panel Description

Button	Function
	Exits from the current menu or function
	Enables the currently displayed menu or sets the currently selected value into the selected function
	Navigates upwards through the menu list or increases the numeric value when in a function
	Navigates downwards through the menu list or decreases the numeric value when in a function

Mounting

Before mounting this product, read the Safety Notes. Use at least 2 mounting points per product. Make sure the mounting clamps are capable of supporting the weight of the product. For the Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps.

Mounting Diagram

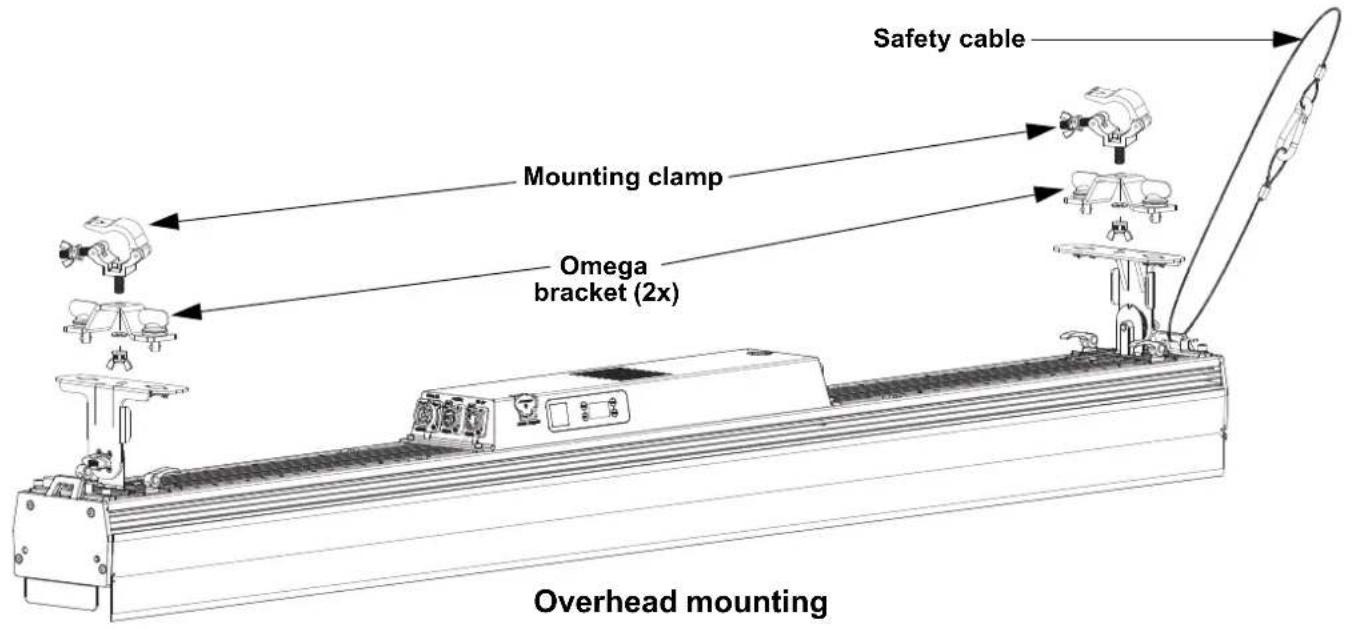

Safety cable Mounting clamp Omega bracket (2x) Overhead mounting

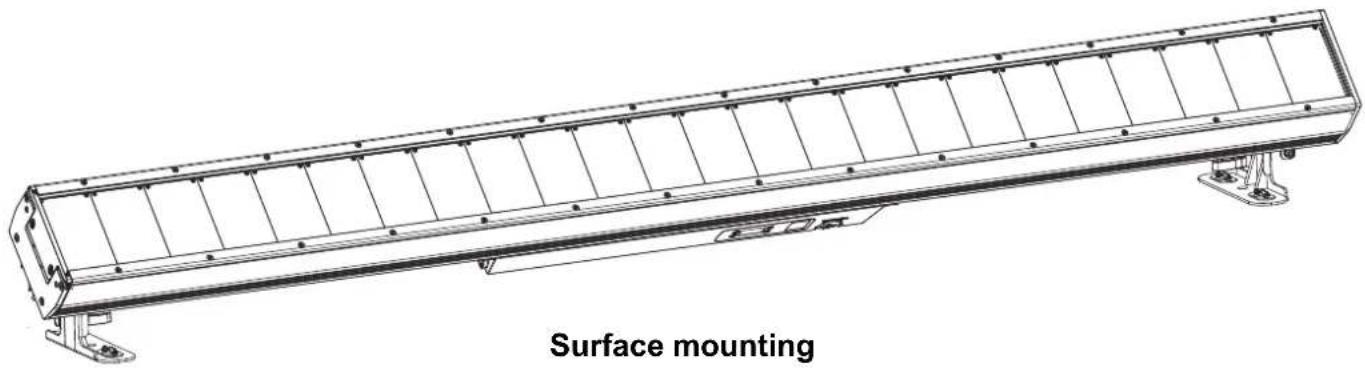

Technical line drawing of a structural beam with supports and mounting feet, labeled 'Surface mounting' (no other text or symbols)

Rotating the Yokes

To rotate the yokes and make them less visible in mounting applications:

Locking bar (x4)

1. Open the locking bars.

Open space (x4)

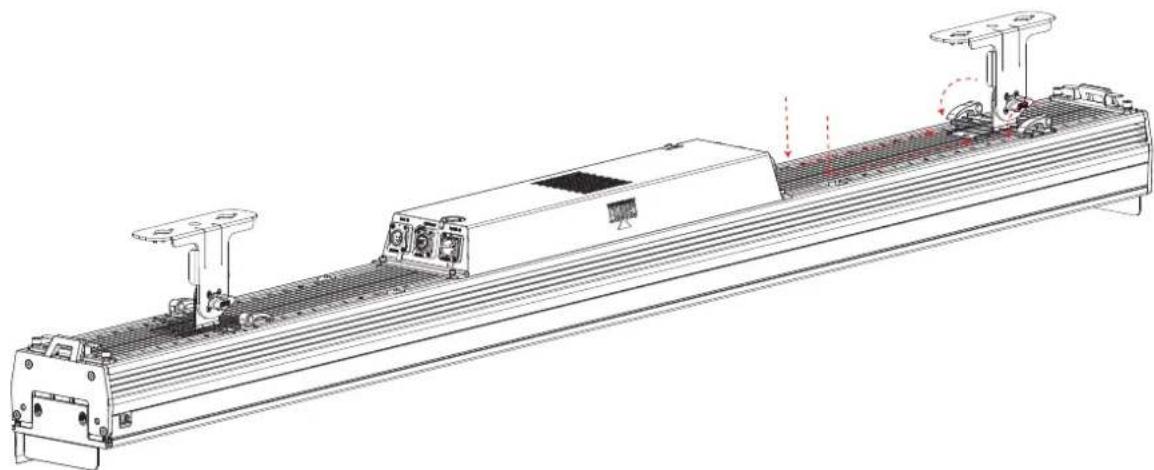

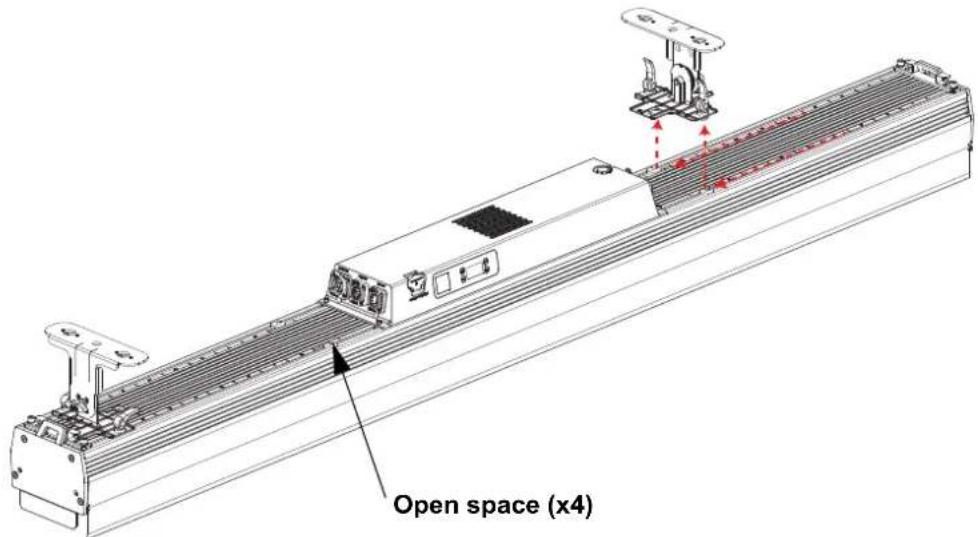

1. Slide the yoke assembly along the tracks to the open spaces and remove it.

Mechanical assembly diagram showing mounting base with red dashed arrows indicating force or movement (no text or symbols)

Upper piece Lower piece

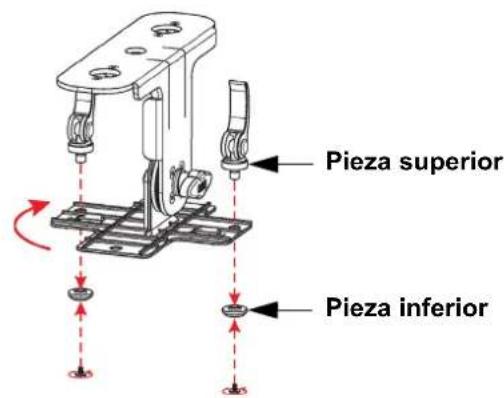

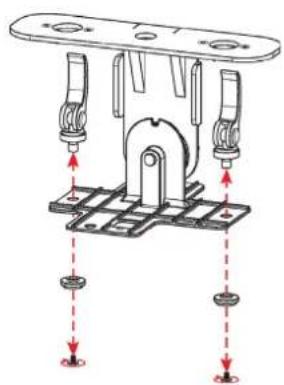

1. Uninstall the locking bars by removing a screw each and separating the lower pieces.

2. Install the locking bars in the alternate holes:

a. Insert the upper pieces.
b. Attach the lower pieces on the other side.
c. Secure with the screws.

1. Turn the yoke assembly 90°.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Insert the locking bar lower pieces into the open spaces on the tracks and slide to the desired position.
2. Close the locking bars.

Rotated Yoke Mounting Diagram

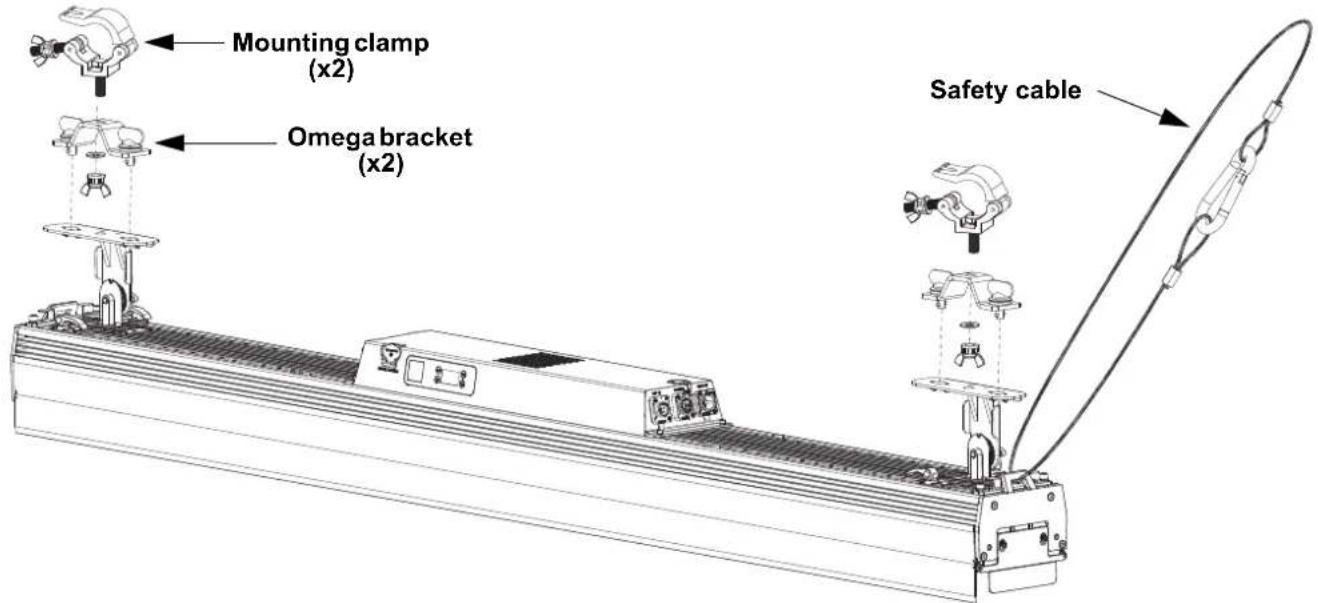

Mounting clamp (x2) Omega bracket (x2) Safety cable

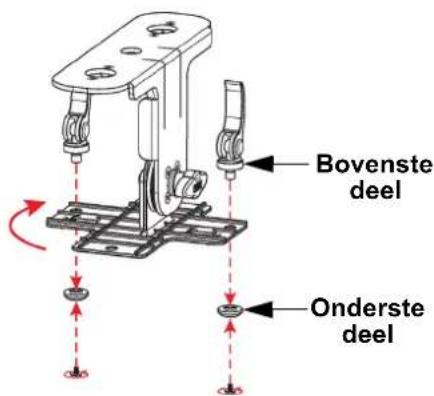

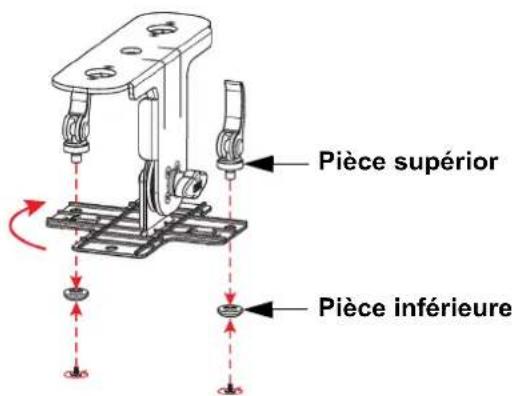

Notas de seguridad

Mechanical assembly diagram showing mounting flanges and adjustment points (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing mounting brackets and mounting holes (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

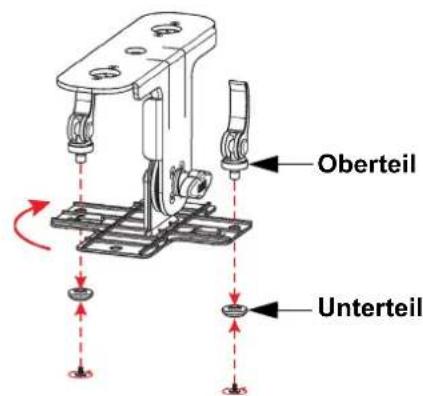

Freiraum (x4)

Mechanical assembly diagram showing mounting flanges and adjustment knobs (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing mounting brackets and mounting holes (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Intentionally Left Blank Page

Contact Us

General Information Technical Support

Chauvet World Headquarters

Address: 3360 Davie Rd., Suite 509 Voice: [phone]

Davie, FL 33314 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetprofessional.com

Chauvet U.K.

Address: Pod 1 EVO Park Email: [e-mail]

Little Oak Drive, Sherwood Park

Nottinghamshire, NG15 0EB Website: www.chauvetprofessional.eu

UK

Voice: [phone]

Fax: [phone]

Chauvet Benelux

(Entrance by Calle 2)

Zona Industrial Lerma Website: www.chauvetprofessional.mx

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U. K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record.

UL 1573 ® CSA C22.2 No. 166 us E113093

RoHS
