USER MANUAL HMLT7518EWF HAIER

Warning sign depicting a flame symbol in yellow and black, indicating hazard or hazard status.

WARNING: Risk of fire/flammable material

EN

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by ingiting flammable material.

23 Care and cleaning

25 Troubleshooting

29 Installation

36 Technical data

38 Customer service

Before rst use 5

Installation 5

Daily use 6

Adjust the temperature for fridge 14

Adjust the temperature for freezer 14

Adjust the temperature for S - zone 15

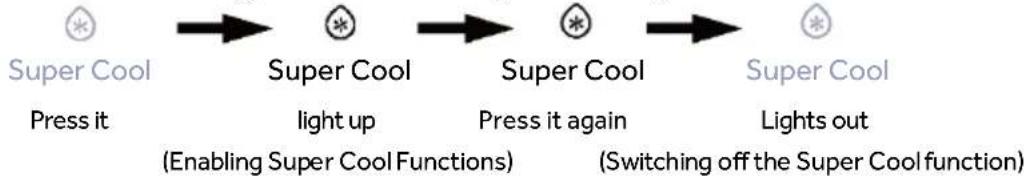

Super-Cool function 15

Super-Frz function 16

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.

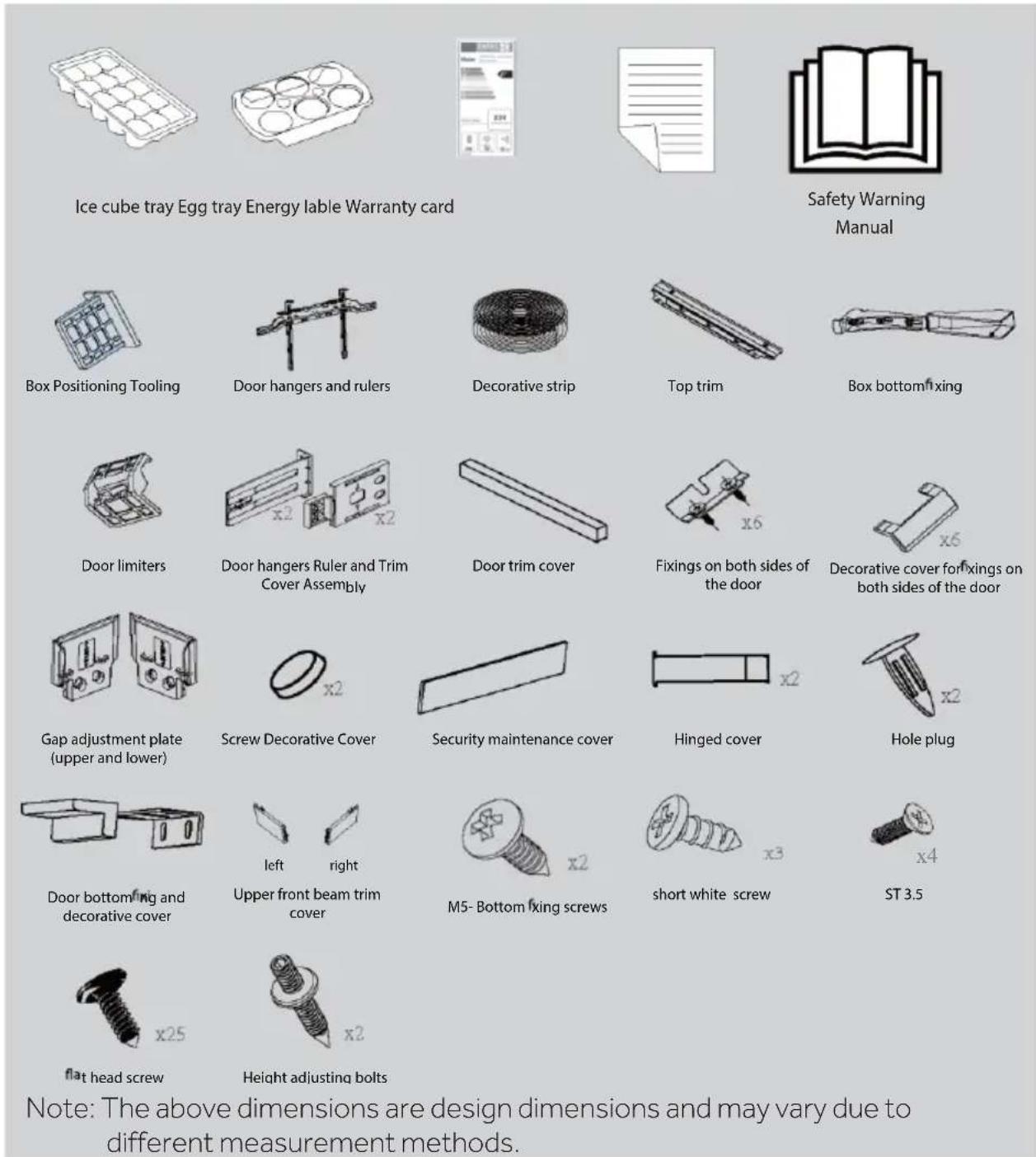

Accessories

Check the accessories and literature in accordance with this list:

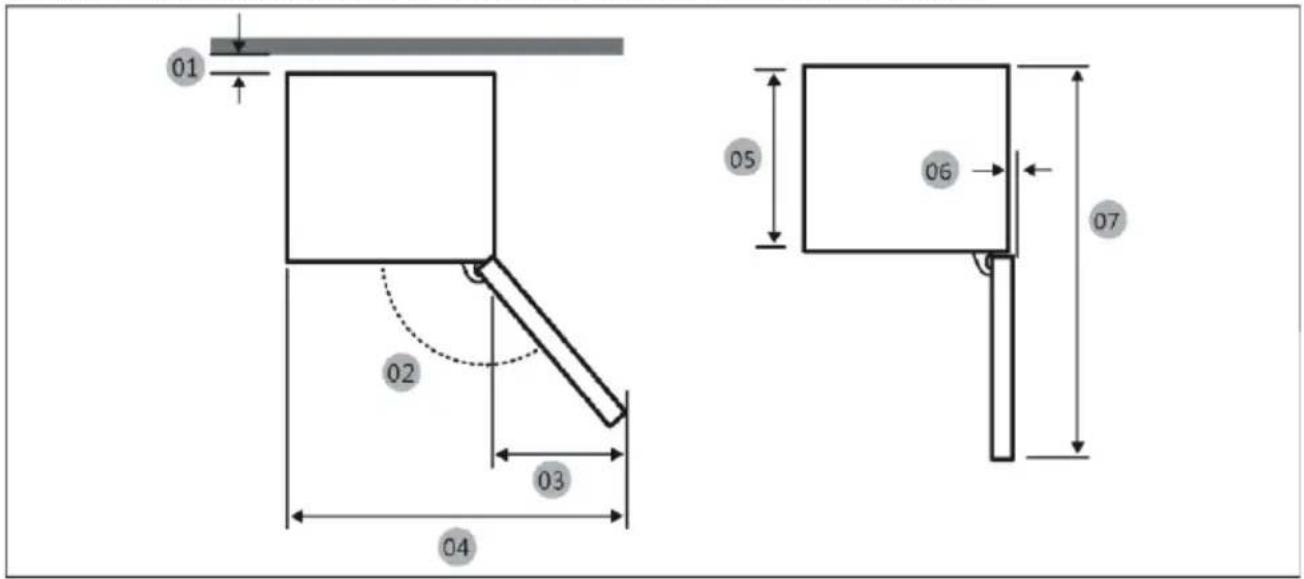

Note: The above dimensions are design dimensions and may vary due to different measurement methods.

WARNING – Important Safety information

NOTICE-General information and tips

Environmental information

Disposal

Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

WARNING!

Risk of injury or suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets to get closed in the appliance.

Before switching on the appliance for the first time read the following safety hints!:

WARNING!

Before first use

▶ Make sure there is no transport damage.
Remove all packaging and keep out of children's reach.
▶ Wait at least two hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient.
▶ Handle the appliance always with at least two persons because it is heavy.

Installation

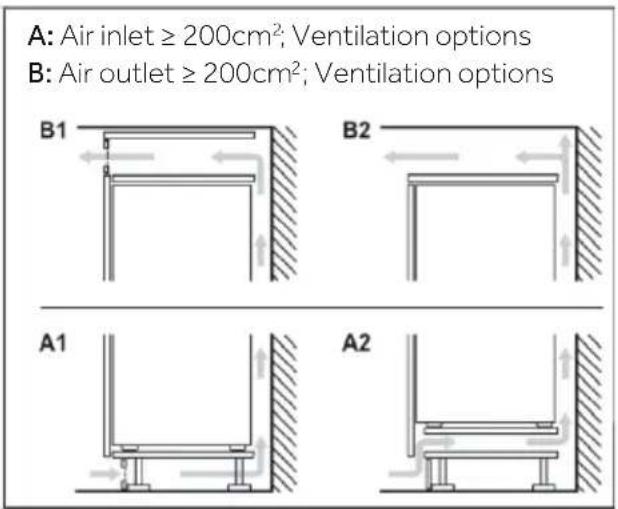

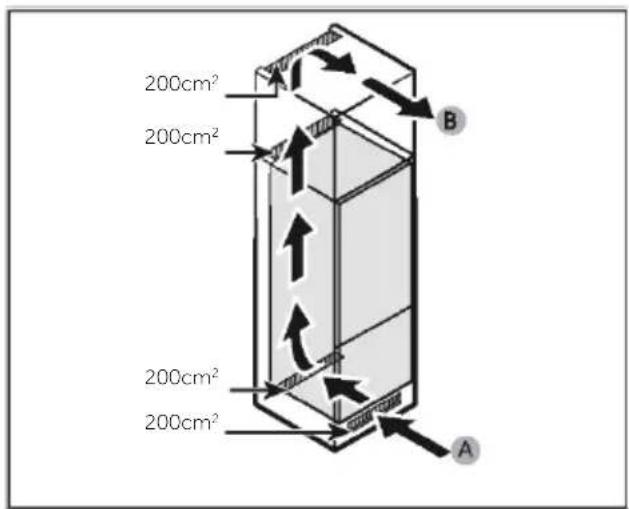

The appliance should be placed in a well-ventilated place. Ensure a space of at least 10 cm above and around the appliance.
▶ Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth.
▶ Do not install the appliance in direct sunlight or in the near of heat sources(e.g. stoves, heaters).

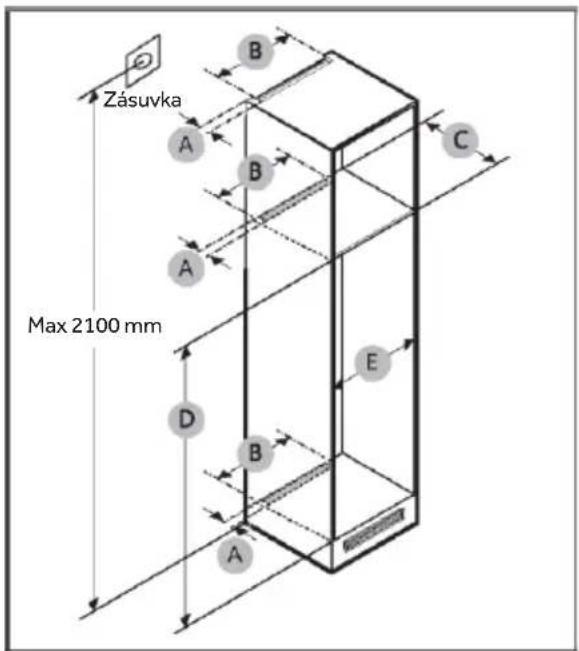

▶ Install and level the appliance in an area suitable for its size and use.
- Keep ventilation openings in the appliance or in the in-built structure clear of obstruction.
▶ Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.
The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.
▶ Do not use multi-plug adapters and extension cables.
▶ Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
▶ Ensure that the power cable is not trapped by the refrigerator. Do not step on the power cable.

WARNING!

▶ Use a separate earthed socket for the power supply which is easy accessible. The appliance must be earthed. Only for UK: The appliance's power cable is fitted with 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.

▶ Do not damage the refrigerant circuit.

Daily use

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children aged from 3 to 8 years are allowed to load and unload, but not allowed to clean or install the refrigerating appliances.

- Keep away children under 3 years of age from the appliance unless they are constantly supervised.

▶ Children shall not play with the appliance.

If cool gas or other inflammable gas is leaking in the vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug a plug in the power cable of the refrigerator or any other appliance.

▶ Notice that the appliance is set for operation at a specific ambient range between 10 and 43°C. The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range.

▶ Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to ovoid personal injury caused by falling or electric shock caused by contact with water

▶ Do not pull on the door shelves. The door may be pulled slant, the bottle rack, may be pulled away, or the appliance may topple.

▶ Open and close the doors only with the handles. The gap between the doors and between the doors and the cabinet is very narrow. Do not extend your hands in these areas to avoid pinching your fingers. Open or close the refrigerator doors only when there are no children standing within the range of door movement.

WARNING!

▶ Do not store or use inflammable, explosive or corrosive materials in the appliance or in the vicinity.
Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures.
▶ Never store liquids in bottles or cans (besides high percentage spirits) especially carbonated beverages in the freezer, as these will burst during freezing.
▶ Check the condition of food if a warming in the freezer has taken place.
▶ Do not set unnecessarily low temperature in the refrigerator compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst
Do not touch frozen goods with wet hands (wear gloves). Especially do not eat ice lollies immediately after removal from the freezer compartment. There is the risk to freeze or the formation of frost blisters. FIRST aid: keep immediately under running cold water. Do not pull away!
▶ Do not touch the inside surface of the freezer storage compartment when in operation, especially with wet hands, as your hands may freeze onto the surface.
▶ Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.
▶ Do not use electrical devices inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Maintenance / cleaning
- Cleaning and user maintenance must not be carried out by children without supervision.
▶ Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage the compressor.

WARNING!

▶ Hold the plug, not the cable, when unplugging the appliance.
▶ Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.
▶ Do not scrape off frost and ice with sharp objects. Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts.
▶ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Do not try to repair, disassemble or modify the appliance by yourself In case of repair please contact our customer service.
Eliminate the dust on the back of the unit at least once in the year to avoid hazard by fire, as well as increased energy consumption.
▶ Do not spray or flush the appliance during cleaning.
▶ Do not use water spray or steam to clean the appliance.
Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.

Refrigerant gas information

WARNING!

The appliance contains the flammable refrigerant ISOBUTANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open fire sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service. In case of eyes get into contact with the refrigerant, rinse immediately it under running water and call immediately the eye specialist.

Intended use

This appliance is intended for cooling and freezing food. It has been designed exclusively for use in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments as well as in bed-and-breakfast and catering business. It is not intended for commercial or industrial use. Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.

Standards and directives CE

This product meets the requirements of all applicable EC directives with the corresponding harmonised standards, which provide for CE marking.

NOTICE

Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

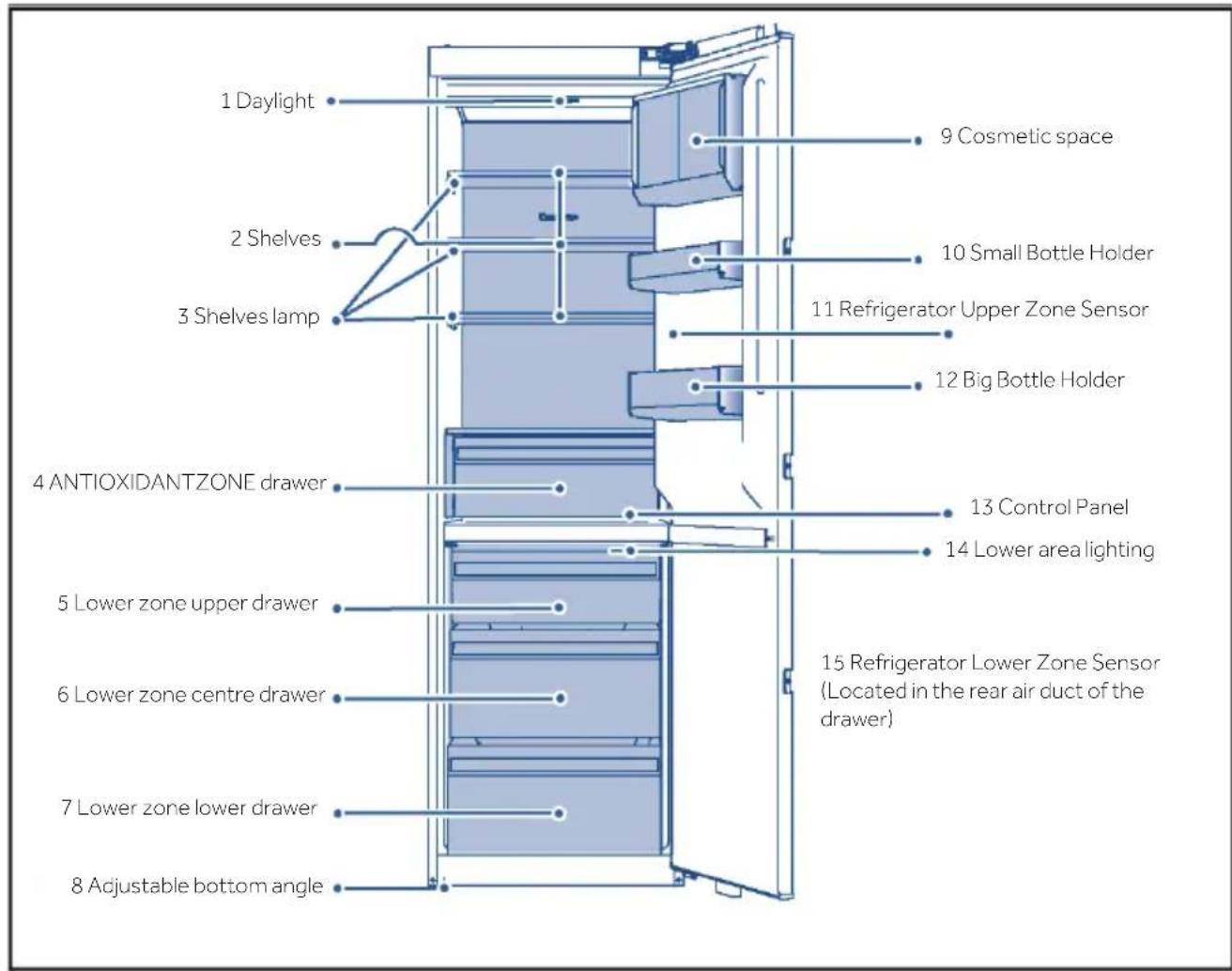

1 Daylight 2 Shelves 3 Shelves lamp 4 ANTIOXIDANTZONE drawer 5 Lower zone upper drawer 6 Lower zone centre drawer 7 Lower zone lower drawer 8 Adjustable bottom angle 9 Cosmetic space 10 Small Bottle Holder 11 Refrigerator Upper Zone Sensor 12 Big Bottle Holder 13 Control Panel 14 Lower area lighting 15 Refrigerator Lower Zone Sensor (Located in the rear air duct of the drawer)

A: Refrigerator up compartment B: Refrigerator Lower compartment

1 Daylight 5 Lower zone upper drawer
2 Shelves 6 Lower zone centre drawer
3 Shelves lamp 7 Lower zone lower drawer
4 ANTIOXIDANTZONE drawer 8 Adjustable bottom angle
9 Cosmetic space 14 Lower area light
10 Small Bottle Holder 15 Refrigerator Lower Zone Sensor(located
11 Refrigerator Upper Zone Sensor in the rear air duct of the drawer)
12 Big Bottle Holder
13 Control Panel ...

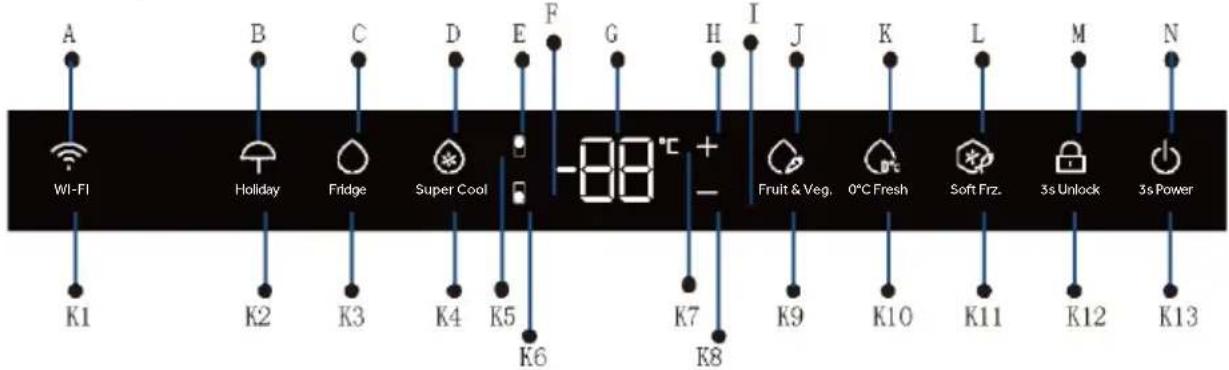

Control panel

A B C D E F G H I J K L M N WI-FI Holiday Fridge Super Cool -88°C + - K1 K2 K3 K4 K5 K6 K7 K8 K9 K10 K11 K12 K13 Fruit & Veg. 0°C Fresh Soft Frz. 3s Unlock 3s Power

Buttons:

A Wi-Fi icon
B Upper Zone Holiday Icon
C Upper zone Fridge function icon
D Upper zone Super cool function icon
H Temperature value + icon

I Temperature values - icon
J Lower zone Fruit & Veg. function icon
K Lower zone 0° Fresh function icon
L Lower Zone Soft Frz. Function Icon
M 3s Unlock Icon
N 3s Power Icon

Indicators:

E Upper zone display icon
F Lower zone display icon
G Temperature display icon

Description of the operation of the key section in the display:

K1: Wi-Fi function key: in the non-locked state of the display board, press to turn on/off the Wi-Fi function, long press for 3 seconds to enter the Wi-Fi configuration mode;
K2: Upper Zone Holiday Icon: In the non-locked state of the display board, press to turn on/off the Upper Zone Holiday function.
K3: Upper zone Fridge function icon: In the non-locked state of the display board, press to turn on/off the Fridge function.
K4: Upper zone Super cool function icon: In the non-locked state of the display board, press to turn on/off the Super cool function.
K5: Upper zone display icon: In the non-locked state of the display board, press to select the upper zone temperature adjustment function;
K6: Lower zone display icon: In the non-locked state of the display board, press to select the lower zone temperature adjustment function;
K7: Temperature value + icon: In the non-locked state of the display board, press the set temperature value + for the corresponding temperature zone;
K8: Temperature value - icon: In the non-locked state of the display board, press the set temperature value - for the corresponding temperature zone;

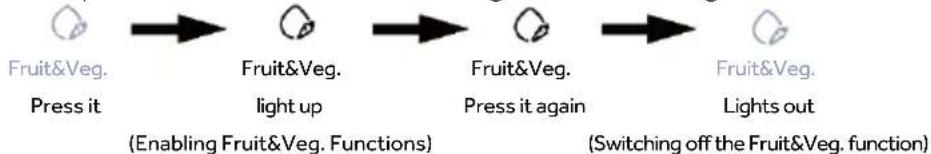

K9: Lower zone Fruit&Veg. function icon: In the non-locked state of the display board, press to turn on/off the Fruit&Veg. function.
K10: Lower zone 0°Fresh function icon: In the non-locked state of the display board, press to turn on/off the 0°Fresh function.

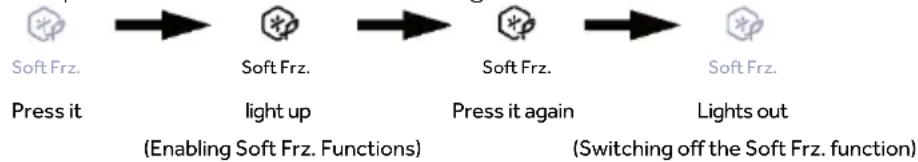

K11: Lower Zone Soft Frz. Function Icon: In the non-locked state of the display board, press to turn on/off the Soft Frz. Function
K12: 3s Unlock Icons: In the non-locked state of the display board, long press for 3 seconds to enter the locked state of the display board; in the locked state of the display board, long press for 3 seconds to exit the locked state of the display board.
K13: Switch on/off the refrigerator standby function button;

Before first use

Remove all packaging materials, keep them out of children's reach and dispose them in an environmentally friendly manner.
- Clean the inside and outside of the appliance with water and a mild detergent before putting any food in it.

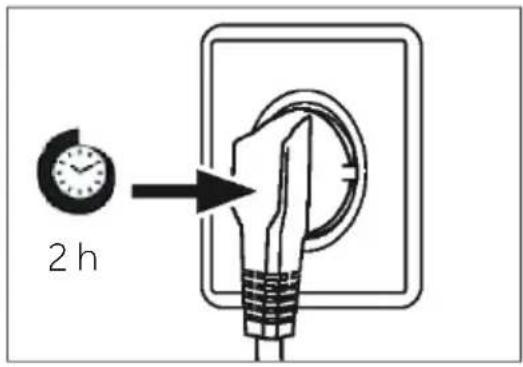

▶ After the appliance has been levelled and cleaned, wait for at least 2-5 hours before connecting it to the power supply.
See Section INSTALLATION.
▶ Precool the compartments at high settings before loading with food.
The function Power- Freeze helps to cool down the compartments quickly.
The refrigerator temperature and freezer temperature are automatically set to 5^ C and -18^ C respectively. These are the recommended settings. If desired, you can change these temperatures manually. Please see ADJUST THE TEMPERATURE.

Sensor keys

The buttons on the control panel are sensor keys, which already respond when lightly touched with the finger.

Switch on /off the appliance

The appliance is in operation as soon as it is connected to the power supply.

NOTICE

When the appliance is switched on after disconnection from the main power supply, it may take up to 12 hours for the correct temperatures to be reached.

Empty the appliance before switching off. To switch off the appliance, pull the power cord out off the power socket.

Adjust the temperature

The indoor temperatures are influenced by the following factors:

Ambient temperature

Frequency of door opening

Amount of stored foods

Installation of the appliance

1. First powered on

When the refrigerator is initially powered on, the display lights up. The freezing upper zone is automatically set to -18^ C and the freezing lower zone is automatically set to -18^ C;

2. Power button

Switch on the refrigerator working mode

In refrigerator standby, press down 3s, Lighting, buttons, etc.

Function on; The refrigerator is enabled in operating mode and begins normal refrigeration operation.

Switching off the refrigerator operating mode press down ⏻ 3s, The display interface indicator is off, lighting, keys and other functions are off; the refrigerator is in standby mode and cooling is stopped.

3. Display lock/unlock

Auto lock:

When the door is closed and has not been operated for 30 seconds, the display automatically goes out and locks.

Manual locking:

Display in unlocked state, When long-pressing the 🔒 3s, The refrigerator buzzer sounds once and the display board icon locks into an inoperable state.

3s Unlock

unlocked state

3s Unlock

Press the button for 3 s

3s Unlock

Lock

Unlock:

When the display is locked, When long-pressing the 🔒 3s, The refrigerator buzzer sounds once and the display panel icon unlocks and enters the operable state.

3s Unlock

Open the door and press any key.

The display lights up.

3s Unlock

Press the key for 3 s

3s Unlock

Unlock

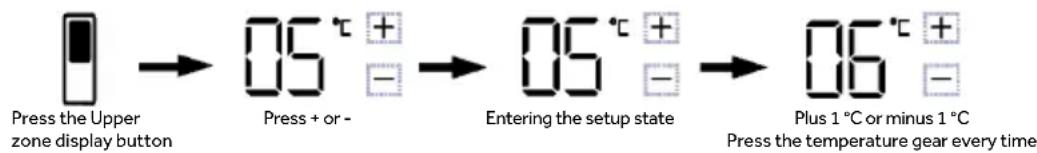

4. Adjusting the temperature of the freeze upper zone (1 \~ 9°C)

1. The display is unlocking state, strike ☐, Access to Refrigerated Upper Zone Temperature Adjustment, press + or −, The buzzer sounds once to enter the upper zone temperature setting state;
2. Each subsequent press of the + or - The buzzer sounds once, Refrigerated upper zone setting gear plus 1 or minus 1, refrigerated upper zone gear range is 1 \~ 9°C.

Press the Upper zone display button 05 °C + Press + or - Entering the setup state 05 °C + Plus 1 °C or minus 1 °C Press the temperature gear every time

NOTICE

1. After setting the temperature, if there is no operation within 5 seconds, the system will be automatically determined and save the set temperature.

5. Adjusting the temperature of the refrigerated Lower zone (4 \~ -7°C)

1. The display is unlocking state, strike ☐, Access to Refrigerated Lower Zone Temperature Adjustment, press + or -, The buzzer sounds once to enter the Lower zone temperature setting state;
2. Each subsequent press of the + or — The buzzer sounds once, Refrigerated lower zone setting gear plus 1°C or minus 1°C, refrigerated upper zone gear range is 4\~-7°C.

02°C + → 02°C + → 03°C +

Press the Lower zone display button
Press + or -
Entering the setup state
Plus 1 °C or minus 1 °C Press the temperature gear every time

NOTICE

1. After setting the temperature, if there is no operation within 5 seconds, the system will be automatically determined and save the set temperature.

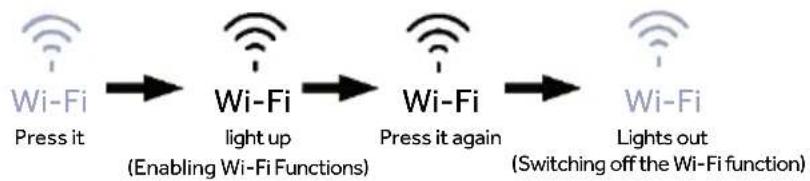

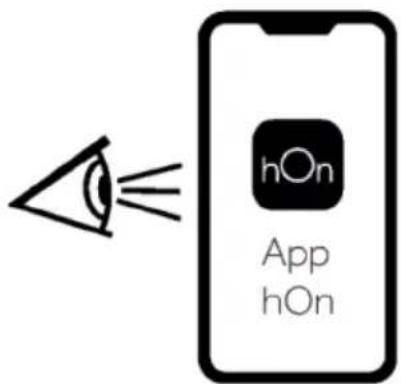

6. Wi-Fi Function

1. Wi-Fi function opening: The display is unlocking state, strike 📤, The buzzer sounds once, 🔺 Enter the shiny state until the connection is long and bright, WiFi function is turned on.
2. Wi-Fi function closed With Wi-Fi function on, press 🔊 button, The buzzer sounds once, 🔊 Icon off, Wi-Fi function off.


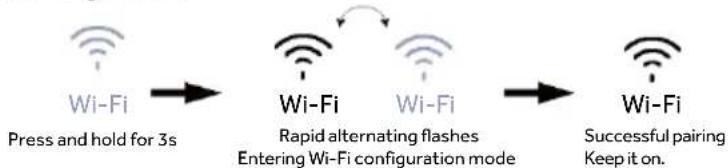

1. Press and hold the button for 3s to enter Wi-Fi configuration mode Enter Wi-Fi configuration mode, Wi-Fi fast flash, and keep it always on after successful configuration.

7. Upper zone Holiday function

1. Upper zone Holiday opening

In the display board unlocked state, Press the upper zone button.

upper zone ♦ cion Lighting Access to the Upper Zone Holiday function.

1. Upper zone Holiday function off

In the display board unlocked state, Press the upper zone 🔊 button, upper zone 🔊 icon off, Exit the upper zone Holiday function;

Lighting the upper zone in the upper zone Holiday function state 📍 or ⚙️ Function button, Soft Frz. function automatically exit.

Note: After the upper zone is exited from the Holiday, the upper zone operates according to the temperature set before entering the Holiday function.

(Enabling Holiday Functions) (Switching off the Holiday function)

1. Control method

The upper zone operates according to 17^ C and the lower zone operates according to the original set gear.

Note: The temperature of the upper zone of the refrigerator cannot be adjusted when the holiday function is set.

8. Upper zone Fridge function off

1. Upper zone Fridge function opening

In the display board unlocked state, Press the upper zone ⬤ button, upper zone ⬤ Icon Lighting, Access the upper zone Fridge function.

1. Upper zone Fridge function off

In the display board unlocked state, Press the upper zone ○ button, upper zone ○ Icon off, Exit Upper Zone Fridge function; In the upper zone Fridge function state or ⚙ Function buttons, Fridge function automatically exits.

Note: After the upper zone is exited from the Fridge, the upper zone operates according to the temperature set before entering the Fridge function.

Press it light up

(Enabling Fridge Functions)

Press it again Lights out

(Switching off the Fridge function)

3. Control method

The upper zone operates according to 5^ C and the lower zone operates according to the original set gear.

NOTE: When setting the upper zone freezer function, the freezer upper zone temperature is not adjustable.

9. Upper zone Super Cool

1. Upper zone super Frz. opening

In the display is unlocking state, Press the upper zone ⚙ button, Upper zone ⚙ Icon Lighting, Enter to the upper zone Super Cool function.

1. Upper zone super Frz. closed

In the display is unlocking state, Press the upper zone ⚙ button Upper zone ⚙ Icon off, Exit Upper Zone Super Cool;

In the upper zone fridge function state ⚠ or ⭕ Function buttons, Super Cool function automatically exists.

When the upper zone Super Cool function is exited, the upper zone operates at the temperature set before entering the Super Cool function.

NOTICE

After entering the super cool mode, Upper zone runs at 1°C. Super cool mode lasts up to 4 hours, Will automatically exit the super cool mode when the time is up, Icon off. After exiting, it runs in the original setting.

10. Lower zone Fruit&Veg.

1. Lower zone Fruit&Veg. opening

In the display is unlocking state, Press the lower zone button lower zone Icon Lighting, Enter to the lower zone Fruit&Veg. function.

1. Lower zone Fruit&Veg.

In the display is unlocking state, Press the lower zone button, lower zone Idon Lighting, Exit Upper lower Fruit&Veg.

In the lower zone fridge function state 📄 or ✕ Function buttons, super Frz. function automatically exits.

When the lower zone Fruit&Veg. function is exited, the lower zone operates at the temperature set before entering the Fruit&Veg. function.

3. Control method

The lower zone operates at 4^ C and the upper zone operates at the original set gear.

NOTE: When setting the lower zone fruit function, the refrigerated lower zone temperature is not adjustable.

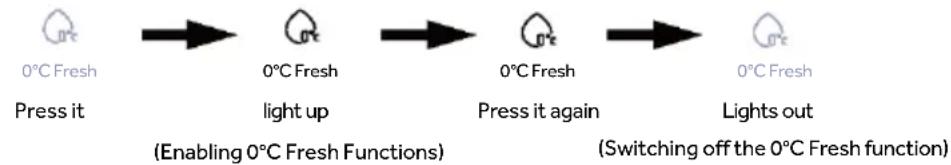

11. Lower zone 0°C Fresh function

1. Lower zone 0°C Fresh function opening

In the display board unlocked state, Press the lower zone 🔒 button, lower zone 🔒 Icon Lighting, Access the lower zone 0°C Fresh Function.

1. Lower zone 0°C Fresh function off

In the display board unlocked state, Press the lower zone 🔒 button, lower zone 🔒 Icon off, Exit lower zone 0°C Fresh function.

In the lower zone 0°C Fresh function state 🏠 or ✕ button 0°C Fresh function automatically exits. After the upper zone is exited from the 0°C Fresh, the upper zone operates according to the temperature set before entering the Freezer function.

3. Control method

The lower zone operates according to 0^ C and the upper zone operates according to the original set gear. Note: When setting the lower zone 0^ C freshness function, the temperature of the refrigerated lower zone is not adjustable.

12. Lower zone Soft Frz. function

1. Lower zone Soft frz. function opening

In the display board unlocked state, Press the lower zone ✦ button, lower zone ✦ Icon Lighting, Access the lower zone Soft frz. function.

1. Lower zone Soft frz. function off

In the display board unlocked state, Press the lower zone ✦ button, lower zone ✦ icon off, Exit lower zone Soft frz. function;

In the lower zone Soft frz. function state 🔒 or 🔒 button, Soft frz. function automatically exits.

After the lower zone Soft frz. function is exited, the lower zone operates at the temperature set before entering the Soft frz. function.

3. Control method

The lower zone operates according to -7^ and the upper zone operates according to the original set gear.

Note: When setting the lower zone soft freeze function, the temperature of the refrigerated lower zone cannot be adjusted.

13. Open Door Alarm

1. When the refrigerator door is open for 3 minutes without closing, the buzzer starts to alarm with an open door alarm tone.
2. If the door opening time is more than 3 minutes and less than 7 minutes, the buzzer will sound a cycle of alarm every 10 seconds, and each cycle will sound three times, 500ms and 800ms.
3. If the door opening time is more than 7 minutes, the buzzer will sound a cycle of alarm every 5 seconds, each cycle will sound 3 times, 500ms, and 800ms.
4. If the door is opened for more than 7 minutes, it will be judged as door switch failure, the lighting of the corresponding room will go out, and the fan will resume operation.

14. Energy saving display control function

Open the door when the display board no operation for about 7 minutes, the display will automatically go out, into the lock state, you can save power, press any key or open the door again, the display will enter into the display light state, close the door after the display about 30 seconds after the automatic extinction.

15. Power failure memory function

When the refrigerator is powered off, the instantaneous working status of the power failure is memorized, and when the power is turned on again, the refrigerator still continues to work in accordance with the gear and function status set before the power failure.

NOTICE

The locking function is not memorized, after the refrigerator is re-powered, the display board enters the self-test, the [locking function icon] goes out and the refrigerator is in the unlocked state.

Step 1 Download the hOn app on the stores

Step 2 Create your account in the hOn-App or log in if you already have an account.

HON Welcome! Signs information in your home HON SINCEP Post, now in Canada? Click about notifications our products. TRY DENNS

Step 3 Follow pairing instructions in the hOn-App.

hOn App hOn

Wi-Fi function

1. Follow in App instructions to configure the Wi-Fi.
2. Once the Wi-Fi is configured and the connection established, the Wi-Fi i con "A" is bright and fixed.
3. If the Wi-Fi has already been configured, it will au tomatically reconnect according to the configuration in formation if turns on the Wi-Fi.
4. To turn off the Wi-Fi, press Wi-Fi button "K1" and the Wi-Fi icon "A" turns off.

Energy saving tips

Make sure the appliance is properly ventilated (see INSTALLATION).
Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters).
Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature in the appliance is set.
▶ Functions like POWER-FREEZE consume more energy.
▶ Allow warm food to cool down before placing it in the appliance.
▶ Open the appliance door as little and as briefly as possible.
Do not overfill the appliance to avoid obstructing the air flow.
▶ Avoid air within the food packaging.
Keep door seals clean so that the door always closes correctly.
▶ Defreeze frozen food in the fridge storage compartment.
The most energy-saving configuration requires the appliance keep drawers, food box and shelves on factory-fresh condition, and food should be placed as far as possible without blocking the air outlet of the duct.

WARNING!

Disconnect the appliance from the power supply before cleaning.

Cleaning

Clean the appliance when only little or no food is stored.

The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odors.

WARNING!

Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.
Do not spray or flush the appliance during cleaning.
Do not use water spray or steam to clean the appliance.
Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.
Do not touch the inside surface of the freezer storage compartment, especially with wet hands, as your hands may freeze onto the surface.
In case of heating check the condition of frozen goods.

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

▶ Always keep the door gasket clean.
Clean the inside and housing of the appliance with a sponge dampened in warm water and neutra detergent.
1. Please scrub the interior and exterior of the refrigerator, including door sealing, door rack, glass shelves, boxes and so on, with a soft towel or sponge dipped in warm water (you may add neutral detergent into the warm water).

1. If there is liquid spilled, remove all the contaminated parts, directly rinse with the flow water, dry and place it back into the fridge.
2. If there is spilled cream (such as the cream, melting ice cream), please remove all the contaminated parts, put into the warm water with about 40 °C for some time, then rinse with the flow water, dry and place it back into the fridge.
3. In case some small part or component gets stuck inside of the fridge (between shelves or drawers), use small soft brush to release it. If you could not reach the part, please contact Haier service
   ▶ Rinse and dry with soft cloth.
   Do not clean any of the parts of the appliance in a dishwasher.
   ▶ Allow at least 5 minutes before restarting the appliance as frequent starting may damage the compressor.

Defrosting

The defrosting of the refrigerator and the freezer compartment are done automatically;

Replacing the LED-lamps

WARNING!

Do not replace the LED lamp yourself, it must only be replaced by either the manufacturer or the authorised service agent.

The lamps adopts LED as its light source, featuring low energy consumption and long service life. If there is any abnormality, please contact the customer service.

See CUSTOMER SERVICE.

Parameters of the lamps:

Refrigerator compartment: 12 V max 2 W

Freezer compartment: 12 V max 2 W

Non-use for a longer period

If the appliance is not used for an extended period of time, and you will not use the

Holiday-function for the refrigerator:

Take out the food.

Unplug the power cord.

Clean the appliance as described above.

Keep the doors open to prevent the creation of bad odours inside.

NOTICE

Turn the appliance off only if strictly necessary.

Moving the appliance

1. Remove all food and unplug the appliance.
2. Secure shelves and other moveable parts in the fridge and the freezer with adhesive tape.
3. Do not tilt the refrigerator more than 45^ to avoid damaging the refrigerating system.

WARNING!

Do not lift the appliance by its handles.
▶ Never place the appliance horizontally on the ground.

Many occurring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE.

WARNING!

Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages.
A damaged supply should only be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Problem Possible Cause	Possible Solution
The compressor does not work.	Mains plug is not connected in the mains socket.The appliance is in the defrosting cycle.	Connect the mains plug.This is normal for an automatic defrosting.
The appliance runs frequently or runs for a too long period of time.	The indoor or outdoor temperature is too high.The appliance has been off power for a period of time.A door of the appliance is not tightly closed.The door has been opened too frequently or for too long.The temperature setting for the freezer compartment is too low.The door gasket is dirty, worn, cracked or mismatched.The required air circulation is not guaranteed.	In this case, it is normal for the appliance to run longer.Normally it takes 8 to 12 hours for the appliance to cool down completely.Close the door/drawer and ensure the appliance is located on a level ground and there is no food or container jarring the door.Do not open the door/drawer too frequently.Set the temperature higher until a satisfactory refrigerator temperature is obtained. It takes 24 hours for the refrigerator temperature to become stable.Clean the door/drawer gasket or replace them by the customer service.Ensure adequate ventilation.
The inside of the refrigerator is dirty and/or smells.	The inside of the refrigerator needs cleaning.Food of strong odour is stored in the refrigerator.	Clean the inside of the refrigerator.Wrap the food thoroughly.
It is not cold enough inside the appliance.	The temperature is set too high.Too warm goods has been stored.Too much food has been stored at one time.The goods are too close to each other.A door/drawer of the appliance is not tightly closed.The door/drawer has been opened too frequently or for too long.	Reset the temperature.Always cool down goods before storing them.Always store small quantities of food.Leave a gap between several foods allowing air flowing.Close the door/drawer.Do not open the door/drawer too frequently.
It is too cold inside the appliance.	The temperature is set too low.The Super-Frz/Su- per-Cool function is activated or is running too long.	Reset the temperature.Switch off the Super-Frz/Super-Cool function.
Moisture formation on the inside of the refrigerator compartment.	The climate is too warm and too damp.A door/drawer of the appliance is not tightly closed.The door/drawer has been opened too frequently or for too long.Food containers or liquids are left open.	Increase the temperature.Close the door/drawer.Do not open the door/drawer too frequently.Let hot foods cool to room temperature and cover foods and liquids.
Moisture accumulates on the refrigerators outside surface or between the doors/door and drawer.	The climate is too warm and too damp.The door is not closed tightly. The cold air in the appliance and the warm air outside it condensates.	This is normal in damp climate and will change when the humidity decreases.Ensure that he door/drawer is tightly shut.
Strong ice and frost in the freezer compartment.	The goods were not adequately packaged.A door/drawer of the appliance is not tightly closed.The door/drawer has been opened too frequently or for too long.The door/drawer gasket is dirty, worn, cracked or mismatched.Something on the inside prevents the door/drawer to close properly.	Always pack the goods well.Close the door/drawer.Do not open the door/drawer too frequently.Clean the door/drawer gasket or replace them by new ones.Reposition the shelves, door racks, or internal containers to allow the door/drawer to close.
The sides of the cabinet and door strip get warm.		This is normal.
The appliance makes abnormal sounds.	The appliance is not located on level ground.The appliance touches some object around it.	Adjust the feet to level the appliance.Remove objects around the appliance.
A slight sound is to be heard similar to that of flowing water.	This is normal.
You will hear an alarm beep.	The fridge storage compartment door is open.	Close the door.
You will hear a faint hum.	The anti-condensation system is working	This prevents condensation and is normal
The interior lighting or cooling system does not work.	Mains plug is not connected in the mains socket.The power supply is not intact.The LED-lamp is out of order.	Connect the mains plug.Check the electrical supply to the room. Call the local electricity company!Please call the service for changing the lamp.
Problem Possible Cause Possible Solution
The display light is working, but the refrigerator is not cooling.	It is in demo mode.	Please note what condition it is in, if it is in Demo mode, exit it.Exit: Open the refrigerator door, and press the WIFI key 8S while the displaypanel is locked.

To contact the technical assistance, visit our website: https://cprporate.haier-europe.com/en/

Under the section "website", choose the brand of your product and your country.

You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance.

Power interruption

In the event of a power cut, food should remain safely cold for about 5 hours. Follow these tips during a prolonged power interruption, especially in summer:

▶ Open the door/drawer as few times as possible.
Do not put additional food into the appliance during a power interruption.
If prior notice of a power interruption is given and the interruption duration is longer than 5 hours, make some ice and put it in a container in the top of the refrigerator compartment.
An inspection of the goods is required immediately after the interruption.
As temperature in the refrigerator will rise during a power interruption or other failure, the storage period and edible quality of food will be reduced. Any food that defrosts should be either consumed, or cooked and refrozen (where suitable) soon afterwards in order to prevent health risks.

Memory function during power interruption

After restoration of power the appliance continues with the settings that were set before the power failure.

Unpacking

WARNING!

The appliance is heavy. Always handle with at least two persons.
Keep all packaging materials out of children's reach and dispose them in an environmentally friendly manner.
▶ Take the appliance out of the packaging.
Remove all packaging materials.

Environmental conditions

The room temperature should always be between 10^ and 43^ , since it can influence the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation.

Space requirement

Required space when door is opened.(Without cabinet door panel)

01 02 03 04 05 06 07

Model HUT7518EWF
01* 10 (Min.) / 30 (Recommended)
02 113°
03 55
04 745
05 545
06 -3
07 1115

* 01 From cabinet to rear of product. (unit: mm)

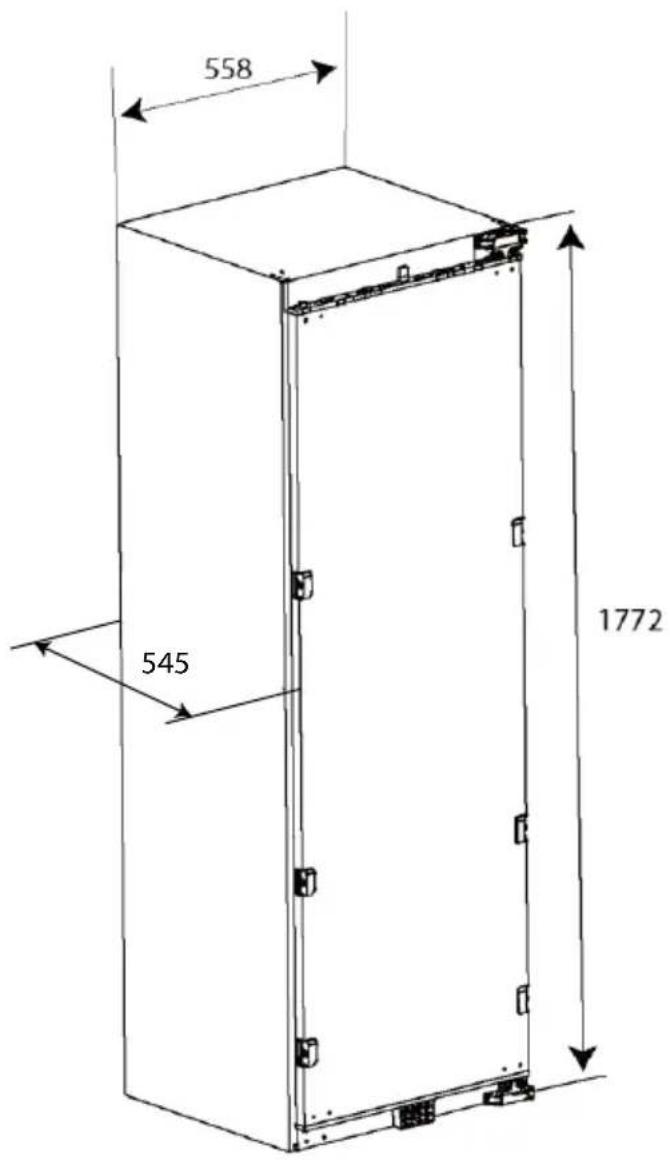

Product dimension

558 545 1772

Refrigerator Size(W*D*H): 558x545x1772 (mm)

NOTICE

The specified energy consumption is based on the condition of a 10 mm gap from cabinet to rear of product. The product will work properly even with a gap which is less than 10 mm, however it consumes slightly more energy.

- We recommend using a cabinet that is 19mm thick with hinges less than 17mm thick.

- The measurements in the above table may differ, depending on the measuring method.

Ventilaton cross-section

To achieve sufficient ventilation of the appliance for safety reasons, the information of the required ventilation cross sections must be observed.

200cm² 200cm² 200cm² 200cm² 200cm² A B

A: Air inlet ≥ 200cm²; Ventilation options B: Air outlet ≥ 200cm²; Ventilation options B1 B2 A1 A2

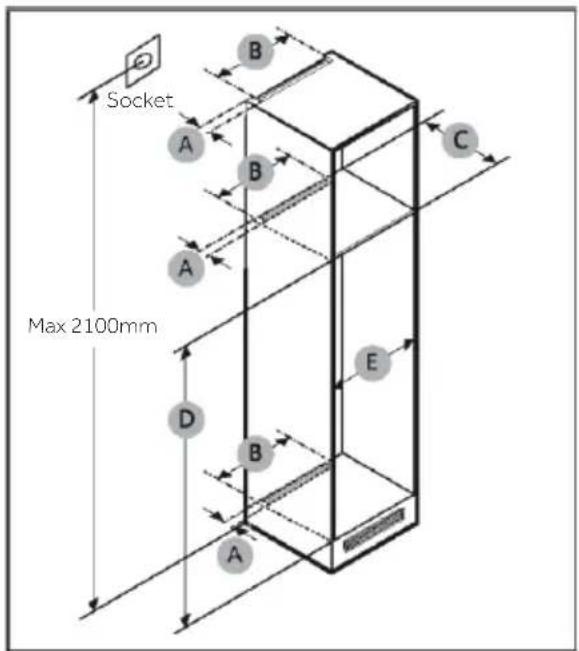

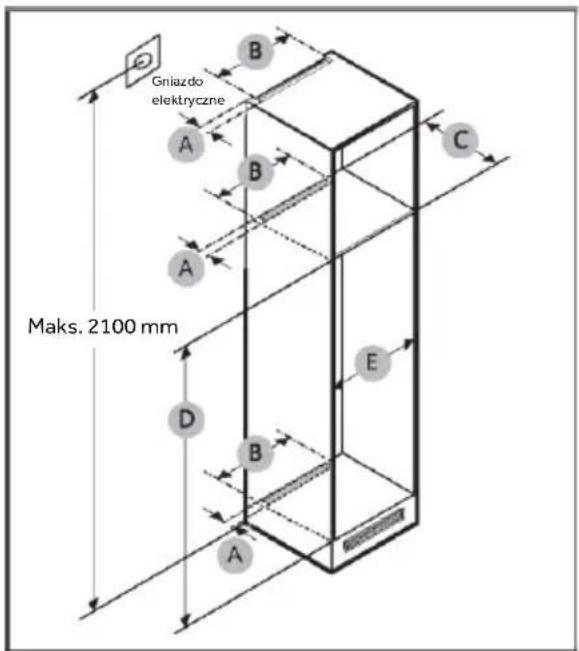

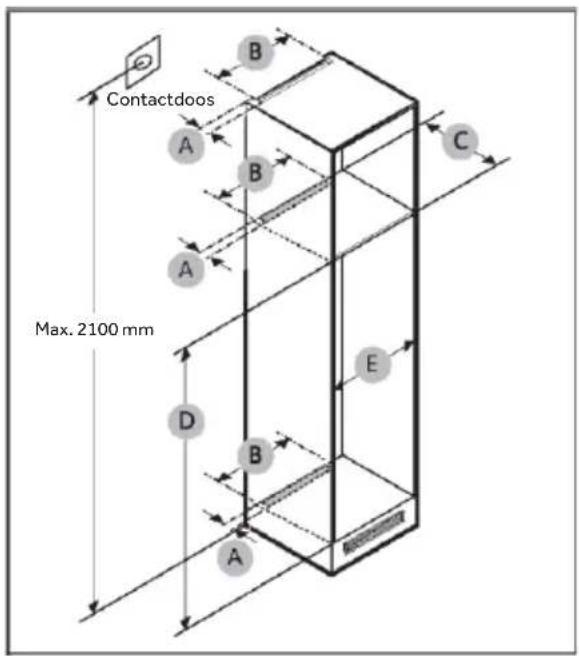

Cabinet dimension

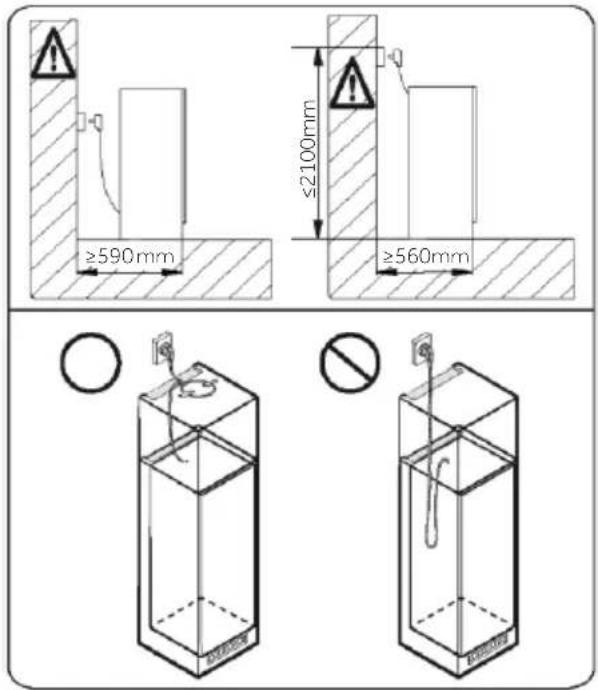

Socket Max 2100mm A B C D E B A

CAUTION!

Any product failure due to the following is not covered by the Warranty.

1. Improper site conditions or incorrect cabinet sizes.
2. Defective cabinet.
3. Mistakes by the installer or the user.

Clearance

See the pictures and tables below for space requirements for installation.

Model		A(mm)	B(mm)	C(mm)	D(mm)	E(mm)
HMLT7518EWF Fixed hinge type	Min.	50	400	560	1778 5	60
	Recommend 1780			580		562
	Max. - 1782					568

NOTICE

• If the width of a cabinet is larger than 600mm, the gasket (between the refrigerator and the cabinet) can become loose.
• If the cabinet is higher than the maximum dimension(2250mm), you must use other finishing materials to fill the gap.

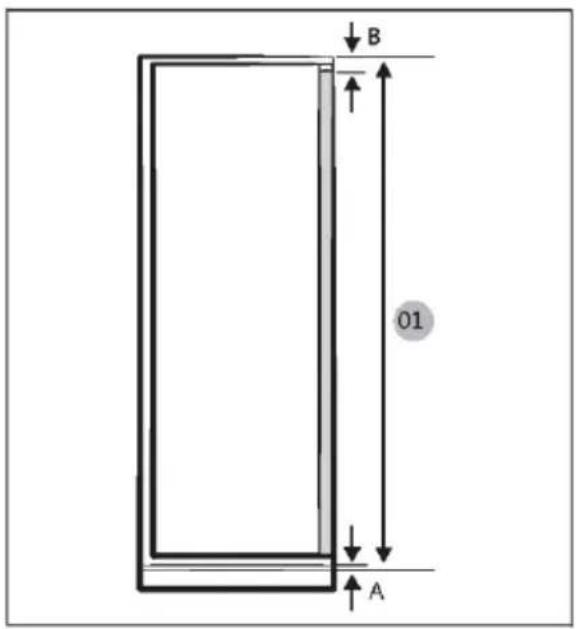

B O1 A

A. Lower edge of the front panel above the air ventilation
B. Front panel overhang

MODEL	HMLT7518EWF
01	Min.1778+A+B	Max.1782+A+B

(unit: mm)

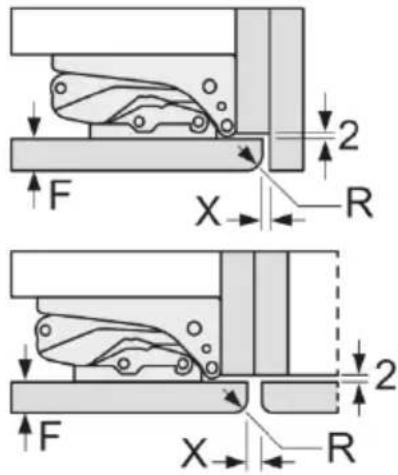

Recommended gap dimensions for flat hinges (For Fixed type).

F X R 2 2 F X R

(unit: mm)

FRX
16-190-3 2.5
20	0-1 3
	2-3 2.5
21	0-1 3
	2-3 2.5
22	0	4
	13.5
	2-33

The gap dimensions recommended in the table must be adhered to in order to ensure that appliance doors do not collide with anything when they are opened, and to avoid causing damage to kitchen units.

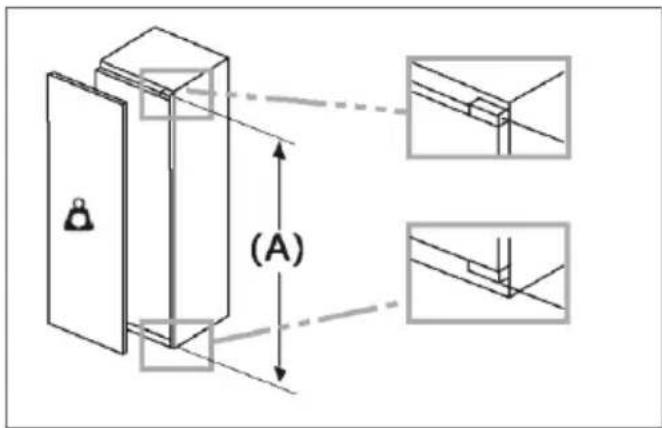

Maximal permissible weight of the unit fronts

(A)

Fitted unit fronts that exceed the permissible weight may cause damage and result in functional impairment of the hinges.

Weight (kg)

1500-1750 mm

22

Note: In order to avoid the hinge deformation caused by the overweight of the door panel, when the height of the door panel is greater than 2250mm or the weight of the door panel is greater than 22kg due to the door panel material, density, thickness, etc., it is necessary to reduce the height of the door panel, or the cabinet door panel should be split.

Consideration for socket outlet location and required space.

≥590mm ≤2100mm ≥560mm

NOTICE

If you install the refrigerator in a cabinet with a 560 mm depth, make sure the power cord is arranged on a side of the refrigerator before plugging into a power socket. If the power cord is in the rear of the refrigerator could decrease the energy efficiency.

2 h

Waiting time

To the maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during slanting transport. Before connecting the appliance to the power supply you have to wait at least 2 hours so that the oil runs back into the capsule.

Electrical connection

Before each connection check if:

▶ power supply, socket and fusing are appropriate to the rating plate.

the power socket is earthed and no multi- plug or extension.

▶ the power plug and socket are strictly according.

Connect the plug to a properly installed household socket.

WARNING!

To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).

Product fiche according to regulation EU No. 2019/2016

Brand Haier
Model name / identifier HMLT7518EWF
Category of the model Fridge
Energy efficiency class E
Annual energy consumption(kWh/year)(1) 145
Total volume(L) 278
Volume refrigerator(L) 175
Volume freezer(L) 103
Volume chiller section(L) /
Volume auto ice maker(L)	/
Star rating	1
Temperature of other compartment14°C	Non applicable
Frost-free system Yes
Freezing capacity(kg/24h)	/
Climate rating(2)	SN-N-ST-T
Noise emission class and airborne acoustical noise emissions(db (A) re 1pW)	C(35)
Temperature rise time (h)	/
Ice making capacity (Only for HT F-520IP7)	/
Type of appliance	Built-in

Explanations:

- Yes, featured

(1) Based on the results of the standards conformance test over 24 hours. The actual consumption depends on the use and the location of the appliance.
(2) Climate rating SN: This appliance is intended for use in an ambient temperature of between +10°C and +32°C Climate rating N: This appliance is intended for use in an ambient temperature of between +16°C and +32°C Climate rating ST: This appliance is intended for use in an ambient temperature of between +16°C and +38°C Climate rating T: This appliance is intended for use in an ambient temperature of between +16°C and +43°C

Additional technical data

Voltage / Frequency 220-240V ~/ 50Hz
Input current (A) 2
Main fuse (A) 16
Coolant R600a
Dimensions (H/W/D in mm) 1772 / 558 / 545

We recommend our Haier Customer Service and the use of original spare parts. If you have a problem with your appliance, please first check section TROUBLESHOOTING.

If you cannot find a solution there, please contact

▶ your local dealer or
our European Call Service-Center (see listed phone numbers below) or
the Service & Support area at www.haier.com where you can activate the service
▶ claim and also find FAQs.

To contact our Service, ensure that you have the following data available. The information can be found on the rating plate.

Model ____ Serial No. ____

Also check the Warranty Card supplied with the product in case of warranty.

European Call Service-Center
Country* Phone number Costs
Haier Italy (IT) 199 100 912
Haier Spain (ES) 902 509 123
Haier Germany (DE) 0180 5 39 39 99	• 14 Ct/Min Landline• max 42 Ct/Min Mobile
Haier Austria (AT) 0820 001 205 14,53 Ct/Min Landline• max 20 Ct/Min all others
Haier United Kingdom (UK) 0333 003 8122
Haier France (FR) 0980 406 409

* For other countries please refer to www.haier.com

Haier Europe Trading S.r.l

Branch UK

Westgate House, Westgate, Ealing

London, W5 1YY

*Duration of the guarantee of the refrigerating appliance:

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

*The period of spare parts for the repair of the appliance:

Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market.

Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.

*For further information about the product, please consult https://eprel.ec.europe.eu/ or scan the QR on the energy label supplied with the appliance.

CERTIFICATE OF QUALITY

DESIGNATION: REFRIGERATOR

Q.C.PASSED

CHECKER No.

Haier

A B C D E F G H I J K L M N Wi-Fi Holiday Chladnicka Super Cool -88°C + - Fruit&Veg. 0°C Fresh Soft Frz. 3s Unlock 3s Power K1 K2 K3 K4 K5 K6 K7 K8 K9 K10 K11 K12 K13

Tlačítka:

HON Welcome! Sign in order to your home ADD IN ADD UP Post now in Cards? Click about thickness for products. TRY DESG

hOn App hOn

Funkce Wi-Fi

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Nastavitelné police

Diagram showing two labeled components with upward and downward arrows indicating movement or force directions.

POZNÁMKA

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

F X R 2 2 F X R

(jednotky: mm)

FRX
16-190-3 2.5
20	0-1 3
	2-3 2.5
21	0-1 3
	2-3 2.5
22	04
	13.5
	2-33

Westgate House, Westgate, Ealing

London, W5 1YY

Welcome! Signs to order your home YOU IN SUPPORT Find new in Candy? Click above to discover your problems. TRY OK

hOn App hOn

WLAN-Funktion

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Diagram showing two labeled components with upward and downward arrows indicating movement or force directions.

HINWEIS

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

Pure architectural line drawing of a door frame with no text or symbols

Simple line drawing of a corner structure with no text or symbols

Technical diagram showing a structural support frame with no visible text or symbols

Technical line drawing of a structural support system with no visible text or symbols

F X R 2 2 F X R

(Einheit: mm)

FRX
16-190-3 2.5
20	0-1 3
	2-3 2.5
21	0-1 3
	2-3 2.5
22	04
	13.5
	2-33

≥590mm ≤2100mm ≥560mm

HINWEIS

M Eikovíðio 3s Unlock

N Eikovíδιο 3s Power

Ενδείξεις:

Welcome! Sign in order to your store LOGM SOLDUP Post new in Candy? Click above: Inception or product TWO SIMO

hOn App hOn

Λειτουργία Wi-Fi

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement.

Πολλαπλή ροή αέρα

Diagram showing two labeled components with directional arrows and numbered circles, likely illustrating a mechanical or electrical system.

ΕΙΔΟΠΟΙΗΣΗ

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

F X R 2 2 F X R

(μονάδα: mm)

FRX
16-190-3 2.5
20	0-1 3
	2-3 2.5
21	0-1 3
	2-3 2.5
22	04
	13.5
	2-33

≥590mm ≤2100mm ≥560mm

ΕΙΔΟΠΟΙΗΣΗ

Westgate House, Westgate, Ealing

Λονδίνο, W5 1YY

Welcome! Signs to enter your home 100% SOLID Put new in Candy? Click above to add more our products. TAY DRUG

hOn App hOn

Función Wi-Fi

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Estantes ajustables

Diagram showing two labeled components with arrows indicating movement or force, marked ① and ②.

AVISO

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

Pure architectural line drawing of a corner structure with no text or symbols

Pure structural diagram showing a corner with hatched areas and dimension arrows, no text or symbols present.

Technical line drawing of a structural support frame with no visible text or symbols

Technical diagram showing a structural support system with no visible text or symbols

F X R 2 2 F X R

(unidad: mm)

FRX
16-190-3 2.5
20	0-1 3
	2-3 2.5
21	0-1 3
	2-3 2.5
22	04
	13.5
	2-33

Westgate House, Westgate, Ealing

Londres, W5 1YY

A B C D E F G H I J K L M N Wi-Fi Holiday Fridge Super Cool -88°C + - K1 K2 K3 K4 K5 K6 K7 K8 K9 K10 K11 K12 K13 Fruit&Veg 0°C Fresh Soft Frz. 3s Unlock 3s Power

Touches:

3s Unlock
Verrouillage

Déverrouillage :

Welcome! Signs to account in your home SOLID SOLID UP Add new in Candy? Click above to deliver our products. TAY DOHO

hOn App hOn

Fonction Wi-Fi

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Clayettes réglables

Diagram showing two labeled components with upward and downward arrows indicating movement or force directions.

REMARQUE

Illustration of a hand cleaning a window with a washing machine nearby (no text or symbols)

Pure technical diagram showing two parallel lines with directional arrows, no text or symbols present

Simple line drawing of a corner structure with hatched shading and directional arrows (no text or symbols)

Technical diagram showing a structural support frame with no visible text or symbols

Technical line drawing of a structural support frame with no text or symbols

MODELE	HMLT7518EWF
01	Min.1778+A+B	Max.1782+A+B

(unité : mm)

F X R 2 2 F X R

(unité : mm)

FRX
16-190-3 2.5
20	0-1 3
	2-3 2.5
21	0-1 3
	2-3 2.5
22	04
	13.5
	2-33

Westgate House, Westgate, Ealing

Londres, W5 1YY

Welcome! Sign it to enter your home UK PL iOS LP Pro, new in Candy? Click above to discuss our problems. TWLOVD

hOn App hOn

Wi-Fi funkció

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Diagram showing two labeled components with arrows indicating movement or force, marked ① and ②.

MEGJEGYZÉS

Illustration of a hand cleaning a window with a washing machine and a basin nearby (no text or symbols)

F X R 2 2 F X R

(mértékegység: mm)

FRX
16-190-3 2.5
20	0-1 3
	2-3 2.5
21	0-1 3
	2-3 2.5
22	04
	13.5
	2-3 3

Westgate House, Westgate, Ealing

London, W5 1YY

A B C D E F G H I J K L M N WI-FI Holiday Frigorifero Super Cool -88°C + - K1 K2 K3 K4 K5 K6 K7 K8 K9 K10 K11 K12 K13 Fruit & Veg. 0°C Fresh Soft Frz. 3s Unlock 3s Power

Tasti:

Welcome! Signs to enter your home 100% SOLID Put new in Candy? Click above to add more our products. TAY DRUG

hOn App hOn

Funzione Wi-Fi

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Ripiani regolabili

Diagram showing two labeled components with upward and downward arrows indicating movement or force directions.

AVVISO

Illustration of a hand cleaning a window with a washing machine and a basin nearby (no text or symbols)

Pure technical diagram showing two horizontal bars with arrows indicating direction, no text or symbols present

Pure structural diagram showing a corner with hatched areas and dimension arrows, no text or symbols present.

Technical line drawing of a structural support frame with no visible text or symbols

Technical diagram showing a structural support system with no visible text or symbols

Dimensioni del mobile

Presa Massimo 2100 mm A B C D E B A

ATTENZIONE!

F X R 2 2 F X R

(unità: mm)

FRX
16-190	3 2.5
20	0-1 3
	2-3 2.5
21	0-1 3
	2-3 2.5
22	04
	1 3.5
	2-3 3

Westgate House, Westgate, Ealing

London, W5 1YY

A B C D E F G H I J K L M N WI-FI Holiday Fridge Super Cool -88°C + - K1 K2 K3 K4 K5 K6 K7 K8 K9 K10 K11 K12 K13 Fruit&Veg. 0°C Fresh Soft Frz. 3s Unlock 3s Power

Toetsen:

Welcome! Signs to order your home SOMU SIGNUP First now in Candy? Click above indicators on your problems. TRY OCHO

hOn App hOn

Wifi-functie

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement.

Verstelbare planken

Diagram showing two labeled components with arrows indicating movement or force directions, marked ① and ②.

LET OP

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Pure technical diagram showing a structural component with arrows indicating direction, no text or symbols present.

Simple line drawing of a corner joint with hatched shading (no text or symbols)

Technical diagram showing a structural support frame with no visible text or symbols

Technical line drawing of a structural support system with no visible text or symbols

Afmetingen kast

Contactdoos Max. 2100 mm A B C D E B A

VOORZICHTIG!

F X R 2 2 F X R

(eenheid: mm

FRX
16-190-3 2.5
20	0-1 3
	2-3 2.5
21	0-1 3
	2-3 2.5
22	04
	13.5
	2-33

Westgate House, Westgate, Ealing

AANDUIDING: KOELKAST

GESLAAGDE QC

Nr. CONTROLEUR

Haier

Instrukcja obsługi

Chłodziarka

HMLT7518EWF

A B C D E F G H I J K L M N WI-FI Holiday Chłodziarka Super Cool -88°C + - K1 K2 K3 K4 K5 K6 K7 K8 K9 K10 K11 K12 K13 Fruit & Veg. 0°C Fresh Soft Frz. 3s Unlock 3s Power

Przyciski:

Hello! Welcome! Sign to enter your home YOU IN SINUP Find now in Cards? Click about how much our projects. © TRY 2014

hOn App hOn

Funkcja Wi-Fi

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Regulowane półki

Diagram showing two labeled components with arrows indicating upward and downward movement, marked with circled numbers ① and ②.

UWAGA

Illustration of a hand cleaning a window with a washing machine and a basin nearby (no text or symbols)

Pure architectural line drawing of a window frame with no text or symbols

Pure technical diagram showing a right-angle bracket with dimension arrows and hatching (no text or symbols)

Technical diagram showing a structural support frame with no visible text or symbols

Technical diagram showing a structural assembly with supports and a vertical component, labeled A2 (no text or symbols present)

Wymiar szafki

MODEL	HMLT7518EWF
01	Min.1778+A+B	Maks. 1782+A+B

(jednostka: mm)

F X R 2 2 F X R

(jednostka: mm)

FRX
16-190-3 2.5
20	0-1 3
	2-3 2.5
21	0-1 3
	2-3 2.5
22	04
	13.5
	2-33

Westgate House, Westgate, Ealing

Londyn, W5 1YY

A B C D E F G H I J K L M N Wi-Fi Holiday Frigorifico Super Cool -88°C + - K1 K2 K3 K4 K5 K6 K7 K8 K9 K10 K11 K12 K13 Fruit & Veg. 0°C Fresh Soft Frz. 3s Unlock 3s Power

Botões:

3s Unlock
Desbloquear

Welcome! Signs to enter your home 100% SOLID Put new in Candy? Click above to add more our products. TAY DRUG

hOn App hOn

Função Wi-Fi

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating movement or force direction.

Diagram showing two labeled components with arrows indicating upward and downward movement, marked with circled numbers ① and ②.

AVISO

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

Substituir as lâmpadas LED

AVISO!

MODELO	HMLT7518EWF
01	Min.1778+A+B	Max.1782+A+B

(unidade: mm)

F X R 2 2 F X R

(unidade: mm)

FRX
16-190-3 2.5
20	0-1 3
	2-3 2.5
21	0-1 3
	2-3 2.5
22	04
	13.5
	2-33

≥590mm ≤2100mm ≥560mm

AVISO

Westgate House, Westgate, Ealing

London, W5 1YY

B: Frigider Compartment inferior

A B C D E F G H I J K L M N WI-FI Holiday Frigider Super Cool -88°C + - K1 K2 K3 K4 K5 K6 K7 K8 K9 K10 K11 K12 K13 Fruit & Veg. 0°C Fresh Soft Frz. 3s Unlock 3s Power

Butoane:

Welcome! Signs to enter your home 100% SOLID Put now in Candy? Click above to add more our products. TAY DRUG

hOn App hOn

Funcția Wi-Fi

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Flux de aer multiplu

Diagram showing two labeled components with upward and downward arrows indicating movement or force directions.

OBSERVATIE

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

Compartment congelator: 12 V max 2 W

Pure architectural line drawing of a corner structure with no text or symbols

Pure structural diagram showing a corner with hatched areas and dimension arrows, no text or symbols present.

Technical line drawing of a structural support frame with no visible text or symbols

Technical diagram showing a structural support system with no visible text or symbols

MODEL	HMLT7518EWF
01	Min.1778+A+B	Max.1782+A+B

(unitate: mm)

F X R 2 2 F X R

(unitate: mm)

FRX
16-190-3 2.5
20	0-1 3
	2-3 2.5
21	0-1 3
	2-3 2.5
22	04
	13.5
	2-33

≥ 590mm ≤ 2100mm ≥ 560mm

OBSERVATIE

Westgate House, Westgate, Ealing

Londra, W5 1YY

A B C D E F G H I J K L M N Wi-Fi Holiday Chladnicka Super Cool -88°C + - K1 K2 K3 K4 K5 K6 K7 K8 K9 K10 K11 K12 K13 Fruit & Veg. 0°C Fresh Soft Frz. 3s Unlock 3s Power

Tlačidlá:

A Ikona Wi-Fi
B Ikona Holiday v hornej zóne
C Ikona funkcie Fridge v hornej zóne
D Ikona funkcie Super Cool hornej zóny
H Ikona + pre hodnotu teploty

I Ikona - pre hodnotu teploty
J Ikona funkcie Fruit & Veg pre spodnú zónu
K Ikona funkcie 0° Fresh pre spodnú zónu
L Soft Frz. spodnej zóny Ikona funkcie
M Ikona 3s Unlock
N Ikona 3s Power

Indikátory:

3s Unlock
Odomknutie

Welcome! Sign in order to your home KOSM SUPPORT Put now in Cards? Click about healthier our products. TRY DEMS

Krok 3 Postupujte podl'a pokynov na párovanie v aplikácii hOn

hOn App hOn

Funkcia Wi-Fi

1. Postupujte podl'a pokynov v aplikácii a nakon gurujte Wi-Fi.
2. Po nakon gurovaní Wi-Fi a vytvorení pripojenia sa ikona „A“ pre Wi-Fi zapne a zostane svietit'.
3. Ak už bola siet' Wi-Fi nakon gurovaná, Wi-Fi sa automaticky znova pripojí podl'a informácií o kon gurácii.
4. Ak chcete Wi-Fi vypnút', stlačte tlačidlo Wi-Fi „K1, ikona „A“ pre Wi-Fi zhasne.

AIRSURROUND WATER Helder WOMEN 18

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Nastavitelné police

Diagram showing two labeled components with upward and downward arrows indicating movement or force directions.

OZNÁMENIE

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Chladiaci priestor: 12 V max 2 W

Priestor mrazničky: 12 V max 2 W

Pure technical diagram showing two horizontal structural elements with directional arrows, no text or symbols present.

Simple line drawing of a corner structure with directional arrows, no text or symbols present

Technical diagram showing a structural support frame with no visible text or symbols

Technical diagram showing a structural support system with no visible text or symbols

Rozmer skrine

Zásuvka Max 2100 mm A B C D E A B

POZOR!

MODEL	HMLT7518EWF
01	Min.1778+A+B	Max.1782+A+B

(jednotka: mm)

F X R 2 2 F X R

(jednotka: mm)

FRX
16-190-3 2.5
20	0-1 3
	2-3 2.5
21	0-1 3
	2-3 2.5
22	04
	13.5
	2-33

Westgate House, Westgate, Ealing

London, W5 1YY
