UNI_CH_01 - Heating Uniprodo - Free user manual and instructions

Product type	Electric convector
Model	UNI_CH_01
Brand	Uniprodo
Supply voltage	230 V~ / 50 Hz
Nominal power	1000 / 1300 / 2300 W (3 levels)
Maximum heating temperature	37 °C
IP class	IP20 (dry indoor use)
Dimensions (W x D x H)	685 x 220 x 450 mm
Weight	4.9 kg
Mounting type	On feet, floor-standing (do not mount on wall)
Control panel	Digital display, temperature adjustment buttons, timer, power selection, fan switch
Remote control	Yes (included)
Main functions	Convection heating, integrated fan, adjustable timer, ambient temperature display, °C/°F unit selection
Safety	Overheat protection (automatic shut-off), do not cover, do not use near water, tip-over switch?
Usage area	Indoor, dry rooms, out of reach of children
Minimum distance to walls	10 cm on each side
Cleaning and maintenance	Unplug and allow to cool before cleaning. Use a soft dry or slightly damp cloth. Do not immerse. Clean ventilation grilles with a brush or compressed air. No abrasive cleaners or solvents.
Housing material	Heat-resistant plastic (not specified)
Power cord length	Approx. 1.5 m (estimated)
Protection device	Internal fuse (not specified)
Repairability	Repair by authorized service only, original spare parts
Disposal	Recycling at WEEE collection point (do not dispose of with household waste)

Frequently Asked Questions - UNI_CH_01 Uniprodo

What is the maximum power of the UNI_CH_01 convector?

The nominal power is 2300 W, with three adjustable levels: 1000 W, 1300 W and 2300 W.

How to set the desired temperature?

Use buttons 5 and 6 on the control panel to increase or decrease the temperature. The digital display shows the set value.

Can I use the device in a bathroom?

No, the device is rated IP20 and should not be used near bathtubs, showers or swimming pools. It is designed for dry rooms only.

How to clean the convector?

Unplug the device and allow it to cool. Clean the surface with a soft dry or slightly damp cloth. For ventilation grilles, use a brush or compressed air. Never immerse the device.

Does the convector have a timer?

Yes, you can program the operating time using button 7 (timer). The adjustment range is not specified, but it allows you to set the device to run for a defined duration.

What to do if the device does not heat?

Check that the main switch is on, the set temperature is higher than the ambient temperature, and the overheat protection has not been activated. If the problem persists, contact customer service.

Can the device be wall-mounted?

No, the UNI_CH_01 convector is designed to be placed on the floor on its feet. It must not be fixed to a wall or ceiling.

What safety distance should be maintained around the device?

Maintain a minimum distance of 10 cm between each side of the device and any object or wall. Never cover the device.

How to change the display from °C to °F?

Press button 2 (marked °F/°C) to switch between Celsius and Fahrenheit on the display.

Does the device have a remote control?

Yes, a remote control is included. It allows you to control the main functions remotely (on/off, temperature, power, timer).

USER MANUAL UNI_CH_01 Uniprodo

White outdoor heater with digital display and control panel, labeled 1, 2, and 3 (no text or symbols on main body)

1 - Hauptschalter

2 – Bedienungsfeld

3 - Beine

Line drawing of a device with two top-mounted devices and a front panel, no text or symbols present

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Convector heater
Model	UNI_CH_01
Supply voltage [V~] / frequency [Hz]	230V~/50Hz
Rated power [W].	1000/1300/2300
Maximum heating temperature [°C]	37
IP class	IP20
Dimensions [width x depth x height; mm]	685 x 220 x 450
Weight [kg]	4.9

1. General Description

The manual is intended to assist in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

CAREFULLY READ AND UNDERSTAND THIS MANUAL BEFORE STARTING THE WORK.

To ensure the long and reliable operation of the device, make sure to operate and maintain it properly in accordance with the guidelines in this instruction manual. The technical data and specifications in this manual are up-to-date. The manufacturer reserves the right to make changes in order to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the unit is designed and built in such a way that risks resulting from noise emissions are reduced to the lowest possible level.

Explanation of symbols

	The product complies with applicable safety standards.
	Read the manual before use.
	Recyclable product.
	CAUTION! or WARNING! or REMEMBER! describing a given situation (general warning sign).
	CAUTION! Risk of electric shock!
	For indoor use only.
	Do not cover the unit with any materials or objects.
	CAUTION! Do not use this unit near bathtubs, showers, or swimming pools.

CAUTION! The illustrations in this instruction manual are for reference only and may differ from the actual product in some details.

2. Safety of use

CAUTION! Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or death.

The term "device" or "product" in the warnings and the description of the instructions refers to Convector heater

2.1. Electrical safety

a) The plug of this device must fit into the outlet. Do not modify the plug in any way. Original plugs and matching outlets reduce the risk of electric shock.
b) Do not touch the device with wet or damp hands.
c) Do not use the cord in an unintended manner. Never use it to carry the device or to pull the plug out of the socket. Keep the cord away from heat sources, oil, sharp edges, or moving parts. Damaged or tangled cords increase the risk of electric shock.
d) Do not use the unit if the power cord is damaged or shows signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service department.
e) To avoid electric shock, do not immerse the cable, plug, or the device itself in water or other liquid. Do not use the appliance on wet surfaces.
f) CAUTION – DANGER TO LIFE! When cleaning or using the appliance, never immerse it in water or other liquids.
g) Do not use the appliance in rooms with very high humidity / in the immediate vicinity of water tanks!
h) Do not allow the machine to get wet. Risk of electric shock!

2.2. Safety in the workplace

a) Keep the work area tidy and well-lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing, and use common sense when using the unit.
b) Do not use the unit in an explosive area, for example in the presence of flammable liquids, gases or dust. The unit produces sparks that can ignite dust or fumes.
c) If in doubt as to whether the product is working properly or found to be damaged, contact the manufacturer's technical service.
d) Only the manufacturer's service department may repair the appliance. Do not attempt to repair the product on your own!
e) Repairs to the device may only be carried out by the manufacturer's service. Do not attempt to repair the product on your own!
f) In case of open flames or fire, use only dry powder or snow (CO2) fire extinguishers to extinguish the live equipment.
g) Use the unit in a well-ventilated area.
h) Check the condition of the safety stickers regularly. Replace them if they are illegible.
i) Keep these instructions for use for future reference. If the product is to be handed over to a third party, hand it over with this user manual.
j) Keep packaging components and small installation parts out of the reach of children.
k) When using this product together with other devices, also follow the other instructions for use.

Remember! Keep children and other bystanders safe while operating the appliance.

2.3. Personal safety

a) The device is not intended to be used by persons (including children) with reduced mental, sensory or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the device.
b) Use caution and common sense when operating this device. A moment's inattention during operation may result in serious personal injury.
c) To prevent accidental start-up, make sure the switch is in the off position before connecting to a power source.
d) Do not overestimate your capabilities. Maintain body balance and equilibrium at all times during operation. This allows for better control of the machine in unexpected situations.
e) The product is not a toy. Children should be watched to ensure that they do not play with the product.
f) Do not place your hands or any objects inside the running device!

2.4. Safe use of the device

a) Do not use the device if the ON/OFF switch does not function properly (does not turn on and off). Units that cannot be controlled by the switch are unsafe, cannot operate, and must be repaired.
b) Disconnect the device from the power supply before adjusting, cleaning, or servicing. This precaution reduces the risk of accidental start-up.
c) Keep unused product out of the reach of children and anyone unfamiliar with the device or this manual. Products are dangerous when used by inexperienced users.
d) Keep the product in good working order. Check before each use for general damage or damage to moving parts (cracks in parts and components or any other condition that may affect the safe operation of the device). If damaged, return the device for repair before use.
e) Keep the product out of the reach of children.
f) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use.
g) To ensure the designed operational integrity of the device, do not remove factory-installed covers or loosen screws.
h) When transporting or moving the unit from storage to the place of use, observe the health and safety rules for manual handling applicable in the country where the unit is used.
i) Do not move, shift, or rotate the machine while in operation.
j) Do not leave the device switched on unattended.
k) Clean the device regularly to prevent permanent dirt build-up.
1) Do not obstruct the air inlet or outlet.
m) The product is not a toy. Cleaning and maintenance must not be performed by children without adult supervision.
n) Do not tamper with the device to alter its performance or design.
o) Keep the unit away from sources of fire and heat.
p) Do not block the ventilation openings of the unit!
q) The working surface should be even, dry and resistant to heat.

CAUTION! Although the product has been designed to be safe, with adequate safeguards, and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the unit. Caution and common sense are advised when using the product.

3. Instructions for use

The electric convector heater is designed to heat indoor air. The device is designed to work on a flat and stable surface - it is forbidden to mount the device on walls or on the ceiling.

The product is intended for home use only!

The user is responsible for any damage resulting from misuse.

3.1. Product overview

White outdoor heater with digital display and three numbered components (1, 2, 3) shown in a row (no text or symbols on body)

1 - main switch

2 - control panel

3 - legs

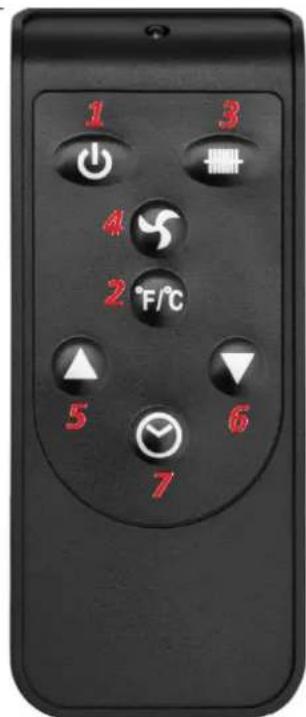

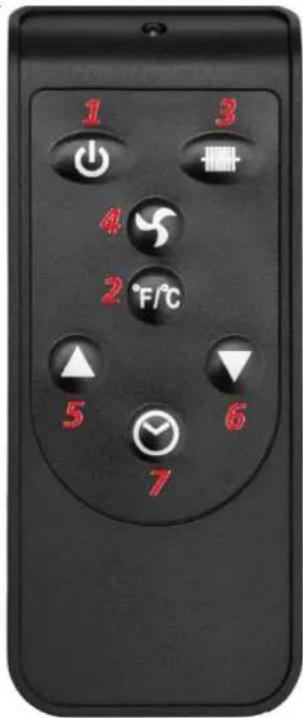

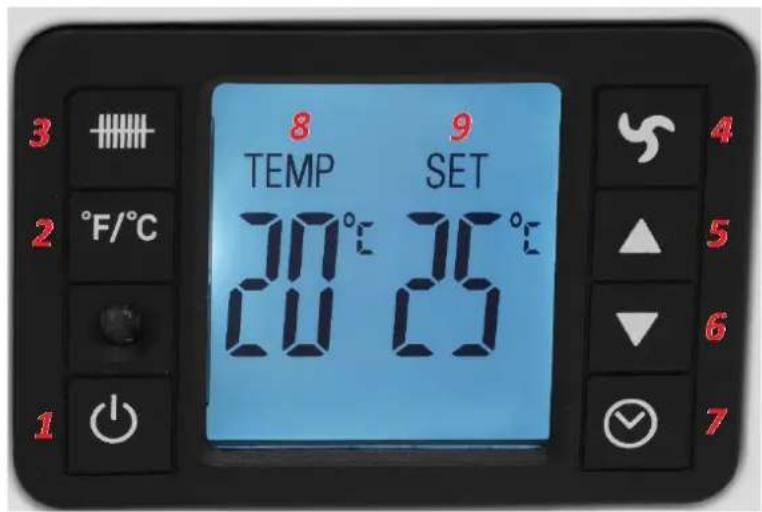

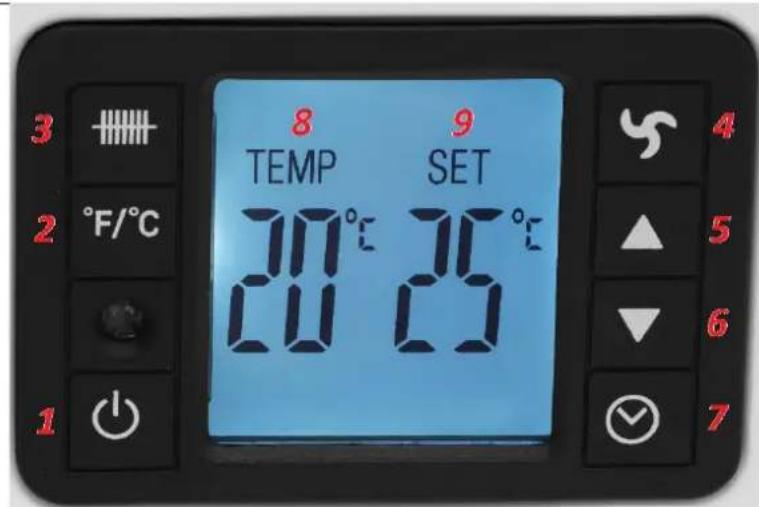

Control panel / remote control:

3 2 °F/°C 1 8 TEMP 9 SET 28° 25° 4 5 6 7

1 3 4 2 °F/°C 5 6 7

1. Heater on / off switch
2. Button for changing the units of the displayed temperature
3. Button for changing the heating power of 1000W / 1300W / 2300W
4. Fan switch
5. Temperature setting button
6. Temperature setting button
7. Timer button
8. Ambient temperature display
9. Set temperature display

3.2. Preparation for operation

POSITIONING OF THE UNIT

The ambient temperature must not exceed 40^ C and ambient humidity should not exceed 85%. Place the unit in a way that ensures good air circulation. Maintain a minimum clearance of 10 cm from any wall of the unit. Keep the unit away from any hot surfaces. Always operate the unit on a level, stable, clean, fireproof, and dry surface and out of the reach of children and persons with impaired mental, sensory, and intellectual functions. Place the unit in such a way that the main plug can be reached at any time. Ensure that the power supply to the unit corresponds to that specified on the identification plate!

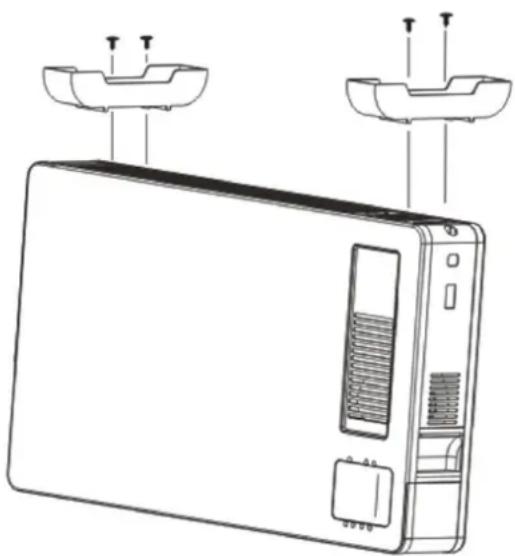

3.3. Installation of the unit

Before use, install the legs on the bottom of the unit:

Line drawing of a portable electronic device with two top-mounted ports and a front panel (no text or symbols)

3.4. Working with the machine

Turn on the device using the main switch.

Press button 1 to start the device.

Set the desired temperature with buttons 5 and 6.

Set the desired heating power using button 3.

Turn on the fan using button 4.

Press button 2 to set the required unit of the displayed temperature.

After starting the heating, the operating time can be set with button 7.

3.5. Cleaning and maintenance

a) Pull the mains plug and let the unit cool down completely before cleaning, adjusting or replacing accessories and when the unit is not in use.

b) Use only non-corrosive cleaning agents for cleaning the surfaces.

c) After each cleaning, all parts should be thoroughly dried before the device is reused.

d) Store the unit in a dry and cool place protected from moisture and direct sunlight.

e) Do not spray the unit with a stream of water or immerse it in water.

f) Make sure that no water enters through the ventilation openings in the casing.

g) Clean the ventilation openings with a brush and compressed air.

h) Perform regular inspections of the unit checking technical fitness and any damages.

i) Use a soft cloth for cleaning.

j) Do not use sharp and/or metal objects (e.g. wire brush or metal spatula) as they may damage the surface of the material from which the appliance is made.

k) Do not clean the unit with acidic substances, medical agents, thinners, fuel, oils, or other chemicals. It may cause damage to the device.

DISPOSAL OF USED UNITS.

At the end of its useful life, this product should not be disposed of with normal household waste but should be taken to a collection point for the recycling of electrical and electronic equipment. This is indicated by the symbol on the product, operating instructions, or packaging. The materials used in this appliance are recyclable according to their marking. By reusing, recycling, or applying other forms of use of waste machines, you make a significant contribution to the protection of our environment.

Your local administration will provide you with information about the appropriate disposal point for used appliances.

Line drawing of a portable electronic device with two top-mounted ports and a front panel (no text or symbols)

White outdoor heater with digital display and control panel, labeled 1, 2, and 3 (no text or symbols on main body)

1 - hlavní vypínač

2 - ovládací panel

3 - nohy

Line drawing of a front-mounted electronic device with two top-mounted ports and a central display unit (no text or symbols)

White outdoor heater with digital display and control panel, labeled 1, 2, and 3 (no text or symbols on main body)

Line drawing of a portable electronic device with two top-mounted ports and a front panel (no text or symbols)

White outdoor heater with digital display and control panel, labeled 1, 2, and 3 (no text or symbols on main body)

Line drawing of a portable electronic device with two top-mounted ports and a front panel (no text or symbols)

White LNR4000 electric heater with digital display and three labeled parts (1, 2, 3) shown in red and black on a stand.

1 - interruptor principal

2 - panel de control

3 - piernas

Panel de control / control remoto:

3 2 °F/°C 1 8 TEMP 9 SET 28°C 25°C 4 5 6 7

1 3 4 2 °F/°C 5 6 7

Line drawing of a portable electronic device with two top-mounted ports and a front panel (no text or symbols)

White outdoor heater with digital display and three numbered components (1, 2, 3) shown in red and white, no visible text or symbols on the device itself.

Line drawing of a portable electronic device with two top-mounted ports and a front panel (no text or symbols)

3.4. Munka a géppel

APPARATETS PLACERING

Line drawing of a portable electronic device with two top-mounted ports and a front panel (no text or symbols)

For the disposal of the device please consider and act according to the national and local rules and regulations.
