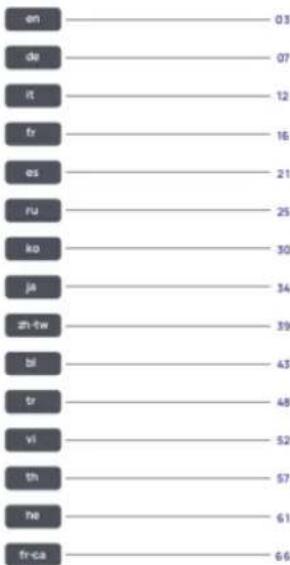

en de it fr es fu ko ja zh-tw bi tr vi th ne fr-ca 03 07 12 16 21 25 30 34 39 43 48 52 57 61 66

02

en

Product At A Glance

Check List

Main components

Main unit ×1 (including roller brush ×1, filter ×1)

Handle ×1 Self-cleaning base×1

Accessories

Adapter×1 Disinfection filter × 1. Disinfection roller brush × 1 (Accessory)

(Accessory)

Floor detergent×1 (Accessory)

Cleaning brush×1 (Accessory)

Main Parts

Vacuum Mop

Screen

Power On/Off button

Mode button

LCD screen and buttons

Self-Cleaning button

Handle

Heating plate

(DO NOT touch)

otherwise, you

may get burned)

Detergent window

Roller brush cover

Roller brush

Detergent dispenser

Self-cleaning base

Charging contacts

Power cord

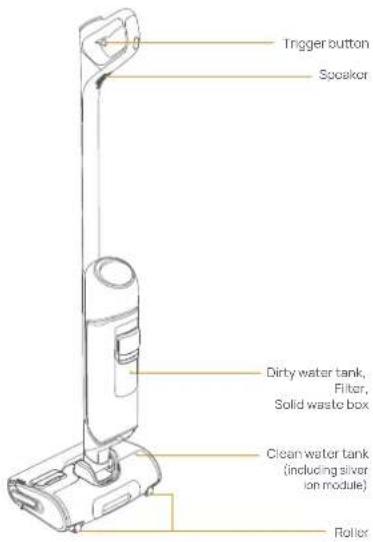

Trigger button Speaker Dirty water tank, Filter, Solid waste box Clean water tank (including silver ion module) Roller

Power interface Cable organizer

How to Use

First-Time Use

How to install the handle

Insert the end of the handle vertically into the main unit until it clicks into place. Make sure the handle is firm without loosening.

How to remove. Please use a hard object to insert into the hole on the side of the machine and keep pressing while pulling up the handle to remove it.

Technical line drawing of a vacuum cleaner with a circular dial indicator (no text or symbols)

How to charge the product

After the self-cleaning base is connected to a power supply, put the vacuum mop on the base. When it rings ding-dong, the screen shows the charging animation, and charging starts.

How to fill the clean water tank

1. Take out the clean water tank

Pull out the clean water tank to take it out.

2. Add clean water

Open the sealing cover and fill water from the tank opening.

3. Add detergent

- Slightly press the right button to pull up the roller brush cover.

- Open the detergent dispenser.

- Pour detergent into the detergent dispenser (Please use the detergent from Narwal, otherwise, the device may be damaged). The detergent is full when at the MAX level. A full dispenser can last around 40 days (approx. 20 tanks of water).

Note: There detergent has a sealing film. Please unscrew the cap and remove it.

- Please check the see-through window and add detergent as needed when the color changes from orange to white. Note: When the detergent is added, the window will only change to orange when the vacuum works for a period of time (15 120s). This is normal and the product performance remains unaffected.

How to unlock and start the machine

Remove the machine from the self-cleaning base. Short press the Power On/Off button and then follow the voice prompts to slightly press and recline the handle to start cleaning (locked when the handle is upright). You can also recline the handle and then short press the Power On/Off button to use the machine.

UnicckLuck

Gently press the handle to pull it (Unlocked when the single is 490°)

Instructions for Use

Button functions

*Note: When the vacuum mop is on the base and the screen is dark, you can press any button to wake up the screen.

Status
Action Function

Power On/Off button	When cleaning the floor	Short press: power on/pausePress and hold for 2s: power off
	During self-cleaning or iron drying	Short press: end the current task
Mode button	When cleaning the floor	Short press: switch the mode (Smart/Turbo/Quiet/Suction)
	During self-cleaning or charging with the screen on	Short press: start iron drying only
	During charging with the screen on	Press and hold for 2s: Switch volume (high/low/mute)
Trigger button (Below the handle)	When cleaning the floor	Press and hold: start MAX enhancement; release to end MAX enhancementDouble tap: turn on/off auto detergent filling
Self-Cleaning button	During charging with the screen on	Short press: start self-cleaning and ironing&drying (ironing& drying will start after self-cleaning is completed)Press and hold for 2s: start self-cleaning only

About the screen

Shows the cleaning mode/dirt level

Current cleaning mode - Auto detergent filling

Remaining battery power

Washer Mode

Smart Mode: Auto adaptation to a variety of dirty surfaces powered by smart detection of floor dirt level and smart adjustment of suction power, clear water volume, and other indicators.

Turbo Mode: Tailored for stubborn stains through increased water and suction power.

MAX Enhancement: The most powerful clearing performance to tackle extremely stubbom stains.

Smart dirt level display

Dirt detected: The washer will detect the floor dirt level in real time. When the floor or the roller brusher is found to be dirty and the screen animation shows a yellow background, and you are recommended to clean the current location repeatedly. If the background remains yellow when the floor is already clean, you should start self-cleaning.

Suction Mode: Used to remove water buildup on the floor.

Quiet Mode: Suitable for relatively clean floors to deliver a noise-free experience and secure a longer battery life to clean more floors.

High dirt level: When the floor or the roller brush is found to be dirty and the screen animation shows ared background, and you are recommended to switch to Turbo Mode to clean the current location. If the background remains red when the floor is already clean, you should start self-cleaning as prompted or manually clean the pipe and the roller brush.

Floor Cleaning

Low Areas Mode

When the angle between the handle and the floor is below 25°, the vacuum mop will automatically switch to the Low Areas Mode. As such areas are generally filled with lots of hairs, dust, and fluff, the machine will intelligently adjust the suction power to avoid dust floating around. Note: DO NOT lay the machine horizontally when not in use to prevent backflow of sewage and damage to the machine.

Cleaning Mode Switch

- During cleaning, you can short press the Mode button to switch the mode(Smart/Turbo/Quiet/Suction). - During cleaning, you can activate MAX enhancement by pressing and holding the Mode button for maximum cleaning strength to remove extremely stubborn stains.

Pause/End Cleaning

• To pause the machine during cleaning, please short press the Ⓧ Power On/Off button or pull the handle upright to lock it;

• To shut off the machine, please press and hold the Ⓗ Power On/Off button for 2s. You can also pause the machine and place it on the self-cleaning base. The machine will start charging and turn on the screen automatically. After charging is completed, the machine will turn it off automatically.

Note: When pausing/turning off the machine, the motor will keep running for a while to remove residual water.

Self-cleaning and Iron Drying

Start self-cleaning and iron drying

Please put the vacuum mop back onto the self-cleaning base for self-cleaning and iron drying. • To start self-cleaning and drying at the same time, please short press the Self-Cleaning button; • To start self-cleaning only, press and hold the Self-Cleaning button for 2s; • To start drying only, short press the Mode button;

About self-cleaning and drying

- When self-cleaning starts, the vacuum mop will intelligently select the right cleaning strategy based on the dirt level, including high-temperature roller brush disinfection and cleaning, pipe disinfection and cleaning, and intensive disinfection.

- When iron drying starts, the vacuum mop will iron dry the roller brush and hot-air dry the pipe and filter by default. Note: Self-cleaning intelligently lasts for 3-5 minutes depending on the dirt level and clean water volume. Note: Iron drying lasts for at least 30 minutes, and the vacuum intelligently adjusts the time based on the roller brush humidity and wearing.

Warning: DO NOT touch the heating plate during or shortly after iron dying, otherwise, you may get burned.

Heating plate

End self-cleaning and iron drying

To end self-cleaning or iron drying, short press the ⏻ Power On/Off button or the ➕ Self-Cleaning button

Cleaning and Maintenance

Suggested Maintenance Cycle

Main Part Part Suggested maintenance cycle

Dirty water tank

Filter

Roller brush cover

Broller brush

Pipe

Clean after every use

Clean after every use and replace every 3-6 months

Clean regularly on demand

Clean regularly on demand and replace every 3-6 months The vacuum mop can intelligently detect the roller brush wearing and reminds the user to replace it timely

Clean regularly on demand

Maintenance Methods

Dirty water tank

- Remove the dirty water tank, filter, and solid waste box in order.

Press the dirty/water tank release button to remove the dirty/water tank

• Empty the solid waste box. • Empty and rinse the dirty water tank.

• Rinse the solid waste box and the filter slot.

Please ride the foot/foot You can open it to ride

Filter

- Clean up the filter with clean water. You can open the filter cover. Shake dry the filter and then put it back into the machine for filter drying.

You can open it to clean

Roller brush

- Grab the tab on the right and pull it out gently, and then clean the roller brush.

Pull out the filter from the top of the sold waste box.
Put up to remove the solid angle box

Roller brush cover

- Slightly press the roller brush release button to remove the roller brush cover.

Pipe

- If the machine prompts a high dirt level when the floor is free from obvious dirt and several rounds of self-cleaning have been completed, the pipe may be dirty;

• The vacuum mop prompts that the pipe gets clogged. (Use the cleaning brush to clean the pipe for the above two situations)

Clean the dirt auction port. DO NOT insert.

2 Stuck the brush inside to clean the interior of the pipe.

Vacuum mop and self-cleaning base

• To ensure optimal performance, you are recommended to maintain all parts regularly.

• Before cleaning any part, please turn off the machine and unplug the power cord,

• Use a clean and dry cloth to scrub clean the machine and the base and prevent water ingress into electrical components;

DO NOT rinse with water

Problem Analysis and Troubleshooting

FAQ

In case of any fault when the product is working (no action or fault prompt on the screen or via voice), please refer to the following table:

Description
Possible causes or solutions

The vacuum voice prompts "Roller brush not in place"	Check whether the roller brush is properly installed
The vacuum voice prompts "Roller brush stuck. Please clean it"	Manually clean the pipe and roller brush
The vacuum voice prompts "Filter of the dirty water tank not in place. Please install it and check the dirty water tank"	Check whether the dirty water tank is installed properly
The vacuum mop voice prompts "Dirty water tank full. Please empty it" and pauses	Rinse the dirty water tank and the filter
The vacuum mop voice prompts "Clean water tank short of water. Please refill it" and pauses	Fill water into the clean water tank or check whether the clean water tank is installed properly
The vacuum voice prompts "Pipe clogged. Please manually clean the pipe and the roller brush" during cleaning or self-cleaning	As a consistently high dirt level is detected, there may be residual dirt in the pipe. You are recommended to clean the pipe with the cleaning brush.
The vacuum voice prompts "Uneven roller brush iron drying. Please check whether it is installed properly"	Check whether the roller brush is properly installed
There is residual water inside the vacuum after unboxing	Each vacuum will receive strict functional tests before delivery, and there may be a small amount of water remaining, which will not affect the vacuum
The floors get dirtier when the vacuum is working	There is too much dirt on the roller brush, so it is recommended that you put the vacuum back on the base for self-cleaning
The vacuum loses suction power after a period of time	There may be stubborn stains and waste residue affecting the normal performance of the washer. It is recommended that you remove and clean the roller brush cover, roller brush, pipe, and filter.

The roller brush suddenly stops rotating when the vacuum is working
The roller brush may be entangled with or the space between the roller brush and the cover is clogged with foreign objects, causing the roller brush to stop rotating. You can turn off the vacuum mop and remove the roller brush cover and the roller brush to clear the foreign objects. It is recommended to put away the data cables, plastic bags, and shoelaces on the floor before cleaning, to prevent them from entangling the roller brush and stopping its rotation, which may damage both the vacuum mop and items on the floor
