Product Type	Carpet cleaner
Brand	Kenmore
Model	KW4010
Usage	Household
Rated Voltage	120 V ~
Frequency	60 Hz
Clean Water Tank Capacity	0.6 gal (2.27 L) max, with marks for small (0.2 gal) and large area (0.6 gal)
Dirty Water Tank Capacity	Approximately 0.6 gal (2.27 L) — empty when it reaches the max fill line
Brush Type	Two belt-driven rotating brush rolls
Power Cord Length	Approximately 6 m (estimated from storage hooks)
Spray System	Manual trigger to apply cleaning solution
Cleaning Method	Spray + scrub + suction in one pass
Recommended Cleaning Solution	Kenmore carpet cleaning formula (includes 8 oz / 236 ml)

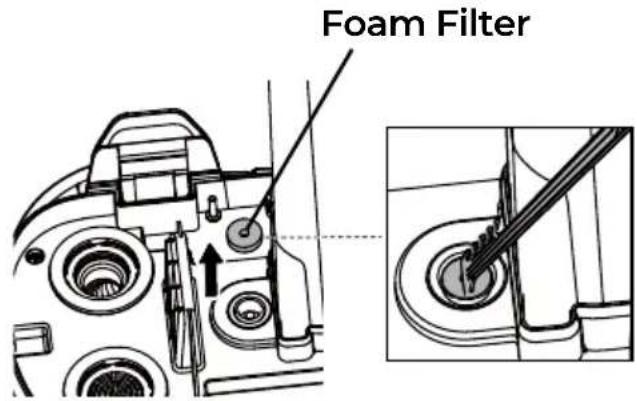

Filter	Washable foam filter (clean every 3 months)
Main Replacement Parts	Handle, tube, belt, nozzle cleaning tool, brush rolls
Warranty	1 year from purchase or delivery date (California)
Customer Service	US: 1-877-531-7321 / Canada: 1-844-608-3081 (Mon-Fri 8am-5pm ET)
Safety	Grounding required; do not use outdoors; unplug before maintenance
Dimensions (H × W × D)	Not provided
Weight	Not provided
Included Accessories	1 cleaning formula, 1 nozzle cleaning tool, 1 mounting screw

Frequently Asked Questions - KW4010 KENMORE

How to assemble the Kenmore KW4010 carpet cleaner?

Insert the handle into the tube and secure with the provided screw. Then insert the tube into the main body until it clicks. Wrap the cord loosely around the hooks, starting with the top hook.

What cleaning solution should I use?

Use only the Kenmore cleaning formula provided. Other solutions may create excess foam and void the warranty. Mix according to indicated proportions (e.g., 3 caps for small area, 9 for large).

How to fill the clean water tank?

Press the tank release button, lift it off, open the cap, and fill with room temperature tap water and solution. Do not exceed the max fill line. Close and replace the tank until it clicks.

How to empty the dirty water tank?

Open both retaining latches of the dirty water tank, lift it off, pull the lid upward, empty the liquid, rinse with clean water, and air dry before replacing. Also clean the air outlet area.

What to do if suction is weak or the cleaner does not work?

Check that the dirty water tank is not full, the tanks are properly installed, and the brush rolls are not obstructed by hair or debris. Consult the troubleshooting table in the manual.

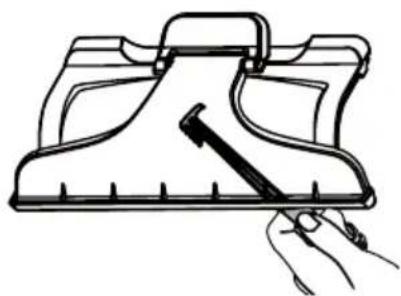

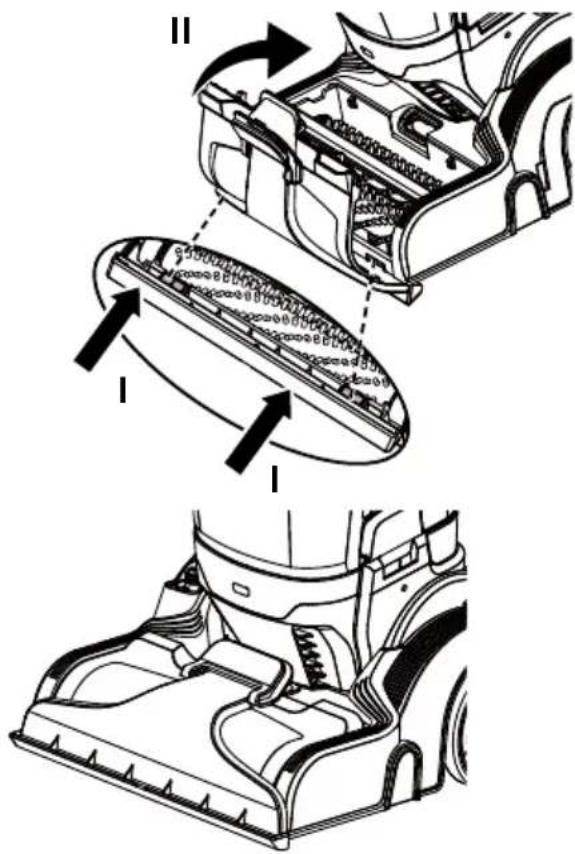

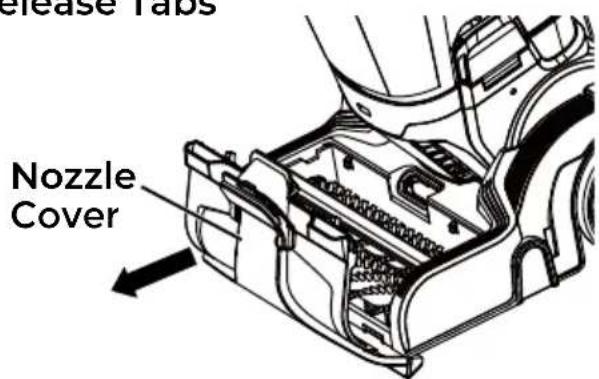

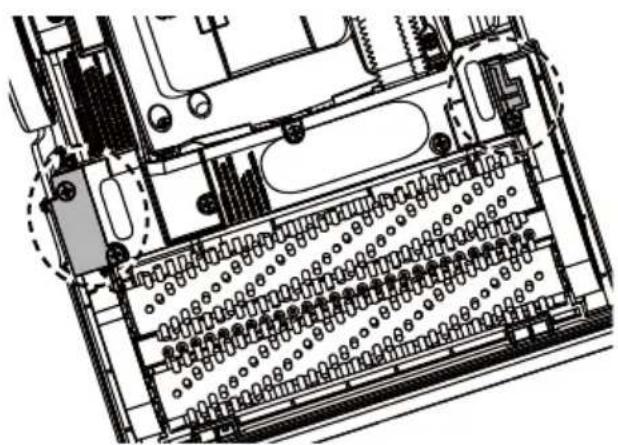

How to clean the brush rolls?

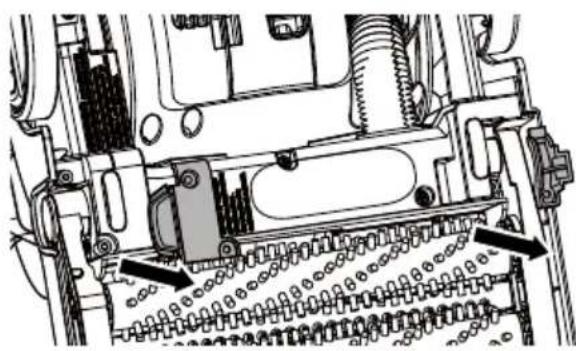

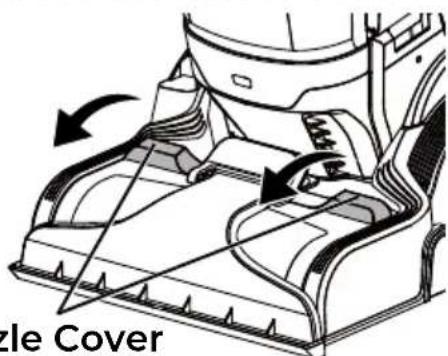

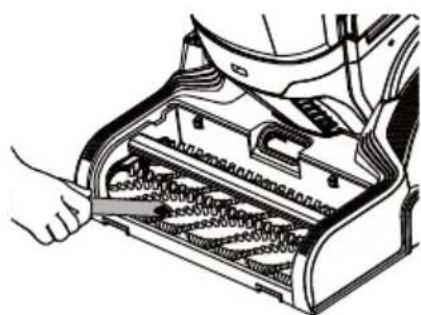

Unplug the appliance. Grasp the tabs on the nozzle cover and pull to remove the cover. Use the nozzle cleaning tool or a comb to remove hair and debris. Rinse the cover and let dry before reassembling.

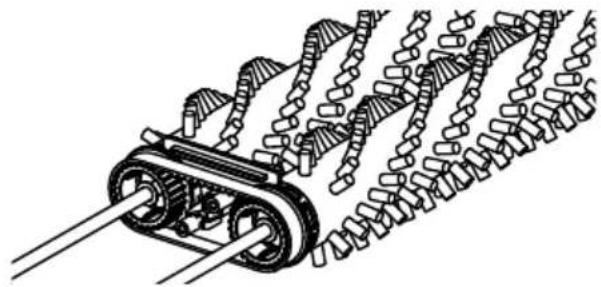

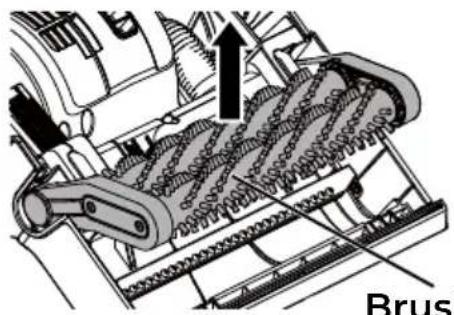

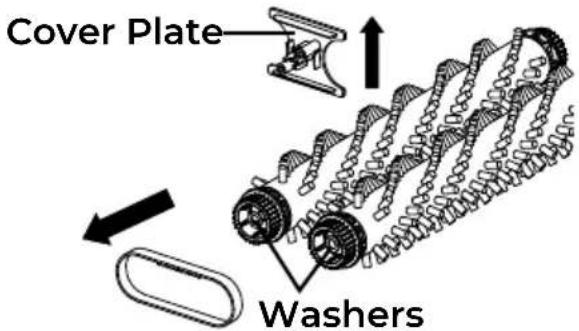

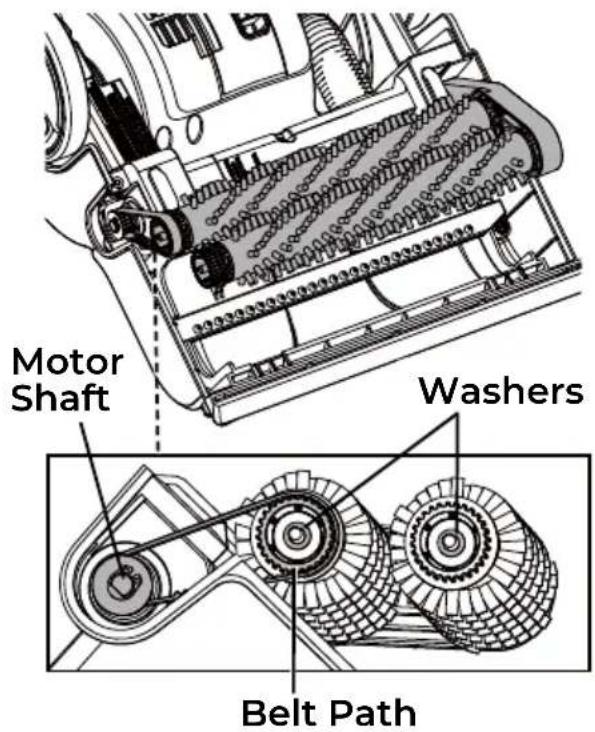

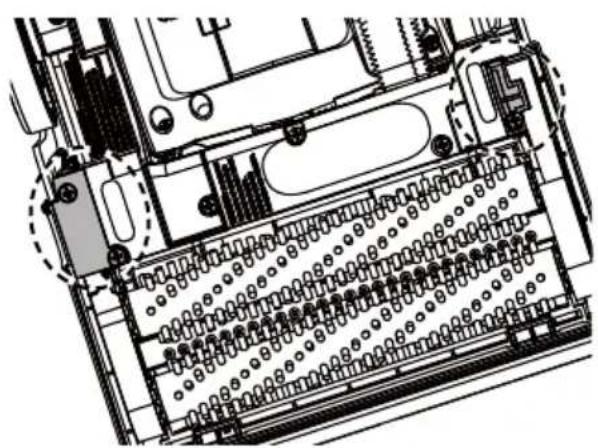

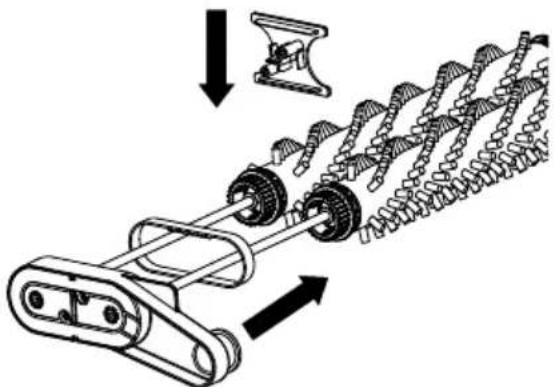

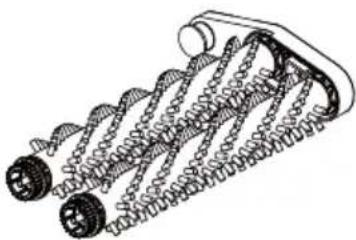

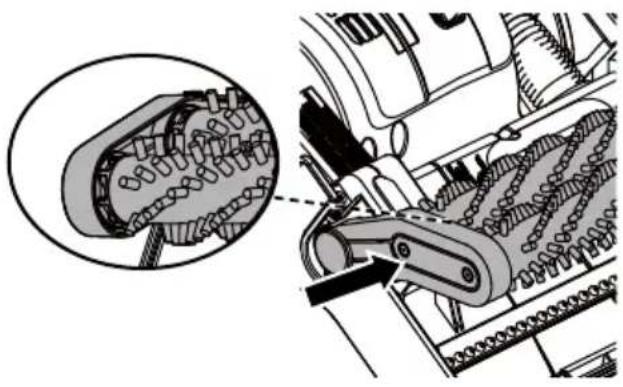

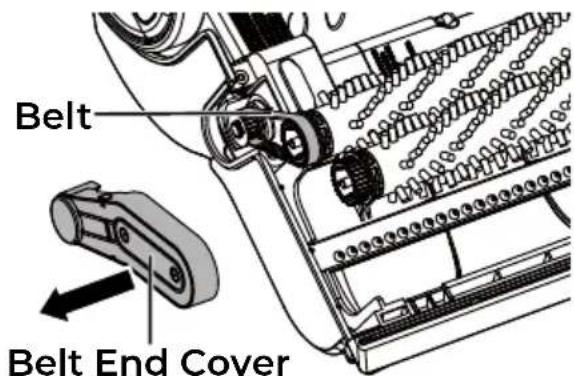

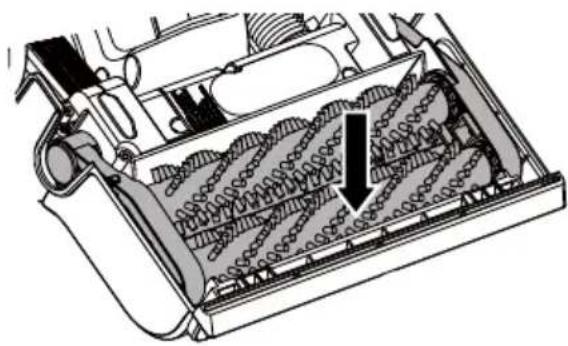

How to replace the belt?

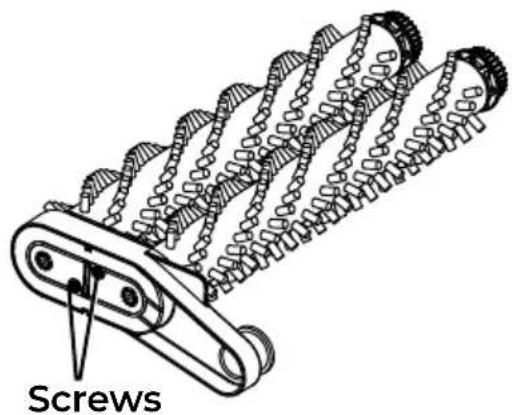

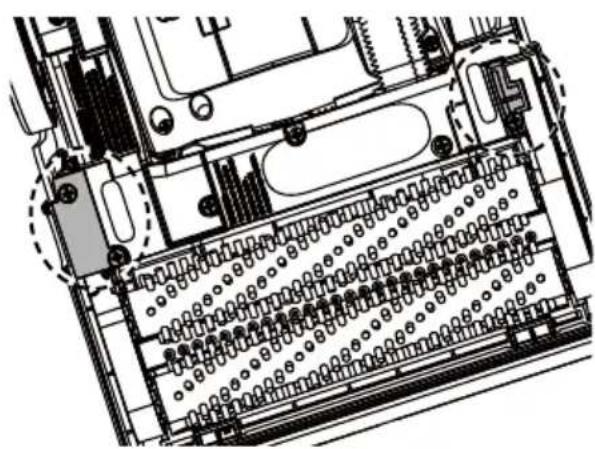

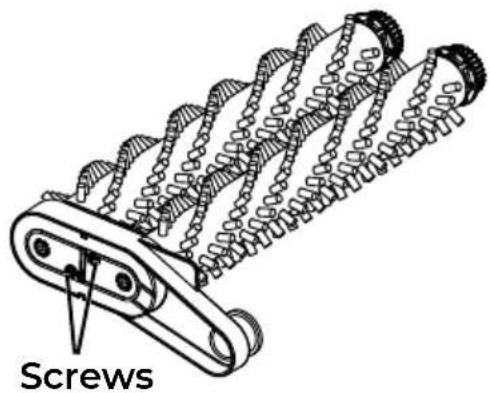

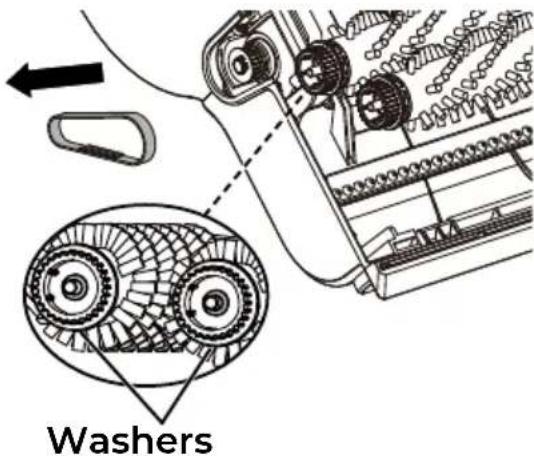

Unplug the appliance. Turn it over, remove the three screws on the bottom plate. Lift the brush roll assembly. Remove the belt end cover, take off the worn belt, and replace with a new one. Follow the diagrams in the manual carefully.

What is the warranty for the KW4010?

The product is warranted for 1 year against defects in material or workmanship from the date of purchase (or delivery in California). Keep proof of purchase. Contact customer service for free replacement.

Can I use hot water?

No, use only room temperature water (max 40 °C / 104 °F). Do not microwave water. Hot water may damage the appliance.

How to store the cleaner after use?

Empty and rinse both tanks, let air dry. Clean accessories. Wrap the cord loosely around the hooks. Store indoors in a dry place.

USER MANUAL KW4010 KENMORE

Vacuum Cleaner Help Line:

1-877-531-7321 (US) / 1-844-608-3081 (CA)

8:00am-5:00pm EST, M-F

www.kenmorefloorcare.com

TABLE OF CONTENTS

Before Using Your New Carpet Cleaner....2

Packing List....2

Important Safety Instructions....3-4

Grounding Instructions ....5

Carpet Cleaner Warranty 6

Parts and Features....7-8

Assembly Instructions....9-10

Operating Instructions.... 10-15

Maintenance and Care....16-23

Troubleshooting....24-25

Requesting Assistance or Service...... Back Cover

BEFORE USING YOUR NEW CARPET CLEANER

Read this Use & Care Guide. It will help you assemble and operate your new Kenmore carpet cleaner in the safest and most effective way.

For more information about carpet cleaner care and operation, call the Vacuum Cleaner Help Line at 1-877-531-7321 (US) / 1-844-608-3081 (CA). You will need the complete model and serial numbers when requesting information.

Your carpet cleaner's model and serial numbers are located on the Model and Serial Number Plate. Use the space below to record the model number and serial number of your new Kenmore carpet cleaner.

Model No.

Serial No. ____

Date of Purchase ____

Keep this book and your sales check (receipt) in a safe place for future reference.

PACKING LIST

Your KENMORE CARPET CLEANER is packaged with the following parts and components included separately in the carton:

1 Carpet Cleaner

1 Screw

1 8 oz. Carpet Cleaning Formula

1 Use & Care Guide

1 Nozzle Cleaning Tool

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions in this guide before assembling or using your carpet cleaner.

WARNING!

Your safety is important to us. To reduce the risk of fire, electrical shock, injury to persons or damage when using your carpet cleaner, follow basic safety precautions including the following:

• Use your carpet cleaner only as described in this Use & Care Guide. Use only manufacturer's recommended attachments.
• Fully assemble before operating.
• Operate cleaner only at voltage specified on rating plate.
• Connect to a properly grounded outlet only. See GROUNDING INSTRUCTIONS. Do not modify the 3-prong grounded plug.
• Do not leave carpet cleaner when plugged in. Unplug from outlet when not in use and before performing maintenance.
• Do not expose to rain. Store indoors.
• Do not immerse. Use only on carpet moistened by cleaning process.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Do not use with a damaged cord or plug. If carpet cleaner is not working as it should, has been dropped, damaged, left outdoors, or dropped in water, immediately discontinue use and call 1-877-531-7321 (US) / 1-844-608-3081 (CA) for assistance.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around

sharp edges or corners. Do not run carpet cleaner over cord. Keep cord away from heated surfaces.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or carpet cleaner with wet hands.
• Do not put any objects into openings.
• Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Turn off all controls before unplugging.
• Keep carpet cleaner on a level surface.
• Do not carry the carpet cleaner while in use.
• Use extra care when cleaning stairs. To avoid personal injury or damage, and to prevent the carpet cleaner from falling, always place carpet cleaner at bottom of stairs or on floor. Do not place carpet cleaner on stairs or furniture, as it may result in injury or damage.
• Do not put carpet cleaner on

IMPORTANT SAFETY INSTRUCTIONS

chairs, tables, etc. Keep unit on the floor.

• Do not use carpet cleaner to pick up flammable or combustible liquids (gasoline, cleaning fluid, perfumes, etc.), or use in areas where they may be present. The fumes from these substances can create a fire hazard or explosion.
  • To reduce the risk of health hazards from vapors or dusts, do not vacuum toxic materials.
• Do not use or store near hazardous materials.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use carpet cleaner without tanks in place. To reduce the risk of electric shock, always install float before any wet pick-up operation.
• Do not clean over floor electrical outlets.
• Do not use the carpet cleaner to pick up sharp hard objects, small toys, pins, paper clips, etc. They may damage the carpet cleaner or tanks.

• Do not use sharp objects to clean out hose as they can cause damage.

• To help prevent matting and resoiling, avoid contact with carpets until they are dry. Keep children and pets away from carpets until they are completely dry.

• Do not store the carpet cleaner with solution in tanks.
• Use only Kenmore cleaning formulas intended for use with this appliance to prevent internal component damage.
• You are responsible for making sure that your carpet cleaner is not used by anyone unable to operate it properly.

CAUTION

To reduce the risk of injury from moving parts - Unplug before servicing.

WARNING

To reduce the risk of electric shock - Unplug before cleaning or servicing.

WARNING

To reduce the risk of electric shock - Use indoors only.

SAVE THESE INSTRUCTIONS

Proper assembly and safe use of your carpet cleaner are your responsibilities. Your carpet cleaner is intended for Household Use. Read this Use & Care Guide carefully for important use and safety information. This guide contains safety statements under warning and caution symbols.

GROUNDING INSTRUCTIONS

This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord that has an equipment-grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

This appliance is for use on a nominal 120-V circuit and has a grounding attachment plug that looks like the plug shown in the illustration. Make sure that the appliance is connected to an outlet having the same configuration as the plug. No adapter should be used with this appliance.

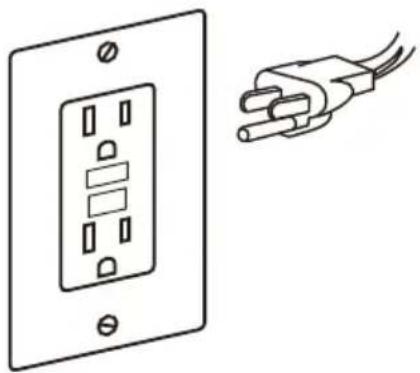

Line drawing of a wall-mounted electrical outlet with a separate plug shown as a wire (no text or symbols)

CARPET CLEANER WARRANTY

LIMITED WARRANTY

FOR ONE YEAR from the date of sale (or, for deliveries in the State of California, one year from the date of delivery), this product is warranted against defects in material or workmanship.

WITH PROOF OF SALE a defective product will be replaced free of charge.

The Kenmore brand is used under license. Direct all claims for warranty service to: 1-877-531-7321 (US) / 1-844-608-3081 (CA).

This warranty is void if this product is ever used for anything other than private household purposes. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Cleva North America, Inc., Greenville SC 29607

PARTS AND FEATURES

It is important to know your carpet cleaner's parts and features to assure its proper and safe use. Review these before using your carpet cleaner.

REPLACEMENT PARTS

Item Part No.(US) Part No.(CA)
Handle 671012101 671012101
Wand 671004103 671004103
Belt 671004104 671004104
Nozzle Cleaning Tool 671004105 671004105

To order a replacement part, call 1-877-531-7321 (US) / 1-844-608-3081 (CA).

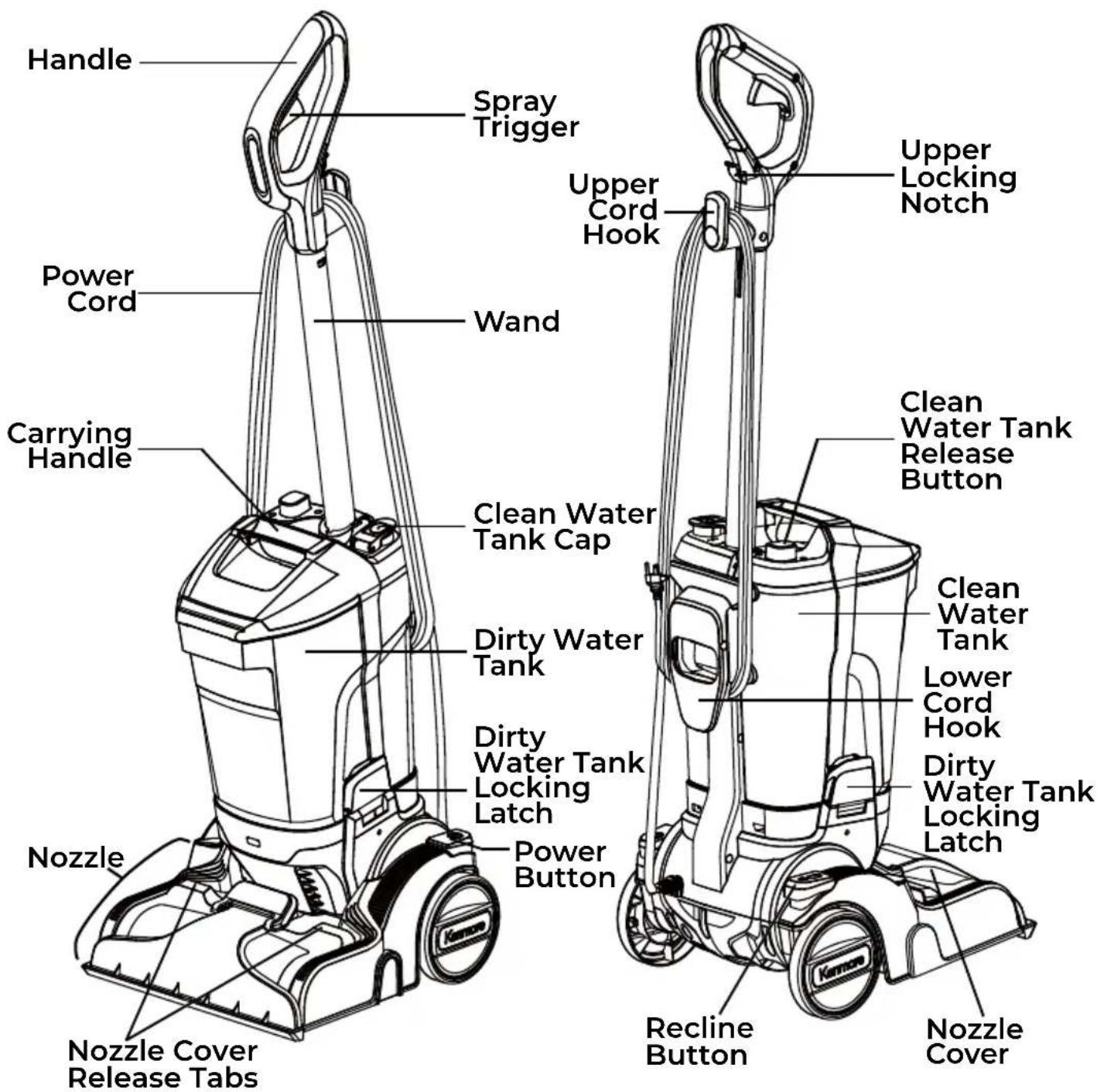

PARTS AND FEATURES

Carpet Cleaning Formula

Nozzle Cleaning Tool

Handle Spray Trigger Upper Cord Hook Upper Locking Notch Power Cord Wand Carrying Handle Clean Water Tank Cap Clean Water Tank Release Button Dirty Water Tank Lower Cord Hook Dirty Water Tank Locking Latch Nozzle Nozzle Cover Release Tabs Power Button Recline Button Nozzle Cover

Please pay special attention to these hazard alert boxes, and follow any instructions given. WARNING statements alert you to such hazards as fire, electric shock, burns and personal injury. CAUTION statements alert you to such hazards as personal injury and/or property damage.

ASSEMBLY INSTRUCTIONS

Before assembling the carpet cleaner, check the PACKING LIST (page 2). Use this list to verify that you have received all the components of your new Kenmore Carpet Cleaner.

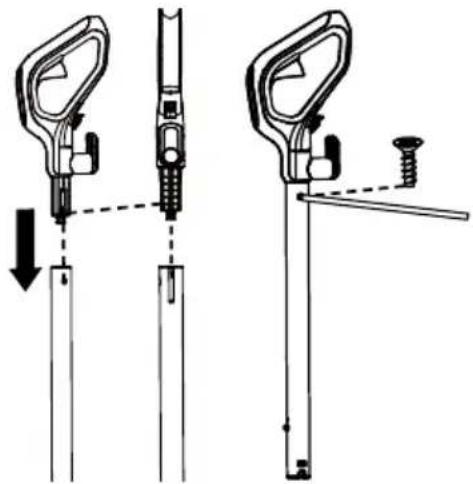

1. Insert the handle into the wand and secure with the provided screw.

NOTE: Tighten the screw with a Phillips head screwdriver. Ensure that the screw is secured.

Technical line drawing of a mechanical clamp or bracket assembly with no visible text or symbols

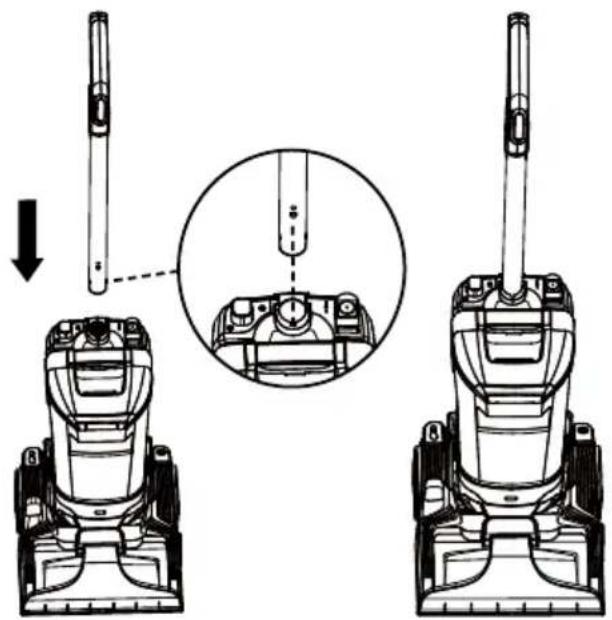

1. Insert the wand into the main body until you hear a 'click'.

Technical line drawing of a vacuum cleaner with an inset close-up showing the internal component detail (no text or symbols)

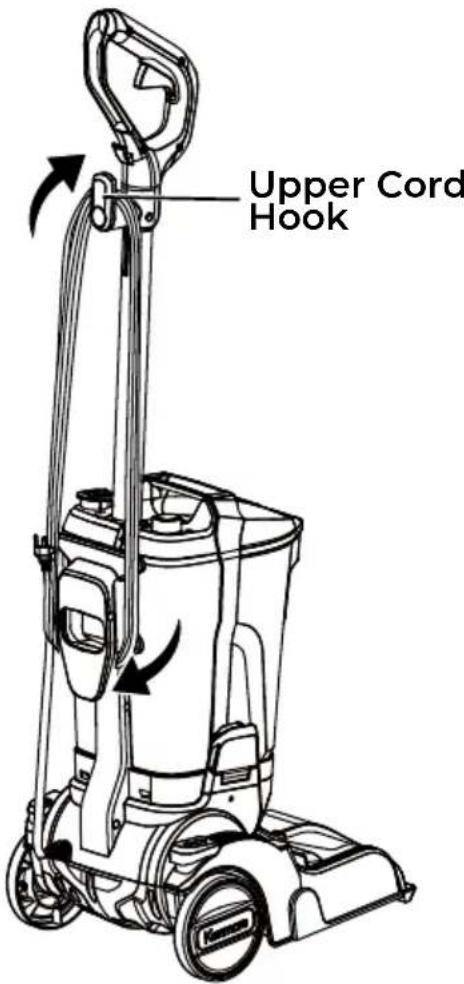

1. Make sure the upper cord hook is in the proper position as shown. Wrap the power cord loosely around the upper and lower cord hooks.

NOTE: Make sure to wrap the power cord around the upper cord hook first, and then around the lower cord hook to avoid damaging the power cord.

Upper Cord Hook

ASSEMBLY INSTRUCTIONS

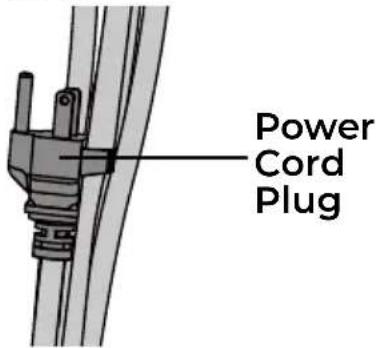

1. Lock power cord plug onto the power cord.

Power Cord Plug

WARNING

Electrical Shock and Personal Injury Hazard

Wrapping the cord too tightly with excessive stress on the cord may cause cord damage. A damaged cord is an electrical shock hazard and could cause personal injury or damage.

OPERATING INSTRUCTIONS

FILLING THE CLEAN WATER TANK

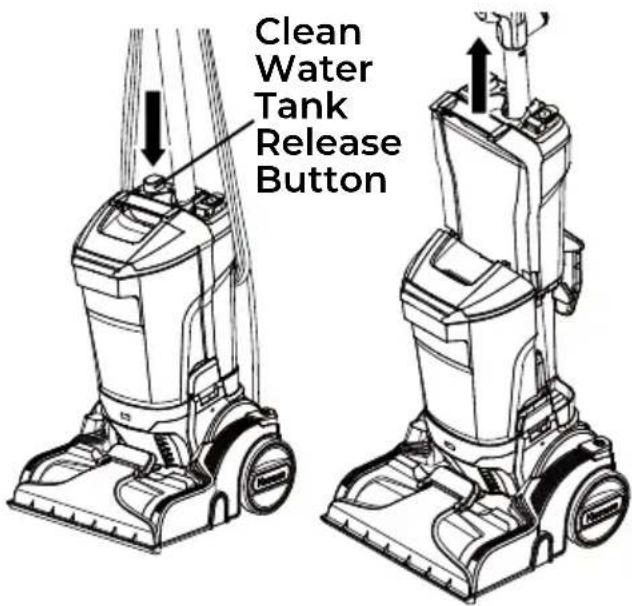

1. Press the clean water tank release button with your thumb, and then lift up the clean water tank from the main body using the carrying handle.

Clean Water Tank Release Button

1. Open the clean water tank cap. Fill the tank with room temperature tap water and solution. Ensure the correct proportion of water and carpet cleaning solution is used by referring to the solution label.

Do not exceed filling the clean water tank over the maximum fill line indicated on the clean water tank.

Room Temperature Water	Cleaning Formula
Small area – bottom fill line (0.2 gal liquid)	3 caps
Large area – top fill line (0.6 gal liquid)	9 caps

CAUTION

Do not fill with water above 104°F (40°C). Do not heat water or tank in microwave.

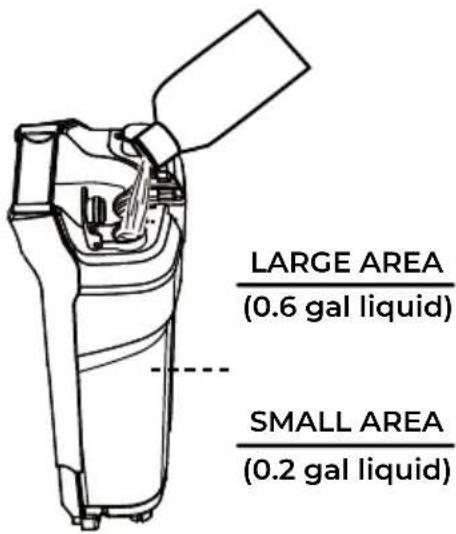

FILLING THE CLEAN WATER TANK

LARGE AREA (0.6 gal liquid) SMALL AREA (0.2 gal liquid)

NOTE: An 8 oz. (236ml) bottle of cleaning formula is provided with this carpet cleaner. Ensure the cleaning formula and water are mixed correctly. Water must be at room temperature. We recommend only using Kenmore carpet cleaning formula. Using other solutions may cause excess foaming and may invalidate your warranty.

NOTE: Using more than the recommended amount of cleaning formula may cause excessive foaming. KEEP OUT OF REACH OF CHILDREN. In case of eye contact, thoroughly flush with cold water. If irritation persists, consult a physician.

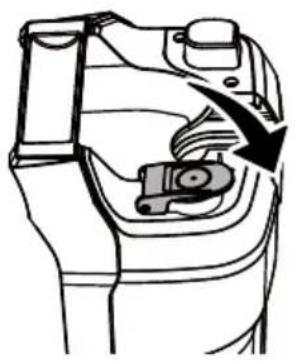

1. Snap the clean water tank cap back into place.

Line drawing of a mechanical device with a handle and lever mechanism (no text or symbols)

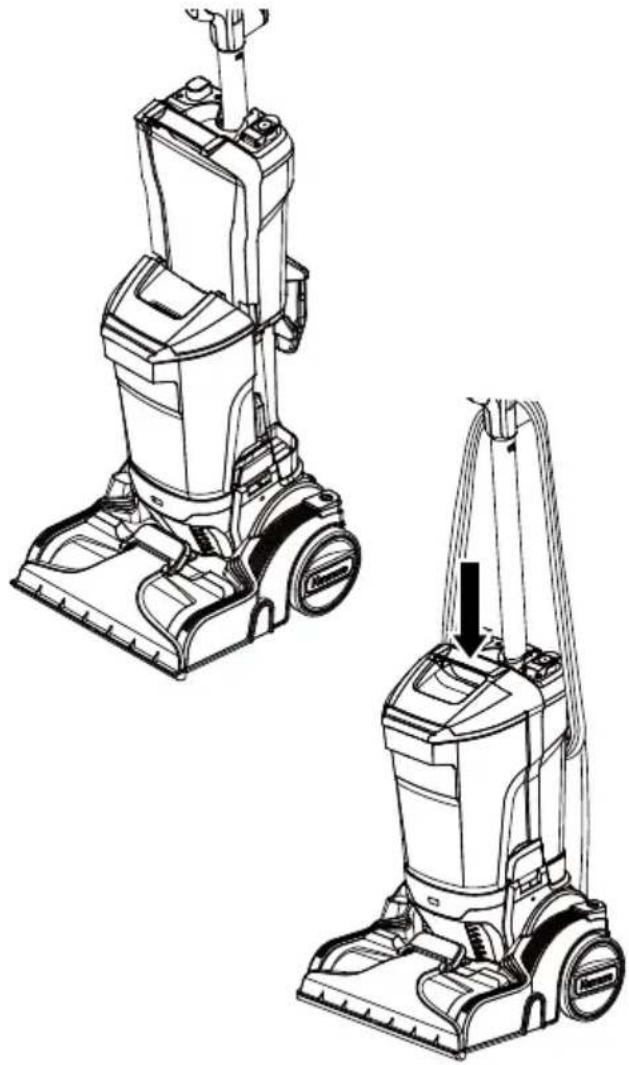

1. Align the clean water tank with the wand and slide the tank back into place, pressing down firmly until it feels secure.

Line drawing of two different vacuum cleaner designs, shown from top and side views (no text or symbols)

USING THE CARPET CLEANER

NOTE: Before using the carpet cleaner, use a vacuum to remove loose dirt from area to be cleaned. Test a small hidden area for colorfastness. Gently rub surface with a dampened white cloth. Wait 10 minutes and check for color removal with a white paper towel. If color changes, do not use.

NOTE: To prevent staining, use plastic or aluminum foil to protect wood or metal surfaces from possible water spray.

To protect the wood floors underneath rugs or carpet, place waterproof material (e.g. plastic) underneath them before cleaning.

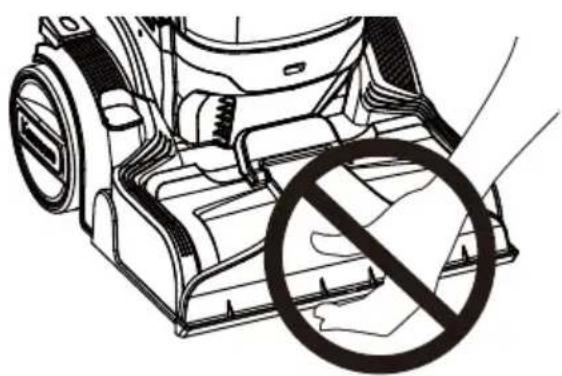

CAUTION

Moving parts! To reduce the risk of personal injury, DO NOT touch the brushrolls when the carpet cleaner is on. Contacting brushrolls while they are rotating can cut, bruise or cause other injuries. Disconnect electrical supply before servicing or cleaning the carpet cleaner. Use caution when operating near children or pets.

Line drawing of a vacuum cleaner with a circular prohibition symbol overlay (no text or symbols present)

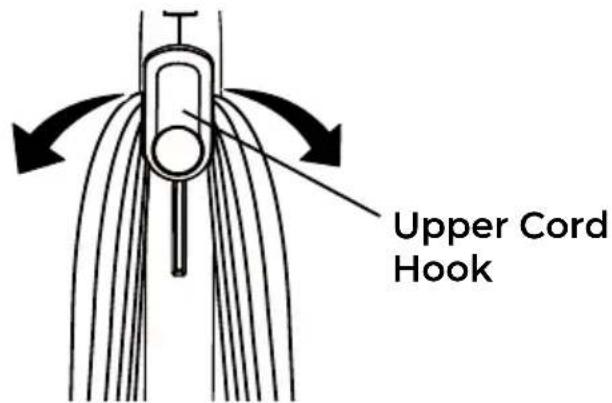

1. Turn the upper cord hook to either side and down to release the power cord.

Upper Cord Hook

1. Detach the power cord plug from the power cord.

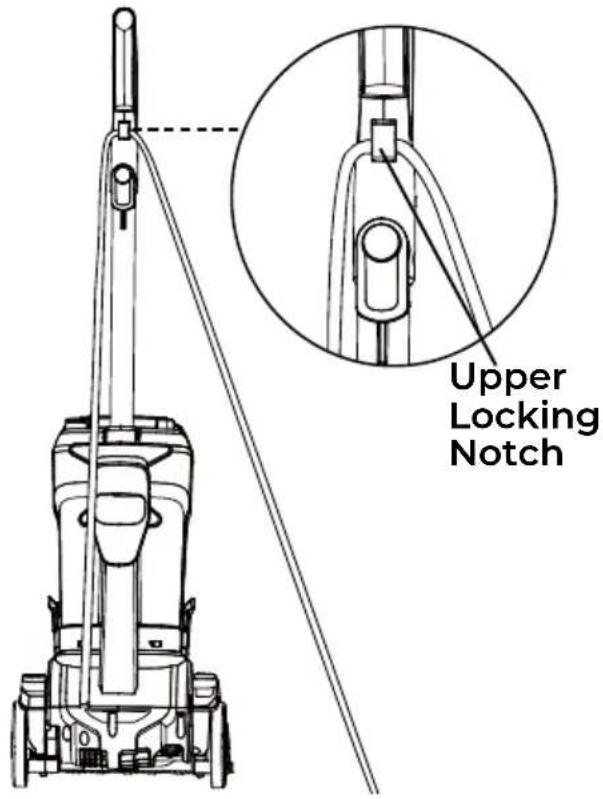

2. Be sure the power cord is locked into the upper locking notch as shown. This will help manage the power cord when operating the carpet cleaner.

Upper Locking Notch

1. Plug the power cord into a properly grounded outlet located near the floor.

USING THE CARPET CLEANER

WARNING

Personal Injury and Product Damage Hazard

- When any abnormality/failure occurs, stop using the product immediately and disconnect the power plug.

- DO NOT use outlets above counters. Damage from cord to items in surrounding area could occur.

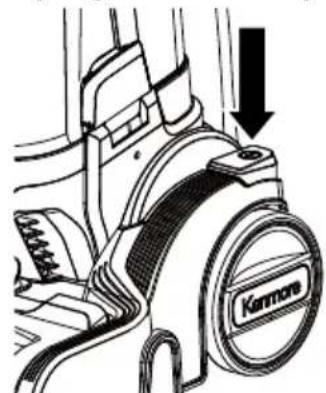

1. Turn on the carpet cleaner by pushing the power button with your foot.

NOTE: The brushrolls do not rotate when the carpet cleaner is in the upright locked position.

Kenmore

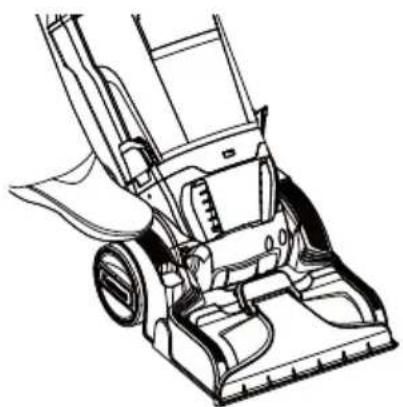

1. Release the handle by placing a foot on the recline button and pulling back to change handle position.

Line drawing of a vacuum cleaner's lawn and wheel assembly (no text or symbols)

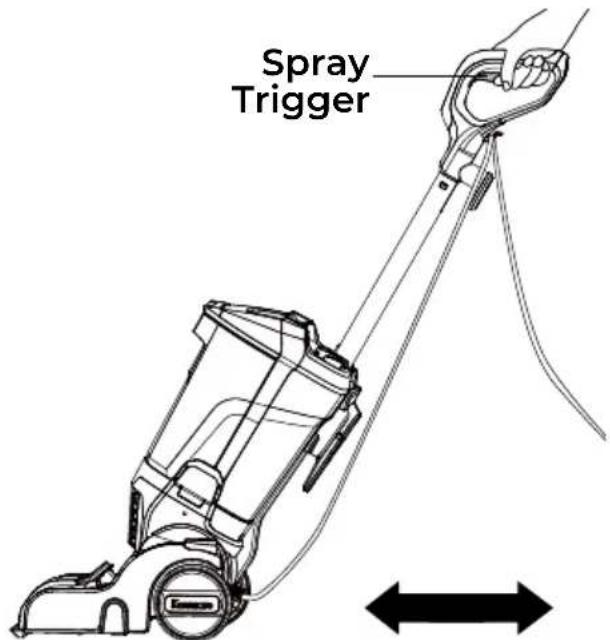

1. Tilt the wand back towards you and with the nozzle flush with the floor surface. Press the spray trigger to apply solution while making 2 slow wet passes: 1 forward and 1 back.

Spray Trigger

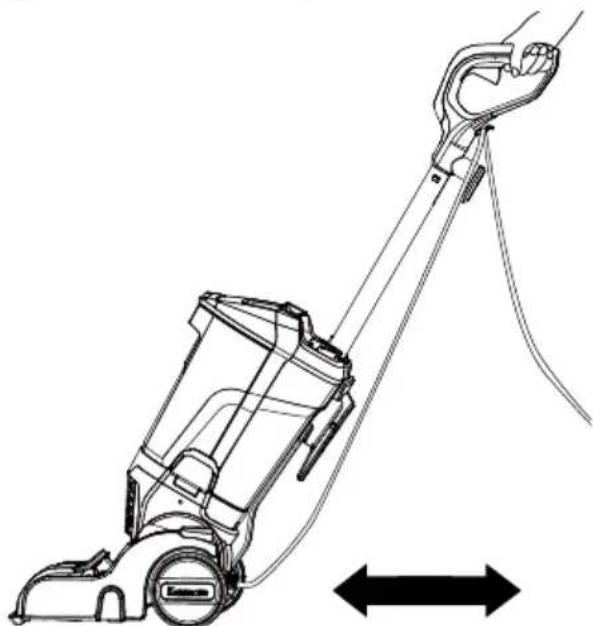

1. Release the spray trigger. Make 2 slow dry passes: 1 forward and 1 back, to suck up the dirty solution.

NOTE: DO NOT hold down the trigger for this step.

Line drawing of a vacuum cleaner with attached cable, showing mechanical components and motion direction (no text or symbols)

USING THE CARPET CLEANER

CAUTION

Do not allow the carpet cleaner to remain in one spot for any length of time when the brushrolls are turning. Damage to carpet may occur.

NOTE: Do not over-saturate carpet. Be careful not to run over loose objects or edges of area rugs. Stalling the brushrolls may result in premature belt failure.

1. Empty the dirty water tank when the dirty liquid reaches the "Max Fill" line and there is a loss in suction. See instructions in the EMPTYING DIRTY WATER TANK (page 14-15).

2. Once you have completed cleaning, push the power button again to turn the carpet cleaner off; unplug the power cord from the power outlet.

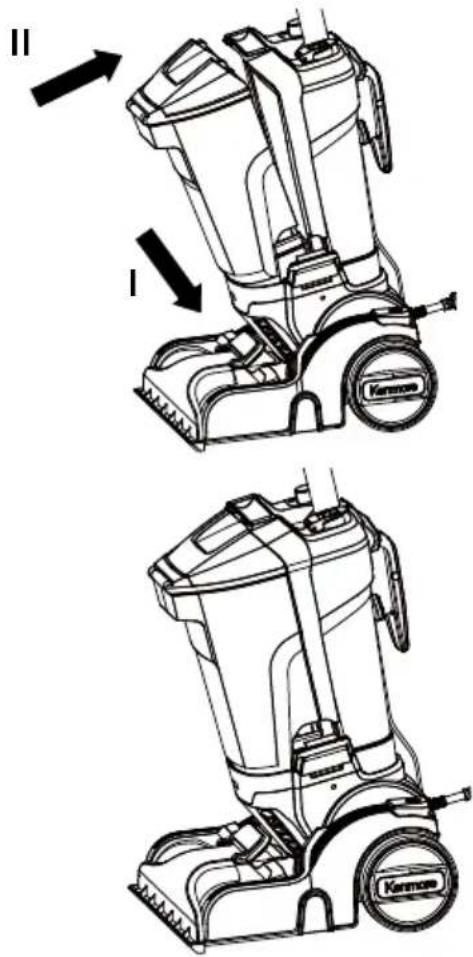

EMPTYING THE DIRTY WATER TANK

WARNING

Always unplug power cord from electrical outlet before performing any service on carpet cleaner.

Empty the dirty water tank when the dirty liquid reaches the "Max Fill" line and there is a loss in suction. During normal use, debris may accumulate in the dirty water tank. In order to keep the carpet cleaner functioning properly, rinse out the dirty water tank with clean water after each use.

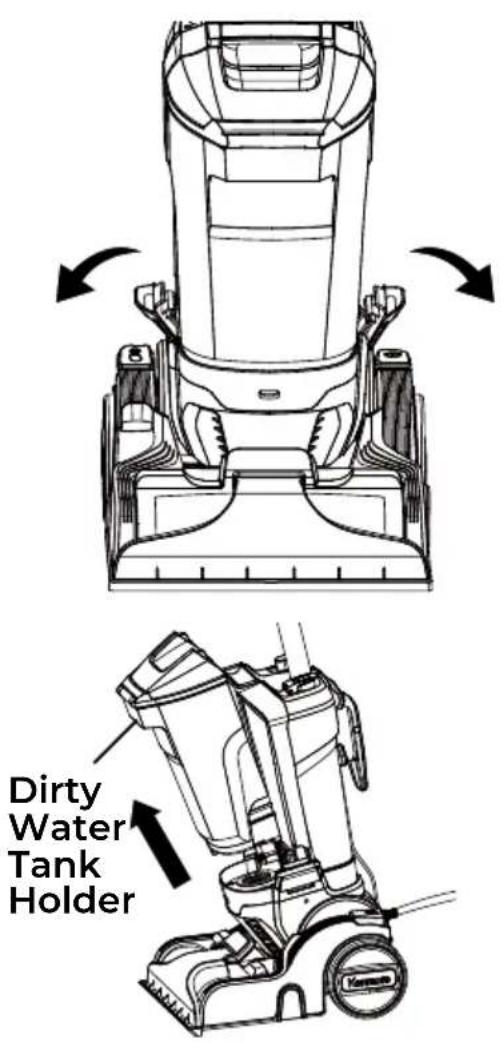

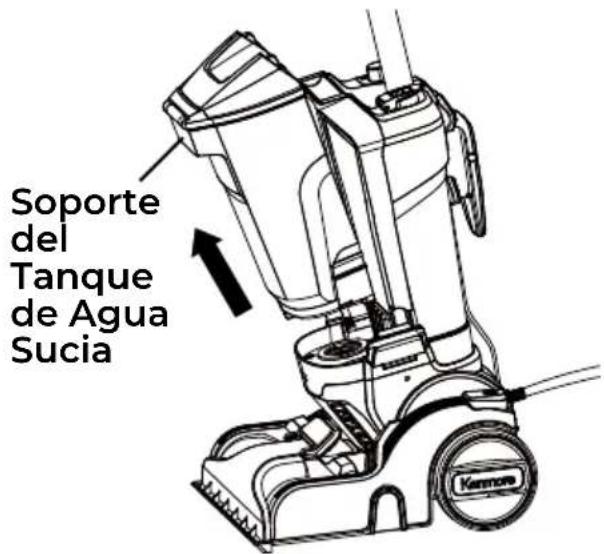

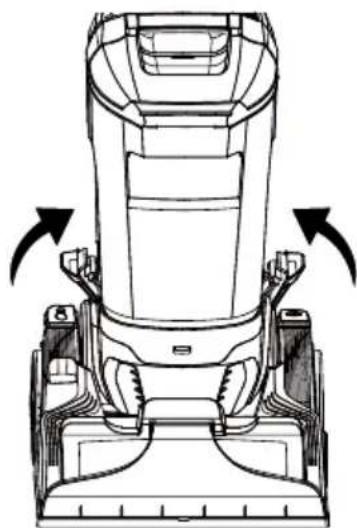

1. Open both the dirty water tank locking latches. Hold the dirty water tank holder to lift up the dirty water tank from the main body as shown.

Dirty Water Tank Holder

EMPTYING THE DIRTY WATER TANK

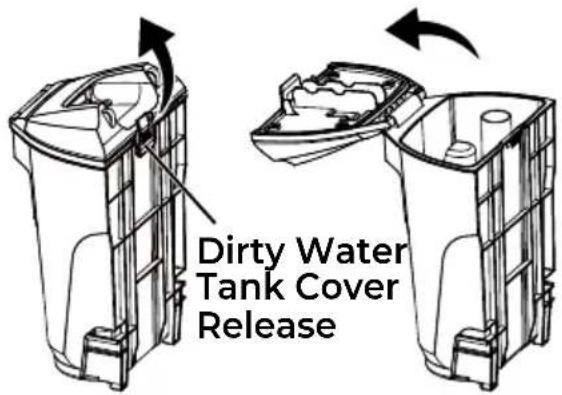

1. Pull up the dirty water tank cover release and open the cover.

Dirty Water Tank Cover Release

1. Empty the tank. Drain liquids into a suitable receptacle or drain. Rinse the tank thoroughly with clean water when finished cleaning. Allow the tank to air dry before putting into storage.

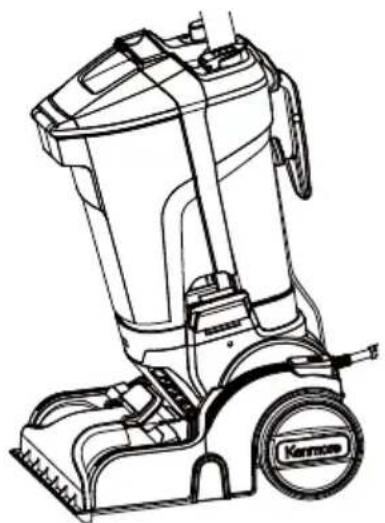

2. Close the tank cover until you hear a 'click'.
3. Before replacing the dirty water tank back into the unit, remove any debris from the air outlet area as shown.

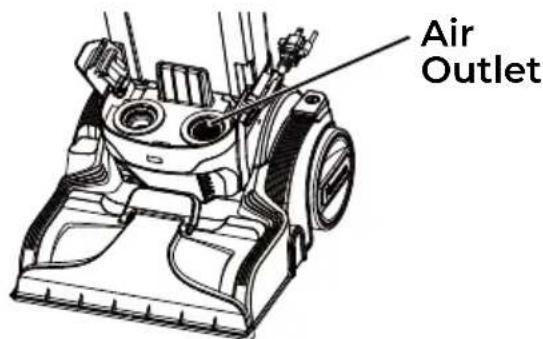

Air Outlet

1. Replace the dirty water tank into the unit on the bottom of the main body, and then press the tank back into position.

Technical diagram showing two views of a Kennon vacuum cleaner with directional arrows indicating motion or assembly.

1. Close both the dirty water tank locking latches until you hear a 'click'.

Technical line drawing of a vacuum cleaner's side panel with directional arrows indicating motion (no text or symbols)

MAINTENANCE AND CARE

Always follow all safety precautions when performing maintenance to the carpet cleaner.

WARNING

Electrical Shock and Personal Injury Hazard

Disconnect electrical supply before servicing or cleaning the carpet cleaner. Failure to do so could result in electrical shock or personal injury from carpet cleaner suddenly starting.

CARPET CLEANER INTERIOR CLEANING

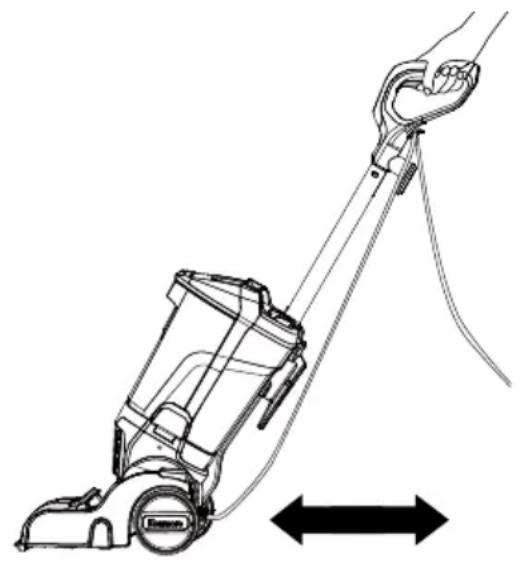

1. Turn off and unplug carpet cleaner. Fill the clean water tank with warm tap water and then empty it all to rinse. Then fill again with warm tap water. Reinstall the clean water tank to the unit.
2. To flush and rinse the carpet cleaner, turn on the unit and press the spray trigger for 15 seconds while making back and forth passes on a section of carpet.

3. Release the spray trigger and vacuum up the water.

4. Empty the dirty water tank.

Line drawing of a hand gripping a vacuum cleaner with rope and cable, showing motion direction (no text or symbols)

CARPET CLEANER EXTERIOR CLEANING

1. Turn off and unplug carpet cleaner. DO NOT drip water on carpet cleaner.
2. To clean exterior, or to reduce static electricity and dust build-up, wipe outer surface with a clean, soft cloth that has been

dipped in a solution of mild liquid detergent and water, then wrung dry. Wipe dry after cleaning.

CARPET CLEANER STORAGE

WARNING

Electrical Shock and Personal Injury Hazard

Wrapping the cord too tightly puts stress on the cord and can cause cord damage. A damaged cord is an electrical shock hazard and could cause personal injury or damage.

1. Clean the attachments thoroughly before storing. Place attachments in the accessory bag.
2. Gather the cord and wrap it

loosely around the cord hooks. Lock plug retainer onto the power cord.

1. Empty the clean water tank. Rinse it out before placing back on the unit. Open the clean water tank cap to allow it to air dry.
   4 Empty the dirty water tank then rinse, clean and dry before placing back on the unit. The wide tank opening is designed to fit your hand inside to thoroughly clean, rinse and dry.
2. Store the carpet cleaner in a dry, indoor area at room temperature.

CLEANING THE BRUSHROLLS AND NOZZLE COVER

WARNING

Always unplug power cord from electrical outlet before performing maintenance to the carpet cleaner.

To maintain efficient cleaning, the brushrolls must be kept free of carpet fiber, string, or hair build-up. If the brushrolls are wrapped with hair or debris, follow below steps to check and clean brushrolls. Cleaning the brushrolls periodically is recommended for best performance.

1. Turn off and unplug carpet cleaner.

2. Grip the two nozzle cover release tabs and pull up with force to remove the nozzle cover.

Angle Cover

Nozzle Cover Release Tabs

Release Tabs Nozzle Cover

CLEANING THE BRUSHROLLS AND NOZZLE COVER

1. Hold the nozzle cover. Insert the nozzle cleaning tool provided into the slot at the front of the nozzle cover where it touches the floor. Clean until free of pet hair or debris. Rinse the nozzle cover and allow it to dry.

Line drawing of a hand using a tool to cut or spread a metal object, no text or symbols present

1. Use a proper tool (e.g. a comb) to brush out any build-up entangled around the brushrolls.

Illustration of a hand inserting a component into a device housing (no text or symbols visible)

1. When finished cleaning, reinstall the nozzle cover. First lock the two tabs on the nozzle cover into the slots on the front edge of the nozzle as shown. Then lock the nozzle cover into place by rotating it down until a click is heard.

Technical diagram showing three stages of a vacuum cleaner's internal structure with labeled arrows indicating motion and assembly.

NOTE: Make sure the nozzle cover is properly installed.

CHANGING THE BELTS

WARNING

Always unplug power cord from electrical outlet before performing maintenance to the carpet cleaner.

Replace the belt whenever a burning rubber smell caused by excessive slippage occurs.

CHANGING THE BELTS

1. Push the recline button; lay the carpet cleaner on floor with the bottom up and the floor nozzle flat.

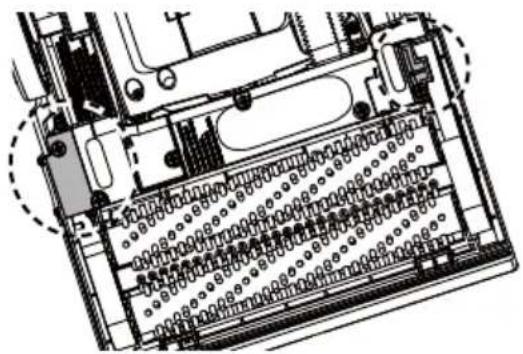

2. Use a Phillips head screwdriver to remove the three screws as indicated in the illustration from the lower plate.

Architectural floor plan showing room layouts and structural elements (no text or labels)

1. Remove the two small covers which are secured by the screws.

Mechanical assembly diagram showing internal components and motion arrows (no text or labels)

1. The two brushrolls are connected together as an assembly. Lift the brushroll assembly up to the angle as shown.

Brus

1. Carefully remove the belt end cover on the left side of the brushrolls as shown. You will see one belt here.

Belt Belt End Cover

1. Remove the belt. If this belt is worn or broken, replace it as indicated in step 15. Then the brushroll assembly can be lifted out from the nozzle cover. Note that two small washers at the belt ends of the brushrolls need to be properly conserved. Be careful to ensure that these do not get lost.

Washers

1. Use scissors to remove any entangled hair around the brushrolls. Clean any debris from the brushrolls and the nozzle cover.

Illustration of a coiled spring or screwdriver with two bolts, no text or symbols present

CHANGING THE BELTS

1. If only one brushroll spins, the second belt located on the opposite end of the brushrolls is broken and needs to be replaced. Use a Phillips head screwdriver to remove the two screws on the belt end cover on the opposite side of the brushrolls.

Technical line drawing of a mechanical device with helical and spiral components, labeled 'Screws' (no other text or symbols)

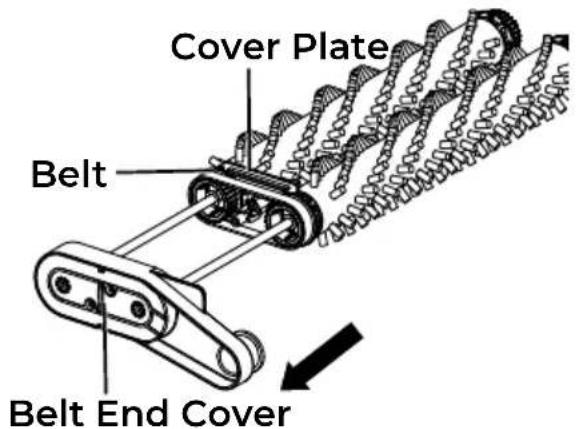

1. Carefully remove the belt end cover together with two metal axles. You will see the second belt.

Cover Plate Belt Belt End Cover

1. Remove the worn or broken belt. Then remove the cover plate as shown. Note that two small washers at the belt ends of the brushrolls need to be properly conserved. Be careful to ensure that these do not get lost.

Cover Plate Washers

1. Place a new belt on the metal axles and insert the axles back into the brushrolls. Make sure the washers are replaced properly. Replace the cover plate into the original place.

Mechanical assembly diagram showing a chain of gears and a mechanical component with directional arrows (no text or symbols)

1. Make sure the cover plate is replaced correctly as shown. Loop the new belt around the belt paths on the brushrolls. The teeth of the belt and the belt paths must align with each other.

Mechanical assembly diagram showing a chain of DNA strands connected to a motor (no text or symbols)

CHANGING THE BELTS

1. Hold both brushrolls with the new belt assembled into place. Carefully push them onto the belt end cover. Make sure the brushrolls are fully inserted into the belt end cover.

Diagram of a mechanical device with coiled springs and two wheels, showing motion direction (no text or symbols)

1. Secure the belt end cover with the two screws. Do not over-tighten the screws.

Technical line drawing of a mechanical roller or guide mechanism with coiled springs and a labeled screw (no text or symbols beyond label)

1. Replace the brushroll assembly into the nozzle cover at the required angle as shown. Loop the new belt around the motor shaft and the belt path on the brushroll. The teeth of the belt and the belt path must align with each other. Make sure the washers are replaced properly.

Motor Shaft Washers Belt Path

1. Reinstall the belt end cover over the motor shaft and the belt ends of the two brushrolls. Make sure the belt ends are fully inserted into the belt end cover.

Mechanical assembly diagram showing a gear meshing device inside a vehicle (no text or labels)

CHANGING THE BELTS

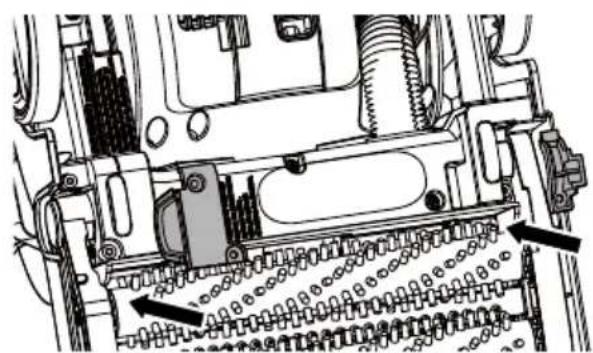

1. Press the brushroll assembly down back into the nozzle cover. Rotate the brushrolls to make sure the belts are installed correctly.

Technical diagram of a mechanical device with internal gear and mesh structure (no text or symbols)

1. Reinstall the two small covers and secure with the three screws. Do not over-tighten the screws.

Mechanical assembly diagram showing internal components and motion arrows (no text or labels)

Architectural floor plan showing room layouts and structural elements (no text or labels)

CLEANING FOAM FILTER

WARNING

Clean filter every 3 months. Foam filters may appear dirty after use - this is normal.

1. Remove the clean water tank and the dirty water tank.
2. Remove the foam filter with the nozzle cleaning tool as shown.

Foam Filter

1. Wash with cold water only, DO NOT use detergent or soap. Squeeze by hand and allow to air dry before reinstalling.

NOTE: DO NOT operate without foam filter installed.

DO NOT wash in the dishwasher. DO NOT install foam filter if damp.

1. Replace the foam filter into the carpet cleaner.

Technical line drawing of a car front bumper with circular components and a directional arrow indicating movement (no text or symbols)

1. Reinstall the clean water tank and the dirty water tank.

TROUBLESHOOTING

Review this table to find do-it-yourself solutions for minor performance problems. Any service needed, other than maintenance described in this Use & Care Guide, should be performed by a qualified service agent.

WARNING

Disconnect electrical supply before performing maintenance to the carpet cleaner. Failure to do so could result in electrical shock or personal injury.

PROBLEM POSSIBLE CAUSE SOLUTION
The cleaner will not run.	Unplugged at wall outlet.	Plug in firmly.
	Defective wall outlet.	Check with a good appliance or lamp. Be sure the power cord plug is fully plugged into a good wall outlet.
	The motor is damaged.	Call 1-877-531-7321 (US) / 1-844-608-3081 (CA) for assistance.
Poor job of dirt pick-up.	Dirty water tank is not installed correctly.	Check the dirty water tank for correct installation. Ensure it is installed in place.
	Dirty water tank is full. Empty the dirty water tank.
	Brushrolls may be wrapped with hair or debris.	Remove obstruction. Follow instructions on page 17-18.
	Nozzle cover is not fully snapped into place.	Reinstall the nozzle cover. Follow instructions on page 17-18.
Water escapes from the cleaner.	Dirty water tank is full. Empty the dirty water tank.
	Dirty water tank is not installed correctly.	Check the dirty water tank for correct installation. Ensure it is installed in place.
	Clean water tank is not installed correctly.	Check the clean water tank for correct installation. Ensure it is installed in place.

TROUBLESHOOTING

Reduced or no spray through nozzle of the cleaner.	Clean water tank is empty.	Fill the clean water tank.
	Clean water tank is not installed correctly.	Check the clean water tank for correct installation. Ensure it is installed in place.
Motor noise becomes high-pitched.	Dirty water tank is full. Empty the dirty water tank.
	The float in the dirty water tank has been activated.	Empty and clean the dirty water tank.
Brushrolls will not turn during floor cleaning.	Brushrolls may be wrapped with hair or debris.	Remove obstruction. Follow instructions on page 17-18.
	Brushrolls are not installed correctly.	Remove the brushrolls and reinstall. Follow instructions on page 18-22.
	The belt is not routed correctly.	Check the belt routing on page 21.
	The belt is worn or broken.	Replace the belt. Follow instructions on page 18-22. To purchase parts, call 1-877-531-7321 (US) / 1-844-608-3081 (CA).

TABLA DE CONTENIDOS

Line drawing of a wall-mounted electrical outlet with a separate plug shown in its connection (no text or symbols)

Cleva North America, Inc., Greenville SC 29607

PIEZAS Y CARACTERÍSTICAS

Technical diagram showing two mechanical assembly steps with arrows indicating movement (no text or symbols)

Technical line drawing of a vacuum cleaner with an inset close-up showing internal components (no text or symbols)

Diagram of a mechanical component with a curved arrow indicating direction (no text or symbols)

Line drawing of two different vacuum cleaner designs, one with a downward arrow indicating compression or disassembly (no text or symbols present)

Line drawing of a vacuum cleaner with a prohibition symbol overlay (no text or symbols present)

Line drawing of a lawn mower with visible blades and wheels (no text or symbols)

Line drawing of a vacuum cleaner with attached cable and lever mechanism (no text or symbols)

Technical line drawing of a vacuum cleaner's side view showing mounting brackets and structural components (no text or symbols)

Soporte del Tanque de Agua Sucia

Technical line drawing of a vacuum cleaner with labeled parts and directional arrows indicating motion or assembly.

Technical line drawing of a vacuum cleaner's side panel with mounting feet and control knobs (no text or symbols)

Line drawing of a vacuum cleaner with attached cable, showing mechanical advantage and motion direction (no text or symbols)

Technical line drawing of a vehicle interior showing structural components and airflow paths (no text or labels)

Line drawing of a hand holding a tool placed on a flat object (no text or symbols)

Line drawing of a hand inserting a spring into a mechanical device (no text or symbols)

Technical diagram showing three views of a vacuum cleaner's internal structure with labeled components and directional arrows indicating assembly.

Technical line drawing of an electronic device interior with circuitry and components (no text or symbols)

Mechanical assembly diagram showing internal components and motion arrows (no text or labels)

Mechanical assembly diagram showing gear meshing and mounting components (no text or labels)

Rodillos Cepillos

Technical line drawing of a mechanical component with coiled springs and bolts (no text or symbols)

Technical line drawing of a mechanical device with helical components and a labeled component 'Tornillos' (no other text or symbols)

Mechanical assembly diagram showing a conveyor belt system with rotating gears and a mechanical clamp (no text or symbols)

Mechanical assembly diagram showing a chain of gears and linkages (no text or labels)

Mechanical assembly diagram showing a chain of springs and rollers with directional arrows (no text or labels)

Technical line drawing of a tornillos grating tool with coiled spring and roller chain (no text or symbols)

Mechanical assembly diagram showing a gear-like component inserted into a motor, with no visible text or symbols.

Diagram of a mechanical device with internal gear meshing and a downward arrow indicating motion (no text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

LIMPIEZA DEL FILTRO DE ESPUMA

ADVERTENCIA

Technical line drawing of a camera body with no visible text or symbols

Line drawing of a wall-mounted electrical outlet with a separate plug shown in its connection (no text or symbols)

GARANTIE COUVRANT LE NETTOYEUR DE TAPIS

GARANTIE LIMITÉE

Cleva North America, Inc., Greenville SC 29607

PIÈCES ET FONCTIONNALITÉS

Simple line drawing of a traditional Chinese bronze arrow (no text or symbols)

Technical illustration of a mechanical clamp or bracket assembly with no visible text or symbols

Technical line drawing of a vacuum cleaner with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawings of two different vacuum cleaner designs, shown from top and side views (no text or symbols)

UTILISATION DU NETTOYEUR DE TAPIS

Line drawing of a vacuum cleaner with a prohibition symbol overlay (no text or symbols present)

Technical diagram of a mechanical component with a circular component labeled 'Kenmore' and an arrow pointing to a feature (no readable text or symbols beyond label)

Line drawing of a vacuum cleaner with attached blades and mounting base (no text or symbols)

Line drawing of a vacuum cleaner with attached cable, showing motion direction (no text or symbols)

ATTENTION

II I Verroni

VIDANGE DU RÉSERVOIR D'EAU USÉE

Line drawing of a vacuum cleaner with a circular base (no text or symbols)

Technical line drawing of a lawn mower base with directional arrows indicating motion (no text or symbols)

ENTRETIEN ET SOIN

Line drawing of a vacuum cleaner with attached cable, showing mechanical advantage (no text or symbols)

NETTOYEAR DE TAPIS NETTOYAGE EXTÉRIEUR

Technical line drawing of a car interior showing structural components and airflow paths (no text or labels)

Line drawing of a mechanical clamp or bracket with a tool inserted, no text or symbols present

Illustration of a hand using a tool to adjust or install a mechanical component with no visible text or symbols

NETTOYAGE DES ROULEAUX-BROSSE ET DU COUVERCLE DE LA BUSE

Technical diagram showing three stages of a vacuum cleaner's internal structure with labeled arrows indicating component movement.

Architectural floor plan showing room layouts and equipment layout (no text or labels)

Technical diagram of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a conveyor belt system with spring-loaded components and an upward arrow indicating motion (no text or labels)

Rouleaux-brosse

Technical line drawing of a mechanical component with coiled springs and two spherical ends (no text or symbols)

Technical line drawing of a mechanical device with helical components and a labeled 'Vis' component (no text or symbols beyond label)

Mechanical assembly diagram showing a chain drive mechanism with gear and spring components (no text or labels)

Mechanical assembly diagram showing a chain of gears and linkages (no text or symbols)

Diagram of a mechanical device with coiled springs and two dials, showing motion direction (no text or symbols)

Mechanical assembly diagram showing a gear meshing device inside a housing and a conveyor belt mechanism (no text or symbols)

Technical diagram of a mechanical device with internal gear meshing and a downward arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing internal components and alignment arrows (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

NETTOYAGE DU FILTRE A MOUSSE

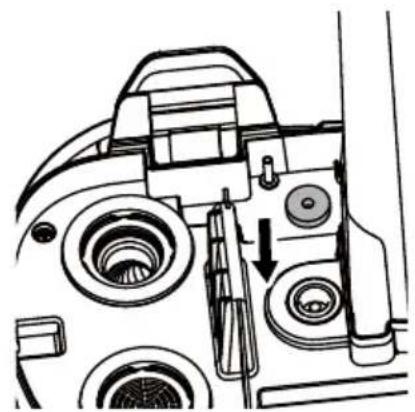

AVERTISSEMENT

Technical line drawing of a camera body with no visible text or symbols

Kenmore logo with abstract white wave design on dark background (no text or symbols beyond the logo)

®/MD
