Product Type	Canister Vacuum Cleaner
Brand	Kenmore
Model	81614
Power Supply	120V, 60Hz
Dust Bag Type	Disposable, Type 20-53291 (2-pack) or 20-53292 (6-pack)
Motor Safety Filter	Washable foam filter
Exhaust Filter	HEPA media cartridge (replaceable, part 20-52730)
Attachments Included	Floor Brush, Dusting Brush, Crevice Tool, Pet PowerMate, PowerMate
Cord Rewind	Yes, with foot pedal
Suction Control	Electronic, adjustable on handle
Check Bag Indicator	LED light on canister

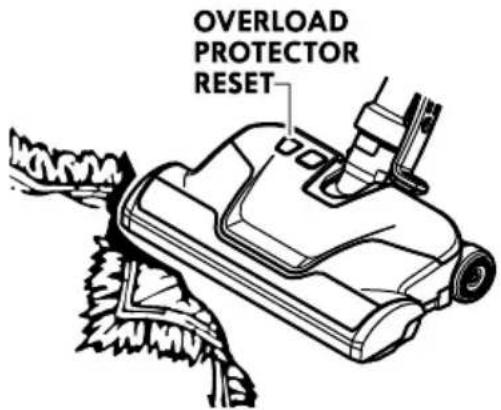

Overload Protector	Built-in, resettable on PowerMate
Thermal Protector	Automatic shut-off to prevent overheating
Wand Type	Telescoping, adjustable length
PowerMate Features	Edge cleaners, pile height adjustment (HI/MED/LO/XLO), handle release pedal
Stair Grip	Yes, on lower body of canister

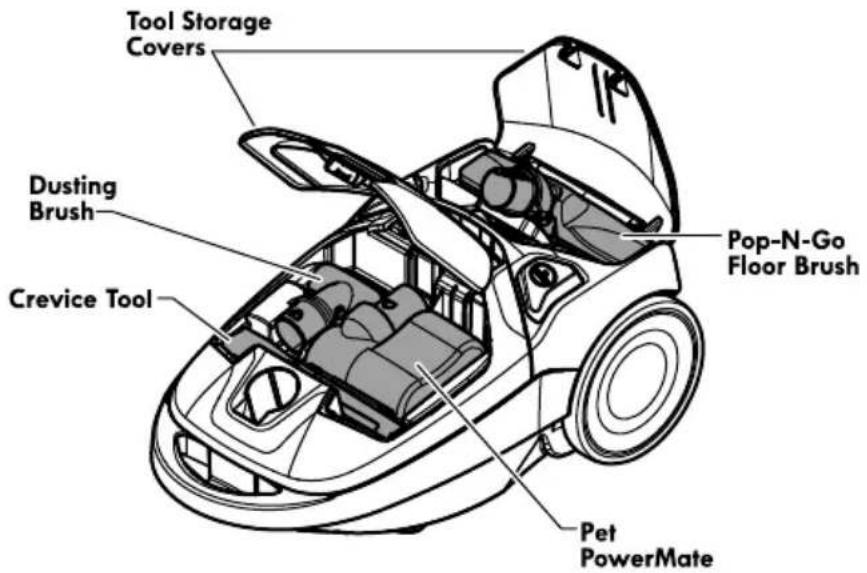

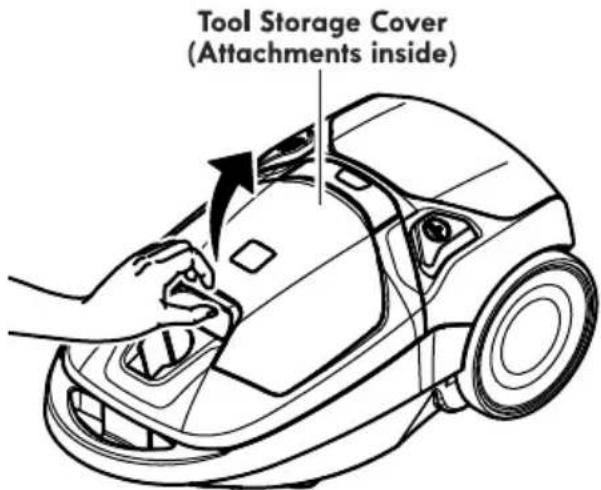

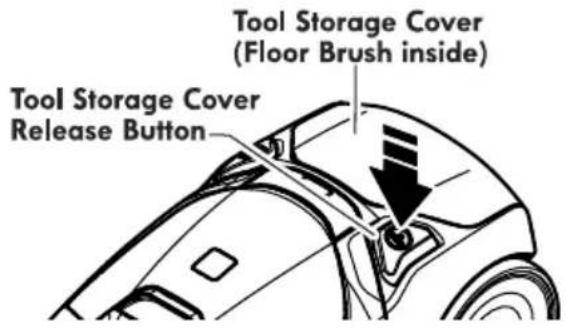

Storage	On-board attachment storage, PowerMate storage hook on canister
Warranty	1 year limited (90 days if used other than household)
Help Line	1-877-531-7321, 8am-5pm EST M-F

Frequently Asked Questions - 81614 KENMORE

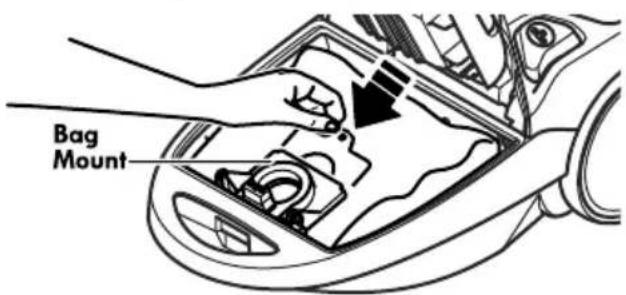

How do I change the dust bag?

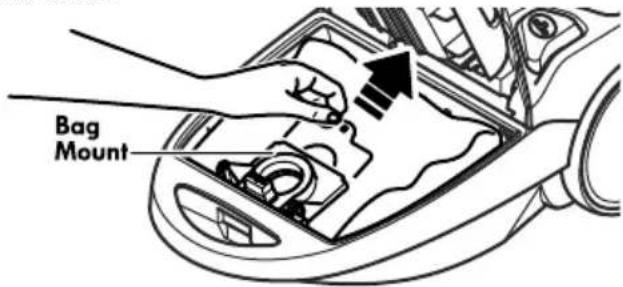

Turn off and unplug the vacuum. Remove the hose, open the hood, and pull the old bag out. Insert a new bag (type 20-53291 or 20-53292) into the bag mount slots until the tab locks. Tuck the bag in and close the hood.

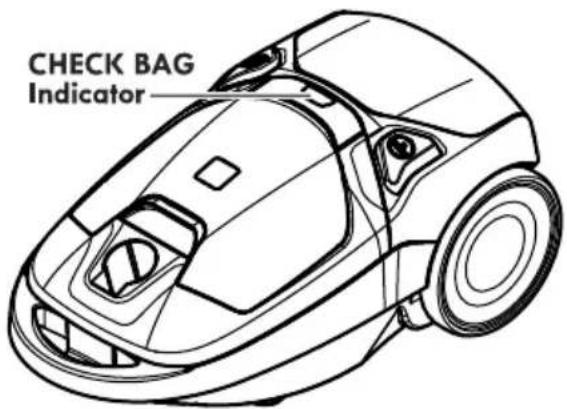

What should I do if the Check Bag indicator lights up?

The light indicates blocked airflow. First, check and replace the dust bag if full. Then clean or replace the motor safety filter and exhaust filter. Also check for clogs in the hose, wand, or PowerMate. The light may also turn on with certain attachments due to reduced airflow.

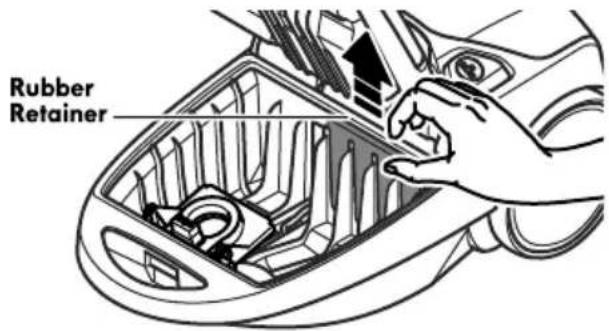

How do I clean the motor safety filter?

Remove the dust bag, lift the rubber retainer, and pull out the foam filter. Wash it in warm soapy water, rinse, and let it dry completely. Do not install while damp. Slide it back under the retainer and replace the bag.

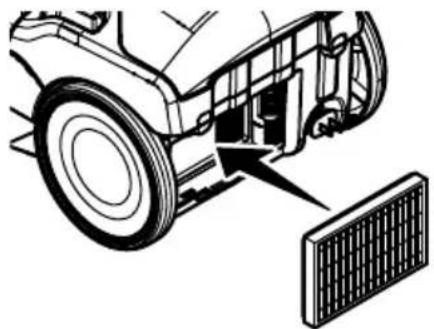

How often should I replace the exhaust filter?

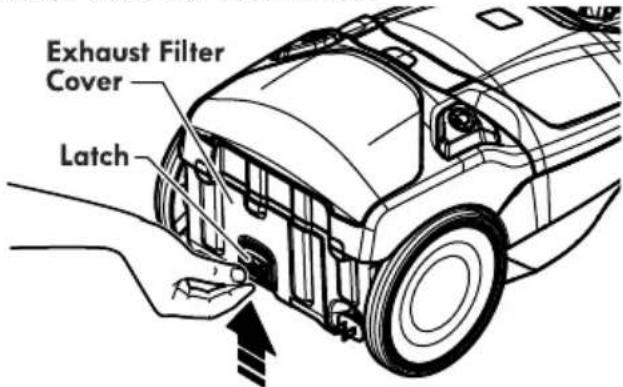

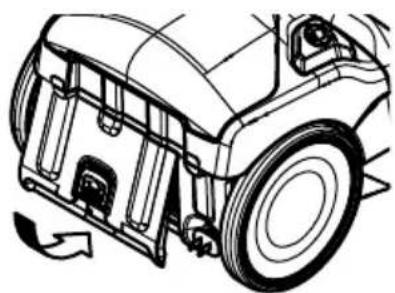

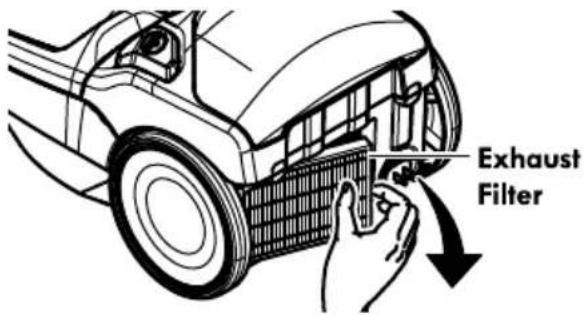

Replace the HEPA media exhaust filter when the entire surface is covered evenly. It cannot be washed. Part number is 20-52730. To replace, unlatch the cover, remove old cartridge, and insert a new one with the rubber seal facing the canister.

What causes the PowerMate to stop working?

Common causes: tripped overload protector, worn/broken belt, dirty agitator or end caps, or the switch is in HARD FLOOR mode. Turn off and unplug, remove obstructions, press the overload reset button, or check the belt and agitator. Ensure the switch is on CARPET for agitator operation.

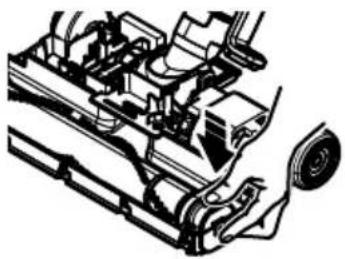

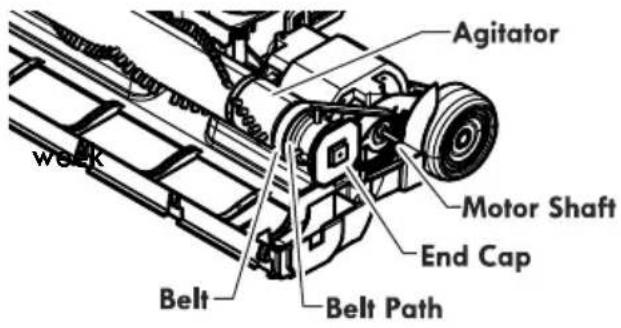

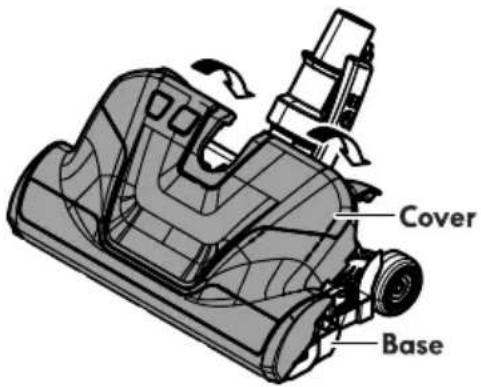

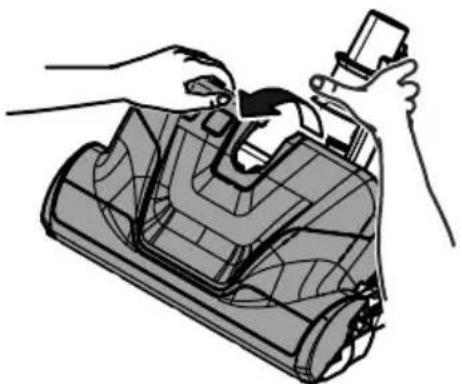

How do I replace the belt in the PowerMate?

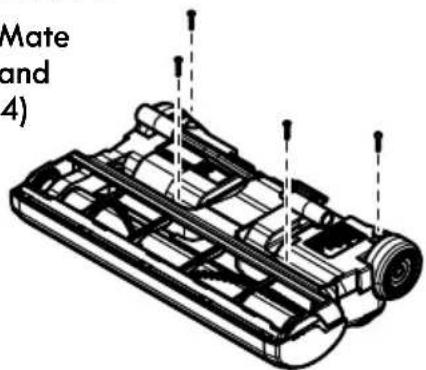

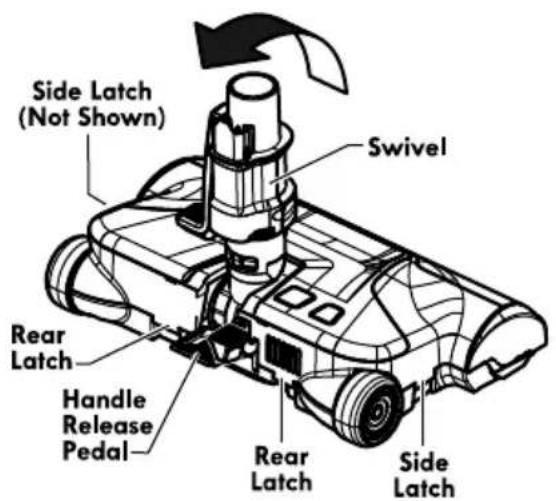

Turn off and unplug. Remove the four screws on the bottom, lower the swivel, and open the cover. Lift out the agitator, remove the old belt, clean the agitator and end caps. Install new belt over the motor drive and belt path, then reassemble. Part numbers available at searspartsdirect.com.

Why does the vacuum cleaner shut off during use?

The thermal protector may have tripped due to overheating. Turn off and unplug, check for clogs, clean filters, and wait about 50 minutes for it to cool and reset. Also check the overload protector on the PowerMate. If problem persists, seek service.

How do I remove clogs from the airflow path?

Check the dust bag, motor safety filter, exhaust filter, and PowerMate brush area. If suction is still poor, test the hose by turning on the canister and feeling for suction at the handle. Check the wand and PowerMate swivel for debris. Remove any blockages found.

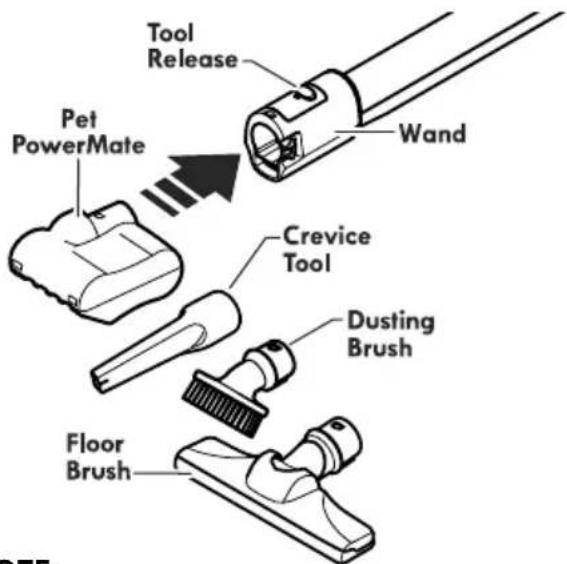

What is the proper way to use attachments?

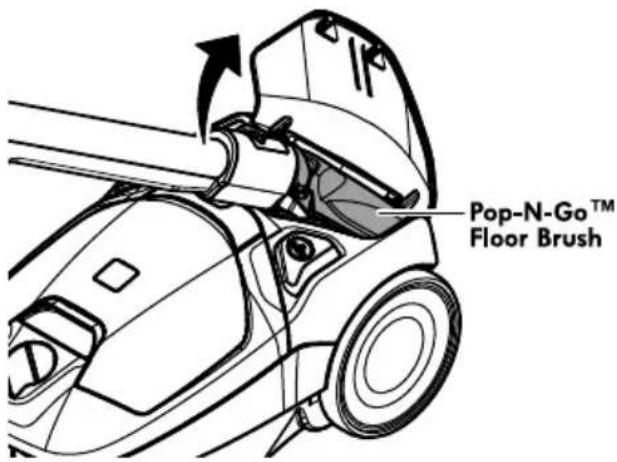

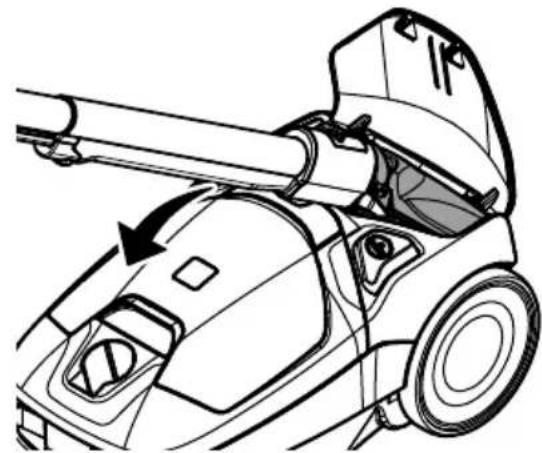

Turn off the vacuum before attaching or removing attachments. Use the dusting brush for furniture and drapes, crevice tool for tight spaces, floor brush for bare floors, and PowerMate for carpets. For pet hair on stairs or furniture, use the Pet PowerMate (never directly on pets).

How do I store the vacuum cleaner to save space?

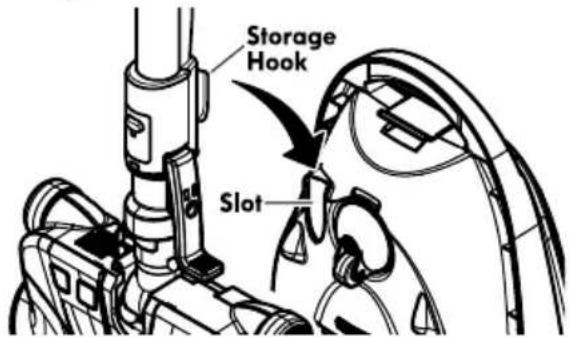

The wand has a storage hook that slides into a slot on the canister. The PowerMate must be flat. Place the canister on end and lower the wand into the slot. Attachments can be stored in the on-board compartment. Disconnect the hose from the wand and canister to prevent stress.

USER MANUAL 81614 KENMORE

Vacuum Cleaner Help Line:

1-877-531-7321

8:00am-5:00pm EST, M-F

Sears Brands Management Corporation

Hoffman Estates, IL 60179 USA

www.kenmore.com

TABLE OF CONTENTS

Before Using Your New Vacuum Cleaner .... 2

Kenmore Vacuum Cleaner Warranty 3

Important Safety Instructions 4

Parts and Features 5-7

Assembly Instructions 8

Operating Instructions 9-14

Performance/Safety Features 15

Canister Care 16-19

PowerMate® Care 20-22

Troubleshooting 23-24

BEFORE USING YOUR NEW VACUUM CLEANER

Please read this guide. It will help you assemble and operate your new Kenmore vacuum cleaner in the safest and most effective way.

For more information about vacuum cleaner care and operation, call the Vacuum Cleaner Help Line at 1-877-531-7321. You will need the complete model and serial numbers when requesting information. Your vacuum cleaner's model and serial numbers are located on the Model and Serial Number Plate.

Use the space below to record the model number and serial number of your new Kenmore vacuum cleaner.

Model No.

Serial No. ____

Date of Purchase ____

Keep this book and your sales check (receipt) in a safe place for future reference.

PACKING LIST

Your KENMORE VACUUM CLEANER is packaged with the following parts and components assembled separately in the carton:

• Canister Vacuum Cleaner (with Floor Brush, Dusting Brush, and Crevice Tool)
• PowerMate®
• Pet PowerMate®
• Handle & Hose Assembly
• Telescoping Wand
• Use & Care Guide

KENMORE VACUUM CLEANER WARRANTY

KENMORE LIMITED WARRANTY

FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or workmanship when it is correctly installed, operated and maintained according to all supplied instructions.

WITH PROOF OF SALE, a defective product will receive free repair or replacement at option of seller.

For warranty coverage details to obtain free repair or replacement, visit the web page: www.kenmore.com/warranty

This warranty applies for only 90 DAYS from the sale date if this appliance is ever used for other than private household purposes.

This warranty covers ONLY defects in material and workmanship, and will NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, bags or screw-in base light bulbs.
2. A service technician to clean or maintain this appliance, or to instruct the user in correct appliance installation, operation and maintenance.
3. Service calls to correct appliance installation not performed by Sears authorized service agents, or to repair problems with house fuses, circuit breakers, house wiring, and plumbing or gas supply systems resulting from such installation.
4. Damage to or failure of this appliance resulting from installation not performed by Sears authorized service agents, including installation that was not in accord with electrical, gas or plumbing codes.
5. Damage to or failure of this appliance, including discoloration or surface rust, if it is not correctly operated and maintained according to all supplied instructions.
6. Damage to or failure of this appliance, including discoloration or surface rust, resulting from accident, alteration, abuse, misuse or use for other than its intended purpose.
7. Damage to or failure of this appliance, including discoloration or surface rust, caused by the use of detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.
8. Damage to or failure of parts or systems resulting from unauthorized modifications made to this appliance.
9. Service to an appliance if the model and serial plate is missing, altered, or cannot easily be determined to have the appropriate certification logo.

Disclaimer of implied warranties; limitation of remedies

Customer's sole and exclusive remedy under this limited warranty shall be product repair or replacement as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Seller shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions in this guide before assembling or using your vacuum cleaner.

WARNING:

Your safety is important to us. To reduce the risk of fire, electrical shock, injury to persons or damage when using your vacuum cleaner, follow basic safety precautions including the following:

Use your vacuum cleaner only as described in this guide. Use only with Sears recommended attachments.

Disconnect electrical supply before servicing or cleaning out the brush area. Failure to do so could result in brush unexpectedly starting causing personal injury from moving parts.

Do not leave vacuum cleaner when plugged in. Unplug from outlet when not in use and before performing maintenance.

To reduce the risk of electrical shock - Do not use outdoors or on wet surfaces.

Do not allow to be used as a toy. Close attention is necessary when used by or near children.

Do not use with a damaged cord or plug. If vacuum cleaner is not working as it should, has been dropped, damaged, left outdoors, or dropped in water, return it to a Sears Service Center.

Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away from heated surfaces.

Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

Do not handle plug or vacuum cleaner with wet hands.

Do not put any objects into openings.

Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.

Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

Turn off all controls before unplugging.

Use extra care when cleaning on stairs.

Do not put on chairs, tables, etc. Keep on floor.

Do not use vacuum cleaner to pick up flammable or combustible liquids (gasoline, cleaning fluid, perfumes, etc.), or use in areas where they may be present. The fumes from these substances can create a fire hazard or explosion.

Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

Do not use vacuum cleaner without dust cup and/or filters in place.

Always change the dust bag after vacuuming carpet cleaners or freshener, powders, and fine dust. These products clog the bag, reduce airflow and can cause the bag to burst. Failure to change the bag could cause permanent damage to the vacuum cleaner.

Do not use the vacuum cleaner to pick up sharp hard objects, small toys, pins, paper clips, etc. They may damage the vacuum cleaner.

Do not operate the vacuum cleaner without the exhaust filter or filter door in place.

The hose contains electrical wires. Do not use when damaged, cut, or punctured. Replace if cut or worn. Do not pick up sharp objects.

Always turn off and unplug vacuum cleaner before connecting or disconnecting either hose, wand, Pet PowerMate, or PowerMate.

Hold plug when rewinding onto cord reel. Do not allow plug to whip when rewinding.

You are responsible for making sure that your vacuum cleaner is not used by anyone unable to operate it properly.

WARNING:

This product contains a chemical known to the state of California to cause cancer and birth defects or other reproductive harm.

SAVE THESE INSTRUCTIONS

Proper assembly and safe use of your vacuum cleaner are your responsibilities. Your vacuum cleaner is intended for Household use. Read this Use & Care Guide carefully for important use and safety information. This guide contains safety statements under warning and caution symbols.

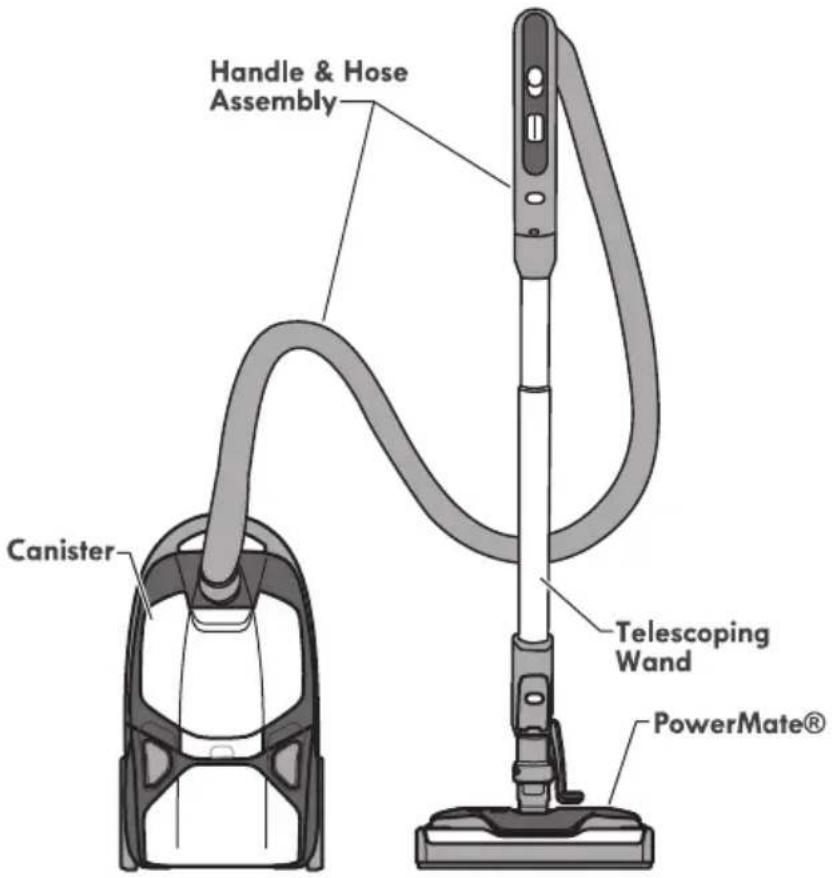

PARTS AND FEATURES

It is important to know your vacuum cleaner's parts and features to ensure its proper and safe use. Review these before using your vacuum cleaner.

REPLACEMENT PARTS

	.on
Bel	*53
Dust Bag (2-pack)	20-53291*
Dust Bag (6-pack)	20-53292*
Exhaust Filter	20-52730*
Motor Safety Filter	20-81002*
To order a replacement part call 1-844-553-6667or visit www.searspartsdirect.com* Available online at www.sears.com

NOTE: Detailed illustrations and listings of all vacuum cleaner parts are also available at searspartsdirect.com

traPtraP

*53013-02

Scan to reorder bags or go to kenmore.com/reorderCQ

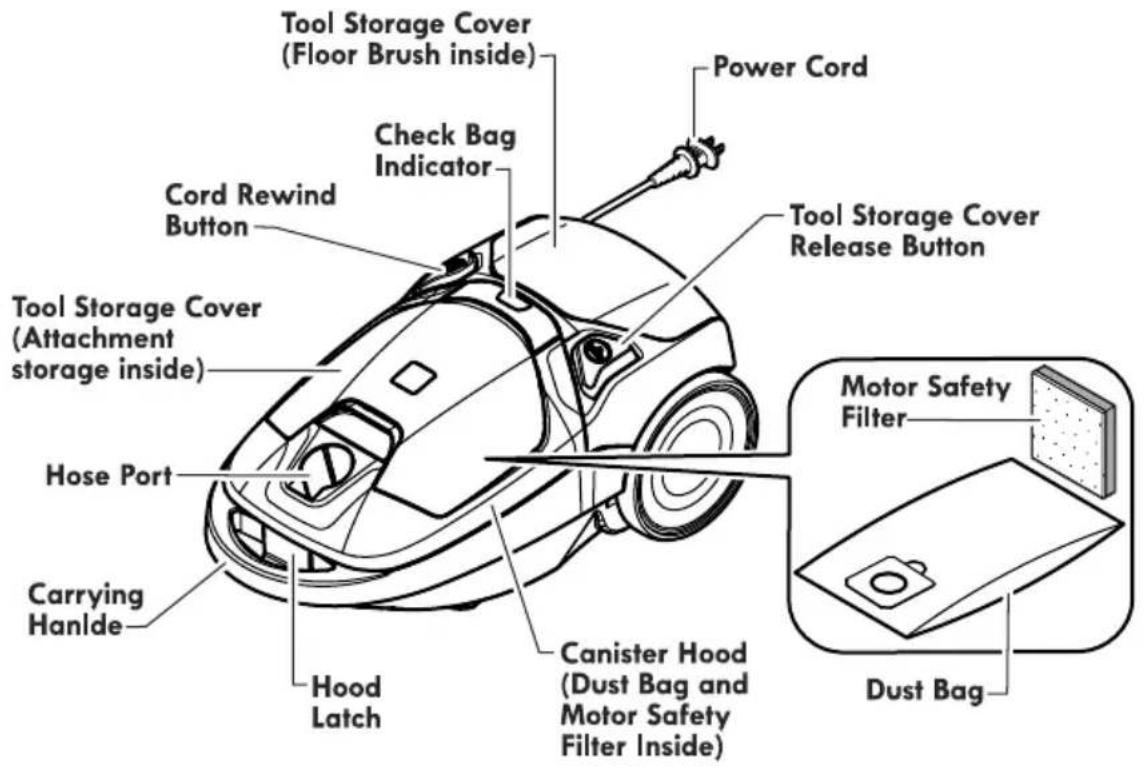

CANISTER

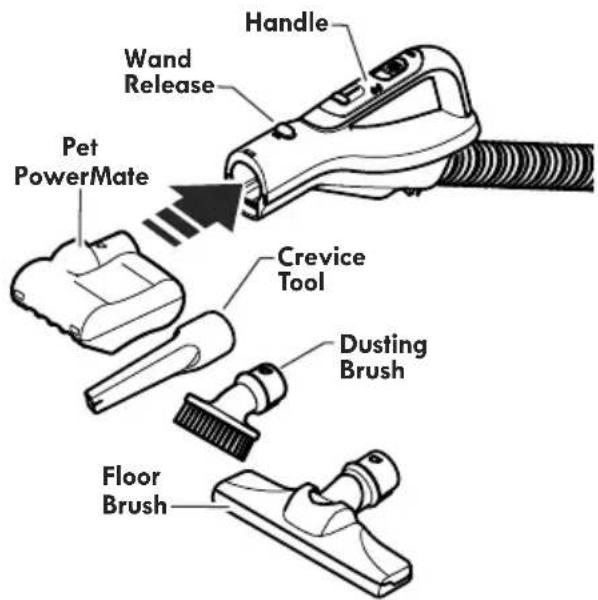

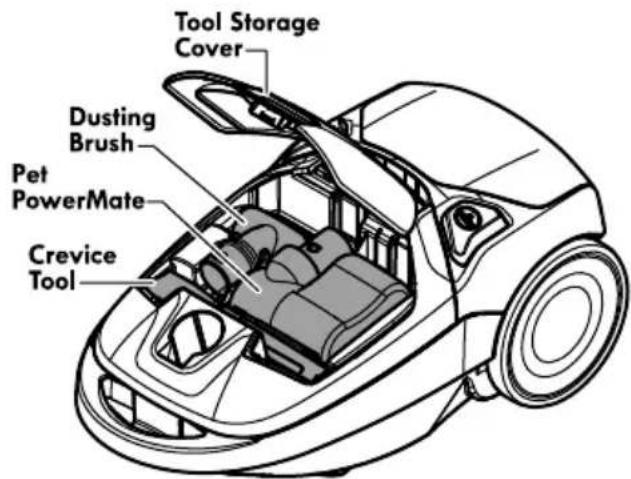

ATTACHMENTS

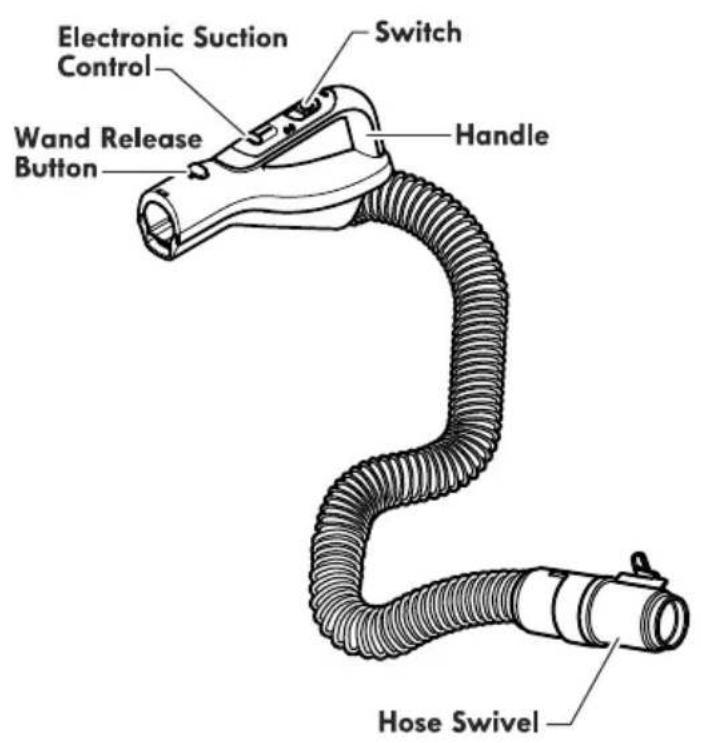

HANDLE & HOSE ASSEMBLY

TELESCOPING WAND

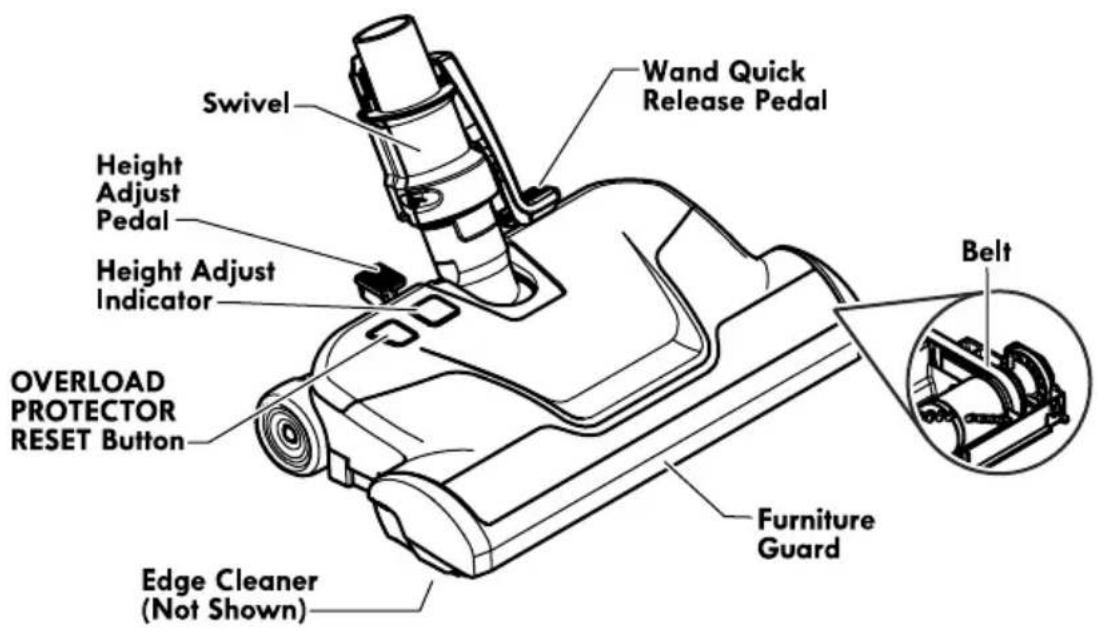

POWERMATE

Please pay special attention to these hazard alert boxes, and follow any instructions given. WARNING statements alert you to such dangers as fire, electric shock, burns and personal injury. CAUTION statements alert you to such dangers as personal injury and/or property damage.

ASSEMBLY INSTRUCTIONS

Before assembling vacuum cleaner, check the PACKING LIST (page 2). Use this list to verify that you have received and identified all the components of your new Kenmore vacuum cleaner.

WARNING

Electrical Shock Hazard

DO NOT plug into electrical supply until assembly is complete. Failure to do so could result in electrical shock or injury.

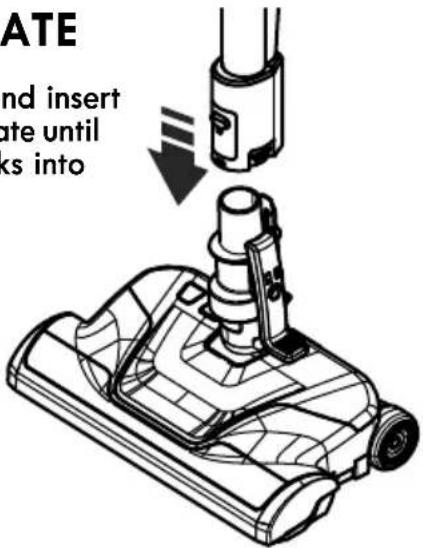

POWERMATE

Align wand and insert onto PowerMate until the wand locks into place.

HANDLE ASSEMBLY

Insert wand into handle until lock button snaps in place.

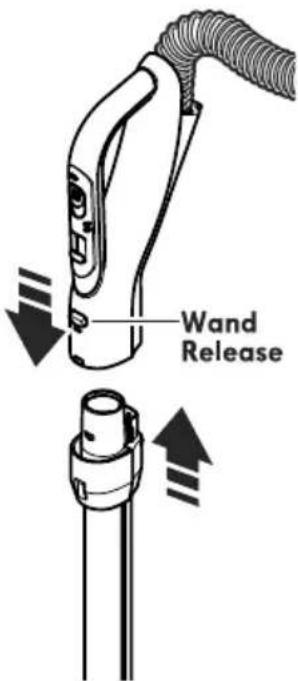

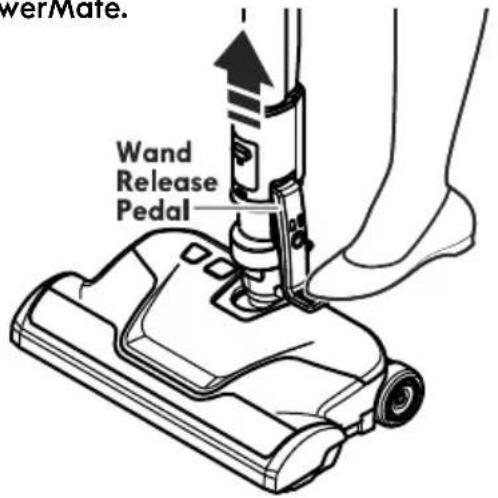

To remove: Press wand release button and pull up on handle.

To store: Disconnect hose from wand and canister to prevent stress on hose during storage. Store hose in a loosely coiled position so the hose covering is not stressed.

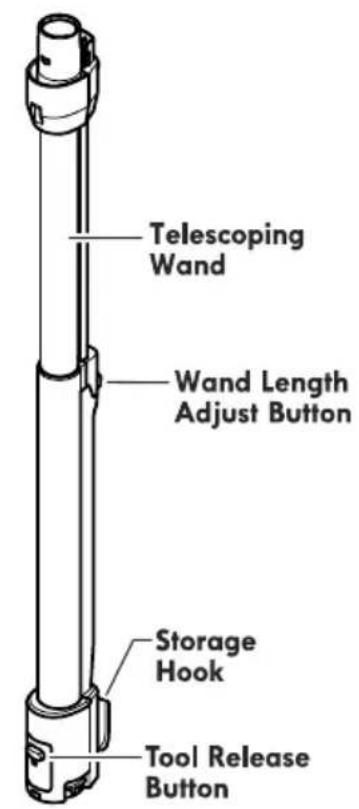

WAND (TELESCOPING)

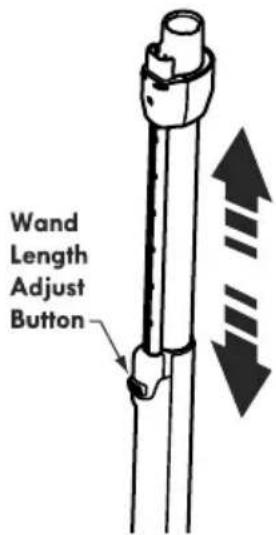

The wand length is adjustable and requires no assembly. To adjust, simply push on the wand adjust button and slide the upper wand to the desired height.

NOTE: When adjusting the wand length you may have to hold the PowerMate with your hand or foot.

HOSE

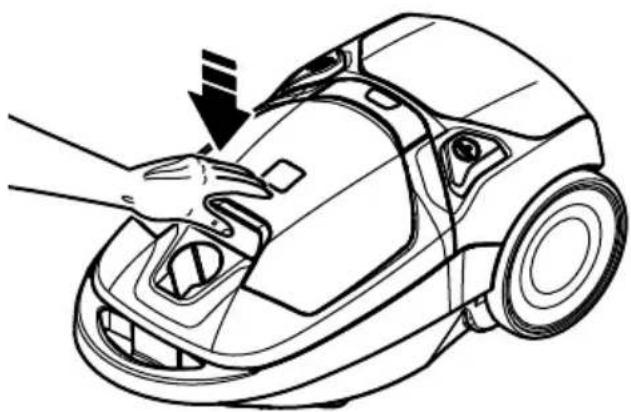

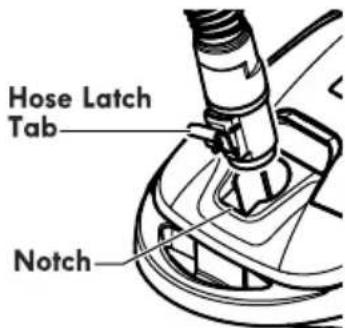

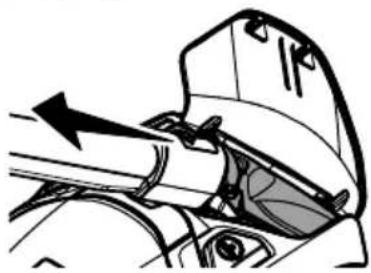

1. Line up the hose latch tab and notch in canister hood and insert hose into canister until it snaps into place.

IMPORTANT:

Push hose connector firmly into the canister body until the hose latch tab snaps into place. The vacuum cleaner will not operate until hose is fully connected.

To remove: Do not open hood before removing hose. With hood closed, press hose latch tab and remove hose.

CANISTER

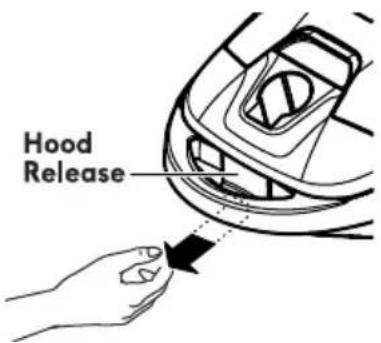

1. Open the canister hood.

2. Check to see that the dust bag is properly installed. See DUST BAG CHANGING (page 17) for instructions.

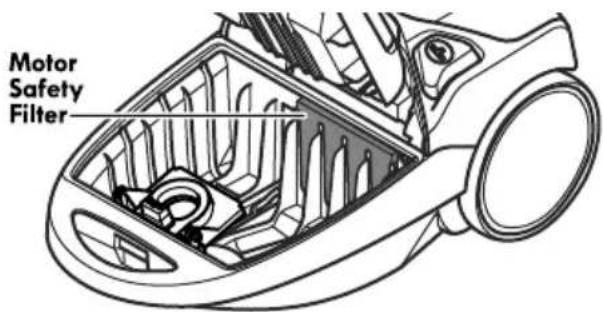

3. Check to see that the motor safety filter is properly installed. See MOTOR SAFETY FILTER CLEANING (page 18) for instructions.

OPERATING INSTRUCTIONS

CAUTION

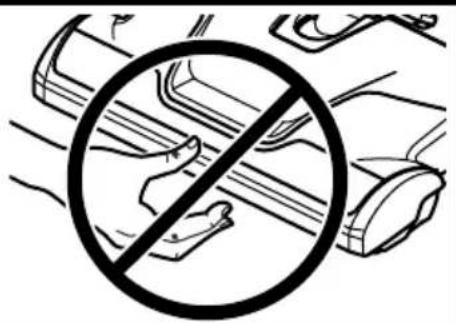

Moving parts! To reduce the risk of personal injury, DO NOT touch the agitator when vacuum cleaner is on. Contacting the agitator while it is rotating can cut, bruise or cause other injuries. Always turn off and unplug from electrical outlet before servicing. Use caution when operating near children.

HOW TO START

WARNING

Personal Injury and Product Damage Hazard

• ALWAYS turn off the vacuum cleaner before unplugging.
• The cord moves rapidly when rewinding. Keep children away and provide a clear path when rewinding the cord to prevent personal injury.
• DO NOT use outlets above counters. Damage from cord to items in surrounding area could occur.
- When any abnormality/failure occurs, stop using the product immediately and disconnect the power plug.

NOTE: To reduce the risk of electric shock, this vacuum cleaner has a polarized plug; one blade is wider than the other. This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

WARNING

Personal Injury and Product Damage Hazard

• DO NOT run over power cord with PowerMate. Personal injury or product damage could result.
• DO NOT pull plug from wall by the power cord. If there is damage to the cord or plug, personal injury or property damage could result.

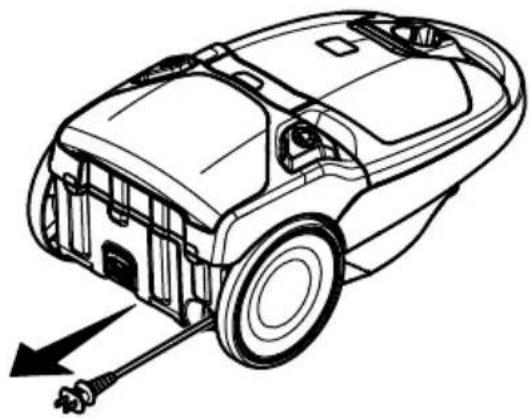

1. Pull cord out of canister to desired length. The cord will not rewind until the cord rewind button is pushed.

Line drawing of a car interior with visible engine and battery components (no text or symbols)

1. Plug the polarized power cord into a 120 Volt outlet located near the floor.

To rewind: Turn off and unplug the vacuum cleaner. Hold the plug while rewinding to prevent damage or injury from the moving cord. Push cord rewind button.

Line drawing of a car interior with tools and a hand holding a tool (no text or symbols)

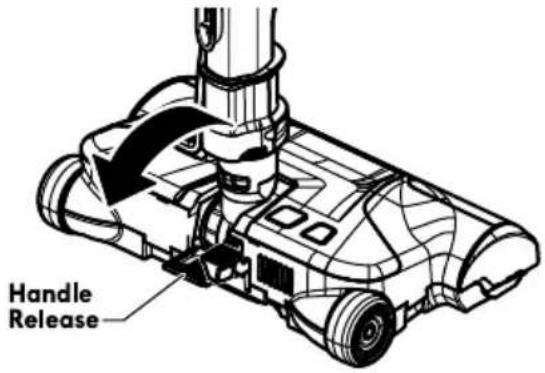

1. Lower wand from upright position by pressing on the HANDLE RELEASE pedal.

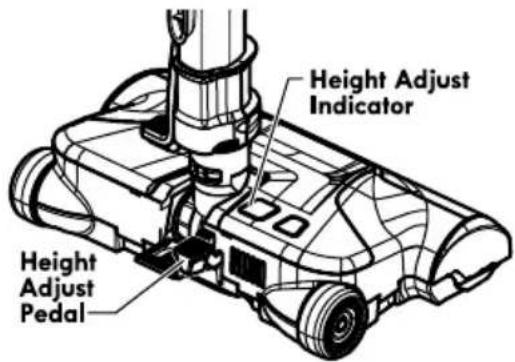

1. Select a pile height setting by pressing the height adjust pedal on the rear of the PowerMate. The pile height setting shows on the indicator.

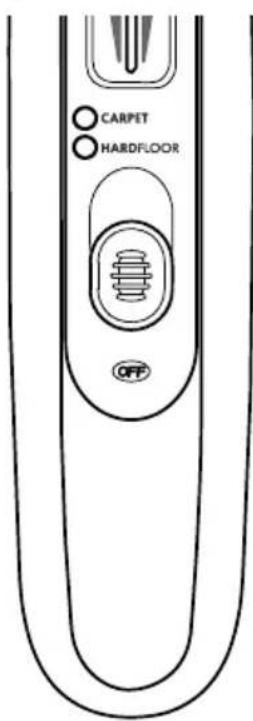

1. Select a position on the handle three-way On/Off switch.

OFF

Turns vacuum cleaner off.

HARDFLOOR

Turns on the canister motor only.

CARPET

Turns on both the canister and the PowerMate motors. Agitator will come on.

SUGGESTED PILE HEIGHT SETTINGS

Attention: Refer to your carpet manufacturers cleaning recommendations. Some more delicate carpets may require that they be vacuumed with the PowerMate agitator turned off to prevent carpet damage.

For best deep down cleaning, use the XLO setting. However, you may need to raise the height to make some jobs easier, such as scatter rugs and some deep pile carpets, and to prevent the vacuum cleaner from shutting off. Suggested settings are:

HI – Shag, deep pile, super-soft, or ultraplush carpets, and scatter rugs.

MED - Medium to deep pile.

LO - Low to medium pile.

XLO – The preferred setting for many carpets and also for bare floors.

NOTE: To protect bare floors, place the 3-way On/Off switch in the HARDFLOOR position to turn off agitator rotation.

CAUTION

DO NOT leave the PowerMate running in one spot for any length of time. Damage to carpet may occur.

CAUTION

Product Damage Hazard

Use care if the PowerMate and wand is left in the upright position as it may tip over easily. Property damage can occur if tipped.

VACUUMING TIPS

FOR BEST CLEANING RESULTS

- Use high power on the suction control located on the handle.

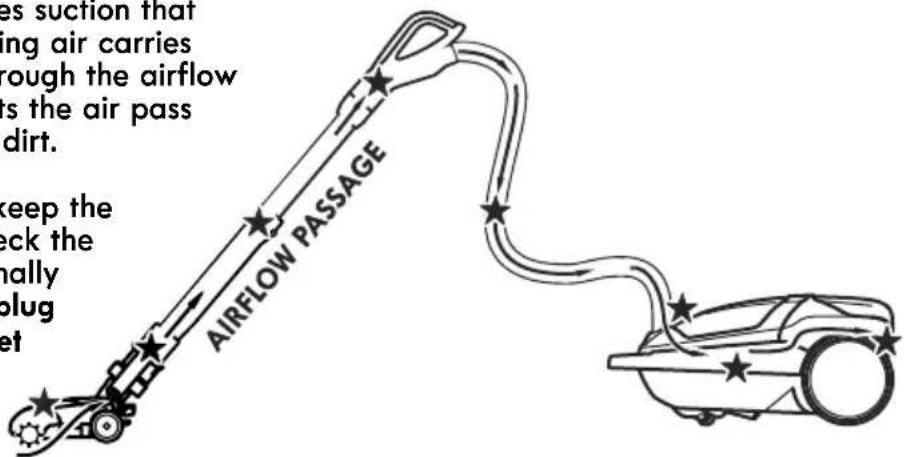

- Keep the airflow passage open. Check each assembly area in REMOVING CLOGS (page 16) occasionally for clogs. Turn off and unplug vacuum cleaner from outlet before checking.

STAIRS

WARNING

Personal Injury Hazard

Use care if canister is placed on stairs. It may fall, causing personal injury or property damage.

CAUTION

Product Damage Hazard

Do not pull on the hose to move the canister from one stair to the next. When finished cleaning in one area use the handle grip on the canister to move the vacuum cleaner to a new location for further cleaning.

The stair grip located on lower body of the canister will aid in preventing the canister from slipping when used on stairs.

NOTE: Before using, be sure the canister is balanced on stairs as shown and that the stair grip has engaged a step.

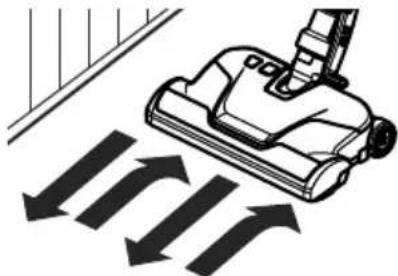

SUGGESTED SWEEPING PATTERN

For best cleaning action, the PowerMate should be pushed straight away from you and pulled straight back. At the end of each pull stroke, the direction of the PowerMate should be changed to point into the next section to be cleaned. This pattern should be continued across the carpet with slow, gliding motions.

NOTE: Fast, jerky strokes do not provide complete cleaning.

Illustration of a vacuum cleaner with directional arrows indicating airflow or movement (no text or symbols)

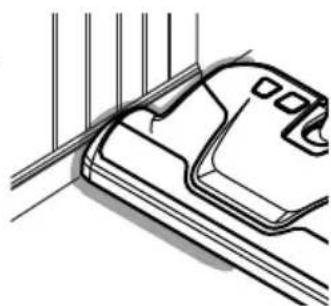

EDGE CLEANER

Active brush edge cleaners are on both sides of the PowerMate. Guide either side of the PowerMate along base-boards or next to furniture to help remove dirt trapped at carpet edges.

Technical line drawing of a mechanical component with vertical supports and a curved edge (no text or symbols)

POWERMATE STORAGE

The wand has a "U" shaped storage hook that slides into the "U" shaped slot on the canister. The storage hook allows the wands and PowerMate to be stored with the canister to conserve storage space. The canister must be stored on end for this feature to be used.

To attach the PowerMate, it must be in the flat position. Use the handle release pedal to place it in this position. The wand will slip out of the slot as it is lifted up for use and will slide into the slot as it is lowered for storage.

ATTACHMENTS

CAUTION

DO NOT attach or remove handle or wands while vacuum cleaner is ON. This could cause sparking and damage the electrical contacts or electronic controls.

ATTACHMENT STORAGE

This canister is equipped with an on-board storage area for attachments.

POP-N-GO FLOOR BRUSH

1. Press the release button to open the tool storage cover. The neck of the floor brush will pop up at an angle that makes it easy to attach the wand.

1. Push the wand collar over the floor brush neck. Tilt wand upward and lift out.

NOTE: If there is difficulty attaching brush to wand in the manner described above, simply remove the brush from storage compartment and insert it into the wand collar.

TO REINSTALL:

1. With the floor brush on the wand, insert the floor brush into place.
2. Tilt the wand and floor brush downward.

Technical line drawing of a mechanical device with no visible text or symbols

1. Pull the wand away from the floor brush. The floor brush will disconnect from the wand.

Mechanical component diagram showing a lever and handle assembly (no text or symbols)

Illustration of a hand performing a medical or therapeutic procedure on a patient's head (no text or symbols present)

1. Close the tool storage cover securely.

NOTE: If there is difficulty detaching the wand from brush in the manner described above, simply press the Tool Release button to disconnect brush from wand.

DUSTING BRUSH, CREVICE TOOL, & PET POWERMATE

1. Lift the tool storage cover to open.

1. Remove attachment as needed. See ATTACHMENT USE TABLE (page 14).

TO REINSTALL:

Insert the attachment, press down into place, and close the tool storage cover securely.

Line drawing of a robotic vacuum cleaner with hand and blade, showing mechanical components and cleaning process (no text or symbols)

ATTACHMENTS ON HANDLE

NOTE: If the PowerMate is attached, turn vacuum cleaner off before removing handle from wand.

1. Press wand release button and pull up on handle.
2. Slide attachments into handle as needed. All except crevice tool will click into place. See ATTACHMENT USE TABLE (page 14).

NOTE:

To remove Pet PowerMate, dusting brush, and/or floor brush, press the Wand Release button and slide out.

ATTACHMENTS ON WAND

1. To remove wand from PowerMate, lock wand in upright position.
2. Press wand release pedal with foot and pull the wand straight up and out of PowerMate.

1. Slide attachments into wand as needed. All except crevice tool will click into place. See ATTACHMENT USE TABLE (page 14).

NOTE: To remove Pet PowerMate, dusting brush, and/or floor brush, press the press the tool release button and slide out.

ATTACHMENT USE TABLE

		CLEANING AREA
ATTACHMENT		Furniture^1	Between Bare Cushions^1	Carpeted Drapes^1	Stairs Floors	Floors/Rugs	Walls
Dusting Brush		✓		✓				✓
Crevice Tool		✓	✓
Floor Brush					✓	✓		✓
PowerMate						✓^2	✓
Pet PowerMate3		✓			✓

1. Always clean attachments before using on fabrics.
2. 3-way On/Off switch should be in HARD FLOOR position.
3. Pet PowerMate attachment instructions are included with the product.

WARNING

NEVER use the Pet PowerMate directly on pets, as it may cause injury. The Pet PowerMate is only designed to vacuum pet hair that is shed on stairs or furniture.

WARNING

Personal Injury Hazard

To avoid accidental agitator starting, always turn off and unplug the vacuum cleaner before cleaning the agitator area. Failure to do so can result in personal injury.

OVERLOAD PROTECTOR

The PowerMate has built-in protection against motor and belt damage should the agitator jam. If the agitator slows down or stops, the overload protector shuts off the PowerMate. The canister motor will continue to run.

To correct problem: Turn off and unplug vacuum cleaner, remove obstruction, then press OVERLOAD PROTECTOR RESET button.

If the problem persists, have the vacuum cleaner serviced by a Sears or other qualified service agent.

ELECTRONIC SUCTION CONTROL

The electronic suction control allows you to change the power of the vacuum cleaner suction motor.

SUCTION CONTROL

Increase Suction
Decrease Suction

Increase suction for upholsteries, carpets, and bare floors.

Decrease suction for draperies and lightweight rugs.

CHECK BAG INDICATOR

When the vacuum cleaner is running with normal airflow, the light on the CHECK BAG indicator is off. The light comes on whenever the airflow becomes blocked. If that occurs, check the disposable dust bag, motor safety filter and other possible clog locations shown in REMOVING CLOGS (page 16).

To correct problem: See "Check Bag Indicator activates" in TROUBLESHOOTING (page 24).

NOTE: The light may come on when using certain attachments due to reduced airflow through attachment.

THERMAL PROTECTOR

This vacuum cleaner has a thermal protector which automatically trips to protect the vacuum cleaner from overheating. If a clog prevents the normal flow of air to the motor, the thermal protector turns the motor off automatically. This allows the motor to cool in order to prevent possible damage to the vacuum cleaner.

To correct problem: Turn off and unplug vacuum cleaner to allow the vacuum cleaner to cool and the thermal protector to reset. Check for and remove clogs, if necessary. Also check and clean or replace any clogged filters. Wait approximately fifty (50) minutes and plug the vacuum cleaner in and turn back on to see if the motor protector has reset.

If the problem persists, have the vacuum cleaner serviced by a Sears or other qualified service agent.

CANISTER CARE

REMOVING CLOGS

The vacuum cleaner creates suction that picks up dirt. Rapidly moving air carries the dirt to the dust bag through the airflow passages. The dust bag lets the air pass through, while it traps the dirt.

For best cleaning results, keep the airflow passage open. Check the starred (★) areas occasionally for clogs. Turn off and unplug vacuum cleaner from outlet before checking.

TO CHECK FOR CLOGS:

• Check dust bag and change if full. See DUST BAG CHANGING (page 17).
• Check motor safety filter and exhaust filter and clean or replace if dirty. See MOTOR SAFETY FILTER CLEANING (page 18) and EXHAUST FILTER CHANGING (page 19).
• Check PowerMate for any dirt or debris in the belt path area or in the agitator area. Carefully remove any string or debris located on the agitator or end caps. See TO CLEAN AGITATOR (page 21).

If the vacuum cleaner still has poor suction, do the following:

1. Connect the hose to the canister and turn vacuum cleaner on. Check the end of the hose for suction. If there is good suction on the hose handle, there is no clog in the hose. If the suction is bad, remove any dirt or debris in the hose and handle.
2. Connect hose handle to wand. Check the end of the wand for suction. If there is good suction at the end of the wand, there is no clog in the wand. If the suction is bad, remove any dirt or debris in the wand.
3. Check PowerMate swivel. Remove any dirt or debris.

CLEANING EXTERIOR AND ATTACHMENTS

1. Turn off and unplug vacuum cleaner. DO NOT drip water on vacuum cleaner.
2. To clean exterior, or to reduce static electricity and dust build-up, wipe outer surface with a clean, soft cloth that has been dipped in a solution of mild liquid detergent and water, then wrung dry. Wipe dry after cleaning.

CAUTION

Do not use attachments if they are wet. Attachments used in dirty areas, such as under a refrigerator, should not be used on other surfaces until they are washed. They could leave marks.

DUST BAG CHANGING

For best cleaning results, the dust bag should be changed often. The CHECK BAG indicator will come on when the bag needs to be changed or the airflow is blocked.

NOTE: See REPLACEMENT PARTS for part number and purchase details (page 5).

1. Pull bag out of the bag mount.

2. Turn off and unplug vacuum cleaner.

3. Remove hose from canister.
4. Pull hood release out and up, then lift canister hood.

Note: The bag mount will flip forward after removing bag. This will prevent the hood from closing until a new bag is installed.

1. Check the motor safety filter and clean or, if necessary, replace. See MOTOR SAFETY FILTER CLEANING (page 18).

DO NOT bend or crease the middle of the cardboard when installing the bag into the bag mount slots.

1. Rotate bag mount down and install bag into slots per illustration, pushing down until the cardboard tab locks into position and the holes align.

1. Tuck the bag securely into the bag cavity so that none of the bag will be pinched by the hood.
2. Close and latch canister hood.
3. Insert hose into canister until it snaps in place.
4. Plug cord into wall outlet.

CAUTION

NEVER REUSE A DUST BAG. Very fine materials, such as carpet freshener, face powder, fine dust, plaster, soot, new carpet lint, etc. can clog the bag and cause it to burst before it is full, which may damage the vacuum cleaner motor. Change bag more often when vacuuming these materials.

MOTOR SAFETY FILTER CLEANING

WARNING

Electrical Shock Hazard

Turn off and unplug vacuum cleaner from electrical outlet. Do not operate the vacuum cleaner without the motor safety filter. Be sure the filter is dry and properly installed to prevent motor failure and/or electrical shock.

MOTOR SAFETY FILTER

Check motor safety filter occasionally and clean when dirty.

NOTE: See REPLACEMENT PARTS for part number and purchase details (page 5).

1. Remove the bag as outlined in the DUST BAG CHANGING (page 17) section.

2. Lift the rubber retainer and pull out motor safety filter as shown.

1. Wash filter in warm soapy water, rinse, then dry. Do not clean in dishwasher or install while damp.

2. Slide the filter back into place under the ribs in the bag cavity. Tuck filter in so that it fits completely under the rubber retainer.

3. Replace the bag as outlined in the DUST BAG CHANGING (page 17) section.

EXHAUST FILTER CHANGING

WARNING

Fire and/or Electrical Shock Hazard

Do not operate with a clogged exhaust filter or without the exhaust filter installed. Do not operate without filter cover installed.

EXHAUST FILTER - HEPA MEDIA

The exhaust filter cartridge must be replaced when dirty. Replace the filter when the entire surface area is covered evenly. The filter CANNOT be washed as it will lose its dust trapping ability.

NOTE: See REPLACEMENT PARTS for part number and purchase details (page 5).

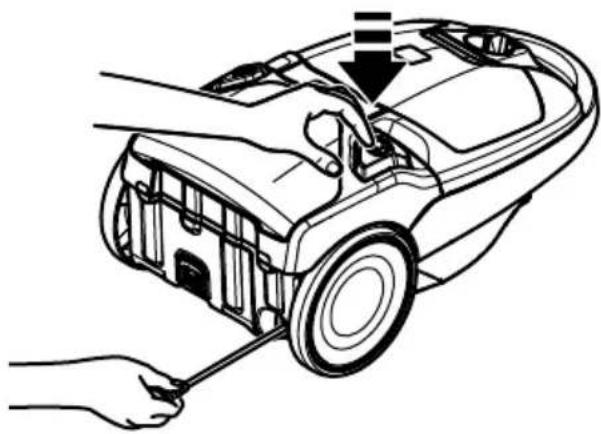

1. Push latch up to release the exhaust filter cover from slot in canister.

1. Pull filter cover outward to remove from canister.
2. Remove the exhaust filter cartridge.

1. Insert the new exhaust filter cartridge into the canister with the rubber seal towards the canister.

Diagram of a vehicle's front wheel assembly with a grid panel and directional arrow (no text or symbols)

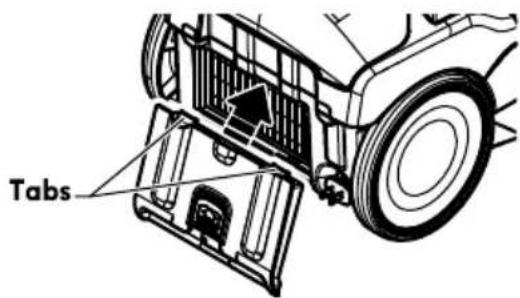

1. To replace the exhaust filter cover place the two tabs on the filter cover into the canister.

1. Rotate filter cover into place.

Technical line drawing of a vehicle's front wheel assembly (no text or symbols)

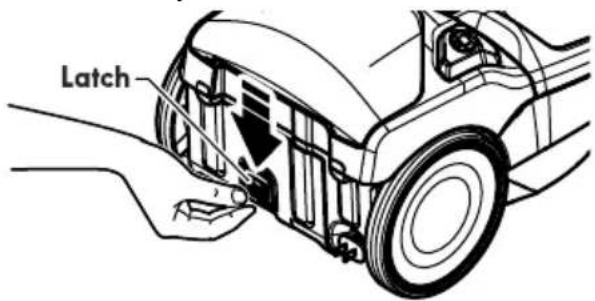

7.Push latch down to lock exhaust filter cover into into place.

POWERMATE CARE

Always follow all safety precautions when performing maintenance to the PowerMate.

WARNING

Electrical Shock Or Personal Injury Hazard Always turn off and unplug vacuum cleaner before performing maintenance to the vacuum cleaner. Failure to do so could result in electrical shock or personal injury from vacuum cleaner suddenly starting.

BELT CHANGING AND AGITATOR CLEANING

TO REMOVE BELT

1. Turn PowerMate upside down and remove four (4) screws.

1. Turn PowerMate right side up. Press handle release pedal and lower the swivel. Loosen the rear and side latches. (A flathead screwdriver may be required.)

1. To remove cover, grasp the rear and pull up.

Illustration of hands cleaning a vacuum cleaner's airbag (no text or symbols)

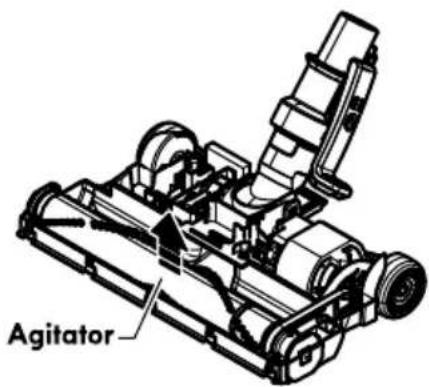

1. Lift agitator assembly out and remove worn belt.

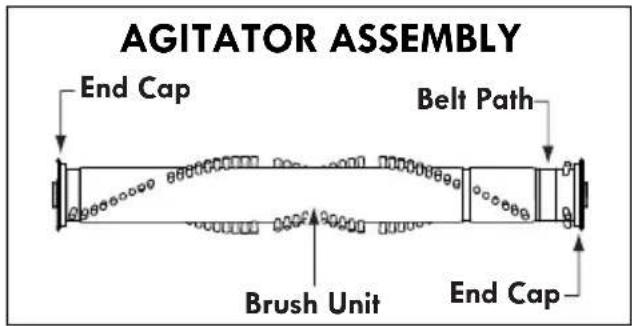

1. Check and clean end cap areas. See AGITATOR ASSEMBLY (page 21) for picture of complete agitator assembly.

TO CLEAN AGITATOR:

NOTE: In order to keep cleaning efficiency high and to prevent damage to your vacuum cleaner, the agitator must be cleaned every time the belt is changed.

The agitator must also be cleaned according to the following schedule:

Vacuum Cleaner Use Clean Agitator

HEAVY - every (used daily)

MODERATE - every month (used 2-3 times/week)

LIGHT - every 2 months (used 1 time/week)

IMPORTANT

Turn off and unplug vacuum cleaner from electrical outlet. Check and remove hair, string and lint build-up in the PowerMate agitator and end cap areas.

Remove any dirt or debris in the belt path area or in the brush unit area.

Carefully remove any string wound onto the agitator and end caps.

TO REPLACE BELT

1. Install new belt over motor drive, then over belt path.

NOTE: See REPLACEMENT PARTS for part number and purchase details (page 5).

1. Place agitator assembly back into PowerMate.

Technical line drawing of an internal combustion engine component with a dial indicator (no text or labels)

1. Line up front of cover and base. Rest cover on front edge of base as shown.

1. Rotate cover back. Press cover firmly until side and rear latches snap into place.

NOTE: Make sure there is no gap between the cover and base.

1. Turn PowerMate upside down and replace four (4) cover screws.

AGITATOR SERVICING

WARNING

Electrical Shock Or Personal Injury Hazard

Always turn off and unplug vacuum cleaner before performing maintenance to the vacuum cleaner. Failure to do so could result in electrical shock or personal injury from vacuum cleaner suddenly starting.

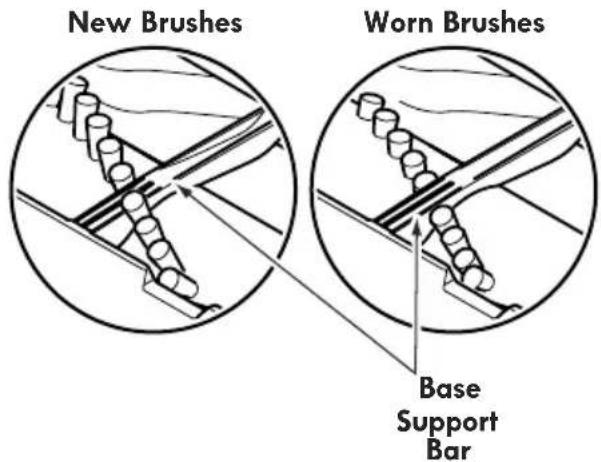

TO CHECK THE BRUSHES

When brushes are worn to the level of the base support bars, replace the agitator assembly.

TO REPLACE AGITATOR ASSEMBLY

1. Remove the floor brush from the PowerMate.
2. Remove PowerMate cover, belt and agitator assembly. See "To Remove Belt" in BELT CHANGING AND AGITATOR CLEANING (page 20).
3. Install new agitator assembly.
4. Reinstall belt and PowerMate cover. See "To replace belt" in BELT CHANGING AND AGITATOR CLEANING (page 20).

NOTE: To purchase a replacement agitator assembly, call 1-844-553-6667 or visit searspartsdirect.com

TROUBLESHOOTING

Review this table to find do-it-yourself solutions for minor performance problems. Any other service needed should be performed by a Sears or other qualified service agent.

WARNING

Always turn off and unplug vacuum cleaner before performing maintenance to the vacuum cleaner. Failure to do so could result in electrical shock or personal injury.

PROBLEM	POSSIBLE CAUSE	POSSIBLE SOLUTION
Vacuum cleaner won't start.	1. Unplugged at wall outlet.2. Tripped circuit breaker/blown fuse at household service panel.3. Loose hose electrical 3. Reconnect hose ends.	1. Plug in firmly, press ON/OFF switch.2. Reset circuit breaker or replace fuse.5. Adjust control.6. Replace hose.7. Change agitator.8 & 9. See BELT CHANGING AND AGITATOR CLEANING. (page 20)10. Close and latch hood.11. Remove any items that may be caught or jammed, then reset. If vacuum cleaner starts and stops again, clean agitator and end caps, then reset.3. See THERMAL PROTECTOR (page 15).
Poor job of dirt pick-up.	Full or clogged dust bag.Clogged airflow passages.Dirty filters. 3. Clean/change filters.Wrong pile height setting. 4. Adjust setting.Wrong power level selected.Hole in hose.Worn PowerMate agitator.Worn or broken belt.Dirty agitator or end caps.Canister hood open.Tripped overload protector in PowerMate. See OVERLOAD PROTECTOR (page 15).	Change bag.Clear airflow passages.
Vacuum cleaner starts but shuts off.	Hose or hood electrical connections.Tripped overload protector in PowerMate. See OVERLOAD PROTECTOR (page 15).Tripped thermal protector in canister.	Check connections, reconnect hose ends.Remove any items that may be caught or jammed, then reset. If vacuum cleaner starts and stops again, clean agitator and end caps, then reset.See THERMAL PROTECTOR (page 15).
PowerMate will not run when attached.	PowerMate connections unplugged.Worn or broken belt.Dirty agitator or end caps.Tripped overload protector in PowerMate. See OVERLOAD PROTECTOR (page 15).Vacuum cleaner in HARD FLOOR mode.	Plug in firmly.See BELT CHANGING AND AGITATOR CLEANING. (page 20)Remove any items that may be caught or jammed, then reset. If vacuum cleaner starts and stops again, clean agitator and end caps, then reset.Press CARPET button to activate PowerMate.
CHECK BAG Indicatoractivates. 2. Dirty filters.	1. Full or clogged dust bag.2. Clean/change filters.3. Blocked airflow passage. 3. Clear 4. Certain attachment tools.	1. Change bag.blockage from airflow passage.4. This is normal. Light should go off when tool is removed.
Vacuum cleaner picks up moveable rugs -or-PowerMate pushes too hard.	1. Wrong pile height setting.2. Suction too strong.	1. Adjust setting.2. Select lower Power Level.
Cord won't rewind.	1. Dirty power cord.2. Cord jammed.	1. Clean the power cord.2. Pull out cord and rewind.
Vacuum cleaner leaves marks on carpet.	1. Wrong vacuuming pattern.	1. See VACUUMING TIPS. (page 12)

TABLA DE CONTENIDO

Sears Brands Management Corporation, Hoffman Estates, IL 60179

PARA COMENZAR

ADVERTENCIA

Line drawing of a car interior with visible engine and battery components (no text or symbols)

Line drawing of a car interior with tools and a downward arrow indicating a change (no text or symbols present)

Illustration of a vacuum cleaner with directional arrows indicating airflow or movement (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

POWERMATE STORAGE

Technical line drawing of a vacuum cleaner's internal components (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing down on a car wheel, with a downward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component or tool interacting with a textured surface (no text or symbols)

Technical line drawing of a car's front wheel and side panel, showing structural components without any text or symbols

Technical line drawing of a vehicle's front wheel assembly (no text or symbols)

Illustration of hands cleaning a vacuum cleaner's airbag (no text or symbols)

Technical line drawing of an internal combustion engine assembly (no text or labels)

Vacuum Cleaner Help Line

1-877-531-7321

8:00 am - 5:00 pm ET M-F

Refer to the Troubleshooting section of the Use & Care Guide.

For additional assistance, call the Vacuum Cleaner Help Line.
