USER MANUAL Wave Beam 2 JBL

Download on the App Store

Get even more control and personalization of your listening experience with this free app.

HOW TO WEAR

①

Try different sizes for a perfect fit and audio performance.

(2)

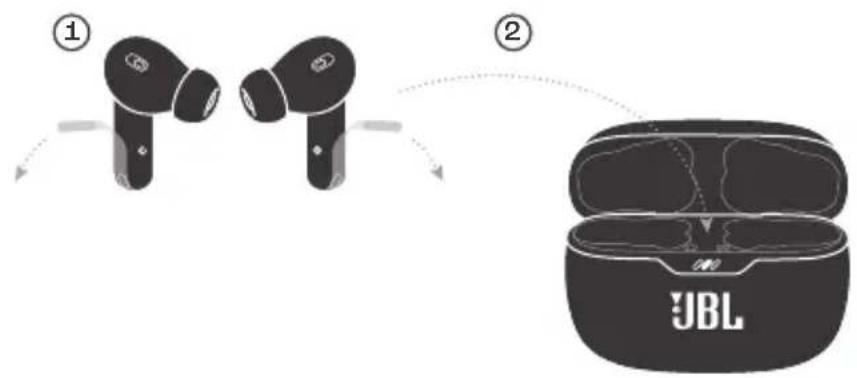

FIRST TIME USE

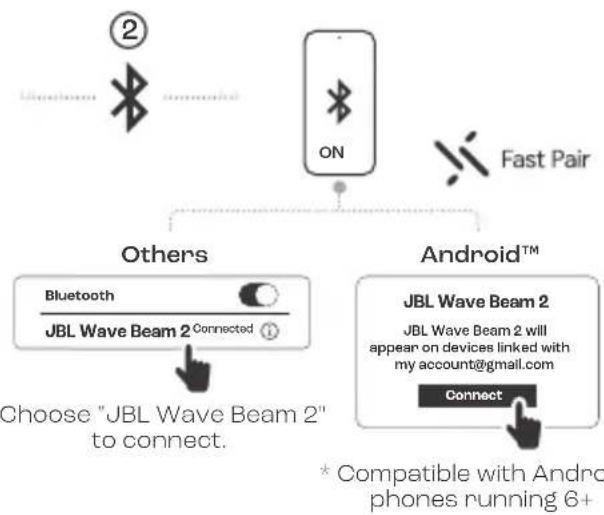

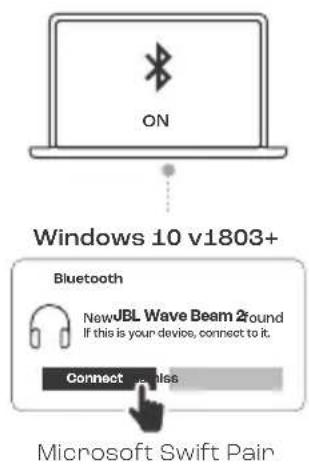

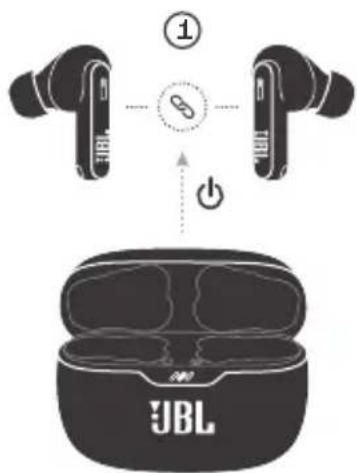

POWER ON & CONNECT

DUAL CONNECT

L

R

L/R

Stereo mode Mono mode

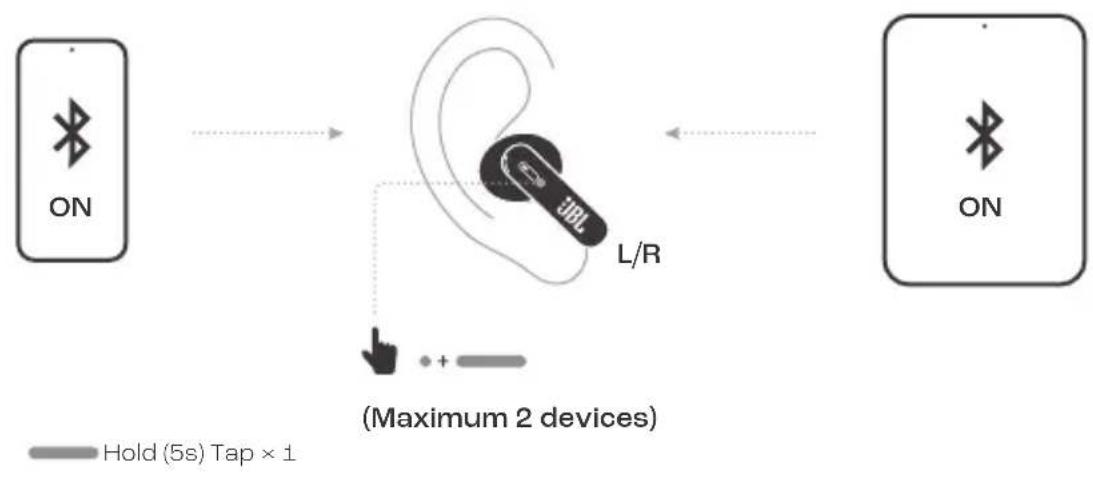

MULTI-POINT CONNECTION

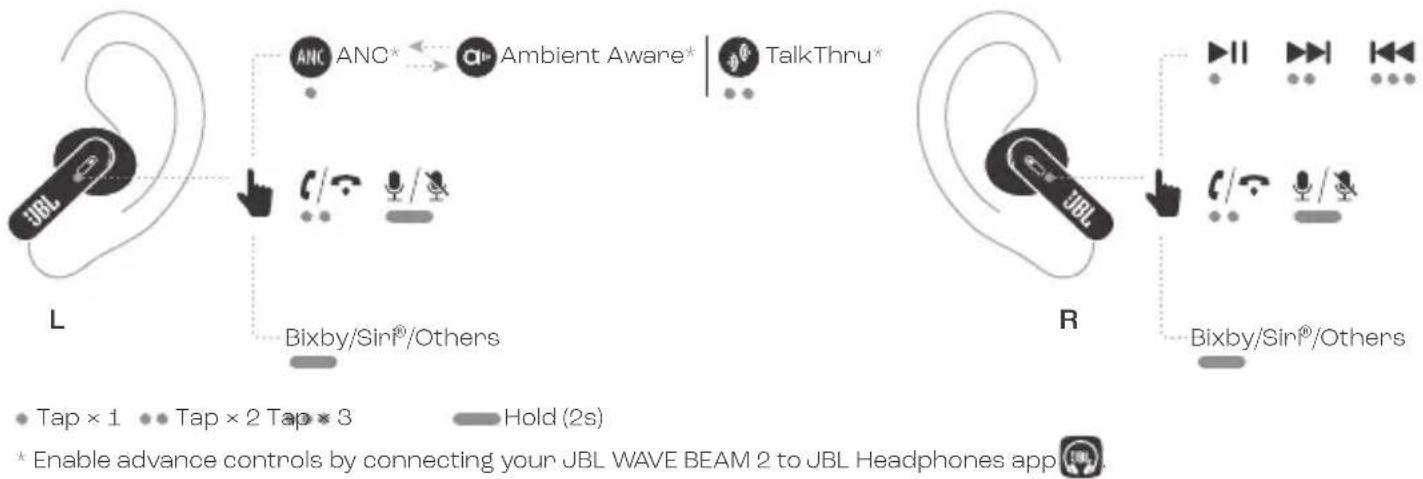

CONTROLS

VOICEWARE

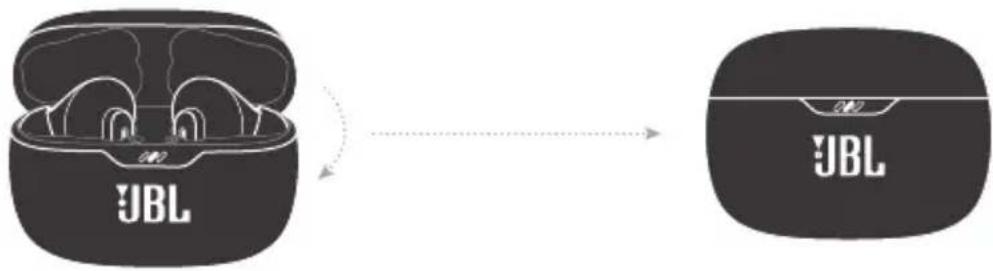

POWER OFF

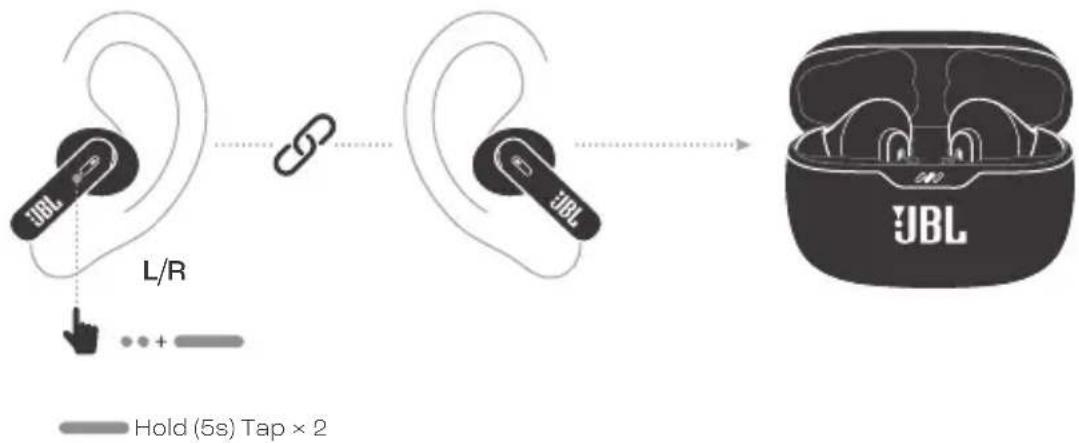

FACTORY RESET

DO MORE WITH THE APP

JBL HEADPHONES

CHARGING

LED BEHAVIORS

Charging (White)

Fully charged (White)

BT connecting(Blue)

BT connected (Blue)

BT not connected (Blue)

Low (Red)

Mid (Orange)

High (Green)

Changing (Red Orange Green)

Fully charged (Off)

Model: WAVE BEAM 2

Driver size: 8mm / 0.3^ Dynamic Driver

Power supply: 5V

1A

Earbud: 4.3g per pc (8.6 g combined)

0.0095 lbs per pc (0.019 lbs combined)

Charging case: 41g / 0.09 lbs

Earbud battery type: Lithium-ion battery (50 mAh/ 3.85 V)

Charging case battery type: Lithium-ion battery (550 mAh/3.7 V)

Charging time: 2 hrs from empty

Music playtime with BT on and

ANC off: Up to 10 hrs

Music playtime with BT on and

ANC on: Up to 8 hrs

Talk time with ANC off: Up to 6 hrs

Talk time with ANC on: Up to 5.5 hrs

Frequency response: 20Hz - 20kHz

Impedance: 16 ohm

Sensitivity: 100 dB SPL@1 kHz

Maximum SPL: 95 dB

Microphone sensitivity: -38 dBV/Pa@1 kHz

Bluetooth version: 5.3

Bluetooth profile version: A2DP V1.4, AVRCP V1.6.2, HFP V1.8

Bluetooth transmitter frequency

range: 2.4 GHz - 2.4835 GHz

Bluetooth transmitter power: <12 dBm (EIRP)

Bluetooth transmitter modulation:GFSK, n/4-DQPSK, 8DPSK

Maximum operation temperature: 45^
