USER MANUAL Tune Beam 2 JBL

Man with curly hair sitting outdoors, wearing a denim jacket and white shirt, palm trees in background (no text or symbols visible)

TUNE BEAM 2 BC

WHAT'S IN THE BOX

Black and white photo of a JBL-branded smart device (no text or symbols visible on body)

S/M/L

APP

JBL

JBL HEADPHONES

GET IT ON Google Play

Download on the App Store

Get even more control and personalization of your listening experience with this free app.

QR code with central logo containing 'JBL' text and headphones icon

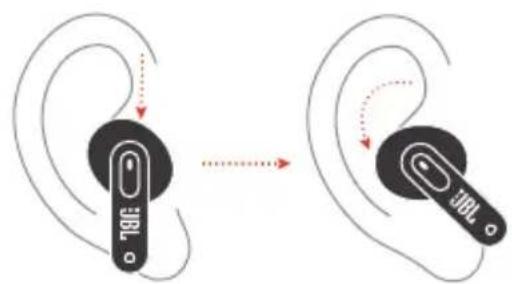

HOW TO WEAR

① Try different sizes for a perfect fit and audio performance.

S/M/L

②

Diagram showing ear ear replacement process with labeled components and directional arrows indicating motion

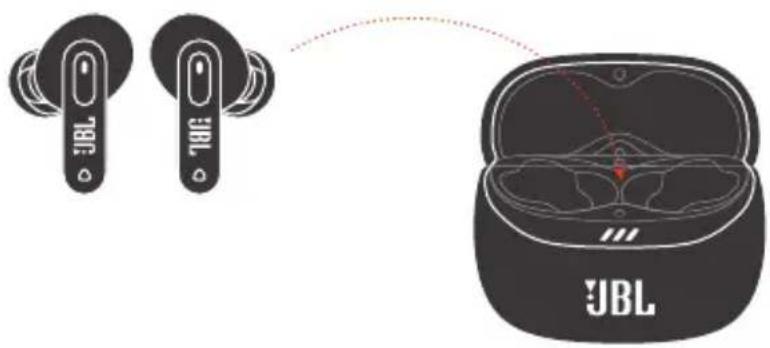

FIRST TIME USE

JBL JBL

Two black industrial gauges with red clamps and white branding, shown side by side without any text or symbols.

Ghost Edition

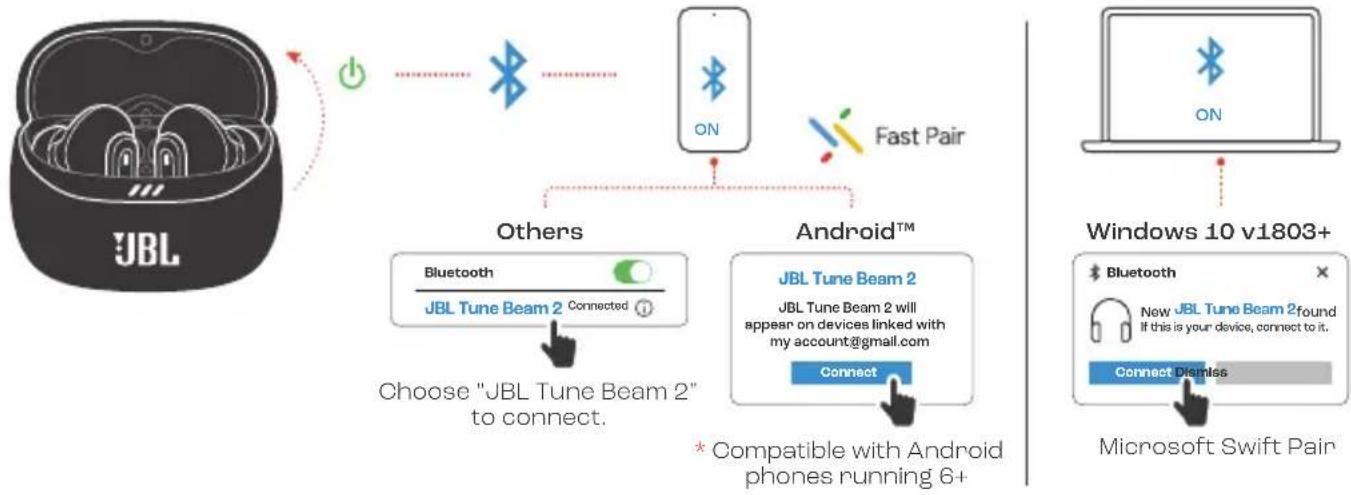

POWER ON & CONNECT

DUAL CONNECT + SYNC

Black and white photo of a JBL-branded smartwatch (no text or symbols visible on body)

Two identical black industrial blower tools labeled L and R, with no visible text or symbols on the tools themselves.

Black and white illustration of a JBL brand ear tag with stylized design (no text or symbols)

Stereo mode Mono mode

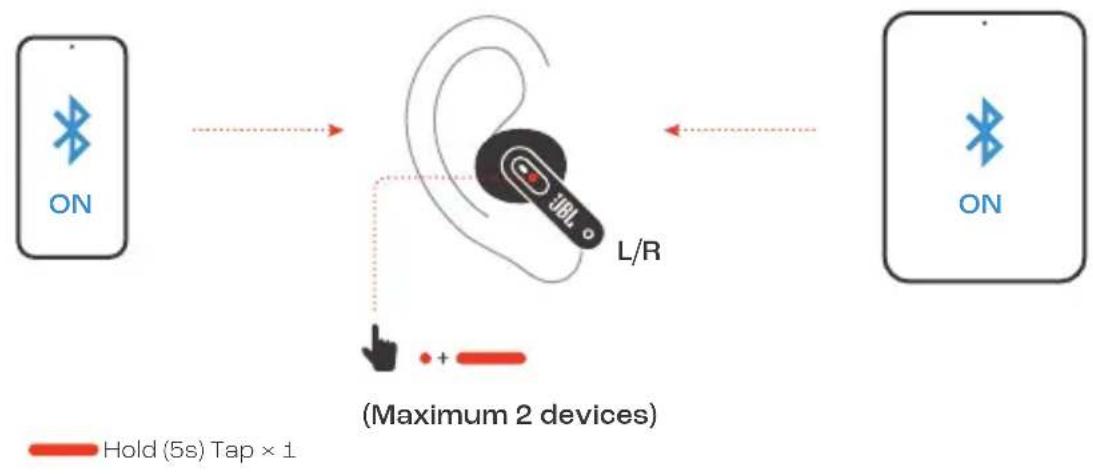

MULTI-POINT CONNECTION
    note right of B: (Maximum 2 devices)
    note left of C: Hold (5s) Tap × 1

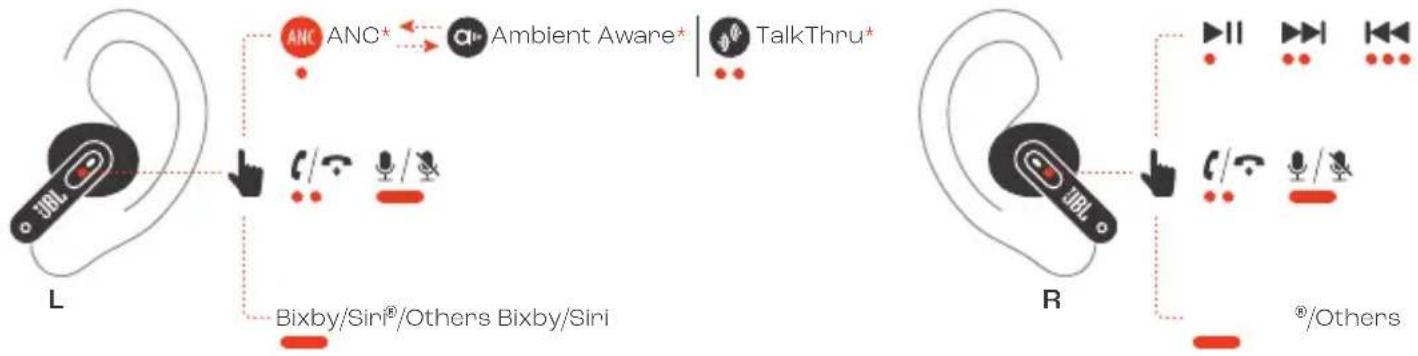

CONTROLS

• Tap × 1 Tap × 2 Tap × 3
  Hold (2s)
  * Enable advance controls by connecting your JBL TUNE BEAM 2 to JBL Headphones app

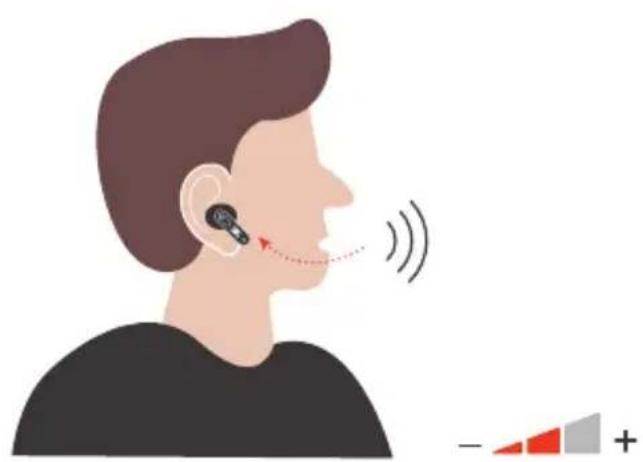

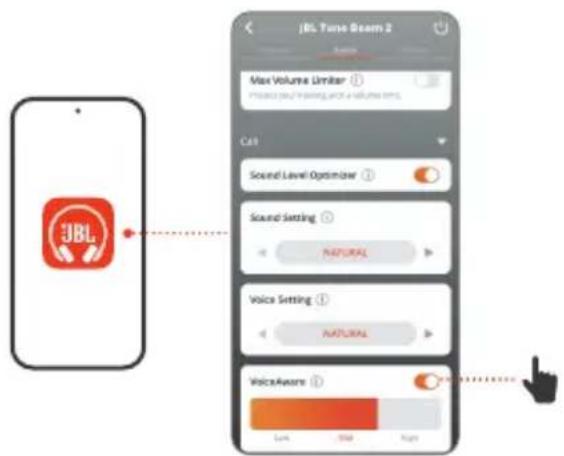

VOICEAWARE

Illustration of a person wearing an ear with a headset, showing sound waves and a partial scale bar (no text or symbols)

JBL Tune Beam 2 Max Volume Limiter Project you're missing and a volume too. Call Sound Level Optimizer Sound Setting NATURAL Voice Setting NATURAL Voice Alert Low High Right

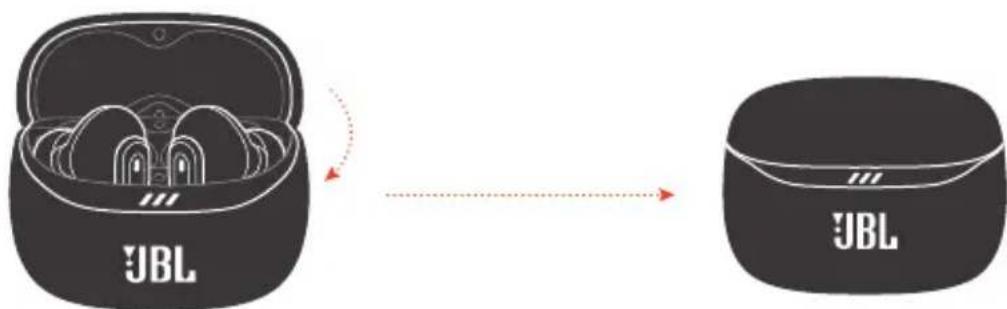

POWER OFF

I

JBL JBL

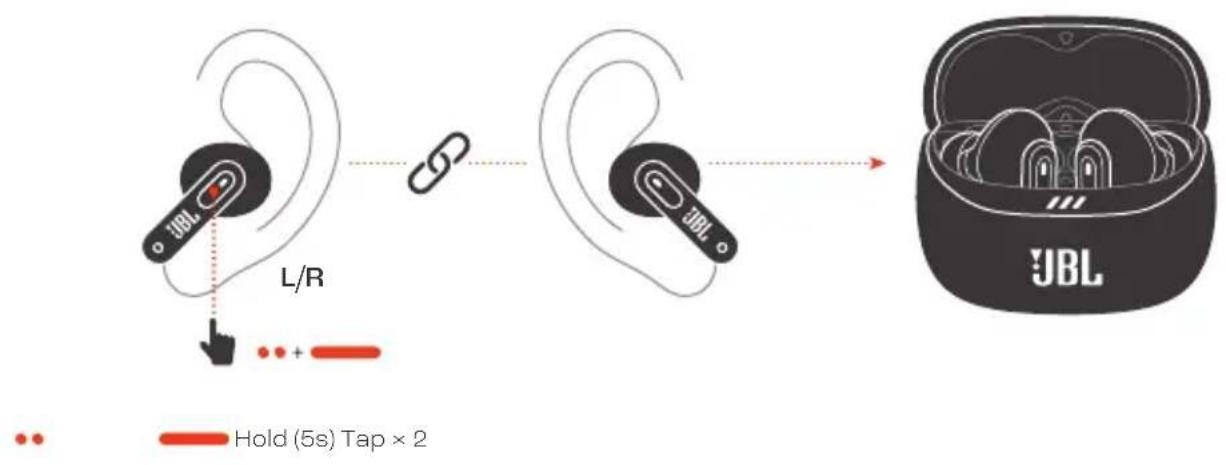

FACTORY RESET

JBL L/R Hold (5s) Tap × 2 JBL

DO MORE WITH THE APP

Bl. Tune Beam 2 General Ambient Sound Control ANC Noise Controlling Smart Audio & Video

Gestures Left Right Customized Feature Automated Custom Control Top Bottom Consulting Automated Custom Call Double-Loop Call to Next Step 2019 Text & Build Volume 4/19 Call Control

Equalizer Studio BASS CLIN EXTREME BASS VOCAL JAZZ RICK PUNK

JBL HEADPHONES

QR code with central logo containing 'JBL' text and headphones icon

CHARGING

2H

JBL 10MIN = 3H

LED BEHAVIORS

BT connecting

BT connected

BT not connected

Black and white photo of a JBL-branded electronic device (no text or symbols visible on body)

Low battery

Charging

Fully charged

TECH SPEC

Model: TUNE BEAM 2

Driver size: 10 mm / 0.39" Dynamic Driver

Power supply: 5V ---1A

Earbud: 5.2 g per pc (10.4 g combined) / 0.0115 lbs per pc (0.0229 lbs combined)

Charging case: 42 g / 0.0926 lbs

Earbud battery type: Lithium-ion battery (65 mAh / 3.85 V)

Charging case battery type: Lithium-ion battery (590 mAh / 3.8 V)

Charging time: 2 hrs from empty

Music playtime with BT on and ANC off: Up to 12 hrs

Music playtime with BT on and ANC on: Up to 10 hrs

Talk time with ANC off: Up to 6 hrs

Talk time with ANC on: Up to 5 hrs

Frequency response: 20 Hz - 20 kHz

Impedance: 16 ohm

Sensitivity: 100 dB SPL@1 kHz

Maximum SPL: 95 dB

Microphone sensitivity: -38 dBV/Pa@1 kHz

Bluetooth version: 5.3

Bluetooth profile version: A2DP V1.4, AVRCP V1.6.2, HFP V1.8

Bluetooth transmitter frequency range: 2.4 GHz - 2.4835 GHz

Bluetooth transmitter power: ≤ 13 dBm (EIRP)

Bluetooth transmitter modulation: GFSK, π/4-DQPSK, 8DPSK

Maximum operation temperature: 45 °C

FRD

CONTENU DE LA BOÎTE

APPLICATION

TalkThru (Conversation)*

Bixby/Siri°/Autres

Toucher x 1 | Toucher x 2

Toucher x 3 | Appuyer (2 s)

ANC (Aktives Noise-Cancelling)*

Ambient Aware

(Umgebungsbewusst)*

TalkThru*

Bixby/Siri®/Weitere

1 × tippen | 2 × tippen | 3 × tippen |

LED-MERKKIVALON TOIMINNOT

Tocco × 1 | Tocco × 2 | Tocco × 3 |

A2DP V1.4, AVRCP V1.6.2, HFP V1.8

Tapp × 1 | Tapp × 2 | Tapp × 3 |

Hold (2 s)

* Aktiver avanserte kontroller ved

* Habilite controles

FLERPUNKTSANSLUTNING

Max 2 enheter

Ambient Aware (Ortam

Farkındalığı)*

每隻 0.0115 lbs (兩隻 0.0229 lbs)

42 g / 0.0926 lbs

鋰離子電池 (65mAh/3.85V)

鋰離子電池(590mAh/3.8V)

從無電量到充滿需2小時

長達12小時

長達10小時

長達6小時

長達5小時

20 Hz - 20 kHz

16歐姆

100 dB SPL@1 kHz

95 dB

-38 dBV/Pa@1 kHz

5.3

A2 DP V1.4、AVRCP V1.6.2、HFP V1.8

2.4 GHz - 2.4835 GHz

≤ 13 dBm (EIRP)

GFSK、π/4-DQPSK、8DPSK

45 ℃

ID

ISI KOTAK

APLIKASI

KEGUNAAN LAIN APLIKASI

PENGISIAN DAYA

POLA LED

BT menyambungkan |

BT tersambung

BT tidak tersambung

Daya baterai lemah | Mengisi daya |

Daya terisi penuh

SPESIFIKASI TEKNIS

Model: TUNE BEAM 2

Ukuran driver: Driver Dinamis 10 mm/0,39"

Catu daya: 5 V

1A

Earbud: 5,2 g per buah (total 10,4 g)/

0,0115 lbs per buah (total 0,0229 lbs)

Casing pengisi daya: 42 g/0,0926 lbs

Tipe baterai earbud: Baterai litium-ion (65 mAh/3,85 V)

Tipe baterai casing pengisi daya: Baterai litium-ion (590 mAh/3,8 V)

A2DP V1.4, AVRCP V1.6.2, HFP V1.8

한쪽 0.0115lbs(양쪽 0.0229lbs)

충전케이스:42g/0.0926lbs

acceleration: 0.150000000

GSC:

J [###] | (###)

උංඩිජ්‍ය

அவிறீ அட்டு:இல் 018

అంధ్రు:ప్రిక్రణిండ్

###

BT Fund ANC Fund Fund Fund

ANC grades grades: grades

5 Cambodia

ஞேன்கீ: எத்திறெயை-

A2DP V1.4i AVRCP V1.6.2i HFP V1.8

*(הכלהה) Ambient Aware*TalkThru

(Sir)/Bixby

(2) JBL TUNE BEAM 2

JBL Headphones

VOICEAWARE

LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED

HE

תָאַעְה בִרְשׁ

תְקָרִיּה

"JBL Tune Beam 2" "JBL Tune Beam 2" "JBL Tune Beam 2" "JBL Tune Beam 2" "JBL Tune Beam 2" "JBL Tune Beam 2" "JBL Tune Beam 2" "JBL Tune Beam 2" "JBL Tune Beam 2" "JBL Tune Beam 2" "JBL Tune Beam 2" "JBL Tune Beam 2" "JBL Tune Beam 2" "JBL Tunne Beam 1" "JBL Tunne Beam 1" "JBL Tunne Beam 1" "JBL Tunne Beam 1" "JBL Tunne Beam 1" "JBL Tunne Beam 1" "JBL Tunne Beam 1" "JBL Tunne Beam 1" "JBL Tunne Beam 1" "JBL Tunne Beam 1" "JBL Tunne Beam 1" "JBL Tunne Beam 1 "(5)

תְרָהִי

*ANC

תְבַרָה

TUNE BEAM 2

ת"י 10 ב"י"

5V=1A

To protect battery lifespan, fully charge at least once every 3 months. Battery life will vary due to usage patterns and environmental conditions.

FR pour protéger la vie de la batterie, chargez-la complètement au moins une fois tous les 3 mois. La durée de vie de la batterie varie en fonction des modes d'utilisation et des conditions environnementales.
DA For at optimere batteriets levetid skal du oplade fuldt ud mindst en gang i kvartalet. Batteriets levetid afhænger af brugsmønstre og omgivelser.
DE Lade zum Schutz des Akkus diesen mindestens einmal alle 3 Monate vollständig auf. Die Akkulebensdauer kann aufgrund von Nutzungsverhalten und Umgebungsbedingungen variieren.
EL Για να προστατεύσετε τη διάρκεια ζωής της μπαταρίας, φορτίστε την πλήρως τουλάχιστον μία φορά κάθε 3 μήνες. Η ζωής της μπαταρίας ποικίλλει ανάλογα με τη χρήση και τις περιβαλλοντικές συνθήκες.
ES Para proteger la duración de la batería, cárgala completamente al menos una vez cada 3 meses. La duración de la batería depende de los patrones de uso y las condiciones ambientales.
FI Akun käyttöiän turvaamiseksi, lataa täyteen ainakin kerran 3 kuukauden välein. Akun käyttöikä vaihtelee käyttötapojen ja ympäristöolosuhteiden mukaan.

HU Az akkumulátor élettartamának védelme érdekében teljesen töltse fel 3 havonta legalább egyszer. Az akkumulátor élettartama a használattól, és a környezeti feltételektől függ.
IT Per preservare la durata della batteria, effettuare una carica completa almeno una volta ogni 3 mesi. La durata della batteria varia a seconda del tipo di utilizzo e delle condizioni ambientali.
NL Voor een optimale levensduur de batterij minstens om de 3 maanden volledig opladen. De levensduur van de batterij is afhankelijk van gebruikspatronen en omgevingscondities.
NO For å beskytte batteriets levetid må det lades helt opp minst én gang hver 3. måned. Batteriets levetid vil variere etter bruksmønster og omgivelsesforhold.
PL Aby zachować czas eksploatacji akumulatora, należy go ładować co najmniej raz na trzy miesiące. Żywotność akumulatora zależy od sposobu jego użycia i warunków otoczenia.
PT-BR Para garantir a durabilidade da bateria, carregue-a totalmente pelo menos uma vez a cada três meses. A vida útil da bateria depende dos padrões de uso e das condições do ambiente.
SV För att förbättra batteriets livslängd ska det laddas det fullt minst en gång var tredje månad. Batteriets livslängd varierar beroende på användning och miljöförhållanden.
TR Pil ömrünü uzatmak için en az 3 ayda bir tam olarak şarj edin. Pil ömrü kullanım şekline ve çevresel şartlara bağlı olarak değişiklik gösterebilir.
RU Чтобы продлить срок службы аккумулятора, полностью заряжайте его по меньшей мере раз в 3 месяца. Срок службы аккумулятора зависит от способов использования и условий окружающей среды.

The power delivered by the charger must be between min 2.5 Watts required by the radio equipment, and max 5 Watts in order to achieve the maximum charging speed.

FR La puissance délivrée par le chargeur doit être comprise entre 2,5 watts minimum requis par l'équipement radio et 5 watts maximum afin d'atteindre la vitesse de charge maximale.
DA Den effekt, som opladeren leverer, skal være mellem mindst 2,5 watt, som kræves af radioudstyret, og højst 5 watt for at nå den maksimale opladningshastighed.
DE Die vom Ladegerät gelieferte Leistung muss zwischen mindestens 2,5 Watt, die das Funkgerät benötigt, und maximal 5 Watt liegen, um die maximale Ladegeschwindigkeit zu erreichen.

EL H ioxús pou paréxei o φορτιστής πρέπει να κυμαίνεται μεταξύ 2,5 Watts τουλάχιστον που απαιτούνται από τον radioφωνικό εξοπλισμό και 5 Watts το πολύ, προκειμένου να επιτευχθεί η μέγιστη ταχύτητα φόρτισης.
ES La potencia que aporta el cargador debe estar entre un mínimo de 2,5 W requerido por el equipo de radio y un máximo de 5 W para lograr la máxima velocidad de carga.
FI Laturin antaman tehon on oltava vähintään 2,5 watin ja enintään 5 watin välillä, jotta saavutetaan suurin mahdollinen latausnopeus.
HU A töltő által leadott teljesitménynek a rádióberendezés által igényelt min. 2,5 Watt és max. 5 Watt között kell lennie a maximális töltési sebesség eléréséhez.
IT La potenza erogata dal caricatore deve essere compresa tra min 2,5 Watt richiesti dall'apparecchiatura radio, e max 5 Watt per raggiungere la velocità di ricarica massima.
NL Het door de oplader geleverde vermogen moet tussen minimaal 2,5 Watt liggen dat is vereist door de radioapparatuur, en maximaal 5 Watt om de maximale laadsnelheid te bereiken.
NO For å oppnå maksimal ladehastighet må strømmen fra laderen være mellom min. 2,5 watt som kreves av radioutstyret og 5 watt.

PL Moc dostarczana do ładowarki musi mieścić się w zakresie od minimum 2,5 W wymaganym przez sprzęt radiowy i maksymalnie 5 W, aby osiągnąć maksymalną prędkość ładowania.
SV Effekten som laddaren levererar måste ligga mellan min 2,5 watt som krävs för radioutrustningen och max 5 watt för att uppnå maximal laddningshastighet.
TR Maksimum şarj hızına ulaşmak için şarj cihazının sağladığı güç, radyo ekipmanının gerektirdiği minimum 2,5 Watt ile maksimum 5 Watt arasında olmalıdır.

FCC/ISED RF Exposure Information and Statement

This equipment complies with FCC/ISED radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

The portable device is designed to meet the requirements for exposure to radio waves established by the Federal Communications Commission (USA)/ISED. These requirements set a SAR limit of 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported under this standard during product certification for use when properly worn on the head.

DO NOT ATTEMPT TO OPEN, SERVICE, OR DISASSEMBLE THE BATTERY | DO NOT SHORT CIRCUIT | MAY EXPLODE IF DISPOSED OF IN FIRE | RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE | DISPOSE OR RECYCLE USED BATTERIES ACCORDING TO THE INSTRUCTIONS

해당무선설비는전파혼신가능성이있으므로인명안전과관련된서비스는할수없음.

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.

Google, Android and Google Play are trademarks of Google LLC.

The product contains non-replaceable batteries. Battery type: 1250PF4D, normal voltage 3.85V

CMIIT ID: 24J99830E413

制造商制造商 International Industries, Incorporated

Product specifications and app screens are subject to change without notice.

HP_JBL_TUNE BEAM 2_QSG_Global_CR_V8
