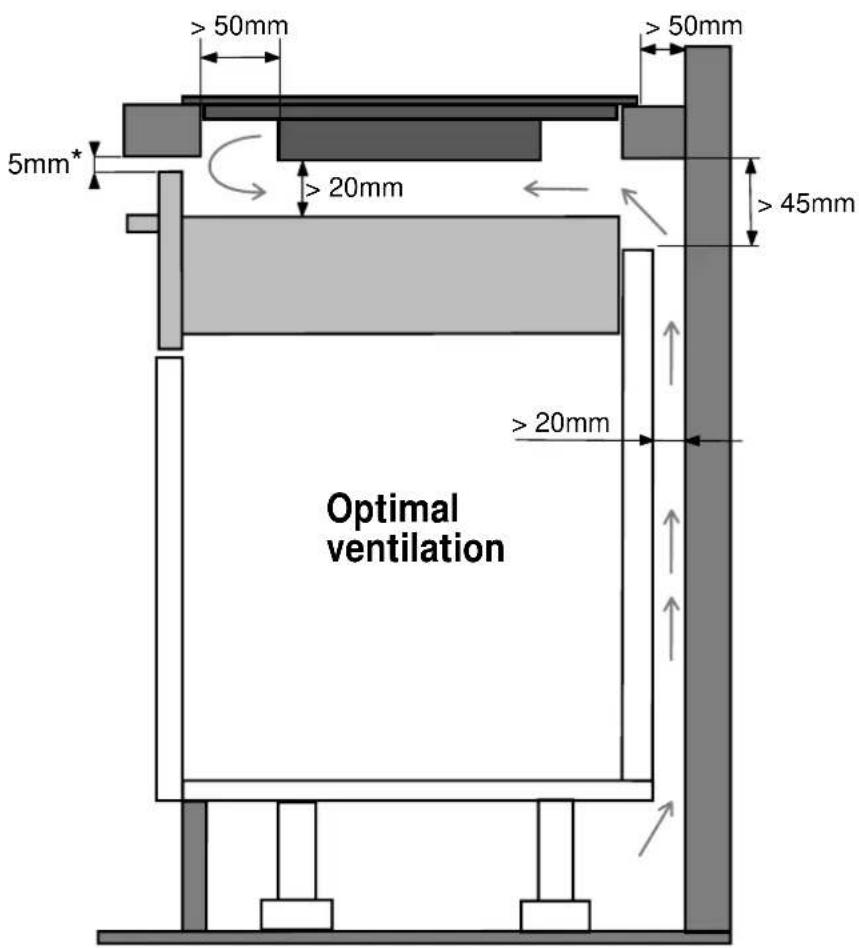

> 50mm > 50mm 5mm* > 20mm > 45mm > 20mm Optimal ventilationОСТОРОЖНО! Ошибки
при монтаже и
ненадлежащая
вентиляция могут
привести к отказу и
Installation and user manual
Guarantee certificate
FR - P.27
First of all we wish to thank you for the trust shown on our Company by purchasing one of our products. We are sure you have made the right choice.
In Pando, not only we offer first quality products, but also we make available a large professional team to serve and assist you on any query you may have regarding installation and/or performance.
We also suggest you to pay a visit to our web site (www.pando.es/en) to get to know us better and where you will find all product range containing all necessary commercial and technical information.
A wide selection of extractor hoods can be found there; Wall Hoods, Ceiling, Island or Canopy Hoods. Four types of installation making possible to adapt ourselves to any type of kitchen based on different needs.
At the same time, we take the opportunity to introduce you our collection of in house essential appliances, such our new high performance Ovens and Microwaves, Induction and Gas Hobs to make real your best recipes. Wine Coolers and Aging Wine Coolers to maintain and keep your wines in best of conditions and built-in Dishwashers with latest technology.
All that under a brand with over 40 year history in the market, making products like a real craftsman, and gathering in them the best of our experience to please all your needs.
We sincerely look forward you to have fun, experience and enjoy with the comfort and capacity of what already became your new kitchen ally.
Many Thanks
The PANDO Team
SUMMARY
SAFETY......6
PRECAUTIONS BEFORE USING....6
USING THE APPLIANCE 6
PRÉCAUTIONS NOT TO DAMAGE THE APPLIANCE ....7
PRECAUTIONS IN CASE OF APPLIANCE FAILURE....8
OTHER PRECAUTIONS 8
DESCRIPTION OF THE APPLIANCE....9
TECHNICAL CHARACTERISTICS....9
CONTROL PANEL 9
HOOD CONTROL PANEL 10
USE OF THE APPLIANCE....10
DISPLAY....10
VENTILATION....10
STARTING-UP AND APPLIANCE MANAGEMENT....11
BEFORE THE FIRST USE....11
INDUCTION PRINCIPLE 11
SENSITIVE TOUCH....11
POWER SELECTION ZONE "SLIDER" AND TIMER SETTING ZONE 11
STARTING-UP....12
PAN DETECTION 12
RESIDUAL HEAT INDICATION 12
BOOSTER FUNCTION....12
TIMER 13
AUTOMATIC COOKING 14
STOP&GO FUNCTION....15
RECALL FUNCTION 15
"KEEP WARM" FUNCTION....15
BRIDGE AND AUTOMATIC BRIDGE FUNCTION 16
GRILL FUNCTION....16
CONTROL PANEL LOCKING....16
HOOD STARTING-UP 17
AUTOMATIC MODE 17
MANUAL MODE 17
LIGHTING FUNCTION....17
COOKING ADVICES....18
PAN QUALITY 18
EXAMPLES OF COOKING POWER SETTING....19
MAINTENANCE AND CLEANING....19
WHAT TO DO IN CASE OF A PROBLEM....20
ENVIRONMENT PRESERVATION 21
INSTALLATION INSTRUCTIONS....22
ELECTRICAL CONNECTION 24
AFTER-SALES SERVICE AND WARRANTY 26
SAFETY
Precautions before using
- Unpack all the materials.
- The installation and connecting of the appliance must be done by a qualified electrician. The manufacturer can not be responsible for damage caused by building-in or connecting errors.
- The appliance must be installed in a proper worktop.
- This domestic appliance is exclusively for the cooking of food, to the exclusion of any other domestic, commercial or industrial use.
- Remove all labels and self-adhesives from the ceramic glass.
- Do not change or alter the appliance.
- The cooking plate can not be used as a working surface.
- The appliance must be grounded and connected conforming to local standards.
- Do not use an extension cable to connect it.
- The appliance can not be used above a dishwasher or a tumble-dryer: steam may damage the electronic components.
- The appliance is not intended to be operated by means of external timer or separate remote control system.
Using the appliance
- Switch the heating zones off after using, do not rely on the pan detector.
- Keep an eye on cooking using grease or oils: they may quickly ignite.
- Be careful not to burn yourself while or after using the appliance.
- Make sure no cable of any fixed or moving appliance contacts with the glass or the hot saucepan.
- Magnetic objects (credit cards, floppy disks, calculators) should not be placed near to the operating appliance.
- Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
- In general do not place any metallic object except cooking pots on the glass surface.
- Never cover the appliance with a cloth or a protection sheet. This may become very hot and catch fire.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. - Cleaning and user maintenance shall not be made by children without supervision.
Précautions not to damage the appliance
- Unfinished pan bottoms or damaged saucepans (non enamelled cast iron pots,) may damage the ceramic glass.
- Sand or other abrasive materials may damage ceramic glass.
- Avoid dropping objects, even small ones, on the vitroceramic glass.
- Do not hit the edges of the glass with saucepans.
- Make sure that the ventilation of the appliance works according to the manufacturer's instructions.
- Do not put or leave empty saucepans on the vitroceramic hobs.
- Sugar, synthetic materials or aluminium foil must not contact the heating zones. These may cause breaks or other alterations of the vitroceramic glass by cooling: switch off the appliance and take them immediately off the hot heating zone (be careful: do not burn yourself).
- WARNING: Danger of fire: do not store items on the cooking surface.
- Never place any hot sauce pan over the control panel.
- If a drawer is situated under the installed appliance, make sure the space between the content of the drawer and the underside of the appliance is at least 2 cm. This is essential to ensure correct ventilation.
- Never put any flammable object (eg. sprays) into the drawer situated under the vitroceramic hob. Cutlery drawers must be resistant to heat.
Precautions in case of appliance failure
- If a defect is noticed, switch off the appliance and turn off the electrical supply.
- If the ceramic glass is cracked or fissured, you must disconnect the appliance at the switchboard and contact the after sales service.
- Repairing has to be done by specialists. Do not open the appliance by yourself.
- WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
Other precautions
- Make sure that the cooking pan is always centred on the cooking zone. The bottom of the pan should cover as much as possible of the cooking zone.
- For the users of cardiac pacemakers. The magnetic field may influence the operation. We recommend getting information from the retailer or the doctor.
- Do not to place aluminium or synthetic material containers on the hob; they could melt on residual hot cooking zones.
- NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

THE USE OF EITHER POOR QUALITY POT OR ANY INDUCTION ADAPTOR PLATE FOR NON-MAGNETIC COOKWARE RESULTS IN A WARRANTY BREACH. IN THIS CASE, THE MANUFACTURER CANNOT BE HELD RESPONSIBLE FOR ANY DAMAGE CAUSED TO THE HOB AND/OR ITS ENVIRONMENT.

DESCRIPTION OF THE APPLIANCE
Technical characteristics
| Type PI3200 PI3300 PI3500 - PI3800 | |||
| Total power 7400 W 7400W 11100 WEnergy consumption for the hob EC_hob^** 188 Wh/kg 188 Wh/kg 187.2 Wh/kg | |||
| Heating zones 220 x 180 mm 220 x 180 mm Minimum detection ∅ 100 mm ∅ 100 mm ∅ 100 mmNominal power* 2100 W 2100 W 2100 W Booster power*Double booster power* | 220 x 180 mm2600 W 2600 W3700 W 3700 W | 2600 W3700 W | |
| Standardised cookware category**Energy consumption EC_cw^** | ∅ 150 mm (x1)182.8 Wh/kg | ∅ 150 mm (x1)182.8 Wh/kg | ∅ 150 mm (2x)182.8 Wh/kg |
| Standardised cookware category**Energy consumption EC_cw^** | ∅ 180 mm (x2)190.6 Wh/kg | ∅ 180 mm (x2)190.6 Wh/kg | ∅ 180 mm (x2)190.6 Wh/kg |
| Standardised cookware category**Energy consumption EC_cw^** | ∅ 210 mm (x1)188.1 Wh/kg | ∅ 210 mm (x1)188.1 Wh/kg | ∅ 210 mm (x2)188.1 Wh/kg |
* The given power may change according to the dimensions and material of the pan.
** calculated according to the method of measuring performance (EN 60350-2).

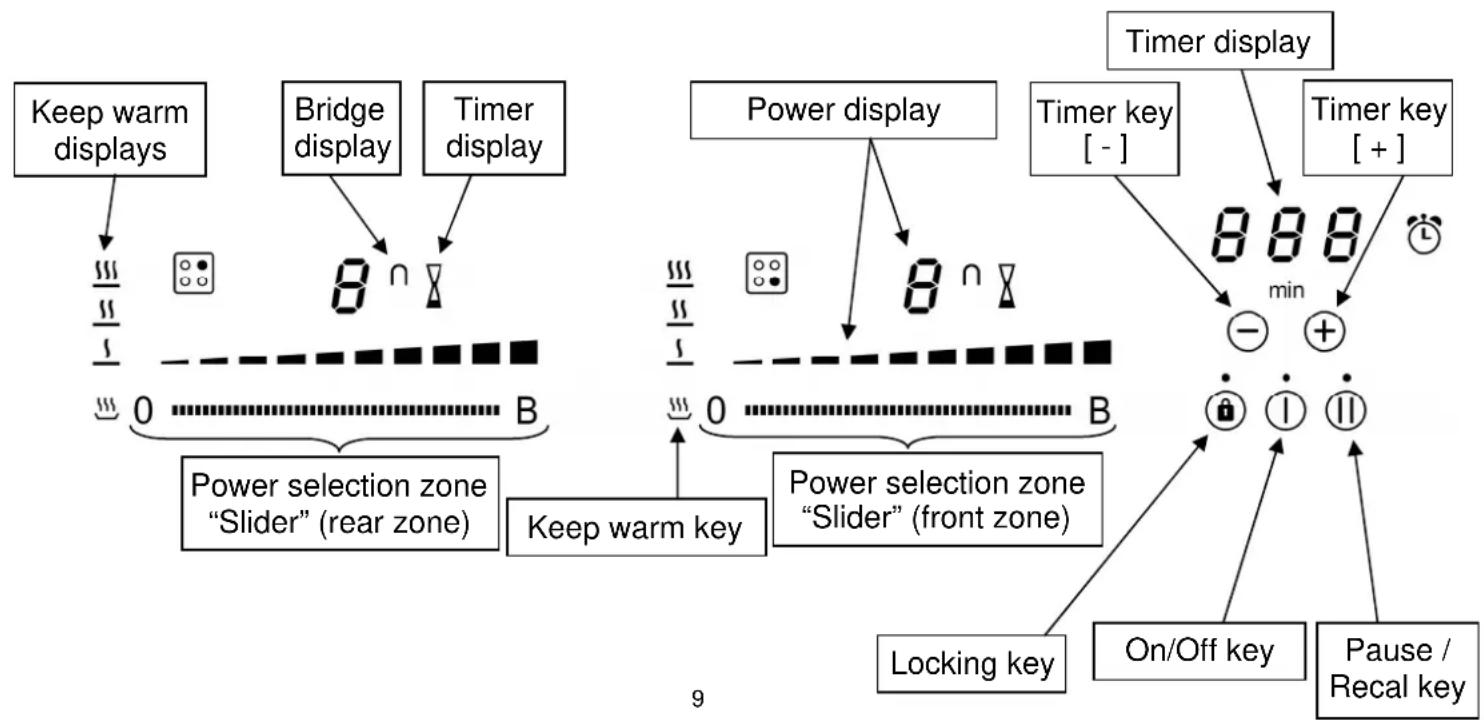

Control panel
| PI3200 | PI3300 | I3500-PI3800 | ||||
| ∅ EXT. | ∅ MÍN. | ∅ MÁX. | ∅ MÍN. | ∅ MÁX. | ∅ MÍN. | ∅ MÁX. |
| ☐ 220 x 180 mm | 100 mm | ☐ 220x180 mm∅ 180 mm | 100 mm | ☐ 220x180 mm∅ 180 mm | 100 mm | ☐ 220x180 mm∅ 180 mm |
| ☐ 220 x 360 mm | 135 mm | ☐ 220x360 mm∅ 220 mm | 135 mm | ☐ 220x360 mm∅ 220 mm | 135 mm | ☐ 220x360 mm∅ 220 mm |
| ☐ 440 x 360 mm | 330 mm | ☐ 440x360 mm∅ 360 mm | 330 mm | ☐ 440x360 mm∅ 360 mm | 330 mm | ☐ 440x360 mm∅ 360 mm |
| ☐ 660 x 360 mm | - | - | - | - | - | ☐ 660x360 mm |


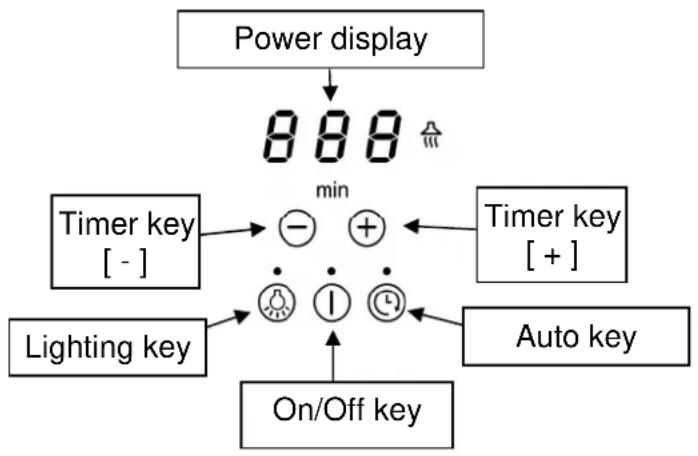

Hood control panel
USE OF THE APPLIANCE
Display
| Display | Designation | Description | ||
| 0 | Zero | The heating zone is activated. | ||
| 1...9 | Power level | Selection of the cooking level. | ||
| U | No pan detection | No pan or inadequate pan. | ||
| A | Heat accelerator | Automatic cooking. | ||
| E | Error message | Electronic failure. | ||
| H | Residual heat | The heating zone is hot. | ||
| P | 1 | ^st Booster The 1 | ^st Booster is activated. | |
| II | 2 | ^nd Booster The 2 | ^nd Booster is activated. | |
| L | Locking | Control panel locking. | ||
| U | Keep warm | Maintain automatically at approximately 42. 70. 94°C. | ||
| II | Stop & Go | The hob is in pause. | ||
| N | Bridge | 2 cooking zones are combined. | ||
Ventilation
The cooling system is fully automatic. The cooling fan starts with a low speed when the heat created by the electronic system reaches a certain level. The ventilation starts its high speed when the hob is intensively used. The cooling fan reduces its speed and stops automatically when the electronic circuit is cooled enough.
STARTING-UP AND APPLIANCE MANAGEMENT
Before the first use
Clean your hob with a damp cloth, and then dry the surface thoroughly. Do not use detergent which risks causing blue-tinted colour on the glass surface.
Induction principle
An induction coil is located under each heating zone. When it is engaged, it produces a variable electromagnetic field which produces inductive currents in the ferromagnetic bottom plate of the pan. The result is a heating-up of the pan located on the heating zone.
Of course the pan has to be suitable:
- All ferromagnetic pans are recommended (please test to see if it attracts a magnet): cast iron and steel pans, enamelled pans, stainless-steel pans with ferromagnetic bottoms...
- NOT suitable: copper, pure stainless-steel, aluminium, glass, wood, ceramic, stoneware,...
The induction heating zone adapts automatically to the size of the pan. Pans with too small diameter may not work. This diameter is varying in relationship to the heating zone diameter. If the pan is not suitable to the induction hob the display will show [U].
Sensitive touch
Your induction hob is equipped with electronic controls with sensitive touch keys. When your finger presses the key, the corresponding command is activated. This activation is validated by a control light, a letter or a number in the display and/or a “beep” sound.
For normal use, press only one key at any time.
In the case of a general use press only one key at the same time.

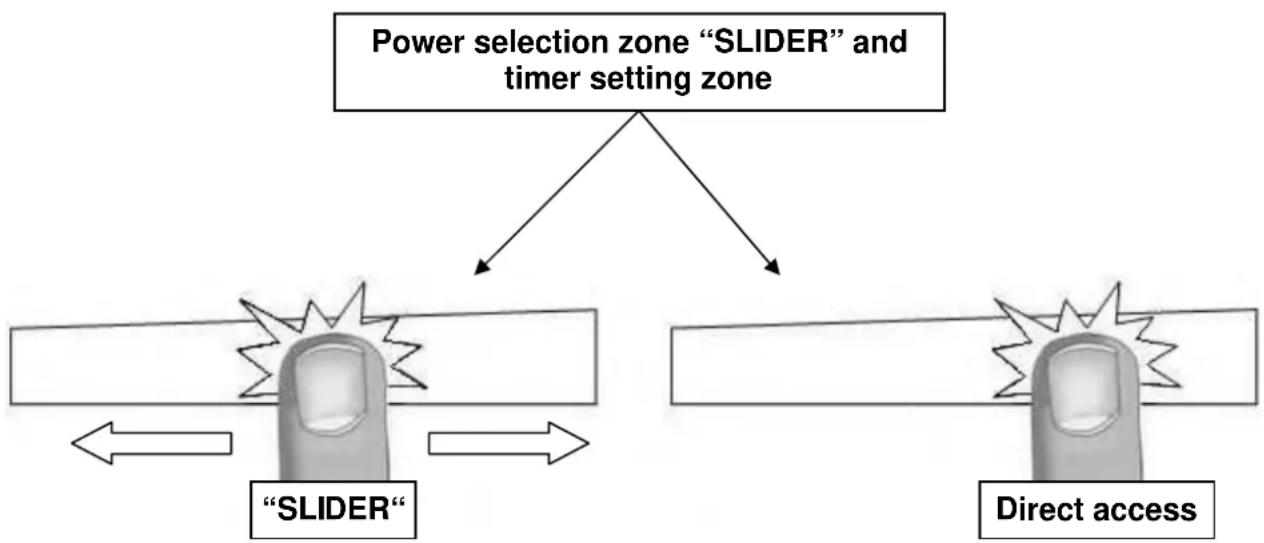

Power selection zone "SLIDER" and timer setting zone
To select the power with the slider, slide your finger on the "SLIDER" zone. You can already have a direct access if you put your finger directly on the chosen level.
Starting-up
- Start up / switch off the hob:
| Action | Control panel | Display | |||
| To start | press key [ ] | [0] | 1 | ||
| To stop | press key [ | 1] | nothing or [ H ] | ||
- Start up / switch off a heating zone:
| Action | Control panel | ____ | Display | ____ |
| To set (adjust the power) | slide on the “SLIDER” to the right or to the left | |||
| To stop | slide to [0] on “SLIDER” [0] or [H] |
If no action is made within 20 second the electronics returns in waiting position.
Pan detection
The pan detection ensures perfect safety. The induction doesn't work:
- If there is no pan on the heating zone or if this pan is not suitable to the induction. In this case it is impossible to increase the power and the display shows [U]. This symbol disappears when a pan is put on the heating zone.
- If the pan is removed from the heating zone the operation is stopped. The display shows [U]. The symbol [U] disappears when the pan is put back on the heating zone. The cooking continues with the power level set before.
After use, switch the heat element off: don't let the pan detection [U] active.
Residual heat indication
After the switching off of a heating zone or the complete stop of the hob, the heating zones are still hot and indicates [H] on the display.
The symbol [H] disappears when the heating zones may be touched safely.
As long as the residual heat indicators are on, don't touch the heating zones and don't put any heat sensitive object on them. There are risks of burn and fire.
Booster function
1^st Booster [P] and 2^nd Booster [‘‘’] grant a boost of Power to the selected heating zone. If this function is activated the heating zones work during 10 minutes with an ultra high Power. This is foreseen for example to heat up rapidly big quantities of water, like nuddles
- Start up / Stop 1st Booster:
| Action | Control panel | Display |
| Start up 1 ^st Booster | Slide to the end of the “SLIDER”Or press directly on the end ofthe “SLIDER” | [ P ] |
| Stop the 1 ^st Booster | Slide on the “SLIDER“ | [ 9 ] to [ 0 ] |
- Start up / Stop 2nd Booster
Action Control panel \_\_\_\_ Display \_\_\_\_
Start up 2^nd Booster Slide to the end of the “SLIDER” [P]
Or press directly on the end of the "SLIDER"
Start up 2^nd Booster Re-press on the end of the “SLIDER” [ and P ]
Stop the 2^nd Booster Slide on the “SLIDER” [P] to [0]
Stop Power Slide on the "SLIDER" [9] to [0]
• Power management:

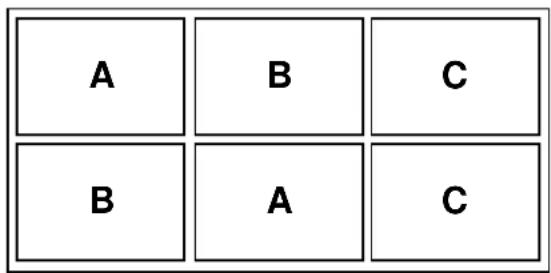

The table is divided in 3 separate sets of heating zones, each set having a maximum power.
Heating zone selected The other heating zone: (example: power level 9)
[ P ] is displayed [ 9 ] goes to [ 8 ] and blinks
It is possible to activate the booster function (or double booster) on several cooking zones at the same time, for this it is necessary to use the zones in a discriminant way (A-B, A-C, B-C or A-B-C).
Timer
The timer is able to be used simultaneous with all heating zones and this with different time settings (from 0 to 999 minutes) for each heating zone.
- Setting and modification of the cooking time :
| Action | Control panel | Display | ||
| Select the power level | slide on the “SLIDER” | [1] to [P] | ||
| Select theTimer | Press simultaneously key [-] and [+] from the timer until the desired display is on | Timer display on | ||
| Decrease the time | Press key [-] from the timer | [60] to 59, 58... | ||
| Increase the time | Press key [+] from the timer | Time increase | ||
After a few seconds, the [ min ] display stops with blinking.
The time is confirmed and the timer starts.
• To stop the cooking time:
Action Control panel ____ Display ____
Select the Timer Press simultaneously key [-] and [+] Timer display on
from the timer until the
desired display is on
Stop the time Press key [-] from the timer [000]
If several timers are activated, repeat the process.

- Egg timer function (egg time symbol):
Egg timer is an independent function. It stops as soon as a heating zone starts up.
If the egg timer is on and the hob is switched off, the timer continues until time runs out.
Action Control panel Display
Activate the hob press display [ ① ] [0]
Select the Timer Press simultaneously key [-] and [ + ] [ 000 ]
from the timer
Decrease the time Press key [- ] from the timer [60] to 59, 58...
Increase the time Press key [ + ] from the timer Time increase
After a few seconds, the [ min ] display stops with blinking.
The time is confirmed and the timer starts.
• Automatic stop at the end of the cooking time:
As soon as the selected cooking time is finished the timer displays blinking [000] and a sound rings.
To stop the sound and the blinking, press the key [-] and [ + ].
Automatic cooking
All the cooking zones are equipped with an automatic cooking device. The cooking zone starts at full power during a certain time, and then reduces automatically its power on the pre-selected level.
- Start-up:
Action Control panel ____ Display ____
Power level selection slide on the "SLIDER" to [7] [7] is blinking with [A]
(for example « 7 ») and stay 3s
- Switching off the automatic cooking:
Action Control panel Display
Power level selection slide on the "SLIDER" [0] to [9]
Stop&Go function
This function brakes all the hob's cooking activity temporarily and allows restarting with the same settings.
- Start up/stop the pause function:
Action Control panel ____ Display ____
Engage pause press key [ ] [ II ] and control light on Stop the pause press key [ ] “Slider” animated Press on the animated “slider” previous settings
Recall Function
After switching off the hob (①), it is possible to recall the last settings.
• cooking stages of all cooking zones (Booster)
- minutes and seconds of programmed cooking zone-related timers
- Keep warm function
• Automatic cooking function
The recall procedure is following:
- Press the key [ ]①
- Then press pause key before the light stops blinking.
The previous settings are again active.
"Keep warm" Function
This function allows the reach and automatically maintains at the temperature of 42, 70 or 94°C. This will avoid liquids overflowing and fast burning at the bottom of the pan.
- To engage, to start the function « Keep warm »:
| Action | Control panel | Display | |
| 42°C to engage | Press once on key [ | [ U ] and [ ] | |
| 72°C to engage | Press twice on key [ | [ U ] and [] | |
| 94°C to engage | Press 3 times on key [ ] | [ U ] and [] | |
| To stop | Slide on the “SLIDER” or press key [ $] until [ 0 ] | [ 0 ] to [ 9 ] | |
The maximum duration of keeping warm is 2 hours.
Bridge and automatic Bridge Function
This function allows the use of 2 cooking zones at the same time with the same features as a single cooking zone. With this function the Booster function is allowed on the left and center zones.
Action Control panel Display
Activate the hob Press display [ ] [0] ①
Activate the bridge Press simultaneously on [ ]
of the 2 cooking zones [0] and [
or
put a great pan on the 2 zones [ ] blink
and press on the 2 "SLIDER" [ ]
Increase bridge Slide on the "SLIDER"
witch indicates the power [1] to [9]
Stop the bridge Press simultaneously on [ ☉ ]
of the 2 cooking zones [0]
Grill Function
This function allows the optimal use of your frying pan/grill/rectangular grill plate with combining two areas and using appropriate powers.
Action Control panel Display
Activate the hob Press display [ ] [0] ①
Place the grill plate on the
2 zones to use
Activate the Grill Press simultaneously on the
Increase the Grill Slide on the "SLIDER"
witch indicates the power
Stop the Grill Press simultaneously on the
power level on the slider
Control panel locking
To avoid modification of the setting of the cooking zones, in particular during cleaning, the control panel can be locked (with exception to the On/Off key [1]).
Action
Locking the hob
Unlock the hob
Control panel
Press locking key [ 🔒 ] during 6s
Press locking key [
Display
☐ ] during 6s
[] during 6s
locking light on
locking light off
Hood starting-up
- Start up / switch off the hood:
| Action | Control panel | Display | ||
| To start | press key [ | 1] | on/off light on | |
| To stop | press key [ | 1] | on/off light off |
Automatic mode
- Start up / switch off the automatic mode:
| Action | Control panel | ____ | Display | ____ |
| To start | press key [ | ◎] | auto light on | |
| To stop | press key [ ◎] | auto light off |
Manual mode
The hood has 4 power levels, from 1 (minimum ventilation power) to Int (maximum ventilation power)
- Start up / switch off the manual mode:
| Action | Control panel | Display | ||
| To start | press key [ | 1] | on/off light on | |
| Increase power | press key [ + ] | [ 1 ] to [ Int ] | ||
| Decrease power | press key [ - ] | [ Int ] to [ 1 ] | ||
Lighting function
- Start up / switch off the lighting function:
| Action | Control panel | Display | ||
| To start | press key [ | lighting light on | ||
| To stop | press key [ | lighting light off |
COOKING ADVICES
Pan quality
Adapted materials: steel, enamelled steel, cast iron, ferromagnetic stainless-steel, aluminium with ferromagnetic bottom.
Not adapted materials: aluminium and stainless-steel without ferromagnetic bottom, cupper, brass, glass, ceramic, porcelain.
Ferromagnetic base
Aluminium base
Ferromagnetic ring
To check if pans are compatibles:
- Put a little water in a pan placed on an induction heating zone set at level [9]. This water must heat in a few seconds.
• A magnet stucks on the bottom of the pan.
Certain pans can make noise when they are placed on an induction cooking zone. This noise doesn't mean any failure on the appliance and doesn't influence the cooking operating.
NOTE: Overheating of an empty pot with a curved base or a logo or embossed hollow in the centre could damage the inductor.
SOUNDS DURING USE:
- Noises during cooking. Some kitchen utensils, depending on the quality of the ferritic base of the container, may be more intense if the composition of the base is poor or poor.
- A slight "click click" sound is heard. This sound is normal. It is a safety indicator to detect presence of the container on the inductor. It activates automatically when you turn on the hob and during cooking.
- A slight hum is heard. It is a normal sound that comes from the transmission of energy from the inductor to the base of the container (electromagnetic waves).
Pan dimension and material types
The cooking zones are, within a certain limit, automatically adapted to the diameter of the pan base. However the bottom of the pan must have a minimum diameter according to the corresponding cooking zone.
To obtain the best efficiency of your hob, please place the pan in the centre of the cooking zone. Caution! Certain pans made of special materials such as cast iron, i.e. grill plates, have low temperature dissipation property, accumulate significant amounts of heat that is conducted by direct contact of the pan to the ceramic glass, causing overheating inside the appliance, which could lead to damages. Therefore, we recommend not using very high power and using average ranges with this type of pan. This model has a special “GRILL” function for these types of pans that automatically regulates the temperature in order to obtain optimism efficiency and protect the device. Please see the instructions of use on pg. 14. Never use the bridge function for these types of pans.
Examples of cooking power setting
(the values below are indicative)
| 1 to 2 Melting | Reheating | Sauces, butter, chocolate, gelatineDishes prepared beforehand |
| 2 to 3 Simmering | Defrosting | Rice, pudding, sugar syrupDried vegetables, fish, frozen products |
| 3 to 4 Steam Vegetables | es, fish, meat | |
| 4 to 5 Water Steamed | potatoes, soups, pasta, | fresh vegetables |
| 6 to 7 Medium cooking | Simmering | Meat, lever, eggs, sausagesGoulash, roulade, tripe |
| 7 to 8 Cooking Potatoes | es, fritters, wafers | |
| 9 Frying, roosting | Boiling water | Steaks, omelettes, fried dishesWater |
| P and ,, ,, | Frying, roostingBoiling water | scallops, steaksBoiling significant quantities of water |
MAINTENANCE AND CLEANING
Switch-off the appliance before cleaning.
Do not clean the hob if the glass is too hot because they are risk of burn.
- Remove light marks with a damp cloth with washing up liquid diluted in a little water. Then rinse with cold water and dry the surface thoroughly.
- Highly corrosive or abrasive detergents and cleaning equipment likely to cause scratches must be absolutely avoided.
- Do not ever use any steam-cleaner or pressure washer.
- Do not use any object that may scratch the ceramic glass.
- Ensure that the pan is dry and clean. Ensure that there are no grains of dust on your ceramic hob or on the pan. Sliding rough saucepans will scratch the surface.
- Spillages of sugar, jam, jelly, etc. must be removed immediately. You will thus prevent the surface being damaged.
- Do not use a steam cleaner to clean this appliance.
- Ensure the cooking pan bases are clean and in good condition prior to using them to prevent any damage to the surface of the device.
WHAT TO DO IN CASE OF A PROBLEM
The hob or the cooking zone doesn't start-up:
- The hob is badly connected on the electrical network.
• The protection fuse cut-off.
• The looking function is activated. - The sensitive keys are covered of grease or water.
- An object is put on a key.
The control panel displays [U]:
• There is no pan on the cooking zone.
- The pan is not compatible with induction.
- The bottom diameter of the pan is too small.
The control panel displays [E]:
- The electronic system is defective.
- Disconnect and replug the hob.
- Call after sales
One or all cooking zone cut-off:
• The safety system functioned.
- You forgot to cut-off the cooking zone for a long time.
• One or more sensitive keys are covered.
- The pan is empty and its bottom overheated.
- The hob also has an automatic reduction of Booster level and breaking Automatic overheating
Continuous ventilation after cutting off the hob:
- This is not a failure, the fan continuous to protect the electronic device.
- The fan cooling stops automatically.
The automatic cooking system doesn't start-up:
• The cooking zone is still hot [H].
- The highest Booster level is set [9].
The control panel displays [U]:
• Refer to the chapter "Keep warm".
The control panel displays [ II ]:
• Refer to the chapter "Stop&Go"
The control panel displays [ ] or [ Er03 ] :
- An object or liquid covers the control keys. The symbol disappear as soon as the key is released or cleaned.
The control panel displays [ E2 ] :
- The hob is overheated, let it cool and then turn it on again.
The control panel displays [E8]:
- The air inlet of the ventilator is obstructed, release it.
The control panel displays [U400]:
- The hob is not connected to the network. Check the connection and reconnect the hob.
The control panel displays [Er47]:
- The hob is not connected to the network. Check the connection and reconnect the hob.
A slight "click click" sound is heard when placing a container on a stove:
- This sound is normal. It is a safety indicator to detect the presence of the container on the inductor. It is automatically activated when the hob is turned on and during cooking.
If one of the symbols above persists, call the Customer Service.
ENVIRONMENT PRESERVATION

ENVIRONMENTAL PROTECTION AND WASTE TREATMENT
DISPOSAL OF THE PACKAGING. The packaging is marked with in Green Dot.
In its commitment to the protection of the environment and in compliance with the provisions of the European Directive 94/62 / EC on packaging and packaging waste and the derived Law 22/2011 on Contaminated Residues and Soils, Pando entrusts entities of social economy an Integrated Management System, responsible for the periodic collection at the consumer's home or in its vicinity of used packaging and packaging waste for subsequent treatment.
To remove all packaging materials such as cardboard, expanded polyurethane, and film, use the appropriate containers.
This ensures the correct treatment and reuse of packaging materials.
INSTALLATION INSTRUCTIONS
The installation must be performed by a qualified electrical contractor.

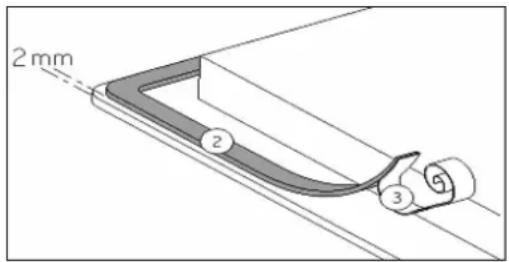

How to stick the gasket:
The gasket supplied with the hob avoids all infiltration of liquids in the cabinet. His installation has to be done carefully, in conformity of the following drawing.
Fitting - installing:
- The plate is equipped with two fans located at the bottom. Please observe the distances for the circulation of the ventilation air.
- Ensure that there is a distance of 50 mm between the hob and the wall or sides.
- The ventilation distance between the plate base and the upper section of a ventilated oven or drawer, must be at least 20mm. The separation distance for non-forced ventilation ovens must be greater in accordance with the oven manufacturer's recommendations.
- The hobs are classified as "Y" class for heat protection. Ideally the hob should be installed with plenty of space on either side. There may be a wall at the rear and tall units or a wall at one side. On the other side, however, no unit or divider must stand higher than the hob.
- The piece of furniture or the support in which the hob is to be fitted, as well as the edges of furniture, the laminate coatings and the glue used to fix them, must be able to resist temperatures of up to 100 °C.
- Do not install the hob at the top of a non ventilated oven or a dishwasher.
- Ensure under the bottom of the hob ____ casing a space of 20 mm to ensure ____ good air circulation of the electronic device.
- If a drawer is placed under the hob, avoid putting into this drawer flammable objects (for example: sprays) or non heat-resistant objects. CAUTION with small objects or papers, because when absorbed, they could damage the fan or damage the ventilation. Take care when placing metal objects such as cooking pans or cutlery since they can get too hot and help increase the temperature of the area and cause burns.
- Materials which are often used to make worktops expand on contact with water. To protect the cut out edge, apply a coat of varnish or special sealant. Particular care must be taken when applying the adhesive joint supplied with the hob to prevent any leakage into the supporting furniture. This gasket ensures a good seal when used in conjunction with smooth work top surfaces.
- The safety gap between the hob and the cooker hood placed above must comply with the recommendations of the hood manufacturer. In the case of no instructions, a distance of 760 mm minimum should apply.
- The connection cord should not be subjected to any mechanical constraint.
- WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.
Fitting - installing:
* Front ventilation recommended, with this we avoid excess temperature in hob, furniture and equipment under the hob.

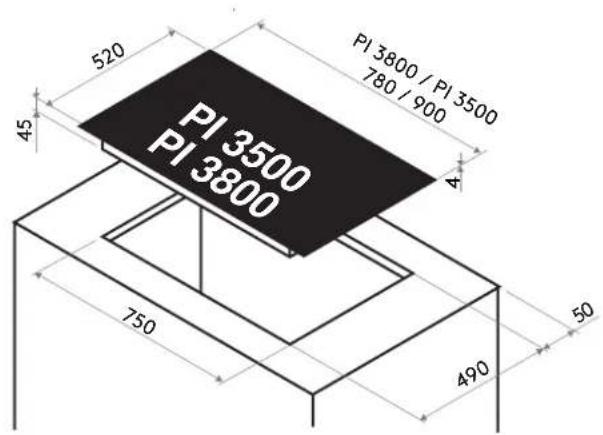

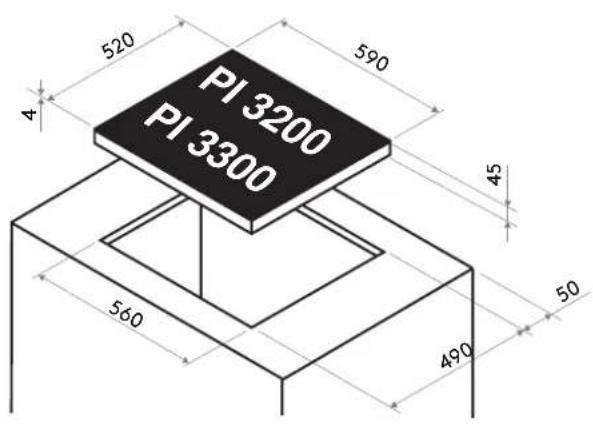

• The cut out sizes are:
| Cut-sizeModel | |
| PI3200 | 560 x 490 mm |
| PI3300 | 560 x 490 mm |
| PI3500 / PI3800 | 750 x 490 mm |
- The installation of this appliance and the connection to the electrical network should be entrusted only to an electrician perfectly to the fact of the normative regulations and which respects them scrupulously.
• Protection against the parts under tension must be ensured after the building-in. - The data of connection necessary are on the stickers place on the hob casing near the connection box.
- The connection to the main must be made using an earthed plug or via an omnipolar circuit breaking device with a contact opening of at least 3 mm.
- The electrical circuit must be separated from the network by adapted devices, for example: circuit breakers, fuses or contactors.
- If the appliance is not fitted with an accessible plug, disconnecting means must be incorporated in the fixed installation, in accordance with the installation regulations.
- The inlet hose must be positioned so that it does not touch any of the hot parts of the hob or oven.
Caution!
This appliance must only be connected to a network 230 V\~ 50/60 Hz.
Always connect the earth wire.
Respect the connection diagram.
The connection box is located underneath at the back of the hob casing. To open the cover use a medium screwdriver. Place it in the slits and open the cover.
CONNECTION OF THE HOB FOR PI3200 AND PI3300:
| Protection caCable Cable dia | ||||
| 3 x 2,5 mm ^2 1 Phase + N230V~H 05 RR - F | H 05 VV - FH 05 RR - F | 50/60Hz A * | ||
| 2 Phases + N4 | 00V~x 5060Hz | H 05 VV - FH 05 RR - F | 16 A * |
* calculated with the simultaneous factor following the standard EN 60 335-2-6

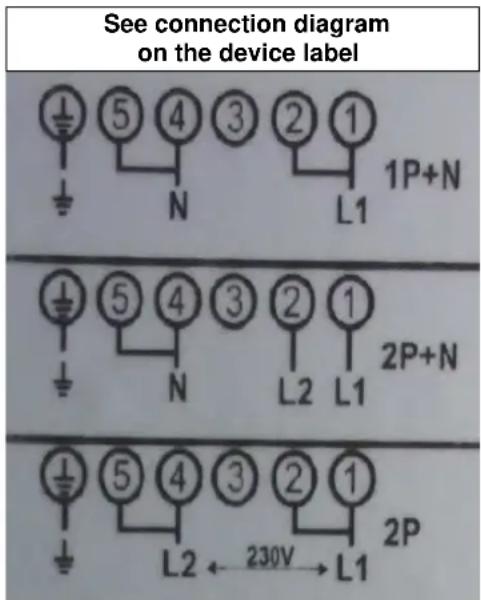

Connection of the hob
For the various kinds of connection, use the brass bridges which are in the box next the terminal
Monophase 230V\~1P+N
Put the 1^st bridge between terminal 1 and 2, the 2^nd between 4 and 5. Attach the earth to the terminate “earth”(Yellow/Green), the neutral N to terminal 4 or 5 (Blue and Grey), the Phase L to one of the terminals 1 or 2 (Brown and Black).
Biphase 400V\~2P+N
Put a bridge between terminal 4 and 5.
Attach the earth to the terminate "earth" (Yellow/Green), the neutral N to terminal 4 or 5 (Blue and Grey), the Phase L1 to the terminals 1 (Brown) and the Phase L2 to the terminal 2 (Black).
| Mains Connection | Cable diameter | Cable | Protection calibre | |
| 230V~ 50/60Hz 1 | Phase + N 3 x 4 mm2 | H 05 VV - FH 05 RR - F | 40 A * | |
| 400V~ 50/60Hz 2 | Phases + N 4 x 2.5 mm2 | H 05 VV - FH 05 RR - F | 25 A * | |
| 400V~ 50/60Hz | 3 Phases + N | 5 x 1.5 mm2 | H 05 VV - FH 05 RR - F | 16 A * |
* calculated with the simultaneous factor following the standard EN 60 335-2-6
Connection of the hob
Setting up the configurations:
For the various kinds of connection, use the brass bridges which are in the box next the terminal
Monophase 230V\~1P+N
Put the 1st bridge between terminal 1 and 2 and between 2 and 3, the 2nd between 4 and 5. Attach the earth to the terminal “earth”, the neutral N to terminal 4 or 5, the Phase L to one of the terminals 1, 2 or 3.
Biphase 400V\~2P+N
Put the 1st bridge between terminal 1 and 2, the 2nd between 4 and 5.
Attach the earth to the terminal “earth”, the neutral N to terminal 4 or 5, the Phase L1 to the terminals 1 or 2 and the Phase L2 to the terminal 3.
Triphase 400V\~3P+N
Put a bridge between terminal 4 and 5.
Attach the earth to the terminal “earth”, the neutral N to terminal 4 or 5, the Phase L1 to the terminals 1, the Phase L2 to the terminal 2 and the Phase L3 to the terminal 3.
Caution! Ensure that you correctly attach the wires and the bridges and tighten the screws properly.
We cannot be held responsible for any incident resulting from incorrect connection or which could arise from the use of an appliance which has not been earthed or has been equipped with a faulty earth connection.
PANDO - AFTER-SALES SERVICE (SAT) AND WARRANTY
INOXPAN S.L. E-MAIL: divisiontecnica@pando.es
TEL. 902 41 55 10 / FAX: 93 757 96 53 WEBSITE: http://www.pando.es/asistencia-tecnica/
Please call the above phone number, or contact us via fax or e-mail to request any technical assistance, either within or outside of the warranty. We wish to inform you that only operations involving product faults will be covered by the warranty.
WARRANTY CERTIFICATE:
INOXPAN, SL, as manufacturer of this device, guarantees the same for a period of three years from the date of purchase, against any manufacturing defects that may affect its proper operation. Proof of purchase must be presented in order to avail of this warranty.
During this period, the Company undertakes to replace or repair any faulty part due to defects or manufacturing defects in the device free of charge, until proper operation and the necessary labour and expenses incurred as a result of such repair or replacement.
The following points will not be covered by the warranty, where the user must cover the costs of materials, labour and transport relating to the technical service in this case:
- If the installation of the induction plate has not been carried out by an Authorised Professional Specialist, Qualified Electrician or Pando's Official Technical Service personnel who meet the requirements of safety standards and electrical power regulations.
- Breakdowns or damage caused by transport or intervention of personnel from outside this unauthorized company.
- Problems caused by improper installation of the induction plate, checks of the installation or operation and cleanings.
- Tampering with the wiring and connections of the device.
- Malfunctions and damage caused by external abnormalities or variations of the power supply or natural disasters such as storms, lightning, floods, etc.
- Aesthetic damage such as dents, scratches, cracks, tears and stains on the device caused by improper installation or tampering, use of unsuitable utensils and containers or ones in poor condition, or the use of non-recommended cleaning products.
- When the device is intended for non-domestic use, which it has not been designed for.
- Malfunction of the device owing to breach of the regulations, instructions and recommendations stated in the device installation and user manual.
INOXPAN, SL, is expressly excluded from any liability for any direct or indirect damages to persons or things owing to breakdowns or defects of the device caused by improper handling of the same.
This warranty is only valid when the same is met. The model, registration, the stamp of the trade dealer or establishment must be stated, and must be accompanied by the receipt indicating date of purchase.
Anything not expressly stated in this Certificate will be regulated by the provisions of General Law for the Defense of Consumers and Users Law 26/84, of 19 July, as well as Retail Trade Regulations 7/ 96 of 13 January.
| MODEL | |
| REGISTRATION NO. | |
| AUTHORIZED SPECIALIST INSTALLER | |
| PURCHASE DATE | |
| DEALER STAMP |
Close-up of a showerhead with a sad face emoji, no text or symbols visible
Diagram showing a computer monitor with a sad face emoji and dashed lines indicating connection or interaction, possibly representing a system or interface.text_image
Ø180 MAYOtext_image
Diagram showing a container with steam rising, a downward arrow indicating fluid flow, and a sad face emoji below.∅120
Simple line drawing of a computer monitor with a base and two cables (no text or symbols)text_image
depression depressionnatural_image
Illustration of three kitchen utensils with no text or symbols, including a frying pan and a plate (no text or symbols present)The symbol on the product or its packaging indicates that this product cannot be disposed of like normal domestic waste. The product must be handed over at a collection point for recycling electrical and electronic equipment. If you ensure that this product is correctly disposed of, you will help to avoid the possible negative environmental and public health effects that could arise from incorrect disposal. For more detailed information about recycling this product, please contact your city authorities, the domestic waste service or the establishment where you purchased it. This electrical appliance is marked in compliance with European Directive 2012/19/EU on electrical and electronic appliance waste (WEEE).

ENVIRONMENTAL PROTECTION AND WASTE TREATMENT
DISPOSAL OF THE PACKAGING. The packaging is marked with in Green Dot.
In its commitment to the protection of the environment and in compliance with the provisions of the European Directive 94/62 / EC on packaging and packaging waste and the derived Law 22/2011 on Contaminated Residues and Soils, Pando entrusts entities of social economy an Integrated Management System, responsible for the periodic collection at the consumer's home or in its vicinity of used packaging and packaging waste for subsequent treatment.
To remove all packaging materials such as cardboard, expanded polyurethane, and film, use the appropriate containers.
This ensures the correct treatment and reuse of packaging materials.
MONTAGEHINWEISE

