USER MANUAL SC-312X QSC
Passive, two-way, screen channel system
SC-312X provides 90^ horizontal by +20^ to -30^ vertical coverage
- Low distortion waveguide provides highly articulate dialogue
- Shallow depth (20") facilitates installation

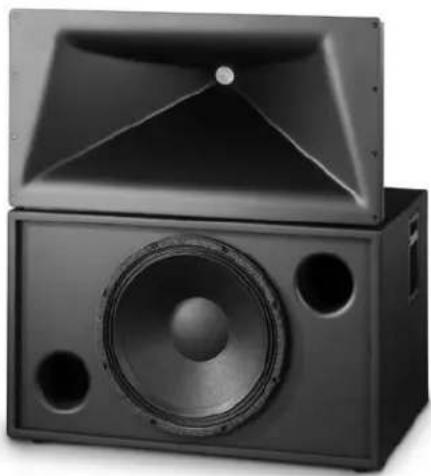

Developed specifically for the unique requirements of professional motion picture playback, the SC-312X extends QSC's commitment to the cinema market. As a member of the DCS Digital Cinema Speaker Series, the SC-312X is a passive, two-way, screen channel loudspeaker system comprised of two main units—the HF-63X1 high frequency system and the LF-3115 low-frequency system.
The HF-63X1 high-frequency system features a 2.5" (63mm) titanium diaphragm compression driver mounted on a custom designed high frequency cinema horn with an adjustable pan and tilt bracket. The HF-63X1 includes a driver protection and equalization network. DC blocking capacitors protect against DC or low-frequency signals that would likely destroy an unprotected driver. Power limiter circuitry protects the driver from overpowering and a response correction filter smoothes the frequency response of the horn/driver combination. The driver and equalization network provides for more reliable operation, ensuring the show will go on.
The LF-3115 15" (381mm) low-frequency enclosure is designed specifically to address the extended low-frequency response required for cinema applications. The LF-3115 covers the frequency range from 35 Hz to 1000 Hz, depending upon the high-frequency system requirements.
The SC-312X is designed for ease of installation. The HF-63X1 components come pre-assembled to reduce field assembly time. Three bolts are all that are required to secure the HF-63X1 to the top of the LF-3115 enclosure.
Specifications
SC-312X
| Nominal Coverage | 90° horizontal x +20 to -30° vertical | |
| Frequency Range | 33 Hz - 16 kHz (-6 dB) | |
| Impedance | 8Ω | |
| Sensitivity 1 watt/1 meter, half space | 95 dB | |
| Maximum Input Power1 | ||
| 2 hours of 6 db crest factor pinknoise, 50 Hz - 20 kHz, AES method | 150 W RMS | |
| Recommended Amplifier Power | 300 W RMS maximum | |
| Recommended Processing | Subsonic filter below 30 Hz, > 18 dB per octave | |
| LF-3115 | HF-63X1 | |
| Connectors | Barrier strip screw terminals accept up to #10 AWG stranded wire, four terminals; two inputs and two parallel outputs | Barrier strip screw terminals accept up to #10 AWG stranded wire, four terminals; two inputs and two LF-outputs |
| Transducers | One 15" (38mm) high efficiency, extended bass woofer featuring a 3" copper voice coil | 1.5" (38mm) exit, 2.5" titanium diaphragm compression driver |

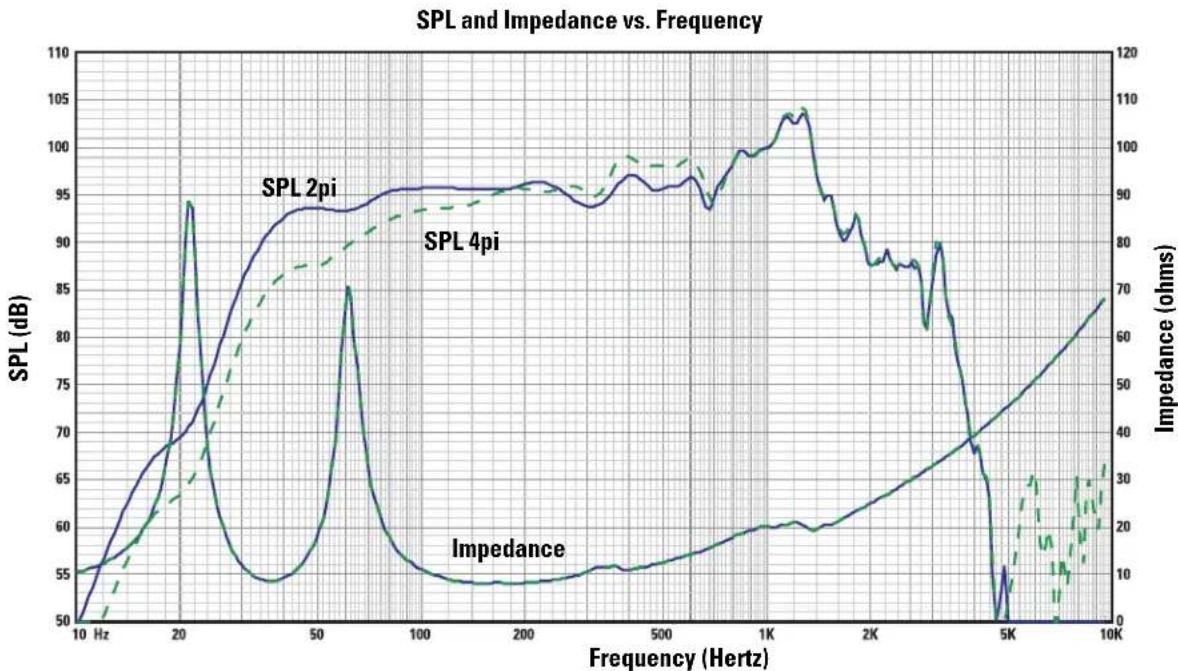

| Endlosure | Quasi B4 alignment, ported enclosure with fully flared ports, symmetrical port design, tuned to 36 Hz, constructed of MDF and heavily braced. Features vandal resistant woofer mounting bolts | Tilt/Pan Bracket ±10° vertical tilt ±10° horizontal pan |
| Dimensions (HWD) | 18.5" x 30" x 20.3" (470 mm x 762 mm x 516 mm) | 16" x 30" x 20" (406 mm x 762 mm x 508 mm) |
| Weight - Net | 83 lbs (38 kg) | 40 lbs (18.4 kg) |
| System Weight | 123 lbs (56.4 kg) | |
| Baffle Cut-Out | 35.5" x 32" | |
1) Maximum input power tested in accordance with IEC 268-5 recommendations, 50Hz - 20kHz band limiting, 6 dB signal crest factor.
Top

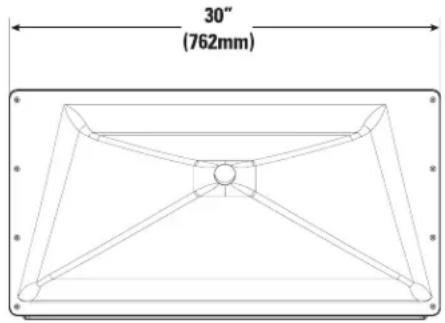

21.53"
546.9 mm
20.25"
514.4 mm
30"
762 mm
Side
15.46"
392.6 mm
33.83"
859.3 mm
101.6 mm
18.38"
466.8 mm
9.7
246.4 mm
Front
20.25"
514.4 mm
Specifications subject to change without notice.
Cinema Loudspeaker Systems User Manual HF-63X1 and HF-63X2
High Frequency Component
Introduction
The HF-63X1 and HF-63X2 are the high frequency components of full-range, two-way screen channel loudspeaker systems for high performance cinema applications. The HF-63X1 is designed specifically for use with QSC's LF-3115 low frequency loudspeaker and the HF-63X2 for the LF-3215 loudspeaker.
The HF-63X1/X2 high-frequency system features a large format, 2.5" (63.5mm) titanium diaphragm compression driver mounted on a custom designed high-frequency cinema horn with an adjustable pan and tilt bracket. The horn features broad horizontal and vertical coverage angles to ensure coverage of every seat in the auditorium. The horn is a low-distortion waveguide providing highly articulate dialogue without coloration associated with conventional horn loudspeakers. Equipped with a passive crossover providing tailored output for the LF-3115 or LF-3215, no additional signal processing is required.
The HF-63X1/X2 components come pre-assembled to reduce field assembly time. Three bolts are all that are required to secure the HF-63X1/X2 to the top of a QSC low frequency loudspeaker. Threaded inserts in the LF enclosures and matching punched hole pattern in the HF-63X1/X2 make mounting to the low frequency enclosure simple.
Mounting

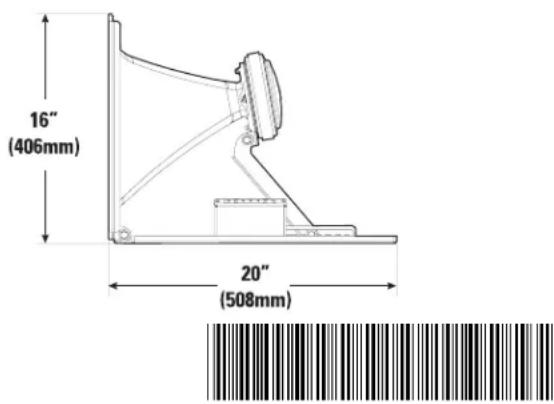

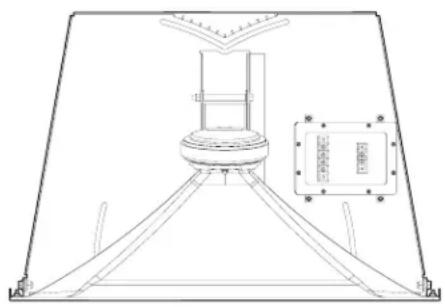

Refer to the illustration for mounting information. The HF-63X1/X2 attaches to the top of the LF-3115 or LF-3215 with three 5/16-18 bolts, 0.75'' long, with lock washers. This hardware ships installed on the low frequency cabinet. We recommend the use of serviceable thread locking compound when installing the bolts to prevent loosening due to vibration. Aim the horn in the horizontal plane (pan) before tightening. Adjust the vertical tilt with the bracket adjustment.
Install in accordance with QSC Audio Product's instructions and a licensed, professional engineer. Only use attachments, mounts, accessories, or brackets specified by QSC Audio Products, Inc. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way.
WARNING! Before placing, installing, rigging, or suspending any speaker product, inspect all hardware, suspension, cabinets, transducers, brackets and associated equipment for damage. Any missing, corroded, deformed or non-load rated component could significantly reduce the strength of the installation, placement, or array. Any such condition severely reduces the safety of the installation and should be immediately corrected. Use only hardware which is rated for the loading conditions of the installation and any possible short-term unexpected overloading. Never exceed the rating of the hardware or equipment. Consult a licensed, professional engineer when any doubt or questions arise regarding a physical equipment installation.
TO-000219-00 rev A
© Copyright 2006, QSC Audio Products, Inc.
QSC® is a registered trademark of QSC Audio Products, Inc.
"QSC" and the QSC logo are registered with the U.S. Patent and Trademark Office
Connections
The HF-63X1/X2 has barrier strip screw terminals that accept up to #10 AWG (5.3mm²) stranded loudspeaker wire.
INPUT Terminals
Connect the amplifier's full range output signal to the HF-63X1 or HF-63X2 INPUT terminals. Observe proper polarity; the amplifier's + signal to the HF-63X1 or HF-63X2 + INPUT, the amplifier's - signal to the HF-63X1 or HF-63X2 - INPUT. Use the largest wire size and shortest wire length for the application.
HF OUT Terminals
The HF OUT terminals are factory-connected to the compression driver. These terminals should ONLY be connected to the HF-63X1 or HF-63X2 compression driver. Observe proper polarity; the + HF OUT signal to the compression driver's + input, the - HF OUT signal to the compression driver's - input.

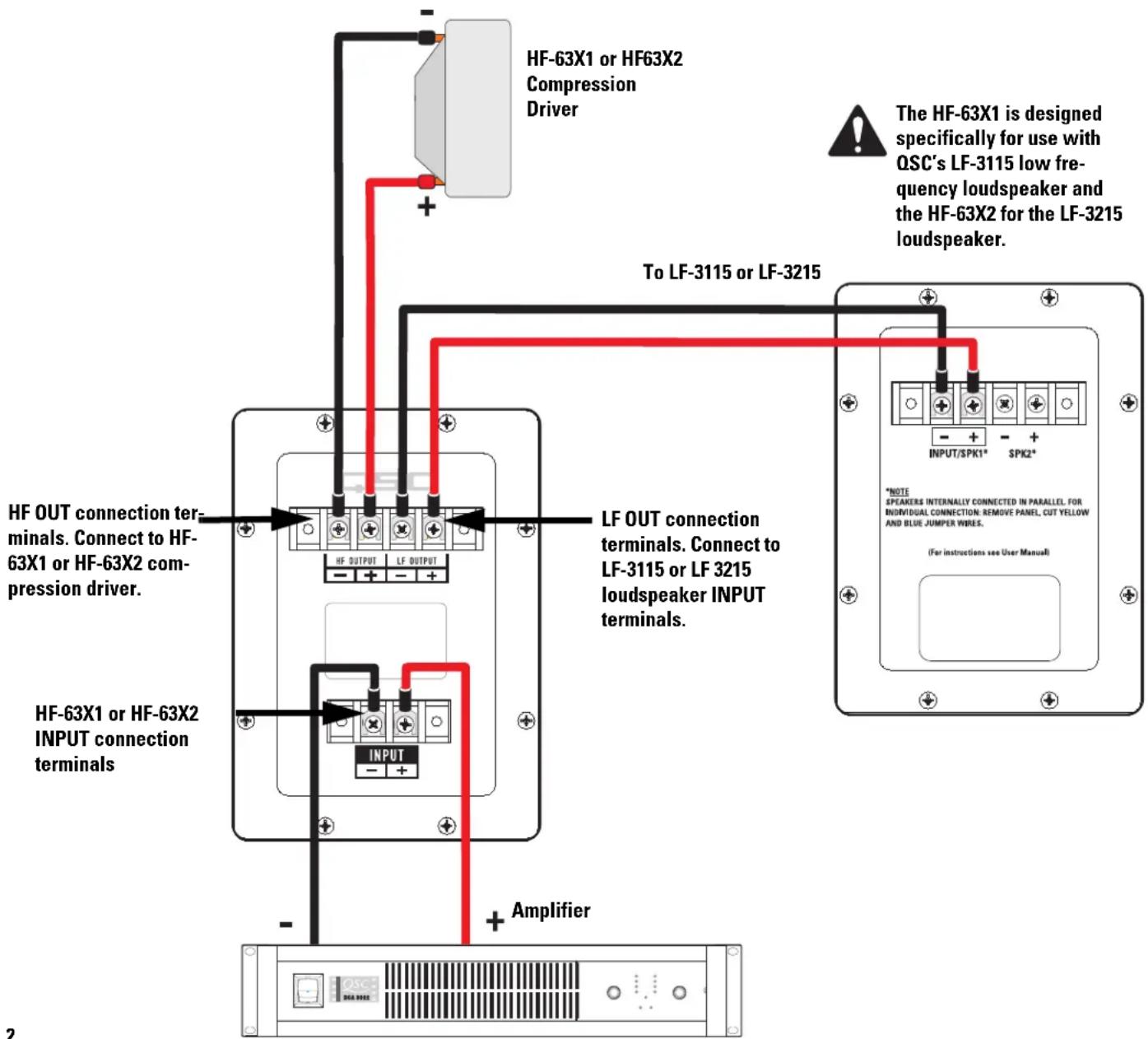

LF OUT Terminals
The HF-63X1 is designed specifically for use with QSC's LF-3115 low frequency loudspeaker and the HF-63X2 for the LF-3215 loudspeaker. The LF OUT terminals are factory-terminated to lead wires with spade-lugs. These should ONLY be connected to QSC's model LF-3115 or model LF-3215 low frequency loudspeaker. Observe proper polarity; connect the +LF OUT signal to the low frequency loudspeaker's + input, the -LF OUT signal to the low frequency loudspeaker's - input.
HF-63X1 and HF-63X2 Specifications (subject to change without notice)
Frequency Range: 1,300 - 16,000 Hz (-6 dB)
Nominal Coverage:
90^ horizontal X +15 to -35^ vertical ( 50^ total, adjustable mount provides for vertical plane adjustments. The horizontal plane can be adjusted by altering mounting position on the low frequency enclosure before tightening bolts.
DI: 9.0 dB (600 to 16,000 Hertz average)
Q: 8.0 (600 to 16,000 Hertz average)
SPL (peak): HF-63X1 with LF-3115: 123 dB
HF-63X2 with LF-3215: 126 dB
Impedance: HF-63X1 with LF-3115: 8 Ohms nominal
HF-63X2 with LF-3215: 4 Ohms nominal
Maximum Input Power: HF-63X1 with LF-3115: 150 W
(2 hours EIA 426B) HF-63X2 with LF-3215: 300 W
Sensitivity: HF-63X1 with LF-3115: 95.0 dB
HF-63X2 with LF-3215: 97.5 dB
Crossover Frequency: 1,300Hz
Connectors:
Barrier strip screw terminals accept up to #10 AWG stranded wire. Six terminals: Two full-range input terminals, two HF OUT terminals (factory wired to compression driver), and two LF OUT terminals with factory supplied wiring for connection to QSC LF-3115 or LF-3215 low frequency loudspeaker.
Transducers: 1.5^ (38mm) exit, 2.5^ (63.5mm) titanium diaphragm compression driver.
Mounting Hardware:
Attaches to top of the LF-3115 or LF-3215 low frequency cabinet using three 5 / 16^ - 18× 3 / 4^ long bolts.
Size:
30^ wide X 16" high X 20" deep (762mm X 406mm X 508mm)
Weight:
50 lbs. (shipping), 40 lbs. (net), 22.7/18.4 kilograms
Warranty (USA only; other countries, see your dealer or distributor)
Disclaimer
QSC Audio Products, Inc. is not liable for any damage to amplifiers, or any other equipment that is caused by negligence or improper installation and/or use of this loudspeaker product.
QSC Audio Products 3 Year Limited Warranty
Osc Audio Products, Inc. ("QSC") guarantees its products to be free from defective material and/or workmanship for a period of three (3) years from date of sale, and will replace defective parts and repair malfunctioning products under this warranty when the defect occurs under normal installation and use - provided the unit is returned to our factory or one of our authorized service stations via pre-paid transportation with a copy of proof of purchase (i.e., sales receipt). This warranty provides that the examination of the return product must indicate, in our judgment, a manufacturing defect. This warranty does not extend to any product which has been subjected to misuse, neglect, accident, improper installation, or where the date code has been removed or defaced. QSC shall not be liable for incidental and/or consequential damages. This warranty gives you specific legal rights. This limited warranty is freely transferable during the term of the warranty period.
Customer may have additional rights, which vary from state to state.
In the event that this product was manufactured for export and sale outside of the United States or its territories, then this limited warranty shall not apply. Removal of the serial number on this product, or purchase of this product from an unauthorized dealer, will void this limited warranty. Periodically, this warranty is updated. To obtain the most recent version of QSC's warranty statement, please visit www.qscaudio.com. Contact us at 800-854-4079 or visit our website at www.qscaudio.com.
Contacting QSC Audio Products
Mailing address:QSC Audio Products, Inc.
1675 MacArthur Boulevard
Costa Mesa, CA 92626-1468 USA
Telephone Numbers:
Main Number (714) 754-6175
Sales & Marketing (714) 957-7100 or toll free (USA only) (800) 854-4079
Customer Service(714) 957-7150 or toll free (USA only) (800) 772-2834
Facsimile Numbers:
Sales & Marketing Fax(714) 754-6174
Customer Service Fax(714) 754-6173
World Wide Web: www.qscaudio.com
E-mail:info@qscaudio.com
service@qscaudio.com
Cinema Loudspeaker Systems User Manual LF-3115 Low Frequency Loudspeake
Introduction

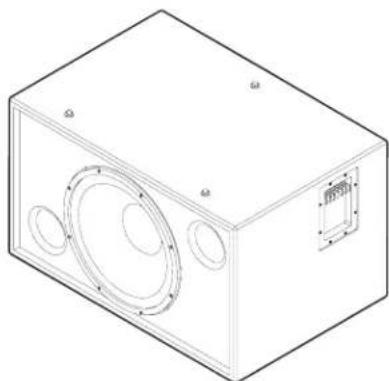

The LF-3115 15" (381mm) low frequency enclosure is designed specifically for cinema applications. Meeting cinema requirements for extended low frequency response differentiates the LF-3115 from more conventional "rock-and-roll" woofer systems. The LF-3115 covers the frequency range from 33 Hertz to 1900 Hertz, depending upon the high frequency system requirements.
The 300 watt, 15^ transducer is well suited for cinema use. It features a 3^ (76mm) voice coil, ceramic magnet, and a multi-vented pole piece to ensure cool operation. Cooler temperatures increase transducer lifespan and decrease the problem of power compression at high power levels. The suspension and voice coil of the transducer have been designed to provide low distortion and high impact bass at high power.
The enclosure is constructed of high quality medium density fiberboard panels with stiffening braces on all panels. Both internal and external port openings are fully radiused ensuring smooth air flow at higher power levels, preventing audible port turbulence. The stiffening braces reduce panel resonance.
Bass ports are evenly spaced on each side of the transducer, making internal pressure more uniform across the back surface of the transducer. This prevents the cone from being displaced to one side or another by unbalanced forces, reducing the chance of driving the voice coil out of the center of the gap at high power.
Three T-nuts in the top of the enclosure provide easy mounting of QSC high frequency systems, such as the HF-63.
Enclosure is not designed to be suspended, flown, or rigged. Do not suspend, fly, or rig this enclosure.
This product is capable of producing sound pressure levels that can permanently damage human hearing. Always keep sound pressure levels in the listening area below levels that can damage human hearing.
Install in accordance with QSC Audio Product's instructions and a licensed, professional engineer. Only use attachments, mounts, accessories, or brackets specified by QSC Audio Products, Inc. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way.
WARNING! Before placing, installing, rigging, or suspending any speaker product, inspect all hardware, suspension, cabinets, transducers, brackets and associated equipment for damage. Any missing, corroded, deformed or non-load rated component could significantly reduce the strength of the installation, placement, or array. Any such condition severely reduces the safety of the installation and should be immediately corrected. Use only hardware which is rated for the loading conditions of the installation and any possible short-term unexpected overloading. Never exceed the rating of the hardware or equipment. Consult a licensed, professional engineer when any doubt or questions arise regarding a physical equipment installation.
Connections

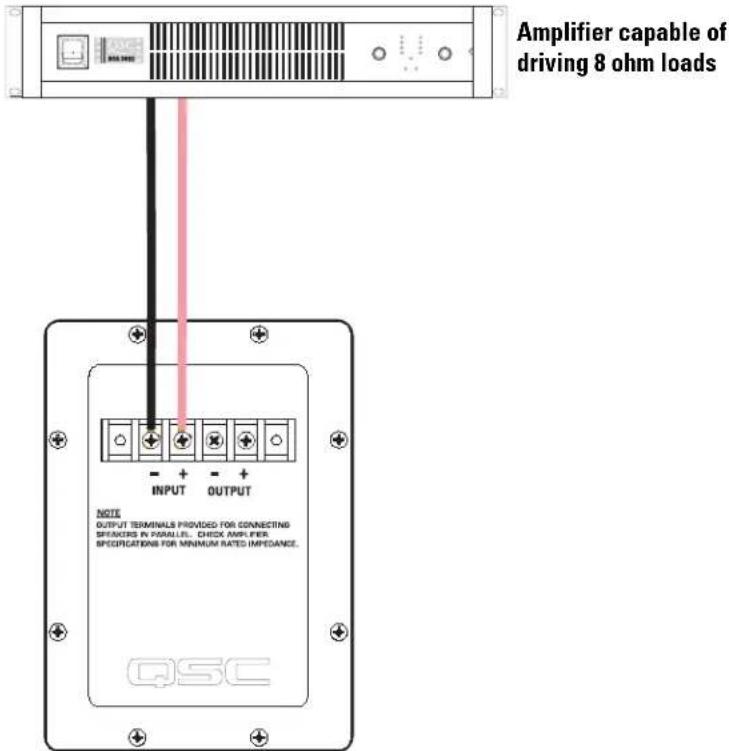

Normal Connection
The LF-3115 has barrier strip screw terminals for connection. The terminals accept up to #10 AWG (5.3mm^2) stranded loudspeaker wiring. Use the largest wire size and shortest wire length possible for a given installation. Observe the polarity markings and keep polarity consistent throughout the system for best performance.
Normal Connection Example:

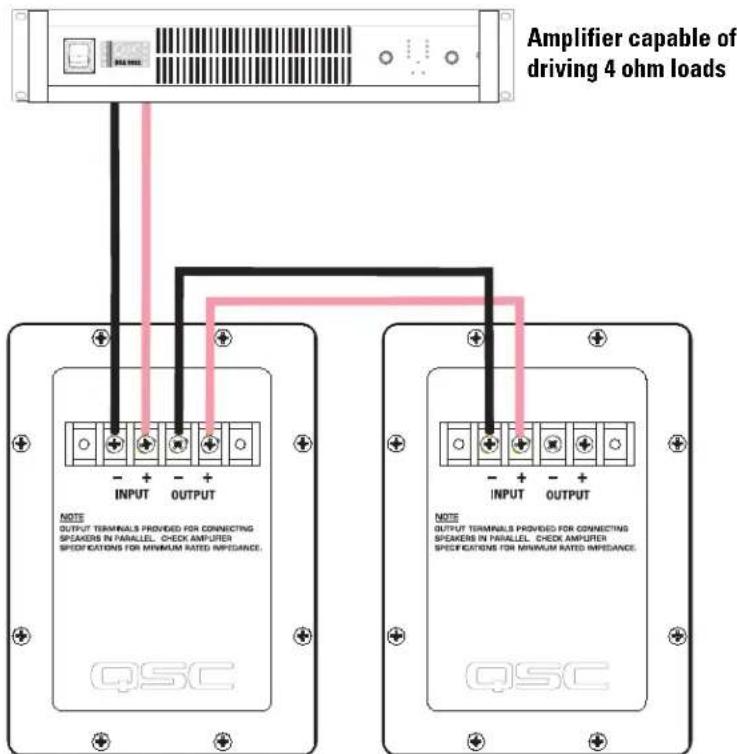

Parallel Connection of Second LF-3115
The terminals marked OUTPUT may be used to connect another LF-3115 in parallel. Connect the wires as shown in the illustration, at right.
Parallel Connection Example:
LF-3115 Specifications (subject to change without notice)
Frequency Range: 33 - 1900 Hertz (-6dB)
30 - 3200 Hertz useable range (-10dB)
Nominal Coverage: 100^ horizontal X 100^ vertical at 1000 Hertz
Maximum Output:
126.5dB SPL calculated peak, 1 meter, half space, at rated rms power with 6 dB crest factor pink noise input, 35 - 1000 Hertz
120.5dBA SPL calculated maximum continuous, 1 meter. The dBA scale is typically used to identify sound source which can cause permanent hearing loss.
Impedance: 8 ohms nominal
8 ohms minimum, 160 Hertz
90 ohms maximum, 22 Hertz
Maximum Input Power:
300 watts rms (8 hours of 6dB crest factor pink noise, 40 - 400 Hertz)
375 watts rms (2 hours of 6dB crest factor pink noise, 40 - 400 Hertz)
Recommended amplifier power capability- 600 watts rms maximum into 8 ohms (per LF-3115)
Sensitivity: 95.5dB half space, 94.0dB full space, 35 - 1000 Hertz, 1 watt, 1 meter
Recommended Processing:
Subsonic filter below 30 Hertz, >18 dB per octave, maximum recommended crossover frequency is 1000 Hertz. DSP configurations are available at www.qscaudio.com. Parameters for alternative processing hardware are avai upon request.
Connectors: Barrier strip screw terminals accept up to #10 AWG (5.3mm allele OUTPUT).
2) stranded wire. Four terminals: (two INPUT and two par
Transducers:
15" (381mm) high efficiency low frequency transducer featuring vented 3" (76mm) copper voice coil on Kaptoners. High excursion/low distortion design, with extremely high power handling, and low thermal and port comp
Enclosure:
Quasi B4 alignment, ported enclosure with fully flared ports, low turbulence symmetrical port design, tuned to 3 Hertz, constructed of medium density fibreboard and heavily braced. Features vandal resistant woofer mounting
Size: 30^ wide X 18" high X 20" deep (762mm X 457mm X 508mm)
Weight: 96 lbs. shipping, 83 lbs. net (44/38 kg.)
Warranty (USA only; other countries, see your dealer or distributor)
Disclaimer
QSC Audio Products, Inc. is not liable for any damage to amplifiers, or any other equipment that is caused by negligence or improper installation and/or use of this loudspeaker product.
QSC Audio Products 3 Year Limited Warranty
Osc Audio Products, Inc. ("QSC") guarantees its products to be free from defective material and/or workmanship for a period of three (3) years from date of sale, and will replace defective parts and repair malfunctioning products under this warranty when the defect occurs under normal installation and use - provided the unit is returned to our factory or one of our authorized service stations via pre-paid transportation with a copy of proof of purchase (i.e., sales receipt). This warranty provides that the examination of the return product must indicate, in our judgment, a manufacturing defect. This warranty does not extend to any product which has been subjected to misuse, neglect, accident, improper installation, or where the date code has been removed or defaced. QSC shall not be liable for incidental and/or consequential damages. This warranty gives you specific legal rights. This limited warranty is freely transferable during the term of the warranty period.
Customer may have additional rights, which vary from state to state.
In the event that this product was manufactured for export and sale outside of the United States or its territories, then this limited warranty shall not apply. Removal of the serial number on this product, or purchase of this product from an unauthorized dealer, will void this limited warranty. Periodically, this warranty is updated. To obtain the most recent version of QSC's warranty statement, please visit www.qscaudio.com. Contact us at 800-854-4079 or visit our website at www.qscaudio.com.
Contacting QSC Audio Products
Mailing address:QSC Audio Products, Inc.
1675 MacArthur Boulevard
Costa Mesa, CA 92626-1468 USA
Telephone Numbers:
Main Number (714) 754-6175
Sales & Marketing (714) 957-7100 or toll free (USA only) (800) 854-4079
Customer Service(714) 957-7150 or toll free (USA only) (800) 772-2834
Facsimile Numbers:
Sales & Marketing Fax(714) 754-6174
Customer Service Fax(714) 754-6173
World Wide Web: www.qscaudio.com
E-mail:info@qscaudio.com
service@qscaudio.com
Impedance: 8 ohms (nominate)
8 ohms minimale, 160 Hz
90 ohms maximale, 22 Hz
