USER MANUAL P500 Majority

What's In the Box? 3

Controls And Functions.... 6

Instructions Guide....

Microphones....7

Tripod Stand....8

Basic Operation....9

Bluetooth.... 10

USB Playback Mode.... 10

Micro SD Card Mode.... 10

FM Radio Mode.... 11

Aux-In Mode.... 11

Troubleshooting & Support.... 12

Specification.... 13

Warranty.... 13

Safety Information.... 14

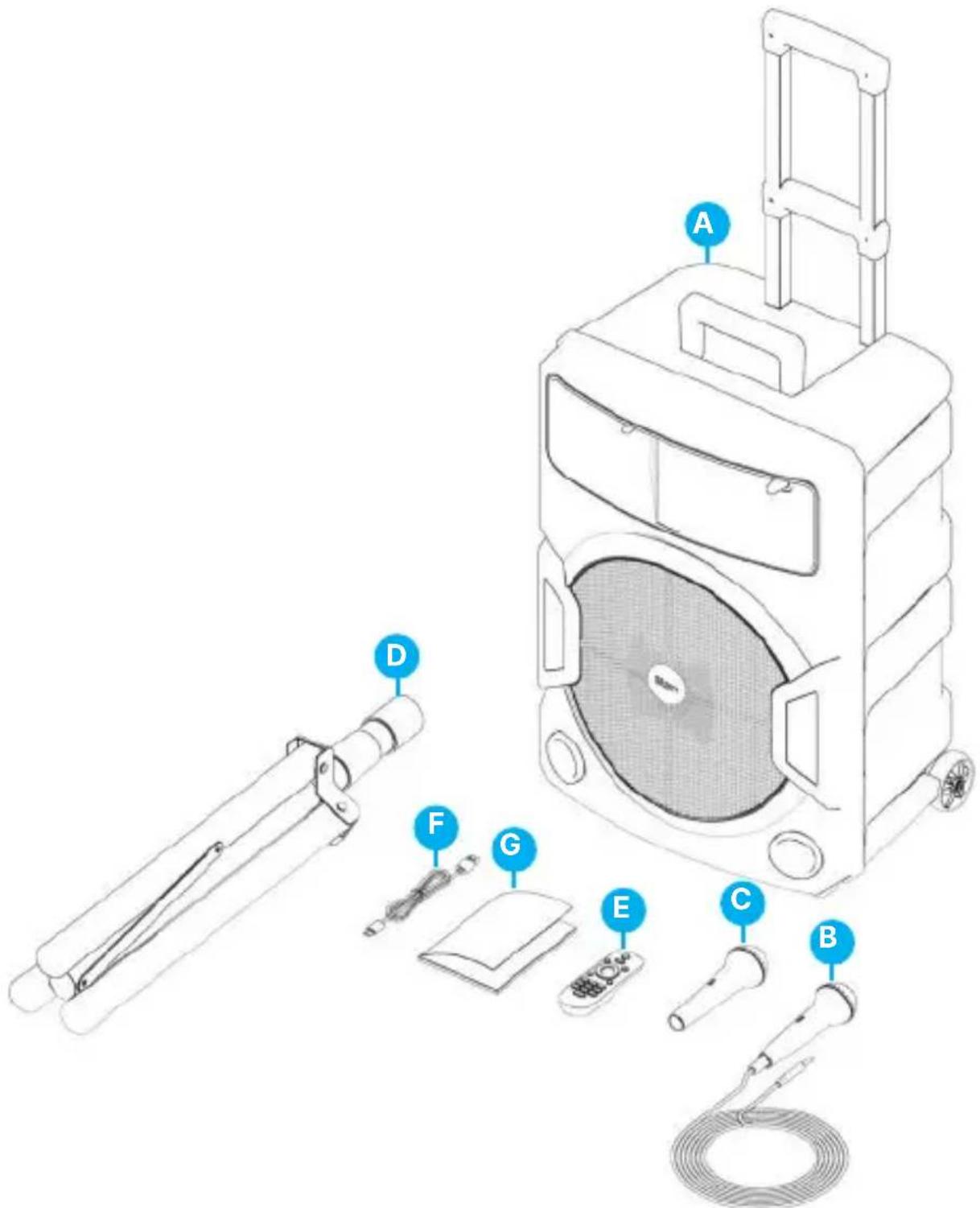

What's in the Box?

A. Majority P500 Party Speaker
B. Wired Microphone
C. Wireless Microphone
D. Tripod Stand

E. Remote Control
F. USB Type-C Charging Cable
G. User Manual

Diagram of a portable air purifier with labeled parts including wheels, sensors, and control devices

Front View

12 13 14 MAJORITY

1. Active Tweeters

2. Speaker

3. LED Lighting

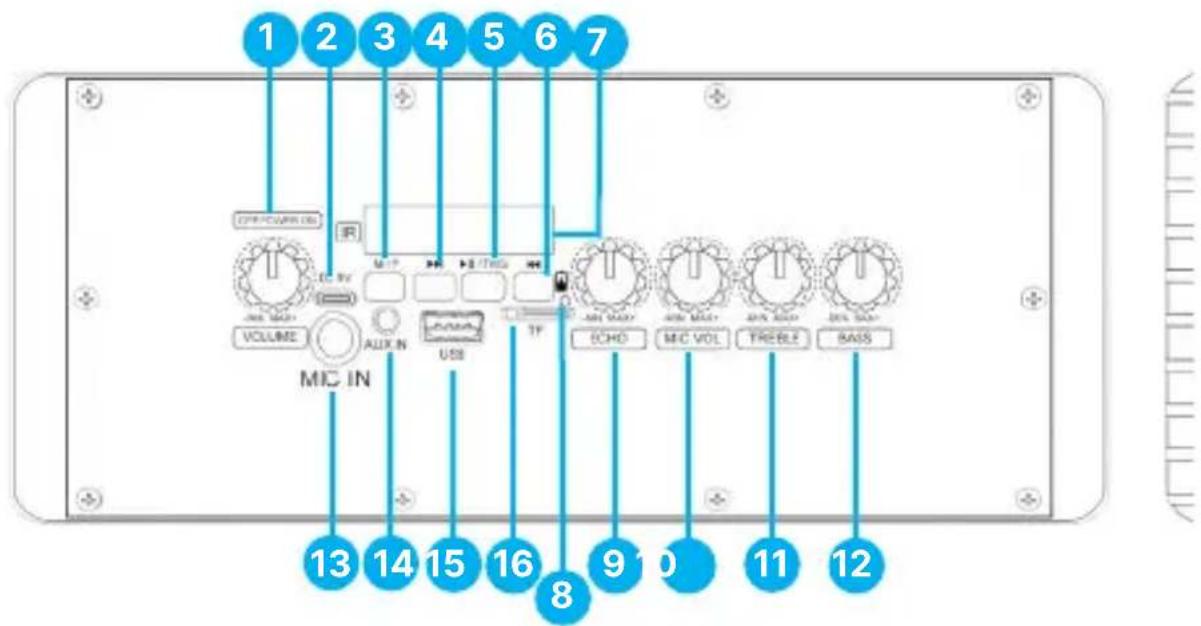

Back View & Control Panel

1 2 3 4 5 6 7 OFF-POWER US IC N VOLUME AUX IN USB MIC IN 13 14 15 16 8 9 10 11 12 MIP TIF SIN MOUT ECHO MIC VOL DEC VOUT TREELE BASS

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Power ON/OFF, Volume +/-
2. USB Type-C Charging Port (DC5V)
3. Mode & Lighting Modes
4. Next /Forward
5. Play, Pause/TWS
6. Previous
7. LCD Display Screen
8. Charging LED Light
9. Echo +/-
10. Microphone Volume +/-

11. Treble +/-*

12. Bass +/-

13. Wired Microphone Port
14. AUX-In Port
15. USB Playback Port
16. SD (TF) Card Slot

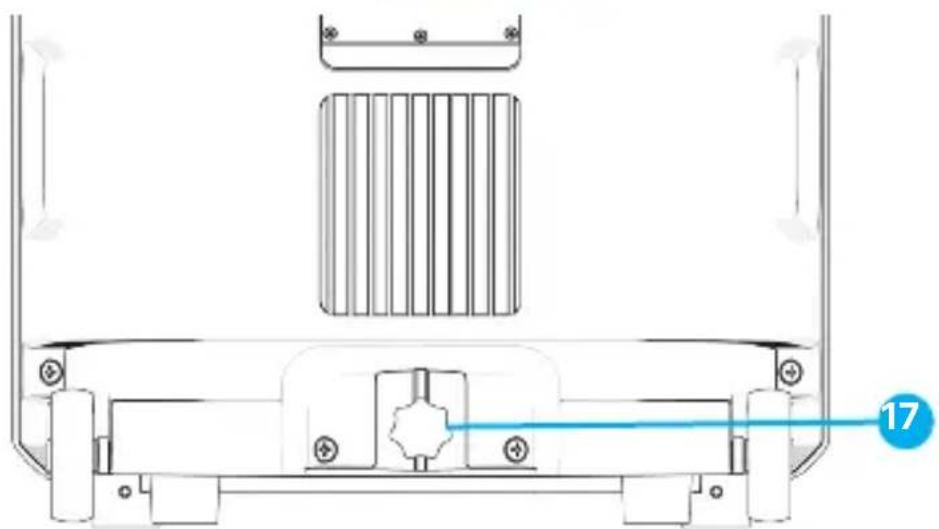

17. Tripod Stand hole and screw
    Please note: To change the lighting modes, you must press and hold for 2-3 seconds the Mode/ Lightning button (Ref.3).

Remote Control

1. Standby: Press the 'Standby' button to put your speaker in Sleeping Mode. Press again to turn on the speaker.
2. Stop: Press the 'Stop' button once to stop playing.
3. Volume +: Increase the volume.
4. Previous: Press to skip and play the previous song or to the previous FM station in FM Mode.
5. Repeat: Repeat one track or repeat all tracks (only available under USB/Micro SD Mode).
6. Numerical Keys: Directly access your MP3 tracks.
7. Mode: Long press the 'Mode' button to change the speaker modes to: Bluetooth®/FM/AUX/USB/SD Card.
8. Mute: Press the 'Mute' button to turn the sound on or off.
9. Next: Press to skip and play the next song or skip to the to the next FM station in FM Mode.
10. Play/Pause: Press to play or pause audio.
11. Volume -: Decrease the volume.
12. EQ: Press the 'EQ' button repeatedly to select sound styles. There are 6 equaliser presets modes which you can use as per your preferences: NORMAL, POP, ROCK, JAZZ, CLASSIC, COUNTRY

17 MODE 23 STOP MUTE 24 VOL+ 20 CH- CH+ 25 26 VOL- 27 21 REPE EQ 28 22 1 2 3 4 5 6 7 8 9 0 MAJORITY

The microphones can be used in any mode such as : BT, AUX IN, USB, SD CARD, FM.

Wireless Microphone

Line drawing of a handheld device with a control panel (no text or symbols)

1. Volume +/-

2. Magic Voice- Change the voice when talking on a microphone - male voice, female voice, baby voice and normal voice.)

3. Power ON/OFF

Power on the Majority P500 speaker, and then press the 'Power On/Off' button on the microphone (Ref.31). The wireless microphone will then automatically connect with the party speaker.

Wired Microphone

Line drawing of a majority microphone with no text or symbols on the device body

1. Power ON/OFF

Insert the wired cable end into the MIC In port at the back of the speaker (Ref.13). Power on the Majority P500 speaker, and then press the 'Power On/Off' button on the microphone (Ref.32).

Please note: The wired and the wireless microphones can be used both at the same time or just one at a time.

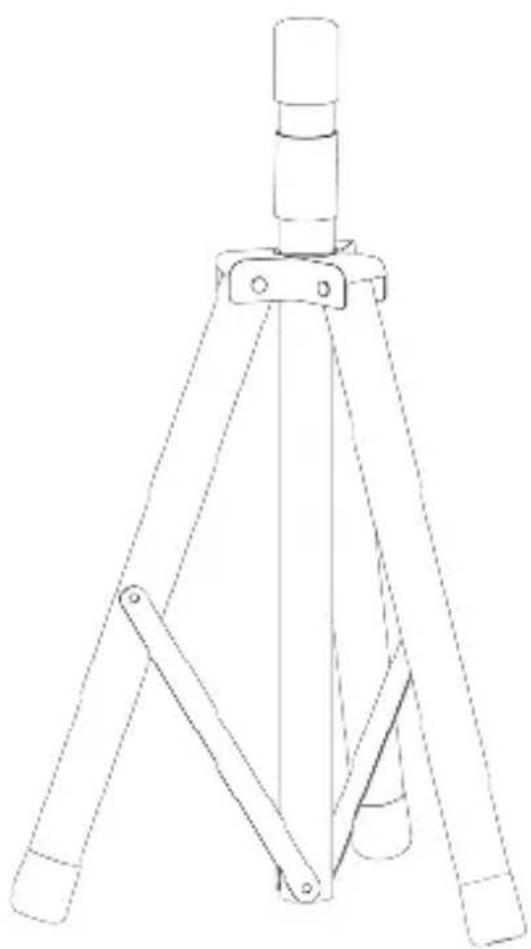

The Tripod Stand

At lowest extension, the Majority P500's tripod is 43.5cm high and at maximum extension is 76cm high.

• Once removed from the box, unfold the bottom three legs. Keep it stable and he tripod won't wobble easily.
• Loosen the fixing screws and adjust the tripod to the appropriate height.
• Tighten the fixing screws. Once secured position your speaker and affix on the tripod stand.

Step 1

Secure the tripod stand.

Step 2

Prepare your speaker (Ref.17).

Step 3

Affix the party speaker on the tripod with the screw on the speaker.

Line drawing of a mechanical tripod device with adjustable arms and legs (no text or symbols)

Please note that the instructions within this user manual will refer to the button number on the party speaker or the microphones (Ref 'number'), and the buttons on the remote control (Rem 'number'), in accordance with the diagrams from pages 4-8.

Charging Time

Insert the USB Type-C cable at the back of the unit (Ref.11), and then connect with a plug (DC5V) to the mains for charging.

The charging LED screen will light up red (Ref.8). It takes up to 6 hours to process a full charge course of the internal battery. Once fully charged, the red LED light will switch off. Disconnect the party speaker from mains and take advantages of its portability.

Please Note: It would be recommended to process a full charge course when not in use for longer battery life.

Playback

The Majority P500 has an internal rechargeable battery. Once fully charged, the speaker can be used on battery power for up to 6 hours.

Please Note: The playtime may vary based on the volume level and lighting modes usage while playing on battery power.

Power ON/OFF

Rotate the 'Power ON/OFF' knob (Ref.1) to the right to switch the power on and increase the volume as per your preferences. Rotate the 'Power ON/OFF' (Ref.1) to the left to decrease the volume and switch off the party speaker.

TWS

The 'TWS' function can only be used when using two Majority P500 Party Speakers which you can connect and use as twin Bluetooth party speakers.

Please note: each package only contains one Majority P500 Bluetooth Party Speaker.

To connect two Majority P500's, you should first ensure that both speakers are powered on and not paired individually with other devices via Bluetooth. Press the 'TWS' button (Ref.3) twice on one of these speakers and both will wirelessly connect with each other.

Once both Majority P500 are paired, switch on Bluetooth connectivity on your phone, and then search for 'Majority P500'. Select and pair with the speakers. You can now play audio on both party speakers.

To disconnect, the 'TWS' button (Ref.3) twice on one of the party speakers.

Bluetooth Mode

The Majority P500 can be paired via Bluetooth with a phone or a tablet to play audio from your device via your party speaker.

Press the 'MODE' button on the unit (Ref.3) or on the remote control (Ref.23) repeatedly to change the speaker mode in Bluetooth. The text 'BT' will be displayed on the P500 screen indicating the mode.

Once in Bluetooth Mode, the speaker is ready to pair. Activate Bluetooth on your device and search for 'Majority P500'. Select the speaker and pair with your device.

Once connected you can now start playing audio from your device via your party speaker.

Please Note: The Majority P500 cannot be paired with Bluetooth earbuds or earphones.

USB Mode

Press the 'Mode' button (Rem.23) on the remote control repeatedly to change into USB Mode. The party speaker display screen will show 'USB'.

The USB stick should be of up to 32GB and must be formatted in FAT32 before adding on your stick the audio files in supported formats MP3 or WAV.

Insert the USB stick into the USB Playback port (Ref.15) and the Majority P500 will automatically start playing audio from your stick.

Please note: The Majority P500 USB port cannot be used as a connection port with other devices as this is just for Playback.

Micro SD card (TF) Playback Mode

Press the 'Mode' button (Rem.23) on the remote control or the one on the unit (Ref.3) repeatedly to change the speaker mode in 'TF'. The text 'TF' will be displayed on the party speaker display.

The TF Card (Micro-SD Card) you can use should be of up to 32GB, which must be formatted in FAT32 before adding the audio files in supported formats MP3 or WAV.

Insert the Micro SD Card into its port (Ref.16) at the back of the speaker.

The Majority P500 will then start playing audio form your Micro-SD Card.

FM Radio

Press the 'MODE' button (Ref.3) on the unit or the one on the remote control

(Rem.23) repeatedly to change the speaker mode to 'FM Radio'. The text 'FM' will be displayed on the LCD screen of the speaker.

Press and hold the 'Play/Pause/TWS' Button on the unit (Ref.5) or the Play/Pause button on the remote control (Rem.26) for 2-3 seconds to start processing an automatic scan for the FM radio stations available at your location.

Once the search has been completed, the Majority P500 will automatically save all FM radio stations available at your location. The party speaker will then start playing the first radio station found.

Press the 'PREVIOUS' or 'NEXT' buttons to play the next or the previously stored FM radio station.

AUX-In Mode

The Majority P500 can be connected with an MP3 player, CD player, phone, tablet or any other similar device, using an AUX audio cable of 3.5mm (not included).

Insert one end of the audio cable of 3.5mm into the AUX-In port of the party speaker (Ref.14), and the other end into your audio source device's AUX output port.

Once connected, power on the party speaker, and change the Mode to AUX-In Mode by pressing repeatedly the 'Mode' button on the unit (Ref.3) or the one on the remote control (Rem.23), until the speaker's LCD screen displays 'AUX'.

You can now start playing audio from your device via the Majority P500 speaker.

Observation Potential Cause/Solution
No power/function	Ensure the speaker battery is fully charged.If there is no sign of life, try a full charge without the speaker being used. Check if the charging LED lights up and disconnect the speaker when the LED light goes off. Power the party speaker on right after.
No sound	Increase the volume using the rotary know on the speaker.If there is no sound when connected with other device, increase the volume level from your device also on the speaker.
Bluetooth not connecting	Ensure the Majority P500 is not paired with other devices and is set to Bluetooth Mode.Ensure your device has Bluetooth activated and search for 'Majority P500'. When you find the party speaker, connect to pair the devices. You will now be able to play audio via your party speaker.

Support

If you require further assistance with your Majority product, please contact our support team on the Majority website: www.majority.co.uk/support

Specification & Warranty

Specification

Power Supply DC5V
Bluetooth Version V 5.0
Bluetooth Operating Distance 10 Metres
Supported audio formats (TF,USB) MP3, WAV.
FM Frequency Range	FM 87.5-108MHZ
Micro SD card Use a Micro SD Card of up to 32GB
USB Playback Stick Use a USB stick size of up to 32 GB
Weight 6.1 Kg
Dimensions	41.3×31.9×60.3 CM

Warranty

Register your product within 30 days of purchase at www.majority.co.uk to activate your extended warranty. Terms and conditions apply.

Solid dark blue rectangle with no visible text, symbols, or features.

P500 Parteisprecher

Benutzerhandbuch

MAJORITY

Diagram of a portable air conditioner unit with labeled parts including front panel, rear panel, and control buttons

Vorderansicht

12 13 14 MAJORITY

Line drawing of a handheld microphone with a control panel (no text or symbols)

Line drawing of a handheld device labeled 'MAJORITY' with no visible text or symbols on the body

1. Strom EIN/AUS

Line drawing of a tripod stand with adjustable arms and legs (no text or symbols)

www.majority.co.uk/support

Line drawing of a handheld microphone with a control panel (no text or symbols)

Line drawing of a white majority microphone with control knob (no text or symbols)

1. Alimentation ON/OFF

Assistance technique

Dimensions 41.3×31.9×60.3 CM

Garantie

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a handheld device with a control panel (no text or symbols)

Line drawing of a handheld device labeled 'MAJORITY' with no visible text or symbols on the body

Line drawing of a mechanical tripod device with adjustable arms and legs (no text or symbols)

Diagram of a portable air conditioner unit with labeled parts including a fan, hose, and control panel

Vista frontal

12 13 14 MAJORITY

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a handheld microphone with control panel (no text or symbols)

Line drawing of a handheld device labeled 'MAJORITY' with no visible text or symbols on the body

1. Encendido/Apagado

Line drawing of a tripod-mounted mechanical device with adjustable arms and legs (no text or symbols)

EN Safety and Usage Guidelines (All where applicable)

General Safety Information - Read and Retain: Review all safety and operating instructions before use; keep them for future reference. Follow Instructions: Adhere strictly to all safety and operational guidelines. Water Exposure: Keep the device away from water; avoid placing liquids near it. Ventilation: Ensure ventilation openings are unobstructed to prevent overheating. Heat Sources: Keep the device away from heat-emitting appliances. Wall Mounting - Installation Safety: Follow the manufacturer's instructions and use approved mounting kits only. Avoid drilling into areas with cables, gas, or water lines. Use proper tools and safety apparatus. Regular Maintenance: Inspect regularly for wear or damage, especially if wall-mounted. Relocation: Detach from the wall mount before moving. Child Safety: Keep out of children's reach and ensure heavy items are securely mounted. Seismic Precautions: Use specialized mounts in earthquake-prone areas. Electrical Safety - Power Source: Use the specified power source; consult an electrician if unsure. Cable Management: Protect the power cord from damage. Power Disconnection: Keep the main plug accessible; unplug during storms or long periods of non-use. Battery Safety - Charging: Use the manufacturer's charger; avoid extreme conditions. Heat Exposure: Keep batteries away from heat to prevent explosion or leakage. Battery Condition: Discontinue use if the battery is damaged; dispose of it properly. Replacement: Only use recommended batteries; incorrect types can cause hazards. External Batteries: Use only specified types, observing correct polarity. Battery Removal: Remove batteries if not used for an extended period. Disposal: Follow local regulations for battery disposal; do not incinerate. Connectivity Safety - Cable Connections: Power off devices before connecting or disconnecting cables. Bluetooth Pairing: Ensure a secure connection; avoid interference from other devices. Volume Control: Keep volume moderate to prevent hearing damage. Connectivity and Data Security - Wireless Security: Review privacy policies and secure your network. Software Updates: Keep software updated for security and performance. Children's Safety Warnings - Product Use: Intended for adults; keep away from children. Battery Warning: Keep batteries and items containing batteries out of children's reach. Volume Control: Maintain a safe volume level to protect children's hearing. Fire Hazard - Flammable Materials: Do not place open flames near the product. Overheating: Avoid covering the product to prevent overheating and fire risks. Disposal and Recycling - Product Disposal: Dispose of at a recycling centre according to local laws. Environmental Compliance: Follow regulations for battery and electronic waste disposal. User Maintenance - Cleaning: Unplug before cleaning; use a dry cloth only. Servicing: Only qualified personnel should perform repairs. Data Protection: Reset to factory settings before returning or disposing of the product. Disclaimer: Failure to follow these instructions may result in injury, death, or property damage. The manufacturer is not liable for damage caused by improper use.

Declaration of Conformity:

We, Izilla Ltd, Newton House, 2 Pioneer Court, Histon, Cambridge, CB24 9PT declare under our sole responsibility that the product:

Product Name: P500 Party Speaker Model: 1000002993 Brand Name: Majority

To which this declaration referred is in conformity to the following harmonized standards or normative documents (CE & Rohs 2.0);

EN 55035:2017, EN 55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EEN62368-1:2004+A11:2017, ETSI EN 301 489-1 V2.2.3(2019-11), ETSI EN 301 489-17, V3.2.2(2019-12), ETSI EN 300 328 V2.2.2 (2019-07), EN 62479: 2010, IEC 62321-3-1:2013, IEC 62321-4:2013, IEC 62321-5:2013, IEC 62321-6:2015, IEC 62321-7-1:2015, IEC 62321-7-2:2017, IEC 62321-8:2017, (EC)NO 1275/2008,EN50564:2011, (EC)NO 801/2013.

Complying with the requirements or provisions of Council Directives which relate to:

EMC Directive 2014/30/EU, RED Directive 2014/53/EU, LVD Directive 2014/35/EU, Directive (2011/65/EU) and its amendment directives 2015/863/EU (RoHS 2.0) of the, European parliament, ERP Directive 2009/125/EC.

All essential test suites have been carried out.

Point of Contact: Eddie Latham | Founder

Signed:

Date of Issue: January 2024

Place of Issue: Cambridge, UK

Importer's Addresses:

UK: iZilla Ltd, Newton House, 2 Pioneer Court, Histon, Cambridge, CB249PT

Email: [e-mail]

EU RP: AR Experts, Po Box 5047, 3620 AA Breukelen, The Netherlands

Email: [e-mail]

US: iZilla Ltd C/O A.N.Deringer Inc, 19520 Wilmington Ave, Rancho

Dominguez, CA, 90220

Email: [e-mail]

ATTENTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION

RISQUE D'ELECTROCUTION NE PAS OUVRIR

IMPORTANT: Please read all instructions carefully before use and keep for future reference
