USER MANUAL SKSCH3601S SIGNATURE

Read these instructions thoroughly before installing and operating the hood.

SKSPH3602S

SKSPH4802S

TABLE OF CONTENTS

3 BEFORE YOU BEGIN

4 IMPORTANT SAFETY INSTRUCTIONS

7 PRODUCT SPECIFICATIONS

7 General Specifications

8 Dimensions

9 PRODUCT OVERVIEW

9 Parts
9 Accessories

10 PLANNING THE INSTALLATION

10 Cabinet Layout
11 Ducting Options
12 Ducting Calculation Sheet
13 Power Supply
13 Verify the Package Contents

14 INSTALLATION INSTRUCTIONS

14 Rotating the Blower
16 Mounting the Range Hood

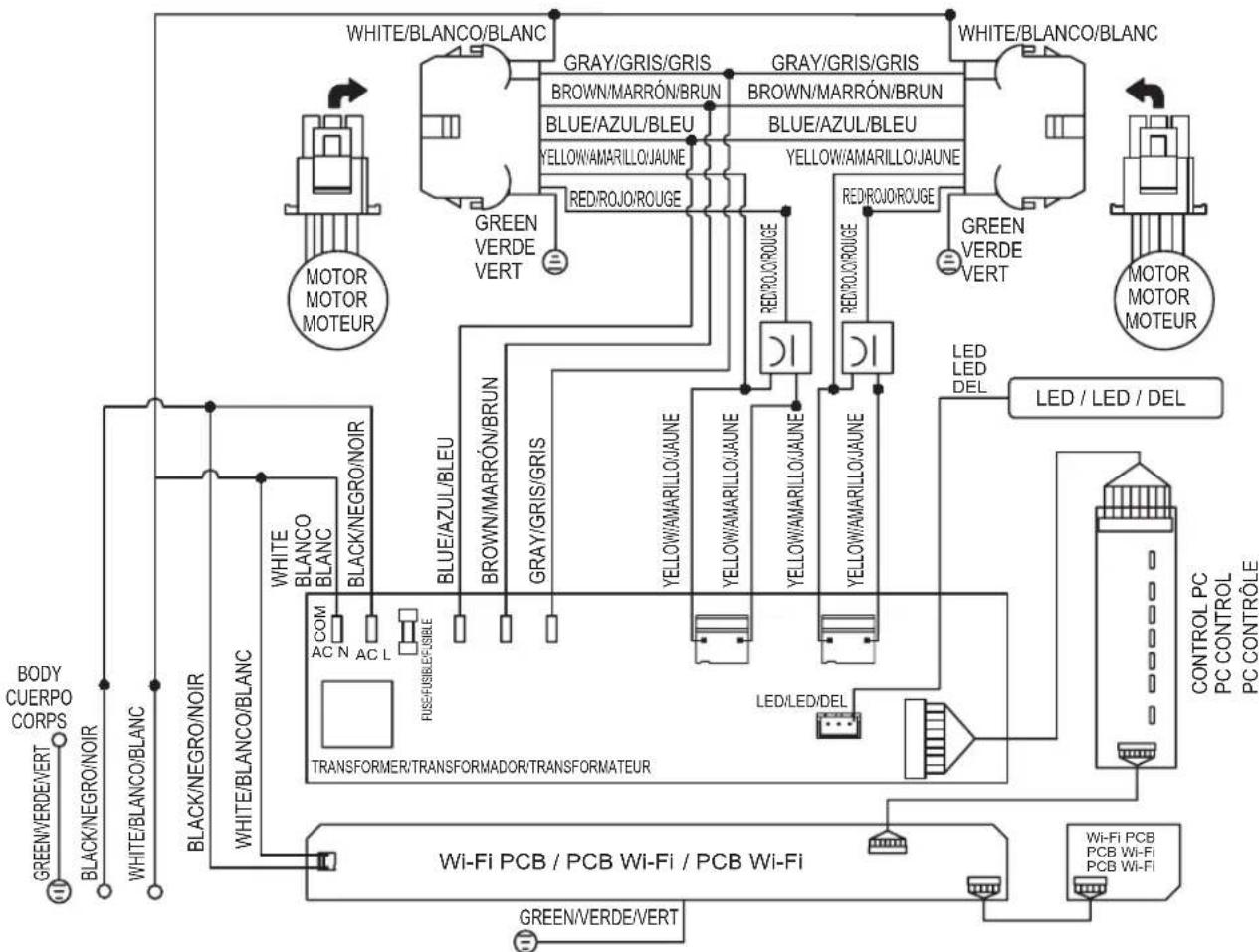

17 WIRING DIAGRAM

BEFORE YOU BEGIN

IMPORTANT:

• Installer: In the interest of safety and to minimize problems, read these installation instructions completely and carefully before you begin the installation process. Leave these installation instructions with the customer.
• Customer: Keep these installation instructions for future reference and the local electrical inspector's use.

APPLIANCE DATA PLATE

• The appliance data plate contains the model and serial number information and the electrical requirements.
• It is located inside the hood behind the filters on the back side of the chassis. Remove the filters to view it.

All specifications subject to change without notice. SIGNATURE KITCHEN SUITE assumes no liability for changes to specifications.

IMPORTANT SAFETY INSTRUCTIONS

Read and follow all instructions when using the range to prevent the risk of fire, electric shock, personal injury, or damage. This guide does not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand.

Download this owner's manual at: www/signaturekitchensuite.com

This is the safety alert symbol. This symbol alerts you to potential hazards that can result in property damage and/or serious bodily harm or death.

All safety messages will follow the safety alert symbol and either the word WARNING or CAUTION. These words mean:

WARNING - Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION - Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

WARNING

• To avoid the possibility of explosion or fire, do not store or use combustible, flammable or explosive vapors and liquids (such as gasoline) inside or in the vicinity of this or any other appliance. Also keep items that could explode, such as aerosol cans away from cooktop burners, ovens and range hoods. Do not store flammable or explosive materials in adjacent cabinets or areas.
• If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.
• Do not use an additional speed control device with this unit.
• To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.
• Your ventilator motor has a thermal overload which will automatically shut off the motor if it becomes overheated. The motor will restart when it cools down. If the motor continues to shut off and restart, have the product serviced.
• NOT SUITABLE FOR USE WITH SOLID-STATE SPEED CONTROLS.

• TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

• Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.

• Before servicing or cleaning unit, switch power off at service panel and lock the electrical panel door to prevent power from being switched on accidentally. When the electrical panel door cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

WARNING

- TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

• Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
• Sufficient air is needed for proper combustion and exhausting of gases through the flue(chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guidelines and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
• When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
  Ducted fans must always be vented to the outdoors.

CAUTION

For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.

GENERAL SAFETY PRECAUTIONS

To reduce the risk of fire, electric shock, serious injury or death when using the appliance, follow basic safety precautions, including the following:

WARNING

• Do not install or operate this hood if it has been damaged, dropped, has damaged electrical wires or is not working properly. If the product is damaged when received, immediately contact the dealer or builder.
• This range hood must be installed and grounded by a qualified installer according to these installation instructions.
• Install or locate this appliance only in accordance with these installation instructions and the requirements specified by the manufacturer of the cooktop or range. Improper installation, adjustment, alteration, service or maintenance can cause serious personal injury or property damage.
• The customer should not install, repair or replace any part of the range hood unless specifically recommended in the literature accompanying it. A qualified service technician should perform all other service.
• Keep all packaging materials away from children. Plastic bags can cause suffocation.
• Do not use an extension cord or adapter plug with this appliance.
• The installer must show the customer the location of the fuse box or circuit breaker panel box so that the customer knows where and how to turn the power off.
• Before installing or servicing the range hood, switch power off at the fuse box circuit breaker and lock the electrical panel door to prevent power from being switched on accidentally. When the electrical panel cannot be locked, securely fasten a prominent warning device, such as a tag, to the electrical panel.
• Read the owner's manual completely before using the appliance. Clean the appliance only as instructed in the owner's manual. Use only the cleaners specified.
• Do not tamper with the controls.

WARNING

• Never allow the filter(s) to become blocked or clogged. Do not allow foreign objects, such as cigarettes or napkins, to be sucked into the hood.
• Clean the filter(s) and all grease-laden surfaces often to prevent grease fires and maintain performance.
• If the cooktop and range hood are near a window, use an appropriate window treatment. Avoid long drapes or other window coverings that could blow over the cooktop and hood, resulting in a fire hazard.
• Always run the fan(s) whenever the cooktop is operating.
• Never leave the range or cooktop unattended when a burner (or element) is in use. Boil-overs and greasy spills may smoke and/or ignite.
• Do not leave children alone or unattended in the area where the cooktop and range hood are in use. Never allow children to sit or stand on an appliance. Do not let children play with a range, cooktop or range hood. Do not store items of interest to children above or around the cooktop, range or range hood.
• The minimum vertical distance between the cooktop surface and the exterior part of the hood must be no less than 26'' (66 cm). The vertical distance required may be longer for the range or cooktop being used. Consult the range or cooktop installation instructions for the minimum and maximum vertical distance from the appliance being used.
• TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCT WORK.

PRODUCT SPECIFICATIONS

General Specifications

All Models

Fan Speeds 5
Filters Baffle type, dishwasher safe
Total Connect Load 120 VAC, 60 Hz, 4 Amp.
Lights 120 VAC, 8 W LED light strip

Model Specific

Model Number SKSPH4802S SKSPH3602S
Filters 4 3

Weight Specifications

Model Number Weight
SKSPH4802S 71 lb. (32.5 kg)
SKSPH3602S 60 lb. (27.2 kg)

Dimensions

Tolerances: +1 / 16^ -0 (1.6 mm, -0), unless otherwise stated.

NOTE

The exhaust duct(s) and electrical wiring can be connected from either the top or the back of the hood.

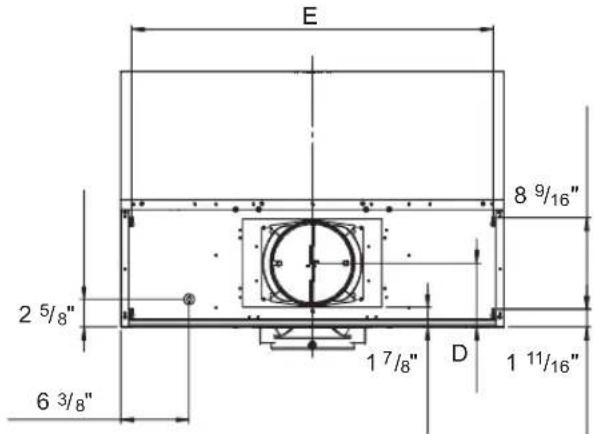

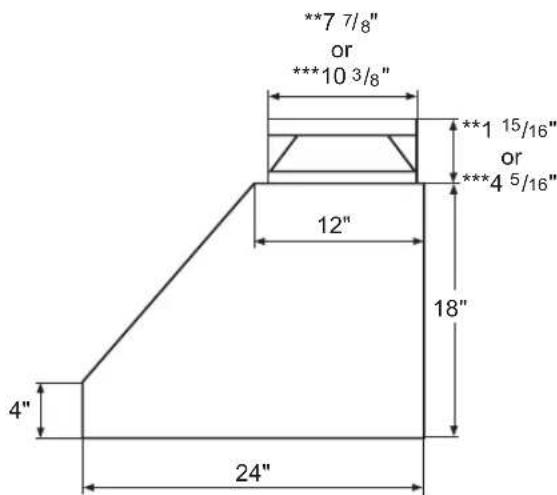

Top Dimensions Side Dimensions

• Single Blower Rect. Ducting Dimension
  Single Blower Round Ducting Dimension
  * Dual Blower Dimension

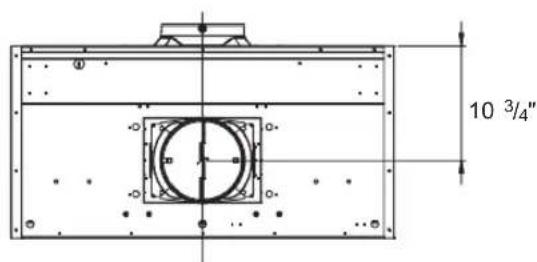

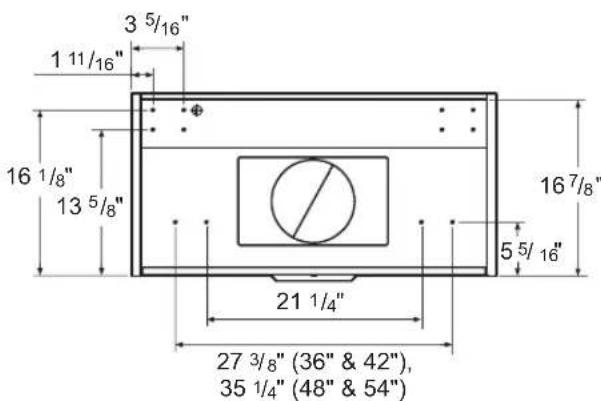

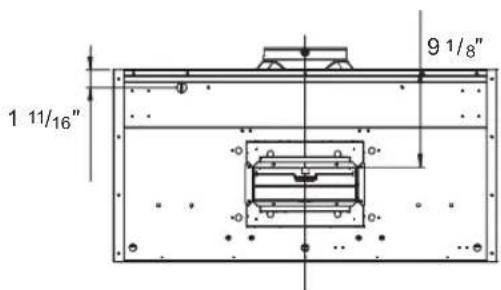

Back Dimensions

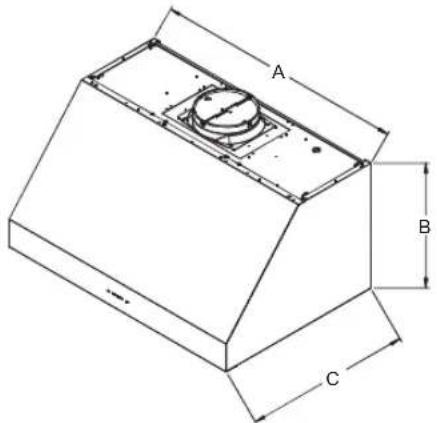

Overall Dimensions

Model A B	C D E
SKSPH4802S	48"	18" 24"	6"		45 7/8"
SKSPH3602S	36" 33				7/8"

PRODUCT OVERVIEW

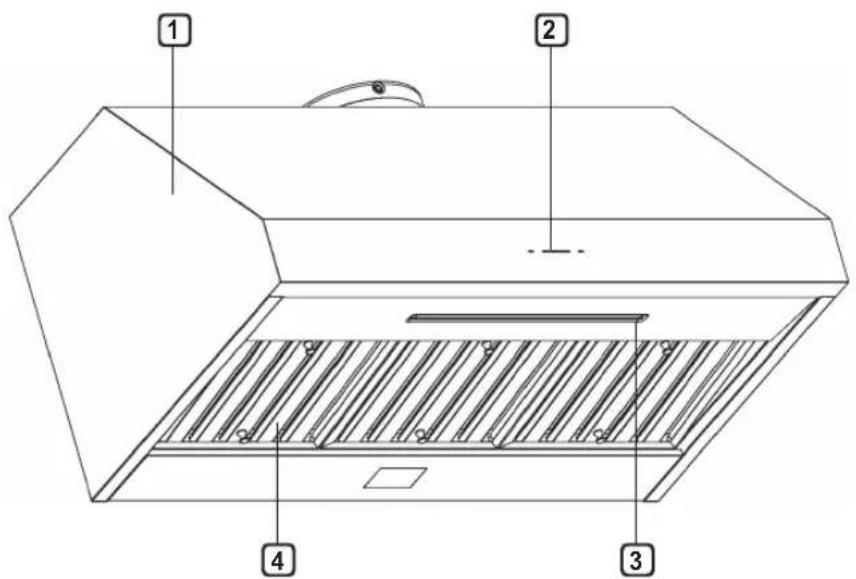

Parts

Included Accessories

8" round collar Top cover plate 3 1/4"x10"

rectangular duct collar

M6×1"（4）M6×1-1/2"(4)M6×2"(4)M3.5×8(4)

3/16 x 3/8 (4) Wire Caps (3) Washers (4)

PLANNING THE INSTALLATION

WARNING

Observe all governing codes and ordinances during planning and installation. Contact your local building department for further information. Use only duct work deemed acceptable by state, municipal and local codes.

Cabinet Layout

WARNING

To reduce the risk of personal injury caused by reaching over a hot appliance, cabinet storage space located directly above the range should be avoided.

Minimum Cabinet Width

Models Width
SKSPH4802S 48"	(121.9 cm)
SKSPH3602S 36"	(91.5 cm)

Ducting

A minimum of 8^ round or 3 - 1 / 4''× 10'' rectangular duct must be used to maintain maximum air flow efficiency for single blower and 10^ round duct for dual blower.

Always use rigid metal ducts only. Flexible ducts could restrict air flow by up to 50% .

Also use calculation (on page 12) to compute total available duct run when using elbows, transitions and caps.

ALWAYS, when possible, reduce the number of transitions and turns. If long duct run is required, increase duct size from 8^ to 10^ .

If turns or transitions are required, install as far away from hood duct output and as far apart as possible.

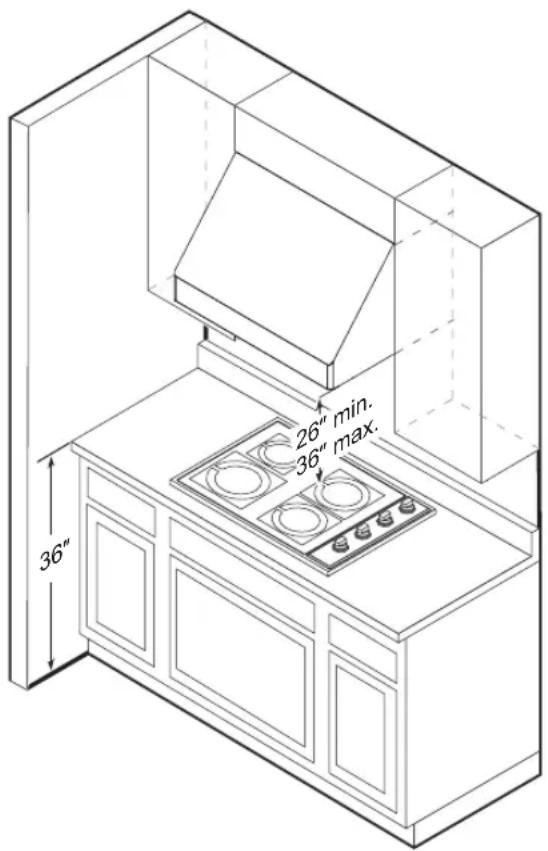

Minimum mount height between range top to hood bottom should be no less than 26^

Maximum mount height should be no higher than 36".

It is important to install the hood at the proper mounting height. Mounting the hood too low could result in heat damage and fire hazard. Mounting the hood too high will make it hard to reach and reduce its performance and efficiency.

If available, also refer to the range manufacturer's height clearance requirements and recommended hood mounting height above range.

Vertical Ducting:

• 8" round minimum (single blower)
• 10^ round minimum (dual blower)

Horizontal Ducting:

• 3 - 1 / 4'' × 10'' minimum (single blower)
• 8'' round minimum (single blower)
• 10^ round minimum (dual blower)

CAUTION

DAMAGE DURING SHIPPING / INSTALLATION:

• Please fully inspect unit for damage before installation.
• If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or replacement.
• If the unit is damaged by the customer, repair or replacement is the responsibility of the customer.
• If the unit is damaged by the installer (if other than the customer), repair or replacement must be made by arrangement between customer and installer.

Ducting Options

WARNING

Fire Hazard

• NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages.
• All exhaust must be ducted to the outside.
• Use metal ductwork only.
• Fasten all connections with sheet metal screws and tape all joints with certified Silver Tape or Duct Tape.

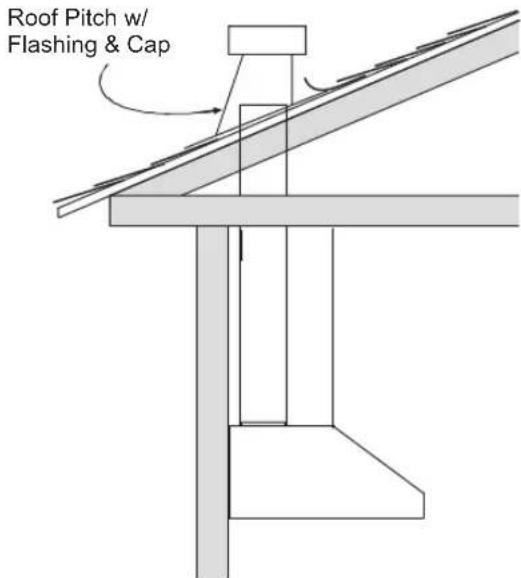

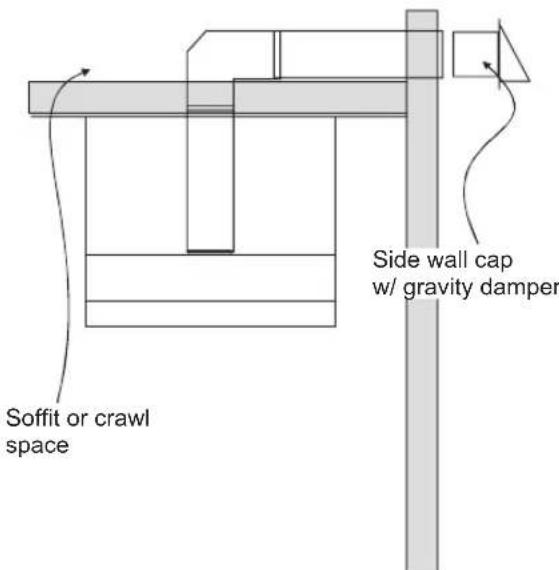

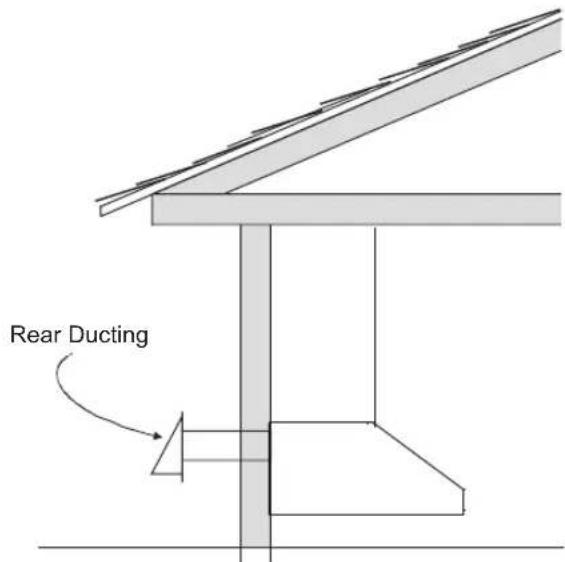

Sample Ducting Options

Ducting Calculation Sheet

Duct pieces		Equivalent length x number used =	Total
	3-1/4" x 10" Rect., straight	1 Ft. x () = Ft.
	6" Round, straight	1 Ft. x () = Ft.
	7"-10" Round, straight	1 Ft. x () = Ft.
	3-1/4" x 10" Rect.90° elbow	15 Ft. x () = Ft.
	3-1/4" x 10" Rect.45° elbow	9 Ft. x () = Ft.
	3-1/4" x 10" Rect.90° flat elbow	24 Ft. x () = Ft.
	3-1/4" x 10" Rect. wall cap with damper	30 Ft. x () = Ft.
	3-1/4" x 10" Rect.to 6" round transition	5 Ft. x () = Ft.
	3-1/4" x 10" Rect.to 6" round transition 90° elbow	20 Ft. x () = Ft.
	6" Round, 90° elbow	15 Ft. x () = Ft.
	6" Round, 45° elbow	9 Ft. x () = Ft.
Subtotal column 1 = Ft.

Duct pieces		Equivalent length x number used =	Total
	6" Round wall cap with damper	30 Ft. x ( ) = Ft.
	6" Round, roof cap	30 Ft. x ( ) = Ft.
	6" round to 3-1/4" x 10" rect. transition	1 Ft. x ( ) = Ft.
	6" round to 3-1/4" x 10" rect. transition 90° elbow	16 Ft. x ( ) = Ft.
	7" - 10" Round, 90° elbow	15 Ft. x ( ) = Ft.
	7" - 10" Round, 45° elbow	9 Ft. x ( ) = Ft.
	7" - 10" Round wall cap with damper	30 Ft. x ( ) = Ft.
	7" - 10" Round, roof cap	30 Ft. x ( ) = Ft.
	7" round to 3-1/4" x 10" rect. transition	8 Ft. x ( ) = Ft.
	7" round to 3-1/4" x 10" rect. transition 90° elbow	23 Ft. x ( ) = Ft.
Subtotal column 2 = Ft.
Subtotal column 1 = Ft.
Total ductwork = Ft.

Maximum Duct Length: For satisfactory air movement, the total duct length should not exceed 100 equivalent feet.

Ductwork Design Tips

Wherever possible, reduce the number of transitions and turns to as few sharp angles as possible. Two staggered 45^ angles are better than one 90^ .

Keep turns as far away from the hood exhaust as possible, and allow as much space between bends as possible.

For best performance, use round ducts instead of rectangular, especially when elbows are required.

If multiple elbows are used, try to keep a minimum of 24" of straight duct between them.

Avoid "S" or "back to back" use of adjacent elbows.

In regions where the weather gets extremely cold, use thermal breaks, such as a short section of nonmetallic duct, to avoid indoor heat loss. Locate the break as close as possible to the outside pass-through point.

Do not use flexible metal duct.

Do not use ductwork that is smaller in cross-sectional area than the recommended types above.

Power Supply

WARNING

• The information in this manual should be followed exactly. Failure to do so could result in fire or electrical shock, causing property damage, personal injury or death.
• All electrical work must be performed by qualified electrician or person with similar technical knowledge and background.
• For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use extension cord or adapter plug with this appliance.
• Follow national electrical codes or prevailing local codes and ordinances.

Electrical Supply

This appliance requires a 120V 60Hz electrical supply, and must be connected to an individual, properly grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire w/ ground. Please also refer to the Electrical Diagram label on product.

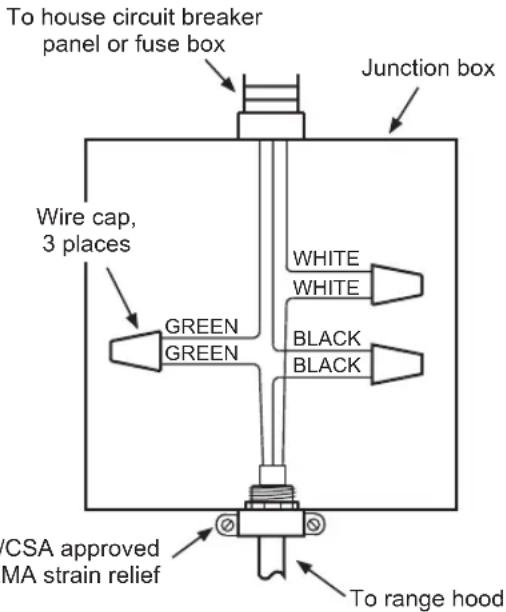

3 Wire Connection to Junction Box

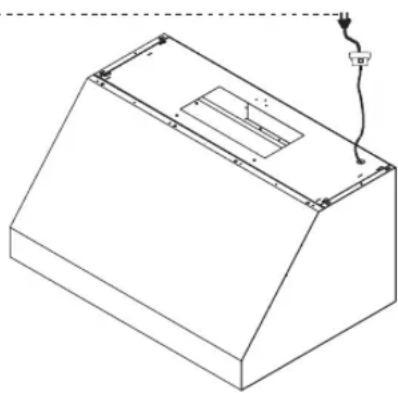

Cable Lock

A cable locking connector (not supplied) might also be required by local codes. Check with local requirements and codes, and purchase and install appropriate connector if necessary.

Verify the Package Contents

Unpack the parts box and verify that all parts and accessories have been included. If any item is missing or damaged, please contact the dealer immediately. Do not install a damaged or incomplete appliance.

Make sure you have everything necessary for proper installation before proceeding.

INSTALLATION INSTRUCTIONS

WARNING

• Do not install the range hood unless the electrical service provided meets the range hood specifications.
• Observe all governing codes and ordinances during installation. Contact your local building department for further information.
• A qualified technician must complete the installation of this built-in appliance. More than one person is required to raise the hood into place. The owner is responsible to make sure the hood is properly installed.

1 Start by removing the baffle filters from the bottom of the hood. Put them in a safe location so that they will not be damaged.
2 If the hood will be installed so that air will exhaust out of the back, the blowers must be rotated into the correct position before hanging the hood.

Rotating the Blower

This range hood is equipped standard with a 8" round vertical duct option. To convert from 8" round vertical to 8" round horizontal ducting or 3 - 1 / 4'' × 10'' rectangular horizontal ducting please following the instructions below.

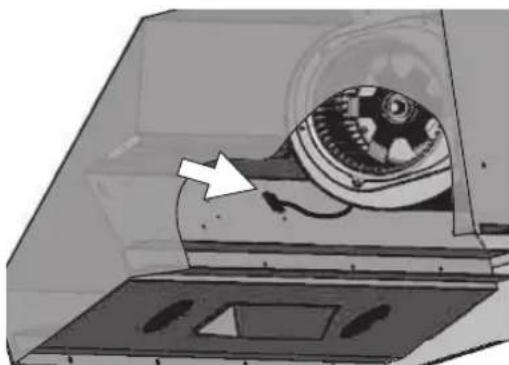

Vertical to Horizontal Ducting Conversion

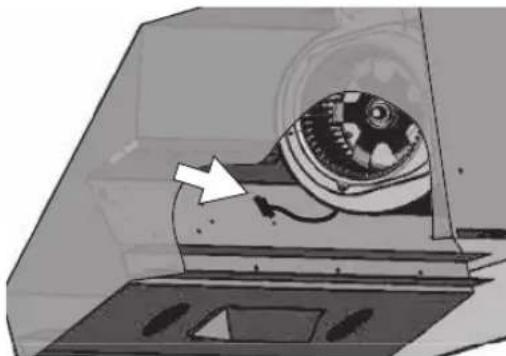

1 Disconnect the blower plug.

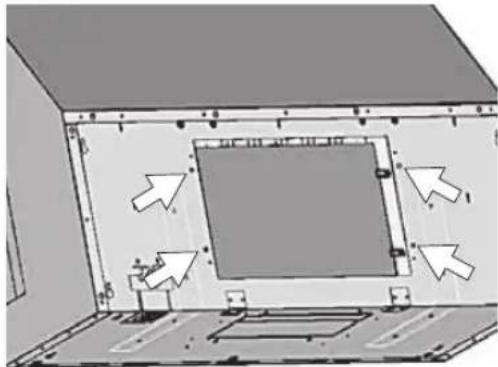

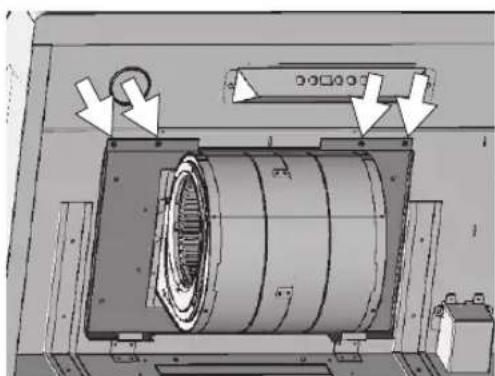

2 Remove the 4 screws on the interior of the hood body which attach the single blower plate to the top of the hood body. Remove the single blower and blower plate.

3 At the back, knock out plate B for rectangular ducting, or plate C for 8-inch round ducting.

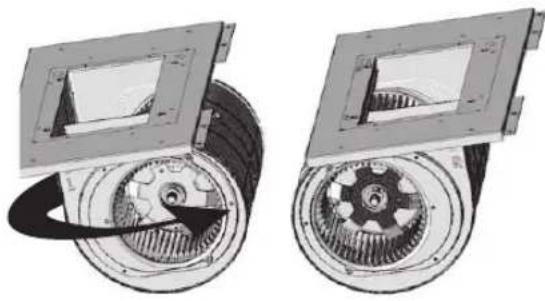

4 Remove the 4 screws holding the blower to the blower plate. Turn the blower 180 degrees and reattach it to the blower plate.

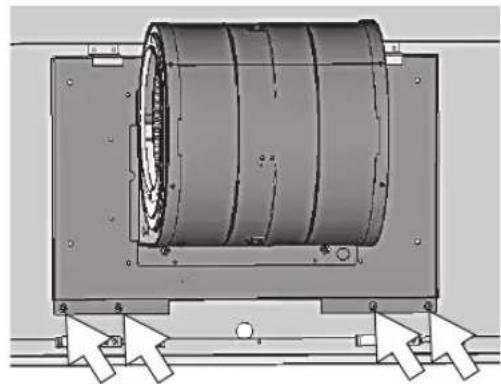

5 Position the single blower and blower plate as shown, tucking the back of the blower plate into the tabs at the back of the hood. Secure the blower plate using the 4 screws removed in step 2.

6 Attach an 8" round duct collar or 31/4'' × 10'' rectangular duct collar to the back of the hood body using four M3.5 x 8 screws.

7 From inside the hood body, align the top cover plate to the top of the hood body. Attach the top cover plate from the outside of the hood, using four 3/16'' × 3/8'' screws.

8 Connect the blower plug.

Mounting the Range Hood

CAUTION

• At least two installers are required due to the weight and size of the hood.

1 Select the preferred ducting application (vertical or horizontal) and prepare the hood. Refer to page 14 for single blower horizontal ducting.
2 Plumb and mark center line.

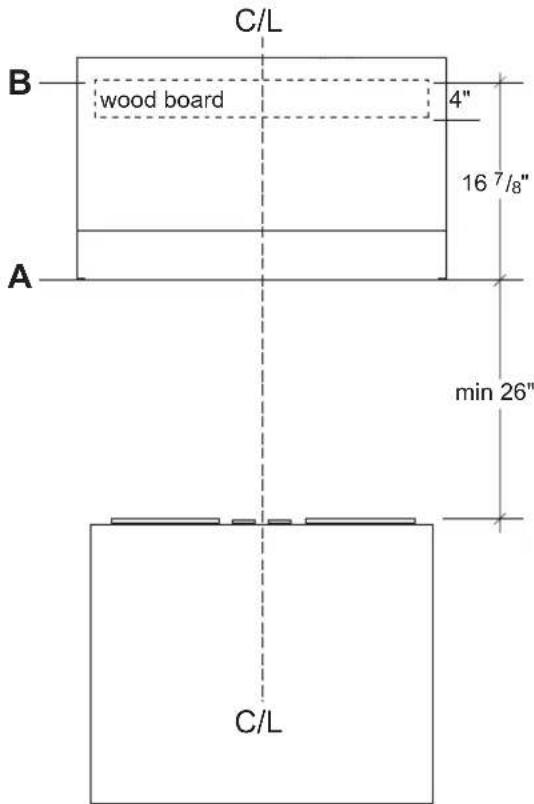

3 Choose the desired height above the cooking surface (26" minimum). Level and mark the hood bottom (line A in Fig. 1).
4 Level and mark the top of the wood board (line B in Fig. 1), 16 7/8" from line A.
5 Draw a center line on the wood board as shown. Align the center of the board with the center line on the wall and align the top of the board with line B. Attach the board to the wall studs using four M6 wood screws.

Wood Board Dimensions: (W × D × H)

SKSPH3602S - 33" x 1/2" x 4"

SKSPH4802S - 45" x 1/2" x 4"

6 Prepare the duct pipe and duct cutouts in the upper cabinet if needed, or in the wall if ducting the hood horizontally. Refer to the hood specifications on page 8 for duct cutout dimensions.
7 Prepare the electrical wiring and electrical cutouts in the upper cabinet if needed, or in the wall if horizontal electrical hook up is required. Refer to the hood specifications on page 8 for electrical cutout dimensions.
8 Mount the hood onto the wood board and secure it using four M6 wood screws.
9 Insert two M6 wood screws into the wall through the screw holes in the lower body. See Fig. 2 for dimensions between screw holes.

10 Install the electrical connection.
11 Install the ductwork and seal it with certified aluminum duct tape.
12 Power up the hood and check for leaks around the duct tape.
13 Install the baffle filters.

FIG. 1

FIG. 2

WARNING

• Electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards.
• This range hood must be properly grounded. Turn off electrical power at main power supply before wiring.

WIRING DIAGRAM

Models Volts HZ MAX Amps
SKSPH4802S	120 60		Single Motor 4
SKSPH3602S			Dual Motor 7

REMARKS: CONDENSER 11+11μF 250 VAC * 2 FIT AC 120 V 60 Hz OBSERVACIONES: CONDENSADOR 11+11μF 250 VCA * 2 AJUSTE CA 120 V 60 Hz NOTES: CONDENSATEUR 11+11μF 250 VAC * 2 FIT AC 120 V 60 Hz

MEMO

SIGNATURE

KITCHENSUITE

No utility conducts de metal flexible.

7 CARACTERISTIQUES DU PRODUIT

CARACTERISTIQUES DU PRODUIT

Fourniture electrique

Customer Information Center

1-855-790-6655 USA

1-888-289-2802 CANADA

Register your product Online!

www/signaturekitchensuite.com
