USER MANUAL KTB 3619 IN Koenic

Close-up of a person's face showing a hairpin being adjusted for the nose, with red arrows indicating the adjustment area (no text or symbols present)

Close-up of a black textured object with red arrows pointing to features, no visible text or symbols

Two black plastic containers with a red arrow pointing to one, no visible text or symbols

Intron GmbH Savonetrale 1 85046 Insgeldel Germany Savonetoren Savonet (in. redacted)

KOENIC

Body Trimmer wet & dry

C. Cauwachstung 10. Los raniol 11. Sanad de lausca 23. Raje farrada 14. Kralz, gag 15. Bierer af lekts 16. Sanad deliress 17. Cauwassrejcing 18. Stryckpohing 19. Sanad de lausca 20. Kralz, wirk 11. Gafri kallows

KONIC KONIC

Davon 3-7 Ergen 9-10 Espino 13-17 Igano 20-21 Elvaro 23-25 Fogor 26-30 Italano 33-37 Lilu 38-40 Kanjus 10-12 Saroka 28-27 Tara 40-41

RKT30615N 180916 V04 HRndb 116919 1225pn

Product photo of a hairbrush and scanner kit with labeled parts (no text or symbols visible)

Close-up of a plug inserted into a battery pack, with a red arrow pointing to the plug (no visible text or symbols)

Close-up of a device with a lit fuse and black cylindrical components (no visible text or symbols)

Close-up of a black cylindrical object with a circular hole and red arrow pointing to it (no text or symbols visible)

IR KT30615N 180916 104 HRndb 216915 1225pm

Sicherheitshinweise

Warning! Do not use the induction charger (storage box) in the vicinity of

water or high levels of humidity, for example in a damp cellar or close to a swimming pool or bathtub.

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have been instructed concerning use of the product in a safe way and understand the hazards involved.

• Children shall not play with the product.

- Cleaning and user maintenance shall not be carried out by children unless they are supervised.

- Warning! Keep the induction charger (storage box) dry.

- Only use the provided induction charger (storage box) to charge the product.

Safety instructions

1. Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.
2. Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.
3. Never leave the product unsupervised while it is switched on.
4. Never immerse the storage box (induction charger) in water during cleaning or operation. Never hold the product under running water.
5. Do not under any circumstances attempt (e.g. damage in power cord, product has been dropped, etc.) to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
6. Use this product in indoor areas only and never outdoors.
7. Never use, expose or put the product near to:
8. direct sunlight and dust;
9. fire (fireplace, grill, candles), water (water splashes, vases, ponds, bath tube) or heavy moisture (this is applicable, for all non-water proof components).
10. This product is not intended for commercial use. It is designed for household use only.
11. Clean the product and all other accessories after each use.
12. Follow the instructions in the chapter Cleaning and care.
13. The shaver is suitable for being cleaned under running water.
14. Attention! The handheld part must be disconnected from the connection line before being cleaned with water.

Battery

1. Never expose rechargeable batteries to excessive heat (e.g. bright sun, fire), and never throw them into fire. The rechargeable batteries could explode.
2. The rechargeable battery is permanently built into the product and cannot be replaced.
3. When disposing the product, please consult an electrician or your retailer to remove and dispose the built-in batteries in an environmentally friendly manner.
4. Never short-circuit the contacts of the rechargeable battery. Do not throw the rechargeable battery or the product into fire. There is a danger of fire and explosion!
5. Never charge the rechargeable battery of the product unattended.

English

Congratulations!

Thank you for your purchase of KOENIC product Please read this manual carefully and keep it for future reference.

Intended use

This product is only suitable for trimming body hairs, with or without shaving cream, as well as for trimming beards and sideburns.

Any other use may result in damage to product or injuries. This product is not intended for commercial use. It is designed for household use only.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.

Before first time use

Remove the product and accessories carefully from the original packaging. Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

Note

• For first time use, charge the product for at least 6 hours. The general charging time is about 6 hours which also depends on the condition of the battery.
• When the battery is fully charged, the product can be used for 60 minutes. The time may vary (depending on the battery condition).

Disposal

Do not dispose of this product as municipal waste. Return it to a designated collection point for the recycling of electrical and electronic equipment. Contact your retailer

or local authorities for more information.

Please dispose of batteries in an environmentally friendly manner Do not put batteries into the household waste.

Please use the return and collection systems in your community or contact the dealer where you purchased the product.

Content

1 x Body Trimmer
1 x USB cord
2 x Replacement trimmer head
3 x Trimmer combs
1 x Cleaning brush
1 x Storage box with induction charger
1 x User manual

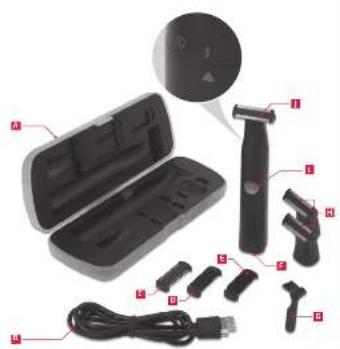

Controls and Components

A Storage box with induction charger
B USB cable
c Trimmer attachment 1.5 mm
D Trimmer attachment 3 mm
E Trimmer attachment 5 mm
F Charging indicator light
G Cleaning brush
H Replacement trimmer head (x2)
On/Off button
J Shaving head

Technical Data

Shaver

Battery operated: 3.7 V ---

Rated input voltage/ :5 V =1-A

current

IP code : IPX7

Re-chargeable battery : Li-Ion, 3.7 V 600 mAh

Charger

USB:5V

IP code: IPX0

English

Preparation

Fig. 1 Connect the USB cable with USB charger and the USB socket of the storage box. Put the trimmer into the box.

Fig. 2 During charging the indicator keeps flashing. The charging indicator will shine constantly when the battery is fully charged. Charge the battery for at least 6 hours before first use. The USB cable can remain plugged in so the battery is always charged when the body trimmer is inserted into the storage box.

Low battery warning:

When the battery is less than 10% the indicator light keeps on flashing.

Operation

Fig. 3 Switch on the hair trimmer

• Switch on the device by pressing the on/off button.
• To switch off the device press the on/off button again.

Fig. 4 Hair / beard trim and cut

Note

Do not use the product with:

-Skin wounds
-Inflamed skin
-Sunburn
-Pimples and blisters
The hair to be cut should be clean. Longer hair should be shortened before using the hair clipper.

1. Choose a trimmer attachment (1.5 mm, 3 mm, 5 mm), depending on the desired hair or beard length and put it on the shaving head until it clicks into place.
2. Follow the point Switch on hair trimmer.
3. If necessary shorten the hair gradually.
4. Guide the hair trimmer slowly through the hair. Hold the hair and beard trimmer in such a way that the trimmer attachment rests as flat as possible.

Note

Depending on the position and angle of the trimmer, the cutting lengths may differ.

1. Without a trimmer attachment hair can be completely cut off.

Body trimmer

Fig. 5 Remove trimmer attachment

1. Use moderate force to pull off the trimmer attachment with your thumb and forefinger.
2. Remove the trimmer attachment.
3. Without trimmer attachment the hair is shaved down to the skin.

Shaving legs

• Hold the trimmer in such a way that the long hair trimmer and the shaving blade touch the skin with the same amount of pressure.
• Slowly guide the trimmer along the skin in the opposite direction of the hair growth, applying a slight pressure.

Shaving armpits

• It is particularly important that the skin is tautened. This can easily be achieved in the armpit area by holding the arm high above the head.
• Armpit hair grows in different directions. For this reason it is necessary to shave several times and in different directions in this area.

Trimming bikini area

• To trim the hair to a specific length, you can use a trimming attachment.

English

- Slowly guide the device with the trimmer in the opposite direction of the hair growth.

Wet shaving

• Wetting your skin and apply thin layer shaving foam to the parts which shall be shaved.
  • Follow steps as given above in chapter Shaving.

Note

Only proper shaving foam may be used with the razor, as shaving gel will gum up the shaving head and impair the result.

Cleaning and care

Warning

When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).

Fig. 6

• After every use, please use the cleaning brush to thoroughly brush and blow out hair.
- Danger! Be carefully when removing and inserting the shaving head to avoid injury.
- Clean the outside of the product with a slightly damp cloth and dry well.
- Remove the shaving head by turning it to the left (as seen from above). Take it off.
- Clean the shaving head and the holder with the provided brush. If necessary, blow out the corresponding parts.
- Put the shaving head back on the holder so that both arrows are aligned and lock it by turning it to the right (seen from above).
• The shaver is suitable for being cleaned under running water
- Keep the product in a dry, cool location which is protected against moisture and direct sunlight. Keep this product out of the reach of children.

Troubleshooting

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your manufacturer.

Problem Possible causes Solution
Product does not work • Inter	upted power supplyBatteries empty	Check the power supplyRe-charge batteries
LED indicator does not light on during charging batteries	No power supplyCharging cord is not connected to product	Check the power supplyCheck the charging cord connection
Shaving head not moving smoothly	Impurities accumulated on the shaving head	Clean the shaving head
