USER MANUAL DEH1080A MSW

Two views of a portable industrial cart with wheels and labeled parts (no text or symbols visible)

Two views of an orange industrial machine with handles and labeled parts (no text or symbols visible)

1. Transportgriff

Illustration of a portable industrial machine with wheels and a small box nearby (no text or symbols)

Illustration of a portable air conditioner unit with attached fan and solar panel (no text or symbols)

Parameter description	Parameter value
Product name AIR DEFUMIDIFFR
Model	MSW-DEH1080A	MSW-DEH580B	MSW-DEH1080C	MSW-DEH2000C
Rated voltage [V-1] / Frequency [Hz]	230/50
Rated power [W] 650
Rated current [A] 2,8
Protection class I
Protection rating IP	IPXO
Dimensions [mm]	438x533x745	500x530x370	435x667x942	423x650x842
Weight [kg]	34,5/37,6	36,85/34,15	34,5/37,6	34,1/36,85
Water reservoir capacity (L)	5,69
Refrigerant type/ amount [g]	R290/230
Area of application [m2]	50-80 50	70-50	80-50-70
Application temperature [°C]	5-36
Air circulation speed [m3/h]	596-570	596-560
Dehumidifying capacity [L/24h]	43,228,7(27oC,80%RH) 51(30°C,60%RH)	3528,7(27oC,80%RH)51(30°C,60%RH)	43,228,7(27oC,80%RH)51(30°C,60%RH)	43,228,7(27oC,80%RH) 51(30°C,60%RH)
Timer √ √ √ √
Defrost function √ √ √
Acoustic pressure level LpA [dB(A)]	≤52
Maximum suction/exhaust side working pressure [MPa]	3,2/0.7
Heat exchanger maximum allowable pressure [MPa]	3.2

Humidity setting

range [% RH]

20-90 (default setting: 50)

1. GENERAL DESCRIPTION

The user manual is designed to assist in the sale and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

LEGEND

CE	The product satisfies the relevant safety standards.
	Read instructions before use.
	The product must be recycled.
	WARNING! or CAUTION! or REMEMBER! Applicable to the given situation (general warning sign).
	ATTENTION! Electric shock warning!
	ATTENTION! Fire hazard - flammable materials!
	ATTENTION! Hot surface, risk of burns!
	Only use indoors.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

The original operation manual is written in German. Other language versions are translations from the German.

2. USAGE SAFETY

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to AIR DEHUMIDIFIER.

Do not use in the direct vicinity of water tanks. Prevent the device from getting wet. Risk of electric shock! Do not cover air inlets / outlets! Do not put your hands or other items inside the device while it is in use! Do not cover the ventilation openings!

2.1.ELECTRICAL SAFETY

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.

b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a clamp environment. Water getting into the device increases the risk of damage to the device and of electric shock.

c) Do not touch the device with wet or damp hands. d) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.

c) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.

f) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.

g) ATTENTION! DANGER TO LIFE! While cleaning, never immerse the device in water or other liquids.

2.2. SAFETY IN THE WORKPLACE

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.

b) Do not use the device in a potentially explosive environment, for example in the presence of flammable liquids, gases or dust. The device generates sparks which may ignite dust or fumes.

c) If you discover damage or irregular operation, immediately switch the device off and report it to a supervisor without delay.

d) If there are any doubts as to the correct operation of the device, contact the manufacturer's support service.

c) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently! f) In case of fire, use a powder or carbon dioxide (CO2) fire extinguisher (one intended for use on live electrical devices) to put it out.

g) Children or unauthorised persons are forbidden to enter a work station. (A distraction may result in loss of control over the device).

h) Use the device in a well-ventilated space

i) Regularly inspect the condition of the safety labels. If the labels are illegible, they must be replaced.

j) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.

k) Keep packaging elements and small assembly parts in a place not available to children.

(i) Keep the device away from children and animals. (ii) If this device is used together with another equipment, the remaining instructions for use shall also be followed.

REMEMBER! When using the device, protect children and other bystanders.

2.3. PERSONAL SAFETY

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.

b) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.

c) The device can be handled only by physically fit persons who are capable of handling it, properly trained, familiar with this manual and trained within the scope of occupational health and safety.

d) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries.

c) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.

f) The device is not a toy. Children must be supervised to ensure that they do not play with the device.

g) The device contains a flammable gas (R290) - it should be stored in a well-ventilated place, where there is no open fire or gas appliances and electric heaters in use!

2.4.SAFE DEVICE USE

(a) Do not overload the device. Use the appropriate tools for the given task. A correctly selected device will perform the task for which it was designed better and in a safer manner.

b) Do not use the device if the ON/OFF switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.

c) Disconnect the device from the power supply before commencement of adjustment, cleaning and maintenance. Such a preventive measure reduces the risk of accidental activation.

d) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.

e) Keep the device in perfect technical condition. Before each use check for general damage and especially check for cracked parts or elements and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.

f) Keep the device out of the reach of children.

g) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.

h) To ensure the operational integrity of the device, do not remove factory fitted guards and do not loosen any screws.

When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.

j) Do not touch articulated parts or accessories unless the device has been disconnected from the power source.

k) Do not move, adjust or rotate the device in the course of work.

I) Do not leave this appliance unattended while it is in use.

m) Clean the device regularly to prevent stubborn grime from accumulating.

n) Do not cover the air intake and outlet.

o) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.

p) Do not run the device when empty.

q) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.

r) Keep the device away from sources of fire and heat. s) If the device has been tipped more than 45°, allow it to sit upright for at least 24 hours before use.

t) Inspection and maintenance of the refrigerant system must be carried out by a qualified person only.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

1. USE GUIDELINES

The device is designed to dehumidify the air in a room, protecting it and objects inside against the negative effects of moisture.

The user is liable for any damage resulting from unintended use of the device.

3.1. DEVICE DESCRIPTION MSW DEH1080A (MSW DEH1080C/ MSW DEH2000C similar

Two views of a gray industrial cart with numbered components, shown from front and side (no text or symbols visible)

1. Air inlet openings
2. Control panel with a display
3. Carrying handle
4. Legs
5. Wheel (x2)
6. Air outlet openings
7. Mounting for a power cord

MSW-DEH580B

Illustration of two orange industrial equipment units with numbered labels (1-6), no visible text or symbols on the devices themselves.

1. Carrying handle

2. Housing

3. Control panel with a display

4. Air inlet openings

5. Wheel (x1)

6. Air outlet openings

MSW® IN. DRY AUTO ADD MINUS SET POWER

1. ON/OFF button

2. ON/OFF button

3. Timer on/off buttons

4. Timer or/ou button

5. Value decreasing button

6. Value decreasing button 4. Value increasing button

7. Value increasing button

8. ON/OFF button of continuous poly-implification

9. ON/OFF button of continuous dehumidic

10. ON/OFF button of internal drying function

DEHUMIDIFIER F: ON T: ON HV: THP LOW: THP DEHALM BEATH PRET CACT NET CURRENT 88 °C 88 °C 88 % POT *

The display shows the following parameters:

• The current indoor air humidity ("CURRENT...")

- Setting the target indoor air humidity ("SET ..%")

• Cleaning indicator ("CLEAN")

- Indicator for removing accumulated water ("DRAIN")

- Driver operation ("DEHUM") with visual signal

- Indoor temperature ("ROOM TEMP - oC") or of the

pipes ("PIPE TEMP...oC")

- Timer setting (time to turn the device on - "T ON" / time to turn the device off - "T OFF"; operation time '... H')

• defrost indicator

3.2. PREPARING FOR USE

APPLIANCE LOCATION

The temperature of environment must not be higher than 38°C and the relative humidity should be less than 95%. Ensure good ventilation in the room in which the device is being used. There should be at least 50 cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label. Do not use or store the device in rooms smaller than 12 m ^2 . If there are windows or doors in the room, they must be closed.

ASSEMBLING THE APPLIANCE (THE EXAMPLE OF MSW-DEH2000C - THE OTHERS ARE SIMILAR)

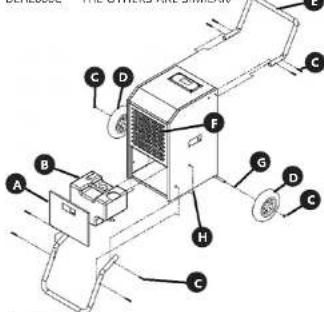

Technical diagram of a mechanical device with labeled components A through H

A. Cap

B. Tank

C. Screw

D. Wheel

E. Handle

F. Filter

G. Spacer

H. Hole for supporter

3.3. DEVICE USE

CAUTION: Each time a button is pressed on the control panel, an acoustic signal is emitted.

3.3.1 STARTING/STOPPING THE DEVICE AND CONTINUOUS OPERATION

Press the POWER button (1) on the control panel, the device will start and automatically start continuous drying. In this mode, it is not possible to set a target humidity level.

To turn the device off, press the same button (1) and the device will finish its operation after a short delay, i.e. until the fan stops. CAUTION: in the event of a power drop or loss, the device has a built-in compressor protection that will restart the compressor with a 3-minute delay.

After turning the device on (see the point above), press the AUTO button (5) on the control panel - continuous operation will be turned off and the device will start working in the standard mode with the default humidity level (50%).

3.3.3 SETTING A TARGET HUMIDITY LEVEL

With the device turned on, press the SET button (2) on the control panel to set the a target room humidity during standard operating mode. By pressing the buttons for decreasing or increasing the parameter (3 or 4), set the target value in the range 20-90% - leave the selected value until it stops flashing on the display, which means that it has been saved. The device will then cycle automatically to maintain the set value.

3.3.4 TIMER SETTING

It is possible to set the operating time range of the device in hourly intervals from 1-24 hours.

Automatic activation time - with the device turned off (but connected to the power source), press the SET button (2) on the control panel to activate the Timer (the "T ON" indicator lights up on the display) and then use the buttons for decreasing or increasing the parameter to set the number of hours after which devices are to start up automatically. Leave the amount set on the display until it blinks 4 times, then the time to start will be saved and the device will start counting down.

- Time operation cycle – with the device turned on, press the SET button (2) on the control panel to activate the Timer and then use the parameter decreasing or increasing buttons (3 or 4) to set the number of hours to turn off ("I ON" after confirmation as above) and then using the same buttons (3 or 4) to switch the device on again ("I OFF"). After a given time has elapsed the device will automatically turn off, and then after a certain time has elapsed from turning it off, it will turn on again and again according to the set time cycle (OFF-ON-OFF ON...)

Similarly to the above procedure, you can set the time operation cycle with the device turned off (connected to the power source). Press the SET button (2) on the control panel to start the Timer function, then use the parameter decreasing/increasing buttons (3 or 4) to set the time after which the device is to start automatically ('T ON'). Then confirm the time after which it is to stop working and turn off, i.e. switch to standby mode ('T OFF'). The device will then start working according to the set time cycle (ON-OFF-ON-OFF-).

- Canceling the Timer function – when working with the active Timer, press the SET button (2) on the control panel to disable the Timer function, but it does not turn off the device itself. An alternative method of deactivating the timer function is to turn the device off by pressing the POWER button (1) on the control panel, which also turns the device off itself.

3.3.5 FULL RESERVOIR INDICATOR LIGHT

In the event of a full water reservoir, the device will automatically stop working and activate a continuous alarm informing about its fullness, additionally signalling this fact with an icon on the control panel (see the description of the display). Drain the water from the tank. To do this, first turn the device off with the POWER button (1), then open the front panel of the device and, grasping the handle on the reservoir, slide it horizontally away from the device. After emptying it, reinstall it in the device in the reverse order of the removal. Press the POWER button (1) to restart the device.

Line drawing of a portable industrial machine with a smaller cylindrical device beside it (no text or symbols visible)

The icon of a full tank may also activate in case of its incorrect assembly - then its mounting should be improved and the device will restart automatically.

There is an alternative method of emptying the device of accumulated water, turn the device on with the POWER button (1), then open the front panel and remove the water tank. Put the hose of appropriate size (not included) through the drain hole at the base of the device and attach one of its ends to the special connection inside the tank compartment, taking care that the drain hose is not twisted or bent anywhere. Put the water tank back into the device and close the front panel.

3.3.6 INTERNAL DRYING FUNCTION

When the device is turned off, press the IN-DRY button (5) on the control panel. This function dries the inside of the device from the accumulated moisture, thus extending its life.

3.3.7 DEFROST FUNCTION

At low indoor temperatures, frost may build up on the evaporator, reducing the air flow during drying. In this case, the device will automatically start the defrost function - it will stop the compressor, and the fan will continue to work. Do not turn the device off during this time! Activation of this function will be signaled by the blinking of the appropriate indicator lamp on the display (see display description). After defrosting, the device will automatically go into the dehumidifying mode.

3.3.8 TROUBLESHOOTING

PROBLEM	ACTIVITY/ POSSIBLE REASON	SOLUTION
The device doesn't work	Is it properly connected to the power supply?	Check the connection.
	Check if the full tank indicator light is off on the display.	Drain the tank and reinstall it in the device or check if it is correctly mounted.
	Check the ambient temperature.	The ambient working temperature should be in the range of 5-35oC.
Steam is slightly condensing	Check the air filter for debris.	Clean the air filter if necessary (see "Cleaning and maintenance").
	Check if the air duct is not blocked.	Remove any foreign matter from the air duct.
	Check if the indoor temperature is below 20oC.	Normal behavior - low humidity in a low temperature environment.
	The set target humidity is higher than the actual indoor humidity.	Set the target humidity level lower than it is indoor.
Water leak	Overflow when moving the device.	Drain the water tank before transport.
	Is the drain hose linked or bent?	Correct the arrangement of the drain hose.
The device is excessively noisy	Is the device stable?	Place the device on an even and stable surface.
	Check for loose parts in the device?	Mount or secure these elements or contact the manufacturer's service department.
	The noise sounds like flowing water.	The sound is made by the circulating refrigerant and it is normal.

An error code is displayed	.E1"	Temperature sensor defective.	Check a connection or replace the sensor.
	.F2"	Moisture sensor dirty or broken.	Clean or replace the sensor.
	.E3"	Indoor temperature sensor defective.	Check a connection or replace the sensor.

3.4 CLEANING AND MAINTENANCE

a) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used.

- Wait for the rotating elements to stop.

b) Use only non-corrosive cleaners to clean the surface.

c) Store the unit in a dry, cool place, free from moisture

and direct exposure to sunlight.

d) Do not spray the device with a water jet or submerge

in water

c) Do not allow water to get inside the device through

vents in the housing of the device

1) Clean the vents with a brush and compressed air.

g) The device must be regularly inspected to check its technical efficiency and shot any damage.

technical efficiency and spot any damage.

n) Use a soft cloth for cleaning.

i) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.

i) Do not clean the device with an acidic substance.

agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.

k) Inspection and replenishment of the refrigerant may only be performed by a specially qualified person and with the use of specialized equipment!

p) With regular use, clean the air filter every 6 weeks.

Turn the device off. The air filter is located at the front of the device - after removing or opening the front panel, remove the mesh filter. In the case of light dirt, remove the accumulated dirt on the mesh surface with a clean cloth. In the case of heavy contamination, also inside the filter screen, rinse the filter under a tap with running water and dry it completely before reinstalling it in the device.

Illustration of a portable air conditioner unit with cooling fan and ventilation panel, alongside a close-up of its cover (no text or symbols)

CAUTION! Do not use the device without the air filter – it may pollute the evaporator! Do not touch the evaporator surface with bare hands – the risk of injury!

DISPOSING OF USED DEVICES

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

DANE TECHNICZNE

2.2 BEZPIECZEŃSTWO W MIEJSCU PRACY

Technical diagram showing labeled parts of a mechanical device with numbered components

Two views of an orange industrial machine with labeled parts (no text or symbols visible)

by zrestartowc urzaozenie.

Illustration of a portable air conditioner unit with attached solar panel and door handle (no text or symbols)

Two views of a gray industrial air purifier unit with numbered components (no text or symbols visible)

Line drawing of a portable air purifier with a smaller box nearby (no text or symbols)

Illustration of a portable air conditioner unit with attached solar panel and fan (no text or symbols)

MSW-DEH1080A (MSW-DEH1080C/

MSW-DEH2000C similaires)

Two views of a gray industrial cart with numbered components, no visible text or symbols.

Two views of an orange industrial device with handles and ventilation slots, shown from different angles (no text or symbols visible)

1. Boigner de transport

2 Politier

Technical diagram of a mechanical device with labeled components A through H

A. Couvrir

B. Réservoir

C Vis

D. Roue

E. Poianoc

F. Filtre

G. Entretoise

Technical line drawing of a portable air purifier with a smaller cylindrical base nearby (no text or symbols)

Illustration of industrial equipment including a pressure vessel, fan, and solar panel (no text or symbols)

Diagram showing two types of industrial equipment with numbered components, likely illustrating a mechanical or electrical system.

Illustration of two orange industrial machines with labeled parts, shown from different angles (no text or symbols present)

Technical diagram of a mechanical device with labeled components A through H

A. Copertura

B. Serbatoio

C. Vite

D. Ruota

E. Maniglia

F. Filtro

G. Distanziatore

Line drawing of a portable industrial machine with a separate box nearby (no text or symbols)

Illustration of a portable air conditioner unit with attached solar panel and water spray (no text or symbols)

MSW-DEH1080A (MSW-DEH1080C)

MSW-DEH2000C similares)

Two views of a portable air purifier unit with numbered components (no text or symbols visible)

Two views of an orange industrial machine with labeled parts, shown from different angles (no text or symbols present)

1. Asa de transporte

2 Carcasa

Technical diagram of a mechanical device with labeled components A through H

Line drawing of a portable industrial machine with wheels and a smaller box nearby (no text or symbols)

Illustration of a portable air conditioner unit with attached fan and solar panel (no text or symbols)

MSW-DEH1080A (MSW-DEH1080C)

MSW-DEH2000C similares)

Diagram of a two-part industrial cart with numbered components, likely illustrating a mechanical or electrical system layout.

Two views of an orange industrial machine with labeled parts, shown from different angles (no text or symbols present)

Technical diagram of a mechanical device with labeled components A through H

A. Boritó

B. Tartály

C. Csavar

D. Kerék

E Fogantyú

F. Szúró

G. Távolító

Line drawing of a portable air purifier with a smaller box nearby (no text or symbols)

Illustration of a portable solar power supply unit with cooling fan and solar panel, no text or symbols present

NAMEPLATE TRANSLATIONS

MSW MOTOR Schematic ① Product Name: ② Model: ③ Power: ④ Voltage/Frequency: ⑤ Refrigerant: ⑥ Production Year: ⑦ Serial No:: ⑧ Importer: expondo Pabla sp. z.u.o. sp. k. ul. Nowy Kielin-lanowacycina 7, 66-002 Zielona Gora | Poland, EU

	1234	●	●	●
DE Produktname Modell Leistung Spannung/Frequenz
EN	Product Name Model	Power	Voltage/Frequency
PL	Nazwa produktu	Model	Moc	Napięcio/Częstotliwość
CZ	Názov výroloku	Model	Výkon	Napêti/Frekvence
FR	Nom du produit	Modèle	Puissance	Tension/Fréquence
IT	Nome del prodotto	Modello	Potenza	Tensione/Frequenza
ES	Nombre del producto	Modelo	Potencia	Voltaje/Frecuencia
	59	●		●	●
DE	Typ/Menge des Kaltemittels [g]	Produktionsjahr		Ordnungsnummer	Hersteller
EN	Refrigerant type/amount [g]	Production year		Serial No.	Manufacturer
PL	Typ/Ilość czynnika chlodniczego [g]	Rok produkcji		Numer seri	Producent
CZ	Typ/mnożství chladiva [g]	Rok výroby		Sériové číslo	Výrobce
FR	Type/quantité de réfrigerant [g]	Année de production		Numéro de serie	Fabricant
IT	Tipo/quantità di refrigerante [g]	Anno di produzione		Numero di serie	Produttore
ES	Tipo/cantidad de refrigerante(s) [g]	Año de producción		Número de serie	Fabricante

NOTES/NOTZIEN NOTES/NOTZIEN

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
