Technical data

Parameter description	Parameter value
Product name	Food Smoker
Model	RCRO-104
Dimensions [width x depth x height; mm]	460 x 340 x 1325
Weight [kg]	24

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

	Read instructions before use.
	WARNING! or CAUTION! or REMEMBER! Applicable to the given situation.(general warning sign)
	Wear protective gloves.
	ATTENTION! Keep the device away from flammable and explosive substances. Fire hazard!
	WARNING! Toxic substances, danger of poisoning!
	ATTENTION! Hot surface, risk of burns!

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to: Food Smoker

2.1. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) Do not use the device in a potentially explosive environment, for example in the presence of flammable liquids, gases or dust. The device generates sparks which may ignite dust or fumes.
c) If you are unsure about whether the product is operating correctly or if you find damage, please contact the manufacturer's service centre.
d) Only the manufacturer's service centre may make repairs to the product. Do not attempt to make repairs yourself!
e) In case of fire, use a powder or carbon dioxide (CO _2 ) fire extinguisher (one intended for use on live electrical devices) to put it out.
f) Children or unauthorised persons are forbidden to enter a work station.
g) Use the device in a well-ventilated space.
h) The device produces smoke that may escape during operation and after opening the door. Prevent users and bystanders from its effects.
i) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
j) Keep packaging elements and small assembly parts in a place not available to children.
k) Keep the device away from children and animals.

Remember! When using the device, protect children and other bystanders.

2.2. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
c) The device can be handled only by physically fit persons who are capable of handling it, properly trained, familiar with this manual and trained within the scope of occupational health and safety.
d) When working with the device, use common sense and stay alert.
e) The device is not a toy. Children must be supervised to ensure that they do not play with the device.
f) Do not put other items than food inside the device while it is in use!

2.3. Safe device use

a) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual.
b) Keep the device in perfect technical condition.
c) Keep the device out of the reach of children.

d) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
e) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
f) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.
g) Do not leave this appliance unattended while it is in use.
h) Clean the device regularly to prevent stubborn grime from accumulating.
i) Do not cover the air intake and outlet.
j) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
k) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
I) Do not overload the device.
m) Regularly check the oil level in the fat gathering tray and empty when necessary.
n) It is forbidden to use the device in closed or inadequately ventilated places. Carbon monoxide is created during the combustion process, which is harmful to health.
o) Before operation is started, make sure the door are tightly closed.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The food smoker is intended for smoking fish, cheese, sausages, meat and other foodstuffs. The user is liable for any damage resulting from unintended use of the device.

3.1. Device description

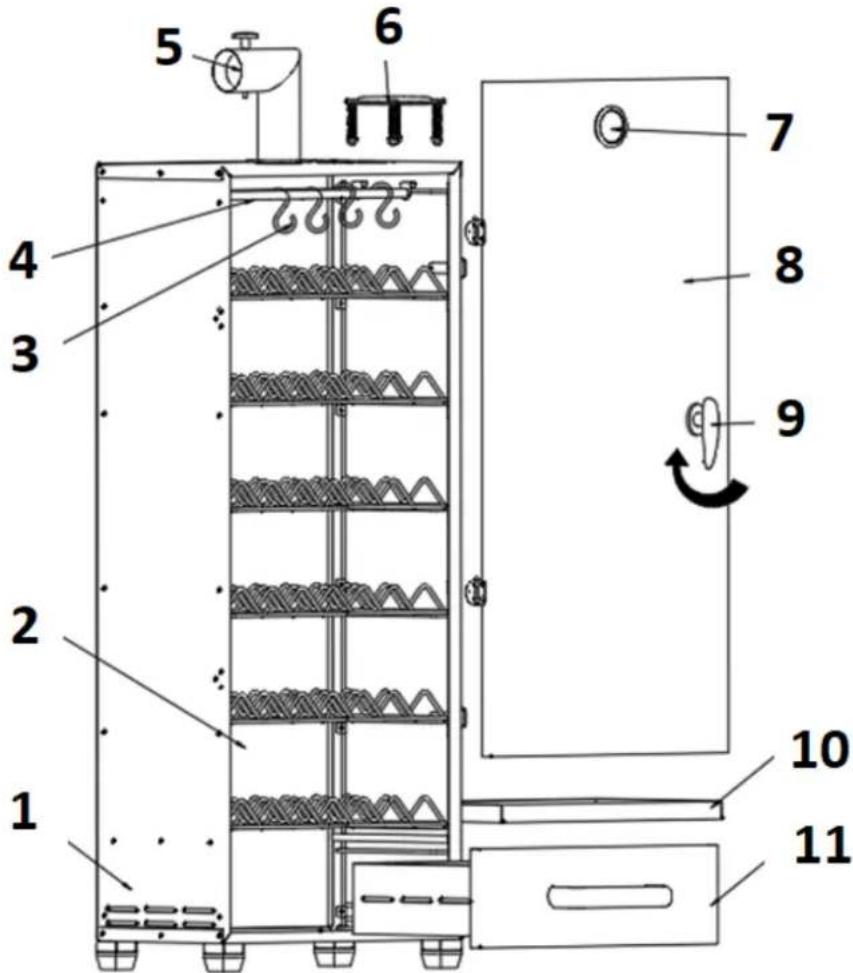

1 2 3 4 5 6 7 8 9 10 11

1 - Box housing
2 - Shelves
3 - Hook
4 – Suspension rod
5 - Smoke discharge pipe
6 - Explosion-proof cover
7 - Thermometer
8 - Doors
9 - Door lock
10 - Grease collection vessel
11 - Carbon box

3.2. Preparing for use

APPLIANCE LOCATION

The temperature of environment must not be higher than 40^ C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is being used. There should be at least 10 cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions.

Disassemble the device and all its components and clean them before the first use.

Use the device in a well-ventilated area.

3.3. Assembling the device

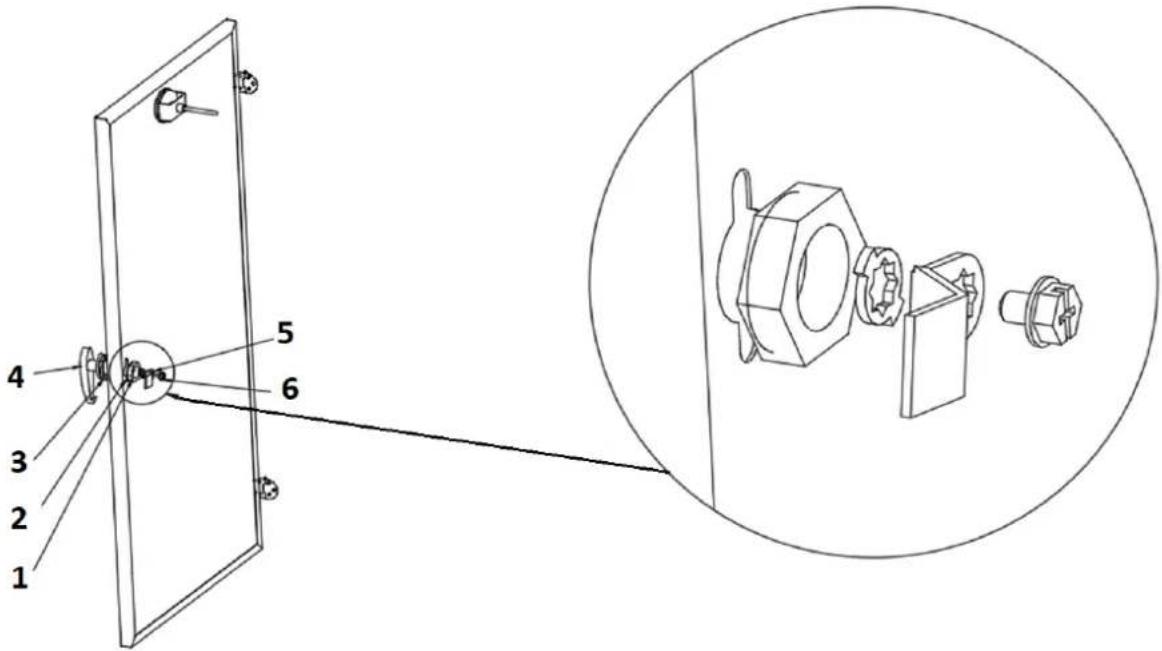

3.3.1. Door lock installation

Using a screwdriver, loosen the screws attached to the door lock.

Open the door, first align the door lock with the hole at the front and then tighten the screw from the inside.

Technical diagram of a mechanical assembly with numbered components and an inset view of the component detail.

1 - Nut
2 - Serrated washer
3 - Rubber washer
4 - Handle
5 - Baffle plate
6 - Bolt

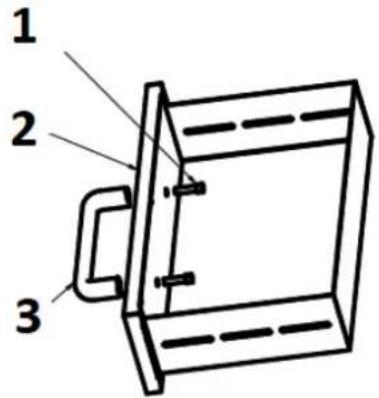

3.3.2. Assembly of the carbon box holder

Using a spanner, loosen the screw attached to the coal box handle.

Pull out the coal box, put the handle against the holes and tighten the screws from the inside.

1 2 3

1 - Bolt
2 - Carbon box
3 - Handle

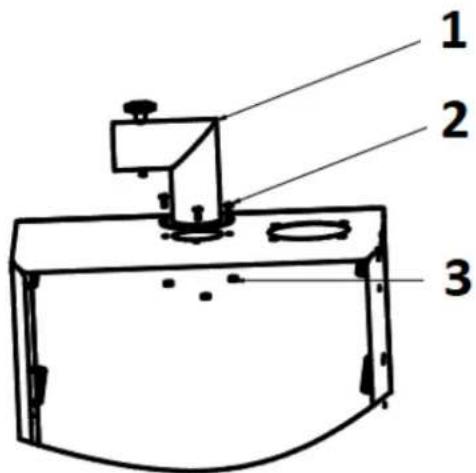

3.3.3. Installation of smoke discharge pipe

Use a screwdriver to loosen the screws connected to the smoke discharge pipe.

Open the door and place the smoke discharge pipe at the top, align it with the hole in the appliance and then tighten the screws.

1 2 3

1 - Smoke discharge pipe
2 - Screw
3 - Nut

3.4. Device use

(1) Make sure the unit is placed in a well-ventilated space on a flat surface, avoid tipping and shock.
(2) Make sure that nothing is placed on the explosion protection cover.
(3) Place products to be smoked on shelves or hang on hooks.
(4) Close the door and fasten with a latch.
(5) Once the raw materials for smoke generation are lit, place them in the charcoal box. Once the smoke has been produced and you have ensured that it will not be extinguished, insert the coal box into the appropriate place in the appliance.

3.5. Cleaning and maintenance

a) At the end of each operation, immediately clean the grease collection vessel as well as the entire appliance inside.
b) Use only non-corrosive cleaners to clean the surface.
c) Use only mild, food-safe detergents to wash the device.
d) After cleaning the device, all parts should be dried completely before using it again.
e) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
f) Do not spray the device with a water jet or submerge it in water.
g) The device must be regularly inspected to check its technical efficiency and spot any damage.
h) Use a soft, damp cloth for cleaning.
i) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
j) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.

Technical diagram of a mechanical assembly with numbered components and an inset view of a gear mechanism.

1 - Nakrętka

Technical diagram of a mechanical assembly with numbered components and an inset view of a gear mechanism.

Technical diagram of a mechanical assembly with numbered components and an inset view of the component detail.

1 - Écrou

Technical diagram showing a mechanical assembly with numbered components and an inset view of a component with labeled parts.

Technical diagram of a mechanical assembly with numbered components and an inset view of the component detail.

1.- Tuerca

2 - Arandela dentada

3 - Arandela de goma

4 - Mango

5 - Placa deflectora

6 - Perno

Technical diagram of a mechanical assembly with numbered components and an inset view of the component detail.

1 - Csavar

2 - Fogazott alátét

3 - Gumi alátét

4 - Fogantyú

5 - terelőlemez

6 - Csavar

APPARATETS PLACERING

Technical diagram of a mechanical assembly with numbered components and an inset view of the component detail.

For the disposal of the device please consider and act according to the national and local rules and regulations.
