USER MANUAL RCKC-9001 Royal Catering

Abstract white line drawing of a stylized mythical creature on a dark blue background (no text or symbols)

DE	Produktname	Kutter & Gemüseschneidemaschine
EN	Product name	Bowl Cutter
PL	Nazwa produktu	Kuter
CZ	Název výrobku	Miska střihač
FR	Nom du produit	Coupe-bol
IT	Nome del prodotto	Tagliacapelli a scodella
ES	Nombre del producto	Cortador de tazón
HU	Termék neve	Tálvágó
DA	Produktnavn	Skålskærer
FI	Tuotteen nimi	Kulholeikkuri
NL	Productnaam	Komsnijder
NO	Produktnavn	Bolleskjærer
SE	Produktnamn	Skålskärare
PT	Nome do produto	Cortador de tigela
SK	Názov produktu	Miskový strihač
BG	Име на продукта	Машина за рязане на купа
EL	Όνομα προϊόντος	Колтικό μπολ
HR	Naziv proizvoda	Rezač zdjelica
LT	Produkto pavadinimas	Dubenėlio pjoviklis
RO	Numele produsului	Tăietor de boluri
SL	Ime izdelka	Rezilo za sklede
DE Modell | EN Product model | PL Model produktu | CZ Model výrobku | FR Modèle | IT Modello | ES Modelo | HU Modell | DA Model | FI Tuotteen malli | NL Productmodel | NO Produktmodell | SE Produktmodell | PT Modelo do produto | SK Model | BG Модел на продукт | EL Movtėlo προϊόντος | HR Model proizvoda | LT: Gaminio modelis | RO: Model de produs | SL: Model izdelka		RCKC-1501RCKC-6001RCKC-9001
DE Hersteller | EN Manufacturer | PL Producent | CZ Výrobce | FR Fabricant | IT Produttore | ES Fabricante | HU Termelő | DA Producent | FI Valmistaja | NL Producent | NO Produsent | SE Tillverkare | PT Fabricante | SK Výrobca | BG Производител | EL Κατασκευαστής | HR Proizvođač | LT Gamintojas | RO Producător | SL Proizvajalec		expondo Polska sp. z o.o. sp. k.
DE Anschrift des Herstellers | EN Manufacturer Address | PL Adres producenta | CZ Adresa výrobce | FR Adresse du fabricant | IT Indirizzo del produttore | ES Dirección del fabricante | HU A gyártó címe | DA Producentens adresse | FI Valmistajan osoite | NL Adres producent | NO Produsentens adresse | SE Tillverkarens adress | PT Endereço do fabricante | SK Adresa výrobcu | BG Адрес на производителя | EL: Διεύθυνση κατασκευαστή | HR Adresa proizvođača | LT Gamintojo adresas | RO Adresa producătorului | SL Naslov proizvajalca		ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description Parameter value
Product name	Bowl Cutter
Model	RCKC-1501	RCKC-6001	RCKC-9001
Rated voltage [V~] / Frequency [Hz]	230/50
Rated power [W]	1800	1200	1800
Capacity [l]	15	6	9
Rotation Speed [rpm]	1800-3500	1600-3200	1800-3500
Work cycle [min]	3-15	3-15	3-15
Dimensions [width x depth x height; mm]	505 x 400 x 465	430 x 285 x 400	460 x 340 x 455
Weight [kg]	23.95	16.2	19.8

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

CE !

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation.

(general warning sign)

ATTENTION! Electric shock warning!

ATTENTION! Rotating parts, entanglement hazard!

Disconnect the device from the power source before cleaning, maintenance or repair!

Only use indoors.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to

Bowl Cutter.

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock.
c) Do not touch the device with wet or damp hands.
d) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
e) If using the device in a damp environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock.
f) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.
g) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.

2.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) If you discover damage or irregular operation, immediately switch the device off and report it to a supervisor without delay.
c) If there are any doubts as to the correct operation of the device, contact the manufacturer's support service.
d) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently!
e) In case of fire, use a powder or carbon dioxide (CO2) fire extinguisher (one intended for use on live electrical devices) to put it out.
f) Children or unauthorised persons are forbidden to enter a work station.
g) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
h) Keep packaging elements and small assembly parts in a place not available to children.
i) Keep the device away from children and animals.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised

by a person responsible for their safety or they have received instruction on how to operate the device.

c) The device can be handled only by physically fit persons who are capable of handling it, properly trained, familiar with this manual and trained within the scope of occupational health and safety.
d) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries.
e) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.
f) Do not wear loose clothing or jewellery. Keep hair, clothes and gloves away from moving parts. Loose clothing, jewellery or long hair may get caught in moving parts.
g) Remove all adjusting tools or spanners before turning the device on. A tool or spanner left in the revolving part of the device may cause injury.
h) The device is not a toy. Children must be supervised to ensure that they do not play with the device.
i) Do not put your hands or other items inside the device while it is in use!

2.4. Safe device use

a) Do not overload the device.
b) Do not use the device if the ON/OFF switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.
c) Disconnect the device from the power supply before commencement of adjustment, cleaning and maintenance. Such a preventive measure reduces the risk of accidental activation.
d) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
e) Keep the device in perfect technical condition. Before each use check for general damage and especially check for cracked parts or elements and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.
f) Keep the device out of the reach of children.
g) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
h) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
i) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.
j) Avoid situations where the device stops working during use due to excessive loading. This may result in overheating of the drive elements and damage to the device.
k) Do not touch articulated parts or accessories unless the device has been disconnected from the power source.
I) Do not move, adjust or rotate the device in the course of work.
m) Do not leave this appliance unattended while it is in use.
n) C lean the device regularly to prevent stubborn grime from accumulating.
o) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
p) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
q) Keep the device away from sources of fire and heat.
r) Before servicing the appliance or replacing the cutting discs, disconnect the machine from the power supply.
s) When servicing the appliance or replacing the cutting discs, be extremely careful to avoid injury.
t) The appliance is not intended for chopping hard foods such as deep-frozen products or bones.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The kitchen cutter is intended for cutting, chopping, shredding (grinding) of meat, fishes, raw and cooked vegetables.

The product is intended for home use only!

The user is liable for any damage resulting from unintended use of the device.

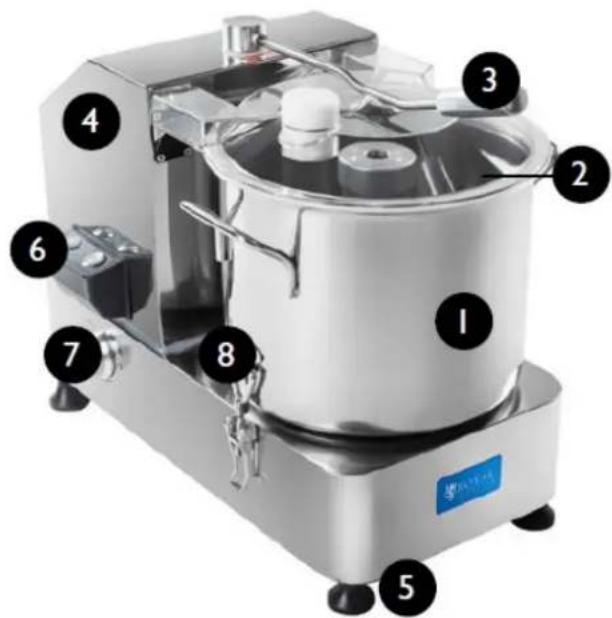

3.1. Device description

1 2 3 4 5 6 7 8

1. Container
2. Cover
3. Arm lock
4. Main body
5. Feet
6. Control buttons
7. Knob for controlling speed
8. Clips to secure the container

ATTENTION: For better protection against vibrations the clips should be fastened to the container during normal device operation.

3.2. Preparing for use

The temperature of environment must not be higher than 40^ C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is being used. There should be at least 10 cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

Disassemble the device and all its components and clean them before the first use.

3.3. Device use

Start-up:

Use the knob to set the speed to the minimum.

Start up by pressing the button "I".

Use the knob to set the speed to the desired value.

Stop by pressing the button "0".

Use the knob to set the speed to minimum.

3 2 Max (+) Min 1

1 - Knob for controlling speed.
2 - Button for switching the device on.
3 - Button for switching the device off.

Attention: The device can be filled with food only when the power is off. The knob for controlling speed should be at "0" position.

Please note that this device can work continuously for maximum 3 minutes. Following this time, the device may turn off by itself. In this case, please unplug the device. After a 10 minutes break, the device can be plugged in again. Any food packed inside cannot exceed 1/2 of the tank volume. Failure to comply can cause damage to the device.

Procedures:

• Turn the loading arm into anticlockwise direction to remove cover.
• Pay close attention to the two blades when filling the container with food. Big parts of food should be cut into smaller portions before filling the container.
  Warning: the food in container is not allowed to be more than 1/2 of the total volume.
• Put the cover into initial position, and then rotate the loading arm until it will be locked.
• Press the start-up button.
• It is forbidden to work with low speed for a long period of time.
  • While device is working, if needed, extra food can be added via the hole on the cover.
• Press the red stop button when the work is finished. Speed adjusting knob must be turned to "0" position.

3.4. Cleaning and maintenance

Daily cleaning

• Before cleaning always turn the speed adjusting knob to "0" position and cut off the power.
• The device should be cleaned at least one time every day. If necessary, it can be cleaned more often.
  • The parts of the device that are in direct or indirect contact with food must be cleaned.
• It is forbidden to use water or water jet to directly clean the device. Brushes or other tools which may damage the surface cannot be used.

Steps of cleaning:

• Clean the cover, rotating blades axis and container:
• Rotate the loading arm, remove the cover, and the blade fixing axis and container can be lifted easily. Then use water and neutralized detergent safe for food to clean the above-mentioned parts.

Attention: gloves should be worn for protection while operating.

- Clean the machine body with a neutralized detergent and a wet cloth. Use dry cloth to dry the machine after cleaning.

Belt

- There is no necessity to adjust the belt. The belt should be changed every nine months, depending on the work intensity. At this time, you should contact the after-sales department of your dealer.

Power cable

- Power cable should be checked regularly. If it is damaged, please contact the after-sales department of your dealer.

DISPOSING OF USED DEVICES

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.
