USER MANUAL Bolero Hexa C136000 Mirror Time A CECOTEC

Exterior view of a modern black oven with control knobs and a door, no visible text or symbols on the main subject.

bolero

Safety instructions 10

1. Parts and components 70

2. Before use 70

3. Operation 70

4. Installation 75

5. Cleaning and maintenance 77

6. Tips 80

7. Troubleshooting 81

8. Energy efficiency according to EN 60350-1 82

9. Technical specifications 82

10. Disposal of old electrical and electronic appliances 84

11. Technical support and warranty 84

12. Copyright 84

SOMMAIRE

• Read these instructions thoroughly before using the product or removing its packaging. You will only be able to use the device correctly and safely after reading them.
• Following these instructions will lengthen the shelf life of your oven. Keep this instruction manual for future reference or new users.
• The appliance incorporates an earth connection for functional purposes only.
• Check the appliance for damage after removing the packaging. Do not connect the device to the power supply if it is damaged. Damage produced by an incorrect installation are not covered by the warranty.
• Use this appliance indoors only. The appliance can only be used to prepare food and drinks. Do not leave the appliance unattended during operation.
• The appliance is designed for domestic use only.
• This appliance can be used by children aged 8 and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. The cleaning and maintenance of the appliance should not be carried out by children without supervision.
• Keep this appliance and its power cable out of reach of children under the age of 8. Do not allow children to play with the device.
• Always insert the accessories into the oven in the correct way.

Risk of electric shock

• Incorrect repairs can be dangerous. A damaged cord repair or replacement can only be carried out by authorised technical personnel. If the device is defective, unplug it from the power supply or switch off your home circuit breaker. Contact the official Cecotec Technical Support Service.
• The insulation of electrical appliance cables could melt if they come into contact with the hot parts of the appliance. Never allow the electrical appliance cables to come into contact with the hot parts of the appliance.
• The appliance is not intended to be operated by means of an external timer or a separate remote-control system.
• Do not use pressurised water or steam, as this may cause an electric shock.
• A defective appliance can cause an electric shock. Never turn a defective appliance on. Unplug the device from the mains or switch off the circuit breaker of your home. Contact the official Cecotec Technical Support Service.

Risk of burns

- This symbol means: caution, hot surface. The

temperature of the accessible surfaces may be hot when the device is in operation. Never touch the nal surface of the device nor the heating elements.

• Allow the device to cool down after being used.
• Oven accessories may reach high temperatures. Always use oven gloves to remove accessories or other objects from the interior of the oven.

• Alcohol vapours may ignite if heated inside the oven. Never cook food with large amounts of drinks with high alcohol content in the device. Open the oven door carefully.

• When you open the device door, this may release hot steam. This steam may not be visible, it depends on the temperature reached. When opening the device, do not stand near it.

• Open the device door carefully. Keep children away from the device.

Risk of injuries

• If the door glass is damaged, it could crack. Do not use glass scrapers, cleaning agents or abrasive detergents to clean the device door.
• The device hinges move when you open and close the door, be careful not to get caught. Keep hands away from hinges.

Risk of fire

• If you store flammable items inside the oven, they may catch fire. Never store flammable items inside the oven. Never open the door of the device if there is smoke inside. Unplug the device from the mains or switch off the circuit breaker of your home.
• An air flow is created when the appliance door is opened. Baking paper may catch fire if it comes into contact with the heating elements. Do not place baking paper on accessories while preheating the oven. Always place baking paper on a tray or mould suitable for the oven. Cover only the necessary surface with baking paper.
• Baking paper cannot exceed the edges of the accessories.

Risk due to magnetism

The control panel and control elements use fixed magnets. These can affect electronic implants, such as pacemakers or

insulin pumps. Users with electronic implants must stay at least at 10 cm from the control panel.

Possible damage and cause

- Do not cover the interior base of the oven with any type of aluminium or vegetable foil. Do not place oven safe cookware in the interior base of the oven if you have set a temperature over 50 °C as this could lead to a heat accumulation. The enamel will be damaged.

- Do not allow aluminium foil to come into contact with the glass door. This could cause permanent discolouration of the glass door.

- Do not use silicone frying pans, nor lids with silicone covers or silicone accessories. This could damage the oven sensor.

- Never pour water inside the oven when it is hot. It could cause steam. Temperature changes can damage the enamel.

- Moisture inside the oven for a long period of time could cause corrosion. Allow the device to dry after every use. Do not store wet food inside the oven while it is closed for long periods of time. Do not store food in the oven.

- Allow the oven to cool down with the door open after use. Do not allow any objects to be trapped between the exterior and the interior of the oven. The front part of the furniture near the oven could be damaged over time if the door is left open, even if the opening is small. Allow the device to dry with the door open only if there is too much moisture because of the oven operation.

- Fruit juice: when baking cakes with particularly juicy fruit, do not overfill the baking tray. If fruit juice drips from the baking tray, it could cause permanent stains. If possible, use the deepest tray.

• Extremely soiled gaskets: if the gaskets are soiled, the device door will not close properly during operation. This could damage the front part of the adjacent devices and furniture. Make sure that the gaskets are always clean.
• Do not sit on the device door, nor place or hang objects on it. Do not place tableware or accessories in the device door.
• Accessory positioning: depending on the model, accessories may scratch the door panel when closing it. Always insert accessories inside the oven until they reach the interior front wall.
• Do not transport nor hold the device by the door handle. The door handle cannot withstand the weight of the appliance and could break.
• If you use residual heat when the oven is off to keep food warm, you can create a high moisture content inside the oven. This could lead to condensation and damage due to corrosion in the device, as well as damage to your kitchen.
• You can prevent condensation if you open the door.

INSTRUCTIONS DE SÉCURITÉ

A. Control panel
B. Cooking mode knob
C. Temperature knob
D. Timer: allows you to set the cooking time (ONLY IN 02291 AND 02292 MODELS)
E. Oven indicator light (only available in some models): when it is on, it indicates that the oven is heating up at the set temperature
F. Oven tray
G. Oven rack for roasting, grilling, broiling, etc.
H. Oven guides

NOTE:

the graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the device when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Built-in oven
• Instruction manual
• Tray
• Rack
• Installation kit

3. OPERATION

Warning: the first time you use the appliance, we recommend that you set the thermostat to maximum and leave the oven on for half an hour with nothing in it, with the door closed. The odour that is usually given off at the beginning is due to the evaporation of the substances

used to protect the oven during storage.

Note: place the dripping tray supplied on the bottom shelf of the oven to prevent any sauce and/or fat from dripping onto the base when using the grill or rotisserie (only available in some models). For all other types of cooking, never use the bottom shelf and never place anything on the bottom of the oven when it is in operation, as this could damage the enamel. Place your cooking utensils (plates, aluminium foil, etc.) on the rack supplied with the product.

Note: to use the oven in manual mode, the symbol must be aligned with the reference mark on the control panel.

Switch-off

The knob must be in position.

Upper and bottom heating element (convection mode)

The position of the temperature knob in this mode is between 60 °C and the maximum temperature. This mode is useful for cooking dishes such as cabbage with ribs, cod, tender veal strips with rice, etc. Excellent results are also obtained when preparing veal or beef dishes that require slow cooking. It is the best system for baking cakes and fruit, as well as for baking in covered casseroles. When cooking in this mode, use only one tray or rack at a time; otherwise, the heat distribution will be uneven. By using the different heights available, you can balance the amount of heat between the top and bottom of the oven. Select between different heights depending on whether the dish needs more or less heat from the top.

Bottom heating element

The bottom heating element is used for foods that normally require cooking from the bottom. Cakes and bread, for example, can be baked using this function. DO NOT ADD WATER.

Grill mode

The position of the temperature knob in this mode is between 60 °C and the maximum temperature. The grill radiates heat onto the food from the upper heating element. You can use the grill function to prepare tender cuts of meat, steaks, chops, sausages, fish, cheese toast and other quick-cooking foods. Preheat for 3 minutes for best results. This will help seal in the natural juices of the steaks, chops, etc. for better flavour. You can place the food to be grilled in either of the 2 spaces inside the two upper support guides.

Bottom heating element + steam mode

- For adding extra browning to pizza bases, pies and cakes or steaming various foods. Heat is released from the bottom of the oven.

ENGLISH

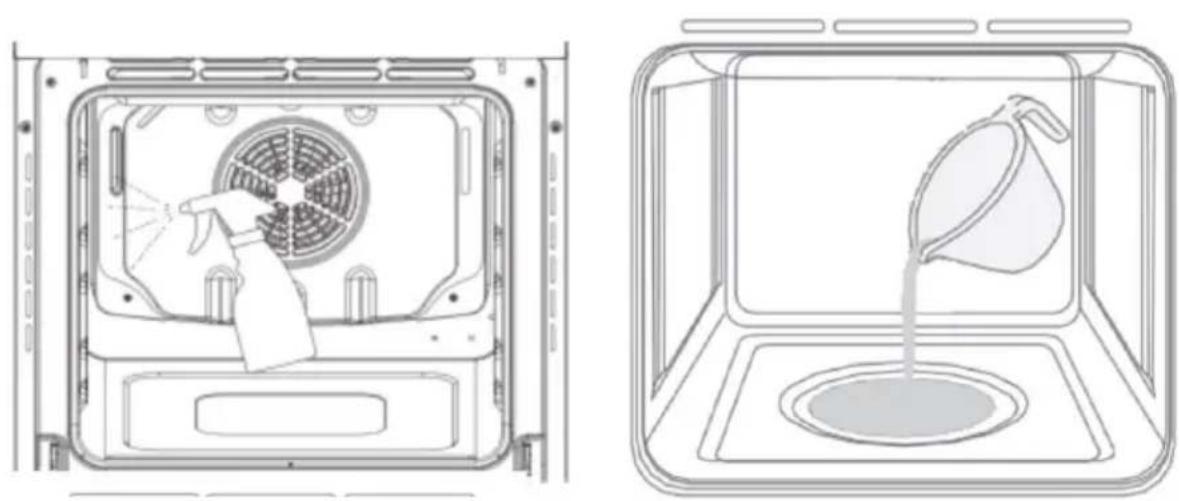

• You should add 100 ml of water (approx.) in the lower oven cavity and select a temperature of 200 °C. Approximate cooking time 20 minutes (Fig. 11).
• Be sure to remove any excess water from the oven cavity at the end of the cooking process.
• The approximate capacity of the cavity is 500 ml, plus another 500 ml from the rest of the oven base.
• You can adjust the amount of water and the temperature according to the needs of the food to be prepared.

WARNING: make sure that the interior is completely cool before removing excess water. Risk of burns.

Timer (only available in 02291 and 02292 models)

These models are equipped with a timer to control when the oven switches off during cooking. Timer knob position: between 10 minutes and 120 minutes.

At the end of the cooking time, the timer will beep and automatically switch off the oven.

Oven light bulb

Turn the knob to the "L" symbol to switch on the light that illuminates the inside of the oven. This light stays on when any of the oven's electric heating elements are switched on.

Practical cooking tips

• The oven offers a wide range of alternatives that allow any type of food to be cooked in the best possible way. Over time you will learn to get the most out of this versatile kitchen product and the following instructions are only a guide and may vary according to your own personal experience.
• The oven is equipped with 5 position guides. As a general rule, use the 2nd and 4th guides from the bottom, placing foods that require more heat on the 2nd guide from the bottom. For example, when cooking meat together with other foods, place the grill on the 2nd guide from the bottom and the more delicate foods on the 4th guide from the bottom.
• When cooking foods that require different times and temperatures, set an intermediate temperature between the two required temperatures, place the more delicate foods on the 4th guide from the bottom and remove the foods that require less time from the oven first.
• Use the tray in the bottom guide and the racket in the upper guide.

Grill use

• Use the grill mode, placing the food under the centre of the grill (located on the 3rd or 4th guide from the bottom), as only the central part of the upper heating element is lit.
• Use the bottom guide (1st from the bottom), placing the tray provided to catch any sauce and prevent it from dripping onto the bottom of the oven. When using this mode, we recommend that you set the temperature to the highest setting. However, this does not

mean that you cannot use lower temperatures by simply adjusting the temperature knob.

Baking cakes

When baking cakes, always place them in a preheated oven. Be sure to wait until the oven has fully preheated (the light will go out). Do not open the oven door during baking to prevent the cake from reaching its optimum shape.

- The dough is too dry

Increase the temperature by 10 °C and reduce the cooking time.

- If the dough spills

Use less liquid or lower the temperature 10 °C .

- The dough is too dark on top.

Set it on a lower guide, lower the temperature and increase the cooking time.

- Well-cooked on the inside but sticky on the outside

Use less liquid, lower the temperature, and increase the cooking time.

- Dough sticks to the tray

- Grease the tray well and dust it with flour or use greaseproof paper.

- If you have used more than one level (in the convection function) and they are not all at the same cooking point:

- It is not necessary to remove food from all the guides at the same time.

Making a pizza

• To get the best results when making pizzas, use the delicate (bottom) cooking function:
• Preheat the oven for, at least, 10 minutes.
• Use a lightweight aluminium pizza pan, placing it on the rack supplied with the oven. If the tray is used, the baking time will be prolonged, making it difficult to obtain a crispy dough.
• Do not open the door frequently while the pizza is being made.
• If the pizza has many toppings (three or four), we recommend adding the mozzarella cheese halfway through the cooking process.
• When making pizza on two guides, use the 2nd and 4th guides with a temperature of 220^ ; place the pizzas in the oven after preheating for at least 10 minutes.

Cooking fish and meat

• When cooking white meat, poultry, and fish, use a temperature setting of 180 °C to 200 °C.
• For red meat that should be well done on the outside and tender and juicy on the inside, it is a good idea to start with a high temperature (200 °C-220 °C) for a short period of time and then lower the temperature.
• In general, the larger the roast, the lower the temperature should be. Place the meat in the centre of the rack and place the tray underneath to catch the fat.

ENGLISH

- Make sure that the rack is inserted so that it is in the centre of the oven. If you want to increase the amount of heat from below, use the lower guide heights. For savoury roasts (especially duck), dress the meat with lard or bacon on top.

Knob settings	Food to be cooked	Weight (kg)	Position of the guide from below	Preheat- ing time (minutes)	Tempera- ture knob	Cooking time (minutes)
Upper and lower heating elements	Duck	1	3	15	200	65-75
	Roast veal or beef	1	3	15	200	70-75
		1	3	15	200	70-80
	Roast pork	-	3	15	180	15-20
	Biscuits	1	3	15	180	30-35
	Tartlet
Grill Soles and		1	4	5	Max	8-10
	cuttlefish	1	4	5	Max	6-8
	Squid and prawn	1	4	5	Max	10
	kebabs	1	3/4	5	Max	10-15
	Cod fillet	1	4	5	Max	15-20
	Grilled vegetables	1	4	5	Max	15-20
	Veal fillet	1	4	5	Max	7-10
	Chops	-	4	5	Max	15-20
	Hamburgers					2-3
	Mackerel
	Toasted sandwiches
Delicate cooking (bottom heating element) DO NOT ADD WATER	Pizza 0.5 3 15 220	15-20
Bottom heating element + steam mode ADD WATER	Steam-assisted function	0.5 3 15 2	20 15-20

Note: cooking times are approximate and may vary according to personal taste. When cooking with the grill, the tray must always be placed on the 1st oven guide from the bottom.

Health risk

Acrylamide is mainly produced by heating starchy foods (e.g., potatoes, chips, bread, cereal products, biscuits, spiced pasta, etc.) at very high temperatures for a long time.

Tips for use in the preparation of low acrylamide foods:

• Use short cooking times.
• Cook food until its surface is brown, do not allow it to burn or get dark brown colours.
• Larger food portions contain more acrylamide.
• Egg or egg yolk reduces the formation of acrylamide.
• As a general rule, do not exceed 200 °C (upper and lower heating elements) or 190 °C for pastries and biscuits.
• When cooking potatoes, try to spread them evenly in a single layer on the tray.

General using tips:

• Use the appliance only for cooking food and nothing else.
• Disconnect the appliance from the mains if it is not working properly and before cleaning or maintenance.
• If not in use, unplug the appliance from the mains.
• Use oven gloves when putting utensils into or taking them out of the oven.
• Always grip the oven door handle in the centre, as the ends of the oven door may be hot due to possible heat leakage.

4. INSTALLATION

Installation

- The appliance must only be installed by qualified personnel following the instructions supplied and taking into account the current regulations. Cecotec declines all liability in the event of incorrect installation, which may cause injury to people and animals, as well as damage to property.

ENGLISH

• Important: the appliance must be disconnected from the mains before any adjustment or maintenance work is carried out on it.
• The air duct is used for ventilation.
• In order for the built-in appliance to function properly, the cabinet containing it must be suitable. Figure 2 shows the dimensions of the cut-out for installation under the worktop or in a wall unit.
• To ensure adequate ventilation, the rear panel of the cabinet must be removed. It is preferable to install the oven so that it rests on two wooden slats. If the oven rests on a flat surface, there must be an opening of at least 45×560 mm.
• Adjacent cabinet panels shall be made of heat-resistant material. In particular, enclosures with a veneered exterior must be assembled with glues that can withstand temperatures up to 100 °C.
• In compliance with current safety regulations, it must not be possible to come into contact with the electrical parts of the oven once it has been installed.
• All parts that ensure the safe operation of the appliance must only be removed with the aid of a tool (NOT INCLUDED).
• To fix the oven to the cabinet, open the oven door and fix it by inserting the 4 wood screws into the 4 holes on the perimeter of the frame.

Electrical connections

Ovens equipped with a three-pole power cable are designed to operate on alternating current. The cable for the grounding of the device is yellow green.

Mounting the power cable

• Opening the terminal box (Fig. 3):
• Using a screwdriver, prise the bolt on the side tabs of the terminal box cover.
• Unscrew the screw and open the cover.
• To install the cable, proceed as follows:
• Remove the cable clamp screw and the three contact screws.

- Fix the wires under the screw heads using the following colour scheme:

- Blue - Neutral (N)

- Brown phase connector (L)

- Yellow-Green (Ground)

- Secure the power cable with the cable clamp and close the terminal box cover.

Connecting the power cable to the mains

- Install a standard plug (not included) corresponding to the load indicated on the rating plate. When connecting the cable directly to the mains, install an omnipolar circuit breaker with a minimum contact opening of 3 mm between the device and the mains. The omnipolar circuit breaker must be sized according to the load and comply with the applicable regulations (the earth cable must not be interrupted by the circuit breaker).

- The power supply cable must be routed so that it does not reach a temperature above 50 °C above ambient temperature and must be protected by insulation with an appropriate rating.

- Before making the connection, check that:

- The electrical safety of this appliance can only be guaranteed if the oven is correctly and effectively earthed in accordance with electrical safety regulations. Always make sure that the ground connection is effective; if in doubt, call a qualified technician to check the system. Cecotec declines all liability for damage resulting from a system that has not been grounded.

- Before connecting the appliance to the mains, check that the specifications indicated on the rating plate (on the appliance and/or on the packaging) correspond to those of the mains supply at home.

- Check that the electrical capacity of the installation and the sockets can withstand the maximum power of the appliance. If in doubt, contact a qualified technician.

- If the socket and plug of the appliance are not compatible, ask a qualified technician to replace the socket with a suitable model. The latter, in particular, will also have to ensure that the cross-section of the socket cables is adequate for the power used by the appliance. The use of adapters, multiple sockets and/or extensions is not recommended. If their use cannot be avoided, remember to use only single or multiple adapters and extension cords that comply with current safety regulations. In these cases, never exceed the maximum current capacity indicated on the single adapter or extension cord and the maximum power indicated on the multiple adapter. The plug and socket shall be easily accessible.

5. CLEANING AND MAINTENANCE

- Before cleaning or servicing the oven, disconnect it from the mains.

- To prolong the life of your oven, you should clean it frequently, bearing in mind that:

- Enamelled or stainless-steel parts should be washed with lukewarm water without the use of abrasive powders or corrosive substances that could damage them. Stainless steel can stain, if these stains are difficult to remove, use special products available on the market. After cleaning, it is advisable to rinse thoroughly and dry the product.

- The inside of the oven should preferably be cleaned immediately after use, while it is still hot (be particularly careful, risk of burns), with hot soapy water; the soap should be rinsed out and the inside dried thoroughly. Avoid using abrasive detergents (e.g. scouring powders) and abrasive sponges or acids (e.g. lime scale removers) as they may damage the enamel. If grease stains and dirt are particularly difficult to remove, use a special oven cleaning product according to the instructions on the packaging. Never use a steam cleaner to clean the inside of the oven.

- If you use the oven for a long period of time, condensation may form, dry it with a soft cloth.

ENGLISH

• The oven has a rubber gasket around the opening which guarantees its perfect functioning. Periodically check the condition of this seal. If necessary, clean it and avoid using abrasive products or objects to do so. In the event of a malfunction, please contact the official Cecotec Technical Support Service. We recommend that you avoid using the oven until it has been repaired.
• Never line the bottom of the oven with aluminium foil, as the resulting heat build-up could compromise cooking and even damage the enamel.
• Clean the glass door with non-abrasive products or sponges and dry it with a soft cloth.

How to disassemble the oven door

For a thorough cleaning, you can remove the oven door. If it were the case, proceed as follows:

• Open the door fully (Fig. 4).

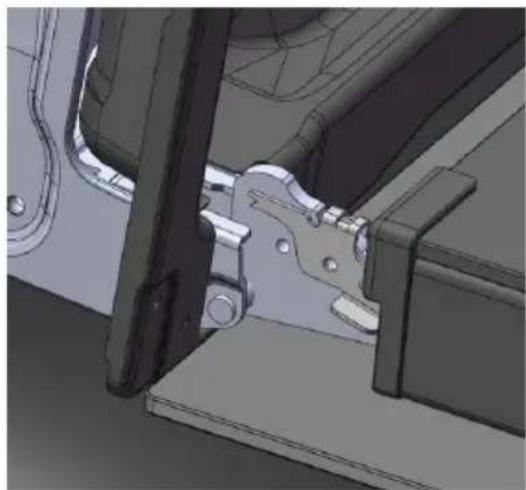

• Fully open the left and right hinge levers (Fig. 5).

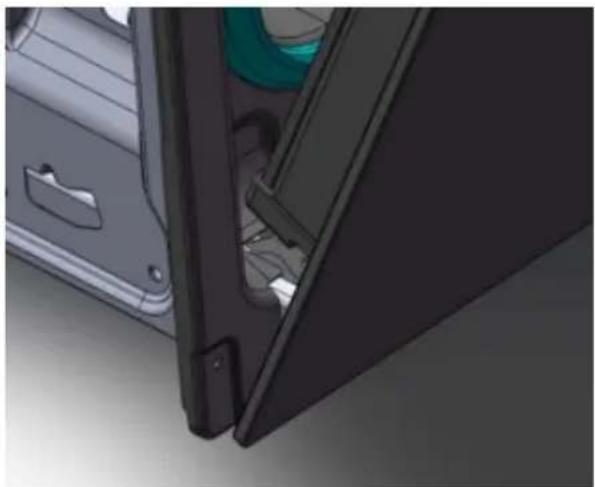

• Hold the door as shown in Figure 6.

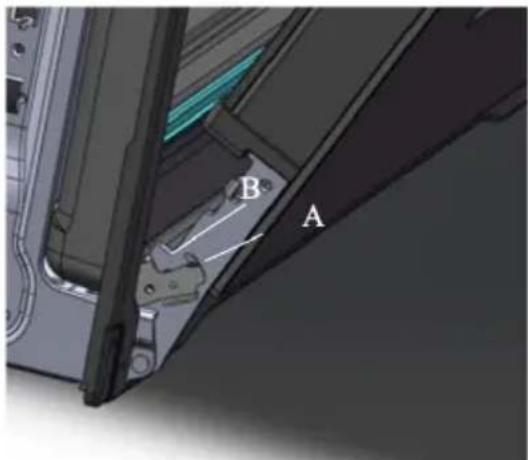

• Gently close the door until the left and right hinge levers are engaged in part B of the door (Fig. 7).

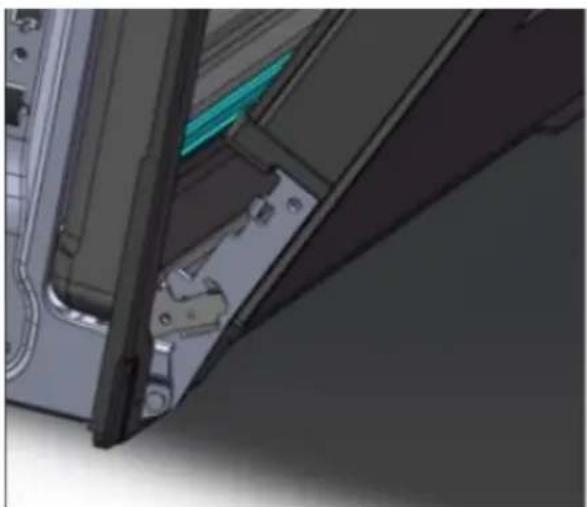

• Remove the hinge hooks from their location following the arrow.
• Rest the door on a soft surface.
• To replace the door, repeat the above steps in reverse order.

Removing the inner glass

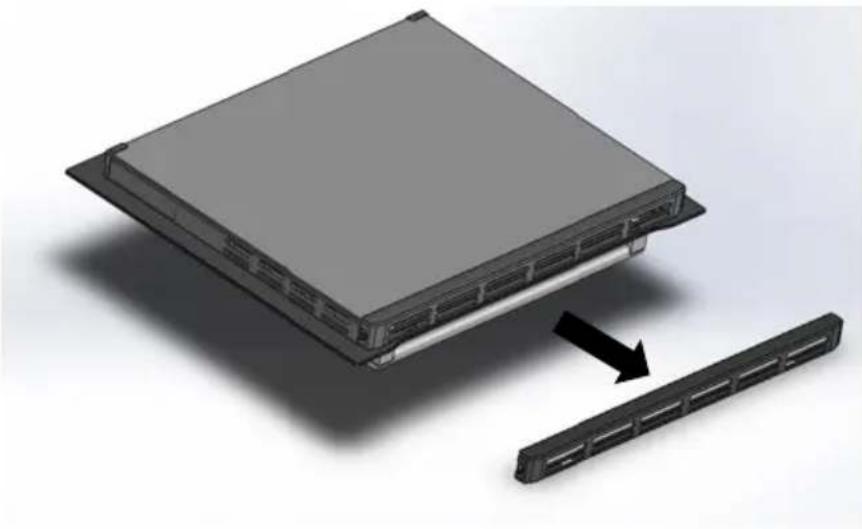

• Double oven door: remove the seal by unscrewing the screws (Fig. 8).

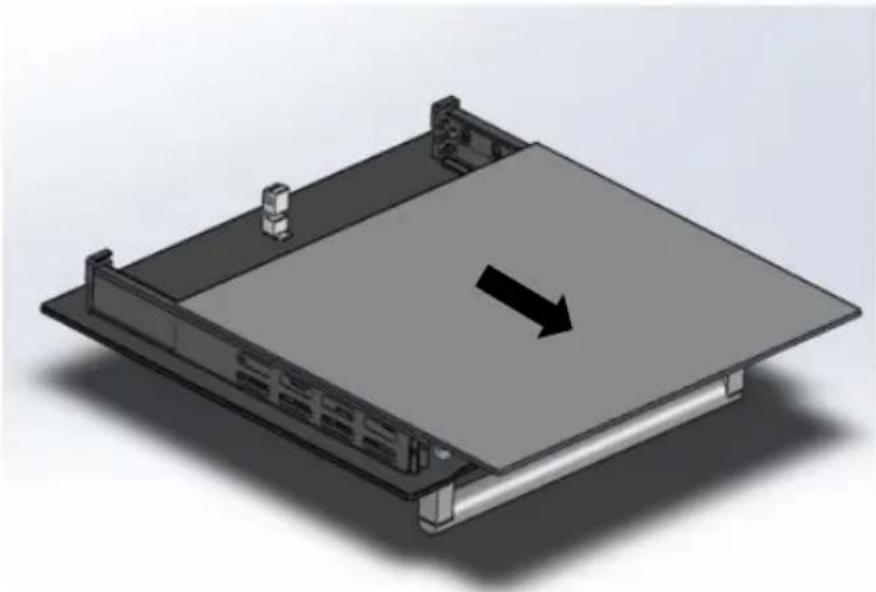

• Carefully remove the inner glass (Fig. 9).
• Clean the glass with a suitable cleaner. Dry it thoroughly and place it on a soft surface.
• Then you can also clean the inside of the outer glass.

Steam cleaning

1. This function helps to remove food residues from inside the oven. This method is only effective for the removal of light, non-fouling dirt. It is not effective to remove stubborn stains caused by cooking. This function can only be used when the oven is cold.

2. Cleaning procedure:

3. Remove all shelves, plates, racks, trays, etc.

4. Prepare a solution of water (85%), white vinegar (10%) and dish detergent (5%) and spray generously on the door, side walls and rear wall of the oven cavity (Fig. 10).
5. Pour 40 ml of water into the base of the oven cavity (Fig. 11).
6. Close the door. Set the Steam-Assisted Cleaning function and the temperature to 130 °C.
7. Turn off the oven after 18 minutes.
8. Allow to cool to a safe level before wiping the inside surface with a damp cloth.
9. Dry the entire interior properly with a cloth or absorbent paper.
   WARNING: make sure the oven is completely cooled down. Danger of burns.

Note

• Slight differences in colour in the front part of the device are caused by the use of different materials, like glass, plastic, and metal.
• The shadows on the door panels, which look like stripes, are due to reflections from the interior lighting.
• Enamel is made at very high temperatures. This can cause a slight colour variation. This is completely normal and does not affect the device operation. The edges on thin trays cannot be completely enamelled. As a result, these edges can be rough. This does not affect the corrosion protection.
• Always keep the device clean and immediately remove the dirt so that the appliance does not accumulate lasting dirt residues.

Tips

• Clean the oven interior after every use. This way, you will not cook food over this dirt.
• Immediately remove lime, grease, starch, and albumen stains (e.g., egg white).
• Use suitable oven cookware, e.g., an oven platter.

Warning - Risk of injury

• If the hinges are not blocked, they can be lock with energy. Make sure the lock levers are always completely locked or, when detaching the device door, they are completely unlocked.
• The device hinges move when you open and close the door, be careful not to get caught. Keep hands away from hinges.

Replacing the oven light bulb

NOTE: if the bulb or bulb cover is defective, please contact Cecotec Technical Support Service. You must never remove the light bulb cover.

Information for the qualified technician

• Disconnect the oven from the mains using the omnipolar switch used to connect the appliance to the mains or unplug the appliance if the plug is accessible.
• Remove the glass cover from the lamp holder (Fig. 12).
• Remove the lamp and replace it with a high temperature resistant lamp (300 °C) with the following characteristics:
• Voltage: 220-240 V
• Power: 25 W
• Type: G9 (halogen lamp)
• Energy efficiency class G
• Replace the glass lid and reconnect the oven to the mains.

6. TIPS

How to prepare your own recipe Try to use	first similar recipe settings for optimal results.
How to know when the sponge cake is ready	Place a toothpick inside the cake 10 minutes before the preparation time expires. If there is no uncooked dough on the toothpick after removing it, the cake is ready.
The sponge cake surface is too brown on top.	Place it on a lower level and/or use a lower setting temperature (this can lead to a longer cooking time).
The sponge cake is too dry Use a temperature	10°C higher (this may result in a shorter cooking time).
Food has good aspect, but the interior moisture is too high	Decrease the temperature in 10°C (this could lead to an upper cooking time) and check the recipe steps.
Uneven browning Decrease the temperature	in 10°C (this could lead to an upper cooking time). Use convection mode.
The cake is less browned on the bottom	Place it on a lower level.
Cooking in more than a height level at once: food on a height level will be darker than food on another height level.	Use convection mode to bake at more than one height and remove the tray/rack individually when ready.
Water condensation during cooking Steam is	part of the cooking process and is usually released together with the cooling air flow. This steam can condensate in different oven surfaces or near them and form water drops. It is a physical process and cannot be completely prevented.
Suitable baking utensils You can use heat-resistant bakeware. It is recommended not to use aluminium in direct contact with food, especially when they are acidic. Make sure the container and lid fit properly.
General oven use Preheat the oven for 5	minutes and place food on the level indicated in the manual.Do not use the oven when the door is open, except to remove/introduce/check food.
How to keep the oven clean during roasting	Place the tray at height 1. Almost every liquid dripping from food placed on the rack will fall into the tray.
The heating element on any cooking mode turns on and off during time	It is a normal operation, and it depends on the temperature setting.

7. TROUBLESHOOTING

• If there is a fault, before contacting the official Cecotec Technical Support Service, make sure it is not caused by an improper use and check the following table to try and solve the problem on your own.
• In most cases, the user itself can solve technical faults easily.

Fault Possible cause Possible solution
The appliance does not work B	own fuse. Check the residual current	circuit breaker in the electrical switchboard of your home.
	Power cut. Check if the kitchen light or any other appliances work.
The knobs cannot be easily used	There is dirt under the knobs. Proper cleaning ensures optimum performance
Food is not cooked enough on the time indicated in the recipe You are using a different temperature to the recipe one. Check the temperature again.The amount of ingredients is different to the recipe one.Check the recipe again.

Uneven toasting The temperature setting is	too high, or it is not placed on the correct level. Check the recipe and settings again.
The light bulb does not turn on You must replace the light	bulb.

Warning - risk of electric shock

Incorrect repairs can be dangerous. A damaged cord repair or replacement can only be carried out by authorised technical personnel. If the device is defective, unplug it from the power supply or switch off your home circuit breaker. Contact the official Cecotec Technical Support Service.

8. ENERGY EFFICIENCY ACCORDING TO EN 60350-1

Take into account the following information:

• The measurement is carried out in ECO mode (depending on model) to determine the forced air mode data (depending on model) and the label class.
• The settings of the upper + lower heating element mode were used to determine the information on the conventional mode.
• During measurement, only the necessary accessory was placed in the interior.
• The determination of the interior volume is carried out for the Defrost use as described in the previous sections (depending on the model). To ensure an efficient oven use, every accessory is removed, even the side guides.

9. TECHNICAL SPECIFICATIONS

02270_Bolero Hexa C126000 Inox A Oven 02805_Bolero Hexa C126000 Line+ A Oven 02289_Bolero Hexa C126000 Mirror A Oven 02290_Bolero Hexa C126000 Black A Oven 02291_Bolero Hexa C136000 Mirror Time A Oven 02292_Bolero Hexa C136000 Glass Black Time A Oven

Reference 02270 02805 02289
Model Bolero HexaC126000 Inox AOven	Bolero HexaC126000 Line+AOven	Bolero HexaC126000 Mirror AOven
QR code
Voltage 220-240 V ~ 220-240 V ~ 220-240 V ~
Frequency 50-60 Hz 50-60 Hz 50-60 Hz
Electric power	2300-2800 W 2300-2800 W 2300-2800 W
Reference 02290 02291 02292
Model Bolero HexaC126000 Black AOven	Bolero HexaC136000 MirrorTime A Oven	Bolero HexaC136000 GlassBlack Time A Oven
QR code
Voltage 220-240 V ~ 220-240 V ~ 220-240 V ~
Frequency 50-60 Hz 50-60 Hz 50-60 Hz
Electric power	2300-2800 W 2300-2800 W 2300-2300 W

Reference 02290 02291 02292
Model Bolero HexaC126000 Black A Oven	Bolero HexaC136000 MirrorTime A Oven	Bolero HexaC136000 GlassBlack Time A Oven
QR code
Voltage 220-240 V ~ 220-240 V ~ 220-240 V ~
Frequency 50-60 Hz 50-60 Hz 50-60 Hz
Electric power	2300-2800 W 2300-2800 W 2300-2800 W

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

10. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

11. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

12. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1

- Marron - Phase (L)

- Blau - Neutral (N)

- Braune Phase (L)

- Gelb-Grün (Erde)

7. PROBLEEMOPLOSSING

Technical line drawing of an electrical enclosure with a magnified inset showing internal components (no text or symbols)

Mechanical assembly diagram showing a bracket and mounting plate assembly (no text or symbols visible)

Fig./Img./Abb./Afb./Rys. 3 Fig./Img./Abb./Afb./Rys. 4

B A

Fig./Img./Abb./Afb./Rys.5

3D rendering of a car door with a person inside, showing interior details and mounting brackets (no text or symbols)

Fig./Img./Abb./Afb./Rys. 6

Close-up of a mechanical component with visible internal structure and mounting brackets (no text or symbols)

Fig./Img./Abb./Afb./Rys. 7

3D illustration of a device with a rectangular panel and a separate black rack, showing internal structure and an arrow indicating assembly (no text or symbols)

Fig./Img./Abb./Afb./Rys. 8

3D rendering of a mechanical device with a black arrow indicating direction (no text or symbols)

Fig./Img./Abb./Afb./Rys. 9

Fig./Img./Abb./Afb./Rys. 10 Fig./Img./Abb./Afb./Rys. 11

Diagram showing two mechanical components with directional arrows indicating motion (no text or symbols)

Fig./Img./Abb./Afb./Rys. 12

www.cecotec.es
