1. Parts and components /04
2. Warnings /09
3. Safety instructions /19
4. Product assembly /44
5. Operation /46
6. Cleaning and maintenance /50
7. Troubleshooting /51
8. Technical specifications /51
9. Disposal of old electrical appliances /51
10. Technical support service and warranty /52

SOMMAIRE

Technical diagram of an electric scooter with numbered components and a close-up of its cable

ES

1. Accelerador

2. Frena

3. Faro delantero

4. Barra

5. Anillo de plegado

6. Motor

7. Caballete

B. Disco de freno

1. Monillar

2. Pantalla LCD

II. Panel de control

1. Throttle

2. Brake

3. Headlight

4. Stem

5. Fixing ring

6. Motor

7. Kickstand

B. Disc brake

1. Handlebar

2. LCD display

3. Dashboard cover

4. Closing hook

5. Charge port

6. Folding latch

7. Anti-slip footrest

8. Rear fender

9. Back light

10. Battery

11. Power adaptor

FR

Technical diagram of a mechanical device with numbered components and labeled parts

6 12 7 8 9 10 11 KMH MPH

ES

Illustration showing a person using a scooter with a hand gesture and a magnified circular diagram of a device, accompanied by a question mark.

ES • No presione el acelerador cuando canine junto al palinele. EN • Do not activate the throttle while walking next to the scooter. FR • N'appuyez pas sur l'accélérateur lorsque vous marchez a côté de la trottinette. DE • Drücken Sie den Gashebel nicht, während Sie neben dem Scooter laufen. IT • Non premere l'acceleratore quando cammina con il monopattino. PT • Não pressione o acelerador quando estiver ao lado da trotineta. NL • Druk niet op de versneller als u naast de step loopt. PL: Nie nariskaj dżwigni regulacji prędkości, kiedy idąc prowadzisz hulajnogę obok. CZ • Neliskněle akcelerátor, pokud jdele vedle koloběžky.

ES • No conduzca sobre charcos ni superficies mojadas. EN • Do not ride through puddles or other wet surfaces. FR • Ne conduizsez pas sur des flaques ni sur des surfaces moullées. DE • Fahren Sie nicht auf Pfützen oder nasse Oberflächen. IT • Non condurre su pozzanghere né superfici bagnate. PT • Não conduza sobre poças de água nem em pavimentos molhados. NL • Rijd niet door plassen of natte oppervlakken. PL Nie przejeżdzaj przez kaluże ani mokre powierzchnie. CZ • Nevjlzdėjte do kaluži ani na mokré povrchy.

Simple line drawing of a person riding a scooter with a stick, no text or symbols present

ES • Tenga cuidado con la cabeza si pasa debajo de zonas con techo como una puerta. EN • Watch your head when passing through doorways or when driving indoors. FR • Failles attention à votre tête si vous passez par ces endroits possédant un tolt comme une porte. DE • Passen Sie auf Ihren Kopf auf, wenn Sie unter überdachte Bereiche vorbeikommen. IT • Prestare attenzione se si passa sotto a tettoie o porte. PT • Tenha cuidado com a cabeza se passar por baixo de zonas com pouca altura. NL • Pas op uw hoofd als u door besloten ruimles of openingen rijdt, zoals een deur. PL Zachowaj ostrożność przy przejeżdżaniu przez miejsca, w których jest strop. CZ • Dalvejte pozor na hiavu, pokud vijzciite pod střechu nebo io dwefi.

ES • Cuando circule a alta velocidad no gire el manilar de forma brusca. EN • Do not turn the handlebar suddenly when riding at high speed. FR • Lorsque vous circulez à vitesse élevée, ne tournez pas brusquement le guidon. DE • Bei hohen Geschwindigkeiten drehen Sie den Lenker nicht scharf. IT • In caso di circolare ad alta velocità non girare il manuorio in modo brusco. PT • Quando circular a alta velocidade, não gire o volante da forma brusca. NL • Als u op hoge snelheid ridt, draat dan niet abrupt aan het stuur. PL Nie wykonuj gwałtownych ruchów kierownicą, kiedy jedziesz z dużą prędkością. CZ • Pokud jedete rychle, neotăčejte rychle Moldity do stran.

ES • Moderé la velocidad en caso de descender por pendientes y utilice ambos frenos. EN • Watch your speed when travelling downhill. Use both brakes at once when travelling at high speed. FR • Modérez la vitesse si vous descendez des pentes et utilisez les deux freins. DE • Mäßigen Sie die Geschwindigkeit bei Abhangen und verwenden Sie die zwei Bremsen. IT • Moderare la velocità in caso di discesa in pendenze e utilizzare entrambi i frenl. PT • Reduza a velocidade em caso de descer por rampas e utilize ambos travões. NL • Pas de snelheld aan als u een heuvel afdaalt en gebruik beide remmen. PL Zmniejsz prędkość, kiedy zjeźdzasz z görki, użyj obu hamulców. CZ • Pilzpżsobte rychlost, pokud jede z kopce, a poużivelte obé brzdy.

Simple line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

ES • No circule a alta velocidad sobre obstáculos como escalones, bordillos o badenes. EN • Do not ride fast on stairs, curbs or speed humps. FR • Ne circulez pas à vitesses élevées sur des obstacles comme des marches. des bords, des cassis, ... DE • Fahren Sie nie mit hoher Geschwindigkeit durch Hindernisse wie Treppenstufen, Bordsteine oder Bremsschwellen. IT • Non circolare ad alta velocità su ostacoli quali scolani, bordi o dossi. PT • Não circule em alta velocidade sobre obstáculos como degraus ou bermas. NL • Rijd niet met hoge snelheid over obstakels zoals treten stoepranden of verkeersdrempels. PL Nie przejezdaj z dużą prętkością przez przeszkody, np. krawężniki, kanly czy progi. CZ • Nenajíždějle ve velké rychlosti na překázky, jako jsou schody nebo obrubníky.

ES • No golpee obstáculos con las ruedas. EN • Avoid hitting obstacles with the wheels. FR • Ne choquez pas avec les roues contre des obstacles. DE • Schlagen Sie keinen Gegenstand mit den Reifen. IT • Non colpire ostacoli con le ruote. PT • Não choque em obstáculos. NL • Raak geen obstakels met de wielen. PL Nie uderzaj kolami w przeszkody CZ • Nevrażejte koly do prěkážek.

ES • No toque el motor del buje immediatamente después de circular, podría estar a alta temperatura. EN • Do not touch the product's motor immediately after riding it, it could burn. FR • Ne touchez pas le moteur immédiatement après avoir conduit, sa température pourrait être très élevée. DE • Berühren Sie den Motor nicht sofort nach dem Gebrauch, da er bei hoher Temperatur sein könnte. IT • Non toccare il motore subito dopo aver guidato, potrebbe trovarsi ad una temperatura elevata. PT • Não toque no motor immediatamente depois de circular, poderla estar a altas temperaturas. NL • Raak de motorbehuizing niet aan direct na gebruik van de step, omdat de motor warm zou kunnen zijn. PL Nie dotykaj napędu piasty przez jakiś czas po zakończeniu jazdy, gdyż może być gorący. CZ • Nedotýkejte se poudzra motoru během nebo ihned po jizdě. Mohl by být horký.

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• Cecotec will not assume any responsibility resulting from product misuse or from not complying with traffic regulations and with this instruction manual.
• When operating the device, make sure to comply with local traffic regulations. Drive in a civilized way and pay attention to people and obstacles around in order to avoid accidents.
• Make sure the tires are not damaged and that all the product's parts and components are tightly assembled before use.
• Do not use the vehicle in such way that could harm other people or properties.
• Any conversion of the scooter is not allowed, as this can change its performance or damage its structure causing injuries.
• Do not operate the product under water to avoid damage to the product and accidents.
• The appliance is not intended to be used by children under the age of 14. It can be used by children over the age of 14, as long as they are given continuous supervision.
• This appliance can be used by children aged 14 and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
• Supervise young children to make sure that they do not play with the appliance. Close supervision is necessary when the appliance is being used by or near children.

BATTERY SAFETY INSTRUCTIONS

• Do not use the battery if it presents unusual odours, excessive heat or if it leaks. Do not touch liquid leaked from the battery.
• Do not allow children or animals to touch the battery.
• Unplug the battery before riding and before assembling or disassembling it.
• The optimum charge temperature is from 0 °C to 35 °C. Do not exceed 40 °C in order to ensure proper operation.
• Do not open the battery or insert anything inside it, as it contains dangerous substances and could cause health problems.
• Do not try to charge a faulty battery. If the battery does not operate properly, dispose it off.

WARNING: Only use the original charging equipment provided by Cecotec.

INSTRUCTIONS DE SÉCURITÉ

Technical line drawing of a mechanical assembly with directional arrows indicating motion (no text or symbols)

Technical line drawing of mechanical components with directional arrows indicating motion (no text or symbols)

Line drawing of a two-wheeled electric scooter with wheels and suspension components (no text or symbols)

A SERIE | 3534BONGO SEI

ESPAÑOLESPAÑOL

Doblar

Line drawing of a person's lower torso wearing a medical device (no text or symbols)

Line drawing of a mechanical clamp or grip mechanism with a blue arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a rotating shaft and lever mechanism (no text or symbols)

Mechanical assembly diagram showing a wheel with a blue arrow indicating a component (no text or symbols present)

Line drawing of a modern electric scooter with visible wheels and suspension components (no text or symbols)

3637

bongo

5. FUNCIONAMIENTO

BOTONES

CÓMO CONDUCIR EL PATINETE

Diagram illustrating a person using a scooter to interact with a device, showing a downward arrow and motion path.

Diagram showing two hands holding a cylindrical object with a pull-up cable, illustrating mechanical or electrical assembly steps.

Simple line drawing of a person using a scooter with a thought bubble showing a hand holding a pencil (no text or symbols)

CÓMO CARGAR EL PATINETE

Three-step diagram showing a mechanical component with an arrow indicating direction, no text or symbols present.

Technical line drawing showing a cylindrical component with blue arrows indicating direction, and a separate view of a corner joint with a blue arrow (no text or symbols)

6. LIMPIEZA Y MANTENIMIENTO

Bongo A Advance Connected

Series Modelo No.: 07028

220-240 V \~ 50/60 Hz

1. Pull up the stem while pressing down the rear fender.
2. Raise the stem, place the folding tab in a close position and turn the fixing ring to hold the tab.

Technical line drawing of a mechanical component with arrows indicating motion direction (no text or symbols)

Line drawing of a human leg with a medical device attached, showing no text or symbols

1. Fix the brake with an M6 hex wrench.
2. Paying attention to the rotation direction, tighten the handlebar.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with directional arrows indicating motion (no text or symbols)

Line drawing of a two-wheeled electric scooter with wheels and suspension components (no text or symbols)

4445

bongo

Fold

1. Turn the fixing ring to loosen it.
2. Open the folding tab.

Line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a mechanical clamp or grip mechanism with a blue arrow indicating rotation (no text or symbols)

1. Lower the folding tab and then the stem.
2. Align the closing hook with the gap on the rear fender and press it down to ensure it is locked.

Mechanical assembly diagram showing a lever mechanism with a blue arrow indicating motion direction (no text or symbols present)

Technical line drawing of a vehicle wheel assembly with a blue arrow indicating a specific component (no text or symbols present)

Line drawing of a modern electric scooter with visible suspension and wheel (no text or symbols)

A SERIE I

ENGLISHENGLISH

5. OPERATION

PUSH BUTTONS

• Power switch: Long press this push push button to turn the scooter on or off.
• Throttle: Use it to start the scooter up and to accelerate.
• Brake: Hold it pressed to stop. Gently step on the rear fender to assist the braking process.
  • Function: Press this push button to adjust speed. Select between
  p ECO mode: No icon is shown on the display.
  o COMFORT mode: The displays shows a white "D".
  o SPORT mode: The display shows a red "D".
• Headlight: Short press the function push button twice to turn the headlight on. The back lights are always on. While the lights are on, short press the function push button twice to turn them off.
• Cruise mode: Ride at steady speed for 6 seconds to enter this mode. To deactivate it, press the throttle or brake.

Note: This mode is not activated in the default configuration.

Note: The back light will blink when using the brakes.

On-board computer operating

The on-board computer offers the following functions:

P1: Selecting km/h or mph.

P2: Activating and deactivating cruise speed.

P3: Activating and deactivating start up with kick off (foot).

A. Riding modes:

To select Eco mode, turn on the display ⏻ and press the menu button ≡ until the white D and red D symbols disappear from the right side of the display.

To select Comfort mode, turn on the display ⏻ and press the menu button≡ until the white D symbol appears in the right side of the display.

To select Sport mode, turn on the display ⏻ and press the menu button ≡ until the red D symbol appears in the right side of the display.

B.- Cruise speed

This mode can be activated or deactivated. To do so, hold down both buttons ⏻ ≡ until P0

4647

is displayed. Then, press the menu button ≡ until you select P1. Once you have selected P1, enter to the function (cruise speed) and select 1 (deactivated) or 0 (activated). To confirm, press both buttons ⏻ ≡ and return to the home display.

C.- Automatic start

Automatic start can be activated or deactivated. To do so, hold down both buttons ⏻ until P0 is displayed. Then, press the menu button ≡ until you select P2. Once in P2, access to the function (automatic start) and choose 1 (activated) or 0 (deactivated). To confirm, press both buttons ⏻ and return to the home display.

D. Speed measuring unit

Speed can be measured in km/h (0) or in miles/hour (1). To change it, go to menu P0 of the on-board computer.

NOTE:

Bongo A Advance Connected Max Series features Smartphone App. Thanks to Bluetooth connectivity, the electric scooter can be linked to your Smartphone and you can check information and settings

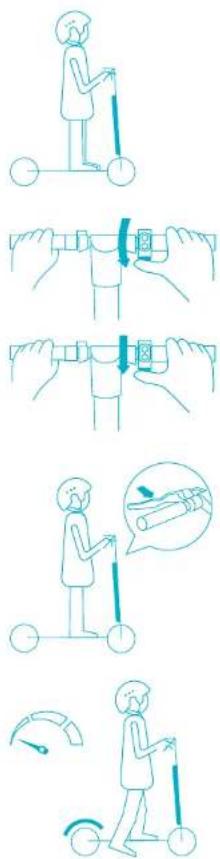

HOW TO RIDE THE SCOOTER

Diagram showing a person using a scooter with a downward arrow indicating motion or change, likely illustrating a mobility or safety concept.

1. Press the power push button for 2 seconds.

2. Stand on the board with 1 foot and kick off with the other one to start the scooter.

A SERIE I

ENGLISHENGLISH

Illustration showing a person using a scooter with motion capture steps including hand positioning, grip, and takeoff.

3_Place both feet on the footrest.

1. Press the throttle push button with your right hand and rotate the handle towards your body.

2. Press the throttle push button to speed up.

WARNING: Do not ride too fast.

1. Press the brake to stop or decrease speed. Press the rear fender with the foot to assist the braking process.

2. Only get off the scooter when riding at very low speed or when it is stopped.

4849

bongo

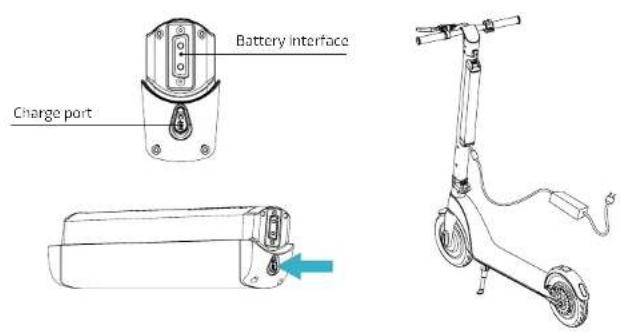

HOW TO CHARGE THE SCOOTER

1. Open the charge port cover. Make sure it is clean and dry.
2. Connect the charger with the battery and the other end to the power supply. Check the battery indicator is on.
3. The light indicator will turn on red during charging, and will turn Green when it is fully charged.

NOTE: Once the light indicator turns green, stop charging it. If the battery is left to overcharge for a long time the battery service life can be affected.

WARNING: Cover the charge port with the anti-dust tab to avoid dust from entering.

Battery interface Charge port

BATTERY INSTALLATION

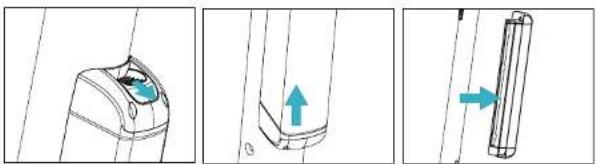

How to remove the battery

1. Pull the lock on the battery case.
2. Push the battery up.
3. Once the battery is held up, pull it out horizontally.

A SERIE I

ENGLISHENGLISH

Three-step diagram showing a mechanical component with an arrow indicating direction, no text or symbols present.

How to assemble the battery

1. Insert the battery horizontally into the pole.
2. Push it down until the lock latch on the battery case is fixed into place.

6. CLEANING AND MAINTENANCE

• Make sure the product is disconnected from the power supply and turned off before cleaning it or carrying out maintenance tasks.
• Use a soft cloth to clean the outside part of the scooter.
• Do not immerse the scooter in water or other liquids to clean it. This could cause permanent damage to its electronic parts.
• Do not try to repair the scooter by yourself. If it presents any damage or fault, contact the Technical Support Service of Cecotec.

STORAGE

• Make sure the scooter is charged before being stored for long periods of time. Charge it at least once a month.
• Only charge it at a room temperature between 0 °C and 35 °C and store it between - 10 °C and 35 °C.
• Store the scooter indoors, in a dry and safe place. Cover it or wrap it to protect it from dust if necessary.

7. TROUBLESHOOTING

Stop the product and wait until the engine cools down.

Defective engine: C Defective accelerator: B Defective brake: A

WARNING: These parts must be repair if any of the signs show in the screen. Please contact with our Technical Support Service.

8. TECHNICAL SPECIFICATIONS

Bongo A Advance Connected Series

Model No.: 07028

220-240 V - 50/60 Hz

Battery: 36 V. 7800 mAh

Rated power: 350 W

Maximum power: 700 W

IP 54

Made in China | Designed in Spain

Frequency Bands: 2.4 - 2.48 GHz

Maximum Transmission Power: 20 dBm

9. DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), specifies that old household electrical appliances must not be disposed of with the normal unsorted municipal waste. Old appliances must be collected separately, rather to optimize the recovery and recycling of the materials they contain, and reduce the cost on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation to dispose of the appliance correctly. If the product has a built-in battery or uses batteries, they should be removed from the appliance and disposed of appropriately.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

10. TECHNICAL SUPPORT SERVICE AND WARRANTY

This product is under warranty for 2 years from the date of purchase, as long as the proof

ENGLISH

of purchase is submitted, the product is in perfect physical condition, and it has been given proper use, as explained in this instruction manual.

The warranty will not cover the following situations:

• The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any other fault attributable to the customer.

• The product has been disassembled, modified, or repaired by persons, not authorised by the official Technical Support Service of Cecotec.

- Faults deriving from the normal wear and tear of its parts, due to use.

The warranty service covers every manufacturing defects of your appliance for 2 years, based on current legislation, except consumable parts. In the event of misuse, the warranty will not apply.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec Technical Support Service at [phone].

FRANÇAIS

4. MONTAGE

Déplier

Technical line drawing of a mechanical assembly with directional arrows indicating motion (no text or symbols)

Technical line drawing of mechanical components with no visible text or symbols

Line drawing of a two-wheeled electric scooter with wheels and suspension components (no text or symbols)

FRANÇAISFRANÇAIS

Plier

Line drawing of a human leg with a medical device (no text or symbols)

Line drawing of a mechanical device with a handle and lever mechanism, showing motion direction (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with motion arrow (no text or symbols)

Technical line drawing of a vehicle wheel assembly with a blue arrow indicating a component (no text or symbols present)

Line drawing of a modern electric scooter with visible wheels and suspension components (no text or symbols)

545

bongo

5. FONCTIONNEMENT

BOUTONS

Diagram illustrating a person using a scooter to lift a person above a barrier, with motion arrows indicating the movement.

Three technical diagrams showing mechanical components with arrows indicating motion or force (no text or symbols)

Two technical diagrams showing a cylindrical component with blue arrows indicating direction, and a separate view of a mechanical part with a downward arrow (no text or symbols present)

6. NETTOYAGE ET ENTRETIEN

Bongo Serie A Advance Connected

Modèle No.: 07028

220-240 V \~ 50/60 Hz

Technical line drawing of a mechanical assembly with arrows indicating motion or force direction (no text or symbols)

Technical line drawing of mechanical components with directional arrows indicating motion (no text or symbols)

Line drawing of a scooter with wheels and suspension components (no text or symbols)

6263

bongo

Abklappen

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical illustration of a mechanical assembly with no visible text or symbols

Line drawing of a modern electric scooter with visible suspension and wheel (no text or symbols)

A SERIE I

DEUTSCHDEUTSCH

5. BEDIENUNG

TASTEN

Diagram illustrating a person using a scooter with a downward arrow above it, indicating a correct or incorrect motion scenario.

Illustration showing a person using a scooter with motion instructions and a magnified view of the action.

Three technical diagrams showing mechanical components with arrows indicating motion or force direction (no text or symbols)

Technical line drawing showing two views of a mechanical component with blue arrows indicating direction (no text or symbols)

Bongo Serie A Advance Connected

ModelL: 07028

220-240V\~50/60Hz

Technical line drawing of a mechanical assembly with directional arrows indicating motion (no text or symbols)

Technical diagram showing mechanical assembly with no visible text or symbols

Line drawing of a two-wheeled electric scooter with wheels and suspension components (no text or symbols)

ITALIANOITALIANO

Piegare

Line drawing of a human leg with a medical device attached, showing no text or symbols

Line drawing of a mechanical device with a handle and lever mechanism, showing motion direction (no text or symbols)

Technical line drawing of a mechanical assembly with a blue arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a shaft and wheel with a blue arrow indicating motion direction (no text or symbols)

Line drawing of a modern electric scooter with visible wheels and suspension components (no text or symbols)

727

bongo

5. FUNZIONAMENTO

TASTI

Diagram illustrating a person using a scooter to lift a person above a platform, with an arrow indicating downward motion.

Three technical diagrams showing mechanical components with arrows indicating motion or force (no text or symbols)

Two technical diagrams showing a cylindrical component with directional arrows, one with blue arrows indicating force or movement (no text or symbols present)

Bongo Serie A Advance Connected

Modello No.: 07028

220-240V\~50/60Hz

Batteria: 36 V, 7800 mAh

Technical line drawing of a mechanical component with arrows indicating motion direction (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Line drawing of a two-wheeled electric scooter with wheels and suspension (no text or symbols)

806

bongo

Dobrar

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a mechanical device with a lever and adjustment arrow (no text or symbols)

Mechanical assembly diagram showing a rotating shaft and connecting rod (no text or symbols)

Technical line drawing of a vehicle wheel assembly with a blue arrow indicating a component (no text or symbols present)

Line drawing of a modern electric scooter with visible suspension components and wheels (no text or symbols)

A SERIE I

PORTUGUÊSPORTUGUÊS

5. FUNCIONAMENTO

BOTÕES

Diagram illustrating a person using a scooter with a downward arrow and motion indicators below, likely illustrating a mobility or safety concept.

Illustration showing a person using a scooter with a hand gesture and a magnified view of the motion technique.

Three-step diagram showing a mechanical component with arrows indicating motion, no text or symbols present.

Technical line drawing showing two views of a mechanical component with blue arrows indicating direction (no text or symbols)

Bongo Serie A Advance Connected

Modelo No.: 07028

220 240 V \~ 50/60 Hz

Bateria: 36 V, 7800 mAh

Technical line drawing of a mechanical assembly with directional arrows indicating motion (no text or symbols)

Technical line drawing of mechanical components with directional arrows indicating motion (no text or symbols)

Line drawing of a two-wheeled electric scooter with wheels and suspension components (no text or symbols)

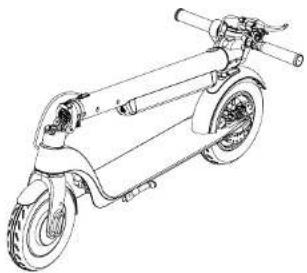

NEDERLANDSNEDERLANDS

Opvauwen

Line drawing of a person's lower body wearing a medical device (no text or symbols)

Line drawing of a mechanical clamp or bracket assembly with a blue arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a rotating shaft and connecting rod (no text or symbols)

Mechanical assembly diagram showing a car wheel with a blue arrow indicating a component (no text or symbols present)

Line drawing of a modern electric scooter with wheels and suspension components (no text or symbols)

9091

bongo

5. WERKING

KNOPPEN

Diagram illustrating a person using a scooter to lift a person's arm, with an arrow indicating downward motion.

Illustration showing four sequential steps of a person using a scooter, with one hand demonstrating the motion and another showing a magnified view.

Three-step diagram showing a device with a handle, a close-up view, and a final cylindrical component (no text or symbols)

Two technical diagrams showing mechanical components with arrows indicating motion, no text or symbols present.

6. SCHOONMAKEN EN ONDERHOUD

7. PROBLEEMOPLOSSING

Bongo Serie A Advance Connected

Model No.: 07028

220-240 V \~ 50/60 Hz

Batterij: 36 V, 7800 mAh

Nominaal vermogen: 350 W

Maximumvermogen: 700 W

IP 54

Technical line drawing of a mechanical assembly with directional arrows indicating motion (no text or symbols)

Technical line drawing of mechanical components with directional arrows indicating motion (no text or symbols)

Line drawing of a scooter with wheels and suspension components (no text or symbols)

9899

bongo

Składanie

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical illustration of a mechanical assembly with no visible text or symbols

Line drawing of a modern electric scooter with visible suspension components and wheels (no text or symbols)

A SERIE I

POLSKIPOLSKI

5. OBSŁUGA URZĄDZENIA

PRZYCISKI

Diagram illustrating a person using a scooter to lift a vehicle, with an arrow indicating downward motion.

Illustration showing a person using a scooter with a grip, accompanied by sequential instructions for handling the seat.

Three-step diagram showing a mechanical component with an arrow indicating direction, no text or symbols present.

Instalacja baterii

Technical diagram showing two views of a mechanical component with blue arrows indicating direction (no text or symbols)

6. CZYSZCZENIE I KONSERWACJA

Technical line drawing showing mechanical assembly with arrows indicating motion (no text or symbols)

Technical diagram showing mechanical assembly with no visible text or symbols

Line drawing of a two-wheeled electric scooter with wheels and suspension components (no text or symbols)

Složení

Line drawing of a person's lower body wearing a medical device (no text or symbols)

Line drawing of a mechanical clamp or grip mechanism with a blue arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a rotating shaft and connecting brackets with a blue arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing a shaft and wheel with a blue arrow indicating motion direction (no text or symbols)

Line drawing of a modern electric scooter with visible wheels and suspension components (no text or symbols)

108109

bongo

ČEŠTINAČEŠTINA

5. FUNGOVÁNÍ

TLAČÍTKA

Diagram showing a person using a scooter to lift a bicycle while adjusting a mechanical component, with an arrow indicating downward motion.

Three technical diagrams showing mechanical components with arrows indicating motion or force direction (no text or symbols)

Jak baterii instalovat

Technical line drawing showing two views of a cylindrical component with directional arrows indicating movement (no text or symbols)

6. ČIŠTĚNÍ A ÚDRŽBA

Bongo A Advance Connected

Série Modelu No.: 07028

220-240 V - 50/60 Hz

Quart de Poblet, Valencia (Spain)

YV01191213
