USER MANUAL U12 Yaber

Line drawing of a portable radio with a circular lens and two buttons (no text or symbols)

U12 PROJECTOR

LANGUAGE

English 03-36

Deutsch 39-70

Français 73-104

Italia 107-138

日本語日本語 141-172

Polish 175-206

CONTENTS

YABER Lifetime Professional Support 04

Precaution 04

Package List 05

Projector Specifications 06

Base Installation 09

Install on the Ceiling 10

Distance and Projection Size· ······10

Maintenance Tips ······36

YABER Lifetime Professional Support

Dear valued customer,

Thank you for choosing Yaber U12 projector. This manual will help you navigate through all the features.

We understand that there may be many questions and concerns that arise during the use of the projector. We are also eager to hear your feedback.

However, leaving a review on the product page does not provide the fastest solution. Many common problems, such as inability to autofocus or keystone, Dolby sound issues, WiFi or Bluetooth connection issues, can usually be resolved with appropriate settings adjustments.

If you encounter any issues,

feel free to send your order number and the problem to us at [e-mail].

Rest assured, our service team will offer the solution to you with 24 hours.

Your satisfaction is our top priority, and we encourage you to thoroughly explore the contents of this manual.

We wish you an outstanding experience with the U12.

Yaber Consumer Service Team

Precaution

1. Suitable Environment (5°C - 35°C)

Ensure the projector is placed in an environment with a suitable temperature, as extreme heat or cold may impact its lifespan. Avoid placing it in damp environments, such as damp basements or near swimming pools.

2.Adequate Ventilation

Please position the projector in a well-ventilated area to prevent overheating during operation, which may cause power cuts or screen flickering issues.

3. Avoid Prolonged Continuous Use

Please refrain from keeping the projector running for extended periods. We recommend limiting each session to no more than 3 hours to prevent component damage due to prolonged exposure to high temperatures.

4. Power

Please ensure the power source is within the required power range. During thunderstorms, please unplug the power cord from the projector.

5. Safely Care

Handle the projector with care to prevent strong impacts, extrusions, or vibrations, as these may result in internal circuit faults. Avoid moving it during such conditions.

6. Lens Maintenance

The lens directly affects picture quality. Excessive dust accumulation can degrade image quality. Use a soft cotton cloth to gently wipe the lens surface. Avoid using hard cloth or abrasives, as they may damage the glass lens.

Package List

Line drawing of a vintage portable radio with a circular lens and handle (no text or symbols)

U12 Projector

HDMI Cable

Simple line drawing of a U-shaped electrical plug with two terminal pins (no text or symbols)

Power Cord

Remote Control

Pure technical diagram of a rectangular component with internal grid pattern (no text or symbols)

Projector Base

Cleaning Cloth

Lens Cover

Two overlapping document sheets with horizontal lines, no text or symbols present

Quick Start Guide

Projector Specifications

Model No. U12
Focus Auto/Eletric		Keystone Correction	Auto/Eletric
Light Source LED Display Technology LCD
Aspect Ratio 16:9/4:3 Interfaces			USB2.0*2/HDMI1.4*2/3.5mmAudio Out*1, Lan*1
Projection Ratio 1.36:1		Recommended Projection Distance	1.3~5.0m(4.5-16.4 Ft.)
Native Resolution 1920*1080P Unit Dimension			9.8*8.8*7.6 inches(25*22.5.*19.3CM)7.27lbs (3.3KG)
Power Voltage	100-240V/50-60Hz2A	Power Consumption	140W
Projector Weight	7.27 lbs/3.3 kg(With Base)	Projection Method	Front/Rear on Desk, Front/Rear on Ceiling
Picture Format JPEG	GIF, BMP, PNG, JPG
Audio Format MP3,W	AV,MKA,OGG,FLAC,Dolby Audio
Video Format	AVI,TS,MPEG,MP4,MOV,M2TS,MKV,FLV,VOB,DAT,M4V,ASF,F4V,3GP,3G2,TP,TRP,RMVB

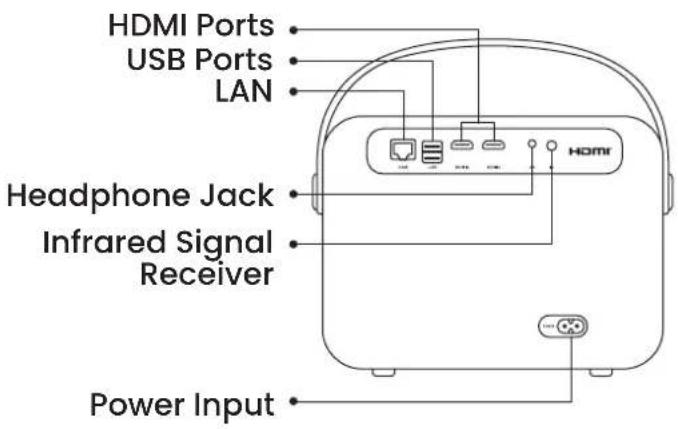

Projector Overview

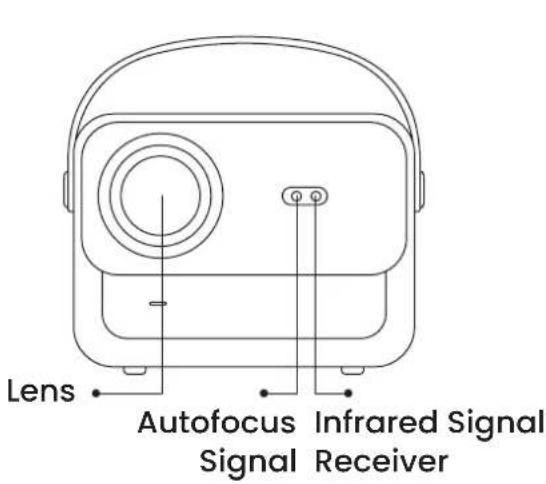

Lens Autofocus Infrared Signal Signal Receiver

HDMI Ports USB Ports LAN Headphone Jack Infrared Signal Receiver Power Input

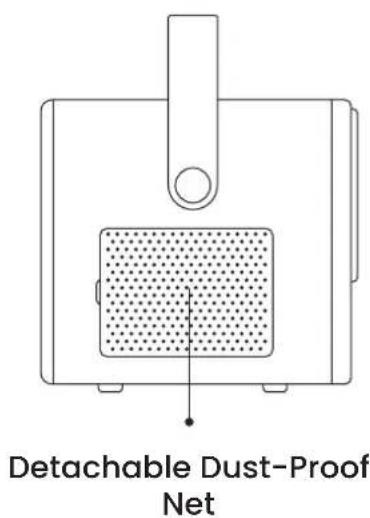

Detachable Dust-Proof Net

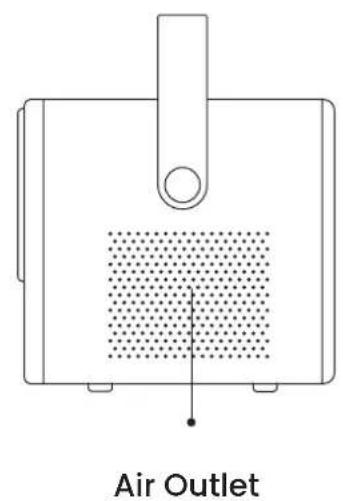

Air Outlet

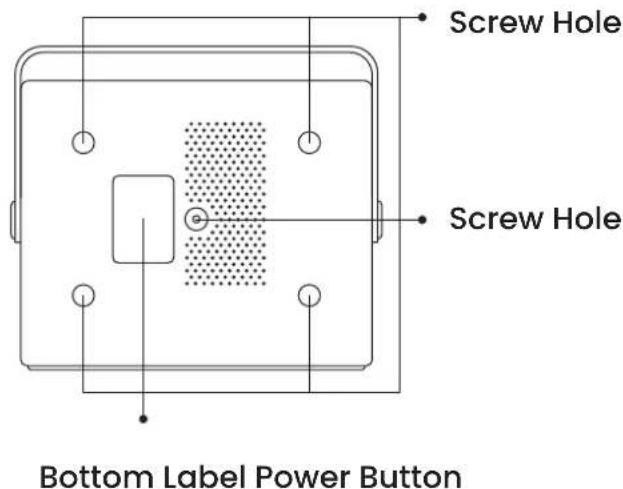

Screw Hole Screw Hole Bottom Label Power Button

Simple line drawing of a rectangular container with a circular button and a vertical line at the bottom (no text or symbols)

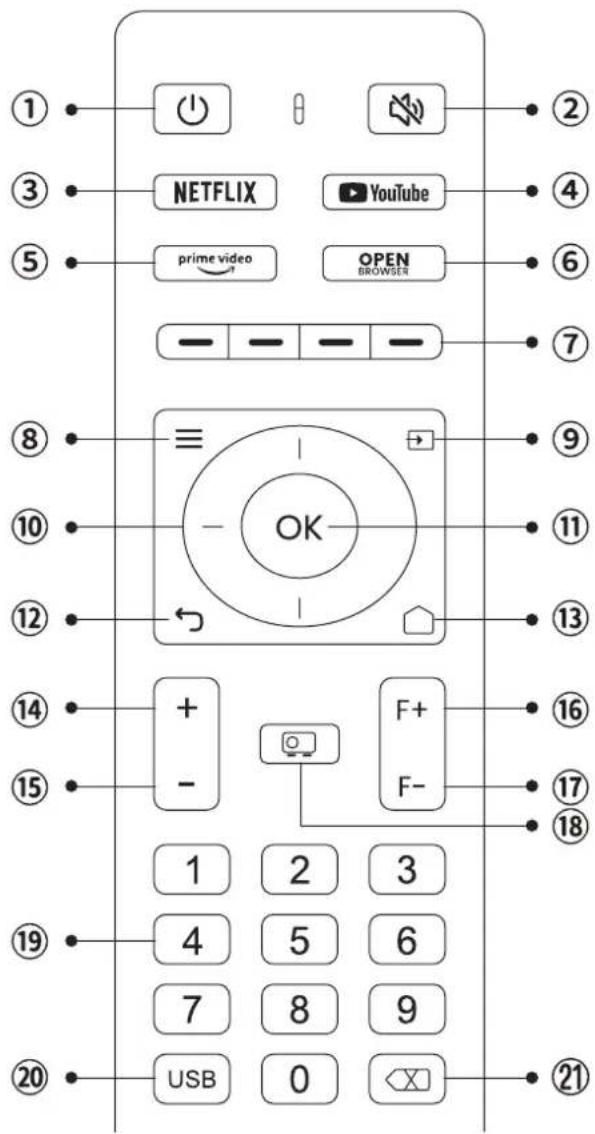

Remote Control Overview

① ② ③ NETFLIX YouTube ④ ⑤ prime video OPEN BROWSER ⑥ ⑦ ⑧ ≡ ⑨ ⑩ OK ⑪ ⑫ ← ⑬ + - ⑭ F+ ⑮ F- ⑯ 1 2 3 ⑰ 4 5 6 ⑱ 7 8 9 ⑲ USB 0 ◀ ⑳ ⑳ ⑴ ⑮

1. Power
2. Mute
3. NETFLIX
4. YouTube
5. Prime Video
6. Open BROWSER
7. Red/Green/Yellow/Blue keys
8. Menu
9. Input Source
10. Arrow keys
11. Confirmation key
12. Back
13. Homepape
14. Volume+
15. Volume-
16. Focus+
17. Focus-
18. Projection mode
19. Number
20. USB
21. Backspace

• Prepare the remote control

1. Open the battery compartment.
2. Insert two AAA batteries with correct polarity indicated.
3. Close the battery compartment.

Note: You must use the Yaber remote control to complete the first time setup of the projector.

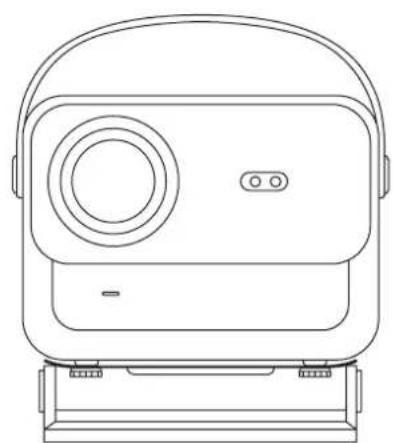

Base Installation

Line drawing of a portable electronic device with a speaker grille and control panel (no text or symbols)

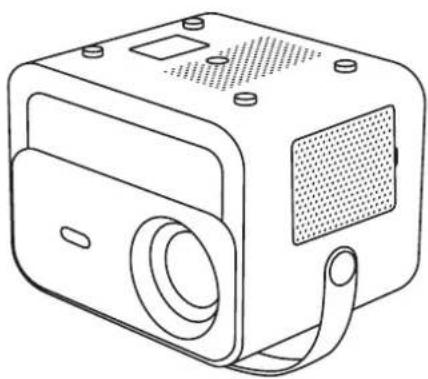

1. Turn the machine over, back side up.

Technical line drawing of a device with mounting holes and a central panel (no text or symbols)

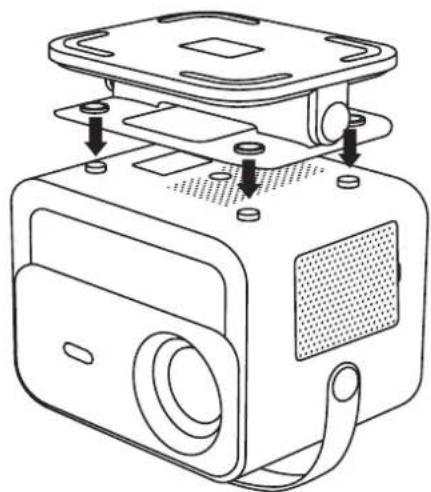

1. Match the holes of the base to the screw holes on the projector.

Line drawing of a portable electronic device with adjustment knobs and a speaker grille (no text or symbols)

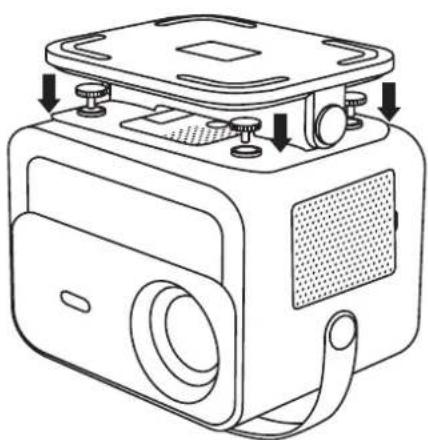

1. Tighten the screws in the accessory box.

Line drawing of a portable electronic device with front-mounted base and circular vent (no text or symbols)

1. Complete the installation.

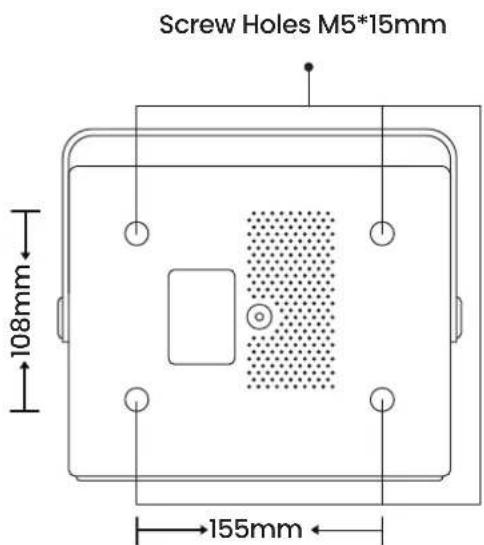

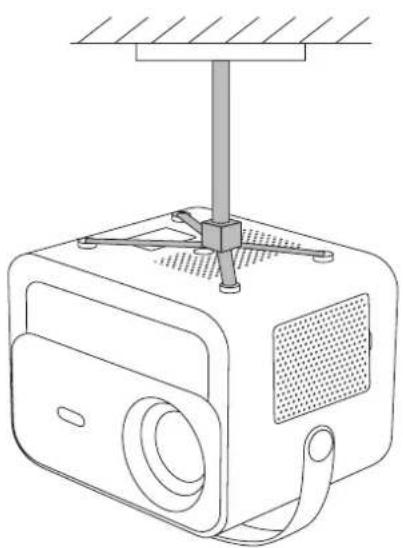

Install on the Ceiling

1. Prepare a universal projector ceiling mount. (Not included in the package)
2. Use M5*15mm screws to securely install the projector on the ceiling using the hanger frame.

Line drawing of a projector with a stand and base mount (no text or symbols)

Screw Holes M5*15mm 108mm 155mm

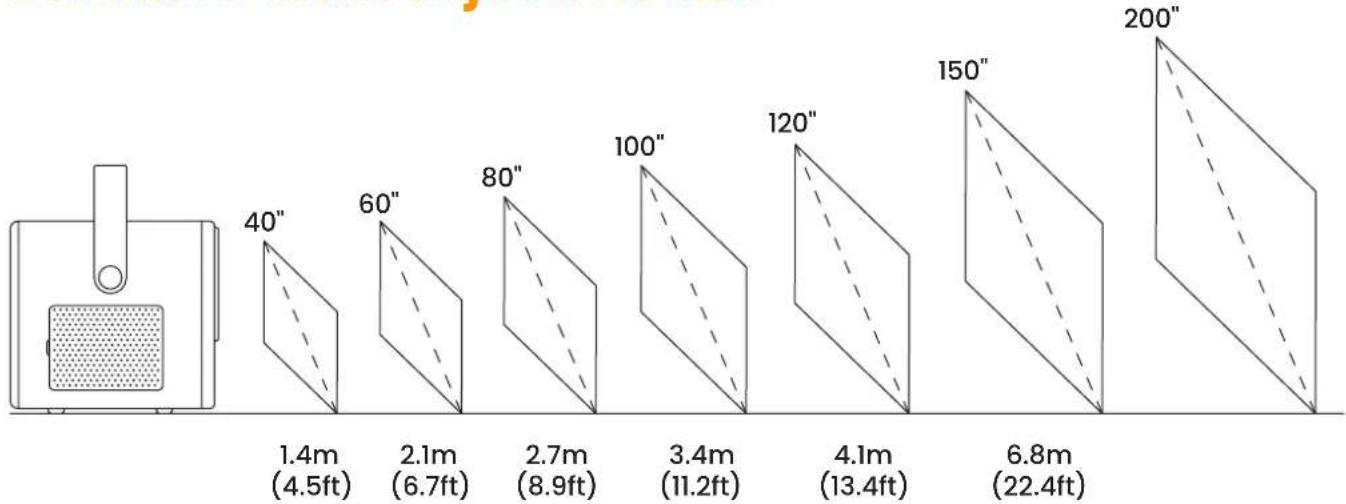

Distance and Projection Size

The recommended projection distance is about 8.9 ft, and the shortest projection distance is 4.5 ft.

The image size depends on the distance between projector and screen.

There may be 3% deviation among above listed data. Different settings cause various distances.

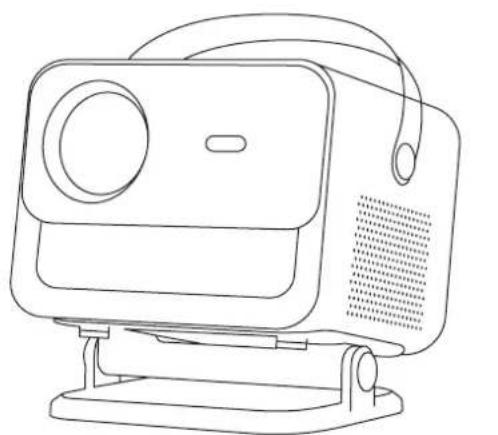

Adjustable base mount

Line drawing of a portable electronic device with a circular lens and attached stand (no text or symbols)

Max Degree: ±30°

Recommend Degree: ±15°

You can adjust the projection angle by rotating the Stand.

The maximum adjustment angle for the stand is ±30^ , but for optimal auto-focus and auto-keystone effects, we recommend using angles within ±15^ .

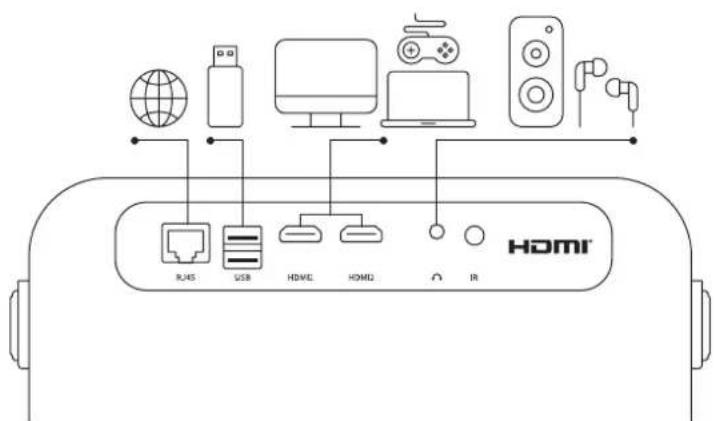

Connect Devices

RJMS USB HDWE HOMZ O IR HDMI®

The projector has 6 ports, LAN/HDMI port*2/USB port/USB-C port/Aduio out. Please select the correct connecting ports to connect your devices.

Operation

1. Starting Up the Projector

- Power on

Line drawing of a portable radio with a speaker and a small circular component below (no text or symbols)

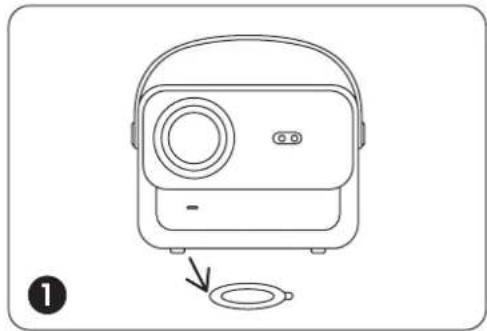

Take off the protective cover.

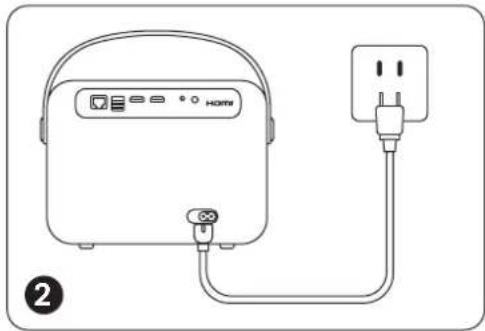

Line drawing of a microwave oven connected to a power outlet, showing ports and wiring (no text or symbols)

Connect the power cable to an outlet.

Simple line drawing of a device with a circular button labeled 'NETF' and a small square panel (no text or symbols on the diagram itself)

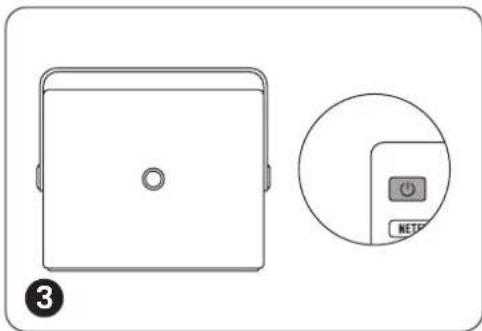

Press the power button once to turn on the projector.

Technical diagram showing a rectangular component with a circular cutout and a magnified view labeled 'x 2' (no text or symbols beyond basic geometry)

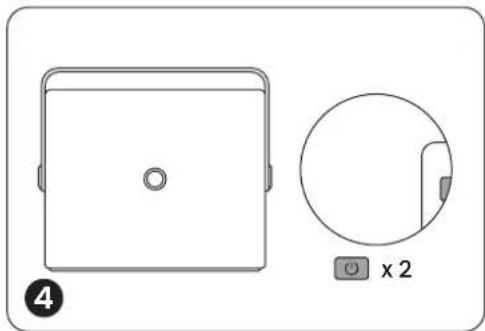

Press the power button twice to turn off the projector.

Notice: When you connect the power cord to projector, the orange light will flash 10 seconds. Please wait patiently until the power light stop blinking.

Orange power Light on --- Standby Mode Orange power Light off--- Working Mode

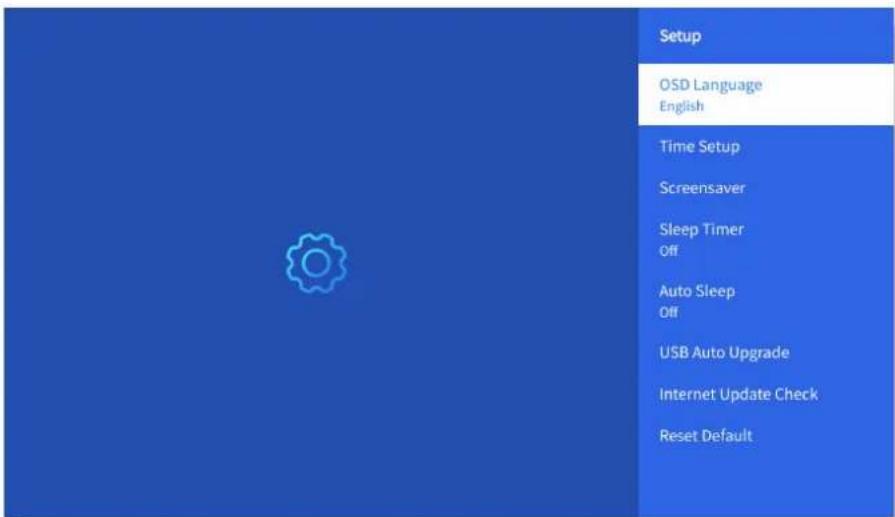

- First time setup

When you turn on the projector for the first time or the projector is reset to the Factory Default Settings, you are prompted to make the first time setup.

After setup, the projector will go to the Homepage.

2. Image Adjustment

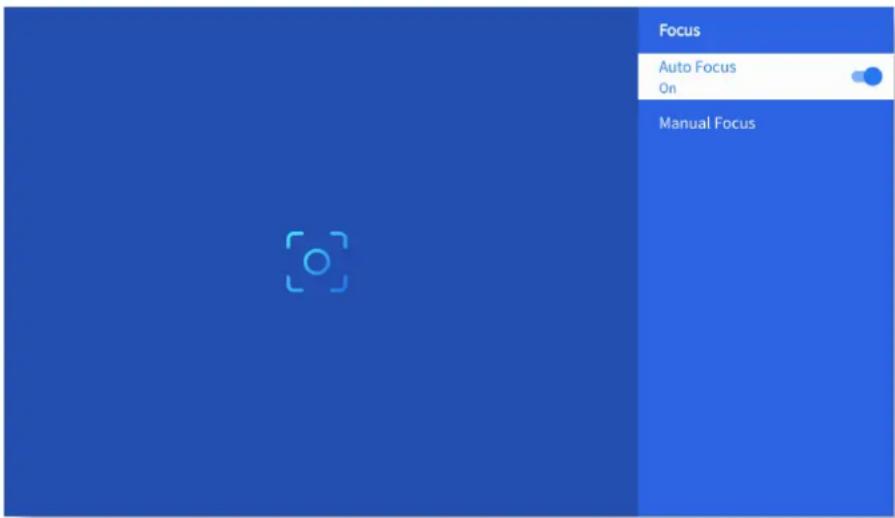

- Auto Focus

When the projector is turned on, please wait for a few seconds, it will automatically adjust the focus. (If not, ensure the auto focus function is activated in Settings -> Focus -> Auto Focus -> On)

Focus Auto Focus On Manual Focus

- Eletric Focus

You can also adjust the clarity of the screen by clicking or holding down the F+ and F- buttons on the remote control.

NETFLIX Vodafone prime video OPEN OK F+ F- Focus +/- USB 0

Manual Press the up and down buttons to focus FOCUS Adjust Save And Back

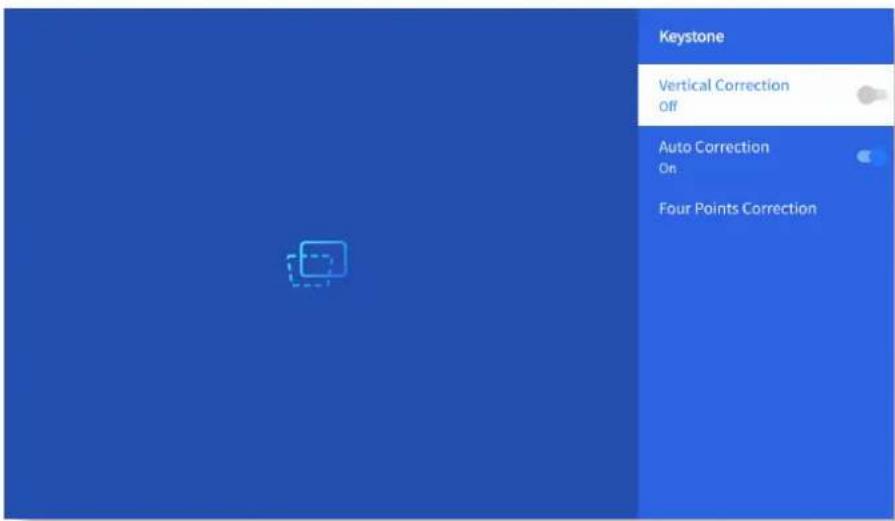

• Auto Keystone Correction

Please place the projector horizontally face to the wall first.

After turn it on, it will automatically adjust the screen to a regular shape.

(If not, ensure the auto keystone function is activated in Settings -> Keystone -> Auto Keystone -> On)

Keystone Vertical Correction Off Auto Correction On Four Points Correction

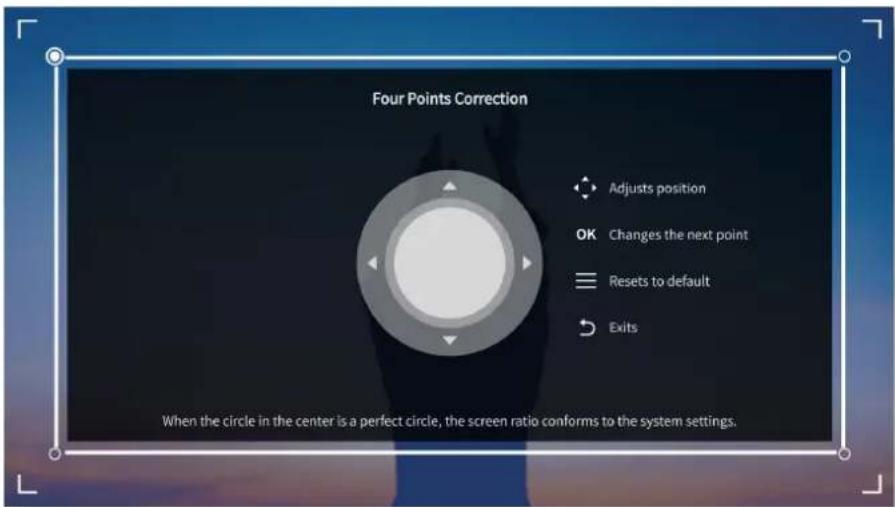

- Manual Keystone Correction

Go to Setting-> Keystone -> Four Points Correction

Four Points Correction Adjusts position OK Changes the next point Resets to default Exits When the circle in the center is a perfect circle, the screen ratio conforms to the system settings.

Tips: When the projector detects shaking or rapid movement, it will automatically initiate autofocus adjustment and keystone correction to ensure optimal image quality. If you encounter unclear images or an imperfectly squared display, please use the remote control's focus button for manual adjustment or utilize the four-point keystone correction to manually correct the image shape.

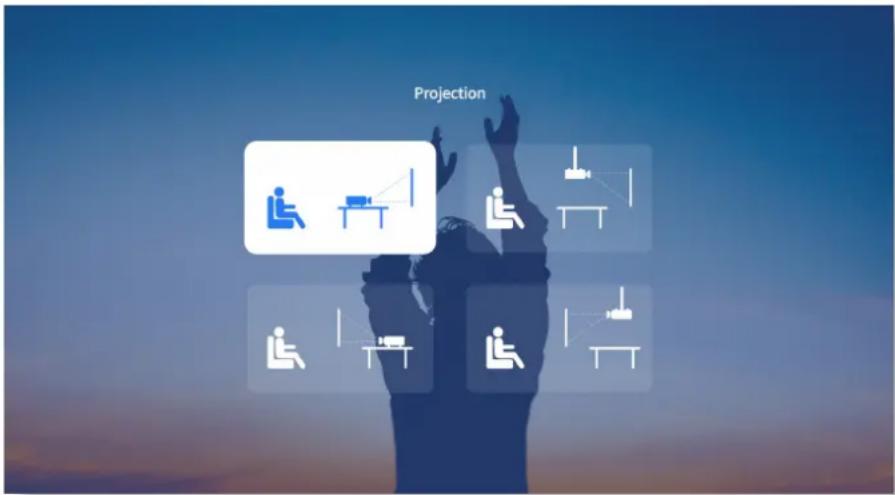

- Projection Mode

Go to Setting-> Projection to select the appropriate projection mode based on the placement of the projector.

Projection

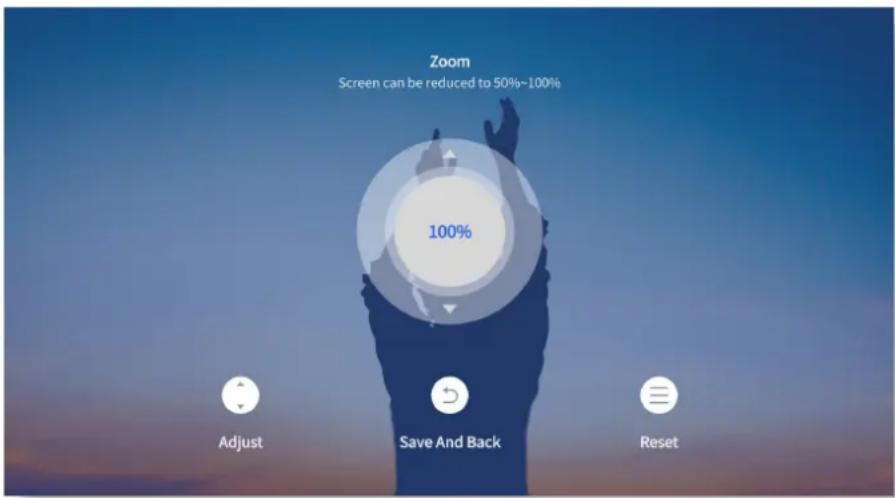

- Zoom

Go to Setting-> Zoom to reduce or enlarge the image size between 50% to 100%.

Zoom Screen can be reduced to 50%~100% 100% Adjust Save And Back Reset

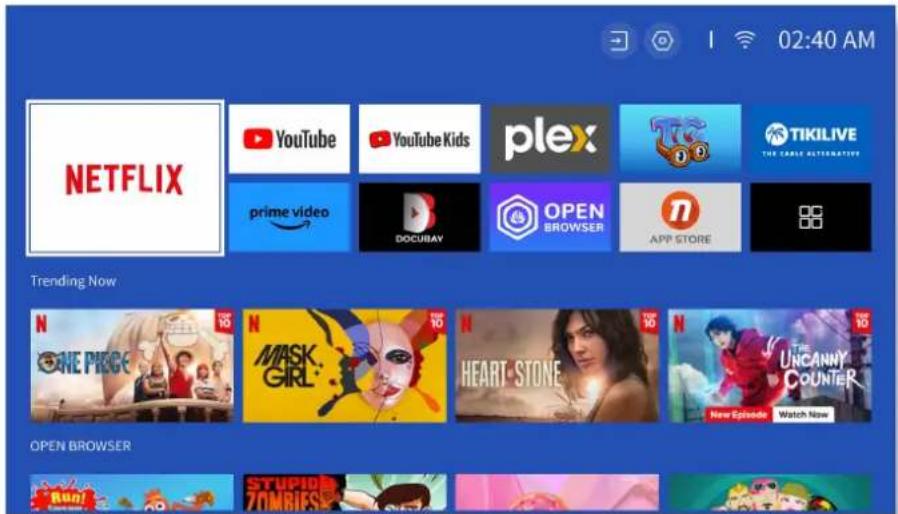

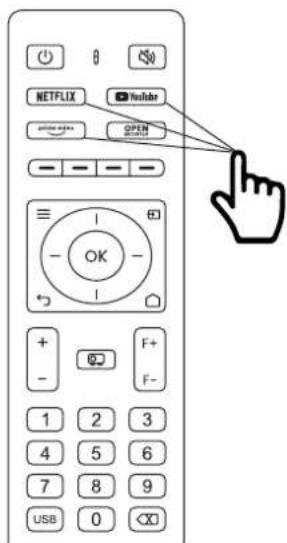

3. Play Content from Officially Licensed Apps like Netflix, Youtube and Prime Video

Go to the homepage, select your preferred channel, or access it through the shortcuts on the remote. Log in to your account to play the corresponding content.

NETFLIX YouTube Power screen GSM OK F+ F- 1 2 3 4 5 6 7 8 9 USB 0

02:40 AM NETFLIX YouTube YouTube Kids plex TIKILIVE prime video DOCUBAY OPEN BROWSER APP STORE Trending Now N ONE PIECE MASK GIRL HEART STONE NEW UNT COUNTER Open BROWSER

4. Projection Connection and Input Source

Please follow the page 11 instructions to properly connect your devices to the projector, then select the correct input source.

- USB Disk Input Mode

1. Insert the USB Disk

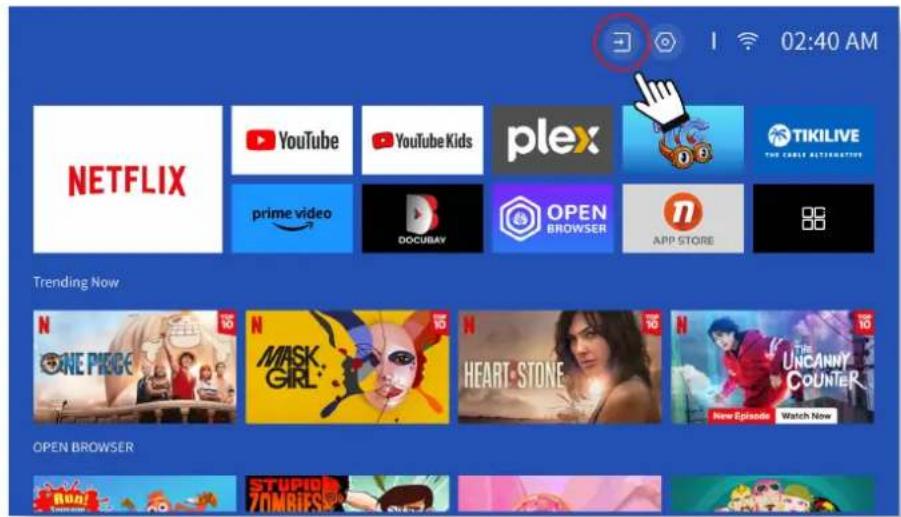

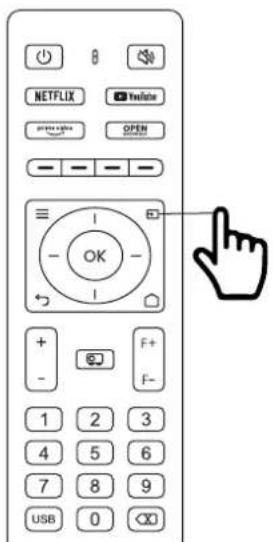

2. Click on the input source [→] on the remote control or choose the input source icon on the homepage.

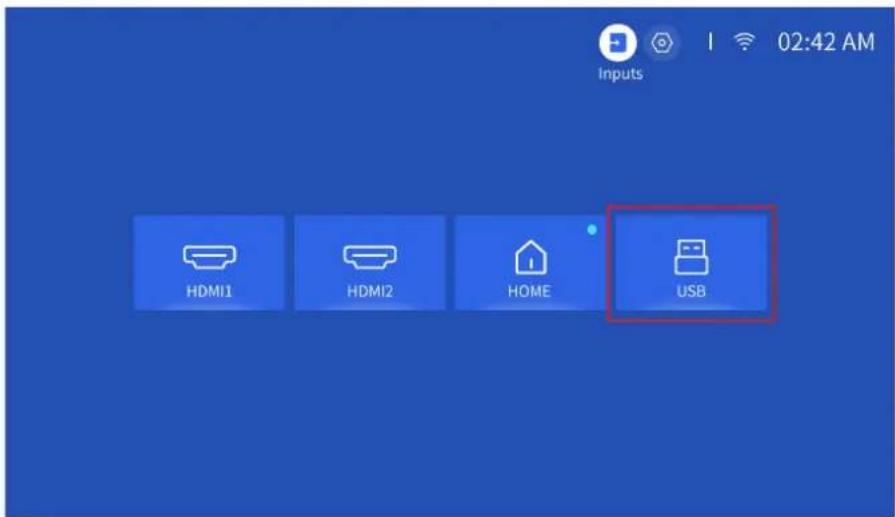

3. Select "USB" as input source

NETFLIX Vodafone OPEN OK F+ F- 1 2 3 4 5 6 7 8 9 USB 0 CX

02:40 AM NETFLIX YouTube YouTube Kids plex TIKILIVE THE CABLE ATTRIBUTTER prime video DOCUBAY OPEN BROWSER n APP STORE Trending Now N ONE PIECE MASCALY N MASCALY N HEART-STONE N NEW EPIESE The UNCANNY COUNTER Open BROWSER

Inputs HDMI1 HDMI2 HOME USB 02:42 AM

Warning: If the projector cannot recognize the USB disk, please refer to the following methods to solve the problem.

1. Please confirm whether your USB disk meets the following formats: (1) FAT32: 8G/16G/32G; (2) NTFS: 64G
2. If the USB disk is not recognized/detected, please format it. Before you format the USB disk, make sure to backup everything. After formatting, everything will be lost forever.
3. If the problem is still not solved, please send your problem to this email: [e-mail]

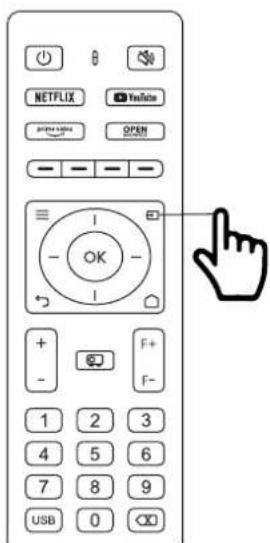

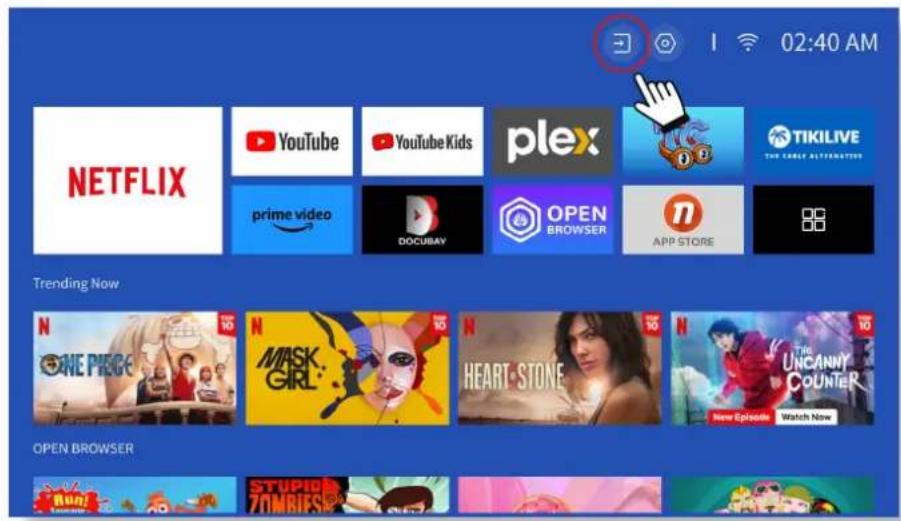

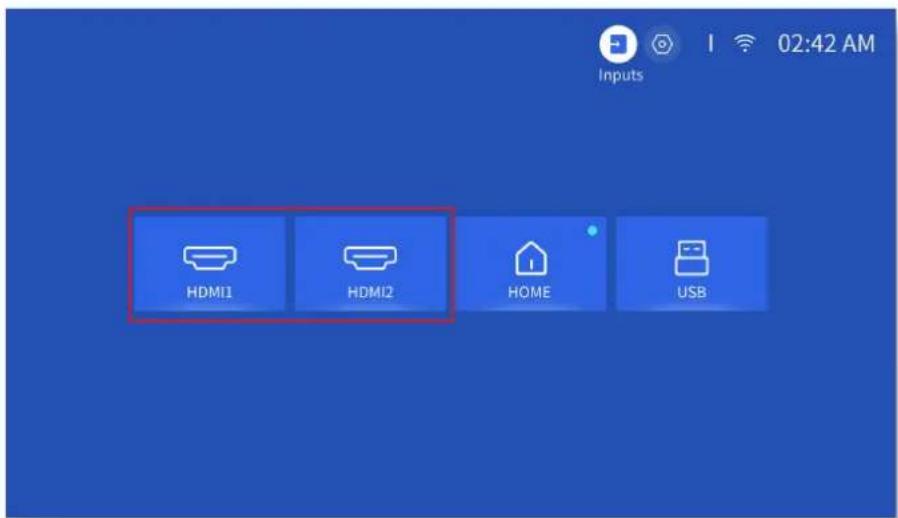

- HDMI Input Mode

Connect your device with an HDMI output to the projector using the provided HDMI cable. Press the input source button on the remote and select HDMI1 or HDMI2.

NETFLIX YouTube OPEN OK F+ F- 1 2 3 4 5 6 7 8 9 USB 0

02:40 AM NETFLIX YouTube YouTube Kids plex TIKILIVE THE CABLE ALTERNATIONS prime video DOCURSAY OPEN BROWSER n APP STORE Trending Now N ONE PIECE 10 MASK GIRL 15 HEART-STONE 10 NEW EPIESE 10 STUPID ZOMBIESE 15 OPEN BROWSER

HDMI1 HDMI2 HOME USB 02:42 AM Inputs

- Wired Speaker and Headphones Connection

This option is not required to select AV input source

5. Screencast

Warming Tips:

1. The fluency of screen mirroring with wireless connection will be affected by the network environment. A bandwidth of 100Mbit or more is recommended when using screen mirroring.
2. Make sure your mobile device is close to the projector when using wireless connection. A distance within 1 meter is recommended.
3. Some mobile devices may not support screen mirroring due to the compatibility.
4. Any questions, please feel free to email YABER via [e-mail]

iOS Cast (for iOS Devices)

- iOS Wi-Fi Mirroring

Step1:

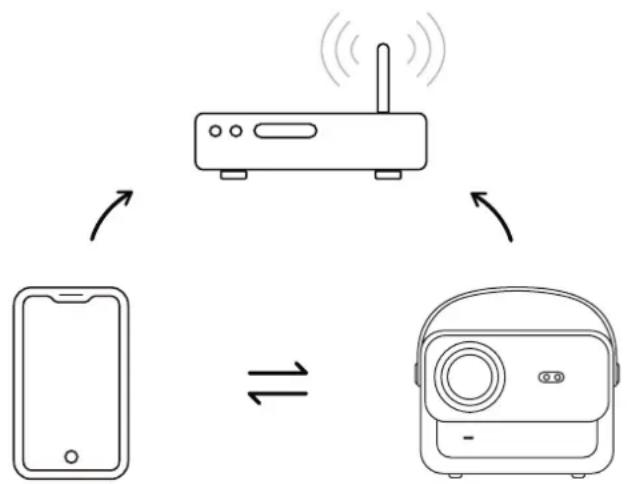

Connect the projector and your mobile device to the same router's WiFi


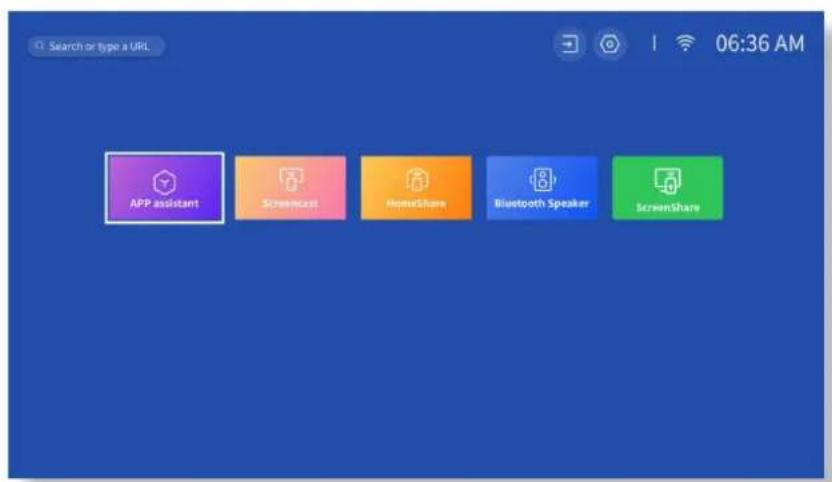

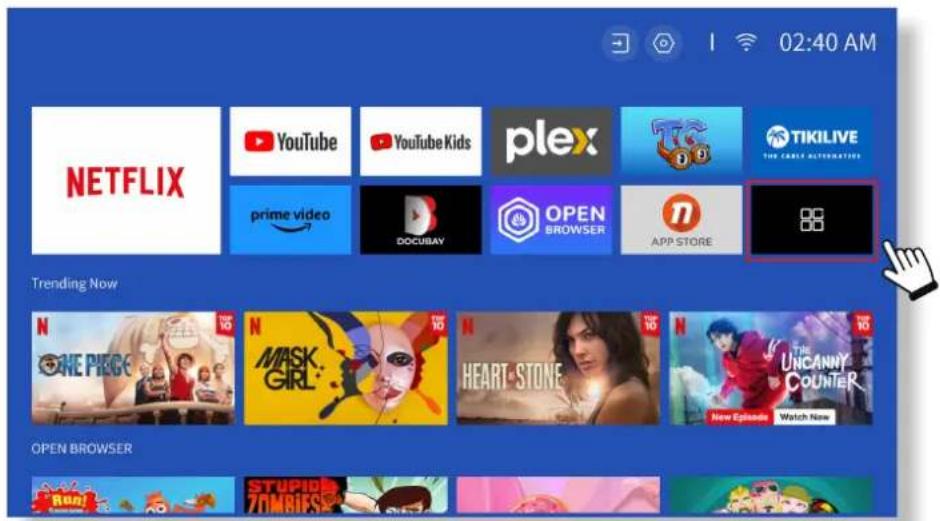

Step2:

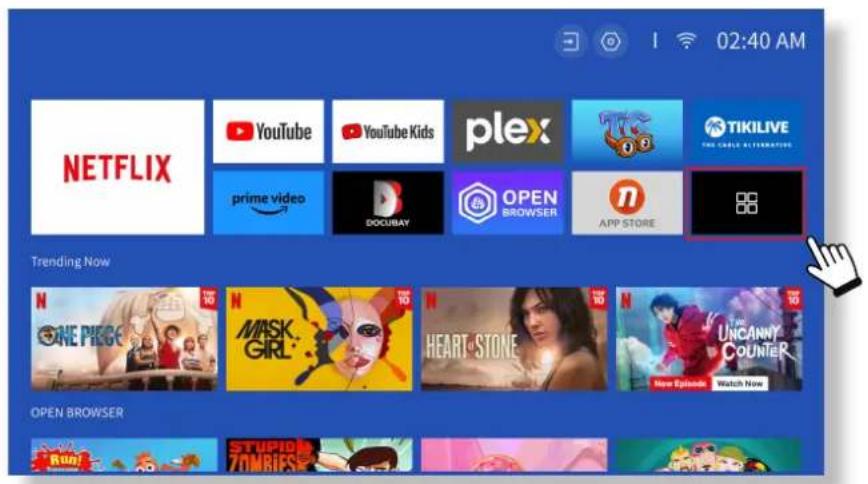

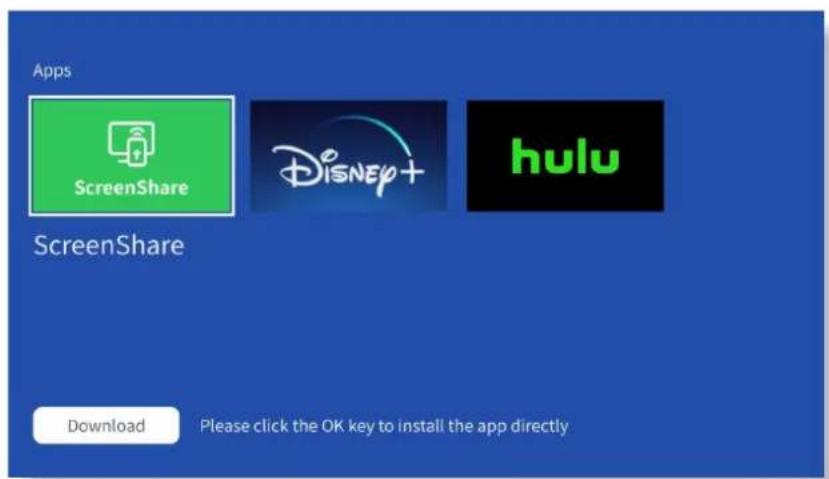

Go to [Hompage] -> [My Apps] -> [App Assistant] and then select and download ScreenShare

02:40 AM NETFLIX YouTube YouTube Kids plex TIKILIVE prime video DOUBAY OPEN BROWSER n APP STORE Trending Now N ONE PIECE MASK GIRL HEART STONE NEW EPIONS Watch Now OPEN BROWSER

Search or type a URL 06:36 AM APP assistant Schematic HomeShare Bluetooth Speaker ScreenShare

Apps ScreenShare Disney+ hulu ScreenShare Download Please click the OK key to install the app directly

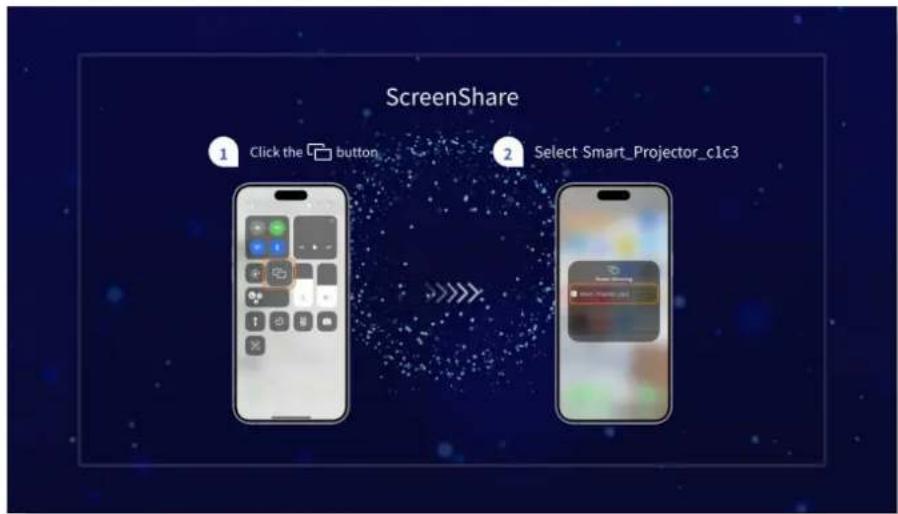

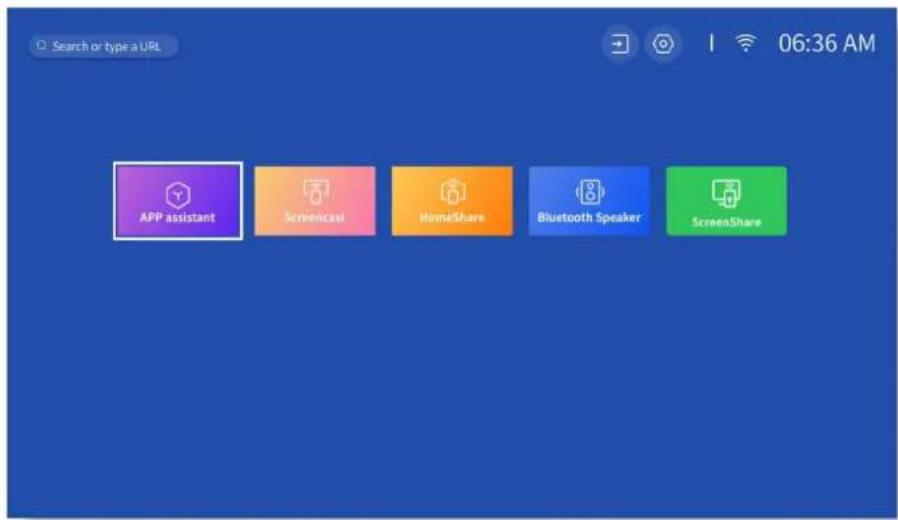

Step3:

Go back to [My Apps] page -> Launch the [ScreenShare] App and remain on the following page.

Search or type a URL 06:36 AM APP assistant Screencast HomeShare Bluetooth Speaker ScreenShare

Step4:

Go to the Control Center of your iOS device. Then tap Screen Mirroring/Air Playing to search for the projector.

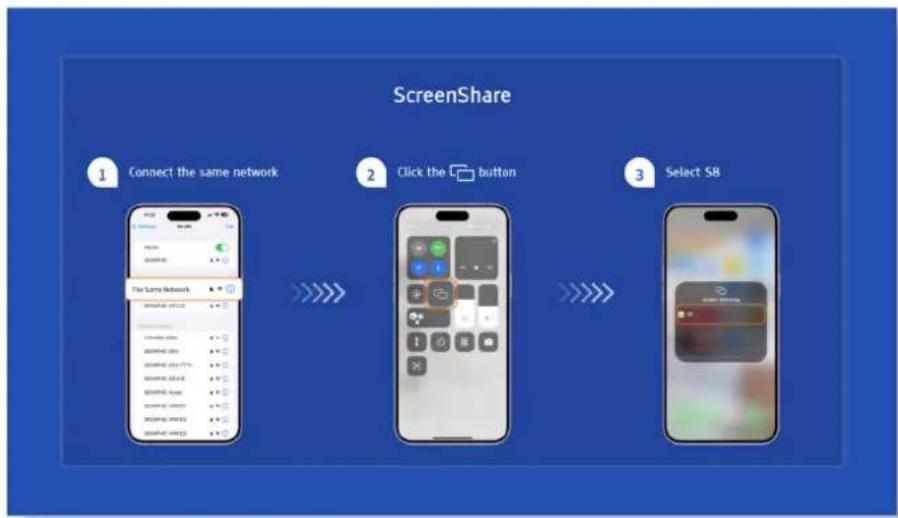

Step5:

Choose [Smart_Projector_XXXX] from the list, and once the connection is successful, the content on your iOS device will be mirrored onto the projection screen or wall.

- iOS AP Mirroring

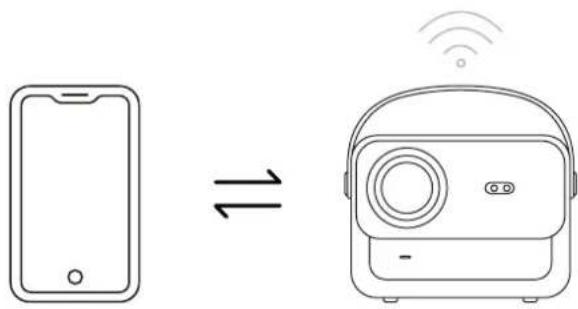

Step1:

Turn on the Wi-Fi on your iPhone/iPad and connect to projector hotspot: [Smart_Projector_XXXX]

Diagram showing a smartphone connected to a wireless radio with signal icons

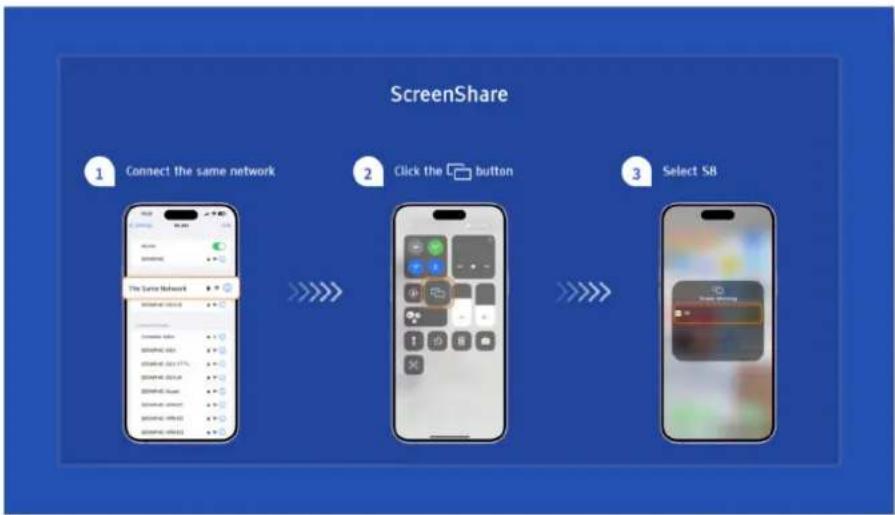

Step2:

Press the ☐ Screen Mirroring of iOS device and then choose[Smart_Projector_XXXX]

Miracast (For Android Device)

Warning: To activate this function, your android device must support Multi-Screen/Wireless Display. The name of "Multi-Screen" may vary depending on various brands of Android devices.

Step1: Please enable the Wi-Fi function on your Android phone (no need to connect to Wi-Fi). Step2: Go to Hompage -> My Apps -> ScreenCast

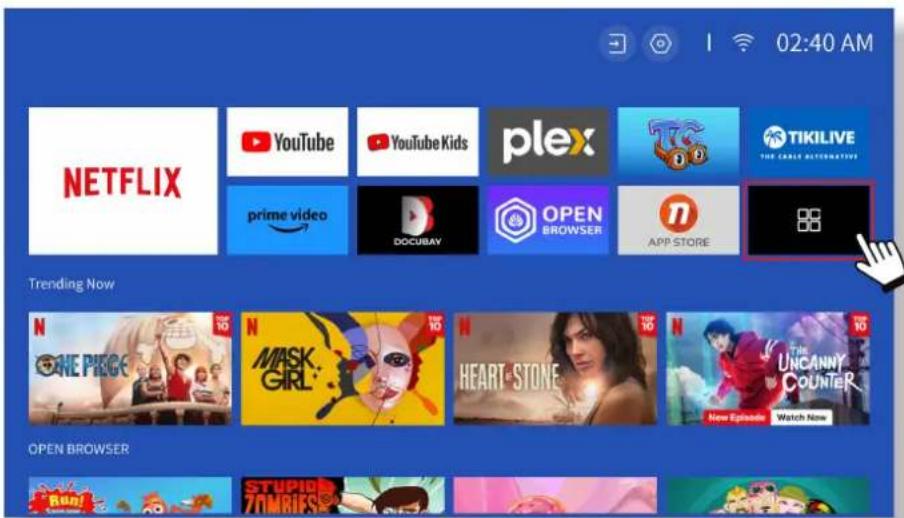

02:40 AM NETFLIX YouTube YouTube Kids plex TITKILIVE THE CABLE AUTOMATIVES prime video DOCURAY OPEN BROWSER n APP STORE 88 Trending Now N ONE PIECE MASK GIRL HEART STONE New Episode Watch Now OPEN BROWSER

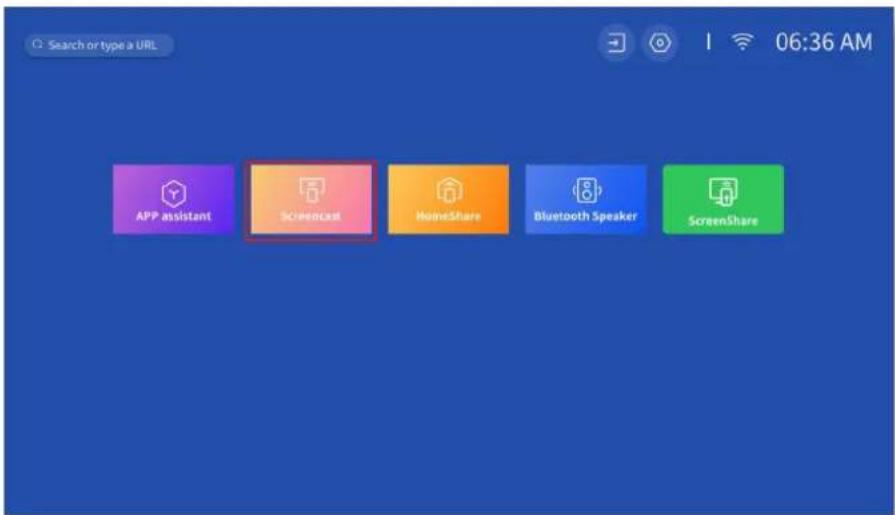

Step3: Activate the 'Multi-Screen/Wireless Display' feature on your Android device

Search or type a URL 06:36 AM APP assistant Screemcast HomeShare Bluetooth Speaker ScreenShare

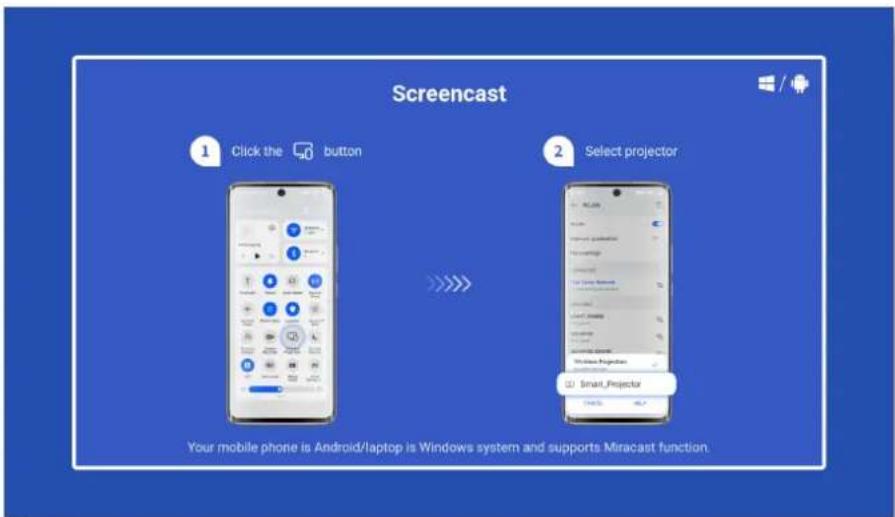

Step4: Choose [Smart_Projector_XXXX] from the list, and once the connection is successful, the content on your iOS device will be mirrored onto the projection screen or wall.

Screencast 1 Click the button 2 Select projector Your mobile phone is Android/laptop is Windows system and supports Miracast function.

• DLNA

Step1:

Connect the projector and your mobile device to the same router's WiFi.

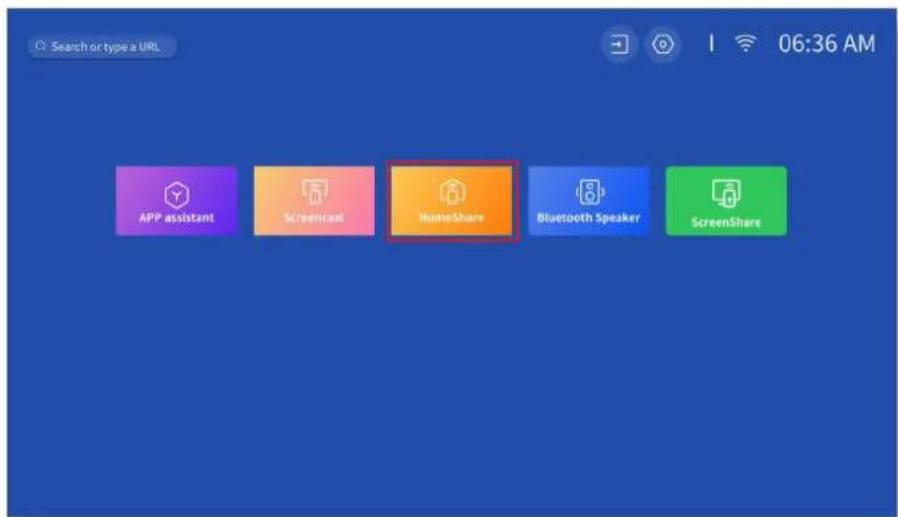

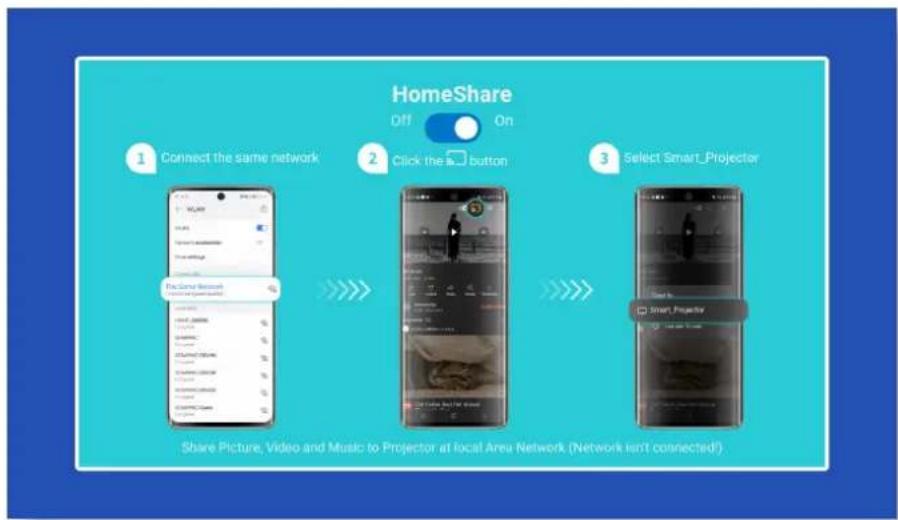

Step2:

Go to Homepage -> My Apps -> HomeShare and remain on the following page.

02:40 AM NETFLIX YouTube YouTube Kids plex TIKILIVE The CABLE ALTERNATION prime video DOCUBAY OPEN BROWSER n APP STORE Trending Now N ONE PIECE N MASK GIRL N HEART-STONE N The UNCANNY COUNTER New Episode Watch Now OPEN BROWSER

Search or type a URL 06:36 AM APP assistant Screencast HomeShare Bluetooth Speaker ScreenShare

Step3:

Launch a video player App on your mobile device and select a video to play.

Step4:

Tap☐ to search for the projector and select [Smart_Projector_XXXX] to connect. The contents on your device will be cast to the wall/screen.

Note:

When you cast a video from your mobile device, the video will only be displayed on the projected screen and you can still use your mobile device without interrupting the video or showing any of your other content.

6. Bluetooth Setting

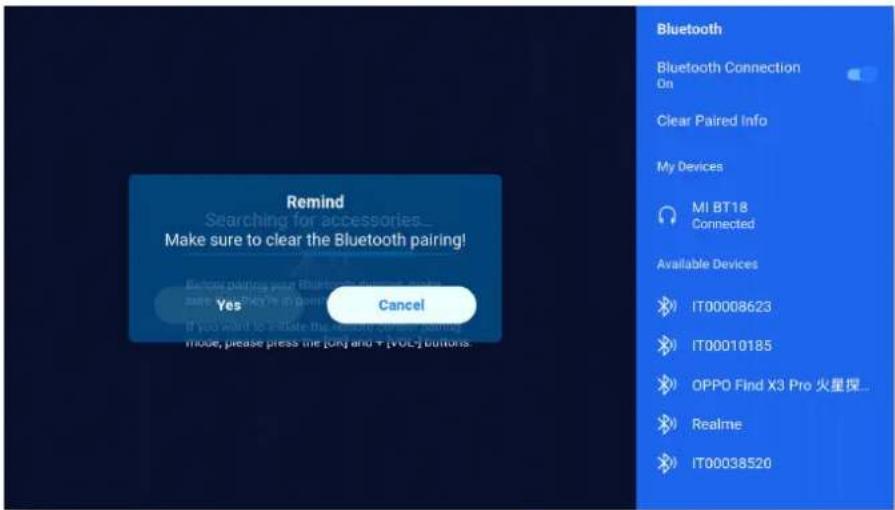

- Connect to an External Bluetooth Speaker

Step1:

Turn on your Bluetooth device and make it ready for a Bluetooth connection.

Step2:

Go to Homepage -> Setting -> Bluetooth to scan available Bluetooth devices, then select your Bluetooth device and pair it with the projector:

Remind Searching for accessories_ Make sure to clear the Bluetooth pairing! Yes Cancel Bluetooth Bluetooth Connection On Clear Paired Info My Devices MI BT18 Connected Available Devices IT00008623 IT00010185 OPPO Find X3 Pro 火星探... Realme IT00038520

IMPORTANT:

Compared with the wired connection to a speaker, a Bluetooth connection spends more time processing digital audio data, converting said data to an audio signal, and streaming the signal. There may be a delay or slight lag on audio due to signal interference.

As a result, the sound on the speaker may not be in sync with the image on the projector, especially when you are using wireless screen mirroring with WiFi and Bluetooth connection at the same time.

If you are experiencing this situation, please check the following options to improve audio quality:

* Instead of using wireless screen mirroring and Bluetooth connection at the same time, we recommend using an HDMI connection via the provided HDMI cable and Bluetooth connection simultaneously. If you still want to use wireless screen mirroring, it is recommended to output the audio via a wired speaker

* Move your Bluetooth device closer to the projector.

*Keep the projector and your Bluetooth speaker away from other Bluetooth devices to avoid interference.

* You may be able to adjust the latency(Lip Sync)on your device which is playing the video. The way to adjust the latency varies with different devices; please consult with the device manufacturer.

Due to the compatibility issue between Bluetooth speakers/headphones and the projector, few Bluetooth devices may not be paired with the projector via the Bluetooth connection. Please contact us at [e-mail] for further assistance

- Connect to Device as Bluetooth Speaker

Step1:

Go to Homepage -> My Apps -> Bluetooth Speaker and remain on the following page.

Step2:

Enable the Bluetooth functionality on your device, scan and connect the projector.

02:40 AM NETFLIX YouTube YouTube Kids plex TIKILIVE prime video DOCUBAY OPEN BROWSER APP STORE Trending Now N ONE PIECE MASK GIRL HEART STONE NEW UNTANNUY COUNTER Watch Now OPEN BROWSER Run! STUPID ZOMBLES

Search or type a URL 06:36 AM APP assistant Screencast HomeShare Bluetooth Speaker ScreenShare

7. Other Setting

- Setup

Go to home page -> Select [ Setting ] -> Select the [ Setup ]. Use the arrow keys on the remote control to switch the menu, press the "OK" to confirm and set.

Setup OSD Language English Time Setup Screensaver Sleep Timer Off Auto Sleep Off USB Auto Upgrade Internet Update Check Reset Default

Menu Content
OSD Language English/France	/Italian/Japanese etc
Time Setup Set Local Time
Screensaver Turn on/off screen saver
Sleep Timer	On/Off: Set the sleep time from 10 - 120 minutes
Auto Sleep	On/Off: Set the time from 30minutes - 8Hours
USB Auto Upgrade Local Update
Internet Update Check Check	Internet Environment
Reset Default Restore Factory	Default

• Picture Mode Menu

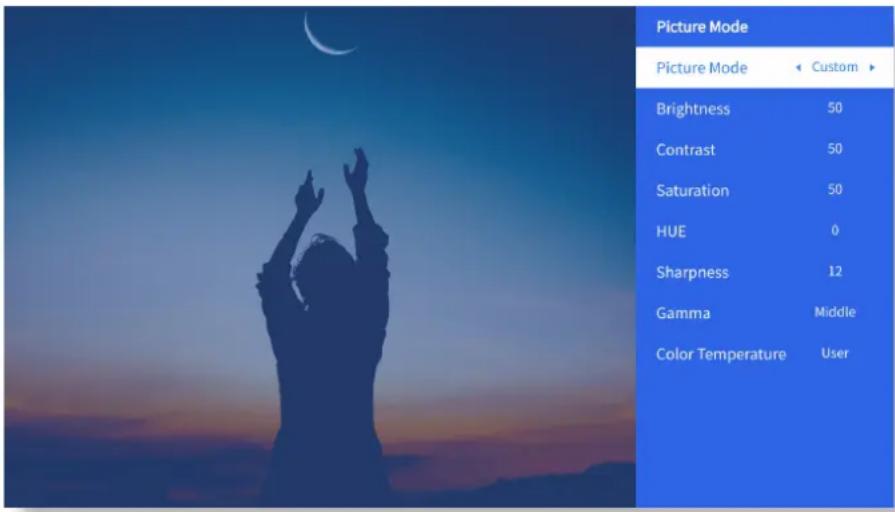

Go to home page -> Select [ Setting ] -> Select the [ Picture Mode ]. Use the arrow keys on the remote control to switch the menu, press the "OK" to confirm and set.

Picture Mode Picture Mode < Custom > Brightness 50 Contrast 50 Saturation 50 HUE 0 Sharpness 12 Gamma Middle Color Temperature User

Menu Content
Picture Mode	Standard/Cinema/Sport/Vivid/Hi-Bright/Custom
Brightness Set the Screen Brightness Value
Contrast Set the Screen Contrast Value
Saturation Set the Screen Saturation Color
Hue Set the Screen Hue Color
Sharpness Set the Screen Sharpness Value
Gamma Bright/Dark/Middle
Color Temperature Normal/Cool/Warm/Standard

- Audio Setting

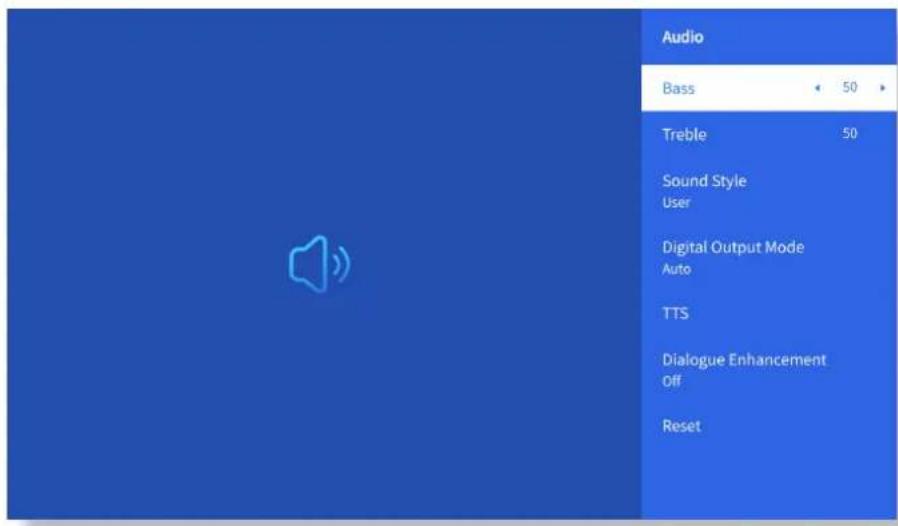

Go to home page -> Select [ Setting ] -> Select the [ Audio ]. Use the arrow keys on the remote control to switch the menu, press the "OK" to confirm and set.

Audio Bass 50 Treble 50 Sound Style User Digital Output Mode Auto TTS Dialogue Enhancement Off Reset

Menu Content
Bass/Treble Set Preferred Values
Sound Style	User/Standard/Movie/Music/Sports/Vivid/News
Digital Output Mode	Auto/PCM/Dolby Audio-Dolby Digital/Dolby Audio-Dolby Digital Plus
Dialogue Enhancement	On/Off: Conversation enhancement function, voice, broadcast function for special peopleLow/Medium/High

- About

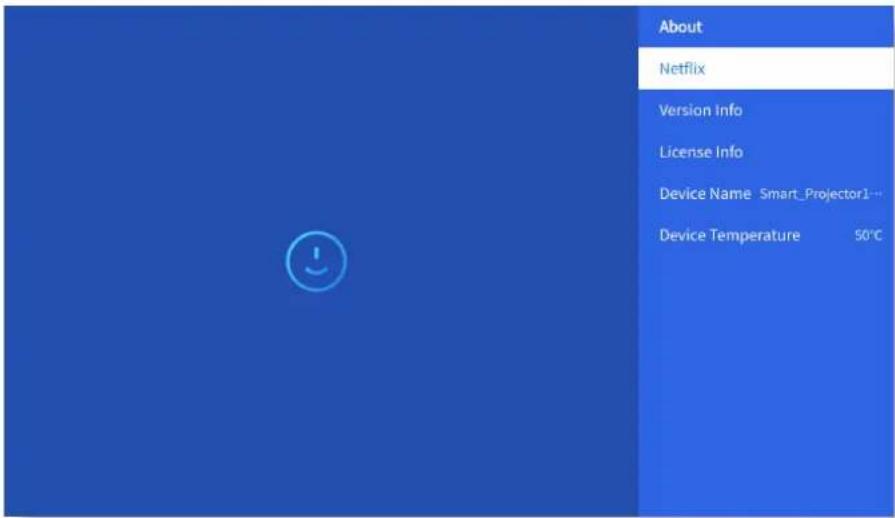

Go to home page -> Select [ Setting ] -> Select the [ About ]. Use the arrow keys on the remote control to switch the menu, press the "OK" to confirm and set.

About Netflix Version Info License Info Device Name Smart_Projector1... Device Temperature 50°C

Menu Content
Netflix Netflix Officially-Licensed
Version/License Info	View the Latest Version/License Information
Device Name Projector Model Name
Device Temperature 50°C

8. Signal Lines Connection

① USB Multimedia Connecting

Select the USB signal source, the machine will detect them automatically.

Step1: Select the required category "photos" "music" or "video" in the main interface, and press the "OK" key on the remote control to enter the corresponding category.

Step2 Choose the file you want to play, and press the key "OK" to play or pause the file. (You cannot enter the required category without connecting a USB disk.)

Note: For the "Office Suite" option, PPT/Excel/Word/TXT files cannot be played or presented normally.

② Connecting with PC

Step1: Connect to the computer and U 12 projector with the HDMI cable (Included).

Step2: Select the HDMI source to project on the projector;

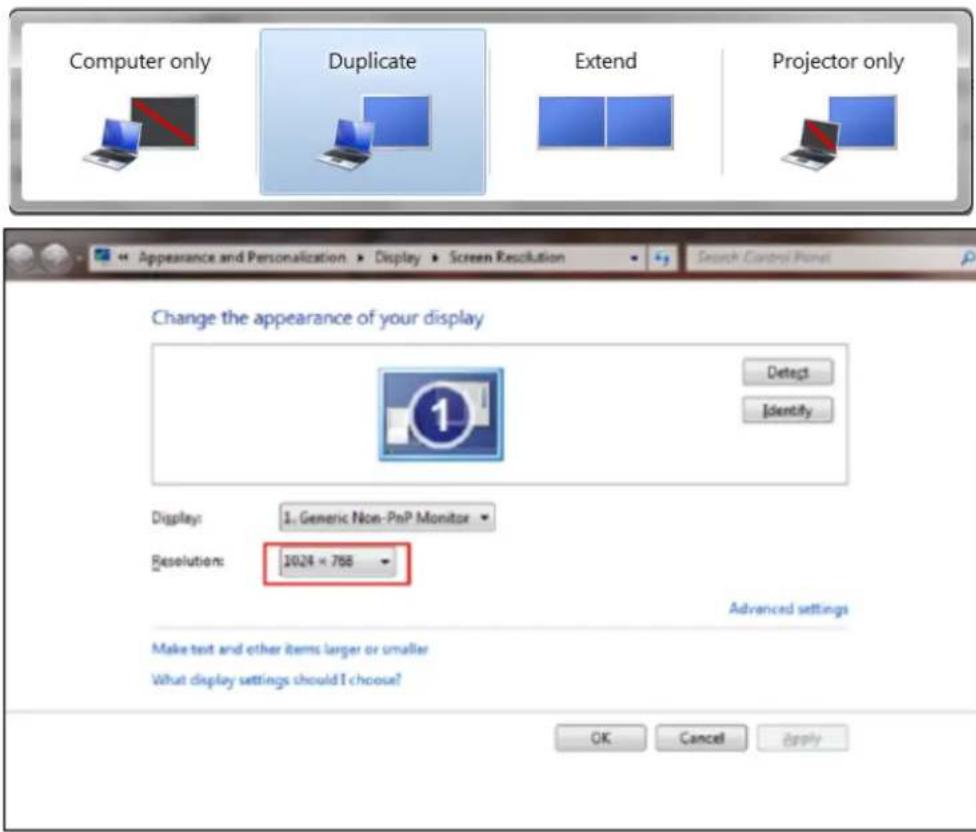

Step3: On your laptop, hold down the key "Win+P" board keys to change your display mode.

Computer only Duplicate Extend Projector only Change the appearance of your display Detect Identify Display: 1. Generic Non-PnP Monitor Resolution: 2024 × 768 Advanced settings Make text and other items larger or smaller What display settings should I choose? OK Cancel Apply

Computer only: it is the default option – only displays on the main monitor.

Duplicate: make all the monitors display the same thing duplicating the desktop on each monitor.

Extend: make all your monitors act like one big monitor extending the desktop across all of them.

Projector only: display only on the secondary monitor like a projector.

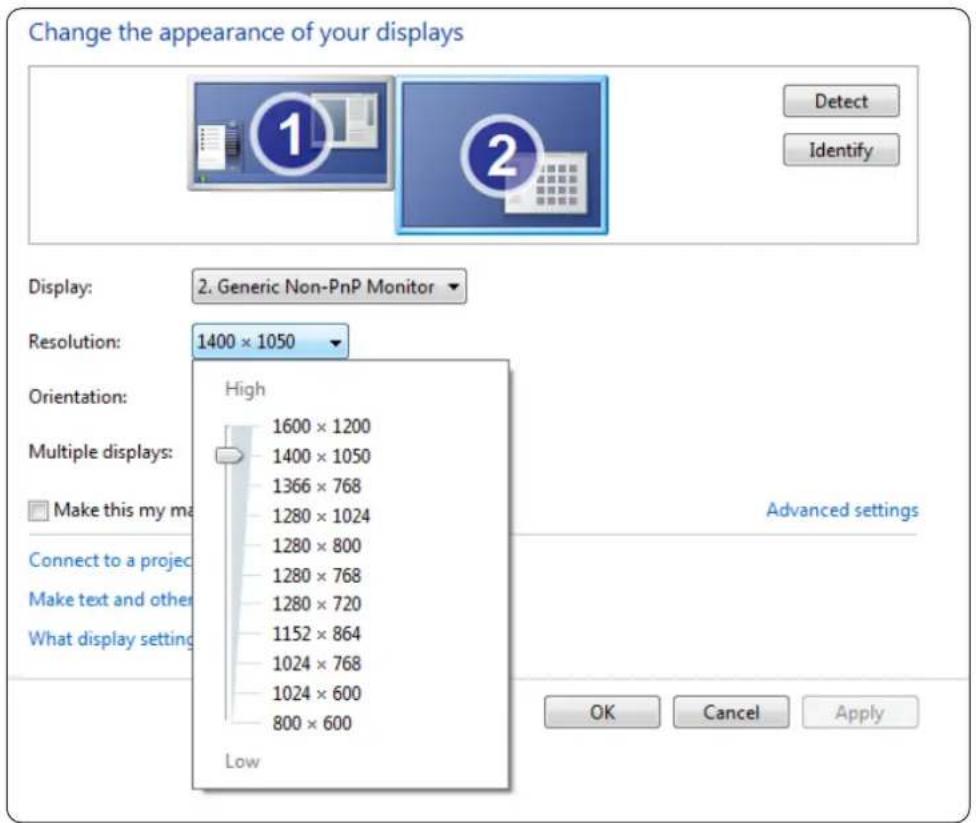

To change the screen resolution in Projector Only mode, follow these steps:

Step: Start -> Control Panel -> Appearance and Personalization -> Adjust Screen Resolution

Change the appearance of your displays Detect Identify Display: 2. Generic Non-PnP Monitor Resolution: 1400 × 1050 Orientation: Multiple displays: Make this my ma Connect to a projec Make text and other What display setting High 1600 × 1200 1400 × 1050 1366 × 768 1280 × 1024 1280 × 800 1280 × 768 1280 × 720 1152 × 864 1024 × 768 1024 × 600 800 × 600 Low Advanced settings OK Cancel Apply

③ Connecting with MacBook or MacBook Air

Step1: Use a Type-C to HDMI adapter to connect your MacBook, or a Mini Display to HDMI adapter to connect with your MacBook Air. (Adapter NOT INCLUDED)

Step2: Choose the media signal channel : "HDMI"

④ Connecting with XBOX/PS5

Step1: Use HDMI cable to connect to XBOX/PS5

Step2: Choose the media signal channel : "HDMI"

Step3: Succeed

⑤ Connecting with DVD player:

Step1: Use HDMI cable to connect to DVD player

Step2: Select "HDMI" mode for connection

Step3: Enter Menu key

Step4: Change the PC mode from [On] to [Off] to avoid the risk of white pixel edges in the image.

9. Power On Mode

In the Power On Standby mode, plug in the power supply, and the Power LED on the projector will light up. You need to press the power button to turn on the projector.

If switched to Power On, the machine will automatically turn on after plugging in the power cord.

10. Safe Shutdown

1. Press the power button on the projector or remote controller, then press OK key to power off the projector.

2. Unplug the power cord of the projector.

3. Cover the lens and store the projector in a cool and dry place.

4. If you are unable to cover the lens, please adjust the lens forward or backward by pressing the F+ and F- buttons on the remote control before shutting down.

Maintainance Tips

- Care of Projectors

1. Do not place projector in too warm or too cold room, because the high temperature or low temperature will shorten lifespan of the device. The working environment would be 5^ C– 35^ C better.
2. If there are black spots on the projection screen, please don't worry. Please contact [e-mail] via email, we can send you a video about how to remove the dust.
3. The projector shall be strictly protected from strong impact, extrusion and vibration.
4. Lens, as the core component of the projector, is directly related to the picture definition and effect. Clean the lens whenever you noticed dirt or dust on the surface. Use a canister of compressed air to remove dust from the lens. If there is dirt or smears, use the cleaning cloth to gently wipe the lens surface.

QR code image containing encoded data, no visible human-readable text

Scan and download the PDF user manual

Where to Get More Help

[e-mail] [e-mail] www.yaber.com

@Yaber Entertainment Projector

@Yaber

LANGUAGE

English 03-36

Deutsch 39-70

Français 73-104

Italia 107-138

日本語日本語 141-172

Polish 175-206

Inhaltsverzeichnis

YABER Lebenslanger Professioneller Support 04

Line drawing of a vintage portable radio with a circular head and antenna (no text or symbols)

U12 Projektor

HDMI Kable

Simple line drawing of a U-shaped cable with two terminal plugs (no text or symbols)

Stromkabel

Fernbedienung

Pure technical diagram of a rectangular component with internal grid pattern (no text or symbols)

Projektorbasis

Reinigungskits

Objektivabdeckung

Two overlapping document icons with horizontal lines, no text or symbols present

Line drawing of a device with a perforated panel and handle (no text or symbols)

Line drawing of a device with a perforated grille and handle (no text or symbols)

Luftauslass

Schraub-Loch Schraub-Loch

Simple line drawing of a rectangular container with a circular button and a vertical line, no text or symbols present.

Line drawing of a portable electronic device with a speaker grille and control panel (no text or symbols)

Technical line drawing of a device with mounting holes and a textured base (no text or symbols)

Line drawing of a portable electronic device with adjustment knobs and a speaker grille (no text or symbols)

Line drawing of a portable electronic device with front panel and control buttons (no text or symbols)

Line drawing of a projector with a stand and base mount (no text or symbols)

Schraub-Lochs M5*10mm 108mm 155mm

Line drawing of a portable radio with a speaker and a small circular component below (no text or symbols)

Line drawing of a microwave oven connected to a power outlet, showing ports and wiring (no text or symbols)

Simple line drawing of a device with a circular button labeled 'NETP' and a small inset view showing a control panel (no text or symbols on the device itself)

Simple line drawing of a box and a circular object with crosshair, no text or symbols present
