USER MANUAL KTD 8312 A2 Koenic

Intron GmbH Wakshu-Ben EUC Ingelbner L. Tung 50% EUC Bens 50% EUC Bens

E (D) 1/46, E (E) 0.5

CE

KO≡NIC

Heat Pump Dryer

图 1. Main of the following

图 10-24

四、交易价格

同 2004-11-20

[Unreadable]

图1604-2.bol.

图 10.1.1.1

国

图3-042-1-04,020

Front view of a white washing machine with a circular fan and control panel (no visible text or symbols)

Cana: 3, 20	—
Engs: 21, 87	—
spas: 11-54	—
Itoe: 5-71	—
Ela: 71-88	—
Vagaa: 94-176	—
Itoe: 136-122	—
Itoe: 113-136	—
Itoe: 140-155	—
Itoe: 52-71	—
Itoe: 174-190	—
Itoe: 14-210	—

Labeled diagram of a washing machine showing front panel, screen, and internal components with numbered parts

Diagram illustrating the installation and maintenance of a washing machine, showing steps from cleaning to assembly.

Sicherheitshinweise

Warning sign depicting a flame symbol inside a triangle, indicating hazardous risk.

Warning sign depicting a flame symbol in a triangular shape, indicating hazardous risk.

Caution: Risk of fire/ flammable materials.

This symbol indicates that ignoring instructions may cause death or serious injury.

WARNING: To prevent death or injury to the user or other people and property damage, the having instructions must be followed. Incorrect action due to ignoring of instructions may cause it, harm or damage.

IMPORTANT NOTE: Read this manual carefully before installing or operating your new product.

Make sure to save this manual for future reference.

English

Safety instructions

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have received instructions concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the product.
• Cleaning and user maintenance shall not be carried out by children unless they are older than 8 years and supervised.
• Keep the product and its cord out of reach of children aged less than 8 years.
• A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.
• The maximum mass of dry textile material to be used in the product is 8 kilograms.
• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
• The lint trap has to be cleaned after every use.
• Lint must not to be allowed to accumulate around the tumble dryer.
• Adequate ventilation has to be provided to avoid the back flow of gases into the room from products burning other fuels, including open fires.
• Do not dry unwashed items in the tumble dryer.

Safety instructions

• Items that have been soiled with substance such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
• Items such as foam rubber (latex form), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
• The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature, which ensures that the items will not be damaged.
• Remove all objects from pockets such as lighters, coins and keys.
• Warning: never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
• Children of less than 3 years should be kept away unless continuously supervised.
• The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.

English

Safety instructions

• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer. In such a way that a full opening of the tumble dryer door is restricted.
• For appliances with ventilation openings in the base, a carpet must not obstruct the openings.
• Follow the instructions in the chapter Cleaning and care.
• LED is not replaceable. Contact the authorized service technician for repair or maintenance of this unit.

Safety instructions

Warnings (concerning the R134a refrigerant)

• Do not use means for cleaning, other than those recommended by the manufacturer.
• The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).
• Do not pierce or burn the appliance.
• Compliance with national gas regulations shall be observed.
• Keep ventilation openings clear of obstruction.
• The appliance shall be stored so as to prevent mechanical damage from occurring.
• The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation.
• Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorises their competence to handle refrigerants safely in accordance with an industry recognised assessment specification.
• Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants.

English

Safety instructions

• Transport of equipment containing flammable refrigerants. See transport regulations.
• Marking of equipment using signs. See local regulations.
• Disposal of equipment using flammable refrigerants. See national regulations.
• Storage of equipment/appliances.
  The storage of equipment should be in accordance with the manufacturer's instructions.
• Cabling
  Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.
  • Detection of flammable refrigerants
  Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used.
• Attention: Ensure that the drainage hose is properly attached and sealed. Periodically check the connection to avoid leakages.

Safety instructions

• Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.
• Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.
• Never leave the product unsupervised while it is switched on.
• Never immerse electrical parts of the product in water or any other fluids during cleaning or operation. Never hold the product under running water.
• Do not under any circumstances attempt to repair the product yourself. For servicing and repairs, please consult an authorised service agent (e.g. damaged power cord, product has been dropped, e.g. during installation etc.).
• The mains voltage must match the information on the rating label of the product.
• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
• Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.
• Only unplug from the power socket by the plug itself. Do not pull on the cord.

• Unplug the product ...

• when the product is not being used,

• in case of malfunctions,
• before attaching / detaching accessories and
• before cleaning the product.

- Use this product in dry indoor areas only and never outdoors.

• Never use, expose or put the product near to: - direct sunlight and dust;
• fire (fireplace, grill, candles), water (water splashes, vases, bath tube) or heavy moisture.
• This product is not intended for commercial use. It is designed for household use only.

English

Congratulations!

Thank you for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

This product is designed for drying clothes and textiles. Any other use may result in damage to the product or injuries. This product is designed for household use only and not intended for commercial use.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.

Before first time use

Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Disposal

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve

resources and protect the environment. Contact your retailer or local authorities for more information.

Refrigerants must be evacuated and disposed of by a qualified specialist in accordance with federal and local regulations before the appliance is scraped.

The wild disposal of waste in forests and landscapes endangers your health, when dangerous substances escape and get into the groundwater and thus make their way into the food chain.

Note:

- This product contains non-fluorinated greenhouse gas (hermetically sealed) which is dangerous for the environment and contributes to global warming if released to the atmosphere.

• Refrigerant type: R134a

• Global warming potential (GWP): 3

- Refrigerant leakage contributes to climate change. Refrigerant with lower global warming potential (GWP) would contribute less to global warming than a refrigerant with higher GWP, if leaked to the atmosphere.

- This product contains a refrigerant fluid with a GwP equal to 3. This means that if 1 kg of this refrigerant fluid would be leaked to the atmosphere, the impact on global warming would be 3 times higher than 1 kg of CO₂, over a period of 100 years. Never try to interfere with the refrigerant circuit yourself or disassemble the product yourself and always ask a professional.

- Energy consumption 1.45 kWh per 60 minutes is based on standard test results. Actual energy consumption will depend on how the product is used and where it is located.

Content

1 x Heat Pump Dryer

1 x User manual

1 x Warranty card

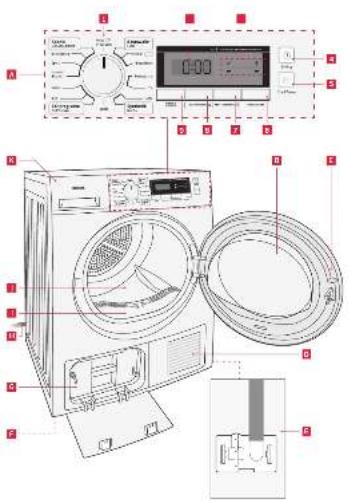

Controls and Components

A Operation panel

1 Program dial
2 Display
3 Special function indicators
4 Ein/Aus Ⓛn/Off button
5 Start/Pause Button
6 TROCKENGRAD intensity button
7 KNITTERSCHUTZ Anti-Crease button
8 ZEITVORWAHL Time button
9 STARTZEIT VERZÖGERT Delay button

B Door with window
c Recessed grip
D Air inlet
€ Condensation water drainage connection
F Adjustable feet
G Air condenser filter with service flap
H Power cord with plug
Lint filter
Drum
K Condensation water tank

Technical data

Rated Voltage : 220 - 240 V\~, 50 Hz

Rated power : 850 W

Protection class : I

Rated drying capacity : 8 kg

Dimensions

Protection degree : IPX4

Refrigerant : R134a / 295 g

• This is a Heat Pump Dryer.
- Erp-testing was done according to EN 61121:2013.
• See website below for detailed technical information or ask your vendor for specification sheet.

www.koenic-online.com

Installation

Note:

The heat pump dryer is equipped with power cord and plug. Make sure before installation that a suitable wall outlet is at the desired place of installation.

Consider the dimension of the product for placing and installation.

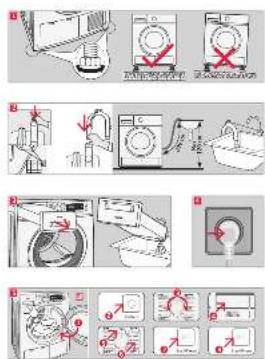

Fig. 1 Place the tumble dryer on an even, horizontal and steady surface. For levelling the feet are adjustable and can be screwed in or out. Use a spirit level to ensure correct positioning.

Option 1

Fig. 2 The dryer can be connected to drainage.

• Pull down the condensation water hose.
• Connect a drainage hose to the fitting.
• Place the other end into a sink. Observe the max. height of the outlet of drainage hose.

Note:

If an external drainage hose is used, the condensation water tank does not have to be emptied anymore.

A suitable hose holder and drainage hose are available as optional accessories.

Attention

Ensure that the drainage hose is properly attached and sealed. Periodically check the connection to avoid leakages.

Option 2

Fig. 3 If no drainage hose for condensation water is used, the condensation water tank must be emptied after each use.

• Pull out the tank and empty it into a sink.
• Push the tank back into the dryer.

Fig. 4 Connect the power plug to the mains.

English

Preparation

• Before drying, thoroughly spin the laundry in washing machine. High spin speed can reduce the drying time and save energy consumption.
• For a more uniform drying result, sort the laundry according to fabric type and desired drying program.
• Before drying close zips, hooks and eyelets, button up, tie fabric belts, etc.
• Do not over dry the clothes, because over dried clothes can easily get creases or might shrink.
• Do not dry articles containing rubber or similar elastic materials such as raincoats, bicycle covers and feather products.
• The door may be opened only after the program of the dryer is completed. Do not open the door before the program has finished, as skin may be scalded by steam or hot surface.
• Clean the lint filter and empty condensation water tank after each use to avoid extension of drying time and energy consumption.

• Do not dry clothes after chemical dry-cleaning.

• Consider below weight references:

	Blended Coats:about 800 g
	Jackets:about 800 g in cotton
	Jeans:about 800 g
	Towel Quilts:about 900 g in cotton
	Single Sheets:about 600 g in cotton
	Work Clothes, upper and lower:about 1120 g in cotton
	Pajamas:about 200 g
	Shirts:about 300 g in cotton
	Undershirts:about 180 g in cotton
	Underpants:about 70 g in cotton
	Socks:about 30 g in blended material

Operation

Drying clothes

Fig. 5 For drying clothes follow below instructions:

1. Open the door, fill the drum with your clothes and close the door.

Note:

The drum is illuminated if the door is opened. This function eases filling and emptying the drum.

1. Switch on the appliance with the On/Off Ⓐ button.
2. Chose your program, refer to Program table.
3. Chose an additional function if needed or set the time delay (STARTZEIT VERZÖGERT).
4. In the Mein Programm ♥ program, you can define an individual program with the desired special functions. Turn the program selector to your desired program, e.g. normal, and set the desired special functions. Then press the ZEITVORWAHL ♥ button for 3 seconds to save the settings.
   Then press the ZEITVORWAHL ♥ button for 3 seconds to save the settings.

The program remains saved and can be changed at any time as described above.

1. The drying time can only be set manually with the ZEITVORWAHL key in the Zeitprogramm (time) modes Warm, Kalt (cold), Auffrischen (refresh) (adjustable times can be found in the Program table).
2. Push the button Start/Pause ▷II. The dryer starts the drying process at the preset conditions.
3. By pushing the Start/Pause ▷□ button again, the dryer stops. To continue the drying process push the Start/Pause ▷ button again.

Fig. 5 When the drying is finished an acoustical signal beeps 3 times and 0:00 is shown in display. Open the door and remove all clothes.

Caution

The door may only be opened if the appliance is not running, e.g. after drying process is finished. Do not try to open the door when the appliance is running to avoid burns or scalding caused by hot steam or hot surfaces. There is also a mechanical danger due to the rotating drum.

Indicator lights

	Time mode
	Child lock
	Clean filters (warning)
	Anti crease mode
	Extra dry
	Water tank full, need to empty water tank

English

Program table

Fig. 7 Chose a suitable drying program.

Program		Weight (max)	Application / Properties Delay Time
Baumwolle/Pflegeleicht/Mix	For cottons and coloureds made of cotton or linen.
	Extra	8.0 kg	To dry cotton pieces of clothing. Drying level: extra dry.	Yes No
	Standard		To dry cotton pieces of clothing. Drying level: cupboard dry.
	Bügelleicht		To dry cotton pieces of clothing. Drying level: applicable to iron.
	Feinwäsche	1.0 kg	To dry delicate laundry suitable for drying or laundry advised to be hand-washed at a lower temperature.
	Mix 3.5 kg		If one cannot determine the clothing's materials choose this program
Synthetics/Wolle	For non-iron washing made of synthetic and blended fabrics, cotton.
	Extra	3.5 kg	To dry thick or multi-layered synthetic fabrics. Drying level: extra dry.	Yes No
	Standard		To dry thin synthetic fabrics which are not ironed, such as easy-care shirts, table linen, baby clothes, socks.
	Wolle 1.0 kg		For a fluffy and fresh wool clothing (no drying function). Then remove the wool clothes and let everything air dry.
Synthetics/Wolle/Spezial Mein Programm	Jeans 4.0 kg		To dry jeans or leisure clothes that are spun at high speeds in the washing machine.	Yes No
	Bettwäsche	3.5 kg To dry sheets or other large sized textiles.
	Sport 3.0 kg		To dry sportswear, thin fabrics, polyester which are not ironed.
	Hemden 1.0 kg		For easy care clothes such shirts and blouses with anti-crease mechanism for minimum ironing effort. Place clothes loosely in the dryer. Once dried, hang it on a clothes hanger.
	Mein Programm	- Define and safe your favorite program. Yes -
Zeit	Warm	-	To warm clothes from minimum 10 min. to maximum 120 min. (in 10 min. steps).	Yes	Yes
	Kalt	-	To air clothes without heating from minimum 10 min. to maximum 30 min. (in 10 min. steps).
	Auffrischen	1.0 kg	To refresh the clothes that have been kept at closed environments for a long time from minimum 20 min. to maximum 150 min. (in 10 min. steps).

Note:

• The appliance is equipped with a humidity sensor to measure the moisture in the drum or appliance. The residual time for drying is determined by the weight of inserted clothes and measured moisture.
• This function is not active during Warm (Warm), Cool (Kalt) and Refresh (Auffrischen) modes.

32

Additional functions

Delayed drying (STARTZEIT VERZÖGERT)

Fig. 8 If you wish to postpone the start of the drying process, a time delay can be set. Use the time delay button (STARTZEIT VERZÖGERT) to set a postponed start between 1-24 hours. The dryer starts the drying process after the preset time has elapsed.

1. Fill the drum with your clothes and close the door.
2. Switch on the appliance with the On/Off switch (Ein/Aus).
3. Chose your program and an additional function if needed (e.g. Anti-Crease).
4. Push the button Delay (STARTZEIT VERZÖGERT) for as many times as needed to set the time delay in hours (H) which is indicated in the display.
5. Push the button Start/Pause ▷II The dryer is activated and will start the drying process once the preset time has elapsed.
6. Push the button Start/Pause ▷II to pause the timer. For cancellation push the On/Off switch (Ein/Aus).

Fig. 9 Once the child protection is activated, the setting cannot be changed. In that case the dryer can only be switched off by pushing the On/Off switch (Ein/Aus). The child protection can only be activated if a dryer operation was started or is running either directly or by time delay.

1. Activation: Press the anti-crease button (KNITTERSCHUTZ) for approx. 3 seconds. The corresponding LED indicates the child protection.
2. De-activation: Press the anti-crease (KNITTERSCHUTZ) button again for approx. 3 seconds. The corresponding LED turns off.

Anti-crease function

Fig. 10 This function is used to minimize the appearance of crease after the drying process is finished. The standard time for this function is 30 minutes. The drum rotates intermittently in order to minimize the formation of crease.

- Press the anti crease (KNITTERSCHUTZ) button and the corresponding LED indicator 📋 turns on.

Dry intensively

Activate this function to get the laundry extra dry. To activate, press the TROCKENGRAD button and the LED of the corresponding symbol lights up.

English

Cleaning and care

Warning

• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).
• Switch off the tumble dryer and let it cool down completely before cleaning.
• Clean the exterior surfaces of the product with a slightly damp cloth and dry them well. Make sure that no water enters the product interior (e.g. at the buttons).

Cleaning the lint filter

Fig. 11 Pull out the filter and open it. Remove lint and fibers by hand. Wash the filter with tap water in order to remove remaining lint or particles. Reassembling is done in reverse order.

Cleaning the main filter

Warning

Before opening the service flap, place a big cloth in front and below the flap. Large amounts of water may leak when opening the flap.

Fig. 12 Push down both clips of the service flap and open it. Pull the levers of the main filter into the correct direction to unlock and pull it out. Clean the filter and rinse if necessary.

Warning

During reassembling make sure the sealing of the filter fits correctly and make sure it is locked properly in order to avoid water leakage.

Cleaning the heat exchanger

If necessary, remove the fluff from the heat exchanger approx. once every 2 months using a vacuum cleaner and a brush nozzle. To do so, open the service flap and remove the main filter as described above.

Clean the heat exchanger without pressure, otherwise it can be damaged.

Warning

Do not touch the heat exchanger with your hands as this can cause injuries.

Cleaning air inlet

Fig. 13 The LED on the control panel will indicate when the lint filter needs to be cleaned. Regularly check the air inlet opening at the front side to ensure it's free from obstacles and not clogged or blocked. Take off the service flap. Make sure the air inlet grill and foam filter are clean. Remove any kind of residues or particles. Install the service flap.

Cleaning the air condenser

The air condenser must be cleaned regularly from time to time.

Error indication and troubleshooting

Follow below table to understand error messages and their respective remedy. Error messages are shown in display during use.

Error message Possible reason Remedy
LED light is on	Water tank full or pump error • Empty condensation water tank.• If the error code is sill shown, contact your service agent.
€32 Error of humidity sensor • Contact your service agent
€33 Error of temperature sensor

Troubleshooting

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your dealer.

Problem Solution
Display doesn't light on • Check power supply• Check preset program• Check fuses of you electric supply
Dryer doesn't start • Make sure the door is closed• Chose correct program and push the button Start/Pause
Water leakage • Align dryer horizontally.• Check air condenser, sealing cap and drainage and make sure they are installed correctly.• If the problem persists contact your service agent.
Door opens by itself or cannot be closed	• Close door slowly until it clicks. Do not slam the door.• Remove clothes if overloaded
Humidity in the room increasing significantly	• Ventilate room adequately.• Clean the air inlet grille.• Ensure that the air condenser has been inserted.
Degree of dryness not reached or drying time too long	• Clean lint filter and wash condenser.• Empty condensation water tank.• Clean the moisture sensors.• Use next higher drying program or use Timer program.

English

EU Product fiche | 1/2

KTD 8312 A2

The information in this product data sheet is given in accordance with article 3 letter b) in conjunction with Annex II of the Commission delegated Regulation (EU) No 392/2012 supplementing Directive 2010/30/EU of the European Parliament and of the Council with regard to energy labelling of household tumble driers.

a Supplier's name Imtron GmbH
b Model identifier KTD 8312 A2

		Symbol	Value Unit
c	Rated capacity of cotton laundry for the standard cotton program at full load		8	kg
d	Type of the household tumble drier:
	Air-vented household tumble drier NO
	Condenser household tumble drier YES
	Gas-fired household tumble drier NO
e Energy efficiency class B

		Symbol	Value Unit
f W	Weighted Annual Energy Consumption1	AE_c	235.4 kWh/year
g	Automatism of the household tumble drier:
	Automatic tumble drier YES
	Non-automatic tumble drier NO
h	EU Ecolabel award under Regulation (EC) No 66/2010
	n/a

		Symbol	Value Unit
i	Energy consumption of the standard cotton program at full and partial load	E_dry	1.94 kWh
		E_dry1/2	1.08 kWh
j	Power consumption for the standard cotton program at full mode:
	In the off-mode	P_0	0.4	W
	In the left-on mode	R	0.6	W
k D	Duration of the "left-on mode"	t L	10	min
l	Indication:The 'standard cotton programme' used at full and partial load is the standard drying program to which the information in the label and this fiche relates. This program is suitable for drying normal wet cotton laundry and is the most efficient program in terms of energy consumption for cotton.

English

EU Product fiche | 2/2 KTD 8312 A2

		Symbol	Value Unit
m	Weighted program time of the standard cotton program at full and partial load	T_t	142	min
	Program time of the standard cotton program at full load	T_ty	185	min
	Program time of the standard cotton program at partial load	T_ty-1/2	110	min
n Condensation efficiency class 'C' on a scale from G (least efficient) to A (most efficient)

		Symbol	Value Unit
o	Average condensation efficiency of the standard cotton program
	At full load	Cry	81	%
	At partial load	Cry=2	81	%
	Weighted condensation efficiency for the standard cotton program at full and partial load	Ct	81	%
p Sound power level (weighted average value)		LWA	69	dB

Español

Warning sign depicting a flame symbol inside a triangle, indicating hazardous risk.

Warning sign depicting a flame symbol inside a triangle, indicating hazardous risk.

Warning sign depicting a flame symbol inside a triangle, indicating hazardous risk.

Warning sign depicting a flame symbol inside a triangle, indicating hazardous risk.

Warning sign depicting a flame symbol inside a triangle, indicating hazardous risk.

Warning sign depicting a flame symbol inside a triangle, indicating hazardous risk.

Warning sign depicting a flame symbol inside a triangle, indicating hazardous risk.

Warning sign depicting a flame symbol in a triangular shape, indicating hazardous risk.

Warning sign depicting a flame symbol in a triangular shape, commonly used to indicate hazard or safety warning.

Warning sign depicting a flame symbol in a triangular shape, indicating hazardous risk.
