1. Information about this user manual .... 118

1.1. Explanation of symbols .....118

FR

2. Proper use 119

119

3. Safety instructions ...... N479

3.1. Setting up and connecting the microwave .....120
3.2. Avoiding risk of fire 122
3.3. Safety instructions relating specifically to the use of microwaves ..... 123
3.4. Safety instructions on the heating of liquids 123

IT

4. Appliance overview 125

126

5. Package contents 126

6. Cooking in the microwave ....126

6.1. Size and shape of microwave-safe containers 127
6.2. Microwave-suitable materials....127

7. Before using the appliance for the first time....127

7.1. Setting up the appliance.... 127
7.2. Cleaning the appliance for the first time....128
7.3. Inserting the glass turntable....128
7.4. Setting the time 128
7.5. Setting the button lock 129

8. Using the microwave .....129

8.1. Configuring settings....129
8.2. Quick start 130
8.3. Cooking table....130
8.4. Automatic programme ....131
8.5. Interrupting a programme ....132
8.6. End of programme 132

9. Defrosting programme....132

9.1. Weight defrost 132
9.2. Defrosting by time 132
9.3. Using multiple programmes 133
9.4. Display field 133
9.5. Setting the timer 133

10. Energy-saving tips 134

1. Cleaning and care.... 134
2. Prolonged non-use and transport 134
3. Troubleshooting ....135
4. Technical specifications....135
5. EU declaration of conformity....135
6. Disposal....136
7. Service information....136
8. Legal Notice....137

1. Information about this user manual

Thank you for choosing our product. We hope you enjoy using this appliance.

Please read the safety instructions and the user manual carefully before using the appliance for the first time. Note the warnings on the appliance and in the user manual.

Always keep the user manual close to hand. If you sell the appliance or give it away, please ensure that you also pass on this user manual. It is an essential component of the product.

1.1. Explanation of symbols

If a block of text is marked with one of the warning symbols listed below, the hazard described in that text must be avoided to prevent the potential consequences described there from occurring.

DANGER!

Warning: risk of fatal injury!

WARNING!

Warning: risk of possible fatal injury and/or serious irreversible injuries!

CAUTION!

Warning: risk of minor and/or moderate injuries!

NOTICE!

Follow these instructions to prevent damage to the appliance!

CAUTION!

Danger due to hot surfaces!

This symbol provides useful additional information for assembling or operating the appliance.

Follow the instructions in the user manual!

Symbol for alternating current (AC)

Protective earthing symbol (for protection class I)

The position numbers after the corresponding appliance components in the text refer to the illustration in Section "4. Appliance overview" on page 125.

2. Proper use

The microwave may only be used for heating up suitable food in suitable cooking containers and dishes.

This appliance is designed for use in private households and similar household applications, such as

• in kitchens for staff in retail outlets, offices and other commercial areas
  • on agricultural estates
• by customers in hotels, motels and other accommodation facilities
  • in bed-and-breakfast establishments.

The manufacturer accepts no liability for damages if the appliance is used for commercial purposes or for any purpose other than the purpose specified above.

▶ Please note that we shall not be liable in cases of improper use.
Comply with all the information in this user manual, especially the safety instructions. Any other use is considered improper and can cause personal injury or property damage.

3. Safety instructions

IMPORTANT SAFETY INSTRUCTIONS – READ CAREFULLY AND KEEP FOR FUTURE REFERENCE!

DE

FR

NL

■ Keep the appliance and its accessories out of the reach IT of children.

■ This appliance may be used by children over the age of 8 and by persons with reduced physical, sensory or mental abilities or by those with limited experience and/or knowledge, provided that they are supervised or have been instructed in the safe use of the appliance and have understood the associated risks.

ES

IT

EN

■ Children must not be allowed to play with the appliance.

■ Cleaning and user maintenance may not be carried out by children unless they are supervised.

■ Children younger than 8 must be kept away from the appliance and the mains cable.

3.1. Sett ing up and connect- ing the microwave

WARNING! Risk of electric shock!

There is a risk of electric shock due to live parts.

■ Before using the appliance for the first time and after each use, check the microwave and the mains cable for damage.
■ Do not use the microwave if you notice that it, or the mains cable, is damaged.
■ Make sure that the mains cable is not damaged and does not run underneath the microwave or over hot surfaces or sharp edges.
■ Completely unwind the mains cable.
■ Do not kink or crush the mains cable.
■ Contact our Service team without delay if the appliance has been damaged during transport.
■ Only connect the microwave to a properly installed, earthed and fused socket. The mains voltage must match the technical specifications for the appliance.

■ The socket must be freely accessible so that you can unplug the microwave from the mains quickly if necessary.

WARNING! Risk of injury!

There is a risk of injury as a result of microwave radiation. Microwave radiation may leak outside if the appliance is damaged. Damage to the mains cable may cause an electric shock.

■ WARNING! If the housing, covers, microwave door, door seals or the door lock of the microwave are damaged, do not use the microwave under any circumstances. Immediately remove the plug from the earthed mains socket in this case. Do not use the microwave again until it has been repaired by a person trained for this purpose.

■ WARNING! It is dangerous for untrained persons to carry out repair or maintenance work which requires the removal of a cover which is in

place to prevent the escape of microwave radiation.

■ Do not, under any circumstances, make any unauthorised modifications to the microwave or try to open a component and/or repair it yourself. The microwave oven and mains cable must exclusively be repaired by a professional workshop or contact the Service Centre in order to avoid any hazards.

- Do not remove any of the microwave’s internal covers or the inner coating of the viewing window as this may lead to microwave radiation leakage.

■ Only use replacement parts or accessories that we have supplied or approved.

■ Do not use the microwave in humid environments as this may cause an electric shock.

■ Do not immerse the microwave in water or other liquids and do not hold the microwave under running water.

■ Protect the microwave from water in droplet and spray form. Do not let the appli-

ance come into contact with water or other liquids. Keep the appliance, the mains cable and the mains plug away from wash basins, sinks or similar. If liquid ever penetrates the appliance, immediately disconnect the plug from the earthed mains socket. Have the appliance checked by a qualified specialist workshop.

■ Pull the mains plug out of the socket

• when you are cleaning or maintaining the appliance
• when you are assembling or disassembling the appliance
  – the appliance is damp or wet
• if you are no longer using the appliance
• when the appliance is un- attended
  – during thunderstorms.

■ Do not touch the appliance or the mains cable with wet hands.

3.2. Avoiding risk of fi re

WARNING! Risk of explosion!

Mixtures of water and oil can ignite or even explode.

■ Do not heat water mixed with oil or fat in the microwave.
■ Do not defrost frozen fat or oil in the microwave.

WARNING! Risk of fire!

There is a risk of fire due to improper use of the appliance

■ Do not cover or block any openings on the appliance.
■ Never leave the appliance unattended while it is in use.
■ Do not operate the microwave with an external timer or separate, remote control system.

- Keep an eye on the microwave when heating up or cooking food in combustible materials like plastic or paper containers.

■ The appliance may only be used for heating up suitable food in suitable containers and dishes.

■ Do not dry combustible objects in the appliance (no food or clothing, heat pads, slippers, sponges, moist cleaning cloths, etc.). This may lead to injuries, ignition or fire.

■ Do not prepare any food containing alcohol in the appliance.

■ Do not use the appliance for frying or to heat up oil.

■ If smoke is emitted, switch off the appliance or unplug the plug and keep the microwave door closed to suffocate any flames.

■ Always use standard popcorn packaging that is designed for making popcorn in a microwave.

■ Never exceed the cooking times specified by the manufacturer.

■ Do not store any food or other objects in the microwave.

3.3. Safety instructions relating specifically to the use of microwaves

■ WARNING! Do not heat up food or liquids in sealed or tightly closed containers! These can explode in the appliance and cause injuries on opening. Remove the lids from containers which close, such as feeding bottles for babies.

■ Food prepared in the microwave may heat up unevenly. Check the temperature of food before eating. When preparing baby food and bottles, always stir the food or shake the bottle before checking the temperature in order to avoid burns.

■ Do not heat eggs in their shells or prepare whole hard-boiled eggs in the microwave as they may explode while cooking and even after removal from the microwave. Eggs may only be cooked in microwave dishes designed specifically for this purpose.

■ Prick or score food with a tough skin, e.g. tomatoes, sausages, aubergines, etc.

before cooking in order to prevent it from bursting.

■ Hot steam will escape when you open cooking containers (e.g. popcorn bags, food storage containers). Always hold the opening away from your body as you open the container.

■ Hot steam will escape when you open the microwave door. Do not stand too close.

■ The surfaces of the microwave, the accessory parts, as well as the dishes will become very hot during the cooking process. Use oven gloves. Allow parts to cool down before cleaning.

3.4. Safety instructions on the heating of liquids

CAUTION!

Risk of injury!

There is a risk of burns.

■ WARNING! When warming up liquids in the microwave, so-called "delayed boiling" can occur, i.e. the liquid has reached boiling temperature without beginning to bubble as boiling liquids normally do. Movements, such as those occurring when re-

moving the liquid from the microwave, can then cause a sudden reaction, causing boiling liquid to spurt out, which is why caution is required when handling the container.

■ Do not use tall, narrow containers.
■ Place a glass rod or ceramic rod in the container when heating liquids in order to prevent delayed boiling.
Wait a few moments after heating the liquid then take hold of the container carefully and stir the liquid before you take it out of the oven.

4. Appliance overview

1 2 3 4 7856 9 10 11

Fig. 1 – Front view with door open

1. Magnetron mica waveguide cover (DO NOT REMOVE!)
2. Mains cable with plug (on the back, not shown)
3. Display field
4. Control panel
5. Glass turntable
6. Roller ring
7. Drive shaft
8. Cooking compartment
9. Door lock
10. Door handle (not shown)
11. Microwave door with viewing window

Fig. 2 - Controls

1. Timer/clock button
2. Start button
3. Control knob
4. Stop button
5. Microwave button
6. Defrost button

5. Package contents

DANGER!

Risk of injury!

There is a risk of choking and suffocation due to swallowing or inhaling small parts or plastic wrap.

• Keep all packaging materials used (bag, pieces of polystyrene etc.) out of the reach of children.
  ■ Do not allow children to play with the packaging material.

NOTICE!

Possible material damage!

Possibility of damage to the appliance due to improper handling

■ The mica waveguide cover (2) in the cooking area (1) is not part of the packaging and must not be removed!

▶ Remove the product from the packaging and remove all packaging material.
▶ Check the package contents to ensure that all items are included. If anything is missing, please contact our Service Centre within 14 days of purchase.
Before each use, check the microwave oven for any damage. Contact our Service team in the event of any damage.

The following items are supplied with your product:

• Microwave
• Glass turntable
• Roller ring
• Drive shaft
• Short manual

6. Cooking in the micro-wave

NOTICE!

Possible material damage!

The use of unsuitable materials can cause damage to the appliance or the material itself.

■ Exclusively use the accessories supplied or accessories which are described as suitable in this user manual.
■ Do not use dishes with metal trimmings or metal dishes as this may lead to sparks that may damage the appliance and/or the dishes.
As soon as you notice sparks or flashes, turn the time control dial to 0 and unplug the mains plug. Check whether there are any metal objects in or on the food or dish.
■ Do not use crystal or lead crystal glass. It can shatter, and coloured glass may become discoloured.
- Do not use materials that are not heat-proof. They may warp or may even catch fire.
■ Use dishes suitable for microwave ovens. Look for markings such as "microwave-safe" or "For the microwave" when purchasing dishes.

In order to correctly arrange the food to be cooked, place the thickest pieces on the outside.
▶ Note the exact cooking or heating times.
▶ Choose the shortest available cooking or heating time and extend it if necessary.

▶ Cover food during cooking or heating with a microwave-safe cover. Covering the food helps avoid splashes; furthermore, the food is more evenly cooked.
▶ Foods such as chicken pieces or hamburgers should be turned once when cooking in the microwave oven in order to speed up cooking. Larger pieces such as joints or roasting chickens must be turned at least once.
It is also important to reposition food, e.g. if cooking meatballs: After half of the cooking time has expired, the food should be repositioned from top to bottom and from the inside to the outside.
▶ After heating, stir the food if possible to ensure even temperatures; otherwise, let the food stand for a short time.

6.1. Size and shape of micro-wave-safe containers

Flat, broad containers are better than narrow, tall ones. "Flat" foods can be cooked more evenly.

Round or oval containers are more suitable than angular ones. There is a danger of local overheating in the corners.

6.2. Microwave-suitable materials

Use the following utensils in the microwave:

• Browning dishes
• Crockery
  • Glass containers without a lid
• Oven-safe glassware
• Oven-safe cooking bags
• Paper bags and cups (only for brief warming up)
• Paper towel (only for covering foods and for soaking up grease)
• Microwave-safe plastic containers
  • Microwave-safe plastic packaging
  • Microwave-safe thermometer
• Wax paper (only for covering foods)

Always note the manufacturer's instructions.

7. Before using the appli- ance for the fi rst time

7.1. Sett ing up the appliance

There is a risk of fire if the appliance is set up incorrectly.

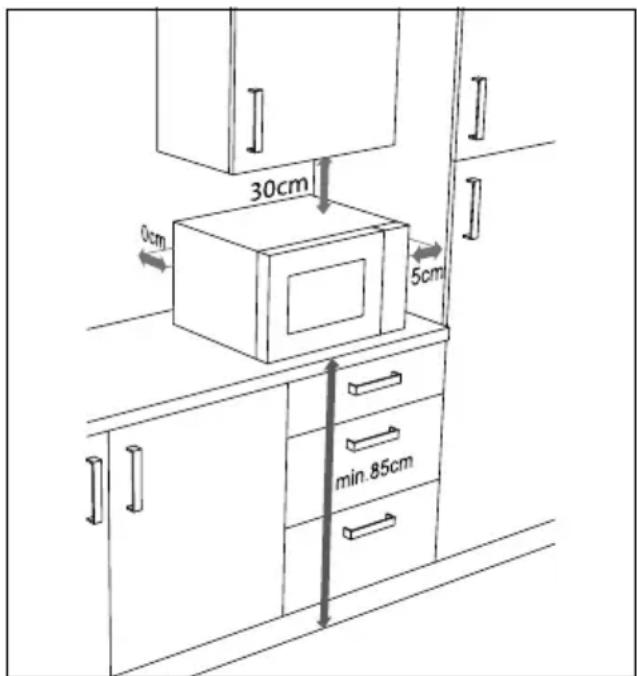

To ensure adequate ventilation, the clearances specified in "Fig. 3 – Appliance clearance" must be maintained. The spacer at the back of the appliance must touch the wall. It ensures that the correct clearance is maintained when positioning the microwave.

■ Do not remove the feet.
■ The microwave is designed as a free-standing appliance. Do not operate the microwave in fitted cabinets or a cupboard.

NOTICE!

Possible material damage!

There is a risk of damage to the appliance if installed incorrectly.

■ Place the microwave on a level, stable surface which is able to carry the weight of the appliance as well as the maximum weight of the food which will be cooked in it.
■ Use the appliance indoors only.
■ Do not place the microwave:

• near sources of heat or naked flames
• near radios or televisions
  – in the immediate vicinity of inflammable materials
  – in a location prone to wetness or high humidity.
  – in a location with extremely high or low temperatures or in direct sunlight.

Chemical additives in furniture coatings may corrode the material of the appliance feet and cause residue on the furniture surface.

■ Place the appliance on a heat-resistant mat if necessary.

Connect the microwave to a convenient and easily accessible, earthed mains socket.

7.2. Cleaning the appliance for the first time

▶ Pull the door handle to open the microwave door.
To remove the dust residue from the packaging and any other possible residues from the manufacturing process, wipe out the cooking compartment and the inner side of the viewing window with a slightly damp, soft cloth before using the appliance for the first time. Ensure that no liquids penetrate the microwave and dry the surfaces completely afterwards.
▶ Clean the glass turntable and the roller ring in warm water with a little washing up liquid before drying off these parts completely.

7.3. Inserting the glass turntable

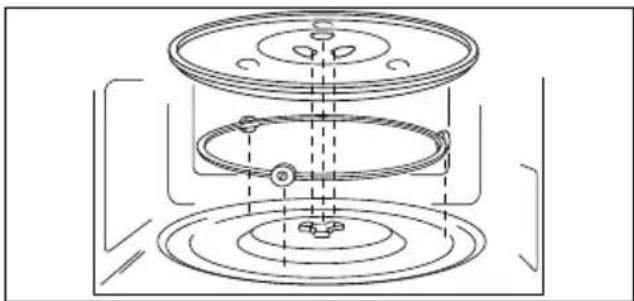

Technical line drawing of a multi-tiered circular device with internal components and mounting holes (no text or symbols)

Fig. 4 - Inserting the glass turntable

▶ Do not use the microwave without properly installing the glass turntable.
▶ Check that the drive shaft is correctly inserted in the recess on the base of the inside of the microwave and that its wings rest flat on the base. If necessary, turn the drive shaft until it sinks into its correct position.
Place the roller ring in the recess in the cooking compartment and then place the glass turntable centrally on the drive shaft (see "Fig. 4 – Inserting the glass turntable") so that the webs of the glass turntable lie between the wings of the drive shaft.

7.4. Setting the time

When the product is used for the first time or if the power supply is interrupted, the display field (3) will show 0:00 and the time (24-hour display) needs to be set.

▶ Press the timer/clock button (12) twice. The hour display begins to flash.
▶ Turn the control knob (14) to set the desired hour.
Then press the timer/clock button (12) again.
▶ Turn the control knob (14) to set the desired minutes.
Then press the timer/clock button (12) again. The time is now set.

7.5. Setting the button lock

▶ Press and hold the stop button (15) for approximately 3 seconds to switch on the button lock.

An acoustic signal is emitted and [—] is shown in the display field (3).

The product buttons will now have no function.

After approx. 3 seconds, the time is displayed again, if it has been set.

▶ Press and hold the stop button (15) again for approximately 3 seconds to switch off the button lock.

An acoustic signal is emitted and all functions are available again.

8. Using the microwave

DANGER!

Risk of injury!

There is a risk of injury from electric shock or microwave radiation

Microwave radiation may leak outside if the appliance is damaged. Damage to the mains cable may cause an electric shock.

If the housing, covers, door or the door catch of the microwave are damaged, do not use the microwave under any circumstances. Immediately remove the plug from the earthed mains socket in this case.

■ If you discover any damage, do not use the microwave. Instead, please contact the Service Centre.

NOTICE!

Possible material damage!

Possibility of damage to the appliance due to improper handling

■ The microwave has been designed for household use and may not be used outside.

■ Do not operate the appliance without the glass turntable and never operate it without food in the cooking compartment.

■ Do not move the appliance when it is in use.

▶ Prepare the food: Poultry, pork, minced meat and all types of fish are suitable for preparing in the microwave. In contrast, beef and game meats quickly become tough in the microwave and are therefore not suitable. When preparing vegetables, meat and fish, cut the food into as evenly sized pieces as possible and cover it when cooking.

▶ Pull the door handle to open the microwave door (11).

Place the food in a microwave-safe container in the centre of the glass turntable plate.

▶ Close the microwave door until you hear it click into place.

8.1. Configuring settings

CAUTION!

Risk of injury!

As the food or containers may be very hot, there is a risk of scalding.

■ Always use a protective cloth or heat-proof oven gloves when removing food from the oven (8).

When the appliance is in use, condensation may form on the inner walls and microwave door. This is normal when cooking and does not indicate a malfunction. If condensation forms, wipe it off with a soft cloth.

▶ Press the microwave button (16) once and turn the control knob (14) to set the power level.

Alternatively, you can press the microwave button (16) once or several times to select one of the power levels shown in the following table:

Press the button (16)	Cooking programme	Output in watts	Examples of use
1 x	P100	800 Fast heating, heating drinks, boiling water, cooking vegetables
2 x	P80	640 Cooking rice, minced meat dishes, chicken
3 x	P50	400 Slow cooking, cooking fish, soups
4 x	P30	240 Defrosting, melting butter
5 x	P10	80 Keeping warm, thawing ice cream

Press the start button (13) to confirm the desired energy setting.
▶ Turn the control knob (14) to set the desired cooking time in minutes and seconds (0:00).

The longest cooking time is 95 minutes.

Press the start button (13) to start the programme.

8.2. Quick start

If you press the start button (13) without previously setting the power level, the cooking programme will start at the maximum level (800 watts). This function is, however, not available for the automatic programmes and defrosting by weight programme.

Press the start button (13) several times until the desired cooking time is shown on the display field (3) (the cooking time is increased by 30 seconds each time the button is pressed). The cooking process starts immediately.
If the appliance is in use, the cooking time can be increased by 30 seconds each time the ◇ start button (13) is pressed.
The longest cooking time is 95 minutes.

8.3. Cooking table

Cooking table/examples
Cooking level	Weight	Cooking time	Food
P10	100 g 0:30	Thawing	ice cream
	200 g 1:00
	300 g 1:30
P30	200 g 6:00	Defrosting	vegetables (e.g. broccoli)
	400 g 11:00
	600 g 15:00
P50	200 g 7:30	Heating (cooled) fish dishes
	300 g 8:00
	400 g 9:30
P80	200 g 4:00	Heating	(cooled) veg-etables
	300 g 6:00
	400 g 8:30
P80	500 g 18:00	Cooking	meat loaf
P80	500 g 25:00	Cooking	porkgoulash (in sauce)
P100	150 g 5:00	Cooking	potatoes
	300 g 8:00
	450 g 13:00
P100	300 ml 2:30	Heating	(cooled) milk
	600 ml 4:30
	900 ml 7:00

If the food is not cooked/heated enough after the cooking time has elapsed, start the process again. To do so, use the power level indicated in the table for several minutes to fully cook/heat up the food.

8.4. Automatic programme

It is not necessary to set the cooking time or power level for the automatic programme. The product automatically determines the values depending on the foodstuff and weight input.

▶ Turn the control knob (14) clockwise. A programme number appears on the display field (3) (e.g. "A-1" for automatic programme 1).

▶ Select an automatic programme from A-1 to A-8.

The corresponding symbol flashes on the display field (3).

▶ Press the start button (13) to confirm the selection.

Now select the desired weight. To do this, turn the control knob (14) until the desired portion size is displayed.

The weight/amount is shown on the display field (3).

The amount can be set according to the following table:

Program	Weight	Display	Output
A-1 Heating	200 g	200	800 W
	400 g	400
	600 g	600
A-2 Vegetables	200 g	200	800 W
	300 g	300
	400 g	400
A-3 Fish	250 g	250	640 W
	350 g	350
	450 g	450
A-4 Meat	250 g	250	700 W
	350 g	350
	450 g	450
A ta	50 g(+ 450 ml water)	50	640 W
	100 g(+ 800 ml water)	100
A-6 Potatoes	200 g	200	700 W
	400 g	400
	600 g	600
A-7 Pizza	200 g	200	700 W
	400 g	400
A-8 Soup	200 ml	200	640 W
	400 ml	400

Then press the start button (13) to start the programme.

If the desired food is not fully cooked through, cook it again for a few minutes more with the cooking programme.

8.5. Interrupting a pro- gramme

If you want to turn or stir the food, for instance midway through the cooking process, it is often necessary to interrupt the programme.

▶ Open the microwave door (11) or press the ▽ stop button (15) to interrupt the programme.

The remaining time is still shown on the display field (3).

Once you have closed the microwave door (11) again, press the ◆ start button (13) to resume the selected programme.

▶ Press the stop button (15) twice in order to prematurely stop the programme completely.

8.6. End of programme

Once the programme has finished, 5 beeps sound to signal the end of the respective process.

▶ Open the microwave door (11) by pulling the handle (10).

▶ Carefully remove the food from the cooking compartment (8).

9. Defrosting programme

If possible, turn the food to the other side after half the time has elapsed to optimise defrosting (see "8.5. Interrupting a programme" on page 132). Press the button again to continue the programme.

9.1. Weight defrost

You can set the defrosting programme based on the weight of the food. Weights from 100 g to 2000 g can be set.

▶ Then press the defrost button (17) to select the desired defrosting mode by weight.

The display field (3) shows dEF1.

▶ Turn the control knob (14) to set the weight of the food.

▶ Press the start button (13) to start the programme.

Two short beeps will sound after half the cooking time has elapsed.

▶ Open the microwave door (11). Turn over the food or stir it to guarantee even defrosting.

Then close the microwave door (11) again and press the ◇I start button (13) again to continue the programme.

▶ If the food is not fully defrosted after the time has elapsed, start the process again. To do so, use the power level P30 for several minutes to fully defrost the food.

9.2. Defrosting by time

You can set the desired duration of the defrosting programme.

▶ Then press the defrost button (17) twice to select the desired defrosting mode by time.

The display field (3) shows dEF2.

▶ Turn the control knob (14) to set the desired defrost time in minutes and seconds (0:00).

The longest defrosting time is 95 minutes.

The following list details the approximate defrosting times required for various weights:

Food weight Time

100 g 4:44 minutes

600 g 30:04 minutes

1000 g 50:20 minutes

1500 g 75:40 minutes

2000 g 95:00 minutes

▶ Press the start button (13) to start the programme.
If necessary, open the microwave door (11) approximately halfway through the cooking time. Turn over the food or stir it to guarantee even defrosting.
▶ Then close the microwave door (11) again and press the ◇ start button (13) again to continue the programme.
If the food is not fully defrosted after the time has elapsed, start the process again. To do so, use the power level P30 for several minutes to fully defrost the food.

9.2.1. Example of use: defrosting 500 g minced meat

Place the minced meat in a microwave-safe container in the centre of the glass turntable.
▶ Close the microwave door (11) until you hear it click into place.
▶ Then press the defrost button (17) to select the desired defrosting mode by weight.
▶ Turn the control knob (14) to set the weight of the food to 500 g.
Press the start button (13) to start the programme.

A beep will sound once the defrosting process has finished.

▶ Once the defrosting process is complete, leave the minced meat to sit and rest for 5 minutes before removing it from the microwave (1).

9.3. Using multiple programmes

The product can carry out multiple programmes consecutively. Any two sequences can be programmed to run automatically.

▶ Set the programme but only press the ◇ start button (13) when the last programme has been set.

Example:

You would like to defrost some food using a defrosting programme and then start cooking programme P50.

▶ Set the defrosting programme as described in section "9. Defrosting programme" on page 132 without subsequently pressing the ◇start button (13).
▶ Set the P50 programme as described in section "8.3. Cooking table" on page 130.
▶ Then press the start button (13) to start the programmes. Both programmes run one after another.

9.4. Display fi eld

▶ Press the microwave button (16) while the programme is running. The current microwave setting is shown on the display field (3) for approx. 3 seconds.

This does not work if an automatic or defrost-ing programme has been set.

▶ Press the timer/clock button (12) while the programme is running. The current time is shown on the display field (3) for approx. 3 seconds.

9.5. Setting the timer

The product can emit a beep after a defined period of time has elapsed. You can use this function as an egg timer, for example. The timer function is not available while a programme is in progress.

▶ Press the □ timer/clock button (12). The display field (3) shows 00:00.
▶ Turn the control knob (14) to set the desired period of time.

The maximum duration that can be set is 95 minutes.

▶ Confirm your entry with the start button (13).

10. Energy-saving tips

▶ Choose the shortest available cooking time and extend it as required.
▶ Cook small portions at a time. When cooking large quantities of food, it is more energy-efficient to use a cooker/oven.
▶ Distribute the food evenly in a microwave-safe cooking dish and stir and/or turn the food halfway through the cooking time.

11. Cleaning and care

DANGER!

Risk of electric shock!

There is a risk of electric shock due to live parts.

■ Switch the microwave off and disconnect the plug from the mains socket before cleaning.

Failure to clean the appliance properly can damage the surfaces, which can in turn reduce the service life of the appliance and may lead to hazardous situations.

Therefore, clean the microwave regularly and remove all food residues.
▶ Switch off the microwave and remove the mains plug (2) from the earthed mains socket before cleaning.
- Keep the cooking compartment (8) clean. Wipe away splashes or spilled liquids that stick to the inner walls of the cooking compartment (8) with a damp cloth. If the cooking compartment (8) is very dirty, wipe it with a damp cloth and a mild cleaning solution.
▶ Do not use cleaning sprays, scouring agents or other caustic detergents.
▶ Do not clean the appliance with a steam cleaner.
▶ Clean the exterior surfaces with a damp cloth. Prevent water from penetrating

into the ventilation openings.

▶ Clean the microwave door with viewing window (11) and the door lock (9) with a mild soap solution. Take great care not to damage these parts.
▶ Water may condense on the external surfaces if used in high humidity. Wipe it with a soft cloth.
▶ Wash the glass turntable (5) in warm water with a mild soap solution or in the dishwasher.
Remove the drive shaft (7) and the roller ring (6). Wipe the drive shaft (7) and the roller ring (6) with a damp cloth.
▶ Reinsert the drive shaft (7), the roller ring (6) and the glass turntable (5) after cleaning (see "7.3. Inserting the glass turntable" on page 128).
▶ Make sure that all parts are fully dry before using the microwave.
Lingering odours in the microwave can be removed by placing a glass of water with the juice and rind of a lemon into a deep container that is suitable for microwave use and heating for 5 minutes. Then wipe the cooking compartment (8) thoroughly with a damp cloth and then fully dry the surfaces.
If you have to replace the light in the microwave, please contact a qualified specialist workshop or our Service Centre.

12. Prolonged non-use and transport

▶ If you do not plan to use the microwave for a long period of time, disconnect the mains plug and store the microwave in a dry, clean and dust-free place.
▶ To avoid damage during transport, we recommend that you use the original packaging.

13. Troubleshooting

Problem	Possible cause	Solution
The appliance does not start.	The mains plug (2) is not inserted properly.	▸ Disconnect the mains plug (2), wait about 10 seconds and then plug it back into the socket again.
	The mains socket is faulty.	▸ Check the mains socket by connecting another appliance.
The cooking process does not start.	The microwave door (11) is not closed.	▸ Close the microwave door (11).
The lighting does not work.	The bulb is defective.	▸ Contact our Service Centre.

14. Technical specifications

Distributor	MEDION AGAm Zehnthof 7745307 EssenGERMANY
Model identifier: MD	15000
Rated voltage: 230 V~, 50 Hz
Rated power: 1050 W
Rated power output:	800 W
Microwave frequency:	2450 MHz
Protection class: I
Housing dimensions (W x H x D):	Approx. 440 x 260 x 355 mm
Net weight: Approx.	10.2 kg
Diameter of glass turntable:	Approx. 25.5 cm

15. EU declaration of con- formity

MEDION AG hereby declares that the product conforms to the following requirements of the European Union:

• EMC Directive 2014/30/EU
• Low Voltage Directive 2014/35/EU
• Ecodesign Directive 2009/125/EC
• RoHS Directive 2011/65/EU.

This product meets the requirements of European standard EN55011. The product is classed as standard-compliant as a group 2, class B appliance. Group 2 means that the appliance intentionally generates high-frequency energy in the form of electromagnetic rays for the heat-treatment of foodstuffs. Class B means that the appliance is suitable for domestic use.

16. Disposal

PACKAGING

Your appliance has been packaged to protect it from damage during transport.

The packaging is made of materials that can be disposed of in an environmentally friendly manner and recycled properly.

Observe the following labels on the packaging materials regarding waste separation with the abbreviations (a) and numbers (b):

1–7: plastics/20–22: paper and cardboard/80–98: composite materials

(France only)

The “Triman” symbol tells the consumer that the product can be recycled, is covered by an extended system of manufacturer’s responsibility and must be sorted by material type in France.

APPLIANCE

Old appliances that carry the symbol illustrated may not be disposed of in ordinary household waste.

In accordance with Directive 2012/19/EU, the appliance must be disposed of correctly at the end of its service life.

This involves separating the materials in the appliance for the purpose of recycling as well as minimising the environmental impact and negative effects on human health.

Take old appliances to an electrical scrap collection point or a recycling centre.

Contact your local waste disposal company or your local authority for more information on this subject.

17. Service information

Please contact our Customer Service team if your device ever stops working the way you want or expect it to. There are several ways for you to contact us:

• In our Service-Community, you can meet other users, as well as our staff, and you can exchange your experiences and pass on your knowledge there. You will find our Service-Community at community.medion.com.
  • Alternatively, use our contact form at www.medion.com/contact.
• You can also contact our Service team via our hotline or by post.

Opening times	Hotline number UK
Mon – Fri: 08.00 – 20.00Sat – Sun: 10.00 – 16.00	1 0333 3213106

Service address

MEDION Electronics Ltd. 120 Faraday Park, Faraday Road, Dorcan Swindon SN3 5JF, Wiltshire United Kingdom

You can download this and many other sets of operating instructions from our service portal at www.medionservice.com.

We have stopped providing printed copies of our warranty terms and conditions as part of our commitment to sustainability, but you can access the warranty terms and conditions on our service portal.

You can also scan the QR code on the side of the screen, to download the operating instructions onto your mobile device from the service portal.

18. Legal Notice

Copyright 2024

Date: 26. March 2024

All rights reserved.

These operating instructions are protected by copyright.

Mechanical, electronic and any other forms of reproduction are prohibited without the written permission of the manufacturer.

Copyright is owned by the company:

MEDION AG

Am Zehnthof 77

45307 Essen

Germany

Please note that you cannot use the address above for returns. Please always contact our Customer Service team first.
