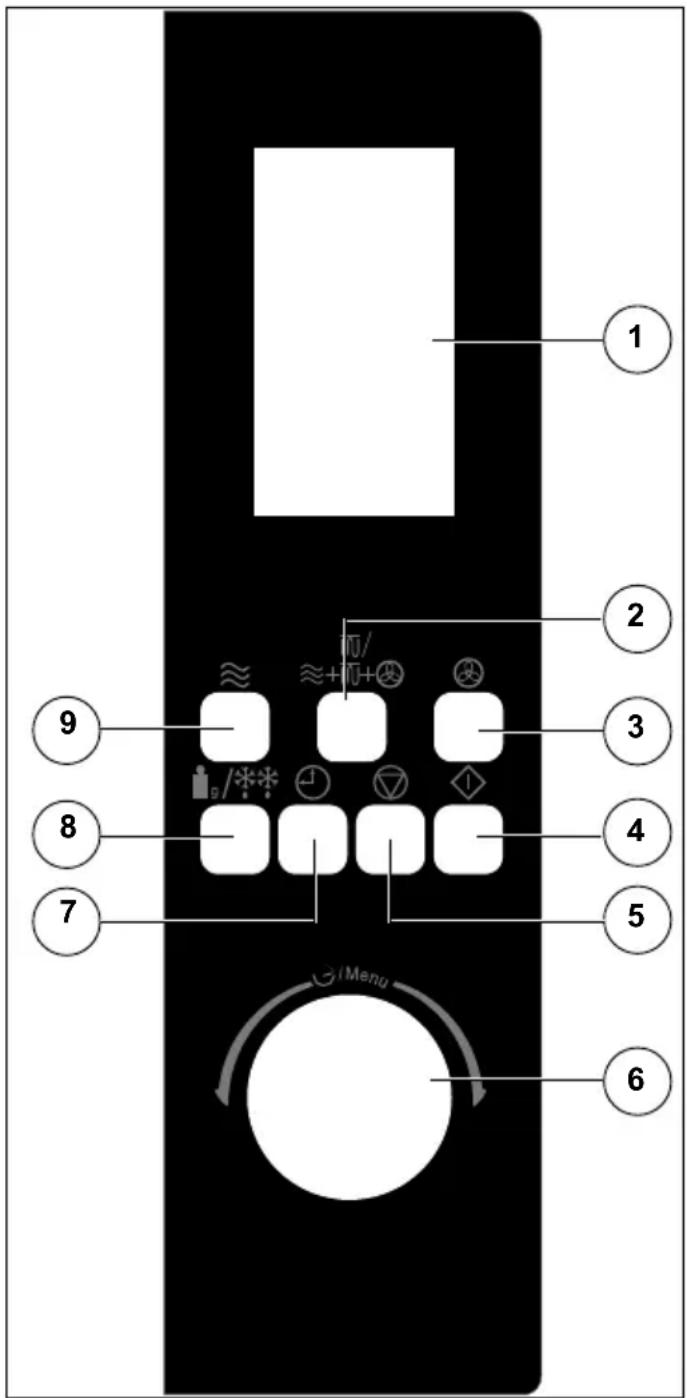

7.1. Controls....142
7.2. Display 142

8. Before first use.... 144

8.1. Setting up the appliance 144
8.2. Heating the appliance while empty.... 144
8.3. Inserting accessories 145

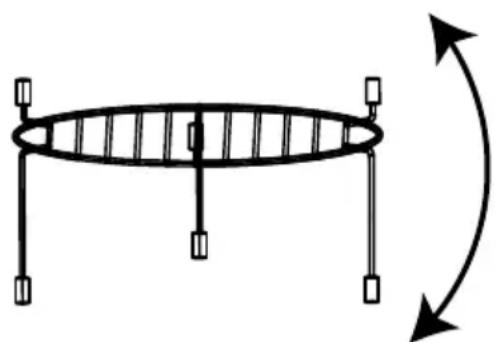

8.4. Using the grill rack.... 145

9. Operation 14

9.1. Setting clock time.... 145
9.2. Child lock 146
9.3. Setting the kitchen timer (countdown)....146
9.4. Interrupting a programme 146
9.5. Cooking with microwaves 147
9.6. Quick start 147
9.7. Grill mode....147
9.8. Combi modes: microwave and grill/convection oven and grill/microwave, convection oven and grill....148
9.9. Defrosting according to weight 149
9.10. Defrosting according to time 149
9.11. Using multiple programmes.... 150
9.12. Preheating/cooking with convection oven.... 150

9.13. Automatic cooking 150

1. Cleaning and care 157
2. End of operation 158
3. Troubleshooting 158
4. Disposal 158
5. Technical data 159
6. Declaration of conformity 159
7. Legal notice 160
8. General Warranty Conditions 16

17.1. General information....160
17.2. Special warranty conditions for PC, notebook, pocket PC (PDA), devices with navigation functions (PNA), telephone devices, mobile telephones and devices with a memory function ....162
17.3. Special warranty conditions for repair on site or replacement on site 162

1. Service Address 163

1. About these instructions

Read the safety instructions carefully before using the appliance for the first time. Note the warnings on the appliance and in the operating instructions.

Always keep the operating instructions close to hand. If you sell the appliance or give it away, make sure you also hand over these instructions and the warranty card.

1.1. Symbols and key words used in these instructions

DANGER!

Warning of immediate mortal danger!

WARNING!

Warning of possible risk of fatal injury and/or serious irreversible injuries!

CAUTION!

Please follow the instructions to prevent injuries and property damage!

ATTENTION!

Please follow the instructions to avoid property damage!

NOTICE!

Additional information on using the appliance.

NOTICE!

Please follow the guidelines in the operating instructions!

WARNING!

Warning: risk of electric shock!

WARNING!

Warning: danger due to hot surfaces!

- Bullet point/information on operating steps and results

▶ Tasks to be performed

2. Package contents

After unpacking, ensure that the following parts have been supplied:

• Microwave MD 16573
• Rotary plate, incl. roller ring
• Grill rack

- Operating instructions and warranty documents

3. Proper use

This appliance may only be used for heating up appropriate foodstuffs in microwave-suitable containers and dishes. The microwave is designed for warming up food and drinks. Drying food or clothing and the warming of heating pads, slippers, sponges, damp cleaning cloths and similar items can lead to injuries, inflammation or fire. Do not use the appliance outdoors. This appliance is intended to be used in private households or for similar household applications, for example

-in kitchens for employees in shops, offices and other commercial areas;

-on agricultural estates;

- by customers in hotels, motels and other residential facilities; -in bed & breakfast accommodation.

This appliance is not intended for commercial and industrial use. Please note that we shall not be liable in cases of improper use:

- Do not modify the appliance without our consent and do not use any auxiliary equipment that we have not approved or supplied.

- Use only spare parts and accessories that we have supplied or approved.

• Heed all the information in these operating instructions, especially the safety information. Any other use is deemed improper and can cause personal injury or property damage.
• Do not expose the appliance to any extreme conditions. The following should be avoided:

–High humidity or moisture

—Extremely high or low temperatures

-Direct sunlight

-Naked flames

4. Safety information

WARNING!

Risk of injury due to improper handling.

• Keep the appliance and accessories out of reach of children.
• This appliance may be used by children over the age of 8 and by persons with reduced physical, sensory or mental abilities or by those without experience and/or knowledge, if they are supervised or have been instructed in the safe use of the appliance and have understood the dangers that result from it. Children must not be allowed to play with the appliance. Cleaning and user maintenance may not be carried out by children, unless they are aged 8 or over and are supervised.
  • Children younger than 8 should be kept away from the appliance and the mains cable.

4.1. Unpacking the appliance

WARNING!

Risk of suffocation.

- Keep plastic packaging out of the reach of children.

WARNING!

Risk of injury from electric shock or microwave radiation.

• Check the mains cable for damage before using the microwave for the first time and after every use.
• Do not use the appliance if the microwave or the mains cable are visibly damage.
• If you identify any transport damage, please contact the Medion Service Centre immediately.

4.2. General safety instructions

- Only connect the microwave to a properly installed and earthed power socket with a voltage of 230V \~ 50Hz that has at least a 16 A fuse. Do not use any extension cables.

WARNING!

Risk of injury from electric shock or microwave radiation.

• Microwave radiation can leak to the outside if the appliance is damaged. Damage to the mains cable may result in an electric shock.
• If the housing, panels, door, door seals or door catch are damaged, do not use the microwave under any circumstances. Immediately remove the plug from the mains socket in this case.
• Do not make any unauthorised modifications to the appliance or try to open it and/or repair it yourself.
• Do not remove any of the microwave's internal panels or the inner coating of the viewing window as this could lead to microwave radiation leakage.
• In order to reduce risks: have the microwave and the mains cable repaired exclusively by a specialist workshop or contact your Medion Service Centre.

WARNING!

Risk of damage to the appliance due to improper installation.

• The microwave is designed as a free-standing appliance. Do not integrate it into kitchen units.
• Ensure that the mains cable is undamaged and does not run underneath the appliance or over any hot surfaces or sharp edges.
• Set up the microwave on a level, stable surface, which is able to carry the weight of the appliance as well as the maximum weight of the food which is to be prepared within it.
• Only set up the microwave in a safe, dry environment.
• The microwave must be positioned so that the rear of the appliance is facing a wall.
• Protect the microwave against water droplets or spray. If the microwave nevertheless comes into contact with water, disconnect the plug from the mains socket immediately.
• Do not set up the microwave near to heat sources.

4.3. Hot surfaces

WARNING!

Risk of injury through burning on hot surfaces.

• Do not touch the housing.
• In combi or grill mode, children may only use the appliance under the supervision of adults because of the high temperatures.
• After cooking in grill mode, the rotary plate will become very hot! Always use a protective cloth or heat-resistant oven gloves when removing the rotary plate from the cooking area.

WARNING!

RISK OF EXPLOSION.

- Do not heat any mixture of water with oil or fat in the microwave.

WARNING!

Risk of fire due to very hot surfaces on the appliance.

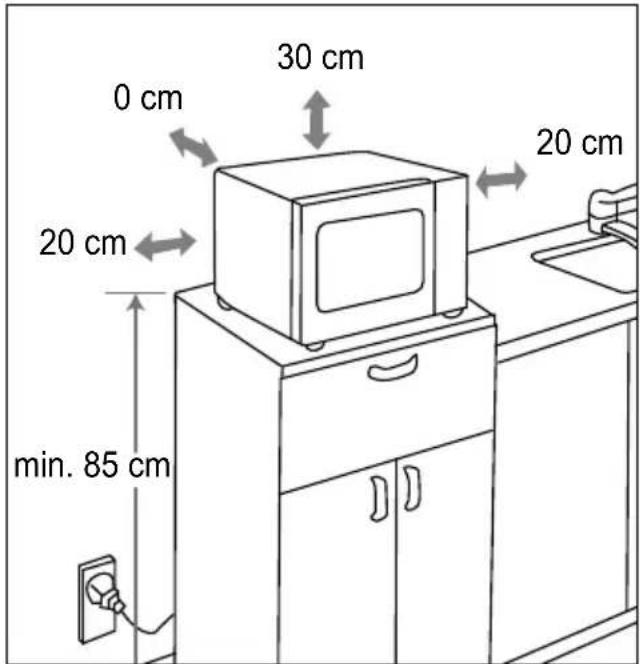

- Do not place any objects on the microwave. To ensure adequate ventilation, a minimum safe clearance distance of 30 cm to the top and 20 cm on both sides must be observed. Do not cover or block the openings on the appliance.

0 cm 30 cm 20 cm 20 cm min. 85 cm 20 cm

- Never leave the appliance unattended during operation.

- The microwave is not designed to be operated with an external timer or a separate remote control system.

WARNING!

Risk of fire due to very high temperatures.

- If heating up or cooking food in flammable materials such as plastic or paper containers, never leave the microwave unattended.

- Only use this appliance for heating up appropriate foodstuffs in microwave-suitable containers and dishes. Do not use baking paper in grill or combi modes.

- Do not heat up or attempt to dry any flammable materials (no food or clothes, no heating pads, slippers, sponges, damp cleaning cloths or similar) in the appliance.

• Do not prepare any food containing alcohol. Do not use the appliance to fry food or heat oil!
• Evenly load the rotary plate so that it does not touch the inner metal wall of the appliance during operation to avoid any sparks.
• If you see smoke, keep the door closed to prevent fire from breaking out, or to smother flames which have already broken out. Immediately turn off the appliance with the Stop/Cancel button and disconnect the mains plug.

4.4. Special safety instructions for handling microwaves

WARNING!

Risk of injury due to bursting containers.

- Do not heat food or liquids in tightly sealed containers! These could burst in the appliance or result in injuries when opening them. Always remove the lid from closable containers such as baby bottles.

WARNING!

Risk of injury through burning.

• Food prepared in the microwave may have been heated unevenly. Check the temperature of the food before eating it. In the case of baby food and baby bottles, always stir or shake the baby food before checking the temperature to avoid burns.
• Do not heat up eggs in their shells or whole, hard-boiled eggs in the microwave because they could explode during cooking or even after they have been removed from the appliance. Only heat up eggs in microwave-suitable containers specially designed for this purpose.

- Pierce food with a closed skin such as tomatoes, sausages,

aubergines or similar before cooking in order to avoid them bursting.

WARNING!

Risk of damage to the appliance.

• Never operate the appliance without the rotary plate and never use it in microwave mode without food in the cooking area.
• Only use the accessories supplied or those that are described as suitable in these operating instructions.
• Never use dishes with metal trimmings, metal utensils or the grill rack in microwave mode as this may lead to sparks that could damage the appliance and/or the dishes.
• Use microwave-suitable dishes. Look for markings such as "Microwave-suitable" or "For the microwave" when purchasing.

4.5. Safety information for heating liquids

WARNING!

Risk of injury through burning.

• When heating liquids in the microwave, so-called "delayed boiling" can occur, i.e. the liquid has reached boiling temperature without beginning to bubble as boiling liquids normally do. Agitation, for instance when removing the liquid from the appliance, can lead to a sudden boiling up of the liquid. Liquid could suddenly spurt out of the container.
• Do not use any tall, thin containers.
• Place a glass or ceramic rod in the container when heating the liquid in order to prevent any belated boiling of the liquid. Wait for a short while after heating, carefully tap the container and stir the liquid before removing it from the cooking area.

4.6. Cleaning and caring for the appliance

WARNING!

Risk of damage to the appliance.

- Sensitive surfaces on the rotary plate. Avoid ct with acidic foodstuffs. The rotary plate could be ged.

• Poor appliance hygiene can lead to damage to the surfaces, which in turn can reduce the lifespan of the appliance and even lead to dangerous situations.
• Clean the appliance regularly and remove food residues.
• Observe the instructions for cleaning the appliance when cleaning the door seals, the interior cooking space and the adjacent parts, see "10. Cleaning and care" on page 157.

5. About microwaves

Microwaves are high-frequency electromagnetic waves that have a warming effect on the food within the oven. Microwaves heat all non-metallic objects. Therefore, do not use any metallic objects in microwave mode. This heating effect works better the higher the water content of the foodstuff.

To ensure optimal distribution of heat, let food stand for a minute or two in the microwave after cooking.

5.1. The effect of microwaves on foodstuffs

• Microwaves penetrate foodstuffs to a depth of around 3cm.
• They heat up water, fat and sugar molecules (foodstuffs with a high water content are heated most intensively).
• This heat then works its way – slowly – throughout the food and has a defrosting, heating and cooking effect on the food.
• The cooking space and the air within are not heated (the food container is heated mainly by the hot food itself).
• Every foodstuff requires a certain amount of energy to cook or defrost. As a rule of thumb we can say: high output – short time or low output – long time.

5.2. The microwave oven

• A microwave generator, the so-called magnetron, generates the microwaves and directs them into the cooking area.

• The inner walls and the viewing window reflect the microwaves inwards so that they cannot escape from the interior.

• The microwave output and the cooking time can be set in several steps.

• After the cooking time has elapsed, or when the door is opened, the magnetron turns off immediately.

6. Cooking and heating up in the microwave

6.1. General notes

• To arrange food so that it cooks properly, place the food with the largest pieces towards the outer edge.
• Note the exact cooking or heating times.
• Choose the shortest available cooking or heating time and extend it if necessary.

WARNING!

Overcooked food can start to smoke or even catch fire.

• Cover food during cooking or heating with a cover that is suitable for the microwave. Covering the food helps avoid splashes; furthermore the food is more evenly cooked.
• Foods such as chicken pieces or hamburgers should be turned once during cooking to speed up cooking. Larger pieces such as joints or roasting chickens must be turned at least once.
• It is also important to reposition food, e.g. with meatballs. After half of the cooking time has expired, the food should be repositioned from top to bottom and from the middle to the outside.
• After heating, stir the food if possible to ensure even temperatures, otherwise let the food stand for a short time.

6.2. Microwave-suitable materials

You can buy special dishes and accessories for your microwave. Look for markings such as "Microwave-suitable" or "For the microwave". You can also use your existing dishes – if the material is suitable.

6.2.1. Suitable materials

• Porcelain, glass ceramic and heatproof glass.
• Plastics which are heatproof and microwave-suitable (Note: plastics may become discoloured by foods or become warped by the heat)
• Baking paper.

ATTENTION!

Do not use porcelain, ceramic or plastic containers in grill or grill combi mode. Cling film should also not be used.

Due to the very high temperatures the materials could break, warp or even melt.

6.2.2. Materials that are partially suitable

• Stoneware and ceramics. Use clay containers only for defrosting and for short cooking times because the air and water content of the material could cause the clay to crack or break.
• Dishes with gold or silver décor should only be used if they have been labelled "microwave-suitable" by the manufacturer.
• Never use aluminium foil in large quantities. It can however be used e.g. in small pieces to cover sensitive parts. You can also cover the corners of containers to prevent overcooking as the microwave energy is primarily concentrated on the corners. Maintain a distance of 2.5 cm between the foil and the internal wall.
• Aluminium containers (e.g. those for ready-to-serve meals) are suitable, but they must be at least 3cm high to be used in the microwave.

6.2.3. Overview of suitable materials

The following list is a general guide to help you choose the correct cooking dishes:

Cooking dishes Microwave Grill Combi mode
Heatproof glass Yes Yes Yes
Non-heatproof glass No No No
Heatproof ceramic Yes Yes Yes
Microwave-suitable plastic dishes	Yes	No	No
Kitchen paper	Yes No No
Metal	No Yes No
Grill rack, supplied with product	No Yes No
Aluminium foil/containers	Limited suitability	Yes	Limited suitability

*Combi mode: microwave + grill modes

6.2.4. Size and shape of microwave-suitable containers

Flat, broad containers are better than narrow, tall ones. "Flat" foods can be cooked more evenly.

Round or oval containers are better than angular ones. There is a danger of local overheating in the corners.

6.3. Unsuitable materials

• Metal, i.e. metal pots, pans and lids.

ATTENTION!

Metal in the cooking area can lead to sparks! These can damage the appliance or the viewing window! Therefore, only use the supplied grill rack in grill mode.

• Dishes with metal parts (handles, decoration or bottoms) or with gold or silver décor can also lead to sparks in microwave mode.
• Crystal or lead crystal can shatter, coloured glass may become discoloured.
• Any materials which are not heatproof can lose shape or even burn.

NOTICE

To test whether a dish is suitable for use in the microwave, put some water in the container and place it in the microwave. Press 2 x on the ◆ button. The appliance will now operate in microwave mode for 1 minute. If you ascertain that the container is hotter than the food, then it is not suitable for the microwave. Microwave-suitable dishes are only warmed by the heat of the food.

WARNING!

As soon as you notice sparks, flashes or even fire, then turn off the microwave immediately using the button.

7. Overview of the appliance

610897 ① ② ③ ④ ⑤

1) Control panel
2) Drive axis
3) Roller ring
4) Rotary plate
5) Grill rack
6) Door lock
7) Viewing window
8) Convection oven rotor (on the rear of the appliance, not illustrated)
9) Upper grill (on the roof of the cooking area, not illustrated)
10) Magnetron cover DO NOT REMOVE!

7.1. Controls

1 2 3 4 5 6 7 8 9 ≡ ≈ + ∥+ ∥+ ∥+ ∥+ ∥+ ∥+ ∥+ ∥+ ∥+ ∥+ ∥+ ∥+ ∥+ ∥+ ∥+ ∥+ ∥+ ∥+ ∥+ ∥+ ∥+ ∥+ ∥+ ∥+ ∥+ ∥+ ∥+ ∥+ ∥+ ∥+ ∥+ ∥+ ∥+ ∥+ \nMenu

1) Display
2) Set combi mode microwave/grill/convection oven
3) Set convection oven mode

4) Start appliance; confirm entry; start automatic programme

5) Cancel entry; press once: briefly interrupt programme, press twice: prematurely end programme; press longer: activate child lock

6) Control knob: Increase input value/reduce input value/select programme

7) Set time / time format / start of cooking time

8) Set defrost function according to weight/time

9) Set microwave mode

7.2. Display

Display Function
	Time display/duration of cooking programme/weight/temperature/automatic programme
	Microwave mode
	Convection oven mode
	Grill mode
	Defrost mode
g Weight display
°C Temperature display
	Child lock in use
	Automatic programme active
	A1 - Automatic programme for pizza
	A2 - Automatic programme for potatoes
	A3 - Automatic programme for meat
	A4 - Automatic programme for fish
	A5 - Automatic programme for vegetables
	A6 - Automatic programme for drinks
	A7 - Automatic programme for pasta
	A8 - Automatic programme for popcorn
	A9 - Automatic programme for cakes
	A10 - Automatic programme for chicken

8. Before first use

8.1. Setting up the appliance

Ensure that all packaging materials have been removed from inside the appliance and the interior of the door.

ATTENTION!

The screw-fastened cover in the interior of the oven is not part of the packaging and should not be removed!

WARNING!

Check the microwave for any damage – e.g. if the door is crooked or bent, door seals and other seals are damaged, hinges and the closing mechanism are defective or loose, or if the interior of the appliance or the door are dented or damaged. If you discover any damage, do not use the microwave. In this case, please contact the Medion Service Centre.

• Do not place the microwave near to any heat sources, in a location prone to wetness or high humidity, or in the immediate vicinity of flammable materials.
  • The feet must not be removed.

ATTENTION!

The microwave has been designed for household use and may not be used outside!

- Connect the microwave to a convenient and easily accessible 230 V\~50 Hz earthed power socket.

8.2. Heating the appliance while empty

Before using the microwave, you must first heat it up whilst empty in order to remove any manufacturing residues. Turn on the appliance without any food and without accessories as described below in grill mode:

- Open the door and remove any remaining packaging or accessories from the oven. Close the door.

▶ Press the ≈+ / +② button until G-1 is shown on the display.

▶ Press the ◇ button and then turn the control knob ⏻/Menu until you have set a cooking time of 10 minutes (10:00).

▶ Press the ◊ button again to start the heating process.

NOTICE

During this initial heating period you may notice faint odours. These smells are not dangerous and will disappear after a short time. Ensure adequate ventilation e.g. by opening a window.

▶ After 10 minutes, the appliance turns itself off automatically. Wait until it has completely cooled down.
Remove the plug from the mains socket and then clean the appliance once more inside and out with a damp cloth and dry the microwave off carefully.

8.3. Inserting accessories

When you have heated the microwave once in an empty state as described above, it may no longer be used without the rotary plate inserted properly.

▶ Place the roller ring in the centre of the recess in the cooking area.
Place the rotary plate over the centre of the drive axis.

Diagram showing a circular disc with a downward arrow and a small object below, no text or symbols present.

8.4. Using the grill rack

In grill mode, the grill rack can be used in two positions.

If you place the grill rack's long feet onto the rotary plate, the food will be grilled faster because it is nearer to the heating element on the grill.

If you place the grill rack's short feet onto the rotary plate, the food will be grilled more

slowly because it is further away from the heating element on the grill.

Simple line drawing of a horizontal oval structure with vertical supports and a curved arrow indicating rotation (no text or symbols)

9. Operation

Every time a button is pressed you will hear a beep to confirm.

9.1. Setting clock time

When the microwave is used for the first time or the power supply is broken, the display will show "☐:☐☐" and the time (24-hour display) needs to be set.

▶ Press the button once.

The hour display flashes.

▶ Turn the control knob to set the hours.
▶ Press the button again.
▶ Turn the control knob to set the minutes.
▶ Press the button again.

The time is now set.

9.2. Child lock

In order to activate the child lock, press the ▽ button and hold it down for approx. 3 seconds. You will hear a beep and the display will show the 📄 symbol. The microwave buttons will now have no function.
To deactivate the child lock, press and hold down the button again for 3 seconds until you hear a beep and the symbol disappears from the display. All functions are now available again.

9.3. Setting the kitchen timer (countdown)

▶ Press the button twice.

▶ Turn the control knob I_Menu to set the desired time in minutes and seconds (0:00) (settings in 5, 10 or 50 second intervals).

The longest time that can be set is 95 minutes.

Press the ◆ button. The countdown starts. Acoustic signals will sound after the countdown has expired.

NOTE

In order to end the countdown prematurely, press the button twice.

End of the cooking process

At the end of every cooking process, you will hear a number of beeps and the time will be shown again on the display. The cooking process is now finished. The display will also go blank after a short period of time. The interior lighting in the microwave will automatically switch on and off when the door is opened or closed.

CAUTION!

As the food or containers may be very hot, always use oven gloves or a protective cloth when removing food from the oven.

9.4. Interrupting a programme

If you want to turn or stir the food, for instance midway through the cooking process, it is often necessary to interrupt the programme.

▶ Open the door or press the Ⓥ button once to interrupt the programme. The remaining cooking time is still shown on the display.
▶ Once you have closed the door again, press the ◊ button to resume the cooking process.
▶ Press the Ⓥ button twice in order to prematurely stop the programme completely.

9.5. Cooking with microwave s

To cook with microwave energy alone, proceed as follows:

▶ Firstly press the ≈ button and turn the control knob or press the ≈ button once or repeatedly in order to select a power output level according to the following table:

Press the ≈ button	Readout on the dis-play	Output in watts
1 x	P100	1000
2 x	P80	800
3 x	P50	500
4 x	P30	300
5 x	P10	100

▶ Confirm your selection by pressing the button.
▶ Turn the control knob /Me _nu to set the desired cooking time in minutes and seconds (0:00).
▶ Start the cooking process by pressing the button.

9.6. Quick start

If you press the button without previously setting the power output level, the cooking programme will start at the maximum level (1000 watts) in microwave mode. The longest cooking time is 95 minutes.

▶ Press the button repeatedly until the desired cooking time is displayed (each time the button is pressed it extends the cooking time by 30 seconds).

The cooking process starts immediately.

9.7.Grillmode

The grill function is particularly useful for thinly sliced meat, steaks, mince, kebabs, sausages or chicken pieces. It is also suitable for grilled sandwiches and gratins. In grill mode, you can use the grill stand supplied for cooking suitable foods.

The longest grilling time is 95 minutes.

ATTENTION!

Note the minimum safe distances between the appliance and wall, and under no circumstances cover the ventilation slots. Do not place any objects on the appliance.

/

▶ Press the ≈ button once to select grill mode:
▶ Confirm your selection by pressing the ◊ button.
▶ Turn the control knob /Menu to set the desired cooking time in minutes and seconds (0:00).
▶ Start the cooking process by pressing the ◊ button.

NOTE

After half of the cooking time has elapsed, you should turn over the food to optimise the cooking process (see "9.4. Interrupting a programme" on page 146). Open the door and turn over the food. Then press the ◆ button again to continue with the cooking programme.

9.8. Combi modes: microwave and grill/convection oven and grill/microwave, convection oven and grill

The appliance can be operated in microwave, convection oven and grill modes together.

The maximum cooking time for all programmes is 95 minutes.

Press the ≈+∞+∞ button repeatedly or press the ∞button once and turn the control knob to select the desired programme. The following programme options are available:

Press the ∥/ ≈+ ∥+ ∥ button	Function/output in % Display
2 x Microwave (55%) and grill (45%)		C-1 + [icon] [icon]
3 x Microwave (36%) and grill (64%)		C-2 + [icon] [icon]
4x Convection oven and grill		C-3 + [icon] [icon]
5x Microwave, convection oven and grill		C-4 + [icon] [icon] [icon]

Press the button to confirm the programme selection.
▶ Turn the control knob IMenu to set the desired cooking time in minutes and seconds (0:00).
▶ Start the cooking process by pressing the ◊ button.

NOTE

If required, open the door after about half of the set cooking time has elapsed and turn over the food to guarantee even cooking.

9.9. Defrosting according to weight

You can set the defrosting programme based on the weight of the food. Weights from 100g to 2000g can be set.

Place the frozen food in a suitable container into the oven and close the door.

▶ Press the/** button to start the appliance in defrosting mode according to weight.

d-1, and will be shown on the display.

▶ Turn the control knob /Menu to enter the weight of the food to be defrosted.

▶ Press the ◆ button. The programme starts.

NOTE

If required, open the door after about half of the cooking time has elapsed and turn over the food to guarantee even defrosting.

9.10. Defrosting according to time

You can set the duration of the defrosting programme. The longest defrosting time is 95 minutes.

Place the frozen food in a suitable container into the oven and close the door.

▶ Press the/** button twice to start the appliance in defrosting mode according to time.

d-2, and will be shown on the display.

▶ Turn the control knob ^7 /Me nU to set the desired cooking time in minutes and seconds (0:00).

▶ Press the ◆ button. The programme starts.

NOTE

If required, open the door after about half of the cooking time has elapsed and turn over the food to guarantee even defrosting.

9.11. Using multiple programmes

The appliance can carry out multiple programmes consecutively. Up to 2 programme sequences can be programmed to run automatically.

Set each cooking programme as described and press the ◆ button when the last cooking programme has been set.

Example:

You want to defrost food with a defrosting programme and then subsequently start the grill programme.

▶ Set the defrosting programme as described in "9.9. Defrosting according to weight" on page 149 without subsequently pressing the button.
Then set the grill programme as described in "9.7. Grill mode" on page 147.
Now press the ◆ button to start the programmes.

Both programmes will now run consecutively.

9.12. Preheating/cooking with convection oven

The oven needs to be preheated for different foods. Proceed as follows to preheat the appliance:

▶ Press the button once and turn the control knob to set the temperature.

A temperature range between 140–230°C is possible.

Press the button twice to confirm the selection.

An acoustic signal sounds when the preset temperature has been reached and you can then put the food into the appliance.

▶ Then select the desired programme.

Proceed as described above when cooking with convection oven:

▶ Once you have confirmed the set temperature, turn the control knob ⚫/Menu to set the cooking time.

▶ Press the button to confirm the selection.

The cooking process begins.

9.13. Automatic cooking

In automatic cooking, it is not necessary to enter the cooking time or power output level. The microwave automatically works out the values depending on the food being cooked and its weight.

In the table, you can see an overview of the automatic programmes with the readout shown on the display and the relevant operating modes used.

Readout on the display	Programme	Operating modes
		Micro-wave	Grill	Convection oven
	A1 - Automatic programme for pizza	■	■	■
	A2 - Automatic programme for potatoes	■
	A3 - Automatic programme for meat	■
	A4 - Automatic programme for fish	■
	A5 - Automatic programme for vegetables	■
	A6 - Automatic programme for drinks	■
	A7 - Automatic programme for pasta	■
	A8 - Automatic programme for popcorn	■
	A9 - Automatic programme for cakes			■
	A10 - Automatic programme for chicken		■	■

9.13.1. Setting an automatic programme

▶ Turn the control knob ♂/Men_u in standby mode to the right. A programme number (e.g. "A-1" for automatic programme 1) and the symbol for the corresponding cooking programme is shown on the display.

Select an automatic programme between 1 and 10.

The relevant symbol will flash.

▶ Press the button to confirm the selection.

Now select the desired weight or amount. Turn the control knob / M_Menu until the desired portion size is displayed. The weight/amount will be shown on the display. The amounts can be set in line with the following table:

Programme Weight [g]
A1 - Automatic pro-gramme for pizza	200 300 400
A2 - Automatic pro-gramme for potatoes	1 (ap-prox. 230g)	2 (ap-prox. 460g)	3 (ap-prox. 690g)
A3 - Automatic pro-gramme for meat	150 300 450	600
A4 - Automatic pro-gramme for fish	150 250 350	450 600
A5 - Automatic pro-gramme for vegeta-bles	150 350 500
A6 - Automatic pro-gramme for drinks	1 con-tainer (240 g)	2 con-tainers (480 g)	3 con-tainers (720 g)
A7 - Automatic pro-gramme for pasta	50 (+ 450 ml water)	100 (+ 800 ml water)	150 (+ 1200 ml water)
A8 - Automatic pro-gramme for popcorn	50 100
A9 - Automatic pro-gramme for cakes	475
A10 - Automatic pro-gramme for chicken	750 1000	1200

▶ Press the button to start the cooking process.

The cooking programme will end automatically and five beeps will sound. If the food is not fully cooked through, cook it for a few minutes more in microwave or grill mode. If you finish cooking using the grill function, the level of browning of the food will increase.

WARNING!

There is a risk of fire. Do not leave the appliance unattended during operation.

ATTENTION!

When using programmes including the grill mode, under no circumstances use lids or dishes that are not heatproof as these could melt or catch fire!

After cooking in grill mode, the rotary plate is very hot! Therefore, always use oven gloves or a protective cloth when removing it from the oven.

NOTE:

Please bear in mind that the size, form and sort of food can influence the cooking results.

9.13.2. Programme A-1: Pizza

This programme uses microwave, convection oven and grill modes.

ATTENTION!

Do not use any covers as the appliance operates in grill mode in this programme.

Place the pizza onto the rotary plate supplied with the product.
▶ Select the pizza programme by turning the control knob /Men _U to the right.
Press the button and turn the control knob to the right or the left to select the weight of the pizza.
▶ Start the cooking programme for pizza by pressing the button.

If the pizza is not hot enough after heating, start another cooking process in microwave mode (as described from "9.5. Cooking with microwaves" on page 147).

9.13.3. Programme A-2: Potatoes

This programme uses the microwave mode. Use a microwave-suitable container for heating. We recommend using unpeeled potatoes for cooking. Prick a few holes in the skins of the potatoes.

Place the unpeeled potatoes in the container. Use potatoes that are, as far as possible, similarly sized. If possible, the potatoes should not touch each other.
Place the container in the middle of the rotary plate.
▶ Select the potatoes programme by turning the control knob ©/Men_u to the right.
▶ Press the ◇ button and turn the control knob ⏻/Menu to the right or left to select the number of potatoes.
▶ Start the cooking programme for potatoes by pressing the button.

If the potatoes are not fully cooked through after cooking, start another cooking process in microwave mode (as described from "9.5. Cooking with microwaves" on page 147).

9.13.4. Programme A-3: Meat

This programme uses microwave mode. Use a microwave-suitable container for heating.

Place the meat on a plate that is suitable for microwave cooking. Season the meat as required. Place the plate in the middle of the rotary plate.
▶ Select the meat programme by turning the control knob /Menu to the right.
▶ Press the button and turn the control knob to the right or the left to select the weight of the meat (150-600 g).
▶ Start the cooking programme for meat by pressing the ◊ button.

If the meat is not thoroughly cooked using this programme or you want to brown the meat, start another cooking process in the combi mode microwave + grill (as described from "9.8. Combi modes: microwave and grill/convection oven and grill/microwave, convection oven and grill" on page 148).

ATTENTION!

Do not use any covers as the appliance operates in grill mode whilst in combi mode.

NOTE:

If you are cooking beef and you prefer your beef well done, select a weight level that is higher than the actual weight of the food.

9.13.5. Programme A-4: Fish

This programme uses microwave mode. Use a microwave-suitable container for heating.

Place the fish on a plate that is suitable for microwave cooking. Season the fish as required. Place the plate in the middle of the rotary plate.
▶ Select the fish programme by turning the control knob /Menu to the right.
▶ Press the ◇ button and turn the control knob ⚫/Men _U to the right or the left to select the weight of the fish (150-600 g).
▶ Start the cooking programme for fish by pressing the button.

If the fish is not thoroughly cooked using this programme or you want to brown the fish, start another cooking process in the combi mode microwave + grill (as described from "9.8. Combi modes: microwave and grill/convection oven and grill/microwave, convection oven and grill" on page 148).

ATTENTION!

Do not use any covers as the appliance operates in grill mode whilst in combi mode.

9.13.6. Programme A-5: Vegetables

This programme uses microwave mode. Use a microwave-suitable container for heating.

Place the vegetables in the container with a little water.
Place the container in the middle of the rotary plate.

▶ Select the vegetables programme by turning the control knob ∅/Men_U to the right.
▶ Press the button and turn the control knob to the right or the left to select the weight of the vegetables (150-500 g).
▶ Start the cooking programme for vegetables by pressing the ⏻ button.

If the vegetables are not fully cooked through after cooking, start another cooking process in microwave mode (as described from "9.5. Cooking with microwaves" on page 147).

9.13.7. Programme A-6: Drinks

This programme uses microwave mode. Use a microwave-suitable container for heating.

Place the drink that you want to heat up on the rotary plate in the oven. If you place multiple containers in the microwave oven then please ensure that the containers are not touching each other.
▶ Select the drinks programme by turning the control knob Menu_U to the right.
▶ Press the button and turn the control knob to the right or left to select the number of containers (1-3).
▶ Start the cooking programme for drinks by pressing the ◊ button.

If the drink/drinks are not hot enough, start another cooking process in microwave mode (as described from "9.5. Cooking with microwaves" on page 147).

9.13.8. Programme A-7: Pasta

This programme uses microwave mode.

When cooking pasta, use a microwave-suitable high container otherwise there is a risk of overcooking. Use as much water as for conventional cooking.

Place the container holding the pasta in the middle of the rotary plate.
▶ Select the pasta programme by turning the control knob Menu_u to the right.

▶ Press the button and turn the control knob to the right or the left to select the weight of the pasta (50-150 g).
▶ Start the cooking programme for pasta by pressing the button.

If the pasta is still too hard after cooking, start another cooking process in microwave mode (as described from Page 147).

9.13.9. Programme A-8: Popcorn

This programme uses microwave mode.

Use standard popcorn packaging that is designed for producing popcorn in a microwave.

Place the packaging onto the rotary plate.
▶ Select the popcorn programme by turning the control knob /Menu to the right.
Press the button and turn the control knob to the right or the left to select the weight of the popcorn (50-100 g).

▶ Start the cooking programme for popcorn by pressing the ◊ button.

If the popcorn has not completely popped after the cooking time has elapsed, start another cooking process in microwave mode (as described from "9.5. Cooking with microwaves" on page 147).

9.13.10. Programme A-9: Cakes

This programme uses convection oven mode.

ATTENTION!

Do not use any covers as the appliance operates in convection oven mode in this programme.

Preheat the appliance to 180°C, see "9.12. Preheating/cooking with convection oven" on page 150.

Place the mould filled with cake mix onto the supplied rotary plate.
▶ Select the cakes programme by turning the control knob /Menu to the right.
▶ Start the cooking programme for cakes by pressing the button.

If the cake is not cooked through after heating, start another cooking process in convection oven mode (as described from "9.12. Preheating/cooking with convection oven" on page 150).

9.13.11. Programme A10: Chicken

This programme uses convection oven and grill modes.

ATTENTION!

Do not use any covers as the appliance operates in grill/convection oven mode in this programme.

Place the chicken in a heat-resistant container in the middle of the supplied rotary plate or, if desired, onto the grill rack.
▶ Select the chicken programme by turning the control knob /Menu to the right.
▶ Press the ◇ button and turn the control knob ⚠/Menu to the right or the left to select the weight of the chicken.

▶ Start the programme by pressing the ◊ button.

If the chicken is not thoroughly cooked once the programme has been completed, start another cooking process in grill and convection oven mode (see "9.8. Combi modes: microwave and grill/convection oven and grill/microwave, convection oven and grill" on page 148).

10. Cleaning and care

Poor appliance hygiene can lead to damage to the surfaces, which in turn can reduce the lifespan of the appliance and even result in dangerous situations. Therefore, clean the microwave regularly and remove all remaining food.

• Switch the microwave off and pull the plug from the mains socket before cleaning.
• Keep the interior of the microwave clean. Wipe away splashes or spilled liquids that attach to the microwave walls with a damp cloth. A mild cleaning solution can be used for stubborn dirt. Do not use any aggressive abrasive cleaners or sharp metal scrapers for cleaning the viewing window on the appliance door because they can scratch the surface and destroy the glass.

- Do not use a steam cleaner. Surfaces can get damaged.

- The external surfaces should be cleaned with a damp cloth. In order to prevent damage to the microwave's internal operating parts, make sure that water does not penetrate into the ventilation openings.

- Parts of the door, the viewing window, and especially the seal and the closing mechanism should be cleaned carefully with a mild detergent solution. Take great care not to damage these parts.

- Do not let the control panel get wet. Clean with a soft, damp cloth. When cleaning the control panel, leave the door of the microwave open to prevent the appliance being switched on by accident.

- If steam collects on the inside or outside, wipe it away with a soft cloth.

- Steam may occur if the microwave is used with high humidity; this is normal.

- The rotary plate must be removed occasionally for cleaning. Wash the plate in warm water with a mild soap solution or in the dishwasher.

- Then dry the rotary plate thoroughly with a soft cloth.

- Simply wipe the floor of the microwave with a mild cleaning solution.

- Wash the grill rack where required in warm water with a mild soap solution. Allow stubborn dirt to soak for a few minutes.

- Lingering odours in the microwave can be removed by placing a glass of water with the juice and rind of a lemon into a deep container that is suitable for microwave use and heating for 5 minutes. Wipe out thoroughly and dry with a soft cloth.

- If you have to replace the light in the microwave, please contact a qualified specialist workshop or Medion Service.

11. End of operation

A number of beeps will sound when the cooking process is complete. Open the door and remove the cooked food. The time will be displayed and the appliance will now be in standby mode.

If you want to completely switch off the appliance or do not intend to use it for a long period of time, pull out the plug from the mains socket and store the appliance in a dry location.

12. Troubleshooting

Problem Possible cause Solution
The appliance will not start	The mains plug is not properly inserted.	Pull out the plug, wait 10 seconds and then plug it back in again.
	The fuse is blown or the power interrupter has tripped.	Replace the fuse or reset the power interrupter (contact our Service Centre to do this).
	The socket is defective.	Check the socket by plugging in another appliance.
The appliance does not warm up.	The door is not closed.	Close the door.

13. Disposal

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Appliance

At the end of its life ensure that the appliance is disposed of in an environmentally appropriate manner. This may be a local collection point for old appliances. Seek the advice of your local authority about the local options for disposing of waste.

▶ Before disposal cut off the cable.

Packaging

Your microwave is wrapped in packaging to protect it against transportation damage. Packaging materials are raw materials and can therefore be reused or recycled.

14. Technical data

Nominal voltage 230 V \~ 50 Hz

Power output

Microwave: 1550 W

Grill: 1300

Convection oven: 2700 W

Nominal output voltage (microwave): 1000 W

Microwave frequency: 2450 MHz

Dimensions (W x H x D) in mm

Appliance: 550 x 560 x 320

Cooking area volume: 42 litres

Net weight: 21.25 kg

Subject to technical modifications!

15. Declaration of conformity

Medion AG hereby declares that the product MD 16573 conforms to the following European requirements:

• EMC Directive 2004/108/EC

• Ecodesign Directive 2009/125/EC

• RoHS Directive 2011/65/EU.

Full declarations of conformity are available at www.medion.com/conformity.

16. Legal notice

Copyright © 2015

All rights reserved.

This operating manual is protected by copyright.

Mechanical, electronic and any other form of reproduction is prohibited without the written permission of the manufacturer. Copyright is owned by the company:

Medion AG

Am Zehnthof 77

45307 Essen

Germany

QR code image containing encoded data, no visible human-readable text

The operating manual can be reordered via the service hotline and is available for download via the service portal at www.medion.com/gb/service/start/.

You can also scan the QR code above and download the operating manual onto your mobile device via the service portal.

17. General Warranty Conditions

17.1. General information

The warranty period is 24 months and begins on the day the product is purchased. The warranty covers all types of material and product damage that could occur during normal use.

Please keep your original proof of purchase in a safe place. The warranty provider reserves the right to refuse to confirm the status of the warranty or to carry out a repair under warranty if a valid proof of purchase cannot be produced.

If it is necessary to return your device for repair, please ensure that it is suitably packaged for transportation. Unless otherwise specified, you shall bear the costs for sending the device and the transport risk. The warranty provider does not assume any liability for additional materials sent with the product that do not belong to the original package contents supplied with the product.

Please enclose as much information as possible about the fault when sending the device to the warranty provider. In order to make a valid claim under warranty and before returning the device, please contact the Service Hotline operated by the warranty provider or the Service Portal. They will provide you with information on how to proceed further.

This warranty has no effect on your statutory warranty rights and is subject to the laws of the country in which the first purchase of the product was made by the end customer.

17.1.1. Scope

In the event of a fault on your product that is covered by this warranty, the warranty provider guarantees to repair or replace the product. The decision about whether to repair or replace the device is taken by the warranty provider. Therefore, the warranty provider can at its own discretion decide to replace a device submitted for repair under warranty with a refurbished device of the same quality.

No warranty is provided for batteries or rechargeable batteries or for consumable materials i.e. parts which have to be replaced at regular intervals during the normal use of the product e.g. video projector lamps.

A pixel error (permanently coloured, light or dark point in an image) is not generally considered a fault. Please refer to the information provided in the manual for this product for the precise number of permissible defects in the image.

The warranty provider gives no warranty for burnt-in images on plasma or LCD devices that result from the improper use of the device. Please refer to the information provided in the manual for this product for precise instructions on operating your plasma or LCD device.

The warranty does not cover errors relating to the playback of data media that have been created in an incompatible format or as a result of using unsuitable software. If it is discovered during the repair that the fault concerned is not covered under warranty, the warranty provider reserves the right to invoice the customer for the costs already incurred in the form of a flat-rate handling charge, as well as to charge the customer for the materials and labour required for the repair after submitting a cost estimate. You will be informed in advance as the customer about these repair charges; you are responsible for accepting or rejecting the repair process.

17.1.2. Exclusions

Malfunctions and damage to the device caused by external influences, accidental damage, improper use, changes made to the product, modifications, upgrades, the use of third-party parts, neglect, viruses or software faults, improper transport, improper packaging or loss during the return of the product are not covered by the warranty issued by the warranty provider.

The warranty will be invalidated if the fault to the device is caused by maintenance or repair carried out by someone other than a service partner authorized by the warranty provider. The warranty will also be invalidated if labels or serial numbers on the device or a component of the device have been modified or made illegible.

17.1.3. Service Hotline

Before sending the device to the warranty provider, you must contact us via the Service Hotline or the Service Portal. This ensures that you receive further information on how to make a valid claim under warranty.

The use of the hotline may be subject to a charge.

The Service Hotline should under no circumstances be considered a substitute for user training for software and hardware or reading the manual, nor does it provide support for third-party products.

17.2. Special warranty conditions for PC, notebook, pocket PC (PDA), devices with navigation functions (PNA), telephone devices, mobile telephones and devices with a memory function

Should any of the supplied options (e.g. memory cards, etc.) have a fault, you are entitled to a repair or replacement. The warranty covers material and labour costs for restoring the functionality of the product concerned.

The warranty can be invalidated if any damage to the product itself or the supplied options results from the addition of any hardware to your product that is not produced or distributed by the warranty provider.

A limited warranty is provided for supplied software. This applies to a pre-installed operating system and also to supplied programs. For software supplied with the device by the warranty provider, a warranty is issued that any data media, e.g. discs and CD-ROMs on which the software is supplied, shall be free from faults in terms of their materials and workmanship for a period of 90 days following purchase. In the event of a faulty data medium being supplied, the warranty provider shall replace the faulty data medium free of charge; any further claims are excluded. Excluding the warranty for data media, all software is supplied without warranty. Furthermore, it is not warranted that this software shall function without interruption or errors or that it will meet your requirements. In the case of map material supplied for a device with navigation functions, no warranty is provided for its completeness.

It may be necessary to delete all data from the device in order to repair it. Please ensure that you have a backup copy for all of the data on the device before sending back the device. We expressly point out that the factory settings will be restored in the event of a repair. The warranty provider assumes no liability for the cost of a software configuration, lost revenue, loss of data or software, or other consequential damages.

17.3. Special warranty conditions for repair on site or replacement on site

If there is an entitlement to on-site repair or replacement, the specific warranty terms and conditions for on-site repair or replacement shall apply to your product. The following provisions must be ensured by you for carrying out repairs or replacements on site:

- Personnel from the warranty provider who arrive at your premises for the above-mentioned purpose must have unrestricted, safe and immediate access to the devices.

- Telecommunication facilities required by these personnel for the proper execution of your order, for testing and diagnostic purposes or for remedying faults must be provided by you at your own expense.

- You shall be personally responsible for restoring your own application software after completion of the service by the warranty provider.

• You shall be personally responsible for configuring and connecting any existing external devices after completion of the service by the warranty provider.
• The free cancellation period for repairs or replacements on site is at least 48 hours, thereafter we shall invoice you for any costs resulting from a late or missing cancellation.

18. Service Address

0333

(costs:

3213106

local)

01793

715716

Mo - Fr: 08:00 - 20:00

Sa - Su: 10:00 - 16:00

www.medion.co.uk

@ Please use the contact form at www.medion.com/contact

MEDION®
