USER MANUAL HABT6CBS6XBSLC HAIER

Isometric technical drawing of a mechanical assembly with no visible text or symbols

Instruction Book

Information and advice

CAUTION:Accessible parts may become hot when used with cooking appliances.

In certain circumstances electrical appliance may be a danger hazard.

A) There must be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels.
B) Do not check the status of the filters while the cooker hood is operating.
C) Do not touch the light bulb within half an hour after appliance has been use.
D) Do not light a flame under the cooker hood.
E) Avoid opening gasometer when there is no pan on the stove, as it is damaging for the filters and a fire hazard.
F) Constantly check food frying to avoid overheated oil splashing and becoming a fire hazard.
G) Disconnect the electrical plug prior to any maintenance.
H) Regulations concerning the discharge of air have to be fulfilled.
I) When the range hood and appliances supplied with energy Other than electricity are simultaneously in operation. The negative pressure in the room must not exceed 4 Pa ( 4 × 10^-5 bar)

Information and advice

CAUTION:Accessible parts may become hot when used with cooking appliances.

J) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

K) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

L) The range hood is intended to be installed over a hob having no more than four hob elements.

M) Indoor use and household use only

N) When the appliance is not in use and before cleaning, unplug the appliance from the outlet.

O) Attention! Observe the warning in the instruction sheet concerning the operation of the appliance when air is discharged from the room

P) There is a fire risk if cleaning is not carried out in accordance with the instructions.

Information and advice

CAUTION:Accessible parts may become hot when used with cooking appliances.

Q) The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room.
R) Children should be supervised to ensure that they do not play with the appliance.
S) Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
T) The installation height of hood shall not be less than 65cm.
U) The filter screen must be cleaned regularly, otherwise there is a danger of fire.
V) The installation must be carried out according to the screws and positions required by the instructions, which will easily damage the connecting wires.

Information and advice

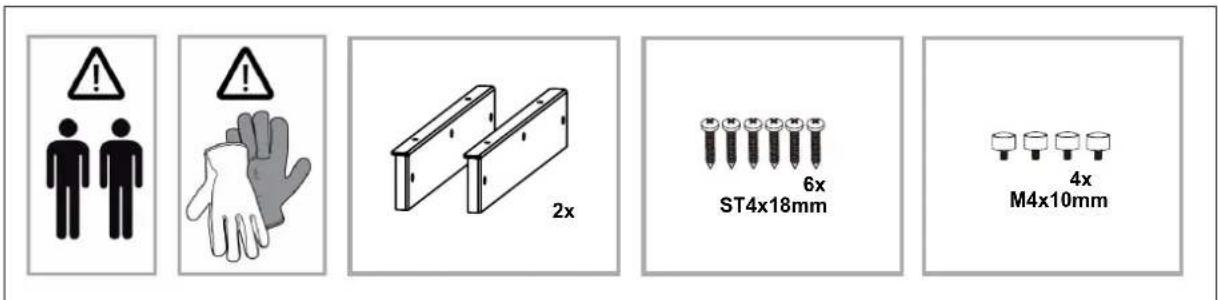

2x ST4x18mm 6x 4x M4x10mm

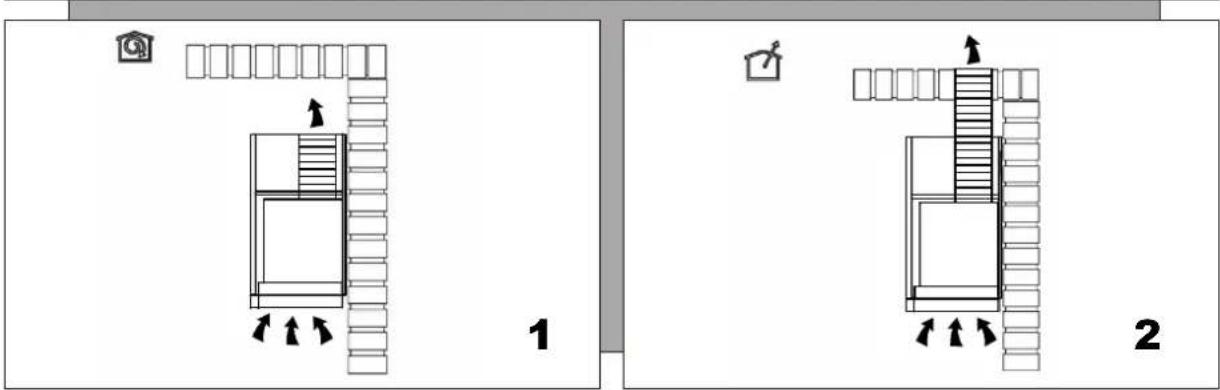

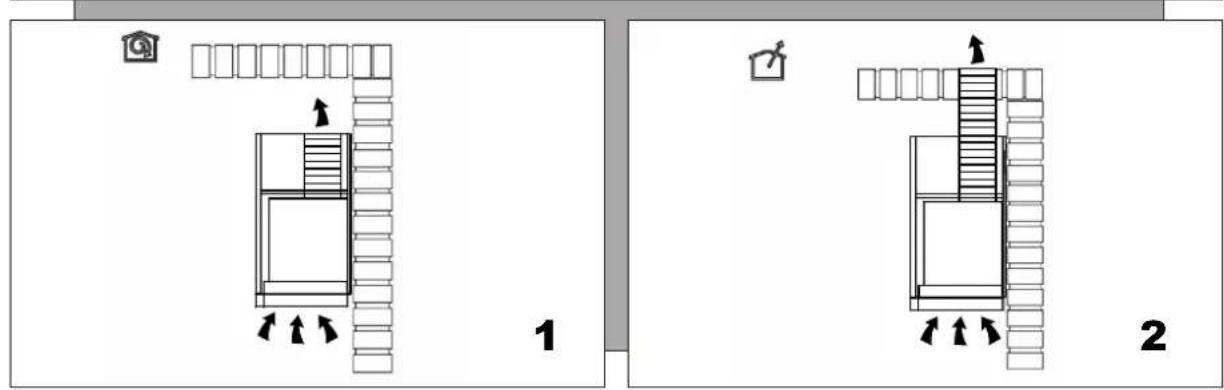

Architectural floor plan diagrams showing room layout and stairwell placement with directional arrows and labels 1 and 2

Isometric line drawing of a 3D rectangular frame with internal structure (no text or symbols)

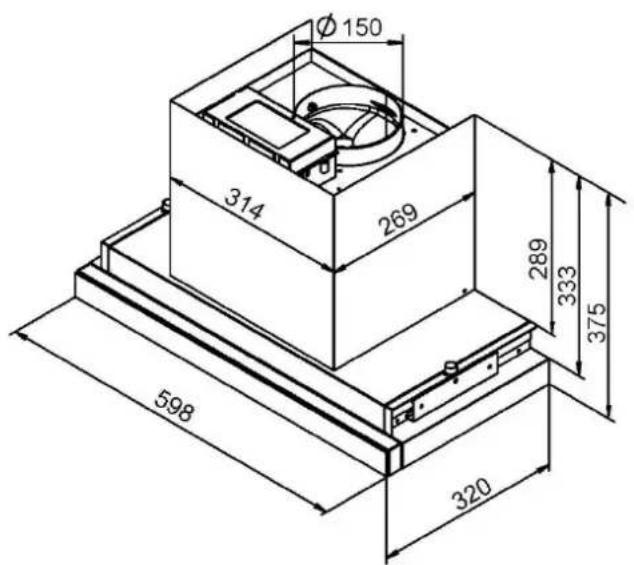

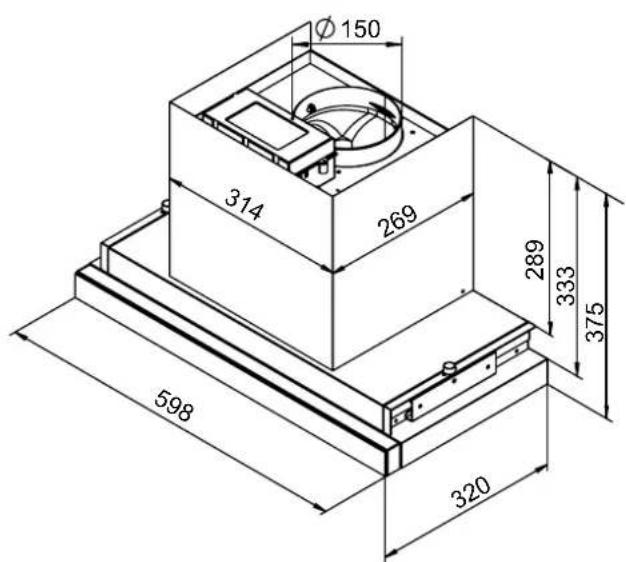

Cooker Hood Dimensions

Ø 150 314 269 289 333 375 598 320

3

Isometric line drawing of a rectangular frame with internal structure (no text or symbols)

Installation

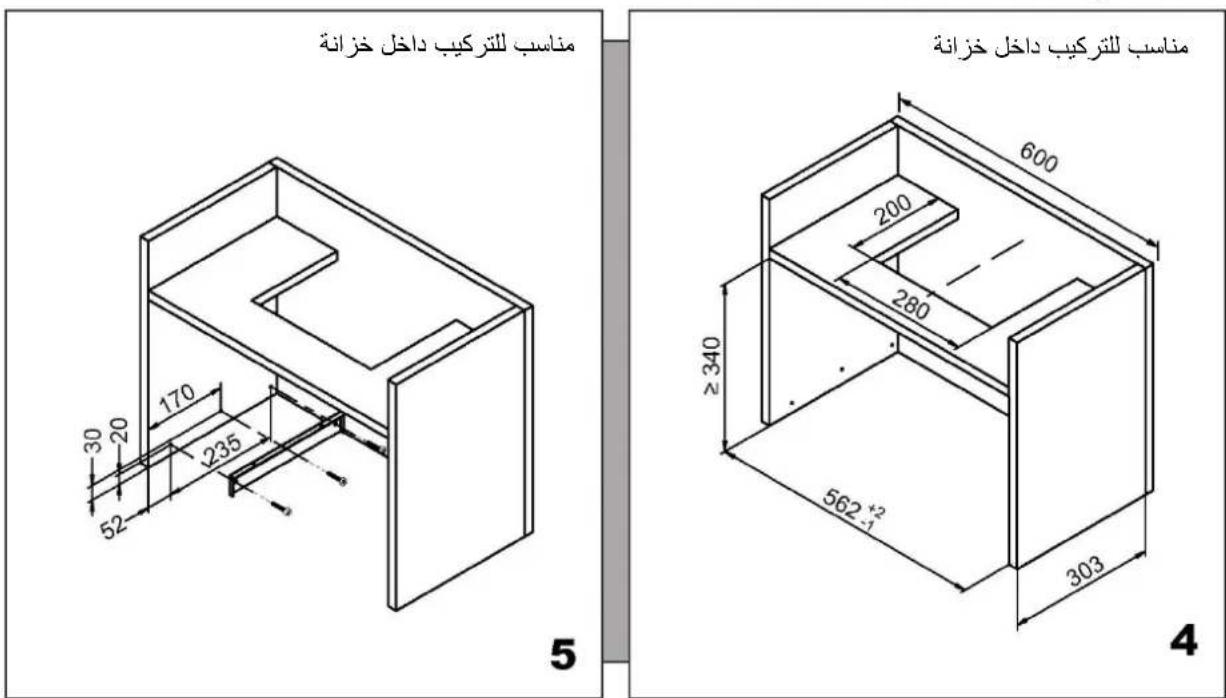

Suitable for cabinet installation Suitable for cabinet installation

600 200 280 043≥ 562.1² 303

4

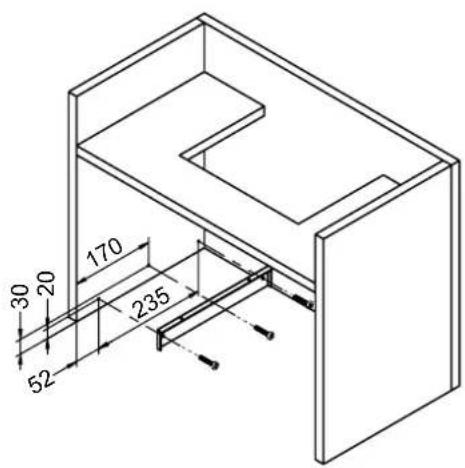

30 20 170 235 52

5

Isometric line drawing of a mechanical or architectural component with no visible text or symbols

Installation

Technical line drawing of a mechanical assembly with no visible text or symbols

6

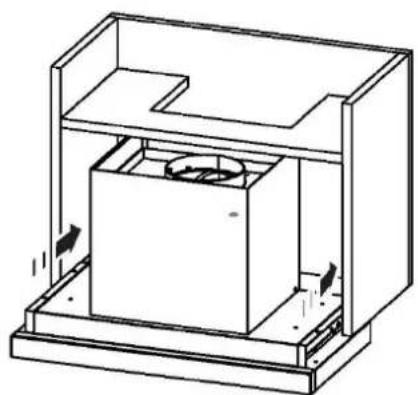

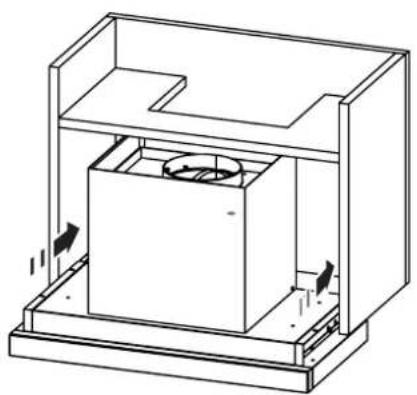

Align the sides of the machine with the support brackets on the cabinet and push the entire machine into the cabinet.

Technical line drawing of a 3D enclosure with internal components and a small component, no text or symbols present

7

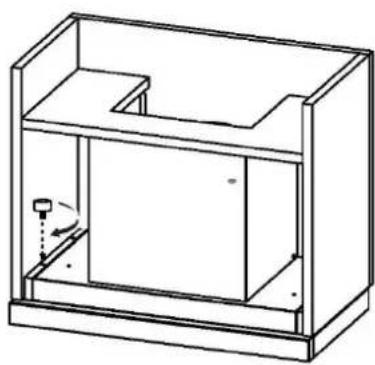

Once the machine is placed, secure the bezel with screws.

Isometric line drawing of a mechanical or architectural component with no visible text or symbols

Information and advice

Check the voltage, frequency and power of the rating label on the body.

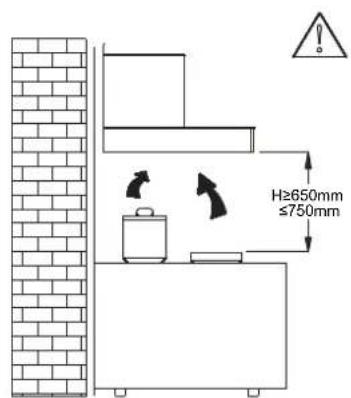

H≥650mm ≤750mm

8

We recommend that after installation the bottom of the hood should be no less than 650mm and no more than 750mm above the stove's heating elements and burners.

i

Information

The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room)

Isometric line drawing of a mechanical or architectural component with no visible text or symbols

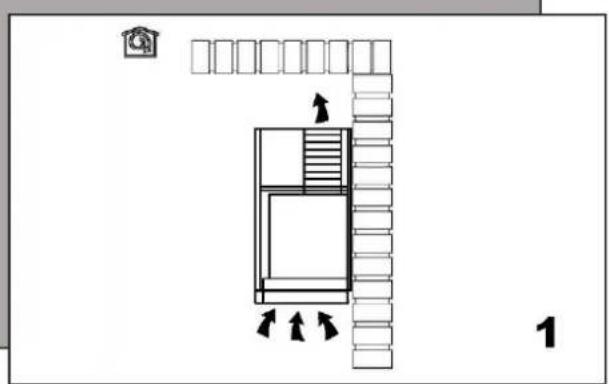

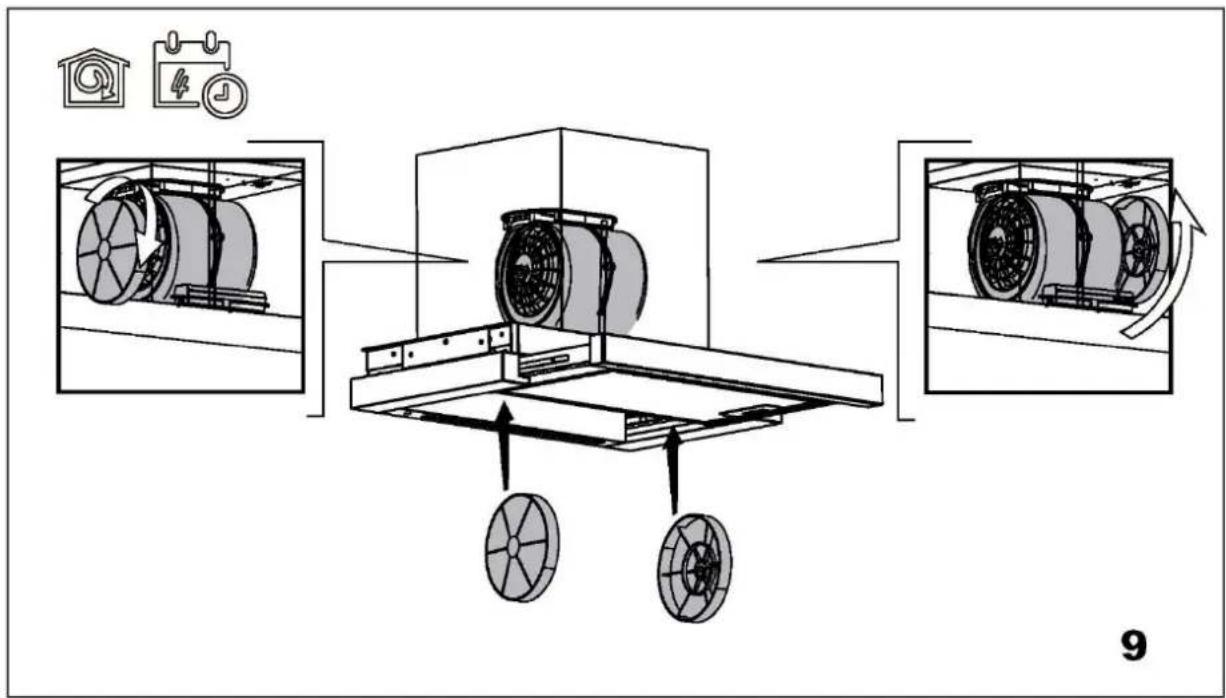

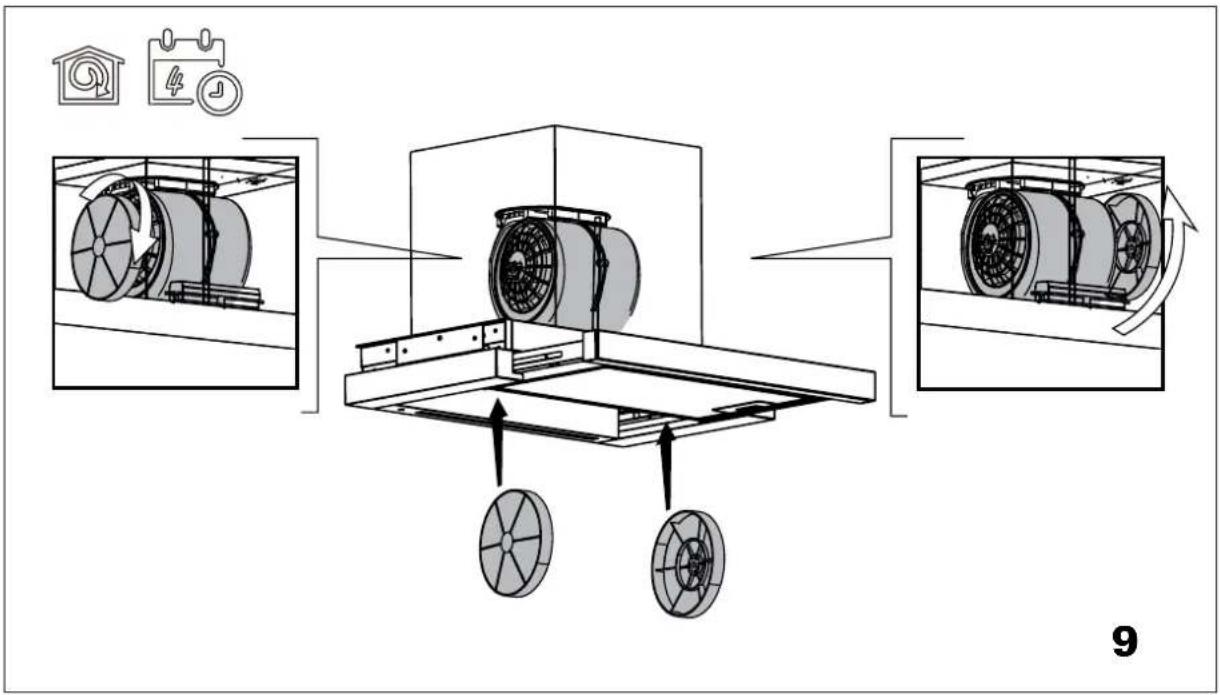

Charcoal filter (Inner-cycle mode)

Technical diagram illustrating the assembly of a mechanical device with labeled components and directional arrows indicating motion.

Isometric line drawing of a 3D rectangular frame with internal structure (no text or symbols)

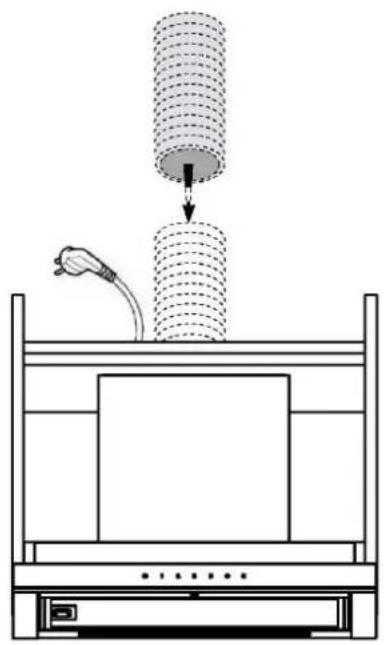

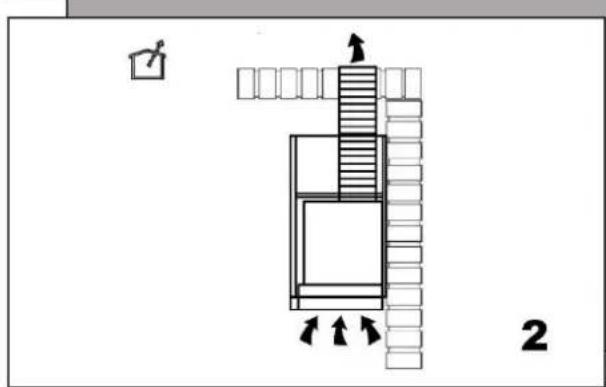

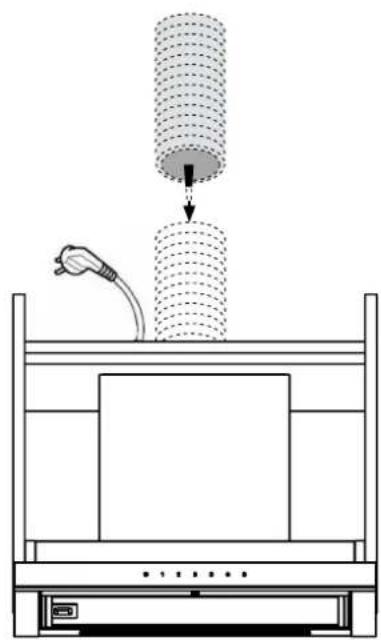

Installation of hoses (outer row mode)

Diagram of a cylindrical device being heated by an electric plug, with no visible text or symbols

10

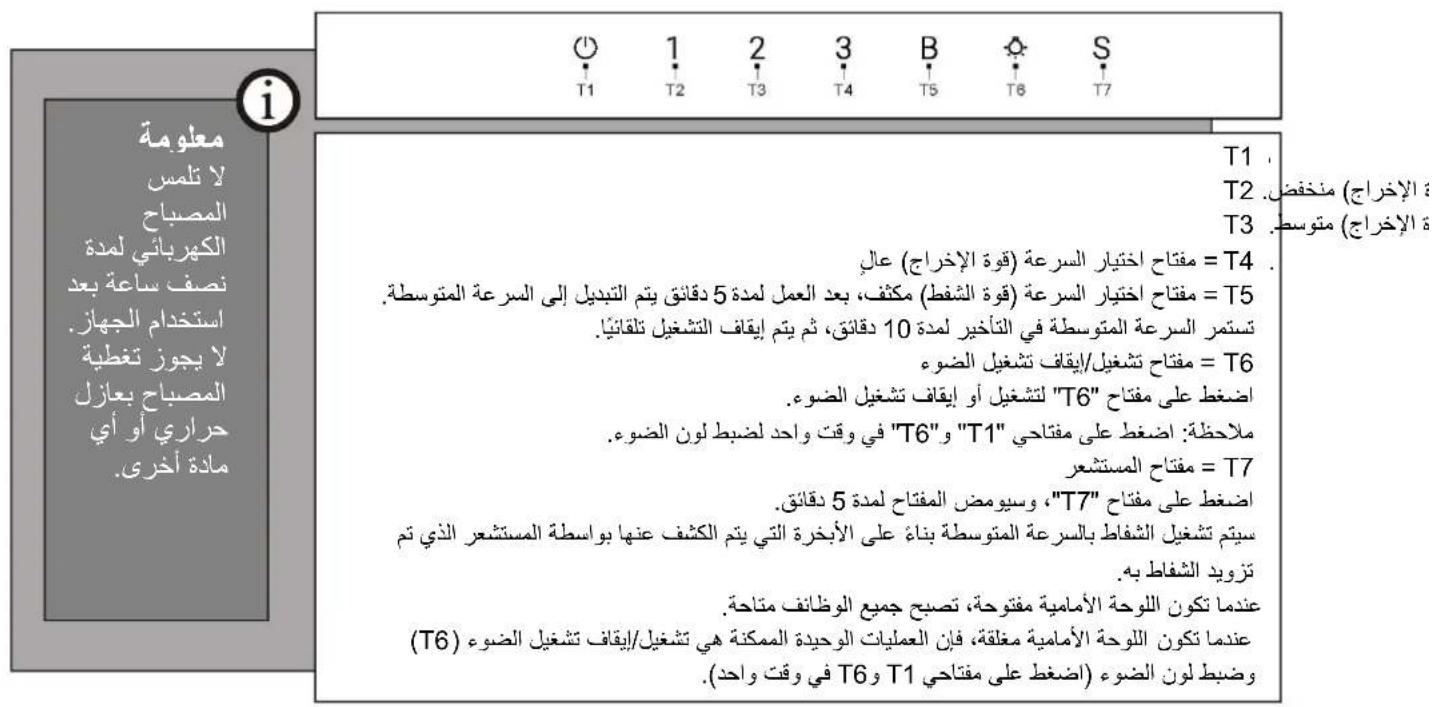

Controls

T1 T2 T3 T4 T5 T6 T7 1 2 3 B A S

T1 = ON/OFF key

T2 = Speed selection key (extraction power) low.

T3 = Speed selection key (extraction power) medium.

T4 = Speed selection key (extraction power) high.

T5 = Speed selection key (suction power) intensive, after working 5 minutes it switches to the medium speed. Medium speed continue to delay for 10 minutes, and power off automatically.

T6 = Light on/off key

Press "T6" key to turn on or off the light.

Note: At the same time, press "T1" and "T6" to adjust the light color.

T7 = Sensor key

Press "T7" key, the key will flash for 5 minutes.

The hood will switch on at the Middle speed based on the fumes detected by the sensor the hood is equipped with.

When the front panel is open, all functions are available.

When the front panel is closed, the only operations possible are turning the light on/off (T6) and adjusting the light's color (press T1 and T6 at the same time).

i

Information

Do not touch the light bulb within half an hour after appliance use. The lamp shall not be covered with therm insulation or other material.

Replacement and maintenance

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Replacing lamps

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy.

In case of malfunction of the illumination system contact the technical service.

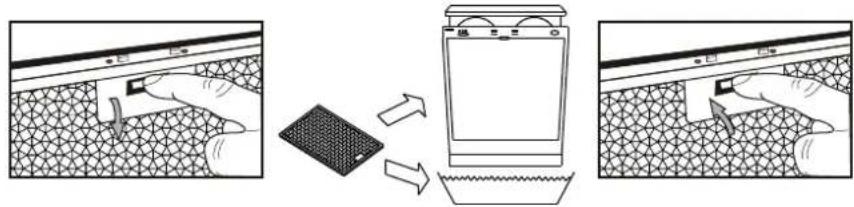

Cleaning filters

- It is recommendable to clean the metallic filter every three months by carrying out the following instructions:

-Remove the metallic filter from the cooker hood and wash it in a solution of water and neutral liquid detergent, leaving to soak

-Rinse thoroughly with warm water and leave to dry.

-The metallic filter may also be washed in the dishwasher.

The metallic filter may alter in color after several washes.

This is not cause for customer complaint nor replacement of metallic filter.

i

Information

There is a fire risk if cleaning is not carried out in accordance with the instructions.

This appliance is labelled in accordance with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment Regulations 2013 regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

• the WEEE should not be treated as domestic waste;
• the WEEE should be taken to dedicated collection areas managed by the town council or a registered company. In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

The manufacturer shall decline all responsibility if the foregoing recommendations and instruction regarding installation, maintenance and use are not observed and respected when using the cooker hood.

Haier

Isometric technical drawing of a mechanical assembly with no visible text or symbols

Manuale d'uso

Technical line drawing of a mechanical assembly with no visible text or symbols

6

Line drawing of a 3D rectangular enclosure with internal partition and a small component inside (no text or symbols)

7

Technical diagram illustrating the assembly of a mechanical device with labeled components and directional arrows indicating motion or assembly.

Diagram of a mechanical setup with a cylindrical component being inserted into a base, connected to an electrical outlet (no text or symbols present)

10

Comandi

1T1

2T3

3T4

B T5

Φ T6

S T7

T1 = Tasto ON/OFF

Diagram illustrating a washing machine operation with labeled parts and directional arrows indicating process flow.

Isometric technical drawing of a structural frame assembly (no text or symbols)

Mode d'emploi

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a 3D enclosure with a small component inside, showing internal structure and no text or symbols.

H≥650mm ≤750mm

8

Technical diagram illustrating the assembly of a mechanical device with labeled components and directional arrows indicating motion or assembly.

Diagram of a mechanical setup with a cylindrical component being inserted into a rack, showing a plug and cable (no text or symbols present)

10

Commandes

T1 1 T2 2 T3 3 T4 B T5 S T6 T7

T1 = Touche ON/OFF

Diagram illustrating a washing machine operation with labeled parts and directional arrows indicating process flow.

Isometric technical drawing of a structural frame assembly (no text or symbols)

Bedienungsanleitung

Technical line drawing of a mechanical assembly with no visible text or symbols

6

Line drawing of a 3D enclosure with internal components and a small component inside (no text or symbols)

7

H≥650mm ≤750mm

8

Technical diagram illustrating the assembly of a fan or fan unit with labeled components and directional arrows indicating motion.

Diagram of a cylindrical object being placed on a platform with an attached plug, showing no text or symbols.

10

Bedienfeld

T1 1 T2 2 T3 3 T4 B T5 Φ T6 S T7

T1 = EIN/AUS-Taste

Diagram illustrating a washing machine operation with labeled parts and directional arrows indicating process flow.

Isometric technical drawing of a structural frame assembly (no text or symbols)

Instructieboek

Technical line drawing of a mechanical assembly with no visible text or symbols

6

Technical line drawing of a rectangular enclosure with internal components and a small component inside (no text or symbols)

7

H≥650mm ≤750mm

8

Technical diagram illustrating the assembly of a mechanical device with labeled components and motion indicators.

Diagram of a cylindrical object being placed on a platform with an attached plug, showing no text or symbols.

10

Bedieningselementen

T1 1 2 3 B S T2 T3 T4 T5 T6 T7

T1 = AAN/UIT-toets

Diagram illustrating the process of cleaning a kitchen appliance, showing steps from cleaning to surface finish.

Isometric technical drawing of a structural frame assembly (no text or symbols)

Manual de instructiuni

Technical line drawing of a mechanical assembly with no visible text or symbols

6

Line drawing of a 3D enclosure with internal components and a small component inside (no text or symbols)

7

H≥650mm ≤750mm

8

Technical diagram illustrating the assembly of a mechanical device with labeled components and motion indicators.

Diagram of a cylindrical object being placed on a platform with an attached plug, showing no text or symbols.

10

Controale

T1 1 T2 2 T3 3 T4 B T5 S T6 T7

Diagram illustrating the process of cleaning a kitchen appliance, showing steps from cleaning to surface finish.

Isometric line drawing of a mechanical or architectural component with no visible text, numbers, or symbols.

2x ST4x18mm 6x 4x M4x10mm

Architectural floor plan diagrams showing room layout and stairwell placement with directional arrows and labeled sections 1 and 2

Technical line drawing of a mechanical assembly with no visible text or symbols

6

Technical line drawing of a 3D enclosure with internal components and a small component inside (no text or symbols)

7

Kada je mašina postavljena, pričvrstite okvir zavrtnjima.

H≥650mm ≤750mm

8

Preporučujemo da nakon ugradnje dno nape ne bude manje od 650 mm i ne više od 750 mm iznad grejnih elemenata i gorionika šporeta.

i

Informacije

Vazduh se ne sme ispuštati u dimnjak koji se koristi za ispuštanje isparenja iz uređaja koji sagorevaju gas ili druga gorlva (ne primenjuje se na uređaje koji samo ispuštaju vazduh nazad u prostoriju)

Technical diagram illustrating the assembly of a fan or fan unit with labeled components and directional arrows indicating motion.

Diagram of a mechanical setup with a cylindrical component being inserted into a rack, connected to an electrical outlet (no text or symbols present)

10

Diagram illustrating a water treatment process with labeled components and directional arrows indicating flow or movement.

• Preporučuje se čišćenje metalnog filtera svaka tri meseca primenom sledećih uputstava:
  –Uklonite metalni filter sa kuhinjske nape i operite ga u rastvoru vode i neutralnog tečnog deterdženta, ostavljajući ga da se natopi
  – Temeljno ga isperite toplom vodom i ostavite da se osuši.
  – Metalni filter se takođe može prati u mašini za pranje sudova.
  Metalni filter može da promeni boju nakon nekoliko pranja.
  Ovo nije razlog za reklamaciju kupca ili zamenu metalnog filtera.

Informacije

Isometric technical drawing of a structural frame or enclosure with no visible text or symbols

Книжка с инструкции

Информация и съвети

2x ST4x18mm 6x 4x M4x10mm

Architectural floor plan diagrams showing room layout and stairwell placement with directional arrows and labeled sections 1 and 2

Technical line drawing of a mechanical assembly with no visible text or symbols

6

Technical line drawing of a 3D enclosure with internal components and a small component inside (no text or symbols)

7

B≥650MM ≤750MM

8

Technical diagram illustrating the assembly of a fan or fan unit with labeled components and directional arrows indicating motion.

Diagram of a mechanical setup with a cylindrical component being inserted into a rack, connected to an electrical outlet (no text or symbols present)

10

Контроли

T1 1 T2 2 T3 3 T4 B T5 S T6 T7

T1 = Бутон ВКЛ./ИЗКЛ

Diagram illustrating a washing machine operation with labeled parts and directional arrows indicating process flow.

Isometric line drawing of a mechanical assembly with no text or symbols

01 1-36901960: کرد

تيب التعليمات

معلومات

4x M4x10mm

6x ST4x18mm

Two identical rectangular metal plates with bolt holes, labeled '2x' (no text or symbols on the plates themselves)

Architectural floor plan diagram with labeled components and directional arrows, showing layout and floor levels

Architectural floor plan diagram showing room layout and directional arrows (no text or labels)

Isometric line drawing of a rectangular frame or enclosure with internal structure (no text or symbols)

Ø 150 314 269 289 333 375 598 320

التركيب

Isometric line drawing of a rectangular frame with internal structure (no text or symbols)

Isometric line drawing of a rectangular frame with internal structure (no text or symbols)

Line drawing of a 3D rectangular enclosure with internal partition and a small component inserted (no text or symbols)

7

Technical line drawing of a mechanical assembly with no visible text or symbols

6

Isometric line drawing of a rectangular frame with internal structure (no text or symbols)

i

معلومة

H=650mm ≤750mm

8

Isometric line drawing of a 3D rectangular frame with internal structure (no text or symbols)

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows indicating motion or movement.

Isometric line drawing of a rectangular frame with internal structure (no text or symbols)

Diagram of a mechanical setup with a cylindrical component being inserted into a base, connected to an electrical outlet (no text or symbols present)

Close-up of a hand pressing a small component on a textured surface (no visible text or symbols)

Diagram showing a kitchen appliance with a drain and a cloth, illustrating the process of cleaning or packaging.

Close-up of a hand holding a small object over a textured surface, no visible text or symbols

Isometric technical drawing of a structural frame assembly (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

6

Line drawing of a 3D cabinet or enclosure with a handle and internal components, no text or symbols present.

7

H≥650 mm ≤750 mm

8

Technical diagram illustrating the assembly of a mechanical device with labeled components and directional arrows indicating motion or assembly.

Diagram of a cylindrical device being processed into a rack, with an outlet and cable (no text or symbols)

10

Controles

T1 1 T2 2 T3 3 T4 B T5 S T6 T7

T1 = Tecla ENCENDIDO / APAGADO

