Brand Haier
Model HADG6DCS56B
Product Type Chimney Hood
Width 60 cm
Depth 50 cm
Height 85-130 cm (adjustable)
Weight 12 kg
Power Supply 220-240 V, 50 Hz
Motor Power 200 W
Max Extraction Rate 650 m³/h
Noise Level 58 dB (max speed)
Lighting 2 x 3 W LED
Controls Touch control panel
Number of Speeds 3 + Boost
Filter Type Aluminum grease filter, optional carbon filter
Energy Class A
Installation Type Wall-mounted
Operation Mode Ducted / Recirculation (with carbon filter)
Maintenance Clean grease filter monthly; replace carbon filter every 3-6 months
Safety Features Automatic shut-off, thermal protection
Spare Parts Grease filters, carbon filters, LED bulbs, remote control (optional)
Warranty 2 years

Frequently Asked Questions - HADG6DCS56B HAIER

How do I install the Haier HADG6DCS56B hood?
Installation must be carried out by a qualified professional. Ensure the hood is mounted at least 65-75 cm above electric cooktops and 75-85 cm above gas cooktops. Use the provided template for drilling. Secure the chimney and connect to ductwork or activate recirculation with a carbon filter.
How often should I clean the grease filter?
The aluminum grease filter should be cleaned every month or more frequently if cooking heavily. Remove the filter and wash it by hand with mild detergent or in the dishwasher on a low-heat cycle. Dry it thoroughly before reinstalling.
Can I use the hood in recirculation mode?
Yes, the HADG6DCS56B can be used in recirculation mode. You need to purchase a carbon filter (sold separately). Install it as described in the manual. This mode is ideal when ducting is not possible.
What is the noise level of this hood?
The noise level ranges from 38 dB on the lowest speed to 58 dB on the highest speed (Boost). These levels are measured in a controlled environment; actual noise may vary depending on installation.
Does the hood come with a remote control?
No, the HADG6DCS56B does not include a remote control as standard. It is operated via a touch control panel on the hood. Some models may have an optional remote, check with your dealer.
How do I replace the LED bulbs?
Ensure the hood is disconnected from power. Remove the grease filter to access the bulb panel. Twist the faulty LED bulb counterclockwise and remove it. Insert a new 3 W LED bulb (GU10 base) and twist clockwise to lock. Reinstall the filter.
What is the maximum extraction rate?
The maximum extraction rate is 650 m³/h on Boost speed. This is suitable for medium to large kitchens. The hood has three normal speeds plus a boost function for intensive cooking.
Is the hood suitable for use over a gas stove?
Yes, it is suitable for gas stoves. Ensure the minimum distance from the stove is 75 cm. The hood must be installed with proper ventilation to prevent gas accumulation.
How do I reset the filter cleaning indicator?
After cleaning or replacing the filter, press and hold the 'Filter Reset' button for 3 seconds until the indicator light turns off. Refer to the manual for exact button location.
Where can I find spare parts for this hood?
Spare parts such as grease filters, carbon filters, and LED bulbs are available from authorized Haier service centers or online retailers. Use only genuine parts to ensure performance and safety.

User questions about HADG6DCS56B HAIER

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Range hood in PDF format for free! Find your manual HADG6DCS56B - HAIER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HADG6DCS56B by HAIER.

USER MANUAL HADG6DCS56B HAIER

INSTALLATION AND USER'S MANUAL

CONTENT

INTRODUCTION 03

SAFETY PRECAUTION 03

ELECTRICAL INSTALLATION 05

SPECIFICATION 06

INSTALLATION (VENT OUTSIDE) 07

INSTALLATION (VENT INSIDE) 16

DESCRIPTION OF COMPONENTS 17

OPERATION 17

MAINTENANCE 18

TROUBLESHOOTING 19

CONFORMITY WITH DIRECTIVES 19

ENVIRONMENTAL PROTECTION 20

INTRODUCTION

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance. In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and usage.

The cooker hood uses high quality materials, and is made with a streamlined design. Equipped with a large power electric motor and centrifugal fan, it also provides strong suction power, low noise operation, non-stick grease filter and easy assembly installation.

SAFETY PRECAUTION

☐ Never let children operate the machine. ☐ The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purposes. ☐ The cooker hood and its filter should be cleaned regularly in order to keep in good working condition. ☐ Clean the cooker hood according to the instruction manual and keep the unit from danger of burning. ☐ Forbid direct baking from the gas cooker. Please keep the kitchen room with good convection. Before connecting this appliance, check that the power supply cord is not damaged. A damaged supply cord must be replaced by qualified service personnel only. ☐ There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels; ☐ The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels; ☐ Regulations concerning the discharge of air have to be fulfilled. Children should be supervised to ensure that they do not play with the appliance. ☐ Do not flambé under the range hood. ☐ The range hood is not intended to be installed over a hob having more than four hob elements.

  • There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room);
  • The details concerning the method and frequency of cleaning.
  • There is a fire risk if cleaning is not carried out in accordance with the instructions;
  • Do not flame under the range hood;
  • CAUTION: Accessible parts may become hot when used with cooking appliances.

Electrical Shock Hazard

☐ Only plug this unit into a properly earthed outlet. If in doubt, seek advice from a suitably qualified engineer. ☐ Failure to follow these instructions can result in death, fire, or electrical shock.

The lamp used in this product is not suitable for use in the lighting of a room.

The purpose of this lamp is to provide illumination for using the product.

Electrical Installation

All installation must be carried out by a competent person or qualified electrician. Before connecting the mains supply, ensure that the mains voltage corresponds to the voltage on the rating plate.

Direct Connection

The appliance must be connected directly to the mains using an omnipolar circuit breaker with a minimum opening of 3mm between the contacts.

The installer must ensure that the correct electrical connection has been made and that it complies with the wiring diagram.

The cable must not be bent or compressed.

Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

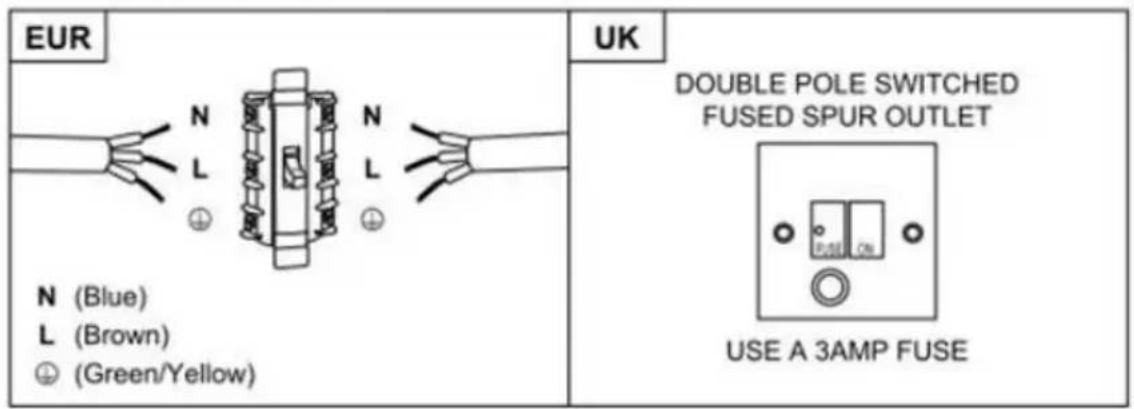

WARNING: This is a Class I appliance and MUST be earthed. This appliance is supplied with a 3 core mains cable coloured as follows:

Brown = L or Live

Blue = N or Neutral

Green and Yellow = E or Earth

EUR (Blue), N (Brown), L (Green/Yellow), UK. Double pole switched fused spur outlet. Use a 3A fuse.

The fuse must be rated at 3 Amps.

Standard Installation Accessories List

Spec.Illustration PictureQty

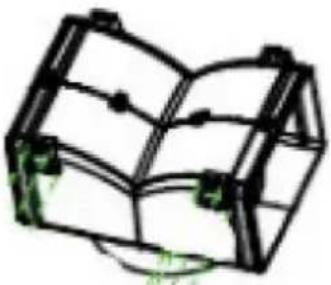

Hood body 1HAIER HADG6DCS56B - Standard Installation Accessories List - 1
Lower chimney (500mm)HAIER HADG6DCS56B - Standard Installation Accessories List - 21
Upper chimney (500mm)HAIER HADG6DCS56B - Standard Installation Accessories List - 31
Upper chimney bracketHAIER HADG6DCS56B - Standard Installation Accessories List - 41
Lower chimney bracketHAIER HADG6DCS56B - Standard Installation Accessories List - 51
Cooker hood bracketHAIER HADG6DCS56B - Standard Installation Accessories List - 61
φ8 rawl plugs φ8×φ6 white colorHAIER HADG6DCS56B - Standard Installation Accessories List - 79
Screw (ST4 * 30 mm)HAIER HADG6DCS56B - Standard Installation Accessories List - 89
Screw (ST4 * 8 mm)HAIER HADG6DCS56B - Standard Installation Accessories List - 96
Air outletHAIER HADG6DCS56B - Standard Installation Accessories List - 101
Carbon filterHAIER HADG6DCS56B - Standard Installation Accessories List - 112

INSTALLATION (wall mounting)

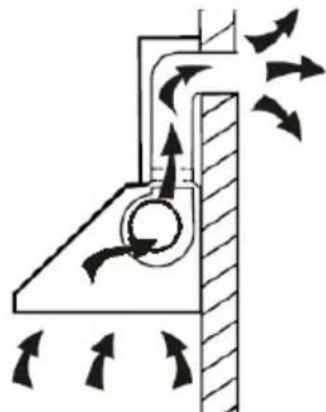

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe non flammable with an interior diameter of 150mm)

Diagram of airflow around a mechanical component with directional arrows indicating movement.

  1. Before installation, turn the unit off and unplug it from the outlet.

Hand holding a power outlet plug with a cable.

  1. The cooker hood should be placed at a distance of 65~75cm above the cooking plane for best effect.

65 cm, 75 cm

INSTALLING THE HOOD

Position the hood at the desired height respecting the minimum height above the hob.

Mark the location of the wall bracket. (Place the holes between 700 and 800 mm above the worktop) Remove the hood and position the wall bracket to mark the locations of the holes on the wall.

Drill the 3 holes in the wall to insert the appropriate fastening system (screw ST4x30mm).

Holes on wall, wall plug, cooker hood bracket, screw (4mm x 30mm).

Hang the hood in the notches of the wall bracket.

Diagram showing a brick wall with a switch and a separate 3D schematic of a door mechanism.

INSTALLING THE HOOD

Once the hood is in place, locate the location of the 4 additional wall mount screws as shown in the following diagram.

Remove the hood to puncture the wall and install wall plugs.

Secure the body of the hood with 4 screws of 4 mm in diameter using dowels adapted to your wall.

Technical line drawing of a wall corner with internal components and directional arrows.

If the extraction mode is selected, place the exhaust air duct on the air outlet as shown.

Technical line drawing of a mechanical component with a spring-loaded assembly and a cross-section view.

INSTALLING THE HOOD

Attach the lower chimney support to the lower chimney as shown.

Use 2 screws ST4x8mm.

(Do not over tighten the screws, make sure the upper chimney can slide easily into the lower chimney)

Insert the upper chimney into the lower chimney.

Upper chimney (inner), lower chimney bracket, lower chimney (outer).

Position the bottom chimney in the appliance, then mark the holes on the wall.

Two technical line drawings showing a tool inside a box and a drill bit in a container.

Remove the lower chimney, then drill holes in the wall: hole for screw diameter 8 mm

Use the dowels adapted to your wall

INSTALLING THE HOOD

Install the lower chimney, then screw it to the wall with 2 screws of diameter 8 mm

Technical line drawing of a 3D rectangular block with internal cutout and dimension annotations.

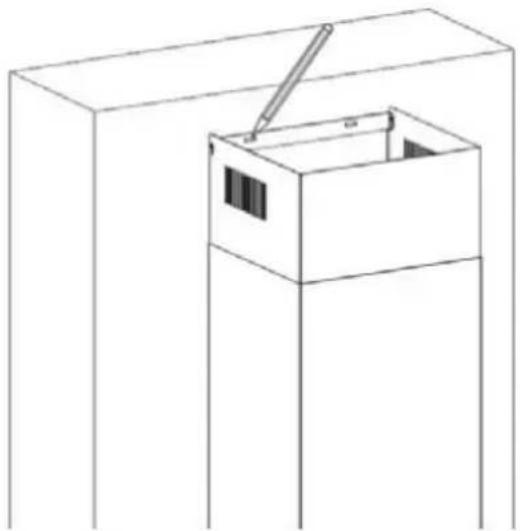

Line drawing of a box with a handle and internal compartments.

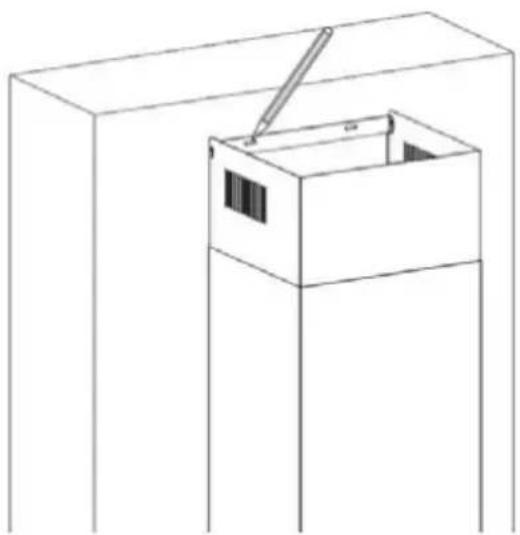

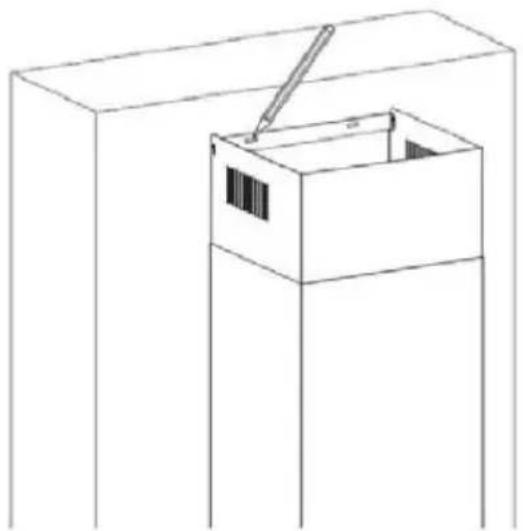

Then pull the upper chimney upwards to the desired height. Mark the locations of the mounting holes of the upper chimney support.

Lower the upper chimney and then drill holes in the wall.

Insert the dowels adapted to your wall

Line drawing of a rectangular box with a hand holding a tool.

INSTALLING THE HOOD

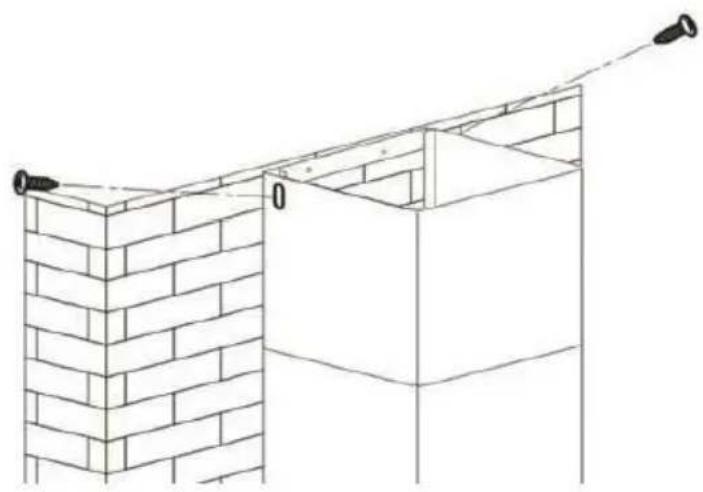

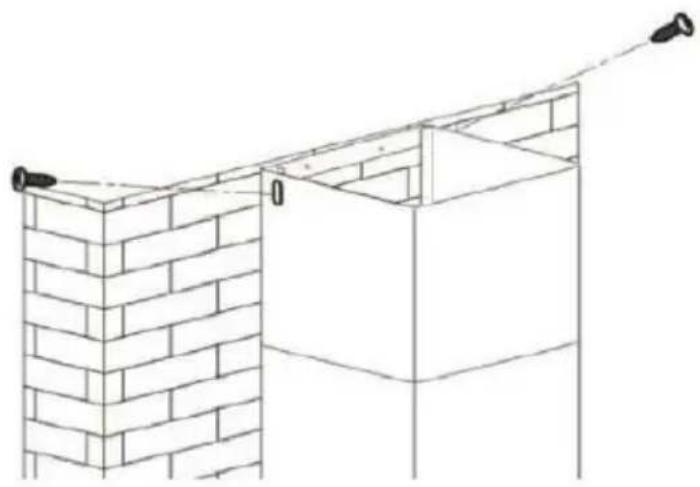

Secure the wall bracket of the upper chimney to the wall using the selected dowels (8 mm screws recommended).

3D diagram of a rectangular block with internal arrows indicating direction.

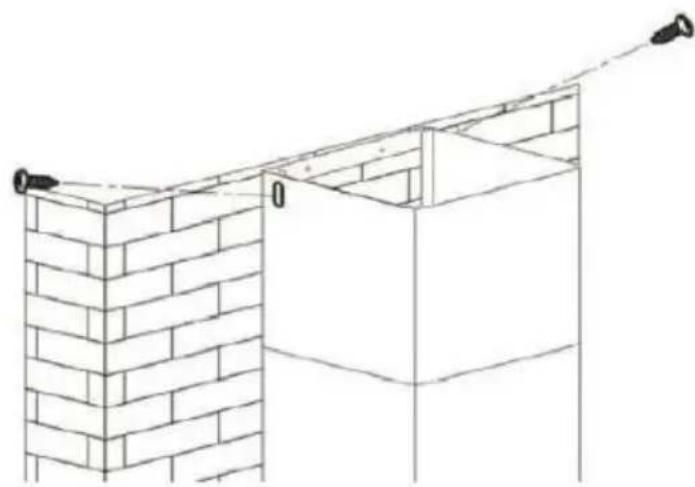

Line drawing of a brick wall structure with two hanging sensors and a vertical panel.

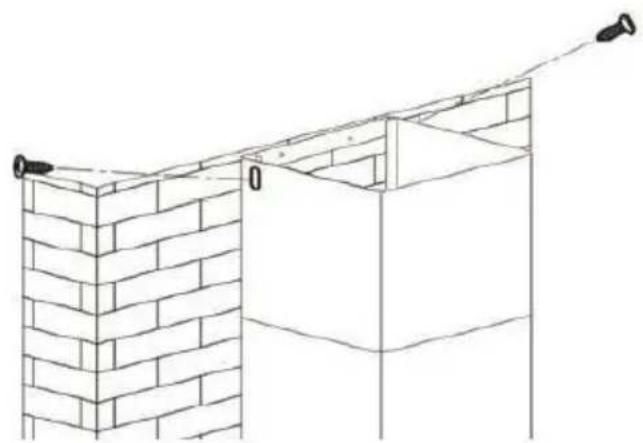

Reassemble the upper chimney and fix it to the wall bracket with 2 screws ST4x8mm

Fasten the lower chimney to the lugs of the kitchen hood using 2 screws ST4x8mm.

Screw

Standard Installation Accessories List

Spec.Illustration PictureQty
Air DeflectorHAIER HADG6DCS56B - Standard Installation Accessories List - 11
BracketHAIER HADG6DCS56B - Standard Installation Accessories List - 21
φ8 rawl plugs φ8×φ6 white colorHAIER HADG6DCS56B - Standard Installation Accessories List - 32
Screws ST4.0×30HAIER HADG6DCS56B - Standard Installation Accessories List - 42
Screws ST3.5×12HAIER HADG6DCS56B - Standard Installation Accessories List - 52

INSTALLATION (AIR DEFLECTOR FOR T-SHAPE, CURVED GLASS, FLAT GLASS MODELS):

Air deflector is mentioned as included and not optional.

  1. Fix the bracket to the T-shaped plastic outlet with 2pcs ST3.5x12mm screws provided as shown below:

Diagram showing a device transformation from an open box to a closed box, with green dashed lines indicating motion or alignment.

  1. Drill 2 holes on the wall to accommodate the wall plugs, then screw and tighten the bracket onto the wall with 2pcs ST4x30mm screws provided.

Technical line drawing of a kitchen chimney mounted on a brick wall.

  1. Attach the exhaust pipe onto the air outlet of the cooker hood as shown below:

Line drawing of a black metal chimney mounted on a white brick wall.

  1. Install the chimney to the unit and fix it.

Line drawing of a chimney mounted on a brick wall.

Please kindly be noted: T-shaped plastic outlet and v-flaps can not be used at the same time. You can use them in two ways: 1) Add v-flap on existing outlet; 2) Use T-shaped plastic outlet, no add v-flap.

Note: The product is provided with v-flap accessory. This accessory is not mandatory for installation, operation and use of the product.

INSTALLATION (VENT INSIDE)

If you do not have an outlet to the outside, exhaust pipe is not required and the installation is similar to the one shown in section "INSTALLATION (VENT OUTSIDE)".

Diagram of a mechanical or fluidic component with directional arrows indicating flow or movement.

Activated carbon filter can be used to trap odors.

In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating downward motion.

Simple line drawing of a hand pressing down on a flat surface with a curved arrow indicating motion.

Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side.

Technical line drawing of a mechanical component with a circular arrow indicating 'CLOSE'.

NOTE:

Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous. When activated carbon filter attached, the suction power will be lower.

1 2 3 B ♠

OPERATION

STANDBY MODE.

After plugging in, all lighting and the system are in STANDBY MODE.

1 Low Speed button

It is used for ventilation in the kitchen. It is suitable for simmering and cooking that do not produce much steam.

2 Medium Speed button

The airflow speed is ideal for ventilation during standard cooking operations.

3 High Speed button

When high density of smoke or steam is produced, press the high-speed button for effective ventilation.

B Booster function

This hood has a booster function. To activate the booster, press

B to speed 4, entering the highest speed while the hood is in use, and it will increase speed for 5 minutes before slowing down again.

Light

Short press for lighting on and off.

Quick timer: Long press the light button and hold for 3 seconds; the fan speed buttons will flash and enter a 5-minute countdown. After 5 minutes, the motor and light will turn off automatically with three buzzer sounds.

MAINTENANCE

Before cleaning switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

II. Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust..... so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to unit that installed as a recirculation unit (not vented to the outside). This filter traps odors and must be replaced at least once a year

depending on how frequent the cooker hood used.

IV. Changing a light bulb

Remove the screws on the glass, take off the hood glass. Find the bulb that requires replacement, you will find it located in the light fixture which is inside the exposed section of the canopy.

Technical diagram showing two parallel lines with downward arrows indicating force or connection points.

Disconnect the light wiring point and remove the bulb holders and wiring from the hood. Important: It's not possible to replace the bulbs individually, it will be necessary to obtain the bulbs, bulb holders and wiring as a complete part. (LED light: MAX 1.5W)

Fit the replacement bulbs, bulb holders and wiring in the same manners as the originals. Then reconnect the light wiring point.

Refit the hood glass and fasten the glass screws. Make sure the screws are fully tightened.

TROUBLESHOOTING

FaultCauseSolution
Light on, but fan does not workThe fan blade is jammed.Switch off the unit and repair by qualified service personnel only.
The motor is damaged.
Both light and fan do not workHalogen light bulb burn.Replace the bulb with correct rating.
Power cord looses.Plug in to the power supply again.
Serious Vibration of the unitThe fan blade is damaged.Switch of the unit and repair by qualified service personnel only.
The fan motor is not fixed tightly.Switch off the unit and repair by qualified service personnel only.
The unit is not hung properly on the bracket.Take down the unit and check whether the bracket is in proper location.
Suction performance not goodToo long distance between the unit and the cooking planeReadjust the distance to 65-75cm

CUSTOMER ASSISTANCE SERVICE

If you cannot identify the cause of the operating anomaly, switch off the appliance and contact the Assistance Service.

PRODUCT SERIAL NUMBER. Where can I find it?

It is important you to inform the Assistance Service of your product code and its serial number (a 16 character code which begins with the number 3); this can be found on the guarantee certificate or on the data plate located on the appliance.

It will help to avoid wasted journeys to technicians, thereby (and most significantly) saving the corresponding callout charges.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

HAIER HADG6DCS56B - CUSTOMER ASSISTANCE SERVICE - 1

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific

treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

WEEE should not be treated as household waste;

WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

INSTALLING THE HOOD

Line drawing of a box with a handle inserted into a container (no text or symbols).

INSTALLING THE HOOD

Line drawing of a brick wall corner with a chimney and hanging pipe (no text or symbols).

Simple line drawing of a hand pressing down on a curved surface (no text or symbols).

CLOSING DIRECTION

NOTE:

HOOD INSTALLATION

HOOD INSTALLATION

HOOD INSTALLATION

Line drawing of a brick wall corner with hanging lights and a door, no text or symbols present

Simple line drawing of a hand pressing down on a flat surface (no text or symbols)

CLOSING DIRECTION

WARNING:

Line drawing of a box with a pen inserted into it, no text or symbols present

Then mount the upper chimney and fix it to the wall bracket with 2 screws ST4x8mm

Vis

Simple line drawing of a hand pressing down on a laptop (no text or symbols).

NOTE:

INSTALLATION (Wall mounting)

HOOD MOUNTING

HOOD MOUNTING

Line drawing of a box with a handle and internal compartments, without any text or symbols.

HOOD MOUNTING

Isometric line drawing of a brick wall with two hanging sensors and a support structure, without any text or symbols.

Simple line drawing of a hand pressing down on a piano keyboard, without any text or symbols.

NOTE:

Line drawing of a box with a handle and internal compartments, with no text or symbols present.

Isometric line drawing of a brick wall with two hanging sensors and a support structure, with no text or symbols.

Simple line drawing of a hand pressing down on a piano keyboard (no text or symbols)

  1. Before installation, disconnect the appliance and unplug the power cord.

Hand holding a plug inserted into an electrical outlet (no text or symbols visible)

  1. The extractor should be installed at a distance of 65~75 cm above the cooking surface for best performance.

65cm 75cm

HOOD INSTALLATION

Install the hood at the desired height, respecting the minimum height above the cooking surface.

Mark the location of the wall bracket (place holes between 700 and 800 mm above the work surface). Remove the hood and position the wall bracket to mark the hole positions on the wall.

HOOD INSTALLATION

If extraction mode is selected, connect the exhaust air duct to the air outlet as shown.

Technical diagram showing a mechanical assembly with a spring-loaded component and a cross-sectional view of a structural frame (no text or symbols)

HOOD INSTALLATION

Remove the lower chimney, then drill holes in the wall: hole for screw diameter ∅ 8 mm.

Use wall plugs suitable for your wall.

HOOD INSTALLATION

Install the lower chimney, then secure it to the wall with 2 screws of diameter ∅ 8 mm.

Simple line drawing of a 3D rectangular prism with an internal square and directional arrows indicating movement (no text or symbols)

Line drawing of a box with a handle and internal compartments, no text or symbols present.

Then pull the upper chimney to the desired height. Mark the positions of the mounting holes for the upper chimney bracket.

Lower the upper chimney and drill holes in the wall. Insert wall plugs suitable for the wall.

Line drawing of a rectangular box with a hand holding a tool, no text or symbols present.

HOOD INSTALLATION

Attach the wall bracket for the upper chimney to the wall using the selected wall plugs (8 mm screws are recommended).

Pure technical line drawing of a 3D rectangular block with internal structure and directional arrows, no text or symbols present.

Isometric line drawing of a brick wall with two hanging sensors and a support structure, no text or symbols.

Reinstall the upper chimney and secure it to the wall bracket using 2 screws ST4 x 8 mm.

  1. Drill 2 holes in the wall to install wall plugs, then screw and tighten the bracket to the wall using the supplied screws (2 pcs, ST4 x 30 mm).

Diagram of a roof structure with a mounted device and a conical chimney, set against a brick wall, no text or symbols.

  1. Place the chimney on the unit and secure it.

Line drawing of a chimney mounted on a brick wall, no text or symbols.

Simple line drawing of a hand pressing down on a laptop, no text or symbols.

Insert the activated carbon filter into the unit and turn it clockwise. Repeat the same on the other side.

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols.

Close

NOTE:

o Check that the filter is properly locked. Otherwise, it could loosen and cause a hazard.

o When the activated carbon filter is fitted, the suction power will be reduced.

DESCRIPTION OF COMPONENTS

1 2 3 B

OPERATION

STANDBY MODE.

After switching on, the entire lighting system is in STANDBY MODE.

Disconnect the wiring connector and remove the lamp holders and wiring from the extractor. Important: It is not possible to replace the bulbs individually; you will need to purchase the bulbs, lamp holders, and wiring as a set. (LED light: MAX. 1.5 W)

Install the replacement bulbs, lamp holders, and wiring in the same way as the originals were installed. Then reconnect the lighting wiring connector.

Reinstall the glass of the extractor and tighten the glass screws. Make sure the screws are fully tightened.

TROUBLESHOOTING

KvarUzrokRešenje
Svetlo je uključeno, ali ventilator ne radiLopatica ventilatora se zaglavila.Isključite jedinicu i angažujte samo ovlašćenog servisera za popravku.
Motor je oštećen.
Svetlo i ventilator ne radeHalogena sijalica je pregorela.Zamenite je odgovarajućom sijalicom.
Kabel za napajanje se izvukao.Ponovo uključite uređaj u struju.
Jedinica snažno vibriraLopatica ventilatora je oštećena.Isključite jedinicu i angažujte samo ovlašćenog servisera za popravku.
Motor ventilatora nije dobro pričvršćen.Isključite jedinicu i angažujte samo ovlašćenog servisera za popravku.
Uređaj nije pravilno okačen na nosač.Skinite jedinicu i proverite da li je nosač na odgovarajućem mestu.
Učinak usisavanja nije dobarPrevelika udaljenost između uređaja i ploče za kuvanjePodesite rastojanje na 65-75 cm.

CUSTOMER SERVICE

If you cannot identify the cause of the malfunction, turn off the appliance and contact Customer Service.

PRODUCT SERIAL NUMBER. Where is it located?

treatments aimed at removing and properly disposing of all polluting substances, as well as collecting and recycling all materials.

  1. Before installation, turn off the unit and unplug it from the outlet.

Hand holding a power outlet plug with a cable, no text or symbols visible.

  1. The range hood should be installed at a distance of 65~75cm above the cooking surface for best results.

65 cm, 75 cm

HOOD INSTALLATION

Place the hood at the desired height, respecting the minimum height above the cooktop.

HOOD INSTALLATION

After the hood is positioned, locate the spots for 4 additional wall-mounting screws as shown in the following diagram.

Remove the hood to drill the wall and insert wall plugs.

HOOD INSTALLATION

Remove the lower chimney, then drill holes in the wall: hole for screw diameter ∅ 8 mm Use wall plugs suitable for your wall

HOOD INSTALLATION

Install the lower chimney, then attach it to the wall using 2 screws with a diameter of ∅ 8 mm.

Simple line drawing of a 3D rectangular prism with an internal cube and directional arrows indicating force or movement, no text or symbols.

Line drawing of a box with a handle and internal compartments, no text or symbols present.

INSTALLING THE HOOD

Attach the wall bracket for the upper chimney to the wall using the selected dowels (8 mm screws are recommended).

Simple line drawing of a rectangular box with a horizontal bar and two arrows pointing inward, no text or symbols.

Line drawing of a brick wall structure with a vertical support and diagonal pipe extending upward, no text or symbols.

Reinstall the upper chimney and attach it to the wall bracket using 2 screws ST4x8mm.

Attach the lower chimney to the tabs of the kitchen hood using 2 screws ST4x8mm.

Screw

List of standard installation equipment

Spec.Slika ilustracijeKol.
Zračni deflektorHAIER HADG6DCS56B - List of standard installation equipment - 11
nosačHAIER HADG6DCS56B - List of standard installation equipment - 21
ø8 zidni čepoviø8 × ø6 bijela bojaHAIER HADG6DCS56B - List of standard installation equipment - 32
Vijci ST4.0x30HAIER HADG6DCS56B - List of standard installation equipment - 42
Vijci ST3.5*12HAIER HADG6DCS56B - List of standard installation equipment - 52

INSTALLATION (AIR DEFLECTOR FOR T-SHAPED MODELS, CURVED GLASS, FLAT GLASS):

  1. Drill 2 holes in the wall to insert wall plugs, then screw and tighten the bracket to the wall using the supplied screws, 2 pieces ST4x30mm.

Diagram of a spray gun mounted on a conical lamp against a brick wall, with no text or symbols present.

  1. Install the chimney onto the unit and secure it.

Line drawing of a double-hopper kitchen chimney mounted on a brick wall (no text or symbols)

Note: The plastic T-shaped outlet and the v-flap cannot be used simultaneously. You can use them in two ways: 1) Add the v-flap to the existing outlet; 2) Use the plastic T-shaped outlet without adding the v-flap.

Note: The product is equipped with accessories for the v-flap. This accessory is not mandatory for installation, operation, or use of the product.

INSTALLATION (INTERNAL VENT)

The activated carbon filter can be used to prevent the spread of unpleasant odors.

To install the activated carbon filter, you must first detach the grease filter. Press the latch and pull it downwards.

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a hand pressing down on a mechanical component (no text or symbols)

Connect the activated carbon filter to the unit and turn it clockwise. Repeat the same on the other side.

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

NOTE:

  1. Before installing the range hood, switch it off and disconnect it from the power supply.

Hand inserting a plug into an electrical outlet (no text or symbols visible)

  1. For optimal performance, install the range hood 65-75 cm above the cooking surface.

65 cm 75 cm

HOOD INSTALLATION

HOOD INSTALLATION

HOOD INSTALLATION

Remove the lower duct, then drill holes in the wall: a hole for the screw diameter Φ8 mm.

Use wall plugs suitable for your wall.

HOOD INSTALLATION

Install the lower duct, then screw it to the wall with 2 screws of diameter Φ8 mm.

Pure technical line drawing of a 3D rectangular block with internal cutout and dimension arrows, no text or symbols present

Line drawing of a box with a handle and internal compartments, no text or symbols present

HOOD INSTALLATION

Line drawing of a brick wall structure with a vertical support and two hanging sensors (no text or symbols)

Reassemble the upper duct and attach it to the wall bracket with 2 screws ST4 x 8 mm.

  1. Install the duct onto the unit and secure it.

Line drawing of a double-hopper kitchen chimney mounted on a brick wall (no text or symbols)

Simple line drawing of a hand pressing down on a mechanical component (no text or symbols)

Insert the activated carbon filter into the unit and turn it clockwise. Repeat the same on the other side.

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

CLOSING

NOTE:

Line drawing of a box with a pencil inserted into it, no text or symbols present.

Line drawing of a brick wall structure with a vertical support and two hanging objects (no text or symbols).

Simple line drawing of a hand pressing down on a piano keyboard (no text or symbols).

NOTE:

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : HAIER

Model : HADG6DCS56B

Category : Range hood
