USER MANUAL Acorn i-Size COSATTO

clever stuff for happy babies

The ABCs

R129/04 40 - 105cm ≤20kg 100 - 150cm

Acorn All Stages i-Size 360

i-Size Car Seat

(EN) Instruction 1 - 32

(FR) Instruction, (DE) Gebrauchsanleitung, (IT) Istruzioni,

(EN) Part list diagram 33

(FR) Schéma de nomenclature, (DE) Teilelisteabbildung, (IT) Diagramma della lista delle parti

(EN) Spare part list diagram 34

Important: Keep these instructions for future reference.

Important safety Information

The instruction manual should be kept safely with child car seat for its life period:

There is a fabric compartment at the rear of the headrest fabric cover for storage of the instruction manual.

It is recommended to check that the child restraint is compatible with the intended vehicle at the time of purchase.

Please refer to the vehicle list, Cosatto fit checker app (http://cosat.to/fitchecker) or the vehicle fitting list section on the website (http://cosat.to/acorn2familybasevl).

Seat positions in other vehicles may also be suitable to accept the child restraint. If in doubt, consult either Cosatto or the retailer.

Child height, weight & age:

- When used in rearward facing mode, the car seat is suitable from birth, height between 40 and 105cm , up to maximum weight of 20kg .

- IMPORTANT - DO NOT USE FORWARD FACING BEFORE THE CHILD'S AGE EXCEEDS 15 MONTHS (REFER TO INSTRUCTIONS).

- When used in forward facing mode, the car seat is suitable from 15 months, height between 76 and 105cm , up to maximum weight of 20kg .

- When used in booster mode, the car seat is suitable for height between 100 and 150 cm.

Location:

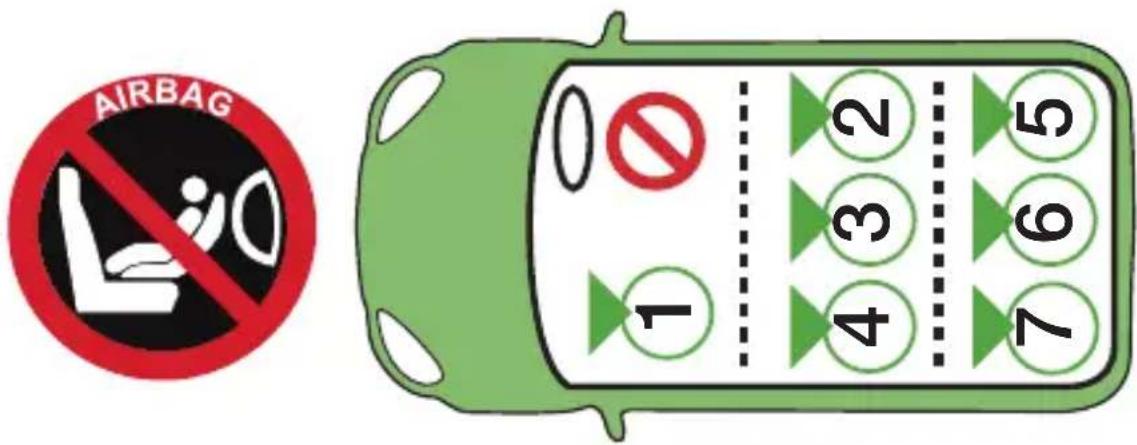

- Refer to the vehicle list for information of where the child car seat base will fit in your vehicle.

- Never use the child car seat on a seat where an airbag is fitted and active. Refer to your vehicle user manual for information on de-activating the airbag.

- If the vehicle seat backrest has a recline function, place the vehicle seat in the most upright position when using the child car seat.

- Do not use the child car seat in the home. It has not been designed for home use and should only be used in your car.

AIRBAG 0 1 2 3 4 5 6 7

Safety - Please read carefully:

- The "Acorn All Stages i-Size 360" module is only compatible with the "Acorn 2 Rotating Family Base" (Sold separately). Read the respective instruction manuals carefully before use.

- WARNING: Never travel in the sideward facing position.

- Any rigid items and plastic parts of the child car seat must be located and installed so that they cannot become trapped by a movable seat or the vehicle door.

- If any load bearing points other than those described in the instructions are used, this can significantly reduce the protection factor of the child car seat.

- ALWAYS secure your child with the safety harness when using this child car seat.

- Never leave your child unattended.

- Do not attempt to dismantle, modify or add to any part of the child car seat or change the way your vehicle seat belts are made or used.

- After an accident the child car seat should be replaced and the vehicle seat belts. Although they may look undamaged, they may not protect your child as well as they should.

- Do not place anything such as a towel or cushion under the child car seat. This could affect the performance of the child restraint system in an accident.

- Any vehicle seat belt holding the child car seat to the vehicle should be tight, and that belt should not be twisted.

- Support-leg should be in firm contact with the vehicle floor.

- Always make sure that the child car seat harness and vehicle seat belt are correctly tensioned to ensure maximum protection for your child.

- Prevent harness/ vehicle seat belt from getting trapped between car doors or rubbing against sharp parts of the seat or body.

- If the harness/vehicle belts becomes cut or frayed, replace it before travelling.

- Never use replacement parts other than those approved by Cosatto.

- Cosatto advise that child car seat should not be bought or sold second-hand. Many child car seat acquired this way have been found to be dangerous.

- NOTE: The child car seat can mark vehicle seat upholstery. Cosatto cannot be held responsible for damage or marking to vehicle seat upholstery.

- Security is only guaranteed if the child car seat is fitted in accordance with these instructions.

- Safely secure any luggage or other objects that might cause injuries to the occupant of the child car seat in the event of a collision.

- Failure to comply with the instructions would be dangerous, and will automatically void the warranty and exempt Cosatto from any liability.

- The harness buckle has been designed to be released quickly in an emergency. IT IS NOT CHILD PROOF. More inquisitive children may learn to undo the buckle. Children should be told never to play with the harness buckle or any other part of the child car seat.

- It is important that the lap harness is worn low down, so that the pelvis of the child is firmly engaged.

- In booster seat mode, the lap vehicle seat belt must be worn in such a way as to properly secure the pelvis of the child.

- Never use the child car seat without its fabric cover because the fabric cover constitutes as an integral part of the child car seat performance. The fabric cover should not be replaced with any other than the ones recommended by Cosatto.

- Cover the child car seat if it is left in direct sun light for prolonged period as the child car seat base surfaces may get very hot. Check the child car seat surface before placing your child in the seat.

Notice:

1. (40 - 105cm) This is an "i-Size" enhanced child restraint system. It is approved to regulation no. 129, for use in, "i-Size compatible" vehicle seating positions as indicated by vehicle manufacturers in the vehicle users' manual.
2. (100 - 150cm) This is a specific vehicle booster seat enhanced child restraint system. It is approved to regulation no. 129, for use in the specific vehicle indicated in the applicable vehicle list.
3. Never use this child car seat on passenger seat fitted with an active airbag is installed.
4. If in doubt, consult either the child restraint manufacturer or retailer.

Care & Maintenance:

• Your child restraint system has been designed to meet safety standards and with correct use and maintenance will give many years of trouble free performance.
• Store your child restraint system in a dry, safe place.
• Storing a damp child restraint system will encourage mildew to form, so after exposure to damp conditions, dry off with a soft cloth and allow to dry thoroughly before storing.
• Avoid leaving the child restraint system in sunlight for prolonged periods as this may cause fabrics to fade.
• Inspect the child restraint system regularly for signs of damage- stop using the product if damage is found.
• DO NOT take apart, or attempt to take apart the child restraint system when cleaning. It is unnecessary and dangerous to do so.
• Plastic and metal parts may be sponged clean with warm water and a mild detergent.
  • Refer to the wash care on soft goods for cleaning instruction.
• Remove insert from seat cover/seat liner prior to cleaning.
• Never clean with abrasive, ammonia based, bleach based or spirit type cleaners.
• Remove all packaging & protective materials on the product before using.

Visual language Key:

XX	Refer to warning XX
	Correct action
	Incorrect action
click!	Audible sound

	Repeat action x times
	General action arrow
	Lock
	Unlock

	Press and hold
	Check
	Continue to step XX
	Repeat on other side

Part List:

Please refer to diagrams:

P1: Headrest P6: Harness

P2: Seat liner head section P7: Crotch pad

P3: Seat liner P8: Side impact protection block

P4: Seat liner side wing section P9: Tuck in tool

P5: Chest pads (pair)

Sold separately:

P10*: ISOFIX arm P12*: ISOFIX guide (x2)

P11*: Support-leg

Replacement Parts:

The replacement parts shown below are available for your product. For UK & Ireland customers, order through our website: http://www.cosatto.com/service-centre/spares For customer outside UK & Ireland, contact information for your local distributor can be found on http://www.cosatto.com/stockists

If you require any further assistance, please contact us at [e-mail]

S1: Seat liner S4: Headrest cover

S2: Crotch pad S5: Seat cover

S3: Chest pads (pair) S6: Tuck-in tool

Fitting & Operation Information:

Please refer to the following diagrams:

Acorn 2 Rotating Family Base (Sold separately):

Location 1- WARNING: Ensure that your vehicle has ISOFIX anchor points.

Refer to the compatibility list for information of where the child car seat base will fit in your vehicle.

2- Fitting the ISOFIX guides (Optional):

The ISOFIX guides can help identify the vehicle ISOFIX anchor points and make installation easier. They can also help with the protection of your vehicle seat.

Perperation

3- Open the ISOFIX support-leg (a).

Press and hold ISOFIX arm adjustment buttons (b) and extended the arms fully (c).

Fitting:

4- Position the base over the vehicle seat (a).

Engage the ISOFIX arms (b) and ensure that the ISOFIX arm security indicators are green (c).

5- Push the base back until it rests firmly against the vehicle seat backrest (a).

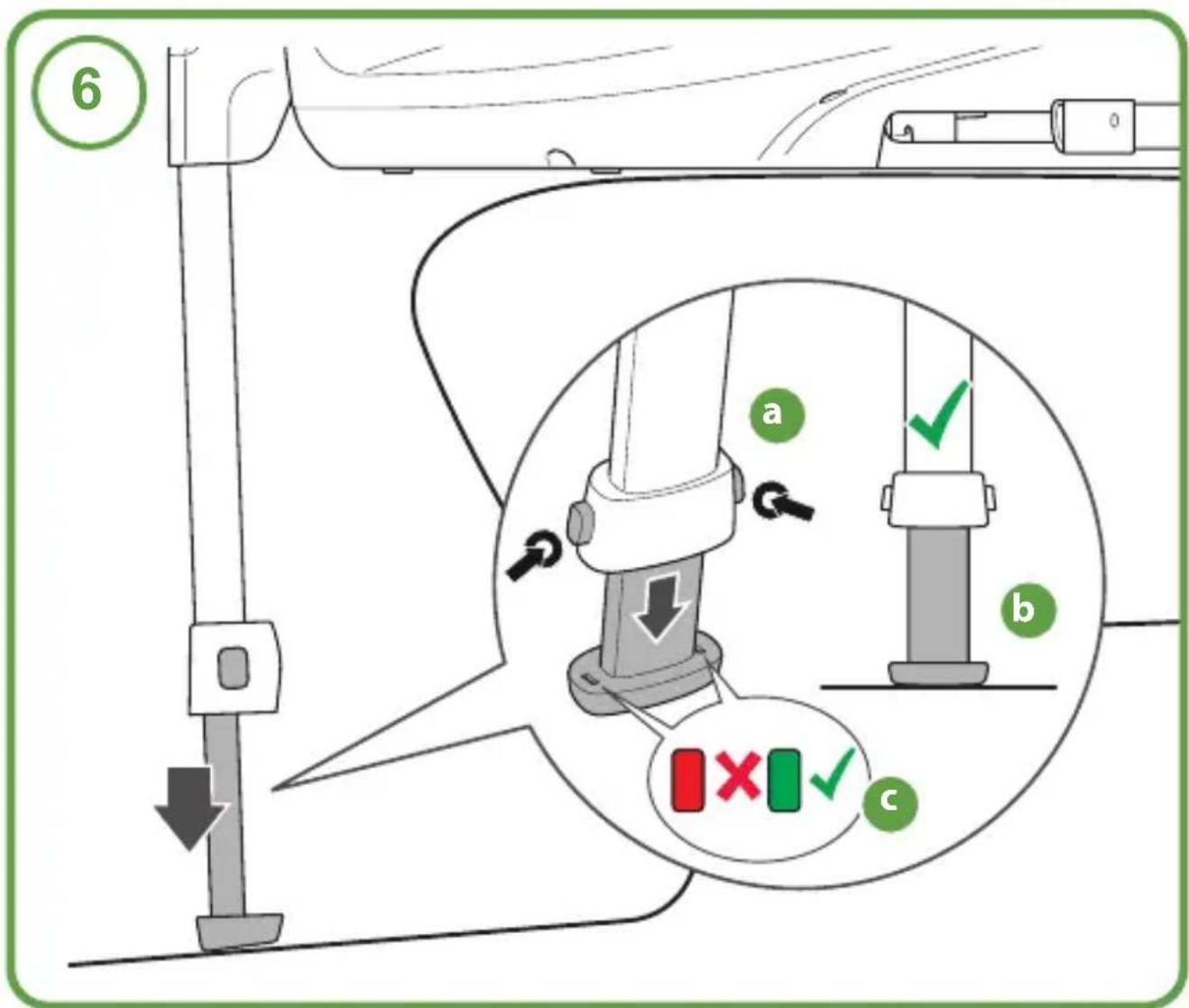

6- Adjust the support-leg (a) until it makes firm contact with vehicle floor (b) and the support-leg contact indicator is green (c).

Acorn All Stages i-Size 360:

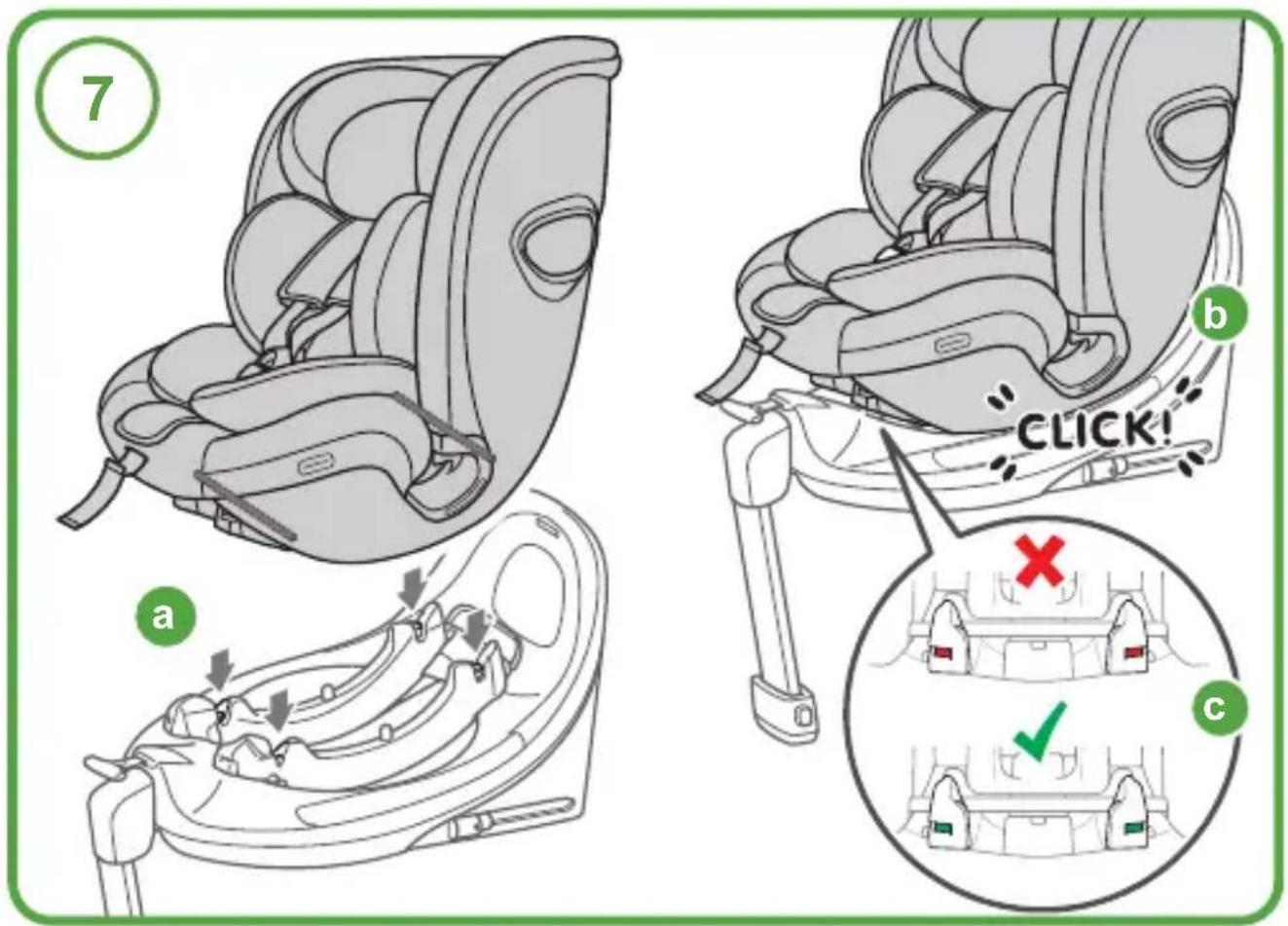

Car seat 7- Fitting:

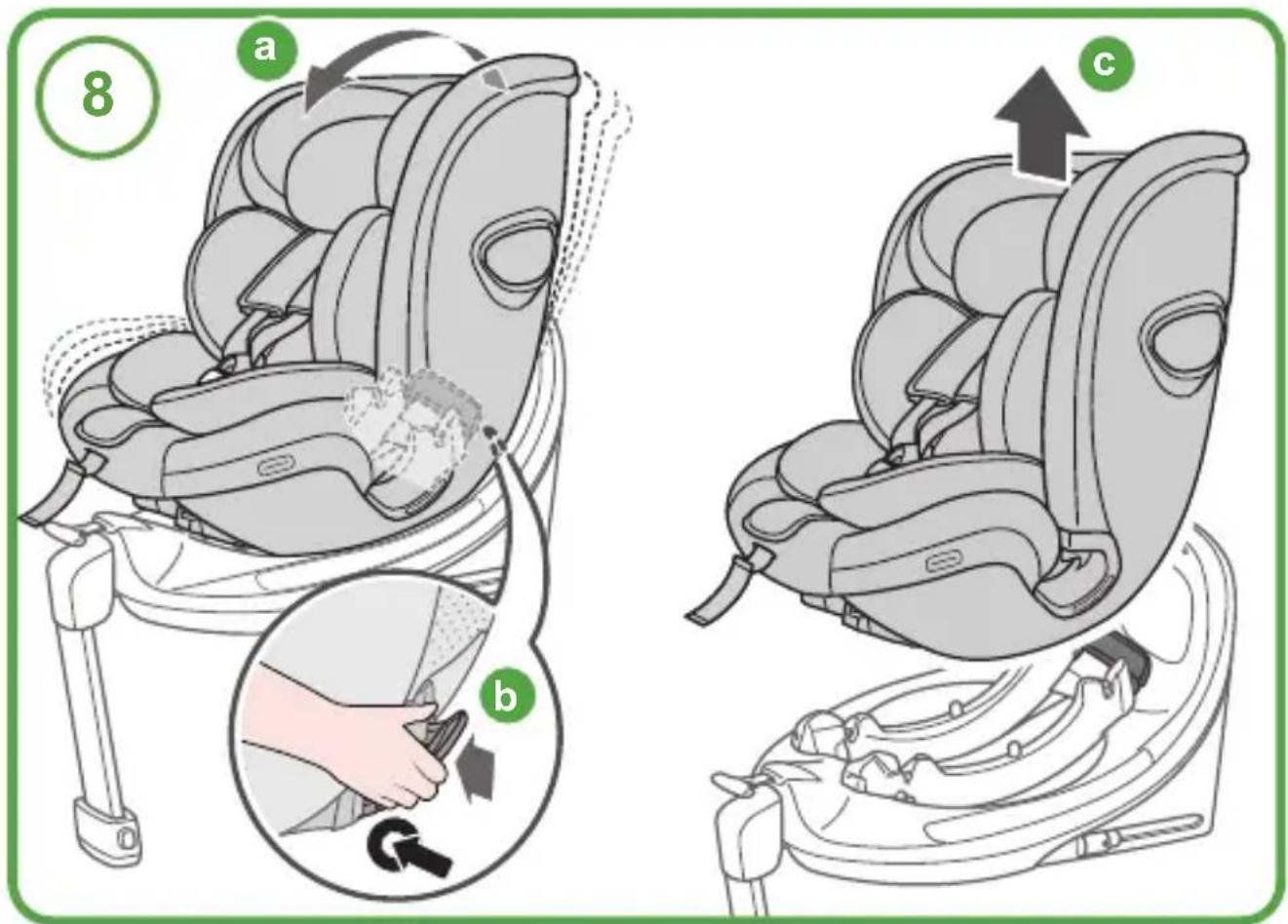

8- Remove:

Recline the backrest to position 1 (Refer to step 9) (a).

Press and hold the release lever (b) and lift the seat clear of the base (c).

Backrest recline

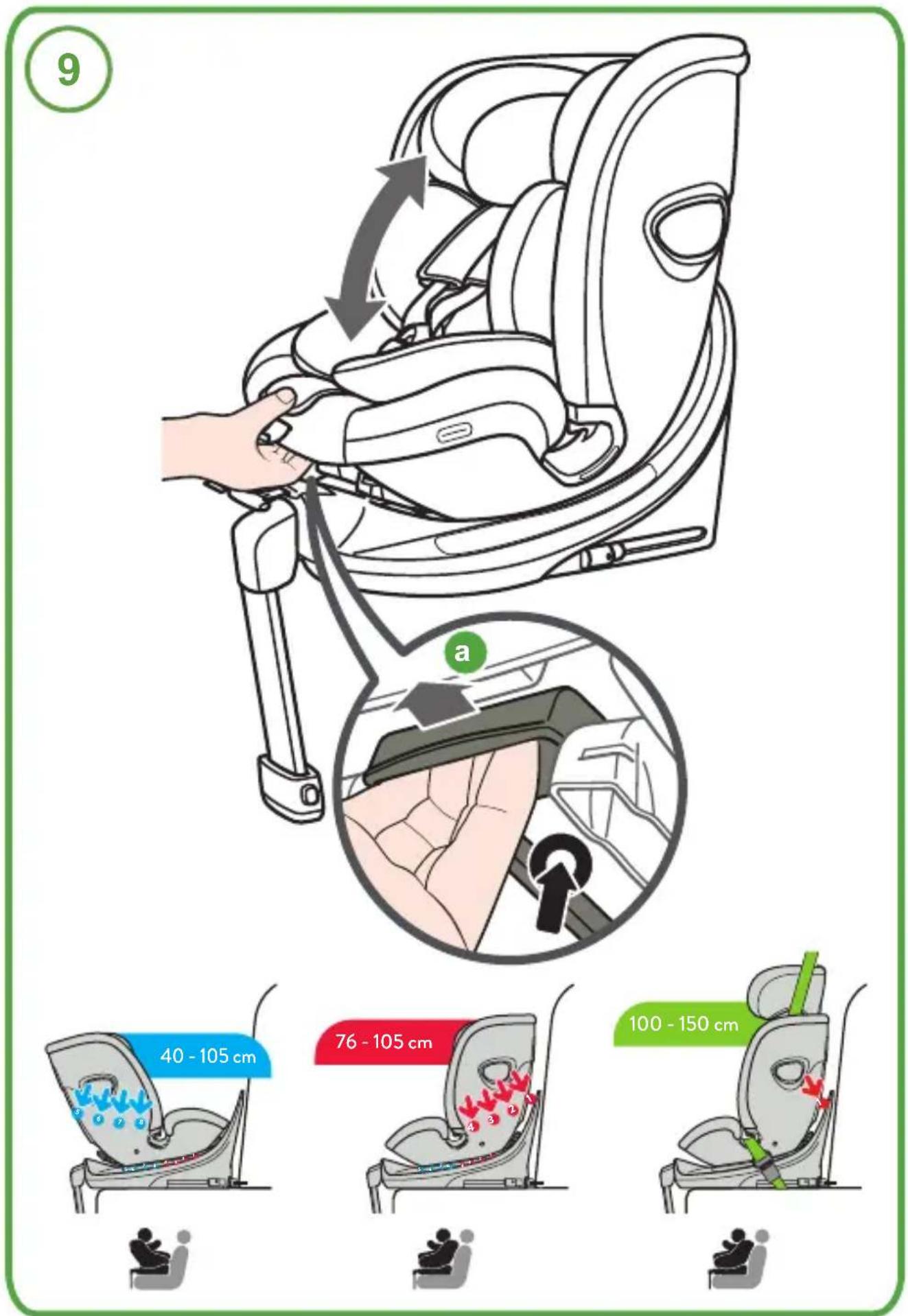

9- Adjusting:

Important: Only use the specified recline position(s) for each mode:

Rearward facing mode (40 -105cm): 5, 6, 7, 8

Forward facing mode (76 -105cm): 1, 2, 3, 4

Booster seat mode (100 - 150cm): 1

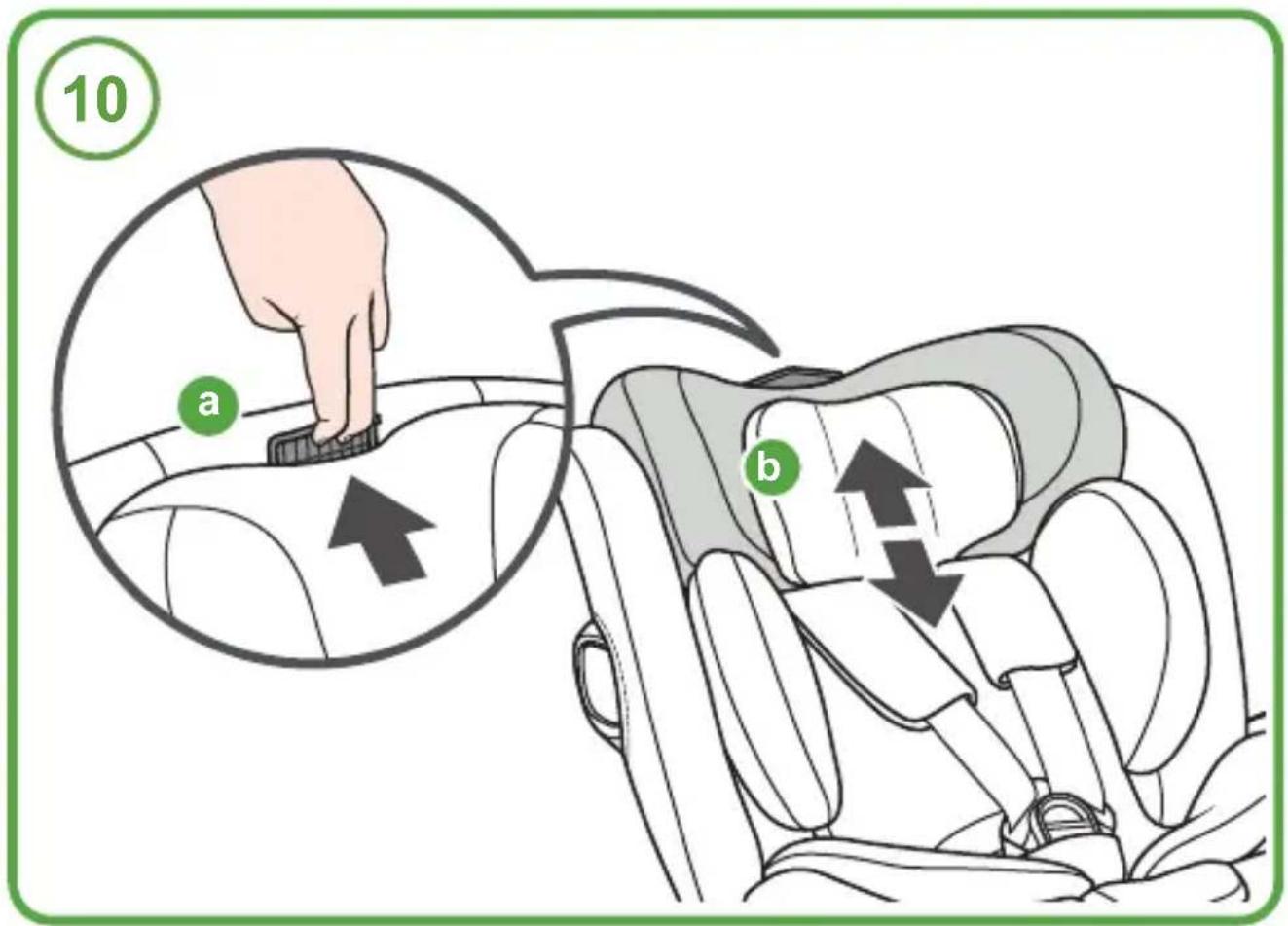

Harness 10- Adjusting the head support:

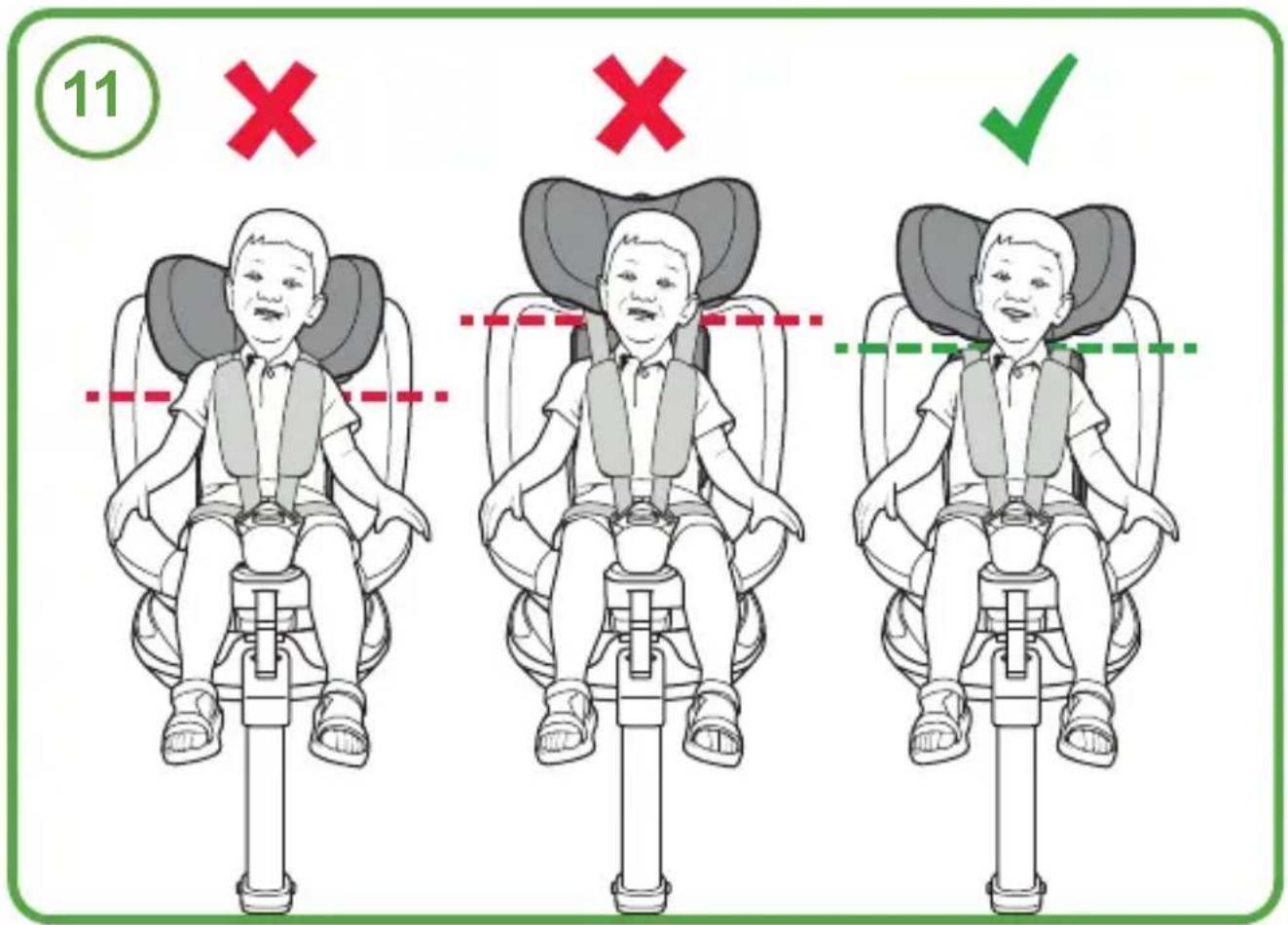

11- Satisfactory position: Please ensure that the harness is level with the child's shoulder.

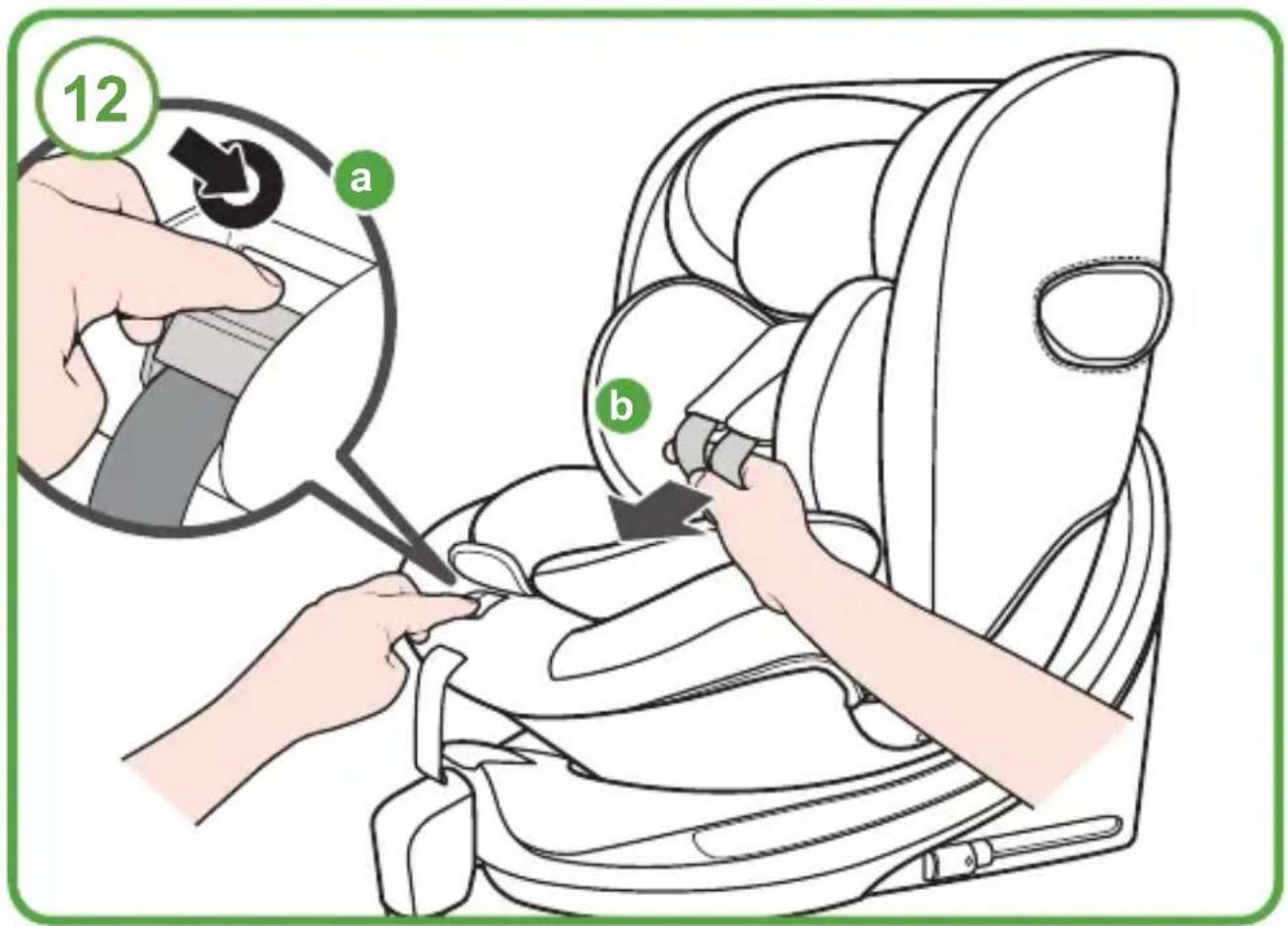

12- Loosening:

NOTE: Pull only the harness straps.

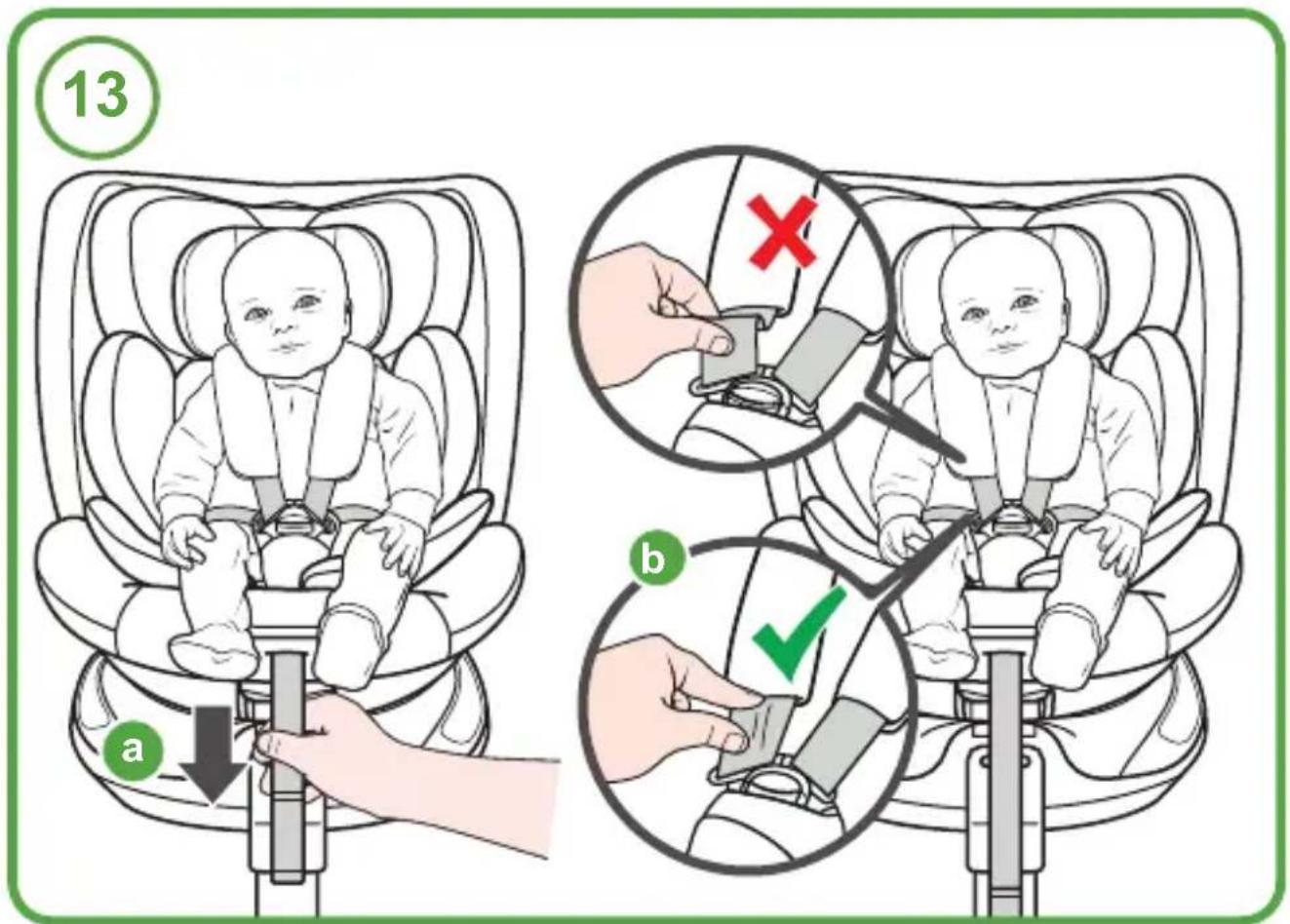

13- Tightening:

NOTE: The harness must be tight around the child and the harness webbing should not be able to be pinched or folded.

Check that the straps are not twisted while the child is seated.

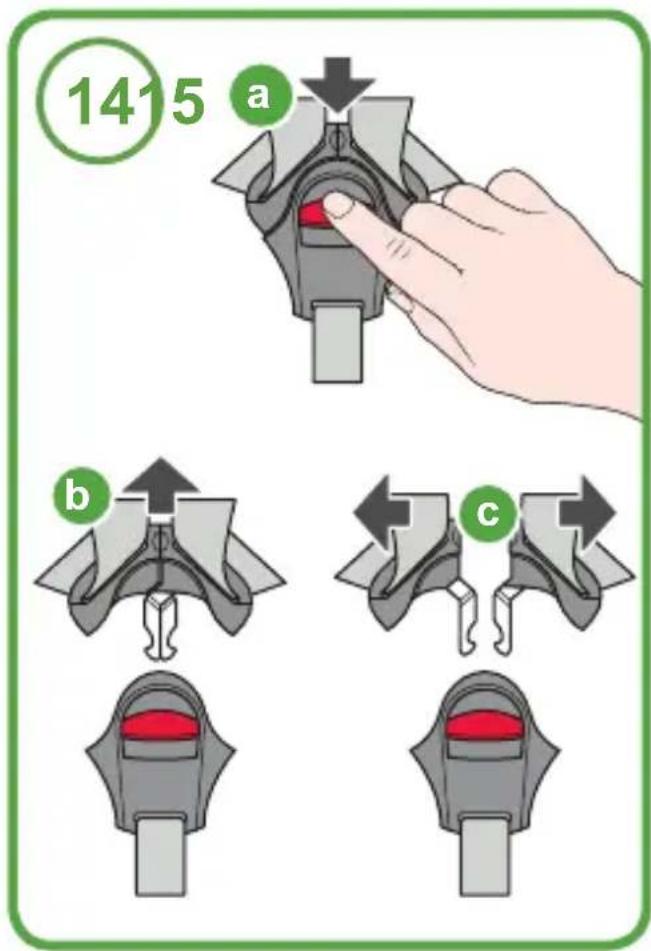

14- Opening:

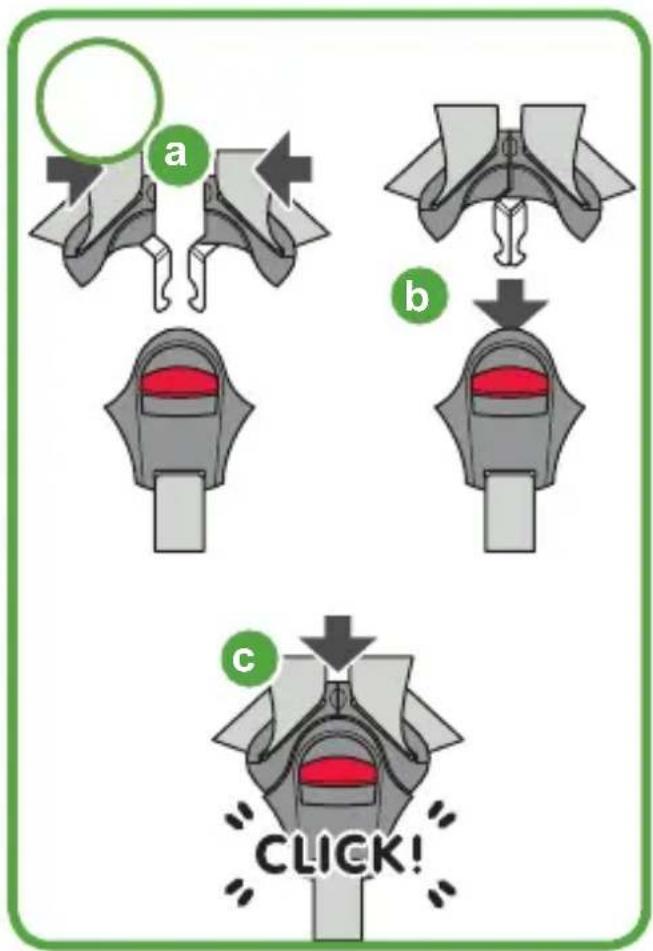

15- Closing:

Securing your child in the child car seat:

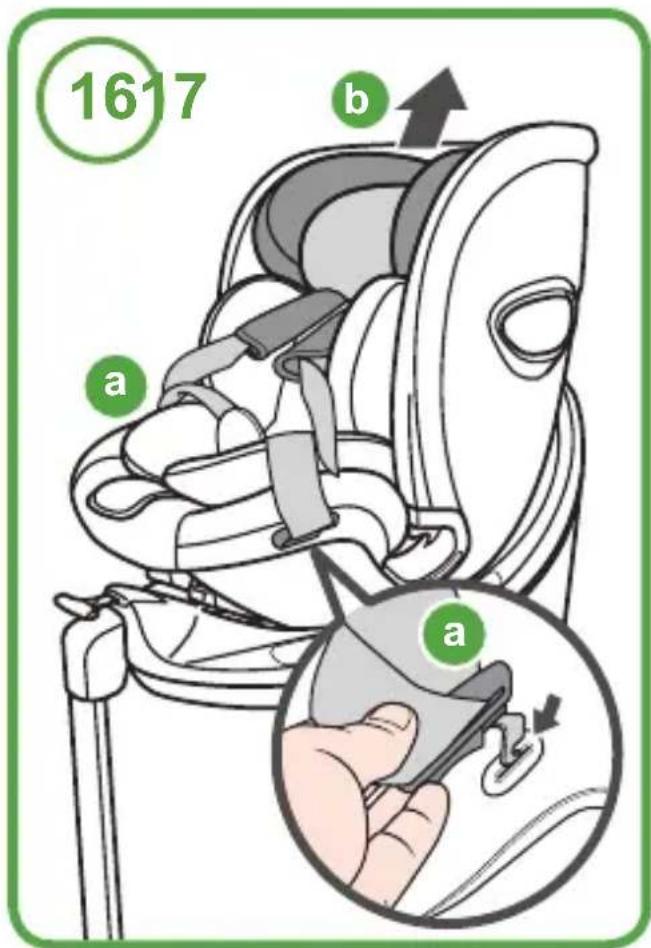

16- Open the harness (refer to step 14) (a).

Raise the headrest (refer to step 10) (b).

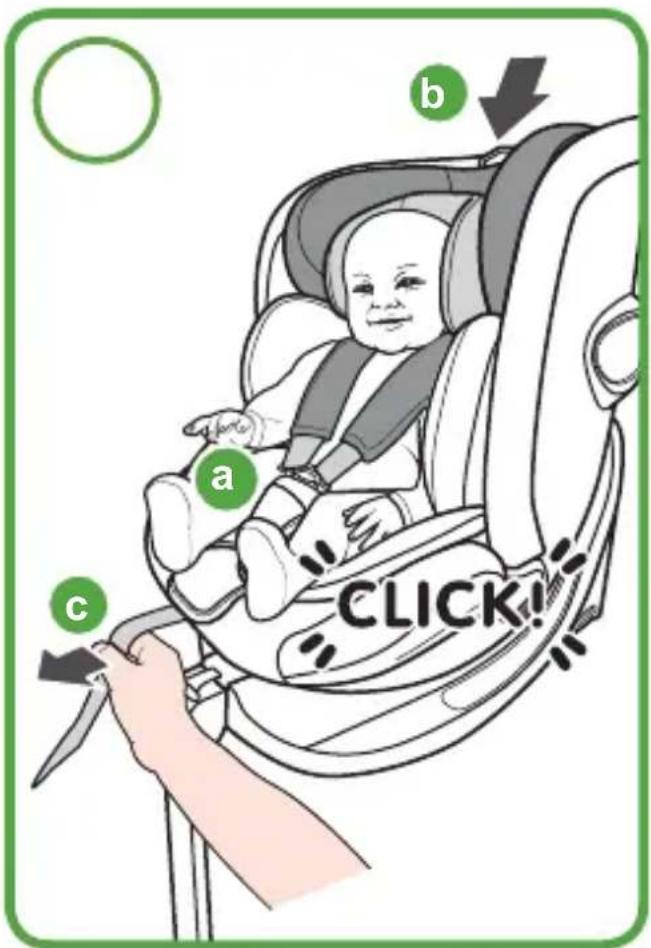

17- Place your child in the child car seat.

Close the harness (refer to step 15) (a).

Adjust the headrest (refer to step 10) (b).

Tighten the harness (refer to step 13) (c).

Child car seat

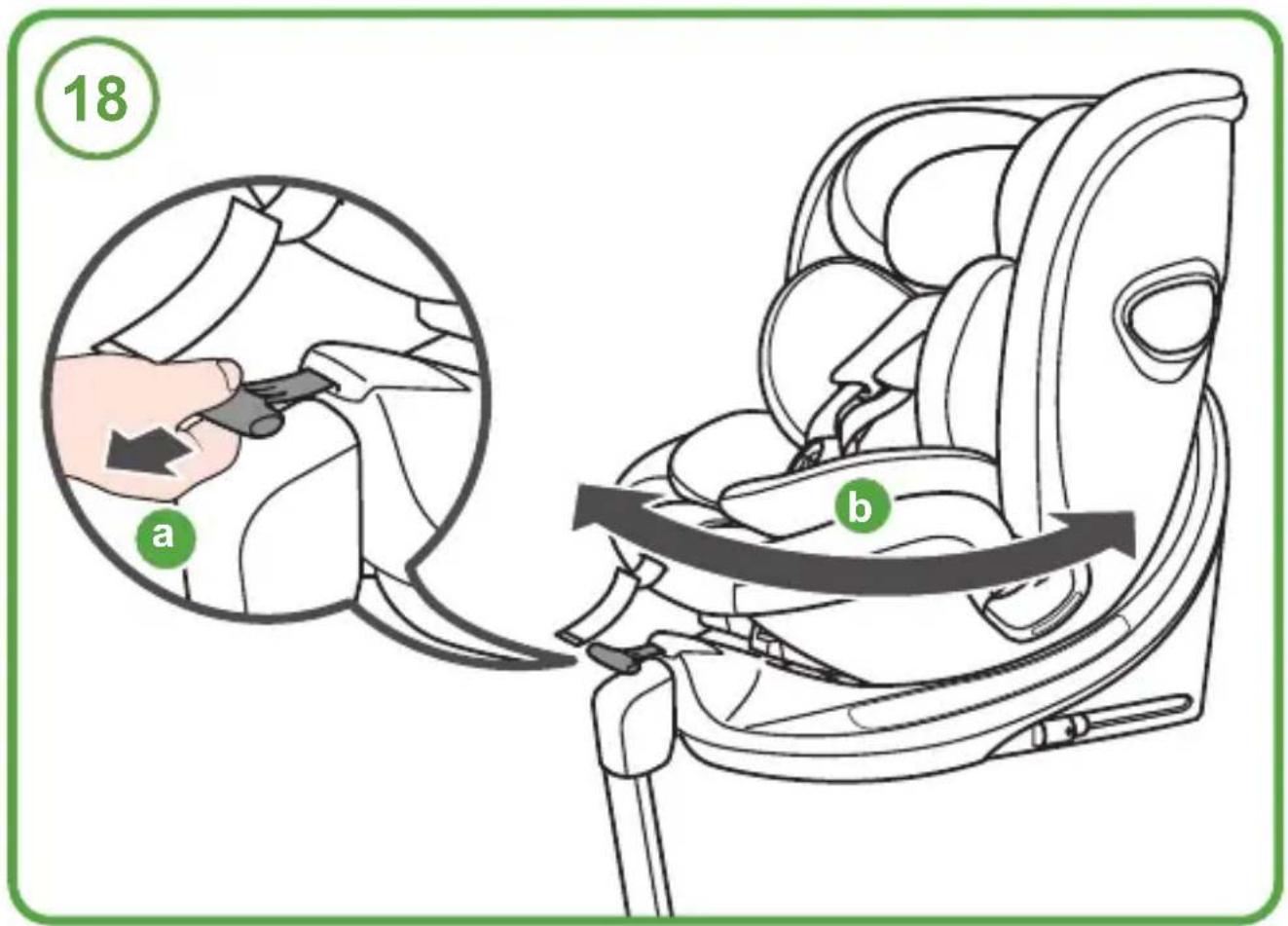

18- Adjusting the seat unit's orientation:

Pull and hold the seat rotate adjustment puller (a) then rotate the seat (b).

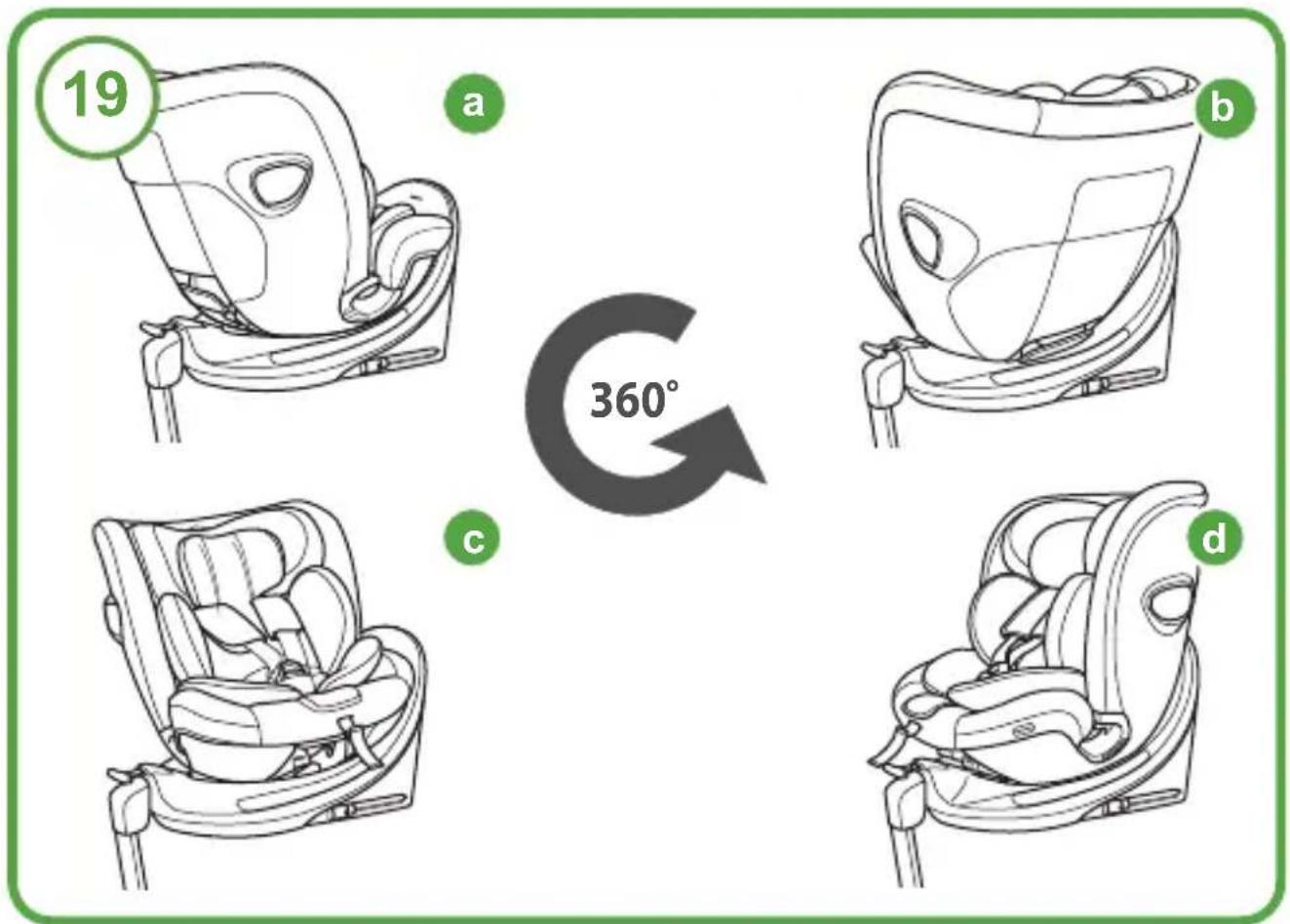

19- Seat positions:

a: Rearward facing position:

The rearward facing position is suitable from birth, height between 40 and 105 cm, up to maximum weight of 20 kg.

b, c: Sideward facing position:

The sideward facing position allows easy access for placing or removing a child from the seat unit after the car seat is fitted.

WARNING: Never travel in the sideward facing position.

d: Forward facing position :

The forward facing position is suitable from 15 months, height between 76 and 150 cm.

IMPORTANT - DO NOT USE FORWARD FACING BEFORE THE CHILD'S AGE EXCEEDS 15 MONTHS.

Rearward facing mode (40 - 105cm):

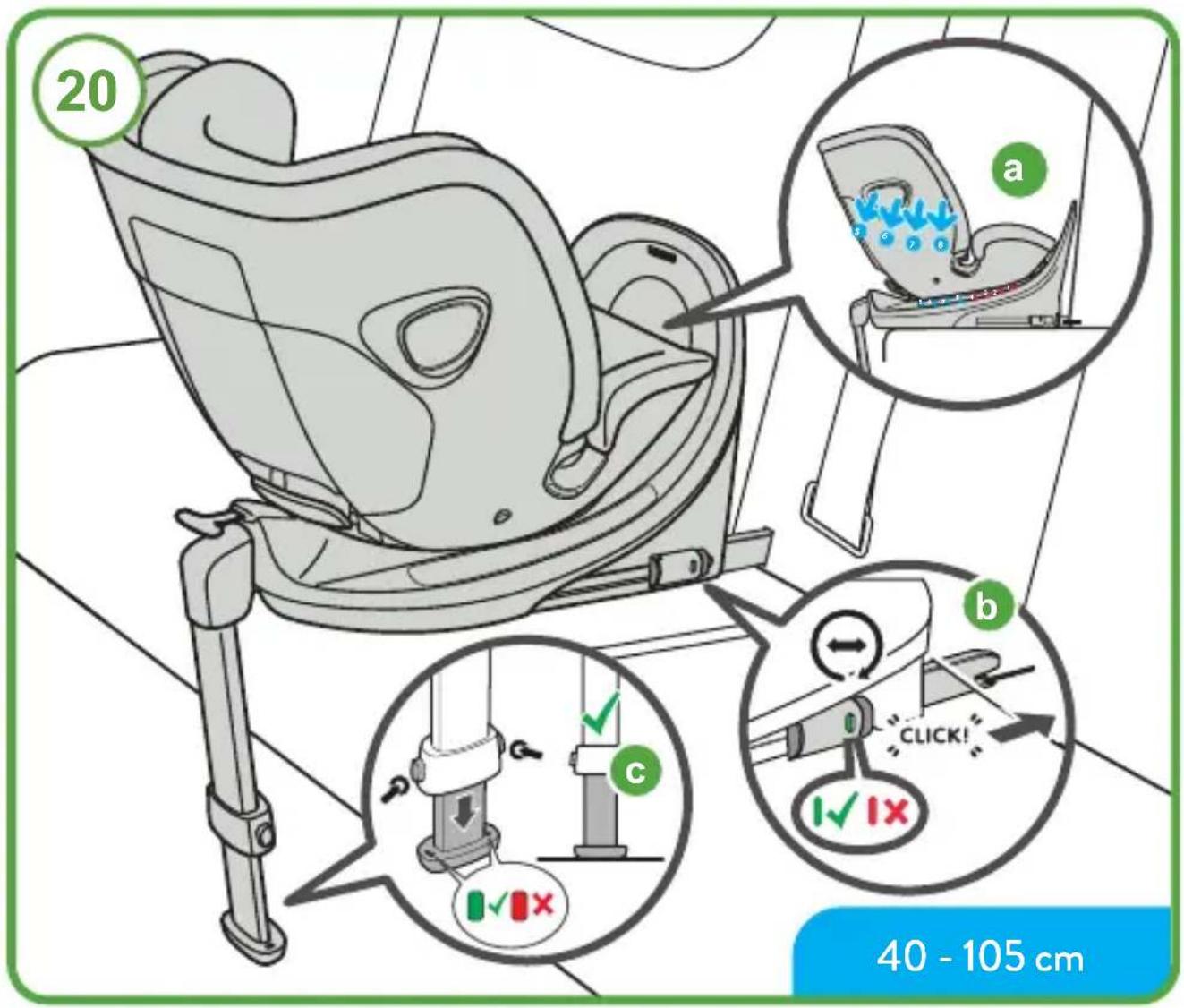

20- Convert the seat unit to rearward facing orientation (refer to step 18).

Recline the backrest to rearward facing positions (refer to step 9) (a).

Check that the ISOFIX arm security indicators (b) and the support-leg contact indicator (c) are all green before use.

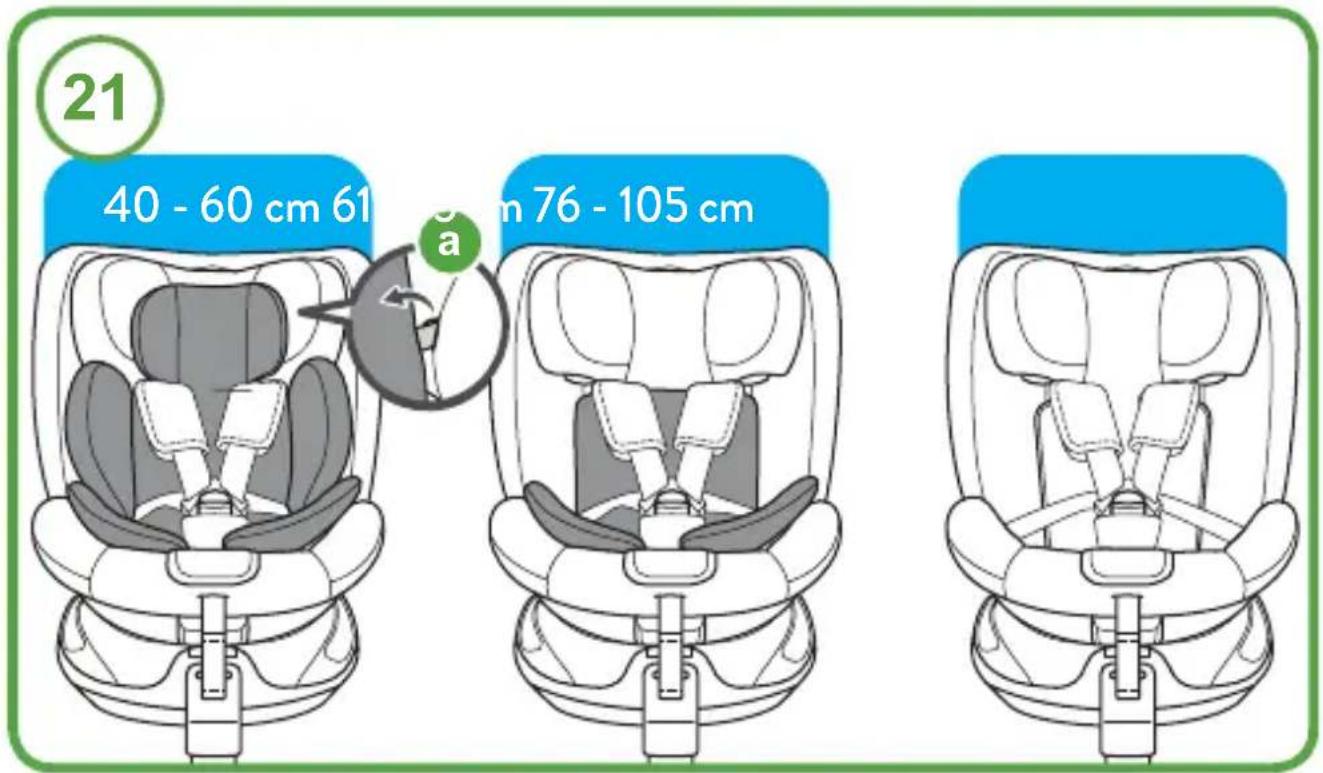

Seat liners 21- When your child's height is 60 cm or below, the child car seat must be used WITH the seat liner, head & side wing sections.

When your child's height is between 61 and 75 cm, the child car seat must be used with the seat liner section only, WITHOUT the head & side wing sections.

When your child's height 76 cm or above, the child car seat must be used WITHOUT the seat liner, head & side wing sections.

Forward facing mode (76 - 105cm):

IMPORTANT - DO NOT USE FORWARD FACING BEFORE THE CHILD'S AGE EXCEEDS 15 MONTHS.

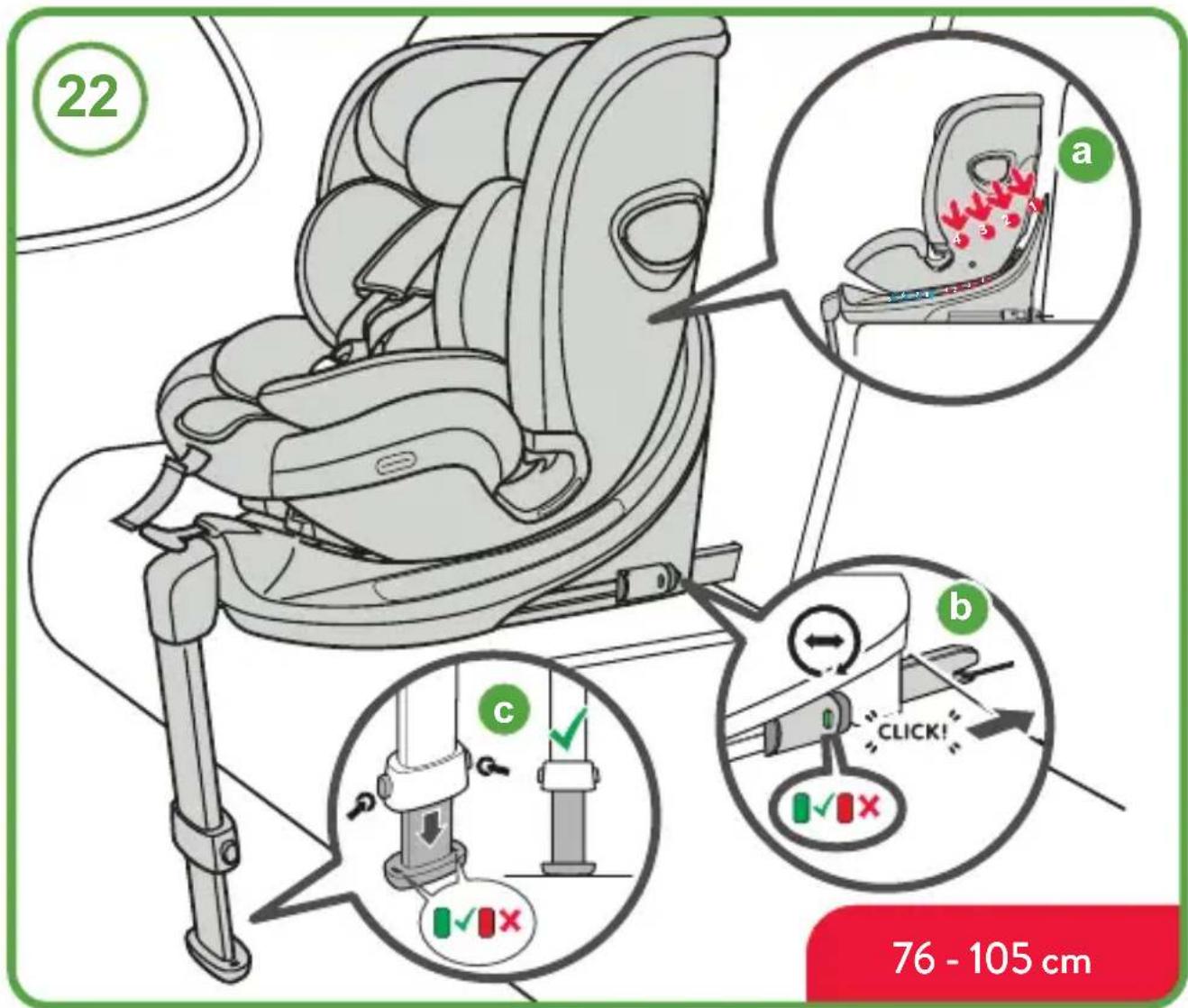

22- Fitting:

Convert the seat unit to forward facing orientation (refer to step 18).

Recline the backrest to forward facing positions (refer to step 9) (a).

Check that the ISOFIX arm security indicators (b) and the support-leg contact indicator (c) are all green before use.

Booster seat mode (100- 150cm):

Converting to booster seat mode:

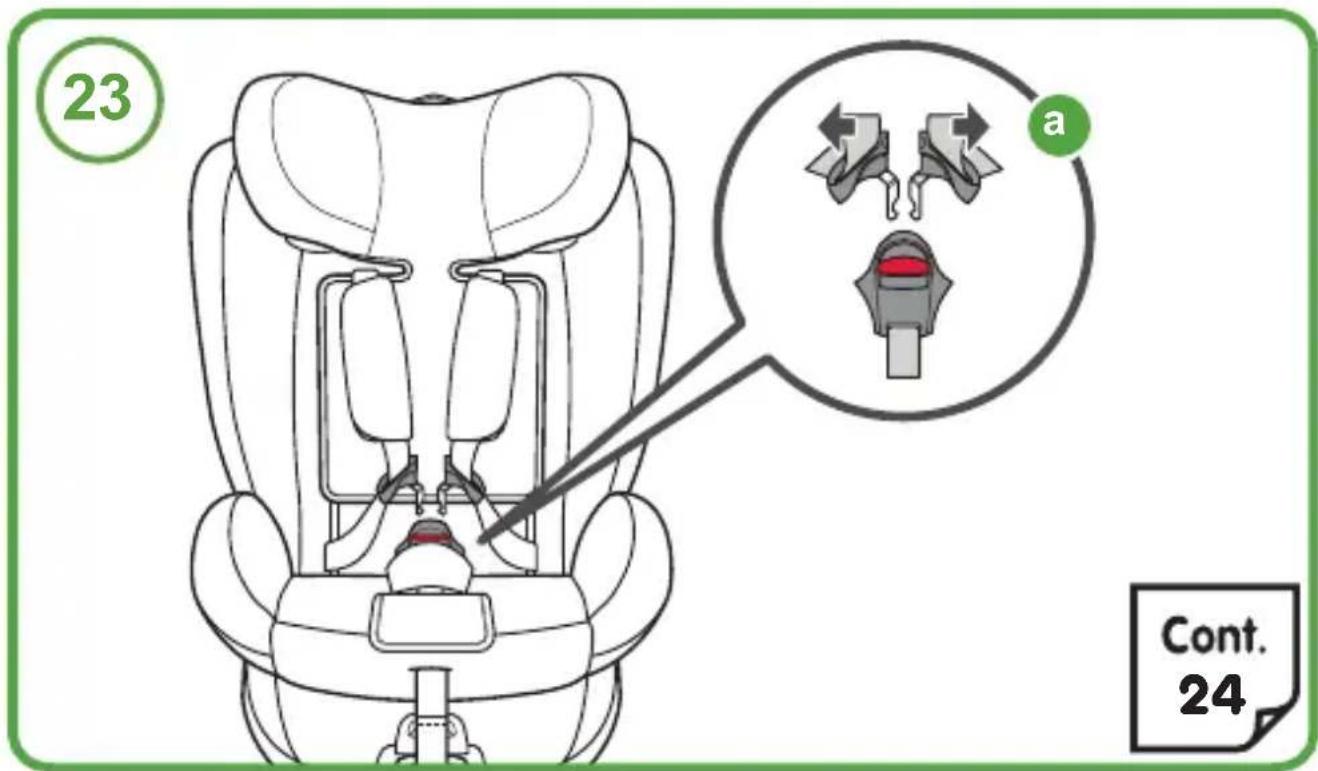

23- Convert the seat unit to forward facing orientation (refer to step 18).

Open the harness (a, refer to step 14).

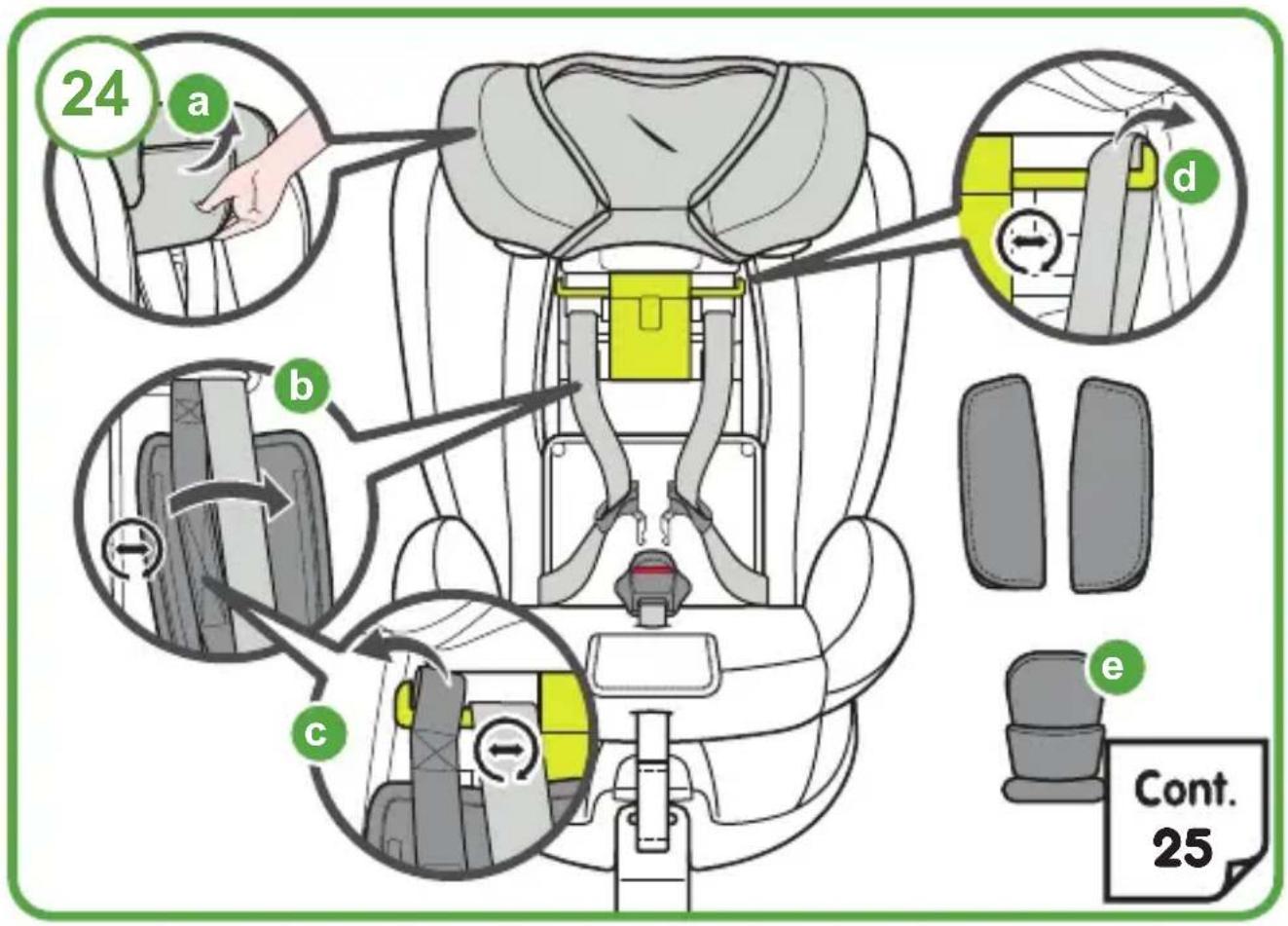

24- Lift up the headrest cover tongue (a).

Open the chest pads (b) and disconnect them from the retainer hooks (c).

Unfasten the shoulder straps from the retainer hooks (d).

Remove the crotch pad (e).

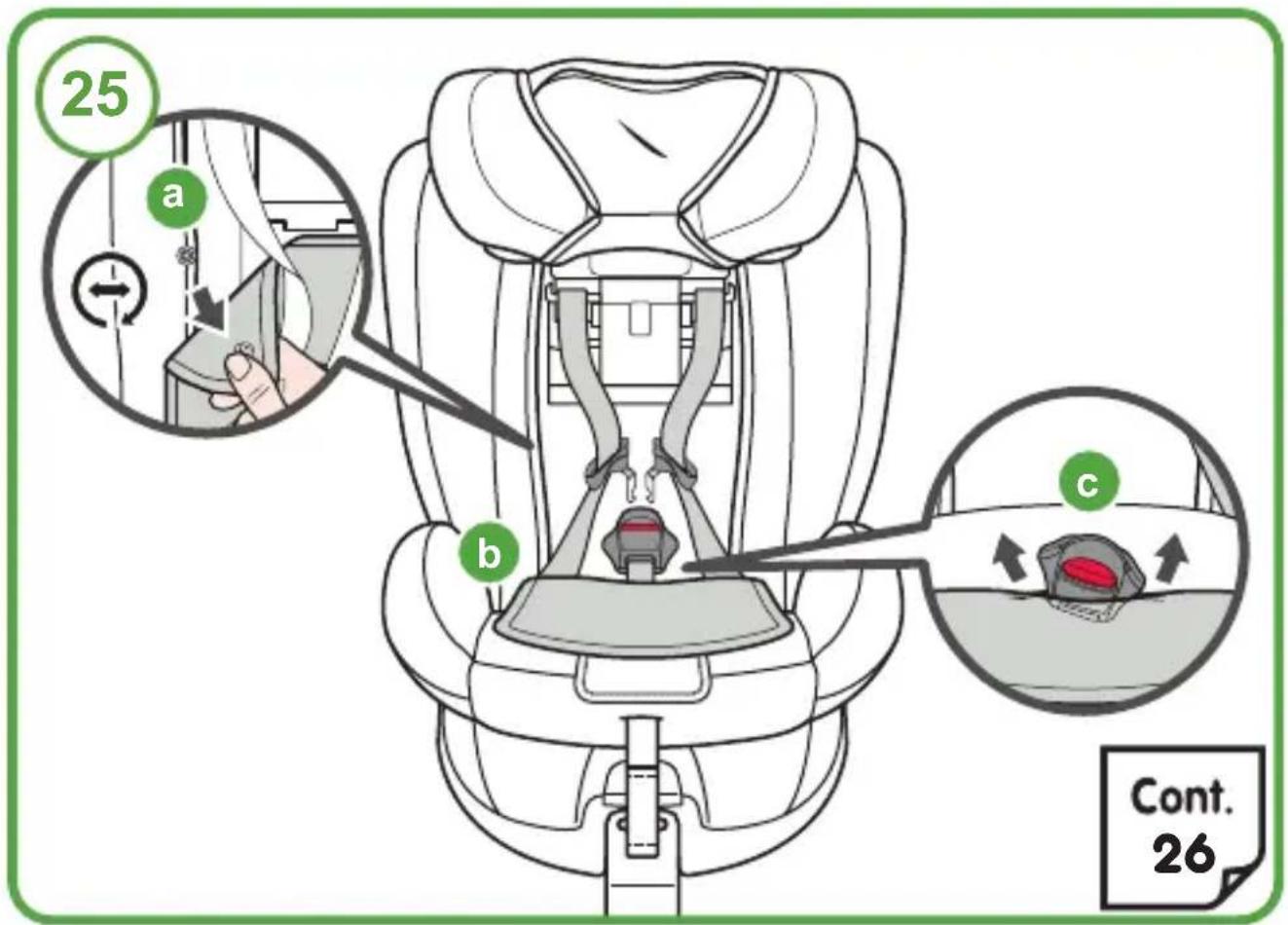

25- Disconnect the poppers (a) and open the seat cover flap to gain access to buckle storage compartment (b).

Push the buckle under seat cover (c).

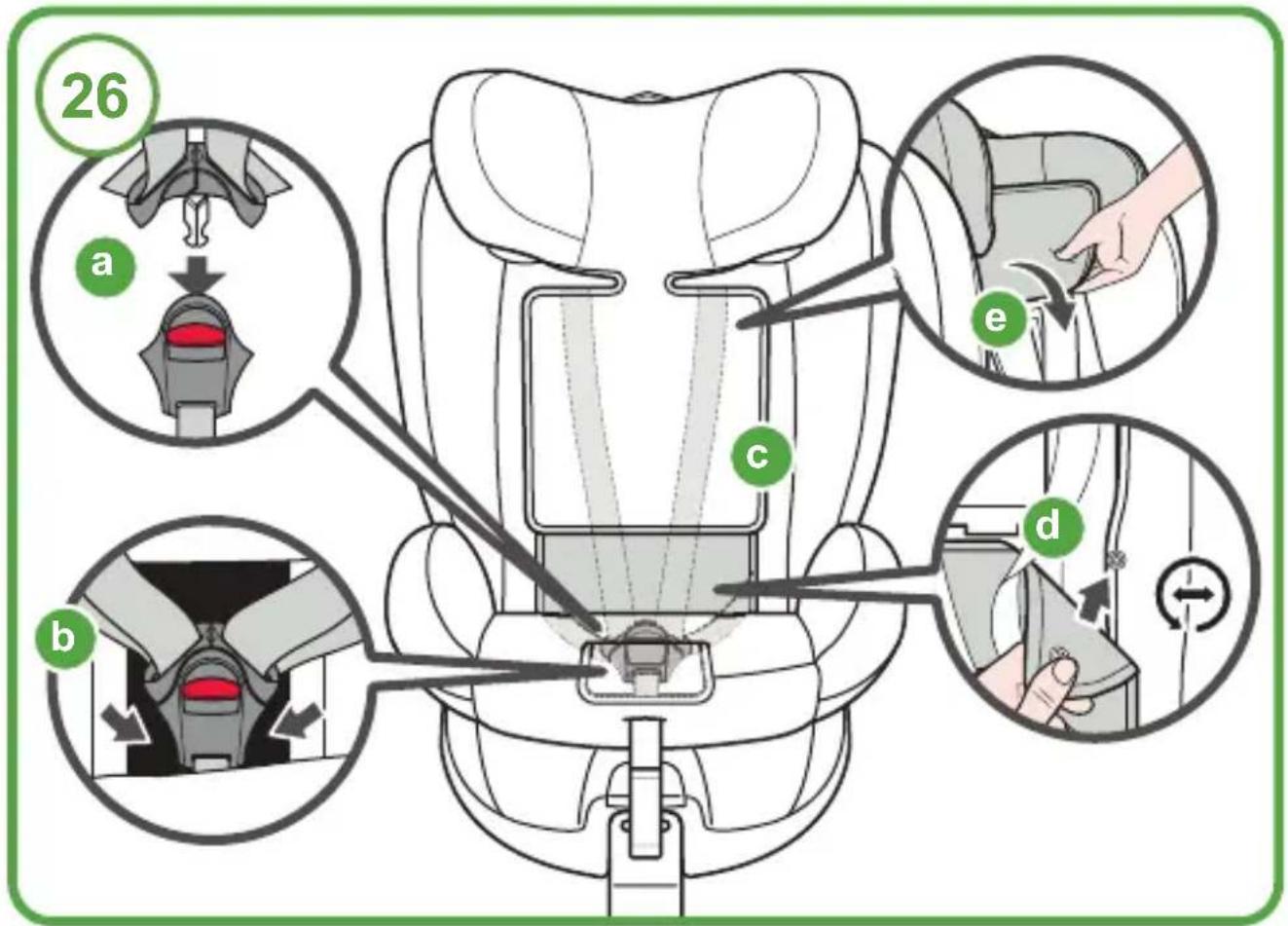

26- Close the buckle (a) and store it in the storage compartment (b).

Store the harness behind the seat cover flap (c).

Refit the seat cover flap (d) & headrest cover flap (e).

Note: The buckle must be stored lowdown in the storage compartment.

Fitting:

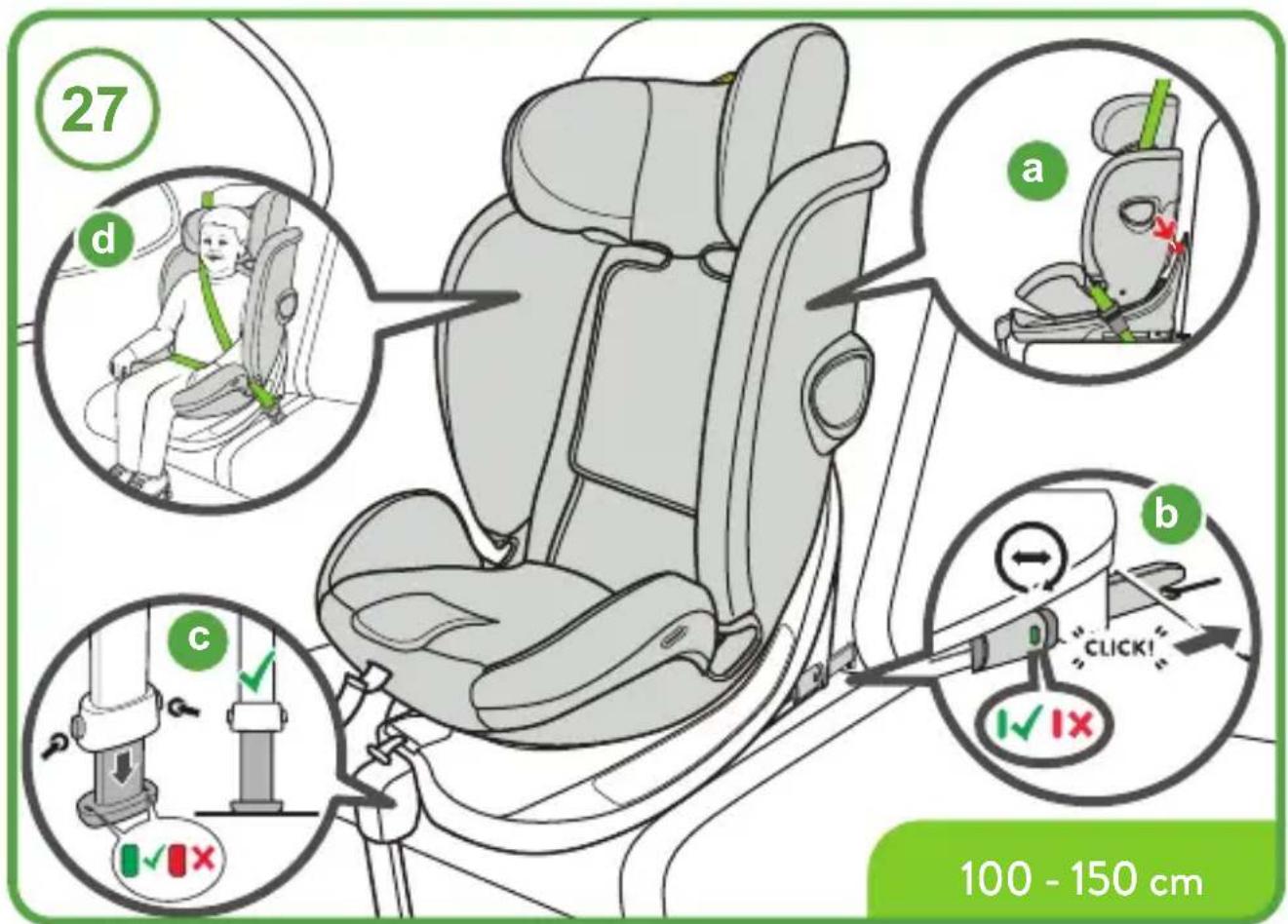

27- Convert the seat unit to forward facing orientation (refer to step 18).

Recline the backrest to position 1 (Refer to step 9) (a).

Check that the ISOFIX arm security indicators (b) and the support-leg contact indicator (c) are all green before use.

Secure your child with vehicle belt (refer to step 28 - 29) (d).

Securing your child in the child car seat:

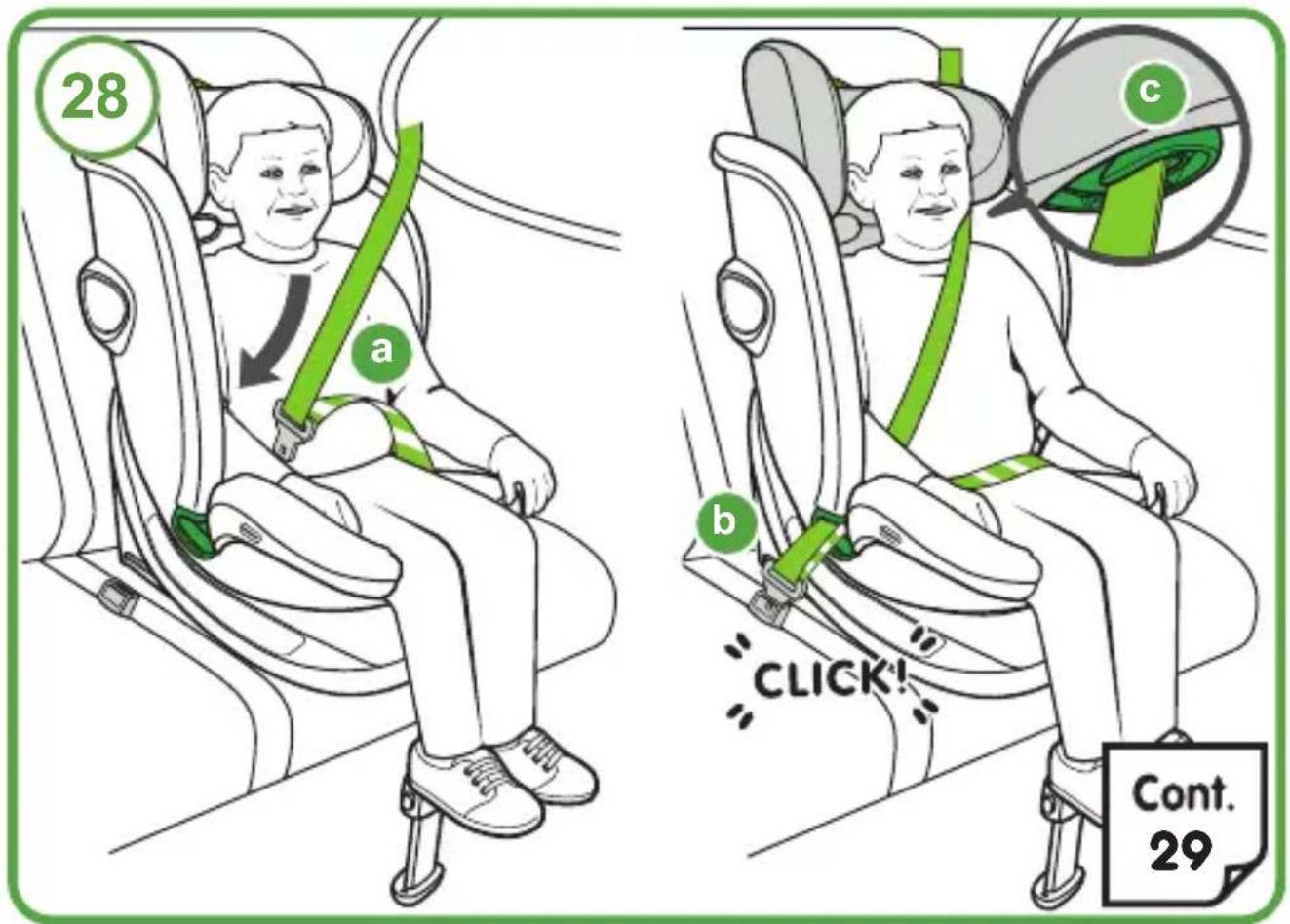

28- Place your child into the child car seat.

Pull the vehicle belt out and around the child (a) and fasten the buckle (b).

Fit the diagonal vehicle belt through the headrest diagonal vehicle belt guide (c).

The shoulder belt guide should be positioned just above the child's shoulder.

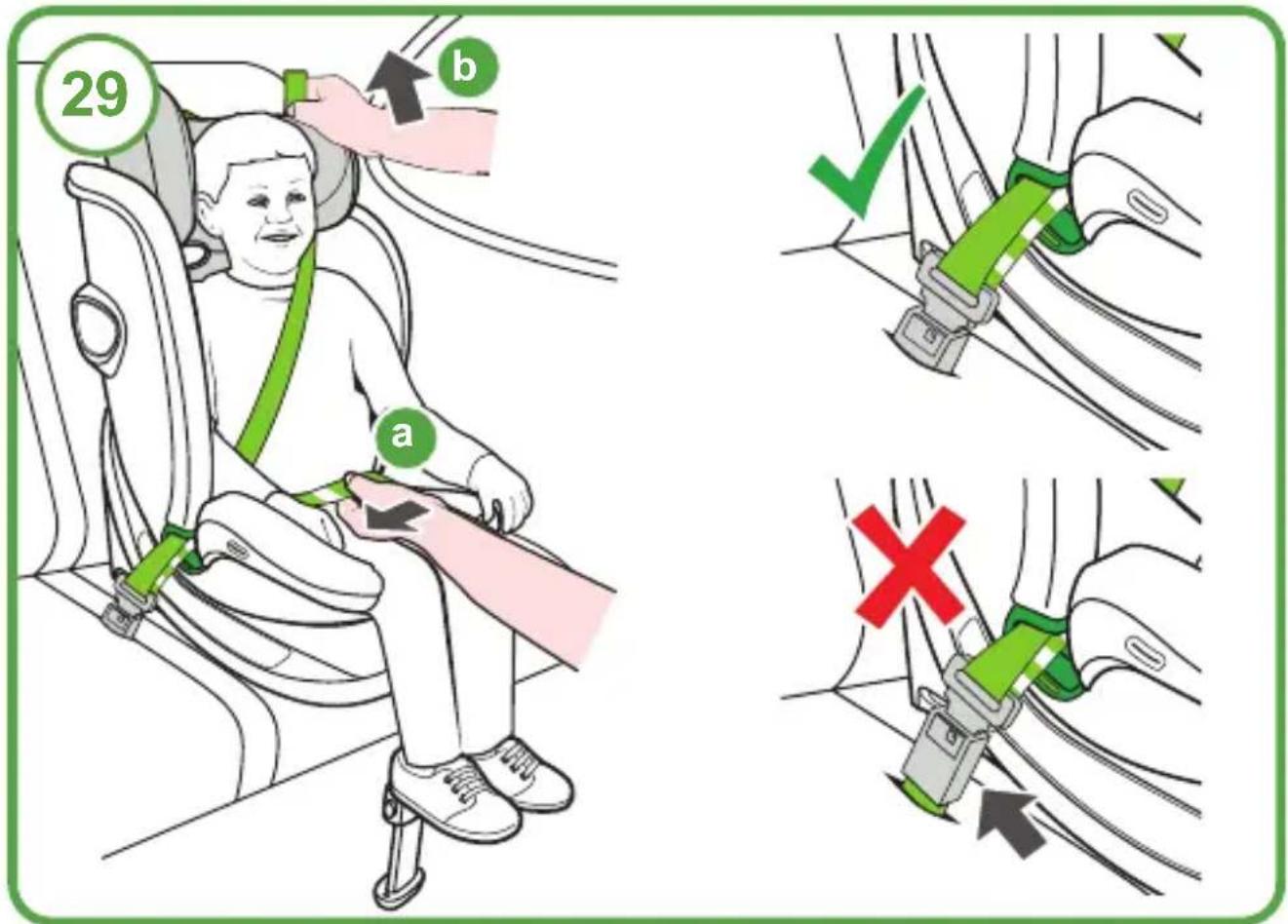

29- Tension the vehicle belt (a & b).

IMPORTANT: The position of the vehicle belt buckle can affect the stability of the child restraint system. In an accident this could stop the child restraint system from protecting your child as well as it should. After tightening the vehicle belt, if the buckle lies in the position marked (X) then try fitting the child restraint system in another seating position in your vehicle.

Removal is a reversal of this procedure.

Softgoods Removing:

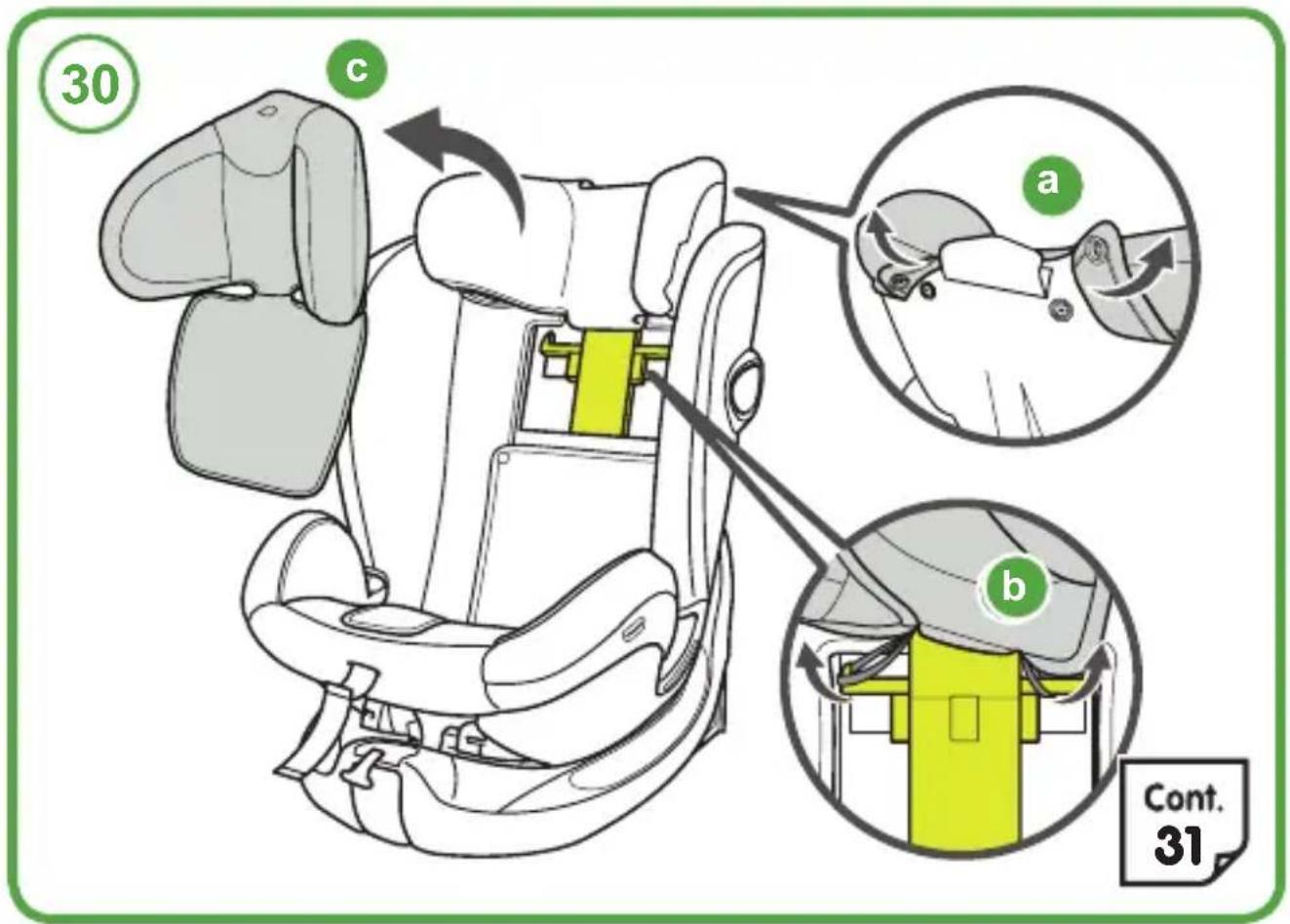

30- Convert the car seat to booster seat mode (refer to step 23 - 26).

Unfasten the headrest cover poppers (a) and the elastic loops (b) then remove the headrest cover (c).

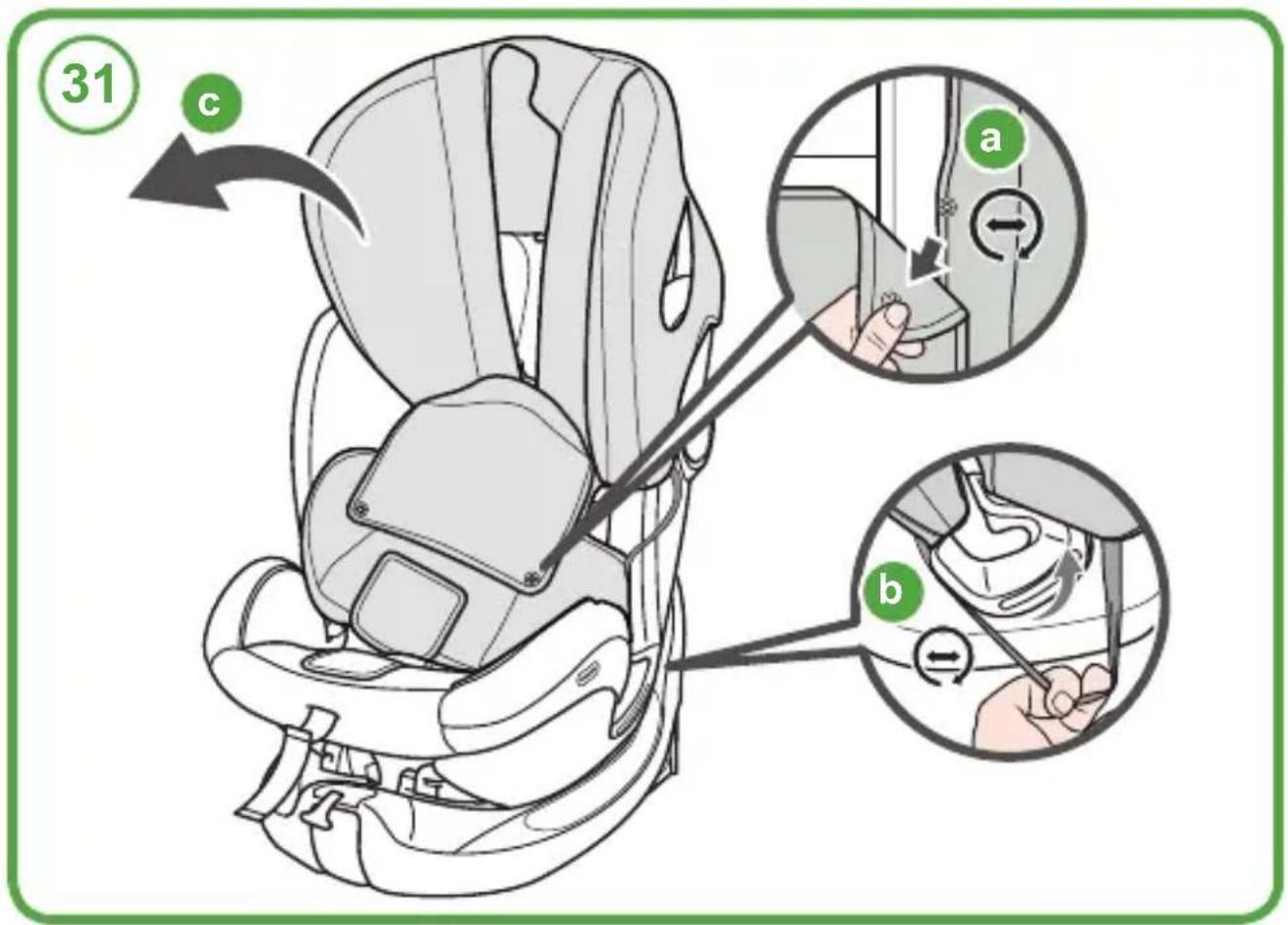

31- Disconnect the poppers and open the seat cover flap (a).

Unfasten the elastic loops on the waist belt guides (b) then remove the seat cover (c).

Reverse the procedures above to refit the softgoods.

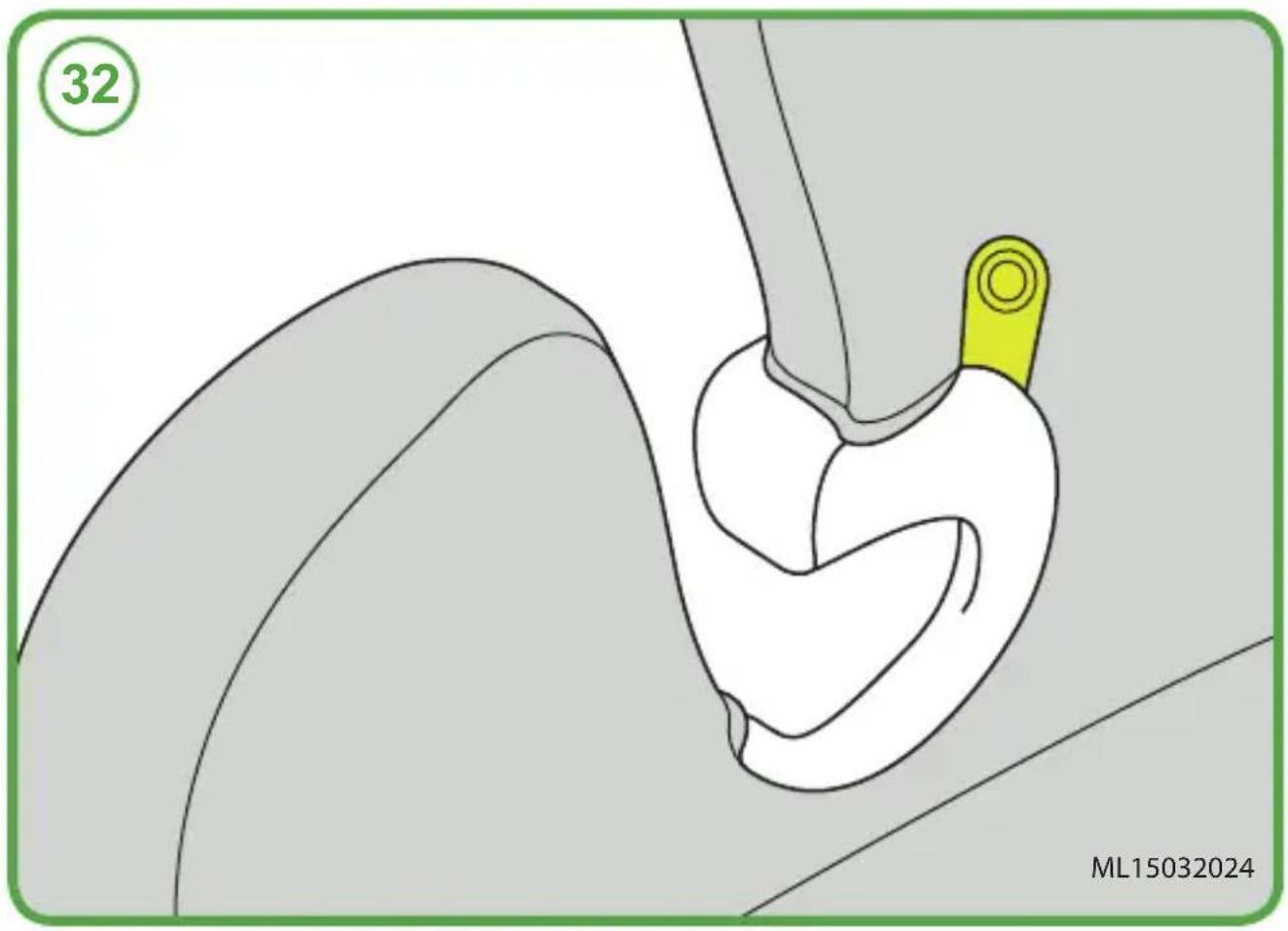

Tuck in tool 32- Using the tuck in tool:

Checklist:

• Have you checked the compatibility of the child car seat with the intended vehicle?
• If applicable, is the air-bag de-activated?
  • Is your child car seat correctly fitted to the vehicle seat?
• Have you checked the safety indicators on ISOFIX arms, ISOFIX support-leg?
  • Is your child correctly secured in the child car seat?
  • Is harness adequately tensioned and not twisted?

http://www.cosatto.com/service-centre/spares

http://www.cosatto.com/service-centre/spares

Acorn 2 Rotating Family Base (Sold separately):

Posizionamento

5 a Cont. 6

6 a b c I X I ✓

7 a b CLICK! c

8 a b c

9 a 40 - 105 cm 76 - 105 cm 100 - 150 cm

10 a b

11 × × ✓

12 a b

13 a b

1415 a b c

a b c CLICK!

1617 a b a

a b c CLICK!

18 a b

19 a b 360° c d

20 a b c CLICK! 40 - 105 cm

21 40 - 60 cm 61 76 - 105 cm

22 a b c 76 - 105 cm

23 a Cont. 24

24 a b c d e Cont. 25

25 a b c Cont. 26

26 a b c d e

27 a b c 100 - 150 cm

28 a b c CLICK! Cont. 29

29 a b

30 c a b Cont. 31

31 c a b

Medical illustration showing a surgical procedure on a joint, with no visible text or symbols.

Right by your Side

Telephone: [phone]*

Email: [e-mail]

Letter: Cosatto Limited, Bentinck Mill, Bentinck Street, Farnworth, Bolton, Lancs, BL4 7EP, England.

*This is a local rate chargeable number, prices may vary Please check with your provider.

All the design and trademarks contained herein are the property of Cosatto Limited. No part of this document may be reproduced without the permission of Cosatto Limited.

www.cosatto.com

(EN) NOTICE:

WHEN USED IN COMBINATION WITH "ACORN 2 ROTATING FAMILY" BASE (SOLD SEPARATELY):

(40 - 105 cm) This is an “i-size” enhanced child restraint system. It is approved to regulation no. 129, For use in, “i-size compatible” vehicle seating positions as indicated by vehicle manufacturers in the vehicle users’ manual.

(100 - 150cm) This is a specific vehicle booster seat enhanced child restraint system. It is approved to regulation no. 129, For use in the specific vehicle indicated in the applicable vehicle list.

Important - do not use forward facing before the child's age exceeds 15 months (refer to instructions).

Never use this child restraint system in seating positions where an active frontal airbag is installed.

For compatibility of vehicle, please refer to the printed vehicle list, fit checker app (http://cosat.To/fitchecker) or the electronic vehicle list on the website (http://cosat.To/acorn2familybasevl).

If in doubt, consult either the child restraint manufacturer or retailer.
