General:

• This vehicle is intended for children from birth up to a maximum of 25kg or 4 years whichever comes first.
• WARNING: Never leave your child unattended.
- WARNING: Ensure that all the locking devices are engaged before use.
- WARNING: To avoid injury ensure that your child is kept away when unfolding and folding this product.
• WARNING: Do not let your child play with this product.
- WARNING: This product is not suitable for running or skating.
- WARNING: Always use the restraint system.
• WARNING: Always use the crotch strap in combination with the waist belt.
- WARNING: To avoid risk of injury from burning, do not place hot beverage on drink holder.
- Do not use replacement parts or accessories other than those approved by Cosatto.
- Use the seat in the most reclined position for new born babies until they can sit up unaided.
- A basket is provided for the carriage of goods, evenly distributed, up to a maximum weight of 5 kg.
- Rear pocket on hood - maximum weight 200g.
- Plastic drink holder - maximum weight 500g.
- Any additional load attached to the handle or on the back of the backrest or on the sides of the vehicle will affect the stability and safety of the vehicle.
- Do not use a platform with this product as it may render the product unsafe.
• Always apply the brake when placing or removing a child from vehicle.
- Never carry a second child on the product.
• This product complies with BS EN 1888-2:2018.
- Ensure your child wears a correctly fitted and adjusted harness at all times. D-rings are provided for the attachment of a separate safety harness approved to BS EN 13210 should this be required.

Cosatto changing bag (sold separately):

• A coordinating changing bag can be purchased separately, suitable for the carriage of 2 kg of goods.
• Do not attach the changing bag to the vehicle as it will affect the stability of the vehicle.

Care & maintenance:

• Your pushchair has been designed to meet comprehensive safety standards, and with correct use and maintenance will give many years of trouble free performance.
• Storage - Always store your pushchair dry. Storing a damp pushchair will encourage mildew to form, so after exposure to damp conditions, dry off with a soft cloth and allow to dry thoroughly before storing. Never leave in sunlight for prolonged periods - some fabrics may fade.
• Cleaning - Refer to the wash care label on soft goods for cleaning instructions. Plastic and metal parts may be sponged clean with warm water and a mild detergent. Never clean with abrasive, ammonia based, bleach based or spirit type cleaners.

• Wear & Tear - Continual impact will cause damage. The chassis is strong but will weaken should the back wheel be bumped down stairs or kerbs. Tyres will wear with use and wheel units should be replaced if necessary. If your child wears hard shoes these might damage the soft fabric.
• Maintenance - Regularly inspect the locking devices, brakes, wheels, harness assembly, catches, seat adjusters, joints and fixtures to ensure they are secure and in full working order. They should move freely at all times and minimum maintenance should be required. However a regular light application of a spray lubricant e.g. silicone (do not use oil or grease) will extend the life of your pushchair and make opening and folding easier. Your pushchair should be serviced and reconditioned before using it for a second baby, or after 18 months, whichever is the sooner.

Visual language key:

XX	Refer to warning XX
	Correct action
	Incorrect action
click!	Audible sound

	Repeat action x times
	General action arrow
	Lock
	Unlock

	Press and hold
	Check
	Continue to step XX
	Repeat on other side

Part list:

Please refer to diagrams:

P1: Pushchair (Hood & basket attached) P6*: Cosatto footmuff (if specified)

P2: Rear wheel (x2) P7: Bumper bar with cover

P3: Front wheel (x2) P8: Bumper bar cap (x2)

P4: Raincover P9: Drink holder

P5*: Cosatto changing bag (sold separately)

Replacement parts:

The replacement parts shown below are available for your product. For UK & Ireland customers, order through our website:

http://www.cosatto.com/service-centre/spares

For customer outside UK & Ireland, contact information for your local distributor can be found on http://www.cosatto.com/stockists

If you require any further assistance, please contact us at [e-mail]

S1: Hood S10: Raincover

S2: Hood plastic insert S11: Autolock

S3: Seat cover S12: Bell

S4: Harness S13*: Cosatto footmuff (if specified)

S5: Chest pad (set)

S6: Basket

S7: Rear wheel

S8: Rear wheel cap

S9: Front wheel

S14: Bumper bar

S15: Bumper bar cover

S16: Bumper bar cap (x2)

S17: Drink holder

Fitting & Operation information:

Please refer to the instruction diagrams:

Pushchair 1- Opening:

Release the autolock (a) and lift the handle upwards (b) until the chassis locks into position (c).

Check the chassis has locked in place (d).

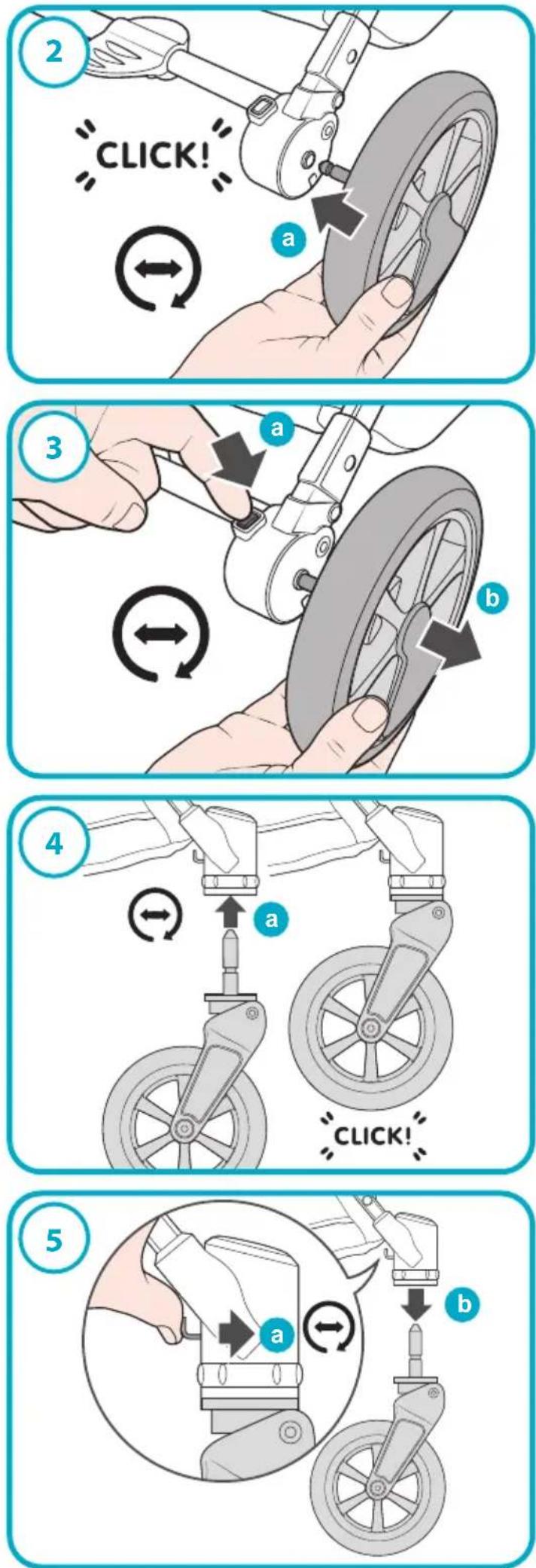

Rear wheel 2- Fitting:

3- Removing:

Front wheel 4- Fitting:

5- Removing:

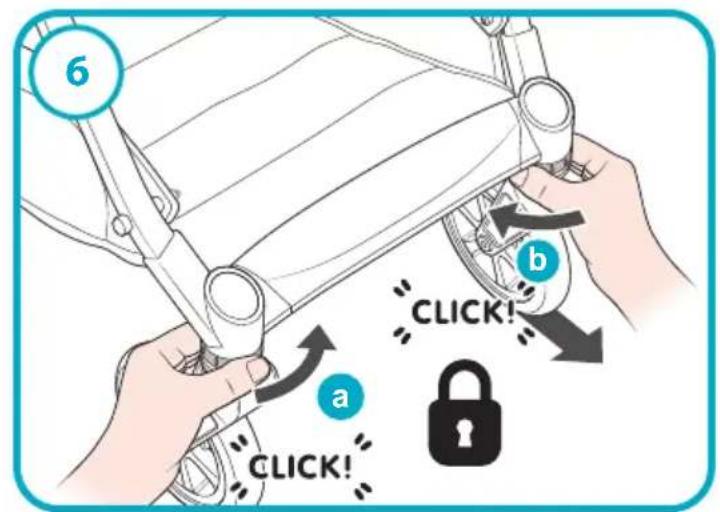

Front wheel swivel lock

6- Applying:

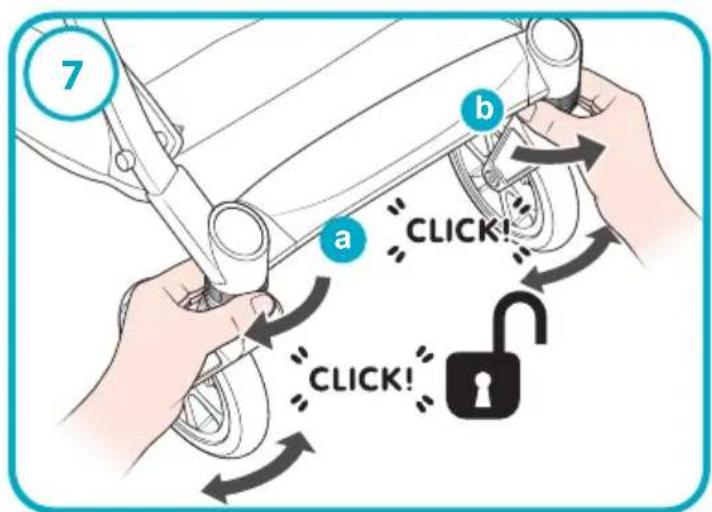

7- Releasing:

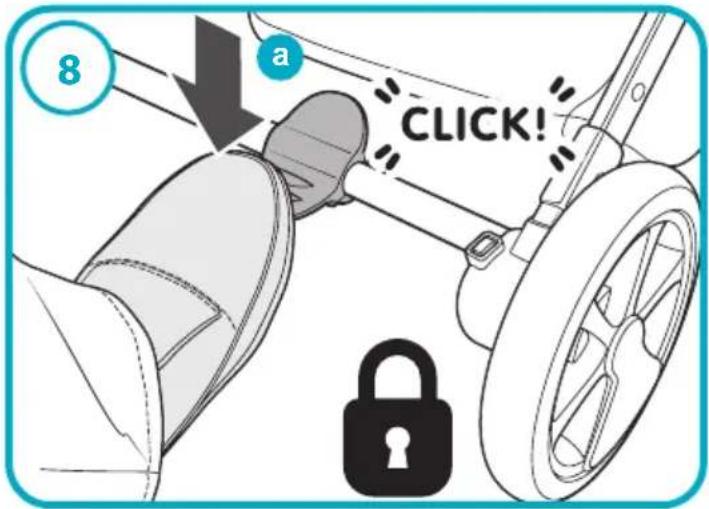

Brake 8- Applying:

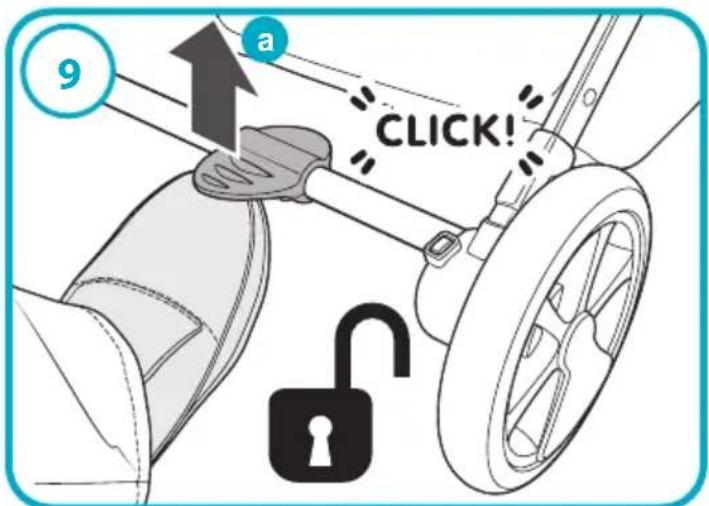

9- Releasing:

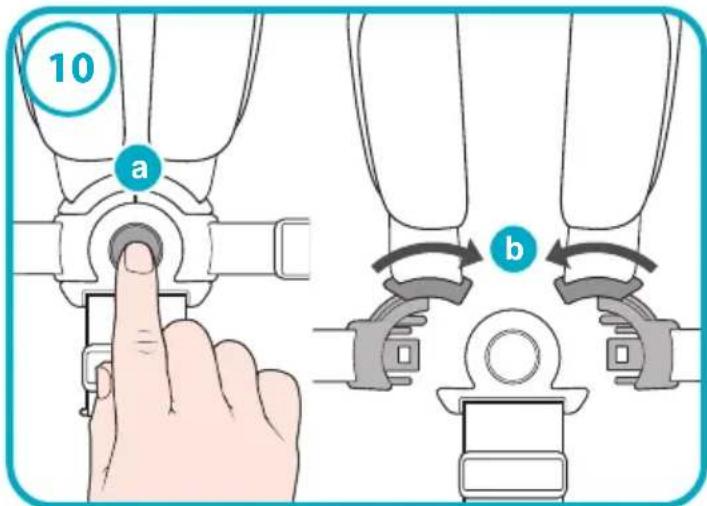

Harness 10- Opening:

11- Closing:

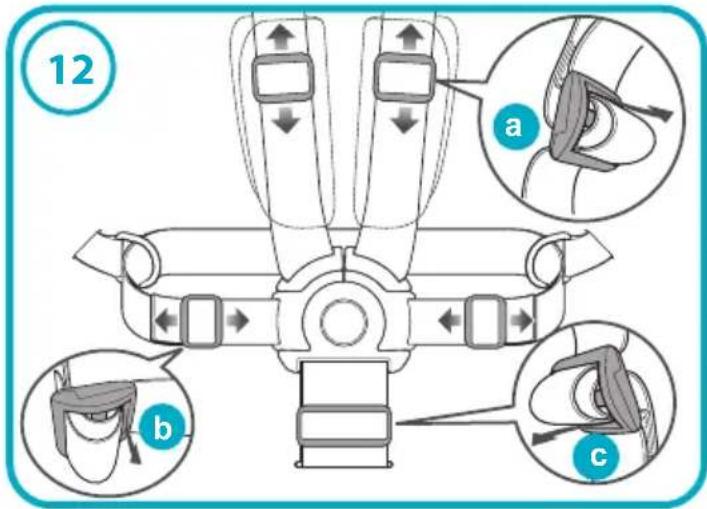

12- Adjusting the strap length:

Slide the strap adjustor to suitable length (a, b & c).

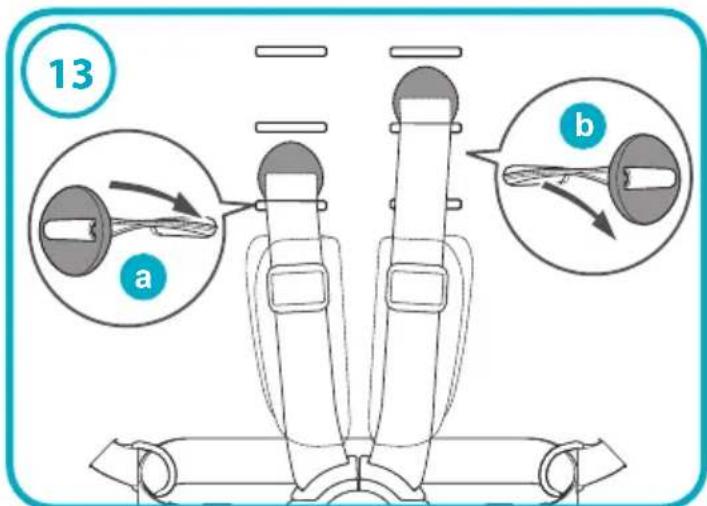

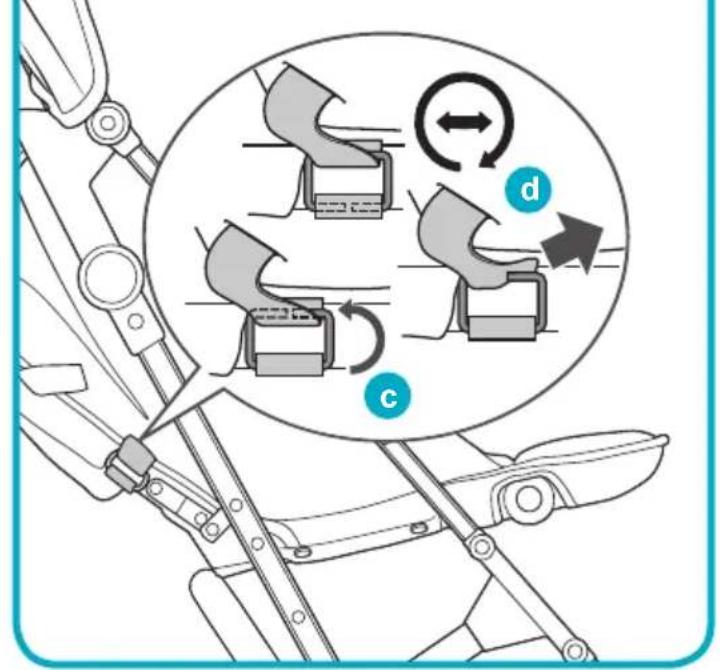

13- Adjusting the shoulder strap position:

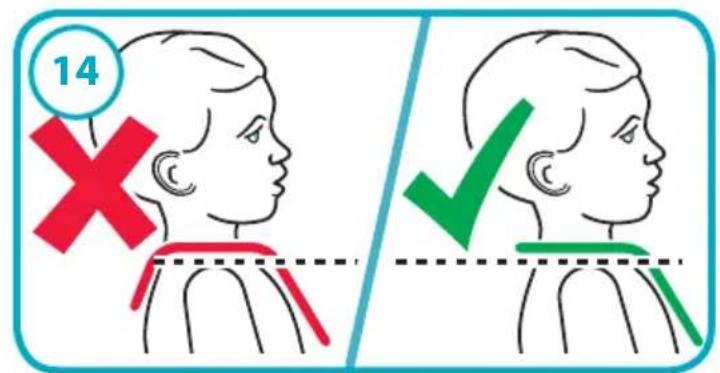

14- Satisfactory shoulder strap position:

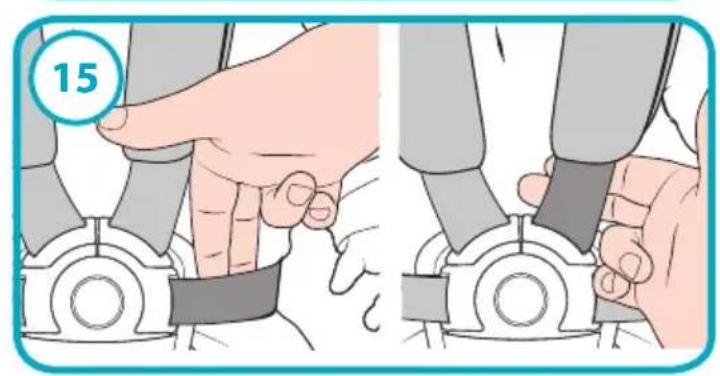

15- Harness tension:

Always make sure that the harness is correctly tensioned to ensure maximum protection for your child.

You should only be able to insert 2 fingers between the shoulder strap and waist strap.

NOTE: Winter/ Summer clothing can make a difference to the size of your child.

16- Removing:

Push the shoulder strap retainer through the backrest (a).

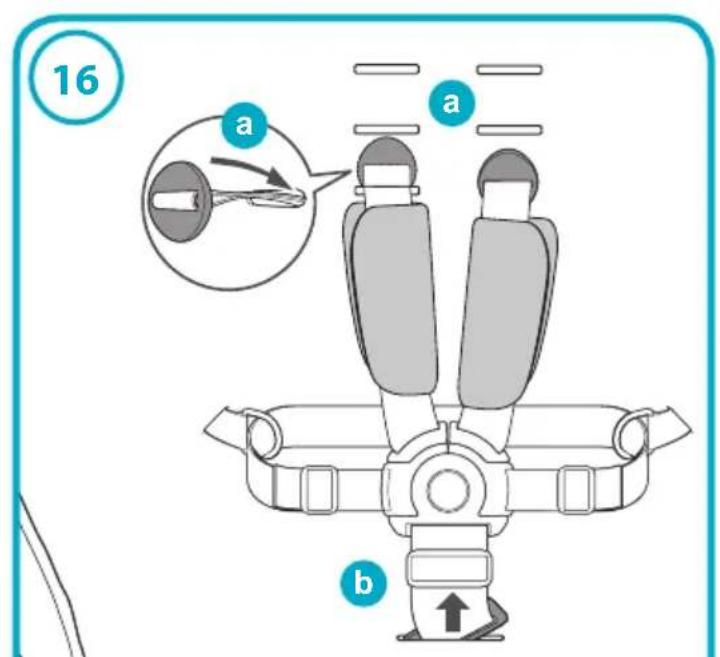

Open the chest pads (b) and slide them off the shoulder straps (c).

Push the crotch strap retainer through the seat (d).

Rotate the «C» clip to expose its opening (e) and slide the waist strap out of clip (f).

Refitting is a reversal of this procedure.

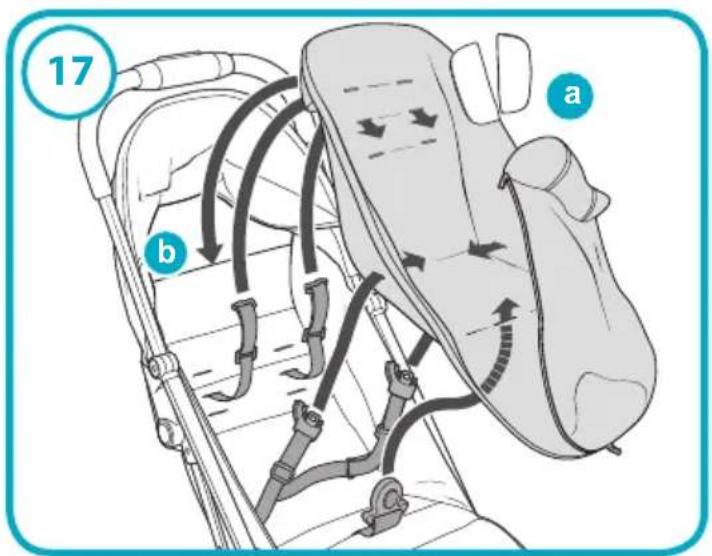

Cosatto footmuff (if 17- Fitting:

specified)

Open the harness (refer to step 10) and remove the chest pads (a).

Fit the footmuff liner to the rear of the backrest (b).

Refit chest pads then close the harness (See step 11).

Removing is a reversal of this procedure.

Backrest 18- Lowering:

19- Raising:

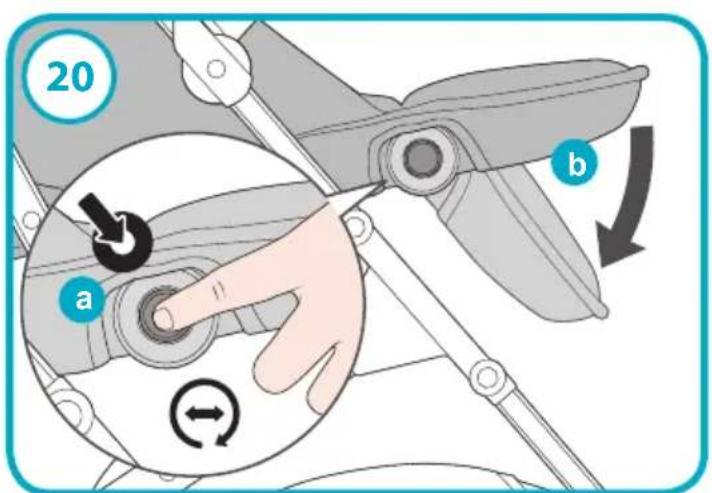

Calf support 20- Lowering:

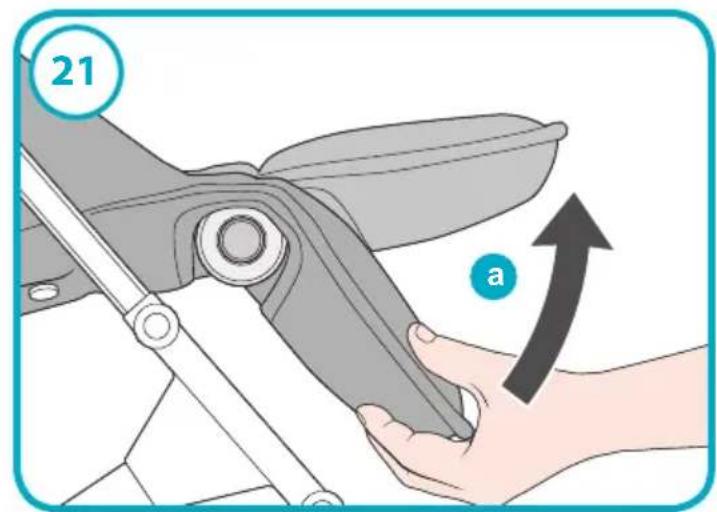

21- Raising:

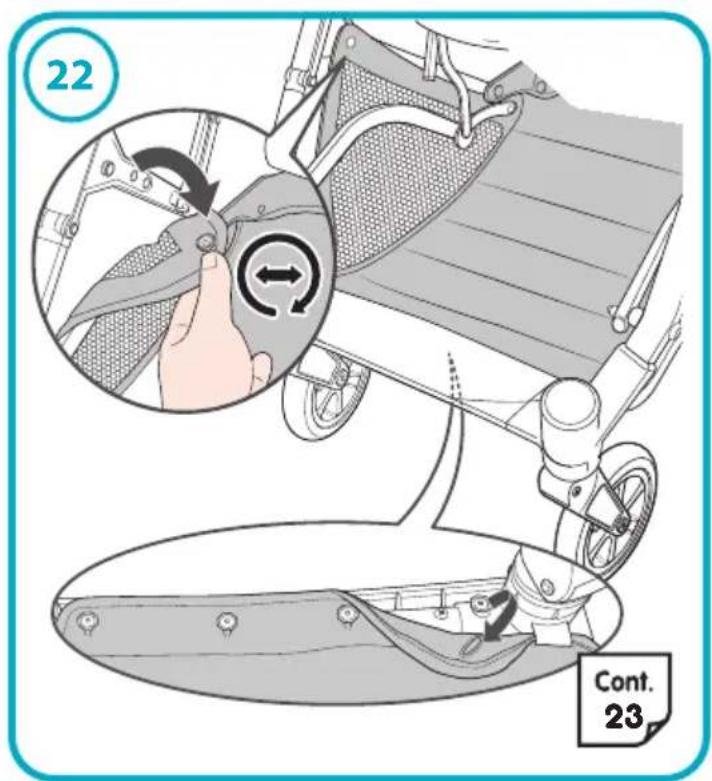

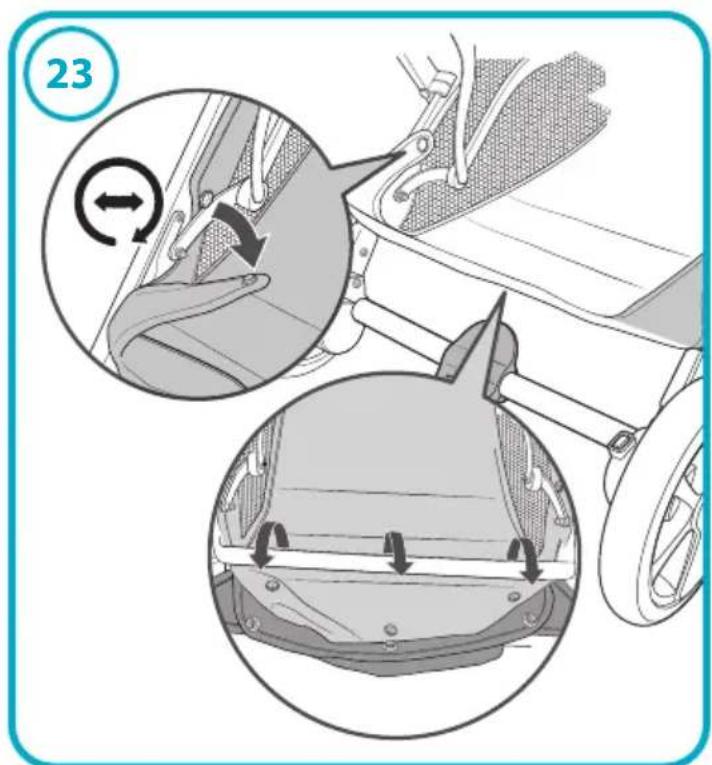

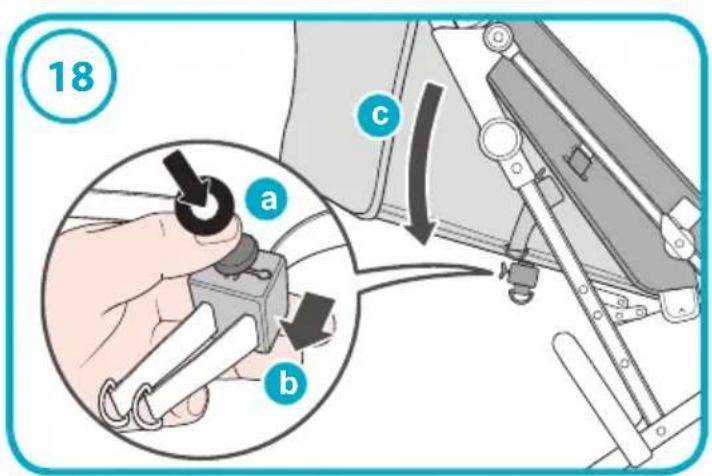

Basket Removing & 23-

Refitting is a reversal of this procedure.

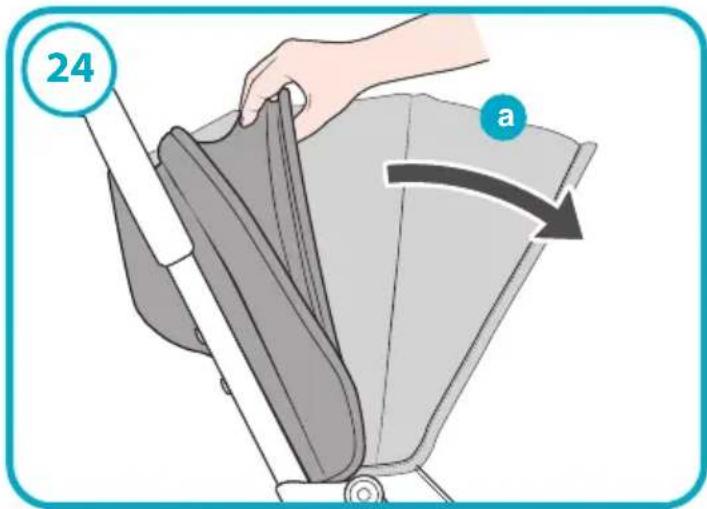

Hood 24- Opening:

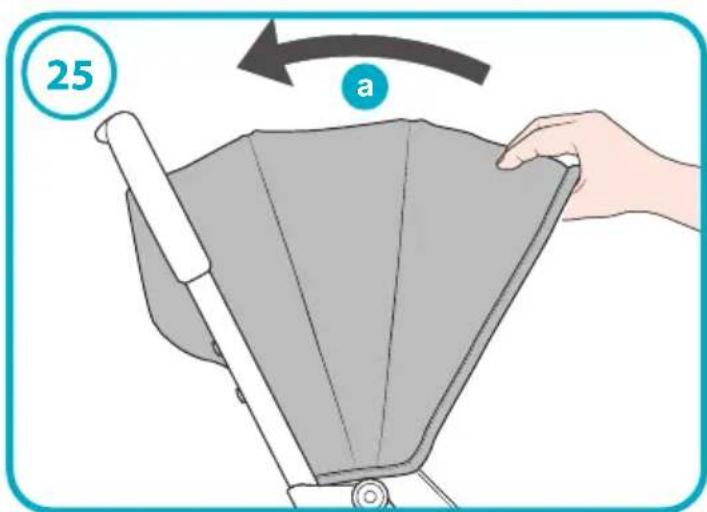

25- Closing:

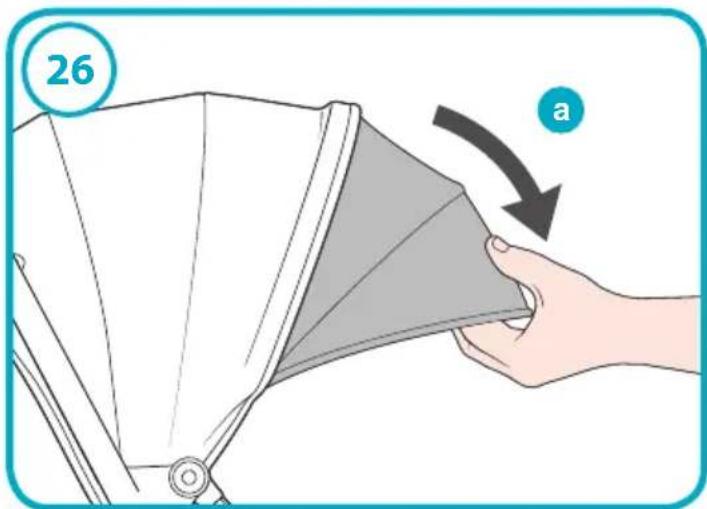

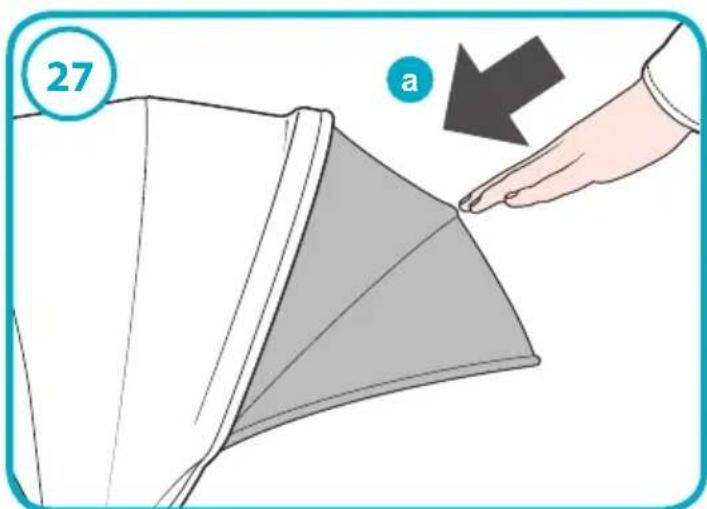

Sun visor 26- Opening:

EN

27- Closing:

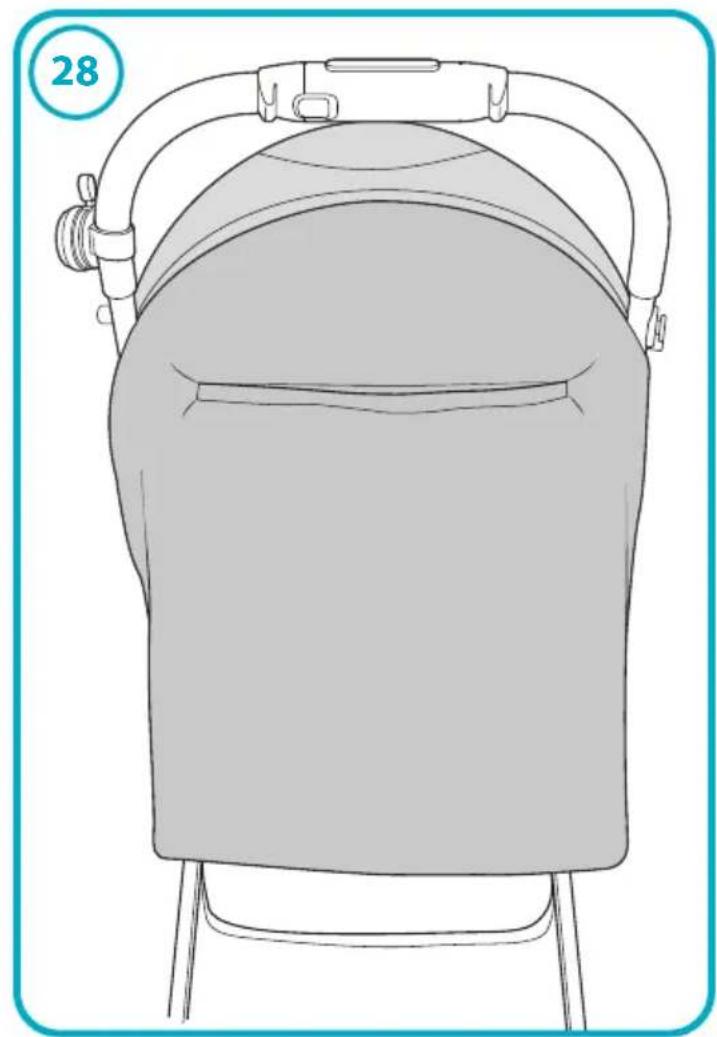

Hood 28- Using the hood pocket:

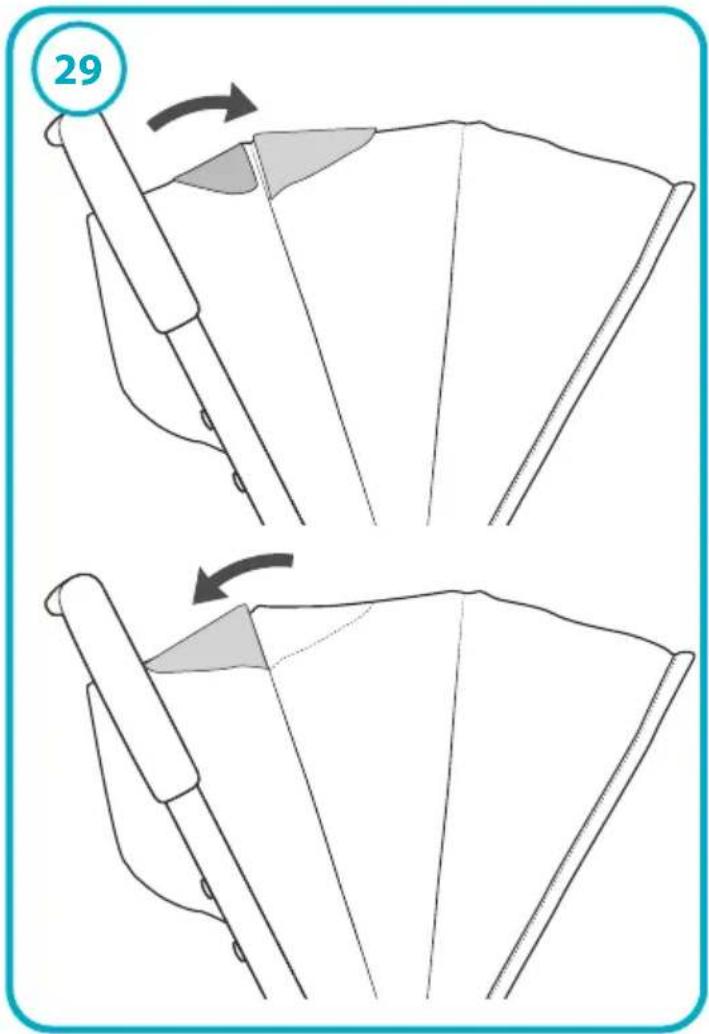

29- Using the viewing window flap:

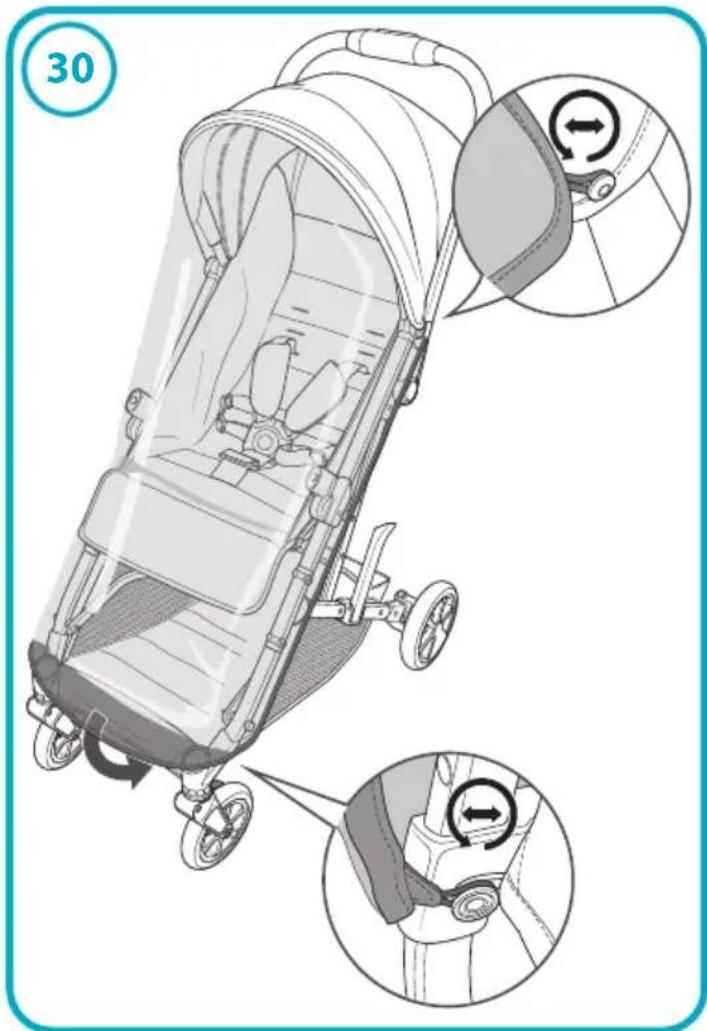

30- Fitting the raincover:

Removing is a reversal of this procedure.

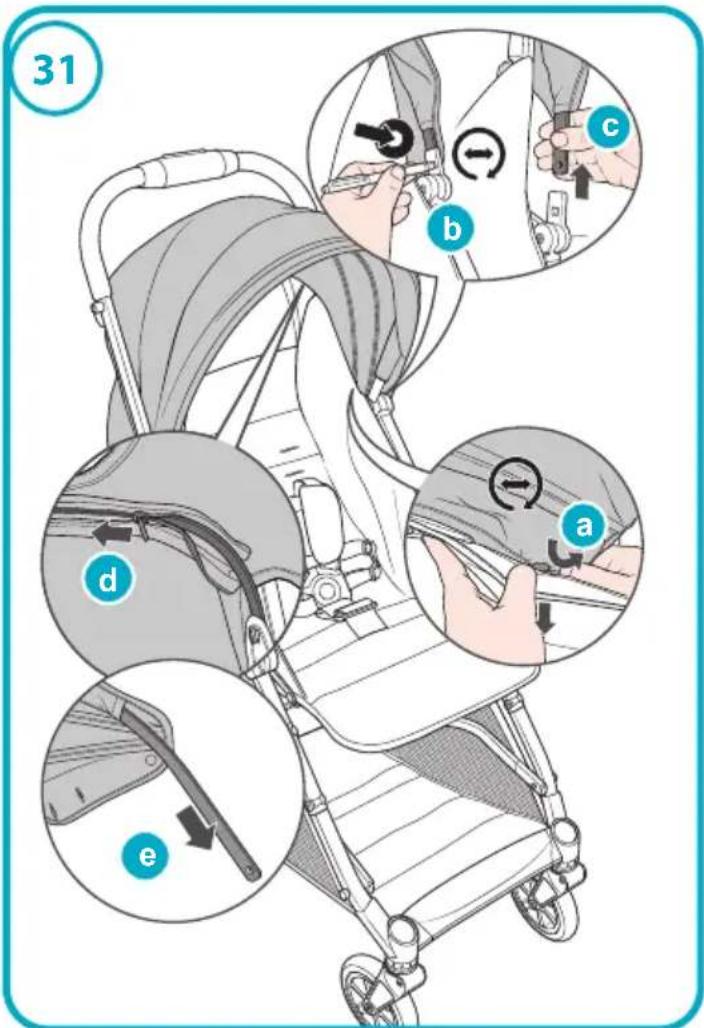

31- Removing:

Refitting is a reversal of this procedure.

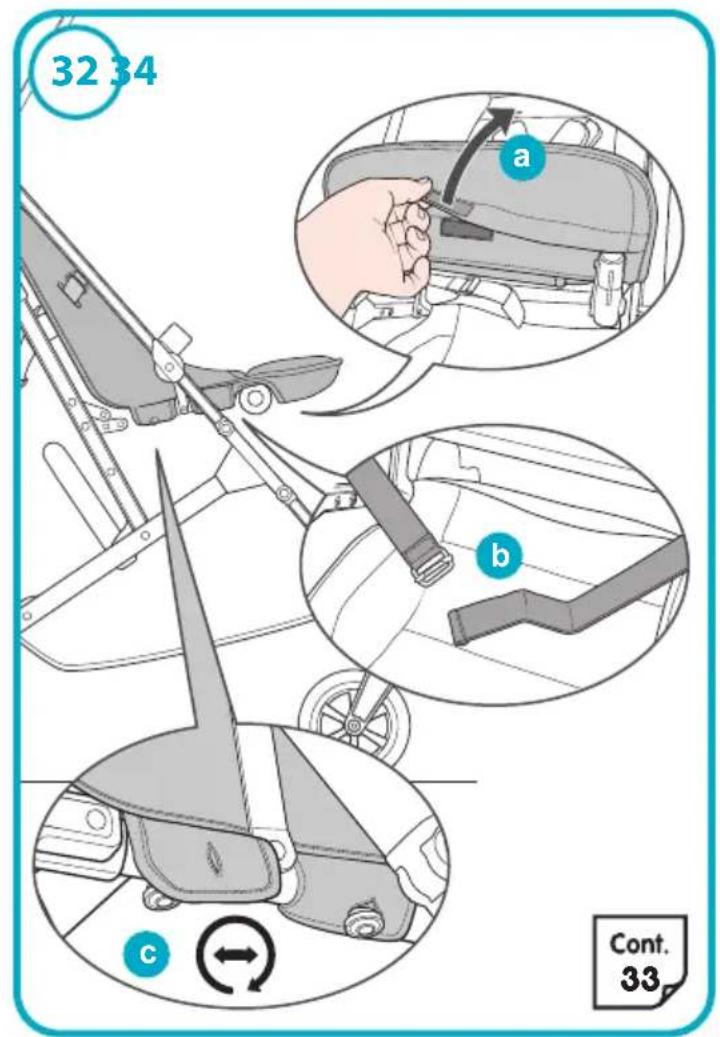

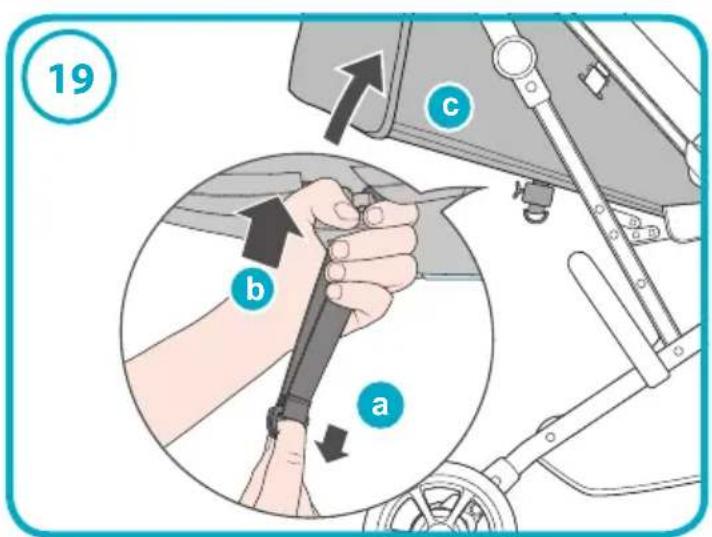

Seat cover 32- Removing:

Remove the harness (refer to step 16) & hood (refer to step 31) respectively.

Release the fabric fastener on the underside of the calf support (a).

Release the strap under the seat (b).

Unfasten the fastening tabs on each side of the seat cover (c).

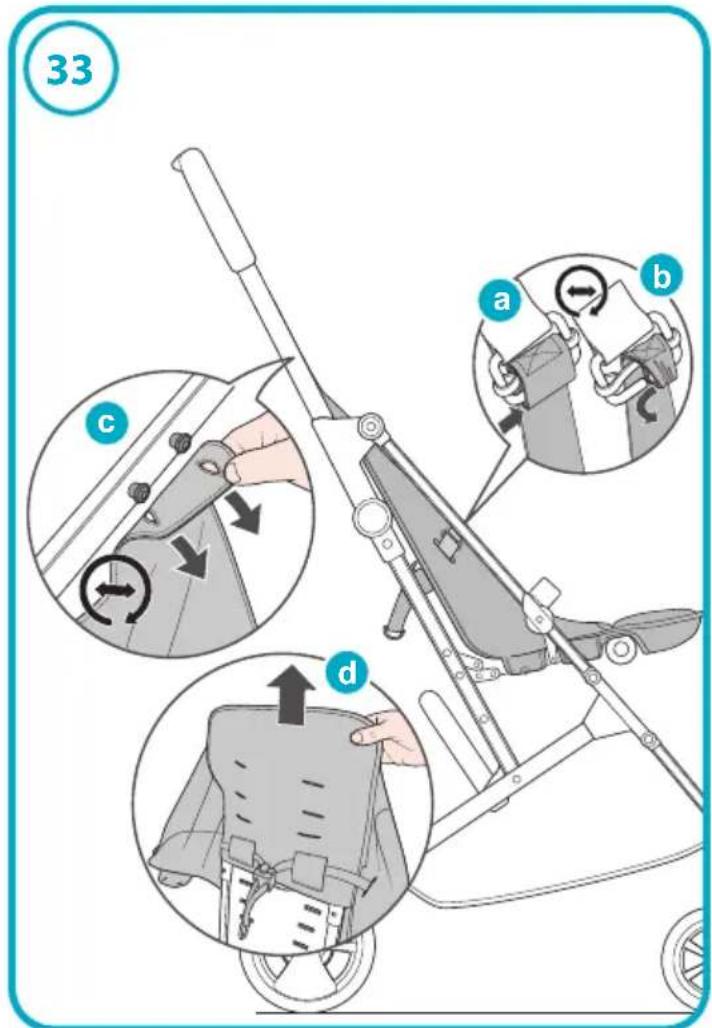

33- Push down the backrest strap end to expose the opening of the «C» ring (a) and slide the strap out of the ring (b).

Unfasten the fastening tabs on each side of the backrest (c).

Remove the seat cover off the seat (d).

Refitting is a reversal of this procedure.

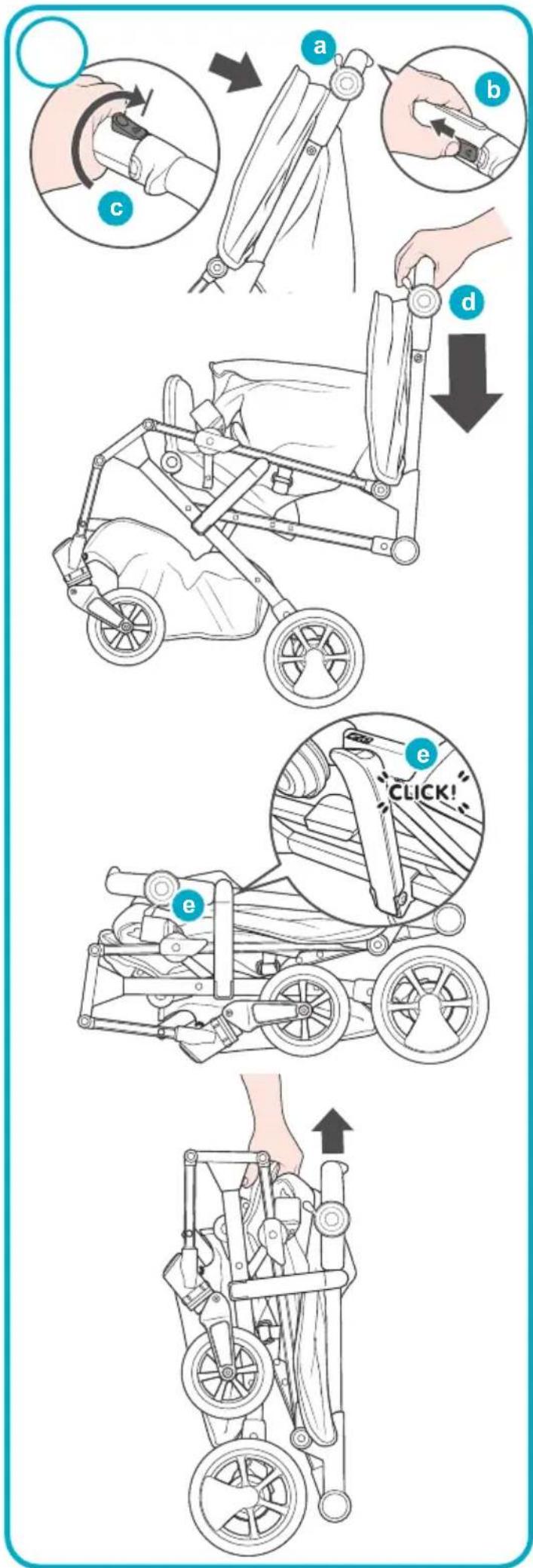

Pushchair 34- Closing:

Always remove the raincover and store it under the seat.

Close the hood fully (refer to step 24) (a).

Slide the primary lock lever (b) and rotate the secondary lock handle forward FULLY (c) to unlock the chassis.

Push the handle downwards (d) until the chassis is locked in place (e).

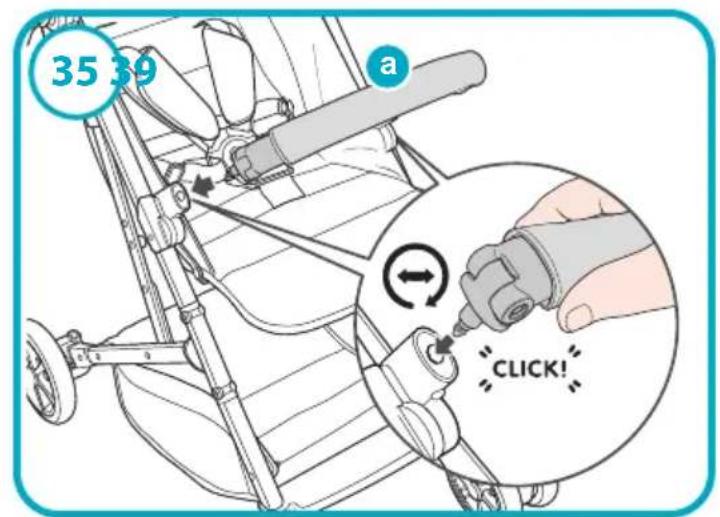

Bumper bar 35- Fitting:

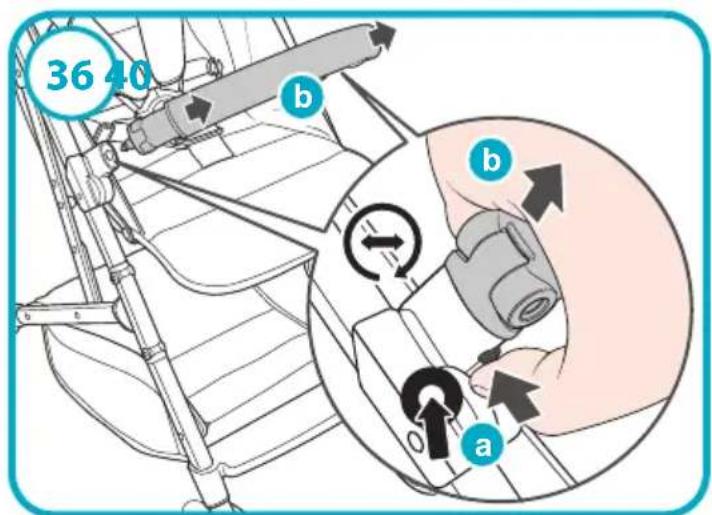

36- Opening:

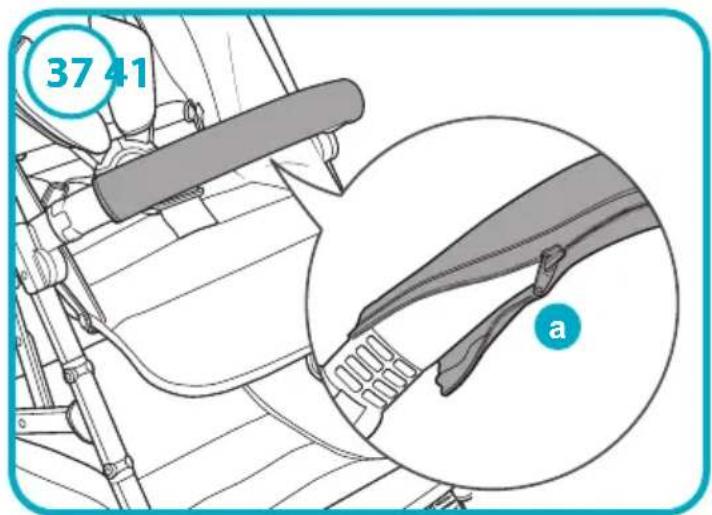

37- Removing:

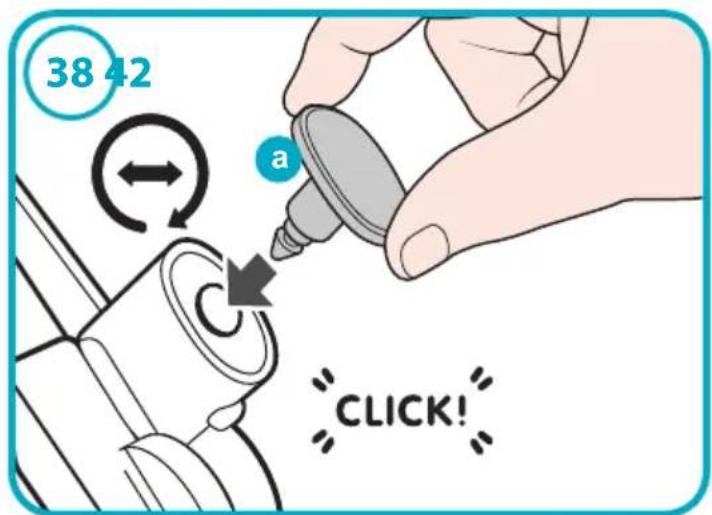

Bumper bar cap 38- Fitting:

39- Removing:

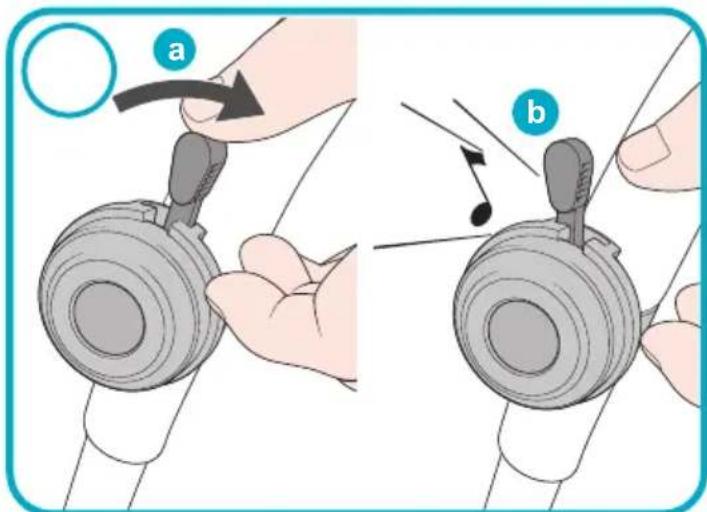

Bell 40- Operating:

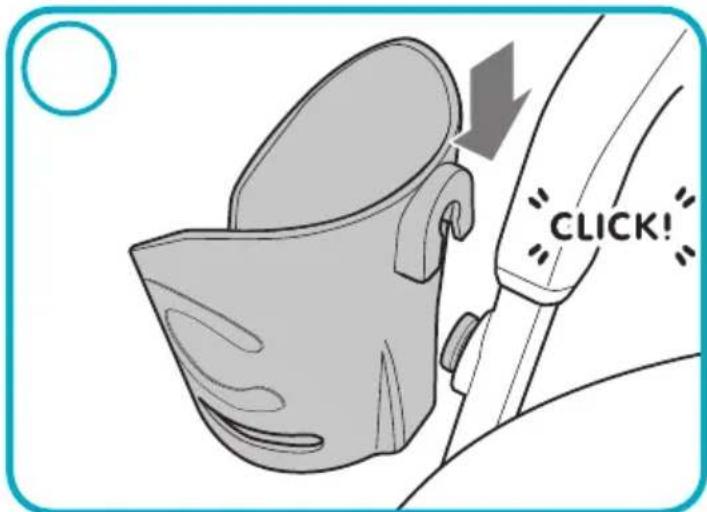

Drink holder 41- Fitting:

Removal is a reversal of this procedure.

Pushchair

42- Using the telescopic handle:

Retracting is the reversal of this procedure.

Note: the telescopic handle must be fully retracted when not in use.
