ORON® H2

IP65 HYBRID PHOSPHOR-LASER MOVING HEAD

CLORONH2

CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ / CONTENUTO

ENGLISH

INFORMATION ON THIS USER MANUAL 6

INTENDED USE 6

EXPLANATIONS OF TERMS AND SYMBOLS 6

SAFETY INSTRUCTIONS 8

NOTES ON PORTABLE OUTDOOR DEVICES 13

PACKAGING CONTENT 14

CONNECTIONS AND OPERATING/DISPLAY ELEMENTS 15

OPERATION 18

SET-UP AND INSTALLATION 29

CARE, MAINTENANCE, AND REPAIR 31

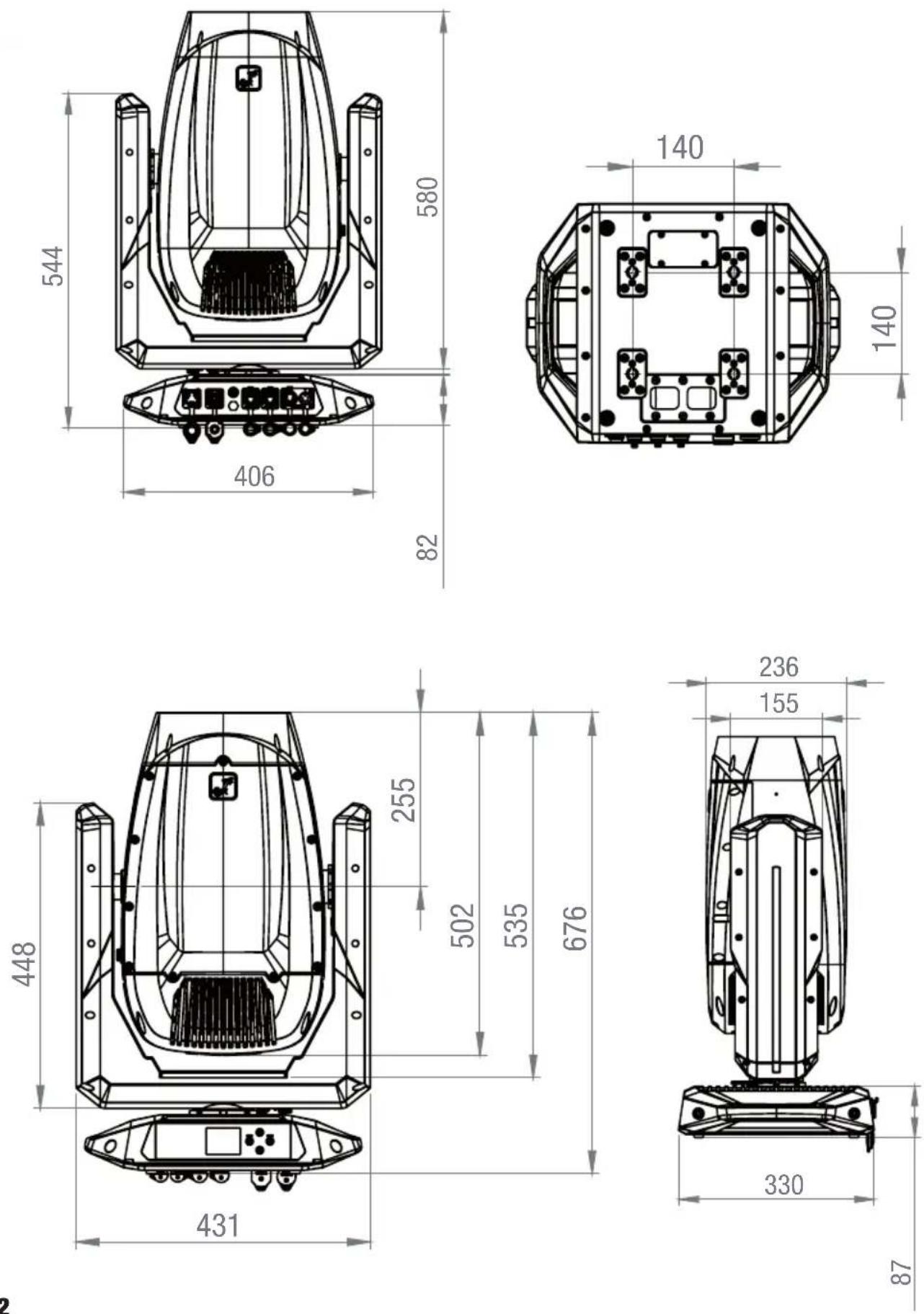

DIMENSIONS 32

TECHNICAL DATA 33

EXPLANATION OF IP PROTECTION CLASS 35

MINIMUM DISTANCE TO ILLUMINATED SURFACE 35

MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS 35

DISPOSAL 36

MANUFACTURER'S DECLARATIONS 36

DEUTSCH

This device has been developed and manufactured to the highest quality standards to ensure many years of trouble-free operation. Please read this user manual carefully to be able to quickly put your new Cameo Light product to optimum use. Further information about Cameo Light is available on our website CAMEOLIGHT.COM

INFORMATION ON THIS USER MANUAL

• Carefully read the safety instructions and the entire manual before operating the device.
• Observe the warnings on the device and in the user manual.
  • Always keep the user manual within reach.
• If you sell or pass on the device, it is important that you also include this user manual, as it is an integral part of the product.

INTENDED USE

This product is a device for event technology!

This product has been developed for professional use in the field of event technology and is not suitable for use as lighting in homes and residential areas!

The device must not be used to illuminate people!

The operator is responsible for ensuring that no persons are exposed to the light beam or its reflections. Temporary operation! Event equipment is designed for temporary use only and is not intended for continuous use or permanent installation! Furthermore, this product is only intended for qualified users with specialist knowledge of event technology!

Use of the product that is not in accordance with the specified technical data and operating conditions is considered improper use!

Liability is exempted when damage and third-party damage to persons and property is caused by inappropriate use!

The product is not suitable for:

• Children (children must be instructed not to play with the appliance).
• Persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge.

EXPLANATIONS OF TERMS AND SYMBOLS

1. DANGER: The word DANGER, possibly in combination with a symbol, indicates immediately hazardous situations or conditions for life and limb.
2. WARNING: The word WARNING, possibly in combination with a symbol, indicates potentially hazardous situations or conditions for life and limb.
3. CAUTION: The word CAUTION, possibly in combination with a symbol, indicates situations or conditions that may lead to injury.
4. ATTENTION: The word ATTENTION, possibly in combination with a symbol, indicates situations or conditions that may lead to damage to property and/or the environment.

This symbol identifies hazards that can cause electric shock.

This symbol indicates hazardous areas or hazardous situations.

This symbol indicates hazards caused by hot surfaces.

This symbol indicates that you must avoid looking or staring at the light source.

WARNING! DO NOT STARE INTO THE BEAM WARNUNG! NICHT IN DEN STRAHL STARREN

EYE EXPOSURE TO THE BEAM IS NOT PERMITTED

AUGENEXPOSITION DURCH DEN STRAHL IST NICHT ERLAUBT

RG-3

This symbol indicates that intense light sources categorised under risk group 3 may cause skin or eye damage.

Warning sign with warning triangle and arrow, indicating a hazard or alert scenario

This symbol indicates the direction in which potentially dangerous light is emitted from the light outlet.

CLASS 1 LASER PRODUCT

• Emitted wavelength: ____ nm
• Pulse pattern:
  • Maximum power or energy output: mW
• Complies with IEC 60825-1:2014 Class 1 and IEC 62471 Risk Group 3.

This symbol indicates that the product is a risk group 3 device that complies with IEC 62471 and IEC 60825-01:2014.

This symbol indicates a risk of crushing.

This symbol indicates intense light sources.

This symbol indicates that the product has no serviceable parts. Only authorised personnel may carry out maintenance or service work.

This symbol indicates additional information on the operation of the product.

DANGER ZONE

For risk group 3 devices, the danger zone refers to the area in which the optical radiation poses a significant risk to health. This area is marked with a warning symbol in the following illustration.

Optical radiation

Risk of serious eye damage or blindness

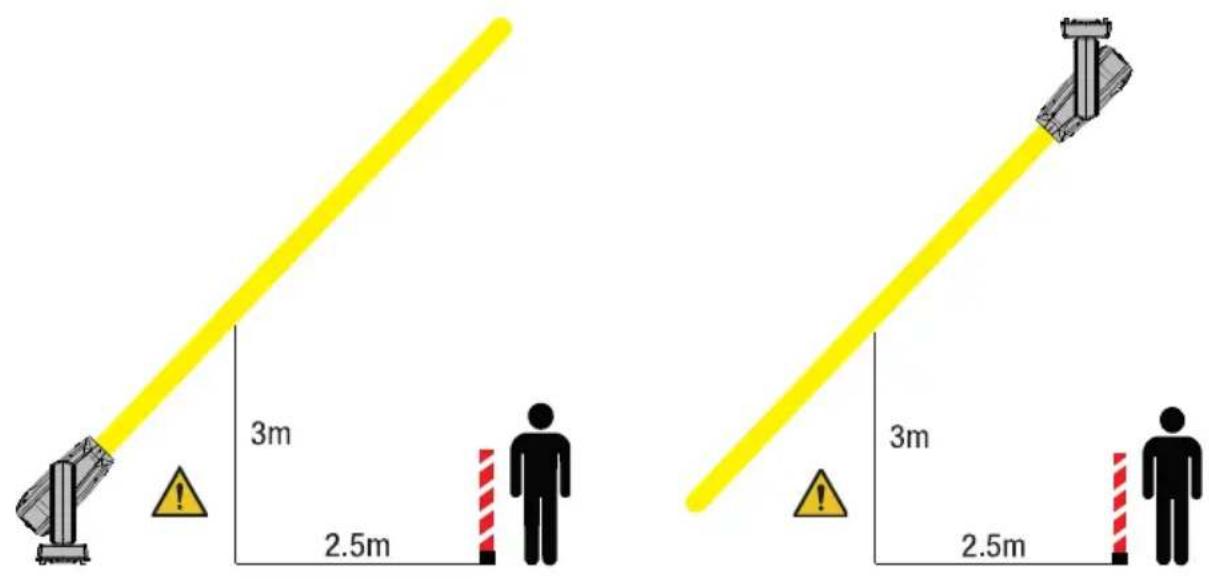

1. Make sure that there is a minimum horizontal distance of 2.5 metres and a vertical distance of at least 3 metres to the danger zone.
2. Make sure that nobody can enter the danger zone. The danger zone must be cordoned off by barriers.

3m 2.5m 3m 2.5m

SAFETY INSTRUCTIONS

WARNING! Optical radiation

Risk of serious eye damage or blindness

1. The device is intended exclusively for lighting effects in the air.
2. Do not use the device to illuminate people. Not suitable for use in residential areas.
3. The operator is responsible for ensuring that no persons are exposed to the light beam or its reflections.

DANGER:

1. Do not open the device, and do not make any modifications to it.
2. If your device no longer functions properly, if liquids or objects get inside it, or if it has been damaged in any other way, switch it off immediately and disconnect it from the power supply. The device may be repaired only by authorised qualified personnel.
3. For devices of protection class 1, the protective conductor must be connected correctly. Never disconnect the protective conductor. Devices of protection class 2 do not have a protective conductor.
4. Ensure that live cables are not kinked or otherwise mechanically damaged.
5. Never bypass the device fuse.

WARNING:

1. The device may not be operated if it shows obvious signs of damage.
2. The device may only be installed in a voltage-free state.
3. If the device's mains cable is damaged, the device may not be operated.
4. Permanently attached mains cables may only be replaced by a qualified person.

ATTENTION:

1. Do not operate the device if it has been exposed to large temperature fluctuations (for example, after transport). Moisture and condensation may damage the device. Switch on the device only when it has reached ambient temperature.
2. Make sure that the voltage and frequency of the mains correspond to the values specified on the device. If the device has a voltage selector switch, do not connect the device until it has been set correctly. Use only suitable mains cables.
3. To disconnect the device from the mains at all poles, it is not sufficient to press the on/off switch on the device.
4. Make sure that the fuse used corresponds to the type specified on the device.
5. Make sure that appropriate measures have been taken against power surges (for example, lightning strike).
6. Observe the specified maximum output current on devices with Power Out connection. Ensure that the total current consumption of all connected devices does not exceed the specified value.
7. Replace plug-in mains cables only with original cables.

DANGER:

1. Danger of suffocation/choking! Plastic bags and small parts must be kept out of reach of persons (including children) with reduced physical, sensory, or mental capabilities.
2. Danger caused by falling device! Make sure that the device is securely installed and cannot fall down. Only use suitable stands or mounts (particularly for fixed installations). Ensure that accessories are properly installed and secured. Ensure that applicable safety regulations are observed.

WARNING:

1. Use the device only in the prescribed manner.
2. Operate the device only with the accessories recommended and intended by the manufacturer.
3. During installation, observe the safety regulations applicable in your country.
4. After connecting the device, check all cable routes to avoid damage or accidents, for example, due to tripping hazards.
5. Always observe the specified minimum distance to normally flammable materials! Unless explicitly stated, the minimum distance is 0.3 m.
6. Always observe the minimum distance to the illuminated surface specified on the device!

CAUTION:

1. Moving components such as mounting brackets or other movable components may become jammed.
2. Devices with motor-driven components may result in injury from the movement of the device. Sudden movement of the device can cause shock reactions.
3. The exterior surface of the device can become very hot during regular operation. Ensure that accidental touching of the housing is not possible. Always allow the device to cool sufficiently before removal, maintenance work, charging, or similar.

ATTENTION:

1. Do not install or operate the device near any radiators, heat registers, stoves, or other heat sources. Ensure that the device is always installed in such a way that it is sufficiently cooled and cannot overheat.
2. Do not place ignition sources such as burning candles near the device.
3. Ventilation openings must not be covered, and fans must not be blocked.
4. Use the original packaging or packaging provided by the manufacturer for transport.
5. Avoid shock or impact to the device.
6. Observe the IP protection class, as well as the ambient conditions such as temperature and humidity according to the specification.
7. Devices can be constantly further developed. In the event of deviating information on operating conditions, performance, or other device properties between the user manual and the device labelling, the information on the device always takes priority.
8. The device is not suitable for tropical climates and for operation at heights of 2,000 m above sea level or higher.
9. Unless explicitly stated, the device is not suitable for operation in marine conditions.

CAUTION! IMPORTANT NOTES ON LIGHTING PRODUCTS!

1. This device is a risk group 3 device. Risk of serious skin and eye damage! Never look into the light source or the light beam, not even for a short time! Do not look directly into the lamp with optical instruments such as magnifying glasses or binoculars! Do not expose the skin to the light beam or its reflections!

1. Do not focus the light beam on flammable surfaces!

1. Stroboscopic effects may cause epileptic seizures in susceptible individuals!

1. Permanently installed lamps are built into these lighting units. These may not be replaced by the user. The lamps contained in this light source may only be replaced by the manufacturer, its service partner, or a similarly qualified person.

PERSONAL PROTECTIVE EQUIPMENT

Wear suitable protective equipment when assembling, setting up, and dismantling the device:

• Protective gloves
• Safety footwear
• LB4 safety goggles in accordance with EN 207 (must always be worn during set-up)

(FOR EXAMPLE, W-DMX® OR AUDIO RADIO SYSTEMS):

The quality and performance of wireless signal transmissions generally depends on the ambient conditions.

For example, the following factors can impact range and signal stability:

Shielding (for example, masonry, metal structures, water)

High volumes of radio traffic (for example, powerful wireless LAN networks) Interference

Electromagnetic radiation (for example, LED video screens, dimmers)

All range specifications refer to free-field line-of-sight applications without interference!

The operation of radio transmission systems is subject to official regulations. These may vary from region to region and must be checked by the operator before use (for example, radio frequency and transmission power).

WARNING: Devices with wireless signal transmission are not suitable for use in sensitive areas in which radio operation can lead to potentially detrimental interactions. These include:

• Hospitals, health centres, or other healthcare facilities that provide patient treatment with qualified personnel and equipment.
  • Hazardous areas Class I, II, and III
• Restricted areas
• Military facilities
• Aircraft or vehicles
• Areas where the use of mobile phones is prohibited

TRANSMISSION VIA W-DMX®

WARNING: In general, wireless DMX transmission must not be used for applications involving safety-related factors that might result in personal injury or property damage in the event of a failure.

This applies in particular to moving scene or truss structures, DMX-controlled motors/lifts, or lifting devices for operating DMX-operated platform lifts, hydraulic systems, or comparable moving components.

Furthermore, wireless DMX transmission must not be used to control flame or pyrotechnic devices, explosion-driven effects, or gas or liquid effects. These include CO_2 cannons, confetti shooters, water effects, or similar.

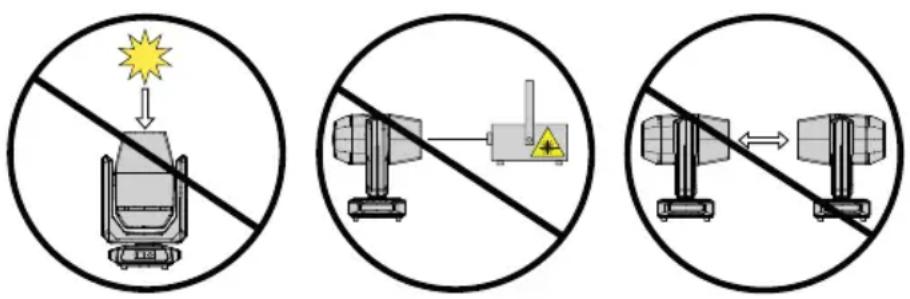

ATTENTION! POTENTIAL DAMAGE FROM EXTERNAL LIGHT SOURCES!

Solar radiation, laser radiation, and bundled light beams from other lights can damage the housing and internal components, such as filters, gobo and colour wheels, motors, cables, belts, as well as light sources!

Do not expose the device and especially the lens opening to direct sunlight, laser radiation, and bundled light beams from other lights during unpacking, installation, prolonged disuse, and operation! Always point the lens opening towards the floor when the device is not in use! For this purpose, also use the Sun Protection function, which can be activated via DMX command (see Device Settings channel in the DMX table). A built-in gyroscope sensor detects the orientation of the device.

Damage caused by external light sources is excluded from the manufacturer's warranty!

BLACKOUT ZONES

DMX can be used to set up zones (viewing area, stage area, and similar) where a blackout is automatically activated as soon as the light beam reaches a zone via pan and tilt movement. Only one of the three available blackout zones can be activated at a time.

Setting up blackout zones:

1. Device settings: Value 004 – 005 Enable Savings BO Zone
2. Define square (blackout zone) with Save Position 1 to Save Position 4 (the pan and tilt values set for the respective positions)
3. Save a defined square in a zone with Save Positions to Zone A to Save Positions to Zone C
4. Activate blackout zone with Blackout Zone A active or Blackout Zone B active or Blackout Zone C active

The device gives a brief stroboscopic effect to confirm that a position or zone has been successfully saved.

Once a blackout zone is set up, the position of the device must not be changed!

Blackout Zone	000 – 005 Blackout Zone deactivated
	006 – 046 Save Position 1
	047 – 087 Save Position 2
	088 – 108 Save Position 3
	109 – 129 Save Position 4
	130 – 150 Save Positions to Zone A
	151 – 171 Save Positions to Zone B
	172 – 192 Save Positions to Zone C
	193 – 213 Blackout Zone A active
	214 – 234 Blackout Zone B active
	235 – 255 Blackout Zone C active
Device settings 000 – 003(hold value for 3 seconds)	No function
	004 – 005 Enable Savings BO Zone

NOTES ON PORTABLE OUTDOOR DEVICES

1. Temporary operation! Event equipment is generally only designed for temporary operation.
2. Continuous operation or permanent structural installation – particularly outdoors – can impair the function, surfaces, and seals and cause premature material fatigue.
3. Damage to the surface coating can impair the device's corrosion protection. Damaged surface coating (for example, scratches) must be promptly repaired using suitable measures.

PACKAGING CONTENT

Remove the product from the packaging and remove all packaging material.

Please check the completeness and integrity of the delivery, and notify your distribution partner immediately after purchase if the delivery is not complete or if it is damaged.

The packaging content for the product includes:

▶ 1 × ORON H2 moving head
▶ 1 × Mains cable
▶ 2 × Omega bracket

▶ Safety and compliance information (user manual as a download via QR code)

CONTROL FUNCTIONS:

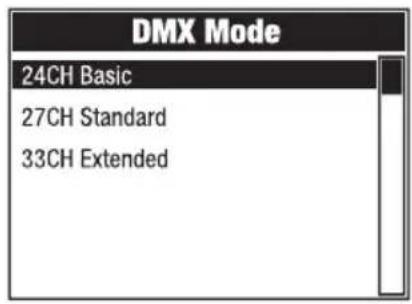

24-, 27-, and 33-channel DMX control

Master/slave operation

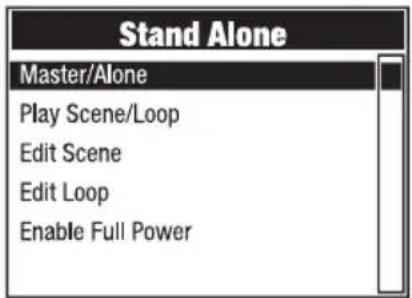

Stand-alone operation

W-DMX®

FEATURES:

IP65 protection class. Laser Phosphor Engine 260 W. DMX512. Wireless DMX. Art-Net and sACN. 5-pin DMX connections. 2 × omega mounting bracket included. Operating voltage: 100 – 240 V AC.

The light supports the remote device management (RDM) standard. Remote device management allows the user to monitor the status and configuration of RDM devices using an RDM-capable controller, such as the optionally available Cameo UNICON (item number CLIREMOTE).

CONNECTIONS AND OPERATING/DISPLAY ELEMENTS

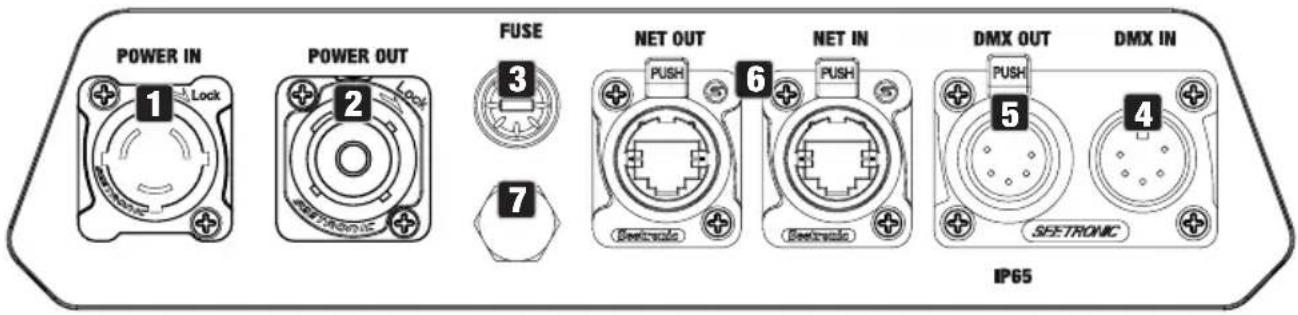

POWER IN 1 Lock POWER OUT 2 3 7 FUSE NET OUT 6 NET IN 5 DMX OUT 4 IP65 SETRONIC

1 POWER IN

IP65 mains input socket with rubber sealing cap. Operating voltage 100–240 V AC / 50–60 Hz. Connection via supplied mains cable (when not in use, always close with the rubber sealing cap).

2 POWER OUT

IP65 mains output socket with rubber sealing cap. Enables power supply to other CAMEO lights. Ensure that the total current consumption of all connected devices does not exceed the value specified on the device in amperes (A) (when not in use, always close the rubber sealing cap).

3 FUSE

IP65 fuse holder for 5 × 20 mm fuses. IMPORTANT NOTE: Only replace the fuse with a fuse of the same type and value. Carefully reseal the fuse holder to further ensure IP65 tightness. In the event of repeated fuse failure, please contact an authorised service centre.

4 DMX IN

Male IP65 5-pin XLR socket for connecting a DMX control device (for example, DMX console; when not in use, always close with the rubber sealing cap).

5 DMX OUT

Female IP65 5-pin XLR socket for relaying the DMX control signal (when not in use, always close with the rubber sealing cap).

6 NET IN / OUT

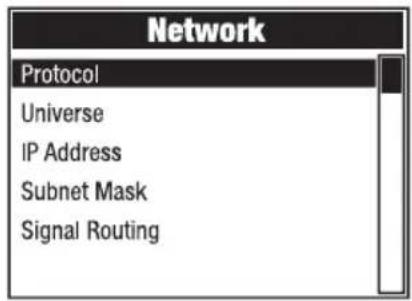

RJ45 network connectors for connecting to an Art-Net or sACN network and for relaying the control signal (when not in use, always close with the rubber sealing cap). Use cables with IP65 rating and CAT 5e or better cables to set up the network.

7 PRESSURE EQUALISATION ELEMENT

Pressure equalisation element to prevent condensation inside the housing. In order to ensure its proper functioning, the element must be protected from dirt.

ANTENNA

The antenna for wireless DMX control is located inside the base of the device.

ATTENTION: In order to provide protection from water sprays in accordance with the IP65 protection class, the special DMX input and output sockets must be used with special IP65-rated XLR connectors, or they must be closed using the rubber sealing caps. When connected correctly, or when sealed correctly with the rubber sealing caps, the POWER IN and POWER OUT mains sockets are protected from splashing water, as in accordance with IP65.

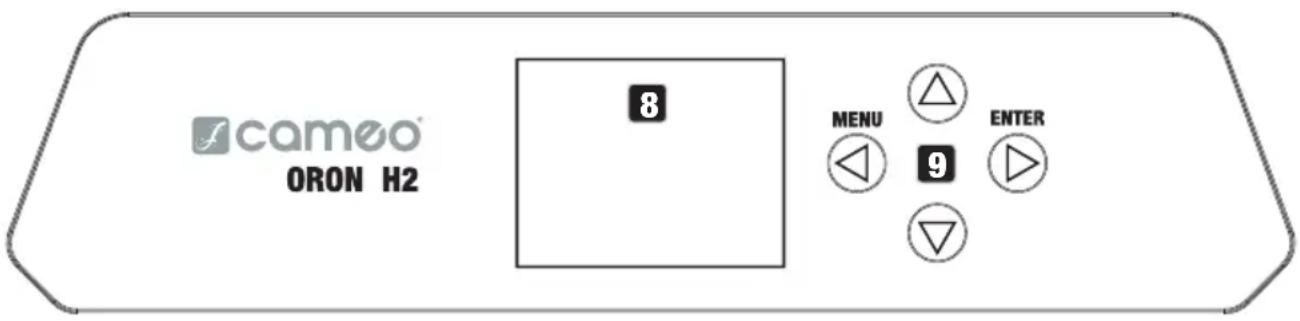

fcameo ORON H2 8 MENU 9 ENTER

8 LC DISPLAY

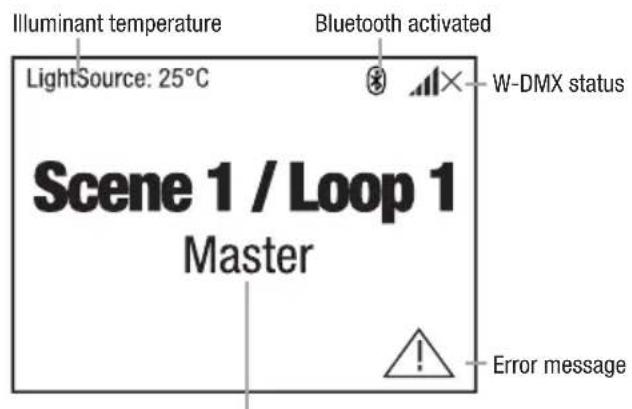

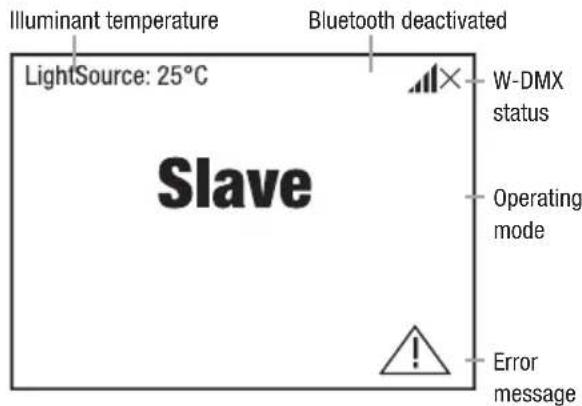

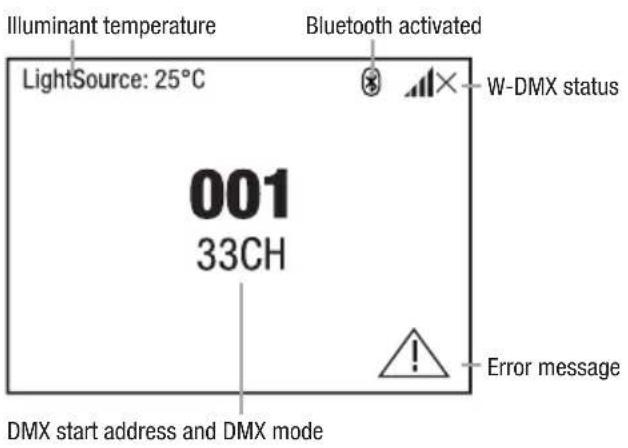

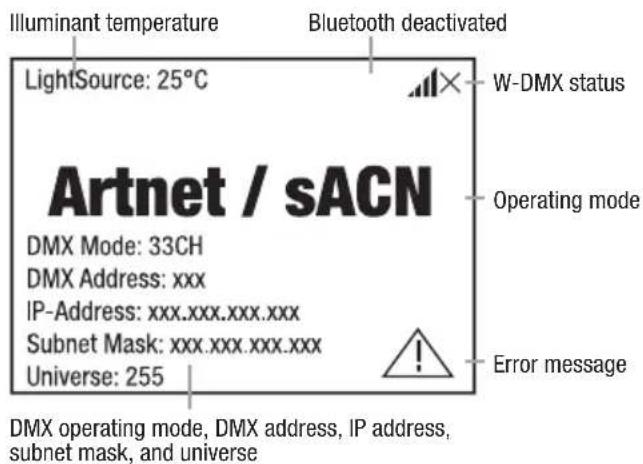

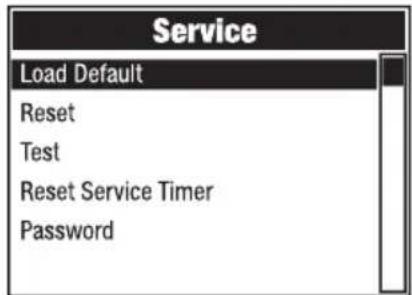

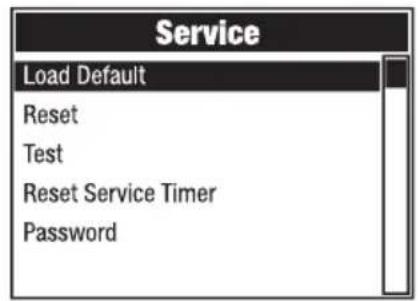

The illuminated display shows the currently activated operating mode (main display), the menu items in the main menu and sub-menus, and the numerical value or status in certain menu items. If there is no control signal to the device, the characters in the centre of the display start flashing; the flashing stops as soon as a control signal is available (W-DMX ^® , DMX, and slave operation).

9 TOUCH-SENSITIVE CONTROL PANELS

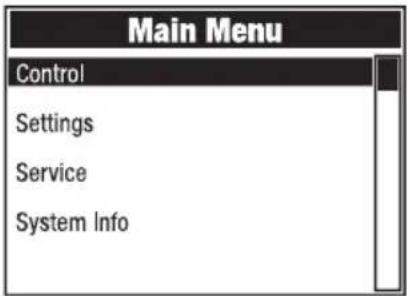

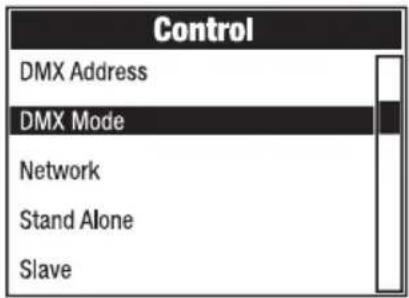

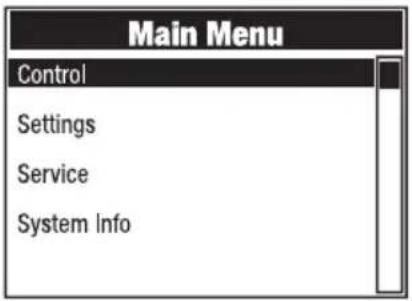

MENU – Press MENU to access the main menu. Press again or repeatedly to return to the main display.

▲ and ▼ – Use ▲ and ▼ to select the menu items in the main menu (for example, DMX address, operating mode) and in the sub-menus. Change the value or status of a menu item, such as DMX address.

ENTER – Press ENTER to access the menu layer to make value or status changes, and to access one of the sub-menus. Confirm value or status changes by pressing ENTER.

PLEASE NOTE:

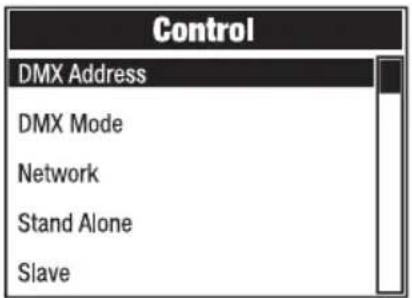

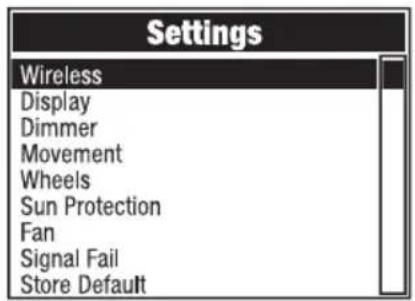

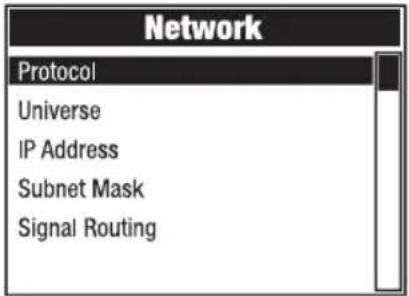

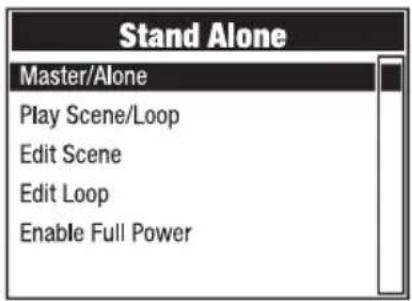

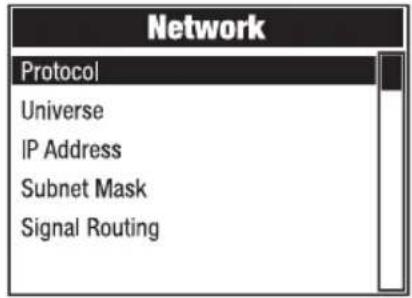

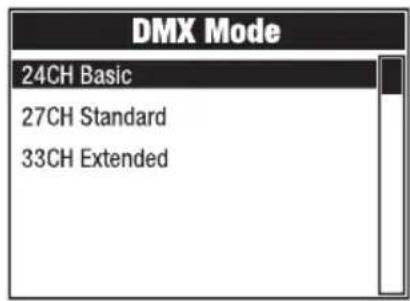

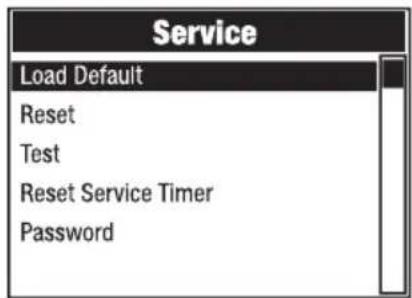

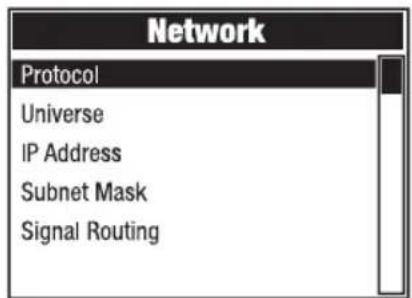

• Before navigating the device menu, make sure that the control panel is dry and clean so that its functionality is not impaired.
• Moisture on the control panel can lead to incorrect operation of the light, for example, in outdoor conditions. Therefore, after configuring the light, activate the lock function to prevent incorrect operation by water (Settings -> Display -> Autolock). Deactivate the lock function: Press ▲ and ▼ simultaneously for approximately 5 seconds.

The battery-powered display can be activated even if the device is disconnected from the mains. To do this, press and hold MENU for approximately 10 seconds. You can now access device information and change and save system settings without mains connection. The external control of the light is not activated in this case. For this reason, the display shows that there is no control signal even if the device has a control signal.

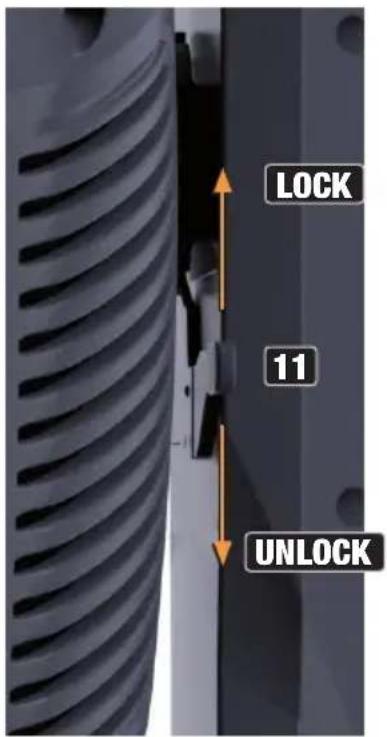

10 LOCK UNLOCK

LOCK 11 UNLOCK

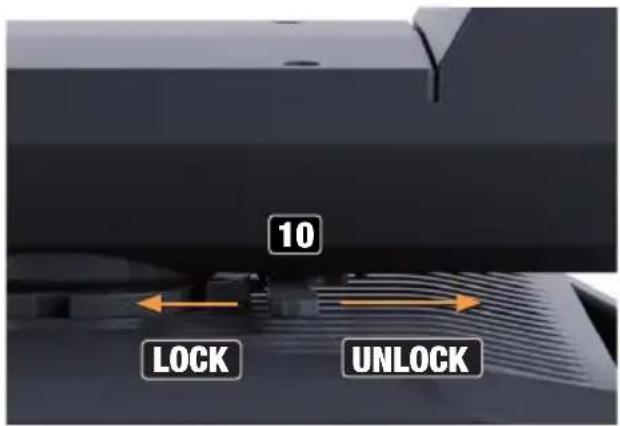

10 PAN LOCK

Mechanical locking device used to prevent rotation of the head in the horizontal direction during transport (eight possible positions). Disconnect the unit from the mains and slide the locking lever towards the pan rotation axis, moving the head of the unit horizontally until one of the eight locking positions is found and the locking lever engages. Unlock the locking device before device start-up (UNLOCK).

11 TILT LOCK

Mechanical locking device used to prevent rotation of the head in the vertical direction during transport (seven possible positions). Disconnect the unit from the mains and slide the locking lever towards the tilt rotation axis, moving the head of the unit vertically until one of the seven locking positions is found and the locking lever engages (LOCK). Unlock the locking device before device start-up (UNLOCK).

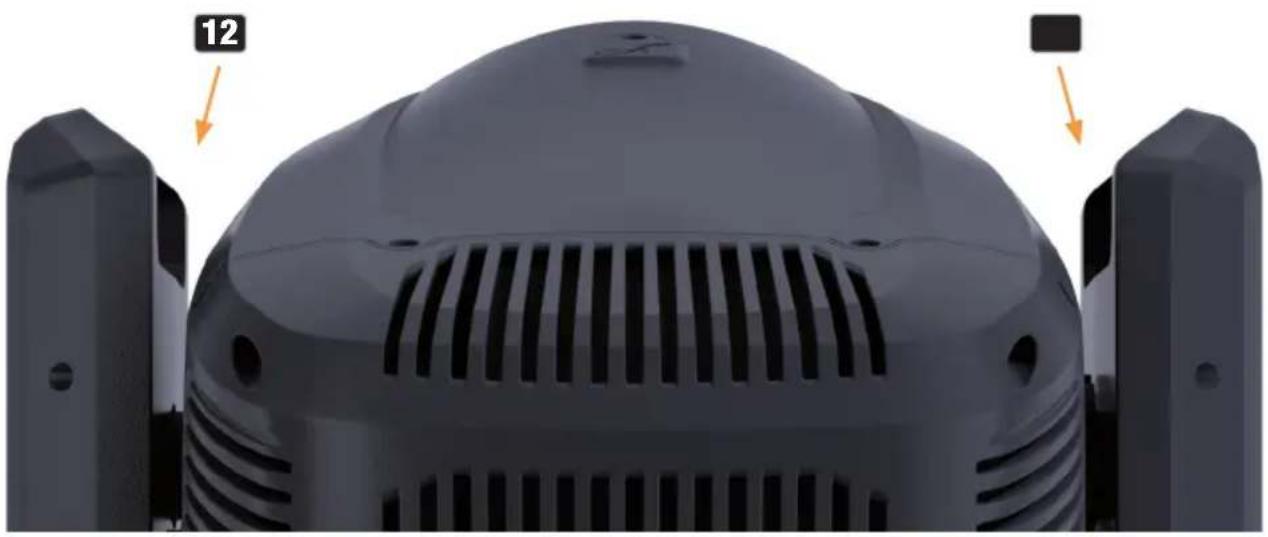

12 RECESSED GRIPS

In addition to the two transport handles on the base of the device, there are convenient recessed grips at the top of the inner sides of the two device arms.

Close-up of a black dome-shaped object with ventilation grilles and mounting brackets, marked with arrows and number 12 (no text or symbols on the object itself)

OPERATION

Notes

When the light is correctly connected to the mains, “Software update ... please wait”, the software version, “Welcome to Cameo”, and “... RESET” are shown on the display during start-up and motor reset. After this process, the light is ready for operation, and the previously activated operating mode is launched.

The main display is activated automatically if no input is made within approximately 30 seconds.

MAIN DISPLAY

In the different operating modes, the main display shows different information which is relevant to the operating mode.

DMX and W-DMX® operating modes Art-Net and sACN operating modes

Illuminant temperature LightSource: 25°C Bluetooth activated W-DMX status 001 33CH Error message DMX start address and DMX mode

Illuminant temperature LightSource: 25°C Bluetooth deactivated W-DMX status Artnet / sACN DMX Mode: 33CH DMX Address: xxx IP-Address: xxx.xxx.xxx.xxx Subnet Mask: xxx.xxx.xxx.xxx Universe: 255 Error message DMX operating mode, DMX address, IP address, subnet mask, and universe

Stand-alone operating modes Slave operating mode

Illuminant temperature LightSource: 25°C Bluetooth activated W-DMX status Scene 1 / Loop 1 Master Error message

Scene or loop and signal output

Illuminant temperature LightSource: 25°C Bluetooth deactivated W-DMX status Slave Operating mode Error message

Note on the main display in the operating modes with external control: In the event that the control signal is interrupted, the characters in the centre of the display begin flashing; once the control signal is present again, the flashing stops.

Error message: If the warning symbol (triangle with exclamation mark) appears in the display, there is an error in one or more of the device's components. Which components are affected can be seen in the System Info Menu under Error Info. If a restart or reset does not rectify the error, please contact an authorised service centre.

WIRELESS DMX

To pair a wireless DMX receiver with a wireless DMX-compatible transmitter, the reset command must be executed in the menu item "WDMX" under "Receiver" (select "Unlink" and confirm). The receiver is now ready to pair and waiting for a pairing request from a transmitter. Start the pairing by selecting "Link" in the menu of the transmitter and confirming; the pairing now takes place automatically. Simultaneous or consecutive pairing of several receivers to a transmitter (for example, for master/slave operation) can also be done in the same manner. A wireless DMX connection is always maintained until it is disconnected with the reset command in the receiver or the unlink command in the transmitter, regardless of whether a device has been disconnected from the power supply in the meantime.

WIRELESS DMX STATUS

W-DMX® deactivated	W-DMX® activated as receiver; not paired	W-DMX® activated as receiver and paired; transmitter switched off or out of range	W-DMX® activated as receiver and paired; no DMX signal	W-DMX® activated as receiver and paired; DMX signal present	W-DMX® activated as transmitter

CONTROL MENU (Control)

The “Control” menu is used to select the various operating modes and set their options in the respective sub-menus.

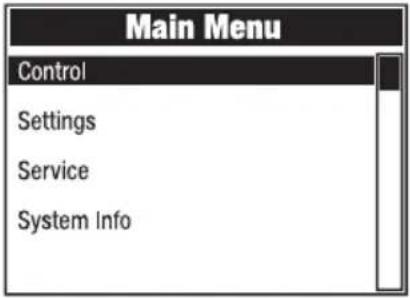

SETTING THE DMX START ADDRESS (DMX Address)

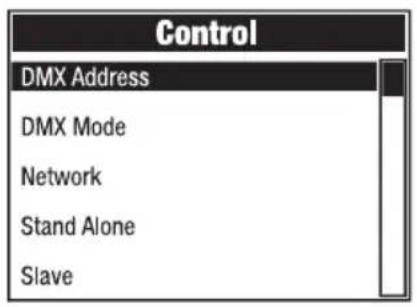

Starting from the main display, press MENU to access the main menu. Use ▲ and ▼ to select the Control menu and press ENTER. Now select the DMX Address menu item and confirm again. Use ▲ and ▼ to set the desired value and press ENTER to confirm.

Main Menu Control Settings Service System Info

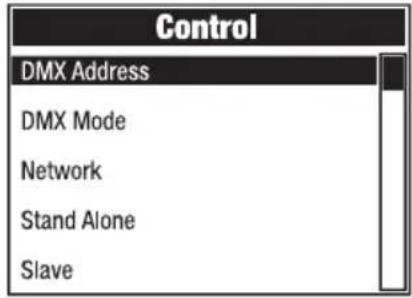

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Address 001

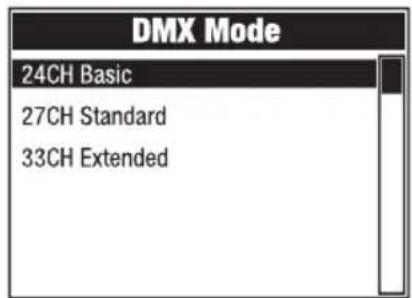

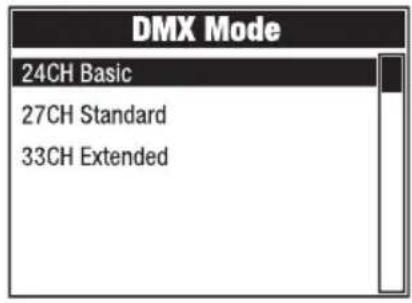

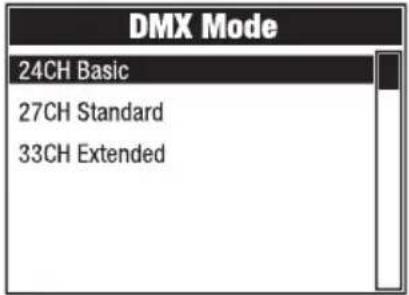

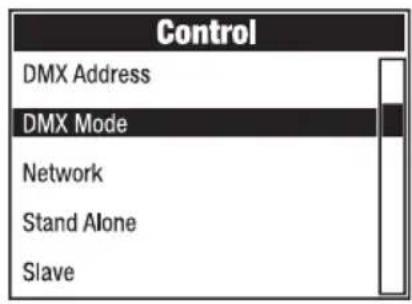

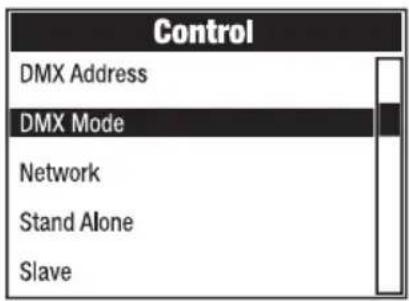

SETTING THE DMX OPERATING MODE (DMX Mode)

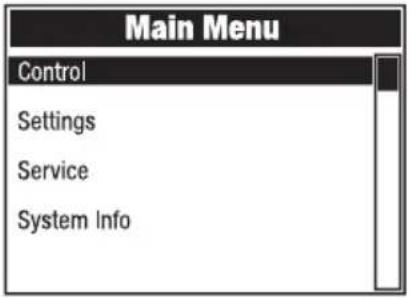

Starting from the main display, press MENU to access the main menu. Use ▲ and ▼ to select the Control menu and press ENTER. Now select the DMX Mode menu item and confirm again. Use ▲ and ▼ to select the desired DMX operating mode and press ENTER to confirm. DMX tables with the channel assignments can be found in the DMX CONTROL section of this user manual.

Main Menu Control Settings Service System Info

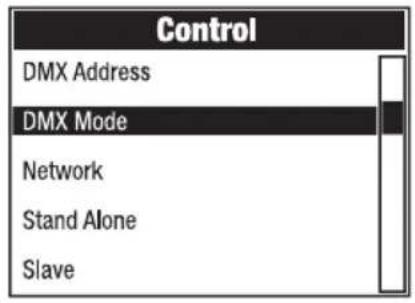

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Mode 24CH Basic 27CH Standard 33CH Extended

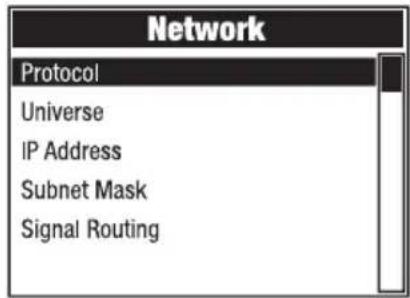

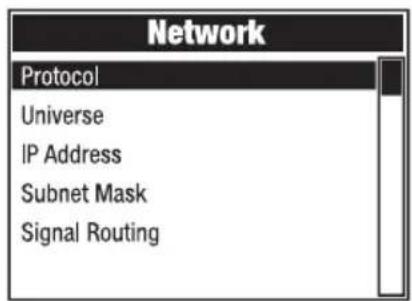

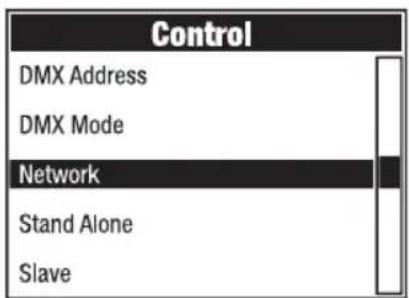

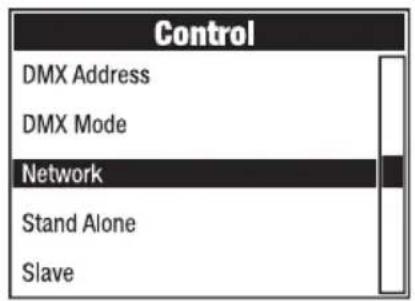

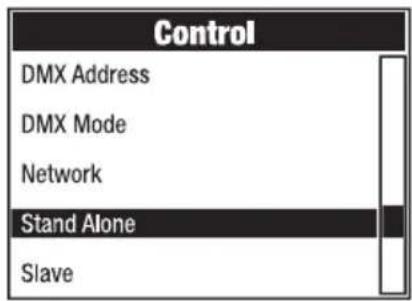

NETWORK (Network)

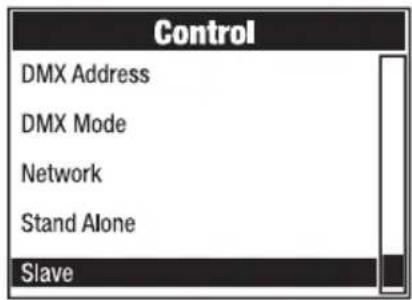

Starting from the main display, press MENU to access the main menu. Use ▲ and ▼ to select the Control menu and press ENTER. Now select the Network menu item and confirm again.

Main Menu Control Settings Service System Info

Control DMX Address DMX Mode Network Stand Alone Slave

Network Protocol Universe IP Address Subnet Mask Signal Routing

Information on the sub-menu items in the “Network” menu and the corresponding setting options can be found in the table below (select with ▲ and ▼, confirm with ENTER, change the value or status with ▲ and ▼, confirm with ENTER).

Art-Net network
Protocol	Artnet	Control via Art-Net
	sACN	Control via sACN
Universe	Absolute Univ.	Setting of the absolute Art-Net universe	Dependent on net, subnet, and universe
	Net	Setting of the Art-Net network	Dependent on absolute universe
	Subnet	Setting of the Art-Net subnet
	Universe	Setting of the Art-Net universe
IP Address	xxx.xxx.xxx.xxx	Setting of the IP address: Set first block, confirm, set second block, confirm.
Subnet Mask	xxx.xxx.xxx.xxx	Setting of the subnet mask: Set first block, confirm, set second block, confirm.
Signal Routing	Send to XLR	Relaying of the control signal to XLR Out
	Backup by XLR	Control via XLR with network signal interruption
	Receive only	No connection between network signal and XLR connectors

sACN network
Protocol	Artnet	Control via Art-Net
	sACN	Control via sACN
Universe		Setting of the sACN universe
IP Address	xxx.xxx.xxx.xxx	Setting of the IP address: Set first block, confirm, set second block, confirm.
Subnet Mask	xxx.xxx.xxx.xxx	Setting of the subnet mask: Set first block, confirm, set second block, confirm.
Signal Routing	Send to XLR	Relaying of the control signal to XLR Out
	Backup by XLR	Control via XLR with network signal interruption
	Receive only	No connection between network signal and XLR connectors

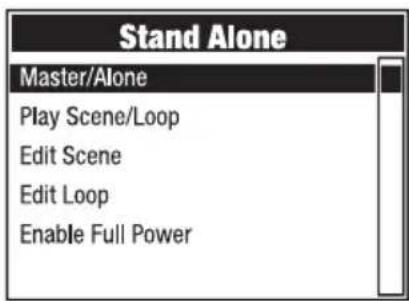

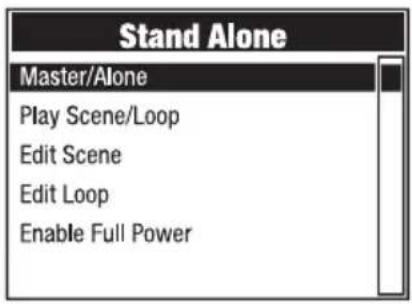

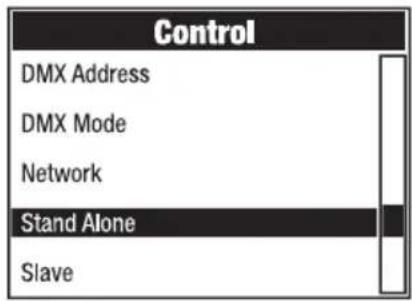

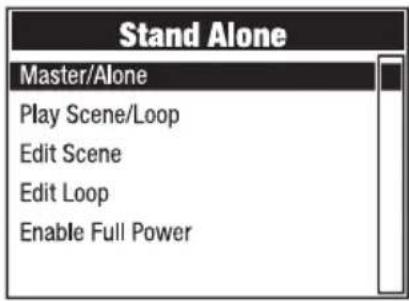

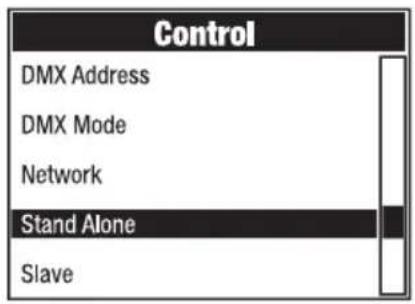

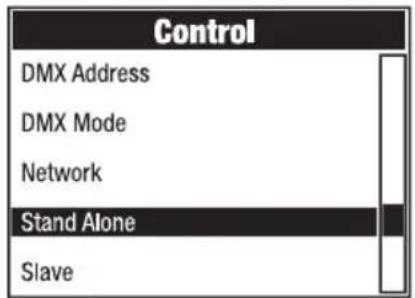

STAND-ALONE MENU (Stand Alone)

In the stand-alone operating modes “Play Scene” and “Play Loop”, the control signal of the corresponding operating mode can be output to slave units via XLR (Master/Alone -> Master). If you do not want to output the control signal, deactivate the output (Master/Alone -> Alone).

Activate one of the eight available scenes (Scene 1–8) or one of the eight available loops (Loop 1–8). The scenes and loops are pre-programmed, but can be customised (Edit Scene/Edit Loop).

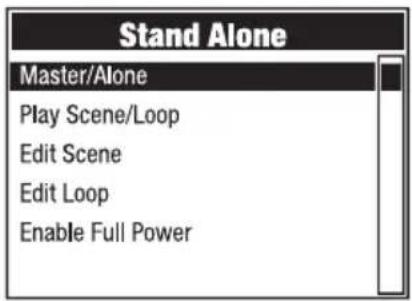

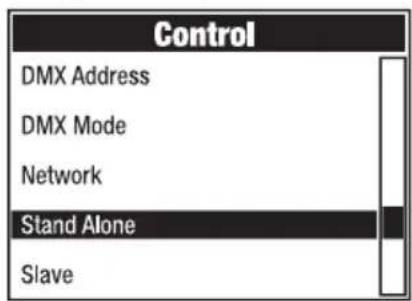

Starting from the main display, press MENU to access the main menu. Use ▲ and ▼ to select the Control menu item and confirm with ENTER. Now select the menu item Stand Alone and confirm again.

Main Menu Control Settings Service System Info

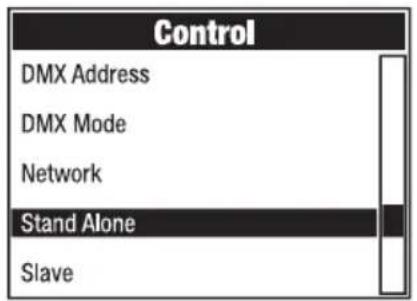

Control DMX Address DMX Mode Network Stand Alone Slave

Stand Alone Master/Alone Play Scene/Loop Edit Scene Edit Loop Enable Full Power

Information on the sub-menu items in the “Stand-alone” menu and the corresponding setting options can be found in the table below (select with ▲ and ▼, confirm with ENTER, change the value or status with ▲ and ▼, confirm with ENTER).

Stand Alone
Master/Alone	Master	Control signal is relayed via DMX OUT
	Alone	Control signal is not relayed
Play Scene/Loop	Scene	Scene 1 - 8	Selection and activation of the desired scene
	Loop	Loop 1 - 8	Selection and activation of the desired loop
Edit Scene	Scene 1 - 8	Pan	Set each scene individually. Scenes are activated by selecting them.
		Tilt
		Dimmer
		...
Edit Loop	Loop 1 - 8	Step	1 - 8	Selection of Step 1-8
		t-Step	Os - 20min Setting of the step time
		t-Fade	Os - 20min Setting of the fade time
		User Scene	1 - 8	Selection of Scene 1-8
		Skip Step	No / Yes	Skip step: No/Yes
Enable Full Power	Safety Check OK	Before activating Full Power, make sure that there are no people in the light beam (safety check)!When another operating mode is activated, Full Power is automatically deactivated.
	Back	Do NOT activate Full Power without a safety check! Press “Back”!

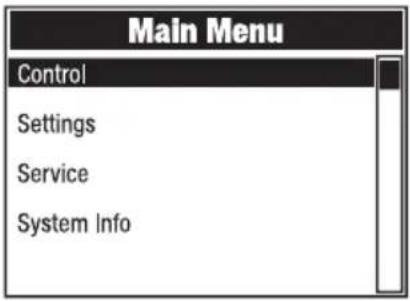

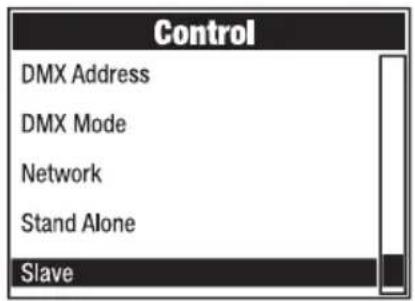

SLAVE MODE (Slave)

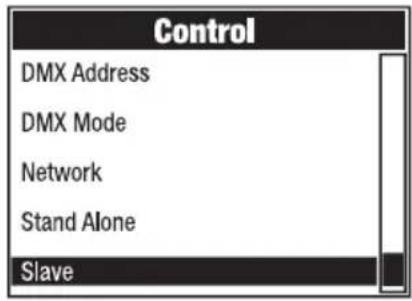

Starting from the main display, press MENU to access the main menu. Use ▲ and ▼ to select the Control menu item and confirm with ENTER. Now select the menu item Slave and confirm again. Activate the output of the control signal in the master unit (Control -> Stand Alone -> Master/Alone -> Master). Connect the slave and master units (same model, same software version) with a DMX cable or via W-DMX® and activate the stand-alone operating mode “Play Scene” or “Play Loop” in the master unit. The slave unit will now follow the master unit.

Main Menu Control Settings Service System Info

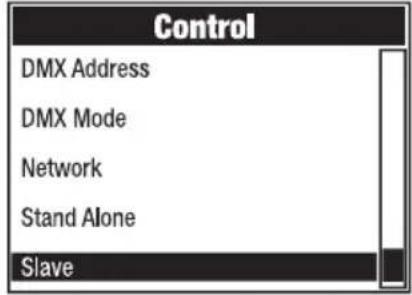

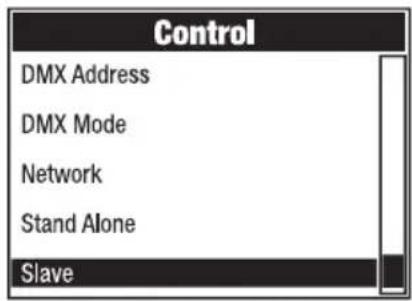

Control DMX Address DMX Mode Network Stand Alone Slave

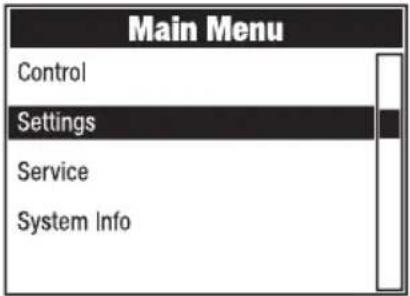

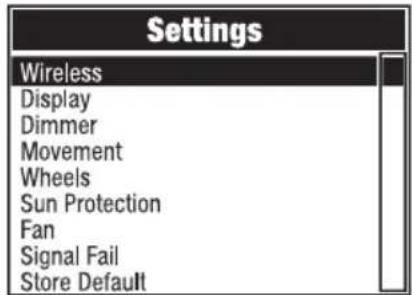

SYSTEM SETTINGS (Settings)

Starting from the main display, press MENU to access the main menu. Use ▲ and ▼ to select Settings and confirm with ENTER.

Main Menu Control Settings Service System Info

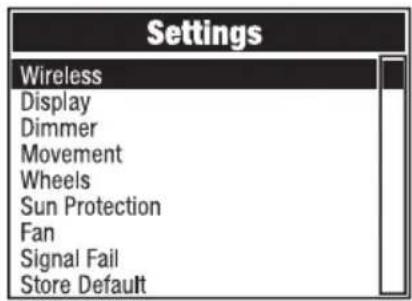

Settings Wireless Display Dimmer Movement Wheels Sun Protection Fan Signal Fail Store Default

Information on the sub-menu items in the “Settings” menu and the corresponding setting options can be found in the table below (select with ▲ and ▼, confirm with ENTER, change the value or status with ▲ and ▼, confirm with ENTER).

Settings (bold = factory setting)
Wireless	Wireless settings	State	On Wireless module activated
			Off Wireless module deactivated
		Operating Mode	RX Wireless module = receiver
			TX CRMX	Wireless module = transmitter with CRMX transmitter standard
			TX G3	Wireless module = transmitter with G3 transmitter standard
			TX G4s	Wireless module = transmitter with G4s transmitter standard
		Linking	Unlink	Disconnect wireless DMX connections and place in pairing standby mode
Wireless	Wireless settings	Linking	Link/Force to pair	Pairing with compatible, ready-to-pair wireless devices
		Linking Key	Linking Key	Setting of the connection key
			CRMX Mode (only available with operating mode = RX)	CRMX	Receiver standard = CRMX
				CRMX2	Receiver standard = CRMX2
			CRMX Universe	A - H	Selection of CRMX universe A to H
		Universe Metadata	RGB Colour Code	Red, Orange, Yellow, Green, Cyan, Blue, Purple, White	RGB code for colour display of the universe
			Universe A 16 Name	-character string with a customisable name that identifies the universe
		Bluetooth	State	On	Bluetooth switched on
				Off	Bluetooth switched off
			Pin	On	PIN request switched on (factory setting 081569)
				Off	PIN request switched off
		Signal Routing	Send to XLR	Relaying of the control signal to XLR (DMX OUT)
			Backup by Control via XLR (DMX IN) with wireless signal interruption
			Receive only	No connection between wireless DMX signal and XLR connectors
Display	Display settings	Reverse	On	180° display rotation (for example, for overhead installation)
			Off	No display rotation
			Auto	Automatic position detection (upright/ overhead mounting)
		Off Timer	Always On	Permanently on
			Off after 20s	Deactivation after approximately 20 seconds of inactivity
		Autolock	On after 60s	Controls locked after approximately 60 seconds without input (LOCKED). Unlock: Press UP and DOWN simultaneously for approximately 5 seconds.
			Off	Autolock function deactivated
Dimmer	Dimmer settings	Curve	Linear	Light intensity increases linearly with DMX value
			Exponential	Light intensity can be finely adjusted at lower DMX values and broadly adjusted at higher DMX values
			Logarithmic	Light intensity can be broadly adjusted at lower DMX values and finely adjusted at higher DMX values
			S-Curve	Light intensity can be finely adjusted at lower and higher DMX values and broadly adjusted at medium DMX values
		PWM Frequency	650 Hz, 1530 Hz, 3600 Hz, 12 kHz, 18.9 kHz, 25 kHz	Selection of the LED PWM frequency
		Response	Light Source	The light responds immediately to changes in the DMX value
			Halogen	The light behaves in a similar way to a halogen light with gradual changes of brightness
Move-ment	Head move-ments settings	Pan Reverse	On	Pan direction reversed
			Off	Pan direction not reversed
		Tilt Reverse	On	Tilt direction reversed
			Off	Tilt direction not reversed
		Pan Angle	540°	Pan angle 540°
			630°	Pan angle 630°
		Position Feedback	On	Automatic position correction activated
			Off	Automatic position correction deactivated
		Move in Black	On	Blackout during head movement
			Off	No blackout during head movement
		Silent Movement	On	Slowed motor movements for quieter operation
			Off	Function deactivated

Wheels	Gobo and colour wheel settings	Gobo Wheel	Position	Clockwise	Gobo wheel always rotates clockwise
				Shortest Way	Gobo wheel rotates the shortest distance
			Movement	Snap	Gobo wheel jumps directly back to the desired gobo when the relevant value is reached
				Scroll	Continuous rotation of the gobo wheels
		Color Wheel	Position	Clockwise	Gobo wheel always rotates clockwise
				Shortest Way	Gobo wheel rotates the shortest distance
			Movement	Snap	Colour wheel jumps directly back to the desired colour filter when the relevant value is reached
				Scroll	Continuous rotation of the colour wheel
		Move in Black	On	Blackout in the event of value changes in the colour and gobo wheels
			Off	No blackout in the event of value changes in the colour and gobo wheels
Sun Protection	Protective function for the internal components	On	Activates blackout and the device head is directed downwards
		Off	Function deactivated
Fan	Fan setting	Auto	Automatic fan control
		Off	Deactivated fan with greatly reduced brightness
		Constant Low	Constant low fan speed with reduced brightness, if necessary
		Constant Mid	Constant average fan speed with reduced brightness, if necessary
		Constant High	Constant high fan speed
Signal Fail	Operational status with DMX signal fault	Hold	Last command is retained
		Last Stand Alone	The last selected stand-alone operating mode is activated
		Fade to Black (10s)	10-second fade to blackout
		Blackout	Activates blackout
		Sun Protection	Activates blackout, and the device head is directed downwards
Store Default	Save settings in three custom presets	User A	Save all current settings as user preset A
		User B	Save all current settings as user preset B
		User C	Save all current settings as user preset C

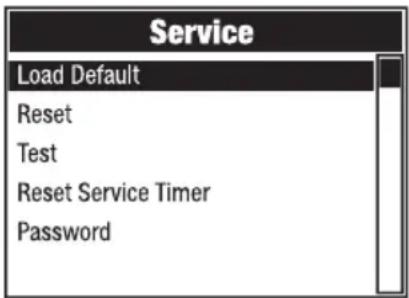

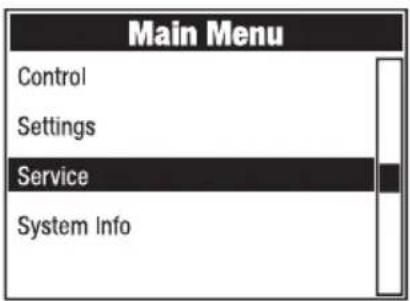

SERVICE MENU (Service)

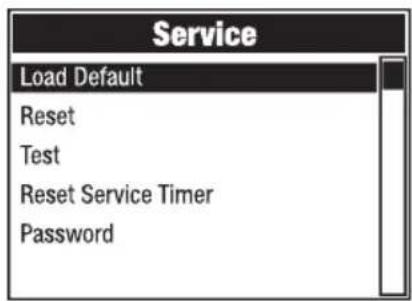

Starting from the main display, press MENU to access the main menu. Use ▲ and ▼ to select Service and confirm with ENTER.

Main Menu Control Settings Service System Info

Service Load Default Reset Test Reset Service Timer Password

Information on the sub-menu items in the “Service” menu and the corresponding options can be found in the table below (select with ▲ and ▼, confirm with ENTER, select command with ▲ and ▼, confirm with ENTER).

Service
Load Default	Factory Default	Reset to factory setting
	User A	Reset to user A values(save user values: Settings -> Store Default)
	User B	Reset to user B values(save user values: Settings -> Store Default)
	User C	Reset to user C values(save user values: Settings -> Store Default)
Reset	Pan/Tilt	Reset pan/tilt motors
	Head	Reset motors in the device head
	All	Reset all motors
Test	Test Sequence	Pre-programmed sequence to test all components
	Stress Test	Pre-programmed sequence to test all components under maximum load
	Motor Test	Activate all motors individually with values of 000 to 255
Reset Service Timer	No	Do not reset service operation time
	Yes	Reset service operating time
Password	For service purposes only

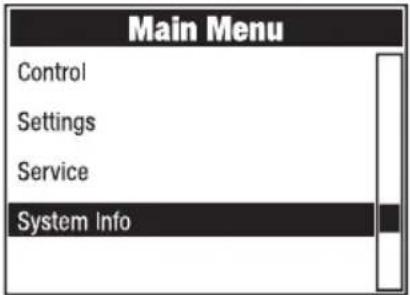

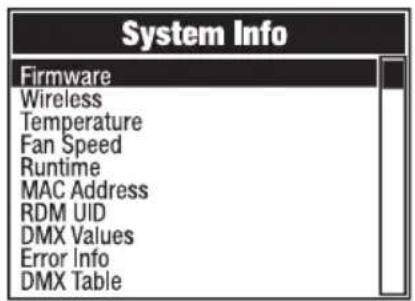

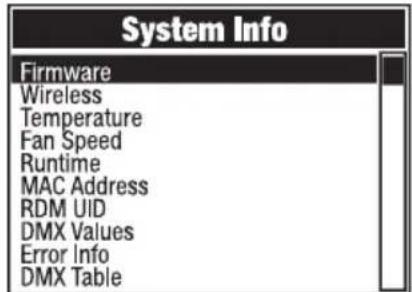

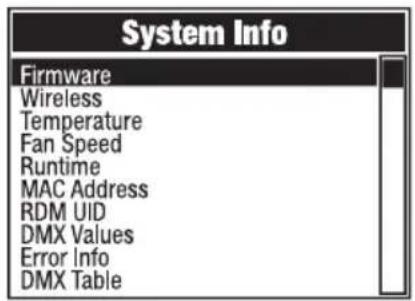

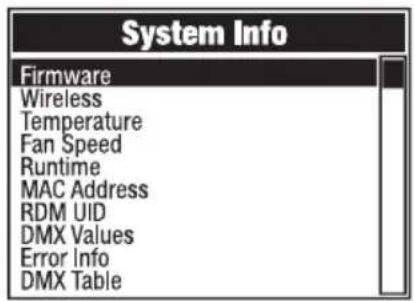

SYSTEM INFORMATION (System Info)

Starting from the main display, press MENU to access the main menu. Use ▲ and ▼ to select System Info and confirm with ENTER.

Main Menu Control Settings Service System Info

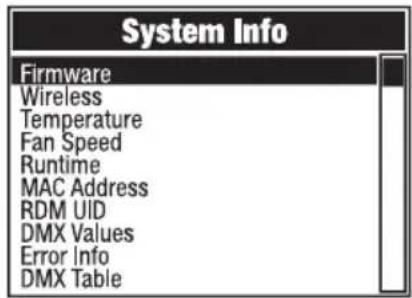

System Info Firmware Wireless Temperature Fan Speed Runtime MAC Address RDM UID DMX Values Error Info DMX Table

Information on the sub-menu items in the "System Info" menu and the corresponding options can be found in the table below (select with ▲ and ▼, confirm with ENTER).

System info
Firmware	DISP	Vx.x.x	Display of the firmware version of the corresponding component
	CTR1-Motor	Vx.x.x
	...	Vx.x.x
Wireless	Module	TimoTwo	Wireless module model
	Device Name	ORONH2-xxxx Device name
	Version	HW (Hardware) Hard SW (Software)	Hardware version number Software version number
	Link Quality	%	Connection quality in per cent
	Data Source	None /DMX /Wireless Link /SPI /BLE	Information on the data source
Wireless	Status	Operational:DMX Data:RDM Identify:RF Link:Link State:	Status information
Temperature	Light Source	xxx °C/°F	Display of the temperature of the corresponding component
	Base	xxx °C/°F
	Temperature Unit	°C	Setting of the temperature unit (press ENTER to change)
		°F
Fan Speed	xxxx RPM	Display of the speed of the corresponding fan
Runtime	Total	xxxx h : xx m	Total operating time
	Operation	xxxx h : xx m	Time in use
	Light Source	xxxx h : xx m	Lamp operating time
	Service	xxxx h : xx m	Operating time since the last reset of the service operating time
MAC Address	xx:xx:xx:xx:xx:xx	MAC address
RDM UID	RDM unique identifier
DMX Values	Display of the DMX values present
Error Info	Error display in case of malfunction
DMX Table	Display of DMX mode tables

SET-UP AND INSTALLATION

DANGER: Overhead mounting requires extensive experience, including calculating the load limit values of the mounting hardware and regular safety inspection of all installation materials and lights. If you do not have these qualifications, do not attempt to perform installation yourself. Refer instead to a qualified professional. There is a risk that devices that are incorrectly installed and secured may come loose and fall down. This can cause serious injury or death.

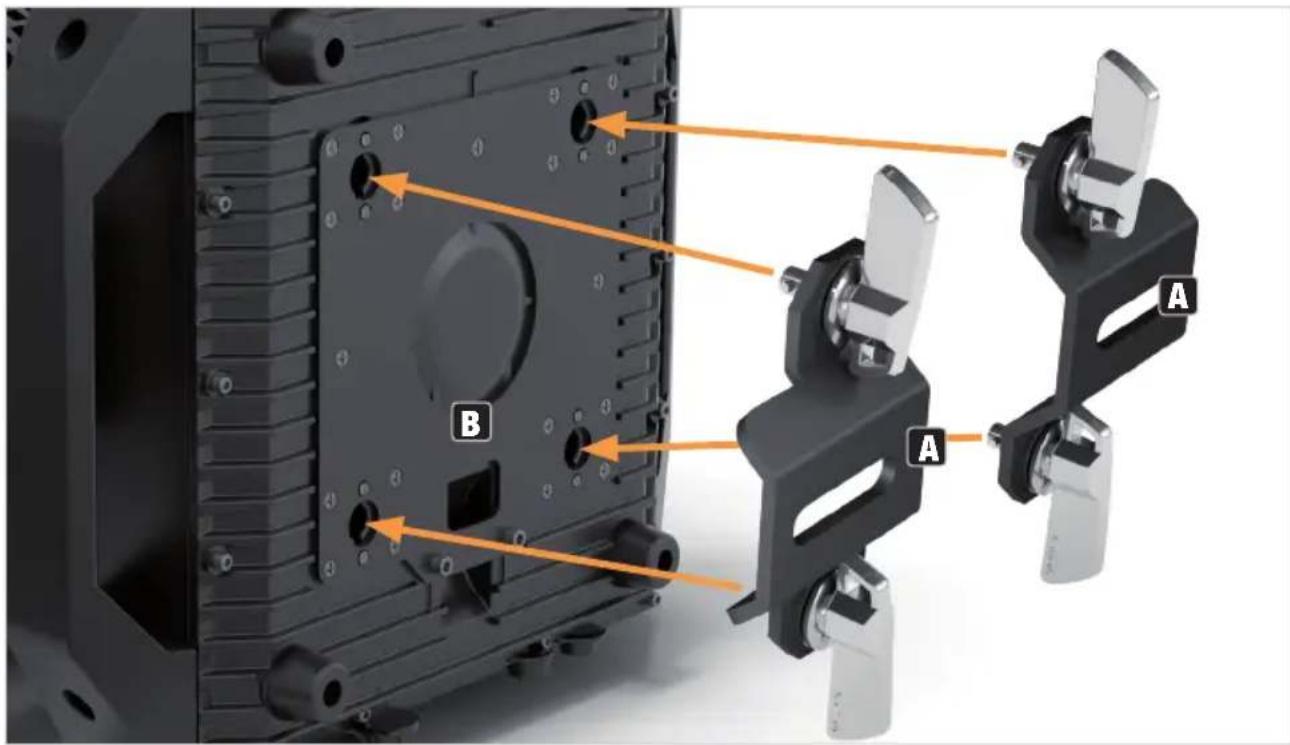

Thanks to its integrated rubber feet, the light can be positioned in a suitable location on a level surface. It can be truss-mounted using two omega brackets, which are attached to the base of the device (A). Two omega brackets are included in the packaging content. Suitable truss clamps are available as an option. Ensure firm connections, and secure the light to the securing lug (B) with a suitable safety cable.

A B A

USE POSITION

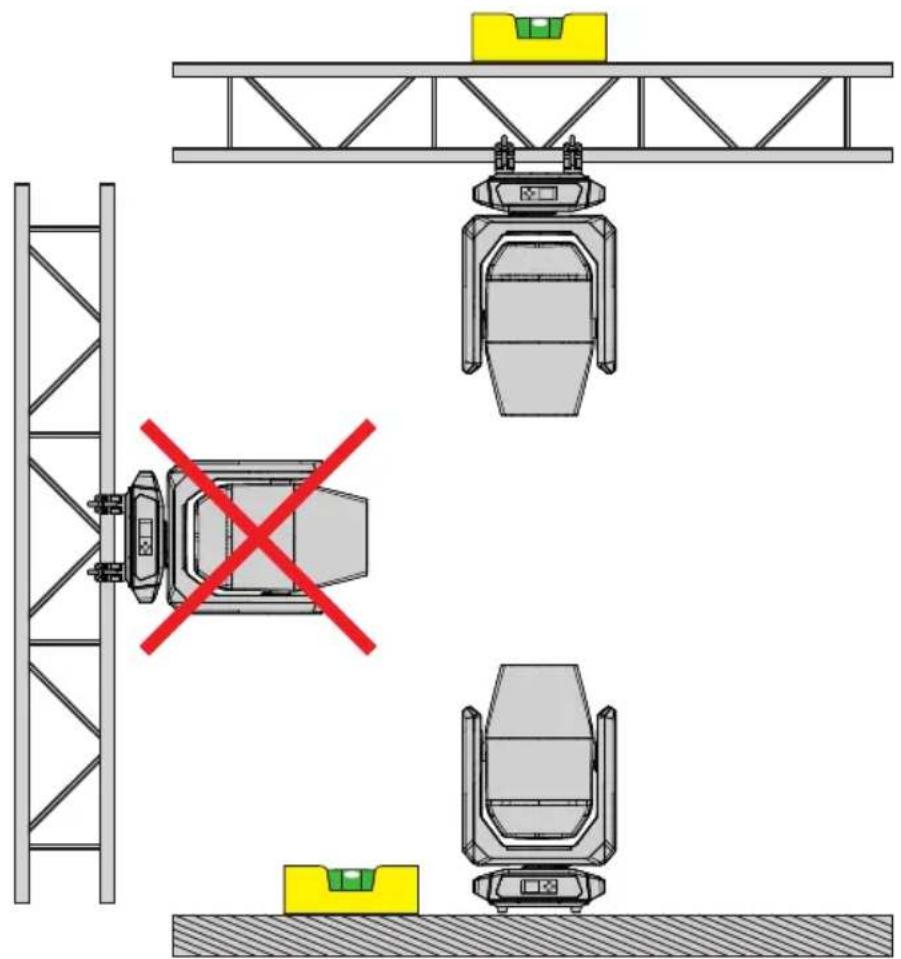

Diagram showing three vehicles on a platform with a red X mark indicating no crossing, and a yellow scale bar above (no text or symbols)

CARE, MAINTENANCE, AND REPAIR

In order to ensure the long-term, proper functioning of the device, it must be regularly cleaned and, if necessary, serviced. The care and maintenance required depends on the intensity of use and the environment in which it is used. We recommend a visual inspection before each operation. Furthermore, we recommend carrying out all the applicable service measures specified below once every 500 operating hours or, in the case of a lower intensity of use, at the latest after one year. Warranty claims may be limited should defects result from inadequate service and maintenance.

WARNING! Before carrying out any care or maintenance, the power supply – and, if possible, all device connections – must be disconnected.

NOTE! Improper care can lead to impairment or even destruction of the device.

1. Housing surfaces must be cleaned with a clean, damp cloth. Make sure that no moisture can penetrate the device.
2. Air inlets and outlets must be regularly cleaned of dust and dirt. If compressed air is used, make sure that damage to the device is prevented (for example, fans must be blocked in this case, as they could otherwise over-rev).
3. Cables and connectors must be cleaned regularly, and dust and dirt must be removed.
4. In general, no cleaning agents or abrasive agents may be used; otherwise, the surface finish may be damaged.
5. Devices must be stored in a dry environment and protected from dust and dirt.
6. To ensure correct and safe operation, all accessible or removable lenses and light-emitting apertures must be cleaned regularly.

MAINTENANCE AND REPAIR (by qualified personnel only)

DANGER! There are live components in the device. Even after disconnecting from the mains, there may still be residual voltage in the device, for example, due to charged capacitors.

PLEASE NOTE! Maintenance and repair work may only be carried out by sufficiently qualified personnel. If in doubt, consult a specialist workshop.

PLEASE NOTE! Improperly performed maintenance work may affect warranty claims.

PLEASE NOTE! For conversion or retrofit sets provided by the manufacturer, it is essential to observe the enclosed installation instructions.

DIMENSIONS (mm)

TECHNICAL DATA

Item no.: CLORONH2
Product type: IP65 PHOSPHOR LASER MOVING HEAD
Type: Moving head
Source QTY: 1
Light source type: Laser phosphor engine, 260 W
Light source minimum lifetime (L70): >12,000 h (Lifetime defined as time to 70%/L70)
Colour temperature (light source): 8000 K
Colour temperature (output): 6500 K
Colour mixing: CMY + CTO
CTO wheel: 3000 K–6500 K
CRI: 68 (native) >85 with high CRI filter
Colour wheel: 19 + open and continuous positioning
Fixed gobo wheel:	19 fix + 1 open
Rotating gobo wheel:	12 rotating + 1 open
Effects:	2 × prism levels (overlap) with 7 × effects (1st layer: 5 × prisms; 2nd layer: 1 × prism, ovaliser + 3 × frost filter (light/medium/heavy)
Beam angle:	0.6° – 32°
Pan angle:	Adjustable: 630° / 540°
Tilt angle: 270°
DMX in:	5-pin XLR male IP65
DMX out:	5-pin XLR female IP65
DMX modes:	24-CH basic, 27-CH standard, 33-CH extended
DMX functions:	Pan/tilt, pan/tilt fine, dimmer, dimmer fine, strobo, cyan, cyan fine, magenta, magenta fine, yellow, yellow fine, linear CTO, colour wheel, fixed gobo wheel, rotating gobo wheel, zoom, zoom fine, focus, focus fine, prism, prism rota-tion, frost, animation wheel
Stand-alone functions:	Play scene; play loop
Device settings:	Display flip, display backlight on/off, signal error, pan invert, tilt invert, feedback, move in black, test, reset, user defaults, blackout functions, colour/gobo wheel scroll/snap, auto lock, pan/tilt speed, lamp default, fan modes, sun protection, sleep mode

PWM:

650 Hz, 1530 Hz, 3600 Hz,

12 kHz, 18.9 kHz, 25 kHz

Dimmer curves: Linear / exponential / logarithmic / S-curve

Strobe: 1 Hz–20 Hz

Control: DMX, RDM, Art-Net, sACN, WDMX/CRMX

Control elements:

4-button navigation

(MENU / ENTER / UP / DOWN)

Display: Backlit 2" TFT display

Operating voltage: 100–240 V AC / 50–60 Hz

Inrush current: 13 A / 1 ms @ 230 V (frist half cycle)

Protection class: 1

Surge protection: >6000 V

Fuse: 6.3 A / 250 V

Power consumption: 460 W

Illuminance: 330000 lx @ 20 m @ 0.6°

Power connector: Seetronic IP65 input and output

IP rating: IP65

Ambient temperature in operation:

-20^ - 40^

Housing material: Magnalium

Housing colour:

Black

Cooling:

Temperature-controlled fans

Minimum distance to the illuminated surface:

25 m

Minimum distance to normally

0.1 m

flammable materials:

Risk group:

RG3

Danger distance:

∞, Never point the beam at persons

Lens diameter:

178 mm

Dimensions (W × H × D):

See graphic

Weight:

32 kg

Other features:

1 m power cable with Seetronic IP65 plug

and 2 pcs Omega mounting brackets

(CLOMEGABRACKET5) included

Accessories (optional):

EPP foam SIP insert

EXPLANATION OF IP PROTECTION CLASS

1. An IP protection class only reflects protection against solid objects and water. It does not describe general weather resistance, such as protection from UV radiation and temperature.
2. The first identification digit indicates protection against dust, solid objects, and contact:

IP2X Protected against solid foreign objects ≥ 12.5 mm in diameter

IP3X Protected against solid foreign objects ≥ 2.5 mm in diameter

IP4X Protected against solid foreign objects ≥ 1.0 mm in diameter

IP5X Protected against dust in harmful quantities and completely protected against contact

IP6X Are dust-tight and completely protected against contact

1. The second digit indicates protection against water:

IPX0 No	protection
IPX1 Protection against dripping water
IPX2 Protection against dripping water when the device is tilted by up to 15°
IPX3 Protection against falling spray water up to 60° from the vertical
IPX4 Protection against splashing water on all sides
IPX5 Protection against water jets (nozzle) from any angle
IPX6 Protection against strong water jets
IPX7 Protection against temporary immersion

1. In addition, some device-specific measures such as covers and sealing caps are necessary in order to achieve the specified protection class (for example, protective caps on unused connectors).

The product's IP protection class can be found in the technical data and is printed on the device.

MINIMUM DISTANCE TO ILLUMINATED SURFACE

This symbol with the distance stated in metres (m) indicates the minimum distance of the light fixture to the illuminated surface. The value valid for this device can be found in the technical data in this manual and is printed on the device!

MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS

This symbol with the distance stated in metres (m) indicates the minimum distance of the device to normally flammable materials. The value valid for this device can be found in the technical data in this manual!

DISPOSAL

PACKAGING:

1. Packaging can be recycled using the usual disposal methods.
2. Please separate the packaging in accordance with the disposal laws and recycling regulations in your country.

DEVICE:

1. This device is subject to the European Directive on Waste Electrical and Electronic Equipment, as amended. WEEE Directive Waste Electrical and Electronic Equipment. Waste equipment does not belong in household waste. Waste equipment must be disposed of via an authorised waste disposal company or a municipal waste disposal facility. Please observe the applicable regulations in your country!
2. Observe all disposal laws applicable in your country.
3. As a private customer, you can obtain information on environmentally friendly disposal options from the seller of the product or the appropriate regional authorities.

MANUFACTURER'S DECLARATIONS

Manufacturer's warranty and limitation of liability

Adam Hall GmbH | Adam-Hall-Str.1 | 61267 Neu-Anspach | Germany

Email: [e-mail] / +49 (0)6081 / 9419-0

Our current warranty conditions and limitation of liability can be found at:

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf

For service requests, please contact your distribution partner.

CE conformity

Adam Hall GmbH hereby confirms that this product meets the following guidelines

(where applicable):

Low-Voltage Directive (2014/35/EU)

EMC Directive (2014/30/EU)

RoHS (2011/65/EU)

RED (2014/53/EU)

EC Declaration of Conformity

Declarations of conformity for products subject to the LVD, EMC, and RoHS Directives can be requested from [e-mail]

Declarations of conformity for products subject to RED can be downloaded from www.adamhall.com/compliance/

Subject to misprints and errors, as well as technical or other modifications!

DEUTSCH

Yellow rectangular sign with a black triangular symbol containing a starburst, pointing right (no text or numbers)

CLASS 1 LASER PRODUCT

• Emitted wavelength: ____ nm
- Pulse pattern:
• Maximum power or energy output: mW
- Complies with IEC 60825-1:2014 Class 1 and IEC 62471 Risk Group 3.

Three circular diagrams showing a vehicle under sunlight, connected to a warning sign and connected to a device with bidirectional arrow.

BLACKOUT ZONEN

Close-up of a black dome-shaped object with ventilation grilles and two side protrusions, marked with arrows and number 12 (no text or symbols on the object itself)

BEDIENUNG

Hinweise

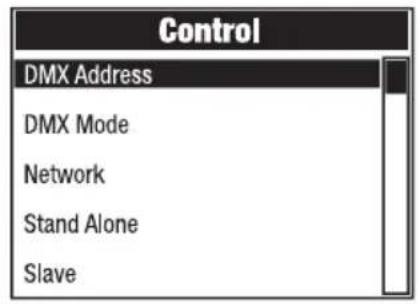

Main Menu Control Settings Service System Info

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Address 001

Main Menu Control Settings Service System Info

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Mode 24CH Basic 27CH Standard 33CH Extended

NETZWERK (Network)

Main Menu Control Settings Service System Info

Control DMX Address DMX Mode Network Stand Alone Slave

Network Protocol Universe IP Address Subnet Mask Signal Routing

Main Menu Control Settings Service System Info

Control DMX Address DMX Mode Network Stand Alone Slave

Stand Alone Master/Alone Play Scene/Loop Edit Scene Edit Loop Enable Full Power

Main Menu Control Settings Service System Info

Control DMX Address DMX Mode Network Stand Alone Slave

Main Menu Control Settings Service System Info

Settings Wireless Display Dimmer Movement Wheels Sun Protection Fan Signal Fail Store Default

Main Menu Control Settings Service System Info

Service Load Default Reset Test Reset Service Timer Password

Main Menu Control Settings Service System Info

System Info Firmware Wireless Temperature Fan Speed Runtime MAC Address RDM UID DMX Values Error Info DMX Table

Diagram showing three vehicles on a track with a red X mark indicating no crossing, and a yellow bridge structure above (no text or symbols)

Warning symbol with warning triangle and arrow, indicating caution or hazard

CLASS 1 LASER PRODUCT

• Emitted wavelength: ____ nm
• Pulse pattern:
  • Maximum power or energy output: mW
• Complies with IEC 60825-1:2014 Class 1 and IEC 62471 Risk Group 3.

Three circular diagrams showing a vehicle under sunlight, connected to a warning sign and connected to a device with bidirectional arrow.

ZONES DE BLACKOUT

Front view of a black dome-shaped object with ventilation grilles and two side protrusions, marked with arrows and number 12 (no text or symbols on the object itself)

UTILISATION

Remarques

Main Menu Control Settings Service System Info

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Address 001

RÉGLAGE DU MODE DE FONCTIONNEMENT DMX (DMX Mode)

Main Menu Control Settings Service System Info

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Mode 24CH Basic 27CH Standard 33CH Extended

RÉSEAU (Network)

Main Menu Control Settings Service System Info

Control DMX Address DMX Mode Network Stand Alone Slave

Network Protocol Universe IP Address Subnet Mask Signal Routing

Main Menu Control Settings Service System Info

Control DMX Address DMX Mode Network Stand Alone Slave

Stand Alone Master/Alone Play Scene/Loop Edit Scene Edit Loop Enable Full Power

Main Menu Control Settings Service System Info

Control DMX Address DMX Mode Network Stand Alone Slave

PARAMÈTRES SYSTÈME (Settings)

Main Menu Control Settings Service System Info

Settings Wireless Display Dimmer Movement Wheels Sun Protection Fan Signal Fail Store Default

Main Menu Control Settings Service System Info

Service Load Default Reset Test Reset Service Timer Password

Main Menu Control Settings Service System Info

System Info Firmware Wireless Temperature Fan Speed Runtime MAC Address RDM UID DMX Values Error Info DMX Table

Diagram showing three vehicles on a platform with a red X mark indicating no crossing, and a yellow scale marker above (no text or symbols present)

ENTRETIEN, MAINTENANCE ET RÉPARATION

Directive CEM (2014/30/UE)

RoHS (2011/65/EU)

RED (2014/53/EU)

Yellow rectangular sign with a black triangular symbol containing a starburst and an arrow, no text or numbers present.

CLASS 1 LASER PRODUCT

• Emitted wavelength: ____ nm
• Pulse pattern:
  • Maximum power or energy output: mW
• Complies with IEC 60825-1:2014 Class 1 and IEC 62471 Risk Group 3.

Three circular diagrams showing a vehicle under no explosion, indicating collision or interference, with Chinese text labels.

Top-down view of a black dome-shaped object with ventilation grilles and two side protrusions, marked with arrows and number 12 (no text or symbols on the object itself)

FUNCIONAMIENTO

Notas

Main Menu Control Settings Service System Info

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Address 001

AJUSTE DEL MODO OPERATIVO DMX (DMX Mode)

Main Menu Control Settings Service System Info

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Mode 24CH Basic 27CH Standard 33CH Extended

RED (Network)

Main Menu Control Settings Service System Info

Control DMX Address DMX Mode Network Stand Alone Slave

Network Protocol Universe IP Address Subnet Mask Signal Routing

Main Menu Control Settings Service System Info

Control DMX Address DMX Mode Network Stand Alone Slave

Stand Alone Master/Alone Play Scene/Loop Edit Scene Edit Loop Enable Full Power

Main Menu Control Settings Service System Info

Control DMX Address DMX Mode Network Stand Alone Slave

AJUSTES DEL SISTEMA (Settings)

Main Menu Control Settings Service System Info

Settings Wireless Display Dimmer Movement Wheels Sun Protection Fan Signal Fail Store Default

Main Menu Control Settings Service System Info

Service Load Default Reset Test Reset Service Timer Password

Main Menu Control Settings Service System Info

System Info Firmware Wireless Temperature Fan Speed Runtime MAC Address RDM UID DMX Values Error Info DMX Table

Diagram showing three vehicles on a track with a red X mark indicating no crossing, and a yellow bridge structure above (no text or symbols)

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO DE EN ES FR.pdf

Yellow rectangular sign with a black triangular symbol containing a starburst and an arrow, no text or numbers present.

CLASS 1 LASER PRODUCT

• Emitted wavelength: ____ nm
- Pulse pattern:
• Maximum power or energy output: mW
- Complies with IEC 60825-1:2014 Class 1 and IEC 62471 Risk Group 3.

Three circular diagrams showing a vehicle under different conditions: no warning, with sun symbol, and two crossed-out scenarios with arrows.

STREFY BLACKOUT

Close-up of a black dome-shaped object with ventilation grilles and two side protrusions, marked with arrows and number 12 (no text or symbols on the object itself)

OBSŁUGA

Uwagi

Main Menu Control Settings Service System Info

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Address 001

USTAWIANIE TRYBU PRACY DMX (DMX Mode)

Main Menu Control Settings Service System Info

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Mode 24CH Basic 27CH Standard 33CH Extended

USTAWIENIA SIECIOWE (Network)

Main Menu Control Settings Service System Info

Control DMX Address DMX Mode Network Stand Alone Slave

Network Protocol Universe IP Address Subnet Mask Signal Routing

Main Menu Control Settings Service System Info

Control DMX Address DMX Mode Network Stand Alone Slave

Stand Alone Master/Alone Play Scene/Loop Edit Scene Edit Loop Enable Full Power

Main Menu Control Settings Service System Info

Control DMX Address DMX Mode Network Stand Alone Slave

USTAWIENIA SYSTEMOWE (Settings)

Main Menu Control Settings Service System Info

Settings Wireless Display Dimmer Movement Wheels Sun Protection Fan Signal Fail Store Default

Main Menu Control Settings Service System Info

Service Load Default Reset Test Reset Service Timer Password

Main Menu Control Settings Service System Info

System Info Firmware Wireless Temperature Fan Speed Runtime MAC Address RDM UID DMX Values Error Info DMX Table

KONFIGURACJA I INSTALACJA

Diagram showing three vehicles on a track with a red X mark indicating no crossing, and a yellow bridge structure above (no text or symbols)

PIELEGNACJA, KONSERWACJA I NAPRAWA

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO DE EN ES FR.pdf

Warning symbol with triangle and sunburst inside a rectangular box, indicating hazard or alert

CLASS 1 LASER PRODUCT

• Emitted wavelength: ____ nm
- Pulse pattern:
• Maximum power or energy output: mW
- Complies with IEC 60825-1:2014 Class 1 and IEC 62471 Risk Group 3.

12 IMPUGNATURE A INCASSO

Close-up of a black robotic device's dome and side-mounted buttons, showing grille and mounting points (no text or symbols visible)

FUNZIONAMENTO

Note

Main Menu Control Settings Service System Info

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Address 001

IMPOSTAZIONE DELLA MODALITÀ OPERATIVA DMX (DMX Mode)

Main Menu Control Settings Service System Info

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Mode 24CH Basic 27CH Standard 33CH Extended

RETE (Network)

Main Menu Control Settings Service System Info

Control DMX Address DMX Mode Network Stand Alone Slave

Network Protocol Universe IP Address Subnet Mask Signal Routing

Main Menu Control Settings Service System Info

Control DMX Address DMX Mode Network Stand Alone Slave

Stand Alone Master/Alone Play Scene/Loop Edit Scene Edit Loop Enable Full Power

Main Menu Control Settings Service System Info

Control DMX Address DMX Mode Network Stand Alone Slave

IMPOSTAZIONI DI SISTEMA (Settings)

Main Menu Control Settings Service System Info

Settings Wireless Display Dimmer Movement Wheels Sun Protection Fan Signal Fail Store Default

Main Menu Control Settings Service System Info

Service Load Default Reset Test Reset Service Timer Password

Main Menu Control Settings Service System Info

System Info Firmware Wireless Temperature Fan Speed Runtime MAC Address RDM UID DMX Values Error Info DMX Table

Diagram showing three vehicles on a track with a red X mark indicating no crossing, and a yellow bridge structure above (no text or symbols)
