ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Thank you for purchasing a BRANDSON product. Please read the following quick guide carefully so that you can enjoy your purchased appliance for a long time.

1. Scope of delivery

• CO_2 metre
• Type-C charging cable
• Quick guide

2. Technical data

Power supply 5V - 24V DC max.	1A
Rechargeable battery Li-Ion 1200 mAh; 3,7V
CO2measuring range 400 - 5000 ppm (± 50ppm +5%)
Temperature measuring range	0°C - 50°C (±1.5°C) / 32°F - 122°F (±2.7°F)
Humidity measuring range	20% - 80% (±5%)
Storage temperature -10°C - 55°C / 14°F -131°F
Features	• Alarm function (CO2)• Temperature display• °C /°F display• Backlight (automatic energy-saving mode after one minute)

16 English

3. Additional notes

Before using the appliance, make sure that it is not damaged. If this is the case, do not use it. The device must not be exposed to moisture, direct sunlight or dust. Do not immerse the device in water. Do not throw it into a fire as there is a risk of explosion. Before using the product, ensure that the available mains voltage corresponds to the operating voltage specified on the rating plate. The product is not suitable for medical purposes or for public information and is intended for private use only. This appliance is only suitable for indoor use.

4. Important safety regulations for rechargeable batteries

- Before using the rechargeable battery, observe all safety instructions and warnings in these instructions as well as the warnings regarding the rechargeable battery, charger and power tool.

- Do not disassemble the battery!

- If the operating time of the rechargeable battery has become significantly shorter than usual, stop using the device immediately. There is a risk of overheating or explosion.

- If battery fluid gets into the eyes, it must be washed out immediately! Seek medical treatment immediately! There is a risk of losing your eyesight.

- Do not short-circuit the battery. Contacts must not be touched with conductive materials. Do not store the device with conductive materials.

- Do not allow any liquid to come into contact with the battery. A short circuit causes a very strong current flow and can lead to overheating or burns.

• Do not store the power tool or the battery in places where the temperature exceeds 50°C!
• Never attempt to burn the battery, even if it is damaged. The battery may explode in a fire!
• Ensure that the battery is never dropped or subjected to any kind of impact. Do not use a battery that has been dropped or shaken.

Notes on battery life

• Always switch off the power tool if you notice a drop in performance. Charge the battery afterwards.
  • Overcharging batteries will shorten their service life. Do not charge a fully charged battery.
• Always allow the battery to cool down before charging it. Charge the battery at a room temperature between 10^ and 40^ .

18 English

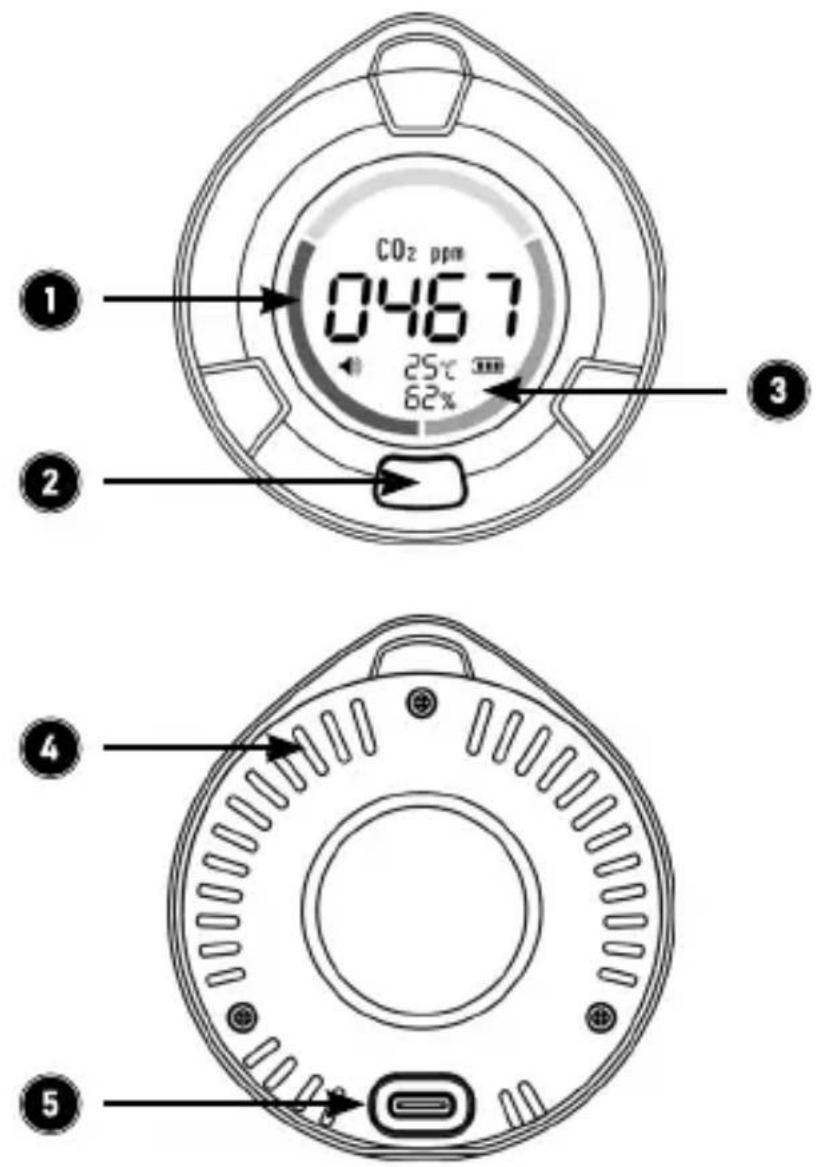

1. Product details


CO2 ppm 0467 25°C 62% ① ② ③ ④ ⑤

19English

1 CO2 display

2 Multifunction button

3 Temperature display

4 Ventilation holes

5 USB type-C charging socket

6. Commissioning

Remove the product from the packaging and remove all packaging material. Fully charge the device before use. To do this, use the USB charging cable supplied and connect it to a suitable DC power supply and the charging socket on the device.

Press and hold the multifunction button for about 3 seconds to switch the device on or off. At the time of switching on, all symbols are displayed on the screen. The device then switches to normal operating mode. When using the charging cable, the battery inside the device is charged.

If the power supply is interrupted, the device switches to battery operation or it can be operated directly with the built-in battery. A fully charged battery lasts about 3 days.

6.1 Battery

You can check the battery status on the display at any time by looking at the battery status symbol.

Charge the battery when no more bars appear in the battery symbol and the battery symbol is displayed continuously while the battery is charging. When the battery is fully charged, all 3 bars are displayed continuously.

7. Calibration of the CO2 concentration

Due to transport, vibration, ageing and other reasons, the detection accuracy of the sensor may be reduced. Deviations are corrected by calibration. The device has an automatic and a manual calibration option. It is recommended to use the automatic calibration. Alternatively, you can carry out manual calibration. Both methods are described below.

7.1 CO2 alarm / Automatic calibration / Alarm sound

Press the multifunction button twice in quick succession to set the carbon dioxide alarm function.

1. The currently set alarm value appears on the display. The last digit starts to flash.

2. Now set the last digit of the alarm value by briefly pressing the multifunction button. Confirm by pressing the multifunction button for 2 seconds. The penultimate digit starts to flash.

3. Set the penultimate digit of the alarm value and confirm again by pressing the multifunction button for 2 seconds. The second digit starts to flash.

4. Set the second digit of the alarm value and confirm again by pressing the multifunction button for 2 seconds. The first digit starts to flash.
5. Set the first digit of the alarm value and confirm again by pressing the multifunction button for 2 seconds. After 15 seconds of inactivity, the device saves the currently set alarm value and switches back to the start screen.
6. You can then set the automatic calibration.

As soon as the CO2 concentration exceeds the set value, an alarm signal sounds. If you want to switch off the alarm, press the multifunction button.

Automatic calibration

After you have set the last digit of the alarm value, „C-ON“ or „C-OF“ appears on the display. You can choose between these two setting options by briefly pressing the multifunction button. We recommend switching on the automatic calibration „C-ON“. Confirm your entry by pressing the multifunction button for 2 seconds.

Make sure that the sensor is in an environment where the atmospheric level corresponds to that outdoors (approx. 400 ppm) during this time.

The automatic calibration function is suitable for office, home and other non-weather environments. It is not suitable for agricultural greenhouses, farms, warehouses and other locations.

22 English

8. Manual calibration of the CO2 concentration

During calibration, the product must be positioned in an environment with a CO2 concentration equal to the outside air (approx. 400 ppm) to ensure that the CO2 concentration in the environment is stable.

Press and hold the multifunction button for about 8 seconds when the device is switched off until „-CAL“ appears on the display to enter manual calibration mode. A 200-second timer then runs down.

The device is calibrated. After the countdown is complete, the device switches on.

Note: During the calibration of the carbon dioxide value, you must place the device in a well-ventilated area and ensure that nobody is in the vicinity so as not to impair the calibration effect.

9. CO2 display

Colour Meaning
Green	If the carbon dioxide concentration is 400-699 ppm, the green indicator bar flashes, indicating that the carbon dioxide concentration is at a low level.
Yellow	If the carbon dioxide concentration is 700-1499 ppm, the yellow bar flashes, indicating an alarm.
Red	If the carbon dioxide concentration is above 1500 ppm, the red indicator bar flashes in the default setting to indicate danger (depending on how high the CO2 alarm is set, an alarm will sound).

Note: If the product resets the alarm value and the carbon dioxide concentration exceeds the alarm value, the red indicator bar starts to flash and an alarm sounds.

10. Additional notes

The update frequency is approximately 5 seconds.

Avoid vibrating the device or direct wind on the sensor during the carbon dioxide measurement, as this can lead to a deviation in the carbon dioxide measurement value.

24 English

10. Switching °C / °F

Press the multifunction button briefly to switch the temperature display between ^ C and ^ F.

11. Safety instructions and disclaimer

Never attempt to open the appliance to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, please only use it in dry conditions. Protect it from high humidity, water and snow. Keep the device away from high temperatures. Do not expose the device to sudden temperature changes or strong vibrations, as this could damage the electronic parts. Check the device for damage before use. The appliance should not be used if it has been knocked or damaged in any other way. Please observe the national regulations and restrictions.

Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or modification to the appliance that is not carried out by the original supplier will invalidate the warranty or guarantee. The appliance may only be used by persons who have read and understood these instructions. The device specifications may change without prior notice.

12. Disposal instructions

According to the European WEEE Directive, electrical and electronic devices may not be disposed of with household waste. Their components must be recycled or disposed of separately, as toxic and hazardous components can cause lasting damage to the environment if disposed of incorrectly. As a consumer, you are obliged under the Electrical and Electronic Equipment Act (ElektroG) to return electrical and electronic equipment free of charge at the end of its life to the manufacturer, the point of sale or to public collection centres set up for this purpose. Details are regulated by the respective state law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating, recycling and disposing of old appliances in this way, you are making an important contribution to protecting our environment. For information on authorised collection points in your area, please contact your local city or municipal administration.

13. Notes on battery disposal

In connection with the sale of batteries or the delivery of devices containing batteries, the supplier is obliged to inform the customer of the following: The customer is legally obliged to return used batteries as the end user. The customer can return used batteries that the supplier carries or has carried as new batteries free of charge to the supplier's dispatch warehouse (dispatch address). The symbols shown on the batteries have the following meaning: Pb = battery contains more than 0.004 per cent lead by mass, Cd = battery contains more than 0.002 per cent cadmium by mass, Hg = battery contains more than 0.0005 per cent mercury by mass.

The crossed-out dustbin symbol means that the battery must not be disposed of with household waste.

WEEE Directive 2012/19/EU

WEEE Register No.: DE 67896761

WD Plus GmbH hereby declares that the device 307087 is in conformity with the essential requirements and other relevant provisions. A complete declaration of conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover, Germany
