USER MANUAL Rhapsody49 MAX

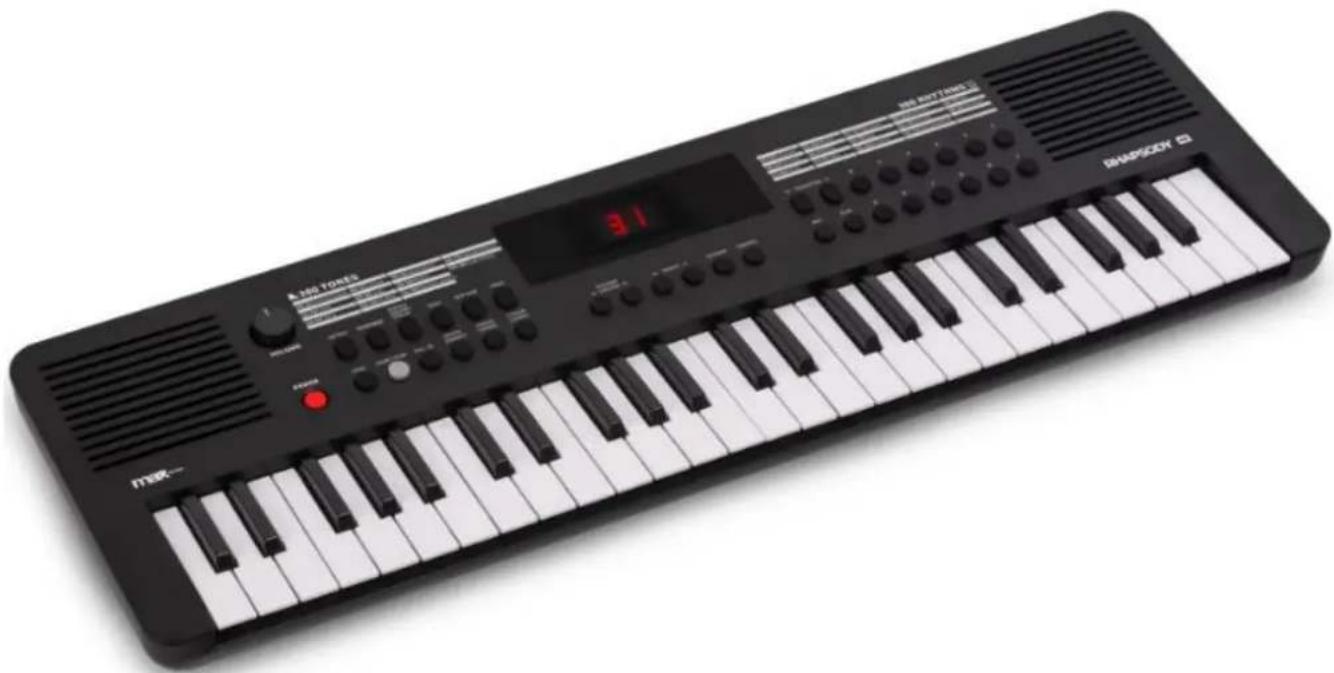

Rhapsody49 Electronic Keyboard 49-keys

Ref. nr.: 130.030

INSTRUCTION MANUAL

GEBRUKSAANWIJZING

MANUEL D'INSTRUCTIONS

INSTRUKCJA OBSŁUGI

NAVOD K POUŽITÍ

Congratulations to the purchase of this Max Music product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.

Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the product, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.
• Do not place the product near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The product is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the product from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the product is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the product on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the product to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room

temperature before you switch it on. Never use the product in humid rooms or outdoors.

• During operation, the housing may become hot.
• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.
• Do not repeatedly switch the product on and off. This shortens the life time.
• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Only operate the product with clean hands.
• Do not force the controls.
• If the product has fallen, always have it checked by a qualified technician before you switch the product on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.
• Keep the original packing material so that you can transport the product in safe conditions

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ / 41^ and 35^ / 95^ .

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Max cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be returned, it is important that the product is returned in the original factory box and packaging. If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

The label on the back/under side of the product indicates the mains voltage to which it must be connected. Check that the mains voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

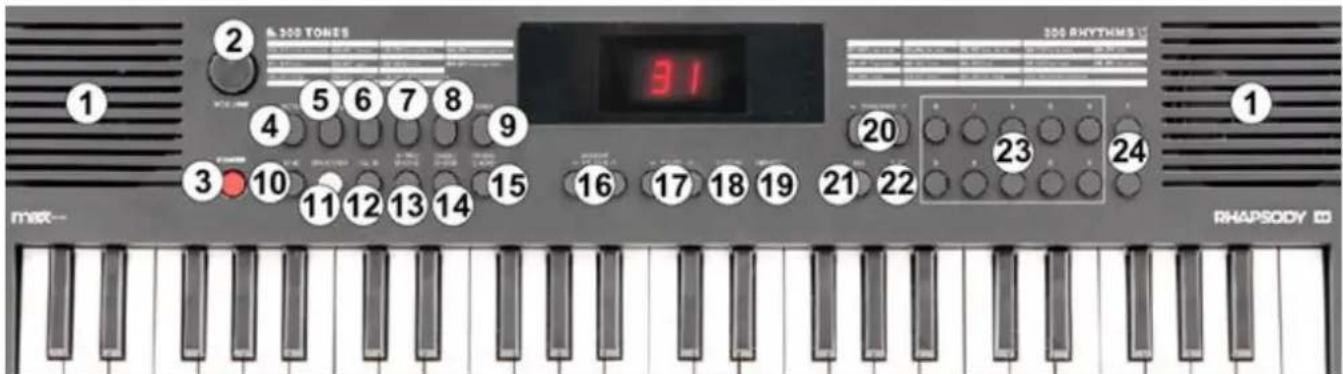

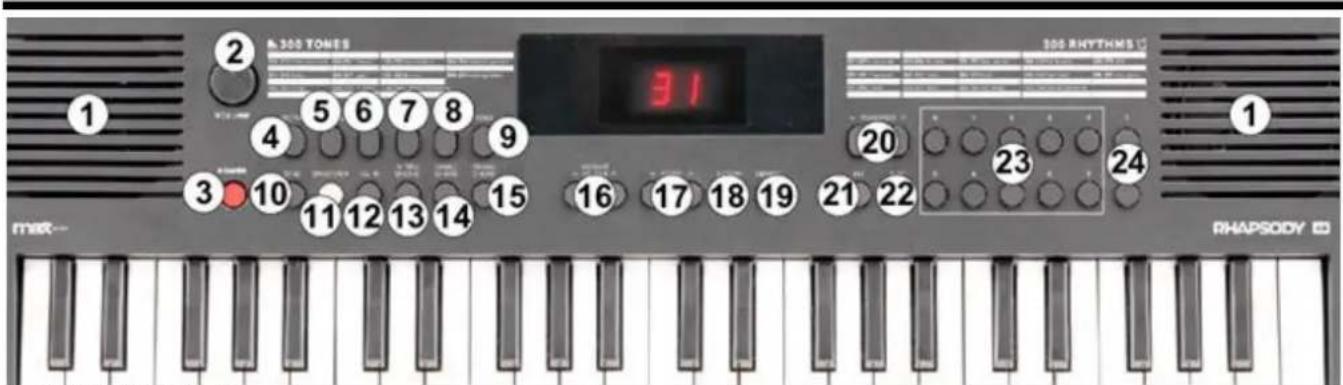

CONTROLS AND EXTERNAL CONNECTIONS

1. SPEAKERS

Loudspeakers to reproduce the sound of the music played. sound level is determined on the basis of the volume setting.

2. VOLUME

Rotate the [VOLUME] knob to decrease or increase the volume.

3. ①

On/off button.

4.METRO

There are 4 kinds of metronomes stored on the keyboard: 1/4 beat, 2/4 beat, 3/4 beat and 4/4 beat. Press [METRONOME] once to set the rhythm at 1/4 beat, twice for 2/4 beat, etc. press for fifth time to cancel function.

5.LESSON

Teaching function. Press the [LESSON] button to enter teaching mode.

6. PIANO/ORGAN/VIOLIN

Press this button to select a different sound.

7. TONE

This keyboard has 300 different kinds of tone. (appendix I). Press the [TONE] button when the instrument it is not in tone modus. Choose one of 300 tones shown in the appendix by pressing the numbers [0-9] or [<] or [>.

8. RHYTHM

Rhythm selection:

This Keyboard provides 300 rhythms ("000" to "299") for your selection. The rhythm is defaulted to be "000". Press the [RHYTHM] button to initiate the rhythm selection function. Press the numeric keys or the [+] or [-] buttons to select the style you want to play. Press the [START/STOP] button to start the rhythm tracks of the auto accompaniment.

9. SONG

This keyboard has 80 different kind of songs for your appreciation.
- Press the [SONG] button to enter the song mode. All songs will begin with loop play now. The default song is "d00" (shown on display). You can use the [0-9] number buttons and [< or>] buttons to choose your favourite song.
- Press the [SONG] or [START/STOP] button to stop playing.

10.SYNC

When in rhythm mode, press the [SYNC] button. Play any key in the chord key zone (the 1st-19th key, from left) to activate the accompaniment rhythm. Press the [SYNC] button again to end sync effect.

11. START/STOP

Press the [START/STOP] button to start and select the rhythm from 0 to 299 in accordance with the appendix by pressing the number buttons or by pressing the [<] or [>] button.

12. FILL IN

Press the [FILL-IN] button to add a short fill in rhythm variation at any time while the rhythm is playing. Then the normal Rhythm will begin from next measure.

13. INTRO/ENDING

Press the [INTRO/ENDING] button before Rhythm is started, the keyboard will perform a length of relative intro, then returns back to relative normal Rhythm. Press the [INTRO/ENDING] button after Rhythm is started, the keyboard will perform a relative ending to stop.

14. SINGLE CHORD

When style is started, press the [SINGLE CHORD] button to enter the function of single finger auto chord. "Sin" shows on the display, Play any key in the chord key zone (the 1st-19th key, from left). Press the [SINGLE CHORD] button again, "OFF" will appear on the display. The single chord function will be disenable.

15. FINGER CHORD

Press the [FINGER CHORD] button. After the "Fin" shows on the display, you can play a fingered chord on the keys in the chord zone of the keyboard. Press the [FINGER CHORD] button again, "OFF" will appear on the display. The fingered chord function will be disassembled.

16. ACCOMP VOLUME

There are 16 levels (0-15) of Rhythm volume. The default level of Rhythm volume is 013. Press [A] or [V] button to adjust the Rhythm volume. The selected volume will be shown at the display.

17. TEMPO

Press the [TEMPO] [A] or [v] button to increase or decrease the tempo value for Rhythm, Metronome and demo song. There are 210 tempo value among the range of tempo value from 30-240 beats per minute. Press the [A] or [v] buttons simultaneously to return to default status at 96 tempo value.

18. SUSTAIN

Press the [SUSTAIN] button, the sustain can add slow, naturel decay to the tone. It can make tone effect of some musical instruments to be more vivid. Press the [SUSTAIN] button again to exit this function.

19. VIBRATO

Press the [VIBRATO] button, the vibrato effect will be produced by pressing the black/white keys. Press the [VIBRATO] button again to exit this function.

20. TRANSPOSE

Press the [TRANSPOSE or v] button to increase or decrease the transpose value up and down + / - 6 levels and shift the pitch of entire keyboard up and down in semitone intervals. Press the [TRANSPOSE or v] simultaneously to return to default status of keyboard tone.

21. RECORD

Press the [REC] button to enable the recording function, "rEC" will show on the display. Then press any key or sound of drums to start recording. The recording will be automatically ended while record is full and "Ful" is shown on LED display. All previous record will be automatically cleared while recording a new one. Press the [PLAY] button to play the tones you recorded.

22. PLAY

Press the [PLAY] button to playback recorded notes or rhythms.

23. NUM-PAD

Numeric keys to enter an accurate value.

24. [<] / [>]

25. USB POWER INPUT

Input for connecting an USB-C cable to power the keyboard or connecting the keyboard to a computer.

26. PEDAL

Sustain pedal jack for connecting a sustain pedal.

27. PHONES/OUTPUT JACK

Output jack for connecting a pair of headphones or audio equipment.

CONNECTIONS

Headphones/output:

When connecting headphones to the PHONES/OUTPUT port, the loudspeaker will be disenabled automatically. You can perform without disturbing others and others disturbing you.

Connecting a sustain pedal:

An optional foot switch or a pedal can be plugged into the sustain jack and be used to switch sustain on or off.

Connecting a computer:

Use a standard USB cable to connect the USB jack of the instrument to the USB port of a computer. You can transmit MIDI messages between the instrument and the computer.

Notes:

1. Do not set the USB device to be input and output simultaneously when setting the software on the computer. Otherwise, the sound will be overlapped when playing the keyboard.
2. We recommend using a USB 2.0 interface to connect the instrument to the computer.

BEFORE YOU START

You can power the instrument either by batteries or by USB power adapter.

• Using USB-C Power adapter:

Connect the USB cable to the USB-C power jack of the instrument. Plug the USB power adapter into an AC outlet. This will automatically cut off the battery power supply. Turn on power switch and start performance.

• Using batteries (not included):

Open the battery compartment cover located on the bottom panel of the Electronic keyboard. Insert 6x AA batteries, being carefully to follow the polarity marking on the cabinet. Replace the compartment cover, making sure that it locks firmly in place.

Notes:

• In order to save energy, the instrument will automatically shut down after 5 minutes if it's not used.
• For your safety, unplug the instrument when it is not in use.

TEACHING FUNCTION

Press [LESSON] one time to enter into one key teaching mode then press the number keys or the [< ] or [>] button to select different teaching songs.

1. One key teaching: Only there is key pressed, then the demo will be continued. Otherwise, the demo will be stopped. No matter you play correctly or not, the song will be automatically played continuously.
2. Ensemble teaching: Press the [LESSON] button twice, it will change to ensemble teaching. The main part of the demo will be recovered, similar as Karaoke. The demo song will not be stopped, if there is no pressing on the keyboard within 3 seconds, the main part of demo will resume to play. After learning one song, you will repeat to learn the current song.
3. Press [LESSON] again to exit this function.

APPENDIX I TONE LIST

0 Acoustic Grand Piano	75 Pan Flute	150 Magic Electronic	225 Baritone Sax ensemble
1 Bright Acoustic Piano	76 Bottle Blow	151 Bright violin	226 Crystal Sax
2 Electric Grand Piano	77 Shakuhachi	152 Atonic Violin	227 Soft Baritone Sax
3 Honky-tonk Piano	78 Whistle	153 Heavy 151 Bright Violin	228 Synth Baritone Sax
4 Rhodes Piano	79 Ocarina	154 Synth Clarinet	229 Heavy metal Sax
5 Chorusd Piano	80 Lead 1 (square)	155 Interactive Lead	230 Church Oboe
6 Harpsichord	81 Lead 2 (sawtooth)	156 For the keyboard	231 Oboe ensemble
7 Clavichord	82 Lead 3 (caliope lead)	157 Bagpipes	232 Bass Oboe
8 Celesta	83 Lead 4 (chiff lead)	158 Suona	233 Bright Oboe
9 Glockenspiel	84 Lead 5 (charang)	159 Piper	234 distortio oboe
10 Music man	85 Lead 6 (voice)	160 Church Piano	235 English Horn ensemble
11 Vibraphone	86 Lead 7 (fifts)	161 Church electric Piano	236 Pizzicato English Horn
12 Marimba	87 Lead 8 (bass+lead)	162 Synth Piano	237 Diplophonia English Horn
13 Xylophone	88 Pad 1 (new age)	163 Baritone Piano	238 Bright English Horn
14 Tubular Bells	89 Pad 2 (warm)	164 Piano PAD	239 Synth English Horn
15 Dulcimer	90 Pad 3 (polysynth)	165 String Piano	240 Psychedelic Synth Lead
16 Hammond Organ	91 Pad 4 (choir)	166 Metal Piano	241 Vibraphone Synth Lead
17 Percussive Organ	92 Pad 5 (bowed)	167 Light rhythm Piano	242 Marimba Synth Lead
18 Rock Organ	93 Pad 6 (metallic)	168 electric Piano Pad	243 Metal FX
19 Church Organ	94 Pad 7 (halo)	169 Classical piano	244 Electronic FX
20 Reed Organ	95 Pad 8 (sweep)	170 Guitar organ	245 Electronic String Ensemble
21 Accordian	96 FX 1 (rain)	171 An electric guitar	246 Wind FX
22 Harmonica	97 FX 2 (soundtrack)	172 synthesis Nylon Guitar	247 Clarinet FX
23 Tango Accordian	98 FX 3 (crystal)	173 Synthetic electronic guitar	248 Organ FX
24 Acoustic Guitar (nylon)	99 FX 4 (atmosphere)	174 Bright clean Guitar	249 Crystal FX
25 Acoustic Guitar (steel)	100 FX 5 (brightness)	175 Orchestra Guitar	250 Synth Shamisen
26 Electric Guitar (jazz)	101 FX 6 (goblins)	176 Psychedelic Guitar	251 Electronic Shamisen
27 Electric Guitar (clean)	102 FX 7 (echoes)	177 Bright Organ	252 Bright Sitar
28 Electric Guitar (muted)	103 FX 8 (sci-fi)	178 Pick Organ	253 Whistle Accord
29 Overdriven Guitar	104 Sitar	179 Synth Accordion	254 rhythm Nation
30 Distortion Guitar	105 Banjo	180 Bright Violin	255 Bright Koto
31 Guitar Harmonics	106 Shamisen	181 Stringed Violin	256 Koto Lead
32 Acoustic Bass	107 Koto	182 Trill Violin	257 Diplophonia Koto
33 Electric Bass(finger)	108 Kalimba	183 Electronic Violin	258 Baritone Koto
34 Electric Bass(pick)	109 Bagpipe	184 Large Violin	259 Synth Koto
35 Fretless Bass	110 Fiddle	185 rhythm Orchestra	260 Environmental Lead
36 Slap Bass 1	111 Shanai	186 Pizzicato Violin	261 Metal Lead
37 Slap Bass 2	112 Tinkle Bell	187 Pizzicato Ensemble 1	262 Orchestra Lead
38 Synth Bass 1	113 Agogo	188 Pizzicato Ensemble 2	263 Glockenspiel Lead
39 Synth Bass 2	114 Steel Drums	189 Percussion Band	264 Bass Lead
40 Violin	115 Woodblock	190 Baritone Synth Contrabass	265 Fifths Lead
41 Viola	116 Taiko Drum	191 Bass Flute	266 Wind Lead
42 Cello	117 Melodic Tom	192 Distortion Contrabass	267 Atmosphere Lead
43 Contra Bass	118 Synth Drum	193 Contrabass Lead	268 Sharp Lead
44 Tremolo Strings	119 Reverse Cymbal	194 Violin Lead	269 Bright Lead
45 Pizzicato Strings	120 Guitar Fret Noise	195 Cello Lead	270 East Nation Pad
46 Orchestral Harp	121 Breath Noise	196 Pizzicato Rhythm	271 Atmosphere Pad
47 Timpani	122 Seashore	197 High Harp	272 Electric bass Pad
48 String Ensemble 1	123 Bird Tweet	198 Harp ensemble	273 electric Piano Pad
49 String Ensemble 2	124 Telephone Ring	199 Synth Harp	274 Clean Guitar Pad
50 Synth Strings 1	125 Helicopter	200 Baritone Trumpet	275 Western Pad
51 Synth Strings 2	126 Applause	201 Trumpet ensemble	276 Sci-fi Pad
52 Choir Aahs	127 Gunshot	202 Rhythm Trumpet	277 Metal Sci-fi Pad
53 Voice Oohs	128 Percussion	203 High Trumpet	278 Clarinet Pad
54 Synth Voice	129 Rhythm electric Piano	204 Synth Trumpet	279 Electronic dance Pad
55 Orchestra Hit	130 Baritone Xylophone	205 Baritone Trombone	280 Double Kalimba
56 Trumpet	131 Clean Piano	206 Trombone ensemble	281 Bright Kalimba
57 Trombone	132 Bright Dulcimer	207 Rhythm Trombone	282 Crystal Kalimba
58 Tuba	133 Rhythm Grand Piano	208 High Trombone	283 Synth Kalimba
59 Muted Trumpet	134 Traditional Piano	209 Baritone Trombone	284 Electronic Bagpipe
60 French Horn	135 Aluminium Jean	210 Synth Trombone	285 Wind Bagpipe
61 Brass Section	136 Rock Grand Piano	211 Violin French Horn	286 High Bagpipe
62 Synth Brass 1	137 Electronic organ	212 French Horn ensemble	287 Bright Bagpipe
63 Synth Brass 2	138 Psychedelic electronic	213 Electronic French Horn	288 Orchestra Bagpipe
64 Soprano Sax	139 Water jean	214 Synth French Horn	289 Baritone Bagpipe
65 Alto Sax	140 Bright Guitar	215 Psychedelic Synth Brass	290 Environmental Shanai
66 Tenor Sax	141 Orchestra piccolo	216 Distortion Synth Brass	291 Baritone Shanai
67 Baritone Sax	142 Heavy metal guitar	217 Vibraphone Synth Brass	292 Tenor Shanai
68 Oboe	143 Crystal guitar	218 Rock Synth Brass	293 high Shanai
69 English Horn	144 Queer electric Piano	219 Synth Muted Trumpet	294 Synth Shanai
70 Bassoon	145 Bright bass	220 Soprano Sax ensemble	295 Bright Steel Drums
71 Clarinet	146 Rock Electric Bass	221 rhythm Soprano Sax	296 Steel Drums Lead
72 Piccolo	147 Rhythm Electric Bass	222 Synth Soprano Sax	297 Lyric Steel Drums
73 Flute	148 Psychedelic Bass	223 National Sax	298 Orchestra Steel Drums
74 Recorder	149 Heavy Metal Bass	224 Metal Sax	299 Synth Steel Drums

APPENDIX II RHYTHM LIST

000 Soul 1	075 Tango1	150 Psychedelic Swing	225 Jump Samba 1
001 Soul 2	076 Tango2	151 Folk Rock 1	226 Jump Samba 2
002 Soul 3	077 Tango3	152 Folk Rock 2	227 Jump Samba 3
003 Soul 4	078 Mambo 1	153 New century 1	228 Afro Samba
004 Soul 5	079 Mambo 2	154 New century 2	229 Rock March 1
005 Soul 6	080 Rhumba 1	155 New century 3	230 Rock March 2
006 Soul 7	081 Rhumba 2	156 16 Pop 1	231 Rock March 3
007 Soul 8	082 Rhumba 3	157 16 Pop 2	232 Rock March 4
008 Slow Soul 1	083 Rhumba 4	158 Modern dance 1	233 Polka Blues 1
009 Slow Soul 2	084 Rhumba 5	159 Modern dance 2	234 Polka Blues 2
010 Slow Soul 3	085 Bequeine	160 Modern dance 3	235 Polka Blues 3
011 Slow Soul 4	086 Salsa	161 Modern dance 4	236 Country Rock 1
012 Slow Soul 5	087 Merengue 1	162 Modern dance 5	237 Country Rock 2
013 Funky Soul 1	088 Merengue 2	163 8 Post Rock	238 Jazz Blues
014 Funky Soul 2	089 Vallenato	164 Classic Rock	239 Country Dance 1
015 Funky soul 3	090 Plena	165 Jazz Rock 1	240 Country Dance 2
016 Funky soul 4	091 Lambada	166 Jazz Rock 2	241 Country Dance 3
017 Funky soul 5	092 Bachata 1	167 Traditional Pop	242 World Fusion
018 Funky soul 6	093 Bachata 2	168 Country Blues	243 Chinese Traditional 1
019 Funky soul 7	094 Bachata 3	169 Indian Pop	244 Chinese Traditional 2
020 Funky soul 8	095 Samba 1	170 Hard 3 Rock	245 Chinese Traditional 3
021 West Coast	096 Samba 2	171 Classical Ballad 1	246 Thailand Rhythm
022 Euro Soul	097 Pop Samba 1	172 Classical B allad 2	247 Modern Waltz 1
023 16 AOR 1	098 Pop Samba 2	173 Classical ballad 3	248 Modern Waltz 2
024 16 AOR 2	099 Pop Samba 3	174 Classical ballad 4	249 Modern Waltz 3
025 16 Beat 1	100 Jazz Samba	175 Light Ballad	250 Modern Waltz 4
026 16 Beat 2	101 March 1	176 Deep House	251 Brit Pop Waltz 1
027 16 Beat 3	102 March 2	177 Hard House	252 Brit Pop Waltz 2
028 16 Ballad 1	103 March 3	178 House dance	253 Brit Pop Waltz 3
029 16 Ballad 2	104 March 4	179 8 Pop	254 Contemporary Waltz 1
030 Pop Dance 1	105 Polka 1	180 Japanese Folk Music	255 Contemporary Waltz 2
031 Pop Dance 2	106 Polka 2	181 Trip Hop 1	256 Modern Soul
032 Pop Dance 3	107 Polka 3	182 Trip Hop 2	257 Modern Soul 2
033 Shuffle 1	108 C & W 1	183 Chamber Pop 1	258 Modern Soul 3
034 Shuffle 2	109 C & W 2	184 Chamber Pop 2	259 Modern Soul 4
035 Shuffle 8	110 Bluegrass	185 Pop Swing 1	260 Modern Soul 5
036 Hard Rock	111 Country 1	186 Pop Swing 2	261 Modern Soul 6
037 Slow Rock 1	112 Country2	187 Pop Swing 3	262 Modern Soul 7
038 Slow Rock 2	113 Country 3	188 Pop Swing 4	263 Modern Soul 8
039 Pop Classic	114 Middle East	189 Pop Swing 5	264 Classical Soul 1
040 Blues	115 China 1	190 Pop Swing 6	265 Classical Soul 2
041 Twist	116 China 2	191 Celtic Pop	266 Classical Soul 3
042 Hard 3 Beat	117 China 3	192 Hawaiian Pop	267 Classical Soul 4
043 Love Ballad 1	118 Thailand	193 Soft Bossanova 1	268 Classical Soul 5
044 Love Ballad 2	119 Waltz 1	194 Soft Bossanova 2	269 Contemporary R&B1
045 Love Ballad 3	120 Waltz 2	185 Soft Bossanova 3	270 Contemporary R&B2
046 Love Ballad 4	121 Waltz 3	196 Soft Bossanova 4	271 Contemporary R&B3
047 Euro Beat	122 Waltz 4	197 Soft Bossanova 5	272 Contemporary R&B4
048 House 1	123 Jazz Waltz 1	198 Mento	273 Contemporary R&B5
049 House 2	124 Jazz Waltz 2	199 Shima Uta	274 Contemporary R&B6
050 Swing Beat	125 Jazz Waltz 3	200 Reggae Pop 1	275 Contemporary R&B7
051 8 Ballad	126 Country Waltz 1	201 Reggae-Pop 2	276 Contemporary R&B8
052 Step	127 Country Waltz 2	202 European Traditions	277 Deep Funk
053 Big Band 1	128 Jazz Soul 1	203 Tango Pop 1	278 European Jazz
054 Big Band 2	129 Jazz Soul 2	204 Tango Pop 2	279 70' Rock
055 Cobmo 1	130 Jazz Soul 3	205 Tango Pop 3	280 80' Rock
056 Cobmo 2	131 Jazz Soul 4	206 Rhythm Mambo 1	281 16 Soft Rock 1
057 Swing 1	132 Jazz Soul 5	207 Rhythm Mambo 2	282 16 Soft Rock 2
058 Swing 2	133 Jazz Soul 6	208 Brit Rhumba 1	283 16 Soft Rock 3
059 Swing 3	134 Jazz Soul 7	209 Brit Rhumba 2	284 16 Ballad Rock 1
060 Swing 4	135 Jazz Soul 8	210 Brit Rhumba 3	285 16 Ballad Rock 2
061 Swing 5	136 Light Beat 1	211 Brit Rhumba 4	286 Afro Dance 1
062 Swing 6	137 Light Beat 2	212 Brit Rhumba 5	287 Afro Dance 2
063 Baiao	138 Light Beat 3	213 Soul Bequine	288 Afro Dance 3
064 Bolero	139 Light Beat 4	214 Chamber pop	289 Jazz Shuffle 1
065 Bossanova 1	140 Light Beat 5	215 Neo-Merengue 1	290 Jazz Shuffle 2
066 Bossanova 2	141 Soul Psychedelic 1	216 Neo-Merengue 2	291 8 Jazz Shuffle
067 Bossanova 3	142 Soul Psychedelic 2	217 Big Beat	292 Heavy Metal Rock
068 Bossanova 4	143Soul Psychedelic 3	218 Plena Beat	293 Rock Dance 1
069 Bossanova 5	144 Soul Psychedelic 4	219 Down Tempo	294 Rock Dance 2
070 Calypso	145 Soul Psychedelic 5	220 Electric Bachata 1	295 Middle East Pop
071 Habanera	146 Soul Psychedelic 6	221 Electric Bachata 2	296 Soul Blues
072 Reggae 1	147 Soul Psychedelic 7	222 Electric Bachata 3	297 Glam Rock
073 Reggae 2	148 Soul Psychedelic 8	223 Folk Samba 1	298 Hard House
074 Jorpo	149 Goth Psychedelic	224 Folk Samba 2 2	299 Light Ballad

APPENDIX III DEMO SONGS

01 Turkish March	28 The river of Babylon	55 Hero
02 Red river valley	29 In_rain	56 The legend of 1900
03 United States patrol	30 A long time ago	57 Traumerel
04 Suzanne	31 The flute prelude	58 Moonlight Shadow
05 Mozart's Piano Sonata	32 On Christmas Eve	59 Top of the world
06 A Dream Wedding	33 Hungarian dance	60 Always on my mind
07 Adilina by the water	34 The sun sank	61 My Way
08 Smile Polka	35 The fountain	62 Merry Christmas
09 Jingle bells	36 Mary has a little sheep	63 Juke
10 Radesky March	37 Music Box Dancer	64 City in the sky
11 Mozart No. 40	38 The four seasons, spring	65 Somewhere Over the Rainbow
12 Clapping song	39 Concerto of love	66 We need a little Christmas
13 To Alice	40 Fate	67 God is a girl
14 katyusha	41 Ode to joy	68 Edelweiss
15 Worm fly	42 Carmen	69 Sony Ericsson dance
16 Minuet in G major	43 Italian polka	70 Melody of the Night 5
17 Spanish bullfighter	44 Happy birthday to you	71 Disney Song
18 Serenade - Haydn	45 Doraemon	72 To Love Again
19 Yankee doodle	46 Yesterday Once More	73 Tony Orlando Tie A Yellow Ribbon Round The Old Oak Tree
20 Waltz	47 Auld Lang Syne	74 Lunbada
21 Small step dance	48 Beethoven's Sonata	75 Trip to Brazil
22 Melody in the Rain	49 Clemente Little Sonata	76 A Comme Amour
23 Frosty	50 BOOMBOOMBOOM	77 Schubert Serenade
24 Old France	51 Cuban tango	78 The Nearness Of You
25 The Blue Danube	52 Wonder girl	79 Ding-dong from the joy of heaven
26 Brown kettle	53 Any man of mine	80 Greensleeves
27 Hawthorn	54 barbie girl

0 Acoustic Grand Piano	75 Pan Flute	150 Magic Electronic	225 Baritone Sax ensemble
1 Bright Acoustic Piano	76 Bottle Blow	151 Bright violin	226 Crystal Sax
2 Electric Grand Piano	77 Shakuhachi	152 Atonic Violin	227 Soft Baritone Sax
3 Honky-tonk Piano	78 Whistle	153 Heavy 151 Bright Violin	228 Synth Baritone Sax
4 Rhodes Piano	79 Ocarina	154 Synth Clarinet	229 Heavy metal Sax
5 Chorused Piano	80 Lead 1 (square)	155 Interactive Lead	230 Church Oboe
6 Harpsichord	81 Lead 2 (sawtooth)	156 For the keyboard	231 Oboe ensemble
7 Clavichord	82 Lead 3 (caliope lead)	157 Bagpipes	232 Bass Oboe
8 Celesta	83 Lead 4 (chiff lead)	158 Suona	233 Bright Oboe
9 Glockenspiel	84 Lead 5 (charang)	159 Pipa	234 distortio oboe
10 Music man	85 Lead 6 (voice)	160 Church Piano	235 English Horn ensemble
11 Vibraphone	86 Lead 7 (fifths)	161 Church electric Piano	236 Pizzicato English Horn
12 Marimba	87 Lead 8 (bass+lead)	162 Synth Piano	237 Diplophonia English Horn
13 Xylophone	88 Pad 1 (new age)	163 Baritone Piano	238 Bright English Horn
14 Tubular Bells	89 Pad 2 (warm)	164 Piano PAD	239 Synth English Horn
15 Dulcimer	90 Pad 3 (polysynth)	165 String Piano	240 Psychedelic Synth Lead
16 Hammond Organ	91 Pad 4 (choir)	166 Metal Piano	241 Vibraphone Synth Lead
17 Percussive Organ	92 Pad 5 (bowed)	167 Light rhythm Piano	242 Marimba Synth Lead
18 Rock Organ	93 Pad 6 (metallic)	168 electric Piano Pad	243 Metal FX
19 Church Organ	94 Pad 7 (halo)	169 Classical piano	244 Electronic FX
20 Reed Organ	95 Pad 8 (sweep)	170 Guitar organ	245 Electronic String Ensemble
21 Accordian	96 FX 1 (rain)	171 An electric guitar	246 Wind FX
22 Harmonica	97 FX 2 (soundtrack)	172 synthesis Nylon Guitar	247 Clarinet FX
23 Tango Accordian	98 FX 3 (crystal)	173 Synthetic electronic guitar	248 Organ FX
24 Acoustic Guitar (nylon)	99 FX 4 (atmosphere)	174 Bright clean Guitar	249 Crystal FX
25 Acoustic Guitar (steel)	100 FX 5 (brightness)	175 Orchestra Guitar	250 Synth Shamisen
26 Electric Guitar (jazz)	101 FX 6 (goblins)	176 Psychedelic Guitar	251 Electronic Shamisen
27 Electric Guitar (clean)	102 FX 7 (echoes)	177 Bright Organ	252 Bright Sitar
28 Electric Guitar (muted)	103 FX 8 (sci-fi)	178 Pick Organ	253 Whistle Accord
29 Overdriven Guitar	104 Sitar	179 Synth Accordion	254 rhythm Nation
30 Distortion Guitar	105 Banjo	180 Bright Violin	255 Bright Koto
31 Guitar Harmonics	106 Shamisen	181 Stringed Violin	256 Koto Lead
32 Acoustic Bass	107 Koto	182 Trill Violin	257 Diplophonia Koto
33 Electric Bass(finger)	108 Kalimba	183 Electronic Violin	258 Baritone Koto
34 Electric Bass(pick)	109 Bagpipe	184 Large Violin	259 Synth Koto
35 Fretless Bass	110 Fiddle	185 rhythm Orchestra	260 Environmental Lead
36 Slap Bass 1	111 Shanai	186 Pizzicato Violin	261 Metal Lead
37 Slap Bass 2	112 Tinkle Bell	187 Pizzicato Ensemble 1	262 Orchestra Lead
38 Synth Bass 1	113 Agogo	188 Pizzicato Ensemble 2	263 Glockenspiel Lead
39 Synth Bass 2	114 Steel Drums	189 Percussion Band	264 Bass Lead
40 Violin	115 Woodblock	190 Baritone Synth Contrabass	265 Fifths Lead
41 Viola	116 Taiko Drum	191 Bass Flute	266 Wind Lead
42 Cello	117 Melodic Tom	192 Distortion Contrabass	267 Atmosphere Lead
43 Contra Bass	118 Synth Drum	193 Contrabass Lead	268 Sharp Lead
44 Tremolo Strings	119 Reverse Cymbal	194 Violin Lead	269 Bright Lead
45 Pizzicato Strings	120 Guitar Fret Noise	195 Cello Lead	270 East Nation Pad
46 Orchestral Harp	121 Breath Noise	196 Pizzicato Rhythm	271 Atmosphere Pad
47 Timpani	122 Seashore	197 High Harp	272 Electric bass Pad
48 String Ensemble 1	123 Bird Tweet	198 Harp ensemble	273 electric Piano Pad
49 String Ensemble 2	124 Telephone Ring	199 Synth Harp	274 Clean Guitar Pad
50 Synth Strings 1	125 Helicopter	200 Baritone Trumpet	275 Western Pad
51 Synth Strings 2	126 Applause	201 Trumpet ensemble	276 Sci-fi Pad
52 Choir Aahs	127 Gunshot	202 Rhythm Trumpet	277 Metal Sci-fi Pad
53 Voice Oohs	128 Percussion	203 High Trumpet	278 Clarinet Pad
54 Synth Voice	129 Rhythm electric Piano	204 Synth Trumpet	279 Electronic dance Pad
55 Orchestra Hit	130 Baritone Xylophone	205 Baritone Trombone	280 Double Kalimba
56 Trumpet	131 Clean Piano	206 Trombone ensemble	281 Bright Kalimba
57 Trombone	132 Bright Dulcimer	207 Rhythm Trombone	282 Crystal Kalimba
58 Tuba	133 Rhythm Grand Piano	208 High Trombone	283 Synth Kalimba
59 Muted Trumpet	134 Traditional Piano	209 Baritone Trombone	284 Electronic Bagpipe
60 French Horn	135 Aluminium Jean	210 Synth Trombone	285 Wind Bagpipe
61 Brass Section	136 Rock Grand Piano	211 Violin French Horn	286 High Bagpipe
62 Synth Brass 1	137 Electronic organ	212 French Horn ensemble	287 Bright Bagpipe
63 Synth Brass 2	138 Psychedelic electronic	213 Electronic French Horn	288 Orchestra Bagpipe
64 Soprano Sax	139 Water Jean	214 Synth French Horn	289 Baritone Bagpipe
65 Alto Sax	140 Bright Guitar	215 Psychedelic Synth Brass	290 Environmental Shanai
66 Tenor Sax	141 Orchestra piccolo	216 Distortion Synth Brass	291 Baritone Shanai
67 Baritone Sax	142 Heavy metal guitar	217 Vibraphone Synth Brass	292 Tenor Shanai
68 Oboe	143 Crystal guitar	218 Rock Synth Brass	293 high Shanai
69 English Horn	144 Queer electric Piano	219 Synth Muted Trumpet	294 Synth Shanai
70 Bassoon	145 Bright bass	220 Soprano Sax ensemble	295 Bright Steel Drums
71 Clarinet	146 Rock Electric Bass	221 rhythm Soprano Sax	296 Steel Drums Lead
72 Piccolo	147 Rhythm Electric Bass	222 Synth Soprano Sax	297 Lyric Steel Drums
73 Flute	148 Psychedelic Bass	223 National Sax	298 Orchestra Steel Drums
74 Recorder	149 Heavy Metal Bass	224 Metal Sax	299 Synth Steel Drums

BIJLAGE II RHYTHM LIJST

000 Soul 1	075 Tango1	150 Psychedelic Swing	225 Jump Samba 1
001 Soul 2	076 Tango2	151 Folk Rock 1	226 Jump Samba 2
002 Soul 3	077 Tango3	152 Folk Rock 2	227 Jump Samba 3
003 Soul 4	078 Mambo 1	153 New century 1	228 Afro Samba
004 Soul 5	079 Mambo 2	154 New century 2	229 Rock March 1
005 Soul 6	080 Rhumba 1	155 New century 3	230 Rock March 2
006 Soul 7	081 Rhumba 2	156 16 Pop 1	231 Rock March 3
007 Soul 8	082 Rhumba 3	157 16 Pop 2	232 Rock March 4
008 Slow Soul 1	083 Rhumba 4	158 Modern dance 1	233 Polka Blues 1
009 Slow Soul 2	084 Rhumba 5	159 Modern dance 2	234 Polka Blues 2
010 Slow Soul 3	085 Bequeine	160 Modern dance 3	235 Polka Blues 3
011 Slow Soul 4	086 Salsa	161 Modern dance 4	236 Country Rock 1
012 Slow Soul 5	087 Merengue 1	162 Modern dance 5	237 Country Rock 2
013 Funky Soul 1	088 Merengue 2	163 8 Post Rock	238 Jazz Blues
014 Funky Soul 2	089 Vallenato	164 Classic Rock	239 Country Dance 1
015 Funky soul 3	090 Plena	165 Jazz Rock 1	240 Country Dance 2
016 Funky soul 4	091 Lambada	166 Jazz Rock 2	241 Country Dance 3
017 Funky soul 5	092 Bachata 1	167 Traditional Pop	242 World Fusion
018 Funky soul 6	093 Bachata 2	168 Country Blues	243 Chinese Traditional 1
019 Funky soul 7	094 Bachata 3	169 Indian Pop	244 Chinese Traditional 2
020 Funky soul 8	095 Samba 1	170 Hard 3 Rock	245 Chinese Traditional 3
021 West Coast	096 Samba 2	171 Classical Ballad 1	246 Thailand Rhythm
022 Euro Soul	097 Pop Samba 1	172 Classical B allad 2	247 Modern Waltz 1
023 16 AOR 1	098 Pop Samba 2	173 Classical ballad 3	248 Modern Waltz 2
024 16 AOR 2	099 Pop Samba 3	174 Classical ballad 4	249 Modern Waltz 3
025 16 Beat 1	100 Jazz Samba	175 Light Ballad	250 Modern Waltz 4
026 16 Beat 2	101 March 1	176 Deep House	251 Brit Pop Waltz 1
027 16 Beat 3	102 March 2	177 Hard House	252 Brit Pop Waltz 2
028 16 Ballad 1	103 March 3	178 House dance	253 Brit Pop Waltz 3
029 16 Ballad 2	104 March 4	179 8 Pop	254 Contemporary Waltz 1
030 Pop Dance 1	105 Polka 1	180 Japanese Folk Music	255 Contemporary Waltz 2
031 Pop Dance 2	106 Polka 2	181 Trip Hop 1	256 Modern Soul
032 Pop Dance 3	107 Polka 3	182 Trip Hop 2	257 Modern Soul 2
033 Shuffle 1	108 C & W 1	183 Chamber Pop 1	258 Modern Soul 3
034 Shuffle 2	109 C & W 2	184 Chamber Pop 2	259 Modern Soul 4
035 Shuffle 8	110 Bluegrass	185 Pop Swing 1	260 Modern Soul 5
036 Hard Rock	111 Country 1	186 Pop Swing 2	261 Modern Soul 6
037 Slow Rock 1	112 Country2	187 Pop Swing 3	262 Modern Soul 7
038 Slow Rock 2	113 Country 3	188 Pop Swing 4	263 Modern Soul 8
039 Pop Classic	114 Middle East	189 Pop Swing 5	264 Classical Soul 1
040 Blues	115 China 1	190 Pop Swing 6	265 Classical Soul 2
041 Twist	116 China 2	191 Celtic Pop	266 Classical Soul 3
042 Hard 3 Beat	117 China 3	192 Hawaiian Pop	267 Classical Soul 4
043 Love Ballad 1	118 Thailand	193 Soft Bossanova 1	268 Classical Soul 5
044 Love Ballad 2	119 Waltz 1	194 Soft Bossanova 2	269 Contemporary R&B1
045 Love Ballad 3	120 Waltz 2	185 Soft Bossanova 3	270 Contemporary R&B2
046 Love Ballad 4	121 Waltz 3	196 Soft Bossanova 4	271 Contemporary R&B3
047 Euro Beat	122 Waltz 4	197 Soft Bossanova 5	272 Contemporary R&B4
048 House 1	123 Jazz Waltz 1	198 Mento	273 Contemporary R&B5
049 House 2	124 Jazz Waltz 2	199 Shima Uta	274 Contemporary R&B6
050 Swing Beat	125 Jazz Waltz 3	200 Reggae Pop 1	275 Contemporary R&B7
051 8 Ballad	126 Country Waltz 1	201 Reggae-Pop 2	276 Contemporary R&B8
052 Step	127 Country Waltz 2	202 European Traditions	277 Deep Funk
053 Big Band 1	128 Jazz Soul 1	203 Tango Pop 1	278 European Jazz
054 Big Band 2	129 Jazz Soul 2	204 Tango Pop 2	279 70' Rock
055 Cobmo 1	130 Jazz Soul 3	205 Tango Pop 3	280 80' Rock
056 Cobmo 2	131 Jazz Soul 4	206 Rhythm Mambo 1	281 16 Soft Rock 1
057 Swing 1	132 Jazz Soul 5	207 Rhythm Mambo 2	282 16 Soft Rock 2
058 Swing 2	133 Jazz Soul 6	208 Brit Rhumba 1	283 16 Soft Rock 3
059 Swing 3	134 Jazz Soul 7	209 Brit Rhumba 2	284 16 Ballad Rock 1
060 Swing 4	135 Jazz Soul 8	210 Brit Rhumba 3	285 16 Ballad Rock 2
061 Swing 5	136 Light Beat 1	211 Brit Rhumba 4	286 Afro Dance 1
062 Swing 6	137 Light Beat 2	212 Brit Rhumba 5	287 Afro Dance 2
063 Baiao	138 Light Beat 3	213 Soul Beguine	288 Afro Dance 3
064 Bolero	139 Light Beat 4	214 Chamber pop	289 Jazz Shuffle 1
065 Bossanova 1	140 Light Beat 5	215 Neo-Merengue 1	290 Jazz Shuffle 2
066 Bossanova 2	141 Soul Psychedelic 1	216 Neo-Merengue 2	291 8 Jazz Shuffle
067 Bossanova 3	142 Soul Psychedelic 2	217 Big Beat	292 Heavy Metal Rock
068 Bossanova 4	143Soul Psychedelic 3	218 Plena Beat	293 Rock Dance 1
069 Bossanova 5	144 Soul Psychedelic 4	219 Down Tempo	294 Rock Dance 2
070 Calypso	145 Soul Psychedelic 5	220 Electric Bachata 1	295 Middle East Pop
071 Habanera	146 Soul Psychedelic 6	221 Electric Bachata 2	296 Soul Blues
072 Reggae 1	147 Soul Psychedelic 7	222 Electric Bachata 3	297 Glam Rock
073 Reggae 2	148 Soul Psychedelic 8	223 Folk Samba 1	298 Hard House
074 Jorpo	149 Goth Psychedelic	224 Folk Samba 2 2	299 Light Ballad

BIJLAGE III DEMO SONGS

01 Turkish March	28 The river of Babylon	55 Hero
02 Red river valley	29 In_rain	56 The legend of 1900
03 United States patrol	30 A long time ago	57 Traumerel
04 Suzanne	31 The flute prelude	58 Moonlight Shadow
05 Mozart's Piano Sonata	32 On Christmas Eve	59 Top of the world
06 A Dream Wedding	33 Hungarian dance	60 Always on my mind
07 Adilina by the water	34 The sun sank	61 My Way
08 Smile Polka	35 The fountain	62 Merry Christmas
09 Jingle bells	36 Mary has a little sheep	63 Luke
10 Radesky March	37 Music Box Dancer	64 City in the sky
11 Mozart No. 40	38 The four seasons, spring	65 Somewhere Over the Rainbow
12 Clapping song	39 Concerto of love	66 We need a little Christmas
13 To Alice	40 Fate	67 God is a girl
14 katyusha	41 Ode to joy	68 Edelweiss
15 Worm fly	42 Carmen	69 Sony Ericsson dance
16 Minuet in G major	43 Italian polka	70 Melody of the Night 5
17 Spanish bullfighter	44 Happy birthday to you	71 Disney Song
18 Serenade - Haydn	45 Doraemon	72 To Love Again
19 Yankee doodle	46 Yesterday Once More	73 Tony Orlando Tie A Yellow Ribbon Round The Old Oak Tree
20 Waltz	47 Auld Lang Syne	74 Lunbada
21 Small step dance	48 Beethoven's Sonata	75 Trip to Brazil
22 Melody in the Rain	49 Clemente Little Sonata	76 A Comme Amour
23 Frosty	50 BOOMBOOMBOOM	77 Schubert Serenade
24 Old France	51 Cuban tango	78 The Nearness Of You
25 The Blue Danube	52 Wonder girl	79 Ding-dong from the joy of heaven
26 Brown kettle	53 Any man of mine	80 Greensleeves
27 Hawthorn	54 barbie girl

CONTROLS AND CONNECTIONS

1. LAUTSPRECHER

• Utilisation de piles (non incluses):

0 Acoustic Grand Piano	75 Pan Flute	150 Magic Electronic	225 Baritone Sax ensemble
1 Bright Acoustic Piano	76 Bottle Blow	151 Bright violin	226 Crystal Sax
2 Electric Grand Piano	77 Shakuhachi	152 Atonic Violin	227 Soft Baritone Sax
3 Honky-tonk Piano	78 Whistle	153 Heavy 151 Bright Violin	228 Synth Baritone Sax
4 Rhodes Piano	79 Ocarina	154 Synth Clarinet	229 Heavy metal Sax
5 Chorusd Piano	80 Lead 1 (square)	155 Interactive Lead	230 Church Oboe
6 Harpsichord	81 Lead 2 (sawtooth)	156 For the keyboard	231 Oboe ensemble
7 Clavichord	82 Lead 3 (caliope lead)	157 Bagpipes	232 Bass Oboe
8 Celesta	83 Lead 4 (chiff lead)	158 Suona	233 Bright Oboe
9 Glockenspiel	84 Lead 5 (charang)	159 Pipe	234 distortio oboe
10 Music man	85 Lead 6 (voice)	160 Church Piano	235 English Horn ensemble
11 Vibraphone	86 Lead 7 (fifts)	161 Church electric Piano	236 Pizzicato English Horn
12 Marimba	87 Lead 8 (bass+lead)	162 Synth Piano	237 Diplophonia English Horn
13 Xylophone	88 Pad 1 (new age)	163 Baritone Piano	238 Bright English Horn
14 Tubular Bells	89 Pad 2 (warm)	164 Piano PAD	239 Synth English Horn
15 Dulcimer	90 Pad 3 (polysynth)	165 String Piano	240 Psychedelic Synth Lead
16 Hammond Organ	91 Pad 4 (choir)	166 Metal Piano	241 Vibraphone Synth Lead
17 Percussive Organ	92 Pad 5 (bowed)	167 Light rhythm Piano	242 Marimba Synth Lead
18 Rock Organ	93 Pad 6 (metallic)	168 electric Piano Pad	243 Metal FX
19 Church Organ	94 Pad 7 (halo)	169 Classical piano	244 Electronic FX
20 Reed Organ	95 Pad 8 (sweep)	170 Guitar organ	245 Electronic String Ensemble
21 Accordian	96 FX 1 (rain)	171 An electric guitar	246 Wind FX
22 Harmonica	97 FX 2 (soundtrack)	172 synthesis Nylon Guitar	247 Clarinet FX
23 Tango Accordian	98 FX 3 (crystal)	173 Synthetic electronic guitar	248 Organ FX
24 Acoustic Guitar (nylon)	99 FX 4 (atmosphere)	174 Bright clean Guitar	249 Crystal FX
25 Acoustic Guitar (steel)	100 FX 5 (brightness)	175 Orchestra Guitar	250 Synth Shamisen
26 Electric Guitar (jazz)	101 FX 6 (goblins)	176 Psychedelic Guitar	251 Electronic Shamisen
27 Electric Guitar (clean)	102 FX 7 (echoes)	177 Bright Organ	252 Bright Sitar
28 Electric Guitar (muted)	103 FX 8 (sci-fi)	178 Pick Organ	253 Whistle Accord
29 Overdriven Guitar	104 Sitar	179 Synth Accordion	254 rhythm Nation
30 Distortion Guitar	105 Banjo	180 Bright Violin	255 Bright Koto
31 Guitar Harmonics	106 Shamisen	181 Stringed Violin	256 Koto Lead
32 Acoustic Bass	107 Koto	182 Trill Violin	257 Diplophonia Koto
33 Electric Bass(finger)	108 Kalimba	183 Electronic Violin	258 Baritone Koto
34 Electric Bass(pick)	109 Bagpipe	184 Large Violin	259 Synth Koto
35 Fretless Bass	110 Fiddle	185 rhythm Orchestra	260 Environmental Lead
36 Slap Bass 1	111 Shanai	186 Pizzicato Violin	261 Metal Lead
37 Slap Bass 2	112 Tinkle Bell	187 Pizzicato Ensemble 1	262 Orchestra Lead
38 Synth Bass 1	113 Agogo	188 Pizzicato Ensemble 2	263 Glockenspiel Lead
39 Synth Bass 2	114 Steel Drums	189 Percussion Band	264 Bass Lead
40 Violin	115 Woodblock	190 Baritone Synth Contrabass	265 Fifths Lead
41 Viola	116 Taiko Drum	191 Bass Flute	266 Wind Lead
42 Cello	117 Melodic Tom	192 Distortion Contrabass	267 Atmosphere Lead
43 Contra Bass	118 Synth Drum	193 Contrabass Lead	268 Sharp Lead
44 Tremolo Strings	119 Reverse Cymbal	194 Violin Lead	269 Bright Lead
45 Pizzicato Strings	120 Guitar Fret Noise	195 Cello Lead	270 East Nation Pad
46 Orchestral Harp	121 Breath Noise	196 Pizzicato Rhythm	271 Atmosphere Pad
47 Timpani	122 Seashore	197 High Harp	272 Electric bass Pad
48 String Ensemble 1	123 Bird Tweet	198 Harp ensemble	273 electric Piano Pad
49 String Ensemble 2	124 Telephone Ring	199 Synth Harp	274 Clean Guitar Pad
50 Synth Strings 1	125 Helicopter	200 Baritone Trumpet	275 Western Pad
51 Synth Strings 2	126 Applause	201 Trumpet ensemble	276 Sci-fi Pad
52 Choir Aahs	127 Gunshot	202 Rhythm Trumpet	277 Metal Sci-fi Pad
53 Voice Oohs	128 Percussion	203 High Trumpet	278 Clarinet Pad
54 Synth Voice	129 Rhythm electric Piano	204 Synth Trumpet	279 Electronic dance Pad
55 Orchestra Hit	130 Baritone Xylophone	205 Baritone Trombone	280 Double Kalimba
56 Trumpet	131 Clean Piano	206 Trombone ensemble	281 Bright Kalimba
57 Trombone	132 Bright Dulcimer	207 Rhythm Trombone	282 Crystal Kalimba
58 Tuba	133 Rhythm Grand Piano	208 High Trombone	283 Synth Kalimba
59 Muted Trumpet	134 Traditional Piano	209 Baritone Trombone	284 Electronic Bagpipe
60 French Horn	135 Aluminium Jean	210 Synth Trombone	285 Wind Bagpipe
61 Brass Section	136 Rock Grand Piano	211 Violin French Horn	286 High Bagpipe
62 Synth Brass 1	137 Electronic organ	212 French Horn ensemble	287 Bright Bagpipe
63 Synth Brass 2	138 Psychedelic electronic	213 Electronic French Horn	288 Orchestra Bagpipe
64 Soprano Sax	139 Water Jean	214 Synth French Horn	289 Baritone Bagpipe
65 Alto Sax	140 Bright Guitar	215 Psychedelic Synth Brass	290 Environmental Shanai
66 Tenor Sax	141 Orchestra piccolo	216 Distortion Synth Brass	291 Baritone Shanai
67 Baritone Sax	142 Heavy metal guitar	217 Vibraphone Synth Brass	292 Tenor Shanai
68 Oboe	143 Crystal guitar	218 Rock Synth Brass	293 high Shanai
69 English Horn	144 Queer electric Piano	219 Synth Muted Trumpet	294 Synth Shanai
70 Bassoon	145 Bright bass	220 Soprano Sax ensemble	295 Bright Steel Drums
71 Clarinet	146 Rock Electric Bass	221 rhythm Soprano Sax	296 Steel Drums Lead
72 Piccolo	147 Rhythm Electric Bass	222 Synth Soprano Sax	297 Lyric Steel Drums
73 Flute	148 Psychedelic Bass	223 National Sax	298 Orchestra Steel Drums
74 Recorder	149 Heavy Metal Bass	224 Metal Sax	299 Synth Steel Drums

APPENDIX II RHYTHM

000 Soul 1	075 Tango1	150 Psychedelic Swing	225 Jump Samba 1
001 Soul 2	076 Tango2	151 Folk Rock 1	226 Jump Samba 2
002 Soul 3	077 Tango3	152 Folk Rock 2	227 Jump Samba 3
003 Soul 4	078 Mambo 1	153 New century 1	228 Afro Samba
004 Soul 5	079 Mambo 2	154 New century 2	229 Rock March 1
005 Soul 6	080 Rhumba 1	155 New century 3	230 Rock March 2
006 Soul 7	081 Rhumba 2	156 16 Pop 1	231 Rock March 3
007 Soul 8	082 Rhumba 3	157 16 Pop 2	232 Rock March 4
008 Slow Soul 1	083 Rhumba 4	158 Modern dance 1	233 Polka Blues 1
009 Slow Soul 2	084 Rhumba 5	159 Modern dance 2	234 Polka Blues 2
010 Slow Soul 3	085 Bequeine	160 Modern dance 3	235 Polka Blues 3
011 Slow Soul 4	086 Salsa	161 Modern dance 4	236 Country Rock 1
012 Slow Soul 5	087 Merengue 1	162 Modern dance 5	237 Country Rock 2
013 Funky Soul 1	088 Merengue 2	163 8 Post Rock	238 Jazz Blues
014 Funky Soul 2	089 Vallenato	164 Classic Rock	239 Country Dance 1
015 Funky soul 3	090 Plena	165 Jazz Rock 1	240 Country Dance 2
016 Funky soul 4	091 Lambada	166 Jazz Rock 2	241 Country Dance 3
017 Funky soul 5	092 Bachata 1	167 Traditional Pop	242 World Fusion
018 Funky soul 6	093 Bachata 2	168 Country Blues	243 Chinese Traditional 1
019 Funky soul 7	094 Bachata 3	169 Indian Pop	244 Chinese Traditional 2
020 Funky soul 8	095 Samba 1	170 Hard 3 Rock	245 Chinese Traditional 3
021 West Coast	096 Samba 2	171 Classical Ballad 1	246 Thailand Rhythm
022 Euro Soul	097 Pop Samba 1	172 Classical B allad 2	247 Modern Waltz 1
023 16 AOR 1	098 Pop Samba 2	173 Classical ballad 3	248 Modern Waltz 2
024 16 AOR 2	099 Pop Samba 3	174 Classical ballad 4	249 Modern Waltz 3
025 16 Beat 1	100 Jazz Samba	175 Light Ballad	250 Modern Waltz 4
026 16 Beat 2	101 March 1	176 Deep House	251 Brit Pop Waltz 1
027 16 Beat 3	102 March 2	177 Hard House	252 Brit Pop Waltz 2
028 16 Ballad 1	103 March 3	178 House dance	253 Brit Pop Waltz 3
029 16 Ballad 2	104 March 4	179 8 Pop	254 Contemporary Waltz 1
030 Pop Dance 1	105 Polka 1	180 Japanese Folk Music	255 Contemporary Waltz 2
031 Pop Dance 2	106 Polka 2	181 Trip Hop 1	256 Modern Soul
032 Pop Dance 3	107 Polka 3	182 Trip Hop 2	257 Modern Soul 2
033 Shuffle 1	108 C & W 1	183 Chamber Pop 1	258 Modern Soul 3
034 Shuffle 2	109 C & W 2	184 Chamber Pop 2	259 Modern Soul 4
035 Shuffle 8	110 Bluegrass	185 Pop Swing 1	260 Modern Soul 5
036 Hard Rock	111 Country 1	186 Pop Swing 2	261 Modern Soul 6
037 Slow Rock 1	112 Country2	187 Pop Swing 3	262 Modern Soul 7
038 Slow Rock 2	113 Country 3	188 Pop Swing 4	263 Modern Soul 8
039 Pop Classic	114 Middle East	189 Pop Swing 5	264 Classical Soul 1
040 Blues	115 China 1	190 Pop Swing 6	265 Classical Soul 2
041 Twist	116 China 2	191 Celtic Pop	266 Classical Soul 3
042 Hard 3 Beat	117 China 3	192 Hawaiian Pop	267 Classical Soul 4
043 Love Ballad 1	118 Thailand	193 Soft Bossanova 1	268 Classical Soul 5
044 Love Ballad 2	119 Waltz 1	194 Soft Bossanova 2	269 Contemporary R&B1
045 Love Ballad 3	120 Waltz 2	185 Soft Bossanova 3	270 Contemporary R&B2
046 Love Ballad 4	121 Waltz 3	196 Soft Bossanova 4	271 Contemporary R&B3
047 Euro Beat	122 Waltz 4	197 Soft Bossanova 5	272 Contemporary R&B4
048 House 1	123 Jazz Waltz 1	198 Mento	273 Contemporary R&B5
049 House 2	124 Jazz Waltz 2	199 Shima Uta	274 Contemporary R&B6
050 Swing Beat	125 Jazz Waltz 3	200 Reggae Pop 1	275 Contemporary R&B7
051 8 Ballad	126 Country Waltz 1	201 Reggae-Pop 2	276 Contemporary R&B8
052 Step	127 Country Waltz 2	202 European Traditions	277 Deep Funk
053 Big Band 1	128 Jazz Soul 1	203 Tango Pop 1	278 European Jazz
054 Big Band 2	129 Jazz Soul 2	204 Tango Pop 2	279 70' Rock
055 Cobmo 1	130 Jazz Soul 3	205 Tango Pop 3	280 80' Rock
056 Cobmo 2	131 Jazz Soul 4	206 Rhythm Mambo 1	281 16 Soft Rock 1
057 Swing 1	132 Jazz Soul 5	207 Rhythm Mambo 2	282 16 Soft Rock 2
058 Swing 2	133 Jazz Soul 6	208 Brit Rhumba 1	283 16 Soft Rock 3
059 Swing 3	134 Jazz Soul 7	209 Brit Rhumba 2	284 16 Ballad Rock 1
060 Swing 4	135 Jazz Soul 8	210 Brit Rhumba 3	285 16 Ballad Rock 2
061 Swing 5	136 Light Beat 1	211 Brit Rhumba 4	286 Afro Dance 1
062 Swing 6	137 Light Beat 2	212 Brit Rhumba 5	287 Afro Dance 2
063 Baiao	138 Light Beat 3	213 Soul Bequine	288 Afro Dance 3
064 Bolero	139 Light Beat 4	214 Chamber pop	289 Jazz Shuffle 1
065 Bossanova 1	140 Light Beat 5	215 Neo-Merengue 1	290 Jazz Shuffle 2
066 Bossanova 2	141 Soul Psychedelic 1	216 Neo-Merengue 2	291 8 Jazz Shuffle
067 Bossanova 3	142 Soul Psychedelic 2	217 Big Beat	292 Heavy Metal Rock
068 Bossanova 4	143Soul Psychedelic 3	218 Plena Beat	293 Rock Dance 1
069 Bossanova 5	144 Soul Psychedelic 4	219 Down Tempo	294 Rock Dance 2
070 Calypso	145 Soul Psychedelic 5	220 Electric Bachata 1	295 Middle East Pop
071 Habanera	146 Soul Psychedelic 6	221 Electric Bachata 2	296 Soul Blues
072 Reggae 1	147 Soul Psychedelic 7	222 Electric Bachata 3	297 Glam Rock
073 Reggae 2	148 Soul Psychedelic 8	223 Folk Samba 1	298 Hard House
074 Jorpo	149 Goth Psychedelic	224 Folk Samba 2 2	299 Light Ballad

APPENDIX III DEMO SONGS

01 Turkish March	28 The river of Babylon	55 Hero
02 Red river valley	29 In_rain	56 The legend of 1900
03 United States patrol	30 A long time ago	57 Traumerel
04 Suzanne	31 The flute prelude	58 Moonlight Shadow
05 Mozart's Piano Sonata	32 On Christmas Eve	59 Top of the world
06 A Dream Wedding	33 Hungarian dance	60 Always on my mind
07 Adilina by the water	34 The sun sank	61 My Way
08 Smile Polka	35 The fountain	62 Merry Christmas
09 Jingle bells	36 Mary has a little sheep	63 Juke
10 Radesky March	37 Music Box Dancer	64 City in the sky
11 Mozart No. 40	38 The four seasons, spring	65 Somewhere Over the Rainbow
12 Clapping song	39 Concerto of love	66 We need a little Christmas
13 To Alice	40 Fate	67 God is a girl
14 katyusha	41 Ode to joy	68 Edelweiss
15 Worm fly	42 Carmen	69 Sony Ericsson dance
16 Minuet in G major	43 Italian polka	70 Melody of the Night 5
17 Spanish bullfighter	44 Happy birthday to you	71 Disney Song
18 Serenade - Haydn	45 Doraemon	72 To Love Again
19 Yankee doodle	46 Yesterday Once More	73 Tony Orlando Tie A Yellow Ribbon Round The Old Oak Tree
20 Waltz	47 Auld Lang Syne	74 Lunbada
21 Small step dance	48 Beethoven's Sonata	75 Trip to Brazil
22 Melody in the Rain	49 Clemente Little Sonata	76 A Comme Amour
23 Frosty	50 BOOMBOOMBOOM	77 Schubert Serenade
24 Old France	51 Cuban tango	78 The Nearness Of You
25 The Blue Danube	52 Wonder girl	79 Ding-dong from the joy of heaven
26 Brown kettle	53 Any man of mine	80 Greensleeves
27 Hawthorn	54 barbie girl

TECHNICAL SPECIFICATION / TECHNISCHE SPECIFICATION / TECHNISCHE DATEN / ESPECIFICACIONES TÉCNICAS / SPÉCIFICATIONS TECHNIQUES / SPECYFIKACJA TECHNICZNA

Number of keys : 49

Display : LED

Power Supply : 5V via USB

Weight :1,7kg

Dimensions : 643 x 198 x 65mm

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United

Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

Specifications and design are subject to change without prior notice.

www.tronios.com

Copyright © 2024 by Tronios The Netherlands
