USER MANUAL Cream CE7238 UFESA

White French-style espresso machine with two cups and a handle, no visible text or symbols on the device itself.

White cylindrical object with a small protrusion and a numbered label '7' pointing to its side (no other text or symbols visible)

4 ufesa 5 2 11 12

13 14

8 6

17

WE WOULD LIKE TO THANK YOU FOR CHOOSING UFESA. WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

Please read the instructions for use carefully prior to using the product. store these in a safe place for future reference.

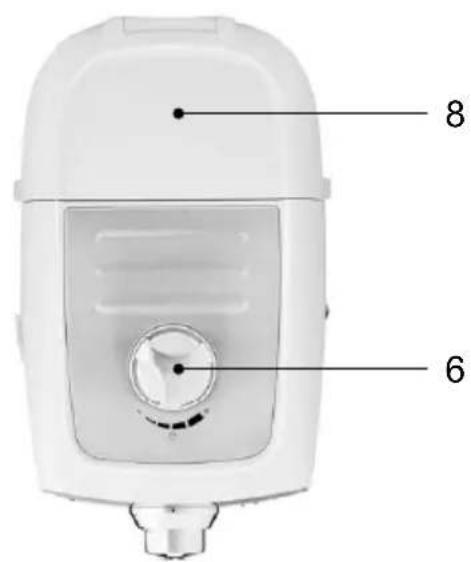

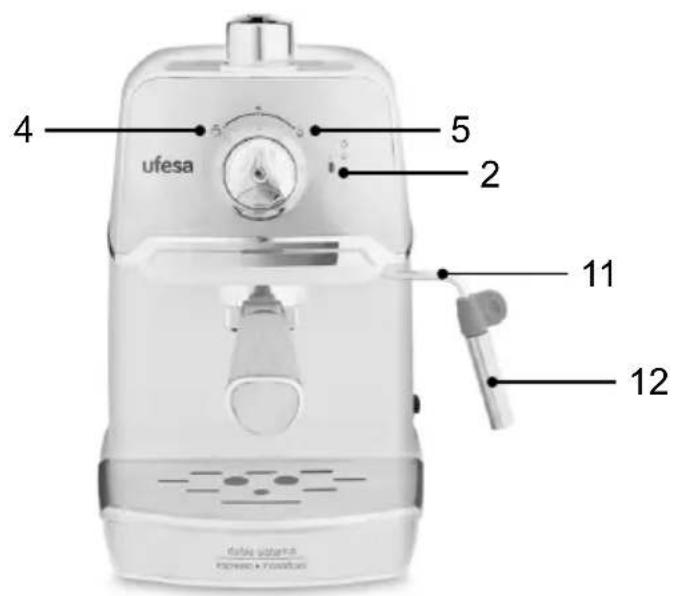

DESCRIPTION

1. Connection pilot light
2. Heating pilot light (for coffee and steam function)
3. Control knob
4. Coffee/hot water selection
5. Steam position
6. Steam knob
7. Water tank
8. Water tank cover
9. Removable shelf
10. Drip tray
11. Steam wand
12. Frothing nozzle
13. Press bar (press Steel mesh with it when pour Coffee residue to avoid its slipping out)
14. Funnel handle
15. Metal funnel
16. Stainless Steel mesh
17. Measuring spoon and tamper
18. On/off button

SAFETY INSTRUCTIONS

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience

EN

and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

This appliance is intended to be used in household. It is not intended to be use in applications such as:

-staff kitchen areas in shops, offices and other working environments;

-farm houses;

-by clients in hotels, motels and other residential type environments;

-bed and breakfast type environments.

Proceed according to maintenance and cleaning section of this manual for cleaning.

Never immerse the appliance in water or any other liquid.

Appliance is only to be used with the stand provided

During brewing and after use due to residual heat some parts of the machine are hot.

Warning: potential injury from misuse!

IMPORTANT WARNINGS

Any incorrect use or improper handling of the product shall render the warranty null and void.

Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label.

The mains connection cable must not be tangled or wrapped around the product during use.

Do not use the device, or connect and disconnect to the supply mains with the hands and / or feet wet.

Do not pull on the connection cord in order to unplug it or use it as a handle.

Never use your coffee machine without water in it

Unplug the product immediately from the mains in the event of any breakdown or damage and contact an official technical support service. In order to prevent any risk of danger, do not open the device.

Only qualified technical personnel from the brand's Official technical support service may carry out repairs or procedures on the device.

B&B Trends, S.L. disclaims all liability for damages that may occur to people, animals or objects, for the non-observance of these warnings.

INSTRUCTIONS FOR USE

Before use

Make sure that all the product's packaging has been removed.

Before making coffee for the first time, we recommend using the coffee maker twice with water only, in order to clean the system.

The appliance will be turned off after 25 minutes.

If you want continue using the appliance, please press the "on/off" button (18) to switch the appliance off, then press the "on/off" button (18) again to switch the appliance on, then you can use the appliance normally.

Filling with water

The water tank (7) must be filled with water before turning the appliance on.

Remove the detachable tank, open its cover (8) and fill the tank. Never fill beyond the level "MAX".

Close the cover.

Replace the tank into the appliance properly.

Pre heating

To make a cup of good hot espresso coffee, we recommend you preheating the appliance before making coffee, including the funnel, mesh and cup, so that the coffee flavor cannot be influenced by the cold parts.

Select the one cup or two cup mesh (16) and place it (without adding coffee) into the metal funnel (15).

Pull the press bar (16) backward and make sure that the funnel aligns with the groove in the water outlet. Then insert the funnel into the water outlet from the "Insert" position and fix it firmly by turning it counterclockwise until it is at the "lock" position (Fig.1).

Place a cup on the removable shelf (9).

Make sure that the control knob (3) is at the "OFF" position.

Connect the appliance to the power supply.

Press the on/off button (18), the connecting pilot light will be on.

Once the ready light is on, the warm-up cycle is completed.

Turn the control knob to the left to make the pump work.

Hot water will flow out through the funnel to the cup.

After a time, when you consider that the parts are already pre-heated, turn the control knob to the off position to stop the water flow.

Make Espresso Coffee

Add ground coffee to the steel mesh (16) with the measuring spoon (17). Then press the grounded coffee tightly with the tamper (17). A spoon of grounded coffee can make about a cup of top-grade coffee.

Pull the press bar (13) backwards and place the corresponding steel mesh (16) for one or two cups into the metal funnel (15).

Make sure that the funnel aligns with the groove in the water outlet. Insert the funnel into the water outlet from the "Insert" position and fix it firmly by turning it counterclockwise until it is at the "lock" position (Fig.1).

Place a cup on the removable shelf (9).

Turn the control knob to the coffee/hot water positon to prepare coffee as needed. To stop the coffee flow, turn the control knob to the off position.

Warning: Do not leave the coffee maker unattended during making coffee while operating.

After finishing making the coffee, take the metal funnel out by turning it clockwise, and then pour the coffee residue out with the steel mesh pressed by the press bar. Let them cool down completely, then rinse under running water.

EN

Frothing milk / Making Cappuccino

You get a cup of cappuccino when you top up a cup of espresso with frothing milk.

Prepare espresso first with according to the "MAKE ESPRESSO COFFEE" section.

Fill a jug with about 100 grams of milk for each cappuccino to be prepared. You are recommended to use whole milk at refrigerator or room temperature (not hot!).

Note: it is recommended that the diameter of the jug is not less than 70 ± 5 mm, and bear in mind that the milk increases in volume by 2 times, make sure the height of jug is enough.

Turn the control knob to the right (steam position). Make sure the steam knob is at the min position.

Wait until the heating light is at the on position.

Insert the frothing nozzle into the milk about two centimeters, froth milk in the way moving vessel round from up to down.

Turn the steam knob (6) slowly counterclockwise. Steam will come out from the frothing nozzle (12).

Note: Never turn the steam knob rapidly, as the steam will accumulate rapidly in short time which may increase the potential of the risk of spillage.

When the frothing operation is finished, turn the steam knob to the min position.

Note: Clean the frothing nozzle (12) with a wet sponge immediately after steam stops generating, but care not to hurt!

Pour the frothed milk into the espresso prepared. Now the cappuccino is ready. Sweeten to taste and if desired, sprinkle the froth with a little cocoa powder.

Press the "on/off" button (18) to switch the appliance off.

Note: we recommend to allow the coffee maker to cool down at least for 5 min before making coffee again. Otherwise burnt odor may occur in your espresso coffee.

Producing hot water

With this function, you can pre-heat your coffee cup to ensure that the temperature of the coffee will not decrease. So as to improve the coffee flavor.

Clean your coffee cup. After drinking coffee, you can directly make hot water with this coffee maker to clean the cups. This makes it more simple and convenient to clean the cups.

Press the on/off button.

Make sure that the steam and the control button are respectively on the minimum and Off position.

The pilot light will be illuminated and wait until the heating pilot light change color.

Turn the steam knob slowly anti-clockwise and then turn the on/off control knob to the left (coffee position) and hot water will flow out from the steam wand.

When the required quantity is reached, turn the control knob to the "OFF" position.

Press the "on/off" button to switch the appliance off.

Note: At first the hot water will scatter from the steam wand. May let the steam wand outlet close to the coffee cup wall. Thus at this moment, you need to pay attention to the protection of hot water splash burns skin.

Producing steam to heat liquids

Make sure that the control knob is at the "OFF" position.

Press the "on/off" button to switch the appliance on.

Wait until the heating light will change color.

Dip the wand into the liquid to be heated.

Turn the steam knob slowly counterclockwise. Steam will come out from the wand.

When the desired temperature is reached, turn the steam knob to the min position.

Press the "on/off" button to switch the appliance off.

MAINTENANCE AND CLEANING

Do not forget to remove the plug from the socket before cleaning the appliance.

Wipe outside with soft dry cloth when coffee machine is wet, never use metal polish.

The removable items should be washed in hot soapy water. Rinse them before fixing.

Detach the metal funnel through turn it anticlockwise, get rid of coffee residue inside, then you can clean it with cleanser, but at last you must rinse with clear water.

Never use a dishwasher to clean any parts from the machine.

Put the coffee maker in a dry and not very hot place.

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection centre closest to your home.
