USER MANUAL Bergamo UFESA

Exterior view of a modern coffee machine (UFESA) with digital display and control buttons, no visible text or symbols on the device itself.

Labeled diagram of a coffee maker with numbered parts for identification and assembly reference.

Technical diagram showing labeled components of a mechanical device with numbered parts 14, 15, 16, and 17.

18 19 20

ESPAÑOL

AGRADECEMOS QUE HAYA DEPOSITADO SU CONFIANZA EN UFESA Y DESEAMOS QUE EL FUNCIONAMIENTO DEL PRODUCTO LE SATISFAGA PLENAMENTE

ATENCIÓN

Technical line drawing of a mechanical device with cylindrical components and a top panel (no text or symbols)

Technical diagram of a device control panel with labeled buttons and a close-up view showing internal components.

Ecrã dos indicadores Manípulo de vapor

Technical line drawing of a mechanical device with cylindrical components and mounting features (no text or symbols)

WE WOULD LIKE TO THANKS YOUR FOR CHOOSING UFESA, WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

DESCRIPTION

1. Water tank cover
2. Water tank
3. Steam knob
4. Main body
5. Steam pipe and nozzle
6. Steam pipe handle
7. Warm cup board
8. Manometer
9. Single-cup coffee switch / indicator
10. Steam warm-up switch / indicator
11. ON/OFF switch / indicator
12. Double-cup coffee switch / indicator
13. Display screen

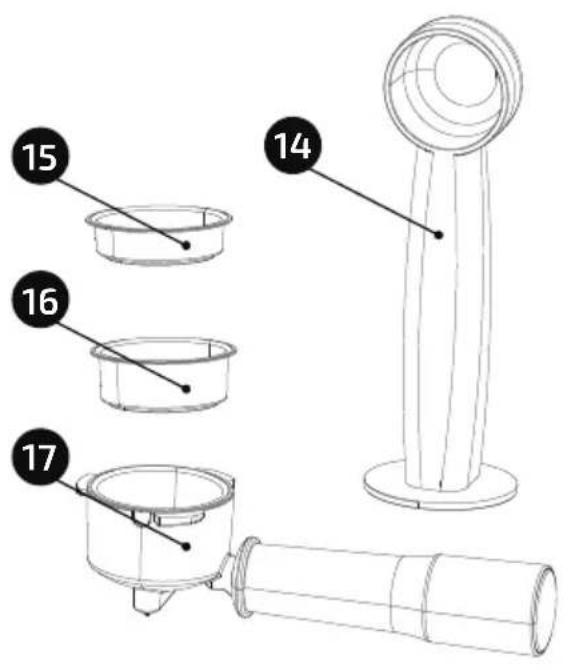

14. Coffee spoon
15. Single-cup coffee filter
16. Double-cup coffee filter
17. Filter Holder

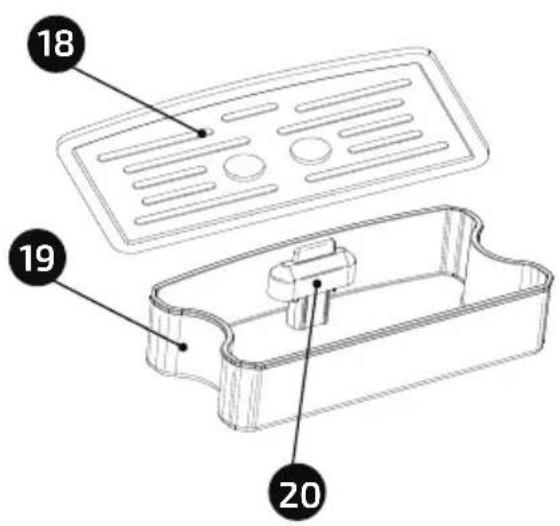

18. Drip tray cover
19. Drip tray
20. Buoy

SAFETY INSTRUCTIONS

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This appliance can be used by children aged from 8 years and above if they have been given supervision

or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

This appliance is intended to be used in household. It is not intended to be used in applications such as:

- Staff kitchen areas in shops, offices and other working environments.

- Farm houses.

- By clients in hotels, motels and other residential type environments.

- Bed and breakfast type environments.

Proceed according to maintenance and cleaning section of this manual for cleaning.

Never immerse the appliance in water or any other liquid.

During brewing and after use due to residual heat some parts of the machine are hot.

Warning: potential injury from misuse!

This device is designed for use at a maximum altitude up to 2000m above sea level.

IMPORTANT WARNINGS

Any incorrect use or improper handling of the product shall render the warranty null and void.

Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label.

The mains connection cable must not be tangled or wrapped around the product during use. Do not use the device, or connect and disconnect to the supply mains with the hands and / or feet wet.

Do not pull on the connection cord in order to unplug it or use it as a handle.

Never use your coffee machine without water in it.

Unplug the product immediately from the mains in the event of any breakdown or damage and contact an official technical support service.

In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official technical support service may carry out repairs or procedures on the device.

B&B TRENDS SL. disclaims all liability for damages that may occur to people, animals or objects, for the non-observance of these warnings.

INSTRUCTIONS FOR USE

Before use:

Make sure that all the product's packaging has been removed.

IMPORTANT: Remove the red silicone from the water tank before using the coffee maker:

Water tank Red silicone

Before making coffee for the first time, we recommend using the coffee maker twice with water only, in order to clean the system.

Filling with water:

The water tank (2) must be filled with water before turning the appliance on.

Remove the detachable tank, open its cover (1) and fill the tank. Never fill beyond the level "MAX".

Close the cover.

Replace the tank into the appliance properly.

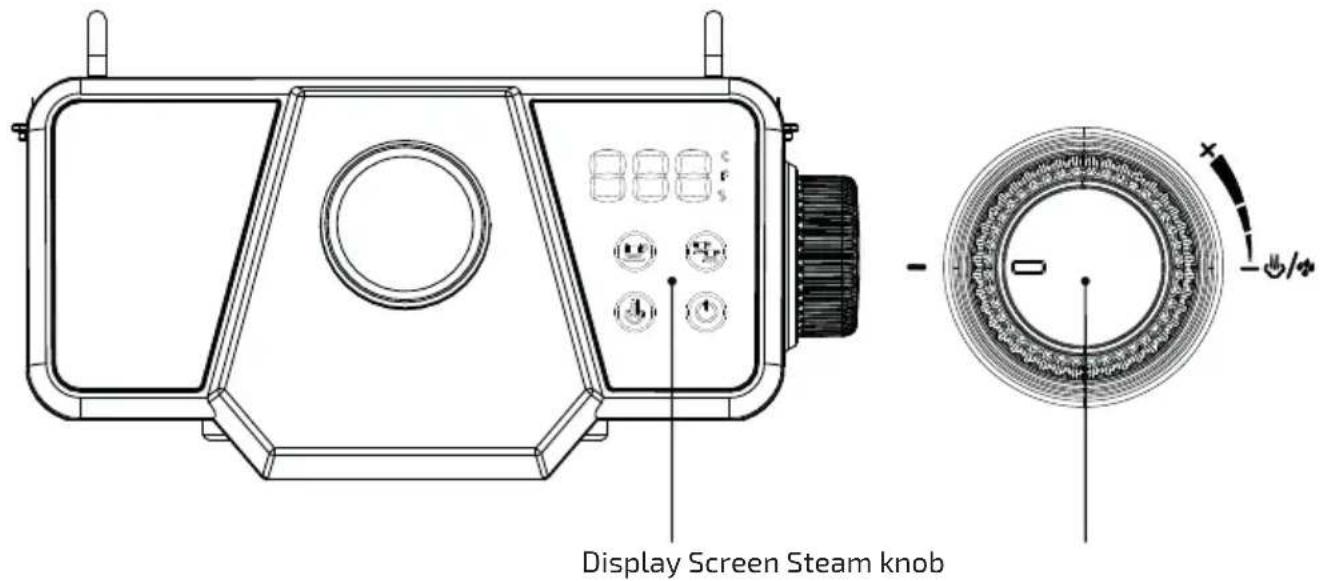

DISPLAY SCREEN AND STEAM KNOB

Display Screen Steam knob

Function display and description

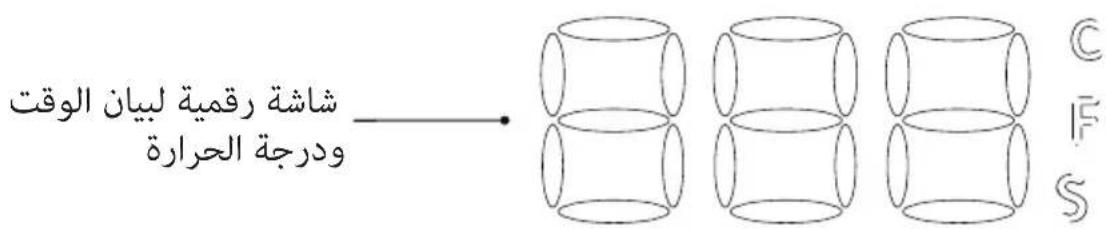

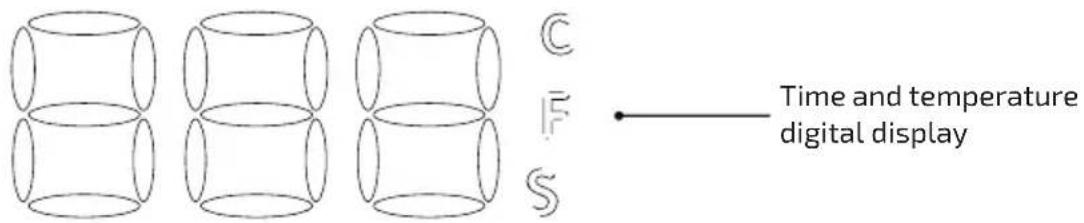

C F S Time and temperature digital display

1. Coffee machine preheating or steam preheating process: - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

2. 92^ : After the coffee machine has been warmed up, the status is displayed in Celsius.

3. 130^ : After the steam preheating is completed, the status is displayed in Celsius.
4. ☐ I_s : The coffee machine enters the working state, starts to extract coffee or make steam and time.

Note: To change from Celsius to Fahrenheit press and hold the one and two cup buttons for 3 seconds

Display warnings:

1. E-1 The steam knob is turned on: When the power is turned on, the steam preheat indicator light keeps flashing quickly, which means that the steam knob is not turned off. Solution: Turn the steam knob to the off position.
2. E-2 The temperature is too high: Press the coffee function key immediately after the steam is made, and an error state will appear. The solution is to wait a moment for the temperature to drop naturally or turn on the steam switch to boil the water to cool down.
3. E-3 The temperature sensor is short-circuited or open, the temperature fuse is open,

or the connection between the power board and the display board is poor. Solution: Please contact the special service center.

Make espresso coffee

1. Plug in and press the ON/OFF switch ⏻, the single-cup coffee indicator, double-cup coffee indicator flashes in red, the steam switch indicator is steady red, and the machine starts to warm up. After preheating, the single-cup coffee indicator and double-cup coffee indicator are always light on (white), the steam switch indicator light is always light on (red).

2. Remove the funnel (17) by turning it in clockwise.

3. Add ground coffee to the steel mesh (15) with the measuring spoon (14). Then press the grounded coffee tightly with the tamper.

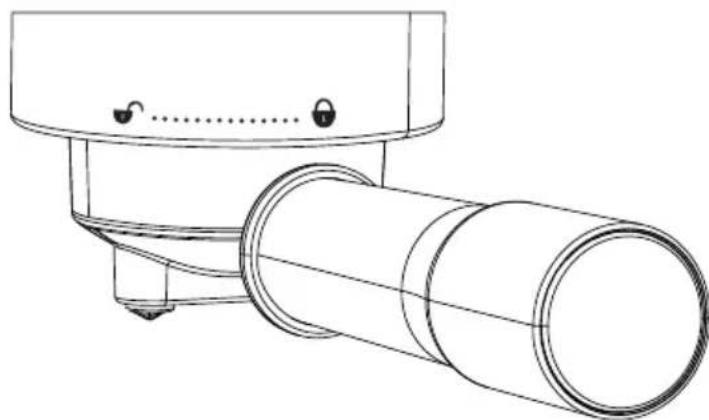

4. Rotate the high-pressure funnel assembly counterclockwise from position to position (must be tightened). Put cup(s) under coffee outlet.

Technical line drawing of a mechanical device with cylindrical components and mounting bracket (no text or symbols)

1. Touch the one cup coffee switch, the machine starts pumping water, and coffee flows out of the coffee nozzle. The coffee machine stops automatically or you can press the button again to stop working during the extraction process. During the extraction process, / flashes(white). The buzzer beeps when the extraction is over, and the indicator light turns to steady on white.

2. After the coffee is made, take out the high-pressure funnel assembly by rotating it clockwise, clean the coffee grounds in the filter in time, and rinse it with hot water.

3. When making a double cup of coffee, use the double-cup coffee filter (16), touch the double-cup coffee switch and the other steps are the same as single-cup coffee making.

Frothing milk/ making cappuccino

The steam knob:

The steam knob is closed when the knob is pointing —. There are two working states when the steam knob is turned on. When the machine is in coffee mode, the knob is turned on and the steam pipe gives hot water. When the machine is in steam mode, turn the knob, steam tube steam out.

Note: when the power is turned on, the steam preheating indicator keeps flashing fast (E-1 on the screen), which means that the steam knob is not closed, and you can turn the steam knob to the closed position.

1. Prepare espresso first with a large enough cup according to part "MAKE ESPRESSO COFFEE".

2. Use whole, fresh cold milk 🎨 out of the fridge (8°C-10°C), and pour 1/3 milk in cup.

3. Touch the steam button to start the steam preheating, the single and double cup coffee indicator light is steady red, and the steam indicator light starts to flash red. After the steam light is steady white, the steam preheating is completed;
4. Put a stainless steel cup under steam nozzle. Let the steam pipe nozzle float below the surface of the milk.
5. Open steam knob, rotate it to the maximum position to frothing milk.
6. When desired milk foam reached, then turn off knob, steam is stopped, remove cup and pour the frothed milk into prepared espresso, now cappuccino is ready.

Note: After the steam stops spraying, please clean the steam pipe assembly immediately and discharge the milk in the pipe to prevent the milk froth from scaling on the pipe wall. During the operation, due to the high surface temperature of the steam pipe, be sure not to be scalded.

Making hot water

1. Put a container under hot water outlet.
2. When the single and double cup coffee indicator light is steady white, turn on the steam knob switch, hot water flows out of the steam nozzle, and the single cup coffee indicator and Double cup Coffee Indicator flashes during the process of making hot water;
3. When the hot water reaches the required amount, turn the "steam knob" clockwise to the off position, and the hot water stops flowing out.

Reminder: The hot water function can also be used to quickly cool down the coffee machine.

Heating liquid (steam function)

1. Use a stainless steel cup, pour cold liquid to 1/2 cup.
2. Touch the steam switch to start steam preheating. The indicator light for single and double coffee cups is steady red, and the steam indicator light starts to flash red. After the steam light is steady white, the preheating-steam is completed.
3. Put a cup under steam nozzle, let steam nozzle insert into the liquid.
4. Turn on steam knob, release steam.
5. Turn off the steam knob when desired temperature is reached, now steam is stopped.

Note: Clean steam nozzle immediately after use, to prevent milk scaling. Caution high temperature of hot water outlet when in use.

DECALCIFICATION

1. The machine builds up lime scale deposits over time, and you need descale the machine every 2-3 months.
2. Pour water and descale liquid in water tank up to MAX capacity (water and descale ratio is 4:1) Please use "household descale", or you can use the citric acid replace descale (water and citric acid ratio is 100:3).

3. Lock the filter holder (no coffee powder) into the group as explained in "Make espresso coffe".

4. Touch coffee button, make about 150ml coffee(or Make 3 cups of coffee). Then touch Steam warm-up switch, it starts preheating, open steam knob after steam indicator is with the light on. Release steam about 2min and turn off the knob. Wait 15 minutes for the machine to cool down before proceeding to step 5.

5. Repeat the step 4 for 3 times.

MAINTENANCE AND CLEANING

Do not forget to remove the plug from the socket before cleaning the appliance.

Wipe outside with soft dry cloth when coffee machine is wet, never use metal polish.

The removable items should be washed in hot soapy water. Rinse them before fixing.

Detach the metal funnel through turn it anticlockwise, get rid of coffee residue inside, then you can clean it with cleanser, but at last you must rinse with clear water.

Never use a dishwasher to clean any parts from the machine.

Put the coffee maker in a dry and not very hot place.

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection centre closest to your home.

FRANÇAIS

NOUS VOUS REMERCIONS D'AVOIR CHOISI UFESA, NOUS SOUHAITONS QUE CE PRODUIT VOUS APPORTE SATISFACTION ET VOUS FASSE PLAISIR.

AVERTISSEMENT

VEUILLEZ LIRE ATTENTIVEMENT LE MODE D'EMPLOI AVANT D'UTILISER LE PRODUIT. VEUILLEZ CONSERVER CE DOCUMENT DANS UN ENDROIT SÛR POUR UN USAGE ULTÉRIEUR.

DESCRIPTION

Technical line drawing of a mechanical device with cylindrical components and mounting features (no text or symbols)

ÉLIMINATION DU PRODUIT

Technical diagram of a device control panel with labeled buttons and a close-up view showing internal components.

Schermo display Manapola del vapore

Technical line drawing of a mechanical device with cylindrical components and mounting features (no text or symbols)

Technical line drawing of a device with control panel and circular dial (no text or symbols)

Technical line drawing of a mechanical device with cylindrical components and mounting features (no text or symbols)

Technical line drawing of a device front panel and its internal circular component with adjustment knob (no text or symbols)

Technical line drawing of a mechanical device with cylindrical components and mounting features (no text or symbols)

- تنظف #: Manufacturer Quarterly for the United States, Canada. تطSmart Office, Canada.

Technical line drawing of a mechanical device with cylindrical components and mounting features (no text or symbols)

Circular mechanical component with concentric rings and a central axis, no visible text or symbols

Technical line drawing of a mechanical device with control panel and buttons (no text or symbols)

زر البخارشاه العرض

عرض وشرح الوظيفة

B&B TRENDS, SL. guarantees compliance of this product, for the use for which it is, during the period established by the legislation in force in the country of sale. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfil or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by B & B TRENDS, SL. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a B&B TRENDS, SL., authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by B&B TRENDS, SL., or the careless or improper use of the same shall render this warranty null and void.

You must keep the purchase invoice, receipt or delivery docket in order to exercise your warranty rights.

For technical service and after-sales care outside the Spanish territory, please submit your query to the point of sale where you purchased the item.

BON DE GARANTIE

Check out your nearest service station at https://sat.ufesa.com/
